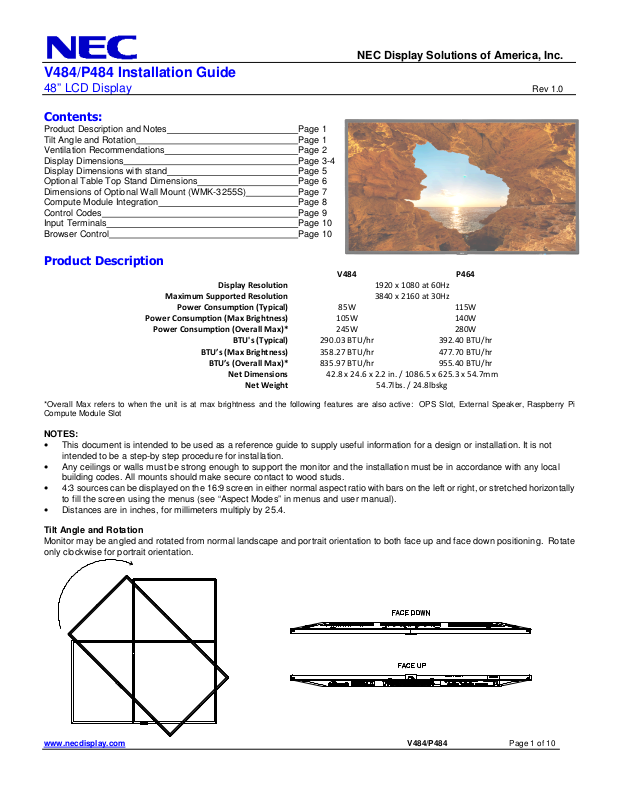

NEC P484 User Manual
NEC Display Solutions of America, Inc.
V484/P484 Installation Guide
48” LCD Display
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation Page 1
Ventilation Recommendations Page 2
Display Dimensions Page 3-4

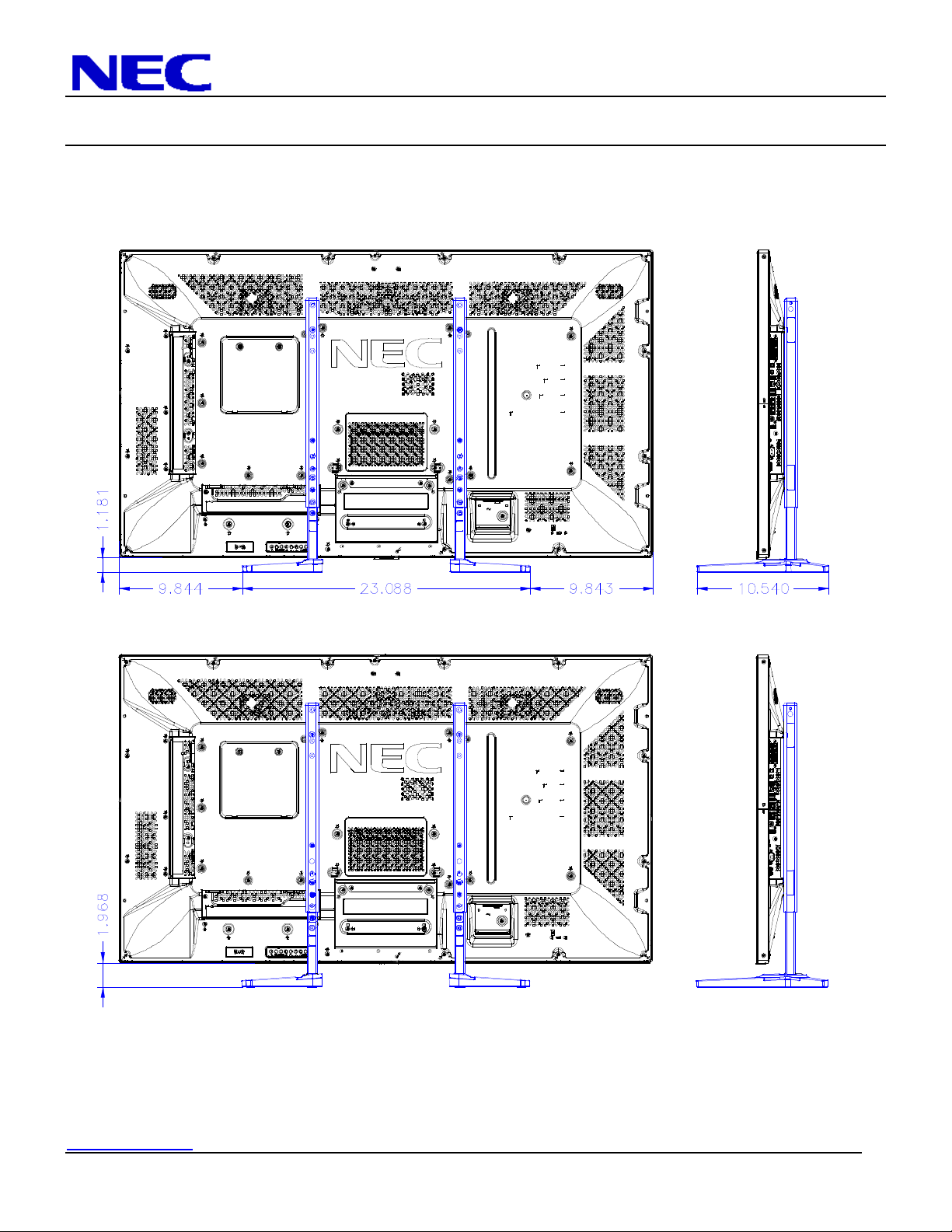

Display Dimensions with stand Page 5

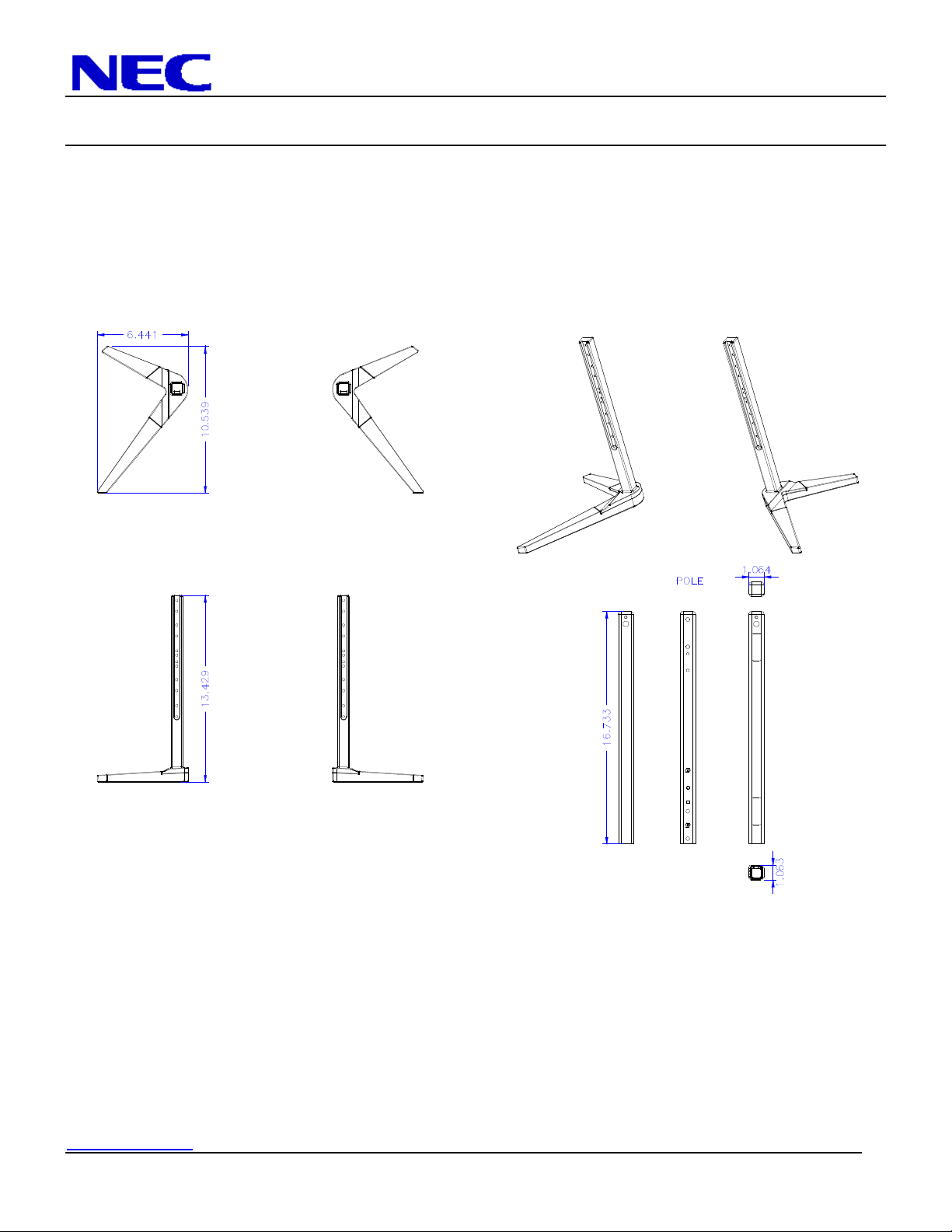

Optional Table Top Stand Dimensions Page 6

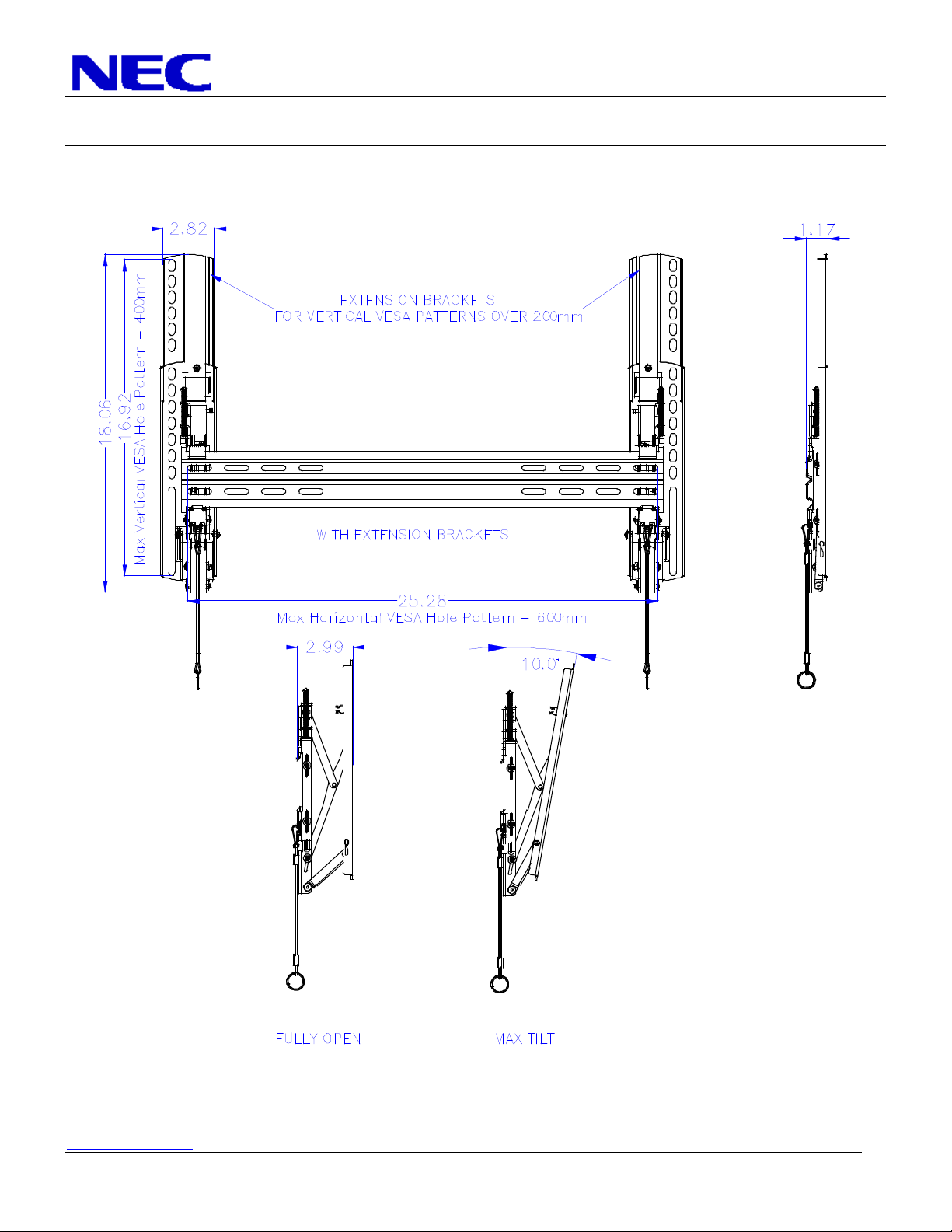

Dimensions of Optional Wall Mount (WMK-3255S) Page 7

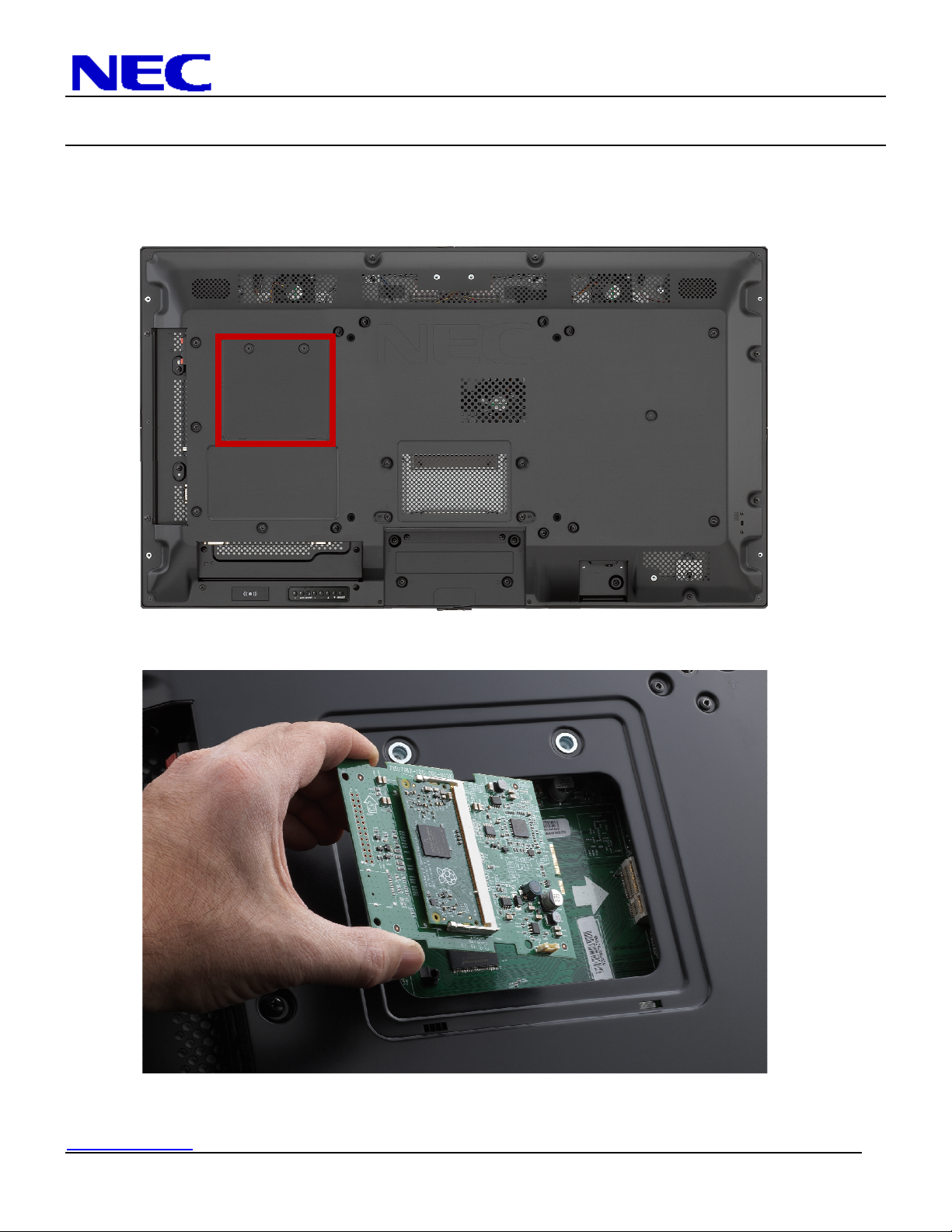

Compute Module Integration Page 8

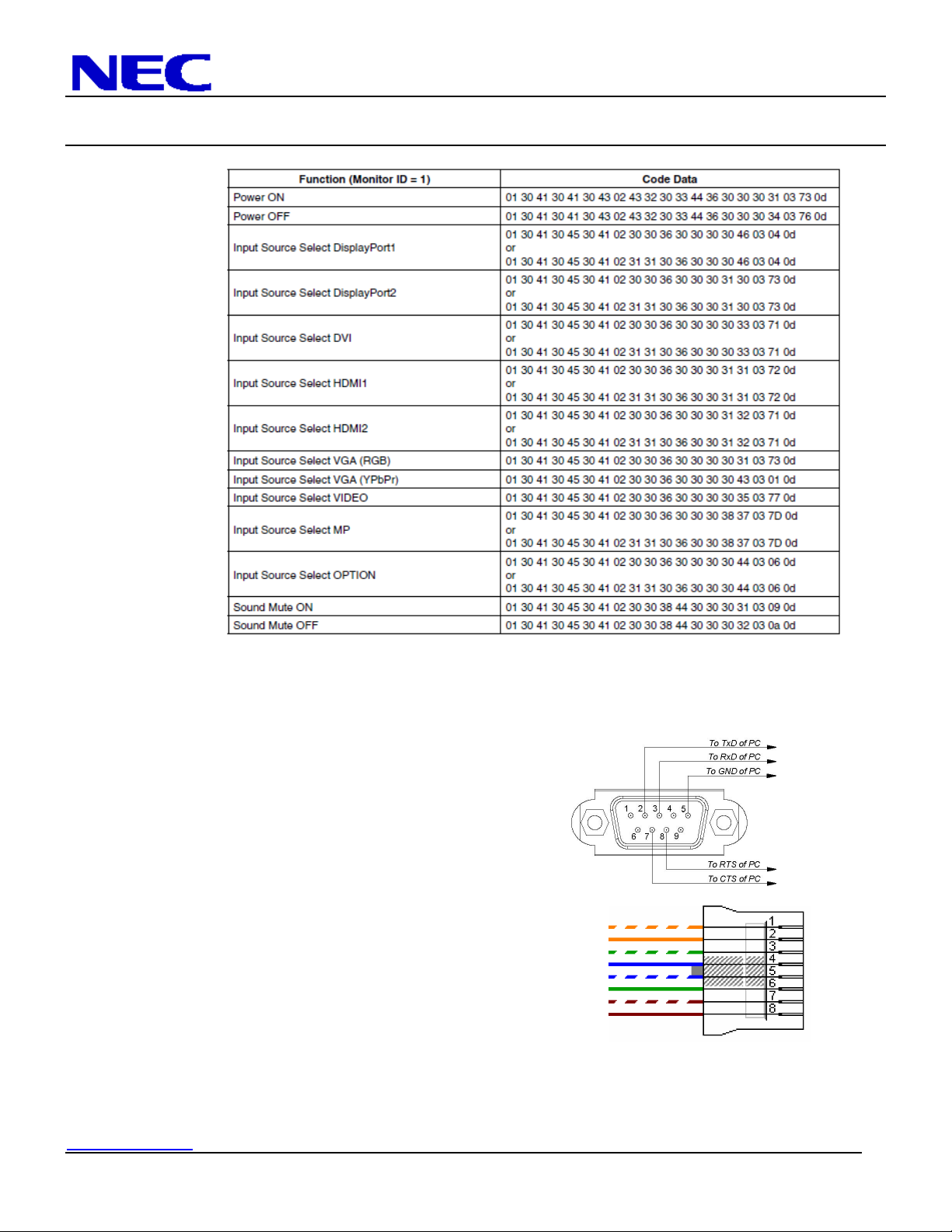

Control Codes Page 9

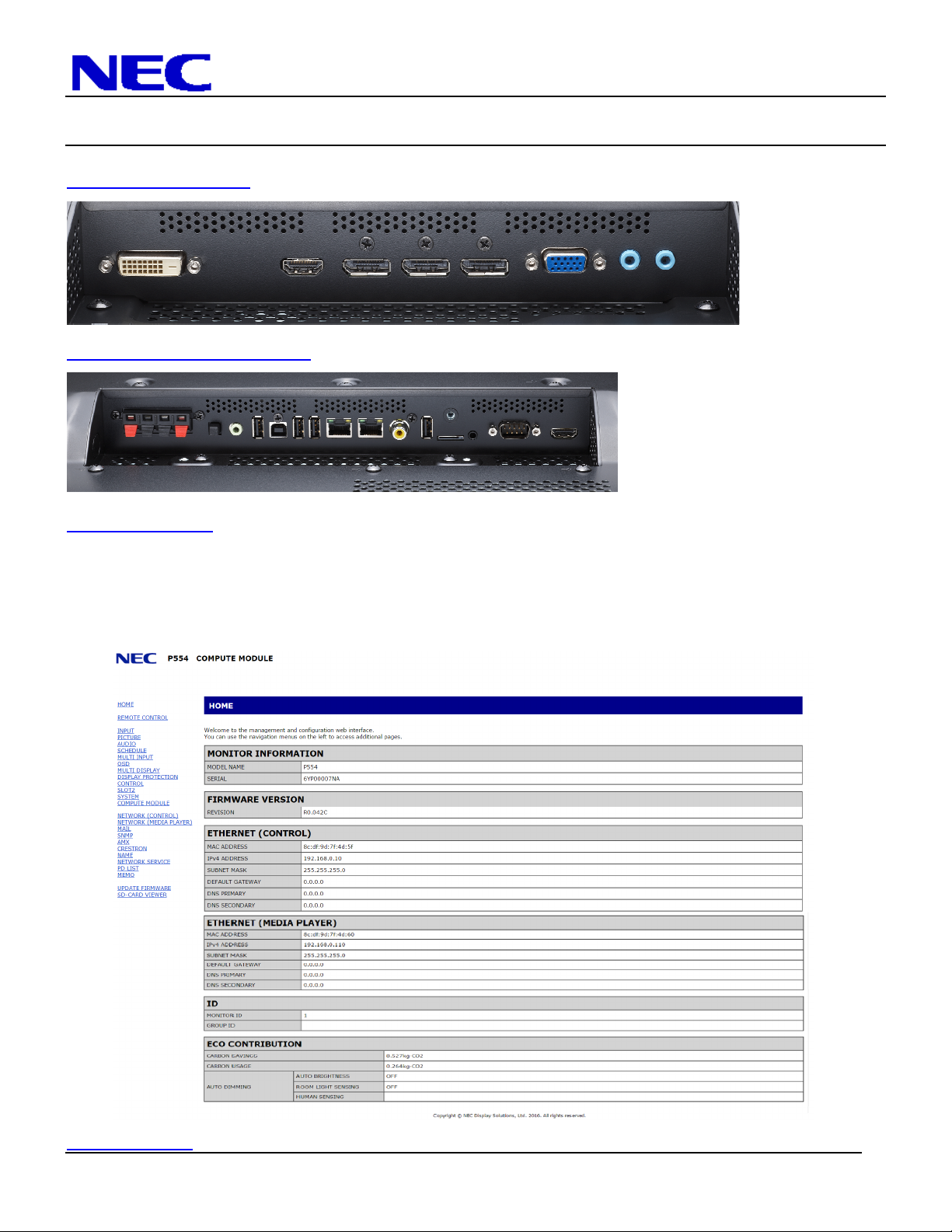

Input Terminals Page 10
Browser Control Page 10
Product Description
Power Consumption (Max Brightness) 105W 140W
Power Consumption (Overall Max)* 245W 280W
*Overall Max refers to when the unit is at max brightness and the following features are also active: OPS Slot, External Speaker, Raspberry Pi
Compute Module Slot
NOTES:
• This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
• Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
• 4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see “Aspect Modes” in menus and user manual).
• Distances are in inches, for millimeters multiply by 25.4.
Tilt Angle and Rotation
Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. Rotate
only clockwise for portrait orientation.
www.necdisplay.com V484/P484 Page 1 of 10
V484 P464
Display Resolution 1920 x 1080 at 60Hz
Maximum Supported Resolution 3840 x 2160 at 30Hz
Power Consumption (Typical) 85W 115W
BTU's (Typical) 290.03 BTU/hr 392.40 BTU/hr
BTU’s (Max Brightness) 358.27 BTU/hr 477.70 BTU/hr
BTU’s (Overall Max)* 835.97 BTU/hr 955.40 BTU/hr
Net Dimensions 42.8 x 24.6 x 2.2 in. / 1086.5 x 625.3 x 54.7mm
Net Weight 54.7lbs. / 24.8lbskg
Rev 1.0
NEC Display Solutions of America, Inc.
V484/P484 Installation Guide
48” LCD Display
Ventilation Recommendations:
Dimensions below are recommended for proper ventilation when the unit is in a recessed area.
NOTE:
The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other
means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.
Rev 1.0
www.necdisplay.com V484/P484 Page 2 of 10
NEC Display Solutions of America, Inc.
V484/P484 Installation Guide
48” LCD Display

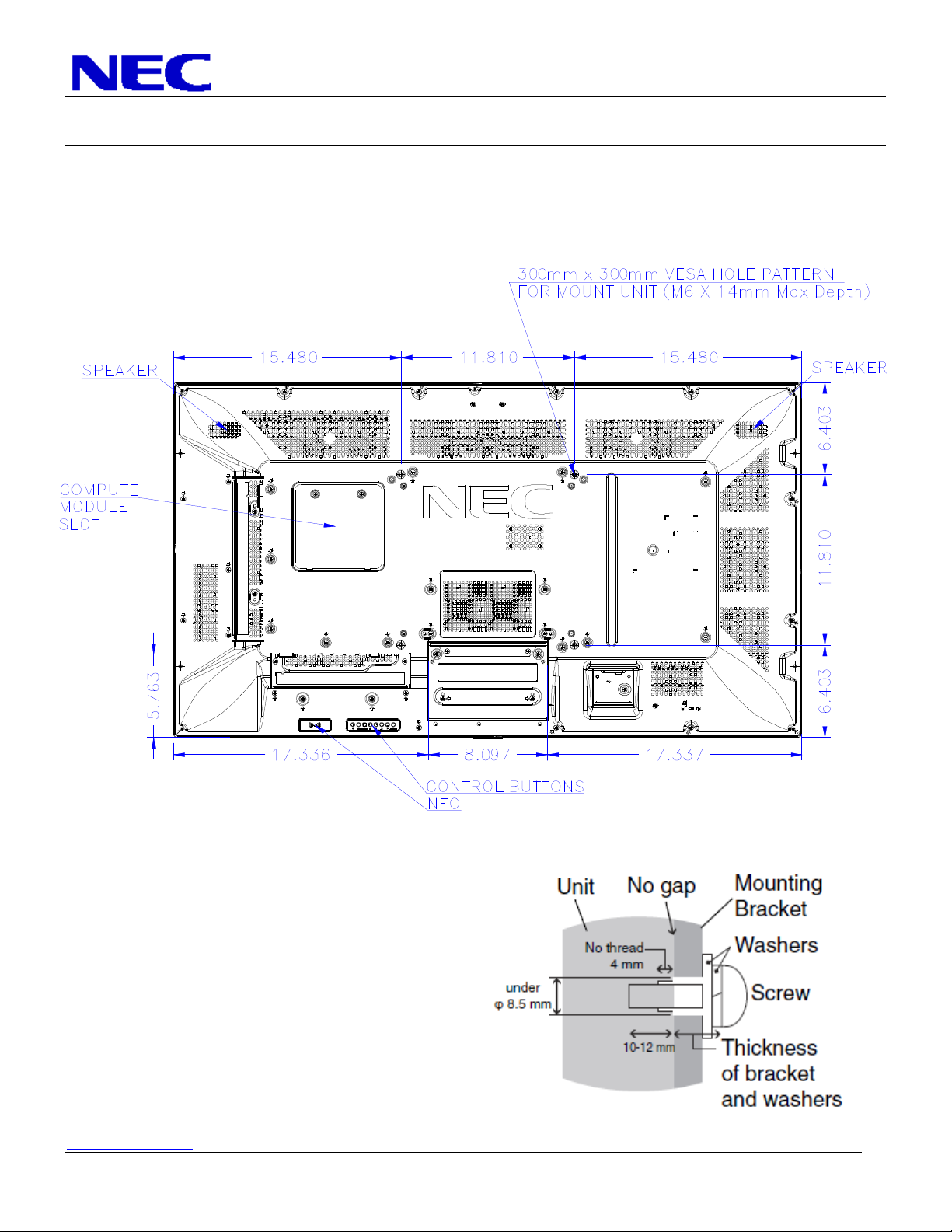

Display dimensions:
www.necdisplay.com V484/P484 Page 3 of 10
Rev 1.0
