NEC E464 Installation and Setup Guide

NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.1
Contents
Product Description and Notes Page 1 Ventilation Recommendations Display Dimensions
With Stand Page 3
Front, Top, Right, Left, Bottom
Rear Optional Wall Mount Dimensions (WMK-3257) Input Panels Control Codes
Product Description
Type: LCD Display Screen Surface: Anti-Reflective Resolution: 1920 x 1080 Dimensions without stand: 41.18”(W) x 24.52”(H) x 2.55”(D) Aspect Ratio: 16:9 Dimensions with stand: 37.68”(W) x 26.69”(H) x 8.43”(D) FCC: Class B Weight without stand: 26.7 lbs Power Consumption: 100W (typ) Weight with stand: 29.1 lbs BTU’s: 341.21 BTU/hour
NOTES:
This document is intended to be use d as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
This unit is built to sustain Landscape  Distances are in inches, for millimeters multiply by 25.4.  Distances may vary ±5%.
orientation only.
Page 2
Page 4 Page 5 Page 6 Page 7 Page 8
www.necdisplay.com E464 Page 1 of 8
NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.1
Ventilation Recommendations
Dimensions below are minimum recommended for proper ventilation.
NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be
covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design revie w and recommendations.
www.necdisplay.com E464 Page 2 of 8
NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.1
Display dimensions with stand attached
www.necdisplay.com E464 Page 3 of 8
NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.1
Display dimensions
www.necdisplay.com E464 Page 4 of 8
NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.1
Display dimensions
18mm
www.necdisplay.com E464 Page 5 of 8
NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.1
Dimensions with optional Wall Mount Kit (WMK-3257)
www.necdisplay.com E464 Page 6 of 8
NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.1

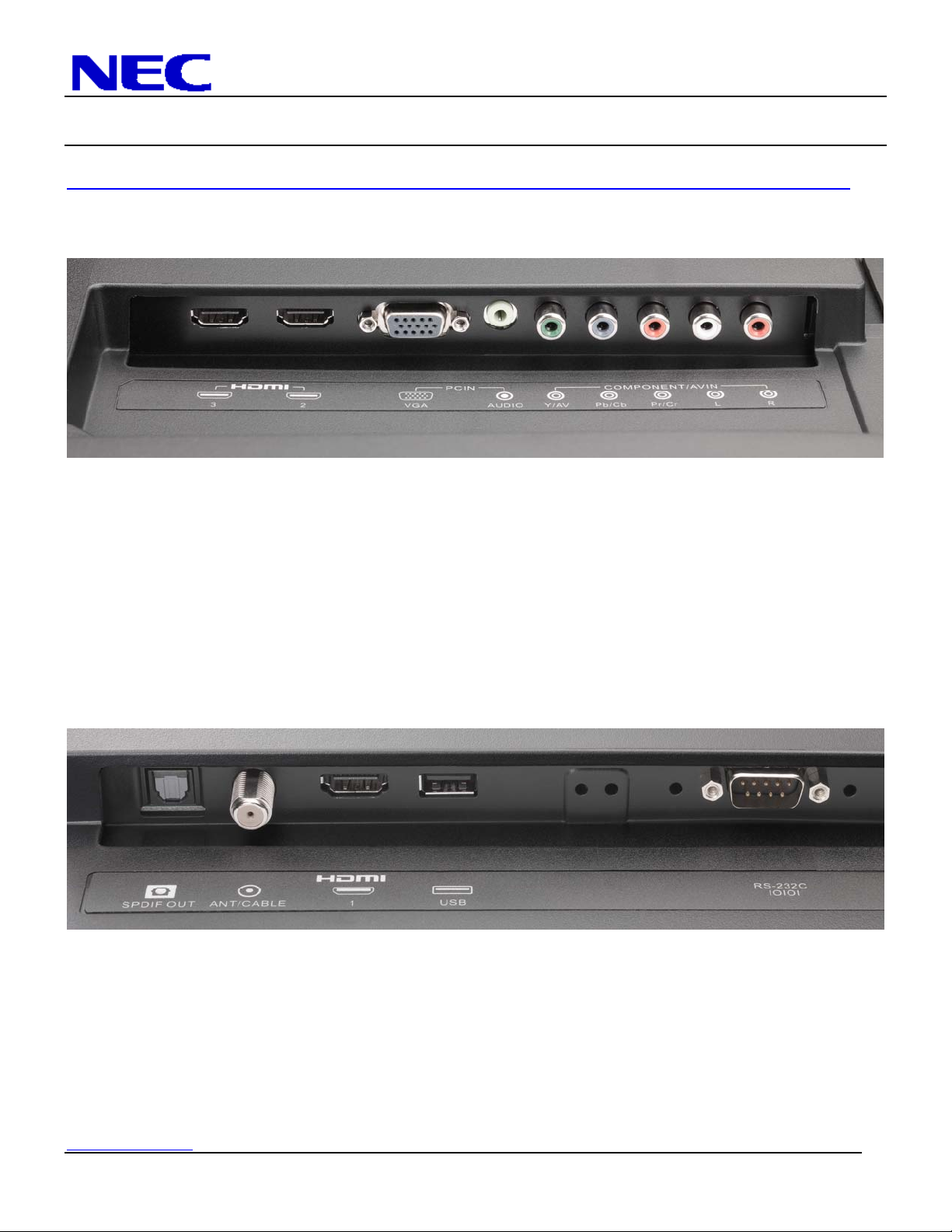

Input Panels
Back
:
Side (Rotated):
www.necdisplay.com E464 Page 7 of 8
NEC Display Solutions of America, Inc.
E464 Installation Guide
46” LCD Display Rev 1.0
Control Codes
Function Code Data
POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D
INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D HDMI1 01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 31 03 72 0D HDMI2 01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 32 03 71 0D HDMI3_________ 01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 33 03 70 0D Video (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D TV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 41 03 03 0D
Video (Component) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D
AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D
OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D
KEY LOCK All Buttons 01 30 41 30 45 30 41 02 30 30 46 42 30 30 30 32 03 72 0D Control Buttons Only 01 30 41 30 45 30 41 02 30 30 46 42 30 30 30 31 03 71 0D Unlock 01 30 41 30 45 30 41 02 30 30 46 42 30 30 30 30 03 70 0D VGA AUTO SETUP 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D TV CHANNEL Up 01 30 41 30 45 30 41 02 30 30 38 42 30 30 30 31 03 0F 0D Down 01 30 41 30 45 30 41 02 30 30 38 42 30 30 30 32 03 0C 0D Analog Closed Caption Off 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 31 03 78 0D CC1 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 32 03 7B 0D CC2 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 33 03 7A 0D CC3 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 34 03 7D 0D CC4 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 35 03 7C 0D TT1 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 36 03 7F 0D TT2 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 37 03 7E 0D TT3 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 38 03 71 0D TT4 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 39 03 70 0D Digital Closed Caption Off 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 31 03 04 0D Srv1 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 32 03 07 0D Srv2 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 33 03 06 0D Srv3 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 34 03 01 0D Srv4 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 35 03 00 0D Srv5 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 36 03 03 0D Srv6 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 37 03 02 0D
NOTE: The above list contains most of the compatible external communication codes for the E464.
Cable Connection
PC Control Connector (D-Sub 9P) Communication Interface
NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection. These connections are not required. The only connections required are pins 2 (T xD), 3 (RxD) and 5 (GND).
NOTE: Communication for the E464 is not bidirectional. The display will only accept commands and will not send feedback.
www.necdisplay.com E464 Page 8 of 8
