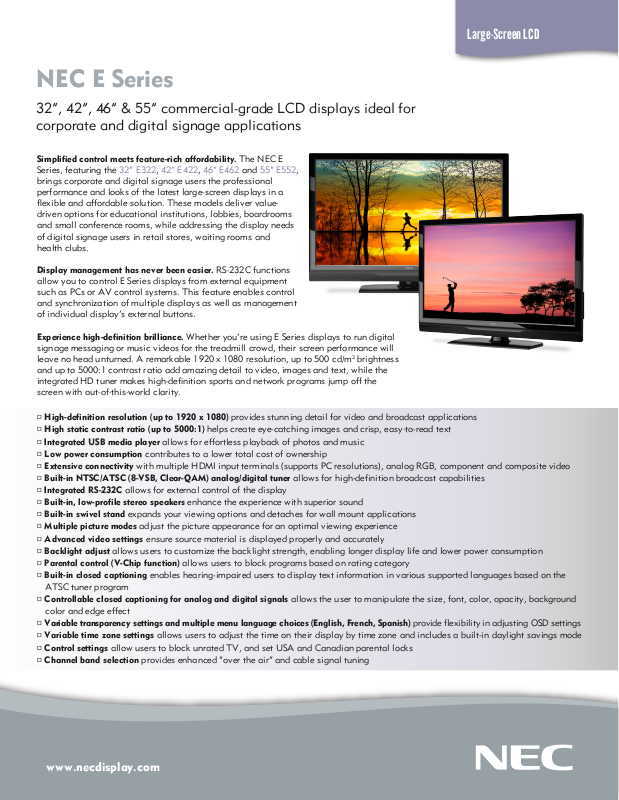

NEC E462, E552 Brochure
NEC E Series
32”, 42”, 46” & 55” commercial-grade LCD displays ideal for
corporate and digital signage applications
Simplified control meets feature-rich affordability. The NEC E
Series, featuring the 32” E322, 42” E422, 46” E462 and 55” E552,
brings corporate and digital signage users the professional
performance and looks of the latest large-screen displays in a
flexible and affordable solution. These models deliver valuedriven options for educational institutions, lobbies, boardrooms
and small conference rooms, while addressing the display needs
of digital signage users in retail stores, waiting rooms and
health clubs.
Display management has never been easier. RS-232C functions
allow you to control E Series displays from external equipment
such as PCs or AV control systems. This feature enables control
and synchronization of multiple displays as well as management
of individual display’s external buttons.
Large-Screen LCD
Experience high-definition brilliance. Whether you’re using E Series displays to run digital
signage messaging or music videos for the treadmill crowd, their screen performance will
leave no head unturned. A remarkable 1920 x 1080 resolution, up to 500 cd/m2 brightness
and up to 5000:1 contrast ratio add amazing detail to video, images and text, while the
integrated HD tuner makes high-definition sports and network programs jump off the
screen with out-of-this-world clarity.
¤ High-definition resolution (up to 1920 x 1080) provides stunning detail for video and broadcast applications
¤ High static contrast ratio (up to 5000:1) helps create eye-catching images and crisp, easy-to-read text
¤ Integrated USB media player allows for effortless playback of photos and music
¤ Low power consumption contributes to a lower total cost of ownership
¤ Extensive connectivity with multiple HDMI input terminals (supports PC resolutions), analog RGB, component and composite video
¤ Built-in NTSC/ATSC (8-VSB, Clear-QAM) analog/digital tuner allows for high-definition broadcast capabilities
¤ Integrated RS-232C allows for external control of the display
¤ Built-in, low-profile stereo speakers enhance the experience with superior sound
¤ Built-in swivel stand expands your viewing options and detaches for wall mount applications
¤ Multiple picture modes adjust the picture appearance for an optimal viewing experience
¤ Advanced video settings ensure source material is displayed properly and accurately
¤ Backlight adjust allows users to customize the backlight strength, enabling longer display life and lower power consumption
¤ Parental control (V-Chip function) allows users to block programs based on rating category
¤ Built-in closed captioning enables hearing-impaired users to display text information in various supported languages based on the
ATSC tuner program
¤ Controllable closed captioning for analog and digital signals allows the user to manipulate the size, font, color, opacity, background
color and edge effect
¤ Variable transparency settings and multiple menu language choices (English, French, Spanish) provide flexibility in adjusting OSD settings
¤ Variable time zone settings allows users to adjust the time on their display by time zone and includes a built-in daylight savings mode
¤ Control settings allow users to block unrated TV, and set USA and Canadian parental locks
¤ Channel band selection provides enhanced “over the air” and cable signal tuning
www.necdisplay.com
Specifications for E322/E422/E462/E552
MODEL
LCD MODULE
Viewable Size (Diagonal)
Panel Technology
Native Resolution
Pixel Pitch
Brightness (Typical)
Contrast Ratio (Typical)
Active Screen Area (W x H)
CONNECTIVITY
Input Terminals
Digital
Analog
Audio
External Control
Tuner
Service Port
Output Terminals
Digital
Analog
Audio
External Control
Audio Amplifier
FEATURES
Additional Features
POWER
Power Requirements
Power Consumption (Typical)
Power Consumption - Standby Mode
PHYSICAL SPECIFICATIONS
Bezel Width (L/R, T/B)
Dimensions (without stand; WxHxD)
Dimensions (with stand; WxHxD)
Packaging Dimensions (WxHxD)
Net Weight (without stand)
Net Weight (with stand)
Gross Weight (with box)
VESA Hole Configuration
ENVIRONMENTAL CONDITIONS
Operating Temperature
Operating Humidity
ACCESSORIES
Included
Optional
WARRANTY/SERVICE
Limited Warranty
E322 E422 E462 E552
32” 42” 46” 55”
1366 x 768 1920 x 1080
0.51mm 0.48mm 0.53mm 0.63mm
2
450 cd/m
3000:1 4000:1 5000:1
27.5 x 15.4 in. / 697.7 x 392.2mm 36.6 x 20.6 in. / 930.3 x 523.3mm 40.1 x 22.5 in. / 1018 x 572.7mm 47.6 x 26.8 in. / 1209.6 x 680.4mm
VGA 15-pin D-sub, RCA Composite, RCA (Y, Cb/Pb, Cr/Pr) Component
RCA Audio x2, Audio Mini-Jack RCA Audio, Audio Mini-Jack
5W Stereo 10W Stereo
Variable picture modes (Standard, Movie, Power Saver, User, Sports), Advanced Video/Audio Settings, Sleep Timer, Built-In Closed Captioning, Parental Control (V-Chip Function),
1.3A@100-120V AC; 0.6A@220-240V AC 2A@100-120V AC; 0.8A@220-240V AC 3A@100-120V AC; 1.4A@220-240V AC 3.5A@100-120V AC; 1.6A@220-240V AC
30.7 x 20 x 3.2 in. / 779.8 x 508 x 80.1mm 39.8 x 25.6 x 3.6 in. / 1010.9 x 650.2 x 91.4mm 43.5 x 27.6 x 3.7 in. / 1104.9 x 701 x 94mm 51.5 x 32.9 x 4.6 in. / 1308.1 x 835.6x 116.8mm
30.8 x 22 x 8.3 in. / 782.5 x 558.5 x 210.7mm 39.7 x 27.1 x 10.4 in. / 1009.5 x 688.1 x 264.7mm 44.4 x 32.4 x 12.2 in. / 1127.8 x 823 x 309.9mm 51.5 x 34.8 x 12.2 in. / 1308.1 x 934.7 x 309.9mm
35.4 x 27.2 x 8.1 in. / 900 x 690 x 205mm 45.5 x 31.8 x 9.8 in. / 1156 x 808 x 250mm 49.8 x 36.6 x 11 in. / 1266 x 931 x 280mm 57.9 x 41.4 x 11 in. / 1470 x 1051 x 280mm
105W 180W 188W 365W
1.5 in./1.5 in., 1.5 in./2.9 in. ;
38mm/38mm, 38mm/74mm
19.8 lbs. / 9 kg 35.3 lbs. / 16 kg 44.1 lbs. / 20 kg 70.6 lbs. / 32.1 kg
24.3 lbs. / 11 kg 43 lbs. / 19.5 kg 52.9 lbs. / 24.1 kg 81.6 lbs. / 37.1 kg
31.9 lbs. / 15 kg 51.7 lbs. / 25 kg 69 lbs. / 31.3 kg 99.2 lbs. / 45 kg
200 x 200mm (4 hole) 400 x 200mm (4 hole)
Power cord, VGA cable (15-pin D-sub), wireless remote control, batteries, CD-ROM (user manual), stand, thumbscrews
External Single Board Computer (TNETPC-ION), Wall Mount Kit (WMK-3257), Accessory pack for Wall Mount Kit (MIS513)
1.5 in./1.5 in., 1.5 in./3.3 in. ;
38mm/38mm, 38mm/84.9mm
2
400 cd/m
Integrated NTSC/ATSC (8-VSP, Clear QAM)
Optical Digital Audio, Headphone Mini-Jack
USB Media Viewer, Power Management
3 years parts and labor, including backlight
PVA
HDMI x 3
RS-232C
USB (Also a Media Viewer)
NA
NA
NA
<1W
1.6 in./1.6 in., 1.6 in./3.3 in. ;
41mm/41mm, 41mm/84.9mm
32-104°F / 0-40°C
10-85%
450 cd/m
2
VGA 15-pin D-sub, RCA (Y, Cb/Pb, Cr/Pr)
1.9in./1.9in., 1.9in./4 in. ;
48mm/48mm, 48mm/102mm
500 cd/m
Component
2
Connectivity for E322/E422/E462
RS-232C In
VGA D-Sub In
RCA Component
In
OSD is a registered trademark of NEC Display Solutions. All brand
or product names are trademarks or registered trademarks of their
respective holders. Product specifications subject to change.
©2012 NEC Display Solutions of America, Inc. All rights reserved.
25.NEC.80.GL.UN.089 rev. 072712
Audio Mini-Jack In
HDMI In
Digital
RCA
Audio
Audio
Out
In
Coaxial
Tuner
Headphone
Mini-Jack
RCA Audio
In
RCA
Composite
USB
HDMI In
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
