User’s Manual

E461 E551

Index

Precautions And Reminders ..............................................................Engli sh-1

Important Safety Instructions .............................................................Engli sh-2

Safety Instructions .............................................................................En g lis h -4

Important Information ........................................................................Engl ish- 5

Declaration Of Conformity .................................................................Eng lish -7

Preparation ........................................................................................En g lis h -9

Preparing Your LCD Display For Wall Mounting .....................En glis h-9

Place The Display On A Solid Surface ....................................Engli sh-9

Antenna Connection ..............................................................En g lish-10

Battery Installation and Replacement....................................En g lish-10

Connect To The Power Source .............................................Engl i sh-11

Power On/Off Your New LCD Display ...................................En glish-11

Source Connection Guide .....................................................Englis h-12

Operating Instructions .....................................................................English- 1 3

Using The Side Panel Controls .............................................Englis h-13

Using The Remote Control ....................................................En glish-14

Picture Format for Each Input Source ...................................Engl ish-15

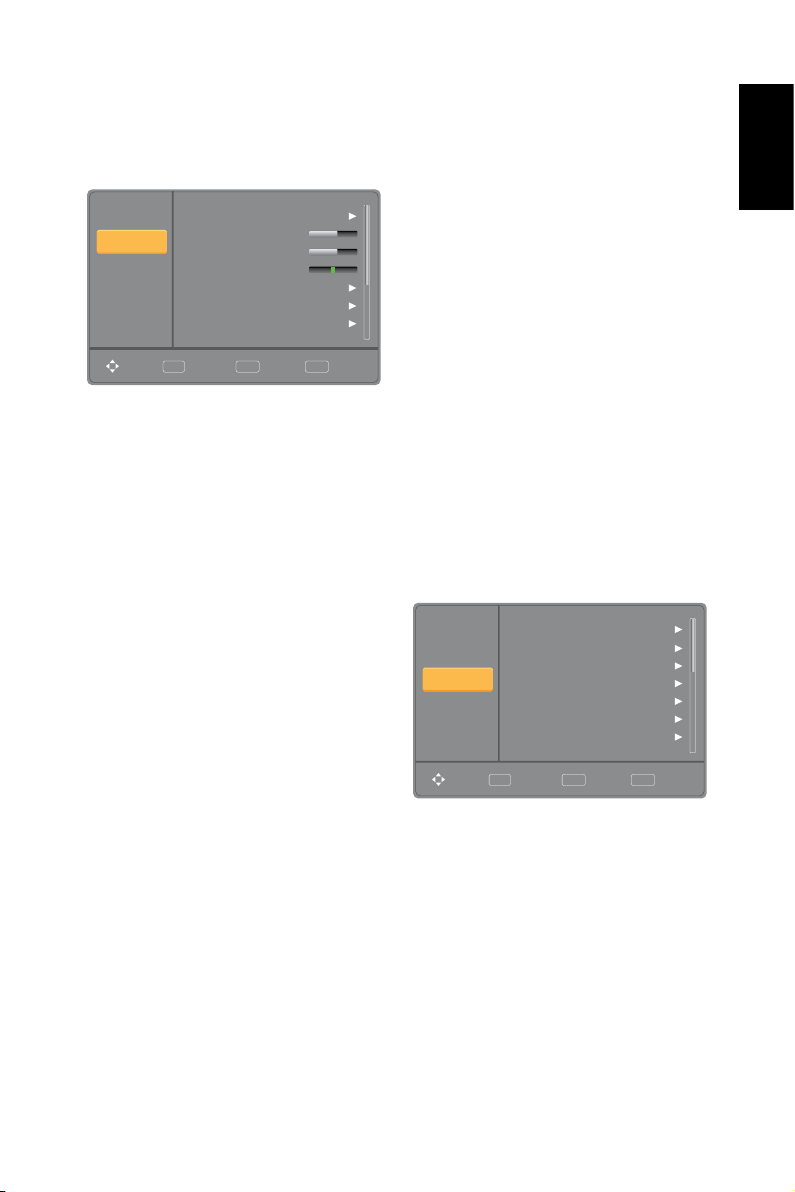

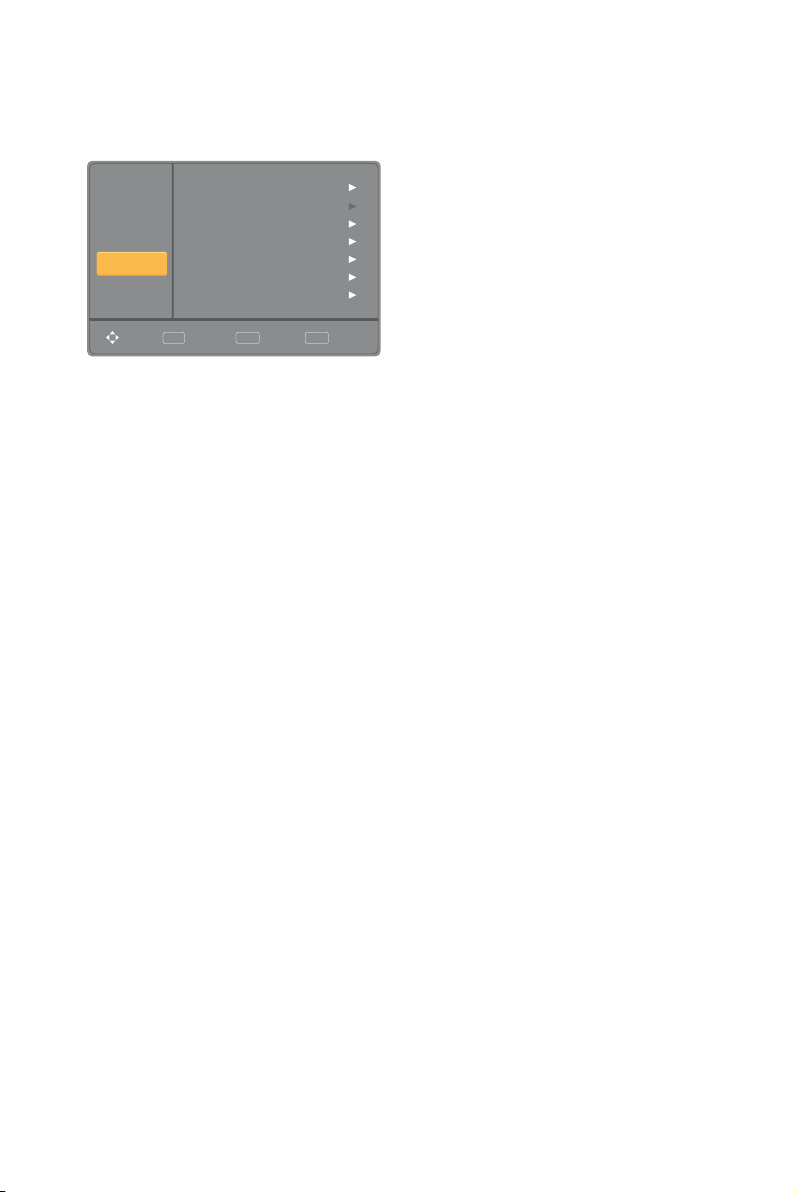

Navigating The On-Screen Menu ....................................................Engl i sh-16

Video Menu ...........................................................................Englis h -16

Audio Menu ...........................................................................Englis h -17

Setup Menu ...........................................................................Engl i sh-17

Channel Menu .......................................................................Engl i sh-20

Multimedia .............................................................................Engl i sh-20

Tips ..................................................................................................En g lish-21

Care Of The Screen ..............................................................Englis h-21

Mobile Telephone Warning ...................................................English- 2 1

End Of Life Directives............................................................En g lish-21

License Notice and Trademark Acknowledgement ...............Engl ish-21

Product Specification .......................................................................En g lish-22

Before Calling Service .....................................................................Engl i sh-24

Glossary ..........................................................................................English- 2 5

Limited Warranty .............................................................................English- 2 6

References ......................................................................................Englis h -27

www.necdisplay.com

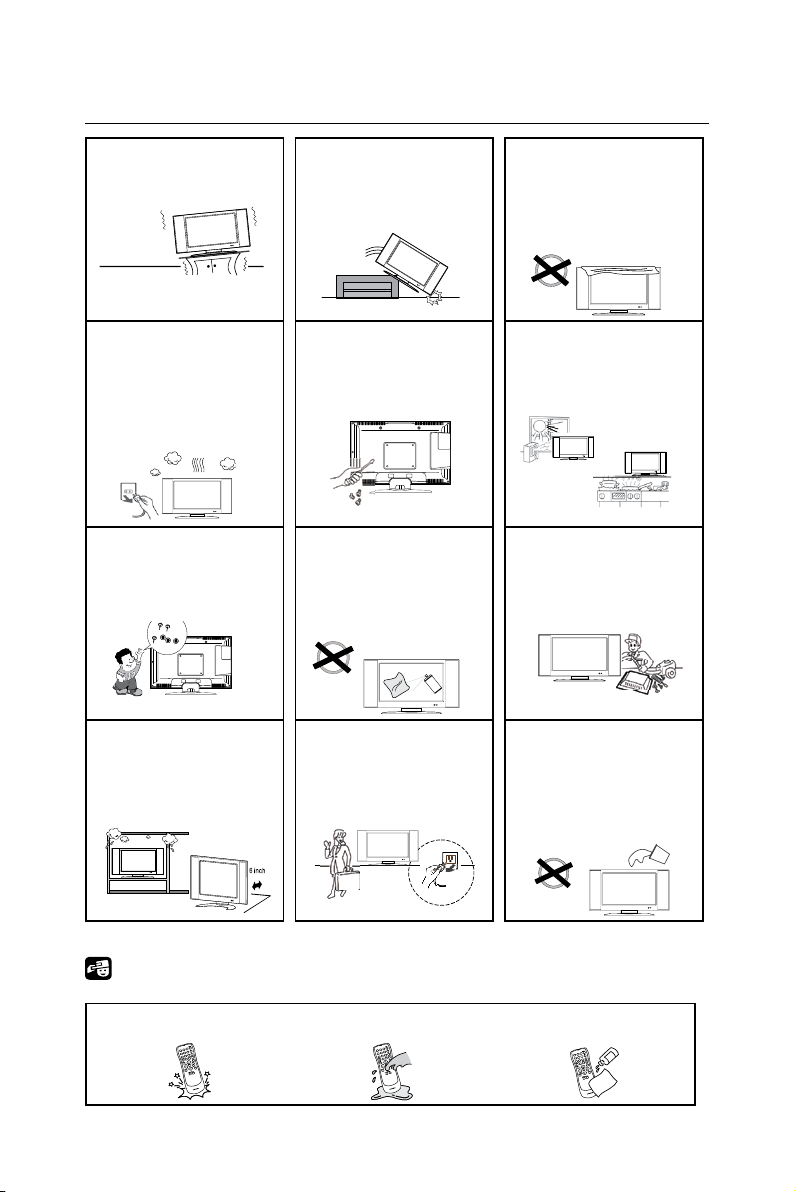

Precautions And Reminders

Do not place the display in conned spaces or in a box when in use. Maintain ample ventilation for the display when in use.

Keep the display away from direct sunlight, dust, humidity, and smoke.

Unplug the AC cord from the AC outlet before cleaning. Do not use liquid cleaners or aerosol cleaners to clean the display.

Place the unit on a sturdy, even surface.

Do not open the display cabinet.

Unplug immediately if any foreign object is put in the display or if the display falls.

Do not place the display near water such as a bathtub, washbasin, sink, laundry tub, swimming pool, or a damp basement.

Do not insert any foreign objects into the display cabinet.

Call a NEC certied service personnel for any internal service needed for your display.

Unplug immediately if there is a display malfunction such as a loss of audio/video, the presence of smoke, or a bad odor coming from the display.

Do not cover or block any vents or openings. Inadequate ventilation may shorten the life of the display and cause overheating.

Unplug the power cord from the outlet when the display is not in use for long periods of time (days).

English

Notice for Remote Controller

Avoid Liquids

Avoid Aerosol Cleaners

English-1

Avoid Dropping

English-3

Important Safety Instructions

Read before operating equipment

Follow all warnings and instructions marked on this display.

1. Read and keep these instructions.

2. Obey all warnings.

3. Follow all instructions.

4. Do not use equipment near water.

5. Clean with dry cloth.

6. Do not block any of the ventilation areas. Install in accordance with the manufacturer’s instructions.

7. Do not install near heat sources, including radiators, heat registers,

stoves, or any other apparatus that creates heat.

8. Do not alter the safety purpose of the polarized or grounding type

plug. The polarized plug has two blades, one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or the third prong on each plug type is provided for your safety. If the provided plug does not t into an outlet, consult an electrician.

9. Protect the power cord from being stepped on or pinched. Pay close

attention to the connections at the wall, and the point where the cord exits from the display.

10. Only use the attachments/accessories as indicated by the manufacturer.

11. Use only with the cart, stand, tripod, bracket, or table as instructed

by the manufacturer or sold with the device. When a cart is used, be cautious of mishaps that cause injury.

S3125A

12. Unplug during lightning storms or when idle for long periods of time.

13. Refer all service issues to a qualied NEC technician. Service may be

necessary when the display is damaged in any way, including harm to the power cord and plug, if liquid touches the display, if the display is dropped, or if the display does not operate properly.

14. The display complies with the recommended safety standards for

stability. Do not excessively put force on the front or top of the cabinet. This could cause the product to tip over and cause damage and/or personal injury.

15. Follow instructions for wall, shelf or ceiling mounting as recommended

by the manufacturer.

16. An outdoor antenna should not be located near overhead power lines or

any electrical circuits.

17. If an outside antenna is connected to the receiver, conrm that the

English-2

antenna system is grounded to protect against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

NOTE: To the display system installer: This reminder is provided to call

attention to Article 820-44 of the National Electric Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the facility, as reasonably close to the point of cable entry as possible

Power source

This LCD display operates on 120 volts 60 Hz, AC current. Insert the power cord into a 120 volts 60 Hz outlet. The mains plug is used as the disconnect device and shall remain readily operable.

To prevent electric shock from the display, do not use with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

Never connect the LCD display to 50 Hz, direct current, or anything other than the specified voltage.

English

CAUTION: Never remove the back cover of the LCD display as this can

expose you to very high voltages and other hazards. If the display does not operate properly, unplug the LCD display and call your authorized dealer or service center.

Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by NEC could void the user’s warranty.

English-3

English-5

Safety Instructions

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/display technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION

To assure continued compliance and possible undesirable interference, ferrite cores may be used when connecting this LCD display to video equipment; and maintain at least 400mm spacing to other peripheral device.

CANADIAN NOTICE

This Class B digital apparatus complies with Canadian ICES-003

English-4

Important Information

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

English

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE

POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

English-5

English-7

CAUTION: Please use the power cord provided with this display in

accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier.

Plug Type North America

Plug Shape

Region

Voltage AC 120 V

Apparatus shall not be exposed to dripping, splashing or any objects filled with liquids.

U.S.A./Canada

Batteries installed warning

Caution - Danger of explosion if batteries are incorrectly replaced. Replace

only with the same or equivalent type. The batteries shall not be exposed to excessive heat without risk of explosion.

English-6

Declaration Of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois 60143 Tel. No.: (630) 467-3000

Type of Product: Display Monitor Equipment Classification: Class B Peripheral Model: E461

E551

We hereby declare that the equipment specied above

conforms to the technical standards as specied in the FCC Rules.

Canadian Department of Communications Compliance Statement DOC: This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety

Regulations according to CAN/CSA C22.2 No. 60065-03.

English

FCC Information:

1. Use the attached specied cables with the E461/E551 color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC

compliance.

(2) Please use the supplied shielded video signal cable, Mini D-SUB 15

pin to Mini D-SUB 15 pin.

2. This equipment has been tested and found to abide by the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are intended to provide reasonable security against harmful interference in a residential deployment. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a certain installation. If this equipment does cause damaging interference to radio or television reception, which can be determined by powering the equipment on and off, the user is encouraged to attempt correcting the interference by one or more of the following procedures:

• Reorient or relocate the receiving display.

English-7

English-9

• Increase the separation between the equipment and display.

• Connect the equipment into a different outlet than the receiver.

• Consult your dealer or an experienced radio/display technician for

assistance.

If necessary, the user should contact the dealer or an experienced radio/ television technician for additional suggestions. The user may nd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-display Interference Problems.” This booklet is available from the U.S. Government Printing Ofce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. All other brands and product names are trademarks or registered trademarks

of their respective owners.

HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

English-8

Preparation

IMPORTANT: Do not apply pressure to the screen display area which may

compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations.

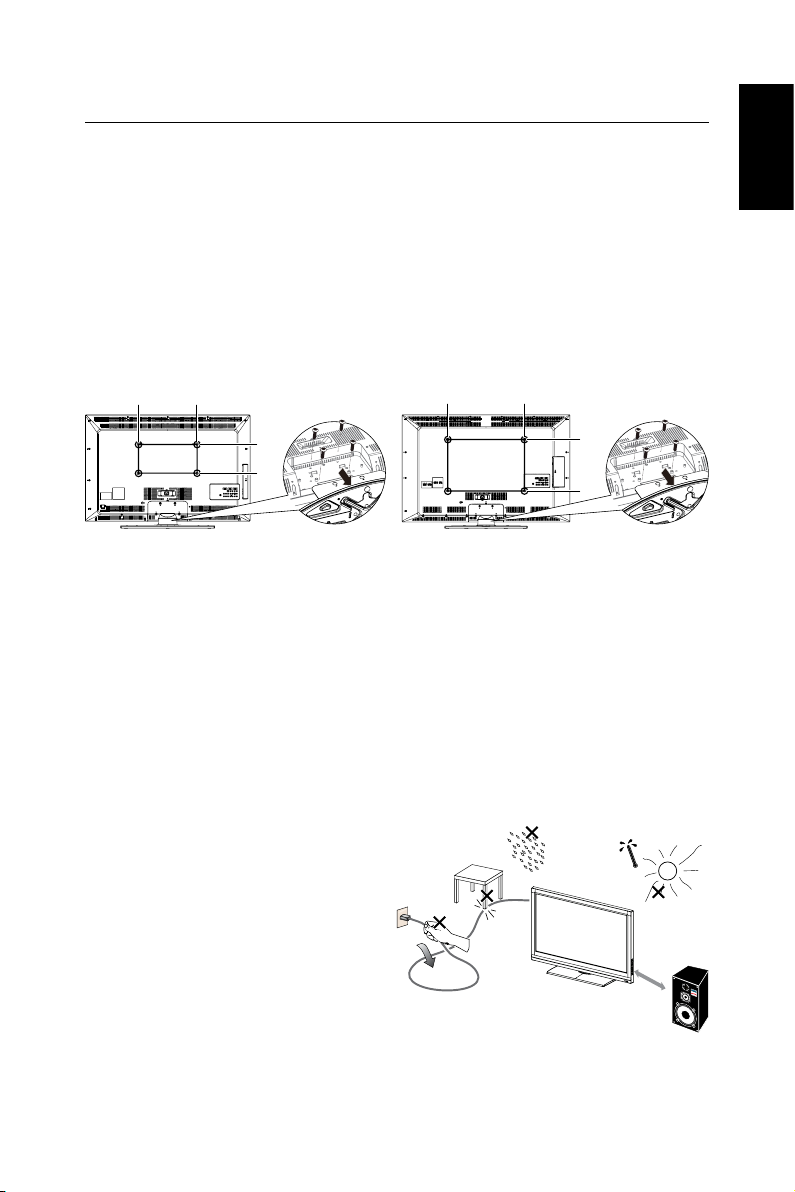

Preparing Your LCD Display For Wall Mounting

We suggest that you keep your display at least 2.36 inches (60 mm) from the wall to prevent cable interference. Before mounting your display on the wall, you need to remove the base. For your safety, only mount with a UL listed wall mount bracket that supports the weight of the display. (Please see page 22-23.) To attach a wall mount bracket to your display:

English

E461 E551

400 mm

200 mm

600 mm

400 mm

1. Loosen the screws on the back of the stand and remove the back cover of the stand.

2. Pull up the stand base from the hinge to remove the stand base from your display.

3. Secure the wall mount bracket to the back of your display using four M6 screws, as indicated in the illustration.

NOTE: Wall mounting solution is not included with the unit and is sold separately. Contact your NEC representative for details.

Place The Display On A Solid Surface

Ensure that the LCD display is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. Do not place the display near any open flames. Do not allow the display to be placed in an environment where it can be exposed to heat, direct sunlight, or rain and water. Do not expose the equipment to any liquid.

Min 1 m

English-9

English-11

Antenna Connection

Unless your LCD display is connected to a cable TV system or to a centralized antenna system, a good outdoor color TV antenna is recommended for best television performance. However, if you are located in an exceptionally good signal area that is free from interference and multiple image ghosts, an indoor antenna may be sufficient.

When using a 75-Ohm coaxial cable system, connect the CATV coaxial cable to the AIR/CABLE (75-Ohm) terminal. Or if you have an antenna, connect the coaxial cable to the same AIR/CABLE terminal.

Battery Installation and Replacement

The remote control is powered by two 1.5V AAA batteries. To install or replace batteries:

1. Open the battery cover of the remote control by pushing and pulling it in the direction of the arrow.

2. Insert two new “AAA” size batteries for the remote control. When replacing old batteries, push them towards the springs and lift them out.

3. Match the batteries to the (+) and (-) marks in the battery compartment.

4. Insert the bottom of the battery, the (-) side, into the battery compartment first, push towards the springs and insert the top of the battery, the (+) side, into place. Do not force the battery into the battery compartment.

5. Close the battery cover making sure the tabs rest in the corresponding holes and push down the cover until it clicks shut.

CAUTION: Incorrect usage of batteries can result in leaks or bursting. NEC recommends the following battery use:

• Do not mix battery brands.

• Do not combine new and old batteries. This can shorten the battery life or cause liquid leakage of the batteries.

• Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.

• Do not touch exposed battery acid as it may injure skin.

• Remove the batteries if you do not intend to use the remote control for a long period of time.

English-10

Connect To The Power Source

The display should be installed close to an easily accessible power outlet. Fully insert the prongs into the power outlet socket. A loose connection may cause image degradation.

If there is power to the display, the front LED at the bottom of the display will be either blue or red. A blue LED means the display is powered on. A red LED means the display is in standby mode.

Power On/Off Your New LCD Display

Press the power key on the remote control or press the power button located on the side of the display. The display will power on.

English

VOL CH

Power Key

Power

Video Comp PC/HDMI TV

INPUT

E.SAVE

POWER

English-11

English-13

Source Connection Guide

USB/

SERVICE

AC POWER

E461/E551

1. HDMI – Connect the primary source for digital video such as a DVD

multimedia player or set top box through this all digital connector.

2. RGB/AUDIO – Connect the video and audio cables from a computer

here.

3. AV/S-VIDEO – Connect the primary source for composite video devices,

such as a VCR or video game. Use the white and red connectors to connect the external audio from the same source. The signal being carried by the S-Video cable and connector, if connected, will take priority over the Video RCA connector (yellow connector).

4. COMPONENT (Y-PbPr with Audio L/R) – Connect the primary source

for component video devices such as a DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left audio (L) inputs.

5. AIR/CABLE – Connect to an antenna or digital cable (out of-the-wall, not

from Cable Box) for the digital tuner.

6. SPDIF (Optical Digital Audio Out) – When a digital audio signal is

associated with the input selected for viewing, the digital audio will be available on this SPDIF connection to your home theater system.

7. DVI AUDIO INPUT – This jack provides Audio Input from a DVI source

when connected to the HDMI 2 Input. A DVI (source) to HDMI (Display) connection must be made to HDMI 2.

8. AUDIO OUT – Connect an external sound system with standard audio

cable to the AUDIO OUT L and R jacks on the back of your display and to the AUDIO IN jacks on the amplifier.

9. Earphone Output – Connect to the headphones. When the headphone

is inserted to the plug, all the speakers will be muted.

10. USB/SERVICE – This USB slot is for future software upgrades.

Once your AV device is connected, press the Source button on the remote control to select the relevant source to view. (ex: Press Comp button to select “Component” if you have connected a source to the Component input.)

RGB

HDMI 4

HDMI 3

AV 2

RGB

AUDIO

S-VIDEO

VIDEO

English-12

Operating Instructions

VOL CH

INPUT

E.SAVE

POWER

Using The Side Panel Controls

1. VOL + Press to increase the volume.

2. VOL - Press to decrease the volume.

3. CH + Press to increase the channel number.

4. CH - Press to decrease the channel number.

English

3 4

5. MENU

Press to open or exit the OSD (On-Screen Display) menu.

6. INPUT Press to select the input source.

7. E-SAVE

Press to set power consumption reduction based on three levels (Min, Medium, Max).

8. POWER Press to turn on / off (standby) the display.

English-13

English-15

Using The Remote Control

Power

Press to turn On/Off (standby) the display. (Note: To completely remove power from the display, remove the AC cord from the display.)

Video

Press repeatedly to choose AV1/AV2 source mode.

Comp

Press repeatedly to choose Component 1/Component 2 source mode.

PC/HDMI

Press repeatedly to choose VGA or HDMI source mode.

Press to choose ATSC/NTSC tuner source mode.

0 ~ 9 /- number

Press to enter the tuner channel number to select channel (Press ‘-’ to choose the sub-channel).

PREV CH

Press to display the previous channel.

Sleep

Press to set a time period (off /5 min /10 min /15 min /30 min /60 min /90 min /120 min /180 min / 240 min) after which the display should switch itself to standby mode

Freeze

Press to freeze the displayed picture. If the input source is HDMI, and your DVD players supports HDMI-CEC control, pressing this key will pause the displayed picture.

MTS/SAP

Press to activate the NTSC tuner sounds such as Stereo, SAP, Monotone, and languages of the digital tuner.

Power

Comp PC/HDMI TV

Video

1 2 3

4 5 6

7 8 9

PREV CH

Sleep

Freeze MTS/SAP

Fav Source

Menu Exit

V-Chip

Mute

Info

ENTER

Video Adj Audio Adj

EPG

VOLCH

C.C.

Fav

Press to toggle the Favorite/Normal mode.

Source

Press repeatedly to choose the various input sources.

EPG

This function is not supported.

English-14

Mute

Switch the sound On/Off.

Info

Press to show the information about the input source, tuner channel, display resolution and current time.

CH- / CH +

Press + or - to browse through the tuner channels (or input sources when in source mode).

VOL- / VOL+

Press + or - to adjust the volume.

Press to open or exit menu.

Exit

Press to exit menu or OSD.

“<”,“>”,“ ”,“ ”,“ENTER”

Press to adjust the various function items on the menu.

Press to choose the display aspect ratio: Auto/4:3/16:9/Full/Zoom1/ Zoom2. (Ratio availability varies by video inputs. Refer to the Picture Format Table below for details.)

V-Chip

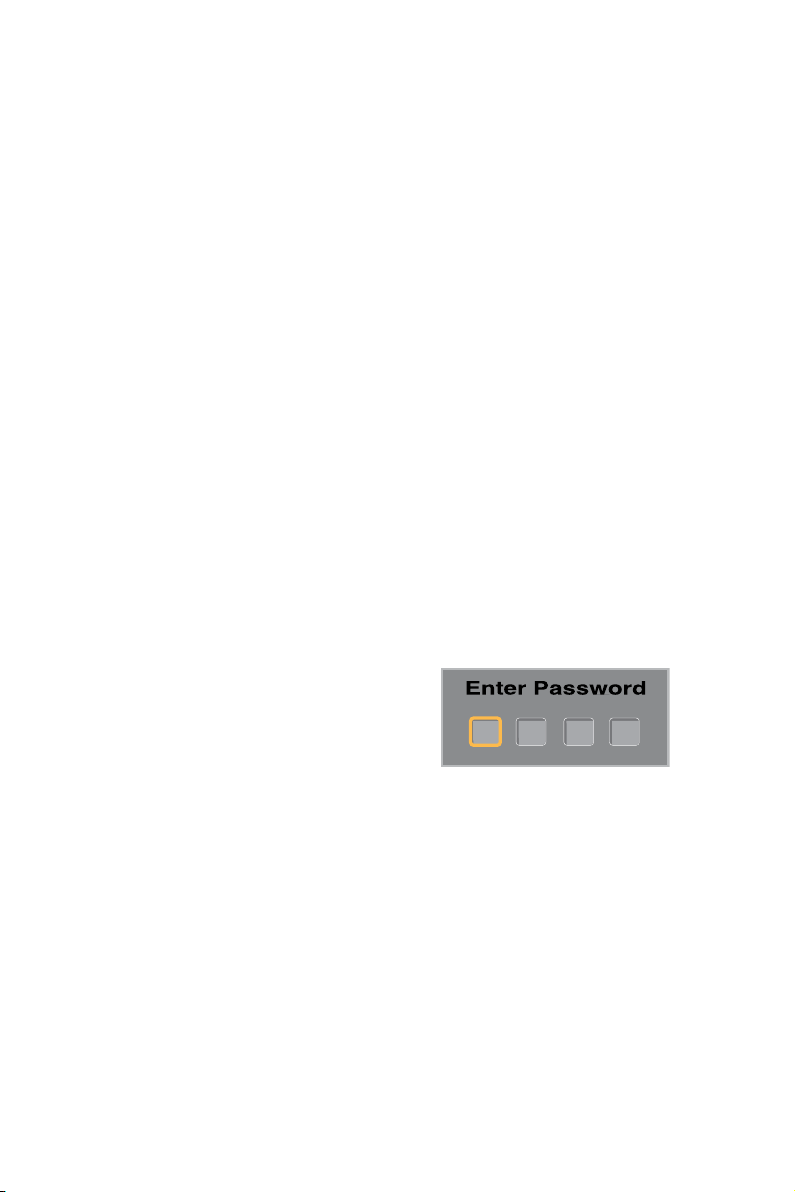

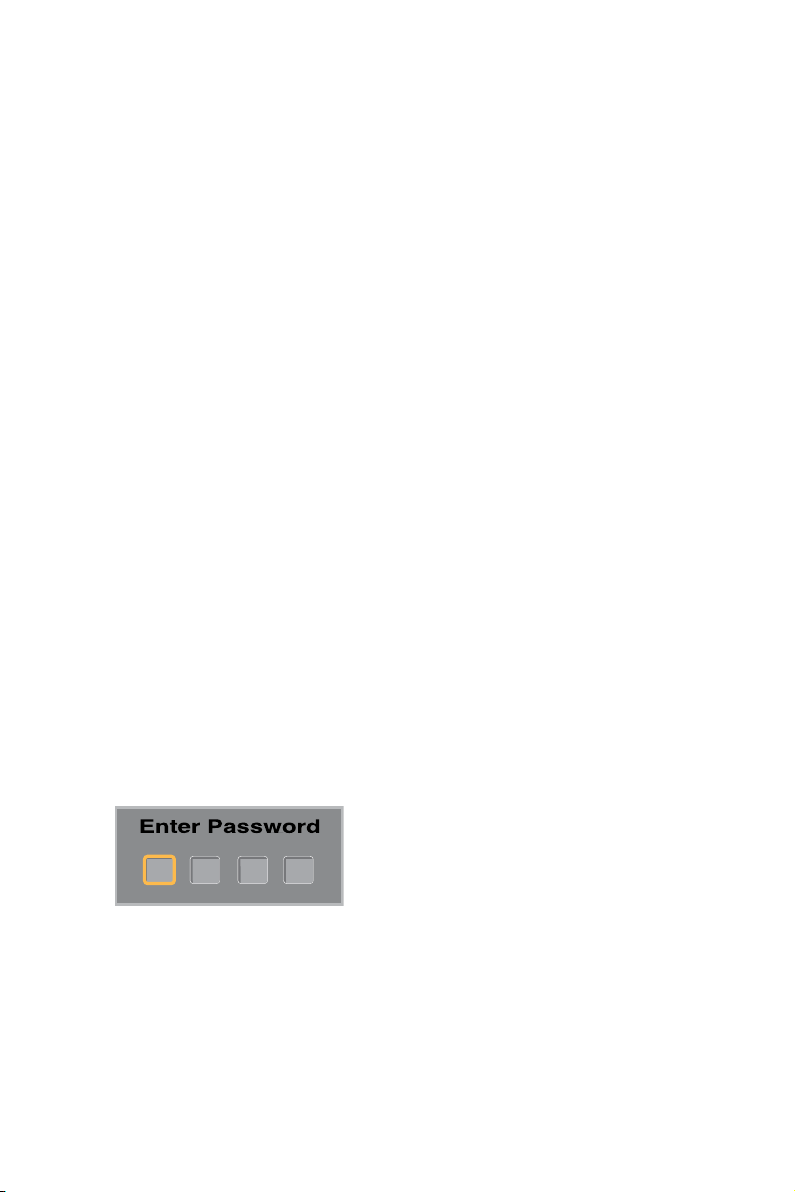

Press to temporarily lock the parental control. (After setting the restricted table of MPAA or tuner Rating.)

Video Adj

Press to choose the picture mode: Dynamic/Standard/Movie/Custom/ Game.

Audio Adj

Press to choose sound mode: Standard/Movie/News/Custom.

C.C.

Press repeatedly to change the closed caption type to CC On, CC Off, or CC With Mute.

English

Picture Format for Each Input Source

Input Signal

AIR / CABLE Air / Cable Yes Yes Yes No Yes Yes

HDMI 1 HDMI 3 HDMI 4

HDMI 2 HDMI / DVI

COMPONENT 1 COMPONENT 2

AV 1 AV 2

RGB Analog RGB Yes No No Yes No No

HDMI

YPbPr Yes Yes Yes No Yes Yes

Video / S-Video No Yes Yes No Yes Yes

1080p, 1080i, 720p, 480p, 480i

640x480, 800x600, 1024x768, 1280x720, 1280x768, 1280x1024, 1440x900, 1680x1050

Auto 4:3 16:9 Full Zoom1 Zoom2

Yes Yes Yes Yes Yes Yes

Yes No No Yes No No

English-15

Aspect

English-17

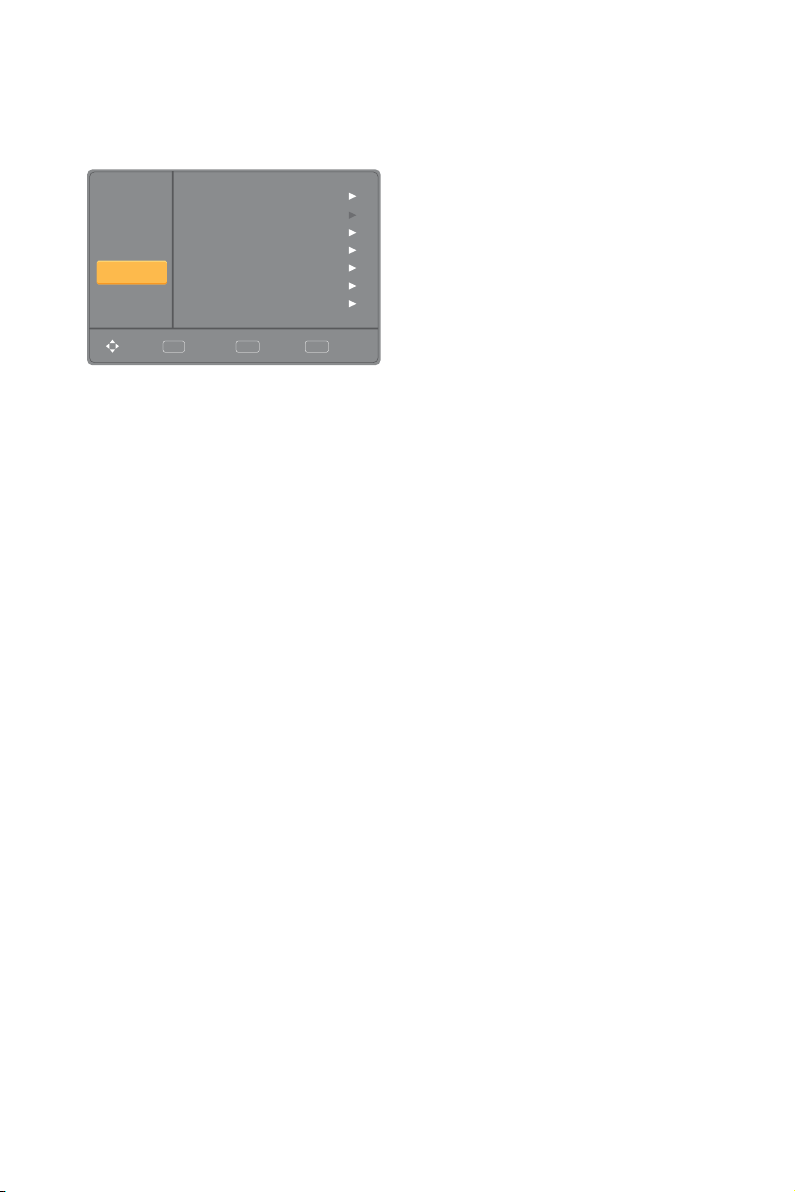

Navigating The On-Screen Menu

1. Press the Menu/Exit button to

display or close the main menu.

2. Use the Navigation Ring to

navigate, select, adjust or confirm an item on the OSD (On Screen Display) menu.

Press the Menu/Exit button to enter/ exit the main OSD. Adjust the items including Video, Audio, Setup,

Channels and Multimedia. NOTE: Some features may only

be available in a particular source mode.

Video Menu

This menu adjusts video items.

Video

Audio

Setup

Channels

Multimedia

1. Picture Mode

Adjust the picture appearance by choosing one of the preset picture modes: Dynamic, Standard, Movie, Custom and Game.

2. Brightness

Control the display brightness from 0 ~ 100.

3. Contrast

Control the display contrast from 0 ~ 100.

4. Color

Control the video chroma from 0 ~ 100.

Picture Mode Dynamic

Brightness

Contrast

Color

Tint

Sharpness

Color Temp.

Move SelectENT Return ExitEXIT

High

5. Tint

Control the tint range from R50 ~ G50.

6. Sharpness

Control the display sharpness from 0 ~ 100.

7. Color Temp.

Three color temperature modes (High / Medium / Standard).

8. Gamma

Select among three gamma correction settings (Gamma 1/ Gamma 2/Gamma 3).

9. Noise Reduction

Reduces conspicuous noise in the picture without degrading picture quality (Off/Low/Mid/ High).

10. MPEG NR

Reduces MPEG block noise in the picture.

11. Backlight

Adjust the backlight strength from 0 ~ 30.

12. Movie Mode

Auto detection for the 3:2 pulldown feature allowing for better video playback (Off/On).

13. 120Hz Motion

Select among four settings (High/Mid/Low/Off) of 120 Hz smooth motion compensation.

14. Aspect Ratio

Adjust the aspect ratio by choosing: Auto/4:3/16:9/Full/ Zoom1/Zoom2. (Ratio availability varies by video inputs. Refer to the Picture Format Table on page 15 for details.)

15. Reset

Restores the default video settings.

English-16

+ 40 hidden pages
