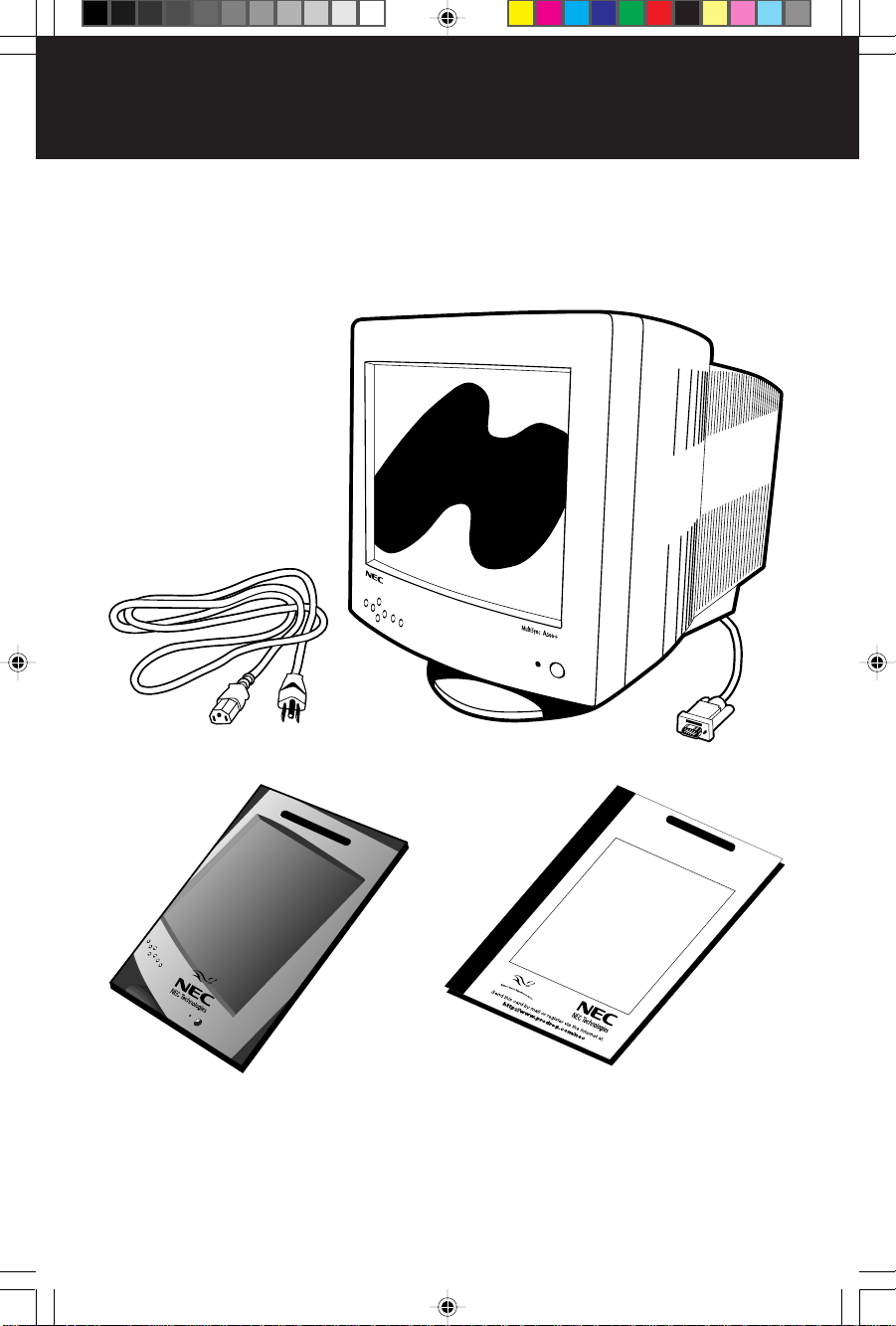

Your new NEC Technologies MultiSync® A Series monitor box* should contain the following:

• MultiSync A Series Monitor with tilt/swivel base MultiSync A500+™, JC-1581VMW MultiSync A700+™, JC-1739VMW

• Power Cord

• Captive Signal Cable

• User’s Manual

• Registration Card

Power Cord

User’s Manual

User’s Manual Registration Card

* Remember to save your original box

and packing material to transport or ship the monitor.

78134441.wpc 11/20/98, 12:33 PM4

NEC Advanced S

MultiSync

500

700

Captive Signal Cable

eries

Note: You can register your product on the Internet at http://www.prodreg.com/nec

Quick Start

To attach the MultiSync® A Series monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. If necessary, install the display card into your system. For more information,

refer to the display card manual.

3. For the PC: Connect the 15-pin mini D-SUB of the captive signal cable to the

connector of the display card in your system (Figure A.1). Tighten all screws. For the Mac: Connect the MultiSync A500+™ or MultiSync A700+™ Macintosh

cable adapter (not included) to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini D-SUB end of the captive signal cable to the MultiSync A500+ or MultiSync A700+ Macintosh cable adapter on the computer (Figure B.1). Tighten all screws.

NOTE: To obtain the MultiSync A500+ or A700+ Macintosh cable adapter, call

NEC Technologies at (800) 820-1230.

4. For download information on the Windows® 95/98 INF file for your

MultiSync monitor, refer to the References section of this User’s Manual.

5. Connect one end of the power cord to the MultiSync A Series monitor and the

other end to the power outlet (Figure C.1).

6. Turn on the monitor (Figure D.1) and the computer.

NOTE: If you have any problems, please refer to the Troubleshooting section of

this User’s Manual.

78134441.wpc 11/20/98, 12:33 PM5

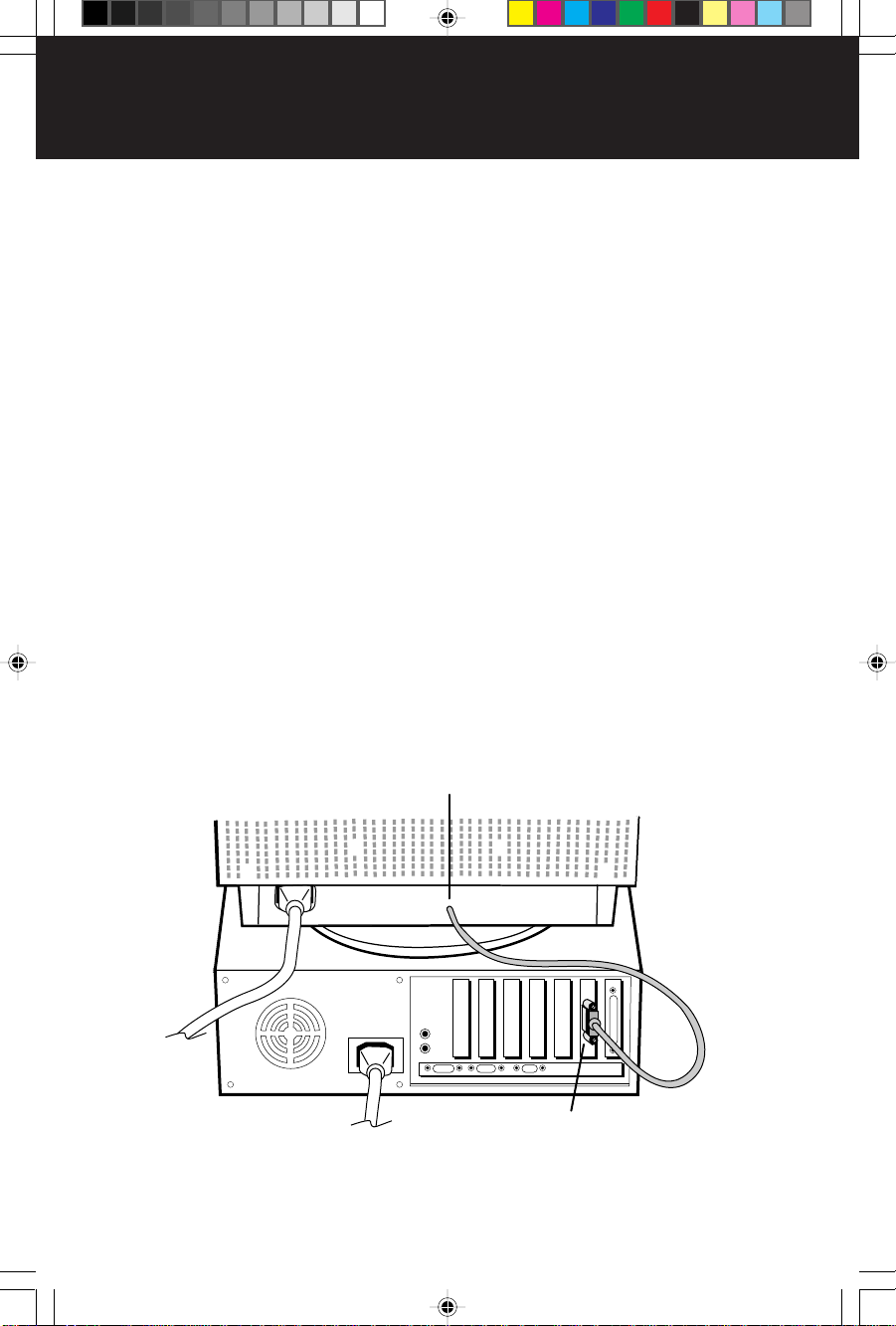

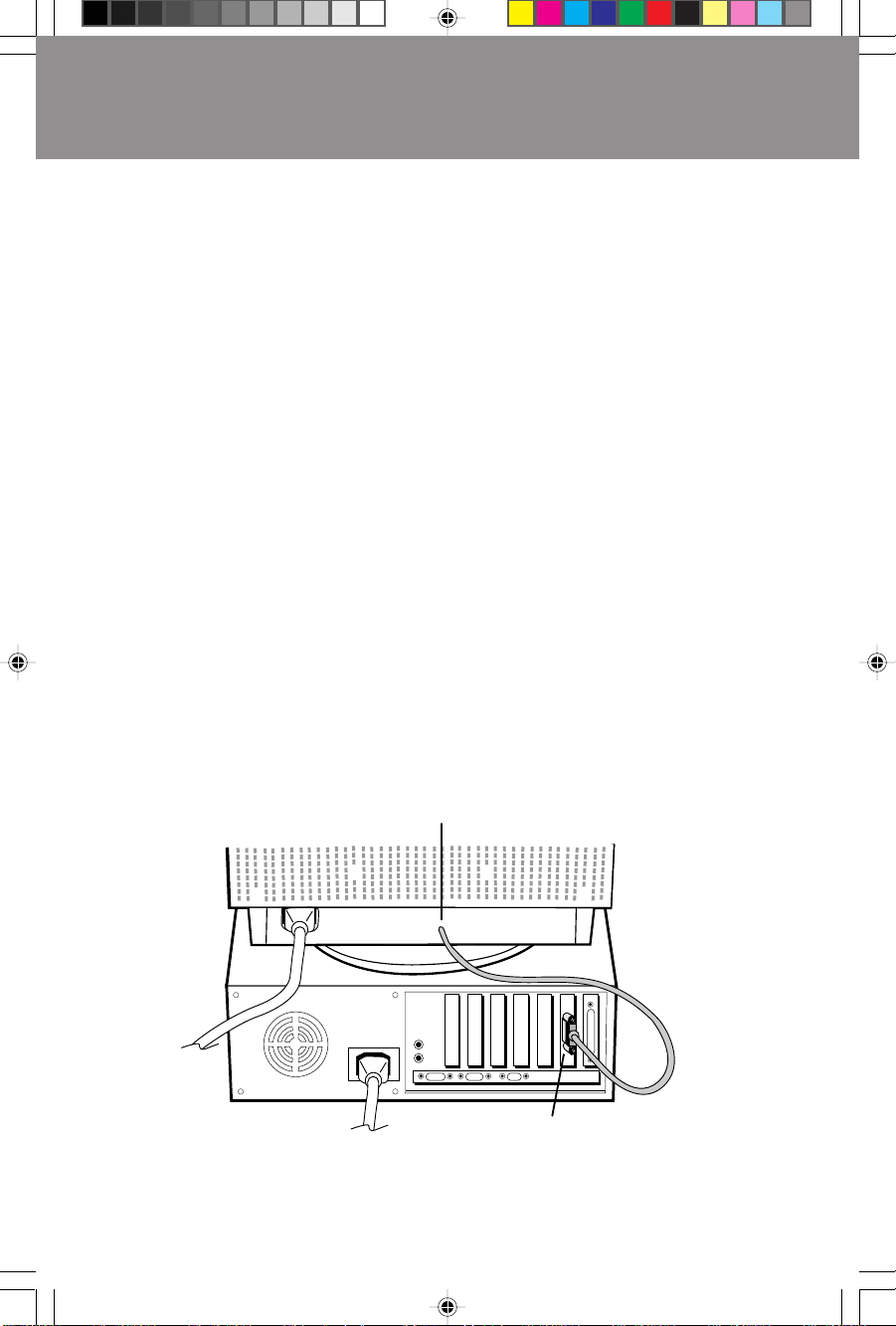

Captive Signal Cable

15-pin mini D-SUB

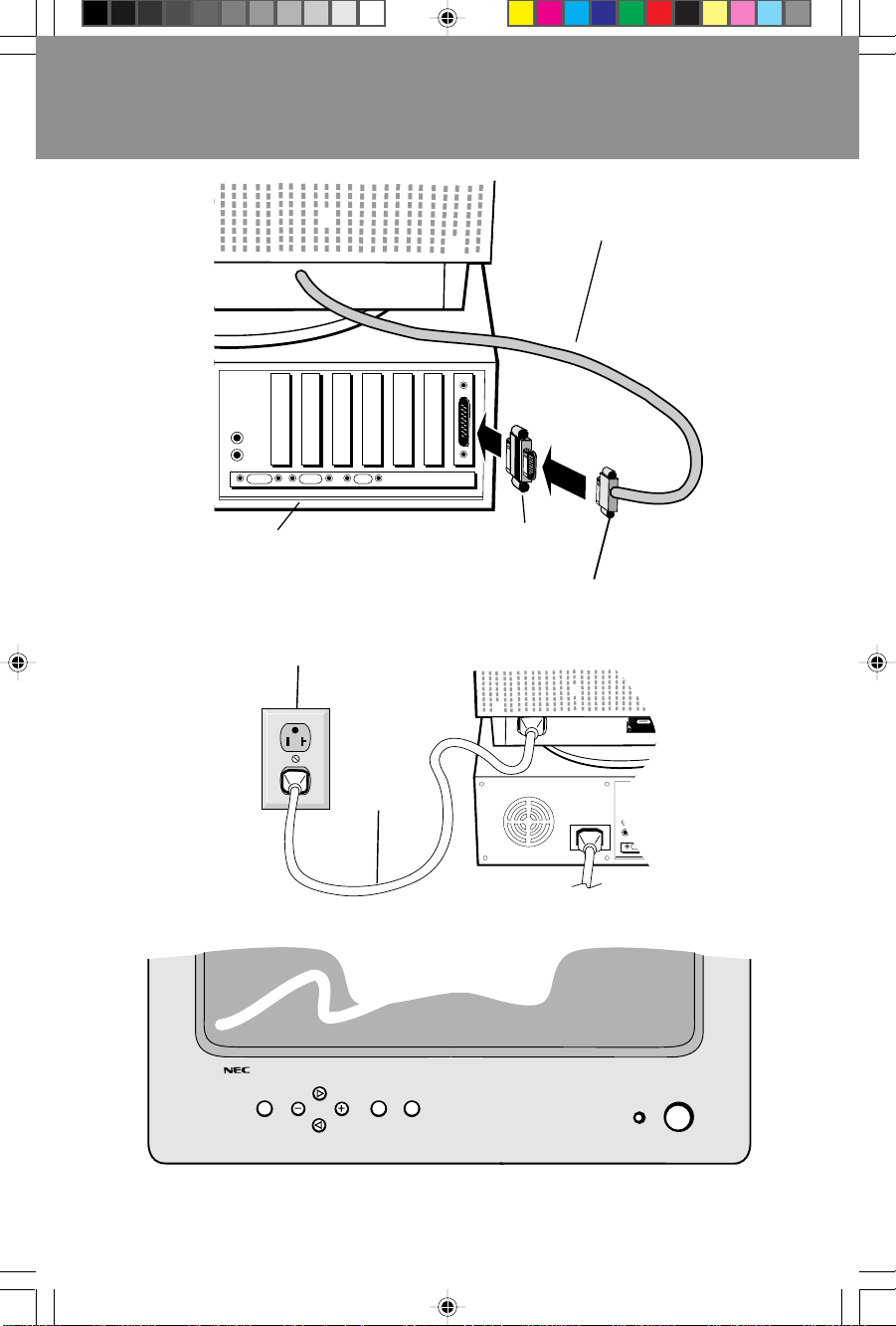

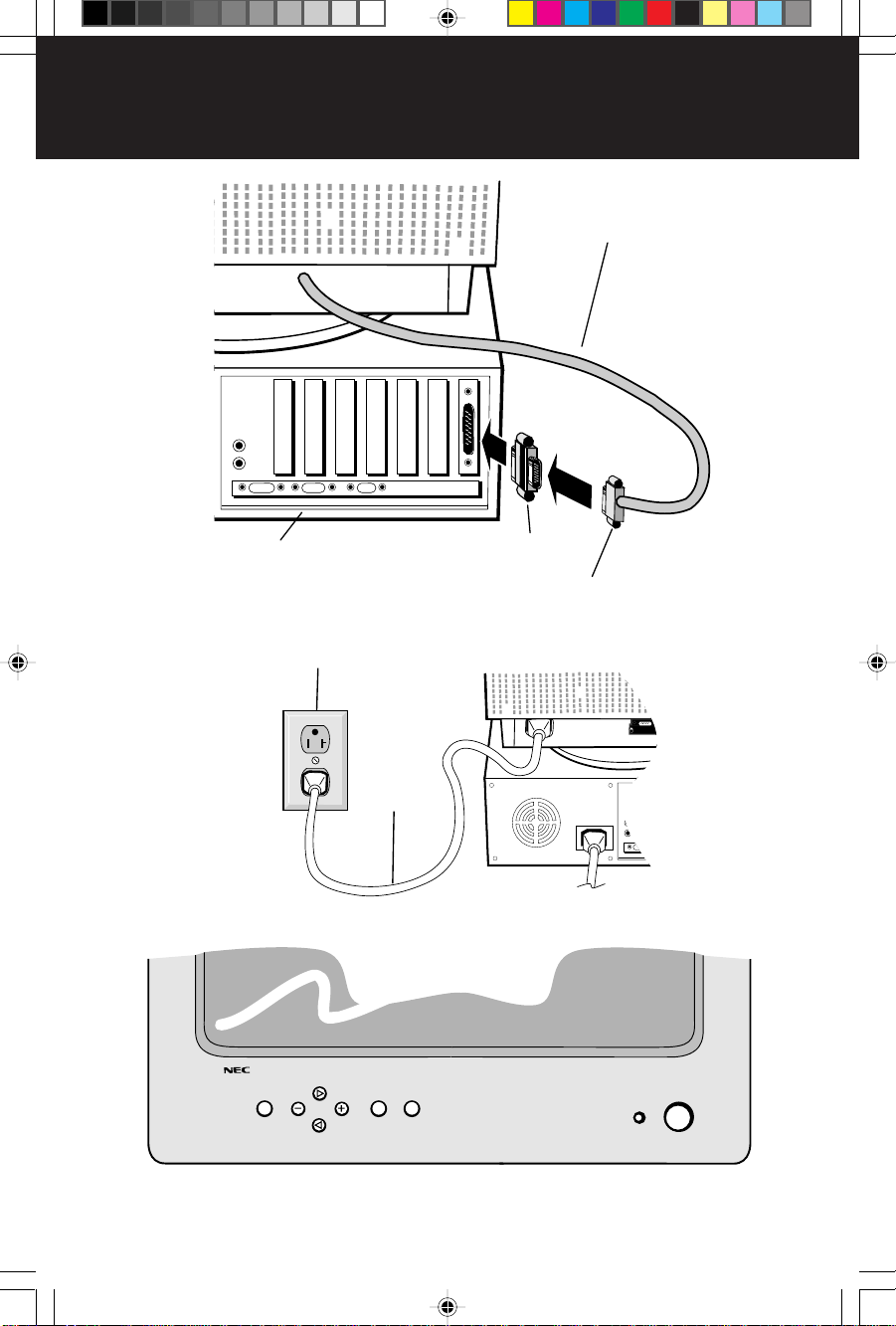

Figure A.1

Quick Start cont.

Captive Signal

Cable

Computer

Power Outlet

CONTROL

Power

Cord

Figure B.1

Figure C.1

RESETPROCEEDEXIT

Mac Adapter

(Not included)

15-pin mini D-SUB

MultiSync A

500

78134441.wpc 11/20/98, 12:33 PM6

Figure D.1

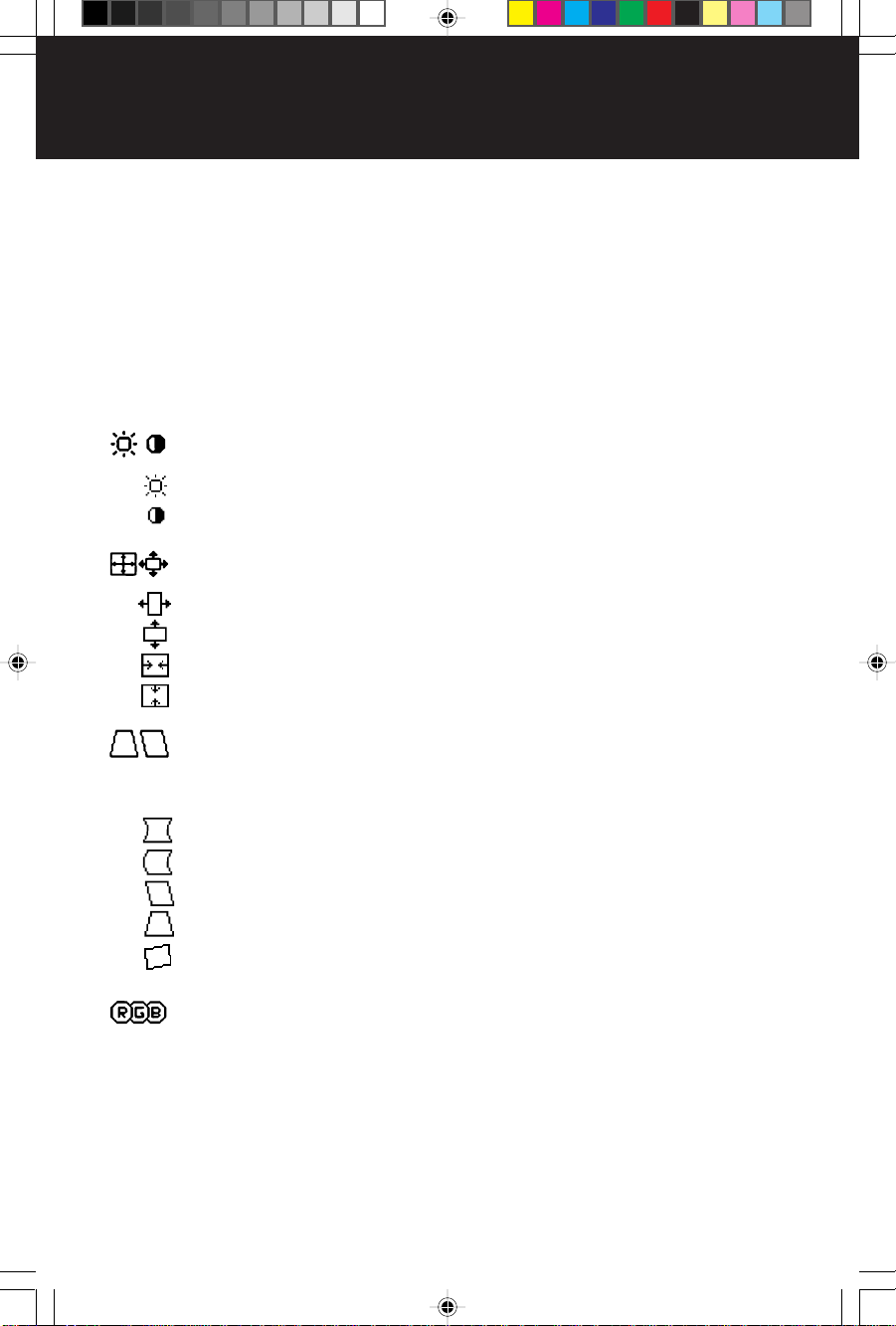

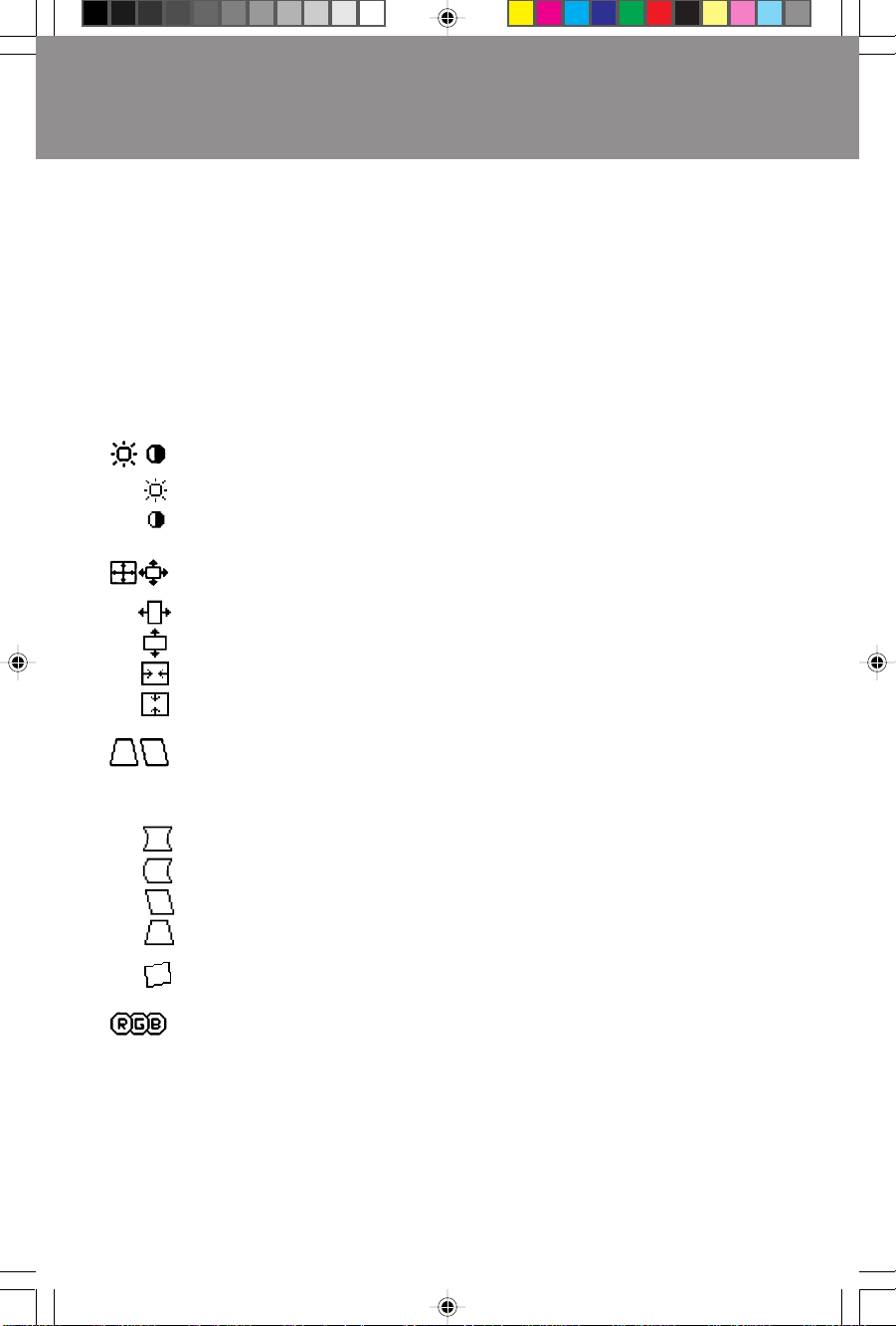

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

EXIT Exits the OSM controls. CONTROL § / © CONTROL +/– Moves the bar in the + or – direction

PROCEED Enters OSM menu and selects icons at the top of the menu. RESET Resets the highlighted control to the factory setting.

Brightness/Contrast Controls

Adjusts the overall image and background screen brightness. Adjusts the image brightness in relation to the background.

Size and Position Controls

Moves the image horizontally (left or right). Moves the image vertically (up or down). Increases or decreases the horizontal size of the image. Increases or decreases the vertical size of the image.

Moves the highlighted area left/right to select one of the controls.

to increase or decrease

the adjustment.

Geometry Controls

The Geometry controls allow you to adjust the curvature or angle of the sides of your display.

Increases or decreases the curvature of the sides either inward or outward. Increases or decreases the curvature of the sides either to the left or right. Increases or decreases the tilt of the sides either to the left or right. Increases or decreases the top of the screen to be the same as the bottom. Rotates the entire display clockwise or counterclockwise.

Color Control/AccuColor® Control System

Two color presets select the desired color setting. Each color setting is adjusted at the factory to the stated Kelvin.

Red, Green, Blue: NEC’s AccuColor Control System increases or decreases the monitor’s red, green or blue color guns depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the bars.

78134441.wpc 11/20/98, 12:33 PM7

Controls cont.

Tools

Degauss Control: Eliminates the buildup of stray magnetic fields that alter the correct scan of the electron beams and affect the purity of the screen colors, focus and convergence. When activated, your screen image will jump and waver a bit as the screen is demagnetized.

Caution: Please allow a minimum of 20 minutes to elapse

between uses of the Degauss Control.

IPM™ System: On: The IPM System works normally and all stages

of energy savings are utilized.

Off: The Off Mode of the IPM System is not used.

NOTE: For standard systems and graphics boards, keep the

factory setting at ON.

Selecting ALL RESET allows you to reset all OSM™ control settings back to the factory settings except IPM System. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Information

Indicates the frequency setting and model and serial numbers of your monitor.

78134441.wpc 11/20/98, 12:33 PM8

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC® A SERIES COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and

opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch danger-

ous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may

cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the

monitor may fall, causing serious damage to the monitor.

• Keep the monitor away from high capacity transformers, electric motors and other

devices such as external speakers or fans, which may create strong magnetic fields.

• If possible, position the monitor so that it is facing the east to minimize the effects

of the earth’s magnetic field.

• Changing the direction of the monitor while it is powered on may cause image

discoloration. To correct this, turn the monitor off for 20 minutes before powering it back on.

• When operating the MultiSync A Series with its AC 220-240V worldwide power

supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used except in UK)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse

installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Allow adequate ventilation around the monitor so that heat can properly

dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system

CAUTION

from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

78134441.wpc 11/20/98, 12:33 PM9

Recommended Use cont.

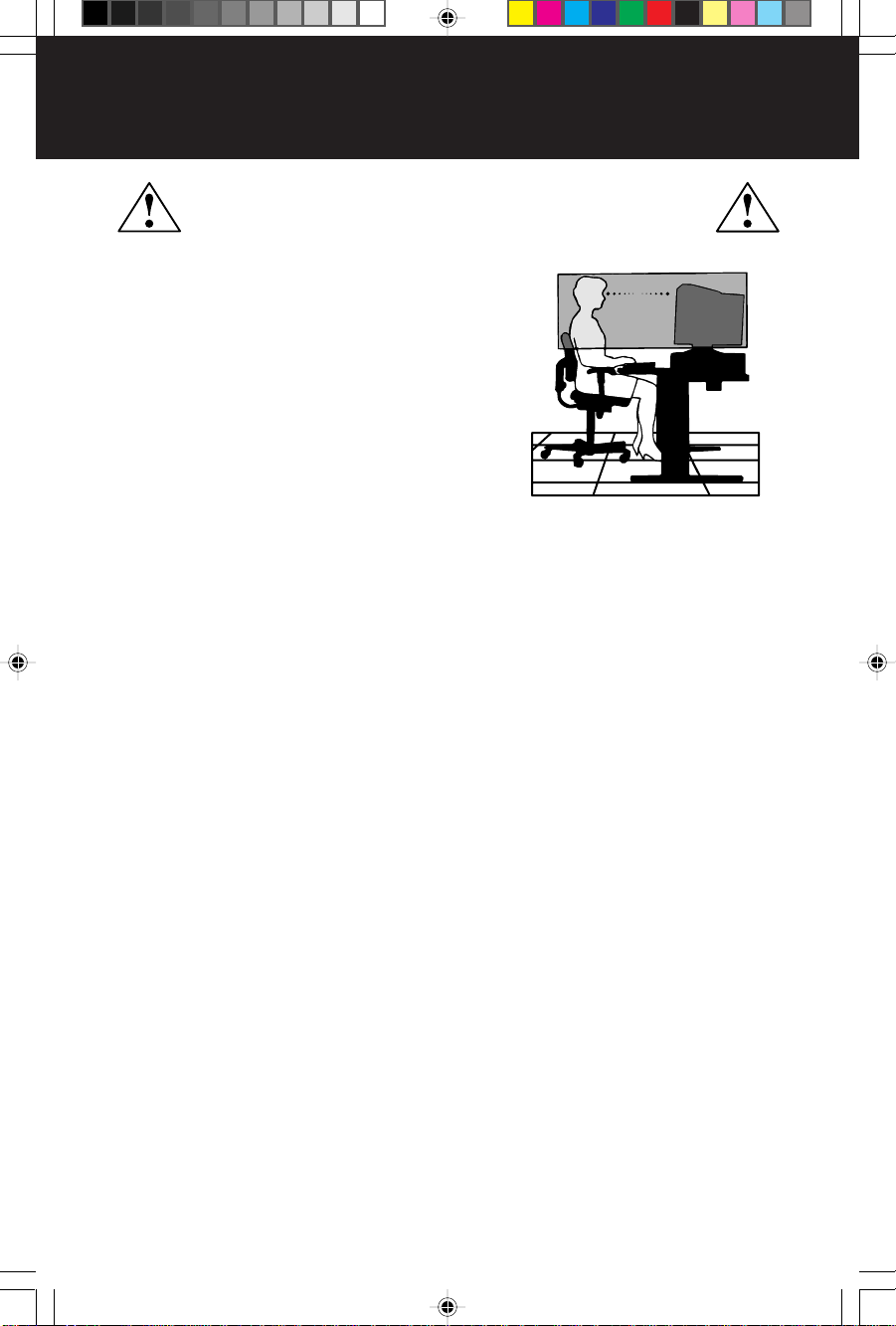

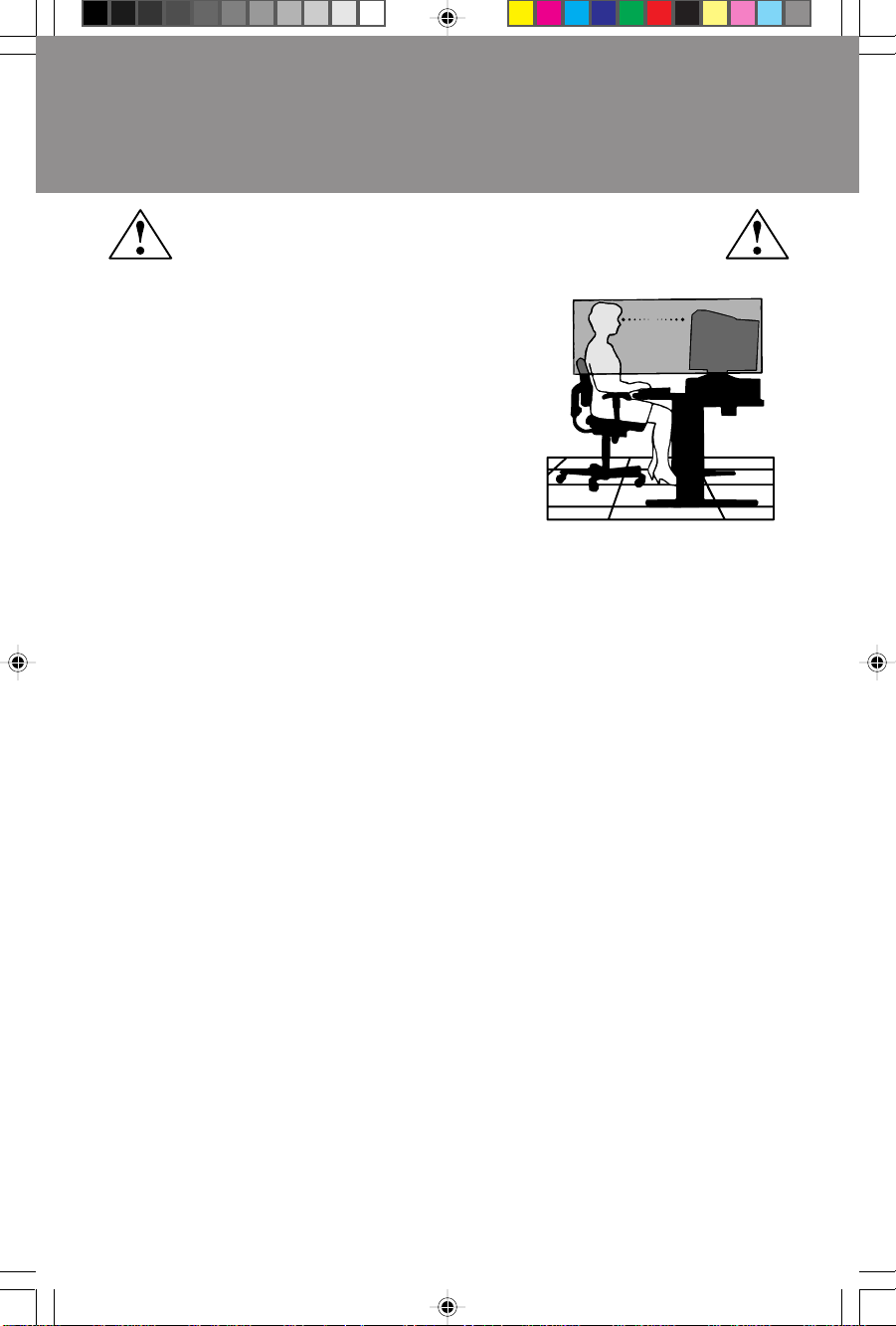

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• Adjust the monitor height so that the top of

the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 12 inches

and no further away than 28 inches from your eyes. The optimal distance is 18 inches.

• Rest your eyes periodically by focusing on

an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to

windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a

non-alcohol, neutral, non-abrasive cleaning solution or glass cleaner to minimize dust.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears

• Do not position the Contrast control to its maximum setting

• Use the preset Size and Position controls with standard signals

• Use the preset Color Setting and Sides Left/Right controls

• Use non-interlaced signals with a vertical refresh rate between 75-120Hz

• Do not use primary color blue on a dark background, as it is difficult to see

and may produce eye fatigue due to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC at (800) 820-1230, NEC FastFacts document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

™

information at (800) 366-0476 and request

78134441.wpc 11/20/98, 12:33 PM10

Specifications

Monitor MultiSync® A500+

™

Notes

Specifications Monitor

Picture Tube Diagonal: 15 inch 90° deflection, 0.28 mm trio dot pitch,

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms

Display Colors Analog input: Unlimited number of Colors Depends on display card used. Synchronization Horizontal: 31 kHz to 70 kHz Automatically

Range Vertical: 55 Hz to 120 Hz Automatically Resolutions Supported 640 x 480 @ 60 to 120 Hz

Resolution based on vertical frequencies only

Active Display Area Horizontal: (Factory Setting) Vertical:

Active Display Area

(Full Scan) Power Supply Current Rating 1.5A @ 100 Dimensions

Weight 12.8 kg

Environmental Considerations

Viewable Image Size: 13.8 inch medium short persistence phosphor,

horizontal and

Operating Temperature: 0°C to +35°C

Storage Temperature: -20°C to +60°C

Radius: 1080 mm multi-layered, anti-static screen coating,

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Composite sync. (Positive/Negative) (TTL Level)

800 x 600 @ 55 to 110 Hz 832 x 624 @ 55 to 105 Hz

1024 x 768 @ 55 to 87 Hz .......................

1152 x 870 @ 55 to 77 Hz 1280 x 1024 @ 55 to 66 Hz

270 mm/10.6 inches Dependent upon signal timing used, 202 mm/8 inches and does not include border area.

280 mm/11 inches Dependent upon signal timing used, 210 mm/8.3 inches and does not include border area.

AC 100 – 120 V/220-240 V, 50/60 Hz

–

120 V/0.8A @ 220-240V

372 mm (W) x 402 mm (H) x 402 mm (D)

14.6 inches (W) x 15.8 inches (H) x 15.8 inches (D)

28.2 lbs

Humidity: 30% to 80%

Feet: 0 to 10,000 Feet

Humidity: 10% to 90%

Feet: 0 to 45,000 Feet

semi-tint screen, Invar Shadow Mask and OptiClear® screen surface.

Some systems may not support all modes listed.

NEC cites recommended resolution at 85 Hz for optimal display performance.

78134441.wpc 11/20/98, 12:33 PM11

NOTE: Technical specifications are subject to change without notice.

Specifications cont.

Monitor MultiSync® A700+

™

Notes

Specifications Monitor

Picture Tube Diagonal: 17 inch 90° deflection, 0.28 mm trio dot pitch,

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms

Display Colors Analog input: Unlimited number of Colors Depends on display card used.

Synchronization Horizontal: 31 kHz to 70 kHz Automatically

Range Vertical: 55 Hz to 120 Hz Automatically

Resolutions Supported 640 x 480 @ 60 to 120 Hz

Resolution based on

vertical frequencies only

Active Display Area Horizontal:

(Factory Setting) Vertical:

Active Display Area

(Full Scan) Power Supply Current Rating 1.5A @ 100 Dimensions

Weight 16.5 kg

Environmental Considerations

Viewable Image Size: 16.0 inch medium short persistence phosphor,

horizontal and

Operating Temperature: 0°C to +35°C

Storage Temperature: -20°C to +60°C

Radius: 1210 mm multi-layered, anti-static screen coating,

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Composite sync. (Positive/Negative) (TTL Level)

800 x 600 @ 55 to 110 Hz 832 x 624 @ 55 to 105 Hz

1024 x 768 @ 55 to 87 Hz .......................

1152 x 870 @ 55 to 77 Hz 1280 x 1024 @ 55 to 66 Hz

310 mm/12.2 inches Dependent upon signal timing used, 232 mm/9.1 inches and does not include border area.

325 mm/12.8 inches Dependent upon signal timing used, 243 mm/9.6 inches and does not include border area.

AC 100 – 120 V/220-240 V, 50/60 Hz

–

120 V/0.8A @ 220-240V

403 mm (W) x 427 mm (H) x 440 mm (D)

15.9 inches (W) x 16.8 inches (H) x 17.3 inches (D)

36.4 lbs

Humidity: 30% to 80%

Feet: 0 to 10,000 Feet

Humidity: 10% to 90%

Feet: 0 to 45,000 Feet

semi-tint screen, Invar Shadow Mask and OptiClear® screen.

Some systems may not support all modes listed.

NEC cites recommended resolution at 85 Hz for optimal display performance.

78134441.wpc 11/20/98, 12:33 PM12

NOTE: Technical specifications are subject to change without notice.

Features

OptiClear® Screen Surface: Reduces reflection and glare and increases contrast without sacrificing focus level, clarity or brightness. Along with the flat square technology CRT, a high contrast screen with 0.28 mm trio dot pitch delivers crisp, clean text and graphics.

Invar Shadow Mask: Holes in the thin metal sheet behind the glass of the CRT surface correspond to each phosphor dot on the inner surface of the CRT’s faceplate, allowing the correct electron beam (red, green, blue) to hit the correct color phosphor for improved focus, brightness and color.

Dual Dynamic Beam Focus (MultiSync®A700+™ monitor only): Provides precise, continuous focus adjustments of the electron beams and optimum image quality, even to the far edges of the screen.

AccuColor® Control System: Allows you to change between two color settings on your display to match your personal preference.

OSM™ (On-Screen Manager) Controls: Allows you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

ErgoDesign® Features: Enhances human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt/swivel base for preferred angle of vision and compliance with MPRII guidelines for lower emissions.

Plug and Play: The Microsoft® solution with the Windows®95/98 operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM™ (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Reduced Magnetic Field™ Technology: Reduces magnetic and alternating electric field emissions and static electricity, addressing ergonomic concerns regarding potential risks from extended computer monitor use.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan™ Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

78134441.wpc 11/20/98, 12:33 PM13

Troubleshooting

No picture

• Display card should be completely seated in its slot.

• Power Button and computer power switch should be in the ON position.

• Signal cable should be completely connected to display card/computer.

• Check connector for bent or pushed-in pins.

Image is scrolling or unstable

• Signal cable should be completely attached to the computer.

• Check pin assignments and signal timings of the monitor and your display card with respect to recommended timings and pin assignments.

• If the Macintosh cable adapter is used, check for proper connection or make sure the display card is Macintosh compatible and that the card is properly seated in the computer.

LED on monitor is not lit

• Power Switch should be in the ON position and power cord should be connected.

Picture is fuzzy or color looks blotchy

• Adjust Brightness and Contrast Controls.

• Access the Degauss Control through OSM™ controls. Activate the Degauss Control. CAUTION: A minimum interval of 20 minutes should elapse before the

Deguass Control is used a second time when not switching between modes.

Picture bounces or a wavy pattern is present in the picture

• Move electrical devices that may be causing electrical interference away from the monitor.

• See inside cover of User’s Manual for FCC information.

Edges of the display image are not square

• Use the OSM Geometry Controls to straighten the edges.

• If possible, position the front of the monitor facing east.

Display image is not centered, too small, or too large

• Use the OSM Size and Position Controls to adjust the image.

(no green, orange, yellow color can be seen)

78134441.wpc 11/20/98, 12:33 PM14

References

• BBS (978) 742-8706

NEC Technologies’ Remote Bulletin Board System is an electronic service accessible with your system and a modem. Communication parameters are: 300/1200/2400/9600/14.4k/28.8k bps, no parity, 8-data bits, 1 stop bit

• Customer Service/ Technical Support (800) 632-4662

Fax (978) 742-7049

• Electronic Channels:

Internet e-mail: tech-support@nectech.com Internet ftp site: ftp.nectech.com World Wide Web: http://www.nectech.com Windows® 95/98 INF file: http://www.nec.com/drivers/graphic.htm

Then download the file NECMSINF.ZIP

• FastFacts™ Information (800) 366-0476

INFORMATION DESCRIPTION DOCUMENT #

MultiSync® A500+™ and A700+™Detailed monitor information 1517601 monitors

Glossary Definition of terms related 900203

to functions, features and installation of the MultiSync monitor

More Information Names and addresses of 900204

other groups involved in standards and features of the MultiSync monitor

Macintosh Connection Detailed information on 153006

connecting the MultiSync monitor to a Macintosh

Healthy Work Environment Detailed information on 900108

setting up a healthy work environment

• Literature & Sales Info (800) NEC-INFO [(800) 632-4636]

• MultiSync Fulfillment (800) 820-1230

[For software & accessories]

• TeleSales (800) 284-4484

78134441.wpc 11/20/98, 12:33 PM15

Limited Warranty

NEC Technologies, Inc. (hereinafter “NECTECH”), warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NECTECH’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or units may be new or refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NECTECH-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NECTECH. No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NECTECH to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NECTECH to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NECTECH for service MUST have prior approval, which may be obtained by calling 1-800-632-4662.

The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NECTECH to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NECTECH SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NECTECH PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NECTECH Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NECTECH.

For the name of your nearest authorized NECTECH service facility, contact NECTECH at 1-800-632-4662.

78134441.wpc 11/20/98, 12:33 PM16

TCO’95

MultiSync® A700+

Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.

™

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden). The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety. The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability. TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

Environmental Requirements

Brominated flame retardants Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental

78134441.wpc 11/20/98, 12:33 PM17

+ 39 hidden pages
