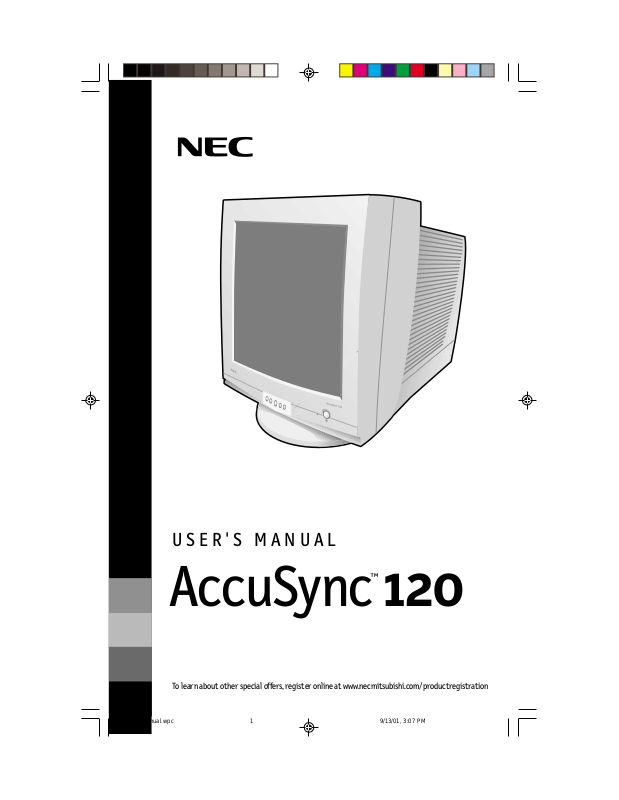

U S E R ' S M A N U A L

AccuSync™ 120

To learn about other special offers, register online at www.necmitsubishi.com/ productregistration

AS120Manual.wpc

1

9/13/01, 3:07 PM

Index

Warning	1
Contents	2
Quick Start	3-4
Controls	5-6
Recommended Use	7-8
Specifications	9
Features	10
Troubleshooting	11
References	12
Limited Warranty	13
Avertissement	14
Contenu	15
Mise en marche rapide	16-17
Commandes	18-19
Usage recommandé	20-21
Fiche techniques	22
Fonctions	23
Dépannage	24
Références	25
Garantie limitée	26

AS120Manual.wpc

2

9/13/01, 3:07 PM

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to C.S.A. 22.2 #950.

FCC Information

1.Use the attached specified cables with the AccuSync 120 color monitor so as not to interfere with radio and television reception.

(1)Please use the supplied power cable or equivalent to ensure FCC compliance.

(2)Shielded video type signal cable.

Use of other cables and adapters may cause interference with radio and television reception.

2.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

1

AS120Manual.wpc

3

9/13/01, 3:07 PM

Contents

You can register your product online at www.necmitsubishi.com/productregistration

Your new NEC AccuSync™ monitor box* should contain the following:

• AccuSync Monitor	• Power Cord	•User’s Manual
AccuSync™ 120	• Video Signal Cable

Video Signal Cable

	U S E R ' S M A N U A L
	AccuSync® 120™
	To learn about other special offers, register online at www.necmitsubishi.com/ productregistration
Power Cord	User’s Manual

*Remember to save your original box and packing material to transport or ship the monitor.

2

AS120Manual.wpc

4

9/13/01, 3:08 PM

Quick Start

To attach the AccuSync™ monitor to your system, follow these instructions:

1.Turn off the power to your computer.

2.If necessary, install the display card into your system. For more information, refer to the display card manual.

3.For the PC: Connect the one end of the 15-pin mini D-SUB of the video signal cable to the rear of the monitor and the other end to the connector of the display card in your system (Figure A.1). Tighten all screws.

For the Mac: Connect the Macintosh cable adapter (not included) to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin mini D-SUB end of the video signal cable to the Macintosh cable adapter on the computer and the other end to the back of the monitor (Figure B.1).

Tighten all screws.

NOTE: To obtain the AccuSync 120 Macintosh cable adapter, call NEC-Mitsubishi Electronics Display of America, Inc. at [phone].

4.Connect one end of the power cord to the AccuSync monitor and the other end to the power outlet (Figure C.1).

5.Turn on the monitor (Figure D.1) and the computer.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

15-pin mini D-SUB

Video Signal Cable

Figure A.1

3

AS120Manual.wpc

5

9/13/01, 3:08 PM

Quick Start cont.

Mac Adapter

(Not Included)

15-pin mini D-SUB

Video Signal Cable

Figure B.1

Power Outlet

Power Cord

Figure C.1

AccuSync 120

Power Button

Figure D.1

4

AS120Manual.wpc

6

9/13/01, 3:08 PM

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

SELECT	Enters and exits the OSM menu.
CONTROL –/+	Selects one of the controls and increases or decreases the
	adjustment.
▲ / ▼	Moves the highted area ▲ / ▼ to select control.

Adjusts the overall image and background screen brightness.

Adjusts the image brightness in relation to the background.

Moves the image horizontally (left or right).

Moves the image vertically (up or down).

Increases or decreases the horizontal size of the image.

Increases or decreases the vertical size of the image.

Rotates the entire display clockwise or counterclockwise.

Increases or decreases the curvature of the sides either inward or outward.

Decreases or increases the curvature left or right.

Increases or decreases the tilt of the sides either to the left or right.

Increases or decreases the top of the screen to be the same as the bottom.

Increases or decreases the curvature of the inward or outward top corners.

Increases or decreases the curvature of the bottom corner inward or outward.

5

AS120Manual.wpc

7

9/13/01, 3:08 PM

Controls cont.

Color Preset: Select from 9300K or 6500K color temperature.

AccuColor Temperature: Increases or decreases the color temperature.

RED	Red Color Contrast: Adjust the red contrast of the display
GREEN	Green Color Contrast: Adjust the green contrast of the display.
BLUE	Blue Color Contrast: Adjust the blue contrast of the display.

Video Level: Select from 0.7 or 1.0V to match to computers output.

Language: Adjusts language of OSM menu.

OSD Position: Adjusts Position of OSM menu.

Degauss: Eliminates the buildup of stray magnetic fields which alter the correct scan of the electron beams and effect the purity of the screen colors, focus and convergence when acivated, your screen image will jump and waver a bit as the screen is demanetized.

CAUTION: Please allow a minimum of 20 minutes to elapse between uses of degauss control.

Recall: Resets all OSM settings to default.

Moiré: Reduces horizontal/vertical moiré levels.

Convergence: Aligns all colors horizontal (R,G,B) to form a single color (White).

6

AS120Manual.wpc

8

9/13/01, 3:08 PM

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE AccuSync™ COLOR MONITOR:

•DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

•Do not spill any liquids into the cabinet or use your monitor near water.

•Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

•Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

•Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

•Keep the monitor away from high capacity transformers, electric motors and other devices such as external speakers or fans, which may create strong magnetic fields.

•If possible, position the monitor so that it is facing the east to minimize the effects of the earth’s magnetic field.

•Changing the direction of the monitor while it is powered on may cause image discoloration. To correct this, turn the monitor off for 20 minutes before powering it back on.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

•When the power supply cord or plug is damaged.

•If liquid has been spilled, or objects have fallen into the monitor.

•If the monitor has been exposed to rain or water.

•If the monitor has been dropped or the cabinet damaged.

•If the monitor does not operate normally by following operating instructions.

•Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

CAUTION • The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close

to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

7

AS120Manual.wpc

9

9/13/01, 3:08 PM

Recommended Use cont.

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 12 inches and no further away than 28 inches from your eyes. The optimal distance is 18 inches.

•Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt

so that ceiling lights do not reflect on your screen.

•If reflected light makes it hard for you to see your screen, use an anti-glare filter.

•Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a non-alcohol, neutral, non-abrasive cleaning solution or glass cleaner to minimize dust.

•Adjust the monitor’s brightness and contrast controls to enhance readability.

•Use a document holder placed close to the screen.

•Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

•Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

•Adjust the Brightness until the background raster disappears

•Do not position the Brightness control to its maximum setting

•Use the preset Size and Position controls with standard signals

•Use the preset Color Setting and Sides Left/Right controls

•Use non-interlaced signals with a vertical refresh rate between 70-85Hz for the AccuSync™ 120

•Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC - Mitsubishi Electronics Display of America at [phone], NEC FastFacts™ information at [phone] and request document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSIHFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.
