Welcome to the SYMPHONY ESSENTIALS
About the SYMPHONY ESSENTIALS
1 Welcome to the SYMPHONY ESSENTIALS
Thank you for purchasing SYMPHONY ESSENTIAL BRASS SOLO. This document will give you
information about the library, as well as step-by-step instructions and advice on how to achieve
the best results with it.
We hope that you will enjoy using the SYMPHONY ESSENTIALS products.
1.1 About the SYMPHONY ESSENTIALS
SYMPHONY ESSENTIALS ESSENTIAL BRASS SOLO is part of the SYMPHONY ESSENTIALS
line of KONTAKT Instruments. This series provides composers with a basic tool set for creating
highly realistic orchestral textures with an expansive sound full of character.
ESSENTIAL BRASS SOLO allows you to use a production-ready STEREO mix. On the Effects
page, a parametric EQ, convolution REVERB, COMPRESSION and FILTER effects let you adjust the sound to suit any project you're working on.
Articulations from a comprehensive palette can be switched in real time by freely assignable
Key Switches or MIDI CCs. Five performance controls are pre-assigned to MASCHINE controllers
and the KOMPLETE KONTROL S series of keyboards.
1.2 About this Document
This document was written in a way that allows you to access information out of order. While
the topics are structured to guide you through the features and usage of ESSENTIAL BRASS
SOLO topic by topic, you can skip ahead at any time.
Jump right in the midst of the document to a topic you're interested in. You shouldn't have to
look up related information to be able to follow any of the workflow tutorials. All relevant information is given as part of each description.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 7
Welcome to the SYMPHONY ESSENTIALS
Manual Conventions
1.3 Manual Conventions
This document uses particular formatting to point out special facts and to warn you of potential issues. The icons introducing the following notes let you see what kind of information can
be expected:
The speech bubble icon indicates a useful tip that may often help you to solve a task
more efficiently.
The exclamation mark icon highlights important information that is essential for the given context.
The red cross icon warns you of serious issues and potential risks that require your full
attention.
Furthermore, the following formatting is used:
▪ Text appearing in (drop-down) menus (such as Open…, Save as… etc.) in the software and
paths to locations on your hard disk or other storage devices is printed in italics.
▪ Text appearing elsewhere (labels of buttons, controls, text next to checkboxes etc.) in the
software is printed in blue. Whenever you see this formatting applied, you will find the
same text appearing somewhere on the screen.
▪ Important names and concepts are printed in bold.
▪ References to keys on your computer’s keyboard you’ll find put in square brackets (e.g.,
“Press [Shift] + [Enter]”).
Single instructions are introduced by this play button type arrow.
►
Results of actions are introduced by this smaller arrow.
→
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 8
Welcome to the SYMPHONY ESSENTIALS
Manual Conventions
Naming Convention
Throughout this document, we will refer to SYMPHONY ESSENTIALS BRASS SOLO as just ESSENTIALS BRASS SOLO.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 9
Choosing the Right KONTAKT Instrument
Soloist Instrument
2 Choosing the Right KONTAKT Instrument
The ESSENTIALS ESSENTIAL BRASS SOLO ships with a total of six KONTAKT Instruments
(.nki files). To help you select the right one for your specific task, here is an overview of the
included Instruments.
Four orchestral instrument brass sections were recorded:
▪ Horns
▪ Trombone
▪ Trumpet
▪ Tuba
2.1 Soloist Instrument
For each section's soloist, ESSENTIAL BRASS SOLO offers one KONTAKT Instrument which
lets you switch in real time between the Articulations most commonly used in contemporary
composition. This Instrument is the quickest and most flexible choice, which you will want to
include in your default template for compositional work.
The Master Instruments can be found in each section's sub folder and are named after the section's soloist:
▪ Horn 1 Essential.nki
▪ Horn 2 Essential.nki
▪ Trombone Essential.nki
▪ Trumpet Essential.nki
▪ Tuba Essential.nki
For every Articulation you assign, the corresponding samples are loaded into your computer’s RAM. De-activate every Articulation you don’t need to conserve memory as described in chapter ↑4.2.1, Removing Specific Articulation Assignments.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 10
Choosing the Right KONTAKT Instrument
Quartet Instrument
See also
2 Removing Specific Articulation Assignments [➙ 32]
2.2 Quartet Instrument
The Quartet Instrument allows you to play all ESSENTIAL BRASS SOLO instruments in one Instrument, although with a limited choice of Articulations.
▪ Brass Quartet Essential.nki
The Brass Quartet Essential Instrument in the Browser
The Quartet Instrument distributes voices between the different soloists (according to user-con-
figurable Section note ranges) for rapid sketching of musical ideas. It represents the quickest
way of distributing chords across Soloists, playing Quartet swells or massive orchestral stabs.
Inside the Quartet Instrument, you can adjust volume and panorama per Soloist, as well as the
note range which is played by each of them.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 11
Playing SYMPHONY ESSENTIALS Instruments
Selecting Articulations with Key Switches
3 Playing SYMPHONY ESSENTIALS Instruments
3.1 Selecting Articulations with Key Switches

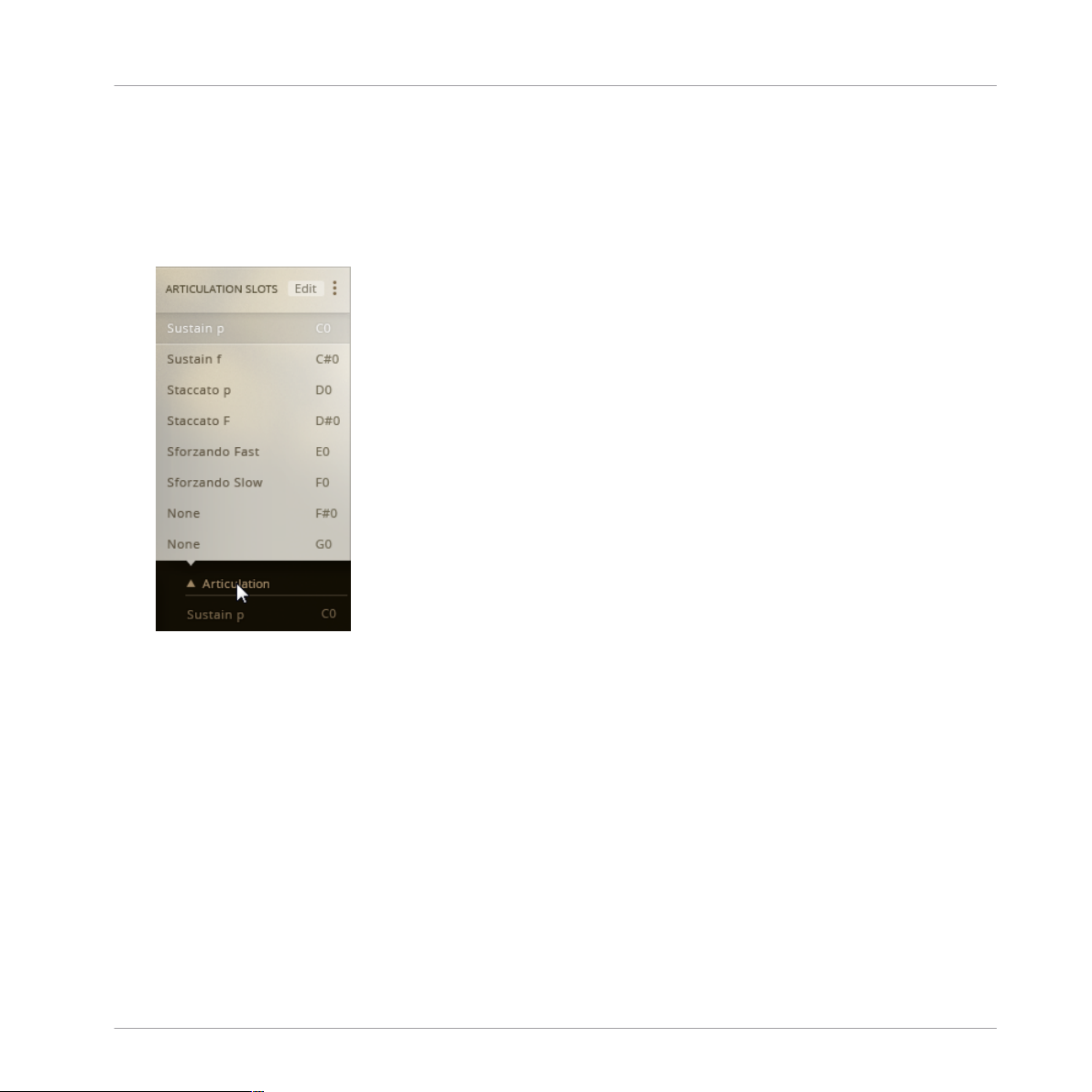

When loading one of the KONTAKT Instruments, up to 8 Articulations are assigned to the keys
from C0 to G0. These key-switches are displayed as either red, green, or cyan keys in KONTAKT's on-screen keyboard and in the small Articulation Indicators beneath the Articulation label.
Key Switch colors on the on-screen keyboard and the Articulation Indicators
If ESSENTIAL BRASS SOLO is configured to select Articulations by Key Switches, the
corresponding keys in KONTAKT's on-screen keyboard are colored according to the respective Articulation category:
Red: Sustain
Green: Staccato
Blue: Expression
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 12
Playing SYMPHONY ESSENTIALS Instruments
Refining a Recording in Your Host Software
On KOMPLETE KONTROL S keyboards, the Light Guide LEDs visualize the Key
Switches by lighting up in the same color.
To select an Articulation by Key Switch:
1. Load the Trombone Essential.nki KONTAKT Instrument.
2. Press the C0 MIDI note on your MIDI keyboard to select the Sustain p Articulation assigned to C0.
3. Play this Articulation using the dark blue range of keys.
4. Press the D0 key on your MIDI keyboard to select the Sustain f Articulation.
5. Play this Articulation using the dark blue range of keys.
KONTAKT's on-screen keyboard with Key Switches
None of these Articulations are just static musical building blocks. Make a habit of using the Modulation Wheel (MIDI CC 1) to modulate the Dynamics control to record expressive parts.
In the context of a busy arrangement, these results may already be good enough. In passages
which feature the brass more prominently, the discerning listener may still be able to identify
details which give away the fact that you didn't record a live performance.
The solution is to refine the recorded performance in your host software with the provided Performance Controls.
3.2 Refining a Recording in Your Host Software
The key to a realistic performance is a combination of three basic methods:
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 13
Playing SYMPHONY ESSENTIALS Instruments
About Using MIDI Controllers
Switching Between Articulations
Articulations are one of the key ingredients of musical expression. Switching Articulations in
ESSENTIAL BRASS SOLO is the equivalent to writing articulation marks in music notation.
When composing with ESSENTIAL BRASS SOLO, lay out carefully which Articulations you will
need.
Playing Like a Brass Player
Watch both, the note starts and endings. Depending on the pitch and instrument section, it
takes real-life brass instruments varying amounts of time to build up a steady tone (i.e. Attack)
and to fade out (i.e. Release). These differences were recorded and are part of the Instruments.
Unlike playing a piano library, to achieve accurate timing, you will have to move some notes
ahead of the precise beat by varying amounts, just as real brass players compensate by playing
slightly ahead.
Using the Performance Controls
Real time modulation of Performance Controls allows for more realistic performances. Recording automation with the Mod Wheel allows you to access the entire dynamic range of the orchestra.
The Mod Wheel (MIDI CC 1) is by default assigned to the Dynamics control and you
should always play expressively with the tonal variations the Mod Wheel affords you.
You can achieve even more realistic results by automating slight variations to the Attack, Re-
lease, Tightness and Vibrato controls, even if the differences appear subtle at first.
3.3 About Using MIDI Controllers
It is highly recommended that you work with a MIDI controller, which lets you perform automation of the Performance Controls in real time. This way, you will hear the changes immediately,
instead of just drawing automation curves in your host software.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 14
Playing SYMPHONY ESSENTIALS Instruments
Performance Controls
If you load ESSENTIAL BRASS SOLO inside KOMPLETE KONTROL or MASCHINE 2, the Performance Controls are automatically mapped to the controller's first four knobs. The Dynamics
control defaults to the Mod Strip on your KOMPLETE KONTROL S keyboard, or to the Modulation Wheel (MIDI CC 1) if used with a generic controller.
All other parameters are available via your host software's automation system. When selecting
the KONTAKT plug-in as the automation target, the Performance Controls are the first four automation parameters.
In order to control the Performance Controls with a generic MIDI control device, please
use the mechanism provided by your host to MIDI-control automation parameters.
Cubase: Quick Controls
Logic X: Automation Quick Access
Ableton Live: MIDI Remote
Pro Tools: MIDI CC Automation
3.4 Performance Controls
When you load ESSENTIAL BRASS SOLO, the Performance Controls are the most prominent
feature of the Instrument's user interface. These controls are used to refine a performance to
achieve very realistic results. Thanks to their unified layout, once you understand what they do
in one product from the series, you'll be immediately familiar with all of them.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 15
The main Performance Controls
3.4.1 Dynamics
Playing SYMPHONY ESSENTIALS Instruments
Performance Controls
Dynamics Control
The Dynamics control is assigned to the Mod Wheel (MIDI CC 1) by default. It allows you to
control the loudness and intensity of the Instrument in real-time. That way, you can play swells
in any of the Sustain Articulations or easily automate intensity changes to e.g. transition from
leading to supporting passages.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 16
Playing SYMPHONY ESSENTIALS Instruments
Performance Controls
3.4.2 Attack
Attack Control
The Attack control allows you to increase the fade-in time per note to simulate realistic variations throughout a passage. By setting the Attack time to higher values, you can cause the
notes to fade in more slowly, giving the notes a more solemn and gentle character.
3.4.3 Release
Release Control
The Release control applies an additional envelope to the reverb tail of the recorded samples,
thus affecting fade-out time.
Reducing the Release setting to 0% produces a very "dry" sounding result, which can sometimes make the result sound artificial. However, this can be very useful when adding internal
or external reverb effects, as this allows the additional reverb to avoid conflicting with the natural sampled ambience.
3.4.4 Tightness
Tightness Control
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 17
Playing SYMPHONY ESSENTIALS Instruments
Performance Controls
The Tightness control determines the starting point for the playback of a sample. This feature
is extremely useful when used in combination with the Attack control to allow you to cut into
the initial transient for an articulation to allow more precise note attacks.
When increasing the Tightness value to shift playback farther into the sample, it is recommended you increase the Attack value as well to refine the shape of the note attack.
This control is also useful in the context of playing phrases where the cross-fading of a loud
note to the attack of a following quieter note can cause audible artifacts. This should hardly
ever occur and if it does, Tightness is just one option to improve. Usually, adjusting these
notes' velocities will be sufficient.
Should the occasion arise and you hear any such artifacts, try increasing Tightness starting
from its default of 0%. By cutting off the natural attack phase, Tightness simulates the playing
behavior of an instrument which is already resonating when playing the next note.
3.4.5 Vibrato
Vibrato Control
The Vibrato control allows you to add natural movement to the sound, which modulates both
pitch and intensity of the note.
3.5 Additional Controls
Below the Performance Controls, you'll find the Articulation selector plus two additional sets of
controls. Depending on the selected Articulation, different combinations of these controls are
available. This is an overview of all controls you will encounter.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 18
1
2
3
Playing SYMPHONY ESSENTIALS Instruments
Additional Controls
Additional Controls
(1) Articulation Selector: This control is visible in every Instrument.
Click the Articulation label to open the ARTICULATION SLOTS list.
►
Click the Articulation name to assign a different Articulation from the drop-down menu.
►
Click any of the eight Articulation Indicator dots to select a different Articulation.
►
(2),(3) Additional Controls: Depending on which ESSENTIAL BRASS SOLO Instrument you open
and which Articulation type you select, these two fields show different controls.
3.5.1 Repetition
Click the small button to the left of the label to activate or de-activate Repetition. A thin ring
shows it's inactive, a solid dot means it's active.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 19
Playing SYMPHONY ESSENTIALS Instruments
Additional Controls
Repetition Controls with and without Accent
When Repetition is activated, every note you play is automatically repeated a number of times
before the note plays out to the end.
Attack: Set the number of repetitions here. Click the button and select one of the numbers
from the drop-down menu.
Select 2x - 4x for the note to be repeated and then stop.
►
Select Run for the notes to be repeated indefinitely.
►
Speed: Set the speed of repetitions here. Click the button and select a note division value from
the drop-down menu.
Accent: This parameter is only available for Staccato Articulations.
Select None for no pronounced accentuation
►
Select First for accentuation of the first repetition. If you selected Run in the Attack
►
menu, selecting first will accentuate the first note of the repeating pattern.
Select Last for accentuation of the last repetition. If you selected Run in the Attack
►
menu, selecting first will accentuate the first note of the repeating pattern.
3.5.2 Legato
Click the small button to the left of the label to activate or de-activate Legato. A thin ring
shows it's inactive, a solid dot means it's active.
Legato Control Panel
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 20
Playing SYMPHONY ESSENTIALS Instruments
Additional Controls
Response: This slider controls the speed of the Legato transition.
Click and drag the slider to the left for a longer transition time or to the right for a short
►
transition.
Solo: Only one note is played at a time.
Duet: This allows two-part polyphonic legato melodies to be played. While sequential
►
notes are played less than 6 semitones apart, they will be joined together by legato transitions. If notes are played sequentially with 6 or more semitones between them, they will
play as two completely independent parallel legato melodies.
3.5.3 Progress Indicator
The Progress indicator is only visible for the Expression category of Articulations. The curve
from left to right visualizes how the intensity, volume or pitch evolves over time in the selected
Articulation, while a pointer indicates the playback position.
Progress Display
3.5.4 Round Robin
Round Robin helps avoid a typical issue associated with repeated playback of a sample. If you
play a Staccato pattern using the same sample for each note, the result will sound static and
artificial.
With Round Robin activated, there are between 2 and 8 alternative samples available for each
note. Playing the first note will trigger sample 1, the second note triggers sample 2 and so on
until every sample position has been played, then it starts from the beginning.
The Round Robin indicator visualizes the selection of the alternative samples, the dot indicating the sample being played back.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 21
Playing SYMPHONY ESSENTIALS Instruments
Additional Controls
Round Robin Indicators
3.5.5 Playback
The Playback parameter is available for Articulations which have a rhythmical aspect like a
half tone up movement or a trill.
Playback Controls
Natural: Click to select this option to play back the Articulation at the originally recorded
speed. No time stretching is applied.
Sync: Click to select this option to sync the Articulation with your project's tempo. Time
stretching is applied.
Varispeed: Click to select this option if you want free control over the playback speed of an Articulation. This is the only mode affected by the Speed slider. Time stretching is applied.
Speed: Click and drag left for slow playback of the Articulation, drag right for fast playback.
The Sync and Varispeed controls activate time stretching, which results in increased
CPU load and RAM consumption. Only activate if time stretching is required
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 22
Configuring ESSENTIAL BRASS SOLO
The Articulation Slot Setup View
4 Configuring ESSENTIAL BRASS SOLO
Each Instrument in ESSENTIAL BRASS SOLO represents a default selection of Articulations
assigned to Key Switches. You can configure your own collection of Articulations by means of
the Articulation Slot Setup view as described in this chapter.
Once configured, you can save your work as a KONTAKT Snapshot for instant recall.
4.1 The Articulation Slot Setup View
To assign up to eight Articulations to either Key Switches or value ranges of a MIDI CC, ESSENTIAL BRASS SOLO provides the Articulation Slot Setup view. This is how you access it:
1. Load Brass Quartet Essential.nki.
2. Click the Articulation label in the bottom left corner. This will open the ARTICULATION
SLOTS list.
‘
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 23
Configuring ESSENTIAL BRASS SOLO
The Articulation Slot Setup View
3. Click the Edit button to open the full Articulation Slot Setup. This view will completely
cover the Performance Controls.
⇨ You can now freely configure Articulation assignments.
Articulation Slot Setup View
For every Articulation you assign, the corresponding samples are loaded into your computer’s RAM. De-activate every Articulation you don’t need to conserve memory as described in chapter ↑4.2.1, Removing Specific Articulation Assignments.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 24
1 2 3
4
5 6 7 8
9
Configuring ESSENTIAL BRASS SOLO
The Articulation Slot Setup View
4.1.1 Overview of the Articulation Slot Setup (Key Switch)
Depending on whether you assign Key switches or MIDI CC, the Articulation Slot Setup view
offers slightly different sets of controls. This is an overview of the Key Switch setup.
Articulation Slot Setup View (Key Switch)
(1) Key/MIDI CC selector: The eight Articulation Slots can be selected either by Key (MIDI note)
or by MIDI CC events. Click the respective text label to change this setting for the entire Instrument. The active option is highlighted.
(2) Edit Button: Click this button to show/hide the full Articulation Slot Setup view.
With Edit inactive, you have limited access to the Articulation Slots, while still being able to
move the Performance Controls with the mouse.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 25
Configuring ESSENTIAL BRASS SOLO
The Articulation Slot Setup View
With Edit activated, you get full access to Key/MIDI CC assignments and a visual representation of selectable Articulations.
(3) Articulation Slot Macros: Click the three dots to open the macro menu. Depending on whether Key or MIDI CC is selected, you'll have access to different convenience features (e.g. assigning ascending key switches to the Articulation Slots automatically).
(4) Articulation List: This list holds eight Articulation Slots. Each Slot represents a Key/MIDI CC
value, the assigned Articulation, as well as a volume control per Articulation. Key/MIDI CC is
set globally for all Articulation Slots in an Instrument.
(5) Key Assignment selector: Set the MIDI Key which will select this Articulation. Click and drag
up/down to set the Key.
(6) MIDI Learn button: This offers an alternative to manually setting the MIDI Key. Click this
button, then press a key on your MIDI keyboard to complete the assignment.
(7) Velocity Range selector: Multiple Articulations can be assigned to the same MIDI Key. The
selection is then dependent on how much force you apply when playing that key (Velocity).
Click and drag the value in the left field to set the lowest Velocity (0-127) which will se-
►
lect this Articulation.
Click and drag the right hand field to set the highest Velocity (0-127) which will select
►
this Articulation.
(8) Clear Slot button: Click this button to remove the Articulation assignment from the selected
slot. The samples of unassigned Articulations are automatically purged from RAM. The Key/
MIDI CC setup is preserved when clicking the Clear Slot button.
(9) Articulation Cell: Each of these cells represent an Articulation. Click any of them to assign
that Articulation to the selected Articulation slot.
If ESSENTIAL BRASS SOLO is configured to select Articulations by Key Switches, the
corresponding keys in KONTAKT's on-screen keyboard are colored according to the respective Articulation category:
Red: Sustain
Green: Staccato
Blue: Expression
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 26
1
2
3
4
5 6
7 8
9
Configuring ESSENTIAL BRASS SOLO
The Articulation Slot Setup View
4.1.2 Overview of the Articulation Slot Setup (MIDI CC)
Depending on whether you assign Key switches or MIDI CCs, the Articulation Slot Setup view
offers slightly different controls. This is an overview of the MIDI CC setup.
Articulation Slot Setup View (MIDI CC)
(1) Key/MIDI CC selector: The eight Articulation Slots can be selected either by Key (MIDI note)
or by MIDI CC events. Click the respective text label to change this setting for the entire Instrument. The active option is highlighted.
(2) Edit Button: Click this button to show/hide the full Articulation Slot Setup view.
With Edit inactive, you have limited access to the Articulation Slots, while still being able to
move the Performance Controls with the mouse.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 27
Configuring ESSENTIAL BRASS SOLO
The Articulation Slot Setup View
With Edit activated, you get full access to Key/MIDI CC assignments and a visual representation of selectable Articulations.
(3) Articulation Slot Macros: Click the three dots to open the macro menu. Depending on whether Key or MIDI CC is selected, you'll have access to different convenience features (e.g. assigning ascending key switches to the Articulation Slots automatically).
(4) Articulation List: This list holds eight Articulation Slots. Each Slot represents a Key/MIDI CC
value, the assigned Articulation, as well as a volume control per Articulation. Key/MIDI CC is
set globally for all Articulation Slots in an Instrument.
(5) MIDI CC Assignment selector: Click and drag up/down to set the MIDI CC number.
(6) MIDI Learn button: This offers an alternative to manually setting the MIDI CC number. Click
this button, then move a knob, fader or button on your MIDI keyboard to send a MIDI Control
message and to complete the assignment.
(7) Controller Range selectors: Multiple Articulations can be assigned to the same MIDI CC. The
selection is then dependent on the MIDI CC value your controller sends.
Click and drag the value in the left field to set the lowest CC value (0-127) which will
►
select this Articulation.
Click and drag the right hand field to set the highest CC value (0-127) which will select
►
this Articulation.
(8) Clear Slot button: Click this button to remove the Articulation assignment from the selected
slot. The samples of unassigned Articulations are automatically purged from RAM. The Key/
MIDI CC setup is preserved when clicking the Clear Slot button.
(9) Articulation Cell: Each of these cells represent an Articulation. Click any of them to assign
that Articulation to the selected Articulation slot.
If ESSENTIAL BRASS SOLO is configured to select Articulations by Key Switches, the
corresponding keys in KONTAKT's on-screen keyboard are colored according to the respective Articulation category:
Red: Sustain
Green: Staccato
Blue: Expression
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 28
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
4.2 Editing Articulations Manually
There are different ways for you to re-assign different Articulations to pre-defined Articulation
Slots.
Directly in the Performance View
This is the fastest option if you want to assign a different Articulation to the currently selected
Articulation Slot. It also allows you to stay in the distraction-free performance view.
1. Load Brass Quartet Essential.nki.
2. Click the leftmost Articulation Indicator in the bottom left corner. The Sustain p Articulation is selected.
3. Click the Articulation name. A list of available Articulations will open.
4. Select the Staccato F Articulation by clicking in the list.
The Articulation is assigned to C0.
→
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 29
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
In the Articulation Slots List
Using the ARTICULATION SLOTS list gives you an overview of all Articulation assignments
while still letting you access the Performance controls with the mouse.
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Select the first Articulation Slot by clicking on it in that list.
4. Click on Sustain p, the default assignment in the first Articulation Slot. A list of available
Articulations will open.
5. Select Sforzando Fast by clicking in the list.
The Sforzando Fast Articulation is assigned to the first slot.
→
In the Articulation Slot Setup View
The full Articulation Slot Setup view allows you to switch between MIDI Key and MIDI CC assignment for the entire KONTAKT instrument. Depending on this selection, you can freely configure advanced parameters.
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 30
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. In that list, click the Edit button. The Articulation Slot Setup view will open, covering the
Performance Controls.
4. Here, click the Swell Slow tile to select the respective Articulation.
The Swell Slow Articulation is now assigned.
→
If ESSENTIAL BRASS SOLO is configured to select Articulations by Key Switches, the
corresponding keys in KONTAKT's on-screen keyboard are colored according to the respective Articulation category:
Red: Sustain
Green: Staccato
Blue: Expression
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 31
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
4.2.1 Removing Specific Articulation Assignments
To clear single Articulation assignments, use the ARTICULATION SLOTS list.
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. In the list, click on the Articulation name. A list of available Articulations will open.
4. Select None, the last entry in that list.
The assignment is removed.
→
4.2.2 Removing all Articulations
To clear all Articulation assignments, use the Articulation Macro.
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 32
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. In the top right corner of this list, click the three vertical dots. A list of available macros
will open.
4. Click on Empty all slots.
All assignments are deleted.
→
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 33
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
4.2.3 Assigning Key Switches to Articulations
Within a KONTAKT Instrument, you can assign either Key switches (MIDI key) or MIDI CCs
(buttons) to select an Articulation. You cannot mix Key and MIDI CC assignments within one
Instrument. This is how you assign a Key switch.
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure Key is selected.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 34
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
5. Select the first Articulation slot by clicking in the left hand list.
6. Select the Sforzando Slow Articulation by clicking the corresponding cell in the Articula-
tion Slot Setup view.
7. Underneath the Articulations, click on the field labeled Key and drag up/down to set the
MIDI Key to D0.
The Articulation is now assigned to D0 on your MIDI keyboard and can be selected by
→
pressing that key.
It is possible to assign two or more different articulations to the same Key Switch. One
useful example would be layering the sustain articulation for velocities under 110 with
the staccato samples for the remaining velocities.
Assigning the Key via MIDI Learning
As an alternative to setting the MIDI Key by clicking and dragging the value in the Key field,
you can MIDI-learn the MIDI key.
1. Click the MIDI connector button.
2. Press the E0 key on your MIDI keyboard.
The selected Articulation is now assigned to E0 on your MIDI keyboard and can be
→
switched on by pressing that key.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 35
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
If ESSENTIAL BRASS SOLO is configured to select Articulations by Key Switches, the
corresponding keys in KONTAKT's on-screen keyboard are colored according to the respective Articulation category:
Red: Sustain
Green: Staccato
Blue: Expression
4.2.4 Assigning Velocity Ranges to Key Switches
By default, key switch assignments are not sensitive to velocity. You can play the MIDI note on
your keyboard softly or with force, as both will activate the same assigned Articulation.
If you need to switch between different Articulations with just one MIDI key, setting up velocity
ranges allows you to do just that.
It is possible to assign two or more different articulations to the same Key Switch. One
useful example would be layering the sustain articulation for velocities under 110 with
the staccato samples for the remaining velocities.
Setting Up the First Articulation
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 36
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure Key is selected.
5. Select the first Articulation slot by clicking in the left hand list.
6. Select the Sustain p Articulation by clicking the corresponding cell in the Articulation Slot
Setup view.
7. Underneath the Articulations, click on the field labeled Key and drag up/down to set the
MIDI key to D0.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 37
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
Set the Velocity Range values to 1 in the left field and 122 in the right hand field.
→
Setting Up the Second Articulation
1. Select the second Articulation slot by clicking in the ARTICULATION SLOTS list on the
left hand side.
2. Select the Sustain Articulation by clicking the corresponding cell in the Articulation Slot
Setup view.
3. Underneath the Articulations, click on the field labeled Key and drag up/down to set the
MIDI key to C0.
4. Likewise, set the Velocity Range values to 123 in the left field and 127 in the right hand
field.
You have now configured the C0 key on your keyboard to switch to the Sustain F Articula-
→
tion when pressed lightly and to the Sustain Articulation when pressed with more force.
4.2.5 Assigning MIDI CCs to Articulations
Within a KONTAKT Instrument, you can assign either Key Switches (MIDI key) or MIDI CCs
(MIDI button) to select an Articulation. You can not mix Key and MIDI CC assignments within
one Instrument.
Switching by MIDI CC is different from using Key, because here, you have to set up value ranges, whereas setting up velocity ranges for key is optional. The reason is that each instance of a
ESSENTIAL BRASS SOLO Instrument will only receive one MIDI CC number. So switching Articulations requires you to set up value ranges.
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 38
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure MIDI CC is selected.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 39
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
5. Right next to the MIDI CC switch, click on the field and drag up/down to set the MIDI CC
to 16. By default, the available value range of 0-127 is evenly distributed across the eight
Articulation slots. Unless your specific setup requires you to change it, it is recommended
you keep this default.
6. Select the first Articulation slot by clicking in the left hand list.
7. Select the Staccato Articulation by clicking the corresponding cell in the Articulation Slot
Setup view on the right.
The selected Articulation is now assigned to CC 16 on your MIDI controller.
→
Assigning MIDI CC via MIDI Learning
As an alternative to setting the MIDI CC by clicking and dragging the value in the MIDI CC
field, you can MIDI-learn it.
1. Click the MIDI Learn button next to the MIDI CC label.
2. Press a button assigned to MIDI CC 16 on your MIDI controller.
The selected Articulation is now assigned to CC 16 on your MIDI controller.
→
By default, the Articulation in the first Articulation slot can be switched on by sending a CC
value between 0 and 15 from your host software or a MIDI controller.
4.2.6 Configuring a Native Instruments Controller to Send MIDI CC
If you own any Native Instruments hardware controller, please use Controller Editor to configure
the buttons/pads on your controller to send appropriate MIDI CC values as described in the
Controller Editor Manual.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 40
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
Loading an Instrument and Setting it to Receive MIDI CC
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure MIDI CC is selected.
The Articulation Slots are set up to switch when MIDI CC values are received.
→
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 41
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
Configuring a Native Instruments Controller to Send MIDI CC Values
In order to select either of the first two Articulation Slots, the controller has to send values
within the value ranges assigned to the Articulation Slots. Slot 1 is assigned values from 0 to
16, Slot 2 is assigned values from 17 to 31.
Please set up the following values in Controller Editor:
Hardware Button 1 Hardware Button 2
Type Control Change Control Change
Channel
1
1
Number 16 16
Mode Trigger Trigger
Value 10 26
Action On Down Down
1
Channel 1 is the default for the first Instrument you load in KONTAKT. If you intend to open
multiple Instruments within one KONTAKT instance, set the channel which ESSENTIAL
BRASS SOLO is receiving MIDI events from.
1
1
Selecting MIDI Channel
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 42
Configuring ESSENTIAL BRASS SOLO
Editing Articulations Manually
4.2.7 Sending MIDI CC From Your Host Software
Every modern music production software allows you to automate not just track volume
and panorama, but also the full spectrum of MIDI messages and plug-in automation parameters. For a more detailed description, please refer to your host's documentation.
Whether you draw MIDI CC automation or record MIDI CC events from a hardware MIDI controller, in order to switch Articulations by MIDI CC, you need to set up ESSENTIAL BRASS SOLO to receive MIDI CC messages:
Loading an Instrument and Setting it to Receive MIDI CC
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 43
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (Key Switches)
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure MIDI CC is selected.
Switching Articulations by MIDI CC From Your Host
In order to switch between the first two Articulation slots, write value automation for MIDI CC
in your host for a track sending MIDI data to ESSENTIAL BRASS SOLO.
Slot 1 is assigned values from 0 to 16, Slot 2 is assigned values from 17 to 31.
For better visibility of Articulation switches in your host, write discrete MIDI CC values
(e.g. 10 for Slot 1, 26 for Slot 2) instead of continuous curves.
4.3 Using Macros for Automatic Assignments (Key Switches)
Due to its flexibility, it can take a lot of repetitive steps to set up a basic starting point for your
custom configuration. This is why ESSENTIAL BRASS SOLO features macro scripts which help
you with certain tasks.
Depending on whether you assign Key or MIDI CC, there are different macros available.
4.3.1 Empty all Slots
If the configuration you're about to set up is just too different from the default setup after loading an Instrument, use Empty all slots to start with a clean slate.
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 44
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (Key Switches)
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure Key is selected.
5. In the top right corner of the ARTICULATION SLOTS list, click the three vertical dots. A
list of available macros will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 45
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (Key Switches)
6. Click on Empty all slots.
All assignments are deleted.
→
4.3.2 Reset All Start Conditions
If you need to return the Instrument to its default state:
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 46
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (Key Switches)
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure Key is selected.
5. In the top right corner of the ARTICULATION SLOTS list, click the three vertical dots. A
list of available macros will open.
6. Click on Reset all start conditions.
The Instrument's default state is loaded.
→
4.3.3 Set Ascending Keys From First Slot
By default, MIDI Key assignments start from C0, ascending in semi tones. If, for example,
you'd like to move all assignments up an octave to start from C1 instead:
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 47
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (Key Switches)
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure Key is selected.
5. In the top right corner of the ARTICULATION SLOTS list, click the three vertical dots. A
list of available macros will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 48
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (Key Switches)
6. Click on Set ascending keys from first slot.
All slots are assigned the keys starting from C1.
→
4.3.4 Distribute Velocity Range Equally on Active Slots
Assigning up to eight Articulations to velocity ranges of one Key is especially useful if you write
automation in your host software and are running out of free Midi keys. This macro allows you
to automatically assign equal shares of the 0 - 127 value range.
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 49
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (MIDI CCs)
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure Key is selected.
5. In the top right corner of the ARTICULATION SLOTS list, click the three vertical dots. A
list of available macros will open.
6. Click on Distribute velocity range equally on active slots.
All active slots (slots with Articulation assignments) are assigned the same C1 key switch.
→
Each slot is assigned an equal fraction of the velocity range between 0 and 127.
4.4 Using Macros for Automatic Assignments (MIDI CCs)
Due to its flexibility, it can take a lot of repetitive steps to set up a basic starting point for your
custom configuration. This is why ESSENTIAL BRASS SOLO features macro scripts which help
you with certain tasks.
Depending on whether you assign Key or MIDI CC, there are different macros available.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 50
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (MIDI CCs)
4.4.1 Empty All Slots
If the configuration you're about to set up is just too different from the default setup after loading an Instrument, use Empty all slots to start with a clean slate.
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure MIDI CC is selected.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 51
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (MIDI CCs)
5. In the top right corner of the ARTICULATION SLOTS list, click the three vertical dots. A
list of available macros will open.
6. Click on Empty all slots.
All assignments are deleted.
→
4.4.2 Reset All Start Conditions
If you need to return the Instrument to its default state:
1. Load Brass Quartet Essential.nki.
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 52
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (MIDI CCs)
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure MIDI CC is selected.
5. In the top right corner of the ARTICULATION SLOTS list, click the three vertical dots. A
list of available macros will open.
6. Click on Reset all start conditions.
The Instrument's default state is loaded.
→
4.4.3 Distribute Controller Equally on Active Slots
Assigning MIDI CCs to buttons or pads is a good way of avoiding conflicts in more complex
MIDI controller setups.
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 53
Configuring ESSENTIAL BRASS SOLO
Using Macros for Automatic Assignments (MIDI CCs)
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. Click the Edit button in the top right corner of this list. This will open the Articulation Slot
Setup view.
4. Make sure MIDI CC is selected.
5. In the top right corner of the ARTICULATION SLOTS list, click the three vertical dots. A
list of available macros will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 54
Configuring ESSENTIAL BRASS SOLO
Key Range Setup
6. Click on Distribute controller equally on active slots.
The MIDI CC value range from 0-127 is divided by the number of active slots and distrib-
→
uted evenly.
If you load any of the KONTAKT Instruments included in ESSENTIAL BRASS SOLO and
set it to receive MIDI CC, you'll find that the controller values are already assigned this
way. This macro helps you quickly set up a new configuration if you assign less than the
full eight Articulation Slots or after you cleared all assignments to start from scratch.
4.5 Key Range Setup
ESSENTIALS BRASS ENSEMBLE includes one KONTAKT Instrument which allows you to play
all brass sections at once, although with a limited choice of Articulations.
When loading Brass Quartet Essential.nki, the tonal range of the keyboard is split into four
non-overlapping zones, or key ranges. In order to make all brass sections playable at once,
each is limited to the tonal range which they are most often used for in composition. Since
each section was recorded over a wider tonal range than this, you're free to change the key
ranges for each of the sections, make them overlap or even de-activate sections you're not using.
4.5.1 Overview of the Ensemble View
The Ensemble view allows you to configure different aspects of the Brass Quartet Essential.nki. It is only available in this single KONTAKT Instrument.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 55
1
2
3
4
5
6
7
Configuring ESSENTIAL BRASS SOLO
Key Range Setup
Ensemble View
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 56
Configuring ESSENTIAL BRASS SOLO
Key Range Setup
Ensemble View
(1) Section on/off switch: Click the indicator to activate or deactivate an entire section. A thin
ring shows it's inactive, a solid dot means it's active.
(2) Section Panorama Slider: Click and drag this slider to the left or right to set the respective
section's balance in the stereo panorama.
(3) Section Volume Fader: Click and drag the fader to set the respective section's level.
(4) Lower Key Range border: Click and drag up/down to set the lowest key being played back by
this section.
(5) Upper Key Range border: Click and drag up/down to set the highest key being played back by
this section.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 57
Configuring ESSENTIAL BRASS SOLO
Key Range Setup
(6) Section Link button: While the icon of a linked chain is visible, moving one key range's border automatically moves the adjacent border, preventing overlaps. Gaps will only occur if you
move the border outside one of the instrument sections' recorded tonal range. Click the button
to un-link.
(7) Key Range Display: Each brass section's tonal range is visualized by a horizontal bar across
the keyboard display.
4.5.2 Adjusting a Section's Key Range
Key ranges are visualized by horizontal bars on the keyboard and by the actual notes defining
the range. Below a section's volume fader, the left note represents the lower limit, the right
hand note the upper limit of the key range.
This is how you adjust the lower limit of the TROMBONE section:
1. Load Brass Quartet Essential.nki.
2. Click on Ensemble at the bottom of the screen. The Section Setup view will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 58
Configuring ESSENTIAL BRASS SOLO
Key Range Setup
3. To reduce the tonal range of the TROMBONE section, click and drag upwards on the field
reading C#2 below the TROMBONE volume fader.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 59
Configuring ESSENTIAL BRASS SOLO
The lower limit of the TROMBONE section is raised. The adjacent TUBAS section's upper
→
limit is raised by the same amount so the ranges don't overlap.
Key Range Setup
4.5.3 Linking/Unlinking Key Range Borders
By default, all key ranges are linked to prevent gaps or overlaps. That way, melody lines are
automatically distributed across the different instrument sections. In case you need to extend
a section's tonal range into the adjacent section's range, this is how you unlink them:
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 60
Configuring ESSENTIAL BRASS SOLO
2. Click on Ensemble at the bottom of the screen. The Section Setup view will open.
3. To unlink the TUBA and TROMBONE key ranges, click on the chain icon between them.
Key Range Setup
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 61
Configuring ESSENTIAL BRASS SOLO
Key Range Setup
The icon changes to a split chain and you can now adjust the ranges' borders freely.
→
4.5.4 Activating/Deactivating Sections
In some of your work, you might not need all sections in the Ensemble instrument. It is recommended you deactivate these sections, because whenever you unload an instrument section,
the assigned samples are automatically purged from RAM. BRASS ENSEMBLE will automatically
expand the adjacent key ranges to bridge the gap.
1. Load Brass Quartet Essential.nki.
2. Click on Ensemble at the bottom of the screen. The Section Setup view will open.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 62
Configuring ESSENTIAL BRASS SOLO
Key Range Setup
3. To deactivate the TROMBONE section, click the dot to the left of the TROMBONE label. A
thin ring shows it's inactive, a solid dot means it's active.
The TROMBONE section is deactivated and the gap is closed by expanding both the TU-
→
BAS and the HORNS key ranges.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 63
KONTAKT Snapshots
Saving a User Snapshot
5 KONTAKT Snapshots
Snapshots offer a way of saving variations of any KONTAKT Instrument for easy recall.
ESSENTIAL BRASS SOLO, for example, allows you to apply effects like EQ, REVERB, COMP and
FILTER to your stereo mix.
With KONTAKT Snapshots, you can create any number of different mixes for the same Instrument, save them in the new .nksn file format and re-use them in your next project or share
these Snapshots across your computers. You can even share them with other users who own
the same KONTAKT Library.
ESSENTIAL BRASS SOLO doesn’t come with Snapshots, so in order to demonstrate the
full feature set, we’ll save a Snapshot first.
Access the Snapshot View by clicking the camera icon in the Instrument Header.
►
Switch back to the familiar Info View with its Input / Output configuration options by
►
clicking the i icon.
5.1 Saving a User Snapshot
Let's start exploring Snapshots with saving your own. By loading one of the supplied Instruments and adjusting some of its parameters, you will end up with a sound which is distinct
enough for you to want to keep it.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 64
KONTAKT Snapshots
Saving a User Snapshot
Saving a Snapshot
In order to save your settings as a Snapshot for convenience:
1. Click the camera icon in the Instrument Header. This will switch the Header to the Snap-
shot View.
2. Here, click the floppy disk icon to open the Snapshot Saving dialog.
3. Enter a Snapshot name (e.g. My first Snapshot) and click Save.
The Snapshot is saved and added to the Snapshot Menu.
→
All User Snapshots are automatically stored in the default User Content folder. This is where
the SYMPHONY ESSENTIALS BRASS SOLO Snapshot you just created will be stored:
▪ On Mac OS X: Macintosh HD/Users/Your Name/Documents/Native Instruments/User Content/
Symphony Essentials Brass Solo/Brass Solo Essential/My first Snapshot.nksn
▪ On Windows:C: \Users\Your Name\My Documents\Native Instruments\User Content\Sympho-
ny Essentials Brass Solo\Brass Solo Essential\My first Snapshot.nksn
You can transfer any of your Snapshots to another computer by copying the respective
Snapshot files.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 65
KONTAKT Snapshots
Loading a Snapshot From the Snapshot Menu
Please make sure you include your Documents / My Documents folder in your regular
data backups.
5.2 Loading a Snapshot From the Snapshot Menu
If you need to recall a specific sound for recurring use in the studio or for live playing, Snapshots give you an easy way of doing just that.
Let's get to know this feature by loading a Snapshot from the Instrument Header's Snapshot
Menu. We assume here that you saved the My first Snapshot Snapshot as described in the
↑5.1, Saving a User Snapshot section.
Load a User Snapshot
1. In the Libraries Tab, load the Brass Quartet Essential.nki Instrument. Play a few notes on
your MIDI keyboard to get familiar with the ensemble's sound.
2. Click the camera icon to switch the Instrument Header to the Snapshot View. By default,
no Snapshot is loaded.
3. Open the drop-down menu and select the My first Snapshot Snapshot.
The My first Snapshot Snapshot is loaded.
→
Alternatively, when no Snapshot is loaded, click the Next Button after loading the ESSENTIAL BRASS SOLO Instrument to achieve the same result.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 66
KONTAKT Snapshots
Loading Snapshots From the File System
5.3 Loading Snapshots From the File System
KONTAKT supports two ways of loading Snapshot files (.nksn):
▪ Dragging and dropping a Snapshot file from the Finder / Explorer onto the Rack
▪ Loading via double-click in Finder (Mac OS X) or Explorer (Windows)
This allows you to take your favorite Snapshots to the studio on a flash drive or send them attached to an e-mail and load them from your Desktop without altering the installation on the
studio computer.
Drag and Drop
In order to load a Snapshot from any disk, use Filer / Explorer to drag an .nksn file from its
current location onto an empty area of the Rack. KONTAKT will load a new instance of the corresponding Instrument with that Snapshot.
If you drag a Snapshot onto an active Instrument in the Rack instead, that Instrument will be
replaced by the Instrument loaded from the Snapshot.
Snapshots you open are not automatically saved to the default location.
The Next/Previous buttons can only skip through Snapshots located in the Factory Snapshots and the User Content folder.
Double-click
Double-clicking a Snapshot file in Finder (Mac OS X) or Windows Explorer inserts a new Instrument instance in KONTAKT.
5.4 Deleting a User Snapshot
In order to keep things tidy in the Snapshot Menu, you can delete any Snapshots you saved
when you feel you don't need them anymore. Keep in mind that Snapshots are saved on a perInstrument basis. So in order to delete a Snapshot in KONTAKT, you have to load it first.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 67
KONTAKT Snapshots
Deleting a User Snapshot
You can only delete User Snapshots. All KOMPLETE Factory Snapshots are read-only. In
order to follow the steps described here, you have to have saved a Snapshot first as detailed in the ↑5.1, Saving a User Snapshot section.
To demonstrate how deletion of Snapshots works, we’ll delete the My first Snapshot Snapshot
saved in that section.
1. In the Libraries Tab, load the Brass Quartet Essential.nki Instrument.
2. Click the Camera icon to access the Snapshot View.
3. Open the My first Snapshot Snapshot.
4. Click the trash bin icon in the Instrument Header.
5. Confirm deletion of the Snapshot in the dialog which pops up.
The Snapshot file is now erased from the folder on your hard disk as well as removed
→
from the Snapshot Menu.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 68
Audio Mix-down
6 Audio Mix-down
6.1 Adding Effects
The mix can be processed with a number of integrated effects to help it blend better with the
other instruments in your virtual orchestra.
Since the recordings have a very refined and production-ready sound, these effects aren't intended as corrective tools, but rather meant to put the finishing touches on an otherwise great
mix.
6.1.1 Applying EQ
In a busy composition, instruments from different groups often overlap, resulting in a muddy,
crowded mix lacking definition and transparency. Attenuating the non-essential frequencies
and boosting the characteristic frequencies per instrument section helps clean up the mix.
Adding Effects
1. Load Brass Quartet Essential.nki.
2. Click the Effects button to open the Effects pane.
3. Click the EQ label to select the Equalizer panel.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 69
4. Click the small indicator dot next to the label to activate / bypass the Equalizer.
5. Adjust the Low, Mid and High controls as needed.
The EQ Controls
EQ controls overview
Audio Mix-down
Adding Effects
The EQ offers an identical parametric Low and High band with Gain and Freq controls. The
Mid band is fully parametric with Gain and Freq controls plus adjustable Mid bandwidth.
Gain: Boost or attenuate the Low EQ band. The EQ is a bell curve type with 18 dB of boost or
cut.
Freq: Set the center frequency of the Low EQ band anywhere between 20 Hz and 20 kHz.
BW: Set the Mid band's bandwidth between 1/3 octave and 3 octaves.
These controls affect the frequency balance of your KONTAKT Instrument's Master Mix.
If you need to adjust EQ per instrument section, load the Individual Instruments instead
of the Ensemble Instrument.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 70
Audio Mix-down
6.1.2 Applying Reverb
ESSENTIAL BRASS ENSEMBLE includes 100 Impulse Responses in 10 categories. Impulse
responses in the REVERB are actual audio recordings that capture the way sounds naturally
reflect and decay in different environments.
Most of these Impulse Responses were recorded by Soundiron in a variety of unique real-world
locations, such as cathedrals, churches, classrooms, halls, garages, military bunkers, tunnels,
studios and more. However, some Impulses are custom sound-designed sound effects used
purely for creating unique special effects.
Use caution when using these Effects Impulses, as they can create strong resonant effects and feedback when mixed at high volumes in some cases.
Activating the Reverb
1. Load Brass Quartet Essential.nki.
2. Click the Effects button to open the Effects pane.
Adding Effects
3. Click the REVERB label to select the REVERB panel.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 71
Audio Mix-down
4. Click the small dot next to the label to activate / bypass the REVERB.
The REVERB is activated. A thin ring shows its inactive state, a solid dot means it's ac-
→
tive.
Selecting an Impulse Response
1. Click the right arrow next to the category name above the preview image to cycle through
the available categories.
Adding Effects
2. Select Chamber.
3. Click the right arrow next to the Impulse Response name below the preview image to select
the actual Impulse Response.
4. Select Long D.
The Dragging Iron Impulse Response is applied to the Master Mix in Brass Quartet Essen-
→
tial.nki, affecting all brass sections equally.
The REVERB Controls
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 72
Audio Mix-down
Reverb overview
Reverb parameters should not be automated. Otherwise, audio drop-outs may occur.
Size: Stretches or compresses the impulse response audio file. This creates the illusion of the
room size changing.
Delay: Introduces a pre-delay before the reverberation.
Decrease the pre-delay to embed instruments in the reverb, creating a distant, 'roomy'
►
sound.
Adding Effects
Increase the pre-delay to separate instruments from reverb, creating a close, 'direct'
►
sound.
Filter HiPass: Removes low frequencies from the reverb signal to avoid boominess.
Click and drag up to raise the frequency below which signal is attenuated.
►
Filter LoPass: Removes high frequencies from the reverb signal to avoid excessive brightness
and to help it blend in naturally.
Click and drag down to lower the frequency above which signal is attenuated.
►
Mix Amount: Blends anywhere between no reverb at all and just the reverb.
Click and drag down to mix in less reverb, drag up to add more reverb.
►
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 73
Audio Mix-down
6.1.3 Applying Comp & Filter
The Compressor is helpful to reduce the dynamic range of an Instrument in case the loudest
passages mask other instruments in your arrangement. The Filter can add resonance which
makes the sound more aggressive and cut through the mix better, or it can reduce the brightness of an Instrument for special effect.
Activating the COMP and FILTER
1. Load Brass Quartet Essential.nki.
2. Click the Effects button to open the Effects pane.
Adding Effects
3. Click the COMP & FILTER label to select the combined Compressor and Filter panel.
4. Click the small dot next to the COMP label to activate the Compressor.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 74
5. Click the small dot next to the FILTER label to activate the Filter.
The Compressor and Filter are activated. A thin ring to the left of each label shows their
→
inactive state, a solid dot means they are active
The Compressor and Filter Controls
Audio Mix-down
Adding Effects
Compressor and Filter overview
Threshold: Sets the level above which compression occurs.
Ratio: Determines how strong the compression is. At a Ratio of 2:1, a signal which exceeds the
Threshold by 6dB is reduced to 3dB above the Threshold.
Attack: Determines how quickly the compressor starts reducing the signal after the level ex-
ceeds the Threshold.
Release: Determines how quickly the compressor stops reducing the signal after the level falls
below the Threshold.
Cutoff: Sets the frequency above which signals are gradually attenuated.
Resonance: Determines the intensity of the resonance peak at the Cutoff frequency. High val-
ues cause aggressive, piercing sounds, whereas at low values, the Filter only reduces high frequency signals.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 75
Audio Mix-down
Balancing Section Volumes
6.2 Balancing Section Volumes
The Brass Quartet Essential.nki is a combination of all brass sections from the individual Instruments. When working with the individual Instruments, you can adjust their relative volume
and panorama position by adjusting the controls in the Individual Instruments.
Since this wouldn't otherwise be possible with the Ensemble Instrument, it offers an additional
mixer in the Section Setup with per-section volume and panorama.
1. Load Brass Quartet Essential.nki.
2. While in the default performance view, click on Ensemble button at the bottom of the
screen. The Section Setup view will open.
3. To adjust the TUBA section's volume, click and drag the volume fader underneath the cor-
responding label.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 76
Audio Mix-down
Balancing Articulation Volumes
4. To adjust the TUBA section's stereo position, click and drag the panorama slider above
the volume fader.
6.3 Balancing Articulation Volumes
Although great care has gone into balancing the perceived loudness of a section's Articulations, in context of other instrumentation and the actual composition, you may find an Articulation sounding too loud or too quiet.
Instead of having to automate the volume around this note, BRASS ENSEMBLE allows you to
adjust the volume of each Articulation Slot individually. That way, you could even assign the
same Articulation to multiple Slots with different volume settings.
1. Load Brass Quartet Essential.nki.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 77
Audio Mix-down
Balancing Articulation Volumes
2. Click on Articulation in the bottom left corner. The ARTICULATION SLOTS list will open.
3. In this list, click the Edit button. A volume knob is shown for the selected Articulation.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 78
Audio Mix-down
Balancing Articulation Volumes
4. To adjust an Articulation's volume, click it once to select and then click and drag the level
knob.
Only the specific Articulation's volume is adjusted.
→
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 79
7 Technical Specs
Recorded Tonal Range
Tuba Trombones Horn 1 Horn 2 Trumpets
Technical Specs
Recorded
Tonal Range
C1 - C4 D1 - D5 A#2 - D5 D2 - E4 E3 - C6
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 80
8 Glossary
Effects
Effects cover the aspects which add realism without contributing to the arrangement of a composition. These are often atonal and aleatoric (random), giving a sense of foreboding, but can
be used for “stingers”, horror sound effects, chaos, etc.
ESSENTIAL BRASS SOLO provides dozens of effects specific to each instrument. Ranging
from classic sounds heard in films and concert music, to completely aleatoric, and even warmup sound effects like valve clearing and performers tuning their instruments.
Expressions
Expressions can connect contrasting segments of a composition with each other by virtue of
their expressiveness and are great for introducing or concluding a musical idea. They can be
used for passages otherwise very difficult to sequence and for adding interest to a piece, giving
the listener a greater impression of a live performance.
Glossary
ESSENTIAL BRASS SOLO provides multiple Expression types, each has its own set of Articulations unique to that instrument, taking advantage of its most expressive qualities.
Playing Expressions, avoid overlapping notes. If you encounter unwanted artefacts, try
adjusting the Release control.
Staccatos
Staccatos are short, defined notes which can add rhythm, forward motion and definition to a
passage.
ESSENTIAL BRASS SOLO provides single Staccato notes that may be played with the Repetition option for rhythmic precision and control. Some Articulations have Triple Tongue Staccato
for added realism, a variety of mute types completes the Staccatos.
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 81
Sustains
Sustains are long, steady tones. They are typically used for underlying harmony and melody, to
create tension, or to create a still moment.
ESSENTIAL BRASS SOLO provides multiple Sustain types, covering straight notes, tongued,
trills of various intervals, as well as steps and mutes, all of which can be used to evoke a diverse range of moods and emotions.
Glossary
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 82
9 Credits
Produced By Soundiron: Mike Peaslee, Gregg Stephens and Chris Marshall
Scripting, UI and Systems Design: Chris Marshall
Editing, Mixing, Mastering: Gregg Stephens and Mike Peaslee
Instrument Programming and Mapping: Mike Peaslee, Gregg Stephens and Chris Marshall
Soundiron Beta Testers: Spencer Nunamaker, Jan Hoeglund, Cory Pelizzari, Blake Ewing, Ryan
Scully, Anne van Duyvenvoorde, Danny Cocke, Brad Jerkins, Dirk Ehlert, Ryan Scully, Arkadiusz Reikowski, Ian Dorsch, Max Zhdanov, Mike Marino, Antongiulio Frulio, Simon Russell,
Steve Mazzaro, Tino Danielzik, Brad Halverson, Deane Ogden, Mark Petrie, Mathieu Hallouin,
Nick Pittsinger, Paul Amos, Pieter Schlosser, Sascha Knorr, Sean Beeson, Trevor Morris, Xiaotian Shi
Session Direction By: Mike Peaslee and Gregg Stephens
Session Producer: Alan Kleinschmidt
Ensemble Conductor: Sue Bohlin
Credits
Brass Consultants: Doug Morton and Geoff Chirgwin
Recording Engineers: Gregg Stephens, Mike Peaslee and Chris Marshall
Concept and Design: Frank Elting
User Interface Design: Fabian Ruf, Werner Schäfner
Quality Assurance: Bymski
Artwork: Yvonne Hartmann
Finalization and Encoding: Carlos Ruiz
Product Management: Tobias Menguser, Christian Wachsmuth
SYMPHONY ESSENTIALS BRASS SOLO - Manual - 83
Loading...
