Introduction

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OR BACK OF THIS PRODUCT. THERE ARE NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO DRIPPING OR SPLASHING WATER, RAIN, OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH WATER SUCH AS VASES, ON THE PRODUCT.

WARNING: THIS DIGITAL VERSATILE DISC PLAYER EMPLOYS A LASER SYSTEM. USE OF CONTROLS, ADJUSTMENTS, OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

WARNING: TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT OPEN THE ENCLOSURE. VISIBLE LASER RADIATION WHEN OPEN.

WARNING: NEVER STARE DIRECTLY INTO THE LASER BEAM.

CAUTION

Do not install this product in a confined space such as a book case or similar unit.

NOTES ON ENVIRONMENTAL PROTECTION

At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's manual and packaging, point this out.

The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials, or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can advise you of the responsible waste disposal point.

CAUTION

This apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC PART 15

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the product and receiver.

Connect the product into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2006, NAD Electronics International, a division of Lenbrook Industries Limited

2a

Introduction

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing.

This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1.Read these instructions. – All these safety and operating instructions should be read before the product is operated.

2.Keep these instructions. – The safety, operating and use instructions should be retained for future reference.

3.Heed all warnings. – All warnings on the product and in the operating instructions should be adhered to.

4.Follow all instructions. – All operating and use instructions should be followed.

5.Do not use this product near water. – For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.

6.Clean only with dry cloth. – Unplug this product from the wall power before cleaning. Do not use liquid cleaners.

7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over-heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A grounding-type plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.

11.Only use attachments/accessories specified by the manufacturer.

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

13.Unplug this product during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

2b

Introduction

IMPORTANT SAFETY INSTRUCTIONS

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

2c

INTRODUCTION

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . .2a-2c Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Symbol used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 About the ( ) Symbol Display . . . . . . . . . . . . . . . . . . . . . . . . . .4 Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Types of Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Disc-related terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Panel and Display Window . . . . . . . . . . . . . . . . . . . . . . . . .7 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

INSTALLATION AND SETUP

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Setting up the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 DVD Player Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 HDMI Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Audio Connection to Optional Equipment . . . . . . . . . . . . . . . . .12

Before operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 LOCK (Parental Control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Introduction

TABLE OF CONTENTS

OPERATION

Operation with DVD and Video CD . . . . . . . . . . . . . . . . . . . . . . .18

Playing a DVD or Video CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Special DVD Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 DVD Audio Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Operation with Audio CD and MP3 / WMA Disc . . . . . . . . . . . .22

Playing an Audio CD or MP3/WMA Disc . . . . . . . . . . . . . . . . . . .22 Audio CD and MP3 / WMA Disc Features . . . . . . . . . . . . . . . . . .23

Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Operation with JPEG Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Viewing a JPEG Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Operation with a DVD VR format Disc . . . . . . . . . . . . . . . . . . . .26

Maintenance and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Operation with a DivX Movie Disc . . . . . . . . . . . . . . . . . . . . . . .27 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

REFERENCE

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Table of Languages and Their Abbreviations . . . . . . . . . . . . . . .31

Country Codes List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

3

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Introduction

BEFORE USE

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

SYMBOL USED IN THIS MANUAL

The lightning flash symbol alerts you to the presence of dangerous voltage within the product enclosure that may constitute a risk of electric shock.

The exclamation mark alerts you to the presence of important operating and maintenance / servicing instructions.

Indicates hazards likely to cause harm to the unit itself or other material damage.

NOTE:

Indicates special notes and operating features.

TIP:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD-V

DVD and finalized DVD±R/RW

DVD-A

DVD Audio discs

VCD

Video CDs

CD

Audio CDs

MP3

MP3 Discs

WMA

WMA Discs

JPEG

JPEG Discs

DivX

DivX Discs

ABOUT THE SYMBOL DISPLAY

” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific DVD video disc.

NOTES ON DISCS

HANDLING DISCS

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

STORING DISCS

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

CLEANING DISCS

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the centre out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

4

TYPES OF PLAYABLE DISCS

DVD

(8 cm / 12 cm disc)

DVD audio discs (8 cm / 12 cm disc)

Video CD (VCD/SVCD) (8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit plays DVD±R/RW and CD-R/RW that contains audio titles, DivX, MP3, WMA, and/or JPEG files.

Notes:

Depending on the conditions of the recording equipment or the CD- R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

Do not attach any seal or label to either side (the labelled side or the recorded side) of a disc.

This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Prerecorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

CUSTOMERS SHOULD NOTE THAT PERMISSION IS REQUIRED IN ORDER TO DOWNLOAD MP3 / WMA FILES AND MUSIC FROM THE INTERNET. OUR COMPANY HAS NO RIGHT TO GRANT SUCH PERMISSION. PERMISSION SHOULD ALWAYS BE SOUGHT FROM THE COPYRIGHT OWNER.

Introduction

BEFORE USE

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled same as the rear of the unit or “ALL”.

Notes on Regional Codes

Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code or the disc cannot play.

If you try to play a DVD with a different regional code from your player, the message “Check Regional Code” appears on the TV screen.

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

5

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Introduction

BEFORE USE

DISC-RELATED TERMS

DVD ±R / DVD ±RW

DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded. Single-sided discs can hold 4.38 Gigabytes and doublesided discs hold twice as much. There are no dual layer single sided recordable discs.

VCD (VIDEO CD)

A VCD holds up to 74 minutes (650 MB disc) or 80 minutes (700 MB disc) of MPEG-1 full-motion video along with quality stereo sound.

MPEG

MPEG is an international standard for video and audio compression. MPEG-1 is used in encoding video for VCD and provides for multichannel surround sound coding such as PCM, Dolby Digital, DTS and MPEG audio.

MP3

MP3 is a popular compression format used for digital audio files that yields very high near-CD quality.

WMA

Windows media audio file. A type of coding / decoding developed by Microsoft Corp.

JPEG

Joint Pictures Expert Group. JPEG is a compressed file format that allows you to save images with no limit on the number of colors.

DIVX

DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression standard for video. You will be able to play DivX movies using this DVD player.

PBC: PLAYBACK CONTROL (VIDEO CD ONLY)

Playback control is available for Video CD (VCD) version 2.0 disc formats. PBC allows you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc. Video CDs not equipped with PBC (Version 1.1) operate in the same way as audio CDs.

TITLE (DVD VIDEO DISCS ONLY)

A title is generally a distinct section of a DVD disc. For example the main feature could be title 1, a documentary describing how the film was made could be title 2, and cast interviews could be title 3. Each title is assigned a reference number enabling you to locate it easily.

CHAPTER (DVD VIDEO DISCS ONLY)

A chapter is a segment of a title such as a scene in a film or one interview in a series. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

GROUP (DVD AUDIO DISCS ONLY)

The main audio content or accompanying feature content or additional feature content, or music album. Each group is assigned a group reference number enabling you to locate it easily.

SCENE (VCD)

On a video CD with PBC (playback control) functions, moving pictures and still pictures are divided into sections called “scenes”. Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want. A scene is composed of one or several tracks.

TRACK

A distinct element of audiovisual information, such as the picture or sound track for a specific language (DVD), or a musical piece on a video or audio CD. Each track is assigned a track number, enabling you to locate the track you want. DVD discs allow one track of video (with multiple angles) and several tracks of audio.

6

Introduction

FRONT PANEL AND DISPLAY WINDOW

Front Panel



POWER

ON and OFF.





























Switches the playery















ON and OFF.





























SKIP (





)





































SKIP (





)

















Moves to

or









PAUSE











Moves to PREVIOUS or









Pause



NEXT chapter/track.









Pause playbacktemporarily/press



NEXT chapter/track.









repeatedly for frame-by-frame





































repeatedly for frame-by-frame



















playback.



















playback.



















































































PLAY

PLAY

Starts playback.

Starts playback.

STOP

STOP

Stops playback.

Stops playback.

Disc Tray

Disc Tray

Insert a disc here.

Insert a disc here.

OPEN / CLOSE

OPEN / CLOSE

Opens or closes the disc tray.

Opens or closes the disc tray.

SCANSCAN( ( / ))

Press and hold

Press and hold for greater than

for greater than 3 seconds

3 seconds fast reverse search or

fast reverse search or forward search.

forward search.

Display window

Shows thecurrent status the status

of the player. of the player.

Remote Sensor

Pointthee DVD Player

remote control here.

Display Window

Displayy window Showsthecurrentstatatus of theplayer. .

Remote Sensorr

PointtheDVD Player

remotecontrol here..

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

7

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Introduction

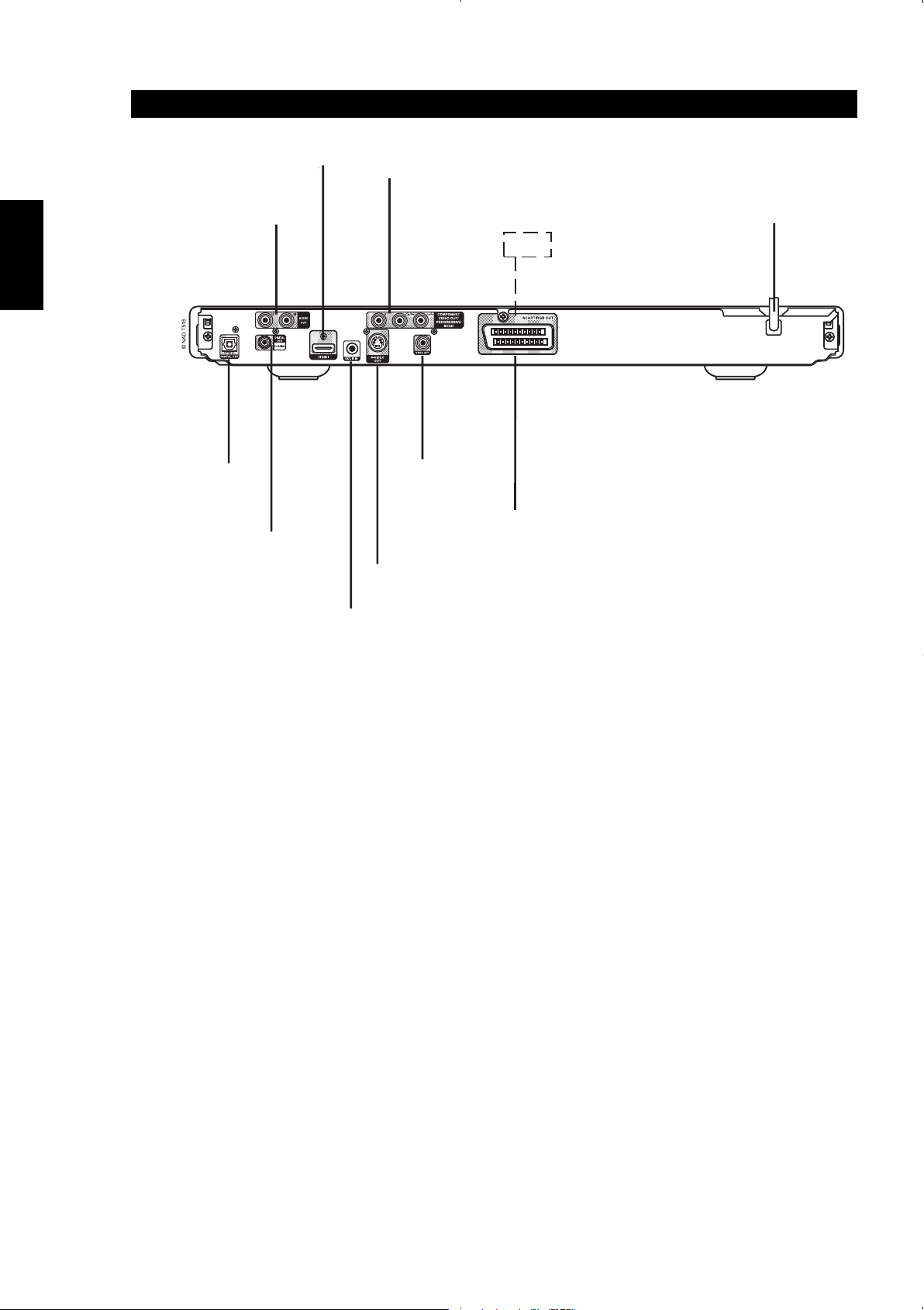

REAR PANEL

HDMI OUT

HDMI OUT HDMIHDMIoutputoutputprovidingprovidinga ahighhighquality

interfaceinterfaceforfordigitalaudiol andandvideo..

AUDIOOUT(Left/Right)i

ConnectConnecttotoananamplifier,receiver,

or stereo system.

or stereo system.

OPTICAL(TOSlink)

Connectto diigitall

audioequipmente t.

COAXIALXIAL(Digitalaudioloutjack)

Connectnectotodigital(coaxial)

audioequipment..

IR IN

IR IN

By connecting this DVD player to another

By connecting this DVD player to another NAD audio

NAD audio component or system component or system controller equipped with an IR controller equipped with an IR output, output, you can remotely operate the T515. you can remotely operate the T515.

COMPONENT/PROGRESSIVESCANSCANVIDEOVIDEOOUT OUT

Connecttotoa aTVTVwithwithY Cb/PbY Cb/PbCr/PrCr/Prinputsinputs. .

EUROPEAN

230 VOLT

VERSION ONLY

VIDEO OUT

VIDEO OUT

Connect to a TV

Connect to a TV withvideoinputs. .

SCART/RGB OUT

SCART/RGB OUT

Connect to a TV with SCART jack.

Connect to a TV with SCART jack.

ACACPowerCord

PlugPlugintointothethepowersource.

S-VIDEO OUT (North American-version only)

S-VIDEO OUT

Connect to a TV with S-Video inputs.

Connect to a TV with S-Video inputs.

8

ON

Switches DVD Player ON.

AUDIO

Selects an audio language (DVD).

SUBTITLE

Selects a subtitle language.

ANGLE

Selects a DVD camera angle if available

REPEAT

Repeat chapter, track, title, all.

RPT A-B

Repeat sequence.

RANDOM

Plays tracks in random order.

MARKER

Marks any point during playback.

SEARCH

Displays MARKER SEARCH menu.

( / ) SKIP

Go to beginning of current chapter or track or go to previous chapter or track.

TITLE

Displays the discs Title menu, if available.

SETUP

Accesses or removes setup menu.

(left/right/up/down)

- Selects an item in the menu.

ENTER

Acknowledges menu selection

DISP

Accesses On-Screen display

PRESS IN AND LIFT TAB TO REMOVE

BATTERY COVER OUT FROM RECESS

PLACE BATTERIES INTO OPENING. ENSURE THE CORRECT FITTING IS OBSERVED

Introduction

REMOTE CONTROL

OFF

Switches DVD Player OFF.

PROGRAM

Enters to the program edit mode or exits from that.

CLEAR

Removes a track number on the program list or a mark on the MARKER SEARCH menu.

ZOOM

Enlarges video image.

RESOLUTION

You can change the resolution depending on your TV.

-HDMI mode : You can switch among the 480p/576p, 720p or 1080i resolution.

-Component mode : You can switch among 480i/576i, 480p/576p, 720p or 1080i resolution.

0-9 number buttons

Selects numbered items in a menu.

SCAN ( )

Press for fast reverse search or forward search.

MENU

Accesses menu on a DVD disc.

RTN

Displays the menu of a video CD with PBC.

OPEN/CLOSE ( )

Opens and closes the disc tray.

Forward SLOW ( )

Press to advance slow playback.

STOP ( )

Stops playback.

PAUSE/STEP ( )

Pauses playback temporarily/ press repeatedly for frame-by-frame playback.

PLAY ( )

Starts playback.

REPLACE BATTERY COVER BY ALIGNING AND INSERTING THE TWO TABS INTO THE HOLES.

PRESS BATTERY COVER INTO PLACE UNTIL IT 'CLICKS' CLOSED

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

9

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Installation and Setup

CONNECTIONS

SETTING UP THE PLAYER

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc.

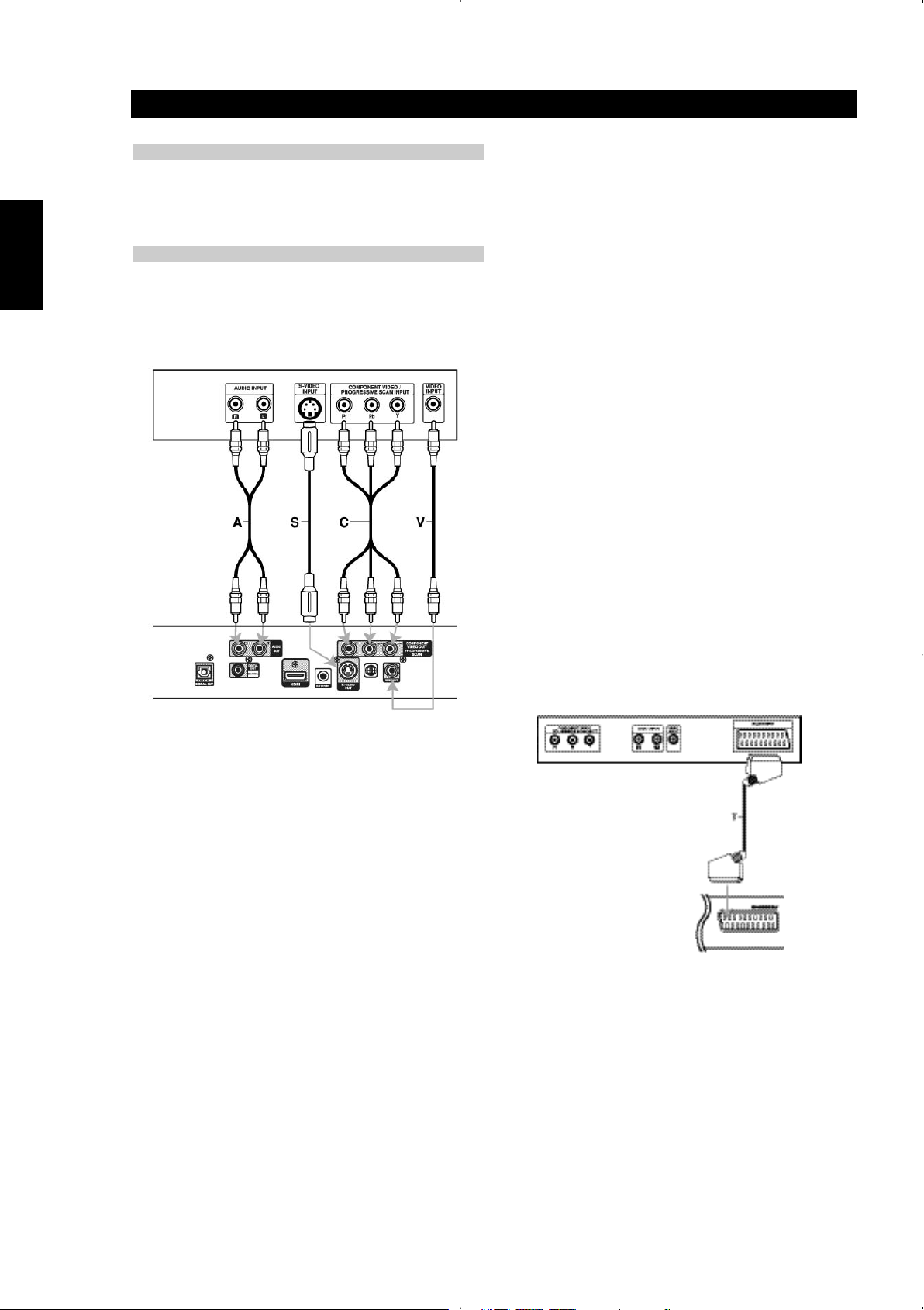

DVD PLAYER CONNECTIONS

Depending on your TV and other equipment there are various ways you can connect the player. Please refer to the manuals of your TV, stereo system or other devices as necessary for additional connection information.

Rear of TV

Rear of

DVD player

Video and Audio Connections to Your TV

Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system.

Video

Connect the VIDEO OUT jack on the DVD player to the video in jack on the TV using the video cable (V).

S-Video (North American version only)

Connect the S-VIDEO OUT jack on the DVD Player to the S-Video in jack on the TV using the S-Video cable (S).

SCART connection (European version only)

Connect the TO TV SCART jack on the DVD Player to the corresponding in jacks on the TV using the SCART cable (T).

NOTES

For VIDEO OUT and S-VIDEO OUT jack connection, resolution must be set to 480i/576i or 480p/576p by pressing RESOLUTION, however VIDEO OUT and S-VIDEO OUT is always at 480i/576i standard resolution.

Component Video (Color Stream®)

Connect the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks on the DVD Player to the corresponding in jacks on the TV using an Y Cb/Pb Cr/Pr cable (C).

PROGRESSIVE SCAN (COLORSTREAM® PRO):

If your television is a high-definition or “digital ready” television, you may take advantage of the DVD Player’s progressive scan output for the highest video resolution possible.

If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the DVD Player.

NOTES

You can change the resolution (480/576, 720p, 1080i) for the component/progressive scan video output by pressing RESOLUTION.

For 720p and 1080i resolution, only non-copy protected discs can be played back. If the disc is copy protected, it will be displayed at the 480p/576p resolution.

Progressive scan does not work with the analog video connections (VIDEO OUT & S-VIDEO).

Audio Connection to Your TV:

Connect the left and right AUDIO OUT jacks of the DVD Player to the audio left and right IN jacks on the TV (A) using the audio cables. Do not connect the DVD Player’s AUDIO OUT jack to the Phono In jack (record deck) of your audio system.

Rear of TV

Rear of DVD player

10

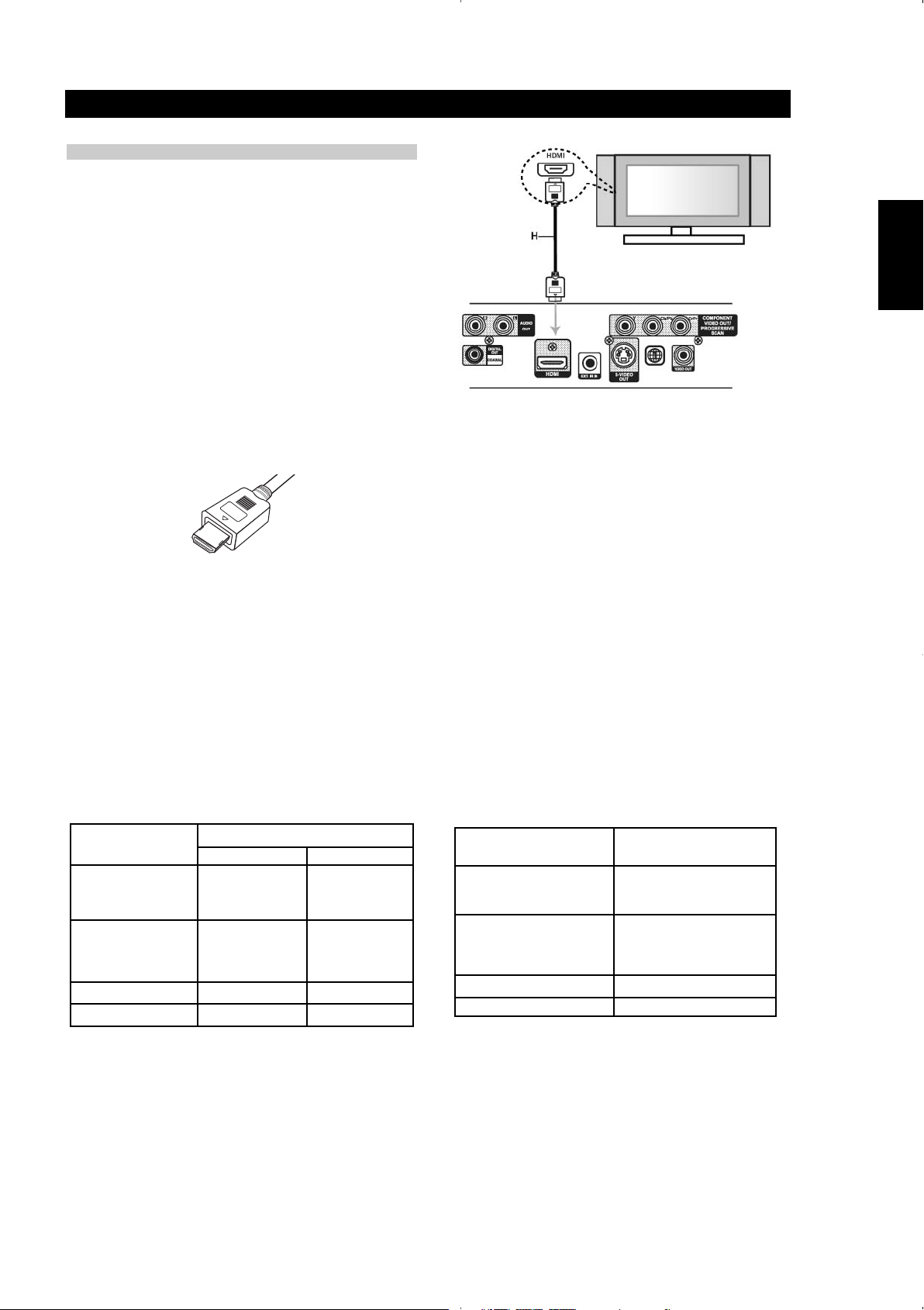

HDMI CONNECTION

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable.

1Connect the HDMI OUT jack on the player to the HDMI jack on a HDMI compatible TV or monitor (H).

2Set the TV’s source to HDMI (refer to TV’s Owner’s manual).

3Press RESOLUTION repeatedly to select the resolution you wish to change to then press PLAY.

The DVD disc must not be playing in order to set the resolution.

NOTES

No sound will be output from HDMI cable if the AUDIO setup is not set to PCM / 48 kHz.

The arrow on the cable connector body should face up for correct alignment with the connector on the player.

If a distorted or abnormal colour picture appears on the monitor, switch Off and then back On the T515 via front panel power switch.

When you use HDMI, the other connections (Yellow VIDEO OUT, S-Video and Component Video (Y Cb/Pb Cr/Pr)) will not work.

If there is noise or lines on the screen, please check the HDMI cable.

TIP

When you use HDMI connection, you can change the resolution (480p/576p, 720p, 1080i) for the HDMI output by pressing RESOLUTION. 480i/576i is not available. You can only change the resolution within your TV’s and Monitor’s resolution capabilities.

For S-VIDEO OUT connection, black and white scramble signal will appear if you select an incompatible resolution.

Installation and Setup

CONNECTIONS

HDMI compatible TV

Rear of DVD player

ABOUT HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD Players, Set-Top Boxes, and other AV devices.

HDMI was developed to provide the technologies of HDCP (High Definition Contents Protection). HDCP is used to protect digital content transmitted and received.

HDMI has the capability to support standard, enhanced, or highdefinition video plus standard to multi-channel surround-sound audio, HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes per second, one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

OUTPUT

Available Resolution

CONNECTION

PAL

NTSC







HDMI

1920 x 1080i

1920 x 1080i

VIDEO OUT

1280 x 720p

1280 x 720p

720 x 576p

720 x 480p









COMPONENT

1920 x 1080i

11920 x 1080i

1280 x 720p

1280 x 720p

VIDEO OUT

720 x 576p

720 x 480p



720 x 576i

720 x 480i







VIDEO OUT

720 x 576i

720 x 480i







SCART

720 x 576i

720 x 480i







OUTPUT CONNECTION

Available Resolution





HDMI

1920 x 1080i

VIDEO OUT

1280 x 720p

720 x 480p







COMPONENT

11920 x 1080i

1280 x 720p

VIDEO OUT

720 x 480p



720 x 480i





VIDEO OUT

720 x 480i





S-VIDEO

720 x 480i

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

11

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Installation and Setup

CONNECTIONS

AUDIO CONNECTION TO OPTIONAL EQUIPMENT

Connect the DVD player to your optional equipment for audio output.

Rear ofDVDplayer

O X A

OPTICAL

COAXIAL

R

L

DIGITAL INPUT

AUDIO INPUT

Amplifier(Receiver)

Amplifier equipped with 2-channel analogue stereo or Dolby Pro Logic ll / Pro Logic

Connect the left and right AUDIO OUT jacks on the DVD player to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables (A).

Amplifier equipped with 2-channel digital stereo (PCM) or audio / video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)

1Connect one of the DVD Player’s DIGITAL AUDIO OUT jacks (OPTICAL O or COAXIAL X) to the corresponding in jack on your amplifier.

2Use an optional digital (optical O or coaxial X) audio cable.

DIGITAL MULTI-CHANNEL SOUND

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel audio / video receiver that supports one or more of the audio formats supported by your DVD player such as MPEG 2, Dolby Digital and DTS. Check the receiver manual and the logos on the front of the receiver.

NOTES

If the audio format of the digital output does not match the capabilities of your receiver, the receiver produces a strong, distorted sound or no sound at all.

Six Channel Digital Surround Sound via a digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

To see the audio format of the current DVD in the on-screen display, press AUDIO.

12

MARKER SEARCH
1 / 9
A - B

ON-SCREEN DISPLAY

You can display the general playback status on the TV screen. Some items can be changed using the menu. To use the on-screen display:

1Press DISPLAY during playback.

2Press to select an item. The selected item is highlighted.

3Press to change the setting. You can also use the number buttons if appropriate (e.g. inputting the title number). For some functions, press ENTER to execute the setting.

NOTES

Some discs may not provide all of the features shown below.

If no button is pressed for 10 seconds, the on-screen display disappears.

PLAYBACK STATUS/RESTRICTIONS

Title Repeat title

Repeat sequence

Enter a Marker

Marker Search menu

Resume play from this point

Action prohibited or not available

Installation and Setup

BEFORE OPERATION

Example: On-Screen Display during playing DVD Video

Items

Title Number

Chapter Number

Time search

Audio language and Digital Audio Output mode

Subtitle language

Angle

Sound

ABC

Selection Method

, Numbers

1 / 3

ENTER

, Numbers

1 / 12

ENTER



0:20:09

Numbers, ENTER





or



AUDIO

1 ENG

or

SUBTITLE



1 / 3

or



ANGLE

3D SUR

Example: On-Screen Display during playing VCD

Items







Selection Method

Track Number







, Numbers

1 / 3

(or PBC mode)



ENTER



















Time search









Numbers





0:20:09



ENTER























Audio Channel







or













AUDIO

































Sound















3D SUR



























Example: On-Screen Display during playing DivX movie disc

Items

Track Number

Time search

Audio language and Digital Audio Output mode

Subtitle language

ABC

Sound

Selection Method

, Numbers

1 / 3

ENTER

0:20:09

Numbers, ENTER



1

or

MP3

AUDIO

ENG

or





SUBTITLE

3D SUR



Example: On-Screen Display during playing DVD Audio

Items

Group Number

Track Number

Time search

DVD Audio Output mode

Subtitle language

Page (or Angle)

ABC

Selection Method

, Numbers

ENTER

, Numbers

ENTER

0:20:09 Display only

or

AUDIO

OFF Display only

or or ANGLE

1 / 3

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

13

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Installation and Setup

BEFORE OPERATION

INITIAL SETTINGS

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 14 to 17.

TO DISPLAY AND EXIT THE MENU:

Press SETUP to display the menu. A second press of SETUP will take you back to initial screen.

To go to the next level:

Press on the remote control.

To go back to the previous level:

Press on the remote control.

GENERAL OPERATION

1Press SETUP. The Setup menu appears.

2Use to select the desired option then press to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).

3Use to select the second desired option then press to move to the third level.

4Use to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.

5Press SETUP or PLAY to exit the Setup menu.

LANGUAGE

LANGUAGE

Menu Language

English

Disc Audio

Original

Disc Subtitle

Off

Disc Menu

Original































Move

Select



MENU LANGUAGE







Select a language for the Setup menu



.

DISC AUDIO / SUBTITLE /

DVD-V

-A

Select the language you prefer for the





subtitles,

and the disc menu.







Original: Refers to the original language in which the disc was recorded.

Other: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter. If you enter the wrong language code, press CLEAR.

DISPLAY

DISPLAY

TV Aspect

16 : 9 Wide

Display Mode

Widescreen

TV Output Select

RGB







Move

Select



TV

DVD-V

-A





4:3: Select



is connected.





16:9 Wide:



is connected.

DISPLAY

DVD-V

-A





Display Mode



the

TV Aspect mode is

set to “4:3”.









Letterbox: Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

TV OUTPUT SELECT (European version only)

Set the player’s TV Output Select options according to the TV connection type.

YPbPr – When your TV is connected with the COMPONENT VIDEO OUT/(576p/720p/1080i) jacks on the DVD player.

RGB – When your TV is connected with the SCART (RGB signal) jack

14

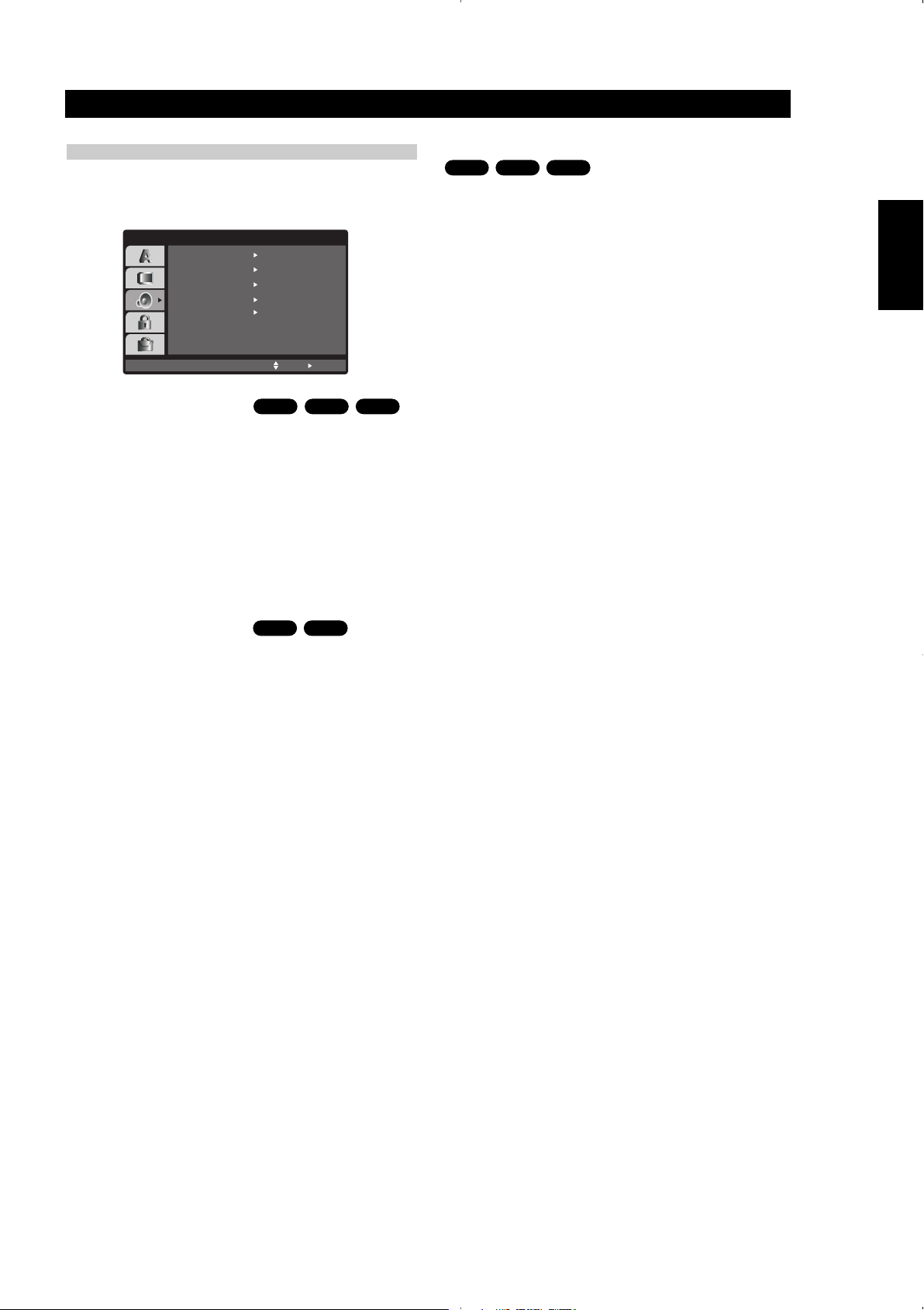

AUDIO

Each DVD disc has a variety of audio output options. Set the player’s AUDIO options according to the type of audio system you use.

AUDIO

Dolby Digital

Bitstream



DTS

Bitstream



MPEG

PCM



Sample Freq.

48 kHz



DRC

On





Move

Select

DOLBY DIGITAL / DTS /

DVD

-A

BITSTREAM: Select “Bitstream” if

DIGITAL OUT jack to an amplifier or

Digital, DTS or MPEG decoder.

PCM (FOR DOLBY DIGITAL / MPEG): Select when connected to a two-channel digital stereo amplifier. DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio.

OFF (FOR DTS): If you select “Off”, the DTS signal is not output through the DIGITAL OUT jack.

SAMPLE FREQ. (FREQUENCY) DVD-V

-A



If your receiver or

amplifier is

96

kHz

signals, select 48

kHz. When

this

unit

automatically converts any 96 kHz signals to 48 kHz so your system can decode them.

If your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing.

Check the documentation for your amplifier to verify its capabilities.

Installation and Setup

BEFORE OPERATION

(DRC)

DVD-V -A

hear a program’s soundtrack in the presentation possible, thanks to digital

audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

15

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Installation and Setup

BEFORE OPERATION

OTHERS

The PBC, Auto Play, B.L.E. and DivX(R) VOD settings can be changed.

OTHERS

PBC

On

Auto Play

Off

B.L.E.

On

DivX(R) VOD

Select





Move Select



VCD





Set

(PBC) to On or Off.

On:

with PBC are played according to the PBC.

Off: Video

are played the same way as Audio CDs.

AUTO

DVD-V

You can set

Player so a DVD disc automatically starts

playing

is inserted.

If Auto Play mode is set to On, this DVD player will search for the title that has the longest playback time and then play back the title automatically.

On: Auto Play function is active. Off: Auto Play function is not active.

NOTE

The Auto Play function may not work for some DVDs.

B.L.E. (BLACK LEVEL EXPANSION)

To select the black level of playback pictures. Set your preference and monitor’s ability.

On: Expanded grey scale. (0 IRE cut off) Off: Standard grey scale. (7.5 IRE cut off)

NOTE







The B.L.E.

be operated only in 480/576 resolution.

DIVX(R)

DivX

You can show



(Digital Right Management) Registration

code for your







































The Registration code is used for VOD (Video-On- Demand) service agent. You can purchase or rent an encrypted movie file.

NOTE

If you rent the DivX VOD file, it has several options of viewing limits as show below.

• Displays the number of times that you can watch the file.

• Shows if the rental has expired.

• Displays an authorization error.

16

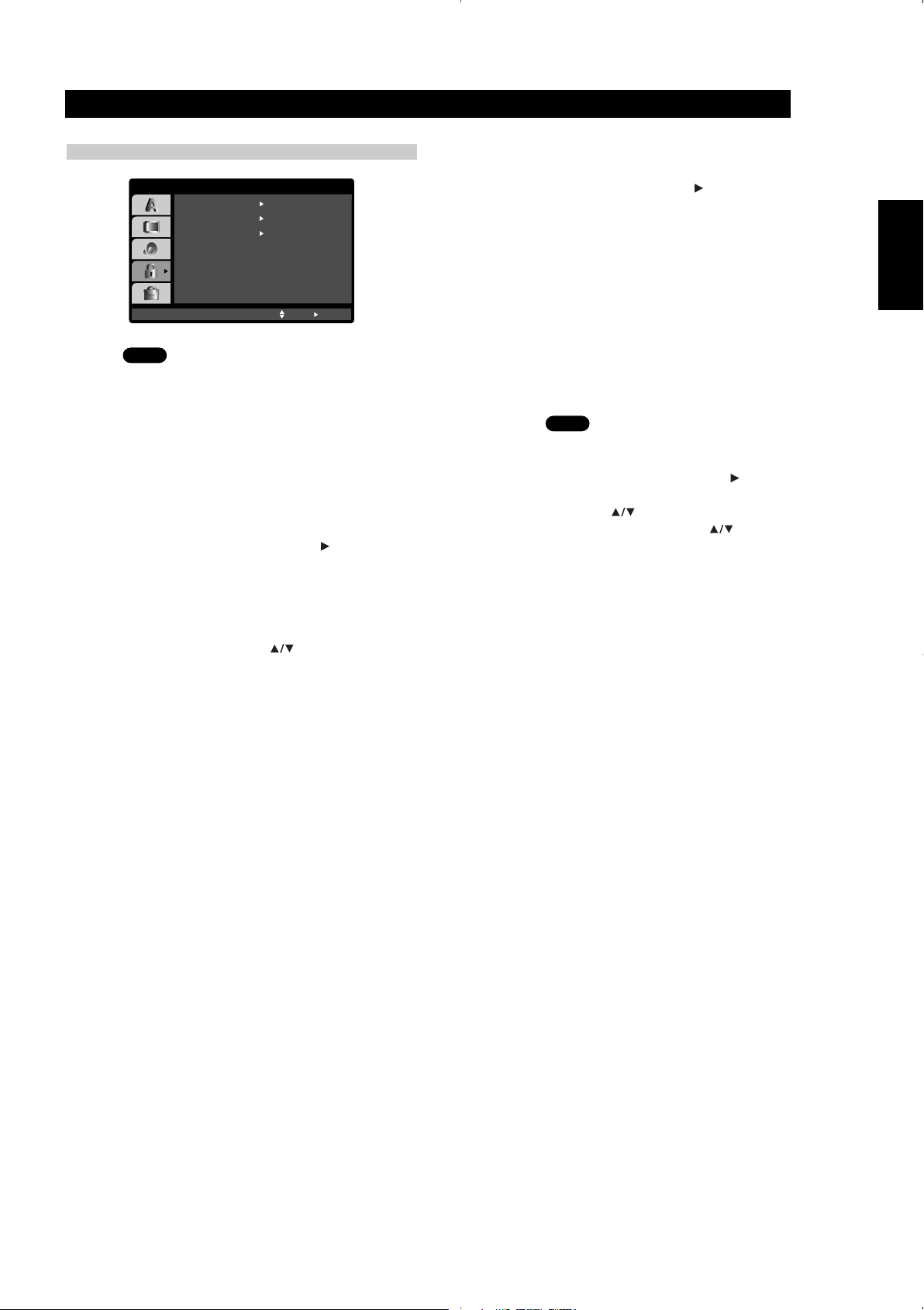

LOCK (PARENTAL CONTROL)

LOCK

Rating

Unlock

Password

New

Country Code

UK

Move Select

RATING DVD-V

Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative.

The parental control feature allows you to block access to scenes below the rating you input, thereby preventing your children from being able to view material you believe is unsuitable.

1Select “Rating” on the LOCK menu then press .

2To access the Rating, Password and Country Code features, you must input the 4-digit security code you created. If you have not yet entered a security code you are prompted to do so.

Input a 4-digit code and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.

3Select a rating from 1 to 8 using the buttons.

Rating 1-8

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive

Unlock

If you select unlock, parental control is not active and the disc plays in full.

NOTE

If you set a rating for the player, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have a lower rating. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc.

4Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Installation and Setup

BEFORE OPERATION

PASSWORD (SECURITY CODE)

You can enter or change password.

1Select Password on the LOCK menu then press .

2Follow step 2 as shown left (Rating). “Change” or “New” is highlighted.

3Enter the new 4-digit code, then press ENTER. Input it again to verify.

4Press SETUP to exit the menu.

If you forget your Security Code

If you forget your security code you can clear it using the following steps:

1Press SETUP to display the Setup menu.

2Input the 6-digit number “210499” and the security code is cleared.

3Enter a new code as described above.

COUNTRY CODE DVD-V

Enter the code of the country/area whose standards were used to rate the DVD video disc, based on the list in the reference chapter.

1Select “Country Code” on the LOCK menu then press .

2Follow step 2 as shown in the left column (Rating).

3Select the first character using buttons.

4Press ENTER and select the second character using buttons.

5Press ENTER to confirm your country code selection.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

17

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Operation

OPERATION WITH DVD AND VIDEO CD

PLAYING A DVD OR VIDEO CD

PLAYBACK SETUP

You can enter or change password.

1Turn on the TV and select the video input source connected to the DVD player.

2Turn on the audio system (if applicable) and select the input source connected to the DVD player.

3Press OPEN/CLOSE to open the disc tray and load your chosen disc in the tray, with the playback side down.

4Press OPEN/CLOSE to close the tray. Playback starts automatically. If playback does not start, press PLAY.

In some cases, the disc menu might appear instead:

DVD-V

Use the buttons to select the title/chapter you want to view, then press ENTER to start.

Press TITLE or DVD MENU to return to the menu screen.

DVD-A

Use the buttons to select an option you want, then press ENTER to view the option.

VCD

Use the number buttons to select the track you want to view and press RETURN to return to the menu screen. Menu settings and operating procedures may differ. Follow the instructions on the each menu screen. You also may set PBC to Off (See “PBC” on page 16).

NOTES

If parental control is set and the disc is not within the rating settings you must input the password. (See “Lock Menu” on page 17.)

DVDs may have a region code. Your player will not play discs that have a region code different from your player.

t

GENERAL FEATURES

NOTES

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

MOVING TO ANOTHER TITLE/GROUP DVD-V DVD-A

When a disc has more than one title/group, you can move to another title/group. Press DISP while playback is stopped then the appropriate number (0-9) or use to move to another title/group. You can play any title by inputting its number while playback is stopped.

MOVING TO ANOTHER CHAPTER/TRACK

DVD-V DVD-A VCD DivX

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

Press SKIP or briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.

Press SKIP twice briefly to step back to the previous chapter/track.

To go directly to any chapter during DVD playback, press DISPLAY and press to select the chapter/track icon. Then, input the chapter/track number or use .

SEARCH DVD-V VCD DivX

1Press SCAN ( or ) during playback..

2Press SCAN ( or ) repeatedly to select the required speed. DVD, DivX disc; X2, X4, X16 or X100

Video CD; X2, X4 or X8

3To exit SEARCH mode, press PLAY.

NOTE

When using a DVD audio disc that includes pictures, this operation may be permitted in some picture

CHANGING THE AUDIO CHANNEL

VCD

Press AUDIO repeatedly during

a different audio

channel (Stereo, Left, or Right).



18

STILL PICTURE AND FRAME-BY-FRAME PLAYBACK

DVD-V DVD-A VCD DivX

1Press PAUSE/STEP on the remote control during playback. Advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly.

2To exit still motion mode, press PLAY.

NOTE

When using a DVD audio disc that includes pictures, this operation may be permitted in some picture segments.

SLOW MOTION DVD-V VCD DivX

1Press SLOW forward ( ) during playback. The player will enter SLOW forward mode.

2

Use the

SLOW (





) to select the required speed:



1/16,





3





1/8,



1/4, or



1/2 (forward).

























To exit Slow Motion mode, press PLAY.





NOTES

There is no slow motion playback in reverse.

When using a DVD audio disc that includes pictures, this operation may be permitted in some picture segments.

RANDOM VCD Karaoke DVD

1Press RANDOM during playback. The unit automatically begins random playback and RANDOM appears on the TV screen.

2Press RANDOM again to return to normal.

TIP

By pressing SKIP during random playback, the unit selects another title (track) and resumes random playback.

NOTE

On a Video CD with PBC, You must set PBC to Off on the setup menu to use the random function

(See “PBC” on page 16).

REPEAT A-B DVD-V VCD DivX

To repeat a sequence.

1Press A-B at your chosen starting point. “ A * ” appears briefly on the TV screen.

2Press A-B again at your chosen end point. “A B” appears briefly on the TV screen and the repeat sequence begins.

3Press A-B again to cancel.

Operation

OPERATION WITH DVD AND VIDEO CD

REPEAT DVD-V DVD-A VCD DivX

You can play a title/chapter/all/track/group on a disc. Press REPEAT during playback to select a desired repeat mode.

DVD VIDEO DISCS - REPEAT CHAPTER/TITLE/OFF

1Chapter: repeats the current chapter.

2Title: repeats the current title.

3Off: does not play repeatedly.

VIDEO CDS, DIVX DISCS - REPEAT TRACK/ALL/OFF

1Track: repeats the current track

2All: repeats all the tracks on a disc.

3Off: does not play repeatedly.

DVD AUDIO DISCS - REPEAT TRACK/GROUP/OFF

1Track: repeats the current track.

2Group: repeats the current Group.

3Off: does not play repeatedly.

NOTES

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the repeat function (See “PBC” on page 16).

If you press SKIP ( ) once during Repeat Chapter (Track) playback, the repeat playback cancels.

3D SURROUND DVD-V VCD DivX

To produce a 3D surround effect that simulates multichannel audio from two stereo speakers (instead of the five+ speakers normally required for multi-channel audio from a home theatre system).

1Press DISP during playback.

2Use to select the sound option. The sound option will be highlighted.

3Use to select “3D SUR”.

To turn off the 3D Surround effect, select “Normal”.

TIME SEARCH DVD-V VCD DivX

To start playing at any chosen time on the disc:

1Press DISP during playback. The time search box shows the elapsed playing time.

2Press to select the time clock icon and “-:--:--” appears.

3Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.

4Press ENTER to confirm. Playback starts from the selected time.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

19

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Operation

OPERATION WITH DVD AND VIDEO CD

ZOOM DVD-V VCD DivX

Use zoom to enlarge the video image.

1Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.

2Each press of the ZOOM button changes the TV screen in the sequence: normal size 200% size 400% size 900% size normal size mode 200% size.

Navigating Zoomed TV Screen:

3Use the buttons to move through the zoomed picture.

4To resume normal playback, press CLEAR.

NOTES

• Zoom may not work on some DVDs.

MARKER SEARCH DVD-V VCD DivX

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1During disc playback, press SEARCH. The marker search menu appears on the screen.

2Within 10 seconds, press to select a marker number that you want to recall or clear.

3Press ENTER and playback starts from the marked scene. Or, Press CLEAR and the marker number is erased from the list.

4You can play any marker by inputting its number on the marker search menu.

PAUSE DVD-V DVD-A VCD DivX

1Press PAUSE/STEP during playback.

2To return to playback, press PLAY.

SPECIAL DVD FEATURES

CHECKING THE CONTENTS OF DVD DISCS: MENUS

DVDs may offer menus that allow you to access special features. To use the disc menu, press MENU. Input the corresponding number or use the buttons to highlight your selection.

Then press

TITLE

DVD-V

-A

1 Press TITLE.



a menu, the menu appears on the

screen.



may appear.

2The menu offers features such as camera angles, spoken language and subtitle options, and chapters for the title.

3Press TITLE

DISC

DVD-V



-A

1

Press





is displayed.

2

Press







CAMERA



DVD-V

-A

If the disc contains



camera angles, you can

change to a





playback. Press ANGLE

repeatedly during playback to select a desired angle. Note that the number of the current angle appears on the display.

TIP

The angle indicator will blink on the TV screen during scenes recorded at different angles as an indication that angle switching is possible.

LANGUAGE

DVD-V -A

playback to hear a different audio

With DVD-RW discs recorded in VR mode that have both a main and a Bilingual audio channel, you can switch between Main (L), Bilingual (R),

or a mix of

by pressing AUDIO.

SUBTITLES

DVD-V

Press

playback to see the different subtitle

languages.



NOTES

The subtitle file of the DivX file is displayed only in smi, srt and sub.

If there is no information or there is a code that cannot be read in the DivX file, “1” etc., is displayed.

20

DVD AUDIO DISCS

DVD Audio is a new disc format building on the success of DVD to provide high quality, uncompressed, multi-channel audio for a new experience in audio quality. A DVD Audio disc can be identified by the DVD audio logo on the disc jacket or on the disc itself.

DVD Audio can provide higher quality stereo than Audio CDs with a sampling rate of up to 192 kHz (compared to 44.1 kHz for CDs). DVD Audio digital sound can be delivered with up to 24 bits of data (compared to 16 bits for a standard CD).

A typical DVD Audio disc contains up to seven times the data capacity of a CD. This additional space is used for music, either Advanced Resolution multichannel sound quality that is closer to the artist’s master recording or for longer recordings. Many DVD Audio discs contain on-screen text, such as artist biographies, playlists, or lyrics. Some DVD Audio discs contain photo galleries or video clips.

NOTE

To enjoy maximum sound quality and surround effect of DVD Audio, you must use the DIGITAL OUT (OPTICAL or COAXIAL) for your audio connection, the sound will only be similar to CD-quality sound even though you’re playing a DVD Audio disc.

Operation

OPERATION WITH DVD AND VIDEO CD

MOVING TO ANOTHER GROUP

Some DVD Audio discs divide content into different groups. Your player enables you to quickly access different groups during playback via the on-screen display.

1Press DISP during playback on in stop mode.

2Press to select Group icon.

3Press or the numbered buttons (0-9) to select a group number.

NOTE

Sometimes the author of the disc creates hidden content that can only be accessed by entering a password. If the lock icon appears on the TV screen, enter the password (sometimes you’ll find it on the disc’s jacket cover or on a web site). This password control isn’t dictated by your DVD Player — it is a function of the disc.

Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you’re playing.

VIEWING ANOTHER PAGE

Since DVD Audio discs can hold a lot of content, there are various ways to see what’s available on the disc.

1Press DISP during playback.

2Press to select Page icon.

3Press to select a page number.

What appears on the screen will vary from disc to disc because the information available depends upon the way the disc was created.

NOTE

Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you’re playing.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

21

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Operation

OPERATION WITH AUDIO CD AND MP3 / WMA DISC

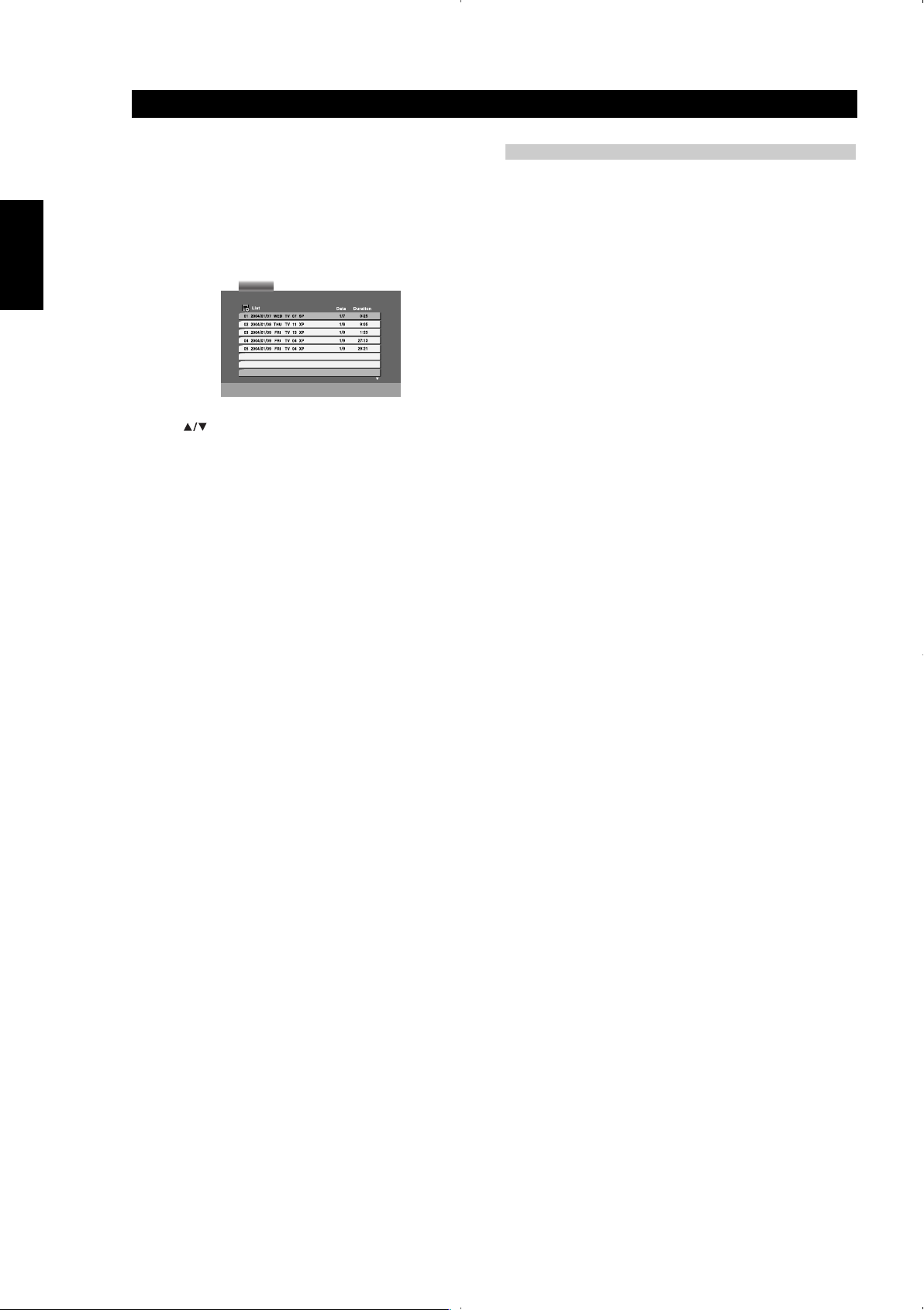

PLAYING AN AUDIO CD OR MP3/WMA DISC

The DVD player can play MP3/WMA formatted recordings on CD-ROM, CD-R, or CD-RW discs.

AUDIO CD

Once you insert an audio CD a menu appears on the TV screen. Press to select a track then press PLAY or ENTER and playback starts.

AUDIO CD

0:52:07

1 / 12

List

Program

Track1



Track2



Track3



Track4



Track5



Track6



Track7



Track8

Clear All



PROGRAM Edit

MP3 / WMA

1Press to select a folder, and press ENTER to see the folder contents.

2Press to select a track then press PLAY or ENTER. Playback starts.

MUSIC

0:00:00

1 / 12







List



Program













1-Music1









2-Music2









3-Music3









4-Music4









5-Music5









6-Music6









7-Music7



Clear All













MP3 / WMA disc compatibility with this player is limited as follows:

1Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48 kHz (WMA)

2Bit rate: within 8 - 320kbps (MP3), 32 - 384kbps (WMA)

3The player cannot read an MP3/WMA file that has a file extension other than “.mp3” / “.wma”.

4CD-R physical format should be ISO 9660

5If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

6File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.

7They should not contain special letters such as / ? * : “ < > l etc.

8The total number of files on the disc should be less than 1012. This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Prerecorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. NAD ELECTRONICS INTERNATIONAL has no right to grant such permission. Permission should always be sought from the copyright owner.

DISPLAY Info

PROGRAM Edit

ID3 TAG

When playing a file containing information such as track titles, you can see the information by pressing DISP.

[ Title, Artist, Album, Year, Comment ]

If there is no information, “NO ID3 TAG” appear on the display.

TIP

If you are in a file list on the MUSIC menu and want to return to the Folder list, use the to highlight and press ENTER.

Press MENU to move to the next page.

On a CD with MP3/WMA and JPEG you can switch MP3/WMA and JPEG. Press TITLE and MUSIC or PHOTO word on top of the menu is highlighted.

22

Operation

OPERATION WITH AUDIO CD AND MP3 / WMA DISC

AUDIO CD AND MP3 / WMA DISC FEATURES

PAUSE CD MP3 WMA

1Press PAUSE/STEP during playback.

2To return to playback, press PLAY, ENTER or press PAUSE/STEP again.

MOVING TO ANOTHER TRACK CD MP3 WMA

1Press SKIP ( or ) briefly during playback to go to the next track or to return to the beginning of the current track.

2Press SKIP twice briefly to go back to the previous track.

3You can play any track by inputting its number.

REPEAT TRACK/ALL/OFF CD MP3 WMA

You can play a track/all on a disc.

1Press REPEAT when playing a disc. The repeat icon appears.

2Press REPEAT to select a desired repeat mode. Track: repeats the current track

All: repeats all the tracks on a disc. Off(No display): does not play repeatedly.

RANDOM CD

MP3

WMA

1 Press RANDOM

during

playback. Random Playback begins

immediately and RANDOM appears on the menu screen.

2To return to normal playback, press RANDOM repeatedly until RANDOM disappears from the menu screen.

TIP







By pressing

SKIP:



during random playback, the unit selects





another





random playback.

REPEAT

CD





1 To repeat a



during disc playback press A-B at your chosen

starting





icon and “A” appear on the menu screen.

2Press A-B again at your chosen end point. The Repeat icon and “A-B” appear on the menu screen, and the sequence begins to play repeatedly.

3To exit the sequence and return to normal play, press A-B again. The

Repeat icon

the menu screen.

3D SURROUND

CD

NOTE

If you press SKIP ( ) once during Repeat Track playback, the repeat playback cancels.

SEARCH CD MP3 WMA

1Press SCAN ( or ) during playback.

2Press SCAN ( or ) repeatedly to select the required speed: X2, X4, X8 backward or forward.

3To exit SEARCH mode, press PLAY.

To produce a 3D

that simulates multichannel audio

from two stereo

(instead of the five+ speakers normally

required for multi-channel audio from a home theatre system).

1Press AUDIO during playback.

“3D SUR.” appears on the menu screen.

2 To return to normal playback, press AUDIO repeatedly until “3D SUR.” disappears from the menu screen.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

23

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Operation

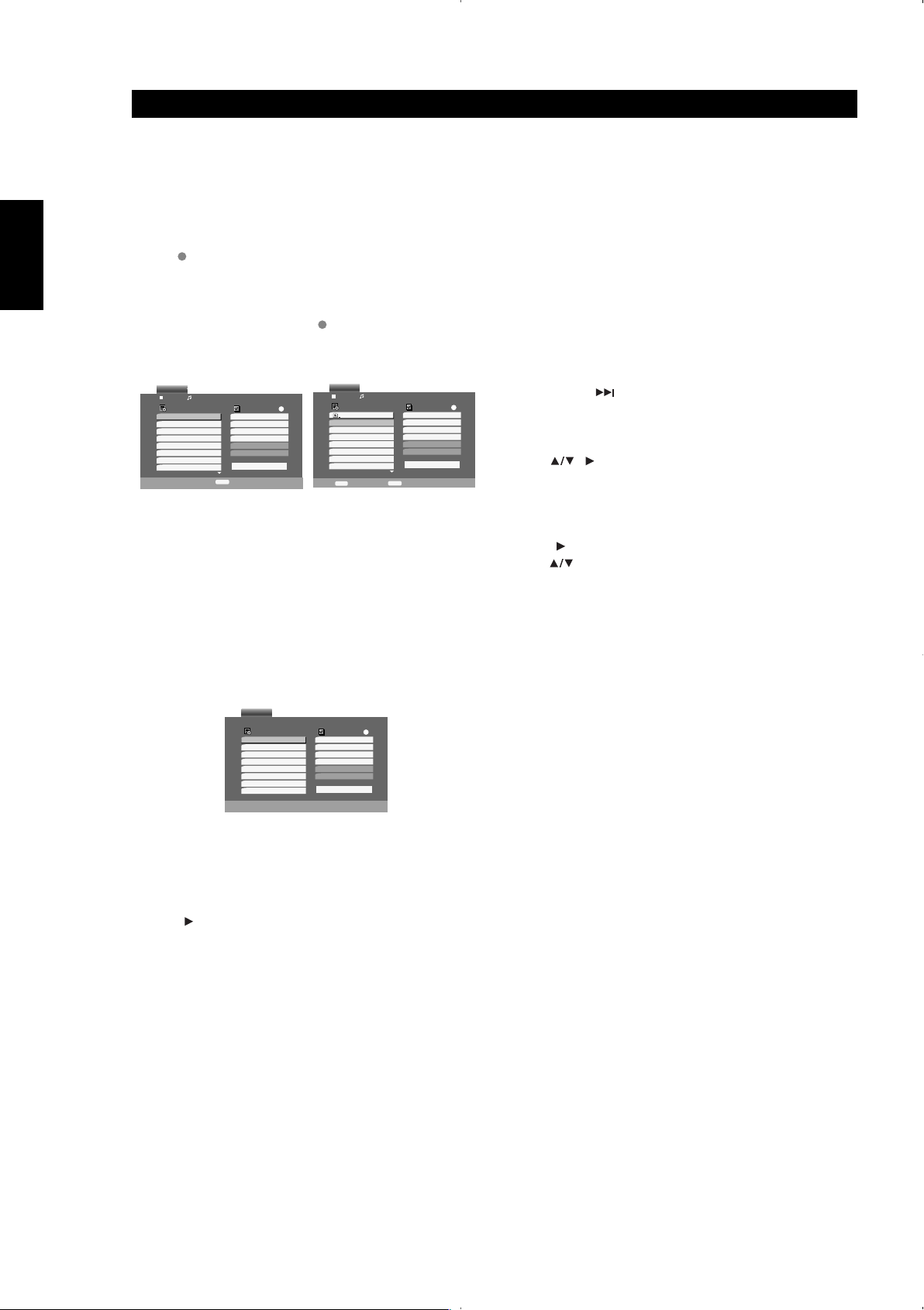

PROGRAMMED PLAYBACK

The program function enables you to store your favourite tracks from any disc in the player memory. A program can contain 30 tracks.

1Insert a disc.

Audio CD or MP3/WMA Discs:

AUDIO CD or MUSIC menu appears.

2Press PROGRAM.

The E mark will appear to the right of the word“ Program” on the right side of the menu screen.

NOTE

Press PROGRAM again, then the E mark will disappear to exit the Program Edit mode.



AUDIO CD















MUSIC









0:52:07

1 / 12











0:00:00

1 / 12









List





Program

E





List



Program

E























2-Music2







Track1



Track5



















Track2



Track7









1-Music1



4-Music4







Track3



Track4









2-Music2



6-Music6







Track4



Track1









3-Music3



1-Music1







Track5















4-Music4











Track6















5-Music5











Track7















6-Music6











Track8





Clear All









7-Music7



Clear All





































PROGRAM

Edit









DISPLAY Info

PROGRAM Edit

































Audio CD Menu MP3/WMA Menu

VIDEO CD

Press PROGRAM while playback is stopped. The program menu appears. Press PROGRAM again and hold it down for a few seconds to exit the menu.

NOTE

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the programmed playback (See “PBC” on page 16).

VIDEO CD

List

Program

E

Track1

Track5



Track2

Track2



Track3

Track3



Track4

Track1



Track5







Clear All



Video CD Menu

3Select a track on the “List”, then press ENTER to place the selected track on the “Program” list. Repeat to place additional tracks on the list.

4Press .

Select the track you want to start playing on the “Program” list.

5Press PLAY or ENTER to start. Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the “Program” list have played once.

6To resume normal playback from programmed playback, select a track of AUDIO CD (or MUSIC) list and then press PLAY.

REPEAT PROGRAMMED TRACKS

1Press REPEAT when playing a disc. The repeat icon appears.

2Press REPEAT to select a desired repeat mode. Track: repeats the current track

All: repeats all the tracks on the programmed list. Off (No display): does not play repeatedly.

NOTE

If you press : once during Repeat Track playback, the repeat playback cancels.

ERASING A TRACK FROM PROGRAM LIST

1Use to select the track that you wish to erase from the Program list.

2Press CLEAR. Repeat to erase additional tracks on the list.

ERASING THE COMPLETE PROGRAM LIST

1Press to move to the “Program” list.

2Use to select “Clear All”, then press ENTER.

NOTE

The programs are also cleared when the disc is removed.

24

VIEWING A JPEG DISC

Using this DVD Player you can view discs with JPEG files.

1Insert a disc and close the tray. The PHOTO menu appears on the TV screen.




List

Preview

JPEG Folder 1



JPEG Folder 2



JPEG Folder 3



JPEG Folder 4



JPEG Folder 5



JPEG Folder 6



JPEG Folder 7



JPEG Folder 8



2Press to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the buttons on the remote to highlight and press ENTER.

3If you want to view a particular file, press to highlight a file and press ENTER or PLAY. Viewing the file proceeding starts. While viewing a file, you can press STOP to move to the previous menu (PHOTO menu).

TIP

Press DVD MENU to move to the next page.

There are three Slide Speed options :

>>> (Fast), >> (Normal), and > (Slow).

Use to highlight the Speed. Then, use to select the option you want to use then press ENTER.

On a disc with MP3/WMA and JPEG you can switch MP3/WMA and JPEG. Press TITLE and MUSIC or PHOTO word on top of the menu is highlighted.

Press RETURN, file information is hidden.

SLIDE SHOW JPEG

Use to highlight the (Slide Show) then press ENTER.

STILL PICTURE JPEG

1Press PAUSE/STEP during slide show. The player will now go into PAUSE mode.

2To return to the slide show, press PLAY or press PAUSE/STEP again.

MOVING TO ANOTHER FILE JPEG

Press SKIP ( or ) or cursor ( ) once while viewing a picture to advance to the next or previous file.

Operation

OPERATION WITH JPEG DISC

ZOOM JPEG

Use zoom to enlarge the photo image. (see page 20)

TO ROTATE PICTURE JPEG

Press during showing a picture to rotate the picture clockwise or counter clockwise.

JPEG DISC COMPATIBILITY WITH THIS PLAYER IS LIMITED AS FOLLOWS:

Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc’s contents. If you don’t see an onscreen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 5 million pixels and burn another disc..

The total number of files and folders on the disc should be less than 1012.

Some discs may be incompatible due to a different recording format or the condition of the disc.

Ensure that all the selected files have the “.jpg” extensions when copying into the CD layout.

If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” files.

File names without a “.jpg” extension will not be able to be read by this DVD player even though the files are shown as JPEG image files in Windows Explorer.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

25

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Operation

OPERATION WITH A DVD VR FORMAT DISC

This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder.

This unit will play DVD-RW discs recorded using the Video Recording (VR) format.

1Insert a disc and close the tray. The DVD-VR menu appears on the TV screen.

DVD-VR

2Press to select a track then press PLAY or ENTER and playback starts.

NOTES

Unfinalized DVD-R/RW discs cannot be played in this player.

Some DVD-VR disc are made with CPRM data by DVD RECORDER. Player does not support these kinds of discs and display the “CHECK DISC”.

WHAT IS ‘CPRM’?

CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast programs. CPRM stands for Content Protection for Recordable Media.

This player is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode, and CPRM recordings can only be played on players that are specifically compatible with CPRM.

MAINTENANCE AND SERVICE

Refer to the information in this chapter before contacting a service technician.

HANDLING THE UNIT

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit.

Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service centre.

26

Operation

OPERATION WITH A DIVX MOVIE DISC

Using this DVD Player you can play DivX discs.

1Insert a disc and close the tray. The MOVIE menu appears on the TV screen.

MOVIE

0:00:00

List

Movie Folder 1

Movie Folder 2

Movie Folder 3

Movie Folder 4

Movie Folder 5

Movie Folder 6

Movie Folder 7

Movie Folder 8

2Press to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the buttons on the remote to highlight and press ENTER.

3If you want to view a particular file, press to highlight a file and press ENTER or PLAY.

4Press STOP to exit.

TIP

Press MENU to move to the next page.

On a CD with MP3/WMA, JPEG and MOVIE files, you can switch to the MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE at the top of the menu is highlighted.

The disc subtitle may not be displayed properly, if a DivX subtitle is downloaded through the internet.

DivX disc compatibility with this player is limited as follows:

Available resolution size of the DivX file is under 720x576 (W x H) pixels.

The file name of the DivX subtitle is available by

56characters.

If there is an impossible code to express the DivX file, it may be displayed as " _ " mark on the display.

If the number of screen frames is over 30 per

1second, this unit may not operate normally.

If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

If the file is recorded with GMC, the unit supports only 1-point of the record level.

* GMC?

GMC is the acronym for Global Motion Compensation. It is an encoding tool specified in MPEG4 standard. Some MPEG4 encoders, like DivX or Xvid, have this option. There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

Playable DivX files

.avi, .mpg, .mpeg

Playable Subtitle format

SubRip(*.srt/*.txt)

SAMI(*.smi)

SubStation Alpha(*.ssa/*.txt)

MicroDVD(*.sub/*.txt)

SubViewer 1.0(*.sub)

SubViewer 2.0(*.sub/*.txt)

TMPlayer(*.txt)

Playable Codec format

"DIVX3.xx", "DIVX4.xx", "DIVX5.xx", "XVID", "MP43", "3IVX".

Playable Audio format

"Dolby Digital", "DTS", "PCM", "MP3", "WMA".

Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

Bit rate: within 8 - 320kbps (MP3), 32 - 384kbps (WMA)

Not all the WMA Audio format is compatible with this unit.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

27

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Operation

ADDITIONAL INFORMATION

ADDITIONAL FEATURES

DVD

DVD

CD

the last disc that is viewed. you remove the disc from the player or switch off the player. If you load a disc that has the scene

memorized, the scene is automatically recalled.

NOTE

This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc.

SCREEN SAVER

The screen saver appears when you leave the DVD player in Stop mode for about five minutes. If the Screen Saver is displayed for five minutes, the DVD Player automatically turns itself off.

28

Operation

NOTES

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

29

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Reference

TROUBLESHOOTING

Check the following guide for the possible cause of a problem before contacting service.

SYMPTOM

CAUSE

CORRECTION







No power.

• The power cord is disconnected.

• Plug the power cord into the wall outlet securely.











The power is on, but the DVD player does not

• No disc is inserted.

• Insert a disc. (Check that the DVD or, audio CD

work.



indicator in the display window is lit.)











No picture.

• The TV is not set to receive DVD signal output.

• Select the appropriate video input mode on



the TV.













• The video cable is not connected securely.

• Connect the video cable securely.









• Unit output setting and TV resolution capabilities

• Check TV capability.



mismatch.

• Check mode of connections (eg. S-Video,





Component etc.).





• Check unit Resolution setting according to TV





capability and mode of connection.







No sound.

• The equipment connected with the audio cable

• Select the correct input mode of the audio

is not set to receive DVD signal output.

receiver so you can listen to the sound from the







DVD player.









• The power of the equipment connected with the

• Turn on the equipment connected with the



audio cable is turned off.

audio cable.









• The AUDIO options are set to the wrong

• Set the Digital Audio Output to the correct



position.

position, then turn on the DVD player again by





pressing POWER.









• The Digital Audio Output mismatch with the

• Select the proper audio setting in AUDIO setup.



amplifier.









The DVD player does not start playback.

• An unplayable disc is inserted.

• Insert a playable disc. (Check the disc type, color



system, and regional code.)













• The rating level is set.

• Cancel the rating function or change the rating





level.







The remote control does not work properly.

• The remote control is not pointed at the remote

• Point the remote control at the remote sensor of

sensor on the DVD player.

the DVD player.











• The remote control is too far from the DVD

• Operate the remote control closer to the



player.

DVD player.









• The remote control batteries are dead.

• Replace the remote control batteries.







30

Reference

TABLE OF LANGUAGES AND THEIR ABBREVIATIONS

Language Code List

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Code

Language



Code

Language



Code

Language



Code

Language

6566

Abkhazian



7074

Fiji



7678

Lingala



8373

Singhalese

6565

Afar



7073

Finnish



7684

Lithuanian



8375

Slovak

6570

Afrikaans



7082

French



7775

Macedonian



8376

Slovenian

8381

Albanian



7089

Frisian



7771

Malagasy



8379

Somali

6577

Ameharic



7176

Galician



7783

Malay



6983

Spanish

6582

Arabic



7565

Georgian



7776

Malayalam



8385

Sudanese

7289

Armenian



6869

German



7784

Maltese



8387

Swahili

6583

Assamese



6976

Greek



7773

Maori



8386

Swedish

6588

Aymara



7576

Greenlandic



7782

Marathi



8476

Tagalog

6590

Azerbaijani



7178

Guarani



7779

Moldavian



8471

Tajik

6665

Bashkir



7185

Gujarati



7778

Mongolian



8465

Tamil

6985

Basque



7265

Hausa



7865

Nauru



8484

Tatar

6678

Bengali; Bangla



7387

Hebrew



7869

Nepali



8469

Telugu

6890

Bhutani



7273

Hindi



7879

Norwegian



8472

Thai

6672

Bihari



7285

Hungarian



7982

Oriya



6679

Tibetan

6682

Breton



7383

Icelandic



8065

Panjabi



8473

Tigrinya

6671

Bulgarian



7378

Indonesian



8083

Pashto, Pushto



8479

Tonga

7789

Burmese



7365

Interlingua



7065

Persian



8482

Turkish

6669

Byelorussian



7165

Irish



8076

Polish



8475

Turkmen

7577

Cambodian



7384

Italian



8084

Portuguese



8487

Twi

6765

Catalan



7465

Japanese



8185

Quechua



8575

Ukrainian

9072

Chinese



7487

Javanese



8277

Rhaeto-Romance



8582

Urdu

6779

Corsican



7578

Kannada



8279

Rumanian



8590

Uzbek

7282

Croatian



7583

Kashmiri



8285

Russian



8673

Vietnamese

6783

Czech



7575

Kazakh



8377

Samoan



8679

Volapük

6865

Danish



7589

Kirghiz



8365

Sanskrit



6789

Welsh

7876

Dutch



7579

Korean



7168

Scots Gaelic



8779

Wolof

6978

English



7585

Kurdish



8382

Serbian



8872

Xhosa

6979

Esperanto



7679

Laothian



8372

Serbo-Croatian



7473

Yiddish

6984

Estonian



7665

Latin



8378

Shona



8979

Yoruba

7079

Faroese



7686

Latvian, Lettish



8368

Sindhi



9085

Zulu

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

31

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

Reference

COUNTRY CODE LIST

Choose a country code from this list.

Code

Country

Code

Country

Code

Country

Code

Country

AD

Andorra



ER

Eritrea



LC

Saint Lucia



SC

Seychelles

AE

United Arab Emirates



ES

Spain



LI

Liechtenstein



SD

Sudan

AF

Afghanistan



ET

Ethiopia



LK

Sri Lanka



SE

Sweden

AG

Antigua and Barbuda



FI

Finland



LR

Liberia



SG

Singapore

AI

Anguilla



FJ

Fiji



LS

Lesotho



SH

Saint Helena

AL

Albania



FK

Falkland Islands



LT

Lithuania



SI

Slovenia

AM

Armenia



FM

Micronesia



LU

Luxembourg



SJ

Svalbard and

AN

Netherlands Antilles



FO

Faroe Islands



LV

Latvia Islands





Jan Mayen

AO

Angola



FR

France



LY

Libya



SK

Slovak Republic

AQ

Antarctica



FX

France (European



MA

Morocco



SL

Sierra Leone

AR

Argentina





Territory)



MC

Monaco



SM

San Marino

AS

American Samoa



GA

Gabon



MD

Moldavia



SN

Senegal

AT

Austria



GB

Great Britain



MG

Madagascar



SO

Somalia

AU

Australia



GD

Grenada



MH

Marshall Islands



SR

Suriname

AW

Aruba



GE

Georgia



MK

Macedonia



ST

Saint Tome and Principe

AZ

Azerbaidjan



GF

French Guyana



ML

Mali



SU

Former USSR

BA

Bosnia-Herzegovina



GH

Ghana



MM

Myanmar



SV

El Salvador

BB

Barbados



GI

Gibraltar



MN

Mongolia



SY

Syria

BD

Bangladesh



GL

Greenland



MO

Macau



SZ

Swaziland

BE

Belgium



GM

Gambia



MP

Northern Mariana Islands



TC

Turks and Caicos Islands

BF

Burkina Faso



GN

Guinea



MQ

Martinique (French)



TD

Chad

BG

Bulgaria



GP

Guadeloupe (French)



MR

Mauritania



TF

French Southern

BH

Bahrain



GQ

Equatorial Guinea



MS

Montserrat





Territories

BI

Burundi



GR

Greece



MT

Malta



TG

Togo

BJ

Benin



GS

S. Georgia &



MU

Mauritius



TH

Thailand

BM

Bermuda





S. Sandwich Isls.



MV

Maldives



TJ

Tadjikistan

BN

Brunei Darussalam



GT

Guatemala



MW

Malawi



TK

Tokelau

BO

Bolivia



GU

Guam (USA)



MX

Mexico



TM

Turkmenistan

BR

Brazil



GW

Guinea Bissau



MY

Malaysia



TN

Tunisia

BS

Bahamas



GY

Guyana



MZ

Mozambique



TO

Tonga

BT

Bhutan



HK

Hong Kong



NA

Namibia



TP

East Timor

BV

Bouvet Island



HM

Heard and McDonald



NC

New Caledonia (French)



TR

Turkey

BW

Botswana





Islands



NE

Niger



TT

Trinidad and Tobago

BY

Belarus



HN

Honduras



NF

Norfolk Island



TV

Tuvalu

BZ

Belize



HR

Croatia



NG

Nigeria



TW

Taiwan

CA

Canada



HT

Haiti



NI

Nicaragua



TZ

Tanzania

CC

Cocos (Keeling) Islands



HU

Hungary



NL

Netherlands



UA

Ukraine

CF

Central African Republic



ID

Indonesia



NO

Norway



UG

Uganda

CG

Congo



IE

Ireland



NP

Nepal



UK

United Kingdom

CH

Switzerland



IL

Israel



NR

Nauru



UM

USA Minor Outlying

CI

Ivory Coast



IN

India



NU

Niue





Islands

CK

Cook Islands



IO

British Indian Ocean



NZ

New Zealand



US

United States

CL

Chile





Territory



OM

Oman



UY

Uruguay

CM

Cameroon



IQ

Iraq



PA

Panama



UZ

Uzbekistan

CN

China



IR

Iran



PE

Peru



VA

Vatican City State

CO

Colombia



IS

Iceland



PF

Polynesia (French)



VC

Saint Vincent &

CR

Costa Rica



IT

Italy



PG

Papua New Guinea





Grenadines

CS

Former Czechoslovakia



JM

Jamaica



PH

Philippines



VE

Venezuela

CU

Cuba



JO

Jordan



PK

Pakistan



VG

Virgin Islands (British)

CV

Cape Verde



JP

Japan



PL

Poland



VI

Virgin Islands (USA)

CX

Christmas Island



KE

Kenya



PM

Saint Pierre and Miquelon



VN

Vietnam

CY

Cyprus



KG

Kyrgyzstan



PN

Pitcairn Island



VU

Vanuatu

CZ

Czech Republic



KH

Cambodia6



PR

Puerto Rico



WF

Wallis and Futuna Islands

DE

Germany



KI

Kiribati



PT

Portugal



WS

Samoa

DJ

Djibouti



KM

Comoros



PW

Palau



YE

Yemen

DK

Denmark



KN

Saint Kitts & Nevis Anguilla



PY

Paraguay



YT

Mayotte

DM

Dominica



KP

North Korea



QA

Qatar



YU

Yugoslavia

DO

Dominican Republic



KR

South Korea



RE

Reunion (French)



ZA

South Africa

DZ

Algeria



KW

Kuwait



RO

Romania



ZM

Zambia

EC

Ecuador



KY

Cayman Islands



RU

Russian Federation



ZR

Zaire

EE

Estonia



KZ

Kazakhstan



RW

Rwanda



ZW

Zimbabwe

EG

Egypt



LA

Laos



SA

Saudi Arabia







EH

Western Sahara



LB

Lebanon



SB

Solomon Islands







32





Reference













SPECIFICATIONS











GENERAL







Power requirements

Power requirements: AC 120 V, 60 Hz NTSC Region 1, 200-240 50/60 Hz PAL Region 2



Power consumption

10 W



Dimensions (approx.)

435 x 45 x 250 mm (W x H x D) with feet and RCA plugs



Weight (approx.)

2 kg (4.4 lb)



Operating temperature

5 °C to 35 °C (41 °F to 95 °F)



Operating humidity

5 % to 90 %











SYSTEM







Laser

Semiconductor laser, wavelength 650 nm



Signal system

NTSC for 120V North American version, NTSC/PAL for 230V European version



Frequency response

DVD (PCM 96 kHz): 8 Hz to 44 kHz





DVD (PCM 48 kHz): 8 Hz to 22 kHz





CD: 8 Hz to 20 kHz



Signal-to-noise ratio

More than 100 dB (ANALOG OUT connectors only)



Harmonic distortion

Less than 0.008%



Dynamic range

More than 90 dB (DVD/CD)











OUTPUTS







VIDEO OUT

1 Vp-p 75 Ω, sync negative, RCA jack x 1



S-VIDEO OUT

(Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1 (North American version only)





(C) 0.3 V (p-p) 75 Ω



COMPONENT VIDEO OUT

(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1





(Cb/Pb)/(Cr/Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2



AUDIO OUT

2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 2, RCA jack (FL, FR, C, RL, RR, SW) x 6



DIGITAL OUT (COAXIAL)

0.5 V (p-p), 75 Ω, RCA jack x 1



DIGITAL OUT (OPTICAL)

3 V (p-p), 75 Ω, Optical Connector x 1



DIGITAL OUT (HDMI)

2-channel 48 kHz PCM/Bitstream



HDMI VIDEO OUT

HDCP 480p/720p/1080i (NTSC)





HDCP 576p/720p/1080i (PAL)











ACCESSORIES







Video cable

1





Audio cable

1





Remote control

1





Batteries

2



Note: Design and specifications are subject to change prior notice.

SVENSKA PORTUGUÊS ITALIANO ESPAÑOL NEDERLANDS DEUTSCH FRANÇAIS ENGLISH

33

www.NADelectronics.com

©2006 NAD ELECTRONICS INTERNATIONAL A DIVISION OF LENBROOK INDUSTRIES LIMITED

All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International

T 515 Manual 05/06
