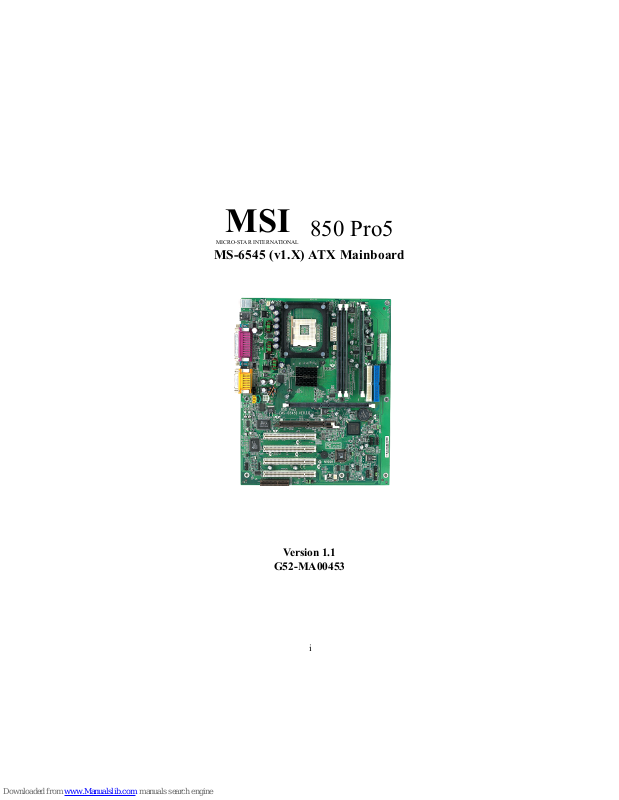

MSI MS-6545, 850 Pro5 User Manual

i

Version 1.1

G52-MA00453

MS-6545 (v1.X) ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

850 Pro5

ii

Manual Rev: 1.0
Release Date: Sept. 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6545

Tested to comply

with FCC Standard

For Home or Office Use

iii

Edition

Sept. 2001

Copyright Notice

The material in this document is the intellectual property of MICRO­STAR INTERNATIONAL. We take every care in the preparation

of this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we re­serve the right to make changes without notice.

Trademarks

All trademarks used in this manual are the property of their respective
owners.

Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

V1.0 First release Sept. 2001

iv

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri­cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

z The power cord or plug is damaged
z Liquid has penetrated into the equipment
z The equipment has been exposed to moisture
z The equipment has not work well or you can not get it work according

to User’s Manual.

z The equipment has dropped and damaged
z If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT
MAY DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

CONTENTS

Chapter 1. Introduction ............................................................... 1-1

Mainboard Specification ............................................................ 1-2

Mainboard Layout ..................................................................... 1-4

Quick Components Guide ......................................................... 1-5

Key Features ............................................................................ 1-6

MSI Special Features ................................................................1-7

T.O.P Tech™ ...................................................................... 1-7

PC Alert™ III ....................................................................... 1-8

D-LED™ & D-Bracket™ (Optional) ....................................1-10

Fuzzy Logic™ III ............................................................... 1-12

Live BIOS™/Live Driver™ .................................................. 1-13

Chapter 2. Hardware Setup ........................................................2-1

Central Processing Unit: CPU ................................................... 2-2

CPU Installation Procedures ............................................... 2-2

Installing the CPU Fan ........................................................ 2-3

CPU Core Speed Derivation Procedure ................................2-4

Memory Installation ...................................................................2-5

Memory Population Rules ................................................... 2-5

Installing RIMM Modules ..................................................... 2-6

Power Supply ............................................................................2-7

ATX 20-Pin Power Connector: JWR1 ................................... 2-7

ATX 12V Power Connector: JWR3 ....................................... 2-8

ATX 5V/3V Power Connector: JWR2 ................................... 2-8

Back Panel ............................................................................... 2-9

Mouse Connector: JKBMS1 ................................................ 2-9

Keyboard Connector: JKBMS1 .......................................... 2-10

USB Connectors ............................................................... 2-10

Serial Port Connector: COM A & COM B .......................... 2-11

Joystick/Midi Connectors .................................................. 2-11

vi

Audio Port Connectors ...................................................... 2-11

Parallel Port Connector: LPT1 ........................................... 2-12

Connectors ............................................................................. 2-13

Floppy Disk Drive Connector: FDD1 .................................. 2-13

Remote Power On/Off Switch Connector: JRMS1 ............. 2-13

Hard Disk Connectors: IDE1 & IDE2 ................................. 2-14

Front Panel Connector: JFP1 or J23 (Optional Intel spec) . 2-15

CD-In/Aux-In/Modem-In Connector: JCD1/JAUX1/JPHN1 ... 2-16

Fan Power Connectors: CPUFAN/SYSFAN/PSFAN .......... 2-17

Wake On Ring Connector: JMDM1 ................................... 2-18

Power Saving Switch Connector: JGS1 ............................. 2-18

IrDA Infrared Module Connector: J18 ................................. 2-19

Chassis Intrusion Switch Connector: J12 .......................... 2-19

Front Panel Audio Connector: J22 (Optional Intel spec) ..... 2-20

Front USB Connectors: JUSB1 & JUSB2 ..........................2-21

D-Bracket™ Connector: J24 .............................................. 2-25

Jumpers .................................................................................. 2-27

Clear CMOS Jumper: JBAT1 ............................................. 2-27

RDRAM Over Voltage Jumper: J20 .................................... 2-28

Clear BIOS Password Jumper: J17 ................................... 2-29

BIOS Flash Jumper: J16 ................................................... 2-29

Slots ....................................................................................... 2-30

AGP (Accelerated Graphics Port) Slot .............................. 2-30

PCI Slots .......................................................................... 2-30

CNR (Communication Network Riser) Slot ........................ 2-30

PCI Interrupt Request Routing ........................................... 2-31

Chapter 3. AWARD® BIOS Setup ..................................................3-1

Entering Setup .......................................................................... 3-2

Control Keys ............................................................................. 3-2

vii

Getting Help ..............................................................................3-3

The Main Menu ......................................................................... 3-4

Standard CMOS Features ......................................................... 3-6

Advanced BIOS Features .......................................................... 3-8

Advanced Chipset Features .................................................... 3-12

Integrated Peripherals ............................................................. 3-14

Power Management Setup ...................................................... 3-19

PNP/PCI Configurations .......................................................... 3-23

PC Health Status .................................................................... 3-25

Frequency/Voltage Control ...................................................... 3-26

High System Performance ...................................................... 3-28

Load Optimized Defaults ......................................................... 3-29

Set Supervisor/User Password ................................................ 3-30

Save & Exit Setup ................................................................... 3-32

Exit Without Saving ................................................................. 3-33

Appendix A: MSI Smart Key ....................................................... A-1

Installing MSI Smart Key ......................................................... A-2

Using MSI Smart Key .............................................................. A-3

Appendix B: Using 4-/6-channel Audio Function ...................... B-1

Installing C-Media Drivers ......................................................... B-2

Hardware Configuration ............................................................ B-2

Software Configuration .............................................................. B-3

Appendix C. USB PC to PC Networking Function ..................... C-1

Installing GeneLink™ LAN Driver .............................................. C-3

Using USB PC to PC Networking Function .............................. C-5

Glossary ........................................................................................ G-1

Introduction

1-1

Chapter 1.

Introduction

1

The 850 Pro5 (MS-6545 v1.X) ATX mainboard is a high-performance
computer mainboard based on Intel® 82850 chipset. It is optimized to support
Intel® Pentium® 4 processors for high-end business/personal desktop markets.

The Intel® 850 chipset supports 64-byte cache line size and a 32-bit host
addressing, allowing the processor to access the chipset’s memory address
space. It also provides 4x AGP data transfers and AGP Fast Write capability.

The Intel® 850 chipset features a dual channel Direct RDRAM memory
operating in lock-step using RSL technology. It is a highly-flexible chipset
which is designed to extend the basic graphics/multimedia PC platform up to
the mainstream performance desktop platform.

The Intel® 82801BA (ICH2) chipset is a highly integrated multifunctional
I/O Controller Hub that provides the interface to the PCI Bus and integrates
many of the functions needed in today’s PC platforms. It communicates with
the host controller over a dedicated hub interface and provides added flexibil­ity in designing cost-effective system solutions.

This chapter includes the following topics:

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Chapter 1

1-2

CPU

z Supports Intel® Pentium® 4 processor in the 478 pin package.
z Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz and up.

Chipset

z Intel® 82850 MCH (615 OLGA)

- Supports Direct RDRAM up to 2GB maximum memory.

- Supports 400 MHz system bus.

- 1.5V AGP interface with 4x data transfer and 4x fast write capability.

z Intel® 82801BA ICH (360 EBGA)

- Upstream hub interface for access to the Intel MCH.

- 2-channel Ultra ATA/100 Bus Master IDE controller.

- USB controller 1.1 (expanded capabilities for 4 ports).

- I/O APIC.

- SMBus controller.

- FWH interface.

- LPC interface.

- AC’97 2.1 interface.

- PCI 2.2 interface.

- Integrated system management controller.

Main Memory

z Supports four 184-pin gold-lead RIMM sockets.
z Supports a maximum memory size of 2GB.

Slots

z One AGP (Accelerated Graphics Port) 4x slot.
z Four PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
z One CNR (Communication Network Riser) slot.

On-Board IDE

z An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA100 operation modes.

z Can connect up to four IDE devices.

On-Board Peripherals

z On-Board Peripherals include:

Mainboard Specification

Introduction

1-3

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COM A + COM B).

- 1 parallel port supports SPP/EPP/ECP mode.

- 1 IrDA connector for SIR.

- 1 audio/game port.

USB Interface

z The mainboard comes with two optional USB interfaces:

- 6 USB 1.1 ports (Rear * 2/ Front * 4, two with Intel spec & two with MSI
spec).

- 4 USB 1.1 ports (Rear * 2/ Front * 2, one regular USB 1.1 port and the other
with USB PC to PC networking function).

Audio

z C-Media CMI8738 / PCI-6ch supports 2/4/6 ch speaker

- 6CH DAC for AC3® 5.1CH purpose.

- HRTF-based 3D positional audio, supporting DirectSoundTM 3D and A3D

TM

interface.

- Supports 4.1/5.1 speakers, C3DX positional audio in 4/6 CH speaker mode.

- Legacy audio SBPROTM compatible.

- DLS-based wavetable music synthesizer.

BIOS

z The mainboard BIOS provides “Plug & Play” BIOS which detects the pe-

ripheral devices and expansion cards of the board automatically.

z IDE drive auto configure, Advanced Power Management (APM) 1.2, ACPI

1.0, DMI 2.0, ECC/Parity support, LS120 support, auto enabled onboard

SCSI termintor.

Dimension

z ATX Form Factor: 30.4cm(L) x 24.3cm(W) x 4 layers PCB.

Mounting

z 9 mounting holes.

Chapter 1

1-4

CNR

BATT

+

Intel

82801BA

J22

(Optional)

J23

(Optional)

JUSB2

(Optional)

JBAT1

J12

J24

JRMS1

A

T

X

P

o

w

e

r

S

u

p

p

l

y

JFP1

CPUFAN

P

S

F

A

N

1

SYSFAN

J16

J17

JGS1

JMDM1

BIOS

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

I

D

E

2

J20

USB
ports

Top : Pa rall el Por t

Bottom:
COM A
COM B

Top : mo use
Bottom: keyboard

J

C

D

1

J

A

U

X

1

J

P

H

N

1

JWR3

Winbond

W83627HF-AW

C

M

I

8

7

3

8

Top :
Game port

Bottom:
Line-Out
Line-In
Mic

F

D

D

1

D-LED

(optional)

R

I

M

M

2

R

I

M

M

3

R

I

M

M

4

RIMM1

J18

AGP Slot

JWR2

JUSB1

(Optional)

Mainboard Layout

850 Pro5 (MS-6545 v1.X) ATX Mainboard

Introduction

1-5

Quick Components Guide

Component Function Reference

JWR1/2/3 ATX power connectors See p. 2-7

JKBMS1 Mouse/keyboard c onnector See p. 2-9

USB Connectors Connecting to USB devices See p. 2-10

COM A & COM B Serial port connector See p. 2-11

LPT1 Parallel port connector See p. 2-12

FDD1 Floppy disk drive connector See p. 2-13

JRMS1 Remote power on/off switch See p. 2-13

IDE1~ IDE2 Hard disk connectors See p. 2-14

JFP1/J23 Front panel connector See p. 2-15

JCD1/JAUX1/JPHN1 CD/AUX/Modem-in connectors See p. 2-16

CPU/PS/SYS FAN Fan power connectors See p. 2-17

JMDM1 Wake on ring connector See p. 2-18

JGS1 Power saving switch connector See p. 2-18

J18 IrDA infrared module connector See p. 2-19

J12 Chassis intrusion switch connector See p. 2-19

J22 Front panel audio connector See p. 2-20

JUSB1/JUSB2 Connecting to USB devices See p. 2-21

J24 D-Bracket connector See p. 2-25

JBAT1 Clear CMOS jumper See p. 2-27

J20 RDRAM over voltage jumper See p. 2-28

J17 Clear BIOS password jumper See p. 2-29

J16 BIOS flash jumper See p. 2-29

AGP Slot Connecting to AGP cards See p. 2-30

PCI Slots Connecting to expansion cards See p. 2-30

CNR Slot Connecting to expansion cards See p. 2-30

Chapter 1

1-6

z ATX Form Factor
z CPU: Intel

®

Pentium® 4 processor in the 478 pin package

z Smart Key - the best solution to prevent unauthorized access to your PC

(Optional)

z USB PC to PC networking function (Optional)
z Fuzzy Logic 3
z Live BIOS / Live Driver
z CMI8738/PCI-6ch supports 2/4/6 ch. speaker
z PC Alert™ III system hardware monitor
z D-LED/ D-Bracket (Optional)
z Modem (Internal/External) Ring Wake Up Function
z Suspend to RAM/Disk
z PC2001 Compliant

Key Features

Introduction

1-7

MSI Special Features

T.O.P Tech™

The T.O.P TechTM is an extended sensing device that can 100% accu­rately detect the CPU’s temperature. You can find out the temperature on BIOS
setup menu. The PC AlertTM also provides the information.

CPU temperaure on Setup menu

CPU Warning Temperature [Disabled]
Current System Temp.
Current CPU Temperature
Current Top Tech. III Temp.
SYSTEM fan
POWER fan
CPU fan
Vcore
VTT

3.3V
+5V
+12V

-12V

-5V
VBAT(V)
5VSB(V)
Chassis Intrusion Detect [Disabled]
Shutdown Temperature [Disabled]

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2001 Award Software

PC Health Status

Chapter 1

1-8

PC Alert™ III

The PC AlertTM III is a utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can detect the following PC hardware
status during real time operation:

* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion

If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown,until user disables the warning.

Note: Items shown on PC Alert III vary depending on your system’s

status.

Introduction

1-9

Features:

z Network Management

- Monitoring & remote control

z Basic System Utilities

- Scandisk & Defragment to maintain your HDD

z 3D Graphics Design

- Enables a more friendly user interface

z Sofware Utilities

- SoftCooler Optimized Cooling

Chapter 1

1-10

D-LED™ & D-Bracket™ (Optional)

The D-LED™ uses graphic signal display to help
users understand their system. Four LEDs embedded in
the mainboard provide up to 16 combinations of signals to
debug the system. The 4 LEDs can debug all problems that
fail the system, such as VGA, RAM or other failures. This
special feature is very useful for the overclocking users.
These users can use the feature to detect if there are any
problems or failures.

The D-Bracket™ which integrates four Diagnostic LEDs is optional.
Definitions of the D-Bracket™ LED signals are the same as D-LED™ as shown
below.

1

2

3

4

Diagnostic LED

Red

Green

D-LED D-Bracket Description

System Power ON

- The D-LED will hang here if the processor is damaged or

not installed properly.

Early Chipset Initialization

Memory Detection Test

- Testing onboard memory size. The D-LED will hang if

the memory module is damaged or not installed properly.

Decompressing BIOS image to RAM for fast booting.

Initializing Keyboard Controller.

Testing VGA BIOS

- This will start writing VGA sign-on message to the screen.

1 2 3 4

1 2

3 4

Introduction

1-11

D-LED D-Bracket Description

Processor Initialization

- This will show information regarding the processor (like

brand name, system bus, etc…)

Testing RTC (Real Time Clock)

Initializing Video Interface

- This will start detecting CPU clock, checking type of video

onboard. Then, detect and initialize the video adapter.

BIOS Sign On

- This will start showing information about logo, processor

brand name, etc….

Testing Base and Extended Memory

- Testing base memory from 240K to 640K and extended

memory above 1MB u sing various patterns.

Assign Resources to all ISA.

Initializing Hard Drive Controller

- This will initialize IDE drive and controller.

Initializing Floppy Drive Controller

- This will initializing Floppy Drive and controller.

Boot Attempt

- This will set low stack and boot via INT 19h.

Operating System Booting

Chapter 1

1-12

Fuzzy Logic™ III

The Fuzzy Logic™ III utility allows users to overclock the CPU FSB
(Front Side Bus) frequency in the Windows environment. Select the CPU fre­quency you prefer and click Go to apply the frequency or click Save allowing
the system to run at the specified frequency each time when the system is
powered on.

Features:

z Display Current System Status

- CPU Fan

- CPU Temp.

- Vcore

- Vio

- Memory Clock

- CPU Clock

- AGP Clock

- PCI Clock

z Adjust CPU FSB Frequency

Introduction

1-13

Live BIOS™/Live Driver™

The Live BIOSTM is a tool used to detect and update your
BIOS online so that you don’t need to search for the correct
BIOS version through the whole web site. To use the function,
you need to install the “MSI Live Update Series” application.
After installation, the “MSI Live Update Series” icon (as the
right view) will appear on the screen.

Double click the “MSI Live Update Series” icon, and the following screen
will appear.

Four buttons are placed on the left column of the screen. Click the desired
button to start the update process.

zz

zz

z Live BIOS – Updates the BIOS online. If your motherboard does not support

the function, the “sorry” message is displayed.

zz

zz

z Live Driver – Updates the drivers online. If your motherboard does not sup-

port the function, the “sorry” message is displayed.

zz

zz

z Live VGA BIOS – Updates the VGA BIOS online. If your VGA device does

not support the function, the “sorry” message appears.

zz

zz

z Live VGA Driver – Updates the VGA driver online. If your VGA device does

not support the function, the “sorry” message is displayed.

For more information on the update instructions, insert the companion CD and
refer to the “Live Update Series Guide” under the “Manual” tab.

Hardware Setup

2-1

Chapter 2.

Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

This chapter contains the following topics:

2

Central Processing Unit: CPU 2-2
Memory Installation 2-5
Power Supply 2-7
Back Panel 2- 9
Connectors 2-13
Jumpers 2-27
Slots 2-30

Chapter 2

2-2

Open Lever

Dot / Cut edge

Sliding

Plate

Close
Lever

Central Processing Unit: CPU

The mainboard supports Intel® Pentium® 4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sink and a cooling fan attached on the top to prevent overheating. If you do not
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.

1. Pull the lever sideways away

from the socket. Then, raise
the lever up to a 90-degree
angle.

2. Look for the dot/cut edge. The

dot/cut edge should point to­wards the lever pivot. The
CPU will only fit in the correct
orientation.

3. Hold the CPU down firmly,

and then close the lever to
complete the installation.

CPU Installation Procedures

Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.

WARNING!

Hardware Setup

2-3

Installing the CPU Fan

As processor technology pushes to faster speeds and higher
performance, thermal managment becomes increasingly important. To dissi­pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:

2. Position the heatsink onto the reten-

tion mechanism.

1. Locate the CPU and its retention

mechanism on the motherboard.

3. Mount the fan on top of the heatsink.

Press down the fan until its four clips
get wedged in the holes of the reten­tion mechanism.

4. Press the two levers down to fasten

the fan. Each lever can be pressed
down in only ONE direction.

retention mechanism

levers

Chapter 2

2-4

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 1 4

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14
= 1.4GHz

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector

on the board.

Overclocking

This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks

caused by inadequate operation or beyond product
specifications.

WARNING!

fan power cable

Hardware Setup

2-5

The mainboard provides 4 gold-lead sockets for 184-pin RIMM modules.
To operate properly, at least two RIMM modules must be installed. The
mainboard supports the memory size up to 2 GB.

Memory Installation

About RIMM Module

RIMM module is a module integrated with RDRAM chips. It is similar to
a DIMM package but uses different pin settings. Rambus trademarked the term
RIMM as an entire word for a module using Rambus technology.

Memory Population Rules

z Support RIMM only.
z T o operate properly, make sure that the RIMM banks are using the same

type and equal size density memory.

z Support FSB 100MHz: PC600/PC800 RIMM.

Note: PC700 will run at PC600 specification.

z Support up to 32 Direct Rambus Device.
z Support ECC Single bit Correction and Multiple bit error detection

(Setting in BIOS).

z Install two RIMM modules either on “RIMM 1and RIMM 2” or on

“RIMM3 and RIMM4” slots.

R

I

M

M

2

R

I

M

M

3

R

I

M

M

4

RIMM Slots

(RIMM 1~4)

RIMM1

Chapter 2

2-6

Y ou can install two or four RIMM modules in the following combination:

Installing RIMM Modules

DIMM Socket Memory Module Total Memory

Socket 1
(Bank 0 & Bank 1)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Socket 2
(Bank 2 & Bank 3)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Socket 3
(Bank 4 & Bank 5)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Socket 4
(Bank 6 & Bank 7)

32MB, 64MB, 128MB,
256MB, 512MB

32MB ~ 512MB

Total System Memory 64MB ~ 2GB

Note: If only two RIMM slots are

populated, you must install C-RIMM
(Continuity RIMM) modules on the other
unused RIMM slots. A C-RIMM module is a dummy module for continuing
the signal connection.

C-RIMM Module

1. The RIMM slot has 2 Notch

Keys, so the RIMM memory
module can only fit in one
orientation.

2. Insert the RIMM memory module

vertically into the RIMM slot.
Then push it in.

3. The plastic clips at sides of the

RIMM slot will automatically
close.

4. If you won’t insert any RIMM

modules on the other two RIMM
slots, you must install C-RIMM
modules on the empty slots.

RIMM Module

NOTCH

Hardware Setup

2-7

Power Supply

ATX 20-Pin Power Connector: JWR1

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plugs of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector. The power connector supports
instant power on function which means that system will boot up immediately
when the power supply connector is inserted on the board.

The mainboard supports ATX power supply for the power system. Be­fore inserting the power supply connector, always make sure that all compo­nents are installed properly to ensure that no damage will be caused.

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5 V
20 5 V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

JWR1 Pin Definition

JWR1

10

12011

Chapter 2

2-8

A TX 12V Power Connector: JWR3

Attaching the ATX power supply to the connector help offer sufficient
voltage to Pentium 4 CPU. This power connector also supports instant power
on function.

A TX 5V/3V Power Connector: JWR2

The mainboard provides an extra 5V/3V power connector for you to
connect to the ATX power supply.

PIN SIGNAL

1 GND
2 GND
312V
412V

1

234

JWR3

PIN SIGNAL

1 GND
2 GND
3 GND

PIN SIGNAL

4 3.3V
5 3.3V
65V

JWR2

1

6

Hardware Setup

2-9

Mouse

Keyboard

USB

Parallel

COM A COM B L-out

L-in

MIC

Midi/Joystick

The Back Panel provides the following connectors:

Back Panel

Mouse Connector: JKBMS1

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin assignments are as follows:

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

Pin Definition

PS/2 Mouse (6-pin Female)

2

1

3

4

5

6

Chapter 2

2-10

Keyboard Connector: JKBMS1

The mainboard provides a standard PS/2® keyboard mini DIN connector
for attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into
this connector.

PS/2 Keyboard (6-pin Female)

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection

Pin Definition

21

34

5

6

USB Connectors

The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
ths connector.

USB Ports

1 2 3 4

5 6 7 8

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

USB Port Description
