MSI MS-56221, MS-56222 Schematic 0A

5

D D

C C

4

3

2

1

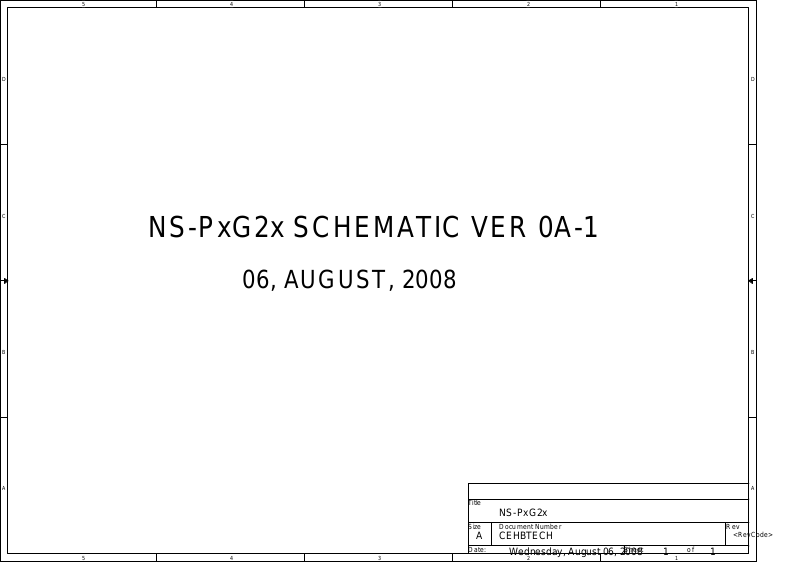

NS-PxG2x SCHEMATIC VER 0A-1

06, AUGUST, 2008

B B

A A

Title

NS-PxG2x

Size Document Number Rev

A

CEHBTECH

5

4

3

Dat e: Sheet

2

of

11Wednesday, August 06, 2008

1

<RevCode>

5

ㅡ History

4

3

2

1

D D

- NS-PxG2x Schematic VER 0.9 (P.V.T)_080718

-Improvement of BLUETOOTH ANT matching (V0.91)_080721
L301(N.C → 1.8nH) CHANGE , C303(1nH → N.C)CHANGE

- Improvement of FM/LINE IN (VER 0A-1))_080806
C306,307(15pF → 0.001uF) CHANGE , L304,307(470nH → 330nH)CHANGE
C319(0.1uF → 2.2uF)CHANGE

C C

C333,334(1uF ADD) C335(2.2uF ADD)
IC404(RT9167-30PB ADD) , C421(0.1uF ADD)
