Mitel 3600 User Reference Manual

Download

Page 1

MITEL IP PHONE USER REFERENCE GUIDE

Release 4.0

Page 2

NOTICE

The information contained in this document is believed to be accurate in all respects but is not warranted by Mitel Networks™ Corporation (MITEL

). The information is subject to change without notice an d should not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document. Revisions of this document or new editions of it may be issued to incorporate such changes.

No part of this document can be reproduced or transmitted in any form or by any means - electronic or mechanical - for any purpose without written pe rmission from Mitel Networks Corporation.

Trademarks

M Mitel (design) is a registered trademark of Mitel Networks Corporation. Other product names mentioned in this document may be trademarks of their respective companies and

are hereby acknowledged.

Mitel 3600 Hosted Key System – Mitel IP Phone User Reference Guide

Release 4.0

February 2008

®,™ Trademark of Mitel Networks Corporation

Page 3

Table of Contents

iii

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Setting your language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Setting your language for the web interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Setting your language for the phone text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Language for Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

What's new in Release 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the phone system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using Mitel

5340 IP phones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

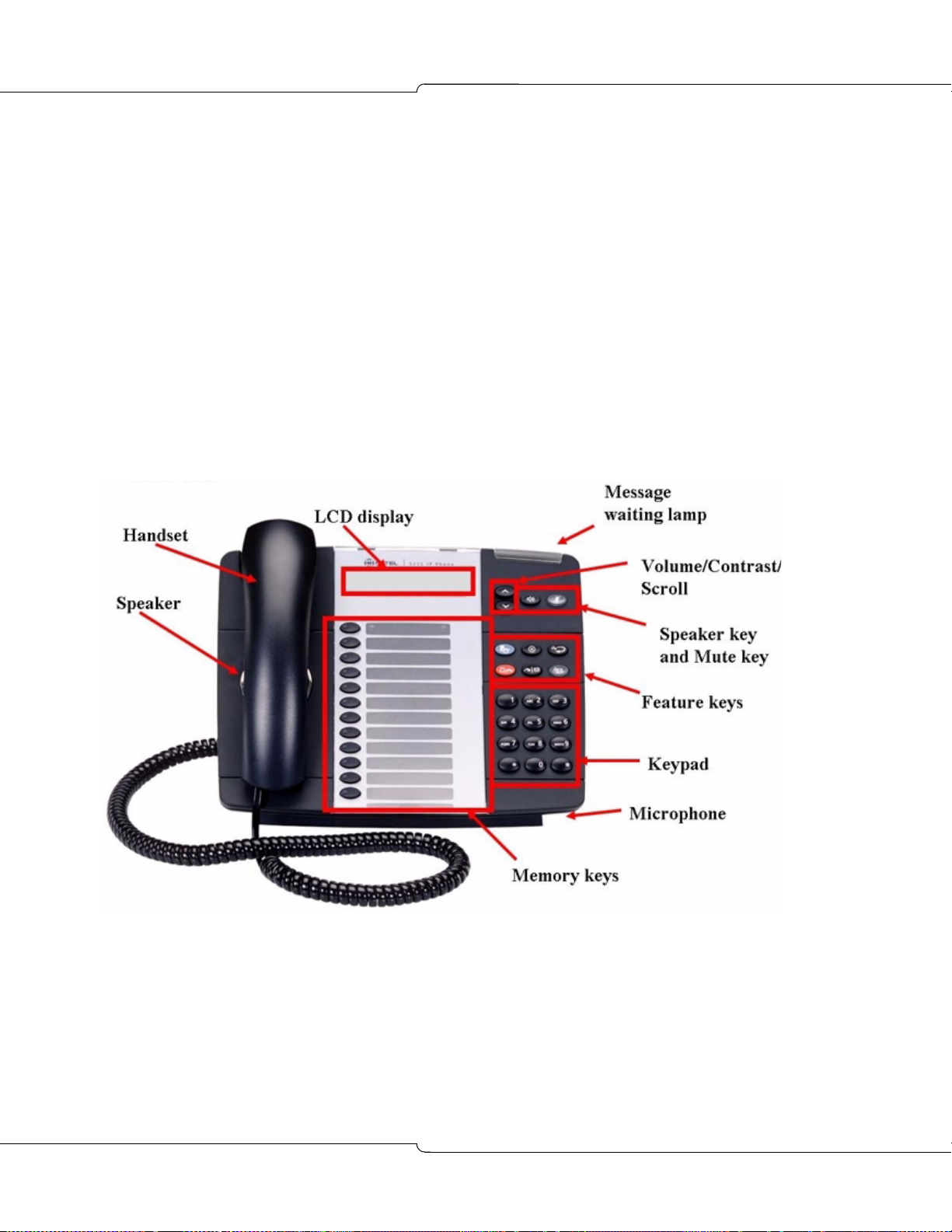

Mitel 5340 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Initial setup for 5340 phone service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Activating a 5340 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Answering a call on the 5340 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Using features via the 5340 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Voice mail on the 5340 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Volume control on the 5340 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Using the Mitel 5020/5220/5224 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

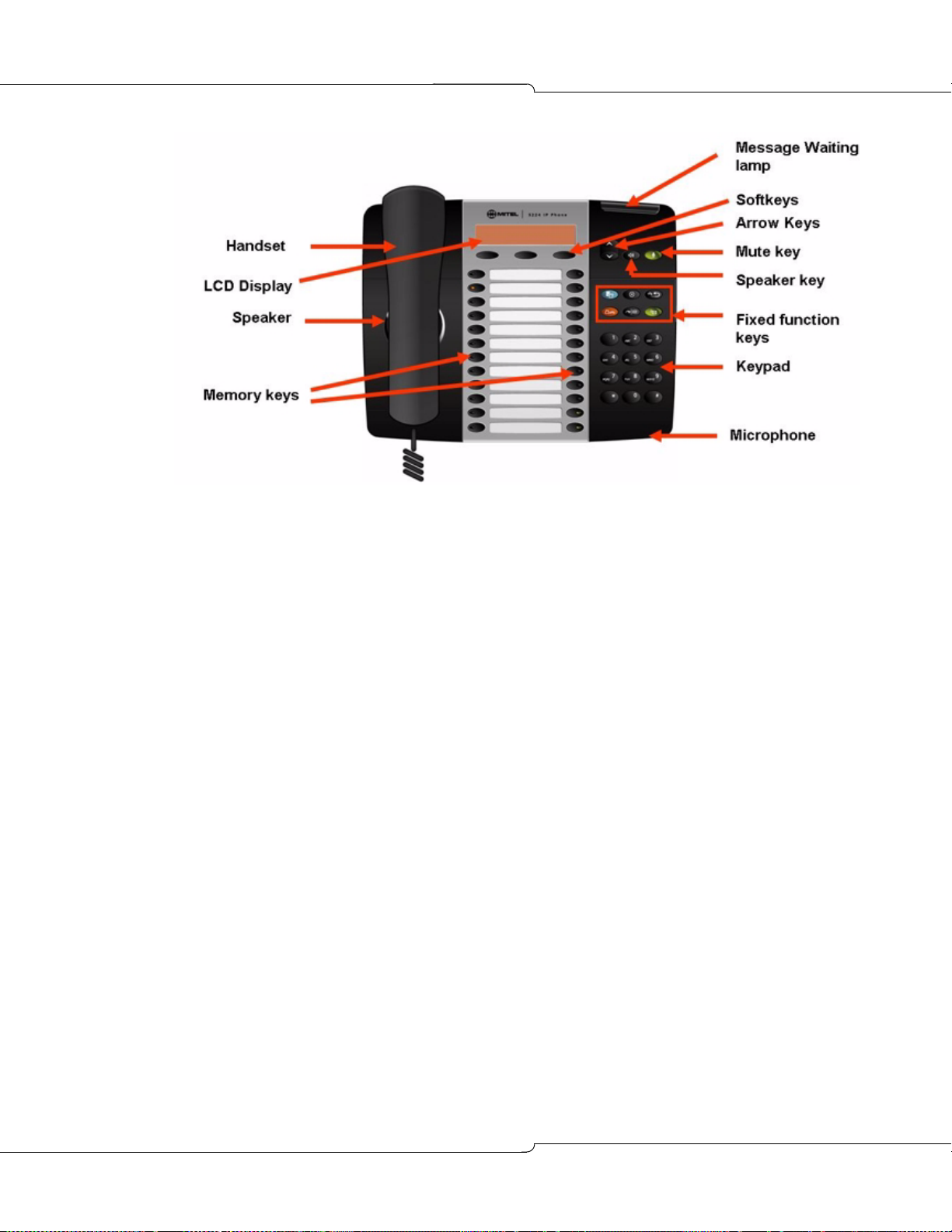

Mitel 5224 IP Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Mitel 5020/5220 IP Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Initial set-up for phone service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Using features via the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Account codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Using call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Company speed dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Forwarding your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Handsfree answerback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Intercom Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Join/Leave group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Line appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Monitored groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Monitor call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Monitor Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

One-Touch speed dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Park and retrieve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Transfer call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Transferring a call to voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Twinned calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Using voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Page 4

Mitel IP Phone User Reference Guide

Using volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Using the Mitel 5212 IP Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Initial set-up for Mitel 5212 IP phone service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Answering a call on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Making a call on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Using features via the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Account codes on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Call list on the 5212 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Redial on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Company speed dial on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Directory on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Forwarding your 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Handsfree answerback on the 5212 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Hold on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Intercom calls on the 5212 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Join/Leave group on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Line appearance on 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Message on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Monitor Groups on 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Monitor Call on 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Monitor Phone on 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Mute on 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

One touch speed dial on 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Page on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Park and retrieve on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Speaker on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Transfer call on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Transfer to voice mail from the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Twinned Calls on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Voice mail on 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Volume control on the 5212 IP phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Using the Telematrix 3000 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

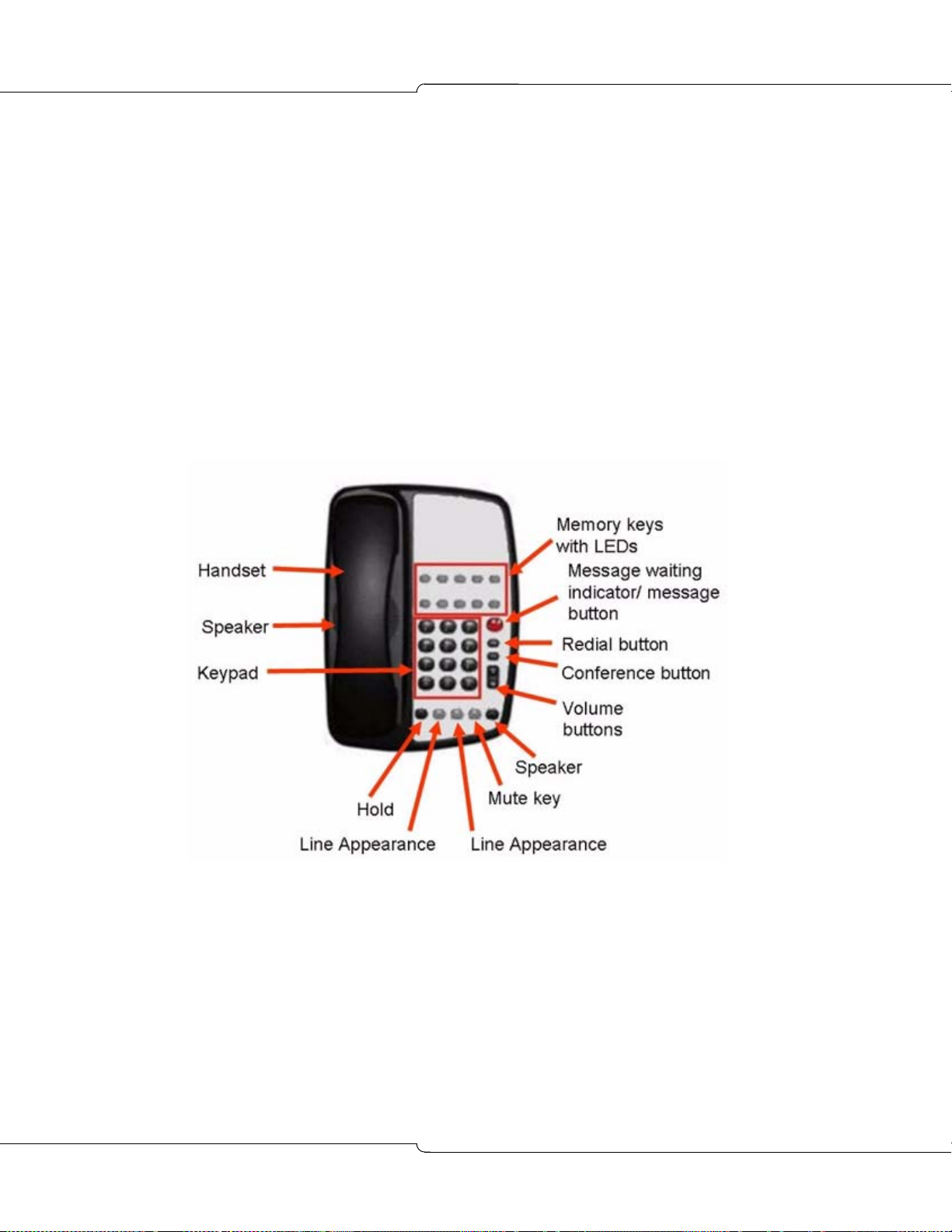

Telematrix 3000 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Initial setup for Telematrix 3000 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Activating a Telematrix 3000 phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Answering a call on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Using the Telematrix 3000 handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Using the Telematrix 3000 speakerphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Switch from speakerphone to handset on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . .74

Answering a second call on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Making a call on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Making a second call on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Using features via the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Joining two calls on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Account code speed entry on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Page 5

Table of Contents

Redial on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Company speed dial on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Forwarding the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Handsfree answerback on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Hold on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Intercom to co-worker on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Join/Leave group on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Line appearance on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Message on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Monitor Groups on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Mute on Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

One touch speed dial on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Page on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Speaker on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Transfer call on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Transfer to voice mail from the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Twinned Calls on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Voice mail on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Volume control on the Telematrix 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Using a headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Connect and configure the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Answer a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

End a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

To make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Switching to the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Using a Programmable Key Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

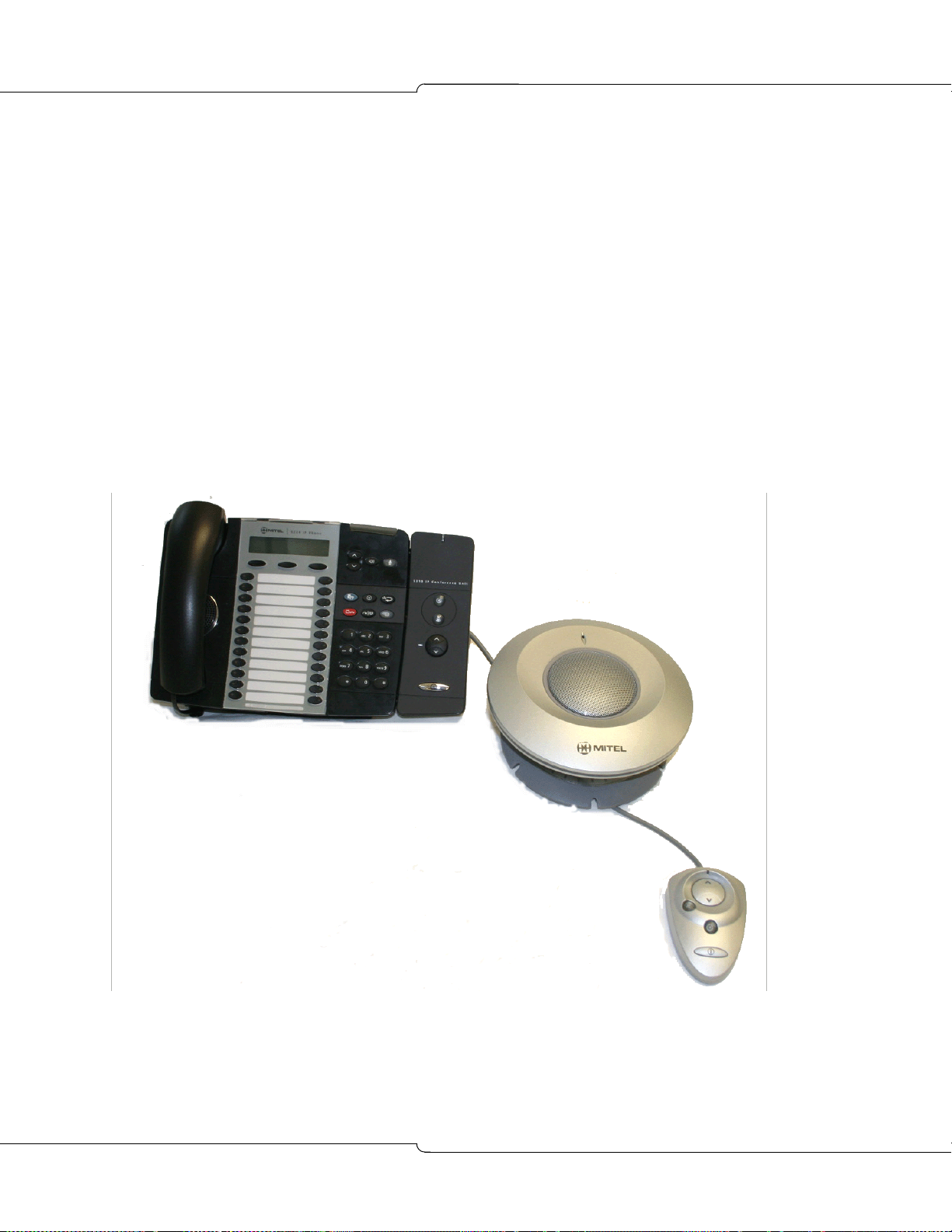

Mitel 5310 IP Conference Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Using other phones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Personalizing phone usage via the web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Web login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

To stop the security alert at log in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Forgotten PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Change PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Web logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Quick set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Change user details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Record your name for the Auto Attendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Permission types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Configure phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Program memory keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Program memory keys on PKM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Programmable memory key features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Select key mapping profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Page 6

Mitel IP Phone User Reference Guide

Print phone labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Call Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Twinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Call groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Join/leave call groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Directories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

View the internal directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

View the external directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Sort directory list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Find a person in the internal directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Find an entry in the external directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Click to Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Print a directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Dynamic site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Create a dynamic site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Release a dynamic site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

View dynamic site information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Connect your phone on a dynamic site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Web pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

My settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Company directories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Getting more help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Phone Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Page 7

Introduction

This document is provided as a reference guide for the use and configuration of your Mitel® 5212 IP Phone, Mitel 5020 IP Phone, Mitel 5220 IP Phone, Mitel 5 224 IP phone, Mitel 5340 IP phone, and Telematrix 3000 phone and the phone system features. The document has two main sections:

1. “Using the phone system” on page 4 provides information on

• The phones and their features

• Making and answering calls

• Using the phones’ features

2. “Personalizing phone usage via the web” on p age 87 provides inform ation on customizing your phone based on your personal preference. Information includes how to

• Set up your call coverage

• Program your memory keys

• Change your PIN

• Record your name announcement for the auto attendant

• View your personal information

Customizations are performed using a web inte rf ace.

Note: The information in this document is also accessible online in the web interface by selecting the Help button at the top or bottom of any page. Context-sensitive help is available by selecting the icon on any page.

Page 8

Mitel IP Phone User Reference Guide

Setting your language

If your system has been set up for multiple languages, you can set the lan guage for your access to the web interface as well as the phone’s LCD display.

Setting your language for the web interface

To set your language for the web interface, you need four things: (1) your extension, (2) your PIN, (3) the Login URL, and (4) access to the Internet using Internet Explorer 6.0 or later or Firefox 1.5.0.4 or later. These are all available from your administrator.

You first need to determine the Language Selection URL. Your administrator will provide you with a Login URL. The Login URL should be of the form:

https://<Name or IP Address>/webadmin/login/<YourCompany>

Replace the bold part with "select_language" to create the Select Language URL:

https://<Name or IP Address>/webadmin/select_language/company

For example, if your Login URL is:

https://78.1.2.3/webadmin/login/MyCompany

then the Select Language URL will be

https://78.1.2.3/webadmin/select_language/MyCompany

To change your language for the web interface, follow these steps:

1. Start your web browser.

2. Enter the Select Language URL you determined above.

3. Choose your language by selecting the appropriate button.

4. Bookmark this page and use it for all future logins to the system.

5. Type your User ID (your extension).

6. Type your PIN.

7. Select the Login button. The Home page should be displayed.

Page 9

Setting your language

Setting your language for the phone text

To change your language for the phone text, follow these steps:

1. After logging in to the web interface, select My Personal Details in the Navigation pane. The Personal Details page is displayed with your personal details in the Information p ane.

2. Select your language from the pull down list in the Language for Phone field.

3. Select the Save button to save the information.

Language for Voice Mail

If you have a voice mail box, the language used for the voice mail box will be the same as the language that was originally set (by your Administrator when creating your extension) in the "Language for Phone” field. Modifying the field does not change the voice mail language. If you wish to change the language for your voice mail box, contact your service provider.

Page 10

Mitel IP Phone User Reference Guide

What's new in Release 4.0

The following document summarizes the changes between Release 3.1 and Release 4.0 of Mitel® 3600 Hosted Key System (3600 HKS).

• Mitel 5340 IP phone—The new 5340 IP phone is a fully-supported MiNET phone in the 3600 HKS system with the same features and capabilities as the existing Mitel 5224 IP phone and with display, memory key, softkey, and fixed key enhancements.

• T eleworking support for noma dic users—With the configured permissions from a telco administrator, user s can create a unique site (Dynamic Site Support) with an IP conne ction to the service provider. A PC reference client monitors any IP address change from which a new site can be created.

• Emergency routing override—On a per-DID basis, a user can set an override to route calls to a PSTN, a mobile, or an alternative extension.

• T enant administrator reco rding of name a nnouncements—T enant administra tors can record the auto attendant name announcement on behalf of the phone end user.

• Monitor keys in key profiles—Users can now add Mo nitor Call and Monitor Phone options to a phone key profile.

Using the phone system

This section explains your phone features and h ow to use them af ter they h ave been enabled through the web interface.

The Mitel 5340 IP phone provides support for all the user functiona lity . It also includes Memory key label LCD display . The setup and operatio n of this phone is described in ““Using Mitel 5340 IP phones” on page 5.

The Mitel 5020 IP phone and the Mitel 5020/5220 IP phone have the same functionality. The Mitel 5224 IP Phone has similar functionality with different feature keys. The setup and operation of these phones are described in “Using the Mitel 5020/5220/5224 IP phone” on page 26.

The Mitel 5212 IP Phone has a smaller set of memory and feature keys than the others. This phone’s setup and operation are described in “Using the Mitel 5212 IP Phone” on page 52.

The Telematrix 3000 phone has similar functionality but without the LCD display . This phone's setup and operation are described in “Using the Telematrix 3000 phone” on page 71.

A Mitel 5310 conference unit can also be connecte d to a Mitel 5224 IP phone to provide optimal hands-free sound quality. See “Mitel 5224 IP Phone” on page 26.

Page 11

Using the phone system

Using Mitel 5340 IP phones

This section describes the Mitel 5340 IP phones. To set up your new phone service, see “Initial setup for 5340 phone service” on page 6. For a description of your phone, see “Mitel 5340 IP phone” on page 5. Other topics covered in this section are: “Answering a call on the 5340 phone” on page 7, “Making a call on the 5340 phone” on page 8, “Using features via the 5340 phone” on page 9, “Volume control on the 5340 phone” on page 25, and “Voice mail on the 5340 phone” on page “Volume control on the 5340 phone” on page 25.

Mitel 5340 IP phone

The Mitel 5340 IP phone has the following features:

Handsfree speakerphone

• Date/Time Display

• 2-line 20-character backlit Information Area Display

• 3 pages of 16 (total 48) multi-function memory keys with color LEDs

• Memory key label LCD display

• 6 Fixed function keys

• Mute and Speaker keys

• Message Waiting Lamp

• Dedicated headset jack

• Wall mountable

Figure 1: Mitel 5340 IP Phone

Page 12

Mitel IP Phone User Reference Guide

The Information Area Display shows information about the current telephone call (such as name and number).

There are six softkeys (the three on the right are currently not used). The meaning of each softkey is displayed directly beside the key.

There are three pages of 16 memory keys. The icons a t the bottom of the phone indicate which page is current. The page navigation buttons can be used to switch p ages. The memory ke y labels are also displayed beside each one.

Initial setup for 5340 phone service

To set up your new phone service, follow these steps:

1. Activate your phone. See “Activating a 5340 phone” on page 6.

2. Perform a Quick Set-up. See “Quick set-up” on page 89.

Activating a 5340 phone

To activate a phone you need (1) an extension, (2) a phone, and (3) a PIN. The administrator can provide you with an extension and an initial PIN.

To activate your phone, follow these steps:

1. Disconnect your computer from the network.

2. Plug the phone into the network.

3. Plug the computer into the phone at the port marked PC.

4. Connect one end of the phone power p ack into your phone and the other end into a power

outlet.

Note: If your network is configured with Power Over Ethernet (POE), the above step is not necessary.

5. Wait for the Information Display Area to show "Logg ed Out" (this may t ake 3 0 seconds or

more).

6. Press the ACTIVATE softkey.

The Information Display Area will prompt you for your "Extension:"

7. Enter your extension.

8. If you have login/logout privileges, the Information Display Area will prompt you for your

"PIN:" Enter your PIN, then press the ENTER softkey.

9. If you do not have login/logout privileges, the Information Area Display will show your

extension

Press the YES softkey. You have now successfully activated the phone, and can make calls. See “Quick set-up” on page 89 for information about initial settings you should configure through

the web interface.

Page 13

Using the phone system

Answering a call on the 5340 phone

When an incoming call is received on a phone, several things happen: (1) the phone r ings, (2) a Line Appearance flashes, and (3) the Information Area Di splay shows the ph one number of the caller and, if known, the name of the caller.

You can answer an incoming call by picking up the handset, pressing the flashing Line Appearance key, pressing the ANSWER softkey, or by pressing the key.

Because the Mitel 5340 IP phone has multiple pages of programmable memory keys, it is possible that the call could appear on a Line Appearance key located on a different page from the one being displayed. In this case, you can still answer the call by picking up the handset, pressing the ANSWER softkey, or by pressing the key.

You can pull back a call that has been answered by a twinned target phone by pressing the corresponding Line Appearance key. See “Twinned calls on the 5340 phone” on page 24

Using the 5340 handset

To answer your phone using the handset, follow these steps:

1. Lift the handset.

Note: If you choose to ignore the incoming call and select a different line appearance,

the line appearance continues to flash but the phone stops ringing.

To end a call while using the speakerphone, choose one of the following:

• Press the END softkey.

• Press the handset.

Using the 5340 speakerphone

To switch from the handset to the speakerphone during a call, follow these steps:

1. Press the key.

2. Replace the handset.

To end a call while using the speakerphone, choose one of the following:

1. Press the END softkey.

2. Press the key.

Page 14

Mitel IP Phone User Reference Guide

Switch from speakerphone to handset on the 5340 phone

To switch from the speakerphone to the handset during a call, pick up the handset.

To end the call while using the handset, choose one of the following:

• Press the END softkey.

• Replace the handset.

Answering a second call on the 5340 phone

A second incoming call causes three things to happen: (1) the phone rings once, (2) a line appearance flashes, and (3) the Information Area Display shows the number and name of the caller, if known. If the name of the caller is unknown, either the phone number or "Unknown Caller" is displayed.

To answer a second call, choose one of the following:

• Press the flashing Line Appearance key. This puts the active call on hold and answers the

second call.

• End the first call by replacing the handset. The phone will start ringing. Pick up the handset

again to answer the second call.

T o switch between two active calls, press the flashing Line Appearance ke y. This put s the active call on hold, and activates the other call.

Note: If the display shows )) prior to the number calling, this indicates that it is a second call.

Answering a call group call on the 5340 phone

When an incoming call to a call group is received on a phone, the secon d line of the Information Display Area shows the name of the group that was called. The first line continues to display the number and name of the caller, if known.

321: Robin Jones

For: Sales Group

You can answer an incoming call group call by using the handset or the speakerphone.

Making a call on the 5340 phone

To make a call, follow these steps:

1. Lift the handset. This will select the next available Line Appearance. You can also start

dialing the number without lifting the handset. This will automatically select the next avail-

able Line Appearance and operate in speakerphone mode.

Page 15

Using the phone system

2. T o make an internal call, dial the extension. T o make an external call, dial the prefix required

for external dialing (usually 9) followed by the number you want to call.

When you finish dialing the number the call is placed. If you place an internal call, the Information Area Display shows the extension and name of the connected party once the call is answered. If you place an external call, the Information Area Display shows the name of the connected party, or if the name is unknown, the phone number.

3. To end the call, choose one of the follow ing :

• Press the END softkey.

• Replace the handset.

Note: To use the speakerphone for step 1, press an available Line Appearance key or the key instead of lifting the handset.

4. To end the call before you have completed dialing, choose one of the following:

• Replace the handset if using the handset.

• Select the key if using the speakerphone.

• Press the END softkey.

Making a second call on the 5340 phone

To make a second call while on an active call, follow these steps:

1. Press any available Line Appearance key . This puts the active call on hold, and provides dial tone for a second call.

2. T o make an internal call, dial the extension. T o make an external call, dial the prefix required for external dialing (usually 9) followed by the number you want to call.

3. When you finish dialing the number the call is placed.

4. If you place an internal call, the Information Ar ea Disp lay sho ws th e e xtension and n ame

of the connected party once the call is answered. If you place an external call, the Information Area Display shows the name of the connected party, or if the name is unknown, just the phone number.

5. T o switch between two active calls, press the flashing Line Appeara nce key. This puts the active call on hold, and activates the other call.

Ending one call keeps the second call on hold. To reconnect to the second call, press the flashing Line Appearance key.

Using features via the 5340 phone

This section explains the features available from your phone. Some of these features must be pre-programmed in order to be available. T o learn how to program features to keys see “Program memory keys” on page 93.

Page 16

Mitel IP Phone User Reference Guide

3-way call on the 5340 phone

Using 3-Way Call, you can set up a phone call among three separate parties.

To activate 3-Way Call, follow these steps:

1. While on an active call, press the CONF softkey. This places the first call on hold, and selects an available Line Appearance. The Information Area Display pr ompts you to enter who to "Conf with:"

2. Enter the phone number of the third party.

3. The system dials the number and displays a "Calling" message along with the caller ID.

4. When the third party answers the call, the Information Area Display updates with the caller

ID.

5. Press the CONF softkey again. The 3-Way Call is now activated.

Notes:

Until the CONF softkey is pressed a second time, the first party will remain on hold and you can talk with the second party privately. By putting a 3-Way Call on hold, the other parties can continue talking. Y o u can use the key instead of the CONF softkey. When using this key you must press twice to activate a 3-way call or you will initiate a transfer instead. If you want the option to leave the conference and leave the two parties connected (when both parties are external), you must have the permission Redirect Inbound Call to External Number enabled. Once the 3-Way Call is established, you can use the transfer feature to transfer both parties to another party.

Joining two calls on the 5340 phone

The 3-way call feature allows you to conference together two calls on your phone's Line appearances. To activate a 3-way call in these circumstances, follow these steps:

1. While on an active call, press the CONF softkey.

2. Select the Line Appearance of the person on hold that is to be connected.

3. Press the CONF softkey again. The 3-Way Call is now activated.

Account codes on the 5340 phone

Users can enter account codes against incoming and outgoing calls to associate those calls with a particular client or account. Once entered, account codes are logged in the call records kept by your service provider and can be provided to you on request. Your administrator can enable and disable the Account Code feature for your busine ss and sp ecify the minimum and maximum valid account code length.

Note: To use the Account Code feature, a user must have a memory key prog ram med with the Account Code feature or be using a phone key profile that has been programmed with the Account Code feature.

Page 17

Using the phone system

Account code entry on the 5340 phone

Account codes can be entered against incoming and ou tg oin g calls to as so ciat e th os e calls with a particular client or account. Account code entry is accepted before a call is placed or during a call.

To enter an account code before you place a call, follow these steps:

1. Select the Account Code key.

2. Enter the account number using the phone keypad.

3. Press the CALL softkey to start your call. The next available line appearance is selected,

dialtone is heard and your phone display updates.

4. Proceed with making your call.

To enter an account code during a call, follow these steps:

1. Select the Account Code key.

2. Enter the account number using the phone keypad. Y ou hear a tone as you press the phone

keys, but the person on the other end does not. The Informatio n Area Display shows the account code entered.

3. Press the ENTER softkey when you have finished entering the account code.

Notes:

Y ou can re-enter an account code for a call multiple times. The last account code entered is the account code that will be assigned to the call. To cancel the account code entry, press the QUIT softkey. If you enter an account code with an invalid length, the Information Area Display briefly shows "Invalid Account Code". Contact your system administrator to determ ine the valid account code length for your business. You cannot assign an account code to a call once it has been completed.

Account code speed entry on the 5340 phone

Account code entry is accepted before a call is placed or during a call. To use this feature, it must be enabled for your business and you must have a memory key programmed with Account Code and a pre-programmed account code. See “Program memory keys” on page 93.

To enter a pre-programmed account code before you place a call, follow these steps:

1. Select the Account Code key. The Information Area Display briefly shows the account code that has been pre-programmed.

2. The next available line appearance is selected, dialtone is heard an d your phone display updates.

3. Proceed with making your call.

To enter a pre-programmed account code during a call, follow these steps:

1. Select the Account Code key. The Information Area Display briefly shows the account code that has been pre-programmed.

Page 18

Mitel IP Phone User Reference Guide

Notes:

Y ou can re-enter an account code for a call multiple times. The last account code entered is the account code that will be assigned to the call. To cancel account code entry before the call is placed, replace the handset (or, if using the speakerphone, press the key). Account code speed entry during a ca ll cannot be cancelled. If the pre-programmed account code has an invalid length, the phone LCD briefly displays "Invalid Account Code". Contact your system administrator to determ ine the valid account code length for your business. You cannot assign an account code to a call once it has been completed.

Call Lists on the 5340 phone

Call list on the 5340 phone

Call list keeps a list of the calls that you make and receive. The call list is accessible from your phone. Y ou can redial any calls that you made from the call list. See “Redial on the 5340 phone ” on page 13. You may be able to dial a number from your incoming call list if it is supported by your service provider.

To view the list of incoming calls received, follow these steps:

1. Press the CALLS softkey on your phone. If you have programmed one of your programmable keys as Incoming Calls List, you can press this key instead. The caller's name of the most recent call that you received is displayed. If the name of the caller is not known, the number will be displayed.

2. Use the keys to navigate the list.

3. Press the TIME softkey if you wish to display the time and date of the call.

4. Press the NUMBER softkey if you wish to display the number of the caller.

5. Press the NAME softkey if you wish to display the name of the caller again. If the name is

not known, this option is not available.

6. Press the QUIT softkey to exit from the call list.

To call a number from your incoming calls list (only available if dialing from the incoming call list is supported by your Service Provider):

1. Press the CALLS softkey on your phone (or the Incoming Calls List programmed ke y). The caller's name of the most recent call that you received is displayed.

2. Use the keys to navigate the list.

3. Press the DIAL softkey to make a call to the displayed number.

The next available Line Appearance is selected and the system will attempt to dial the displayed number by prefixing it with the appropriate digits for external dialing (usually "9" or "91" depending on configuration). If the number can be dialed as such, you will hear ringing once the call has been placed. If the number cannot be dialed as such, the call will fail and you will have to dial the number manually remembering to include the proper prefix digits.

Page 19

Using the phone system

Notes:

The position of the call in the call list is displayed in front of the phone number. The * symbol beside the position of the call means that the call was not answered. *CALLS means that there has been at least one unanswered call since the last time you viewed the list of calls you received.

Redial on the 5340 phone

Using Redial you can view a list of calls that were made and also redial a number in that list without using the keypad. The maximum amount of numbers in your redial list is typically ten but is dependant on your service provider.

To use Redial, follow these steps:

1. Press the REDIAL softkey or the key . The number that you most recently dialed is displayed.

2. Use the keys to navigate the list (if required).

3. Press the TIME softkey if you wish to display the time and date of the call.

4. Press the NUMBER softkey if you wish to display the number dialed.

5. Once the required number is displayed, press the DIAL sof tkey to make the call. The next

available Line Appearance is selected and you will hear ringing once the number has been dialed.

Notes:

The * symbol beside the position number means that the call was not answered. The position of the call in the call list is displayed in front of the phone number. Press the QUIT softkey or the key to exit from the call list .

Company speed dial on the 5340 phone

Using Company S peed Dia l, you can call a numb er from the Exte rnal Dir ectory by pressing a single memory key on your phone. T o use this fea ture, you must have a phone key programmed with Company Speed Dial. See “Program memory keys” on page 93.

To make a call using the company speed dial, choose one of the following:

•Press the Company Speed Dial key for the number you want to call. The system will select

the next available Line Appearance for you and activate the speakerphone.

• Activate the speakerphone and press the Company Speed Dial key.

• Select an available Line Appearance. This will activate the speakerphone. Press the Com-

pany Speed Dial key

• Lift the handset and press the Company Speed Dial key for the numb er you want to call.

Page 20

Mitel IP Phone User Reference Guide

Directory on the 5340 phone

Using the Directory , you can view the Internal Directory on your phon e's LCD screen and make calls.

Y o u can access the directory with the phone on-hook or of f-hook. To view the directory, follow these steps:

1. Press the MENU softkey. The phone displays the menu options.

2. Press the DIR softkey. The system displays the first name in the directory on the first line of the Information Area Display.

3. Use one of the following options to locate the person that you would like to call:

• Press the number on the keypad for the appropriate first letter of the person's last name. For example, press "5" twice for "K".

• Scroll down or up, using the keys to find the name you want.

4. Once the correct name is displayed, press the DIAL softkey.

Forwarding your 5340 phone

Using the forwarding features, you can forward your phone by following the procedures described in the following sections:

• “Forwarding your 5340 phone to auto attendant” on page 14

• “Forwarding your 5340 phone to co-worker” on page 14

• “Forwarding your 5340 phone to coverage” on page 15

• “Forwarding your 5340 phone to number” on page 15

• “Forwarding your 5340 phone to prompt” on page15.

Forwarding your 5340 phone to auto attendant

Using Forward to Auto Attendant, you can send all incoming calls to a selected auto attendant. Press the Forward to AA key once to turn the feature on. Pres s the key a second time to turn the feature off. The LED on the program med key indicates when the phone is being forwarded.

To use this feature, you must have a key programmed with Forward to Auto At tendant. See “Program memory keys” on page 93.

Note: Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to the auto attendant.

Forwarding your 5340 phone to co-worker

Using Forward to Co-worker, you can send all incoming calls to a selected co-worker. Press the Forward to Co-worker key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the programmed key indicates when the phone is being forwarded.

Page 21

Using the phone system

To use this feature, you must have a key programmed with Forward to Co-worker. See “Program memory keys” on page 93.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to your co-worker.

Forwarding your 5340 phone to coverage

Using Forward to Coverage, you can send all incoming calls to the option you selected from My Call Coverage. Press the Forward to Coverage key once to turn the featur e on. Press the key a second time to turn the feature off. The L ED on the programm ed key indicates when the phone is being forwarded.

To use this feature, you must have a key programmed with Forward to Coverage. See “Program memory keys” on page 93.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to coverage.

Forwarding your 5340 phone to number

Using Forward to Number, you can send all incoming calls to a preset phone number. Press the Forward to Number key once to turn the feature on. Press the key a se co nd time to tu rn the feature off. The LED on the progr ammed key indicates when the ph one is being forwarded.

T o use this feature, you must have a key programmed with Forward to Number . See “Program memory keys” on page 93.

Note: If you forward your phone to an external phone number, you must have permission to make that external call and Redirect Inbound Call to External Number permissio n. See “Permissions“ on page “Permissions” on page 91 for instructions on how to view your call permissions. If you have this feature turned on when you log out of your phone all your calls will be forwarded to the number defined.

Forwarding your 5340 phone to prompt

Using Forward to Prompt, you can send all incoming calls to a phone number that you have entered via your phone. The LED on the programmed key indica te s wh en the phone is b ein g forwarded.

To forward to prompt, follow these steps:

1. Press the Forward to Prompt key on your phone. The system will ask you to enter a phone number.

2. Enter the phone number on the phone keypad.

3. Press the ENTER softkey.

To change the phone number for the forward to prompt, repeat the above three steps.

Page 22

Mitel IP Phone User Reference Guide

To turn forward to prompt off, follow these steps:

1. Press the Forward to Prompt key.

2. Press the FWDOFF softkey.

Notes:

To use this feature, you must have a key programmed with Forward to Prompt. See “Program memory keys” on page 93. The system stores internal extensions, therefore you do not need to press the ENTER softkey. If you forward your phone to an external phone number, you must have permission to make that external call and Redirect Inbound Call to Exter nal Numb er permission. See “Permissions” on page 91 for instructions on how to view your call permissions. If you have this feature turned on when you log out of your phone all your calls will be forwarded to the prompt defined.

Handsfree answerback on the 5340 phone

Using Handsfree answerback, you can have intercom calls automatically answered so that you have a two-way speech connection. See “Intercom to co-worker on the 5340 phone” on page 17.

Press the Handsfree answerback key to turn the feature on. Press the key a seco nd time to turn the feature off. The LED on the programmed key indicates when the Handsfree answerback feature is turned on.

T o be able to activate and deactivate this feature with a key, you must have a key programmed with Handsfree answerback. See “Program memory keys” on page 93.

Y o u can also enable the feature without a key by checking the box for Handsfree Answerback on your Personal Details page (see “Change user details” on page 90).

Hold on the 5340 phone

Using Hold, you can put an active call on hold, and make other calls. The LED of the Line Appearance key flashes to indicate the call is on hold.

To place a call on hold, follow these steps:

1. While on an active call, press the key.

2. The indicator light next to the active Line Appearance changes from green to red and

flashes slowly.

3. To remove the call from hold, press the Line Appearance key.

Page 23

Using the phone system

Intercom calls on the 5340 phone

Using the intercom features, you can make a page to a selected co-worke r that is broadcast through the speaker on your co-worker's phone.

Intercom to co-worker on the 5340 phone

Using Intercom to Co-worker , you can make a p age to a selected co-worker that is b roadcast through the speaker on your co-worker's phone. Pick up the handset or select a Line Appearance key , then press the Intercom to Co-worker key to start the page to your co-worker . If you press the Intercom to Co-worker key with no line active, the next available line appea rance key will automatically be selected. Note that if your phone is active on a call or in a ringing state, you must select an available line appearance key before pressing the Intercom to Co-worker key.

If your co-worker has the Handsfree Answerback feature configured and activated, then you will also be able to hear your co-worker speak. (See “Handsfree answerback on the 5340 phone” on page 16)

To use this feature, you must have a key programmed with Intercom to Co-worker. See “Program memory keys” on page 93.

Intercom to prompt on the 5340 phone

Using Intercom to Prompt, you can make a page to any co-worker whose number you enter on the phone.

To make a call with Intercom to prompt, follow these steps:

1. Press the Intercom to Prompt key on your phone. The system will ask you to enter a phone number.

If your phone is already active on a call or ringing, you need to press an available Line Appearance key or put the current call on hold before you can use the Intercom to Prompt feature.

2. Enter the phone number of your co-worker on the phone keypad.

Y ou will then be connected to your co-worker and you can speak through their speaker. If your co-worker has the Handsfree Answerback feature configured and activated, then you will also be able to hear your co-worker speak. (See “Handsfree an swerback on the 5340 phone” on page 16).

T o use this feature, you must have a key programmed with Intercom to Prompt. See “Program memory keys” on page 93.

Internal 5340 phone settings

T o configur e internal 5340 phone settings (such as displa y brightness and contrast), select the

key and follow the prompts.

Page 24

Mitel IP Phone User Reference Guide

Join/Leave group on the 5340 phone

Using the Join/Leave Group feature you can join a Broadcast, Hunt or Rollover call group of which you are a member, using your phone. Only the phones of members who are joined in the group will ring when the call group is called. See “Call groups” on page 102. Press the Join/Leave Group key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the programm ed key indicates when you are logged into the call group.

To use this feature, you must have a key programmed with Join/Leave Group. See “Program memory keys” on page 93.

Line Appearance key on the 5340 phone

Line Appearance keys are required in order to receive incoming calls and to make outgoing calls. The LED on the programmed key indicates the status of the Line Appearance.

• Key is unlit - the Line Appearance is available for an incoming or outgoing call.

• Key is flashing green with a ring tone - an incoming call is available to be answered.

• Key is flashing red without a ring tone - a call is on hold.

• Key is solid - a call is active. If this is green, then a call is active. If this is red, then a twinned call is active on the twinned target phone.

When you have multiple Line Appearance keys, they are ordered from bottom to top, right to left. An incoming call will appear on the first available Line Appearance key.

Y o ur phone will normally have two or three pre-programmed Line Appearances. To be able to handle more simultaneous calls, you must program additional keys with Line Appearance. See “Program memory keys” on page 93.

Note: You can only program Line Appearance keys on page one of the three progammable pages.

Using Login, you can enter your extension into any phone and take ownership of that phone. By doing this, you can direct all incoming calls for your extension to that phone. You must have the appropriate privileges to log out of a phone.

Y ou can only log in to an una ssigned phone (a phone without a user logged in). If a phone has a user logged in, you can log the u ser out b y fo llowing the pr oced ure d escr ibe d in Lo go ut on the 5340 phone. An unassigned phone displays "Logged Out".

To log in to a phone, follow these steps:

1. Press the ACTIVATE softkey on an unassigned phone (a pho ne without a user logged in)

The system prompts you to enter an extension.

2. Enter your extension.

The system prompts you to enter your PIN.

Page 25

Using the phone system

3. Enter your PIN. Press the # key or the ENTER softkey once you have finished entering

your PIN. The system verifies that the PIN is valid and then it logs you into the phone.

Notes:

If you log in while you are logged in to another phone, the system will log you out of the original phone. You cannot log in or out, or activate a phone, while the phone is on an active call. If you are not logged into a phone, all calls to your extension will go directly to call coverage. If you have not been assigned the privileges required to log out of your phone you will not be prompted for a PIN when you log in. Y ou will not be prompted for a PIN when you log in to a phone with a location extension.

Logout on the 5340 phone

To log out of a phone, follow these steps when your phone has no calls connected:

1. Press the MENU softkey.

2. Press the LOGOUT softkey. The phone displays a confirmation message.

3. Press the YES softkey to proceed. The phone will display the message "Logout successful",

confirming that you are logged out of the phone and the system. Incoming calls will be forwarded to Call Coverage. The phone returns to a logged out/unassigned idle state.

Notes:

If your phone has been locked you cannot log out of the phone. The LOGOUT softkey is not be displayed on your phone. Contact your system administrator for assistance. You cannot log in or out, or activate a phone, while the phone is on an active call. You can use the key instead of the QUIT softkey. After you have logged out of the phone, callers to your extension will be directed to your call coverage target. If no call coverage target is set, the phone will ring until the caller hangs up. If the primary member of a Monitor Group logs out of the phone, calls to the Monitor Group will still ring any secondary phones and will redirect to the primary member's call coverage target after the configured number of rings. For more information about Monitor Groups, se e “Monitor call on the 5340 phone” on page 20. If a logged out phone has twinning configured, the twinning target phone will ring and the call will be redirected to the logged-out phone's call coverage target after the configured number of rings.

Monitor groups on the 5340 phone

Using the Monitor Groups feature, your calls can be monitored and answered by other users or you can have your phone monitored for activity. T o enable the Monitor feature, cont act your administrator and provide a list of users that you would like to have monitor your calls or phon e. The administrator will create a Monitor group in your name with the people in your list as members of the group. There is no other action that needs to be taken on your part.

Page 26

Mitel IP Phone User Reference Guide

If you requested to have your calls monitored, calls to o ne or m or e of your Li ne App ear an ce s will automatically ring on your Monitor group member phones provided that they have configured the appropriate number of Monitor Call or Monitor Call Silent keys on their phone.

When a member of your Monitor group has answered one o f your calls, the Line Appear ance on your phone will still indicate the state of the call.

• A flashing key without a ring tone indicates that the call is on hold.

• A lit key indicates that the Line Appearance is in use.

If you requested to have your phone monitored, wh en your phone is in use the group member s phones will show a lit LED against the Monitor Phone key they have configured on their phone.

Notes:

If you are part of a Monitor Group, you can put a call on hold and either the primary group member or other phones in the group can pick up the call. Your call coverage still applies when you are in a monitor group. A Monitor Phone key also acts a speed dial to the monitored extension. Monitor Groups is only applicable to users who are using Mitel IP phones.

Monitor call on the 5340 phone

Using the Monitor Call or Monitor Call Silent feature, you can monitor and pick up calls occurring on another user's phone. To use this feature,

• You must be a member of a Monitor group. A Monitor group defines the user that is being monitored (primary group member) and which users can mo nitor calls for the primary group member (secondary group members). Only the administrator can add a Monitor group or change the members of an existing Monitor group.

• Y ou must have the same number of p hone keys programmed with Monitor Call or Monitor Call Silent as the number of simultaneous calls that you want to monitor on the primary group member's phone. The maximum n umber of simultane ous calls that you can monitor for one Monitor Primary equals the number of Line Appearan ces that the Mon itor Primary has programmed on their phone.

For example, if you have one Monitor Call/Monitor Call Silent key pr ogrammed for a Monitor Primary, you will only be able to monitor one incoming or outgoing call at a time. If you have two Monitor Call/Monitor Call Silent keys programmed for a Monitor Primary, you will be able to monitor two incoming or outgoing calls at a time and so on. There is no direct correspondence between a Monitor Call/Monitor Call Silent key and a Line Appearance key on the Monitor Primary's phone. The Line Appearance that the first call occurs on (not necessarily the first Line Appearance) will be monitored by the first Monitor Call/Monitor Call Silent key, the Line Appearance that the second call occurs on (not necessarily the second line appearance) will be monitored by the second Monitor Call/Monitor Call Silent key and so on. See “Program memory keys” on page 93.

The Monitor Call/Monitor Call Silent key indicates the state of the Line Appearance on the primary group member's phone that is being monito red. The only dif ference between Monitor

Page 27

Using the phone system

Call and Monitor Call Silent is that your phone will not ring to indicate an incoming call to the

Primary member. For example:

• A flashing Monitor Call key with a ring tone indicates an incoming call to the Line Appearance.

• A flashing Monitor Call key without a ring tone indicates that the call is on hold.

• A flashing Monitor Call Silent key without a ring tone indicates an incoming call to the Line Appearance or that the call is on hold.

• A lit Monitor Call/Monitor Call Silent key indicates that the Line Appearance is in use.

To answer a call occurring on the primary group member's phone, follow these steps:

1. When the Monitor Call/Monitor Call Silent key is flashing, lift the handset.

2. Press the Monitor Call/Monitor Call Silent key.

1. Press the Monitor Call/Monitor Call Silent key to answer the call in speaker mode.

Note: By putting a call on hold, either the primary group member or other Monitor phones

can pick up the call.

Monitor phone on the 5340 phone

Using the Monitor Phone feature, your phone ca n be monitor ed by other user s. To enable the Monitor Phone feature, contact your administrator and provide a list of users that you would like to have monitor your phone. The administrator will create a Monitor group in your name with the people in your list as members of the group. There is no other action that needs to be taken on your part. When you are using your phone, members of your call group will be able to see that the phone is in use provided that they have programmed a memory key to view activity on your phone.

When you use your phone a member of your Monitor group will see the LED of the memory key that they have programmed to monitor your phone light up.

Mute on the 5340 phone

Using Mute, you can silence any sound from the phone. This does not p revent incoming sound from being heard. Press the key during a call to activate Mute. The LED on the key indicates when Mute is active.

One touch speed dial on the 5340 phone

Using One Touch Speed Dial, you can make a call to a pre-programmed number. To use this feature, a programmable key must be programmed as a One T ouch Sp eed Dial. See “Program memory keys” on page 93.

Page 28

Mitel IP Phone User Reference Guide

To use One Touch Speed Dial, choose one of the following:

• Lift the handset and press the One Touch Speed Dial key.

• Press an available Line Appearance key, to activate the speakerphone, and then press the One Touch Speed Dial key.

•Press the One Touch Speed Dial key. This will select an available Line Appearance and activate the speakerphone.

Page on the 5340 phone

Using Page, you can send a page to all of the phones at your site. The page is broadcast through the speaker of each available phone. To use this feature, you must have a memory key programmed as a Page key. See “Program memory keys” on page 93.

To page all of the phones at your site, follow these steps:

1. Select a memory key programmed with the Page feature.

2. Your Information Area Display shows "Calling: Site Page" while the system identifies the

available phones at your site. When the system is ready for you to begin your page, you will hear an alert tone and the Information Area Display shows the number of phones being paged.

3. Speak into the handset or the speakerphone.

4. To end the page, you have the following options:

• Replace the handset if using the handset.

• Select the key.

• Select the END softkey.

Note: A page will not be broadcast on phones that are busy. If you select Page while there is already a page in progress, the system will wait until the page in progress is completed before your pa ge is started. Y our Information Area Display will show "Calling: Site Page" and you will hear ringing while you are waiting. On the phones receiving a page, the phone LCD screen displays the name of the user who originated the page and an END softkey. The user receiving the page can stop the page to their phone by selecting the END softkey.

Park and retrieve on the 5340 phone

Using Park and Retrieve, you can put a call on hold at a p ark location so that it can be retrieved from any other phone at your business. T o use this feature, a memory key must be programmed as a Park/Retrieve key. See “Program memory keys” on page 93.

To put a call on hold at a park location, follow this step:

1. While on an active call, select a memory key programmed with the Park/Retrieve feature.

The system places the call on hold at a park location. The park location is displayed on your Information Area Display. You are no longer connected with the caller and your phone returns to the idle state.

Page 29

Using the phone system

To retrieve a parked call, follow these steps:

1. From an idle phone, lift the handset. This will select the next available Line Appearance. Select a memory key programmed with the Park/Retrieve feature. The Information Area Display prompts you for the "Park Location:".

2. Enter the required park location using the phone keypad. The system connects you with the caller who was on hold at the park location . Th e Info rmation Area Display shows the caller's name (if known) or number.

Notes:

To cancel the retrieval of the parked call, press the QUIT softkey. If you enter a park location where there is no caller on hold, the Information Area Display will briefly show "No Parked Call". There are nine park locations a vailable (1 through 9). If all park loca tions are in use when you try to park a call, the Information Area Display will briefly show "Park Locations Full" and the call will be placed on hold. If the call is left parked for 30 seconds, the phone of the person who parked the call will beep and the Information Area Display will briefly show "Call parked at: " with the park location number to remind you that a call that you parked has not been retrieved.

Speaker on the 5340 phone

Using Speaker, you can turn the speakerphone on your phone on and off. To use Speaker, press the key.

Transfer call on the 5340 phone

Using Transfer, you can transfer a call from one phone to another. To transfer a call, follow these steps:

1. While on an active call, press the TRANS softkey. The system places the call on hold, and the Information Area Display prompts you with the "Transfer To:" message.

2. Enter the extension or phone number of the person to whom you want to transfer the call, or press a One-Touch Speed Dial key, or press a Line Appearance key that has a call on hold.

3. Press the TRANSFER softkey once you hear ringing. Y ou can also press the TRANSFER softkey after the additional party has answered. The Information Area Display shows the message "Transfer Complete" for approximately five seconds before returning to an idle state.

If you enter an invalid extension during a transfer , th e Information Area Display sho ws "Invalid Extension". To reconnect with the original caller, follow these steps:

1. Press the END softkey.

2. Press the flashing Line Appearance key.

3. Try to transfer the call again.

Page 30

Mitel IP Phone User Reference Guide

If you choose not to complete the transfer , press the QUIT softkey, then press the flashing Line Appearance key to retrieve the original call.

Note: You can use the key instead of the TRANS or TRANSFER softkey.

Transfer to voice mail from the 5340 phone

If your administrator has configured an auto attendant for voice mail deposit, you can transfer a caller directly to a co-worker's voice mail box.

To transfer a call to voice mail, follow these steps:

1. While on an active call, press the key or the TRANS softkey. The system places the call on hold, and the Information Area Display prompts you with the "Transfer To:" message.

2. Enter the extension of the auto attendant that your administrator h as created for voice mail deposit.

3. Select the auto attendant voice mail deposit optio n and enter the extension of the co-worker to whom you are transferring.

4. Press the TRANSFER softkey (or the key) to complete the transfer . The Informa- tion Area Display shows the message "Transfer Complete" for approximately five seconds before returning to an idle state.

Twinned calls on the 5340 phone

If you have configured your phone to be twinned to another external phone (the twinning target), then incoming calls will simultaneously ring the other phone as well.

If you answer the call on your desk phone, the twinning target phone will stop ringing.

If you answer the call on your twinning target phone, the Line Appearance key on your desk phone will remain lit. To pull back the call to your desk phone, simply press the corresponding Line Appearance key. The call will be disconnected from the twinning target phone and you will be connected on your desk phone.

Note that if neither your desk phone nor the twinning target phone answer an incoming call, your call coverage setting will determine what happens to the call (see “Call Coverage” on page 100). If the other phone has a voice messag e service associated with it, then your twinning target phone's voice message service may answer the call first. If you want to avoid this situation, then you should ensure that your call coverage is co nfigured to answer calls before the twinning target phone's voice message service.

Page 31

Using the phone system

Voice mail on the 5340 phone

Using the key, you can connect directly to voice mail to retrieve messages or manage voice mail options such as changing your voice mail greeting. Th e Message W aiting La mp on the phone will light up if messages are waiting.

If your administrator has created an auto attendant with a voice mail retrieval option and associated it to an external number, you can access your mail box from any phone by dialing the external number and then selecting the voice mail retrieval option. You are prompted for your extension, then connected to your voice mail box.

Volume control on the 5340 phone

Use volume control to change ring volume, handset volume, and speaker volume.

Note: The ring, handset, and speaker volumes return to their default setting s if the phone loses power.

Change ring volume on the 5340 phone

To change the ring volume on your phone, follow these steps:

1. From another phone, make a call to your extension.

2. While your phone is ringing, repeatedly press the keys until the ring volume is at the

level you want.

Change handset volume on the 5340 phone

To change the volume of the sound you hear through the handset, follow these steps:

1. Lift the handset. You will hear dial tone.

2. Repeatedly press the keys until the volume is at the level you want.

3. Replace the handset.

Change speaker volume on the 5340 phone

To change the volume of the sound you hear through the speaker, follow these steps:

1. Press the key. You will hear dial tone.

2. Repeatedly press the keys until the volume is at the level you want.

Page 32

Mitel IP Phone User Reference Guide

Using the Mitel 5020/5220/5224 IP phone

This section describes the Mitel 5020/5220 and 5224 IP phones. To set up your new phone service, see “Initial set-up for phone service” on page “Mitel 5224 IP Phone” on page 26. For a description of your phone, see “Mitel 5224 IP phone” on page “Mitel 5224 IP Phone” on page 26, and Mitel 5020/5220 IP phone” on p age 28. Other topics covered in this section are: “Answering a call” on page “Answering a call” on page 30, “Making a call” on page “Making a call” on page 32, “Using features via the phone” on page “Using features via the phone” on page 33, “Using volume control” on page “Using volume control” on p age 51, and “Using voice mail” on page “Using voice mail” on page 51.

Mitel 5224 IP Phone

The Mitel 5224 IP Phone has the following features:

• Handsfree speakerphone operation (full duplex)

• Two-line, 20-character backlit display.

• Three context-sensitive softkeys for additional features

• 24 programmable multi-function memory keys with color LEDs

• Six fixed function keys, including Directory , Cancel, Redial, Hold, Transfer/Conference, and

Message

• Mute and Speaker keys

• Dedicated headset jack

• Arrow keys for Ringer Volume/Contrast up/down controls and scrolling

• Support for peripherals, such as the Mitel IP Programmable Key Module 12, Mitel IP Pro-

grammable Key Module 48, and the Mitel 5310 IP Conference Unit

• Message waiting lamp

• Two-position tilting stand

• Wall mountable

See “Mitel 5224 IP Phone” on page 27 for a detailed diagram of your phone.

Page 33

Using the phone system

Figure 2: Mitel 5224 IP Phone

Page 34

Mitel IP Phone User Reference Guide

Mitel 5020/5220 IP Phone

The Mitel 5020/5220 IP phone has the following features:

• Handsfree speakerphone operation (half duplex)

• Two-line, 20-character backlit LCD display.

• Three context-sensitive softkeys for additional features

• 14 programmable multi-function memory keys with color LEDs

• Eight fixed function keys

• Volume/Contrast keys

• Message Waiting Lamp

• Two-position tilting stand

• Wall mountable.

See “Mitel 5020/5220 IP Phone” on page 28 for a detailed diagram of your phone.

Initial set-up for phone service

To set up your new phone service, follow these steps:

1. Activate your phone. See “Activating a phone” on page 29.

2. Perform a Quick Set-up through the web interface. See “Quick set-up” on page 89.

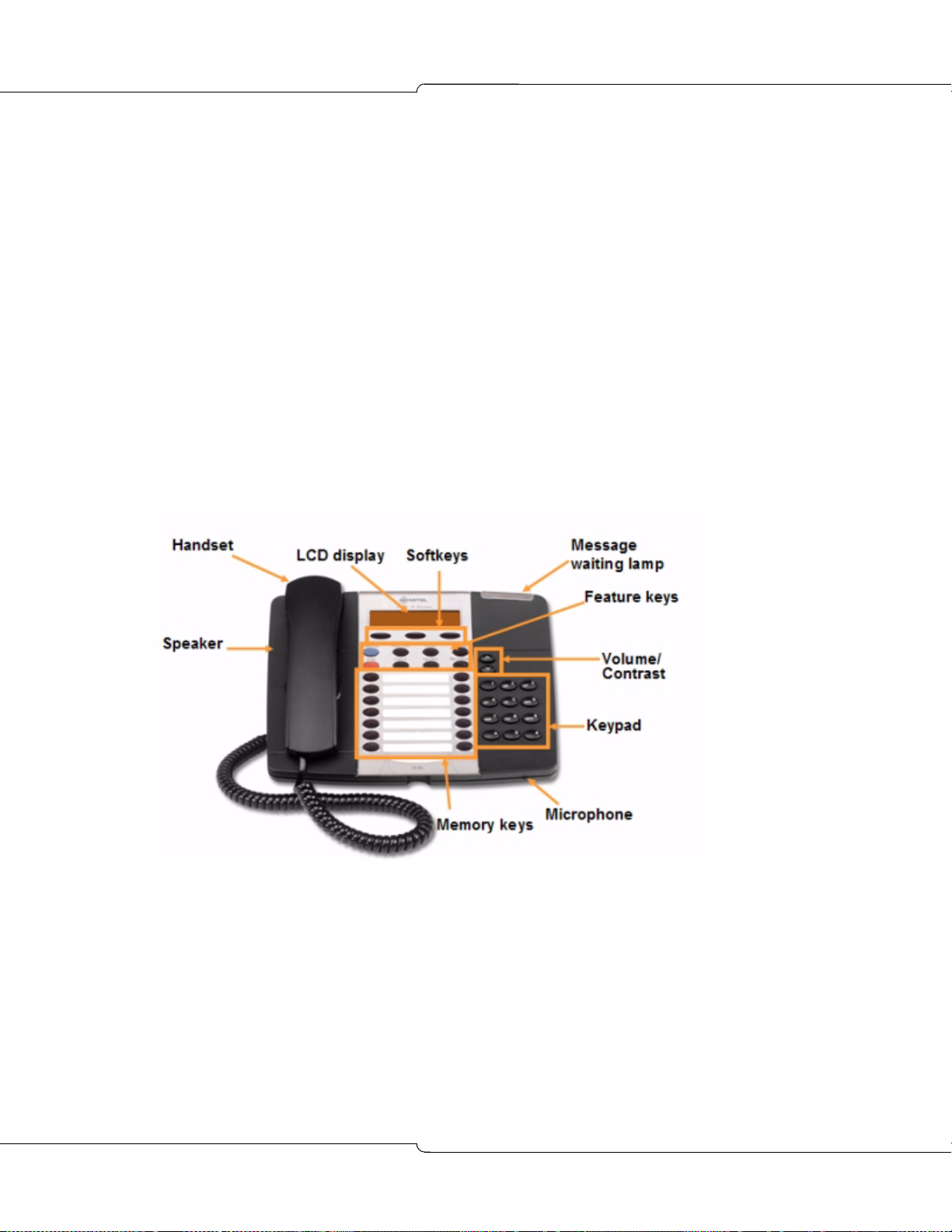

Figure 3: Mitel 5020/5220 IP Phone

Page 35

Using the phone system

Activating a phone

To activate a Mitel phone you need (1) an extension number , (2) a phone, and (3) a PIN. Your administrator can provide you with an extension number and initial PIN.

To activate your phone, follow these steps:

1. Disconnect your computer from the network.

2. Connect the Ethernet cable to your LAN and to the phone port marked by the symbol

for 5020 phones and the symbol for the 5220 a nd 5224 IP

phones.

3. Connect the computer to the phone at the port marked PC.

4. Connect one end of the phone power pa ck into your phone and the o ther end into a power

outlet.

Note: If your network is configured with Power Over Ethernet (POE), the above step is not necessary.

5. Wait for the phone to display the following (this may take 30 seconds or more):

Logged Out ACTIVATE

6. Press the ACTIVATE softkey. The display will show:

Extension: QUIT

7. Enter your extension.

8. If you have login/logout privileges, the display will show:

PIN: ENTER QUIT

Enter your PIN, then press the ENTER softkey.

9. If you do not have login/logout privileges, the display will show

Extension: 314 YES NO

Press the YES softkey.

10. The display will show

Extension: 314 REDIAL CALLS MENU

You have now successfully activated the phone, and can make calls. See “Quick set-up” on page 89 for information about initial settings you should configure through

the web interface.

Page 36

Mitel IP Phone User Reference Guide

Answering a call

When an incoming call is received on a phone, se veral things happen: (1) the phone rings, (2) a Line Appearance flashes, and (3) the LCD displays the phone number of the caller and, if known, the name of the caller.

You can answer an incoming call by picking up the handset, pressing the ANSWER softkey, or by pressing the Speaker key on the 5020/5220 IP phone or the key on the 5224 IP phone.

321: Robin Jones ANSWER

You can pull back a call that has been answered by a twinned target phone by pressing the corresponding Line Appearance key. See “Twinned calls” on page 50.

Using the handset

To answer your phone using the handset, follow these steps:

1. Lift the handset. Y ou have now answered the call. The LCD displays the caller’s number and name (if kno wn).

321: Robin Jones TRANS CONF END

Note: If you choose to ignore the incoming call and select a different line appearance, the line appearance continues to flash but the phone stops ringing.

2. To end the call while using the handset, choose one of the following:

• Press the END softkey.

• Replace the handset.

Using the speakerphone

To switch from the handset to the speakerphone during a call, follow these steps:

1. Press the Speaker key on the 5020/5220 IP phone or the key on the 5224 IP phone.

2. Replace the handset.

To end a call while using the speakerphone, choose one of the following:

• Press the END softkey.

• Press the Speaker key on the 5020/5220 IP phone or the key on the 5224 IP

phone.

Page 37

Using the phone system

Switching from speakerphone to handset

To switch from the speakerphone to the handset during a call, pick up the handset.

To end the call while using the handset, choose one of the following:

• Press the END softkey.

• Replace the handset.

Answering a second call

A second incoming call causes three things to happen: (1) the phone rings once, (2) a line appearance flashes, and (3) the LCD displays the number and name of the caller, if known. If the name of the caller is unknown, either the phon e number or “Unknown Ca ller” is displayed.

))321: Robin Jones

To answer a second call, choose one of the following:

• Press the flashing Line Appearance key. This put s the active call on hold and answers the second call.

• End the first call by replacing the handset. The phone will start ringing. Pick up the handset again to answer the second call.

To switch between two active calls, press the flashing Line Appearance key. T his pu ts the active call on hold, and activates the other call.

Note: If the display shows )) prior to the number calling, this indicates that it is a second call.

Answering a call group call

When an incoming call to a call group is received on a phone, the second line of the phone LCD displays the name of the group that was called. The first line continues to display the number and name of the caller, if known.

321: Robin Jones For: Sales Group

To answer an incoming call group call, use the handset or speakerphone.

Page 38

Mitel IP Phone User Reference Guide

Making a call

To make a call, follow these steps:

1. Lift the handset. This will select the next available Line Appearance. You can also start dialing the number without lifting the handset. This will automatically select the next available Line Appearance and operate in speakerphone mode.

REDIAL CALLS DIR

2. T o make an internal call, dial the extension. To make an external call, dial the prefix required for external dialing (usually “9”) followed by the number you want to call.

320

When you finish dialing, the number the call will be placed.

Calling: Robin Jones END

If you place an internal call, your LCD displays the extension and name of the connected party once the call is answered. If you place an external call, the LCD displays the name of the connected party, or if the name is unknown, the phone number.

320: Robin Jones TRANS CONF END

3. To end the call, choose one of the fo llow ing :

• Press the END softkey.

• Replace the handset. Note: To use the speakerphone for step 1, press an available Line Appearance key or

the Speaker key on the 5020/5220 IP phone or the key on the 5224 IP phone instead of lifting the handset.

4. To end a call before you have completed dialing, choose one of the following:

• Replace the handset if using the handset.

• Select the Speaker key on the 5020/5220 IP phone or the key on the 5224 IP

phone.

• Press the End softkey.

Making a second call

To make a second call, while on an active call, follow these steps:

1. Press any available Line Appearance key. This puts the active call on hold, and provides dial tone for a second call.

Page 39

Using the phone system

2. T o make an internal call, dial the extension. T o make an external call, dial the prefix required

for external dialing (usually “9”) followed by the number you want to call.

320

3. When you finish dialing the number, the call will be placed.

Calling: Robin Jones END

4. If you place an internal call, your LCD screen displays the extension and name of the connected party once the call is answered. If you place an external call, the LCD displays the name of the connected party, or if the name is unknown, just the phone number.

320: Robin Jones TRANS CONF END

5. T o switch between two active calls, press the flashing Line Appeara nce key. This puts the active call on hold and activates the other call.

Ending one call keeps the second call on hold. To reconnect to the second call, press the flashing Line Appearance key.

Using features via the phone

This section explains the features available from your phone. Some of these features must be pre-programmed in order to be available. To learn how to program features to keys, see “Program memory keys” on page 93.

3-way call

Using 3-Way Call, you can set up a phone call among three separate parties.

To activate 3-Way Call, follow these steps:

1. While on an active call, press the CONF softkey. This places the first call on hold, and selects an available Line Appearance. The LCD scre en displays:

Conf with: DIR QUIT

2. Enter the phone number of the third party.

3. The system dials the number and displays a “Calling” message along with the caller ID on

the first line of the LCD screen.

Calling:Lesley Gr QUIT

4. When the third party answers the call, the LCD will show that a connection is established.

Lesley Greene CONF QUIT

Page 40

Mitel IP Phone User Reference Guide

5. Press the CONF softkey again. The 3-Way Call is now activated. The LCD displays:

3-Way Call TRANSFER END

Note: Until the CONF sof tkey is pressed a second time, the first party will remain on hold and you can talk with the second party privately. By putting a 3-Way Call on hold, the other parties can continue talking. You can use the key on a 5224 IP phone instead of the CONF softkey. When using this key you must press twice to activate a 3-way call or you will initiate a transfer instead. You can use the 3-WAY CALL key instead of the CONF softkey on the 5020/5220 IP phone. If you want the option to leave the conference and leave the two parties connected (when both parties are external), you must have the permission Redirect Inbound Call to External Number enabled. Once the 3-Way Call is established, you can use the transfer feature to transfer both parties to another party.

Joining two calls

The 3-way call feature allows you to conference together two calls on your phone's line appearances. To activate a 3-way call in these circumstances, follow these steps:

1. While on an active call, press the CONF softkey.

2. Select the Line Appearance of the person on hold that is to be connected.

3. Press the CONF softkey again. The 3-Way Call is now activated.

Account codes

Note: To use the Account Code feature, a user must have a memory key prog ram med with the Account Code feature or be using a phone key profile that has been programmed with the Account Code feature.

Account code entry

Account codes can be entered against incoming and outgoing calls to associate those calls with a particular client or account. Account code entry is accepted before a call is placed or during a call.

To enter an account code before you place a call, follow these steps:

Page 41

Using the phone system

1. Select the programmed Account Code key. The LCD displays:

Account Code: CALL QUIT

2. Enter the account number using the phone keypad. The LCD displays the account code entered:

Account Code: 1234 CALL QUIT

3. Press the CALL softkey to start your call. The next available line appearance is selected, dial tone is heard and your phone LCD updates.

4. Proceed with making your call.

To enter an account code during a call, follow these steps:

1. Select the Account Code key. The LCD displays:

Account Code: ENTER QUIT

2. Enter the account number using the phone keypad. Y ou hear a tone as you press the phone keys, but the person on the other end does not. The LCD displays the acco unt code entered:

Account Code:1234 ENTER QUIT

3. Press the ENTER softkey when you have finished entering the account code.

Note: You can re-enter an account code for a call multiple times. The last account code

entered is the account code that will be assigned to the call. If you enter an account code with an invalid length, the phone LCD briefly displays "Invalid Account Code". Contact your system admini strator to determine the valid account code length for your business. You cannot assign an account code to a call once it has been completed.

Account code speed entry

Account code entry is accepted before a call is placed or during a call. To use this feature, it must be enabled for your business, and you must have a memory key programmed with Account Code and a pre-programmed account code.

To enter a pre-programmed account code before you place a call, follow these steps:

1. Select the Account Code key. The LCD briefly displays the account code that has been pre-programmed:

Account Code: 45678

The next available line appearance is selected, dial tone is heard and your phone LCD updates.

REDIAL CALLS DIR

Page 42

Mitel IP Phone User Reference Guide

2. Proceed with making your call.

To enter a pre-programmed account code during a call, follow these steps:

• Select the Account Code key. The LCD briefly displays the account code that has been pre-programmed:

Account Code: 45678

Note: You can re-enter an account code for a call multiple times. The last account code entered is the account code that will be assigned to the call.

Note: To cancel account code entry before the call is placed, replace the handset (or, if using the speakerphone, press the speaker key on the 5020 /5220 IP phone or press the

key on a 5224 IP phone. Account code speed entry during a call cannot be

cancelled.

If the pre-programmed account code has an invalid length, the phone LCD briefly displays "Invalid Account Code". Contact your system administrator to determine the valid account code length for your business.

You cannot assign an account code to a call after it has been completed.

Using call lists

Call list keeps a list of the calls that you make and receive. The call list is accessible from your phone. You can redial any calls that you made from the call list. See “Redialing” on page 37. You may be able to dial a number from your incoming call list if it is supported by your service provider.

View list of received incoming calls

To view the list of incoming calls received, follow these steps:

1. Press the CALLS softkey on your phone. If you have programmed one of your programmable keys as Incoming Calls List, you can press this key instead. The most recent call that you received is displayed.

1: John Doe DIAL TIME QUIT

If the name of the caller is not known, the number will be displayed.

2. Use the Scroll Up and Scroll Down keys on a 5020/5220 IP phone or use th e keys on a 5224 IP phone to navigate the list .

3. Press the TIME softkey if you wish to display time and date of the call.

4. Press the NUMBER softkey if you wish to display the number of the caller.

5. Press the NAME softkey if you wish to display the name of the caller again. If the name is

not known, this option is not available.

6. Press the QUIT softkey to exit from the call list.

Page 43

Using the phone system

Call a number from your incoming call list

To call a number from your incoming calls list, follow these steps (onl y available if dialing from the incoming call list is supported by your Service Provider):

1. Press the CALLS softkey on your phone. The most recent call that you received is displayed.

1: John Doe DIAL TIME QUIT

2. Use the Scroll Up and Scroll Down keys on a 5020/5220 IP phone or use the keys

on a 5224 IP phone to navigate the list.

3. Press the DIAL softkey to make a call to the displayed nu mber.

Note: The position of the call in the call list is displayed in front of the phone number. The * symbol beside the position of the call means that the call was not answered. *CALLS means that there has been at least one unanswered call since the last time you viewed the list of calls you received.

Redialing

To use Redial, follow these steps:

1. Press the REDIAL softkey on your phone, or if you have a 5224 IP phone press . The number that you most recently dialed is displa ye d.

*1: 9-605-223-7865 DIAL TIME QUIT

2. Use the Scroll Up and Scroll Down keys on a 5020/5220 IP phone or the keys on

a 5224 IP phone to navigate the list (if required).

3. Press the TIME softkey if you wish to display the time and date of the call.

4. Press the NUMBER softkey if you wish to display the number dialed.

Page 44

Mitel IP Phone User Reference Guide

Once the required number is displayed, press the DIAL softkey to make the call. The next available Line Appearance is selected and you will hear ringing once the number has been dialed.

Note: The * symbol beside the position number means that the call was not answered. The position of the call in the call list is displayed in front of the phone number. Press the QUIT softkey to exit from the call list or if you have a 5224 IP phone press

Company speed dial

Using Company S peed Dia l, you can call a number fro m the Exte rnal Dir ectory by p ressing a single memory key on your phone. T o use th is feature, you must have a phone key programmed with Company Speed Dial. See “Program memory keys” on page 93.

To make a call using the company speed dial, choose one of the following:

•Press the Company Speed Dial key for the number you want to call. The system selects the next available Line Appearance for you and activates the speakerphone.

• Activate the speakerphone and press the Company Speed Dial key.

• Select an available Line Appearance. This activates the speakerphone. Press the Com- pany Speed Dial key.

• Lift the handset and press the Comp any Speed Dial key for the number you want to call.

Forwarding your phone

You can forward your phone by using any of the forwarding features. In each case, you must program a memory key with the appropriate feature. Se e “Program memory keys” on p age 93.

You can forward your phone by following the procedure described in the following sections:

• “Forward to auto attendant” on page 39

• “Forward to co-worker” on page 40

• “Forward to coverage” on page 40

• “Forward to number” on page 40

• “Forward to prompt” on page 40

Forward to auto attendant

Using Forward to Auto Attendant, you can send all incoming calls to a selected auto attendant. Press the Forward to AA key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the program med key indicates when the phone is being forwarded.

To use this feature, you must have a memory key programmed with Forward to AA.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to the auto attendant.

Page 46

Mitel IP Phone User Reference Guide

Forward to co-worker

To use this feature, you must have a memory key programmed with Forward to Co-worker.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to your co-worker.

Forward to coverage

Using Forward to Coverage, you can send all incoming calls to the option you selected for your call coverage, e.g., auto attendant, voice mail, another number. (See “Call Coverage” on page 100). Press the Forward to Coverage key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the progra mmed key indicates when the phone is being forwarded.

To use this feature, you must have a memory key programmed with Forward to Coverage.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to coverage.

Forward to number

Using Forward to Number, you can send all incoming calls to a preset phone number. Press the Forward to Number key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the progr ammed key indicates when the phone is be ing forwarded.

To use this feature, you must have a memory key programmed with Forward to Number.

Note: If you forward a phone to an external phone number, you must have permission to make that external call and Redirect Inbound Call to External Number permission. See “Permissions” on page 91 for instructions on how to view your call permissions.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to the defined number.

Forward to prompt

Using Forward to Prompt, you can send all incoming calls to a phone number that you have entered via your phone. The LED on the programmed key indica te s wh en the phone is b ein g forwarded.

To forward to prompt, follow these steps:

1. Press the Forward to Prompt key on your phone. The system will ask you to enter a phone number.

Page 47

Using the phone system

2. Enter the phone number on the phone keypad.

3. Press the ENTER softkey.

To change the phone number for the forward to prompt, repeat the above three steps.

1. To turn forward to prompt off, follow these steps:

2. Press the Forward to Prompt key.

3. Press the FWDOFF softkey. Note: To use this feature, you must have a key programmed with Forward to Prompt.

The system stores internal extensions, therefore you do not need to press the ENTER softkey. If you forward a phone to an external phone number , you must have permission to make that external call and Redirect Inbound Call to External Number permission. See “Permissions” on page 91 for instructions on how to view your call permissions.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to the defined prompt.

Handsfree answerback

Using Handsfree answerback, you can have intercom calls automatically answered so that you have a two-way speech connection. See “Intercom Calls” on page 42.

Hold

Press the Handsfree answerback key to turn the feature on. Press the key a second time to turn the feature off. The LED on the programmed key indicates when the Handsfree answerback feature is turned on.

T o be able to activate and deactivate this feature with a key, you must have a key programmed with Handsfree answerback.

Y ou can also enable the feature without a key by checking the box for Handsfree answerback on your Personal Details page. See “Change user details” on page 90.

Using Hold, you can put an active call on hold, and make other calls. The Line Appearance key will flash to indicate the call is on hold.

To place a call on hold, follow these ste ps:

1. While on an active call, press Hold on a 5020/5220 IP phone or the key on a

5224 IP phone.

The indicator light next to the active Line Appearance changes from green to red and flashes slowly.

2. To remove the call from hold, press the Line Appearance key.

Page 48

Mitel IP Phone User Reference Guide

Intercom Calls

Intercom to co-worker

Using Intercom to Co-worker , you can ma ke a page to a selected co-worker that is broadcast through the speaker on your co-worker's phone. Pick up the handset or select a Line Appearance key, then press the Intercom to Co-worker key to start the page to your co- worker. If you press the Intercom to Co-worker key with no line active, the next available line appearance key will automatically be selected. Note that if your phone is active on a call or in a ringing state, you must select an available line appearance key before pressing th e Intercom to Co-worker key.

If your co-worker has the Handsfree Answerback feature configured and activated, then you will also be able to hear your co-worker speak. See “Handsfree answerback” on page 41.

To use this feature, you must have a key programmed with Intercom to Co-worker.

Intercom to prompt

Using Intercom to Prompt, you can make a page to any co-worker whose number you enter on the phone.

To make a call with Intercom to pro mpt, follow these steps:

1. Press the Intercom to Prompt key on your phone. The system will ask you to enter a phone number.

If your phone is already active on a call or ringing, you need to press an available Line Appearance key or put the current call on hold before you can use the feature.

2. Enter the phone number of your co-worker on the phone keypad.

To use this feature, you must have a key programmed with Intercom to Prompt.

Join/Leave group

Using the Join/Leave Group feature you can join a Broadcast, Hunt, or Rollover call group of which you are a member, using your phone. Only the phones of members who are joined in the group ring when the call group is called.

•Press the Join/Leave Group key once to turn the feature on. Press the key a second time

to turn the feature off. The LED on the programmed key indicates when you are logged into the call group.

Intercom to Prompt

To use this feature, you must have a key programmed with Join/Leave Group.

Page 49

Using the phone system

Line appearance

Line Appearance keys are required in order to receive incoming calls and to make outgoing calls. The LED on the programmed key indicates the status of the Line Appearance.

• Key is unlit – the Line Appearance is available for an incoming or outgoing call.

• Key is flashing green with a ring tone – an incoming call is available to be answered.

• Key is flashing red without a ring tone – a call is on hold.

• Key is solid – If this is green, then a call is active. If this is red, then a twinned call is active on the twinned target phone.

When you have multiple Line Appearance keys, they are ordered from bottom to top, right to left. An incoming call will appear on the first available Line Appearance key.

Y o ur phone will normally have two or three pre-programmed Line Appearances. To be able to handle more simultaneous calls, you must program additional keys with Line Appearance.

Login

Using Login, you can enter your extension into any phone and take ownership of the phone. By doing this, you can direct all incoming calls for your extension to that phone. You must have the appropriate privileges to be able to log out of a phone.

Y ou can only log in to an unassigned phone (a phone without a user logged in). If a phone has a user logged in, you can log the user out by following procedure in “Logout” on page 44. An unassigned phone shows the following on its display:

Logged Out ACTIVATE

To log in to a phone, follow these steps:

1. Press the ACTIVATE softkey on an unassigned phone (a phone without a user logged in).

Extension: QUIT

2. Enter your extension.

Extension: 314 QUIT

PIN: ENTER QUIT

3. Enter your PIN.

PIN: ***** ENTER QUIT

4. Press the # key or the ENTER softkey once you have finished entering your PIN.

Page 50

Mitel IP Phone User Reference Guide

Logout

T o log out of a phone, follow these step s when your phone has n o calls connected. At the sta rt, the display should display the following:

1. Press the MENU softkey..

The system verifies that the PIN is valid and then it logs you into the phone.

Extension: 314 REDIAL CALLS MENU

Note: If you log in while you are logged in to another phone, the system will log you out of the original phone. You cannot log in or out, or activate a phone, while the phone is on an active call. If you are not logged into a phone, all calls to your extension go directly to call cove rage. If you have not been assigned the privileges re quired to log out of you r pho ne, you are not prompted for a PIN when you log in. You are not prompted for a PIN when you log in to a phone with a location extension.

Extension: 314 REDIAL CALLS MENU

MENU LOGOUT DIR QUIT

2. Press the LOGOUT softkey The LCD displays a confirmation message.

Confirm Logout YES NO

3. Press the YES softkey to proceed. The LCD will display the message “Logout successful”,

confirming that you are logged out of the phone and the system. Incoming calls will be forwarded to Call Coverage. The display will return to a logged out/unassigned idle state

Logout Successful

Logged Out ACTIVATE

Page 51

Using the phone system

Note: If your phone has been locked you cannot log out of the phone. The LOGOUT

softkey will not be displayed on your phone. Contact your system administrator for assistance. You cannot log in or out, or activate a phone, while the phone is on an active call. After you have logged out of the phone, callers to your extension will be directed to your call coverage target. If no call coverage target is set, the phone will ring until the caller hangs up. If the primary member of a Monitor Group logs out of the phone, calls to the Monitor Group will still ring any secondary phones and will redirect to the primary member’s call coverage target after the configured number of rings. For more information about Monitor Groups, se e “Monitored groups” on page 45. If a logged out phone has twinning configured, the twinning target phone will ring and the call wil be redirected to the logged-out phone’s call coverage target after the configured number of rings.

Monitored groups

If you requested to have your calls monitored, ca lls to one or m ore o f your L ine App ear ance s will automatically ring on your Monitor group member phones provided that they have configured the appropriate number of Monitor Calls or Monitor Call Silent keys on their phone.

When a member of your Monitor group has answered one of you r calls, the Line Appearan ce on your phone will still indicate the state of the call.

• A flashing key without a ring tone indicates that the call is on hold.

• A lit key indicates that the Line Appearance is in use.

If you requested to have your phone monitored, when your phone is in use the group member’s phones will show a lit LED against the Monitor Phone key they have configured on their phone.

Note: If you are part of a Monitor g roup, you can put a call on hold and eithe r the primary group member or other phones in the group can pick up the call. Your call coverage still applies when you are in a monitor group. A Monitor Phone key also acts a speed dial to the monitored extension. Monitor Groups is only applicable to users who are using Mitel IP phones.

Page 52

Mitel IP Phone User Reference Guide

Monitor call

Using the Monitor Call or Monitor Call Silent feature, you can monitor and pick up calls occurring on another user’s phone. To use this feature,

• Y ou must have the same number of p hone keys programmed with Monitor Call or Mo nitor Call Silent as the number of simultaneous calls that you want to monitor on the primary group member's phone. The maximum n umber of simultane ous calls that you can monitor for one Monitor Primary equals the number of Line Appearan ces that the Mon itor Primary has programmed on their phone.

For example, if you have one Monitor Call/Monitor Call Silent key programmed for a Monitor Primary, you will only be able to monitor one incoming or outgoing call at a time. If you have two Monitor Call/Monitor Call Silent keys programmed for a Monitor Primary, you will be able to monitor two incoming or outgoing calls at a time and so on. There is no direct correspondence between a Monitor Call/Monitor Call Silent key and a Line Appearance key on the Monitor Primary's phone. The Line Appearance that the first call occurs on (not necessarily the first Line Appearance) will be monitored by the first Monitor Call/Monitor Call Silent key; the Line Appearance that the second call occurs on (not necessarily the second line appearance) will be monitored by the second Monitor Call/Monitor Call Silent key and so on.

The Monitor Call/Monitor Call Silent key indicates the state of the Line Appearance on the primary group member’s phone that is being monitored. The only dif ference between Monitor Call and Monitor Call Silent is that your phone will not ring to indicate an incoming call to the Primary member.

For example:

• A flashing Monitor Call key with a ring tone indicates an incoming call to the Line Appearance.

• A flashing Monitor Call key without a ring tone indicates that the call is on hold.

• A flashing Monitor Call Silent key without a ring tone indi cates an incoming call to the Line Appearance or that the call is on hold.

• A lit Monitor Call/Monitor Call Silent key indicates that the Line Appearance is in use.

To answer a call occurring on the primary group member's phone, follow these steps:

1. When the Monitor Call/Monitor Call Silent key is flashing, lift the handset.

2. Press the Monitor Call/Monitor Call Silent key or press the Monitor Call/Monitor Call

Silent key to answer the call in speaker mode.

Note: By putting a call on hold, either the primary group member or other Monitor phones

can pick up the call.

Page 53

Using the phone system

Monitor Phone

Using the Monitor Phone feature, your phone activity can be monitored by other users. To enable the Monitor Phone feature, contact your administrator and provide a list of users that you would like to have monitor your phone. The administrator will create a Monitor group in your name with the people in your list as members of the group. There is no other actio n that needs to be taken on your part. When you are using your phone members of your call group will be able to see that the phone is in use provided that they have programmed a memory key to view activity on your phone.

When you use your phone a member of your Monitor group will see the LED of the memory key that they have programmed to monitor your phone light up.

Mute

Using Mute you can silence any sound from the phone. This does not pr event incoming sound from being heard. Press the Mute key on a 502 0/5220 IP phone or the key on a 5224

IP phone during a call to activate Mute. The LED on the key indicates when Mute is active.

One-Touch speed dial

Using One-Touch Speed Dial, you can make a call to a pre-progra mmed num ber. To use this feature, a programmable key must be programmed as a One-Touch Speed Dial.

Page

To use One Touch Speed Dial, choose one of the following:

• Lift the handset and press the One Touch Speed Dial key.

• Press an available Line Appearance key, to activate the speakerphone, and then press the One Touch Speed Dial key .

•Press the One Touch Speed Dial key. This will select an available Line Appearance and activate the speakerphone.

To page all of the phones at your site, follow these steps:

1. Select a memory key programmed with the Page feature. Your phone LCD displays "Calling: Site Page" while the system identifies the available

phones at your site.

Calling: Site Page

Page 54

Mitel IP Phone User Reference Guide

2. When the system is ready for you to begin your page, you will hear an alert tone and the

phone LCD screen displays the number of phones being paged.

Paging: 7 of 10 END

3. Speak into the handset or the speakerphone.

4. To end the page, you have the following options:

• Replace the handset if using the handset.

• Select the Speaker key on the 5020/5220 IP phone o r the key on the 5224 IP phone if using the speakerphone.

• Select the END softkey.

Note: A page is not broadcast on phones that are busy. If you select Page while there is already a page in progress, the system waits until the page in progress is completed before your page is started. Your phone displays "Calling: Site Page" and you hear ringing while you are waiting. On the phones receiving a page, the phone LCD screen displays the name of the user who originated the page and an END softkey. The user receiving the page can stop the page to their phone by selecting the END softkey.

Page from: Karen Gr END

Park and retrieve

To put a call on hold at a park location, follow this step:

• While on an active call, select a memory key programmed with the Park/Retrieve feature. The system places the call on hold at a park location.

The park location is displayed on your phone LCD.

Parked at: 4

You are no longer connected with the caller and your phone returns to the idle state.

To retrieve a parked call, follow these steps:

1. From an idle phone, lift the handset. This will select the next available Line Appearance.

Select a memory key programmed with the Park/Retrieve feature. The phone LCD screen displays:

Park Location: QUIT

Page 55

Using the phone system

2. Enter the required park location using the phone keypad.

The system connects you with the caller who was on hold at the park location. The LCD screen now displays the caller’s name (if known) or number.

Note: To cancel the retrieval of the parked call, press the QUIT softkey. If you enter a park location where there is no caller on hold, the phone LCD will briefly display "No Parked Call". There are nine park locations a vailable (1 through 9). If all park loca tions are in use when you try to park a call, the phone LCD will briefly display "Park Locations Full" and the call will be placed on hold. If the call is left parked for 30 seconds, the phone of the person who parked the call will beep and the phone’s LCD will briefly display "Call parked at: " with the park location number to remind you that the call has not been retrieved.

Speaker

Using Speaker, you can turn the speakerphone on your phone on and off. To use Speaker, press the Speaker key on a 5020/5220 IP phone or the key on a 5224 IP phone.

Transfer call

Robin Jones TRANS CONF END

Using Transfer, you can transfer a call from one phone to another. To transfer a call, follow these steps:

1. While on an active call, press the TRANS softkey . The system places the call on hold, and the LCD screen displays:

Transfer To: DIR QUIT

2. Enter the extension or phone number of the person to whom you want to transfer the call, or press a One-Touch Speed Dial key, or press a Line Appearance key that has a call on hold.

Transfer To:415 QUIT

3. Press the TRANSFER softkey once you hear ringing. You can also press the TRANSFER softkey after the additional party has answered. The LCD screen displays the message “Transfer Complete” for approximately five seconds before returning to an idle state.

If you enter an invalid extension during a transfer , the LCD screen displays “Invalid Extension”. To reconnect with the caller, follow these steps:

1. Press the END softkey.

2. Press the flashing Line Appearance key.

3. Try to transfer the call again.

Page 56

Mitel IP Phone User Reference Guide

If you choose not to complete the transfer , press the QUIT softkey , then press the flashin g Line Appearance key to retrieve the original call.

Note: You can use the Transfer key on a 5020/5220 IP Phone in place of the TRANS or TRANSFER softkey.

Note: You can use the key on a 5224 IP phone instead of the TRANS or TRANSFER softkey.

Transferring a call to voice mail

If your administrator has configured an auto attendant for voice mail deposit, you can transfer a call directly to a co-workers voice mail box.

To transfer a call to voice mail, follow these steps:

1. While on an active call, press the Transfer key on a 5020/5220 IP phone, or the key on the 5224 IP phone, or the TRANS softkey. The system places the call on hold, and the LCD will display:

Transfer To: DIR QUIT

2. Enter the extension of the auto attendant that your administrator h as created for voice mail deposit.

Transfer To: 701 QUIT

3. Select the auto attendant voice mail deposit optio n and enter the extension of the co-worker to whom you are transferring.

4. Select the TRANSFER sof tkey (or Transfer key on the 5020/5220 IP phone or the key on the 5224 IP phone) to complete the transfer. The LCD displays the message “Transfer Complete”.

Twinned calls

If you have configured your phone to be twinned to another phone (the twinning target), then incoming calls will ring at the same time on the other phone.

If you answer the call on your desk phone, the twinning target phone will stop ringing. If you answer the call on your twinning target phone, the Line Appearance key on your desk

phone will remain lit. To pull back the call to your desk phone, simply press the corresponding Line Appearance key. The call disconnects from the twinning target phone and connects to the desk phone.

Note that if neither your desk phone nor the twinning target phone answers an incoming call, your call coverage setting will determine what happens to the call. If the other phone has a voice message service associated with it, then your twinning target phone's voice message service may answer the call first. If you want to avoid this situation, then you should ensure that your call coverage is configured to answer calls before the twinning target phone voice mail service.

See “Twinning” on page 101.

Page 57

Using the phone system

Using voice mail

Using the Message key on a 5020/5220 IP phone or th e key on a 5224 IP phone, you can connect directly to voice mail to retrieve messages or manage voice mail options such as changing your voice mail greeting. The Message Waiting Lamp on the phone will light up if messages are waiting.

Using volume control

Use volume control to change ring volume, handset volume, and speaker volume.

Note: The ring, handset, and speaker volumes return to their default settings if the phone loses connectivity to power.

Changing ring volume

To change the ring volume on your phone, follow these steps:

1. From another phone, make a call to you extension.

2. While your phone is ringing, repeatedly press the Volume Control keys on a 5020/5220

IP phone or on a 5224 IP phone press the key until the ring volume is at the level you want.

Changing handset volume

To change the volume of the sound you hear through the handset, follow these steps:

1. Lift the handset. You will hear dialtone.

2. Repeatedly press the Volume Control keys on a 5020/5220 IP phone or on a 5224 IP

phone press the key until the volume is at the level you want.

3. Replace the handset.

Changing speaker volume

To change the volume of the sound you hear through the speaker, follow these steps:

1. Press the Speaker key on a 5020/5220 IP phone or the key on a 5224 IP phone. You will hear dialtone.

2. Repeatedly press the Volume Control keys on a 5020/5220 IP phone or on a 5224 IP phone press the keys until the volume is at the level you want.

Page 58

Mitel IP Phone User Reference Guide

Using the Mitel 5212 IP Phone

This section describes the setup, activation, and use of the Mitel 5212 IP phone.

The Mitel 5212 IP phone has the following features:

• Handsfree speaker phone (half duplex)

• 2-line, 20-character backlit LCD display

• 12 multi-function memory keys with color LEDs

• 6 fixed function keys, including Directory , Cancel, Red ial, Hold, T ransfer /Conference, and Message

• Mute and Speaker keys

• Dedicated headset jack

• Wall mountable

Initial set-up for Mitel 5212 IP phone service

To set up your new phone service, follow these steps:

1. Activate your phone. See “Activating a Mitel 5212 IP phone” on page 53.

2. Perform a Quick Set-up. See “Quick set-up” on page 89.

Figure 4: Mitel 5212 IP Phone

Page 59

Using the phone system

Activating a Mitel 5212 IP phone

T o activate a 5212 phone you must physically connect the phone, then log in with your extension and PIN number.

To activate your phone, follow these steps:

1. Unplug your computer from the network.

2. Plug the phone into the network (through the su pplied power p ack or from power o ver the

Ethernet; consult the documentation provided in the box).

3. Plug the computer into the phone.

4. Plug the phone power pack into an outlet.

5. Wait for the phone to display the following (this may take 30 seconds or more):

LOGGED OUT *00 to Login

6. Enter *00. The phone will display the following:

Extension:

7. Enter your extension. The phone will display the following:

PIN: Enter pin press #

8. Enter your PIN, then the # key. The phone will display the following:

Extension: 314

You have now successfully activated the phone, and can make calls.

Answering a call on the 5212 IP phone

When an incoming call is received on a phone, several things happen: (1) the phone r ings, (2) a Line Appearance flashes, and (3) the LCD displays the phone number of the caller and, if know, the name of the caller.

321: Robin Jones

You can answer an incoming call by using the handset or the speakerphone. You can pull back a call that has been answered by a twinned target phone by pressing the

corresponding Line Appearance key. See “Twinned Calls on the 5212 IP phone” on page 70.

Page 60

Mitel IP Phone User Reference Guide

Using the 5212 handset

To answer your phone using the handset, follow these steps:

1. Lift the handset.

• Alternatively, you may choose to use one of the following methods:

- Press the flashing Line Appearance key.

- Press the key on the 5212 IP phone.

You have now answered the call. The LCD displays the caller's name (if known).

321: Robin Jones

Note: If you choose to ignore the incoming call and select a different line appearance, the line appearance continues to flash but the phone stops ringing.

Using the 5212 speakerphone

To switch from the handset to the speakerphone during a call, follow these steps:

1. Press the key on the 5212 IP phone.

2. Replace the handset.

3. T o en d a call while using the speakerphone, press th e key on the 5212 IP phone.

Switch from speakerphone to handset on the 5212 IP phone

To switch from the speakerphone to the handset during a call, pick up the handset.

To end the call while using the handset, replace the handset.

Answering a second call on the 5212 IP phone

A second incoming call causes three things to happen: (1) the phone rings once, (2) a line appearance flashes, and (3) the LCD displays the number and the name of the caller, if the caller is known.

))321: Robin Jones

To answer a second call, choose one of the following:

• Press the flashing Line Appearance key. This put s the active call on hold and answers the second call.

Page 61

Using the phone system

• End the first call by replacing the handset. The phone will start ringing. Pick up the handset again to answer the second call.

T o switch between two active calls, press the flashing Line Appearance ke y. This put s the active call on hold, and activates the other call.

Note: If the display shows )) prior to the number calling, this indicates that it is a second call.

Making a call on the 5212 IP phone

To make a call, follow these steps:

1. Lift the handset. This will select the next available Line Appearance. You can also start

dialing the number without lifting the handset. This will automatically select the next available Line Appearance and operate in speakerphone mode.

2. T o make an internal call, dial the extension. T o make an external call, dial the prefix required

for external dialing (usually 9) followed by the number you want to call.

320

When you finish dialing the number, the call is placed.

Calling: Robin Jones

If you place an internal call, your LCD displays the extension and name of the connected party once the call is answered. If you place an external call, the LCD screen displays the name of the connected party, or if the name is unknown, the phone number.

320: Robin Jones

3. To end the call, replace the ha nd se t.

Note: To use the speakerphone for step 1, press an available Line Appearance key or

the key instead of lifting the handset.

• To end the call before you have completed dialing, choose one of the following:

• Replace the handset if using the handset.

• Select the key if using the speakerphone.

Making a second call on the 5212 IP phone

To make a second call while on an active call, follow these steps:

1. Press any available Line Appearance key. This puts the active call on hold and provides

dial tone for a second call.

Page 62

Mitel IP Phone User Reference Guide

2. T o make an internal call, dial the extension. To make an external call, dial the prefix required

for external dialing (usually 9) followed by the number you want to call.

320

3. When you finish dialing the number, the call is placed.

Calling: Robin Jones

4. If you place an internal call, the LCD displays the extension and name of the connected party once the call is answered. If you place an external call, the LCD screen displays the name of the connected party, or if the name is unknown, just the phone number.

320: Robin Jones

5. T o switch between two active calls, press the flashing Line Appearance key. This puts the active call on hold and activates the other call.

Ending one call keeps the second call on hold. To reconnect to the second call, press the flashing Line Appearance key.

Using features via the 5212 IP phone

This section explains the features available from your 5212 IP phone. Some of these features must be pre-programmed in order to be available. To learn how to program features to keys, see “Program memory keys” on page 93.

3-way call on the 5212 IP phone

Using 3-Way Call, you can set up a phone call among three separate parties.

To activate 3-Way Call, follow these steps:

1. While on an active call, press the key twice. This places the first call on hold, and selects an available Line Appearance. The LCD screen displays:

Conf with:

2. Enter the phone number of the third party.

The system dials the number and displays a "Calling" message along with the caller ID on the first line of the LCD screen.

Calling: Lesley Greene

Page 63

Using the phone system

3. When the third party answers the call, the LCD shows that a connection is established..

Lesley Greene

4. Press the key again. The 3-Way Call is now activated. The LCD screen displays:.

3-Way Call

Note: Until the key is pressed again, the first party will remain on hold and you can talk with the second party privately.

By putting a 3-Way Call on hold, the other parties can continue talking. If you want the option to leave the conference and leave the two parties’ connected (when both parties are external), you must have the permission Redirect Inbound Call to External Number enabled. Once the 3-Way Call is established, yo u can use the transfer feature to transfer both parties to another party.

Joining two calls on the 5212 IP phone

The 3-way call feature allows you to conference together two calls on your phone's Line appearances. To activate a 3-way call in these circumstances, follow these steps:

1. While on an active call, press the key twice.

2. Select the Line Appearance of the person on hold that is to be connected.

3. Press the key again. The 3-Way Call is now activated.

Account codes on the 5212 IP phone

Account code entry on the 5212 IP phone

To enter an account code before you place a call, follow these steps:

1. Select the Account Code key. The LCD displays:

Account Code:

2. Enter the account number using the phone keypad. The LCD displays the account code entered:

Account Code: 1234

Page 64

Mitel IP Phone User Reference Guide

3. Press the # key to start your call. The next available line appearance is selecte d, dial tone

is heard and your phone LCD updates.

Proceed with making your call.

To enter an account code during a call, follow these steps:

1. Select the Account Code key. The LCD displays:

Account Code:

2. Enter the account number using the phone keypad. Y ou hear a tone as you press the phone keys, but the person on the other end does not. The LCD displa ys the account code entered:

Account Code: 1234

3. Press the # key when you have finished entering the account code.

Note: You can re-enter an account code for a call multiple times. The last account code

entered is the account code that will be assigned to the call. If you enter an account code with an invalid length, the phone LCD briefly displays "Invalid Account Code". Contact your system administrator to determine the valid account code length for your business. You cannot assign an account code to a call once it has been completed.

Account code speed entry on the 5212 IP phone

To enter a pre-programmed account code before you place a call, follow these steps:

1. Select the Account Code key. The LCD briefly displays the account code that has been pre-programmed:

Account Code: 45678

The next available line appearance is selected, dial tone is heard and your phone LCD updates.

2. Proceed with making your call.

To enter a pre-programmed account code during a call, follow these steps:

• Select the Account Code key. The LCD briefly displays the account code that has been pre-programmed:

Account: 45678

Page 65

Using the phone system

Note: You can re-enter an account code for a call multiple times. The last account code

entered is the account code that will be assigned to the call.

To cancel account code entry before the call is placed, replace the handset (or press the

key if using the speakerphone). Account code speed entry during a call cannot be

cancelled. If the pre-programmed account code has an invalid length, the phone LCD briefly displays

"Invalid Account Code". Contact your system administrator to determine the valid account code length for your business.

You cannot assign an account code to a call once it has been completed.

Call list on the 5212 phone

Call list keeps a list of the calls that you make and receive. The call list is accessible from your phone. You can redial any calls that you made from the call list. See “Redial on the 5212 IP phone” on page 60. You may be able to dial a num ber from your incoming call list if it is supported by your service provider.

To use the feature, you must first have one of your programmable memory keys programm ed as an Incoming Calls List key.

To view the list of incoming calls received, follow these steps with your phone on-hook:

1. Press the Incoming Calls List key on your phone. The most recent call that you received is displayed:

1: 754-4536

2. Use the keys to navigate the list.

3. Press the Incoming Calls List key to exit from the call list.

To call a number from your incoming calls list:

1. Press the Incoming Calls List programmed key. The most recent call that you received is displayed:

1: 754-4536

2. Use the keys to navigate the list.

3. Press the key to make a call to the displayed number.

Page 66

Mitel IP Phone User Reference Guide

If you are on-hook, the next available Line Appearance is selected and the speakerphone is activated. The system will attempt to dial the displayed number by prefixing it with the appropriate digits for external dialing (usually "9" or "91" depending on configuration). If the number can be dialed as such, you will hear ringing once the call has been placed. If the number cannot be dialed as such, the call will fail and you will have to dial the number manually remembering to include the proper prefix digits.

Note: The position of the call in the call list is displayed in front of the phone number. The * symbol beside the position of the call means that the call was not answered.

Redial on the 5212 IP phone

Using the key, you can view a list of calls that were made and also redial a number in that list without using the keypad. The maximum amount of numbers in your redial list is typically ten but is dependent on your service provider.

To use Redial, follow these steps:

1. Press the key. The number that you most recently dialed is dis playe d:

*1: 9-605-223-7865

2. Use the Arrow keys to navigate the list (if required).

3. Once the required number is displayed, press the key to make the call. The next

available Line Appearance is selected and you will hear ringing once the number has been dialed.

Note: * means that the call was not answered. The position of the call in the call list is displayed in front of the phone number. Press the key to exit from the call list.

Company speed dial on the 5212 IP phone

Using Company S peed Dia l, you can call a number fro m the Exte rnal Dir ectory by p ressing a single memory key on your phone. T o use th is feature, you must have a phone key programmed with Company Speed Dial.

To make a call using the company speed dial, choose one of the following:

•Press the Company Sp eed Dial key for the number you want to call. The system will select the next available Line Appearance for you and activate the speakerphone.

• Activate the speakerphone and press the Company Speed Dial key.

• Select an available Line Appearance. This will activate the speakerphone. Press the Com- pany Speed Dial key

• Lift the handset and press the Comp any Speed Dial key for the number you want to call.

Page 67

Using the phone system

Directory on the 5212 IP phone

Using the Directory , you can view the Internal Directory on your phone's LCD screen and make calls.

Y o u can access the directory with the phone on-ho ok or of f-hook. To view the directory, follow these steps:

1. Press the key.

2. Use one of the following options to locate the person that you would like to call:

Andrews Kim

• Press the number on the keypad for the appropriate first letter of the person's last name. For example, press "5" twice for "K":

K: Kennedy Pat

• Scroll down or up, using the Arrow keys, to find the name you want:

Knowles Erin

3. Once the correct name is displayed, press the key to dial the number .

Forwarding your 5212 IP phone

You can forward your phone by using any of the forwarding features. In each case, you must program a memory key with the appropriate feature. Se e “Program memory keys” on p age 93.

You can forward your phone by following the procedure described in the following sections:

• “Forward your 5212 IP phone to auto attendant” on page 61

• “Forward your 5212 IP phone to co-worker” on page 62

• “Forward your 5212 IP phone to coverage” on page 62

• “Forward your 5212 IP phone to number” on page 62

• “Forward your 5212 IP phone to prompt” on page 62

Forward your 5212 IP phone to auto attendant

Using Forward to Auto Attendant, you can send all incoming calls to a selected auto attendant. Press the Forward to AA key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the program med key indicates when the phone is being forwarded.

To use this feature, you must have a key programmed with Forward to AA.

Note: If you have this feature turned on when you log out of your phone, all your calls will be forwarded to the auto attendant.

Page 68

Mitel IP Phone User Reference Guide

Forward your 5212 IP phone to co-worker

To use this feature, you must have a key programmed with Forward to Co-worker.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to your co-worker.

Forward your 5212 IP phone to coverage

Using Forward to Coverage, you can send all incoming calls to the option you selected for your Call Coverage (see “Call Coverage” on p age 100). Press the Forward to Coverage key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the programmed key indicates when the phone is being forwarded.

To use this feature, you must have a key programmed with Forward to Coverage.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to coverage.

Forward your 5212 IP phone to number

Using Forward to Number, you can send all incoming calls to a preset phone number. Press the Forward to Number key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the progr ammed key indicates when the phone is be ing forwarded.

To use this feature, you must have a key programmed with Forward to Number.

Note: If you forward your phone to an external phone number , you must have permission to make that external call and Redirect Inbound Call to External Number permission. For instructions about how to view your call permissions, see “Permissions” on page 91. If you have this feature turned on when you log out of your phone, all your calls will be forwarded to the number defined.

Forward your 5212 IP phone to prompt

Using Forward to Prompt, you can send all incoming calls to a phone number that you have entered via your phone. The LED on the programmed key indica te s wh en the phone is b ein g forwarded.

To forward to prompt, follow these steps:

1. Press the Forward to Prompt key on your phone. The system will ask you to enter a phone number.

2. Enter the phone number on the phone keypad.

Page 69

Using the phone system

3. Press the # key on the keypad.

To change the phone number for the forward to prompt, repeat the above three steps.

To turn forward to prompt off, follow these steps:

1. Press the Forward to Prompt key.

2. Press the # key on the keypad. Note: To use this feature, you must have a key programmed with Forward to Prompt.

The system stores internal extensions, therefore you do not need to press the # key for extensions. If you forward a phone to an external phone number , you must have permission to make that external call and Redirect Inbound Call to External Number permission. See “Permissions” on page 91 for instructions on how to view your call permissions.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to the numbered you entered.

Handsfree answerback on the 5212 phone

Using Handsfree answerback, you can have intercom calls automatically answered so that you have a two-way speech connection. See “Intercom calls on the 5212 phone” on page 63.

Press the Handsfree answerback key to turn the feature on. Press the key a second time to turn the feature off. The LED on the programmed key indicates when the Handsfree answerback feature is turned on.

T o be able to activate and deactivate this feature with a key, you must have a key programmed with Handsfree answerback. See “Program memory keys” on page 93.

Y ou can also enable the feature without a key by checking the box for Handsfree answerback on your Personal Details page. See “Change user details” on page 90.

Hold on the 5212 IP phone

Using Hold, you can put an active call on hold, and make other calls. The LED of the Line Appearance key flashes to indicate the call is on hold.

To place a call on hold, follow these ste ps:

1. While on an active call, press the key.

The indicator light next to the active Line Appearance changes from green to red and flashes slowly.

2. To remove the call from hold, press the Line Appearance key.

Intercom calls on the 5212 phone

You can make intercom calls to a co-worker and to a prompt.

Page 70

Mitel IP Phone User Reference Guide

Intercom to co-worker on the 5212 phone

Using Intercom to Co-worker , you can make a page to a selected co-wor ker that is broadcast through the speaker on your co-worker's phone. Pick up the handset or select a Line Appearance key , then press the Intercom to Co-worker key to start th e page to your co-worker . If you press the Intercom to Co-worker key with no line active, the next available line appearance key will automatically be selected. Note that if your phone is active on a call or in a ringing state, you must select an available line appearance key before pressing th e Intercom to Co-worker key.

If your co-worker has the Handsfree Answerback feature configured and activated, then you will also be able to hear your co-worker speak. See “Handsfree answerback on the 5212 phone” on page 63.

To use this feature, you must have a key programmed with Intercom to Co-worker. See “Program memory keys” on page 93.

Intercom to prompt on the 5212 phone

Using Intercom to Prompt, you can make a page to any co-worker whose number you enter on the phone.

To make a call with Intercom to pro mpt, follow these steps:

1. Press the Intercom to Prompt key on your phone. The system will ask you to enter a phone number.

If your phone is already active on a call or ringing, press an available Line Appearance key or put the current call on hold before you can use the Intercom to Prompt feature.

2. Enter the phone number of your co-worker on the phone keypad.

You will then be connected to your co-worker and you can speak through their speaker. If your co-worker has the Handsfree Answerback feature configured and activated, then you will also be able to hear your co-worker speak. See “Handsfree answerback on the 5212 phone” on page 63.

To use this feature, you must have a key programmed with Intercom to Prompt.

Join/Leave group on the 5212 IP phone

•Press the Join/Leave Group key once to turn the feature on. Press the key a second time

to turn the feature off. The LED on the programmed key indicates when you are logged into the call group.

To use this feature, you must have a key programmed with Join/Leave Group.

Page 71

Using the phone system

Line appearance on 5212 IP phone

Line Appearance keys are required in order to receive incoming calls and to make outgoing calls. The LED on the programmed key indicates the status of the Line Appearance.

• Key is unlit - the Line Appearance is available for an incoming or outgoing call.

• Key is flashing green with a ring tone - an incoming call is available to be answered.

• Key is flashing red without a ring tone - a call is on hold.

• Key is solid - If this is green, then a call is active. If this is red, then a twinned call is active on the twinned target phone.

When you have multiple Line Appearance keys, they are ordered from bottom to top. An incoming call will appear on the first available Line Appearance key.

Y o ur phone will normally have two or three pre-programmed Line Appearances. To be able to handle more simultaneous calls, you must program additional keys with Line Appearance.

Message on the 5212 IP phone

Using the key , you can connect directly to voice mail to retrieve me ssages or manage voice mail options. The Message Waiting indicator on the phone lights up if messages are waiting.

Monitor Groups on 5212 IP phone

If you requested to have your calls monitored, ca lls to one or m ore o f your L ine App ear ance s will automatically ring on your Monitor group member phones provided that they have configured the appropriate number of Monitor Calls or Monitor Call Silent keys on their phone.

When a member of your Monitor group has answered one of you r calls, the Line Appearan ce on your phone will still indicate the state of the call.

• A flashing key without a ring tone indicates that the call is on hold.

• A lit key indicates that the Line Appearance is in use.

If you requested to have your phone monitored , when your phone is in use the group members phones will show a lit LED against the Monitor Phone key they have configured on their phone.

Note: By putting a call o n hold, either the primary g roup member or other phones in the group can pick up the call. Your call coverage still applies when you are in a monitor group. A Monitor Phone key also acts a speed dial to the monitored extension. Monitor Groups is only applicable to users who are using Mitel IP phones.

Page 72

Mitel IP Phone User Reference Guide

Monitor Call on 5212 IP phone

Using the Monitor Call or Monitor Call Silent feature, you can monitor and pick up calls occurring on another user's phone.

To use this feature:

• Y o u must have the same numb er of phone keys progra mmed with Monitor Call or Moni tor Call Silent as the number of simultaneous calls that you want to monitor on the primary group member's phone. The maximum n umber of simultane ous calls that you can monitor for one Monitor Primary equals the number of Line Appearan ces that the Mon itor Primary has programmed on their phone.

For example, if you have one Monitor Call/Monitor Call Silent key programmed for a Monitor Primary, you will only be able to monitor one incoming or outgoing call at a time. If you have two Monitor Call/Monitor Call Silent keys programmed for a Monitor Primary, you will be able to monitor two incoming or outgoing calls at a time and so on. There is no direct correspondence between a Monitor Call/Monitor Call Silent key and a Line Appearance key on the Monitor Primary's phone. The Line Appearance that the first call occurs on (not necessarily the first Line Appearance) will be monitored by the first Monitor Call/Monitor Call Silent key, the Line Appearance that the second call occurs on (not necessarily the second line appearance) will be monitored by the second Monitor Call/Monitor Call Silent key and so on.

The Monitor Call/Monitor Call Silent key indicates the state of the Line Appearance on the primary group members phone that is being monitored. The only d iffer ence between Monitor Call and Monitor Call Silent is that your phone will not ring to indicate an incoming call to the Primary member. For example:

• A flashing Monitor Call key with a ring tone indicates an incoming call to the Line

Appearance.

• A flashing Monitor Call key without a ring tone indicates that the call is on hold.

• A flashing Monitor Call Silent key without a ring tone indicates an incoming call to the

Line Appearance or that the call is on hold.

• A lit Monitor Call/Monitor Call Silent key indicates that the Line Appearance is in use.

To pick up a call occurring on the primary group member's phone, follow these steps:

1. When the Monitor Call/Monitor Call Silent key is flashing, lift the handset.

2. Press the Monitor Call/Monitor Call Silent key.

or Press the Monitor Call/Monitor Call Silent key to answer the call in speaker mode.

Note: By putting a call on hold, either the primary g roup member or other Monitor phones

can pick up the call.

Page 73

Using the phone system

Monitor Phone on 5212 IP phone

Using the Monitor Phone feature, your phone ca n be monitor ed by other user s. To enable the Monitor Phone feature, contact your administrator and provide a list of users that you would like to have monitor your phone. The administrator will create a Monitor group in your name with the people in your list as members of the group. There is no other action that needs to be taken on your part. When you are using your phone members of your call group will be able to see that the phone is in use provided that they have pro grammed a memory key to view activity on your phone.

When you use your phone a member of your Monitor group will see the LED of the memory key that they have programmed to monitor your phone light up.

Mute on 5212 IP phone

One touch speed dial on 5212 IP phone

Using One Touch Speed Dial, you can make a call to a pre-programmed number. To use this feature, a programmable key must be programmed as a One Touch Speed Dial.

To use One Touch Speed Dial, choose one of the following:

• Lift the handset and press the One Touch Speed Dial key.

• Press an available Line Appearance key, to activate the speakerphone, and then press the One Touch Speed Dial key .

•Press the One Touch Speed Dial key. This will select an available Line Appearance and activate the speakerphone.

Page on the 5212 IP phone

To page all of the phones at your site, follow these steps:

1. Select a memory key programmed with the Page feature. Your phone LCD screen displays "Calling: Site Page" while the system identifies the

available phones at your site.

Calling: Site Page

Page 74

Mitel IP Phone User Reference Guide

2. When the system is ready for you to begin your page, you will hear an alert tone and the

phone LCD screen displays the number of phones being paged.

Paging: 7 of 10

3. Speak into the handset or the speakerphone.

4. To end the page, you have the following options:

• Replace the handset if using the handset.

• Select the key if using the speakerphone. Note: A page is not broadcast on phones that are busy.

If you select Page while there is already a page in progress, the system waits until the page in progress is completed before your page is started. Your phone displays "Calling: Site Page" and you hear ringing while you are waiting.

Park and retrieve on the 5212 IP phone

To put a call on hold at a park location, follow these steps:

1. While on an active call, select a memory key programmed with the Park/Retrieve featur e. The system places the call on hold at a park location. The park location is displayed on

your phone LCD screen:

Parked at: 4

You are no longer connected with the caller and your phone returns to the idle state.

To retrieve a parked call, follow these steps:

1. From an idle phone, lift the handset. This will select the next available Line Appearance. Select a memory key programmed with

the Park/Retrieve feature. The phone LCD screen displays:

Park Location:

2. Enter the required park location using the phone keypad. The system connects you with the caller who was on hold at the park location. The LCD

screen now displays the caller's name (if known) or number.

Robin Jones

Page 75

Using the phone system

Note: To cancel the retrieval of the parked call, press the key.

If you enter a park location where there is no caller on hold, the phone LCD will briefly display "No Parked Call". There are nine park locations a vailable (1 through 9). If all park loca tions are in use when you try to park a call, the phone LCD will briefly display "Park Locations Full" and the call will be placed on hold. If the call is left parked for 30 seconds, the phone of the person who parked the call will beep and the phone’s LCD will briefly display "Call parked at: " with the park location number to remind you that the call has not been retrieved.

Speaker on the 5212 IP phone

Using Speaker, you can turn the speakerphone on your phone on and off. To use Speaker, press the key.

Transfer call on the 5212 IP phone

Using Transfer, you can transfer a call from one phone to another. To transfer a call, follow these steps:

1. While on an active call, press the key. The system places the call on hold, and the LCD screen displays:

Transfer To:

2. Enter the extension or phone number of the person to whom you wish to transfer, or press a One-Touch Speed Dial button.

Transfer To: 415

3. Press the key once you hear ringing. The LCD screen displays the message "Transfer Complete" for appr oximately five seconds before returning to an idle state.

Note: Instead of pressing the key immediately you can wait until the destination answers and then press the key.

If you enter an invalid extension during a transfer , the LCD screen displays "Invalid Extension". To reconnect with the caller, follow these steps:

1. Press the key.

2. Press the flashing Line Appearance key.

3. Try to transfer the call again.

If you choose not to complete the transfer, press the key, then press the flashing

Line Appearance key to retrieve the original call.

Page 76

Mitel IP Phone User Reference Guide

Transfer to voice mail from the 5212 IP phone

If your administrator has configured an auto attendant for voice mail deposit, you can transfer a caller directly to a co-worker's voice mail box.

To transfer a call to voice mail, follow these steps:

1. While on an active call, press the key. The system places the call on hold, and the LCD screen displays:

Transfer To:

2. Enter the extension of the auto attendant that your administrator h as created for voice mail deposit.

3. Select the auto attendant voice mail deposit optio n and enter the extension of the co-worker to whom you are transferring.

4. Press the key to complete the transfer . The LCD displays the message "Transfer Complete" for approximately five seconds before returning to an idle state.

Twinned Calls on the 5212 IP phone

If you have configured your phone to be twinned to another external phone (the twinning target), then incoming calls will ring the other phone as well.

If you answer the call on your desk phone, the twinning target phone will stop ringing. If you answer the call on your twinning target phone, the Line Appearance key on your desk

phone will remain lit. To pull back the call to your desk phone, simply press the corresponding Line Appearance key. The call will be dropped from the twinning target phone and you will be connected on your desk phone.

Note that if neither your desk phone nor the twinning target phone answers an incoming call, your call coverage setting will determine what happens to the call (See “Call Coverage” on page 100). If the other phone has a voice messag e service associated with it, then your twinning target phone's voice messag e service may answer the call first. If you want to avoid this situation, then you should ensure that your call coverage is configured to answer calls before the twinning target phone.

See “Twinning” on page 101.

Voice mail on 5212 IP phone

T o access your voice mail box for message retrieval or mail box administration such as changing your voice mail greeting or password, press the key and follow the audio instructions.

If your administrator has created an auto attendant with a voice mail retrieval option and associated it to an external number, you can access your mail box from a ny phone by dialing the external number and then selecting the vo ice m ail retrie va l opt ion . You are prompted for your extension, then connected to your voice mail box.

Page 77

Using the phone system

Volume control on the 5212 IP phone

Use volume control to change ring volume, handset volume, and speaker volume.

Note: The ring, handset, and speaker volumes return to their default settings if the phone loses power.

Change ring volume on the 5212 IP phone

To change the ring volume on your phone, follow these steps:

1. From another phone, make a call to your extension.

2. While it is ringing, repeatedly press the keys until the ring volume is at the level

you want.

Change handset volume on 5212 IP phone

To change the volume of the sound you hear through the handset, follow these steps:

1. Lift the handset. You will hear dialtone.

2. Repeatedly press the keys until the volume is at the level you want.

3. Replace the handset.

Change speaker volume on 5212 IP phone

To change the volume of the sound you hear through the speaker, follow these steps:

1. Press the Speaker button. You will hear dialtone.

2. Repeatedly press the keys until the volume is at the level you want.

Using the Telematrix 3000 phone

This section describes the Telematrix 3000 phones. To set up your new phone service, see “Initial setup for Telematrix 3000 phone” on page 72. For a description of your phone, see “Telematrix 3000 phone” on page 72. Other topics covered in this section are:

• “Answering a second call on the Telematrix 3000” on page 74

• “Making a call on the Telematrix 3000” on page 74

• “Using features via the Telematrix 3000” on page 75

• “Volume control on the Telematrix 3000” on page 83

• “Voice mail on the Telematrix 3000” on page 83

Page 78

Mitel IP Phone User Reference Guide

Telematrix 3000 phone

The Telematrix 3000 phone has the following features:

• Key pad

• Message, Redial and Conference feature keys

• 12 Memory keys including 2 Line Appearance keys

• Volume Keys

• Message waiting indicator

• Handset

• Microphone/Speaker for handsfree operation

• Hold key

• Mute key

Initial setup for Telematrix 3000 phone

To set up your new phone service, follow these steps:

• Activate your phone. See “Activating a Telematrix 3000 phone” on page 73.

• Perform a Quick Set-up. See “Quick set-up” on page 89.

Figure 5: Telematrix 3000 IP phone

Page 79

Using the phone system

Activating a Telematrix 3000 phone

To activate a Telematrix 3000 phone you must physically connect the phone, then log in with your extension and PIN number.

To activate your phone, follow these steps:

1. Unplug your computer from the network.

2. Plug the phone into the network (through the supplied power p ack - consult the docum en-

tation provided in the box).

3. Plug the computer into the phone.

4. Plug the phone power pack into an outlet.

5. Wait for the lights on the phone to stop flashing (this may take 30 seconds or more):

6. Enter *00<your extension><your PIN>#. For example, if your extension is 123 and your

PIN is 9876, enter *001239876#

You have now successfully activated the phone, and can make calls.

Answering a call on the Telematrix 3000

When an incoming call is received on a phone, the phone rings, and a Line Appearance flashes.

You can answer an incoming call by using the handset or the speakerphone. See “Using the T elematrix 3000 handset” on p age 73. See also, “Using the Telematrix 3000 speakerphone” on page 73.

You can pull back a call that has been answered by a twinned target phone by pressing the corresponding Line Appearance key. See “Twinned Calls on the Telematrix 3000” on p age 83.

Using the Telematrix 3000 handset

To answer your phone using the handset, follow these steps:

1. Lift the handset.

2. Alternatively, you may choose to use one of the following methods:

• Press the flashing Line Appearance key.

• Press the speaker key on the Telematrix 3000 phone.

You have now answered the call.

Note: If you choose to ignore the incoming call and select a different line appearance, the line appearance continues to flash, but the phone stops ringing.

Using the Telematrix 3000 speakerphone

To switch from the handset to the speakerphone during a call, follow these steps:

1. Press the speaker key on the Telematrix 3000 phone.

2. Replace the handset.

Page 80

Mitel IP Phone User Reference Guide

3. T o end a call while using the speaker phone, press the speaker key on the Telematrix 3000

phone.

Switch from speakerphone to handset on the Telematrix 3000

• To switch from the speakerphone to the handset during a call, pick up the handset.

• To end the call while using the handset, replace the handset.

Answering a second call on the Te lematrix 3000

A second incoming call causes the phone to ring once, and a line appearance key to flash.

To answer a second call, choose one of the following:

• Press the flashing Line Appearance key. This puts the active call on hold and answers the

second call.

• End the first call by replacing the handset. The phone will start ringing. Pick up the handset

again to answer the second call.

• T o switch be tween two active calls, press the flashing Line Appear ance key . This puts the

active call on hold and activates the other call.

Making a call on the Telematrix 3000

To make a call, follow these steps:

1. Lift the handset. This will select the next available Line Appearance.

You can also start dialing the number without lifting the handset. This will automatically select the next available Line Appearance and operate in speakerphone mode.

2. T o make an internal call, dial the extension. To make an external call, dial the prefix required for external dialing (usually 9) followed by the number you want to call.

When you finish dialing the number, the call is placed.

3. To end the call, replace the hand se t.

Note: To use the speakerphone for step 1, press an available Line Appearance key or

the Speaker key instead of lifting the handset. To end the call before you have completed dialing, choose one of the following: Replace the handset if using the handset. Select the Speaker key if using the speakerphone.

Making a second call on the Telematrix 3000

To make a second call while on an active call, follow these steps:

1. Press any available Line Appearance key. This puts the active call on hold, and provides dial tone for a second call.

2. T o make an internal call, dial the extension. To make an external call, dial the prefix required for external dialing (usually 9) followed by the number you want to call.

When you finish dialing the number the call is placed.

Page 81

Using the phone system

3. T o switch between two active calls, press the flashing Line Appeara nce key. This puts the

active call on hold, and activates the other call.

4. Ending one call keeps the second call on hold. To reconnect to the second call, press the flashing Line Appearance key.

Using features via the Telematrix 3000

3-way call on the Telematrix 3000

Using 3-Way Call, you can set up a phone call among three separate phones.

To activate 3-Way Call, follow these steps:

1. While on an active call, press the conference key. This places the first call on hold, and selects an available Line Appearance.

2. Enter the phone number of the third party.

The system dials the number.

3. Wait for the third party to answer the call.

4. Press the conference key again. The 3-Way Call is now activated.

Note: Until the conference key is pressed again, the first party will remain on hold and

you can talk with the second party privately. By putting a 3-Way Call on hold, the other parties can continue talking. If you disconnect from the call, the remaining two parties will stay connected (Call transfer). If you want the option to leave the conference and leave the two p arties connected (when both parties are external), you must have the permission Redirect Inbound Call to External Number enabled. See “Permissions” on page 91.

Joining two calls on the Telematrix 3000

The 3-way call feature allows you to conference together two calls on your phone's Line appearances. To activate a 3-way call in these circumstances, follow these steps:

1. While on an active call, press the conference key.

2. Select the Line Appearance of the person on hold that is to be connected.

3. Press the conference key again. The 3-Way Call is now activated.

Account code speed entry on the Telematrix 3000

Page 82

Mitel IP Phone User Reference Guide

To use this feature, it must be enabled for your business and you must have a memory key programmed with Account Code and a pre-programmed account code.

To enter a pre-programmed account code before you place a call, follow these steps:

1. Select the Account Code key.

2. The next available line appearance is selected, and dial tone is heard

3. Proceed with making your call. See “Making a call on the Telematrix 3000” on page 74.

To enter a pre-programmed account code during a call, follow this step:

• Select the Account Code key. Note: You can re-enter an account code for a call multiple times. The last account code

entered is the account code that will be assigned to the call. T o cancel account code entry befo re the call is placed, replace the handset (or p ress the speaker key if using the speakerphone). Account code speed entry during a call cannot be cancelled. You cannot assign an account code to a call once it has been completed.

Redial on the Telematrix 3000

Using the Redial key , you ca n redial the most recently diale d number . Simply press the Redial key twice.

Company speed dial on the Telematrix 3000

Using Company S peed Dia l, you can call a number fro m the Exte rnal Dir ectory by p ressing a single memory key on your phone. T o use th is feature, you must have a phone key programmed with Company Speed Dial. See “Program memory keys” on page 93.

To make a call using the company speed dial, choose one of the following:

•Press the Company Sp eed Dial key for the number you want to call. The system will select

the next available Line Appearance for you and activate the speakerphone.

• Activate the speakerphone and press the Company Speed Dial key.

• Select an available Line Appearance. This will activate the speakerphone. Press the Com-

pany Speed Dial key

• Lift the handset and press the Comp any Speed Dial key for the number you want to call.

Forwarding the Telematrix 3000

Using the following features, you can forward your phone:

• “Forward the Telematrix 3000 to auto attendant” on page 77

• “Forward the Telematrix 3000 to co-worker” on page 77

• “Forward the Telematrix 3000 to coverage” on page 77

• “Forward the Telematrix 3000 to number” on page 77

Page 83

Using the phone system

Forward the Telematrix 3000 to auto attendant

Using Forward to Auto Attendant, you can send all incoming calls to a selected auto attendant. Press the Forward to AA key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the program med key indicates when the phone is being forwarded.

To use this feature, you must have a key programmed with Forward to AA. See “Program memory keys” on page 93.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to the auto attendant.

Forward the Telematrix 3000 to co-worker

To use this feature, you must have a key programmed with Forward to Co-worker. See “Program memory keys” on page 93.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to your co-worker.

Forward the Telematrix 3000 to coverage

To use this feature, you must have a key programmed with Forward to Coverage. See “Program memory keys” on page 93.

Note: If you have this feature turned on when you log out of your phone all your calls will be forwarded to coverage.

Forward the Telematrix 3000 to number

T o use this feature, you must have a key programmed with Forward to Number . See “Program memory keys” on page 93.

Note: If you forward your phone to an external phone number, you must have per mission to make that external call and Redirect Inbound Call to External Number permission. For instructions about how to view your call permissions, see “Permissions” on page 91. If you have this feature turned on when you log out of your phone all your calls will be forwarded to the number defined.

Page 84

Mitel IP Phone User Reference Guide

Handsfree answerback on the Telematrix 3000

Using Handsfree answerback, you can have intercom calls automatically answered so that you have a two-way speech connection. See “Intercom to co-worker on the Telematrix 3000” on page 78.

T o be able to activate and deactivate this feature with a key, you must have a key programmed with Handsfree answerback. See “Program memory keys” on page 93.

Y o u can also enable the feature without a key by checking the box for Handsfree Answerback on your Personal Details page. See “Change user details” on page 90.

Hold on the Telematrix 3000

Using Hold, you can put an active call on hold, and make other calls. The LED of the Line Appearance key flashes to indicate the call is on hold.

To place a call on hold, follow these steps:

1. While on an active call, press the hold key.

The indicator light next to the active Line Appearance changes from green to red an d flashes slowly.

2. To remove the call from hold, press the Line Appearance key.

Intercom to co-worker on the Telematrix 3000

Using Intercom to Co-worker , you can ma ke a page to a selected co-worker that is broadcast through speaker on your co-worker's phone. Pick up the handset or select a Line Appearance key, then press the Intercom to Co-worker key to start the page to your co-worker. If you press the Intercom to Co-worker key with no line active, the next available line appearance key will automatically be selected. Note that if your phone is active on a call or in a ringing state, you must select an available line appearance key before pressing the Int ercom to Co-worker key.

If your co-worker has the Handsfree Answerback feature configured and activated, then you will also be able to hear your co-worker speak. See “Handsfree answerback on the T elematrix 3000” on page 78.

To use this feature, you must have a key programmed with Intercom to Co-worker. See “Program memory keys” on page 93.

Join/Leave group on the Telematrix 3000

Page 85

Using the phone system

•Press the Join/Leave Group key once to turn the feature on. Press the key a second time to turn the feature off. The LED on the programmed key indicates when you ar e logged into the call group.

To use this feature, you must have a key programmed with Join/Leave Group.

Line appearance on the Telematrix 3000

Line Appearance keys are required in order to receive incoming calls and to make outgoing calls. The LED on the programmed key indicates the status of the Line Appearance.

• Key is unlit - the Line Appearance is available for an incoming or outgoing call.

• Key is flashing green with a ring tone - an incoming call is available to be answered.

• Key is flashing red without a ring tone - a call is on hold.

• Key is solid - a call is active. If this is green, then a call is active. If this is red, then a twinned call is active on the twinned target phone.

When you have multiple Line Appearance keys, the y ar e or de r ed from left to right, botto m to top. An incoming call will appear on the first available Line Appearance key.

Y our phone will normally have two or three pre-programmed Line Appearances. T o handle more simultaneous calls, you must program additional keys with Line Appearance. See “Program memory keys” on page 93.

Message on the Telematrix 3000

Using the Message key , you can connect directly to voice mail to retrieve messages or manage voice mail options. The Message Waiting indicator on the key light s up if messages are waiting.

Monitor Groups on the Telematrix 3000

If you requested to have your calls monitored, ca lls to one or m ore o f your L ine App ear ance s will automatically ring on your Monitor group member phones provided that they have configured the appropriate number of Monitor Calls or Monitor Call Silent keys on their phone.

When a member of your Monitor group has answered one of you r calls, the Line Appearan ce on your phone will still indicate the state of the call.

• A flashing key without a ring tone indicates that the call is on hold.

• A lit key indicates that the Line Appearance is in use.

Page 86

Mitel IP Phone User Reference Guide

If you requested to have your phone monitored, wh en your phone is in use the group member s phones will show a lit LED against the Monitor Phone key they have configured on their phone.

Note: By putting a call on hold, either the p rimary group member or other phones in the group can pick up the call. Your call coverage still applies when you are in a monitor group. A Monitor Phone key also acts a speed dial to the monitored extension. Monitor Groups is only applicable to users who are using Mitel IP phones or the Telematrix

3000.

Monitor Call on the Telematrix 3000

Using the Monitor Call or Monitor Call Silent feature, you can monitor and pick up calls occurring on another user's phone. To use this feature,

• Y ou must have the same number of p hone keys programmed with Monitor Call or Mo nitor Call Silent as the number of simultaneous calls that you want to monitor on the primary group member's phone. The maximum n umber of simultane ous calls that you can monitor for one Monitor Primary equals the number of Line Appearan ces that the Mon itor Primary has programmed on their phone.

• A flashing Monitor Call key with a ring tone indicates an incoming call to the Line Appearance.

• A flashing Monitor Call key without a ring tone indicates that the call is on hold.

• A flashing Monitor Call Silent key without a ring tone indi cates an incoming call to the Line Appearance or that the call is on hold.

• A lit Monitor Call/Monitor Call Silent key indicates that the Line Appearance is in use.

Page 87

Using the phone system

To answer a call occurring on the primary group member's phone, follow these steps:

1. When the Monitor Call/Monitor Call Silent key is flashing, lift the handset.

2. Press the Monitor Call/Monitor Call Silent key.

Press the Monitor Call/Monitor Call Silent key to answer the call in speaker mode.

Note: By putting a call on hold, either the primary group member or other Monitor phones can pick up the call.

Monitor Phone on the Telematrix 3000

Using the Monitor Phone feature, your phone ca n be monitor ed by other user s. To enable the Monitor Phone feature, contact your administrator and provide a list of users that you would like to have monitor your phone. The administrator will create a Monitor group in your name with the people in your list as members of the group. There is no other action that needs to be taken on your part. When you are using your phone members of your call group will be able to see that the phone is in use provided that they have pro grammed a memory key to view activity on your phone.

When you use your phone a member of your Monitor group will see the LED of the memory key that they have programmed to monitor your phone light up.

Mute on Telematrix 3000

Using Mute, you can silence any sound from the phone. This does not p revent incoming sound from being heard. Press the Mute key during a call to activate Mute. The LED on the key indicates when Mute is active.

One touch speed dial on the Telematrix 3000

To use One Touch Speed Dial, choose one of the following:

• Lift the handset and press the One Touch Speed Dial key.

• Press an available Line Appearance key, to activate the speakerphone, and then press the One Touch Speed Dial key .

•Press the One Touch Speed Dial key. This will select an available Line Appearance and activate the speakerphone.

Page on the Telematrix 3000

Page 88

Mitel IP Phone User Reference Guide

To page all of the phones at your site, follow these steps:

1. Select a memory key programmed with the Page feature. When the system is ready for you to begin your page, you will hear an alert tone.

2. Speak into the handset or the speakerphone.

3. To end the page, you have the following options:

• Replace the handset if using the handset.

• Select the Speaker key if using the speakerp hone.

Speaker on the Telematrix 3000

Using Speaker, you can turn the speakerphone on your phone on and off. To use Speaker, press the Speaker key

Transfer call on the Telematrix 3000

You can transfer a call from one phone to another by using the Conference key. T o tran sfer a call, follow these steps:

1. While on an active call, press the Conference key. The system places the call on hold.

2. Enter the extension or phone number of the pers on to whom you want to transfer , or press

a One-Touch Speed Dial button.

3. Wait for the person to answer.

4. Press the Conference key once the second call is answered.

5. Hang up your phone. The call will then be transferred to the remaining two parties.

If you enter an invalid phone number during a transfer, follow these steps:

1. Replace the handset (hang-up).

2. Press the flashing Line Appearance key.

3. Try to transfer the call again.

Transfer to voice mail from the Telematrix 3000

If your administrator has configured an auto attendant for voice mail deposit, you can transfer a caller directly to a co-worker's voice mail box.

To transfer a call to voice mail, follow these steps:

1. While on an active call, press the Conference key. The system places the call on hold.

2. Enter the extension of the auto attendant that your administrator h as created for voice mail

deposit.

Page 89

Using the phone system

3. Select the auto attendant voice mail deposit option and enter the extension of the co-worker

to whom you are transferring.

4. Press the Conference key to conference all three parties together.

5. Replace the handset (or press the Speaker key if you are in speakerphone mode) to

complete the transfer.

Twinned Calls on the Telematrix 3000

If you have configured your phone to be twin ned to another external phone (the twinning t arget), then incoming calls will simultaneously ring the other phone as well.

If you answer the call on your desk phone, the twinning target phone will stop ringing.

Note that if neither your desk phone nor the twinning target phone answers an incoming call, your call coverage setting will determine what happens to the call (See “Call Coverage” on page 100.). If the other phone has a voice message service associated with it, then your twinning target phone's voice message service may answer the call first. If you want to avoid this situation, then you should ensure that your call coverage is configured to answer calls before the twinning target phone's voice message service.

See “Twinning” on page 101.

Voice mail on the Telematrix 3000

T o access your voice mail box for message retrieval or mail box administration such as changing your voice mail greeting or password, press the Message key and fol low the audio instructions.

Volume control on the Telematrix 3000

Use volume control to change ring volume, handset volume, and speaker volume.

Note: The ring, handset, and speaker volumes return to their default settings if the phone loses connectivity to the LAN.

Change ring volume on the Telematrix 3000

To change the ring volume on your phone, follow these steps:

1. From another phone, make a call to your extension.

Page 90

Mitel IP Phone User Reference Guide

2. While it is ringing, repeatedly press the Volume keys until the ring volume is at the level

you want.

Change handset volume on the Telematrix 3000

To change the volume of the sound you hear through the handset, follow these steps:

1. Lift the handset.

2. Repeatedly press the Volume keys until the volume is at the level you want.

3. Replace the handset.

Change speaker volume on the Telematrix 3000

To change the volume of the sound you hear through the speaker, follow these steps:

1. Press the Speaker button.

2. Repeatedly press the Volume keys until the volume is at the level you want.

Using a headset

The Mitel 5020/5220 and 5224 IP phones suppor t the use of specially designed headsets made by Plantronics. The following headset types are available:

• Monaural over-the ear

• Binaural over-the head with voice tube

• Binaural over the head with noise canceling microphone

Some headsets are all supplied with a control switch that can be used to mute the microphone.

Connect and configure the headset

To connect the headset to the Mitel 5224 or 5020/5220 IP phone, follow these steps:

1. Plug the headset into the headset jack on the back of the 5224/5220 set.

2. Remove the handset from the cradle. You can hook it over the top of the set cradle.

3. Press the DIR softkey , then the QUIT softkey to take the phone to an on-hook (or idle) state.

Answer a Call

To answer a call while using the headset, press the Line Appearance key or the ANSWER softkey.

End a Call

To end a call while using the headset, press the END softkey.

Page 91

Using the phone system

Mute

To mute the microphone, press and hold the control switch if it has one.

To make a call

T o make a call while using the headset, press a Lin e Appearance key and dial the number . line. Y ou can also use d ial, directory dial, and speed dia l features. See the section for making a ca ll for your phone model in this guide.

Switching to the handset

To divert the operation back to the handset, the user can either

• Disconnect the headset from the phones jack or

• Use an external headset adapter box which has a dedicated headset/handset switch.

Using a Programmable Key Module

A Programmable Key Module (PKM) provides additional memory keys to those provided on your phone. The system supports the Mitel 5412 PKM which provides an extra 12 additional memory keys and the Mitel 5448 PKM which provides an additional 48 memory keys. If required you can have up to two 5448 PKM units on one phone. To attach the PKM to a 5020/5220 or 5224 IP phone follow the instructions that are pr ov ide d in th e bo x.

To program the memory keys on the PKM, see the section “Program memory keys on PKM” on page 94.

Page 92

Mitel IP Phone User Reference Guide

Mitel 5310 IP Conference Unit

The Mitel 5310 IP Conference Unit connects to the headset port of the Mitel 5224 IP Phone and is designed to provide optimal performance in any office to a maximum of 15 feet by 25 feet (4.5 meters by 7.6 meters).

Features of the conference unit include

• Acoustic beam-forming technology to locate the direction of speech

• Noise reduction and automatic gain control to eliminate background noise

• Presentation mode that locks the microphone array to the current speaker

• Seven dual color LEDs that provide visual confirmation that the unit has picked up the speaker’s voice.

• Power supply from a 24V DC wall adapter

• Side-control unit with fixed function keys

• Optional mouse controller is available

Figure 6: Mitel 5310 Conference unit attached to 5224 IP phone

Using other phones

This phone system supports usage of other phones using the SIP protocol. Not all features are supported on other phones. Consult the other phone’s documentation.

Page 93

Personalizing phone usage via the web

Using Internet Explorer 6 or later or Mozilla Firefox 1.5.0.4 or later , individual phone users can personalize their phone systems using the web admi nistration interface. With the exception of the Login page, all of the web pages share the same layout. On each web page, you will see a header, footer , a left pane, and a right pane. The left pane shows the choices for navigating the pages. The right pane shows the details.

Figure 6: “User Home page” on page 87 illustrates the user window:

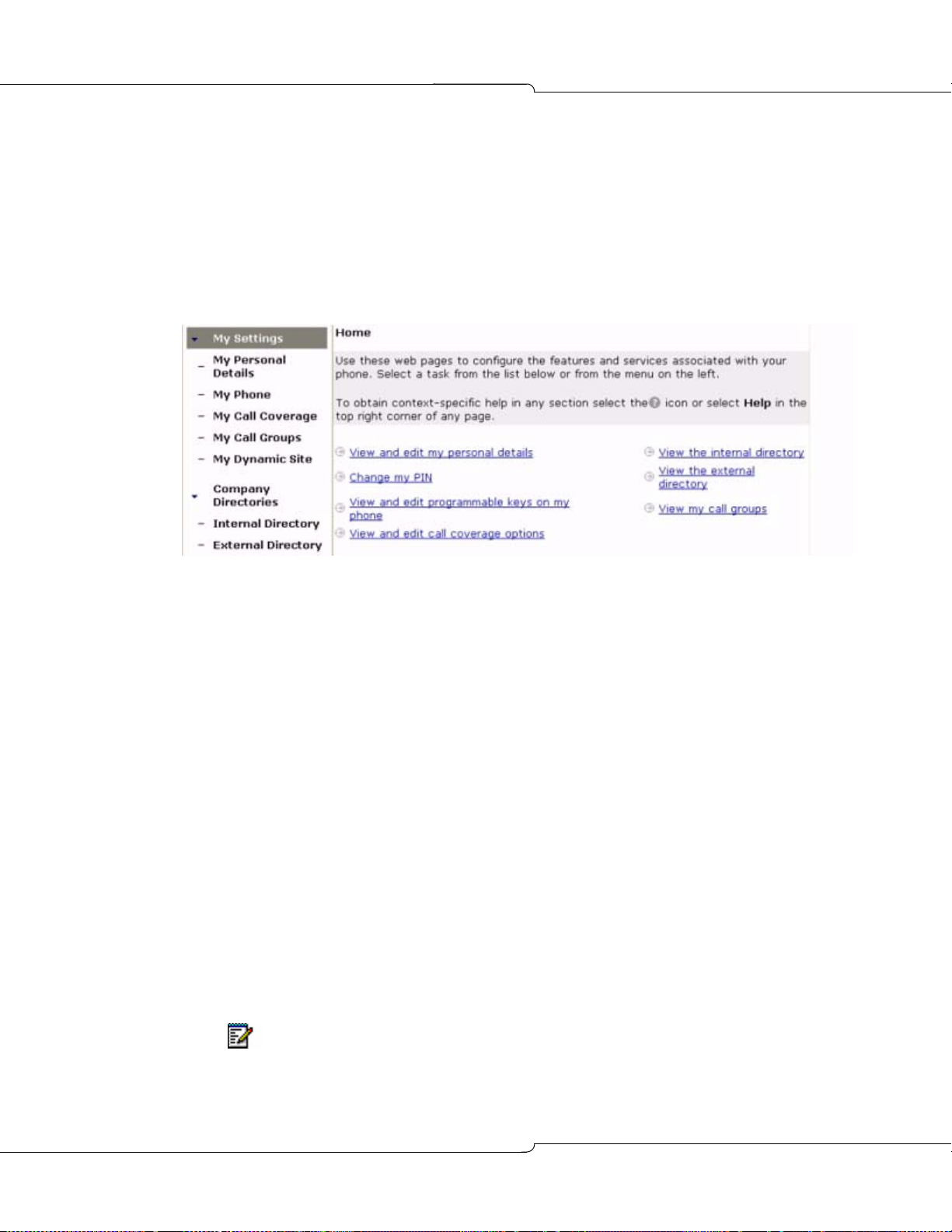

Figure 7: User Home page

You should always use the appropriate left hand menu link or button or link on your screen to navigate through the web interface. You should never use the "Back" button on your browser since the information and actions from a previous pa ge may no longer be valid.

Web login

To log in to the web administration interface, you need four things: (1) your extension, (2) your PIN, (3) the Login URL, and (4) a web browser (Internet Explorer 6.0 or later or Firefox 1.5.0.4 or later) which connects to the Internet. These are all available from your administrator.

To log in to the web administration interface, follow these steps:

1. Type the Login URL in a web browser.

2. Type your User ID (your extension) in the Login screen. Check the Remember my User ID check box to avoid entering this information each time you log in. To disable this option, deselect the Remember my User ID check box.

3. Type your PIN.

4. Select the Login button.

Note: If you are logged into the application and attempt to log in again, the application

logs you out of the first session and logs you in to a new session. The system displays the message, "System has detected older open session for this user”, which has been invalidated upon current login. You will be logged out of the web if your computer is idle for 30 minutes or more.

Page 94

Mitel IP Phone User Reference Guide

To stop the security alert at log in

A Security Alert may appear when you log in if the security certificate that is being used has not been identified as a trusted source on your computer. If you trust the source and do not want to see the Security Alert each time you log in, follow these steps:

1. Select the View Certificate button on the Security Alert window.

2. Select the Install Certificate button on the Certificate window.

3. Follow the install certificate prompts.

4. Select the OK button on the Certificate window.

5. Select the Yes button on the Security Alert window .

Forgotten PIN

If you forget your PIN, a new one can be sent to you by email.

To request a new PIN, follow these steps on the login page:

1. Type your User ID.

2. Select Forgot Your PIN?

A new PIN will be sent to the email address specified on your My Personal Details page. If you do not receive an email with your PIN, contact your administrator.

Note: You will not receive a new PIN by email if you have not entered a valid email address on your Personal Details page or if your company ha s not been configured fo r email PIN notification. Contact your system administrator to request a new PIN.

Change PIN

To change your PIN, follow these steps:

1. Select My Personal Details in the Navigation pane.

2. Select the Save and Change PIN button at the bottom of the page. A Change PIN pop-up

window will be displayed.

3. Type your old PIN.

4. Type a new PIN.

5. Type the new PIN again.

6. Select the Save button.

Y ou will be returned to the My Personal Details p age appears with the message “Successfully Saved” confirming that your PIN has been changed.

The Change PIN window refreshes, clearing a ll fields, and displa ying an error message in the following cases:

• You enter an invalid old PIN. The error message will read, “Invalid old PIN.”

Page 95

Personalizing phone usage via the web

• You enter a new PIN that does not meet the criteria. The error message will read, “New

PIN is not valid according to the specified rules.”

• The new PIN you re-typed does not match the new PIN. The error message will read,

“Please correctly re-type your PIN.”

Note: A PIN must consist of between four to ten digits. A PIN is numeric and must not contain spaces, letters, or special char acters. Y our new PIN cannot be the same as your old PIN.

Web logout

To log out of the Web, follow these steps:

1. Select Logout in a Global Navigation menu bar from any screen in the application.

2. The Logout page will be displayed, with the message, “You are now successfully logged

out of application name.” A link to the Login page is provided.

Note: Closing all browser windows automatically logs you out of the Web. You will be logged out of the Web if your computer is idle for 30 minutes or more.

Quick set-up

To quickly set up your phone service, follow the steps provided below: To record your name for the Auto Attendant Name prompt, follow these steps:

1. Log in to the web interface (see “Web login” on page 87).

2. Select the My Personal Details option in the navigation pane.

3. Select the Record button on the Personal Details page.

A Record Prompt pop-up window is displayed. Confirm that the extension displayed matches that of the phone you will be using. If the extension does not match, type the appropriate extension.

4. Select the Call button.

5. When your phone rings, lift your handset to answer.

6. Listen to a brief set of audio instructions, "Please record your message afte r the tone. When you are finished, press "#" for more options."

7. When you hear the tone, say your name into the handset to record your name

announcement.

8. Press the # key when you are finished.

9. Choose from the following options:

• To replay greeting press 1.

• To save greeting press 2.

• To re-record greeting press 3.

Page 96

Mitel IP Phone User Reference Guide

• To exit without saving press *.

10. Press 2 to save the name announcement.

11. Replace the handset.

12.

Select the Close button on the pop-up window.

To set-up Call Coverage, follow these steps:

1. Select My Call Coverage in the navigation pane.

2. Select one of the following options: My Voice Mail, My Auto Attendant, My Co-worker, or

Another Phone Number.

3. If you selected My Auto Attendant, choose an auto attenda nt from the drop-down list. If you selected My Co-Worker, choose a co-worker from the drop-down list. If you selected

Another Phone Number, enter a phone number for call coverage.

4. Choose the number of rings.

5. Select the Save button to save the information.

Note: External numbers entered as Another Phone Number for Call Coverage must

include the appropriate prefix for external dialing. This prefix is usually the number "9". Contact the system administrator for assistance.

Change user details

All user details, except extensions and permissions, can be changed.

To change your personal user details, follow these steps:

1. Select My Personal Details in the Navigation pane. The Personal Det ails page is displayed with your personal details in the My Information section.

2. Make the changes of your choice in the following fields: First Name, Last Name, Email, Home Phone, Mobile Phone, Language for Ph one and Handsfree Answerback. Y ou cannot make changes to the Extension field.

3. Select the Save button to save the information.

Record your name for the Auto Attendant

Callers hear your recorded name announcement as confirmation when they use the auto attendant name directory to contact you.

Note: The recorded announcement is for the auto attendant. It is not your voice mail greeting.

To record, or re-record your name announcement, follow these steps:

1. Log in to the web administration interface.

2. Select Personal Details in the left menu.

Page 97

Personalizing phone usage via the web

3. Select the Record button in the Automated Attendant Prompt section.

A Record Prompt pop-up window is displayed.

4. Confirm that the extension displayed matches the phone you want to use. If the extension is not the same, enter an alternate exten sio n .

5. Select the Call button.

6. When your phone rings, lift the handset to answer.

7. Listen to a brief set of audio instructions: “Please record your message af ter the tone. When you are finished, press # for more options”.

8. When you hear the tone, record your name into the handset.

9. When you are finished, press the # key.

The system plays the following set of options:

• To listen to the recording, press 1.

• To save the recording, press 2.

• To re-record, press 3.

• To exit without saving changes, press *.

10. Press 2 to save the name announcement.

11. Replace the handset.

12. Select the Close button on the pop-up window.

Permissions

Permissions control what types of calls you can make at different times.

To view your permissions, follow these steps:

1. Select My Personal Details in the navigation pane.

2. The Personal Details page will be displayed. Your permissions can be found in the My Permissions section of the page.

3. Permission types are displayed in a ta ble on the vertical axis, and Business Hour s on the

horizontal.

Note: Only the system administrator can change permissions and business hours.

Page 98

Mitel IP Phone User Reference Guide

Permission types

The permission types are shown in Table 1.

Call Type Definition

Emergency (911) Calls to the number used to report an emergency. In North America,

Internal Calls to another extension within the same business. International International calls to which long-distance charges apply. Local (external) Calls within the local calling area of your business. No long-distance

Long Distance Calls outside the local calling area of your business and outside of your

Operator Assisted Calls in which the operator is involved, typically resulting in

Regional Calls outside the local calling area of your business and within your

Toll Free (1-800) Long-distance calls to which no charges apply. Typically, these

Toll Premium Calls to a toll number to which charges apply. Typically, these numbers

this number is 911. This permission is active for all users at all times.

charges apply.

region. Long-distance charges apply.

long-distance charges.

region. Long-distance charges apply.

numbers begin with 1-800.

begin with 1-900.

Other

Redirect inbound call to external number

Select Long Distance Provider

Select Regional Provider Incl ude a long-distance provider code as part of the dialed digits for a

Configure phone

To view your phone’s current configuration, select My Phone in the Navigation pane.

The following options are provided to make configuring your phone easier:

• Program memory keys to quickly activate features fr om the phone. See “Program memory keys” on page 93.

• Select a key mapping profile to configure keys. See “Select key mapping profile” on page 100.

Allow call coverage, three-way calls, transfer or forward of external calls to an external phone number. Prerequisite: permission to make the external call itself.

Include a long-distance provider code as part of the dialed digits for a long distance call. Prerequisite: permission for Long Distance and/or International calls.

long-distance call within your region. Prerequisite: permission fo r Regional calls.

• Print phone labels for all the programmed phone keys. See “Print phone labels” on page 100.

Page 99

Personalizing phone usage via the web

Program memory keys

Any features that you that you assign to the memory keys will remain associated with your extension regardless of which phone model you log into. This means that if you program memory keys on the web interface when selecting a model with a la rge number of programmable memory keys (such as the Mitel 5224 IP phone), and then log in to a model that has fewer pr ogrammable memory keys (such as the Mitel 5212 IP Phone), then some of the keys (the left ha nd column) will not be visible to you (although any of the programmed memory keys could be active).

To program features to memory keys, follow these steps:

1. Select My Phone in the left menu. The My Phone page appears.

2. Select the phone model from the Phone Model drop-down list. The ph one model that you

are currently logged into will have an * beside the name.

Y ou should not need to change this. Supported phone models include : Mitel 5020 IP Phone, Mitel 5220 IP Phone, Mitel 5220e IP Phone, Mitel 5212 IP Phone, Mitel 5224 IP Phone, Mitel 5340 IP phone, and the Telematrix 3000.

3. Select the memory key that you want to program by moving the mouse icon over the button

and left-click.

The Program Memory Key Details page appears.

4. Complete the following fields:

• Feature: Select the feature to be programmed.

• Label: (Optional) Type in a description. If no description is typed the system default

will be applied.

• Details: Select from a drop-down list or type in the required number without any sp aces

or characters. Not all features require this field.

• Status: (Only appears with the Forward features). Select Active or Inactive. You will

be able to activate or deactivate the feature by pressing this memory key on the phone once it is programmed.

5. Select the Save button to save the information.

6. Select the Close Window button to close the window.

Your phone key profile is updated.

7. Repeat steps 3-6 for each memory key to be programmed.

Note: To cancel your changes, select the Close Window button instead of the Save

button in step 5.

Page 100

Mitel IP Phone User Reference Guide

Program memory keys on PKM

To program the memory keys on a Programmable Key Module (PKM), follow these steps:

1. Select My Phone in the left menu. The My Phone page appears.

2. Select the PKM module from the Phone Model drop-down list. Your options include Mitel 5412 PKM, Mitel 5448 PKM - 1, or Mitel 5448 PKM - 2. If you

are programming one 5448 PKM choose the Mitel 5448 PKM - 1 option. If you are programming a second 5448 PKM choose the Mitel 5448 PKM - 2 option.

3. If you are programming a Mitel 5448 PKM, select the section of keys that you want to

program. The choice is Left Bank or Right Bank.

4. Select the memory key that you want to program by moving the mouse over the button

and left-click.

The Program Memory Key Details page appears.

5. Complete the following fields:

• Feature: Select the feature to be programmed. Y ou cannot program a Line Appearance

on a PKM.

• Label: (Optional) Type in a description. If no description is typed the system default

will be applied.

• Details: Select from a drop-down list or type in the requ ired number without any spaces

or characters. Not all features require this field.

• Status: Only appears with the Forward features. Select Active or Inactive. You will be

able to activate or deactivate the feature by pressing this memory key on the phone once it is programmed.

6. Select the Save button to save the informa tion or select the Close Window button to cancel

your changes.

7. Select the Close Window button to close the window. Your phone key profile is updated.

8. Repeat steps 3-6 for each memory key to be programmed.

Note: The LEDs on the PKM are the same as on the phone except that they are always

red.
