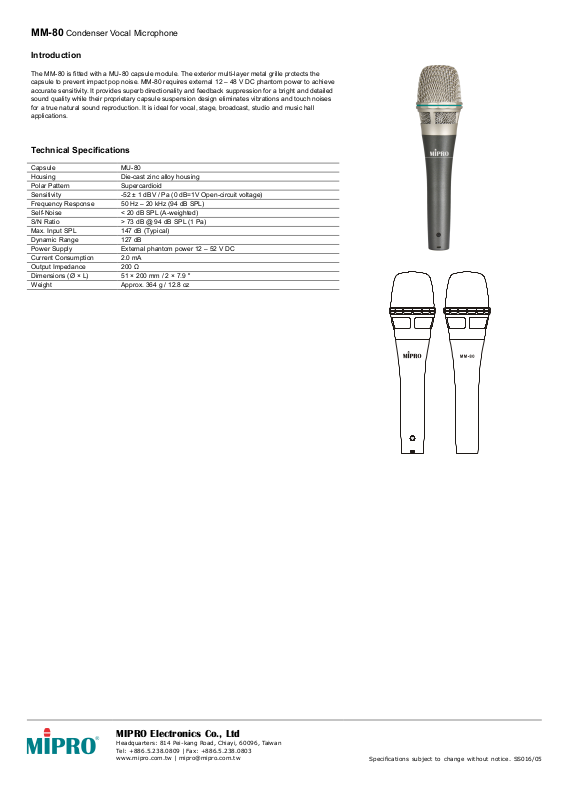

MIPRO MM-80 User Manual

MM-8

0

Condenser Vocal Microphone

Introduction

Technical Specifications

The MM-80 is fitted with a MU-80 capsule module. The exterior multi-layer metal grille protects the
capsule to prevent impact pop noise. MM-80 requires external 12 – 48 V DC phantom power to achieve
accurate sensitivity. It provides superb directionality and feedback suppression for a bright and detailed
sound quality while their proprietary capsule suspension design eliminates vibrations and touch noises
for a true natural sound reproduction. It is ideal for vocal, stage, broadcast, studio and music hall
applications.

Capsule MU-80
Housing Die-cast zinc alloy housing
Polar Pattern Supercardioid
Sensitivity -52 ± 1 dBV / Pa (0 dB=1V Open-circuit voltage)
Frequency Response 50 Hz – 20 kHz (94 dB SPL)
Self-Noise < 20 dB SPL (A-weighted)
S/N Ratio > 73 dB @ 94 dB SPL (1 Pa)
Max. Input SPL 147 dB (Typical)
Dynamic Range 127 dB
Power Supply External phantom power 12 – 52 V DC
Current Consumption 2.0 mA
Output Impedance 200 Ω
Dimensions (Ø × L) 51 × 200 mm / 2 × 7.9 "
Weight Approx. 364 g / 12.8 oz

MIPRO Electronics Co., Ltd

Headquarters: 814 Pei-kang Road, Chiayi, 60096, Taiwan
Tel: [phone] | Fax: [phone]
www.mipro.com.tw | [e-mail]

Specifications subject to change without notice. SS016/05
