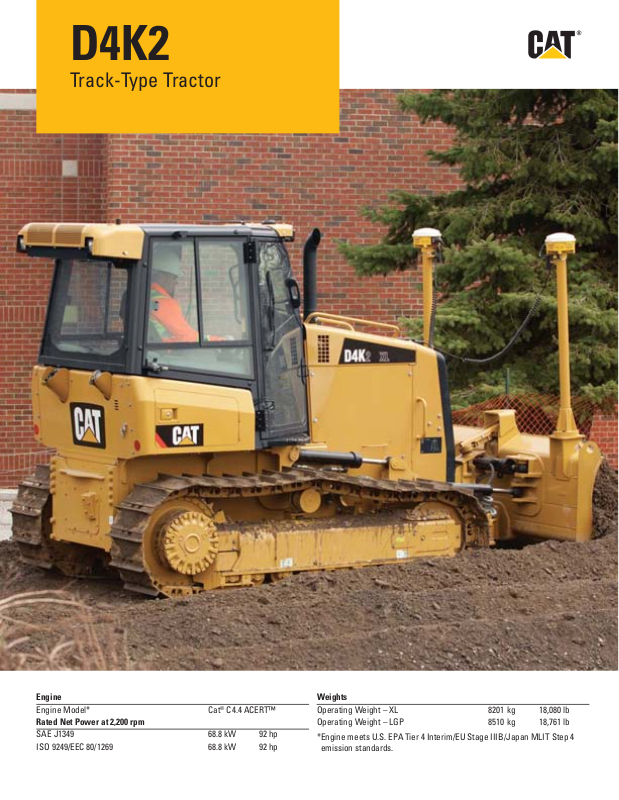

D4K2

Track-Type Tractor

Engine Weights

Engine Model* Cat
Rated Net Power at 2,200 rpm Operating Weight – LGP 8510 kg 18,761 lb
SAE J1349 68.8 kW 92 hp
ISO 9249/EEC 80/1269 68.8 kW 92 hp

®

C4.4 ACERT™ Operating Weight – XL 8201 kg 18,080 lb

* Engine meets U.S. EPA Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4

emission standards.

Simply the
smoothest
 nish grading
tractor in
the industry.
Period.

Contents

Operator Station..................................................4

Hydrostatic Transmission ..................................6

Engine ...................................................................6

Undercarriage .....................................................7

AccuGrade™ Systems .......................................8

Blade and Attachments .....................................9

Serviceability and Customer Support............10

Speci cations ....................................................11

Standard Equipment.........................................14

Optional Equipment...........................................15

Experience the most intuitive nish grading tractor in the industry. The Cat® D4K2
Track-Type Tractor with Stable Blade delivers a smooth nish grade with less operator
effort. Stable Blade senses ground conditions and works with the operator to produce
the desired grade. The addition of the integrated AccuGrade™ grade control system
helps you get to target grade even faster, with fewer passes and less manpower.
Fromthe rst cut to nish grade, the D4K2 sets the standard.

Operator Station

Everyone can get comfortable in this cab.

Seat-Mounted Joystick Controls

Ergonomically designed, seat-mounted controls isolate vibrations
from the operator for optimum comfort and precise control.

• New contoured armrest cushion

• Bi-directional transmission shifting

• Easy to grip handles

• New heated control handles (optional)

4

Stable Blade Control

New Stable Blade control makes operating the machine easy
forbothnew and experienced operators.

• Stable Blade complements operator input for smooth nish
gradingresults

• Handle ts to hand to allow for more precise control
and reduce operator fatigue

• Thumb roller for low effort blade angle control

• Blade shake feature for easy removal of material

All Day Comfort

The spacious, comfortable cab helps keep you relaxed
and productive throughout the day.

• Quiet environment – 78 dB(A) – ANSI/SAE J1166 OCT98

• Wide door openings for easy entry/exit

• Dash mounted air vents for improved air circulation

• Air suspension seat for a more comfortable ride

• Air conditioning for greater comfort in all climates

• New ventilated seat (optional)

• Heated seat and heated control handles (optional)

Monitoring Package

Easy to read display provides vital system information. Easy to read
gauges keep you informed of system conditions. Larger AccuGrade™
CB460 GPS display is available as an option and is mounted in line
withblade corners for easy viewing.

Outstanding Visibility

Large door windows provide an unobstructed view to the blade corners
and cutting edge which is especially important in ne grading, curbing
and working against foundations. Large side windows offer a clear view
to the sides of the machine.

5
