Operating instructions
for heat pump tumble dryer
T 7952 WP EcoCare Exclusive
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
en-HK
M.-Nr. 09 355 560
Caring for the environment
Disposal of the packing
material
The packing material protects the
tumble dryer from transport damage.
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Rather than just throwing these
materials away, please ensure they are
recycled.
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the
environment.They are, however,
essential for the correct functioning of
your appliance. Please do not therefore
dispose of the appliance with your
household waste.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
Make sure that your laundry is
–
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
Load according to the optimum
–
amount of laundry recommended for
the programme being used.
Underloading is uneconomical.
Overloading gives poorer quality of
drying and may cause unnecessary
creasing.
– Make sure that the room temperature
is not too high. If there are other heat
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off if possible.
– After every cycle, remove the fluff
from the surfaces and the fluff filters
(see "Cleaning and Care").
Please dispose of it at your local
community waste collection / recycling
centre or contact your Chartered Agent
for advice.
Ensure that your old appliance presents
no danger to children while being
stored for disposal.
2
Contents
Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the tumble dryer.........................................14
Control panel .....................................................14
Notes on laundry care .............................................16
Care symbols.....................................................16
Tips on drying ....................................................16
How to dry correctly ..............................................17
Brief instructions ..................................................17
Extra options/Delay start...........................................20
Extra options .....................................................20
Gentle tumble ..................................................20
Buzzer........................................................20
Delay start .......................................................20
Programme chart .................................................21
Changing the programme sequence .................................24
Once a programme has started ......................................24
- cancelling the programme and then selecting a different programme .....24
- cancelling the programme and then removing the laundry ..............24
Changing Delay start ...............................................24
Adding or removing laundry after a programme has started ................24
Time remaining ...................................................24
Cleaning and care ................................................25
Emptying the condensed water container...............................25
Adhering to cleaning intervals ........................................26
When to clean the surfaces of the fluff filters ..........................26
When to clean the fine filter .......................................26
3
Contents
Surfaces of the fluff filters ...........................................27
Cleaning without water ...........................................27
Cleaning with water .............................................28
Refitting the filters ...............................................28
Fine filter ........................................................29
Removing the fine filter ...........................................29
Cleaning the fine filter ............................................29
Cleaning the fine filter cover panel ..................................30
Cleaning the heat exchanger unit compartment .......................30
Replacing the fine filter ...........................................31
Cleaning the tumble dryer ...........................................31
Problem solving guide...?........................................32
Problem solving guide ..............................................32
Fault messages in the display ........................................32
An unsatisfactory drying result .......................................34
Other problems ...................................................35
Cleaning the cooling fins (Grille at bottom right) ..........................37
Changing the lamp ................................................38
After Sales service................................................39
Future updates (PC) ...............................................39
Optional accessories ...............................................39
Installation and connection ........................................40
Front view........................................................40
Rear view ........................................................41
Transporting the dryer ..............................................41
Installation site ....................................................42
Levelling the machine............................................42
Before moving the tumble dryer again (e.g. when moving houses).........43
Washer-dryer stack..............................................43
External condensed water outlet ......................................44
Arranging the drain hose .........................................44
External drainage via a sink or gully ................................45
Installation conditions requiring a non-return valve .....................45
4
Contents
Electrical connection .............................................47
Electrical connection U.K. ...........................................47
Consumption data ................................................48
Technical data ...................................................49
Electronic system lock ............................................51
Programmable functions...........................................52
Extending the range of the drying level for the "Cottons" programme..........52
Extending the drying level for the "Minimum iron" programme ...............53
Altering the Anti-crease function ......................................54
Altering the volume of the buzzer .....................................55
Extending the drying level for the "Automatic plus" programme ..............56
Setting Standby ...................................................57
Memory function ..................................................59
Keypad tone .....................................................60
Adjusting the dryer's electronics for very soft water .......................61
Extending the drying level range......................................62
5
Warning and Safety instructions
It is essential to read these instructions.
~
This tumble dryer conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the tumble dryer,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, installation,
use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
This tumble dryer is not designed for commercial use. It is
~
intended for use in domestic households and similar working and
residential environments.
The tumble dryer is not intended for outdoor use.
~
It must only be used as a domestic appliance to dry items which
~
have been washed in a water solution and which are marked on the
manufacturer's care label as being suitable for tumble drying. If
using dry cleaning kits, do so at your own risk, and follow the
instructions provided on the packaging.
Any other usage is not supported by the manufacturer and could be
dangerous. Miele cannot be held liable for damage resulting from
incorrect or improper use or operation.
6
Warning and Safety instructions
The tumble dryer can only be used by people with reduced
~
physical, sensory or mental capabilities, or lack of experience or
knowledge, if they are are supervised whilst using it or have been
shown how to use it in a safe way and understand the hazards
involved.
Safety with children
Children under 8 years of age must be kept away from the tumble
~
dryer unless they are constantly supervised.
Children 8 years and older may only use, clean or maintain the
~
tumble dryer without supervision if they have been shown how to do
so in a safe way and understand the hazards involved.
The tumble dryer is not a toy! To prevent the risk of injury, do not
~
allow children to play with it or near it, or to play with the controls.
7
Warning and Safety instructions
Technical safety
Before setting up the tumble dryer, check it for any externally
~
visible damage.
Do not install or use a damaged tumble dryer.
Before connecting the tumble dryer, ensure that the connection
~
data on the data plate (voltage and frequency) match the mains
electricity supply. If in any doubt, consult a qualified electrician.
The electrical safety of this tumble dryer can only be guaranteed
~
when correctly earthed. It is most important that this basic safety
requirement is observed and regularly tested, and where there is
any doubt, the household wiring system should be inspected by a
qualified electrician. Miele cannot be held liable for the
consequences of an inadequate earthing system (e.g. electric
shock).
Do not connect the tumble dryer to the mains electricity supply by
~
an extension lead. Extension leads do not guarantee the required
safety of the tumble dryer (e.g. danger of overheating).
If the electrical connection cable is faulty it must only be replaced
~
by a Miele approved service technician to protect the user from
danger.
Unauthorised repairs could result in unforeseen dangers for the
~
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician, otherwise any
subsequent damage will not be covered by the guarantee. Ensure
current is not supplied to the tumble dryer until after maintenance or
repair work has been carried out.
Faulty components must only be replaced by genuine Miele
~
original spare parts. Only when these parts are fitted can the safety
standards of the tumble dryer be guaranteed.
8
Warning and Safety instructions
The tumble dryer must be isolated from the electricity supply in
~
the event of a fault and during cleaning and maintenance.
The tumble dryer must not be used in a non-stationary location
~
(e.g. on a ship).
Do not make any alterations to the tumble dryer, unless
~
authorised to do so by Miele.
Heat pump technology and refrigerant:
~
The heat pump in this tumble dryer uses a refrigerant which is
condensed by the compressor and led in a closed circuit through
the heat exchanger unit where heat exchange with the circulating
drying air takes place.
– The humming noises caused by the heat pump are normal and do
not impair the efficient functioning of the dryer.
– The refrigerant is not flammable or explosive.
– In general it is not necessary to leave the dryer standing for any
length of time before it is put into operation provided it has been
transported correctly (see "Installation").
However, if it has not been transported as described, ensure that
the recommended standing time prior to first operation is
observed. Otherwise the heat pump can be damaged.
In areas which may be subject to infestation by cockroaches or
~
other vermin, pay particular attention to keeping the tumble dryer
and its surroundings in a clean condition at all times. Any damage
which may be caused by cockroaches or other vermin will not be
covered by the guarantee.
9
Warning and Safety instructions
Correct use
To prevent the risk of fire, the following textiles must not be dried
~
in this appliance:
items which have not been washed.
–
items, such as workwear, which have not been thoroughly
–
cleaned and which are still soiled with grease, oil or other
deposits (such as cosmetics, lotions etc).
If items have not been thoroughly cleaned there is a danger that
these might self-ignite when heated, even after they have been
removed from the dryer at the end of the programme.
– items (e.g. mops and floor cloths) which have been treated with
inflammable cleaning agents or which contain residues of
acetone, alcohol, benzine, petrol, kerosene, stain remover,
turpentine, wax and wax remover or other chemicals.
– items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
When washing such heavily soiled items, ensure that you use
additional detergent and select a high temperature. If in doubt,
wash the items several times.
Remove all items such as lighters and matches from pockets.
~
Warning: Do not switch the tumble dryer off before the drying
~
programme has finished. If this is done, the laundry must be hung
up or spread out to cool it down.
10
Warning and Safety instructions
To prevent the risk of fire, the following must not be tumble dried:
~
items which have been cleaned using chemicals (e.g.
–
professional dry-cleaning agents).
fabrics which contain a large proportion of rubber, foam rubber or
–
rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
damaged items which contain padding or fillings (e.g. pillows,
–
jackets). When damaged, the filling can get out with the risk of
igniting in the dryer.
In many programmes, the heating phase is followed by a cooling
~
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry
self-igniting). The programme is not finished until the cooling down
phase has been completed.
As soon as the programme has finished, remove all laundry from the
drum.
Fabric conditioner and similar products must be used according
~
to the instructions on the manufacturer's packaging.
Do not let anyone sit or lean on the door, as this can cause the
~
tumble dryer to tip up.
Always close the door after use. This way you will avoid the
~
danger of:
–
children climbing into the dryer or hiding things in it.
–
pets or other small animals climbing into it.
11
Warning and Safety instructions
The tumble dryer must not be used:
~
without the fluff filters in place or if the fluff filters are damaged in
–
any way.
without the fine filters in place of if the fine filters are damaged in
–
any way.
This would cause an excessive build-up of fluff which in turn would
cause a fault.
After every cycle remove fluff from the surfaces of the fluff filters.
~
The fluff filters and the fine filters must be thoroughly dried after
~
cleaning. Damp or wet filters could cause operational faults.
Do not install the tumble dryer in a room where there is a risk of
~
frost occurring. At temperatures around freezing point the tumble
dryer may not be able to operate properly. There is a risk of damage
if the condensed water is allowed to freeze in the pump and in the
drain hose.
If the water is drained externally instead of being collected in the
~
condensed water container, make sure the drain hose is securely
attached if you hang it in a sink or basin to avoid the hose slipping
and the water causing damage.
Condensed water is not drinking water. It can cause health
~
problems in both people and animals.
Always keep the area around the tumble dryer free of dust and
~
fluff. Dust drawn into the tumble dryer can cause blockages in the
heat exchanger unit over time.
The tumble dryer must not be hosed down.
~
12
Warning and Safety instructions
Accessories
Only use genuine Miele original spare parts and accessories with
~
this tumble dryer.
If non-Miele parts are used, guarantee, performance and product
liability claims may be invalidated.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
13
Operating the tumble dryer
Control panel
a Perfect Dryindicator light
For all drying levels. See the next
page.
b Display
See the next page.
c Delay start button
This button is used for:
- Delaying the start of a programme.
- Selecting Warm air duration.
d Buzzer button
An audible tone sounds at the end of
the programme.
e Fault/Check lights
See problem solving guide and After
Sales service.
f Start/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
The button flashes when a
programme is selected and then is
on constantly when the programme
has started.
g Gentle tumble button
For drying items which are not
suitable for drying with a great deal
of mechanical action. When this
option is selected, the drum will
rotate less frequently.
h Drying level button
Indicator lights show the selected
drying level. See "How to dry
correctly".
i Programme selector
The programme selector can be
turned clockwise or anti-clockwise.
Indicator lights show the selected
programme.
j Door button
Pressing this button will open the
door even when the dryer is
switched off at the mains.
k jk button
For switching the tumble dryer on
and off.
14
Operating the tumble dryer
The following information appears in
the display:
Programme duration
–
Programme sequence
–
Drying
Cooling down
Finish
Check and fault messages
–
The following can be set via the
display:
Programme duration Warm air
–
Delay start
–
You can set a programme to start
automatically at a later time.
– Programmable functions
The programmable functions are
used to alter the machine's
electronics to suit changing
requirements. See "Programmable
functions" later in this booklet for
more details.
The Perfect Dry indicator light remains
dark during the following time
controlled programmes: Woollens,
Warm air, Gentle smoothing.
Estimated time remaining
The expected time will automatically be
displayed (Estimated time remaining).
The following factors all affect the
estimated time remaining: residual
moisture content after spinning; type of
fabric; size of load; room temperature
or fluctuations in the power supply.
The electronics continually assess
conditions in the tumble dryer and
adjust the estimated time remaining for
a more accurate reading. Because of
this, the time displayed can alter during
the course of a programme.
In the same way, programmes may
finish early. This can happen with
particularly fine fabrics, very small
loads or if items were partly dry
beforehand.
Perfect Dry indicator light
The Perfect Dry system measures the
laundry's residual moisture in
programmes with drying levels and
provides a more precise drying result.
After starting the programme, the
electronics will measure the duration of
the programme (Estimated time
remaining). The Perfect Dry indicator
light will flash during this time.
The programme duration will be shown
after a short time and the indicator light
will go out.
Once the selected drying level has
been reached, the Perfect Dry indicator
light will remain on until the end of the
programme.
Before using for the first time
,
Install and connect the tumble
dryer according to the descriptions
in these operating instructions. If the
tumble dryer has not been
transported as described, then it
must be left to stand for at least 1
hour before it is connected to the
electricity supply.
15
Notes on laundry care
Care symbols
Drying
q/r Normal/lower temperature.
This dryer is able to dry at lower
temperatures in each
programme. It is not necessary
to divide fabrics q/r.
s Do not tumble dry.
Ironing
I Very hot.
H Hot.
G Warm.
J Do not iron.
Tips on drying
– See the "Programme chart" for
maximum recommended loads
each programme.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
–
Do not tumble dry loopknit garments!
Spin garments for at least 30
seconds after washing.
–
Open jackets
evenly.
so that they can dry
for
Loopknit garments (e.g. T-shirts,
–
underwear) have a tendency to
shrink after the first wash. Therefore:
To avoid further shrinking, do not
overdry these fabrics. When buying
loopknit garments, it is advisable to
take their shrinkage properties into
account.
Creasing in minimum iron fabrics
–
increases with the size of the load.
This applies in particular to very
sensitive fabrics (e.g. shirts,
blouses).
Choose a suitable programme for
these fabrics. If in doubt, reduce the
size of the load and select the Gentle
tumble Extra option.
– Starched laundry
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
– New dark coloured garments
be washed separately from light
coloured garments. Do not dry these
together with light garments as they
may lose their colour (also onto
plastic components in the tumble
dryer). Dark coloured fibres can also
settle on light coloured garments and
vice versa.
can be dried in the
should
–
Use the Automatic plus programme
for drying mixed loads of cottons,
colours and minimum iron fabrics.
–
Pure linen
linen should only be machine dried if
specified as suitable by the
manufacturer on the care label.
16
may become rough. Pure
How to dry correctly
Brief instructions
The headings numbered (A, B, C ...)
show the operating sequence and can
be used as a brief guide to using your
machine.
A Sort the laundry
Separate the washed laundry and sort it
according to...
. . . the drying level required,
. . . the type of fibre or weave,
. . . size,
. . . the moisture content after spinning.
In this way an even drying result will be
achieved.
Make sure that objects, e.g.
,
detergent dispensing balls, have
been removed from the laundry.
They could melt and cause damage
to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
Switch on the dryer by pressing the
^
jk button.
C Load the tumble dryer
Press the Door button to open the
^
door.
Load the laundry loosely into the
^
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
^ Before closing the door, make sure
the fluff filter is correctly positioned in
the door.
–
Remove all objects from pockets
such as lighters and matches.
–
Fasten duvet covers and pillow
cases to prevent small items from
being rolled up inside them.
–
Fasten zips, hooks and eyes etc.
–
Tie fabric belts and apron strings.
–
Sew in or remove underwiring from
bras.
B Switch on the tumble dryer
The tumble dryer may be switched on
after loading, saving energy as the light
will not come on.
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^
Shut the door either with a gentle
swing, or lean against it and push it
shut.
17
How to dry correctly
D Selecting a programme
Select the programme you want.
^
The relevant indicator light will come
on.
Indicator lights for drying levels or Extra
options and times may also be
displayed.
Programmes with drying levels
– Cottons, Minimum iron, Proofing,
Express, Automatic plus, Denim and
Shirts
Tip
You can extend the range of drying
levels for some of the programmes (see
"Programmable functions").
Woollens, Gentle smoothing
programmes
These programmes cannot be
changed.
Selecting Warm air duration
The indicator light for the Delay start
button will flash when this programme
is selected.
^ Press the Delay start button
repeatedly until the required time
appears in the display.
You can select a duration of 20 minutes
up to 2:00 hours.
E Selecting Extra options / Delay
start
^
Press the drying level button
repeatedly until the indicator for the
drying level you want lights up.
Any of the four drying levels can be
selected for the Cottons and Express
programmes. On the other
programmes, the choice of drying level
is limited.
18
^ By pressing the relevant button, you
can select:
Gentle tumble (see "Extra
options/Delay start").
Anti-crease (see next page) is always
switched on.
However: Delay start is not possible in
combination with Warm air.
How to dry correctly
F Starting the programme
The Start/Stop button light will flash
when a programme is being selected.
The flashing indicates that a
programme can be started.
Press the Start/Stop button.
^
The Start/Stop button will now light up
constantly.
Perfect Dry only flashes/illuminates
during programmes with drying levels.
It remains dark during time controlled
programmes (see "Operating the
tumble dryer").
Note: The duration shown in the display
is only an estimate and can change.
Before the end of a programme
The heating phase is followed by a
cooling down phase (Cooling down
lights up). The programme is not
finished until the cooling down phase
has been completed.
G Removing the laundry at the end of
the programme
0 and Finish will appear in the display
to indicate that the programme has
finished. The buzzer (if selected) will
sound at intervals.
The dryer has a standby mode. After a
programme has finished, the display
will switch off and the Start/Stop button
light will flash slowly. Also see
"Programmable functions".
Press the Door button.
^
Open the door.
^
Remove the laundry.
^
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by overdrying when the
dryer is next used.
If the dryer is switched on and the door
is opened, the drum lighting will come
on. It will go out a few minutes later to
save energy.
^ Switch off the dryer by pressing the
jk button.
^ Clean the fluff filters.
^
Close the door.
^
Empty the condensed water
container.
We recommend draining it externally.
This means you will never have to
empty it manually again.
After the programme has finished, the
drum will continue to rotate for 2 hours
at intervals if the garments are not im
mediately removed. This reduces
creasing.
There is no anti-crease with: Woollens.
-
19
Extra options/Delay start
Extra options
The relevant indicator light will come on
when selected.
Gentle tumble
For drying items which are not suitable
for drying with a great deal of
mechanical action. When this option is
selected, the drum will rotate less
frequently.
The programme duration will be
extended.
If in doubt, reduce the size of the load.
Buzzer
A buzzer sounds (at intervals for a
maximum of 1 hr) to let you know the
programme has finished.
The buzzer will always sound when
there is a fault, even if it has been
switched off.
Delay start
The start of a programme can be
delayed from 30 minutes up to 24
hours.
^
Select a programme.
^
Press the Delay start button until the
required time appears in the display.
–
The Delay start indicator light will
flash.
To begin Delay start
Press the Start/Stop button.
^
The Delay start indicator light will
–
light up constantly.
Delay start counts down in one hour
–
steps to i0^ and afterwards in minute
steps until the programme starts.
The drum will turn briefly every hour
–
to help prevent creasing.
To cancel/alter Delay start
Press the Start/Stop button to cancel
^
Delay start.
^ Press the Delay start button until the
required time appears in the display.
^ Press the Start/Stop button to begin
Delay start.
Add laundry
You can add laundry while Delay start
is counting down:
^
Switch the dryer off.
Opening the door before switching off
the dryer first will cancel Delay start.
^
Open the door and add laundry.
^
Close the door and switch the dryer
on.
–
The selection can be made in steps
of 30 minutes up to i0^ and
afterwards in one hour steps.
–
If you keep the Delay start button
pressed in, the time will continue to
increase up to 24^.
20
Extra options
Gentle tumble
Programme chart
Able to be selected with the following
programmes:
Buzzer
Able to be selected with all programmes.
Cottons, Minimum iron, Shirts, Denim,
Warm air.
Programmes
Cottons Max. load: 7 kg*
Extra dry, Normal**
Fabric type Single and multi-layered cotton fabrics such as
towelling, jerseywear, T-shirts, underwear.
Notes – Select Extra dry for multi-layered and very thick fabrics.
– Do not use Extra dry for loopknit fabrics (e.g. T-shirts,
underwear), as they have a tendency to shrink.
Hand iron**, Machine iron
Fabric type Cotton and linen fabrics. For example: table linen, bed linen,
starched laundry.
Note To prevent laundry from drying out, it should be rolled up until you
are ready for ironing.
Minimum iron Max. load: 3.5 kg*
Normal**, Hand iron
Fabric type Minimum iron items made of cotton, synthetic or mixed fibres. For
example: dresses, trousers, skirts or table cloths.
* Weight of dry laundry
** Note for test institutes:
Use this programme without selecting any Extra options for testing according to
EN 61121 standard.
21
Programme chart
Proofing Max. load: 2 kg*
Fabric type For drying microfibre fabrics, ski wear, fine, closeweave cotton
garments (poplin) or tablecloths which are suitable for drying in a
tumble dryer and have been treated to provide a water and dirt
resistant finish.
Notes
Woollens Max. load: 2 kg*
Fabric type Woollen fabrics. Fabrics containing wool blends.
Notes – Woollen garments are fluffed up.
Express Max. load: 3.5 kg*
Extra dry, Normal, Hand iron, Machine iron
Fabric type Tougher fabrics for the Cottons programme.
Note Reduced programme duration.
Automatic plus Max. load: 5 kg*
Normal, Hand iron
Fabric type Mixed loads of garments suitable for the Cottons and Minimum iron
Denim Max. load: 3 kg*
Normal, Hand iron
Fabric type Denim garments, e.g. trousers, jackets, skirts or shirts.
Shirts Max. load: 2 kg*
Normal, Hand iron
Fabric type Shirts and blouses.
* Weight of dry laundry
This programme contains an extra fixing phase for proofing.
–
Only use proofing agents which are stated by the manufacturer
–
as being "suitable for use on membrane textiles" as these contain
fluorochemical compounds.
Do not dry items which have been treated with proofing agents
–
containing paraffin. Fire hazard!
– Remove garments immediately at the end of the programme.
programmes. Sort according to colour.
22
Programme chart
Warm air Max. load: 7 kg*
Fabric type–"Voluminous" and multi-layered fabrics whose layers have
different drying characteristics: e.g. jackets, pillows.
For drying individual items, e.g. bath towels, swimwear, tea
–
towels and small loads.
Note Do not select the longest drying time to start with. Check the items
as you are drying them to find the optimum time.
Tip Use Warm air to eliminate or reduce unwanted smells in clean
cotton clothing (Duration: 1/2-1 hour). Dampen the garments a little
beforehand or add a fabric conditioner sheet. The Warm air
programme will not be as effective at removing odours from any
parts of the garments which are made of synthetic fibres.
Gentle smoothing Max. load: 1 kg*
Fabric type – Cotton and linen fabrics.
– Minimum iron items made of cotton, synthetic or mixed fibres. For
example: trousers, anoraks, shirts.
Notes – Suitable for dry and damp laundry/fabrics.
Dry fabrics are time-controlled and damp fabrics are smoothed
using the Hand iron function.
– Smoothes out creasing caused during the spin cycle in the
washing machine.
– Remove garments as soon as the programme has finished so
that they are easy to iron.
* Weight of dry laundry
23
Changing the programme sequence
You cannot change to another
programme once a programme has
started (this prevents unintentional
alterations).
You will need to cancel the current
programme before you can select a
new one.
Once a programme has started
- cancelling the programme and then
selecting a different programme
Press the Start/Stop button.
^
The items will be cooled down,
depending on the temperature
reached and how long they have
been dried for.
If you press the Start/Stop button
again during the cooling down
phase, Finish will appear in the
display.
^ Switch off the tumble dryer by
pressing the jk button.
Changing Delay start
See "Delay start".
^
Adding or removing laundry
after a programme has started
Press the Door button.
^
Open the door.
^
Add or remove items as required.
^
Close the door.
^
Press the Start/Stop button.
^
Time remaining
Changes to the programme sequence
can alter the estimated time remaining
in the display.
^
Switch on the tumble dryer by
pressing the jk button.
^
Select and start a new programme.
- cancelling the programme and then
removing the laundry
^
Refer to the following: "Adding or
removing laundry after a programme
has started".
^
Switch the dryer off after closing the
door.
24
Cleaning and care
Emptying the condensed water
container
Condensate is collected in the
condensed water container during
drying.
Empty the condensed water
container after every drying
programme.
If the condensed water container is full,
the programme will be cancelled.
–
the Empty the container indicator
–
light comes on.
The indicator light will go out when the
door is opened and closed again while
the tumble dryer is switched on.
,
Close the door fully. Otherwise
the door and the front panel of the
condensed water container could
suffer damage when pulling the
container out.
Hold it at the front and towards the
^
back and keep it in a horizontal
position when carrying it.
^ Empty the condensed water
container.
^ Slide the container back into the
dryer.
,
Condensed water should not be
consumed. It could lead to health
problems for people and animals.
^
Pull out the container.
Condensed water can be put to
household use (e.g. used in a steam
iron or humidifier). To ensure that any
residual particles of fluff in the
condensed water are removed before
use, pass it through a fine sieve or
paper filter first.
25
Cleaning and care
Adhering to cleaning intervals
This tumble dryer has a multistage
filter system, consisting of the fluff
filters in the door and the door
opening and an additional fine filter.
This system requires maintenance.
This tumble dryer must not be
–
used without the fluff filters and
fine filter in place.
The grille at the bottom right of the
appliance must also always be in
place.
– Also ensure that the fluff filters
and the fine filter are not damaged.
If they are damaged: replace them
immediately (optional
accessories).
,
Failure to follow instructions:
The tumble dryer may experience an
excessive build-up of fluff, which in
turn could cause a fault.
See "Surfaces of the fluff filters".
^
When to clean the fine filter
Only clean the fine filter if the Clean
filter indicator light comes on.
The fine filter is located behind the
cover panel at the bottom right of the
appliance.
It collects finer fluff, hair and
detergent residues which have got
through the surfaces of the fluff filters
in the door and the door opening.
^ See section "Fine filter".
When to clean the surfaces of the
fluff filters
Clean fluff filters after every
programme.
The fluff which is created by the
drying process is collected by the
fluff filters in the door and the door
opening.
26
Surfaces of the fluff filters
Cleaning intervals
Clean the surfaces of the fluff filters
in the door and the door opening
after each drying programme.
Cleaning without water
Tip: You can use a vacuum cleaner to
remove the fluff.
Cleaning and care
Use your fingers or a vacuum cleaner
^
to remove the fluff from the surface of
the filter.

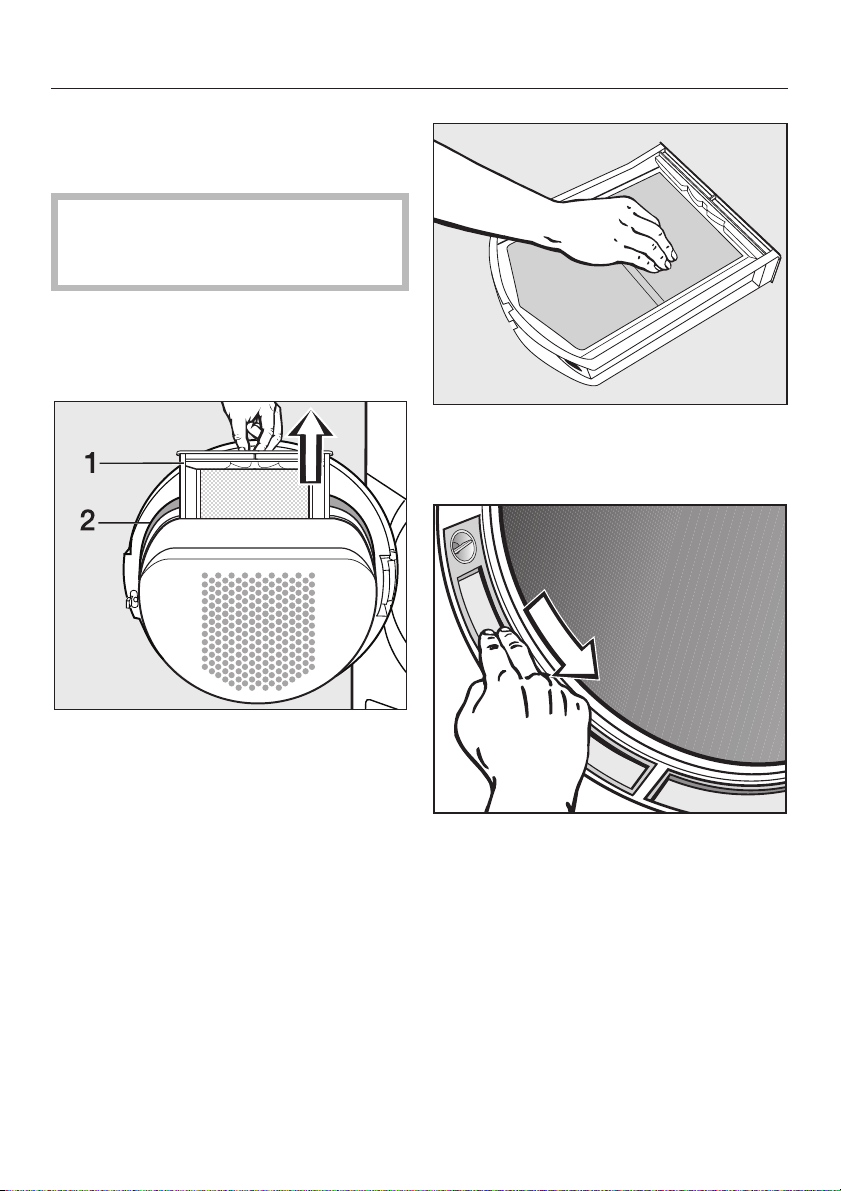

1 Fluff filter
2 Seal
^

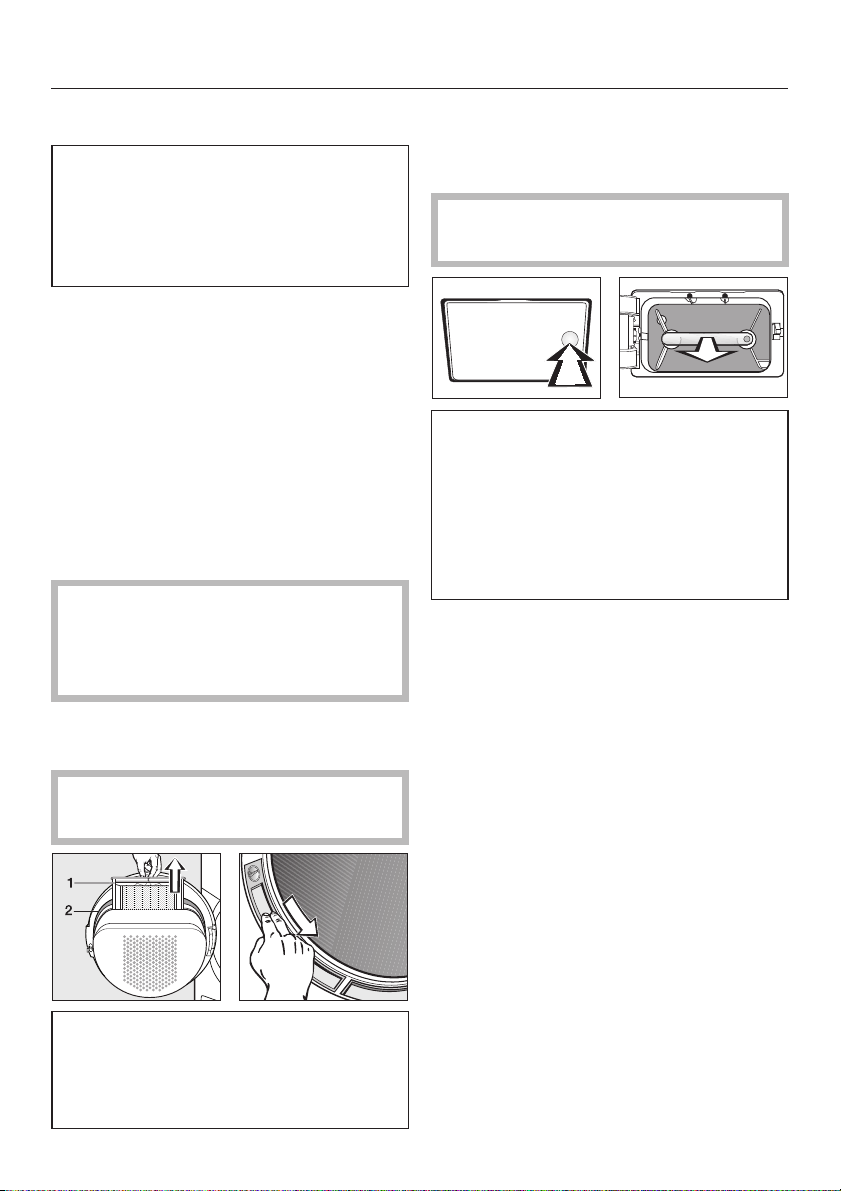

Open the door and pull the fluff filter
(1) out of the door as illustrated.
^
Remove any fluff from the hollow part
of the door with a bottle brush or a
vacuum cleaner.
^
Also clean the door seal (2) with a
damp cloth.
^
Use your fingers or a vacuum cleaner
to remove the fluff from the two fluff
filters in the door opening.
^
Push the filter back into the door
holder until it clicks into position.
Ensure it is facing the correct way.
^
Close the door.
27
Cleaning and care
Cleaning with water
If there is a great deal of compacted
fluff on any of the filters, they must
be removed and cleaned under hot
running water.
Open the door and pull the fluff filter
^
out of the door as described
previously.
The two filters in the door opening can
also be removed if you need to clean
them with water.
Refitting the filters
The fluff filters must be dry
,
before they are refitted. Damp or wet
filters could cause operational faults.
Push the filter back into the door
^
holder until it clicks into position.
Ensure it is facing the correct way.
Replace the filters in the door
^
opening by first inserting them at the
bottom and then pressing them into
place at the top.
^ Lock both dials (you will feel them
click into position).
^
Turn the dial a on each fluff filter
until you feel it click.
^
Pull the filter out of the door opening
by the dial as shown b.
^
Rinse all the filters under hot, running
water.
^
Carefully dry the fluff filters
thoroughly.
^
Clean the area underneath these
filters, e.g. with a vacuum cleaner.
28
Fine filter
Cleaning intervals
Only clean the fine filter if the Clean
filter indicator light comes on.
To switch off the Clean filter indicator
^
light: Open and close the door (while
the tumble dryer is switched on).
Cleaning and care
Removing the fine filter
Switch the dryer off.
^
At the bottom right of the appliance:
^
Press the cover panel for the fine
filter.
The panel will open.
Pull the fine filter out by the handle.
^
^ Pull the handle out of the fine filter.
Cleaning the fine filter
^
Clean the fine filter thoroughly under
running water.
^
Then firmly squeeze the water out of
the fine filter.
,
The fine filter must not be
replaced in the dryer dripping wet.
This could cause a fault to occur.
^
Remove any fluff on the handle with a
damp cloth.
29
Cleaning and care

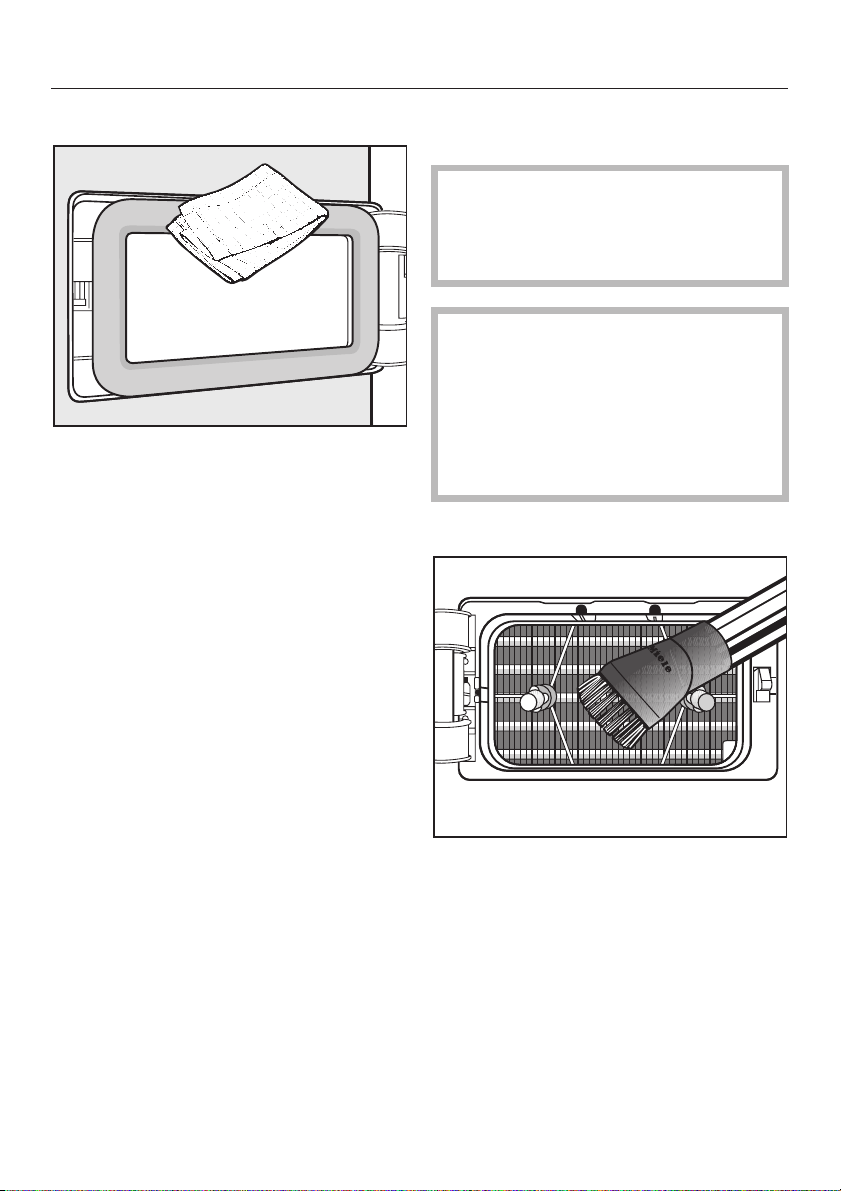

Cleaning the fine filter cover panel
Remove any fluff with a damp cloth.
^
Be careful not to damage the rubber
seal.

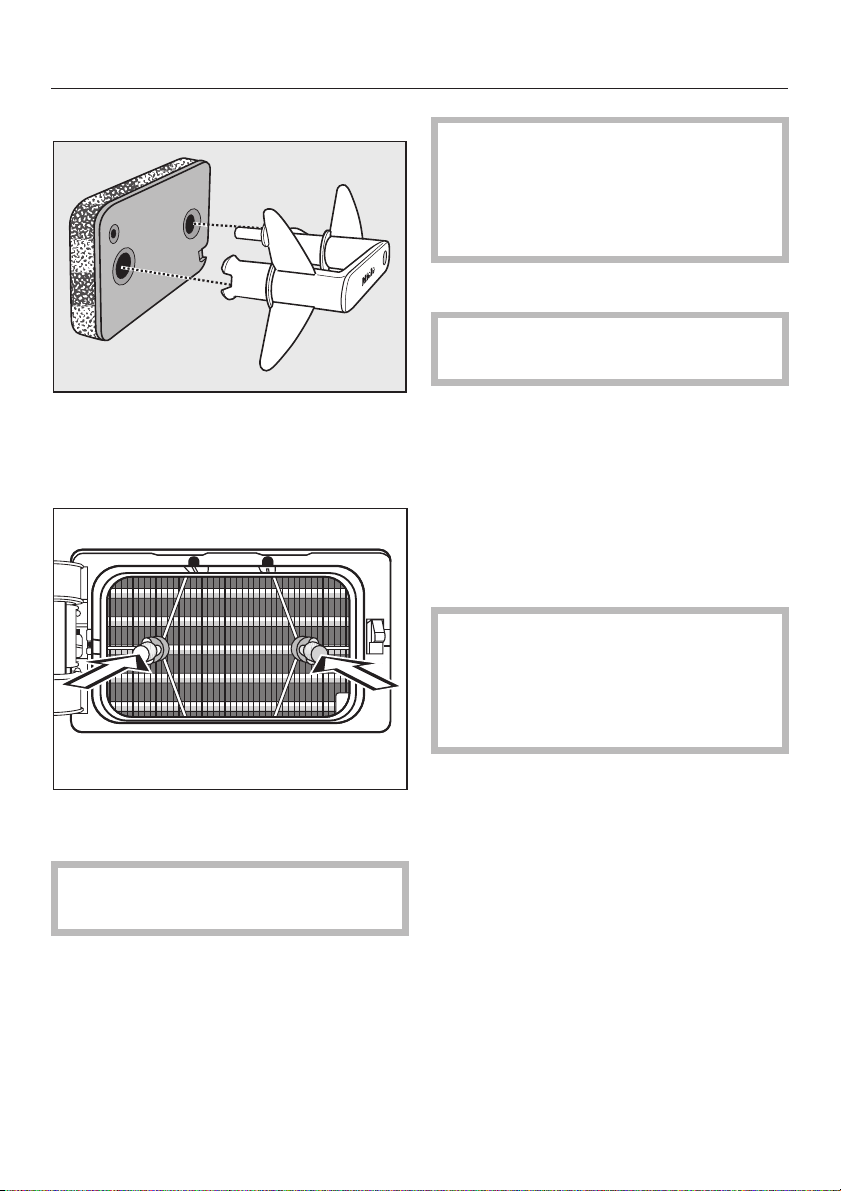

^ Check whether the cooling fins are
dirty (refer to the following).
Cleaning the heat exchanger unit
compartment
Danger of injury!
,
Do not touch the cooling fins as they
are very sharp and may cut your
fingers.
Risk of damage!
,
Carefully run the dusting brush of
the vacuum cleaner across the
cooling fins.
Otherwise the cooling fins or the
braces in front of them may be
damaged.
In case of visible soiling:
30
^
Carefully vacuum up any soiling
using a dusting brush or crevice
nozzle.
Replacing the fine filter
Insert the handle into the fine filter.
^
In order that the filter sits correctly in
front of the heat exchanger unit:
Cleaning and care
Only when the filter is fitted correctly
and the cover panel is closed can
the condensed water system be
sealed and the correct functioning of
the tumble dryer be guaranteed.
Cleaning the tumble dryer
Disconnect the machine from the
mains electricity supply.
Clean the housing, control panel and
^
door seal with a slightly damp cloth
and a mild detergent or soapy water.
^ The drum and other stainless steel
parts can be cleaned with a suitable
propietary stainless steel cleaner
following the manufacturer's
instructions.
Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaners. These could
damage plastic surfaces and other
parts.
^
Stick the handle with the filter
attached onto the two guide pins.
Ensure that the yellow dot is on the
right-hand side of the handle.
^
Push the handle in as far as it will go.
^
Close the cover panel.
^
Dry all parts with a soft cloth.
31
Problem solving guide...?
Problem solving guide
With the help of the following notes, minor faults in the performance of the
machine, some of which may result from incorrect operation, can be put right
without contacting Miele. A call-out charge will be applied for unnecessary service
visits where the problem could have been rectified as described in these
Operating instructions. Please note:
Repair work to electrical appliances must only be carried out by a suitably
,
qualified and competent person in strict accordance with current local and
national safety regulations. Repairs and other work by unqualified persons
could be dangerous. The manufacturer cannot be held liable for unauthorised
work.
Fault messages in the display
Problem Possible cause Remedy
Display: 0-§
The
Gentle tumble indicator
light is flashing.
The programme is
cancelled.
Display: 0 and Finish
The buzzer sounds. *
The programme is
cancelled.
The Empty the container
indicator light comes
on.
The buzzer sounds. *
* Switch off the indicator light: Open and close the door (while the tumble
dryer is switched on).
The system lock is
activated.
This is not a fault.
In some programmes, if
the drum has been
overloaded or
underloaded, the
programme will be
cancelled. This can also
happen if the items are
already dry.
The condensed water
container is full or there is
a kink in the drain hose.
If you wish to use the
tumble dryer, the system
lock needs to be
deactivated (see
"Electronic system lock").
Use the Warm air
programme to dry
individual items.
–
Empty the condensed
water container.
–
Check the drain hose.
32
Problem solving guide...?
Problem Possible cause Remedy
The Clean the filters
indicator light
comes on at the end
of the programme.
~F~ lights up and a
programme cannot
be started.
The following
flashes at the end of
a programme:
—œ–...C~–...Cœ˜....
The programme is
cancelled.
The buzzer may
sound and Cooling
down or Finish is
flashing.
The indicator light
Start/Stop flashes
slowly and the
display is dark.
The Start/Stop
indicator light
flashes / lights up.
This is a reminder to
clean the fine filter in front
of the heat exchanger unit
under running water.
The fine filter is not in
place or has been
incorrectly fitted.
The programme will be
cancelled if the fine filter
is removed while the
machine is in operation:
Cooling down is flashing.
The programme has
finished but the laundry is
still cooling down.
There is no immediate
cause.
The dryer is in standby.
This is a normal function
and does not indicate a
fault.
The flashing indicates
that a programme can be
started.
Clean the fine filter.
–
See chapter "Cleaning and
–
care".
The indicator light will go
–
out when the door is
opened and closed again
while the tumble dryer is
switched on.
Correctly fit the fine filter:
–
~F~ will go out.
See chapter "Cleaning and
–
care".
– Fit the fine filter.
– Switch the dryer off and
then on again.
You can remove the laundry
and spread it out to allow the
heat to dissipate, or leave it in
the dryer to cool down more.
– Switch the dryer off and
then on again.
–
Start a programme.
If the programme stops again
and Cooling down or Finish
flashes again, there is a fault.
Contact Miele.
See "Setting standby" in
"Programmable functions".
After the programme has
started, the flashing will
change to a constant light.
33
Problem solving guide...?
An unsatisfactory drying result
Problem Possible cause Remedy
The laundry is not
sufficiently dry.
Items made of synthetic
fibres are charged with
static electricity after
drying.
There is a build-up of
fluff.
* You can alter the drying levels for some programmes: (see "Settings menu").
The load consisted of
different fabrics.
Synthetic fibres tend to
attract a static charge.
Fluff is principally the
result of friction when
garments are being worn
and to some extent when
they are being washed.
Machine drying hardly
causes any fluff to form
and has no appreciable
effect on the lifetime of
the fabric.
Final drying cycle with
–
Warm air.
Select a different
–
programme next time*.
Static charge can be
reduced by adding a
fabric conditioner to the
final rinse in the washing
programme or a fabric
conditioner sheet to the
load when drying.
Fluff is collected by the
fluff filters and can be
easily removed (see
"Cleaning and Care").
34
Problem solving guide...?
Other problems
Problem Possible cause Remedy *
The drying
process goes
on too long or
even switches
off.
* Before starting a programme, switch the dryer off and then on again.
Ventilation to and from the
dryer may be insufficient
(e.g. because it is installed
in a small room). This has
caused the temperature in
the room to rise sharply.
Detergent residue, hair
–
and fine fluff may have
blocked the fluff filters
and fine filter.
– The cooling fins may be
blocked.
The cool air intake panel
(grille at bottom right) is
covered.
The fluff filters and the fine
filter were still wet when
they were replaced.
The laundry has not been
spun sufficiently.
The tumble dryer has been
overloaded.
Metallic components, e.g.
zippers have prevented the
dryer from registering the
correct moisture level.
Open a door or window while the
machine is in operation for
increased air flow.
Clean the fluff filters and fine
–
filter.
Remove any fluff:
–
. . . from the heat exchanger
unit at the bottom left (see
"Cleaning and care").
. . . from the cooling fins behind
the grille at the bottom right.
Remove the laundry basket or
other objects.
The fluff filters and fine filter must
be dry before being replaced.
Make sure that your laundry is
thoroughly spun at the
appropriate spin speed in the
washing machine.
Do not exceed the maximum load
for the programme selected.
–
Open the zippers next time.
–
If the problem occurs again,
dry garments with long zippers
using the Warm air programme
(timed drying).
35
Problem solving guide...?
Problem Possible cause Remedy
There are humming
noises.
A programme cannot
be started.
Power cut. When power is restored to the tumble dryer after a
The interior drum
lighting is not
switched on.
The compressor is
operating.
There is no immediate
cause.
power cut, the programme will continue automatically.
The lighting switches off
automatically (to save
energy).
None. These noises are
quite normal and do not
indicate a fault.
Is the tumble dryer
–
switched on?
Is the mains plug
–
plugged in?
Is the door closed
–
properly?
Has the fuse or circuit
–
breaker tripped?
If you cannot remedy the
–
problem, there is a fault.
Call Miele.
– Switch the dryer off and
then on again.
– If the lamp needs to be
replaced, follow the
instructions under
"Changing the lamp" at
the end of this section.
36
Cleaning the cooling fins
(Grille at bottom right)
Generally, the cooling fins do not
,
need to be cleaned. They should
only be cleaned if excessive
quantities of dust and lint are
causing unusually long drying times.
Use the yellow opener supplied to open
the grille at the bottom right of the front
of the tumble dryer.
Problem solving guide...?
To avoid damaging the cooling
,
fins, run the vacuum cleaner (using
dusting brush or crevice nozzle)
lightly across them without pressure.
^ Carefully vacuum up any dust or lint
on the cooling fins which may be
causing a blockage.
^
Insert the opener in the top-centre of
the grille and carefully lift the opener
to pry open (see arrow) the grille.
^
Now remove the grille by pulling it
diagonally upwards.
^
Check whether the cooling fins are
blocked.
,
Danger of injury!
Do not touch the cooling fins as they
are very sharp and may cut your
fingers.
^
Replace the grille by inserting at the
bottom first.
^
Then click it into position at the top.
37
Problem solving guide...?
Changing the lamp
Disconnect the machine from the
mains electricity supply.
The lamp specification and
maximum wattage are stated on the
data plate and on the lamp cover.
Open the door.
^

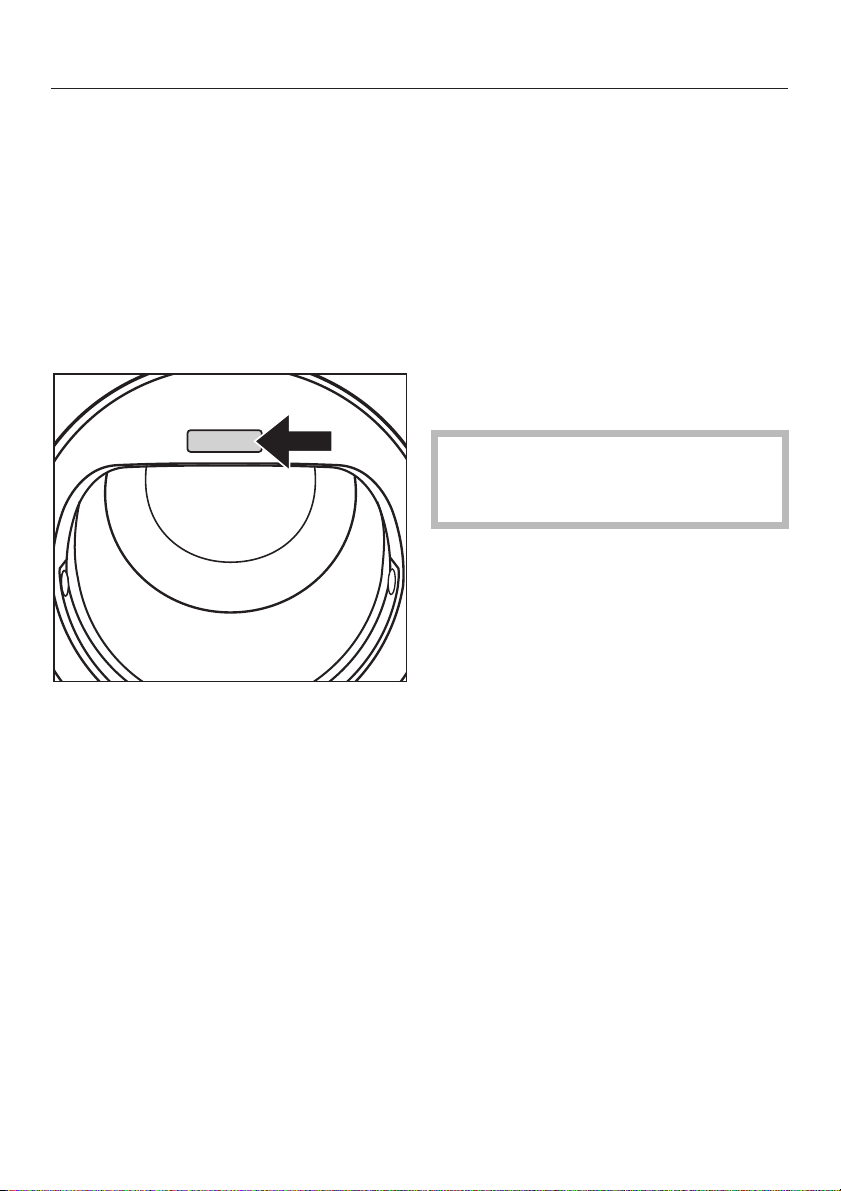

You will find the interior lamp cover at
the top of the drum aperture.
^ Insert a suitable tool, such as a wide
bladed screwdriver, under the side
edge of the lamp cover as illustrated.
^
Apply a little pressure and whilst
doing so turn your wrist in the
direction of the arrow to open the
cover.
Replace the lamp.
^
To close the cover, push it upwards
^
and press it on the left and right until
you hear it click into position.
Ensure that it is fitted into
,
position securely, as any moisture
could cause a short circuit.
The cover will open downwards.
The temperature resistant lamp should
only be ordered from your Miele
Chartered Agent or from Miele.
38
After Sales service
In the event of any faults which you
cannot remedy yourself, please contact
Your Miele Chartered Agent or
–
Miele (see back cover for address).
–
When contacting Miele, please quote
the model and serial numbers, both of
which are located on the data plate
situated on the right-hand side below
the drum aperture.
Future updates (PC)
The indicator or check light marked PC
on the control panel is the interface
used by the Miele service technicians
during service work for testing
purposes and for updating the
machine's programme data.
Optional accessories
Optional accessories for these dryers
are available from your Miele Chartered
Agent or from Miele.
Please note that telephone calls may
be monitored and recorded to
improve our service.
Note: A call-out charge will be applied
for unnecessary service visits where the
problem could have been rectified as
described in this instruction manual.
39
Installation and connection

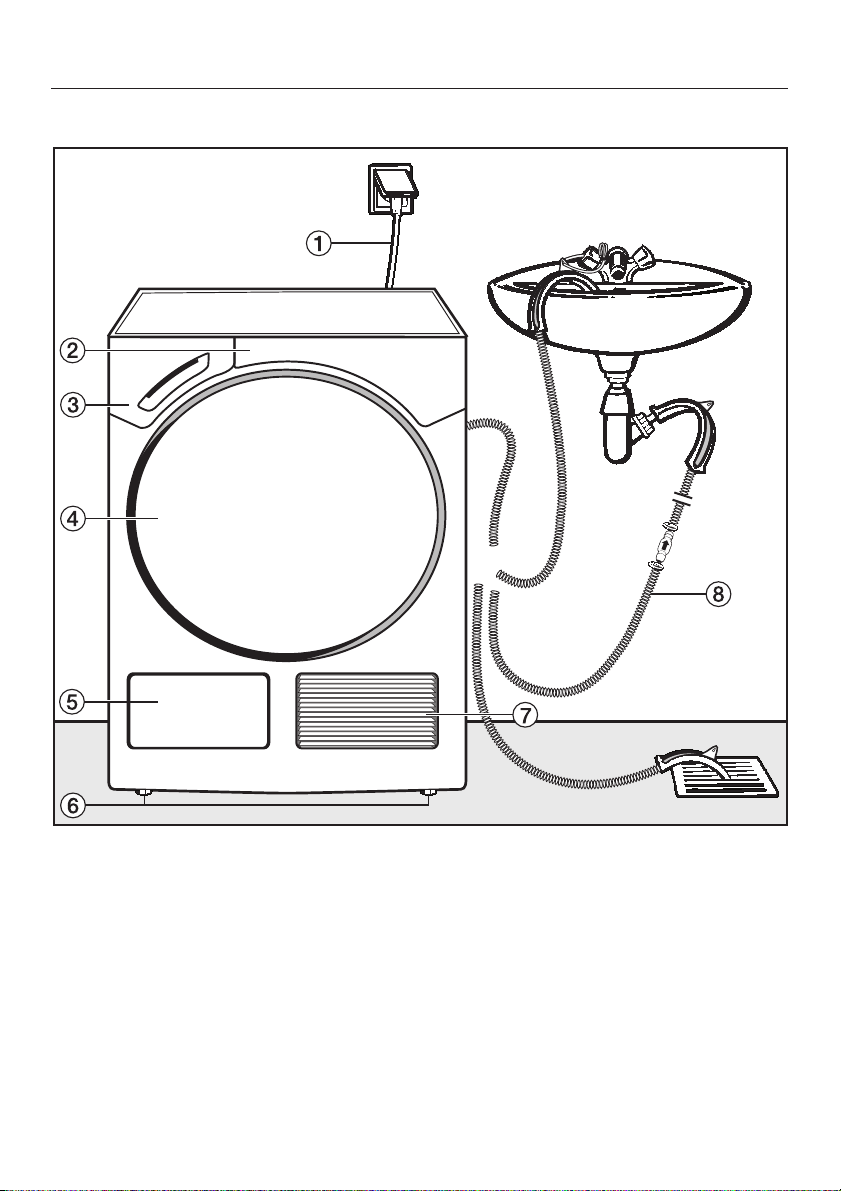

Front view
a Mains connection cable
b Control panel
c Condensed water container (empty
after every drying programme)
d Door
e Fine filter cover panel (do not open
during drying programme)
40
f Four height adjustable screw feet
g Cool air intake panel (do not block,
e.g. with wash basket)
h Hose for external drainage of
condensed water (see "External
condensed water outlet")

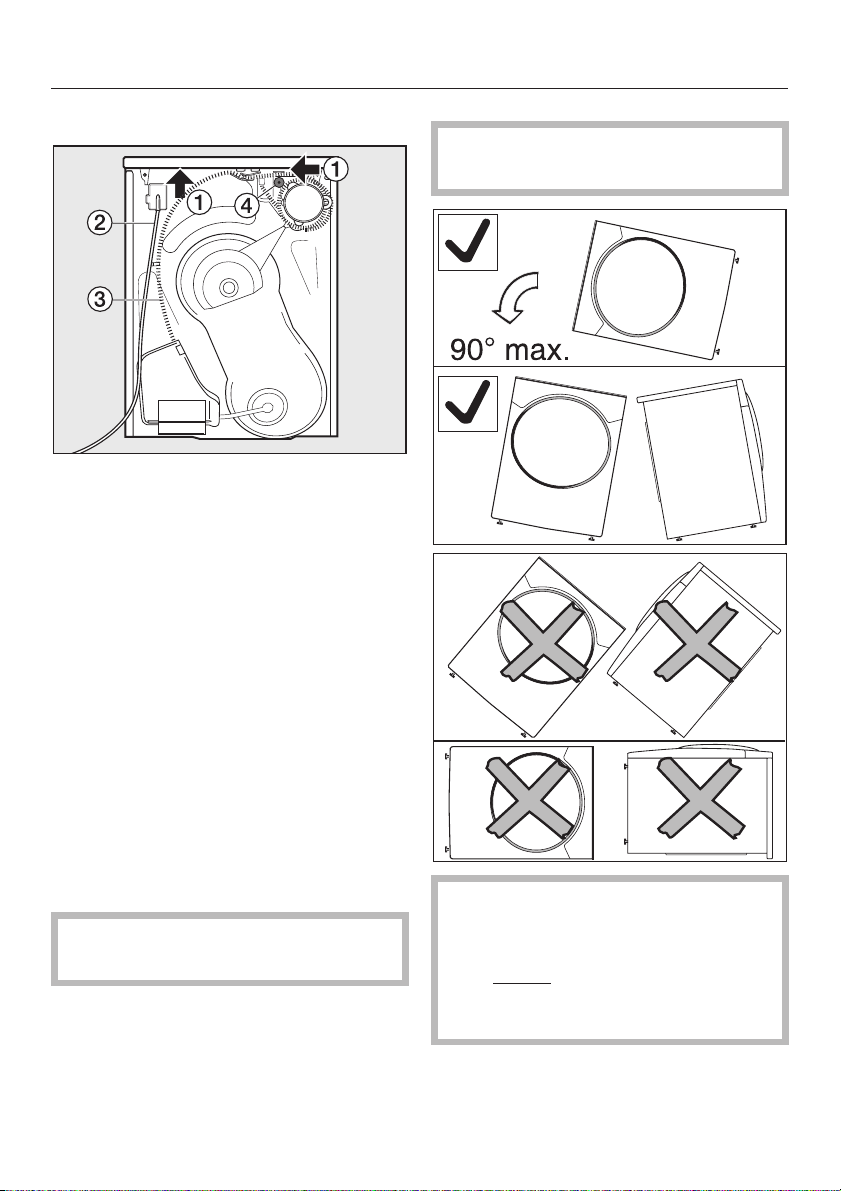

Rear view
a Protruding lid for holding when
moving the machine (see arrows)
b Mains connection cable
c Hose for external drainage of
condensed water
d Accessories for connection to a sink
drain outlet
Installation and connection
If transporting the dryer at an
,
angle, only tip towards the left side.
Transporting the dryer
When moving the dryer, hold it by the
lid where it protrudes to the rear. To
manoeuvre the machine out of its
packing case to its installation site, hold
it by the front feet as well as by the
edge of the lid where it protrudes to the
rear of the washing machine.
,
Only transport the dryer as
shown in the following illustrations.
,
If the tumble dryer has not been
transported as described, then it
must be left to stand for at least 1
hour before
electricity supply. Otherwise the
heat pump can be damaged.
it is connected to the
41
Installation and connection
Installation site
Make sure the dryer door can be
,
opened without hindrance after
installation.
This tumble dryer can be built in
–
under a worktop.
The machine lid must not be
–
removed.
To prevent faults or programmes
from running for excessively long
times:
The cool air intake panel at the
,
front of the tumble dryer must not be
blocked or covered, e.g. by a
laundry basket.
,
It is very important to avoid a
build up of heat.The warm air which
is expelled from the rear of the dryer
must be able to dissipate.
Levelling the machine
The machine must be perfectly level to
ensure safe and proper operation.
42
^
The screw feet can be adjusted to
compensate for any unevenness in
the floor.
,
The gap between the base of the
dryer and the floor must not be
minimised by a plinth or thick-piled
carpet as this will prevent a
sufficient intake of cold air.
Before moving the tumble dryer
again (e.g. when moving houses)
After each use a small quantity of
condensed water will collect in the area
around the pump. This water can run
out if the tumble dryer is tipped up
when it is being moved. It is a good
idea to run the Warm air programme for
approximately 1 minute before moving
it. Any remaining condensed water will
then be fed into the condensed water
container or out through the drain hose.
Washer-dryer stack
The tumble dryer can also be
combined with a Miele washing
machine in a washer-dryer stack. The
appropriate "WTV" stacking kit* to
match your dryer is required.
* accessory available to order
Installation and connection
,
Stacking kits must only be
installed by a suitably qualified fitter
authorised by Miele.
43
Installation and connection
External condensed water
outlet
General notes
When drying is in progress, condensed
water is pumped into the condensed
water container through the drain hose at
the back of the dryer. The condensed
water can also be drained off directly if
the machine is installed near a sink, drain
outlet etc. so that the condensed water
container does not have to be emptied.
Drain hose length ............1.50 m
Maximum delivery head .......1.50 m
Maximum drain hose length ....4.00 m
If the on-site water drainage
,
system is not fitted with a non-return
valve or an appropriate air gap, one
must be fitted to prevent the risk of
back-flow (See "Installation conditions
requiring a non-return valve").
Pull the hose off its connection (see
^
arrow).
^ Allow any residual water to run into
the container.
^ Unwind the hose and pull it carefully
out of the holders.
The following optional accessories are
available:
–
an extension hose
–
a non-return valve kit for connection
to an external condensed water
outlet (includes an extension hose).
Maximum delivery head with
non-return valve fitted: 1.00 m
Arranging the drain hose
,
Do not pull on the drain hose and
do not stretch it or allow it to become
kinked as it could get damaged.
^
There will be a small amount of
residual water in the drain hose.
Have a container ready to collect this.
44
^
Position the hose to the right or
left-hand side as necessary.
Leave the hose in the middle holder to
prevent it from becoming kinked
inadvertently.
Installation and connection
External drainage via a sink or gully
See "Front view" illustration.
^
If you want to drain the water off
,
into a sink, you will need to secure
the hose carefully, e.g. by tying it to
a tap to make sure it cannot slip
during use. Otherwise there is a risk
of overflowing water which could
cause damage.
Use the bow-shaped guide to
^
prevent the drain hose from
becoming kinked.
Installation conditions requiring a
non-return valve
Certain installation conditions
,
require the fitting of a non-return
valve (available as an optional
accessory). A non-return valve will
prevent the risk of back-flow out of
the dryer which could cause
damage.
Example: Connection to a sink drain
outlet
The drain hose with non-return valve
fitted can be connected directly to a
suitable sink drain outlet.

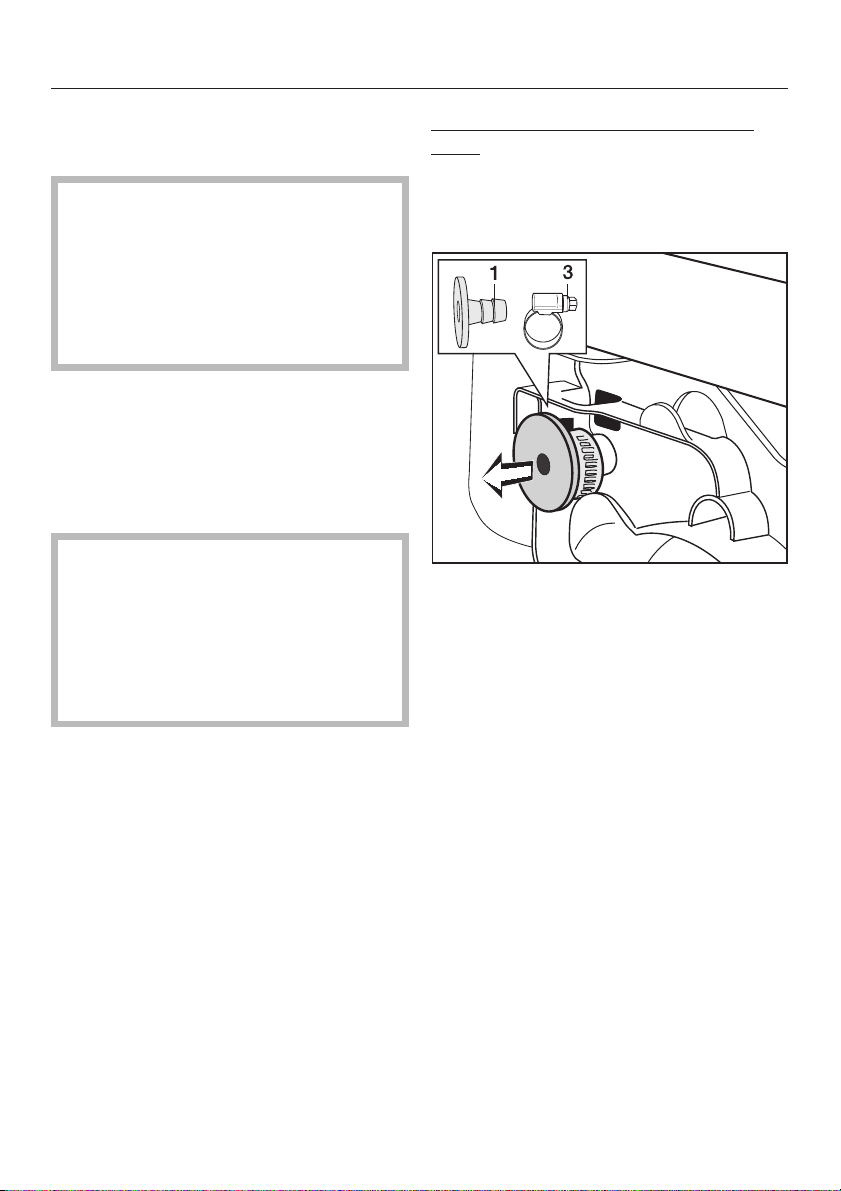

^ Remove the following from the back
of the dryer at the top:
Adapter 1 and hose clip 3 behind it.
A non-return valve is required:
–
If the tumble dryer is connected to a
sink drain outlet (see the following
section).
–
If the tumble dryer is connected to a
drainage system already in use by
another appliance, e.g. a dishwasher
or washing machine.
45
Installation and connection
1 Adapter
2 Nut
3 Hose clip
4 End of the hose
5 Non-return valve
6 Tumble dryer drain hose
Fit adapter 1 to the sink drain outlet
^
using nut 2.
If this nut has a flat disc in it, you
should take the disc out first.
Attach the end of the hose 4 to
^
adapter 1.
Use a screwdriver to tighten hose
^
clip 3 up close to the nut.
Non-return valve 5 has to be
,
fitted with the arrow pointing in the
direction of flow (i.e. towards the
sink). Otherwise water will not drain
out of the machine.
^ Fit non-return valve 5 to the tumble
dryer drain hose 6, making sure it is
fitted in the correct direction (see
arrow on non-return valve).
^ Secure the non-return valve using
hose clips.
46
Electrical connection
Electrical connection U.K.
All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. Please ensure the connection
data quoted on the data plate match
the household mains supply.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD). Contact a
qualified electrician for advice.
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
47
Consumption data
Load1Final spin speed in a
CottonsNormal
Cottons Normal 7,0
Cottons Normal
+ Gentle tumble 7,0 1000 60 1,90 130
Cottons Hand ironrr
Cottons Hand ironrr 7,0
Minimum iron Normal
Minimum iron Normal
+ Gentle tumble 3,5 1200 40 0,65 49
Minimum iron Hand iron 3,5 1200 40 0,50 41
Automatic plus Normal 5,0 800 50 1,50 99
Shirts Normal
+ Gentle tumble
Gentle smoothing 1,0 1000 60 0,35 30
Proofing Normal 2,0 800 50 1,25 85
Denim Normal
+ Gentle tumble
Express Normal 3,5 1000 60 1,10 75
Woollens 2,0 1000 50 0,20 20
1
Weight of dry laundry
2
EN 61121:2005 test programme
All data was calculated using EN 61121:2005 unless otherwise stated.
Notes for test institutes:
Before testing in accordance with EN 61121, drya3kgload of cotton laundry with 70% residual
moisture as per the above standard using the Cottons Normal programme without any extra options.
Consumption data can vary from the nominal values given above depending on the size of the
load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity
supply and any extra options selected.
2
2
2
kg rpm % kWh min.
7,0 1000 60 1,80 123
7,0
7,0
7,0
7,0 1000 60 1,35 94
7,0
7,0
7,0
3,5 1200 40 0,60 47
2,0
2,0
3,0
3,0
domestic washing
machine
1200
1400
1600
1800
1200
1400
1600
1800
600
600
900
900
Residual
moisture
53
50
44
43
53
50
44
43
60
60
60
60
Energy Duration
1,60
1,55
1,35
1,35
1,20
1,10
0,95
0,90
0,70
0,75
1,40
1,45
111
106
94
92
82
77
66
64
53
59
94
99
48
Technical data
Height 850 mm
Width 595 mm
Depth 634 mm
Depth with door open 1,074 mm
Suitable for pushing under a
worktop
Height
–
Width
–
Suitable for stacking Yes
Weight 70 kg
Drum volume 111 l
Maximum capacity 1-7 kg dry weight
Capacity of condensed water
container
Drain hose length 1.50 m
Maximum delivery head 1.50 m
Maximum drain hose length 4.00 m
Length of connection cable 2.00 m
Voltage
Rated load
Fuse rating See data plate
Lamp wattage
Test certificates awarded
Energy consumption see "Consumption data"
Yes
850 mm
600 mm
approx. 4.2 l
49
Electronic system lock
and
Programmable functions for changing
standard settings
This tumble dryer is programmed at
the factory so that is operates
effectively for all requirements.
However, you do have the ability to
change the standard settings.
You can adapt the electronics of the
tumble dryer to suit your personal
needs.
The features "Electronic system lock"
and "Programmable functions" are at
your disposal, but do not have to be
utilised.
50
The system lock prevents your
machine being used without your
knowledge.
You can switch on the system lock if
required.
The dryer's electronics are then locked.
The dryer can still be switched on but a
programme cannot be started.
If an attempt is made to start a
–
programme, the indicator light for the
Gentle tumble button will come on
and the key symbol 0-§ will appear
in the display.
The door is not locked and can be
opened at any time.
Locking
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
A Press the Gentle tumble button and
keep it pressed in up to stepE.
B Press the jk button.
The Automatic plus indicator light will
come on.
Electronic system lock
D Now slowly turn the programme
selector six positions stage by stage
in an anti-clockwise
Each of the six programme indicator
lights must come on one after the
other.
The indicator light for the Gentle tumble
button will flash and a key symbol 0-§
will appear in the display.
E Release the Gentle tumble button.
The system lock is activated.
Switch the dryer off.
^
Deactivating the system lock
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
^ The procedure is the same as for
activating the lock. Repeat steps A
to E.
At step E the indicator light for the
Gentle tumble button will stop flashing
and the key symbol 0-§ will go out.
The electronics are no longer locked.
direction.
C Slowly turn the programme selector
three positions stage by stage in a
clockwise
Each of the three programme
indicator lights must come on one
after the other.
direction.
51
Programmable functions
Extending the range of the
drying level for the "Cottons"
programme
The electronics of this dryer ensure a
very effective and energy-efficient
drying process.
You can, however, extend the range
of the drying level in this programme
so that there is more or less moisture
in laundry at the end of the
programme.
The option selected will be displayed
by a number which will alternate with
P.
0 The drying level will be damper.
I Factory default setting
(the Automatic plus indicator light will
also flash once)
2 The drying level will be drier.
(the Automatic plus indicator light will
also flash twice)
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
–
The Gentle tumble indicator light will
briefly flash once.
...
D Pressing the Start/Stop button
switches from one number to the
other.
E Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^ Repeat steps A to C.
^
Switch the dryer off after step C.
52
Extending the drying level for
the "Minimum iron"
programme
The electronics of this dryer ensure a
very effective and energy-efficient
drying process.
You can, however, extend the range
of the drying level in this programme
so that there is more or less moisture
in laundry at the end of the
programme.
Programmable functions
The option selected will be displayed
by a number which will alternate with
P.
0 The drying level will be damper.
I Factory default setting
(the Automatic plus indicator light will
also flash once)
2 The drying level will be drier.
(the Automatic plus indicator light will
also flash twice)
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button once.
–
The Gentle tumble indicator light will
briefly flash twice.
...
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^ Repeat steps A to D.
^
Switch the dryer off after step D.
53
Programmable functions
Altering the Anti-crease
function
Helps prevent creasing if laundry is
not normally removed immediately
after the end of a programme.
Anti-crease
is set at the factory, can be
–
shortened or switched off
completely.
can be used for all programmes,
–
except Woollens.
– should always be switched on.
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
The option selected will be displayed
by a number which will alternate with
P.
0 Anti-crease deactivated.
I 1 hour Anti-crease
(the Automatic plus indicator light will
also flash once)
2 Factory default setting. 2 hours
Anti-crease.
(the Automatic plus indicator light will
also flash twice)
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button
twice.
–
The Gentle tumble indicator light will
briefly flash three times.
54
...
Check
^
Repeat steps A to D.
^
Switch the dryer off after step D.
Altering the volume of the
buzzer
The buzzer has two volumes.
Programmable functions
The option selected will be displayed
by a number which will alternate with
P.
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
The dryer is switched off.
–
The door is closed.
–
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button three
times.
– The Gentle tumble indicator light will
briefly flash four times.
...
0 Factory default setting. Normal
buzzer.
I Loud buzzer
(The Automatic plus indicator light
will also flash)
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^ Repeat steps A to D.
^ Switch the dryer off after step D.
55
Programmable functions
Extending the drying level for
the "Automatic plus"
programme
The electronics of this dryer ensure a
very effective and energy-efficient
drying process.
You can, however, extend the range
of the drying level in this programme
so that there is more or less moisture
in laundry at the end of the
programme.
The option selected will be displayed
by a number which will alternate with
P.
0 The drying level will be damper.
I Factory default setting
(the Automatic plus indicator light will
also flash once)
2 The drying level will be drier.
(the Automatic plus indicator light will
also flash twice)
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button four
times.
–
The Gentle tumble indicator light will
briefly flash six times.
...
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^ Repeat steps A to D.
^
Switch the dryer off after step D.
56
Programmable functions
Setting Standby
To save energy, the display goes out
after 10 minutes and the indicator
light for the Start/Stop button will start
flashing slowly.
Reactivating from Standby
Turning the programme selector or
^
pressing one of the buttons switches
the display back on again. This will
not alter a running programme.
On
Standby is activated:
– if a programme is not selected after
the machine has been switched on.
– after a programme has started.
However: The display will switch on for
10 minutes if Delay start has finished,
after the end of a progamme or the
Anti-crease cycle.
The buzzer (if selected) will sound for
10 minutes after the end of a
progamme.
Factory default. Not in current
programme
As described under "On".
But: The display and indicator lights will
not switch off during a programme.
Off
The display and indicator lights will not
switch off when the dryer is switched
on.
Follow steps (A,B,C ...) to
programme and store in memory.
^ See the next page.
57
Programmable functions
Before you begin, first ensure that:
The dryer is switched off.
–
The door is closed.
–
The option selected will be displayed
by a number which will alternate with
P.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button five
times.
– The Gentle tumble indicator light will
briefly flash eight times.
...
0 On
I Factory default setting. Not in
current programme.
(Indicator light Automatic plus will
also flash once)
2 Off
(the Automatic plus indicator light will
also flash twice)
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^ Repeat steps A to D.
^
Switch the dryer off after step D.
58
Memory function
The electronics will memorise any
Extra options selected for a
programme. The duration selected
for the timed drying programmes will
also be stored in memory.
These settings will be selected
automatically the next time the
programme is chosen. You can either
accept these or change them by
pressing the appropriate button.
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
Programmable functions
The option selected will be displayed
by a number which will alternate with
P.
0 Factory default setting. Memory
deactivated.
I Memory
(The Automatic plus indicator light
will also flash)
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button six
times.
–
The Gentle tumble indicator light will
briefly flash nine times.
...
Check
^ Repeat steps A to D.
^ Switch the dryer off after step D.
59
Programmable functions
Keypad tone
An audible tone sounds each time a
button is pressed.
The option selected will be displayed
by a number which will alternate with
P.
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
The dryer is switched off.
–
The door is closed.
–
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button
seven times.
– The Gentle tumble indicator light will
flash slowly once and will then flash
quickly once.
...
0 Factory default setting. Keypad
tone deactivated.
I Keypad tone activated
(The Automatic plus indicator light
will also flash)
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^ Repeat steps A to D.
^ Switch the dryer off after step D.
60
Programmable functions
Adjusting the dryer's
electronics for very soft water
Extremely soft water can affect
,
the sensitivity of the control
electronics.
Important
If the dryer is installed in an area with
very soft water, you should contact your
local water supplier for information and
advice regarding water hardness and
water conductivity.
If the water conductivity is less than 150
µS, the following programmable
function will need to be activated.
This programmable function should
not be activated if, despite the water
being extremely soft (as would be
the case if a water softener were
used), its conductivity is greater
than 150 µS.
Otherwise, the drying result will not
be satisfactory.
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
–
The dryer is switched off.
–
The door is closed.
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button eight
times.
The Gentle tumble indicator light will
–
flash slowly once and will then flash
quickly twice.
The option selected will be displayed
by a number which will alternate with
P.
0 Factory default setting.
I Adjusted for very soft water (with
low conductivity)
(The Automatic plus indicator light
will also flash)
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^
Repeat steps A to D.
^
Switch the dryer off after step D.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
.
..
61
Programmable functions
Extending the drying level
range
You can extend the range of the
drying levels for many of the
programmes:
Machine iron +
(drier than Machine iron).
Light dry
(dryer than Hand iron).
Normal+
(dryer than Normal).
You can use this programming function
only for programmes which allow you to
select the drying levels.
Follow steps (A,B,C ...) to
programme and store in memory.
Before you begin, first ensure that:
– The dryer is switched off.
– The door is closed.
The option selected will be displayed
by a number which will alternate with
P.
0 Factory default setting.
i Drying level range extended
(The Automatic plus indicator light
will also flash)
E Pressing the Start/Stop button
switches from one number to the
other.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can alter the
settings again at any time.
Check
^ Repeat steps A to D.
^ Switch the dryer off after step D.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Gentle tumble button nine
times.
–
The Gentle tumble indicator light will
flash slowly once and will then flash
quickly three times.
62
...
To select the extended drying levels
^
Select a programme.
^
Press the drying level button
repeatedly until one or two indicator
lights come on.
–
Indicator lights Extra dry and Normal
= Normal+
–
Indicator lights Hand iron and
Normal = Hand iron+
–
Indicator lights Machine iron and
Hand iron = Machine iron+
63
Alteration rights reserved/3812
M.-Nr. 09 355 560 / 00
Loading...
