Operating instructions
for condenser tumble dryer
T 7780 C HomeCare
To avoid the risk of accidents
or damage to the appliance
it is essential to read these
instructions before it is installed
and used for the first time.
en-GB
M.-Nr. 07 640 650
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
appliance with your household waste.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
Make sure that your laundry is
–
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
Load according to the optimum
–
amount of laundry recommended for
the programme being used (see
Programme chart).
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
– Make sure the room in which the
dryer is located is well ventilated.
– Make sure the fluff filters are clean
before using the dryer.
– Check the condenser unit from time
to time and clean it when necessary.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
2
Contents
Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the tumble dryer.........................................10
Control panel .....................................................10
Notes on laundry care .............................................12
Care symbols.....................................................12
Tips on drying ....................................................12
How to dry correctly ..............................................13
Brief instructions ..................................................13
Extra options / Delay start..........................................16
Low temperature ..................................................16
Buzzer ..........................................................16
Delay start .......................................................16
Programme chart .................................................17
Changing the programme sequence .................................20
Once a programme has started ......................................20
- changing the programme........................................20
- cancelling the programme and then selecting a different programme .....20
- cancelling the programme and then removing the laundry ..............20
Altering Delay start ................................................20
Adding or removing laundry after a programme has started ................20
Time remaining ...................................................20
Electronic system lock ............................................21
3
Contents
Cleaning and care ................................................22
Emptying the condensed water container...............................22
Cleaning the fluff filters .............................................23
Cleaning them whilst dry .........................................23
Cleaning them with water .........................................24
Cleaning the tumble dryer ...........................................25
Cleaning the condenser unit .........................................26
Removing the condenser unit......................................26
Checking the condenser unit ......................................27
Cleaning the condenser unit.......................................27
Replacing the condenser unit......................................28
Problem solving guide ............................................29
Check and fault messages ..........................................29
Other problems ...................................................31
Changing the lamp ................................................34
After Sales service................................................35
Repairs..........................................................35
Future updates (PC) ...............................................35
Appliance guarantee ...............................................35
Optional accessories ...............................................35
Installation and connection ........................................36

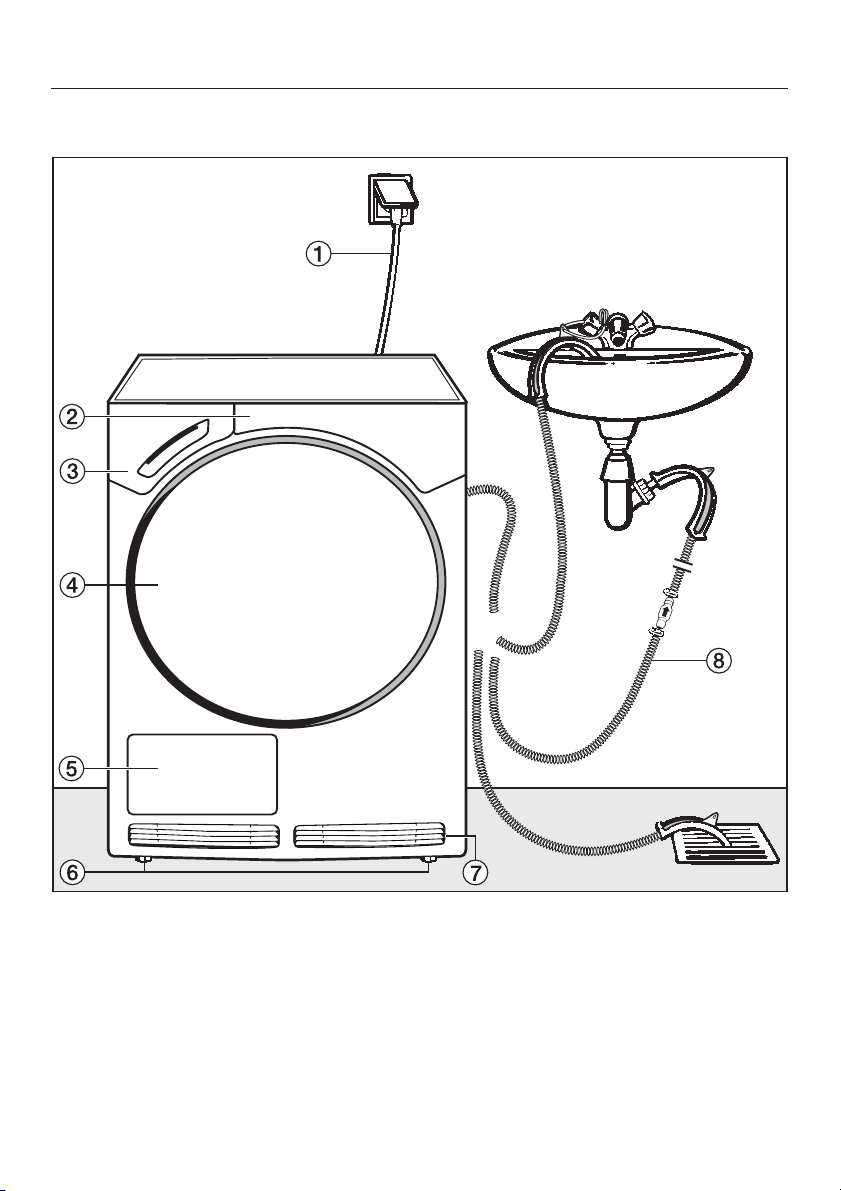

Front view........................................................36
Rear view ........................................................37
Installation site ....................................................37
Transporting the machine to its installation site ........................37
Washer-dryer stack..............................................37
Levelling the machine............................................38
Room ventilation ................................................38
Before moving the tumble dryer again (e.g. when moving house) .........38
4
Contents
External condensed water outlet ......................................39
Arranging the drain hose .........................................39
External drainage via a sink or gully ................................40
Installation conditions requiring a non-return valve .....................40
Electrical connection .............................................42
Electrical connection U.K. ...........................................42
Consumption data ................................................43
Technical data ...................................................44
Programmable functions...........................................46
Altering the residual moisture level in the Cottons programme...............46
Altering the residual moisture level in the Minimum iron programme ..........47
Anti-crease ......................................................48
Altering the volume of the buzzer .....................................49
Altering the standard drying level in the Automatic programme..............50
Extending the cooling down time .....................................51
Standby .........................................................52
Memory function ..................................................54
Clean out airways indicator ..........................................55
Keypad tone .....................................................56
Adjusting the dryer's electronics for very soft water .......................57
Extending the range of the drying levels ................................58
5
Warning and Safety instructions
Correct application
This tumble dryer is for domestic
~
use only and can only be used to dry
items which have been washed in a
water solution and which are marked on
It is essential to read these
~
instructions.
This tumble dryer conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.
To avoid the risk of accidents and
damage to the tumble dryer, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
the manufacturer's care label as being
suitable for tumble drying. "Dry
cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation.
This appliance is not intended for
~
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it or have
been shown how to use it by a person
responsible for their safety.
Safety with children
Keep children away from the tumble
~
dryer at all times. It is not a toy! To
avoid the risk of injury do not allow
them to play on or near it or to play with
its controls. Supervise children whilst
you are using it.
Older children may only use it if its
~
operation has been clearly explained to
them, and they are able to use it safely,
recognising the dangers of incorrect
use.
6
Warning and Safety instructions
Technical safety
Before setting up the tumble dryer,
~
check it for any externally visible
damage.
Do not install or use a damaged tumble
dryer.
Before connecting the tumble dryer,
~
ensure that the connection data on the
data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this tumble
~
dryer can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician. Miele cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
Faulty components must only be
~
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
tumble dryer be guaranteed.
If the connection cable is faulty it
~
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In the event of a fault or for cleaning
~
purposes, the tumble dryer is only
completely isolated from the electricity
supply when:
– it is switched off at the wall socket
and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is disconnected, or
– the screw-out fuse is removed (in
countries where this is applicable).
This tumble dryer may only be used
~
in mobile installations such as ships if a
risk assessment of the installation has
been carried out by a suitably qualified
engineer.
Do not connect the tumble dryer to
~
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
tumble dryer (e.g. danger of
overheating).
Unauthorised repairs could result in
~
unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
tumble dryer until after maintenance or
repair work has been carried out.
In countries where there are areas
~
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
tumble dryer and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Do not make any alterations to the
~
tumble dryer, unless authorised to do
so by Miele.
7
Warning and Safety instructions
Correct use
To prevent the risk of fire, the
~
following textiles must not be dried in
this tumble dryer:
items which have not been washed.
–
items, such as workwear, which have
–
not been thoroughly cleaned and
which are still soiled with grease, oil
or other deposits (such as
cosmetics, lotions etc).
If items have not been thoroughly
cleaned there is a danger that these
might ignite when heated, even after
they have been removed from the
dryer at the end of the programme.
– items (e.g. mops and floorheads)
which have been treated with
inflammable cleaning agents or
contain residues of acetone, alcohol,
benzine, petrol, stain remover,
turpentine, wax, wax remover or
other chemicals.
– items which have been splashed with
hair lacquer, hair spray, nail varnish
remover or similar substances.
When washing such heavily soiled
items ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the
items several times.
To prevent the risk of fire, the
~
following must not be dried in this
tumble dryer:
items which have been cleaned
–
using chemicals (e.g. professional
dry-cleaning agents).
fabrics which contain a large
–
proportion of rubber, foam rubber or
rubber-like materials. For example,
products made from latex foam
rubber, shower caps, waterproof
textiles, rubberised articles and items
of clothing and pillows with foam
rubber filling.
– damaged items which contain
padding or fillings (e.g. pillows,
jackets). When damaged, the filling
can get out with the risk of igniting in
the dryer.
In many programmes, the heating
~
phase is followed by a cooling down
phase to ensure that the items are not
too hot to handle when you remove
them (this also avoids the danger of the
laundry self-igniting). The programme is
not finished until the cooling down
phase has been completed.
Ensure that you always wait until the
end of the programme before removing
the laundry.
Warning: Do not switch the tumble
~
dryer off before the end of the drying
programme. If this was done and the
laundry was then removed immediately
it could give off a great amount of heat.
Fabric conditioner and similar
~
products must be used according to
the instructions on the manufacturer's
packaging.
8
Warning and Safety instructions
The dryer must not be used without
~
the fluff filters in place or if the fluff
filters are damaged in any way.
The fluff filters must be cleaned
~
regularly.
The dryer must not be used without
~
the condenser unit in place.
The fluff filters must be thoroughly
~
dried after cleaning. Damp or wet filters
could cause operational faults.
Do not install the tumble dryer in a
~
room where there is a risk of frost
occurring. At temperatures around
freezing point the tumble dryer may not
be able to operate properly.
There is a risk of damage if the
condensed water is allowed to freeze in
the pump, hoses and / or condensed
water container.
The ambient room temperature should
be between +2°C and +35°C.
If the water is drained externally
~
through the drain hose instead of being
collected in the condensed water
container, make sure the drain hose is
securely attached if you hang it in a
sink or basin to avoid the hose slipping
and the water causing damage.
Condensed water is not drinking
~
water.
It can cause health problems in both
people and animals.
Always keep the area around the
~
tumble dryer free of dust and fluff. Dust
drawn into the tumble dryer can cause
blockages in the condenser unit over
time.
Do not let anyone sit or lean on the
~
door, as this can cause the tumble
dryer to tip up.
Always close the door after use. This
~
way you will avoid the danger of:
children climbing onto or into the
–
dryer or hiding things in it.
pets or other small animals climbing
–
into it.
The tumble dryer must not be hosed
~
down.
Accessories
Only use genuine Miele spare parts
~
and accessories with this appliance.
If non-Miele parts are used, guarantee,
performance and product liability
claims may be invalidated.
Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.
9
Operating the tumble dryer
Control panel
a Display
See next page for details
b Delay start button
This button is used for:
- Delaying the start of a programme
- Selecting the duration of the
Warm air programme
c Buzzer button
An audible tone sounds at the end of
the programme.
d Check lights
These indicator lights have various
functions. See "Cleaning and Care"
and "Problem solving guide" / "After
sales service" for further details.
e Start/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
The button flashes while a
programme is being selected and
then is on constantly when the
programme has started.
f Low temperature button
Delicate fabrics are dried at a lower
temperature.
g Drying level button
with indicator lights to show the level
selected
h Programme selector
with indicator lights to show the
programme selected
i Door button
Pressing this button will open the
door even when the machine is
switched off at the mains.
j I-On/0-Off button
For switching the dryer on and off.
10
Operating the tumble dryer
Display
The following are selected via the
display:
Delay start
–
Duration of the Warm air programme
–
Programmable functions
–
The display also shows:
Programme duration
–
Programme stage
–
Drying
Cooling down
Finish
– Check and fault messages
Programme duration / Estimated time
remaining
When a programme is selected, the
estimated duration (time remaining) will
appear in the display. Please be aware
that it is only an estimate.
The following factors all affect the
estimated time remaining: residual
moisture content after spinning; type of
fabric; size of load; room temperature;
fluctuations in power supply.
In the same way, the Woollens
handcare, Silks handcare and
Smoothing programmes can finish
earlier than expected if a certain
temperature is reached. This can
happen with particularly fine fabrics,
very small loads or if items were partly
dry beforehand.
Delay start
The delay start time selected will
appear in the display.
After the Start/Stop button has been
pressed, the delay start time will start
counting down.
Once the delay start time has elapsed,
the programme will begin and the
estimated programme duration will
appear in the display.
Programmable functions
The programmable functions can be
used to tailor drying programmes to suit
your individual requirements. In
programming mode, the display will
show the function selected.
The electronics continually assess
conditions in the dryer and adjust the
estimated time remaining for a more
accurate reading. Because of this, the
time displayed can alter during the
course of a programme.
11
Notes on laundry care
Care symbols
Before drying check the drying symbol
on the care label. If there are no
symbols, dry at your own risk!
q .........Dryatnormal temperature
r ..........Dryatalowtemperature
s ...............Donottumble dry
For delicates and fabrics with the
–
following care label r select Low
temperature.
Tips on drying
– Always observe the maximum
recommended loads given in the
"Programme chart". Never overload
the drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
– Do not put soaking wet items into the
tumble dryer. Spin them thoroughly
after washing using the appropriate
spin speed.
–
Use the Automatic programme for
drying mixed loads of cottons and
minimum iron fabrics.
–
Open jackets
evenly.
–
Woollens and wool blends
become matted and shrink if dried in
a tumble dryer. They can, however,
be partially dried using the Woollens
handcare programme.
so that they can dry
tend to
Down-filled garments
–
which have a tendency to shrink,
depending on the quality of the item.
They can be partially dried using the
Smoothing programme.
Pure linen
–
dried if specified as suitable by the
manufacturer on the care label, as
the surface of the fabric may
otherwise become rough. It can be
partially dried using the Smoothing
programme.
Loopknit garments
–
underwear) tend to shrink depending
on their quality. Do not over-dry
these textiles. When purchasing
these garments it is advisable to take
their shrinkage properties into
account.
– Minimum iron fabrics
more, the greater the load. This is
also the case for garments made
from very fine weave fabrics, such as
shirts or blouses.
If in doubt, reduce the load or use
the Minimum iron - Hand iron
programme.
–
Starched laundry
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
–
New dark coloured garments
be washed and dried separately
from light coloured garments to avoid
the danger of colours running and
discolouring other garments or even
plastic components in the appliance.
Dark coloured fibres can also settle
on light coloured garments and vice
versa.
should only be machine
have linings
(e.g. T-shirts and
tend to crease
can be dried in the
should
12
How to dry correctly
Brief instructions
The headings numbered (A, B, C ...)
show the operating sequence and can
be used as a brief guide to using your
dryer.
A Sort the laundry
To ensure an even drying result
separate the washed laundry and sort it
according to:
. . . the drying level required
. . . the type of fibre or weave
. . . size
. . . the moisture content after spinning.
Make sure that objects e.g.
,
detergent dispensing balls have
been removed from the laundry.
They could melt, and cause damage
to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
– Fasten duvet covers and pillow
cases to prevent small items from
being trapped inside them.
C Load the tumble dryer
Press the Door button to open the
^
door.
Load the laundry loosely into the
^
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
^ Before closing the door make sure
the fluff filter is correctly positioned.
–
Fasten hooks and eyes etc.
–
Tie fabric belts and apron strings.
–
Sew in or remove underwiring from
bras.
B Turn on the tumble dryer
^
Switch the dryer on by pressing the
On/Off button in.
The tumble dryer may be switched on
after loading, saving energy as the light
will not come on.
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^
Shut the door either with a gentle
swing, or lean against it and push it
shut.
13
How to dry correctly
D Select a programme
Select the programme you want.
^
The indicator for the programme
selected will light up.
A drying level or extra option indicator
may also light up and the duration may
also be displayed.
Drying level programmes
– Cottons, Minimum iron, Delicates,
Automatic, Pillows, Proofing
Tip: You can extend the range of the
drying levels for some programmes
(see "Programmable functions").
Note: Please note that the programme
duration shown in the display will vary
according to the programme selected
(see "Programme duration/Estimated
time remaining").
Woollens handcare, Smoothing, Silks
handcare
These programmes cannot be
–
altered.
Selecting the duration of the timed
drying Warm air programme
The indicator light for the Delay start
button will flash when the Warm air
programme is selected.
^ Press the Delay start button
repeatedly until the required duration
shows in the display.
^
Press the drying level button
repeatedly until the indicator for the
drying level you want lights up.
Any of the four drying levels can be
selected for the Cottons programme. A
more limited range is available when
using other programmes and only the
"Normal" drying level is available for the
Pillows and Proofing programmes.
14
You can select a duration of 20 minutes
up to 2:00 hours in 10 minute steps.
E Select any Extra options / Delay
start
^
Low temperature, Buzzer and Delay
start are selected by pressing the
appropriate button (see "Extra
options/Delay start").
Anti-crease (see next page) is
permanently switched on.
N.B.: It is not possible to select Delay
start when using the Warm air
programme.
How to dry correctly
F Start the programme
The Start/Stop button will flash when a
programme is being selected. The
flashing indicates that a programme
can be started.
Press the Start/Stop button.
^
The Start/Stop button will now light up
constantly.
Drying will appear in the display and
the time remaining will start counting
down.
Before the end of a programme
There is a cooling down phase at the
end of the drying sequence (Cooling
down will appear in the display). The
programme will not finish until the
cooling down phase has been
completed.
There is no cooling down phase at the
end of the following programmes:
Woollens handcare, Smoothing.
G Remove the laundry when the
programme has finished
0 and Finish will appear in the display
to indicate that the programme has
finished. The buzzer (if selected) will
sound at intervals.
The drum will continue to rotate at
intervals to prevent laundry creasing, if
you do not wish to remove it immediate
ly (anti-crease). The anti-crease phase
lasts for two hours. There is no
anti-crease phase at the end of the
Woollens handcare programme.
^ Press the Door button.
^ Open the door.
^ Remove the laundry.
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by overdrying when the
dryer is next used.
-
If the dryer is switched on at the mains
and the door is opened, the drum
lighting will come on. It will go out a few
minutes later to save energy.
^
Switch the dryer off by pressing the
On/Off jk button.
^
Clean the fluff filters.
^
Close the door.
^
Empty the condensed water
container (unless the dryer has been
connected for external drainage).
^
The condenser unit should be
checked and cleaned on a regular
basis (see "Cleaning and care").
15
Extra options / Delay start
Low temperature
For all delicate or minimum iron
fabrics with the r symbol on the
care label (e.g. acrylic garments).
The programme duration is longer.
–
On some programmes Low
–
temperature is a standard part of the
programme and so cannot be
deselected.
Buzzer
A buzzer sounds (at intervals for a
maximum of 1 hr) to let you know the
programme has finished.
The buzzer will still sound if there is a
fault, even if it has been switched off.
Delay start
The start of a programme can be
delayed by 30 minutes up to 24
hours to allow you to take advantage
of economy electricity at night, for
example.
After selecting a programme:
^
Press the Delay start button
repeatedly until the required delay
period shows in the display.
–
The Delay start indicator light will
flash.
–
Times of:
up to 10^ are selected in 30 minute
steps
more than 10^ in 1 hour steps
If you keep the Delay start button
–
pressed in, the time will continue to
increase up to 24^.
To begin delay start
Press the Start/Stop button.
^
The Delay start indicator light will
–
light up constantly.
The delay start time counts down
towards the start of the programme as
follows:
more than 10^ by the hour
–
less than 10^ in minutes
–
The drum will turn briefly every hour to
help prevent creasing.
While the delay start time is counting
down, you can still add laundry to the
drum:
^ Switch the dryer off.
^ Open the door and add the laundry.
^ Close the door and switch the dryer
back on again.
To cancel/alter delay start
^
Press the Start/Stop button.
This cancels delay start.
^
To alter the delay start time, press the
Delay start button repeatedly until the
required delay period shows in the
display.
^
Press the Start/Stop button.
The altered delay start time will start
counting down from the beginning
again.
16
Programme chart
Cottons Max. load 6 kg*
Extra dry, Normal**
Fabric type Single and multi-layered cotton fabrics such as towelling,
jerseywear, T-shirts, underwear.
Notes
Low temperature Select the Low temperature option for delicate fabrics with
Hand iron**, Machine iron
Fabric type Cottons or linen fabrics, e.g.: table linen, bed linen, starched
Note
Low temperature Select the Low temperature option for delicate fabrics with
Minimum iron Max. load 3 kg*
Normal**, Hand iron
Fabric type Minimum iron items made of cotton, synthetic or blended
Notes – Select Hand iron for delicate fabrics and to reduce
Low temperature Select the Low temperature option for delicate fabrics with
Delicates Max. load 2 kg*
Normal, Hand iron
Fabric type Delicate items made of synthetic fibres, easy care cotton or
Low temperature Low temperature cannot be deselected.
* Weight of dry laundry
** Note for test institutes: Use this programme without selecting Low temperature
for testing according to EN 61121 Standard.
Select Extra dry for multi-layered and very thick fabrics.
–
Do not use Extra dry for loopknit fabrics (e.g. T-shirts,
–
underwear), as they have a tendency to shrink.
the r symbol on the care label.
laundry.
To prevent laundry from drying out it should be rolled up
–
until you are ready for ironing.
the r symbol on the care label.
fabrics, e.g.: shirts, blouses, skirts and table cloths.
creasing even more, reduce the load to 1.5 kg*.
–
In the Minimum iron programme with the Hand iron drying
level, items are dried with very little creasing, depending
on fabric type and amount of laundry.
the r symbol on the care label.
blended fabrics, e.g. shirts, blouses, lingerie and appliquéd
garments.
17
Programme chart
Woollens handcare Max. load 2 kg*
Fabric type Woollen fabrics.
Notes
Low
temperature
Smoothing Max. load 3 kg*
Fabric type
Notes
Low
temperature
Automatic Max. load 3.5 kg*
Normal, Hand iron
Fabric type Mixed loads of garments suitable for the Cottons and Minimum
Pillows 1 pillow up to 80x80 cm
Fabric type Pillows suitable for drying in a tumble dryer, with feather, down or
Note Please observe the instructions on the care label. Pillows can still
Silks handcare Max. load 2 kg*
Fabric type Silks (suitable for drying in a tumble dryer), e.g. blouses and
Notes
* Weight of dry laundry
This programme only fluffs up woollen garments. They are not
–
dried completely by this programme.
Remove garments as soon as the programme has finished and
–
leave to finish drying at room temperature.
Low temperature cannot be deselected.
Cotton and linen fabrics.
–
Minimum iron items made of mixed fibres, cottons or synthetics,
–
e.g.: trousers, anoraks, shirts.
Smooths out creasing caused during the spin cycle in the
–
washing machine.
– Remove garments as soon as the programme has finished and
leave to finish drying at room temperature.
Low temperature cannot be deselected.
iron programmes. Sort according to colour.
1-2 pillows up to 80x40 cm
synthetic fillings.
feel damp after being dried. You can use this programme several
times until the pillow feels dry.
shirts.
–
Smooths out creasing.
–
Remove garments as soon as the programme has finished and
leave to finish drying at room temperature.
18
Programme chart
Proofing Max. load 2 kg*
Fabric type
Notes
Warm air Max. load 6 kg*
Fabric type
Note Do not select the longest drying time to start with. Check the
Tip You can use the Warm air programme to help remove odours
Low
temperature
* Weight of dry laundry
For drying microfibre fabrics, ski wear, fine, closeweave
–
cotton garments (poplin) or tablecloths which are suitable for
drying in a tumble dryer and have been treated to provide a
water and dirt resistant finish.
This programme includes a proofing fixing phase.
–
Only use proofing agents which are stated by the
–
manufacturer as being "suitable for use on membrane
textiles" as these contain fluorochemical compounds.
Do not dry items which have been treated with proofing
–
agents containing paraffin. Fire hazard!
Multi-layered fabrics whose layers have different drying
–
characteristics, e.g. jackets, pillows.
– For drying individual items, e.g. bath towels, bathing
costumes, tea-towels and small loads.
items as you are drying them to find the optimum time.
from cotton clothing which has been worn but it still clean
(select a duration of between 1/2 and 1 hour). Items must be
suitable for drying in a tumble dryer. Dampen the garments a
little beforehand or add a fabric conditioner sheet. Odours will
not be removed as effectively from any parts of the garments
which are made of synthetic fibres.
Also select the Low temperature option for delicate fabrics with
the r symbol on the care label.
19
Changing the programme sequence
Once a programme has started
- changing the programme
You cannot change to another
programme once a programme has
started (this prevents unintentional
alterations).
You will need to cancel the current
programme before you can select a
new one.
- cancelling the programme and then
selecting a different programme
^ Press the Start/Stop button.
The items will be cooled down,
depending on the temperature
reached and how long they have
been dried for.
If you press the Start/Stop button
again during the cooling down
phase, Finish will light up in the
display.
Altering Delay start
See "Delay start".
^
Adding or removing laundry
after a programme has started
Press the Door button.
^
Open the door.
^
Danger of burning:
,
Do not touch the back of the drum
when adding or removing items. The
drum and the items can get very hot.
^ Add or remove items as required.
^ Close the door.
^ Press the Start/Stop button.
Time remaining
The time left shown in the display may
now vary from the actual drying time.
^
Switch the dryer off.
^
Switch the dryer on.
^
Select another programme and start
it.
- cancelling the programme and then
removing the laundry
^
Proceed as described in "Adding or
removing laundry after a programme
has started" below.
^
Switch the dryer off after closing the
door.
20
The system lock prevents the dryer
being used without your knowledge.
It can be activated if wished.
The dryer's electronics are then locked.
The dryer can still be switched on but a
programme cannot be started.
If an attempt is made to start a
–
programme, the indicator light for the
Low temperature button will come on
and a key symbol 0-§ will appear in
the display.
The door is not locked and can be
opened at any time.
To activate the lock
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
A Press the Low temperature button
and keep it pressed in whilst carrying
out steps B to E.
B Press the jk button in.
The Automatic indicator light will come
on.
:
Electronic system lock
D Now slowly turn the programme
selector six positions stage by stage
in an anti-clockwise
Each of the six programme indicator
lights must come on one after the
other.
The indicator light for the Low
temperature button will flash and a key
symbol 0-§ will appear in the display.
E Release the Low temperature button.
The electronics have now been locked.
Switch the dryer off.
^
To deactivate the lock
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
^ The procedure is the same as for
activating the lock. Carry out steps A
to E as described previously.
At step E the indicator light for the Low
temperature button will stop flashing
and the key symbol 0-§ will go out.
The electronics are no longer locked.
direction.
:
C Slowly turn the programme selector
three positions stage by stage in a
clockwise
Each of the three programme
indicator lights must come on one
after the other.
direction.
21
Cleaning and care
Emptying the condensed
water container
The condensed water will be collected
in the condensed water container
unless the appliance has been fitted
with a drain hose (see "Installation").
Empty the condensed water
container after every drying
programme.
The Empty out container indicator light
will come on if the maximum level of the
condensed water container is reached.
The indicator light will go out when the
door is opened and closed again.
Close the door fully.
,
Otherwise the door and the front
panel of the condensed water
container could suffer damage when
pulling the container out.
Empty the container.
^
^ Replace the container in the dryer.
Condensed water should not be
,
consumed. It could lead to health
problems for people and animals.
Condensed water can be put to
household use (e.g. in a steam iron or
humidifier). To ensure that any residual
particles of fluff in the condensed water
are removed before use, pass it
through a fine sieve or paper filter first.
^
Pull out the container.
^
Hold it at the front and towards the
back and keep it in a horizontal
position when carrying it.
22
Cleaning and care
Cleaning the fluff filters
The fluff which is created by the drying
process is collected by the fluff filters in
the door and the door opening. Clean
the filters after each drying
programme*.
Cleaning them whilst dry
Tip: You can also use a vacuum
cleaner to remove the fluff.
Remove any fluff from the hollow part
^
of the door opening. You could also
use a cleaning brush which is
available as an optional extra from
your Miele dealer or the Miele Spare
Parts Department, or use a vacuum
cleaner.
Also clean the door seal (2) with a
^
damp cloth.
Once clean, push the filter back into
^
the door holder until it clicks into
position. Ensure it is facing the
correct way.
^
Open the door and pull the fluff filter
(1) out of the door as illustrated.
^
Use your fingers to remove the fluff
from the surface of the filter.
^
Use your fingers or a vacuum cleaner
to remove the fluff from the two fluff
filters in the door opening.
^
Close the door.
* Always check the fluff filters if the
Clean out airways indicator light
comes on.
23
Cleaning and care
Cleaning them with water
If there is a great deal of compacted
fluff on any of the filters, they can be
removed and cleaned under hot
running water.
Open the door and pull the fluff filter
^
out of the door as described
previously.
The two filters in the door opening can
also be removed if you need to clean
them with water.
Do not replace them if they are
,
damp or wet. Damp or wet filters
could cause operational faults.
Push the large filter back into the
^
door holder until it clicks into position.
Ensure it is facing the correct way.
Replace the filters in the door
^
opening by first inserting them at the
bottom and then pressing them into
place at the top.
Lock both dials.
^
^
Turn dial a and pull the filter by the
dial out of the door opening as shown
b. Do the same on the other side.
^
Rinse all the filters under hot, running
water.
^
Then shake the filters until no more
water droplets are visible.
^
Dry the filters thoroughly with care.
^
Clean the area underneath these
filters, e.g. with a vacuum cleaner.
24
Cleaning the tumble dryer
Disconnect the tumble dryer from
the mains electricity supply.
Miele branded cleaning and
conditioning products are available to
order via the internet on
www.miele-shop.com.
Clean the housing and control panel
^
with a slightly damp cloth and a mild
detergent or soapy water.
The drum and other stainless steel
^
parts can be cleaned with a suitable
stainless steel cleaner following the
manufacturer's instructions.
Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaners. These could
damage plastic sufaces and other
parts. The tumble dryer must never
be hosed down.
Cleaning and care
^
Dry all parts with a soft cloth.
25
Cleaning and care
Cleaning the condenser unit
Detergent residue, hair and fine fluff
from the dryer can get through the fluff
filters and block the condenser unit.
Dust from the room in which the dryer is
installed can also get into the
condenser unit and cause a blockage.
Check the condenser unit at least
once a year. Always check it if the
Clean out airways indicator light
comes on. Clean it if necessary.
Removing the condenser unit
^ Open the service panel. Hold the
panel securely when doing this.
^
Now remove the panel by pulling it
diagonally upwards and place it to
one side.
Turn the lever on the inner cover
^
downwards to the vertical position.
^ Tilt the cover forwards.
^ Remove it by pulling it diagonally
upwards.
^
Turn the lever on the condenser unit
upwards to the vertical position so
that the hook on the lever is no longer
in the groove at the bottom of the
condenser unit housing.
26
Pull the condenser unit out of its
^
housing by the handle.
Checking the condenser unit
Cleaning and care
If you cannot see any fluff:
Replace the condenser unit (see
^
following page).
If you can see some fluff:
Clean the condenser unit as
^
described below.
Cleaning the condenser unit
When rinsing the condenser unit,
^
make sure you position it as
shown in the next two illustrations.
^
Hold the condenser unit up to the
light as shown.
^
Check to see if there is any fluff
inside it.
The arrows in the illustration above
indicate where to look.
^
Use a shower head or similar to rinse
the unit out as shown.
27
Cleaning and care
Then flush the unit through from the
^
front.
^ Check the condenser unit again for
any visible fluff and if necessary flush
it through again until it has all gone.
^ Also make sure the rubber seals are
clean.
The rubber seals must not be
removed and must be free of kinks.
Checking and cleaning the
condenser unit housing
^
Remove any soiling still visible inside
the housing unit by hand using a
damp cloth. Do not try and access
areas you cannot reach by hand!
Replacing the condenser unit
With the handle facing upwards,
^
push the condenser unit back into
position in its housing.
Turn the lever down to the horizontal
^
position, making sure that the hook
on the lever clicks into the groove.
When replacing the inner cover after
cleaning, ensure that the rubber seal
fits correctly into the groove.
Replace the inner cover making sure
^
the hooks locate correctly. Hold it at
an angle and push it gently
downwards.
^ Then turn the lever upwards into the
horizontal position to lock the cover.
^ Replace the service panel and press
the upper edge until it clicks into
position.
,
It is important to ensure that both
the condenser unit and the cover
are correctly positioned and locked,
otherwise water may leak from the
dryer.
28
Problem solving guide
With the help of the following notes, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be put right
without contacting the Service Department.
Repair work to electrical appliances should only be carried out by a
,
suitably qualified person in strict accordance with current local and national
safety regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.
Check and fault messages
Problem Possible cause Remedy
The programme stops
and 0 and Finish appear
in the display.
The buzzer sounds.
The Low temperature
indicator light starts
flashing after the dryer
has been switched on
and 0-§ appears in the
display.
The programme stops
and Cooling down or
Finish flashes in the
display.
The buzzer sounds.
This is not a fault.
The electronic unit has
recognised that there is
no laundry in the drum
and cancelled the
programme.
Drying individual
garments or items which
are already dry can also
cause the programme to
be cancelled.
The electronic system
lock is activated.
No obvious cause.
Use the Warm air
–
programme (timed
drying) to dry individual
items.
– To select a new
programme, switch the
dryer off and on, or
– Open the door, place
more laundry in the
drum, then close the
door.
You will need to
deactivate the system
lock before the dryer can
be used (see "Electronic
system lock").
–
Switch the dryer off
and then on again.
–
Then start the
programme again.
If the programme stops
again and Cooling down
or Finish flashes again,
there is a fault. Contact
the Miele Service
Department.
29
Problem solving guide
Problem Possible cause Remedy
The Clean out
airways indicator
light comes on.
The programme
stops.
The Clean out
airways indicator
light comes on.
The buzzer sounds.
The Empty
container indicator
light comes on.
The buzzer sounds.
This indicator light
comes on to warn you
that the dryer is not
working efficiently.
Possible cause: the fluff
filters are clogged with
fluff or with detergent
residues.
See above for possible
causes and their
remedies.
The condensed water
container is full or there
is kink in the drain hose.
Cleaning the fluff filters is
–
usually all that is required.
However, if the Clean out
airways indicator light does
not go out after you have
cleaned the filters, then also
check all the possible causes
described under "The drying
process goes on too long or
even switches off".
To switch off the indicator
light:
With the dryer switched on,
–
open and close the door.
The Clean out airways indicator
light can be deactivated (see
"Programmable functions").
To switch off the indicator
light:
– With the dryer switched on,
open and close the door.
– Then start the programme
again.
–
If the Clean out airways
indicator light comes on
again, contact the Miele Ser
vice Dept.
–
Empty out the condensed
water container.
–
Check the drain hose.
To switch off the indicator
light:
–
With the dryer switched on,
open and close the door.
-
30
Problem solving guide
Other problems
Problem Possible cause Remedy
The drying
process goes
on too long or
even switches
off.
In some
circumstances,
the Clean out
airways
indicator light
still comes on,
even though
the filters are
clean.
The laundry is
not sufficiently
dry.
Please check all the possible causes and switch the dryer
off and then back on again.
Ventilation to and from the dryer
may be insufficient (e.g.
because it is installed in a small
room). This has caused the
temperature in the room to rise
sharply.
The fluff filters are clogged up
with fluff or were still wet when
they were replaced.
The laundry has not been spun
sufficiently.
The tumble dryer has been
overloaded.
Metallic components, e.g. zips
have prevented the dryer from
registering the correct moisture
level in the laundry.
Detergent residues, hair and
fine fibres can block up the
condenser unit.
The vents below the door are
blocked.
The load consisted of different
fabrics.
Open a door or window while
the tumble dryer is in
operation for increased air
flow.
Remove any fluff.
–
The fluff filters must be
–
completely dry.
Make sure that your laundry is
thoroughly spun at the
appropriate spin speed.
Do not exceed the maximum
load for the programme
selected.
– Open zips next time.
If the problem occurs again,
dry garments with long zips
using the Warm air
programme (timed drying).
Check the condenser unit
from time to time and clean it
if necessary.
Remove any objects that are
blocking the vents.
–
Finish drying using the
Warm air programme.
–
Select a different
programme next time.
31
Problem solving guide
Problem Possible cause Remedy
Water leaks from the
dryer after the
condenser unit has
been cleaned.
Items made of synthetic
fibres are charged with
static electricity after
drying.
There is a build-up of
fluff.
The inner cover of the
–
condenser unit has not
been locked properly
and/or the condenser
unit has not been
positioned correctly.
Fluff has collected in
–
the condenser unit
housing.
Synthetic fibres tend to
attract static charge.
Fluff is principally the
result of friction when
garments are being worn
and washed. Machine
drying does not affect the
lifetime of fabric.
Ensure that the
–
condenser unit is
positioned correctly
and lock the inner
cover.
Check the rubber
–
seals.
Use a cloth to remove
–
any visible fluff from the
inside of the condenser
unit housing.
Static charge can be
reduced by adding a
fabric conditioner to the
final rinse in the washing
programme or a fabric
conditioner sheet to the
load when drying.
Fluff is collected by the
fluff filters and can be
easily removed (see
"Cleaning and Care").
32
Problem solving guide
Problem Possible cause Remedy
Feather filled
pillows smell after
drying.
Sometimes a
programme cannot
be started and the
corresponding
programme
indicator light does
not light up.
The Start/Stop
indicator light is
flashing slowly and
the display is dark.
The tumble dryer
fails to start when
switched on.
Power cut. A programme which was running previously will continue
The interior drum
lighting does not
come on.
Feathers are a natural
product and this is quite
normal.
No obvious cause.
The dryer is in Standby
mode.
This is quite normal and
not indicative of any fault.
No obvious cause. – Is the dryer switched on?
automatically when power is restored to the tumble dryer
as long as the Cooling down phase had not been
reached.
The lighting switches off
automatically (to save
energy).
The lamp needs
changing.
The smell will dissipate after
sufficient airing.
Switch the dryer off and
–
back on again.
Select one of the
–
programmes.
If it still will not start, there is
–
a fault. Contact the Miele
Service Department.
Not all the programmes are
–
unavailable. Select one that
is available, in the
meantime.
See "Programmable functions".
– Is the plug correctly inserted
into the socket and switched
on?
–
Is the door closed properly?
–
Has the fuse or circuit
breaker tripped?
Switch the dryer off and then
on again.
Change the lamp, as
described at the end of this
section.
33
Problem solving guide
Changing the lamp
Disconnect the tumble dryer from
the mains electricity supply.
The lamp specification and
maximum wattage is stated on the
data plate and on the lamp cover.
Open the door.
^
You will find the interior lamp cover at
the top of the drum aperture.
^ Insert a suitable tool, such as a wide
bladed screwdriver, under the side
edge of the lamp cover as illustrated.
^
Apply a little pressure and whilst
doing so turn your wrist in the
direction of the arrow to open the
cover.
Replace the lamp.
^
To close the cover push it upwards
^
and press it on the left and right until
you hear it click into position.
Ensure that it is fitted into
,
position securely, as any moisture
could cause a short circuit.
The cover will open downwards.
The temperature resistant lamp should
only be ordered from your Miele Dealer
or the Miele Spare Parts Department.
34
After Sales service
Repairs
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or
–
the Miele Service Department (see
–
back cover for contact details).
When contacting your dealer or the
Service Department, please quote the
model and serial number of your
appliance, both of which are shown on
the data plate situated on the right
hand side below the drum aperture.
Future updates (PC)
The indicator or check light marked PC
on the fascia panel is the interface used
by the Miele service technicians during
service work for testing purposes and
for updating the appliance's
programme data.
Appliance guarantee
Please see the guarantee card
supplied with your appliance.
Optional accessories
Optional accessories for this dryer are
available from your Miele Dealer, the
Miele Spare Parts Department or via the
internet at www.miele-shop.com.
Please note that telephone calls may
be monitored and recorded for
training purposes.
N.B. A call-out charge will be
applied for service visits where the
problem could have been resolved
as described in these instructions.
35
Installation and connection
Front view
a Mains connection cable
b Control panel
c Condensed water container
d Door
e Service panel for condenser unit
36
f Four height adjustable screw feet
g Air inlet and outlet vent for cooling
the condenser unit
h External drainage options (e.g. via
wash basin, wash basin drain outlet
or gully)
Installation and connection
Rear view
a Protruding lid for holding when
moving the machine (see arrows)
b Air inlet vent for cooling the
condenser unit
c Mains connection cable
d External drainage of the condensed
water
e Accessories for connection to a sink
drain outlet
Installation site
The machine lid must not be
,
removed.
The dryer can be pushed under a
worktop with its lid in place, providing
the worktop is high enough.
Make sure the dryer door can be
,
opened without hindrance after
installation.
Transporting the machine to its
installation site
When moving the machine, you can
hold it by the lid where it protrudes to
the rear of the dryer. To manoeuvre the
dryer out of its packing case to its
installation site you will also need to
hold it by the front feet.
Washer-dryer stack
The tumble dryer can also be
combined with a Miele washing
machine in a washer-dryer stack. The
appropriate "WTV" stacking kit
(available to order) to match your dryer
is required.
,
Stacking kits must only be
installed by a suitably qualified fitter.
37
Installation and connection
Levelling the machine
The machine must be perfectly level to
ensure safe and proper operation.
The air inlet and outlet vents on
,
the front and back of the machine
must not be covered as this would
prevent sufficient ventilation for
cooling the condenser unit.
Do not block the gap between
,
the bottom of the tumble dryer and
the floor with plinth facings, deep file
carpet etc. This would hinder a
sufficient flow of air to the dryer.
Room ventilation
The air which is taken in when the dryer
is in operation is blown out of the front
of the dryer and warms up the air in the
room. It is very important to ensure
adequate ventilation, e.g. by opening a
window. Otherwise drying times maybe
longer.
^
The screw feet can be adjusted to
compensate for any unevenness in
the floor.
38
Before moving the tumble dryer
again (e.g. when moving house)
After each use a small quantity of
condensed water will collect in the area
around the pump. This water can run
out if the dryer is tipped up when it is
being moved. It is a good idea to run
the Warm air programme for
approximately 1 minute before moving
it. Any remaining condensed water will
then be fed into the condensed water
container or out through the drain hose.
Installation and connection
External condensed water
outlet
General notes
When drying is in progress, condensed
water is pumped into the condensed
water container through the drain hose at
the back of the dryer. The condensed
water can also be drained off directly if
the tumble dryer is installed near a sink,
drain outlet etc. so that the condensed
water container does not have to be
emptied.
Drain hose length ............1.50 m
Maximum delivery head .......1.50 m
Maximum drain hose length ....4.00 m
If the on-site water drainage
,
system is not fitted with a non-return
valve or an appropriate air gap, one
must be fitted to prevent the risk of
back-flow. (See "Installation conditions
requiring a non-return valve").
There will be a small amount of
^
residual water in the drain hose.
Have a container ready to collect
this.
^ Pull the hose off its connection (see
arrow).
^ Allow any residual water to run into
the container.
^ Unwind the hose and pull it carefully
out of the holders.
The following optional accessories are
available:
–
an extension hose
–
a non-return valve kit for connection
to an external condensed water
outlet (includes an extension hose).
Maximum delivery head with
non-return valve fitted: 1.00 m
Arranging the drain hose
,
Do not pull on the drain hose and
do not stretch it or allow it to become
kinked as it could get damaged.
^
Position the hose to the right or left
hand side as necessary.
Leave the hose in the middle holder to
prevent it from becoming kinked
inadvertently.
39
Installation and connection
External drainage via a sink or gully
See "Front view" illustration.
^
If you want to drain the water off
,
into a sink you will need to secure
the hose carefully, e.g. by tying it to
a tap to make sure it cannot slip
during use. Otherwise there is a risk
of overflowing water which could
cause damage.
Use the bow-shaped guide to
^
prevent the drain hose from
becoming kinked.
Installation conditions requiring a
non-return valve
Certain installation conditions
,
require the fitting of a non-return
valve for external water
connection (available as an
optional accessory). A non-return
valve will prevent the risk of
back-flow out of the dryer which
could cause damage.
Example: Connection to a sink drain
outlet
The drain hose with non-return valve
fitted can be connected directly to a
suitable sink drain outlet.
^ Remove the following from the back
of the dryer at the top:
Adapter 1 and hose clip 3 behind it.
A non-return valve is required:
–
If the tumble dryer is connected to a
sink drain outlet (see the following
section).
–
If the tumble dryer is connected to a
drainage system already in use by
another appliance, e.g. a dishwasher
or washing machine.
40
1 Adapter
2 Nut
3 Hose clip
4 End of the hose
5 Non-return valve
6 Tumble dryer drain hose
Installation and connection
Fit adapter 1 to the sink drain outlet
^
using nut 2.
If this nut has a flat disc in it you
should take the disc out first.
Attach the end of hose 4 to adapter
^
1.
Use a screwdriver to tighten hose
^
clip 3 up close to the nut.
Non-return valve 5 has to be
,
fitted with the arrow pointing in the
direction of flow (i.e. towards the
sink). Otherwise water will not drain
out of the appliance.
^ Fit non-return valve 5 to tumble dryer
drain hose 6 (make sure it is fitted in
the correct direction - see arrow on
non-return valve).
^ Secure the non-return valve using
hose clips.
41
Electrical connection
Electrical connection U.K.
All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. Please ensure the connection
data quoted on the data plate match
the household mains supply.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD). Contact a
qualified electrician for advice.
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
42
Consumption data
Programme Load
Cottons Normal
Cottons Normal 6.0
Cottons Hand iron
Cottons Hand iron 6.0
Minimum iron Normal
Minimum iron Hand iron 3.0 1200 40 0.95 29
Delicates Normal 2.0 800 50 1.40 95
Automatic Normal 3.5 800 50 2.10 85
Proofing 2.0 800 50 1.55 72
Woollens handcare 2.0 1000 - 0.15 4
Smoothing 3.0 1000 - 0.30 8
1
Weight of dry laundry
2
EN 61121:2005 test programme
All data was calculated using EN 61121:2005 unless otherwise stated.
Notes for test institutes:
Before testing in accordance with EN 61121, drya3kgload of cotton laundry with 70% residual
moisture as per the above standard using the Cottons Normal programme without any extra options.
2
2
2
1
kg rpm % kWh Minutes
6.0 1000 60 3.30 89
6.0 1000 60 2.65 71
3.0 1200 40 1.20 37
Final spin speed
in a domestic washing
machine
1200
1400
1600
1800
1200
1400
1600
1800
Residual
moisture
53
50
44
43
53
50
44
43
Energy Duration
3.00
2.85
2.55
2.50
2.35
2.20
1.85
1.80
81
78
70
69
63
60
52
51
Consumption data can vary from the nominal values given above depending
on the size of the load, types of textiles, residual moisture levels after spinning,
fluctuations in the electricity supply and any extra options selected.
43
Technical data
Height 850 mm
Width 595 mm
Depth 634 mm
Depth with door open 1074 mm
Suitable for pushing under a worktop Yes
Suitable for stacking Yes
Weight 52 kg
Drum volume 111 litres
Maximum capacity 6 kg dry weight
Capacity of condensed water container Approx. 3.5 litres
Drain hose length 1.50 m
Maximum delivery head 1.50 m
Maximum drain hose length 4.00 m
Length of connection cable 2.00 m
Voltage See data plate
Connected load See data plate
Fuse rating See data plate / plug
Lamp wattage See data plate
Energy consumption See "Consumption data"
Test certificates awarded See data plate
44
Programmable functions
for changing default settings
The programmable functions are
used to alter the tumble dryer´s
electronics to suit changing
requirements.
Programmable functions can be
altered at any time.
45
Programmable functions
Altering the residual moisture
level in the Cottons
programme
The tumble dryer is designed to dry
effectively using as little energy as
possible.
However, if you require the laundry to
be drier or damper, you can reduce
or increase the default residual
moisture in the Cottons programme.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Increased residual moisture.
Laundry damper.
I Standard residual moisture
(factory default setting).
(the Automatic indicator light will also
flash once).
2 Reduced residual moisture.
Laundry drier.
(the Automatic indicator light will also
flash twice).
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
–
The Low temperature indicator light
will flash once briefly.
D Pressing the Start/Stop button
switches between the options.
E Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^
Carry out steps A to C.
^
Switch the dryer off after step C.
46
Altering the residual moisture
level in the Minimum iron
programme
The tumble dryer is designed to dry
effectively using as little energy as
possible.
However, if you require the laundry to
be drier or damper, you can reduce
or increase the default residual
moisture in the Minimum iron
programme.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
Programmable functions
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Increased residual moisture.
Laundry damper.
I Standard residual moisture
(factory default setting).
(the Automatic indicator light will also
flash once).
2 Reduced residual moisture.
Laundry drier.
(the Automatic indicator light will also
flash twice).
E Pressing the Start/Stop button
switches between the options.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
once.
–
The Low temperature indicator light
will flash twice briefly.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^
Carry out steps A to D.
^
Switch the dryer off after step D.
47
Programmable functions
Anti-crease
Anti-crease helps prevent creasing, if
laundry is not normally removed
immediately after the end of a
programme.
The anti-crease function
is activated when the tumble dryer is
–
delivered. You can shorten the
duration of the anti-crease phase or
deactivate it if wished.
is used in all programmes except
–
Woollens handcare.
– should be left activated.
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Anti-crease off
1 1 hour anti-crease
(the Automatic indicator light will also
flash once).
2 2 hours anti-crease
(factory default setting)
(the Automatic indicator light will also
flash twice).
E Pressing the Start/Stop button
switches between the options.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
twice.
–
The Low temperature indicator light
will flash 3 times briefly.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^ Carry out steps A to D.
^
Switch the dryer off after step D.
48
Altering the volume of the
buzzer
The buzzer has two volumes.
Programmable functions
A number to show which option is
selected will appear in the display
alternating with the letter P.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
The tumble dryer is switched off.
–
The door is closed.
–
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
three times.
– The Low temperature indicator light
will flash four times briefly.
0 Normal buzzer
(factory default setting)
I Loud buzzer
(the Automatic indicator light will also
flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
49
Programmable functions
Altering the standard drying
level in the Automatic
programme
The tumble dryer is designed to dry
effectively using as little energy as
possible.
However, if you require the laundry to
be drier or damper, you can reduce
or increase the default residual
moisture in the Automatic
programme.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Increased residual moisture.
Laundry damper.
I Standard residual moisture
(factory default setting).
(the Automatic indicator light will also
flash once).
2 Reduced residual moisture.
Laundry drier.
(the Automatic indicator light will also
flash twice).
E Pressing the Start/Stop button
switches between the options.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
four times.
–
The Low temperature indicator light
will flash six times briefly.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^
Carry out steps A to D.
^
Switch the dryer off after step D.
50
Extending the cooling down
time
The cooling down phase which takes
place before the end of a programme
can be extended by 5 or 10 minutes,
if required. This makes the garments
easier to handle.
The cooling down time can only be
extended for programmes with drying
levels.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
Programmable functions
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Cooling down time not extended
(factory default setting)
i Cooling down time extended by
five minutes
(the Automatic indicator light will also
flash once).
2 Cooling down time extended by
ten minutes
(the Automatic indicator light will also
flash twice).
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^
Carry out steps A to D.
^
Switch the dryer off after step D.
D Press the Low temperature button
five times.
–
The Low temperature indicator light
will flash seven times briefly.
51
Programmable functions
Standby
To save energy, the display and the
programme sequence/check lights
go out after 10 minutes and the
Start/Stop button starts flashing
slowly.
To come out of standby mode
Turn the programme selector or
^
press a button. Neither will have any
effect if a programme is running.
Factory default
The standby function is activated and
the display and programme
sequence/check lights will go out after
10 minutes:
– if a programme is not selected after
the dryer has been switched on.
– after a programme has started.
Instead of the factory default setting
you can select another option:
Not in current programme
As described under "Factory default"
above.
However, the display and programme
sequence/check lights will stay on after
the programme has started and remain
visible during the programme.
Off
The display and programme
sequence/check lights will stay on while
the dryer is switched on.
Follow the steps (A,B,C ...) to
programme and store in memory.
^ See next page.
They will, however, come on for 10
minutes after a delay start time has
counted down, at the end of the
programme or the end of the
anti-crease phase.
The buzzer (if selected ) will sound for
10 minutes at the end of the
programme.
52
Before you begin, ensure that:
The tumble dryer is switched off.
–
The door is closed.
–
Programmable functions
A number to show which option is
selected will appear in the display
alternating with the letter P.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button six
times.
– The Low temperature indicator light
will flash 8 times briefly.
0 Factory default setting
I Not in current programme
(the Automatic indicator light will also
flash once).
2 Off
(the Automatic indicator light will also
flash twice).
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
53
Programmable functions
Memory function
The electronics will memorise any
extra options selected for a
programme. The duration selected
for the Warm air or Cool air timed
drying programmes will also be
stored in memory.
These settings will be selected
automatically the next time the
programme is chosen. You can either
accept these or change them by
pressing the appropriate button.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Memory deactivated
(factory default setting)
I Memory activated
(the Automatic indicator light will also
flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
seven times.
–
The Low temperature indicator light
will flash 9 times briefly.
54
Clean out airways indicator
Fluff should be removed after drying.
The Clean out airways indicator will
remind you to clean the filters when a
certain amount of fluff has collected
in the filters. You can decide at what
level of fluff this reminder should be
given.
You will have an idea of how often this
should be done after a few drying
programmes.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
eight times.
–
The Low temperature indicator light
will flash on and off slowly once.
Programmable functions
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Clean out airways indicator light is
deactivated
I Clean out airways indicator light
comes on when there is a heavy
build-up of fluff
(the Automatic indicator light will also
flash once).
2 Factory default setting
(the Automatic indicator light will also
flash twice).
3 Clean out airways indicator light
comes on when there is only a
light build-up of fluff
(the Automatic indicator light will also
flash three times).
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^
Carry out steps A to D.
^
Switch the dryer off after step D.
55
Programmable functions
Keypad tone
An audible tone sounds each time a
button is pressed.
A number to show which option is
selected will appear in the display
alternating with the letter P.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
The tumble dryer is switched off.
–
The door is closed.
–
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
nine times.
– The Low temperature indicator light
will flash on and off slowly once and
then on and off quickly once.
0 Keypad tone deactivated
(factory default setting)
I Keypad tone activated
(the Automatic indicator light will also
flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
56
Programmable functions
Adjusting the dryer's
electronics for very soft water
In some areas of the UK, water is
,
extremely soft which can affect the
sensitivity of the control electronics.
If the dryer is installed in an area of
very soft water, you should contact
your local water supplier for
information and advice regarding
water hardness and water
conductivity. If the water
conductivity is less than 150 µS, the
following programmable function will
need to be activated.
Important. This programmable
function should not be activated if,
despite the water being extremely
soft (as would be the case if a water
softener were used), its conductivity
is greater than 150 µS.
Follow the steps (A,B,C ...) to
programme and store in memory.
The Low temperature indicator light
–
will flash on and off slowly once and
then on and off quickly twice.
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Factory default setting
I Adjusted for very soft water
(the Automatic indicator light will also
flash)
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
Before you begin, ensure that:
–
The tumble dryer is switched off.
–
The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
ten times.
57
Programmable functions
Extending the range of the
drying levels
You can extend the range of the
drying levels for many of the
programmes:
Machine iron+
(drier than Machine iron).
Slightly dry
(drier than Hand iron).
Normal+
(drier than Normal).
This programmable function is only
available for programmes with drying
levels.
Follow the steps (A,B,C ...) to
programme and store in memory.
Before you begin, ensure that:
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Switch the dryer on.
Wait until the Start/Stop button lights up
constantly ...
C . . . and then release the Start/Stop
button.
D Press the Low temperature button
eleven times.
–
The Low temperature indicator light
will flash on and off slowly once and
then on and off quickly three times.
A number to show which option is
selected will appear in the display
alternating with the letter P.
0 Default setting
1 Drying level range extended
(the Automatic indicator light will also
flash).
E Pressing the Start/Stop button
switches between the options.
F Switch the dryer off.
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check the setting:
^ Carry out steps A to D.
^ Switch the dryer off after step D.
To select the extended drying level
^ Select a programme.
^
Press the drying level button
repeatedly until the following
indicator lights come on.
–
Indicator lights Extra dry and Normal
= Normal+
–
Indicator lights Normal and Hand
iron = Slightly dry
–
Indicator lights Hand iron and
Machine iron = Machine iron+
58
59
Alteration rights reserved/3409
M.-Nr. 07 640 650 / 00
Loading...
