Miele KM 2030, KM 2050 Operating instructions

Operating and Installation

Instructions

Gas cooktop

To prevent accidents and machine damage, read these instructions before installation or use.

en-US, CA

M.-Nr. 07 520 080

IMPORTANT SAFETY INSTRUCTIONS

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death.

-Do not use or store gasoline or other combustible liquids or vapors in the vicinity of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS

– Do not try to light any appliance.

– Do not touch any electric switches.

– Do not use any phones inside your building.

– Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

– If you are unable to reach your gas provider, call the fire department.

-Installation and service must be performed by a qualified installer, qualified service agency or your gas provider.

(In Massachusetts, installation must be performed by a licensed installer / gas fitter.)

-Note to the installer:

Please give these installation instructions to the consumer for the local electrical/gas inspector.

WARNING: Never Operate the Top Surface Cooking Section of this Appliance Unattended.

-Failure to follow this warning statement could result in fire, explosion, or burn hazard that could cause property damage, personal injury, or death.

-If a fire sould occur, keep away from the appliance and immediately call your fire department.

DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.

®®

	Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................	2
IMPORTANT SAFETY INSTRUCTIONS ............................................................	5
Caring for the environment ..............................................................................	16
Overview.............................................................................................................	17
Cooktop...............................................................................................................	17
KM 2030 .........................................................................................................	17
KM 2050, KM 2051 ........................................................................................	18
Control knobs......................................................................................................	19
Burner..................................................................................................................	20
Included accessories...........................................................................................	21
Before first use ..................................................................................................	22
Cleaning the cooktop for the first time................................................................	22
Turning on the cooktop for the first time .............................................................	22
Cookware...........................................................................................................	23
Energy saving tips ............................................................................................	25
Operation............................................................................................................	26
Turning the appliance on .....................................................................................	26
Adjusting the flame..............................................................................................	27
Visual characteristics gas flames ...................................................................	27
Switching off........................................................................................................	27
Safety features...................................................................................................	28
Ignition safety control ..........................................................................................	28
Cleaning and care .............................................................................................	29
Stainless-steel cooktop.......................................................................................	30
Grates..................................................................................................................	31
Control knobs......................................................................................................	31
Burner..................................................................................................................	32
Frequently Asked Questions ............................................................................	34
Optional accessories ........................................................................................	36
Customer Service..............................................................................................	37
Contact in the event of a fault .............................................................................	37
Appliance warranty and product registration ......................................................	37

Contents
Installation..........................................................................................................	38
IMPORTANT SAFETY INSTRUCTIONS - INSTALLATION ...................................	38
Safety distances..................................................................................................	39
Installation notes .................................................................................................	40
Installation dimensions........................................................................................	41
KM 2030 .........................................................................................................	41
KM 2050, KM 2051 ........................................................................................	42
Installation ...........................................................................................................	43
Gas connection ...................................................................................................	45
Burner ratings......................................................................................................	48
Electrical connection ...........................................................................................	49
Converting to another gas type .......................................................................	51
Jet table...............................................................................................................	51
Changing the jets ................................................................................................	52
Changing the main jets...................................................................................	52

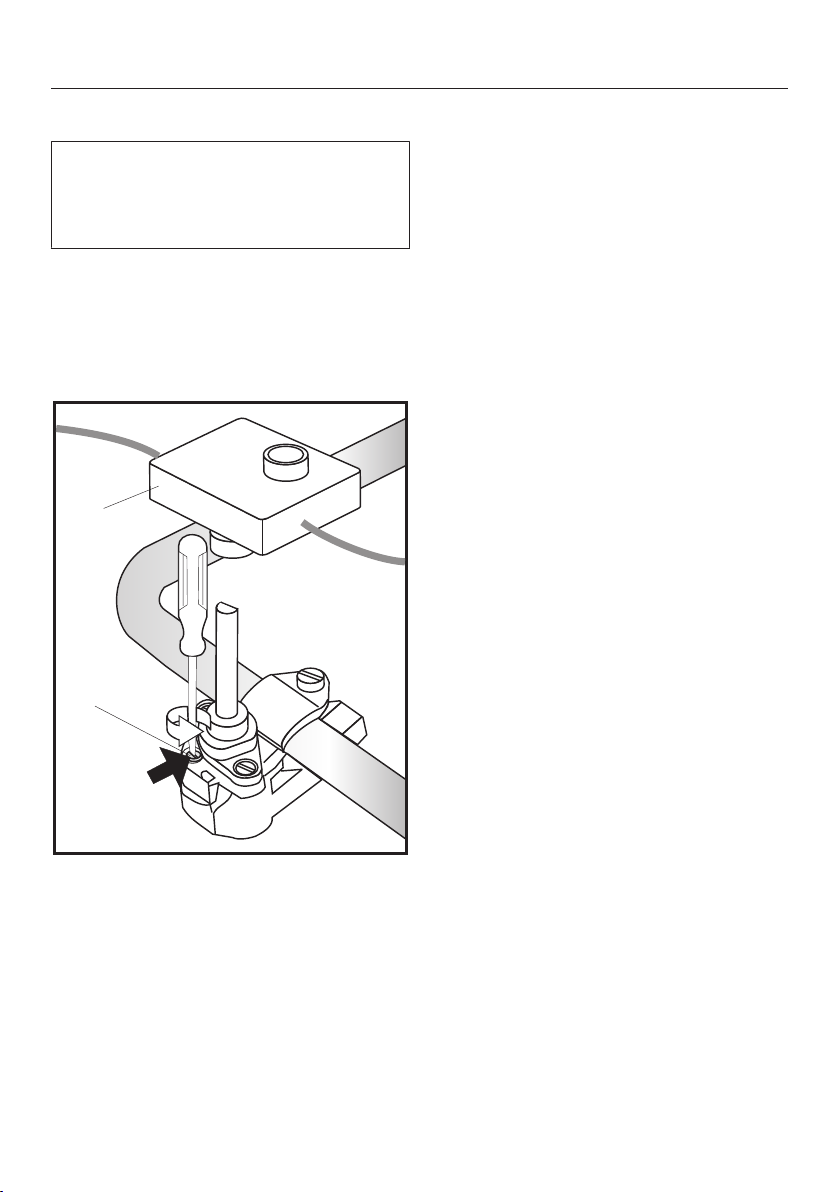

Changing the small jets ..................................................................................	53
Checking for proper function ..............................................................................	54
MieleCare ...........................................................................................................	55

IMPORTANT SAFETY INSTRUCTIONS

This cooktop complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and material damage.

Read the operating and installation instructions carefully before using the cooktop. They contain important information on safety, installation, use and maintenance. This prevents both personal injury and damage to the cooktop.

When installing the cooktop, Miele expressly and strongly advises that you read and follow the instructions under “Installation”, as well as in the “IMPORTANT SAFETY INSTRUCTIONS”.

Miele cannot be held liable for injury or damage caused by noncompliance with these instructions.

Keep these instructions in a safe place and pass them on to any future owner.

IMPORTANT SAFETY INSTRUCTIONS

Appropriate use

This cooktop is intended for domestic use and use in other similar environments.

This cooktop is not intended for outdoor use.

The cooktop is intended for domestic use only to prepare food and keep it warm. Any other use may be dangerous.

Persons (including children) who lack physical, sensory or mental abilities, or experience with the appliance should not use it without supervision or instruction by a responsible person.

IMPORTANT SAFETY INSTRUCTIONS

Safety with children

As with any other appliance, children must be supervised.

Do not leave children unattended: Children should not be alone or unsupervised in the area where the appliance is installed. Do not allow them to sit or stand on the appliance.

Be sure to supervise any children in the vicinity of the cooktop, and do not let them play with it.

The cooktop gets hot when in use and remains hot for some time after being turned off. Keep children away from the appliance until it has cooled down and is no longer a burn hazard.

Danger of burning. Do not store anything which might arouse a child’s interest in storage areas above or behind the cooktop. Otherwise they could be tempted to climb onto the appliance.

Risk of burning or scalding. Turn pot and pan handles inward, so children cannot pull them down and be burned.

Danger of suffocation. While playing, children may become entangled in packaging material (such as plastic wrapping) or pull it over their head, presenting the risk of suffocation. Keep packaging material away from children.

IMPORTANT SAFETY INSTRUCTIONS

Technical safety

Unauthorized installation, maintenance, and repairs can cause considerable danger for the user. Installation, maintenance, and repairs must only be carried out by a Miele authorized technician.

Maintenance by the user: Never repair or replace any part of the appliance unless the instructions specifically recommend doing so. Service work should only be performed by a qualified technician.

Damage to the cooktop can compromise your safety. Check the cooktop for visible signs of damage. Do not use the cooktop if it is damaged.

Reliable and safe operation of the cooktop can only be guaranteed if it is connected to the public power supply.

Be certain your appliance is properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance, continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician.

Proper installation: Make sure that your appliance has been installed correctly and that it has been grounded by a qualified technician.

To avoid damaging the cooktop, make sure that the connection data (voltage and frequency) on the data plate correspond to the building's power supply before connecting the appliance.

When in doubt, consult a qualified electrician.

Do not connect the appliance to the electrical supply with a power bar or extension cord. These are a fire hazard and do not guarantee the required safety of the appliance.

For safety reasons, the cooktop may only be used when it has been fully installed.

IMPORTANT SAFETY INSTRUCTIONS

This appliance must not be used in a non-stationary location (e.g. on a ship).

Any contact with live connections or tampering with the electrical or mechanical components of the cooktop will endanger your safety and may lead to appliance malfunctions.

Do not open the casing of the cooktop under any circumstances.

Any repairs not performed by a Miele authorized service technician will void the warranty.

Defective components should be replaced by Miele original parts only. Only with these parts can safety of the appliance be assured as intended by the manufacturer.

The appliance is not intended for use with an external timer switch or a remote control system.

The connection to the gas supply must be carried out by a qualified service technician in accordance with current local and national safety regulations (see “Installation – Gas connection”). If the plug has been removed or the power cord is not supplied with a plug, the cooktop must be connected to the power supply by a qualified service technician (see “Installation – Electrical connection”).

If the power cord is damaged, it must only be replaced by a qualified service technician (see “Installation – Electrical connection”).

IMPORTANT SAFETY INSTRUCTIONS

During installation, maintenance, and repair work, the appliance must be completely disconnected from the household electricity supply. The gas supply must be shut off. Ensure that this is the case by:

-removing the fuse

-“tripping” the circuit breaker, or

-unplugging the unit. Pull the plug not the cord.

-Shut off the gas supply.

Danger of electric shock.

If the cooktop is defective, immediately turn the appliance off and discontinue use. Disconnect it from the electricity and gas supply. Contact Technical Service.

If the cooktop is installed behind a cabinet (e.g., a door), do not close the cabinet door while the cooktop is in operation. Heat and moisture can build up behind the cabinet door when closed. This can result in damage to the cooktop, housing unit, and floor. Leave the cabinet door open until the cooktop has cooled down completely.

Reaching over a hot cooktop to access the cabinets can result in burns. You can reduce the risk of burns by installing a ventilation hood that extends at least 4¾" (12 cm) past the bottom of the cabinets.

Ask your installer to show you the location of your gas shutoff valve and fuses or circuit breaker panel in your apartment or home. Be sure that you know how and where to disconnect the gas and power supply to your cooktop.

IMPORTANT SAFETY INSTRUCTIONS

Correct use

The cooktop gets hot when in use and remains hot for some time after being turned off. Do not touch the appliance if there is a possibility that it could still be hot.

When in use, the cooktop emits a significant amount of heat, which can cause objects in the vicinity to catch fire.

Never use the cooktop to heat the room.

Do not leave the cooktop unattended when cooking on high power. Spilled food will begin to smoke and cause grease splatter, which can ignite on the cooktop. Doing so may result in carbon monoxide poisoning and overheating of the appliance.

Oil and fat can catch fire if overheated. Never leave the appliance unattended when cooking with oil and fat. If the oil or fat catches fire, do not attempt to put the flames out with water.

Turn off the cooktop and smother the flames using a lid or a suitable fire blanket.

Smother the fire or flames, or use a dry chemical extinguishing agent or foam fire extinguisher.

The flames could set the grease filters of a ventilation hood on fire. Do not flambé under a ventilation hood.

Spray canisters, aerosols and other inflammable substances can ignite when heated. Therefore do not store such items or substances in a drawer under the appliance. Cutlery inserts must be heat-resis- tant.

Never heat empty cookware.

Do not heat or can food in closed containers, such as tins or sealed jars, on the cooktop, as pressure will build up in the container and cause it to explode.

IMPORTANT SAFETY INSTRUCTIONS

If the cooktop is covered, there is a risk that the material of the cover will ignite, explode or melt if the cooktop is still hot or if turned on inadvertently. Never cover the cooktop with a board, cloth or protective sheet.

When the appliance is turned on inadvertently or by mistake, or when there is residual heat present, there is a risk of the metal items heating up. Other materials can melt or catch fire when the appliance is switched on. Do not store items on the cooktop.

You can burn yourself on a hot cooktop. When cooking on the appliance, protect your hands by using heat-resistant pot holders or oven mitts. Only use dry pot holders or gloves. Wet or damp textiles conduct heat more effectively and produce steam, which poses a burn hazard. Be sure to keep all textiles away from the gas flames. Do not use oversized cloths, dish towels or other similar materials.

When using an electrical appliance, e.g. a hand mixer, near the cooktop, make sure that the power cable does not come into contact with the hot cooktop. The cable's insulation could become damaged.

Cookware made of plastic or aluminum foil will melt at high temperatures. Do not use any plastic or aluminum foil cookware.

Pressing the knob generates a spark on the ignitor. Do not press the knob while you are cleaning or touching the cooktop or a burner in the vicinity of an ignitor.

A ventilation hood installed above the cooktop can become damaged or catch fire as a result of intense heat. Do not use the gas burners without cookware.

Only light the gas burners after all burner parts have been properly assembled.

IMPORTANT SAFETY INSTRUCTIONS

If the cookware is too small, it will not sit properly on the burner grate. If the cookware is too large, heat emitted from the bottom of the cookware may damage the countertop, walls with poor heat-re- sistance (e.g. paneled walls) or portions of the cooktop.

Make sure that the burner flames do not extend beyond the bottom of the cookware and rise up its sides.

Only use cookware with a thick enough bottom. Failure to do so may result in damage to the cooktop.

Always use the burner grates supplied with the cooktop. Never place cookware directly on the burner.

Install the burner grates in an upright position to avoid scratching the cooktop.

Storage in or on the appliance: Flammable materials should not be stored in an oven or in the vicinity of the cooktop.

Remove all grease splatters and other flammable (food) residues on the cooktop. They are a fire hazard.

Avoid allowing liquids or foods containing salt to spill onto the cooktop. If salty foods or liquids do get on the cooktop, they should be removed as soon as possible to avoid the risk of corrosion.

Using of a gas cooktop causes heat, moisture and products of combustion to build up in the room in which it is installed. Make sure that your kitchen is well ventilated, especially when the appliance is in use: keep any natural means of ventilation open or install a mechanical ventilation system (e.g. a ventilation hood).

If the cooktop is used for very long periods of time, additional ventilation of the room may be necessary, e.g. by opening windows or doors, or running the ventilation on the highest setting.

Do not use pots or pans that are large enough to cover several burners. The resulting heat buildup can damage the appliance.

IMPORTANT SAFETY INSTRUCTIONS

If the cooktop has not been used for a long period of time, be sure to thoroughly clean it and have it inspected by an authorized technician before using it again.

Ensure that the igniters are clean and dry to allow the burners to ignite and burn properly.

Fire hazard! Loose-fitting or hanging garments can catch fire. Be sure to wear appropriately fitting clothing when cooking. Never allow loose clothing or flammable materials to come into contact with the burners while the burners are in use.

When you have finished cooking, make sure that the burners are turned off by checking the position of the knobs.

The grates, burner cap, bottom parts of the burner, and any other parts located near the burner flame, can still be very hot after cooking and cause burns. Do not touch these components when using the cooktop.

Wind can blow curtains over the cooktop, causing them to catch fire. If the cooktop is installed near a window, do not use long curtains.

Only certain types of glass, ceramic or other enamel cookware can be used on a gas cooktop without breaking as a result of sudden temperature changes.

Wet sponges or clothes can cause burns due to hot steam if they are used to wipe spilled food off a hot burner. Some cleansers can emit hazardous vapors if they are applied to a hot surface. Be careful when cleaning the cooktop.

IMPORTANT SAFETY INSTRUCTIONS

Cleaning and maintenance

Do not use a steam cleaner to clean the cooktop.

The steam may reach electrical components and cause a short circuit.

Miele will guarantee to supply functional parts for a minimum of 10 years and up to 15 years following the discontinuation of your cooktop.

SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY

Caring for the environment

Disposal of the packing mate-

rial

The cardboard box and packing materials protect the appliance during shipping. They have been designed to be biodegradable and recyclable.

Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!

Disposal of your old appliance

Electrical and electronic appliances contain valuable materials. They also contain certain substances, compounds and components which were essential for the proper functioning and safe use of the equipment. Handling these materials improperly by disposing of them in your household waste can be harmful to your health and the environment. Therefore, please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal.

Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances.

Miele assumes no responsibility for deleting any personal data left on the appliance being disposed. Please ensure that your old appliance is kept away from children until removal. Observe safety requirements for appliances that may tip over or pose an entrapment hazard.

Overview

Cooktop

KM 2030

a Wok burner	Knobs for the cooking zones
b Economy burner	e Front right
c Normal burner	f Back right
d Normal burner	g Back left
	h Front left

Overview

KM 2050, KM 2051

a Wok burner

b Economy burner c Power burner d Normal burner e Normal burner

Knobs for the cooking zones

f Front right

g Back right

hMiddle

iBack left

jFront left

+ 42 hidden pages
