Miele KFNF9955IDE User Manual

Download
Page 1

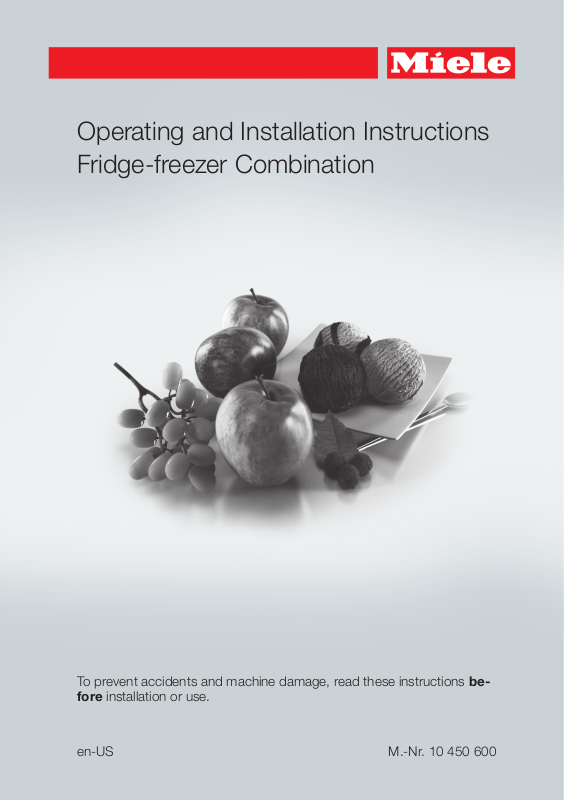

Operating and Installation Instructions Fridge-freezer Combination
To prevent accidents and machine damage, read these instructions be- fore installation or use.
en-US M.-Nr. 10 450 600
Page 2
Contents
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 5
All-purpose microfiber cloth............................................................................. 20
Cleaning and care ............................................................................................21
Switching the appliance on .............................................................................. 21
Switching the appliance off.............................................................................. 22
Adjusting the temperature in the PerfectFresh zone .....................................25
Temperature range ........................................................................................... 26
Turning on Sabbath mode................................................................................ 30
Turning off Sabbath mode................................................................................ 30
Activating and deactivating the safety lock...................................................... 31
2
Page 3
Contents
Moving the dividing grille in the lower freezer drawer...................................... 46
Removing the freezer drawer containers..........................................................47
If the ice cube maker is going to be switched off for a long period of time .... 53
3
Page 4
Contents
Opening angle of the appliance doors ............................................................. 85
Electrical connection ........................................................................................ 88
Plumbing ..........................................................................................................89
Flush installation............................................................................................... 90
Frameless installation ....................................................................................... 91
Load-bearing capacity of the niche floor .........................................................93
Checking the installation space .......................................................................93
Fitting the anti-tip device.................................................................................. 93
Fitting the anti-tip device in a building-in niche deeper than 24" (610 mm) ....95
Securing the cabinet fronts to the freezer drawers ............................................. 100
Securing the cabinet door to the refrigerator door.............................................. 100
Fitting the air filter and ventilation grille............................................................... 103
4
Page 5

IMPORTANT SAFETY INSTRUCTIONS

This appliance complies with all statutory safety requirements. Please note that inappropriate use can lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. They contain important notes on installation, safety, use and maintenance.
Miele cannot be held liable for non-compliance with these instruc­tions.
Keep these instructions in a safe place and ensure that new users are familiar with the contents. Pass them on to any future owner.
Danger of injury! This appliance is very heavy and can tip forwards when the doors are open. Keep the appliance doors shut until the appliance has been built in and secured in its housing in accordance with these operating and installation instructions.
Use
This appliance is intended for use in the home and in similar envi-
ronments, for example – in shops, offices and similar work settings – on agricultural estates – by the guests in hotels, motels, bed & breakfasts and other typical home settings. This appliance is not intended for outdoor use.
5
Page 6
IMPORTANT SAFETY INSTRUCTIONS
This appliance is intended for domestic use only for cooling and
storing food and drink as well as for storing deep frozen food, freez­ing fresh food and for making ice. Any other usage is not supported by the manufacturer and could be dangerous.
This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such ma­terials or products. Incorrect use of the appliance for such purposes can cause deterioration of the items stored. The appliance is not suitable for use in areas where there is a risk of explosion. Miele cannot be held liable for damage resulting from improper or in­correct use of the appliance.
People who lack physical, sensory or metal abilities, or experience
with the appliance should not use it without supervision or have been instructed how to use it in a safe way and recognize and understand the consequences of incorrect operation.

Children

To reduce the risk of injury, do not allow children to play in, on or
near the appliance.
The door hinges can cause injury. Keep children well away at all
times.
Ensure that any packing material is disposed of safely and kept
out of the reach of children. Danger of suffocation!

Technical safety

The refrigerant system is tested for leaks. This appliance complies
with statutory safety requirements.
6
Page 7
IMPORTANT SAFETY INSTRUCTIONS
This appliance contains the refrigerant Isobutane (R600a), a natu-
ral gas which is environmentally friendly. Although it is combustible, it does not damage the ozone layer and does not increase the green­house effect. The use of this refrigerant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the com­pressor, you might be able to hear the refrigerant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking refrigerant can cause severe irritation to the eyes. In the event of any damage:
– avoid open flames and anything that creates a spark,
– disconnect the appliance from the electrical power supply,
– ventilate the room where the appliance is located for several min-
utes, and
– contact Miele Technical Service.
The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up. For every 11g of coolant at least 1m3 of room space is required. The amount of coolant in the appliance is stated on the data plate inside the appliance.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data plate corresponds to the household supply. Check that this is the case before connecting the appliance. Consult a qualified electrician if in any doubt.
The electrical safety of the appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety re­quirement is met. If in any doubt please have the electrical installa­tion tested by a qualified electrician.
7
Page 8
IMPORTANT SAFETY INSTRUCTIONS
Reliable and safe operation of this appliance can only be assured
if it has been connected to the mains electricity supply.
If the power cord is damaged, it must be replaced by a Miele au-
thorized technician in order to protect the user from harm.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee the required safety of the appliance.
Do not use the appliance in areas where there may be moisture or
splashing water (e.g., garages, laundry rooms, etc.). Moisture can reach the electrical components and cause a short circuit.
This appliance must not be installed and operated in mobile in-
stallations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has
been built in.
The appliance must be disconnected from the electrical supply
during installation, maintenance and repair work, and installation work on the water connection. The appliance is only completely iso­lated from the electrical supply when:
– the circuit breaker has been tripped, or
– the power cord has been unplugged. Pull on the plug and not on
the cord when removing it from the outlet.
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national and local safety codes and the provided installation instructions. Contact Miele’s Technical Service Department for examination, re­pair or adjustment.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
8
Page 9
IMPORTANT SAFETY INSTRUCTIONS
Defective components should only be replaced by Miele original
parts. Only with these parts can the manufacturer guarantee the safety of the appliance.
Miele cannot be held liable for damage caused by a faulty con-
nection to the fresh water supply.
The ice cube maker is not intended to be used with a hot water
supply line.
Danger of injury! Never tamper with the movable components on
the ice cube maker or the element on the ice cube maker.

Proper use

The appliance is designed for use within a certain climate range
(ambient temperatures), and should not be used outside this range. The climate range for your appliance is stated on the data plate in­side the appliance. Installing it in a room with too low an ambient temperature, e.g. a garage, will lead to the appliance switching off for longer periods so that it cannot maintain the required tempera­ture.
WARNING! Danger of overheating! Do not cover or block the air
vents. This can impair the efficiency of the appliance, increase the power consumption and cause damage to the appliance.
If storing food which contains a lot of fat or oil in the appliance,
make sure that it does not come into contact with plastic compo­nents as this could cause stress cracks or break the plastic.
Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Electrical components could cause flammable vapors to ignite. Danger of fire and explosion.
Do not operate any electrical equipment (e.g. an electric ice cream
maker) inside the appliance. Danger of sparking and explosion.
9
Page 10
IMPORTANT SAFETY INSTRUCTIONS
Do not store cans or bottles containing carbonated drinks or liq-
uids which could freeze in the freezer. The cans or bottles could ex­plode. Danger of injury and damage to the appliance.
When cooling drinks quickly in the freezer, make sure bottles are
not left in for more than one hour; otherwise they could burst, caus­ing injury or damage.
Never handle frozen food or the metal parts of the appliance with
wet hands. Your hands may freeze to the frozen food or to the metal. Danger of frost burn!
Do not take ice cubes out with your bare hands and never place
ice cubes or popsicles in your mouth straight from the freezer sec­tion. The very low temperature of the frozen ice or popsicles can cause frost burn to the lips and tongue. Danger of injury.
Do not refreeze partially or fully defrosted food. Consume de-
frosted food as soon as possible, as it will lose its nutritional value and spoil if left for too long. Defrosted food may only be refrozen af­ter it has been cooked.
When eating stored food, there is a danger of food poisoning.
Storage times will depend on several factors, including the freshness and quality of the food, as well as the temperature at which it is stored. Observe the manufacturer's "use-by" dates and storage in­structions.
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
10
Page 11
IMPORTANT SAFETY INSTRUCTIONS

Cleaning and care

Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
Never use a steam cleaner to clean the appliance.
The steam can reach the electrical components and cause a short circuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the appliance. Do not use sharp edged or pointed objects to
– remove frost or ice,
– separate frozen foods or remove ice trays.
Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might cause the build-up of gases and pose a danger to health.
11
Page 12
IMPORTANT SAFETY INSTRUCTIONS

Californian statement No. 65

This product contains chemicals which are known to the State of
California to cause cancer, birth defects, or reproductive harm.

Transport

To avoid damage to the appliance, always transport it upright and
in its packaging.
Danger of injury and damage. The appliance is very heavy and
must be transported by two people.

Disposal of your old appliance

Before disposing of an old appliance, first make the door latches
or locks unusable. This way you will prevent children from accidentally locking them­selves in and endangering their lives.
Children could become trapped in the appliance and could suffo-
cate.
– Remove the appliance doors.
– Remove the drawers.
– Leave the shelves in the appliance so children cannot climb in-
side.
Danger of electric shock!
– Cut the plug off the power cord.
– Cut the power cord off the old appliance.
Dispose of them separately from the appliance.
Ensure that the appliance is not stored in the vicinity of gasoline or
inflammable gases and liquids during and after disposal.
Make sure that the coolant pipework is not damaged during dis-
posal to avoid uncontrolled leakage of oil and coolant (see data plate for coolant type).
12
Page 13
IMPORTANT SAFETY INSTRUCTIONS
Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
– puncturing the coolant channels in the evaporator,
– kinking any pipework,
– scratching the surface coating.

Symbol on the compressor (depending on model)

This information is only relevant for recycling. In normal operation there is no risk.
The oil in the compressor can be fatal if swallowed or if it pene-
trates the airways.
13
Page 14

Caring for the environment

Disposal of packaging material

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Return the packaging to your dealer.

Disposal of your old appliance

Electrical and electronic appliances contain valuable materials. They also contain certain substances, compounds and components which were essential for the proper functioning and safe use of the equipment. Handling these mate­rials improperly by disposing of them in your household waste can be harmful to your health and the environment. There­fore, please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal.
Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed.
14
Take care not to damage the pipework at the back of your appliance before or during transportation to an authorized, environmentally friendly collection de­pot. This way, coolant in the pipework and oil in the compressor will be contained, and will not leak into the environment.
Please ensure that your old appliance does not pose a danger to children while being stored prior to disposal. See "IMPORTANT SAFETY INSTRUC­TIONS" for more information.
Page 15

How to save energy

Installation / Maintenance
Temperature setting
Normal energy consumption
In a well-ventilated room. In an enclosed, poorly venti-
Protected from direct sun­light.
Away from heat sources (ra­diator, range/oven).
Where the ideal room tem­perature is approx. 68°F (20°C).
Air vents uncovered and dusted regularly.
39°F to 41°F (4°C to 5°C) in the refrigerator section
PerfectFresh zone 32°F (0°C)
0°F (-18°C) in the freezer section
Increased energy consumption
lated room.
In direct sunlight.
Near a heat source (radiator, oven).
Where the ambient room temperature is above 77°F (25°C).
Where the ventilation open­ings are blocked and full of dust.
The lower the temperature in the appliance, the higher the energy consumption.
15
Page 16
How to save energy
Normal energy consumption
Use The drawers and shelves are
in the original arrangement.
Only open the door when necessary and for as short a time as possible. Store food in an organized way.
Take an insulated cool bag when shopping and load food in the appliance as soon as possible. Replace any food removed as quickly as possible, be­fore it begins to thaw. Allow hot food and drinks to cool down before placing them in the appliance.
Store food covered or wrapped.
Increased energy consumption
Frequent opening of the door for long periods will cause a loss of coldness. The appliance will cool down and the compressor will run for longer periods.
Hot food or food at room temperature raises the tem­perature inside the appli­ance. The appliance will cool down and the compressor will run for longer periods.
The evaporation or conden­sation of liquids will cause a loss of coldness.
16
Place frozen food in the re­frigerator to defrost.
Do not overfill the appliance in order to allow the air to circulate.
Poor air circulation will cause a loss of coldness.
Page 17

Control panel

Guide to the appliance

a
For turning off the door or tempera-
ture alarm in the freezer section
b
For turning the SuperCool function
on and off
c
For turning the refrigerator section on
and off
d
Sensor for setting the temperature in
the refrigerator section
(Up for colder; Down for warmer)
e
Check/fault indicators
– Power failure
– Air filter needs cleaning
– SuperCool is turned on
– The safety lock has been acti-
vated
f
Display with temperature indicators
(top for the refrigerator section; bot-
tom for the freezer section) and sym-
bols (only visible when Settings
mode MENU is active (see "Selecting
additional settings")
g
Check/fault indicators – Temperature alarm in the freezer
section
– Ice cube maker is turned on
– The SuperFreeze function is turned
on
h
Sensor for selecting the temperature in the freezer section (Up for colder; Down for warmer)
i
For turning the refrigerator section on and off
j
For turning the SuperFreeze function on and off
k
For turning the ice cube maker on and off
17
Page 18
Guide to the appliance
18
Page 19
Guide to the appliance
This drawing is for illustration purposes only.
a
Control panel
b
Fan (DynaCool)
c
Egg tray / Door shelf
d
Shelf
e
Refrigerator section interior lighting
f
Bottle shelf
g
PerfectFresh zone with adjustable slide controls and Info system
h
Freezer section interior lighting
i
Automatic icemaker behind drawer
j
Freezer drawers
k
Ventilation grille with air filter located behind it and water connection
19
Page 20
Guide to the appliance

Accessories supplied

Egg tray

Air filter

The air filter behind the ventilation grille protects the cooling system from dust.

Ice cube scoop

The ice cube scoop can be used for conveniently removing the ice cubes from the ice cube container.

Door opening angle limiter

The limiting pins supplied can be used to limit the opening angle of the appli­ance doors. This is advisable if for ex­ample the appliance doors collide with an adjacent wall.

Optional accessories

A range of useful Miele accessories and care products are available for your ap­pliance.

Stainless steel maintenance

The stainless steel cleaning cloth is impregnated with stainless steel condi­tioner for optimum cleaning and protec­tion.
Each application of the Miele stainless steel conditioner (supplied in a bottle) forms a water and dirt repellent protec­tive coating. It gently removes water marks, fingerprints and other dirt for a uniformly shiny surface.

All-purpose microfiber cloth

The microfiber cloth helps remove fin­gerprints and light soiling on surfaces made of stainless steel, appliance cov­ers, windows, furniture, car windows, etc.
Accessories are available to order via the Miele Webstore, from Miele di­rectly (see back cover for contact de­tails) or from your Miele dealer.
20
Page 21

Before first use

Packaging material

Remove all packaging material from
the inside of the appliance.

Cleaning and care

Please refer to the relevant instruc­tions in "Cleaning and care".
Clean the inside of the appliance and
the accessories.

Switching on and off

Touch the sensor to switch the refrig-
erator or freezer section on or off, so that the relevant temperature appears in the display.
The appliance will start cooling.
The interior lighting will come on when the refrigerator section door or a freezer drawer is opened.
Allow the appliance to stand for ap­prox. 1hour prior to connecting it to the power supply. This will help prevent any malfunc­tions.

Operating the appliance

A light touch of the finger on the sen­sors is all that is required to operate this appliance.

Switching the appliance on

The refrigerator and freezer sections are separately controlled and can be turned on and off so that only one section is in use if necessary This is useful, e.g. while on vacation if you only want the freezer section to remain on.
The temperature in the refrigerator sec­tion is shown in the top of the display and the temperature in the freezer sec­tion is shown in the bottom of the dis­play.
If the temperature in the freezer sec­tion is not within the normal tempera­ture display range (below 32°F / 0°C), dashes will flash in the display.
The alarm symbol will also flash in the control panel until the selected temperature has been reached.
To enable the temperature to get suf­ficiently cold inside the appliance, al­low the appliance to run for a few hours before placing food in it. Do not place food in the freezer until the temperature is at least 0°F (-18°C).
21
Page 22
Switching on and off

Switching the appliance off

To switch the refrigerator or freezer
section on or off touch the sensor un­til the relevant temperature display goes out in the display. If this cannot be done, the safety lock is activated. The symbol will ap­pear in the control panel.
The interior lighting goes out and cool­ing is turned off.
Turning off for longer periods of time ­Vacation mode
If, during a long absence, the ap-
pliance is switched off but not cleaned and the door(s) left shut, there is a danger of bacteria building up inside the appliance.
It is essential to clean the appliance.
If the appliance is not going to be used for a longer period of time, e.g. whilst on vacation:
When all remaining ice cubes have
been produced, touch the On/Off sensor for the ice cube maker so that the indicator light for the ice cube maker goes out in the right-hand side of the display.

If you are going to be away for longer than a month, please also:

remove and dispose of the remaining
ice cubes from the ice cube con­tainer,
take any food out of the appliance
and store it in a cool place,
switch the appliance off,unplug the power cord or trip the cir-
cuit breaker,
clean the appliance (see "Cleaning
and care"),
leave the door(s) ajar to air the appli-
ance and avoid odors building up in­side the appliance.
close the water shut-off valve.
If the indicator light for the ice cube maker begins to flash, this means that there is still water remaining in the ice cube maker.
Leave the ice cube maker turned on
for another day so that the remaining ice cubes can be produced.
22
Page 23

The correct temperature

It is very important to set the correct temperature for storing food in the ap­pliance. Bacteria will cause food which is not stored at the correct temperature to deteriorate rapidly.
The temperature in the appliance will rise:
– if you open the door frequently or
keep it open too long,
– the more food that is stored in it
– if you put food in it that is too warm,
– the higher the ambient temperature
surrounding the appliance. The appli­ance is designed for use within spe­cific ambient temperatures (climate range). Do not use in ambient tem­peratures for which it is not designed.

. . . in the fridge section and in the PerfectFresh zone

We recommend a temperature of 39°F (4°C) in the refrigerator section.
The temperature in the PerfectFresh zone is controlled automatically, and is maintained at 32°F to 37°F (0°C to
3°C).

Automatic cold air circulation (DynamicCooling)

The fan automatically turns on when the cooling system for the refrigerator sec­tion turns on. It distributes the tempera­ture in the appliance to all areas more evenly so that all the food will be chilled to about the same degree.

. . . in the freezer section

To freeze fresh food and to store frozen food for a long time, a temperature of 0°F (-18°C) is required. Partially de­frosted or fully defrosted food must not be re-frozen. Food may be re-frozen once it has been cooked.
23
Page 24
The correct temperature

Temperature display

In normal operation the display shows the current average refrigerator temperature and the current tempera­ture in the warmest part of the freezer.
If the temperature in the freezer section is not within the normal temperature display range, dashes will flash in the display.
Depending on the ambient temperature and the temperature setting, it can take the appliance a few hours to reach the temperature required and for this tem­perature to then be shown as a con­stant temperature in the display.
if the temperature in the freezer
remains above 0°F(-18°C) for a long time, check that the frozen food has not started to defrost.
If it has, check that the food is safe to use and if it is, then use it as soon as possible or cook it before freezing it again.

Setting the temperature for the refrigerator and freezer

The temperatures for the refrigerator and the freezer are set separately us­ing the buttons for the respective sec­tion.
Set the desired temperatures using
each of the buttons.
Tap
– Up to increase the temperature,
– Down to decrease the temperature.
The temperature display flashes while you set the new temperature.
When you tap the buttons, you will see the following changes in the display:
– When first tapped: The last tempera-
ture selected flashes.
– Every new tap: The temperature value
changes in increments of 1 degree.
24
– Holding down the button will change
the temperature value continuously.
Approximately 5 seconds after you re­lease the button, the actual temperature in the appliance will be displayed.
If you have changed the temperature and the appliance is not very full, wait approx. 6 hours, if it is full, approx. 24 hours before checking the temperature display again. It will take that long to reach the selected temperature.
Page 25
If, after this amount of time, the temper­ature is too high or too low, you will need to adjust it again.
The correct temperature
Adjusting the temperature in the Per­fectFresh zone
In the PerfectFresh zone the tempera­ture is maintained between 32 °F (0 °C) and 37 °F (3 °C). However, if you would like it to be warmer or colder, e.g. when storing fish, you can adjust the temperature slightly.
The preset temperature in the Per­fectFresh zone is 5. If a setting of be­tween 1 and 4 is selected, minus temperatures may be reached, re­sulting in food freezing.
Select a higher level.
Touch the On/Off sensor for the Su-
perFreeze function for approx. 5 sec­onds.
The indicator light in the right-hand side of the display will light up at this time and after approx. 5 seconds S will flash in the bottom (freezer section) temperature display. MENU will light up in the display. You are now in Settings mode.
Touch the Super sensor again.
The last selected setting lights up in the display.
You can now adjust the temperature
from (lowest temperature) to (highest temperature) by touching the sensors for adjusting the temperature in the freezer section.
Touch the Super sensor again to save
the setting.
Touch the on and off sensor for the
freezer section to exit Settings mode.
The newly set temperature for the Per­fectFresh zone will gradually be reached.
Touch one of the sensors for setting
the temperature in the freezer section repeatedly until flashes in the bot­tom temperature display.
25
Page 26
The correct temperature

Temperature range

The temperature can be selected within the following ranges:
– from 37°F (3°C) to 45°F (7°C) in the
refrigerator section.
– from 7°F (-14°C) to -15°F (-27°C) in
the freezer section.
The ambient temperature in the room and the installation location can af­fect the time it takes for the appli­ance to reach the lowest tempera­ture.
If the ambient temperature is too high, the appliance may not reach the lowest temperature.
26
Page 27

Using Automatic SuperCool and SuperFreeze

SuperCool function

The SuperCool function can be used to rapidly reduce the temperature in the refrigerator section to its lowest setting (depending on the room temperature).

Turning on SuperCool

SuperCool is particularly recommended for the fast chilling of large amounts of fresh food or drink.
Touch the sensor for turning the Su-
perCool function on and off so that the indicator light in the left-hand side of the display lights up.
The appliance will work at full power to lower the temperature in the appliance.

Turning off SuperCool

The SuperCool function turns off auto­matically after approx. 6 hours. The ap­pliance will then continue to work at normal power.
To save energy, the SuperCool function can be switched off once food and drinks are sufficiently chilled.
Touch the sensor for turning the Su-
perCool function on and off so that the indicator light in the left-hand side of the display goes out.
The appliance will continue running at normal power.
27
Page 28
Using Automatic SuperCool and SuperFreeze

SuperFreeze function

For best results, turn on SuperFreeze before putting fresh food into the freezer.
Fresh food will be frozen quickly, so that the nutritional value, vitamin content, appearance and taste are maintained.

Exceptions:

– if you have already put frozen food
into the freezer.
– when freezing up to 2.2 lbs (1kg)
fresh food daily.

Turning on SuperFreeze

When freezing small quantities of food in the freezer, the SuperFreeze function should be turned on 6hours before-
hand. When freezing the maximum load of food, the SuperFreeze function should be turned on 24 hours before­hand.

Turning off SuperFreeze

The SuperFreeze function will switch it­self off automatically after approx. 30­65 hours. The quantity of fresh food placed in the freezer will determine the duration before the SuperFreeze func­tion switches off. The SuperFreeze symbol will go out and the appliance will run at normal power again.
To save energy, the SuperFreeze func­tion can be turned off once a constant temperature of 0°F (-18°C) is reached inside the freezer section. Check the temperature inside the appliance.
Touch the sensor for turning the Su-
perFreeze function on and off so that the indicator light in the right-hand side of the display goes.
The appliance now continues running at normal cooling capacity.
Touch the sensor for turning the Su-
perFreeze function on and off so that the indicator light in the right-hand side of the display lights up.
The appliance will work at full power to lower the temperature in the freezer section.
28
Page 29

Selecting additional settings

Certain settings on the appliance can only be selected in Settings mode.
In Settings mode certain appliance functions can be selected and their set­tings altered.

Available settings

Turning Sabbath mode on and
off
Activating and deactivating the
safety lock
Function test for the ice cube
maker (for Miele service use only)
Changing the size of the ice
cubes (see "Making ice cubes")
Adjusting the temperature in the
PerfectFresh zone (see "The correct temperature")
Setting the temperature unit:
(Fahrenheit / Celsius)
Changing the brightness of the
temperature display
Changing the door seal heater
setting
Confirm cleaning of air filter (see
"Cleaning and care")

Sabbath mode

The appliance offers a Sabbath mode for the purposes of religious obser­vance.
When Sabbath mode is turned on many functions in the appliance are switched off and can no longer be selected, but the cooling performance of the appli­ance is not affected in any way.
The following are turned off:
– the interior lighting when the appli-
ance door or freezer drawer is opened,
– temperature and door alarm,
– the temperature display,
– SuperCool and SuperFreeze (if previ-
ously selected),
– the ice cube maker (if previously
turned on).
The buttons for turning off Sabbath mode can be selected.
The Sabbath mode function will turn it­self off automatically after approx. 120 hours.
Ensure that the appliance doors are properly closed, as visual and audible alarms are switched off.
29
Page 30
Selecting additional settings
Danger of food contamination!
Any interruption to the power supply during this time will not be shown in the display and the appliance will then restart in Sabbath mode. When this is ended, the power interruption will not be indicated in the display.
If there is an interruption to the power supply during Sabbath mode, check the quality of the food. Do not consume any defrosted food.

Turning on Sabbath mode

Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
The indicator light in the right-hand side of the display will light up during this time and S will flash in the bottom (freezer section) temperature display af­ter approx. 5seconds. MENU will light up in the display. You are now in Set­tings mode.
Touch the on and off sensor for the
freezer section to exit Settings mode.
The Ssymbol will appear in the display when Sabbath mode is switched on. The interior lighting and symbols in the control panel also go out.

Turning off Sabbath mode

Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
The indicator light in the right-hand side of the display will light up during this time and S will flash in the bottom (freezer section) temperature display af­ter approx. 5seconds. MENU will light up in the display. You are now in Set­tings mode.
Touch the Super sensor again.   lights up in the display.
Touch the Super sensor again to con-
firm the setting.
30
Touch the Super sensor again.   lights up in the display.
Touch the Super sensor again to con-
firm the setting.
The Ssymbol will go out in the display. In interior lighting and the control panel will come on again.
Page 31
Touch the on and off sensor for the
freezer section to exit Settings mode.
Selecting additional settings
Safety lock
The lock can be activated to prevent the appliance being switched off by mistake.

Activating and deactivating the safety lock

Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
The indicator light in the right-hand side of the display will light up during this time and S will flash in the bottom (freezer section) temperature display af­ter approx. 5seconds. MENU will light up in the display. You are now in Set­tings mode.
Touch one of the sensors for setting
the temperature in the freezer section repeatedly until flashes in the bot­tom temperature display.
Touch the Super sensor again.
31
Page 32
Selecting additional settings
The following lights up in the display – :
The safety lock has been activated, or
– :
the safety lock has now been deacti­vated.
Touch the Super sensor again to save
the setting.
The symbol will appear in the control panel when the lock is activated.
Touch the on and off sensor for the
freezer section to exit Settings mode.
Changing the temperature unit (Celsius / Fahrenheit)
The temperature can be displayed in either Fahrenheit (°F) or Celsius (°C).
The factory default is Fahrenheit °F.
Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
The indicator light in the right-hand side of the display will light up at this time and after approx. 5seconds S will flash in the bottom (freezer section) temperature display. MENU will light up in the display. You are now in Settings mode.
32
Touch one of the sensors for setting
the temperature in the freezer section repeatedly until flashes in the bot­tom temperature display.
Touch the Super sensor again.
Page 33
Selecting additional settings
The following lights up in the display: – :
The temperature will now be dis­played in degrees Celsius, or
– :
The temperature will now be dis­played in degrees Fahrenheit.
Touch the Super sensor again to save
the setting.
The temperature will now be displayed in degrees Celsius or degrees Fahren­heit.
Touch the on and off sensor for the
freezer section to exit Settings mode.
Changing the brightness of the temperature display
The temperature display brightness can be adjusted to suit lighting conditions in the room.
The temperature display brightness can be adjusted in stages from 0 (lighting off) to 5 (maximum brightness).
Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
The indicator light in the right-hand side of the display will light up at this time and after approx. 5seconds S will flash in the bottom (freezer section) temperature display. MENU will light up in the display. You are now in Settings mode.
Touch one of the sensors for setting
the temperature in the freezer section repeatedly until flashes in the bot­tom temperature display.
Touch the Super sensor again.
33
Page 34
Selecting additional settings
The last selected setting lights up in the display.
By touching the sensors for setting
the temperature in the freezer section you can alter the brightness of the temperature display between and
 .
Touch the Super sensor again to save
the setting.
Touch the on and off sensor for the
freezer section to exit Settings mode.
Changing the door seal heater setting
If condensation builds up on the door seal for the refrigerator section doors, this can be eliminated by selecting the highest door seal heater setting ( ).
The factory default is (middle set­ting).
Condensation will not usually form at an average ambient temperature and humidity.
If condensation should form on the door seal at higher air humidity and a lower ambient temperature, set the door seal heater temperature to the highest level.
Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
34
The indicator light in the right-hand side of the display will light up at this time and after approx. 5seconds S will flash in the bottom (freezer section) temperature display. MENU will light up in the display. You are now in Settings mode.
Page 35
Selecting additional settings
Touch one of the sensors for setting
the temperature in the freezer section repeatedly until flashes in the bot­tom temperature display.
Touch the Super sensor again.
The last selected setting lights up in the display.
You can alter the heater level by
touching the sensors for setting the temperature in the freezer section:
– :
Middle heater setting (in the event of slight condensation on door seal)
– :
Highest heater setting (in the event of heavy condensation on the door seal)
Touch the Super sensor again to save
the setting.
Touch the on and off sensor for the
freezer section to exit Settings mode.
– :
Heater is deactivated.
35
Page 36

Temperature and door alarm

Your appliance is equipped with a warn­ing system to ensure that temperature increases in the freezer section do not go unnoticed and also prevents energy from being wasted when a door is left open.

Temperature alarm

If the temperature in the freezer section becomes too warm, the bottom temper­ature display and the alarm symbol will flash. An alarm will also sound.
The temperature the appliance is set at determines the temperature the appli­ance recognizes as being too warm.
The audio and visual signals are trig­gered, for example:
– when the appliance is switched on if
the temperature in the appliance dif­fers greatly from the set temperature,
– if a lot of room air enters the freezer
when food is being loaded, rear­ranged or taken out,
if the temperature in the freezer
remains above 0°F(-18°C) for a long time, check that the frozen food has not started to defrost.
If it has, check that the food is safe to use and if it is, then use it as soon as possible or cook it before freezing it again.

Switching the temperature alarm off early

If the acoustic alarm disturbs you, it can be switched off.
Touch the alarm sensor.
The alarm will stop. The alarm symbol and the bottom temperature display will continue to flash until the set temperature has been reached in the freezer section.
– when freezing large amounts of food
at once,
– when freezing fresh food which is still
warm,
– when there is a loss of power,
– if the appliance has a fault.
The alarm will stop, the temperature display will light up constantly again and the alarm symbolwill go out as soon as the temperature has dropped to the correct level again.
36
Page 37

Door alarm

The alarm will sound if the door or a freezer drawer is left open for more than 3minutes.
As soon as the door or drawer is closed, the alarm sound will stop.

Turning the door alarm off early

If the acoustic alarm disturbs you, it can be switched off.
Touch the alarm sensor.
The alarm will stop.
Temperature and door alarm
37
Page 38

Storing food in the refrigerator section

WARNING! Fire hazard!
Do not operate any electrical equip­ment inside the appliance. This can cause sparking.
Danger of explosion.
Do not store explosive materials in the appliance or any products con­taining propellants (e.g. spray cans).
If storing food which contains a
lot of fat or oil in the appliance or the appliance door, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.
Make sure that no oil or grease leaks onto the plastic parts of the appli­ance. This can cause the plastic to crack and break.

Various cooling zones

Due to natural air circulation there are different temperature zones in the re­frigerator section.
Cold, heavy air sinks to the lowest sec­tion of the appliance. Make use of the different temperature zones when plac­ing food in the appliance.
To allow air to circulate efficiently, do not pack food too closely together in the refrigerator.
If there is insufficient air circulation the cooling performance will de­crease and energy consumption will increase.
Do not cover the fan in the rear wall of the refrigerator.
Food must not touch the back of the refrigerator section as it may freeze to the back wall.
38
This appliance has DynamicCooling, which helps to keep an even tempera­ture when the fan is running. When DynamicCooling is turned on, the dif­ference between the various zones is less pronounced.
Page 39
Storing food in the refrigerator section

Warmest area

The warmest area in the refrigerator section is in the top section of the door. Use this for storing butter so that it re­mains spreadable and cheese so that it retains its flavor.

Coldest area

The coldest area in the refrigerator sec­tion is directly above the dividing plate of the PerfectFresh zone and against the rear wall. However, inside the Per­fectFresh zone is even colder.
Use these areas in the refrigerator sec­tion and in the PerfectFresh zone for all delicate and highly perishable food, e.g.:
– fish, meat, poultry,
– cold cuts
– dishes or baked goods containing
eggs or cream,
– fresh dough, cake mixtures, pizza or
pie dough,
Food which is not suitable for storage in the refrigerator sec­tion
Not all food is suitable for refrigeration at temperatures below 41°F (5°C) be­cause it is sensitive to cold. Depending on the type of food, the appearance, consistency, flavor and/or vitamin con­tent may be altered if stored at too cold a temperature.
Food that is sensitive to cold includes:
– pineapple, avocados, bananas,
pomegranates, mangos, melons, pa­paya, passion fruit, citrus fruit (such as lemons, oranges, mandarins, grapefruit),
– fruit that is not yet ripe,
– eggplant, cucumbers, potatoes, pep-
pers, tomatoes, zucchini,
– hard cheeses, e.g. Parmesan.
39
Page 40
Storing food in the refrigerator section

What to be aware of when shopping for food

The freshness of food when first placed in the appliance is the most important factor in determining how long it stays fresh, and how long it can be kept in the appliance. Always observe the use-by date and the recommended storage temperature. Time out of the refrigerator should be kept to a minimum, for example, when transporting food in a hot car.
Tip: Take a cool bag with you when shopping and on return place food into the appliance immediately.

Storing food correctly

Food should generally be stored cov­ered or packaged in the refrigerator section (there are some exceptions to this rule in the PerfectFresh zone - see below). This will prevent food smells from affecting other foods, food from drying out, and also any cross-contami­nation of bacteria. This is especially im­portant for storing animal products. The shelf life of food can be significantly increased by setting the correct tem­perature and maintaining good stan­dards of hygiene.
40
Page 41

Storing food in the PerfectFresh zone

Due to the optimum storage conditions in the PerfectFresh zone for fruit, veg­etables, fish, meat and dairy products, food remains fresh for longer, and flavor and vitamins are retained.
The optimum storage temperature for fresh food which is not sensitive to the cold is 32°F - 37°F (0°C - 3°C). This is the temperature range which is auto­matically maintained in the PerfectFresh zone. Food which is not sensitive to cold can be stored in the PerfectFresh zone at this temperature without loss of freshness for considerably longer than in a standard refrigerator, as the deteri­oration process is decelerated at this temperature.
The humidity level in the PerfectFresh zone can also be regulated to provide the correct conditions for food stored inside it. An increase in the humidity level ensures that food retains its own moisture and does not dry out so quickly. Therefore, such food will remain firm and fresh for longer.
Food should be in good condition from the start to get good storage re­sults.
Take food out of the PerfectFresh zone approx. 30-60 minutes before using it. The aroma and flavor do not fully de­velop until the food has reached room temperature.

Regulating the humidity level in the compartments

Move the slide control to the desired
setting, depending on whether you wish to use the compartment as a dry or a humid compartment
The Info system in the glass plate above the PerfectFresh Pro zone helps you choose the correct compartment and/or select the appropriate setting in the humidity controlled compartment.
Each type of food has its own charac­teristics and requires certain storage conditions.
High humidity in the humidity con­trolled compartment can cause con­densate to build up on the floor of the compartment.
This should be removed with a cloth.
41
Page 42
Storing food in the PerfectFresh zone

Using a compartment as a dry compartment

If the slide control is set to dry, air hu­midity is not increased.
The dry compartment is suitable for storing perishable foods such as:
– fresh fish, shellfish,
– meat, poultry,
– salads,
– dairy products such as yogurt,
cheese, cream, etc.
– any type of food can in fact be stored
in this compartment, as long as it is packaged.
The low temperature in the dry com­partment is its most distinctive feature. The humidity level is similar to that in a conventional refrigerator.
Please note that foods rich in protein deteriorate faster than others. Shellfish, for example, deteriorates faster than fish, and fish deteriorates faster than meat.
Using a compartment as a hu­mid compartment
If the slide control is set to humid, air humidity is increased.
The humid compartment is particularly suitable for storing fruit and vegetables.
The humidity greatly depends on the type and quantity of food being stored, if stored unwrapped. The humidity can be too low if there is only a small amount stored in the com­partment.
Tip: If you are only storing a small amount of food, wrap it in airtight pack­aging.
Always keep these foods covered or wrapped.
42
Page 43
Storing food in the PerfectFresh zone
If you are not satisfied with your stored food (for example the food wilts or becomes withered after only a short storage time), check the following:
Only place fresh food in the appliance.Clean the PerfectFresh compartments before storing food in them.Very wet food should be dried off before storing it.Do not store any food in the PerfectFresh zone which is sensitive to cold (see
"Food which is not suitable in the refrigerator section").
Set the slide control to the correct position for the food being stored (humidity
not increased or humidity increased).
Increased humidity in the humidity controlled compartment is achieved via
the moisture present in the food being stored, i.e. the more food stored in the compartment, the higher the humidity. If too much moisture has gathered on the floor of the compartment and the food has been affected, select the setting. Otherwise dry the floor and underneath the lid with a cloth and place a rack or similar item in the compartment so that moisture can then drip down. If the humidity level becomes too low, wrap the food in airtight packaging.
If you think that the temperature in the PerfectFresh zone is not correct, try ad-
justing it slightly by 34-35°F (1-2°C) via the refrigerator section temperature control. To avoid frost damage to food, a higher temperature must be set if ice crystals begin to form on the bottom of the PerfectFresh zone.
43
Page 44

Adjusting the interior fittings (refrigerator section)

Adjusting the door shelf / bot­tle shelf
Risk of injury! Only move the bottle shelves when
they are empty.
Lift up the door shelf / bottle shelf
and pull it forward to remove it.
Place the door shelf / bottle shelf at
any position again. Make sure that it is properly and secure pushed back into position.

Moving the shelves

The shelves can be adjusted as neces­sary according to the height of the food:
Hold the shelf on both sides and raise
it slightly so that it can be lifted over the catches at the back.
Pull the shelf forwards.Place the shelf at the required level,
ensuring that it has engaged in the catches at the back.
Make sure that the shelf is on
straight.
Please not that you will not be able to remove the shelves if the appli­ance doors can only open 95°.
Remove the locking pins from the top of the hinges to adjust the angle.

Removing the glass plate above the PerfectFresh Pro zone

The glass plate above the PerfectFresh zone can be removed for cleaning.
44
Carefully take hold of the glass plate
right and left from underneath and lift it upwards and out.
Page 45
Adjusting the interior fittings (refrigerator section)
PerfectFresh zone compart­ments
The compartments in the PerfectFresh zone are on telescopic rails, and can be removed for filling, emptying or cleaning purposes:
Pull out the compartment as far as it
will go.
Holding the sides of the compartment
at the back, lift it up and then for­wards and out.
Push the runners back in again to avoid damaging them.
Take care when cleaning the appli­ance that you do not wash the spe­cial lubricant out of the telescopic rails. Wipe them with a well-wrung out damp cloth only.
To replace the drawer: Place the drawer on the fully re-
tracted telescopic runners.
Push the drawer in until it clicks into
place.
45
Page 46

Adjusting the interior fittings (freezer section)

Freezer drawers

Both freezer drawers can be used to freeze fresh food and for storage of ready-frozen food.
The ice cube maker is located above the upper freezer drawer on the left­hand side.
The upper freezer drawer is divided into two parts by a divider and the left-hand side serves as the ice cube container. If you wish to make this big­ger to produce larger ice cubes, pull di­vider upwards and replace it in the additional holder on the right.
If you wish to use the whole of the top freezer drawer to store ice cubes, you can remove divider by lifting it upwards and out completely.
The lower freezer drawer is used for freezing fresh food and storing frozen food. The drawer can also be used to store ice cubes.

Moving the dividing grille in the lower freezer drawer

The dividing grille in the lower freezer drawer can be repositioned according to your wishes:
Pull the lower freezer drawer out.Lift the dividing grill upwards and off
and move it to the right or left, de­pending on your requirements.
If you wish to use the whole of the top drawer for storing frozen food, re­move divider and turn off the ice cube maker (see "Making ice cubes").
46
Page 47
Adjusting the interior fittings (freezer section)
Removing the freezer drawer con­tainers
The hanging containers in the freezer drawers can be removed.
Lift the container forwards on both
sides (1) and push it back slightly to unclip it (2).
Remove the container upwards.Replace the container in the reverse
order.
47
Page 48

Freezing and storing food

Always observe USDA food safety guidelines.
WARNING! Fire hazard!
Do not operate any electrical equip­ment inside the appliance. This can cause sparking.

Maximum freezing capacity

To ensure that fresh food placed in the freezer freezes through to the core as quickly as possible, the maximum freezing capacity must not be ex­ceeded. The maximum freezing capac­ity for freezing within a 24-hour period is given on the data plate: "Freezing ca-
pacity ....lbs/24 hrs."

What happens when you freeze fresh food?

Fresh food should be frozen as quickly as possible so that the nutritional value of the food, its vitamin content, appear­ance and flavor are maintained.
The longer food is frozen, the more wa­ter it loses from each individual cell in to the intermediate spaces. The cells then shrink. During the defrosting process, only some of this water is reabsorbed by the cells. In practical terms, this means that the food loses a substantial amount of liquid, which can be seen by the fact that a large pool of water col­lects around it.
If food is frozen quickly, the cells have less time to lose moisture, so they shrink less. As there is not so much moisture loss, it is easier for the food to reabsorb it during the defrosting process, and very little water collects around the defrosted food.

Storing frozen food

When buying frozen food to store in your freezer, make sure to check:
– that the packaging is not damaged,
– the expiration date and
– the temperature at which the frozen
food is being stored in the shop. The length of time it can be kept is re­duced if it has been stored at a tem­perature warmer than 0°F (-18°C).
Buy frozen food at the very end of
your shopping trip.
Store it in the freezer compartment as
soon as possible.
Never re-freeze partially or fully
defrosted food. Defrosted food may only be re-frozen after it has been cooked.
48
Page 49
Freezing and storing food

Home freezing

Only freeze food that is fresh and in good condition.

Tips for home freezing

– The following types of food are suit-
able for home freezing:
fresh meat, poultry, game, fish, veg­etables, herbs, fresh fruit, dairy prod­ucts, baked goods, leftovers, and most pre-cooked meals.
– The following types of food are not
suitable for freezing: Grapes, lettuce, radishes, sour cream, mayonnaise, eggs in their shells, onions, whole raw apples and pears.
– To retain color, taste, aroma and vita-
min C, vegetables should be blanched after they have been trimmed and washed. To blanch: bring a large saucepan of water to the boil, immerse the vegetables in the fast boiling water for 2-3 minutes, depending on variety. Remove, and plunge into ice-cold water to cool quickly. Drain and pack ready for freezing.
– Lean meat freezes better than fatty
meat and can be stored for consider­ably longer.
– To prevent chops, steaks, cutlets,
etc. from freezing together in solid blocks when packed, separate with a sheet of plastic freezer film.
– Do not season fresh foods or
blanched vegetables before freezing. Only season cooked food lightly be­fore freezing, but care should be taken as the taste of some spices al­ters when frozen.
– Placing hot foods or drinks in the
freezer causes food that is already frozen to partially thaw and increases energy consumption. Allow hot foods and drinks to cool down before plac­ing them in the freezer.

Packaging

Freeze food in portions.
Suitable packing material
– Plastic films
– Freezer bags
– Aluminum foil
– Freezer containers
Unsuitable packing material
– Packing paper
– Parchment paper
– Cellophane
– Garbage bags
– Plastic carrier bags Remove as much air as possible from
the package before sealing.
Close the packaging tightly with
– rubber bands
– plastic clips
– string or bag ties or
– freezer tape.
49
Page 50
Freezing and storing food
Tip: Freezer bags may also be sealed
using home heat sealing kits. Label the package with the contents
and the date of freezing.

Before placing food in the freezer

When freezing more than 4lbs (2kg)
of fresh food, switch on the Super­Freeze function 24 hours before plac­ing the food in the freezer (see "Using SuperCool and SuperFreeze - Super­Freeze function").
This helps food which is already stored in the freezer to stay frozen.

Placing food in the freezer

When placing items in the freezer, en-
sure that the packaging and contain­ers are dry to prevent them from sticking together when frozen.
Unfrozen food should not touch frozen food as this will cause frozen food to begin to thaw.

Defrosting

Frozen food can be thawed in various ways:
– in the microwave,
– in a regular oven, using the "Fan" or
"Defrost" setting
– at room temperature,
– in the refrigerator section (the cold
given off by the frozen food helps to keep the other food cold),
– in a steam oven.
Flat pieces of partially thawed meat or fish can be placed directly into a hot skillet.
Meat and poultry (e.g. hamburger, chicken, fish) should not come into con­tact with other foods while defrosting. Catch the defrosting liquid and dispose of it carefully.
Fruit can be thawed at room tempera­ture, either in the packaging or in a cov­ered bowl.
Food to be frozen can be placed any­where in the freezer.
50
Most vegetables can be cooked while still frozen. Just put straight into boiling water or hot fat. The cooking time is slightly less than that of fresh vegeta­bles due to changes in the cell struc­ture.
Never re-freeze partially or fully
defrosted food. Defrosted food may only be re-frozen after it has been cooked.
Page 51

Cooling drinks quickly

To cool drinks quickly, place them in the refrigerator section, and switch on the SuperCool function.
When cooling drinks quickly in the freezer, make sure bottles are not left in for more than one hour; otherwise they could burst.
Freezing and storing food
51
Page 52

Making ice cubes

For the automatic ice cube maker to operate it must be connected to the fresh water supply (see "Fresh water supply").

Turning on the ice cube maker

Only make normal domestic quantities of ice cubes with the ice cube maker.
Check whether the water shut-off
valve is open.
Touch the sensor for turning the ice
cube maker on and off so that the in­dicator light for the ice cube maker lights up in the right-hand side of the display.
If it was not turned on before, the freezer section now turns on automati­cally.
As soon as the water is frozen, the ice cubes drop out of the ice cube maker into the ice cube container. When a cer­tain volume is reached, ice cube pro­duction is automatically adjusted.
Danger to health!
After first use the first three contain­ers of ice cubes must not be con­sumed and must be discarded as the water will have been used to rinse through the pipework. This also applies when using the ap­pliance again after not having used it for a while.
The ice cube maker can make up to 100 - 120 ice cubes in 24 hours (at a freezer temperature of 0°F / -18°C).
The amount of ice cubes which the appliance makes depends on the tem­perature in the freezer.
If you want to make the maximum
amount of ice cubes (up to 150 ice cubes/ 24 hours), turn on the Super­Freeze function. Please note how­ever that this will increase the energy consumption of the appliance.
If the ice cube maker indicator light flashes, the ice cube maker has an insufficient supply of water. Check whether the water shut-off valve is open.
The ice cube maker will only produce ice cubes when both freezer drawers are properly closed!
After first use, it might take about 24 hours until the first ice cubes are pro­duced.
52
Page 53
Making ice cubes

Turning off the ice cube maker

The ice cube maker can be switched off independently of the freezer section if you do not want the appliance to make any ice cubes.
Touch the sensor for turning the ice
cube maker on and off so that the in­dicator light for the ice cube maker goes out in the right-hand side of the display.

If the ice cube maker is going to be switched off for a long period of time

close the water shut-off valve.
If the indicator light for the ice cube maker begins to flash, this means that there is still water remaining in the ice cube maker.
Leave the ice cube maker switched
on for another day so that the remain­ing ice cubes can be produced.
Changing the size of the ice cubes
The size of the ice cubes produced de­pends on the volume of the water in­take which you can set according to your requirements. To make larger ice cubes, the volume of the water intake must be increased.
A medium volume of water intake is set as the factory default.
Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
The indicator light in the right-hand side of the display will light up at this time and after approx. 5seconds S will flash in the bottom (freezer section) temperature display. MENU will light up in the display. You are now in Settings mode.
As soon as the remaining ice cubes
have been produced, touch the sen­sor for turning the ice cube maker on and off so that the indicator light for the ice cube maker goes out in the right-hand side of the display.
Take the remaining ice cubes out of
the ice cube container and dispose of them.
Touch one of the sensors for setting
the temperature in the freezer section repeatedly until flashes in the bot­tom temperature display.
Touch the Super sensor again.
The last selected setting lights up in the display.
53
Page 54
Making ice cubes
The water volume set can be altered
within the range of to by touching the sensors for setting the temperature in the freezer section.
Only change the water volume set­ting by one level and then observe the result. If the water volume is set too high, the ice cube tray in the ice cube maker can overflow!
Touch the Super sensor again to save
the setting.
Touch the on and off sensor for the
freezer section to exit Settings mode.
54
Page 55

Automatic defrosting

Danger of injury and damage!
Do not use any mechanical or other types of aids which are not recom­mended by the manufacturer to ac­celerate the defrosting process.
Refrigerator section and Per­fectFresh zone
The refrigerator section and the Perfect­Fresh zone defrost automatically.
Condensate and frost can build up on the back wall of the refrigerator section and the PerfectFresh zone while in use. You do not need to remove this, as it will defrost and evaporate automatically with the warmth generated by the appli­ance.

Freezer section

The appliance is equipped with a "NoFrost" system. The freezer defrosts automatically.
The moisture generated in the appli­ance collects on the condenser, and is automatically defrosted and evaporates periodically.
This automatic defrosting system en­ables the freezer to remain permanently ice-free, but the food stored in the freezer will not defrost!
55
Page 56

Cleaning and care

Danger of electric shock!
Unplug the appliance or disconnect it from the power supply.
Fire hazard!
Do not let water get into the elec­tronic unit or the lighting.
Do not let water get into the
electronic unit or the lighting.
Steam from a steam cleaning ap-
pliance could reach the electrical components and cause a short cir­cuit.
Do not use a steam cleaner!
The data plate located inside the ap­pliance must not be removed. It con­tains information which is required in the event of a service call.

Cleaning agents

To avoid damaging the surfaces of your appliance, do not use
– cleaning products containing soda,
ammonia, acid, or chloride,
– lime scale removers,
– abrasive cleaning products, such as
scouring powder, scouring liquid, or pumice stones,
– cleaners containing solvents,
– stainless steel cleaners,
– dishwasher detergent,
– oven sprays,
– glass cleaning agents,
– hard, abrasive sponges and brushes,
such as pot scrubbers,
– eraser sponges,
– sharp metal scrapers.
56
Cleaning and conditioning agents used inside the appliance must be food safe.
Use warm water and liquid dish soap.
The following pages contain impor­tant information on cleaning.
Page 57
Cleaning and care

Preparing the appliance for cleaning

Switch the appliance off.
The temperature shown in the display will go out and the cooling system switches off.
Unplug the appliance or trip the cir-
cuit breaker.
Take any food out of the appliance
and store it in a cool place.
Remove the shelves/bottle shelf from
the appliance door.
Take out all other removable parts for
cleaning.

Interior and accessories

Clean the appliance at least once a month.
Clean up any spills, stains or food immediately. Do not allow them to dry and stick to the appliance.
Clean with lukewarm water and liquid
dish soap. Clean all parts by hand only. Do not wash in the dishwasher.
After cleaning, wipe with clean water
and dry with a soft cloth.
Leave the door open to air the appli-
ance for a short while and to prevent odors building up.

Aluminum frames

The front panels on the shelves in the appliance door are made of aluminum.
The appearance of aluminum changes in different lights and environments and depending on the angle you observe it from. It is also susceptible to scratch­ing.
The aluminum frames be damaged or discolored if dirt is left on for too long. Remove any dirt immediately.
57
Page 58
Cleaning and care

Cleaning the door seal

Do not use any grease or oil on the door seal as these will cause the seal to deteriorate and become porous over time.
The door seal should be cleaned reg-
ularly with clean water and then wiped thoroughly dry with a soft cloth.

Cleaning the ventilation grilles

A build-up of dust will increase the en­ergy consumption of the appliance.
The air vents should be cleaned on a
regular basis with a brush or vacuum cleaner (you could use a Miele vac­uum cleaner dusting brush, for exam­ple).
Changing the air filter
If the indicator light for the air filter lights up in the control panel, the air fil­ter needs to be be cleaned.
Pull out the lower freezer drawer
completely.
Unscrew the ventilation grille.
58
Press down the tab on the air filter
and remove it.
Wash the air filter in the dishwasher
or with a mild solution of warm water and liquid dish soap.
Re-insert the air filter in the reverse
order.
Screw the ventilation grille back onto
the front of the appliance plinth.
Page 59
Reset the indicator light for the air fil-
ter as follows:
Confirm cleaning of air filter
When the air filter has been cleaned the indicator light for the air filter in the display must be reset.
Touch the On/Off sensor for the Su-
perFreeze function for approx. 5sec­onds.
The indicator light in the right-hand side of the display will light up at this time and after approx. 5seconds S will flash in the bottom (freezer section) temperature display. MENU will light up in the display. You are now in Settings mode.
Cleaning and care
Touch the Super sensor again.lights up in the display, the indicator
light for the air filter will go out. The indicator light for the air filter
has been reset.
Touch the on and off sensor for the
freezer section to exit Settings mode.
Touch one of the sensors for setting
the temperature in the freezer section repeatedly until flashes in the bot­tom temperature display.
Touch the Super sensor again. lights up in the display, the sym-
bol lights up in the control panel.
59
Page 60
Cleaning and care

After cleaning

Replace all shelves and accessories
in the appliance.
Reconnect to the power outlet and
switch the appliance back on.
Switch on the SuperFreeze function
for a while so that the freezer section can cool down quickly.
Switch on the Automatic SuperCool
function for a while so that the refrig­erator section can cool down quickly.
Place food back in the appliance and
close the door.
Once the temperature in the freezer
section is cold enough, you can place the food in the freezer drawers and return the drawers to the freezer.
As soon as the freezer section
reaches a constant temperature of at least 0°F (-18°C), press the Super­Freeze button to turn off the function.
60
Page 61

Frequently asked questions

The majority of malfunctions and faults that occur during the daily routine can be put right without contacting the Service Department. The following guide will assist you to identify a malfunction or fault and rectify it yourself. If, having followed the suggestions below, you still cannot resolve the problem, please contact Miele Technical Service.
To prevent unnecessary loss of temperature, it is advisable not to open the doors while waiting for the appliance to be serviced.
Unauthorized installation, maintenance and repairs can cause considerable
danger for the user. Installation, maintenance and repairs must only be carried out by a Miele autho-
rized technician.
Problem Possible cause and solution
The appliance is not getting cold and the in­terior lighting does not come on when the re­frigerator doors or freezer drawers are opened.
The compressor is switching on more fre­quently and for longer periods of time, so the temperature in the ap­pliance is dropping.
The appliance has not been switched on. Switch the appliance on.
The plug is not properly plugged into the electrical outlet.
Insert the plug into the electrical socket.
Check whether the fuse has tripped. There could be a fault with the appliance, the household electrical wiring or another electrical appliance.
Contact a qualified electrician or Miele Technical
Service for assistance.
The temperature setting is too low. Correct the temperature setting.
A large amount of food is being frozen at once. See "Freezing and storing food".
The SuperCool function is still switched on. To save energy, you can turn SuperCool off your-
self.
The SuperFreeze function is still switched on. You can turn off the Automatic SuperCool function
earlier to save energy.
61
Page 62
Frequently asked questions
Problem Possible cause and solution
The compressor is switching on more fre­quently and for longer periods of time; the temperature in the ap­pliance is too low.
The freezer drawers will not open because it has been opened and closed too many times in succession.
The ventilation grille in the appliance plinth is ob­structed or too dusty.
Do not block the ventilation grille.Clean the ventilation grille on a regular basis.
The doors or freezer drawers have been opened too frequently, or a large amount of fresh food has been put in and/or frozen at once.
Only open the doors and freezer drawers when
necessary and for as short a time as possible.
After a while, the temperature will return to normal by itself.
The doors or freezer drawers are not properly closed. A thick layer of ice may have formed in the freezer.
Close the appliance doors or freezer drawers.
After a while, the temperature will return to normal by itself.
If a thick layer of ice has formed, this will affect cool­ing and increase energy consumption.
Defrost the appliance and clean it.
The refrigerator section doors will not close properly. The temperature in the appliance is too low.
Check the refrigerator section doors and adjust
them if necessary using the screws in the hinges.
Once the refrigerator section doors close properly, the appliance will automatically return to the required temperature after a while.
Defrost the appliance and clean it.
The room is too warm. The higher the room tempera­ture, the longer the compressor has to run.
See "Installation location".
The appliance was not properly installed in the niche. See "Installation - Building in the appliance".
This is not a fault. The suction caused by opening and closing the drawers is preventing the drawers from opening. Wait approx. 1minute and then try again. They should now open without force.
62
Page 63
Frequently asked questions
Problem Possible cause and solution
Water is collecting on the door seal on the re­frigeration section doors.
The combination of high air humidity and low ambient temperature can result in condensation forming on the door seals.
Ensure lower humidity or a higher temperature in
the room.
Increase the setting for the door seal heater (see
"Selecting additional settings").
63
Page 64
Frequently asked questions
Problem Possible cause and solution
The compressor runs continuously.
The compressor comes on less and less often and for shorter periods of time. The tempera­ture in the appliance rises.
Food has frozen to­gether or to the wall.
A buzzer is sounding. The appliance door or a freezer drawer been open for
This is not a fault. To save energy, the compressor runs at a lower speed, but for longer, when less cool­ing is required. In this way, the running time of the compressor is extended.
This is not a fault. The set temperature is too high.
Correct the temperature setting.Check the temperature again after 24 hours.
The food begins to defrost. The room temperature is lower than the ambient tem­perature for which the appliance is designed. Operating in a room which is too cold will cause the compressor to switch off for too long, causing the freezer to become too warm.
See "Installation location".Increase the room temperature.
The food packaging was not dry when loaded in the freezer.
Use a blunt instrument (such as a spoon handle) to
carefully pry them apart.
longer than 3 minutes. Close the door or freezer drawer.
64
Page 65
Frequently asked questions

Messages in the display

Message Possible cause and solution
The power failure sym­bol, appears in the control panel and dashes are lit up in the bottom temperature display.
The temperature in the appliance in the previous days or hours has risen too high because of a power cut or interruption to the power supply. The appliance will go back to the last temperature setting when the power is back on.
Touch the Alarm sensor.
The warmest temperature recorded in the freezer sec­tion will flash for about 1minute in the display.
You can exit from the flashing temperature display early:
Touch the Alarm sensor again.Depending on the temperature displayed, you
should check the condition of food in the freezer. If it has defrosted or started to defrost, check that it is still safe to use and, if so, use it as soon as pos­sible. Defrosted food may only be re-frozen after it has been cooked.
As soon as the temperature in the freezer section is within the range that can be displayed it will appear again in the temperature display.
65
Page 66
Frequently asked questions
Message Possible cause and solution
The freezer section temperature display and the Alarm symbol flash. An alarm also sounds.
The temperature in the freezer section is too high. For instance, this could be due to:
– the freezer drawers being opened too often,
– a large quantity of fresh food has been placed in
the freezer at once without turning on the Super­Freeze function,
– a lengthy interruption to the power supply.
Rectify the cause of the alarm. The alarm will stop and the alarm symbolwill go
out as soon as the temperature has dropped to the correct level again.
Depending on the temperature displayed, you
should check the condition of food in the freezer. If it has defrosted or started to defrost, check that it is still safe to use and, if so, use it as soon as pos­sible. Defrosted food may only be re-frozen after it has been cooked.
66
Page 67
Frequently asked questions

Messages in the display

Message Possible cause and solution
Dashes are flashing in the temperature display.
"F0toF5" appears in the display.
is lit up in the display and the appliance can­not be used.
The air filter indicator light lights up in the control panel.
When the ice cube maker is turned on, the indicator light for the ice cube maker flashes in the control panel.
Only temperatures within the range of the appliance temperature will be displayed.
Check the temperature in the display about
6hours after switching the appliance on.
There is a fault. Contact Miele Technical Service.
The safety lock has been activated. Turn off the safety lock (see "Selecting settings -
Switching the safety lock on/off").
This is a reminder to clean the air filter in the appli­ance plinth.
Clean the air filter (see "Cleaning and care"). The
reset the indicator light via Settings mode (see "Cleaning and care - Confirm cleaning of air filter).
The water intake is not open. Open the water intake.
67
Page 68
Frequently asked questions

Problems with the ice cube maker

Problem Possible cause and solution
You cannot turn the ice cube maker on.
The ice cube maker does not produce any ice cubes.
The appliance is not connected to the power supply or is not switched on.
Reconnect to the power supply and switch the ap-
pliance back on.
The appliance or the ice cube maker is not turned on. Turn on the appliance and the ice cube maker.
The water intake is not open or has not been vented.
Open the water intake.Check that the water supply has been vented.
The drawers below the ice cube maker are not closed properly.
Push the drawers all the way in.
The temperature in the freezer section is too high. Select a lower temperature.
The appliance doors or freezer drawers have been opened too frequently causing the compressor to turn on more often and the ice maker has iced up.
Only open the doors and freezer drawers when
necessary and for as short a time as possible.
Remember it can take up to 24hours to produce the first ice cubes.
68
Page 69
Frequently asked questions

Problems with the ice cube maker

Problem Possible cause and solution
The ice cube maker is producing only small ice cubes.
The ice cubes have an unpleasant odor or fla­vor.
There are a number of plumbed-in household appli­ances in operation which has reduced the intake vol­ume.
Avoid using the dishwasher, washing machine,
etc. at the same time.
The size of the ice cubes depends on the quantity of water being taken in. You are able to set this quantity according to your wishes.
To make larger ice cubes, the incoming water vol-
ume of the ice cube maker must be extended.
The ice cube maker is seldom used. If you do not use it very often, ice cubes that are stored for a long pe­riod can absorb the taste and smell of other items.
Empty the ice cube container if you are not going
to use the ice cube maker for a long time.
Clean the ice cube container.
There are unsealed packages in the freezer section. Ice can absorb the taste and smell of unsealed food.
Store only sealed food in the freezer section.
The ice cube container is dirty. Clean the ice cube container.
69
Page 70
Frequently asked questions

Problems with the ice cube maker

Problem Possible cause and solution
Water is flowing out of the appliance.
The water intake is faulty.
Close the water shut-off valve immediately!Check whether the water line is damaged.Check whether the water pressure is too high.Contact Miele Technical Service.
Unduly high water pressure can cause leakages. The water pressure must be between 22 and
87psi (1.5 and 6bar).
70
Page 71
Frequently asked questions

The interior lighting is not working.

Problem Possible cause and solution
The interior lighting is not working.
The appliance has not been switched on. Switch the appliance on.
To avoid overheating, the lighting turns itself off auto­matically after approx. 15minutes if the door is left open. If this is not the case, then there is a fault.
Danger of electric shock.
There are live electrical components under the lighting cover.
The LED lighting may only be repaired or replaced by a Miele authorized service technician.
Danger of injury from LED lighting. Light inten-
sity corresponds to laser beam class 1/1M. The lighting covers must not be removed or dam-
aged, or be removed due to damage. This could cause injury to your eyes.
Do not look into the LED lighting (laser beam class 1/1M) with optical instruments (e.g. magnifying glass or similar).
Contact Miele Technical Service.
71
Page 72

Causes of noises

Normal noises Cause
Brrrrr... A humming noise is made by the motor (compressor). This
noise can get louder for brief periods when the motor switches on.
Blub, blub... A gurgling noise can be heard when the coolant circulates
through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Sssrrrrr... On multi-zone or frost-free appliances you can sometimes just
hear the sound of the fan inside the appliance.
Crack... A cracking sound can be heard when materials expand inside
the appliance.
Please bear in mind that a certain amount of noise is unavoidable (from the com­pressor and the coolant circulating through the system).
Noises that you can easily eliminate
Rattling, clink­ing
Possible cause Solution
The appliance is uneven. Realign the appliance by us-
ing a spirit level and raising or lowering the screw feet under­neath the appliance.
The appliance is touching an­other appliance or piece of furniture.
Drawers, baskets or shelves are jiggling or are stuck.
Bottles or containers are touching.
The transport cord clip is still hanging on the back of the appliance.
Move it away.
Check all removable items and refit them correctly.
Separate them.
Remove the clip.
72
Page 73

Technical Service

Technical service

In the event of a fault which you cannot easily correct yourself, please contact:
– your Miele dealer or
– Miele Technical Service.
Contact details can be found in the back of these operating and installa­tion instructions.
Please quote the model and serial num­ber of your appliance when contacting Miele.
This information is given on the data plate inside your appliance.

Warranty

For additional information, please refer to your warranty booklet.
See the end of these operating and in­stallation instructions for this tele­phone number.
73
Page 74

Plumbing

Information on the fresh water connection

The appliance must be connected to the mains water supply by a qualified professional.
Disconnect the appliance from the power supply before connecting it to the mains water supply.
Turn off the water supply before con­necting the water lines for the ice cube maker.
The water quality must comply with the requirements for drinking water in the country in which the appliance is being operated.
The appliance must be connected to the drinking water supply only.
Connection to the household water supply must comply with current na­tional and local safety regulations in the country in which the appliance is being operated. All items used for connecting the ap­pliance to the water supply must also comply with the current national and local safety regulations in the rele­vant country.

The appliance is only suitable for connection to a cold water supply, which

– is directly connected to the water
supply in order to ensure a circulation of the water in the cold water line.
Avoid using a water line in which the water is allowed to pool. This can af­fect the taste of water and ice cubes.
– withstands the operating pressure.
– fulfills the hygiene regulations.
The water pressure must be between 22 and 87psi (1.5 and 6bar).
A shut-off valve must be provided be­tween the water line and the water sup­ply of the building to ensure that the water supply can be cut off if neces­sary.
Make sure that the shut-off valve is still accessible after the appliance has been installed.
Risk of damage!
If the water supply is cut off while the ice cube maker is still in use the wa­ter intake pipe can freeze up.
Turn the ice cube maker off if the wa­ter supply is interrupted (e.g. while on vacation).
74
Page 75
Plumbing

Connecting the water supply

Before connecting the water, make sure that the appliance is discon­nected from the electricity supply.
The cold water line must be vented by a qualified plumber before it is used for the first time.
The water connection is located at the bottom on the front of the appliance.
The connection parts included with the appliance permit the connection of vari­ous water lines (water line not supplied).
Push the appliance carefully into the
niche, leaving sufficient room for in­stallation work behind the appliance.
Risk of damage! Now move the water line and power
cord to avoid damaging them when the appliance is pushed into the niche!
ATTENTION:
Do not connect the appliance to the power supply yet!
Do not connect the appliance to the power supply until the water connec­tion work has been completed.
Carefully push the appliance into the
building-in niche (see "Building in the appliance").
Feed the water line forwards from be-
hind through the opening provided on the back of the appliance.
Guide the power cord out of the
niche area.
75
Page 76
Plumbing
Insert the water filter with the de-
pression facing downwards towards the adapter.
Risk of damage!
Do not overtighten the union nut as this can cause damage.
Connect the union nut to the sole-
noid valve and tighten it.
If you want to move the water line by
90°, screw on the elbow.

For water lines with a 1/4" thread:

Connect the water line (e.g. cop-
per) to the adapter or elbow us­ing the clamping ring and nut.

For water lines with a 7/16" 24-UNS thread:

Connect water line directly to
adapter or elbow (clamping ring and nut are not required).
The solenoid valve has a metric R 3/4 connection thread (the position of the solenoid valve as shown in this di­agram may differ from your appliance).
Remove the cap from the solenoid
valve.
Insert the adapter into the union
nut.
Risk of damage!
Do not insert the water filter the wrong way around as this can cause damage.
76
Connect the water line to the water
shut-off valve.
Briefly open the water shut-off valve
to vent the water line.
Page 77
The position of the solenoid valve as shown in this diagram may differ from your appliance.
Now connect the water line to the so-
lenoid valve.
Plumbing
Slowly open the shut-off valve in the
water supply line and check the whole water system for leaks.
The appliance can now be connected
to the power supply (see "Electrical connection").
Take care not to bend or damage the water line when pushing the appli­ance into the niche.
77
Page 78

Electrical connection

Danger of electric shock!
The appliance must only be switched on when it has been installed in ac­cordance with the installation in­structions.
Ground the appliance. The appliance must not be grounded
via a gas pipe. If in doubt, have a suitably qualified
and experienced electrician check that the installation complies with rel­evant regulations.
Do not install a fuse into neutral cur­rent or grounding electrical circuit.
Do not use an extension lead or multi-socket adapter.
Do not use a frayed or damaged power cord.
Danger of electric shock!
For protection against electric shock this appliance is equipped with a pole-free plug which is protected against reverse polarity. The plug must be grounded in the usual way.
Do not remove the round grounding connector pin from the plug.
Use only a grounded plug adapter.
Wait for 1hour after installation before plugging the appliance into the power supply. This allows coolant and refriger­ator oil to settle in accordance with reg­ulations.
Ensure that the voltage of the main power supply corresponds with the connection voltage of the appliance. A power supply of 110 - 120 V, 60 Hz and 15 Amp (20 Amp for side-by-side instal­lation) with a NEMA 5-15 molded plug, which is protected by a main switch or a fuse, is required to operate the appli­ance.
The manufacturer recommends operat­ing the appliance on a separate circuit to avoid overloading the electrical cir­cuit.
All relevant legal electrical, fire and building regulations must be observed when installing the socket and/or the appliance.
In certain countries appliances are re­quired to be connected to the electrical supply via a wall-mounted ON/OFF switch.
To avoid the risk of fire, electric shock or other injuries installation and connec­tion of the appliance must be carried out by a suitably qualified electrician in accordance with all relevant local and national regulations and standards, in­cluding fire prevention.
78
Page 79
Electrical connection
The outlet must be easily accessible in an emergency so that the appliance can be quickly disconnected from the elec­trical supply in case of an emergency.
The socket must be located so that the upper edge is a maximum 82" (2100mm) distance from the upper edge of the base of the kitchen cabinet.
If the outlet is no longer accessible once the appliance has been installed, an all-pole disconnect device with a contact opening of at least 1/8" (3mm) must be present on site. The discon­nect device may be circuit breaker, a fuse, or a contactor (compliant with lo­cal regulations).
The plug and power cord must not come into contact with the back of the appliance as vibrations can cause dam­age to these components. This, in turn, could result in a short circuit.
Do not plug in other devices behind this appliance.
Do not connect the appliance to an in­verter such as those used with an au­tonomous energy source e.g. solar power. When switched on, peak loads in the system can cause the safety switch-off mechanism to be triggered. This can damage the electronic unit. The appliance must not be used with so-called energy-saving devices ei­ther. These reduce the amount of en­ergy supplied to the appliance, causing it to overheat.
If the power cord needs to be replaced, this must be done by a qualified techni­cian.
79
Page 80

Installation information

WARNING! This appliance must
be built in, otherwise it could tip up. Install the appliance in accordance
with the installation instructions.
Installation location
This appliance should be installed in a dry, well-ventilated room.
This appliance should not be installed where it is exposed to direct sunlight or directly adjacent to a heat-producing appliance such as a cooker, an oven or a radiator, under a hob or near a win­dow in direct sunlight. The higher the ambient temperature of the room, the longer the compressor runs, and the more energy the appliance requires to operate. The appliance should be in­stalled in a dry, well ventilated room.
When installing the appliance, please note:
– The electrical socket must be easily
accessible in an emergency, not con­cealed behind the appliance.
To avoid a build-up of condensa-
tion and the damage this can cause, refrigerators and freezers should not generally be installed side by side with other such appliances.
Do not install this appliance beside another refrigerator or freezer.
In environments with high hu-
midity condensation may appear on
the external surfaces of the appli­ance.
Condensate can cause corrosion on external appliance walls.
For prevention, it is advisable to in­stall the appliance with sufficient ventilation in a dry and/or air condi­tioned room.
After installation make sure that the appliance door closes properly, the air vents are not covered and that the appliance has been installed in accordance with these installation in­structions.
– The plug and cord must not touch
the back of the appliance as they could be damaged by vibrations from the appliance.
– Do not plug in other devices behind
this appliance.
80
Page 81
Installation information
Climate class
The appliance is designed for use within a certain climate range (ambient tem­peratures) and should not be used out­side this range. The climate range of the appliance is stated on the data plate in­side the appliance.
Climate
class
SN 50°F to 90°F / 10°C to 32°C
N 60°F to 90°F / 16°C to 32°C
ST 60°F to 100°F / 16 to 38°C
T 60°F to 109°F / 16 to 43°C
Operating in a room which is too cold will cause the compressor to turn off for too long, causing the internal tempera­ture in the appliance to rise, resulting in damage.
Room temperature
Ventilation
This appliance does not require aper­tures for ventilation in the appliance furniture. Ventilation occurs via the ventilation slit in the appliance plinth.
WARNING! Fire hazard!
Operation of the appliance is limited. Keep the ventilation slits free from obstruction.
If the ventilation slits are not kept
free and unobstructed the compres­sor will switch on more often and will run for longer.
This can cause higher energy con­sumption and to an increased com­pressor operating temperature, which can result in damage to the compressor.
Keep the ventilation slits clear and unobstructed at all times. They must also be regularly cleaned of dust.
81
Page 82
Installation information
Use only the plinth panel with the ventilation slits as supplied for this appliance!
82
Page 83

Installation and appliance dimensions

24" (610 mm)*
36" (915 mm)
80" (2032 mm)

Installation dimensions

If the appliance is to fit in a niche, check that the unit has the correct dimensions for the niche before installation.
* This value applies to "frameless" installation (see "Installation and appliance dimensions – Frameless installation"). The thickness of the cabinet door must be added on for "flush" in­stallation.
83
Page 84
Installation and appliance dimensions

Appliance dimensions

84
KFNF
9955
iDE
A B C D E F G
3"
(76mm)
79 13/16"
(2027mm)
35 13/16"
(910mm)
3"
(76mm)
24"
(610mm)
42 7/16"
(1078mm)
37 1/8"
(943mm)
Page 85
Installation and appliance dimensions

Opening angle of the appliance doors

When choosing a location for your appliance, please consider the space required for opening both appliance doors.
Neither the fitted cabinet door nor the handle have been taken into account with the dimensions shown here. Please note that these dimensions need to be be added on as necessary!
85
Page 86
Installation and appliance dimensions

Flush installation

To avoid a collision of the appliance doors with adjacent furniture, please note the following:
Thickness of the cabinet door Opening angle of the appliance doors
5/8" (16mm) No limitation required
3/4" (19mm) Recommended limitation to 95° *
* Use the door opening angle limiter pins supplied (see "Limiting the opening angle of the appliance door").

Frameless installation

To avoid a collision of the appliance doors with adjacent furniture, please note the following:
Thickness of the cabinet
door
5/8" (16mm) less than 1/4" (6 mm) Recommended limitation
3/4" (19mm) less than 3/8" (10 mm) Recommended limitation
* Use the door opening angle limiter pins supplied (see "Limiting the opening angle of the appliance door").
Distance all-round
to adjacent
furniture
Opening angle
of appliance doors
to 95° *
to 95° *
86
Page 87
Installation and appliance dimensions

Limiting the opening angle of the doors

The door hinges are set to enable the appliance doors to be opened wide.
However, if the opening angle of the doors needs to be limited for any reason, the hinge can be adjusted to accommodate this.
If, for example, the appliance doors hit an adjacent wall when it is opened the, you should limit the opening angle of the appliance doors to 95°.
Insert the pins supplied into the hinges from above.
This will limit the opening angle of the appliance door to 95°.
87
Page 88
Installation and appliance dimensions

Repositioning electrical cabling and the pipework for the fresh water supply

Electrical connection

Position of power cord exit on back of appliance.
Please note when repositioning the electrical connection that the length of the power cord is 90" (2280mm).
Do not connect the appliance to the electricity supply by an extension cord. Exten­sion cords do not guarantee the required safety of the appliance (e.g. danger of overheating).
The outlet must be easily accessible in an emergency so that the appliance can be quickly disconnected from the electrical supply in case of an emergency.
88
Page 89

Plumbing

Installation and appliance dimensions
For a 24" (610 mm) deep building-in niche the opening for the water line must be in the position as shown in the diagram.
The water line must be at least 31 1/2" (800mm) long for this.
For niches deeper than 24" (610 mm) there is sufficient room for repositioning the water line, so the position given does not have to be maintained.
Make sure that the shut-off valve is still accessible after the appliance has been installed.
89
Page 90
Installation and appliance dimensions
Dimensions and weight of cab­inet doors
A stainless steel front panel for this appliance is available from specialist retail outlets or from Miele Service. Please note, however, that a stainless steel front panel is only available for flush installation (see "Flush installa­tion").
Please note the following cabinet door requirements:
– The cabinet doors must be a mini-
mum of 5/8" (16mm) thick so that the securing bracket can be fitted.
– The cabinet doors must be a maxi-
mum of 3/4" (19mm) thick.
Before fitting the cabinet doors, make sure that they do not exceed the maxi­mum permitted weight:
Max. weight of upper cabinet door (refrigerator section)
Max. weight of lower cabinet door (freezer sec­tion)

Flush installation

With this type of installation the cabinet door is flush with the walls of the niche. This is the most common type of instal­lation.
Side view, A: Built-in cabinet, B: cabinet door
26.5lbs (12kg) 22.0lbs (10kg)
Fitted cabinet doors that exceed the permitted weight can damage the hinges, and this can affect the opera­tion of the appliance.
90
Page 91
Installation and appliance dimensions

Frameless installation

With this installation type the cabinet doors are a little wider and taller, so that the gaps between the cabinet doors of the appliance and adjacent furniture are slightly covered.
Side view, A: Built-in cabinet, B: cabinet door
For "Frameless installation" please ob­serve a distance of at least 1/4" (6mm) to adjacent furniture.
Danger of collision and damage to cabinet doors!
Do not use cabinet doors that are wider than specified!
91
Page 92

Building in the appliance

Two people are required to install the appliance.
Install the appliance in a stable, solid
housing unit, positioned on an even and level floor.
Secure the cabinetry against tipping.
Align the appliance using a spirit
level. The cabinet corners must be at 90°angles to each other otherwise the cabinet door will not sit straight on all 4corners.

Before installing the appliance

Before installation, remove the bag of
installation and other accessories from the appliance and remove the profile strip from the outer appliance door.
Remove the cord clips from the back
of the appliance.
Prepare the water connection for the
appliance (see "Water connection").
To protect the floor when installing
the appliance, secure an off-cut of flooring or similar material to the floor in front of the installation area.
The appliance is very heavy.
Keep the appliance doors shut until the appliance has been fitted and se­cured in accordance with these op­erating and installation instructions.
The appliance is both large and heavy. Installation must be carried out by two people.
The required ventilation slits must be
ensured (see "Installation - Ventila­tion" and "Installation dimensions").
92
Page 93
Building in the appliance

Load-bearing capacity of the niche floor

The floor of the space where the appli­ance is to be installed must be flat and level.
It must be made of strong, rigid mate­rial.
The appliance is extremely heavy when fully loaded, and that the floor it stands on must be able to bear its weight. If necessary, seek the advice of an archi­tect or structural engineer.

Checking the installation space

Check the installation dimensions.Check the position of the electrical
and plumbing connections.
Check that all adjacent cabinets /
units are securely fixed to the wall.
Check the adjacent cabinets / units
for possible collisions when opening doors (door opening angle).

Preparing the niche

Keep the doors to the appliance
closed until it is fixed inside the building-in niche.
Danger of tipping over!
Due to the sheer size and weight of the appliance, it needs to be ensured that it cannot tip forwards once it is built into the niche.

Fitting the anti-tip device

The anti-tip device ensures that the ap­pliance is fixed securely into the build­ing-in niche, preventing the appliance from tipping forwards.
Mark the mid line of the appliance on
the back of the building-in niche. Line up the center of the anti-tip device with this line.
Caution! The water line or power
supply could get damaged. Please ensure that neither the water
line nor the power supply are located in this area, as these could be dam­aged during installation e.g. by screws.
Fixing screws for different uses and types of material are supplied in the accompanying pack. If these are not suitable for the anti­tipping device in your installation, you will need to secure it by alterna­tive means.
93
Page 94
Building in the appliance
Fitting the anti-tip device on a con­crete floor.
Drill three holes in the floor to match
the holes on the anti-tip device. The drill holes must have a diameter of 3/8" (10 mm) and be a little deeper than the length of the concrete bolts supplied.
Place or screw the washers and
hexagonal nuts onto each of the con­crete dowels.
Now secure the anti-tip device to the
wall with the three screws (1/4"x2-1/8" / 6 x 54 mm).

Fitting the anti-tip device on a wooden floor

Secure the anti-tip device to the floor
with the concrete dowels.
Align the anti-tip device with the cen-
ter line again.
Then use the nuts to tighten the con-
crete dowels.
94
Secure the anti-tip device to the floor
with the five screws (1/4"x2-1/8" / 6 x 54mm). Pre-drill the holes if neces­sary.
Now secure the anti-tip device to the
wall with the three screws (1/4"x2-1/8" / 6x54mm).
Page 95
Building in the appliance
Fitting the anti-tip device in a build­ing-in niche deeper than 24" (610 mm)
The guarantee that the compressor plate hooks into the anti-tip device in a deeper building-in niche, a wooden beam must be secured to bridge the gap between the back of the appliance and the wall.
The wooden beam must be se-
curely fixed to the floor! Select screw lengths according to the thickness of the wooden beam.
Match the wooden beam to the depth
of the gap between the back of the appliance and the wall.

For sideways sloping floors

Make sure that the anti-tip device is
secured horizontally even with a slop­ing floor. Place spacers underneath if necessary.
Use the number of screws appropri-
ate to the housing width to ensure that the wooden beam is securely fixed.
Select screw lengths according to the
thickness of the wooden beam.
95
Page 96
Building in the appliance

Securing the covers

Stick the cover strips supplied onto
both sides of the appliance.
The cover strips protect the appliance from damage when it is being pushed into the niche.
Now prepare the water connection for
the appliance (see "Water connec­tion").

Pushing the appliance into the niche

Caution! Risk of damage!
Push the appliance into the niche, taking care not to damage the power cord and water connections.
Push the appliance far enough into
the niche so that the compressor bearer plate engages with the anti-tip device.
Caution! Risk of appliance tip-
ping over! The appliance is only secure and
prevented from tipping over when the compressor bearer plate is hooked into the anti-tip device.
96
Now prepare the water connection for
the appliance (see "Water connec­tion").
Page 97
Building in the appliance

Aligning the appliance

Align the appliance at the front via
adjustable feet using the spanner supplied, so that it stands upright.
Also align the appliance at the back
by moving adjusting rods with a screwdriver or with the hexagonal key supplied, until it is standing straight.
Caution! Risk of tipping over. The adjustable feet must stand on
the floor, otherwise the appliance could tip forwards!

Aligning the freezer drawer fronts

The freezer drawer fronts can be
aligned if necessary.
Side view of freezer drawer pulled out
Move the screws on the right- and
left-hand sides of the freezer drawers into the slots below.
Align the drawer front.Now tighten the screws.
97
Page 98
Building in the appliance

Securing the appliance in the niche

Remove the covers from the hinges
on both sides.
Secure the appliance into the cabinet
with two screws each, top and bot­tom, above the hinge of both of the refrigerator section doors.

Remove the fixing bracket

Remove the fixing bracket covers
from both refrigerator section doors, then screw them to both brackets .
Place the nuts on one side as these
will be required for securing the re­frigerator section cabinet doors.
98
Loosen the covers on both sides and
unscrew both fixing brackets from the freezer drawers.
Page 99
Building in the appliance

Fixing the fixing brackets to the cabinet doors

Lay the fixing brackets on the inside
of the cabinet doors. Align the brack­ets centrally and on the lines you have drawn.
Secure each bracket to the cabinet
doors for the refrigerator section with at least six screws 3/16"x5/8" ( 4x16mm).
Lightly draw thin lines with a pencil
on the inside of the cabinet doors for the refrigerator section doors, as shown in the diagram.
Secure each bracket to the furniture
fronts of the freezer drawers with three screws (3/16"x5/8" / 4x16mm).
99
Page 100
Building in the appliance

Securing the cabinet fronts to the freezer drawers

Pull out each drawer and secure the
cabinet front on both sides with the screws 1/8" x 1/2" (3.5 x 13 mm). These are the same screws that were previously used to attach the fixing bracket.
Close the drawer front and check
whether the fronts are evenly aligned. Use the screws to correct the posi­tion of the drawer fronts as neces­sary.

Securing the cabinet door to the refrigerator door

The following is only an instruction for fitting one cabinet door. Repeat the fit­ting instructions for the second cabinet door.
Open the refrigerator door and hang
the cabinet door on the adjusting bolts from above.
Screw the nuts loosely onto the ad-
justing bolts.
Close the door and check the dis-
tance between the door and adjacent furniture.
Then close the gap between the
freezer drawer and cabinet front if necessary with the self-adhesive cover strips supplied. To do this, first remove the protective foil from the strips.
100
