Miele H 258, H 268, H 248 Operating instructions

Operating instructions
Ovens and cookers
It is essential to read these operating instructions before installing or using the machine, to avoid the risk of accident, or damage to the machine. M.-Nr. 05 043 300
Q\@ä}
Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Description of the oven systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Oven - use
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Function selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Pushbuttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting an oven setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Recommended temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Altering the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Pre-heating the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cancelling a process / switching off the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Energy-save function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Oven lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting the minute minder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing oven settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Accessories
Baking tray, roasting / grill pan and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Anti-splash tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Catalyser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Timer - use
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Push buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Timer display field. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
To enter the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents
Programming cooking time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programming cooking time in the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programming hob zone cooking times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
To end a cooking time automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
To switch a cooking process on and off automatically . . . . . . . . . . . . . . . . . . . . . 33
To enter duration and end. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Enter the start and the duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Checking, changing and cancelling times entered . . . . . . . . . . . . . . . . . . . . . . . . 34
To cancel programmed processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Baking chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Roasting with the Roast Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Oven roasting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Casseroles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Grilling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Grill chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cleaning and care
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Oven interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Pyrolytic cleaning of the oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
To remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

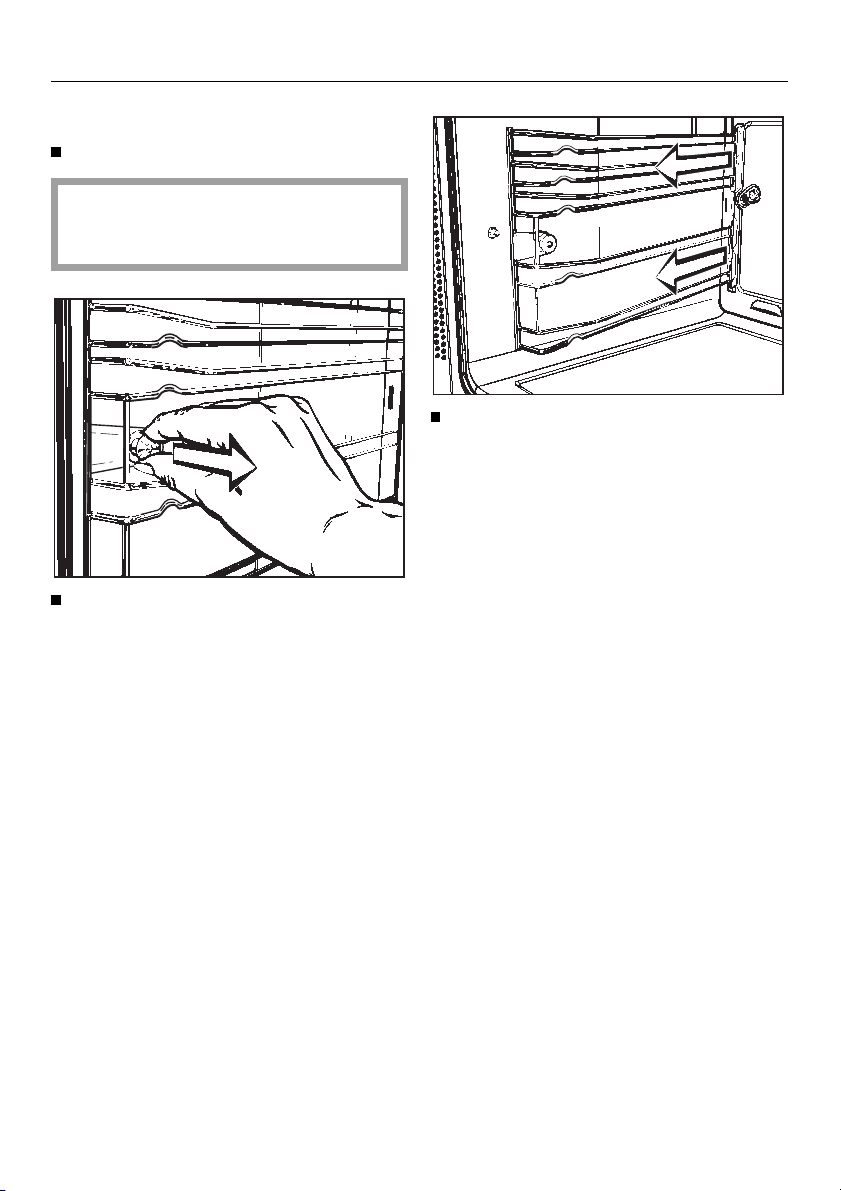

To remove the runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

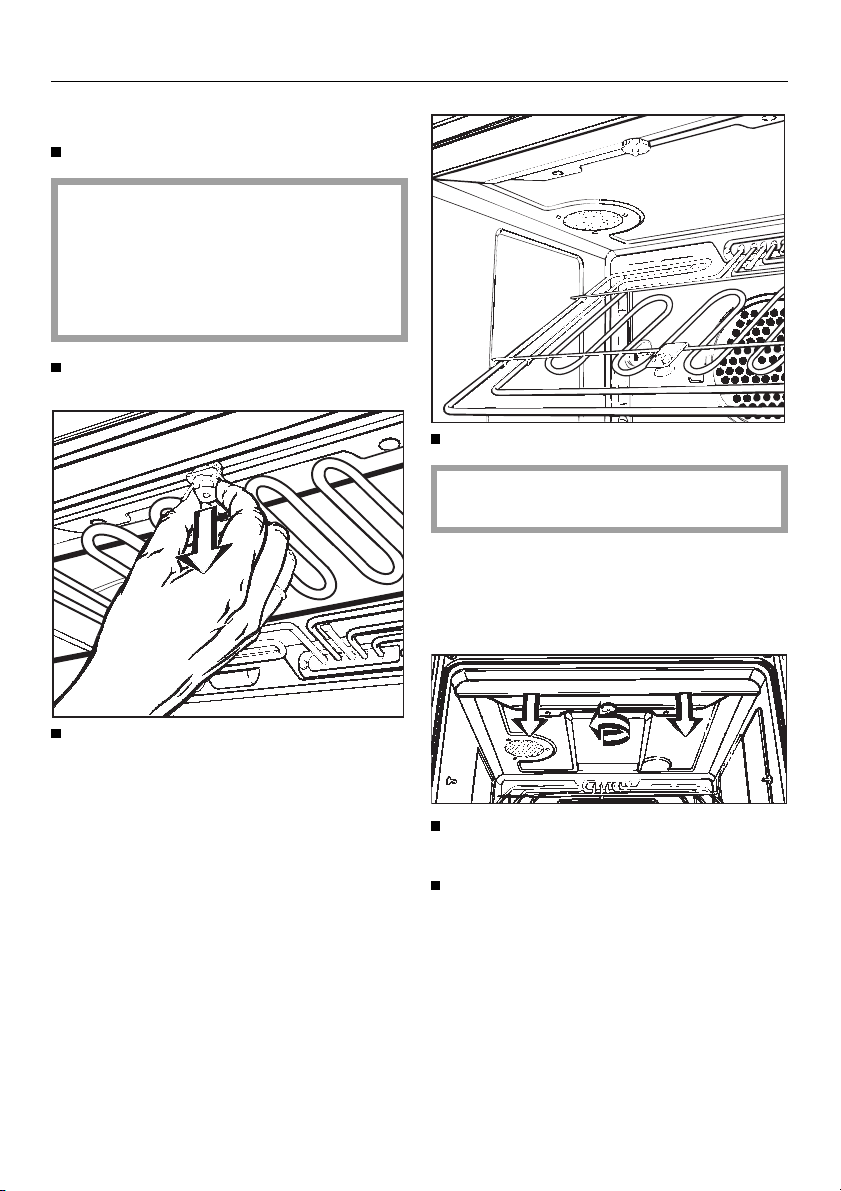

To lower the upper heating element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Correcting minor faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Extra accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Electrical connection
Electrical connection
Installation - cooker and hob control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Installation situations H 248 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Q\} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Description of the appliance
Description of the appliance
General view
"E"-model: Control panel *
b Oven function selector
Oven: display and pushbuttons
c d Timer: display and pushbuttons e "+/–" Button with indicator light f Hob zone controls *
* depending on the model
4
Oven interior
g Door contact switch and door lock
for pyrolytic mode
h Heating element for top heat
and grilling with guard plate
i Grill motor j Halogen lamp change slide k Connection socket for core
temperature probe (roast probe)
l Air inlet for fan m Runner heights 1, 2, 3, 4, 5 n Oven door
Description of the appliance
"B"-model: Control panel *
b Oven function selector
Oven: display and pushbuttons
c d Timer: display and pushbuttons e "+/–" Button with indicator light f Hob zone controls *
* depending on the model
Oven interior
g Door contact switch and door lock
for pyrolytic mode
h Heating element for top heat
and grilling with guard plate
i Grill motor j Halogen lamp change slide k Connection socket for core
temperature probe (roast probe)
l Air inlet for fan m Runner heights 1, 2, 3, 4, 5 n Oven door
5
Description of the appliance
Accessories
Each appliance is fitted with
2 baking trays,
Dual purpose grill pan / oven tray,
Non-tip rack,
Roasting filter,

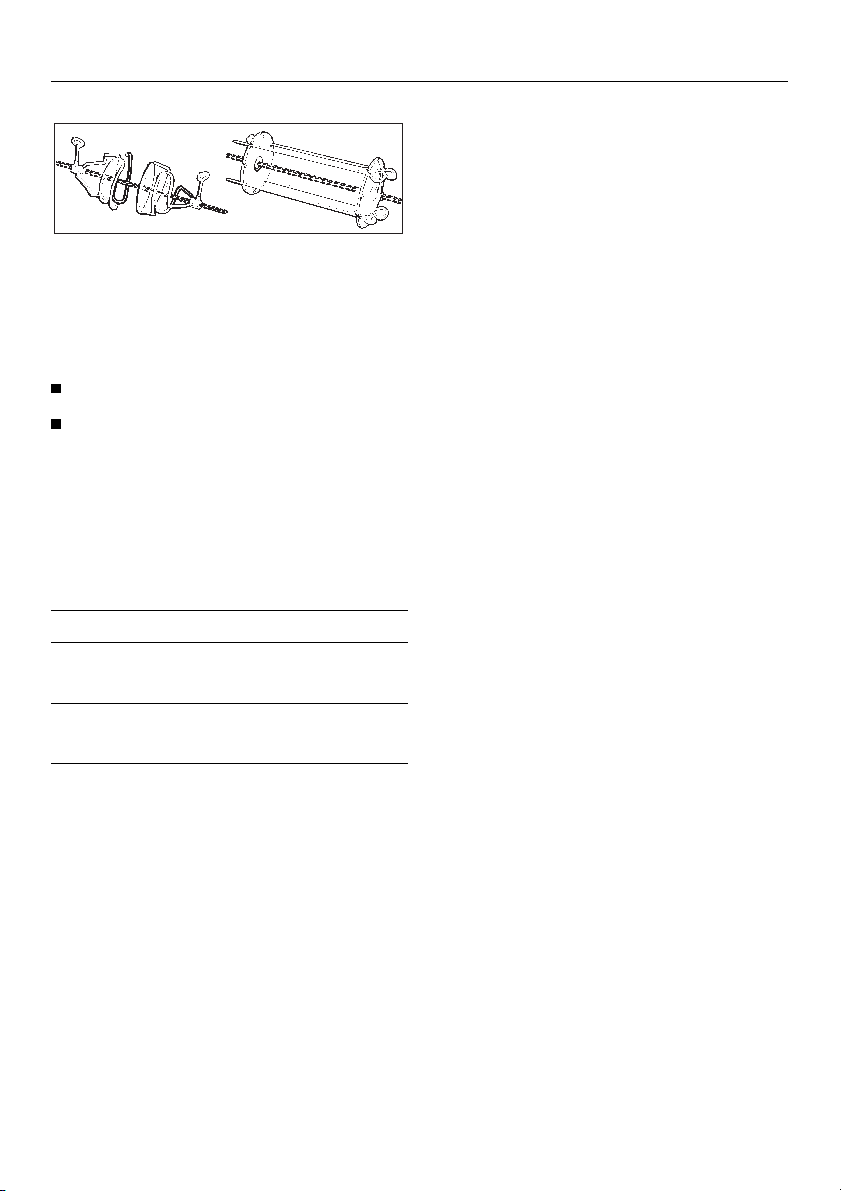

Grill motor and Rotisserie
Core temperature probe (Roast
probe).
Depending on model, your appliance may also be fitted with
a handle.
an anti-splash tray.
Hob use and installation
For "E" models (ovens with integrated hob controls) a separate set of instruc­tions is supplied with the hob which covers its use and installation.
6
Caring for the environment
Disposal of the packing material
The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled.
Rather than just throwing these ma­terials away, please ensure they are of­fered for recycling.
Caring for the environment
Disposal of your old machine
Old machines contain materials which can be reclaimed or recycled. Please contact your dealer, your local waste collection centre or scrap merchant about potential recycling schemes, before disposing of the appliance.
Ensure that the machine presents no danger to children while being stored for disposal. See the appropriate ad­vice in the "Warning and Safety instruc­tions".
7
Warning and Safety instructions
Warning and Safety instructions
This appliance complies with all rele­vant legal safety requirements. Im­proper use of the appliance can, however, present a risk of both per­sonal injury and material damage.
Before installation and before using the appliance for the first time, read the operating instructions carefully. They contain important notes on safety, on the installation, operation and care of the appliance. This way you will avoid the risk of accidents and damage to the appliance. Do not let children access the ap­pliance or its controls. Supervise its use by the elderly or infirm.
Keep these instructions in a safe place and pass them on to any fu­ture user.
Technical safety
the voltage and frequency correspond to the rating on the data plate, other­wise the appliance could be damaged. Consult a competent person if in doubt.
when continuity is complete between the appliance and an effective earthing system, which complies with local and national regulations. It is most import­ant that this basic safety requirement is tested by a qualified electrician. The manufacturer cannot be held respon­sible for the consequences of an inade­quate earthing system.
necessary to ensure that all electrical components are shielded.
Before connecting the appliance to the mains supply make sure that
The electrical safety of this ap­pliance can only be guaranteed
This appliance must only be oper­ated as a built-in appliance. This is
Correct usage
The appliance is intended for do-
mestic use to cook food, and in particular to bake, roast, defrost, cook, dry fruit etc, and to grill. Any other usage is at the owners risk and could be dangerous. The manufac­turer cannot be held responsible for damage caused by improper use of the appliance.
8
Never open the casing of the ap-
pliance. Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operational faults.
Warning and Safety instructions
Installation work and repairs may
only be carried out by suitably qualified and competent persons to en­sure safety. Repairs and other work by unqualified persons could be dan­gerous. The manufacturer cannot be held responsible for unauthorised work.
The appliance is only completely
isolated from the electricity supply when:
it is switched off at the wall socket or the mains fuse is withdrawnor the screw-out fuse is removed (in
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance, (e.g. danger of overheating).
The oven is designed to be built
into a tall unit. If you wish to install it in a base unit, the stainless steel rail above the control panel must be re­placed by a sealing strip. The sealing strip offers additional protection from any liquids that might spill down from the worktop, and can be purchased from the Miele Spare Parts dept.
Use
Caution, danger of burning. High temperatures are produced by the oven.
Great care should be taken to en-
sure that small children do not touch the appliance when it is being used. The hob and also external parts of the oven such as the door glass, vents and control panel can become quite hot.
With the pyrolytic function the front
of the oven becomes warmer than with normal oven use.
Do not touch the oven door which may be very hot. Children should be prevented in any event from touching the appliance dur­ing pyrolytic operation. Danger of burning.
Remove all accessories including
the runners and any extra acces­sories such as, for example, the tele­scopic carriage, from the oven interior before starting the pyrolytic cleaning process. The high temperatures needed for pyro­lysis will damage the accessories and cause irreparable damage to the tele­scopic carriage.
Use of heat-resistant oven gloves
is recommended when placing food in the oven, turning or removing it. When working with "Conventional" heat­ing or when grilling, the element in the roof of the oven and the guard plate become very hot, and there is a danger of being burnt.
9
Warning and Safety instructions
Wait until the grill element has
cooled down before lowering it for cleaning, to avoid the danger of burn­ing.
Do not use force to pull it down as
this can cause the element to break.
Use only a Miele roast probe (core
temperature probe) as supplied with this appliance. If a replacement is necessary it can be obtained from the Miele Spare Parts dept or a Miele spe­cialist dealer. After using do not remove the roast probe until the oven interior is cool.
When not in use do not leave the
roast probe in the oven, especially when grilling. High grill temperatures could damage it.
Do not use plastic containers.
They may melt at high tempera­tures. The oven could be damaged.
Do not heat up unopened tins or
jars of food in the oven, as press­ure can build up and they may ex­plode. This could result in injury or damage.
Do not push pots and pans around
on the oven floor as this could damage the surface.
Do not lean or sit on the open oven
door, or place heavy items on it. This could damage the appliance. Take care in the region of the hinges. The oven door can support a maximum load of 10 kg.
Cover any food which is left in the
oven to be kept hot. This avoids the food drying out. It also prevents steam condensing and possibly lead­ing to moisture damage in the oven.
If food is left in the oven after cook-
ing, e.g. to take advantage of the residual heat, select the lowest tem­perature available. Leave the function selector switch at the position set. Do not switch the appliance off until the food has been removed. Otherwise there may be a build-up of condensation which could adversely af­fect the oven interior, and externally the control panel, the worktop surface or surrounding kitchen furniture.
Put any deep frozen products such
as pizza on baking paper on the rack. Do not place them on the baking tray or grill pan. This could cause the metal to distort to such an extent that it might be difficult to remove the tray/pan from the oven. The distortion would increase with subsequent use.
10
Warning and Safety instructions
General notes
Do not leave the appliance unat-
tended when cooking with oils and fats as these can be a fire hazard if allowed to overheat.
Do not use the oven to heat up the
room. Due to the high tempera­tures radiated, objects left near the oven or hob could catch fire.
When using kitchen appliances
connected to sockets near the oven, ensure that the cable cannot come in contact with the hot cooking zones or get trapped in a hot oven door, which could melt the cable insula­tion and be dangerous. Danger of electric shock.
Always ensure that food is suffi-
ciently cooked or reheated. Many factors will affect the overall cooking time, including the size and amount of food, its temperature, changes to the recipe and the shape and size of cook­ing container. Some foods may contain micro organisms which are only de­stroyed by thorough cooking, therefore when cooking or reheating foods, e.g. poultry, it is particularly important that food is fully cooked through. If in doubt select a longer cooking or reheating time. It is important that the heat is allowed to spread evenly throughout the food being cooked. This can be achieved by stirring and/or turning the food, and by observing a sufficiently long standing time, which should be added to the time needed for cooking, reheating or defrosting.
11
Warning and Safety instructions
Under no circumstances use a
steam cleaner to clean this ap­pliance. Pressurised steam could give rise to a short circuit.
Using alcohol in your recipes:
often alcoholic drinks such as rum, cognac, wine etc are used when pre­paring dishes and oven-cooking them. The high temperatures can cause the alcohol to separate out. Please take note that under adverse cir­cumstances the alcohol can catch light on the hot elements.
In countries which may be subject
to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surround­ings in a clean condition at all times. Any damage which might be caused by cockroaches or other vermin will not be covered by the appliance guarantee.
Disposal of your old machine
Before discarding an old machine
switch off and disconnect it from the power supply. This should be done by a competent person. Cut off and render any plug useless. Cut off the cable directly behind the machine to prevent misuse.
The manufacturer cannot be held liable for damage caused by non­compliance with safety instructions.
12
Safety features
Operating lock for oven and hob cooking zones
The operating lock can be activated to prevent the oven or hob being switched on unintentionally, by children for example.
The operating lock is activated as fol­lows:
The oven function selector must be at the "0" setting.
Press the " p" button until the key symbol appears in the display field.
Safety features
Oven door lock in pyrolytic mode
As soon as the pyrolytic process is started, the door locks automatically after approx. 60 seconds.
The lock releases on completion of the pyrolytic process only when the oven temperature has dropped below 200°C.
If "Cleaning (Pyrolytic) ." mode is ac­cidentally selected or the process is in­terrupted the door lock is released only if the function selector is turned to "0" and then to "light H". After approx. 30 seconds the " p" symbol flashes, and then the door can be opened.
The oven (and cooking zones if applic­able) can now not be switched on.
To cancel the operating lock:
Turn the oven function selector to any oven function.
Press the " p" until the key symbol in the display field disappears.
13
Before using for the first time
Before using for the first time
Setting the clock
When the appliance is first connected to the power supply, or after a power cut "12:00" and the symbols "f" and ")" flash in the display.
Cleaning the appliance
Oven interior
Wipe out the oven interior using warm water and a little washing up liquid. Polish dry with a dry cloth.
Do not close the oven door until the oven interior is dry.
Press the buttons "f" and ")" at the same time.
The following light up:
"12:00" in the display,the "+/" button indicator light.
Now immediately, while the "+/–" but­ton indicator light is still on, enter the time in hours :minutes with the "+" or "–" button.
When the indicator light for the "+/–" but­ton goes out, the time of day has been set and the display will change at one­minute intervals. The colon flashes.
Rinse the accessories.
New appliances have a slight smell on first use. Running the oven for at least an hour at a high temperature will dissi­pate this more quickly.
Turn the oven function selector to "Fan Heat D".
Now immediately, while the "+/–" button indicator light is still on, alter the oven temperature.
Select the highest temperature using the "+" button.
Depending on the model the timer can also be used to set the finish time.
Ensure the room is well ventilated during this process.
14
Description of the oven systems
Description of the oven systems
Fan Heat D
This system works by the circulation of heated air.
A fan situated on the back wall of the oven sucks in the air, heats it over a ring element and blows the heated air through the carefully spaced openings in the rear panel of the oven.
Auto Roast E
The oven heats initially to a high tem­perature which seals the meat to keep it succulent and tasty.
As soon as the high temperature has been reached, the oven temperature is automatically returned to the pre­selected setting.
The oven does not usually need to be pre-heated as the heated air reaches the food straight away. Exception: Pre-heat the oven when roasting meat or baking bread made with dark flour.
Using the fan heating system you can bake and roast on different levels at the same time.
The heated air used by this system is of a lower temperature than that used with the Conventional heating system.
Conventional heating A
With this conventional method of heat­ing, radiant heat is directed on the food from above and below.
Pre-heating the oven is only necessary when – baking biscuits or cakes with a short
cooking time (up to approx. 30 minutes).
baking some types of doughs.baking bread made with dark flour.roasting a joint of meat.
15
Description of the oven systems
Defrost G
Defrost can be operated without heat­ing, or at a temperature of up to 50°C. When the defrost system is used with­out heating the air is circulated by the fan at room temperature.
Intensive bake F
This method combines "Fan Heat" with "Conventional" heating, and is particu­larly useful for dishes that require a moist topping and crisp base like pizza and quiche lorraine.
Fan grill I
The hot air from the grill is distributed over the food by the fan on the rear wall of the oven. This enables a lower tem­perature to be selected than for conven­tional grilling.
Grill 1 ,
The inner part of the upper heating ele­ment acts as the grill. This will glow red for a few minutes after being switched on, and it is then ready for use. Use the Grill 1 setting for small quantities.
Grill 2 J
The entire upper heating element acts as the grill.
With this method the inner part of the grill will glow red a few minutes after being switched on. The outer part of the grill will remain noticeably darker, but will still produce the heat necessary to grill.
This method is particularly good for grill­ing large quantities of food using the grill pan to its full extent.
Cleaning (Pyrolytic) .
In this mode the oven cleans itself.
The oven is heated up, and any resid­ual dirt in the oven interior is removed by the high temperatures.
After the cleaning process any pyrolytic debris (e.g. ash) can be easily removed.
16

Oven - use

Controls
The oven controls consist of the oven function selector and push buttons.
Oven - use
Function selector
(depending on the model)
With this control you select the oven function required.
The selector can be turned clockwise or anti-clockwise.
17
Oven - use

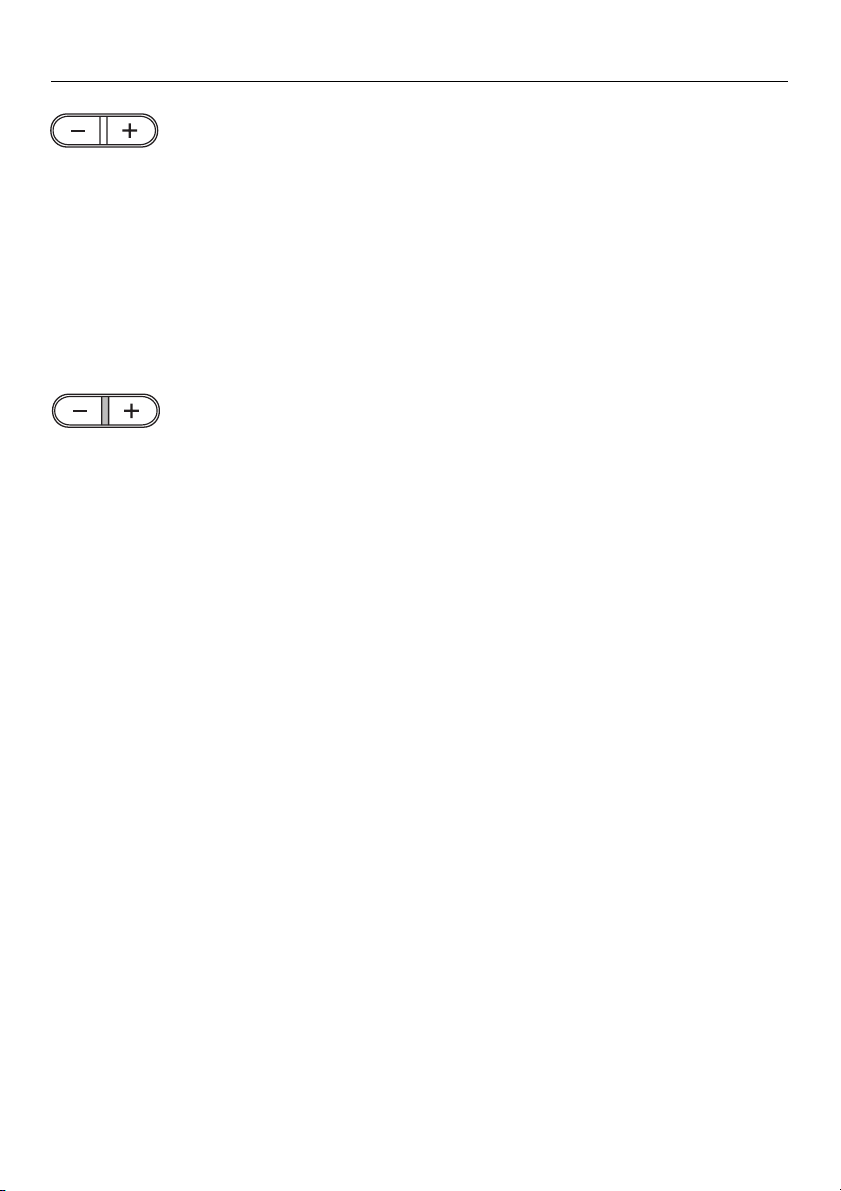

Pushbuttons
With the pushbuttons you can:
– change the oven temperature.
All alterations to temperature and time entries are made via the "+" or "–" but- tons.
Temperatures / times can be entered in stages (short pushes on the button) or quickly (hold button down).
– change the core temperature, if
working with the core temperature (roast) probe.
– activate the minute minder.
Each pushbutton has a matching sym­bol in the display field.
In this way the following alterations can be made:
oven temperature in 5°C stages.core temperature in 1°C stages.minute minder in 1 minutes stages.
As soon as one of the buttons (p,e, l) is pressed, the indicator light between the "+" and "–" buttons lights up.
So long as it is lit, time/temperature can be entered or altered.
Each time the "+/–" button or one of the other buttons is pushed more time is given for data entry.
When the control light goes out, the data entry or alteration has been regis­tered.
18
Oven - use
Selecting an oven setting
With the oven function selector the fol­lowing settings can be chosen:
– Light H
Turns on the oven light inde­pendently. H 248: All oven functions are dis­played as soon as the function selec­tor is switched to "light H".
– Fan Heat D
For baking or roasting on several le­vels at the same time.
– Top heat C
For browning dishes, finishing dishes with a cheese topping.
– Conventional A
Top and bottom heat together, for baking / roasting traditional recipes, for soufflés.
– Bottom heat B
Use this setting towards the end of baking, to brown the base of a cake.
– Intensive Bake F
For recipes which require a moist topping, and a crisp base, e.g. pizzas and quiche lorraine, German style open fruit cakes and cheese­cake. Not suitable for roasting or shallow baking, (the base will brown too much).
– Auto Roast E
Initial high temperature to seal meat followed by normal roasting tempera­ture. Not suitable for baking, except for baking freshly prepared wholemeal or rye doughs, (not packet mixes).
– Fan Grill I
Ideal for grilling thicker items such as stuffed meat, kebabs and pieces of poultry etc. Grilling takes place with the oven door closed.
– Defrost G
For gentle defrosting of deep frozen foods.
– Grill 1 ,
For grilling flat items, small quan­tities, and for browning small round dishes. Grilling takes place with the oven door closed.
– Grill 2 J
For grilling flat items, large quan­tities, and for browning larger oval dishes. Grilling takes place with the oven door closed.
– Cleaning (Pyrolytic) .
For easy cleaning of oven interior.
19
Oven - use
Selecting a temperature
Recommended temperature
As soon as a heating system is se­lected, the recommended tempera- ture for that system appears in the oven display.
Fan Heat. . . . . . . . . . . . . . . . . . . 160°C
Auto Roast* . . . . . . . . . . . . . . . . 160°C
Top Heat. . . . . . . . . . . . . . . . . . . 190°C
Conventional . . . . . . . . . . . . . . . 190°C
Bottom Heat . . . . . . . . . . . . . . . . 190°C
Defrost . . . . . . . . no temperature given
Intensive Bake . . . . . . . . . . . . . . 170°C
Fan Grill . . . . . . . . . . . . . . . . . . . 200°C
Grill 1 (small) . . . . . . . . . . . . . . . 240°C
Grill 2 (large) . . . . . . . . . . . . . . . 240°C
* the initial boosted temperature is
approx. 230°C, continuation temperature 160°C
The actual temperature in the oven is now displayed and the oven heating comes on.
The increase of temperature can be followed in the display. If the oven door is opened, or a lower temperature set, the decrease is shown in ° steps.
Altering the temperature
Press the " p" button.
Enter the required temperature with the "+/–" button.
The temperatures suggested by the system can be altered in the range:
Fan Heat . . . . . . . . . . . . . . . . 30-250°C
Auto Roast. . . . . . . . . . . . . . 100-230°C
Top Heat . . . . . . . . . . . . . . . . 30-250°C
Conventional . . . . . . . . . . . . . 30-280°C
Bottom Heat . . . . . . . . . . . . 100-250°C
Defrost. . . . . . . . . . . . . . . . . . . 30-50°C
Intensive bake . . . . . . . . . . . . 50-250°C
Fan grill . . . . . . . . . . . . . . . . . 50-260°C
Grill 1 (small) . . . . . . . . . . . . 200-300°C
Grill 2 (large) . . . . . . . . . . . . 200-300°C
If you wish to retain the temperature suggested by the system this will be automatically adopted when the indica­tor light in the "+/–" button goes out.
20
Oven - use
Using the oven
Put the food to be cooked into the oven
Shut the oven door
Turn the function selector to the desired operating mode.
The following light up: – the recommended temperature in
the oven display
– the indicator light for the "+/–" button.
Now alter the temperature if the recom­mended temperature does not corre­spond to that given in the recipe.
Push the " p" button.
Enter the desired temperature using the "+/–" button.
The oven heats up when the indicator light on the "+/–" button has gone out.
Heat-up is automatically interrupted if the oven door is opened. This operates the door contact switch and switches off the heating system, on fan-heat mode, the fan as well.
You can also delay the start of cooking processes; for more information see under "Cooking-time programming".
Pre-heating the oven
The oven usually only needs to be pre­heated in the following cases:
With "Fan Heat":
for baking dark breads,when roasting meat.
With "Conventional heat A": – for baking biscuits and cakes with a
short cooking time, (up to approx. 30 minutes),
for baking some doughs,for baking dark breads,for roast meat.
To p re- h ea t
Turn the oven selector to the re­quired function.
Select the required temperature.
When the required temperature has been reached: Put the food to be roasted or baked into the oven.
Cancelling a process / switch­ing off the oven
Turn the function selector to"0"
The oven is switched off; all processes / symbols are cancelled.
Exceptions: – If the roast probe is plugged in the
"e" symbol is lit up.
– If a short-time is entered, the "l"
symbol is lit up and the remaining short-time can be seen counting down in the display.
21
Oven - use
Energy-save function
If you are programming a cooking pro­cess using the timer, or if you are cook­ing with the roast probe, the residual heat is automatically used to save en­ergy.
Shortly before the end of the cooking time the oven heating switches off.
The letters "EC" in the display field indi­cate that the energy-save function is in operation.
Oven lighting
When the oven is in operation the oven lighting goes out approx. 15 seconds after pressing the last button, to save electricity.
If you wish to switch the lighting back on for a short time, press one of the buttons.
The oven lighting goes on automatically when an oven function has been se­lected and the oven door is opened.
If preferred, you can set the oven light­ing to come on automatically as soon as an oven function has been selected, (see the Section on "Programmable functions").
The residual heat in the oven is suffi­cient to complete the cooking process.
The cooling fan continues to run, as does the hot air fan if a "fan" setting had been chosen.
22
Setting the minute minder
The minute minder can be used to time any activity in the kitchen, e.g. boiling eggs.
The short time can be entered inde­pendently of another entered process.
Setting the minute minder
At the end of the short time:
– an audible tone sounds for approx.
5 seconds.
– At the same time the "l" symbol
flashes for approx. 1 minute.
To enter / to change the short time
(1 min. - 23 hrs. 59 mins.)
Press the "l" button.
Enter the required time in hours and minutes with the "+" button.
When the "+/–" button indicator light goes out, the time set starts counting down in minutes.
If the oven is being used at the same time, the minute minder time period only shows for a short time. Then the oven or probe core temperature shows again in the display. The "l" symbol continues to be visible as a reminder that the minute minder is working.
The audible tone and the flashing sym­bol can be cancelled at any time by pressing the "l" button.
To cancel the minute minder
Press the "l" button.
Use the "–" button to set the short time to "0:00".
23
Changing oven settings
Changing oven settings
Programmable functions
Additional functions can be pro­grammed.
Please consult the chart for the differ­ent possibilities.
To switch a programmable function on or off:
Proceed as follows:
Turn the programme selector to "0".
Open the oven door fully.
Press and hold in the " p" button, at the same time turn the oven selector to the "Light H" position.
"01:0" or the most recently altered func­tion appears in the oven display.
Use the "+/–" button to select the programmable function required, (see chart).
Press the "l" button.
The programmable function is switched on or off.
1 appears after the colon,
function switched on
24
0 appears after the colon,
function switched off.
Turn the selector switch to the "0" position.
The setting is stored in memory.
You may alter as many settings as you wish, as long as the functions selector has not been turned to the "0" position.
"switched off" : "switched on" :
The oven function and temperature can
01:0*
be changed at any time.
The suggested temperatures displayed
02:0*
match those in the Operating Instructions.
The oven lighting goes on as usual, as
03:0*
soon as an oven function has been selected.
The temperature is displayed in °C.
04:0*
The timer has a 24 hour display.
When the oven is in operation, the oven
05:0*
lighting switches off automatically after approx. 15 seconds to save energy. It can be switched on again for a short period by pressing any button.
Changing oven settings
The programmable function is
After oven function and temperature have
01:1
been chosen, and the indicator light in the "+/–" button has gone out, the oven function set can no longer be altered. The target temperature can only be lowered.
Oven function, target temperature, and any automatic cooking time pro­gramming can only be altered after the oven function has been turned back to the "Light H" or "0" position.
All suggested temperatures are
02:1
increased by 10°C (approx. 20°F). This alteration is advisable if you generally work with higher temperatures.
The oven lighting goes on as soon as the
03:1
oven door is opened, even when the function selector is set at "0"
The temperature is displayed in °F.
04:1
The timer has a 12 hour display.
The oven lighting stays on for the whole
05:1
time that the oven is in operation.
* marks the standard setting as delivered.
25

Accessories

Accessories

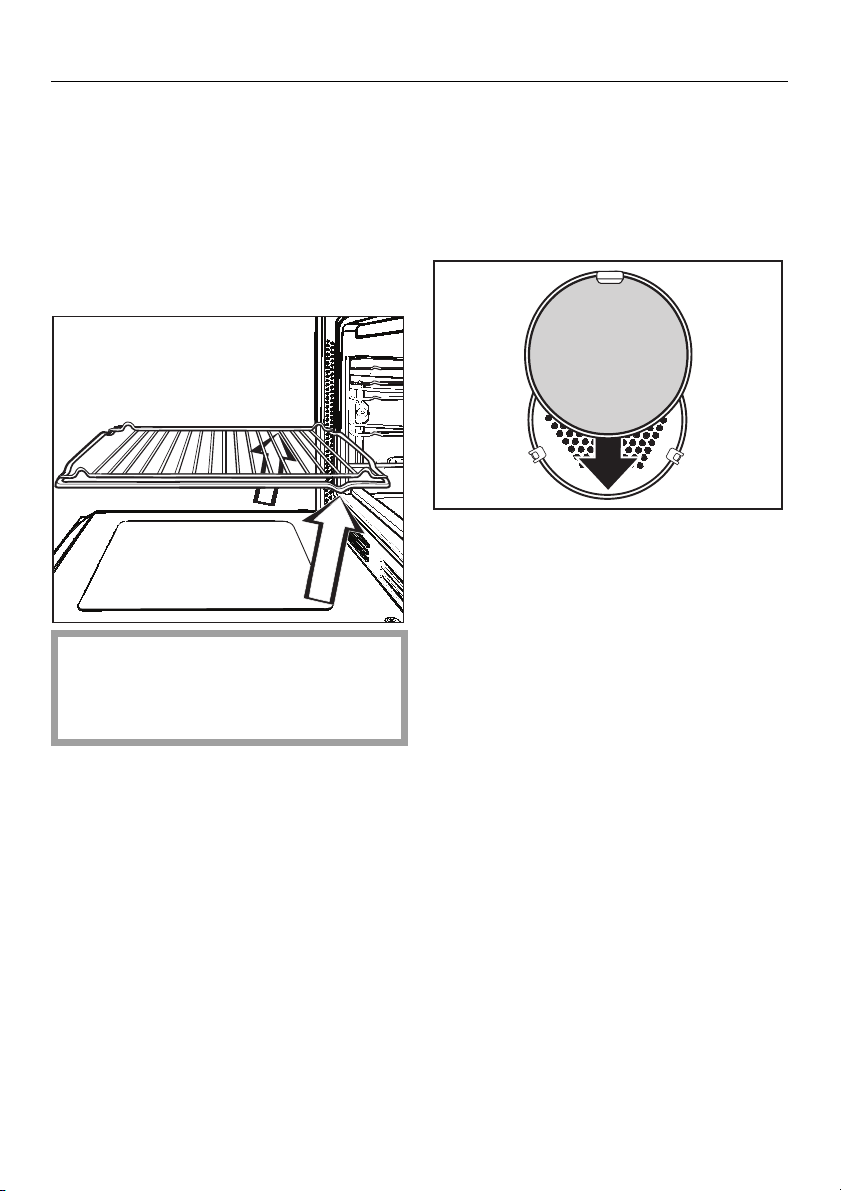

Baking tray, roasting / grill pan and rack
The baking tray, roasting /grill pan and rack are fitted with non-tip safety not­ches which prevent them being pulled right out when they only need to be par­tially pulled out.
When pushing the tray, pan and rack back in, always ensure that the safety notches are at the rear of the oven. (See illustration)
Roasting filter
When roasting on the rack , in an open pot or using "Fan Heat D" and "Auto Roast E" make sure that you fit the roasting filter in front of the fan opening.
The droplets of fat caught up in the circulating air are deposited on the roasting filter. This helps to keep the oven and the area behind the interior back panel cleaner.
The tray, pan and rack can then only be taken out of the oven by raising them upwards and then pulling out.
26
Accessories
Handle
(depending on model)
To take the baking trays or the roast­ing / grill pan out of the oven, or to put them into it.
Anti-splash tray
(depending on model)
Catalyser
The catalyser is built in to the oven’s cooling system.
The catalyser filters fatty vapours and reduces food smells.
In pyrolytic cleaning mode the cata­lyser regulates the duration of the clean­ing process depending on how dirty the oven is.
To be placed in the grill pan when grilling. The juices from the food being grilled are gathered under the anti-splash tray, rather than being dried out, and they can then be used in sauces etc.
27

Timer - use

Timer - use
Functions
Push buttons
With the push buttons you can:
enter the Time of day,
enter the start of a cooking process,
The timer can:
show the time of day,
switch the oven (and separately,
where applicable, the hob front cook­ing zones) off, or on and off automati­cally.
– enter the duration of a cooking pro-
cess,
– enter the end of a cooking process.
A corresponding symbol for each push button appears in the display when ap­propriate. The Symbol lights up when an oven function has been selected, (or a hob zone control switched on), and the rele­vant button pressed in.
28
All data input or alteration is done with the "+" or "–" button.
Changes to the start, duration or end of cooking time, or time of day are ef­fected in 1 minute steps.
When one of the (f, g, )) buttons are operated, the control light be- tween the "+" and "–" buttons is lit.
So long as it is lit,the times can be en­tered or altered.
Each time the "+" or "–" button or one of the other buttons is pressed, this gives more time for data input.
When the indicator light goes out the data input or alteration has been regis­tered.
Timer - use
Timer display field
Symbols that appear in the timer dis­play field:
– the symbols for the oven time en-
tered, when the oven is being pro­grammed.
– the relevant symbol for the hob zone
programmed: "*" front left hob zone "#" front right hob zone "t" both front hob zones.
29
Timer - use

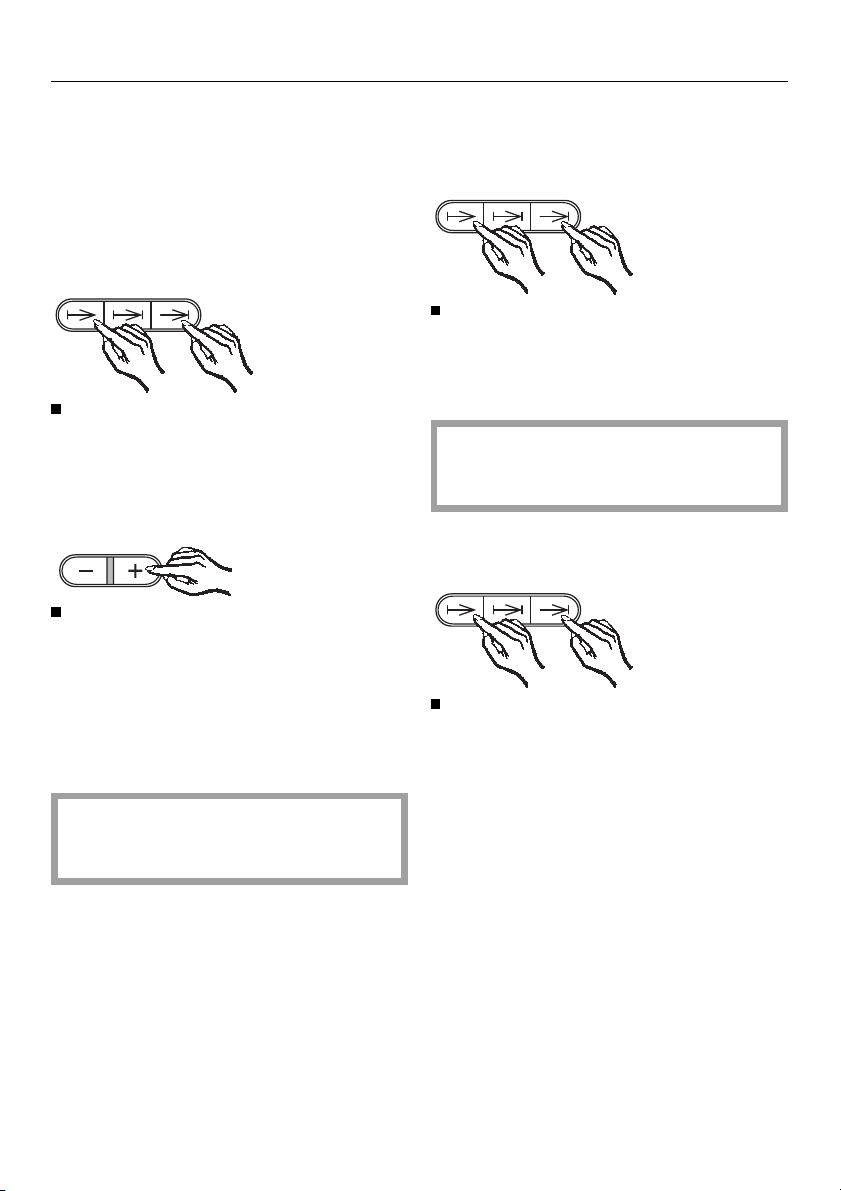

To enter the time of day
(24 hour display)
When the appliance is first connected to the power supply, or after a power cut "12:00" and the symbols "f" and ")" flash in the display.
Press the buttons "f" and ")" at the same time.
The following light up:
"12:00" in the display the control light for the "+/" button.
So long as the "+/–" button is lit, enter the time in hours and minutes using the "+" or "–" button
When the control light for the "+/–" button goes out, the time has been set and the clock display changes at one-minute in­tervals. The colon flashes.
To cancel the time of day display
The time of day display can be switched off to save energy
Press the buttons "f" and ")" together twice in succession.
The time of day continues to run un­seen.
If a process has been pre-pro­grammed, the time of day can not be altered or cancelled.
To bring back the visible time display
Press the buttons "f" and ")" together once.
If a process has been pre-pro­grammed, the time of day can not be altered or cancelled.
30
Timer - use
Programming cooking time
With the timer it is possible for the oven and both the front hob cooking zones to be switched off automatically, or set to come on at a later time and then also be switched off.
The oven, the left and right front hob cooking zones can be programmed in­dependently of each other.
Programming cooking time in the oven
When a cooking process is pre-se­lected, the setting chosen and the
symbol " p" are displayed, as well as the time of day and the symbols for the time entered. "(f, g, ))".
During a process the temperature is shown in the oven display. The time of day continues to be shown.
Shortly before the end of cooking time the oven heating switches off auto-
matically.
The Energy-save function (as de­scribed under "Ovens - Use") comes into action. "EC" now appears in the oven display instead of the actual oven temperature.
The oven temperature will switch on again if:
the oven temperature is altered.the cooking time is lengthened signi-
ficantly.
At the end of cooking time – an audible tone sounds for approx.
5 seconds,
– and at the same time the ")" sym-
bol flashes.
Both the audible tone and the visual display can be cancelled by:
– Pressing the ")" button.
If the food is not sufficiently cooked to your taste, a further cooking time can be entered.
– Turning the oven function selector to
"0".
If the audible tone is not switched off it will continue to sound at 5 minute inter­vals as a reminder that cooking has fin­ished. This reminder continues for up to an hour.
31
Timer - use
Programming hob zone cooking times
Please note it is not possible to use this programme for hobs which have the KSE 200 control unit.
A symbol in the display shows which hob zone is being programmed.
* = front left zone # = front right zone t = both front zones
Make sure the correct symbol is show­ing in the display before programming in times.
When a cooking process has been pre-selected the hob zone symbol flashes, and the time of day is dis­played. The hob control light goes out.
When the process starts running, the symbol for the chosen hob zone lights up.
At the end of cooking time
the hob switches off automatically,an audible tone sounds for approx.
5 seconds.
– The symbol for the selected hob
zone and the symbol ")" flash. The symbol ")" does not flash when a cooking end time is entered for the oven.
Both the audible tone and the visual display can be cancelled by:
– Pressing the ")" button.
To use the oven again, the hob zone selector switch must first of all be turned to "0".
– Turning the hob zone selector switch
to "0".
If the audible tone is not switched off, as described earlier, it will repeat at 5 minute intervals as a reminder that the end time has been reached. This reminder continues for up to an hour.
32
Timer - use
To end a cooking time auto­matically
Turn the oven function selector or the hob zone control to the required set­ting.
Press the "g" button.
The heating goes off, and "0:00" ap­pears in the display field.
With the "+" button enter the required cooking time in hours:minutes. (1 minute up to 23 hours 59 mins).
The cooking process starts as soon as the control light on the "+/–" button goes out. The end of cooking time is automati­cally calculated from the time entered.
To switch a cooking process on and off automatically
There are many options for delaying the start of a cooking process.
Either the beginning or the end of the cooking process can be postponed.
To enter duration and end
Turn the oven function selector or the hob zone control to the required set­ting.
First enter the cooking time:
Press the "g" button.
"0:00" appears in the display field.
With the + button enter the required cooking time in hours:minutes. (1 minute up to 23 hours 59 mins).
Now postpone the end of cooking time:
Press button ")".
The time of day plus the entered cook­ing time appear in the display field.
Postpone the end of cooking time with the "+" button.
First the time of day will appear.
33
Timer - use
Enter the start and the duration
Turn the oven function selector or the hob zone control to the required set­ting.
First enter start of cooking time:
Press the "f" button.
"0:00" appears in the display field.
Use the "+" button to postpone the start of cooking.
First the time of day appears.
Now enter the cooking time:
Press the "g" button.
"0:00" appears in the display field.
With the "+" button enter the required cooking time in hours:minutes.
Please note the following
In addition to the options given, you can also enter the beginning and end, or just the end, using the correspond­ing buttons.
Checking, changing and cancelling times entered
It is possible at any time to call up the times entered. The corresponding but­ton for the time to be checked or changed has to be pressed.
The number of times to press the but­ton depends on the number of pro­gramme steps entered.
If times are programmed for several processes, (e.g. the oven and each front cooking zone), each process can be seen by pressing briefly more than once on the relevant button:
Press twice and the time entered for the front left hob zone appears. This is indicated by the "*" symbol.
Press 3 times and the time entered for the front right hob zone appears. This is indicated by the symbol "#".
Do not pre-programme with too long a delay. Cake mixtures will dry out and the raising agent will work less effec­tively.
34
Timer - use
To check
Press the button for the time to be checked.
"f" The start time of the cooking process is displayed. This goes out as soon as the process begins.
"g" The display shows the duration of cook­ing time, or the time left if the pro­gramme has started.
")" The end of the cooking process is dis­played.
To change
Press the corresponding button.
The indicator light in the "+/–" button lights up.
Use the "+/–" button to enter the required time.
To cancel times entered
To cancel, press the appropriate button and use the "–" button to set the time to "0:00".
If the cooking time is cancelled, this automatically cancels the start / end time, and vice versa.
To cancel programmed processes
Turn the oven function selector or the hob zone control(s) to "0".
If there is a power cut all programmes entered will be deleted.
When the indicator light for the "+/–" button goes out, the newly selected time is registered. The time of day appears in the display.
Please note the following:
If a button is pressed, where the time was not entered, but calculated auto­matically by the system, the indicator light for the "+/–" button does not come on. This time cannot be altered.
35
Baking
Baking
The following settings are recom­mended for baking:
Fan Heat DIntensive Bake FConventional A
Baking tins
For the best baking results make sure that you choose baking tins or dishes of a material suitable for the particular heating system.
– "Fan Heat D", "Intensive baking F"
Most types of heat-resistant tins or dishes are suitable, including thin­walled and bright, non-reflective met­al moulds.
"Conventional A"
The following baking tins give an evenly browned result: Dark metal or enamel tins with a matt finish are preferable. Heat resistant glass or thermoplastic dishes can be used. Avoid thin-walled and bright, non-re­flective metal moulds. These will give uneven browning re­sults.
Fan Heat D
Several levels can be used at the same time for baking. The recommended po­sitions are:
1 tray = 1st runner from the bottom 2 trays = 1st and 3rd runners
from the bottom
3 trays = 1st, 2nd and 5th runners
from the bottom
When baking moist biscuits, cakes or bread, do not bake on more than two levels.
Remember to remove the roasting (grease) filter from in front of the fan opening. Otherwise the baking time will be longer.
With the "Fan D" setting lower baking temperatures are needed than with the "Conventional A" setting. See the bak­ing charts.
Intensive baking F
Remember to remove the roasting (grease) filter from in front of the fan opening. Otherwise the baking time will be longer.
36
This method of heating is particularly useful for: – dishes that require a moist topping
and crisp base, such as pizzas and quiche lorraine, or where the base has not been pre-baked.
Put the cake in on the 1st runner from the bottom. If the base is overcooked, use a higher level runner next time.
Baking
Conventional A
Avoid thin-walled and bright, non-re­flective metal moulds. These will give uneven browning results.
Pre-heat the oven only for: – cakes / biscuits with a very short bak-
ing time (up to approx. 30 minutes),
victoria sponge and similar mixtures,bread made with dark flour.
Select runner height 1 or 2.
General notes
Deep-frozen products such as pizzas
should be placed on baking paper on the rack.
Use the deeper roasting tray for moist fruit cakes and multi-layer cakes, to minimize splashes in the oven.
The Baking Chart gives sugges­tions for temperature, runner height and timing.
For even browning -
in general select the middle tem-
perature.
Increasing the temperature and re­ducing the time can have an adverse effect on even browning.
– Select the runner height according
to the recipe and the setting chosen.
– Just before the end of baking time
test to see if the cake is done.
Insert a metal or wooden skewer into the centre. If it comes out clean, without dough or crumbs sticking to it, the cake is ready.
Place oblong tins in the oven as shown in the illustration.
37
Baking chart
Baking chart
Fan Heat D
+
Temperature
in °C
rec. runner
from bottom
Time
in mins.
Creamed mixture
Sand cake Dried fruit cake Nut cake (tray)
1)
Nut cake (tin) Fresh fruit cake with topping (tray) Fresh fruit cake (tray) Fresh fruit cake (tin) Flan base Small cakes
Whisked mixture
Ta rt Flan base Swiss roll
1)
1)
1)
1)
1)
150 – 170 150 – 170 150 – 170 150 – 170 150 – 170 150 – 170 150 – 170 150 – 170 150 – 170
160 – 180 160 – 180 160 – 180
1 1 1 1 1 1 1 1
1, 2, 5
1 1 1
50 – 60 70 – 80 20 – 25 60 – 70 45 – 50 35 – 45 45 – 55 25 – 30 20 – 25
25 – 30 20 – 25 20 – 25
Rubbed-in mixture
Tart / flan base Nut ring Crumble cake Small cakes Cheesecake Apple pie Apricot flan with topping Savoury pastry
1)
1)
2)
Meat pie
150 – 170 150 – 170 150 – 170 150 – 170 150 – 170 150 – 170 150 – 170 190 – 210 170 – 190
1 1 1
1, 2, 5
1 1 1 1 1
20 – 25 40 – 50 40 – 50 15 – 25 75 – 85 50 – 60 55 – 75 25 – 35 60 – 70
Yeast mixtures
Crumble cake Fresh fruit cake (tray) Stollen White bread Wholemeal bread Pizza (tray)
1) 3)
1)
Onion cakes Apple turnovers
Choux pastry
1)
150 – 170 160 – 180 150 – 170 160 – 180 190 – 210 170 – 190 160 – 180 150 – 170
1 1 1 1 1 1 1
1, 3
35 – 45 40 – 55 45 – 65 40 – 50 60 – 70 40 – 50 35 – 45 25 – 30
Eclairs 160 – 180 1, 3 30 – 40
Flaky pastry
Meringues
1)
1)
170 – 190 1, 3 30 – 40
Macaroons 120 – 140 1, 2, 5 30 – 50
The times given are calculated on the basis of an oven which has not been pre-heated. With a pre-heated oven shorten times by approx. 10 minutes.
1) Pre-heat the oven with "Conventional A" heat.
2) Pre-heat the oven with "Fan Heat D" and "Conventional A" heat.
3) Instead of "Fan Heat D" select "Auto Roast E". Pre-heat the oven with "Auto Roast E".
38
Temperature
in °C
Baking chart
Conventional heat A Intensive baking F
rec. runner
from bottom
Time
in mins.
Temperature
in °C
rec. runner
from bottom
Time
in mins.
160 – 180 160 – 180 180 – 200 160 – 180 180 – 200 180 – 200 160 – 180 180 – 200 180 – 200
180 – 200 180 – 200 190 – 210
180 – 200 180 – 200 180 – 200 180 – 200 180 – 200 180 – 200 180 – 200 230 – 250 190 – 200
180 – 200 180 – 200 170 – 190 190 – 210 210 – 230 190 – 210 190 – 210 170 – 190
1 1
1 or 2
1 1 or 2 1 or 2
1 1 or 2
2
1
2 1 or 2
1 or 2
2 1 or 2
2
1
2
1 1 or 2
1
1 or 2 1 or 2 1 or 2 1 or 2 1 or 2 1 or 2 1 or 2 1 or 2
50 – 60 70 – 80 15 – 20 60 – 70 45 – 50 35 – 45 45 – 55 15 – 20 12 – 15
20 – 25 15 – 20 15 – 20
15 – 20 40 – 50 40 – 50 10 – 15 75 – 85 45 – 55
55– 75 25 – 35 60 – 70
35 – 45 45 – 55 45 – 65 40 – 50 60 – 70 40 – 50 35 – 45 20 – 25
– – – –
150 – 170
– – – –
– – –
– – –
– 150 – 170 150 – 170 150 – 170 190 – 210 170 – 190
– 170 – 190 150 – 170
– – – –
– – – –
– – –
– – – –
– – – – –
– – –
1
1 1 1 1 1
1 1
30 – 35
– – – –
– – –
– – –
– 65 – 75 50 – 60 50 – 60 25 – 30 50 – 55
– 40 – 50 30 – 35
190 – 210 1 or 2 25 – 35
200 – 220 1 or 2 15 – 20
130 – 150 2 30 – 50
Data given are for guidelines only. Values obtained from a machine designed for the German market.
39
Roasting
Roasting
We recommend the following settings for roasting in the oven:
Auto Roast EConventional A
See also notes on use of Roast probe (for models where this is applicable).
Auto Roast: When roasting on the rack or in an open dish, always remember to fit the roasting filter in front of the fan in the back of the oven before start­ing.
We recommend roasting in a covered pot L:
– This ensures that sufficient stock re-
mains for making gravy.
– The oven stays cleaner, too.
Place the covered pot on the rack into the cold oven. Exception: Pre-heat the oven to the tem­perature recommended in the recipe when cooking roast beef.
Use shelf position 1 for roasting. Exception: With "Conventional A" for roasting poultry up to a weight of 1 kg, roast beef, fillet or fish use shelf posi­tion 2.
When using "Auto Roast E" a tem- perature of approx. 40°C lower can be used for roasting than with the "Conven­tional A" setting.
The bigger the quantity to be roasted, the lower the temperature. When roasting more than 3 kg select a temperature about 10°C lower than the one given in the "Roasting" chart. The roasting process will take a little longer, but the meat will be cooked evenly and the exterior will become crisp.
The following containers are suitable: Roasting tins, heat-resistant glass, roasting foil, earthenware.
Make sure that the pot and lid have heat-resistant handles.
40
For roasting directly on the rack K the temperature needs to be about 20°C lower than for roasting in a covered pot L.
For roasting on the rack always slide in the rack and the roasting tin together.
The roasting time will depend on the type of meat, the size and thickness of the cut.
Roasting
Calculating roasting time:
The traditional British method is to allow 15 to 20 minutes to the lb, according to type of meat, plus approx. 20 minutes, adjusting length of time as roasting pro­ceeds, to obtain the required result.
Alternatively, multiply the height of the joint by the time per cm for the type of meat, as in the chart.
Type of meat time per cm
height of meat
Beef / Venison Pork / Veal / Lamb Sirloin fillet
Example: Beef roast, 8 cm high 8 x 15 mins. per cm = 120 mins. roast­ing time
15-18 mins. 12-15 mins.
8-10 mins.
Please note:
Do not select a roasting temperature which is higher than that recom­mended. The meat will become brown, but will not be cooked properly.
Browning only occurs towards the end of the roasting time. Remove the lid about halfway through the roasting time if a more intensive browning effect is desired.
Useful hints
Roasting in a covered pot L
Season the meat and place in the pot. Add some knobs of butter or margarine or a little oil or cooking fat. Add about 1/8 litre of water when roasting a big lean joint of meat (2-3 kg) or roasting poultry with a high fat content.
Roasting on the rack K
Place a little water in the tray. Add a little fat or oil to very lean meat or place a few strips of bacon on the top. Do not add too much liquid to the tray during cooking as this will hinder the browning process.
Roasting poultry
For a crisp finish, baste the poultry ten minutes before the end of cooking time with slightly salted water.
Roasting deep frozen meat
Deep frozen meat should be defrosted first.
After the roasting process is finished take the roast out of the oven, wrap in aluminium foil and leave to stand for about 10 minutes. This helps retain juices when the meat is carved.
41
Roasting with the Roast Probe
Roasting with the Roast Probe
Using the roast probe enables the roasting process to be monitored sim­ply and reliably.
The tip of the probe measures the core temperature at the centre of the meat.
When the pre-selected core tempera­ture is reached, the oven heating is automatically switched off.
Choose the required function with the oven selector:
Auto Roast EConventional AFan Heat DFan Grill I
Using the roast probe for best effect:
Prepare the meat in the usual man­ner, and put it into the oven, (in a pot or on the rack).
Roasting bags or aluminium foil may also be used, but only when left open at the ends. Insert the probe through the foil or bag.
The tip of the probe must reach the cen­tral area of the meat.
When roasting poultry the best place to insert the probe is the thickest part be­tween thigh and body.
Ensure that it does not touch a bone, and that it is not inserted into a fatty piece of meat. If fat or bone come into contact with the probe, this can lead to the oven being switched off too early.
Insert the probe into the middle of the meat.
42

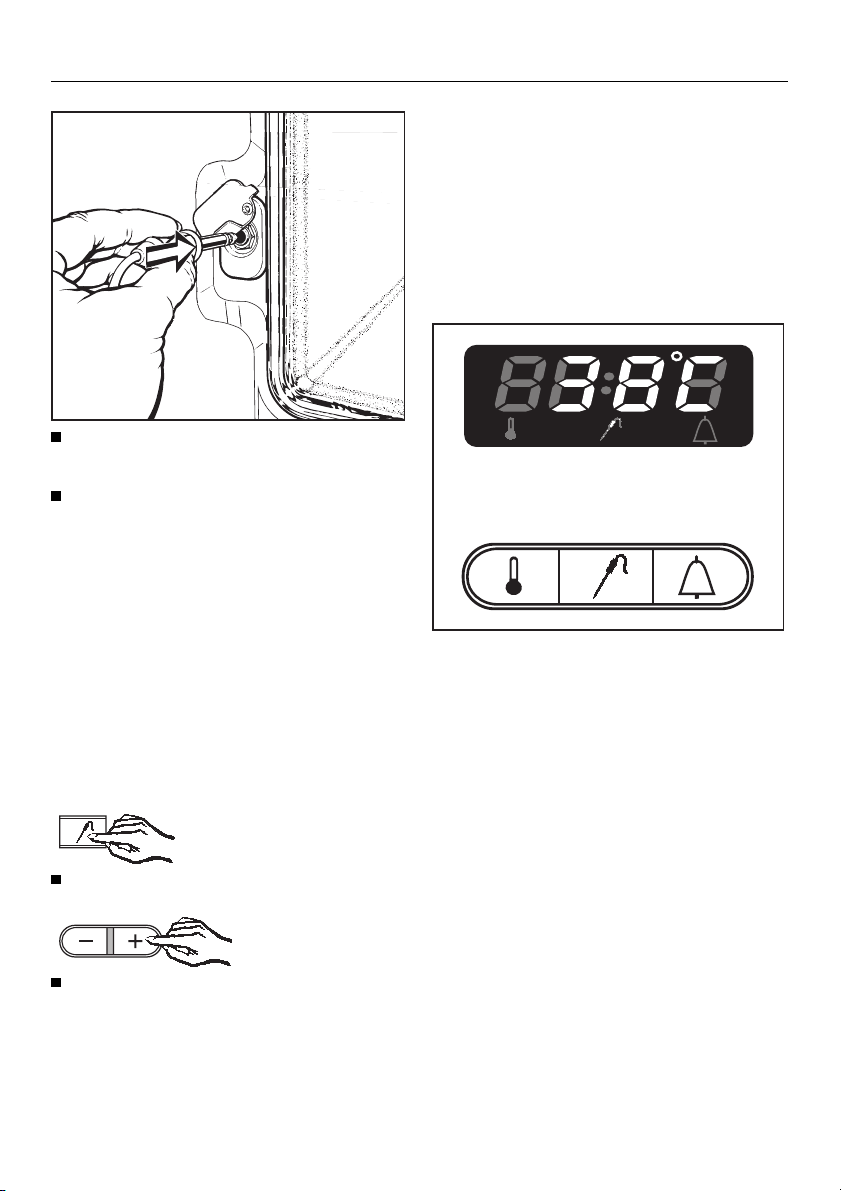

Insert the plug of the roast probe into the socket until you feel it engage.
Choose the required function with the oven selector.
The following light up:
the suggested food core tempera-
ture of 60°C appears in the display,
– the indicator light of the "+/–" button.
The core temperature to be set depends on the food to be cooked. Please consult the roasting chart. The temperature can be altered between 20°C and 99°C. In order to do this:
Roasting with the Roast Probe
Shortly after the core temperature has been entered, the suggested oven temperature appears in the display. This can be altered if you require.
As soon as the light in the "+/–" button goes out
the oven heating switches on.
the actual core temperature ap-
pears in the display. N.B. The lowest temperature that can be displayed is 20°C, so this will also be shown until the roast probe registers 20°C.
Press the "e" button.
Enter the required temperature with the "+/–" button.
43
Roasting with the Roast Probe
Time left display
After a specific time the estimated time left until the cooking process has fin­ished is shown in the oven display. From now on the actual temperature is no longer displayed, and cannot be called up.
The residual time is calculated from the oven temperature selected, the re­quired core temperature and the pat­tern of the increasing core temperature.
If, when the residual time is displayed: – the oven or core temperature is al-
tered, – or a different oven function is chosen, this will cancel all the residual time infor­mation, and the actual temperature will reappear.
If the oven door is held open for some time, the residual time will be recalcu­lated.
Cooking time is completed automati­cally.
Shortly before the end of cooking time the oven heating switches off.
The Energy-save function (as de­scribed under "Oven - use") comes into action. The time left continues to be shown in the display. If the " p" button is pressed, "EC" appears.
If the oven temperature is altered or the core temperature increased, the oven heating will switch on again.
The residual time figure first shown is an estimate. As the cooking process continues the figure is continuously re­vised, and a more accurate revised fig­ure shown.
44
Roasting with the Roast Probe
End of cooking time
When the chosen core temperature has been reached – an audible tone sounds for approx.
5 seconds, and
– the "e" symbol flashes.
The audible tone and the symbol can be cancelled by:
– Pressing the "e" button.
If the food is not sufficiently cooked, a new core temperature can be en­tered.
– Turning the oven function selector to
"0". Any temperatures entered will also be cancelled.
If the audible tone is not cancelled, it will continue to sound every 5 minutes for an hour as a reminder that the pro­cess has finished.
Please note:
This process can also be programmed through the timer with delayed start.
When finished, cover the meat with aluminium foil and allow to stand for approx. 10 minutes. During this time the core temperature rises another 5 - 10°C.
If the temperature probe is left in the food at the end of the cooking process, the oven display will show the core tem­perature first rising and then sinking.
Insert the probe in a different place and start again: – if the cut of meat was too large (3 kg
or more) for the probe to be inserted
right to the centre. – if the meat is not sufficiently roasted
when the set temperature is reached.
The time taken to roast meat by tem­perature using the probe is similar to that when cooking by time.
45
Oven roasting chart
Oven roasting chart
rec.
runner
from
bottom
Auto Roast E
Temp. in
2)
°C
1)
Time
in mins.
Conventional A
Temp. in
2)
°C
in mins.
Time
Core
temperature
in °C
Rib of beef (apprx. 1 kg) 1 180-200 100-120 220-240 100-120 75-85
Sirloin, steak (apprx. 1 kg) 1
4)
5)
190-210 35-45 240-260 35-45 50-70
Venison/game (apprx. 1 kg) 1 180-200 90-120 220-240 90-120 65-75
Leg of pork, (apprx. 1 kg) 1 170-190 100-120 210-230 100-120 80-90
Rolled pork (apprx. 1 kg) 1 170-190 100-120 200-220 110-130 80-90
Meat loaf (apprx. 1 kg) 1 170-190 50-60 200-220 50-60 70-75
Veal (apprx. 1 kg) 1 170-190 100-120 210-230 100-120 75-85
Shoulder of lamb (ca. 1.5 kg) 1 170-190 90-120 210-230 90-120 80-85
5)
Poultry (0.8-1 kg) 1
Poultry (apprx. 2 kg) ditto (stuffed)
1 1
170-190 50-60 200-220 50-60 80-85
170-190 170-190
90-110
120-150
200-220 200-220
90-110
120-150
80-85
Poultry (apprx. 4 kg) 1 160-180 150-180 190-210 150-180 80-85
Whole fish (apprx. 1.5 kg) 1
5)
160-180 35-55 200-220 35-55 75-80
Unless otherwise stated, the times given are for an oven which has not been pre-heated.
1) Fit the grease filter in place when using "Auto Roast E".
2) Roasting in a pot L When roasting on the rack K, set the temperature 20°C lower than given.
3) Roasting using the core temperature probe (Roast Probe)
e .
4) Pre-heat the oven when using "Auto Roast E" and "Conventional A" settings.
5) 2nd runner from the bottom when using the "Conventional A" setting.
6) Very rare: 40-45°C, medium-rare: 50-55°C, medium: 60-65°C, well done 70-75°C
3)
6)
The information given in this chart is intended only as a guide.
46
Defrosting
We recommend defrosting at room tem­perature, i.e. without selecting an oven temperature. However, an oven temperature of up to 50°C can be selected.
– Where possible remove the packa-
ging and put the food to be de­frosted on a baking tray or into a dish.
– All meat and poultry should be fully
defrosted before cooking. Do not use the liquids from defrosting.
– When defrosting poultry put it on the
rack, one level higher than a tray put in to catch the defrosted liquid, so that the meat is not lying in this liquid.
It is particularly important to ob­serve food hygiene rules when de­frosting poultry. Do not use the liq­uid from the defrosted poultry. Pour it away, and wash the tray, the sink and your hands.
Defrosting
Do not refreeze food once it has thawed.
The time needed for defrosting de­pends on the type and weight of the food, and at what temperature it was deep frozen.
N.B. Put the tray back in the oven if roasting on the rack.
– Fish does not need to be fully de-
frosted before cooking. Defrost so that the surface is sufficiently soft to take herbs and seasoning.
47
Casseroles
Casseroles
When choosing which oven level to use, take into account the size of the casserole dish with its lid.
Casseroles
The following oven settings are recom­mended:
Please note:
Cover dishes which are to be cooked
in their own juice and/or steam, eg du­chesse potatoes or vegetables, so that they do not dry out. If there is no lid use aluminium foil or damp cooking parch­ment.
Fan Heat DConventional A
The following dishes are suitable for this type of slower cooking: covered pots made of ovenproof glass and china, and earthenware pots, which could also be used as serving dishes. They should have heat-resistant handles and knobs.
Put the rack in at the 1st runner height from the bottom, and place the prepared casserole with the food for braising or stewing on this.
Select the oven setting and the tem- perature.
Fan Heat D . . . . . . . . . . . . . 170-190°C
Conventional A . . . . . . . . . . 190-210°C
Cooking times
Consult your cook book.
Cook without a lid when a crusty fin­ish or topping is required, eg for meat or au gratin dishes.
Useful hint
One dish can be placed on top of the other. Invert the lid of the bottom dish. Put dishes to be browned at the top.
Poaching
Fish or fruit can be poached in the oven in a covered dish.
Bottling
Bottling should only be undertaken by an experienced cook who has received proper training in this method of pres­erving fruit and vegetables, and under­stands the implications of the chemical reactions involved.
Instructions for bottling in this oven are available from the Miele Home Econo­mist.
48
Grilling
Pre-heat the grill for approx. 5 minutes with the oven door shut.
Grilling with the oven door shut saves energy and minimizes cook­ing smells.
The oven has three grill settings:
Grill 1 ,
Grilling
Grill 2 J
For grilling large quantities of thin cuts and for browning food in large shaped dishes. The whole of the grill element is switched on. The inner part glows red. The outer part stays darker than the inner part but creates sufficient radiant heat for grilling.
For grilling small quantities of thin cuts and for browning small dishes of food. The inner part of the grill element is switched on and glows red.
Fan Grill I
Always put the roasting filter in front of the fan grille in the back of the oven when using this setting.
For grilling larger items, for example, poultry, rolled meat. The roast probe can also be used to monitor the temperature. See the appro­priate section
The roast probe cannot be used at the same time as the rotisserie. The cable would wind round the rotis­serie and be damaged.
49
Grilling
Preparing food for grilling
Clean, wipe and season. Do not salt slices of meat beforehand as this de­tracts from the taste.
Add a little oil if necessary. Other fats quickly become black or cause the food to smoke. A little butter can be added to chicken if desired.
Clean flat fish and slices of fish in the normal way. To enhance the taste add a little salt or squeeze a little lemon juice over the fish.
Grilling on the rack
Insert the grill pan at the appropriate level for the height of the food to be grilled:
thin cuts =
level 3, 4 or 5
thicker cuts =
level 1 or 2
It is best to grill food of a similar thick­ness at the same time so that the grill- ing time for each item does not vary too greatly.
Most items should be turned half way through cooking.
Grilling on the spit
For grilling thicker items such as stuffed meat, poultry, kebabs.
Assemble the grill pan, anti-splash tray (if available) and rack as shown.
Place the food on the rack.
Select the method of grilling.
50
Assemble the rotisserie as shown.
Two special accessories for rotisserie grilling, a meat and poultry clamp, and a kebab grilling device are available from your Miele dealer or the Miele Spare Parts Department.
Select the method of grilling.
Put the grill pan holding the assem­bled rotisserie in the oven, using the 1st runner from the bottom.
The spit fits into the motor slot at the back of the oven.
Temperature
Food to be grilled temperature
Thin cuts
such as chops, steak 275°C
Thicker cuts
such as chicken, kebabs 240°C
To grill thicker pieces of food more gradually, select an initial high tempera­ture, and then continue grilling at a lower temperature setting to allow the food to cook through to the centre.
Grilling
Grilling time
Flat pieces of fish and meat usually need about 5-6 minutes a side depend­ing on their texture. Thicker pieces need longer.
With rolled meat allow approx. 10 minutes per cm diameter.
Useful grilling hint
One way of finding out how far through a piece of meat has been cooked is to press down on it with a spoon.
– If there is very little resistance to the
pressure of the spoon, it is still red on the inside ("rare").
– If there is some resistance, the inside
will be pink ("medium").
– If there is great resistance, it is
thoroughly cooked through ("well done").
51
Grill chart
Grill chart
Pre-heat the grill for about 5 minutes with the door shut before using.
Food to be grilled Runner
Flat items of food
Beef steaks 3/4/5 290 3-5 250 5-10
Kebabs 4 260 8-12 240 8-12
Escalope 4/5 290 5-10 240 10-12
Liver 4/5 275 8-12 245 8-12
Burgers 4 210 10-15 200 10-15
Sausages 4 240 8-10 220 10-12
Chops 4 275 12-18 250 10-15
Fish fillet 4/5 250 10-15 220 12-16
Trout / Mackerel 4 275 16-20 220 20-25
Toast 5 240 3-6 220 5-10
Open toasted sandwich 4/5 240 4-6 220 5-7
Tomatoes 4 240 7-10 225 10-12
Bananas 5 240 6-10 225 6-10
Peach halves 2/3 230 6-8 210 6-8
Thicker grilling cuts
Chicken pieces (approx. 1 kg)
Chicken pieces (approx. 1 kg)
Mixed grill
Piece of pork, Ø 7 cm (ap­prox. 1 kg)
Kebabs 1 250 25-35 230 25-35
2)
2)
3)
2)
from
bottom
124050-60- -
1/2 220 50-60 200 50-60
2 260 20-25 230 20-25
1 240 70-80 200 70-80
Grill 1 / Grill 2 Fan Grill
tempe-
rature
in °C
total
grill time
in mins.
tempe-
rature
1)
in °C
4)
total
grill time
in mins.
1) Turn half way through the grilling time.
2) Grilling on the rack.
3) Grilling on the spit (where this feature is included).
4) Fit the roasting filter when "Fan grilling".
All times given in the chart are approximate and can vary.
1)
52

Cleaning and care

Appliance front and control panel
Wipe down the appliance front, the con­trol panel and, on the H 248, the dec­orative trims with a mild detergent or a solution of warm water with a little wash­ing up liquid.
Wipe dry with a soft cloth.
Glass front
Do not use a scouring agent, as this would scratch the glass front.
For ovens with a white finish we recom­mend after each use wiping:
the oven door handle andthe control panel
with a damp cloth and some washing up liquid. This will avoid spillages being burnt on and becoming im­possible to remove.
Cleaning and care
Accessories
Remove all accessories including the runners and any extra acces­sories such as, for example, the tele­scopic carriage, from the oven inte­rior before starting the pyrolytic cleaning process. The high tem­peratures needed for pyrolysis will damage the accessories and cause irreparable damage to the tele­scopic carriage.
Roast probe
Wipe with a damp cloth.
Do not put the roast probe into water or in the dishwasher.
Runners
Wash in hot water with washing up liquid, or clean with a stainless steel cleaner.
Stainless steel front
Never use cleaners containing sand, soda or scouring agents, These will leave scratches.
Use a non-scouring stainless steel cleaner. Apply with an even pressure. Wipe over with a damp cloth and rub dry with a soft cloth.
Baking tray, roasting/grill pan, rack, spit and frame
Wash and dry after each use.
Remove stubborn residues that do not wash away – from stainless steel:
with a stainless steel cleaner.
– from enamel:
Soften residues by soaking with hot water, then brushing with a soft nylon brush or sponge.
53
Cleaning and care
Roasting filter
Clean in washing up liquid and hot water, or in the dishwasher.
The filter, unlike other accessories, can be pyrolytically cleaned. Pyrolytic cleaning can cause permanent discolouration of the filter. However, this will not affect the functioning of the filter in any way.
54
Cleaning and care
Oven interior
The oven interior is coated with dark pyrolytic enamel which facilitates cleaning.
This is a particularly hard enamel with an extremely smooth surface.
Never use hard brushes, hard sponges, wire wool pads, knives or any other scourer. This may cause damage to the enamel.
When using oven sprays always refer to the manufacturers instruc­tions.
Pyrolytic cleaning of the oven interior
During the pyrolytic process the oven is heated up. Any residual dirt is removed by the high temperatures.
As soon as the pyrolytic process is started, the oven door locks automati­cally after 60 seconds. The lock re­leases on completion of the pyrolytic process only when the oven tempera­ture has fallen below 200°C.
The duration of the pyrolytic process is adjusted according to the level of soil­ing of the oven.
Cleaning and care
Remove large pieces of debris from the oven interior before starting the pyrolytic process.
Remove all accessories including the runners and any extra acces­sories such as, for example, the tele­scopic carriage, from the oven inte­rior before starting the pyrolytic cleaning process. The high temperatures needed for pyrolysis will damage the acces­sories and cause irreparable dam­age to the telescopic carriage.
With the pyrolytic function the front of the oven becomes warmer than with normal oven use. Do not touch the oven door which may be very hot. Children should be prevented in any event from touching the ap­pliance during pyrolytic operation.
Turn the function selector to "Clean­ing (Pyrolytic) .".
"PYRO" lights up , and the " p" symbol flashes in the oven display.
Press the " p" button.
As soon as the " p" button is pressed,
the " p" symbol lights up,the oven door is locked after
approx. 60 seconds
the pyrolytic process beginsthe catalyser switches itself on.
The duration of the pyrolytic process is adjusted according to the level of soiling in the oven which is determined by the air outlet using the catalyser.
55
Cleaning and care
In the case of severe soiling the pyro­lytic process is interrupted. Remove large pieces of debris before starting the pyrolytic process again.
The end of the pyrolytic process is shown
by the " p" symbol flashing,by an audible tone.
This depends upon the oven having cooled to a temperature below 200°C and the door lock having released.
After the pyrolytic process pyrolytic debris (e.g, ash), which can build up according to the level of soiling, can easily be removed.
Only remove debris when the oven has cooled. Danger of injury by burning!
Most debris can be removed with a damp cloth. According to the level of soiling, in certain circumstances a clearly visible film can build up on the oven door, on the panel and under the guard. This can easily be removed with a sponge and a mild solution of warm water and washing-up liquid.
You c an delay the start of the pyro- lytic process for example, to take advantage of cheaper night electricity tarifs. In order to do this, start the pyrolytic process and use the "f" button to delay the start of the process. As soon as the start delay is taken up,
"PYRO" goes out in the displaythe " p" symbol lights up.
When the pyrolytic process starts, "PYRO" lights up in the display.
The pyrolytic process is interrupted, – if the function selector is turned to
the "0" position.
– if another function is selected during
the pyrolytic process.
– in the event of a power cut.
The oven door remains locked in the case of an interruption.
The door will only open again when the oven temperature has fallen below 200°C and the function selector has been turned to the "0" position and then to "light H". The " p" symbol lights up in the display. When after approx. 30 seconds the " p" symbol flashes, the door can be opened.
If the heat-up phase of the pyrolytic process interrupts independently,
the error message "F 15" appears in the display. The door will open only when the oven temperature has fallen below 200 °C and the function selector has been turned to the "0" position and then to "light H". After approx. 60 seconds the error message goes out and "PYRO" and the " p" symbol light up in the display. When after approx. 30 seconds the " p" symbol flashes, the oven door can be opened.
56
Cleaning and care
You c an
remove the oven door,take out the runners,drop the top-heat element.
To remove the oven door
Please note : the oven door is quite heavy. It should be gripped firmly at the sides when being removed or re­fitted.
Open the door fully.
Before the door can be removed, the door hinges need to be locked so that they do not damage the door when it is taken out.
Cleaning and care
Lift up the door until the hinges disengage. Remove the door.
To re-fit the oven door
Hold the door as shown above and carefully put the locked hinges into the guide holes until they engage. Open the door fully.
Flip down the locking clamps on each door hinge. This locks the hinges.
Still supporting the door, flip the lock­ing clamps up.
It is essential that the locking clamps are flipped up when the door is re-fitted after cleaning. Otherwise on closing the door, the hinges could work loose from the guide holes and this could result in damage to the door.
57
Cleaning and care
To remove the runners
Select the "Light H" setting.
The oven heater elements must be switched off, to avoid the danger of burning.
Pull on the fixing knob to release it.
Take the runners out of the oven.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
58
To lower the upper heating element
Select the "Light H" setting.
The oven heater elements must be switched off, to avoid the danger of burning. Wait until the grill element has cooled down enough to touch. Otherwise you could be burnt.
Take out the runners.
Cleaning and care
Gently lower the grill element.
Do not use force to lower it, as this could cause damage.
If the guard plate is dirty it can also be removed for cleaning:
Pull (and turn if necessary) on the fix­ing knob on the grill element to re­lease it.
Hold the guard plate firmly and un­screw the knurled knob.
Take out the guard plate.
Reassemble in the reverse order, care­fully ensuring all parts are correctly in place.
59
Correcting minor faults
Correcting minor faults
Installation, maintenance and re­pairs to the electrical components of this appliance should only be car­ried out by a fully competent person to ensure safety. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held responsible for un­authorized work.
Some minor problems however can be dealt with as follows:
What to do if . . .
. . . the oven does not heat up.
Check whether,
the selector switch is set to the func­tion required, and the temperature control is set at the correct tempera­ture.
Slide the relevant flap upwards.
the operating lock is activated.
the main fuse has blown. Contact a qualified electrician or the Miele Ser­vice Department.
. . . the heating elements in the oven function, but not the light.
The halogen lights are faulty. Change as follows:
Turn off the electricity supply to the oven. Switch off at the isolator, or withdraw the mains fuse.
There is a slide flap in each side trim to the oven.
60
Pull out the metal strip.
Pull out the halogen lamp: 12 V, 20 W, heat resistant up to 300°C, G4 socket, Osram, Type 64428.
Fit the bulb and reassemble in the reverse order, carefully ensuring all parts are in place.
Correcting minor faults
. . . no noise is heard when the oven door is opened during operation.
This is not a fault. If the door is opened during operation, the door contact switch causes the oven heating, and the fan if on "Fan" setting, to be switched off.
. . . a noise can be heard after bak­ing, roasting or grilling.
This is not a fault. The cold air fan runs for a while after the oven has been switched off, so that no humidity collects in the oven, on the control panel or on the surrounding unit. When the oven temperature drops below a certain value, the fan switches off automatically. The temperature drops more quickly if the oven door is fully or partly open .
. . . the cakes and biscuits are not cooked after following the times given in the chart.
Check whether,
the correct temperature was set.
there has been a change to the recipe. The addition of more liquid or more eggs makes a moister mix which would need longer to cook.
the roasting filter had been left in place in front of the fan when cook­ing with "Fan heat D" or "Intensive baking F" or was in place with "Auto roast E". In this case baking times might be lengthened by 10 to 15 minutes.
. . . the browning effect is uneven
There will always be a slight uneven­ness. Product information sheets give a percentage result for standard brown­ing tests. These refer to results for one tray.
If the item being baked is browning very unevenly, check:
– when baking with "Fan Heat D":
whether the temperature was set too high,
whether the roasting filter was in place.
– when baking with the "Conventional
setting A":
the colour and composition of the baking tins being used. Light col­oured, shiny, or thin walled tins are less suitable.
61
Correcting minor faults
. . . "F" and a number appear in the oven display field.
This combination indicates a fault
When "F3" appears the core tem­perature (roast) probe has a fault. Remove the probe from its socket and the message will disappear.
When "F6" appears the oven has automatically switched itself off dur­ing use. This is a safety feature to protect the oven if it has been opera­ting for an exceedingly long period. The timing is different depending on the oven setting selected.
The oven can be used again immedi­ately by simply turning the oven func­tion selector to "0" and then entering the process again.
If "F9", appears in the display, this
may mean that the maximum tem­perature of the appliance has been exceeded.
The appliance switches itself off auto­matically. As soon as the tempera­ture has fallen to an acceptable level the fault message disappears. The appliance switches itself on again automatically. If this fault message occurs re­peatedly, please inform the Service dept. Please quote the fault mess­age.
"F13": The door lock for the pyrolytic
function does not operate. First turn the function selector to the "0" position and then to "light H". After approx. 60 seconds the error message goes out and "PYRO" and the symbol " p" light up in the dis­play. After approx. 30 seconds the symbol " p" flashes. If the function selector is now turned to "0", the oven is now ready to oper­ate again. Call customer service if the ap­pliance is not ready to operate again or if this error message occurs more frequently.
"F15": the pyrolytic process was in-
terrupted during the heat-up phase First turn the function selector to the "0" position and then to "light H". After approx. 60 seconds the error message goes out, and "PYRO" and the symbol " p" light up in the display. After approx. 30 seconds more the symbol " p" flashes. If you now turn the function selector to "0" the appliance is ready to oper­ate again. Call customer service if the ap­pliance is not ready to operate again or if this error message occurs more frequently.
If any other fault message appears
in the display, this will need a service visit. Please quote the fault message.
62
Correcting minor faults
. . . the timer display is dark when the appliance is first switched on.
This is not a fault. If the time of day has been switched off, the display stays dark. If the "f" and ")" buttons are pressed at the same time "12:00" ap­pears in the display field.
. . . the time of day cannot be entered after a power cut.
This is not a fault. Check whether the oven function selec­tor was still set to one of the functions. If it was, turn it to "0".
The time of day can now be entered.
. . . the energy-save function is not activated when cooking with the roast probe or the timer.
This is not a fault. Certain conditions must be fulfilled be­fore the system controlling the energy­save function comes into operation. Sometimes these do not occur.
. . . the residual time indicator is not activated when cooking with the roast probe.
This is not a fault. Certain conditions must be fulfilled be­fore the system controlling residual time comes into operation. Sometimes these do not occur.
63
After sales service
After sales service
In the event of faults which you cannot easily remedy yourself, please contact:
– your Miele Dealer
or
– the nearest Miele Service Depart-
ment, (see address on the back page).
When contacting the Service dept, please quote the Model and Serial num­ber of your appliance, both of which are shown on the data plate, visible below the oven interior, with the oven door open.
If you have an oven and hob combina­tion also give the number of your hob.
64
Extra accessories
(May come as standard items with some appliances.)
The following accessories are available at extra cost from your Dealer or the Miele Domestic Sales dept.
Handle
To take the baking trays or the roast­ing / grill pan out of the oven, or to put them into it.
Anti-splash tray
Extra accessories
Telescopic carriage
The telescopic carriage with 5 levels of runners can be drawn right out of the oven. This gives a good overview of all the cooking in progress. Do not on any account leave the tele­scopic carriage in the oven during the pyrolytic cleaning process. The high temperatures needed for pyrolysis will cause the lubricant on the guide run­ners to burn and cause irreparable damage to the telescopic carriage.
To be placed in the grill pan when grilling.
The juices from the food being grilled are gathered under the anti-splash tray, rather than being dried out, and they can then be used in sauces etc.
65
Electrical connection
Electrical connection
All electrical work should be under­taken by a suitably trained and com­petent person in strict accordance with national and local safety regula­tions.
The voltage and rated load are given on the data plate, visible below the oven interior, with the oven door open. Please ensure that these match the household mains supply. Please quote these data, and the model and serial number when contacting the Miele Ser­vice dept.
Connection of this appliance should be made via a suitable isolator (rated load over 3000 W), which complies with na­tional and local regulations, and which is accessible after the appliance has been built in.
Q\}
Q\}
Oven with integrated hob controls "E" model
This is not available in all countries.
For some countries the version of the oven with integral hob controls is sup­plied for connection to a 3N ~ 400 V power supply.
Any adaptations must only be carried out in consultation with the relevant Miele Service Dept.
Possible combinations
Miele built-in ovens may only be com­bined with hobs and their respective control units as specified by Miele for use with that oven.
Contact your Miele Dealer for further in­formation on suitable combinations.
Important U.K.
The "B" model is supplied with a 3-core cable for connection to a single phase 230-240 volt 50 Hz supply, with 20 amp fusing.
The wires are coloured in accordance with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING THIS APPLIANCE MUST BE EARTHED.
In other countries check these details with your supplier.
66
Electrical connection
Q\}
\
The voltage and rated load are given on the data plate, visible when the oven door is open. Please ensure that these match the household mains sup­ply.
The appliance is supplied with a 3-core cable for connection to a 230-240 volt 50 Hz supply.
The fuse rating is 32 amps for the "E"­model with hob.
The fuse rating is 16 amps for the "B"­model.
The wires are coloured in accordance with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
}
Data relating to electrical connection will be found on the data plate, visible when the oven door is open. Make sure that these figures comply with the main voltage. Connection should be made via a suitable isolator which complies with national and local regulations.
The appliance is supplied with a 3-core cable for connection to a 230-240 volt 50 Hz supply.
The fuse rating is 20 amps for the "B"­model.
The wires are coloured in accordance with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING THIS APPLIANCE MUST BE EARTHED.
WARNING THIS APPLIANCE MUST BE EARTHED.
67
Electrical connection
Electrical connection
All electrical work should be under­taken by a competent person in strict accordance with national and local safety regulations.
The voltage and rated load are given on the data plate, visible when the oven door is open. Please ensure that these match the household mains sup­ply. Please quote these data, and the model and serial number when contact­ing the Miele Service dept.
Connection of this appliance should be made via a suitable isolator which com­plies with national and local regula­tions, and which is accessible after the appliance has been built in.
@
Wall oven
The wall oven is suitable for connection to an a.c. single phase 240 V, 50 Hz electricity supply. The fuse rating is 16 A.
ä
Wall oven
The wall oven is suitable for connection to an a.c. single phase 230 V, 50 Hz electricity supply. The fuse rating is 16 A.
WARNING THIS APPLIANCE MUST BE EARTHED.
Test marks . . . . . . . . . . Electrical Safety
. . . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to . . . . . . . . . . . AS/NZS 1044
68
Installation - cooker and hob control unit
Installation - cooker and hob control unit
Follow the relevant instructions for your specific model.
There are particular installation require­ments for the H 248.
Installation of the hob control unit
Turn off the mains electricity supply to the isolator.
Install the hob, see separate instruc­tions.
Connect the oven to the electricity supply by the isolator.
Align the cooker in front of the base unit.
With some models there is a yellow and green earth lead on the cooker which must be secured to the base of the hob.
Pull the control knobs for the hob and the cooker plugs out of the in­sert retainers.
Fit the KSE hob electronic unit into place.
69
Installation - cooker and hob control unit
H 268
The plugs on the cooker / hob and the sockets on the hob electronic control are coded with the same col­our for matching.
Insert the hob control knobs into the control facia. Fit the cooker plugs into their sockets.
H 258, H 248
The plugs on the cooker / hob and the sockets on the hob electronic control are coded with the same col­our for matching.
Insert the hob control knobs into the control facia. Fit the cooker plugs into their sockets.
Then fit the hob plugs into their sockets.
70
Then fit the hob plugs into their sockets.
Installation - cooker and hob control unit
Installing the cooker
When installing the cooker the following conditions must be met:
– There must be no housing unit back
panel behind the cooker.
– If an interim shelf is fittted beneath
the oven, a cut-out is required as close to the wall as possible to en­sure that there is sufficient ventilation for the appliance. (Dimensions: depth 30 mm, distance from respective side wall 50 mm).
H 258, H 268
Place the oven into the oven housing unit as far as the oven trim and align.
Open the oven door and using two screws secure the oven to the side walls of the housing unit through the holes in the oven trim.
71
Installation - cooker and hob control unit
The appliance must only be oper­ated when it has been built-in.
H 248
Loosen the screws in the decor strips and remove the decor strips.
Do not unscrew the screws com­pletely.
Place the oven into the oven housing unit as far as the oven trim and align.
Open the oven door and using two screws secure the oven to the side walls of the housing unit through the holes in the oven trim.
72
Put the decor strips back in place and screw in.
The appliance must only be oper­ated when it has been built-in.
Installing the oven
Installing the oven
The oven is designed to be built into a tall unit. If you wish to install it in a base unit, the stainless steel rail above the control panel must be re­placed by a sealing strip. The seal­ing strip offers additional protection from any liquids that might spill down from the worktop, and can be purchased from the Miele Spare Parts dept.
Follow the relevant instructions for your specific model.
There are particular installation require­ments for the H 248.
H 258, H 268
Place the oven into the oven housing unit as far as the oven trim and align.
A fixed shelf must be fitted under­neath the oven.
Turn off the mains electricity supply to the isolator.
Connect the oven to the electricity supply by the isolator.
Open the oven door and using two screws secure the oven to the side walls of the housing unit through the holes in the oven trim.
The appliance must only be oper­ated when it has been built in.
73
Installing the oven
H 248
Turn off the mains electricity supply to the isolator.
Connect the oven to the electricity supply by the isolator.
Place the oven into the oven housing unit as far as the oven trim and align.
Open the oven door and using two screws secure the oven to the side walls of the housing unit through the holes in the oven trim.
A fixed shelf must be fitted under­neath the oven.
Loosen the screws in the decor strips and remove the decor strips.
Do not unscrew the screws com­pletely.
74
Put the decor strips back in place and screw in.
The appliance must only be oper­ated when it has been built in.
Installation situations H 248
Installation situations H 248
Pay particular attention to the distances necessary in the following installation situations for the H 248:
75
Alteration rights reserved / 22 / 003 GB / IRL / AUS / NZ / ZA – 4798
M.-Nr. 05 043 300 (Pyrolytic appliances: H 258, H 268, H 248)
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
