Miele CVA4066 User Manual

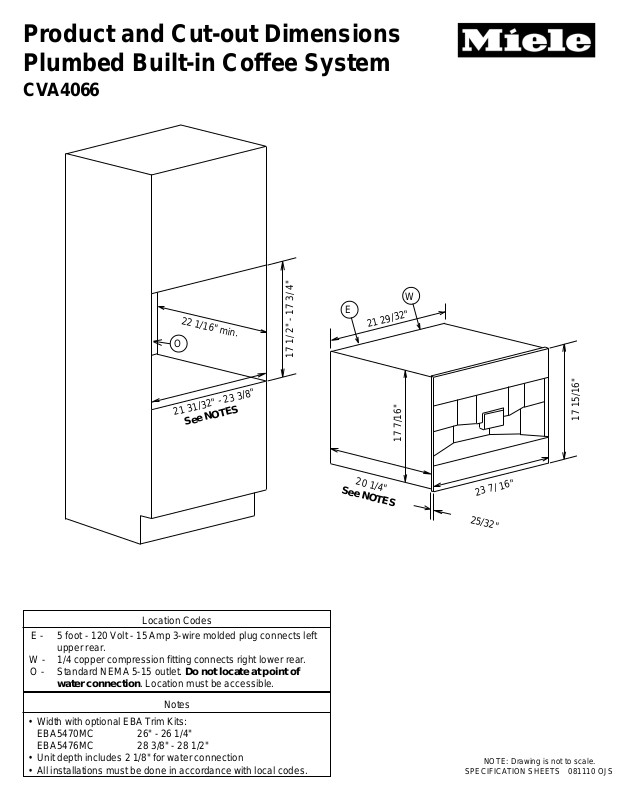

Product and Cut-out Dimensions Plumbed Built-in Coffee System
CVA4066
E
22 1/16" min.
21 29/32"
W
O
21 31/32" - 23 3/8"
See NOTES
Location Codes
E -
5 foot - 120 Volt - 15 Amp 3-wire molded plug connects left upper rear.
W -
1/4 copper compression fitting connects right lower rear.
O -
Standard NEMA 5-15 outlet. Do not locate at point of water connection. Location must be accessible.
17 1/ 2" - 17 3/ 4"
20 1/4"
17 15/16"
17 7/16"
23 7/ 16"
25/32"
Notes
• Width with optional EBA Trim Kits: EBA5470MC 26" - 26 1/4" EBA5476MC 28 3/8" - 28 1/2"
• Unit depth includes 2 1/8" for water connection
• All installations must be done in accordance with local codes.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 081110 OJS
Product Dimensions Plumbed Built-in Coffee System
CVA4066
Rear View SideView
6 5/16"
E
W
4 11/16"
Location Codes
E -
5 foot - 120 Volt - 15 Amp 3-wire molded plug.
W -
1/4 copper compression connection fitting rotates 360 degrees
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 081110 OJS
