Supplement
ScanMaker i800 Plus features, scenarios, and information
PRO
Getting to Know Your ScanMaker i800 Plus
The ScanMaker i800 Plus is a high-resolution, high-performance scanner for reflective
and transparency scanning. It features 4800 x 9600 dpi, 48-bit color, legal-size scan
bed (8.5" x 14"), and a Hi-Speed USB interface. The built-in Transparent Media
Adapter, together with Microtek's EZ-Lock™ Film Holders, let you scan film and
transparencies up to 8" x 12" in size. The ScanMaker i800 Plus also offers the
exclusive ColoRescue™ system for color restoration of photos and film.
Contents
Getting to Know Your ScanMaker i800 Plus ...................................................1
Features of the ScanMaker i800 Plus .............................................................. 2
Taking a Closer Look ........................................................................................3
Unlocking the Scanner .................................................................................... 4
Positioning Your Originals .............................................................................. 6
Positioning Reflective Originals .............................................................6
Positioning Transparent Film ................................................................. 7
A. Using the EZ-Lock 35mm Slide Holder ..................................... 8
B. Using the EZ-Lock 35mm Filmstrip Holder .............................. 9
C. Using the EZ-Lock 6 x 22 cm (120) Film Holder ....................... 10
D. Using the EZ-Lock 4" x 5" Film Holder ..................................... 11
E. Using the Film Alignment Ruler .............................................. 12
Copyright © 2013 Microtek International, Inc. http://www.microtek.com
I49-004701 B, September 2013
Scanning Scenarios ....................................................................................... 13

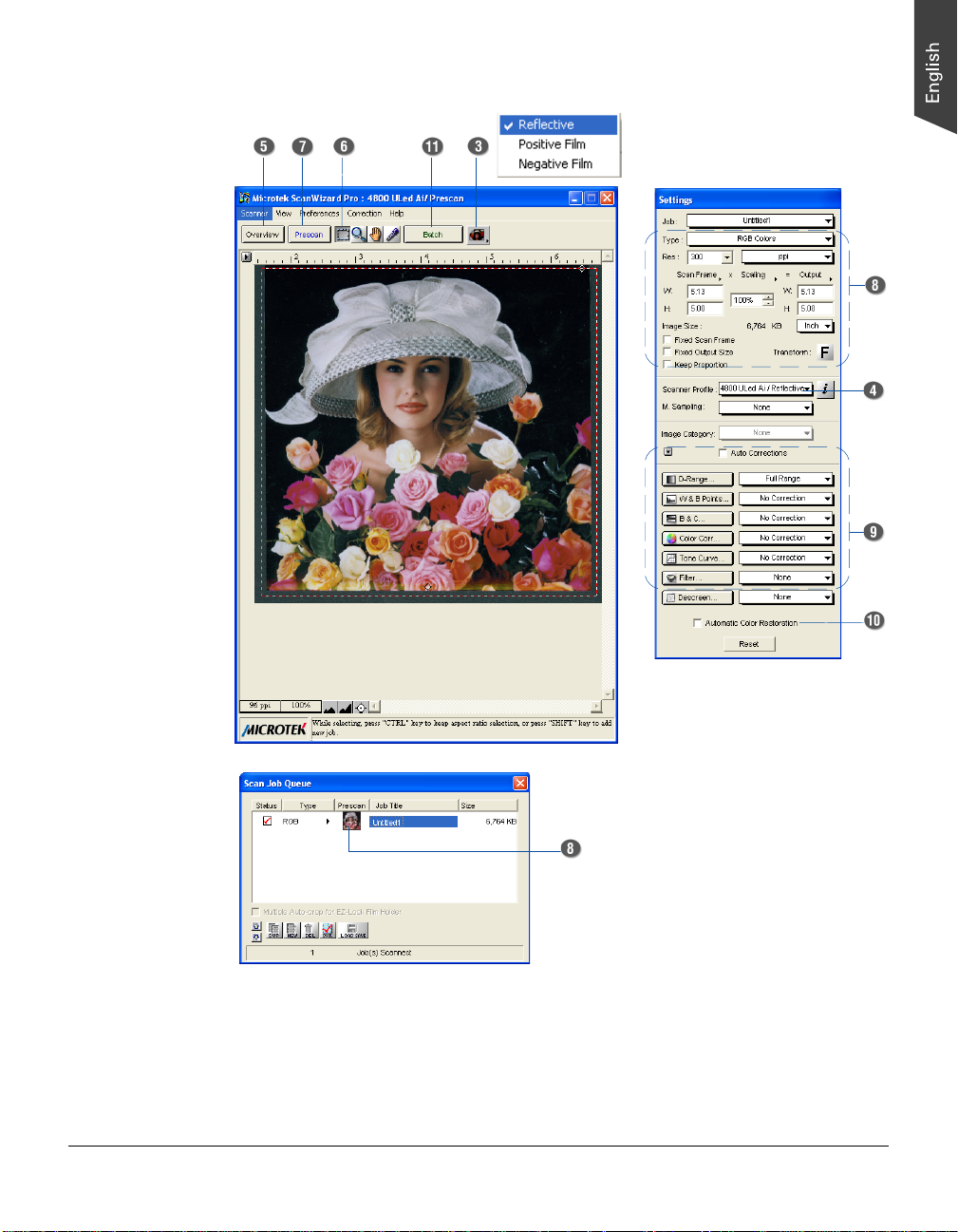

Scanning Photos ................................................................................... 14
Scanning Positive Film ......................................................................... 18
Scanning Negative Film ........................................................................ 21
Using the Microtek Scanner ICC Profiler (MSP) .......................................... 24
MSP and IT8 Calibration Data Installation ........................................... 24
Calibration Kit ........................................................................................ 24

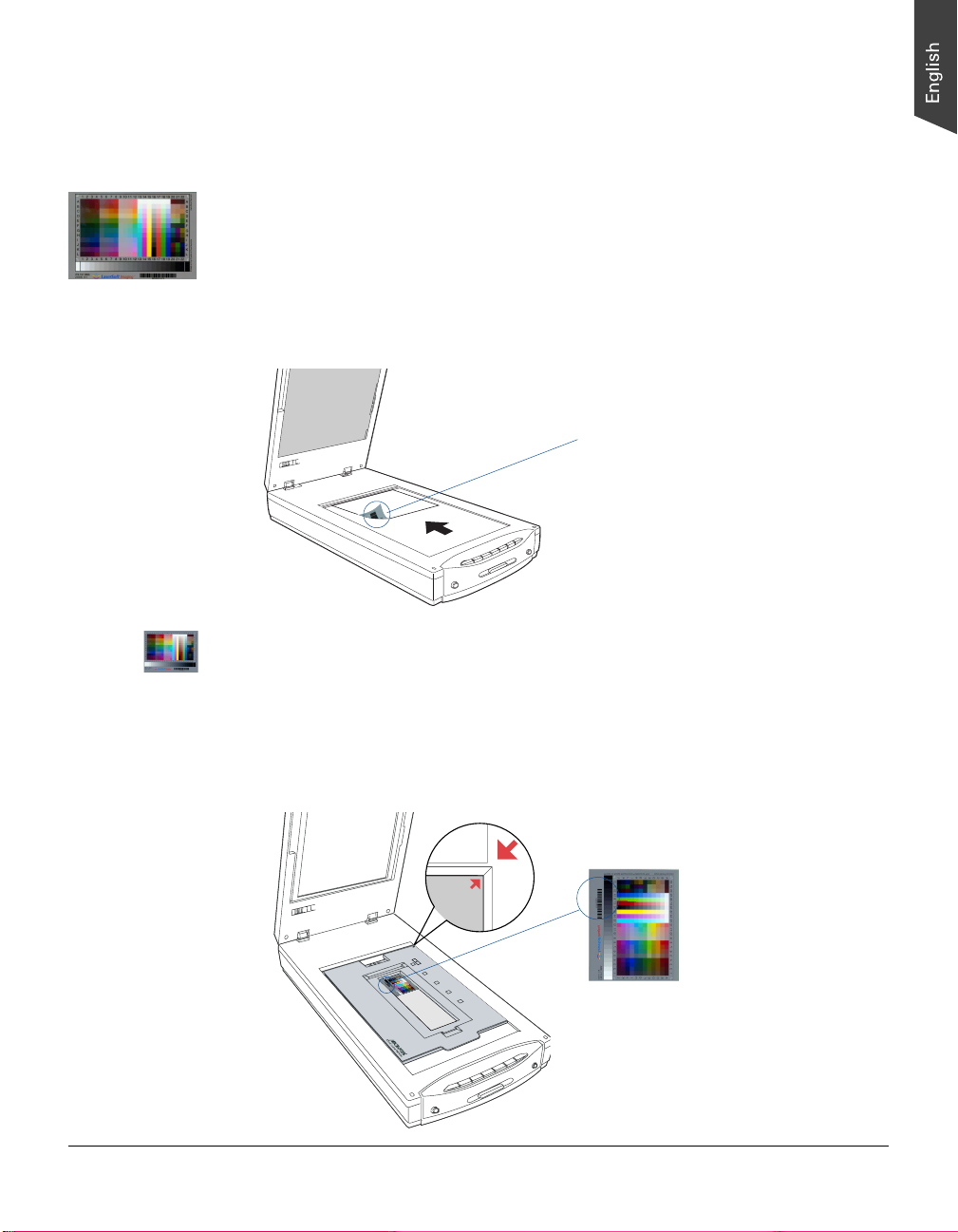

Positioning the Target ...........................................................................25
Calibration Setup ................................................................................... 26
Calibration and Profiling ....................................................................... 27
Loading a Profile ................................................................................... 28
Specifications / System Requirements ........................................................ 29
FCC Compliance Statement .......................................................................... 30
Features of the ScanMaker i800 Plus
The ScanMaker i800 Plus comes with several important features, including the
following:
• 4800 x 9600-dpi resolution: The exceptionally high resolution of the ScanMaker
i800 Plus lets you scan even postage-size images and enlarge them with amazing
clarity , with little loss of detail. The scanner’s 4.0 maximum optical density allows it
to capture a wide range of tones approximating real-life color and hues.
• Transparent Media Adapter (TMA): W ith the TMA, the ScanMaker i800 Plus lets
you scan a wide variety of slides, negatives, and transparencies, improving your
productivity and saving you money in having to acquire additional film-scanning
accessories.
• Energy-saving LED light source: Adopting LEDs as the light source, when the
scanner is detected by the system, there are no requirements for any warm-up time
before carrying out the scan, which boots your productivity and reduces energy
costs amazingly. With its stable performance, the image quality will remain
consistent even after used for a certain period of time.
• Microtek's ColoRescueTM system: W ith ColoRescue, the ScanMaker i800 Plus
restores faded colors in photos and film, bringing hues back to their original luster
and brilliance for more vibrant images. ColoRescue's one-click, automatic color
recovery process is simple and straightforward, involving no learning curve or
hassle.
• Microtek ScanWizard™ Pro scanning software: This is an advanced scanner
controller program that provides many powerful, professional-level features for
scanning. ScanWizard Pro includes the Microtek Scanner ICC Profiler (MSP)
program, which allows users to calibrate the scanner and generate the appropriate
ICC color profile to ensure color consistency and accuracy during the scanning
process. ScanWizard Pro also features two color spaces, allowing users to work in
the Native CMYK / RGB mode, as well as in the intuitive LCH (Lightness, Chroma,
Hue) mode.
2 ScanMaker i800 Plus Supplement
Locking switch
for TMA
Horizontal ruler
(top ruler)
Vertical ruler
Taking a Closer Look
Scanner lid (TMA)
Black mat
Glass surface
Smart-Touch buttons*
Power button
Sleep LED
Power connector
Accessory port, with
connector of built-in
TMA securely connected
Hi-Speed USB port (1)
*The use of ScanWizard Pro, the Smart-Touch buttons located on the front panel of the ScanMaker i800
Plus are deactivated and therefore cannot be used. The Smart-Touch buttons are intended to be used in
conjunction with ScanWizard EZ, Microtek's other scanning software, which are not bundled with the
ScanMaker i800 Plus.
ScanMaker i800 Plus Supplement 3
Unlocking the Scanner
Before you can operate the scanner, you will need to unlock the scanner and TMA.
T o unlock the scanner, follow the steps below:
1 . Remove the yellow “Step 3” sticker from your scanner .
2. With the scanner power off, tilt the back left corner of the scanner to see the
locking switch at the bottom.
3. Push the locking switch to the position as indicated in the graphic below, with the
icon on the lock showing as “unlocked”.
Unlocked
T o unlock the TMA, follow the steps below:
1 . Raise the scanner lid (TMA), then remove the yellow “Step 3” sticker from
the TMA.
2 . Look for the locking switch at the base of the TMA.
3. Push the locking switch to the position as indicated in the graphic below, with the
icon on the lock showing as “unlocked”.
4 ScanMaker i800 Plus Supplement
Unlocked
Shipping the Scanner
If you have to transport the scanner, you will need to lock the scanner and TMA
back. Follow the steps below:
1. Turn off the scanner if your scanner is on.
2 . Turn the scanner back on. The carriages of the scanner and TMA will move to the
standby position in a few moments.
3. When the lights on the front panel of your scanner stop blinking, push the
locking switch at the base of the TMA to the “Locked” position.
Locked
4. Push the locking switch at the bottom of the scanner to the “Locked” position.
Locked
5. Turn off your scanner. The scanner is now ready for transport.
ScanMaker i800 Plus Supplement 5
Positioning Your Originals
Positioning Reflective Originals
T o scan reflective originals such as photos and printed matter, use the Black Mat
which comes preattached to the scanner lid (TMA).
1 . Raise the scanner lid, and make sure the Black Mat is attached to the scanner lid.
2 . Place the reflective original face down on the scanner glass surface. Position the
top end of the photo towards the back of the scanner.
3 . Lower the scanner lid.
Black Mat
6 ScanMaker i800 Plus Supplement
Positioning Transparent Film
To scan transparent film, use the EZ-Lock Film Holders or Film Alignment Ruler
included with your ScanMaker i800 Plus package. Use the EZ-Lock Film Holders to
scan standard-size transparent film such as 35mm slides, 35mm filmstrips, 4" x 5" film,
6 x 4.5 cm, 6 x 6 cm, 6 x 7 cm, 6 x 9 cm, or 6 x 17 cm (120) film. Use the Film Alignment
Ruler to scan non-standard-size transparent film such as 8" x 10" film.
The EZ-Lock Film Holders not only ensure precise alignment of film and consistent
scans, but they perform automatic cropping during film scanning. T o scan film, use
the film holder that correctly matches the film type to be scanned.
Before proceeding with film scanning, take note of the information presented in the
two sections below.
Removing the Black Mat
The Black Mat is designed to work with scanning of reflective materials such as
photos and printed matter. It is not designed to work with scanning of slides,
negatives, and transparencies. During film scanning, the Black Mat should be
removed to reveal the light source in the scanner for film.
T o remove the Black Mat:
Raise the scanner lid, push the
Black Mat to the side (1 in
diagram) to remove it from the
scanner lid (2 in diagram).
Notes on auto-cropping for film scanning
For the scanner to perform automatic cropping during scanning, the following
conditions below should all be met:
• Your computer's operating system is either Windows or Mac OS X
• The EZ-Lock Film Holder is correctly aligned on the scan bed
• The scan material is positive or negative film, with the slide or filmstrip to be
scanned is correctly loaded on the EZ-Lock Film Holder
• In the Scan Job Queue window of ScanWizard Pro, the “Multiple Auto-crop for
EZ-Lock Film Holder” option is checked.
ScanMaker i800 Plus Supplement 7
A. Using the EZ-Lock 35mm Slide Holder
To scan 35mm slides, use the EZ-Lock 35mm
Slide Holder, which can hold up to 12
mounted 35mm slides at a time.
1 . Place the 35mm slides to be scanned inside the individual frames of the EZ-Lock
35mm Slide Holder. The shiny base of the 35mm slide should be facing down, and
the emulsion side of the slide should be facing up.
Orient the holder with
the “Microtek” logo
facing up
2 . Raise the scanner lid, then place the EZ-Lock 35mm Slide Holder towards the back
of the scanner, with the loaded film on the scanner glass surface.
Keep calibration strip
on the glass surface clear
and free of any obstruction
“Microtek” logo
8 ScanMaker i800 Plus Supplement

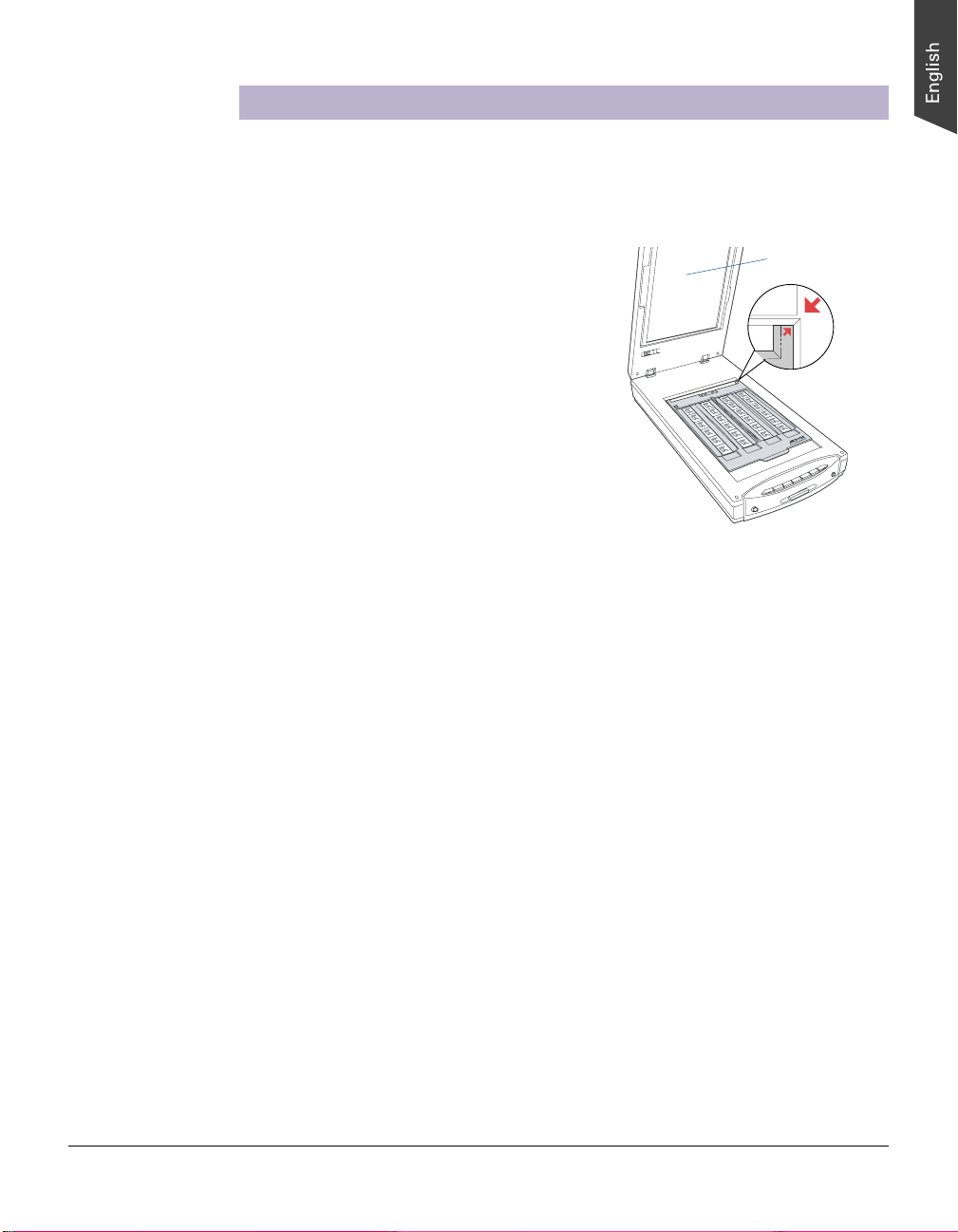

To make sure the auto multiframe
cropping feature performs correctly,
place the holder on the scan bed,
correctly oriented and showing the
side with the Microtek logo face up.
Align the red arrows so that the
holder’s front edge is flush against
the top ruler of the scanner.
B. Using the EZ-Lock 35mm Filmstrip Holder
To scan 35mm filmstrips, use the EZ-Lock
35mm Filmstrip Holder, which can
simultaneously hold four strips of 6 frames
each, or a total of 24 frames.
1 . Place the 35mm filmstrip to be scanned inside the frame of the EZ-Lock 35mm
Filmstrip Holder. The shiny base of the 35mm filmstrip should be facing down, and
the emulsion side of the filmstrip should be facing up.
Orient the holder with the
“Microtek” logo facing up
2 . Raise the scanner lid, then place the EZ-Lock 35mm Filmstrip Holder towards the
Keep calibration strip
on the glass surface clear
and free of any obstruction
back of the scanner, with the loaded film on the scanner glass surface.
To make sure the auto multiframe
cropping feature performs correctly,
place the holder on the scan bed,
correctly oriented and showing the
side with the Microtek logo face up.
Align the red arrows so that the
holder’s front edge is flush against
the top ruler of the scanner.
“Microtek” logo
ScanMaker i800 Plus Supplement 9
C. Using the EZ-Lock 6 x 22 cm (120) Film Holder
T o scan 6 x 4.5 cm, 6 x 6 cm, 6 x 7 cm, 6 x 9
cm, and 6 x 17 cm film, use the EZ-Lock 6 x
22 cm (120) Film Holder, which can hold up
to 4 pieces of 6 x 4.5 cm film, 2 pieces of 6 x
9 cm film, or a single piece of 6 x 17 cm film.
1 . Place the 120 film to be scanned inside the EZ-Lock 6 x 22 cm (120) Film Holder , as
indicated in the graphics below . The shiny base of the 120 film should be facing
down, and the emulsion side of the filmstrip should be facing up.
a) Push on the side to
2 . Raise the scanner lid, then place the EZ-Lock 6 x 22 cm (120) Film Holder towards
Keep calibration strip
on the glass surface clear
and free of any obstruction
open the lid.
b) Place the film face
down into the holder.
c) Pull down the side
to close the lid.
the back of the scanner, with the loaded film on the scanner glass surface.
To make sure the auto multiframe
cropping feature performs correctly,
place the holder on the scan bed,
correctly oriented and showing the
side with the Microtek logo face up.
Align the red arrows so that the
holder’s front edge is flush against
the top ruler of the scanner.
“Microtek” logo
10 ScanMaker i800 Plus Supplement
D. Using the EZ-Lock 4" x 5" Film Holder
T o scan 4" x 5" film, use the EZ-Lock 4" x 5"
Film Holder, which can hold up to 2 pieces of
4" x 5" film at a time.
1 . Place the 4" x 5" film to be scanned inside the EZ-Lock 4" x 5" Film Holder, as
indicated in the graphics below. The shiny base of the 4" x 5" film should be
facing down, and the emulsion side of the filmstrip should be facing up.
a) Push on the side to
2 . Raise the scanner lid, then place the EZ-Lock 4" x 5" Film Holder towards the back
Keep calibration strip
on the glass surface clear
and free of any obstruction
open the lid.
b) Place the film face
down into the holder.
c) Pull down the side
to close the lid.
of the scanner, with the loaded film on the scanner glass surface.
To make sure the auto multiframe
cropping feature performs correctly,
place the holder on the scan bed,
correctly oriented and showing the
side with the Microtek logo face up.
Align the red arrows so that the
holder’s front edge is flush against
the top ruler of the scanner.
“Microtek” logo
ScanMaker i800 Plus Supplement 11
Calibration strip
E. Using the Film Alignment Ruler
To scan non-standard-size film such as
8" x 10" film, use the Film Alignment Ruler ,
which allows you to scan film up to
8" x 12" in size.
1 . Place the Film Alignment Ruler towards the back of the scanner on the scanner
glass surface.
Important: Align the Film Alignment
Ruler firmly against the top ruler of the
scanner, with the ruler oriented
correctly and with the correct side up.
During placement of the Ruler, make
sure that the calibration strip on the
Ruler is kept clear and free of
obstruction at all times.
2 . Place the film (non-standard size film) to be scanned on the scanner glass surface,
and center the film along the Film Alignment Ruler on the scanner .
12 ScanMaker i800 Plus Supplement
Scanning Scenarios
The following pages provide various scenarios for scanning with the ScanMaker i800
Plus by using ScanWizard Pro, including the following:
• Scanning photos: This scenario can also be your first scan in order to familiarize
yourself with scanning basics.
• Scanning positive film: This scenario details the steps for scanning positive film,
such as 35mm mounted slides and X-rays.
• Scanning negative film: This scenario details the steps for scanning negative film,
such as 35mm filmstrips, 6 x 4.5 cm, 6 x 6 cm, 6 x 7 cm, 6 x 9 cm, 6 x 17 cm film, and
4" x 5" film.
Note: In the following pages that detail the various scanning scenarios, the
ScanWizard Pro interface is shown with the Preview, Settings, and Scan Job Queue
windows as they appear in Windows.
The appearance of the windows will change slightly in Mac OS X for the Mac
platform, but the location of the various commands and icons remain in
approximately the same locations throughout the ScanWizard Pro interface.
ScanMaker i800 Plus Supplement 13
Scanning Photos
1. Raise the scanner lid, and place the photo to be
Black Mat
scanned face down on the scanner glass surface.
Position the top end of the photo towards the
back of the scanner.
Make sure the Black Mat is attached on the
scanner lid, and then close the scanner lid before
you launch ScanWizard Pro.
2 . Launch ScanW izard Pro either as a stand-alone by clicking on the program icon, or
by using the File-Import or File-Acquire command from your image-editing
program (such as Adobe Photoshop). Alternatively, you can start ScanWizard Pro
from the Applications folder in your Mac OS X system.
• The first time when you launch ScanWizard Pro, you will be prompted to
perform color calibration for your scanner. (Dialog boxes shown in W indows
XP and Mac OS X).
Allows you to specify
how often you wish to
be prompted to
calibrate the scanner.
The default setting is
14 days
- Click the Skip button to exit the “Calibration Reminder” window. Clicking
the Skip button allows you to use the factory default ICC profile for your
scanner.
Note: If your scanner does not include IT8 calibration targets, disregard
the Calibration reminder window whenever it appears, and click the
Skip button always.
- Click the Calibrate button to run the Microtek Scanner ICC Profiler (MSP)
program to perform color calibration and to customize the ICC profile for
your scanner. After finishing with calibration, relaunch ScanW izard Pro.
Note: The MSP program should be installed before you perform color
calibration for your scanner. For details on how to install the MSP program
and how to use it to calibrate the scanner, refer to section of the manual
titled “Using the Microtek Scanner ICC Profiler”.
14 ScanMaker i800 Plus Supplement
• Next, you will be prompted to set up color matching for your scanner. If you
are not sure about what to do, simply click the OK button to accept the
settings. You can always change the settings at a later time.
For more information, see the Color Matching Setup section in the
ScanWizard Pro Reference Manual in the Microtek CD.
Pertains to how
your monitor
displays color,
relative to the RGB
Destination color
Color Matching
saturation of an
Immediately updates the Preview window image
when a new setting is selected. This will reflect
colors consistent with the newly selected profile
space
features
Improves the
contrast and
3 . Go to the Preview window of ScanWizard Pro, and choose Reflective from the
Scan Material menu.
4 . Optional: If calibration has been
performed, go to the Settings window
in ScanWizard Pro. Choose the profile
you have just created in the Input
Profile / Scanner Profile menu.
5 . Click the Overview button to perform a preliminary scan of the image, which will
appear in the Preview window .
6 . Select the Scan Frame tool from the Toolbar in the Preview window, and choose
the area to be scanned by dragging a rectangle around it. You will see a flashing
frame (marquee) around the selected area.
7 . Click the Prescan button to display a detailed image of area selected by the
Scan Frame tool. A thumbnail of the image appears as well in the Scan Job
Queue window .
ScanMaker i800 Plus Supplement 15
8 . Specify your scanning requirements in the Settings window.
a) Select a desired image type.
b) Select a desired resolution.
c) Adjust the scan frame settings if necessary.
9. Adjust image quality if necessary , using the Advanced Image Correction (AIC) tools.
10. If the colors in your photo are faded and need restoring, check the “Automatic
Color Restoration” box in the Settings window .
11. Click the Scan (or “Batch”) button in the Preview window to start scanning.
• If ScanWizard Pro was launched from an application program, the image is then
delivered to your application, where the image can be saved, printed, or edited.
Note: In Mac OS X, you will be prompted to specify the file attributes for the
scanned image before scanning takes place.
• If ScanWizard Pro was launched in stand-alone mode, you will be prompted to
specify the file attributes for the scanned image after the Scan or Batch
button is pressed, such as entering the file name, specifying a folder name of
your own, etc. When you have completed the settings, press the Done/Save
button, and the scanner will automatically scan and save your image based on
your settings.
16 ScanMaker i800 Plus Supplement

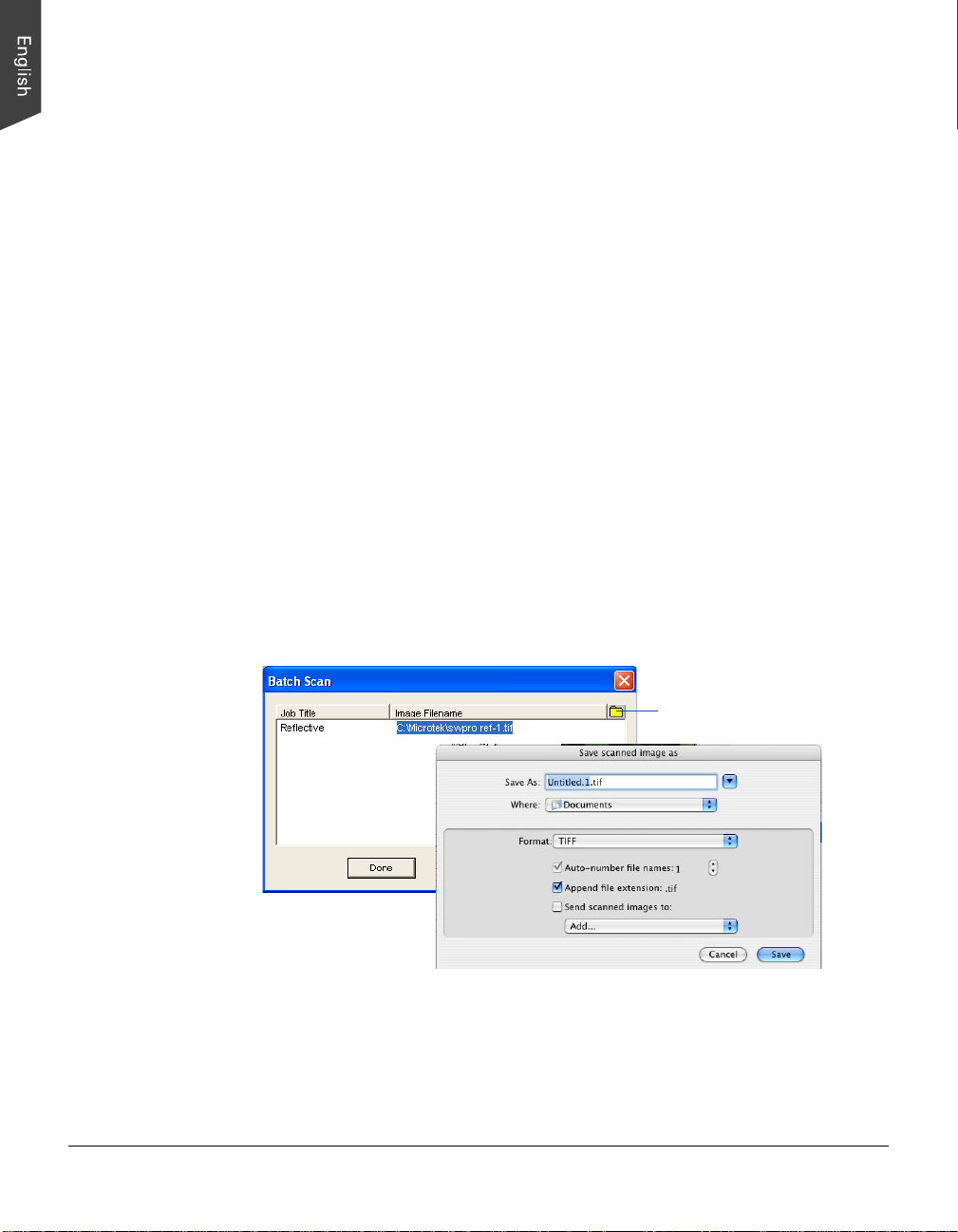

Click the Folder icon to
specify a folder or file name
of your own.
ScanMaker i800 Plus Supplement 17
Scanning Positive Film
1. Raise the scanner lid, then load the positive
film that you wish to scan and place the EZ-
Remove the
Black Mat
Lock Film Holder on the scanner glass
surface.
Gently lower the scanner lid down onto the
scanner glass bed.
Important: Do not use the Black Mat. For
details on how to use the EZ-Lock Film
Holder and how to place film, see the section
“Positioning Transparent Film” elsewhere in
this document.
2 . Launch ScanW izard Pro either as a stand-alone by clicking on the program icon, or
by using the File-Import or File-Acquire command from your image-editing
program (such as Adobe Photoshop). Alternatively, you can start ScanWizard Pro
from the Applications folder in your Mac OS X system.
3 . Go to the Preview window and choose Positive / Positive Film from the Scan
Material menu.
If this is your first time to scan transparent media, you will be prompted to perform
color calibration for your scanner. A Calibration Reminder window appears.
- Click the Skip button to exit the “Calibration Reminder” window. Clicking the
Skip button allows you to use the factory default ICC profile for your scanner.
Note: If your scanner does not include IT8 calibration targets, disregard the
Calibration reminder window whenever it appears, and click the Skip
button always.
- Click the Calibrate button to run the Microtek Scanner ICC Profiler (MSP)
program to perform color calibration and to customize the ICC profile for your
scanner. After finishing with calibration, relaunch ScanW izard Pro.
18 ScanMaker i800 Plus Supplement
Allows you to specify
how often you wish to
be prompted to calibrate
the scanner. The default
setting is 14 days
Note: The MSP program should be installed before you perform color
calibration for your scanner. For details on how to install the MSP program and
how to use it to calibrate the scanner, refer to section of the manual titled
“Using the Microtek Scanner ICC Profiler”.
4 . Optional: If calibration has been
performed, go to the Settings window
in ScanWizard Pro. Choose the profile
you have just created in the Input
Profile / Scanner Profile menu.
5 . Click the Overview button to perform a preliminary scan of your original.
6 . Select the Scan Frame tool from the T oolbar in the Preview window, and choose
the area to be scanned by dragging a rectangle around it. You will see a flashing
frame (marquee) around the selected area.
7 . Click the Prescan button to display a detailed image area selected via the
Scan Frame tool. A thumbnail of the image appears as well in the Scan Job
Queue window.
8 . Specify your scanning requirements in the Settings window.
a) Select a desired image type.
b) Select a desired resolution.
c) Adjust the scan frame settings if necessary.
9. Adjust image quality if necessary , using the Advanced Image Correction (AIC) tools.
10. If the colors in your photo are faded and need restoring, check the “Automatic
Color Restoration” box in the Settings window .
11. Click the Scan (or “Batch”) button in the Preview window to start scanning.
• If ScanWizard Pro was launched from an application program, the image is then
delivered to your application, where the image can be saved, printed, or edited.
Note: In Mac OS X, you will be prompted to specify the file attributes for the
scanned image before scanning takes place.
• If ScanWizard Pro was launched in stand-alone mode, you will be prompted to
specify the file attributes for the scanned image after the Scan or Batch
button is pressed, such as entering the file name, specifying a folder name of
your own, etc. When you have completed the settings, press the Done/Save
button, and the scanner will automatically scan and save your image based on
your settings.
ScanMaker i800 Plus Supplement 19
The New button
allows you to
create as many
scan jobs as you
wish, and each
scan job can
then have its
own settings.
20 ScanMaker i800 Plus Supplement
The Load/Save button allows you to
select a film template mode from a list of
predefined modes. The selected template
mode will crop the images and replace
all existing scan jobs automatically.
Check the “Multiple Auto-crop for
EZ-Lock Film Holder” option
Scanning Negative Film
Note: Make sure you read the chapter “Addendum to ScanWizard Pro” in the
ScanWizard Pro Reference Manual for important information on new features
related to Negative Film Scanning.
1. Raise the scanner lid, then load the
negative film that you wish to scan and
Remove the
Black Mat
place the EZ-Lock Film Holder on the
scanner glass surface.
Gently lower the scanner lid down onto the
scanner glass bed.
Important: Do not use the Black Mat. For
details on how to use the EZ-Lock Film
Holder and how to place film, see the
section “Positioning Transparent Film”
elsewhere in this document.
2 . Launch ScanW izard Pro either as a stand-alone by clicking on the program icon, or
by using the File-Import or File-Acquire command from your image-editing
program (such as Adobe Photoshop). Alternatively, you can start ScanWizard Pro
from the Applications folder in your Mac OS X system.
3 . Go to the Preview window and choose Negative / Negative Film from the Scan
Material menu.
4 . Click the Overview button to perform a preliminary scan of your original.
5 . Select the Scan Frame tool from the T oolbar in the Preview window, and choose
the area to be scanned by dragging a rectangle around it. You will see a flashing
frame (marquee) around the selected area.
6 . Click the Prescan button to display a detailed image. A thumbnail of the image
appears as well in the Scan Job Queue window.
7. In the Negative Scan Settings window, you can specify options related to your
scanned negative film. Follow the steps below.
a) In the Negative Scan Settings window, choose the Film Brand, Film Type, and
ISO settings that match your film.
b) The settings for the negative film you selected are applied to the prescan
image, and the adjusted image is displayed in the Preview window .
ScanMaker i800 Plus Supplement 21
c) You can save the selected negative
film settings into the Preset dropdown menu for easy access in the
future.
For more details on how to control
settings for negative film scanning, see
the section “Negative Scan Settings
Window” in the ScanW izard Pro
Reference Manual in the Microtek CDROM.
8. Specify your scanning requirements in the Settings window.
a) Select a desired image type.
b) Select a desired resolution.
c) Adjust the scan frame settings if necessary.
9. Adjust image quality if necessary , using the Advanced Image Correction (AIC) tools.
10. If the colors in your film are faded and need restoring, check the “Automatic Color
Restoration” box in the Settings window .
11. Click the Scan (or “Batch”) button in the Preview window to start scanning.
• If ScanWizard Pro was launched from an application program, the image is then
delivered to your application, where the image can be saved, printed, or edited.
Note: In Mac OS X, you will be prompted to specify the file attributes for the
scanned image before scanning takes place.
• If ScanWizard Pro was launched in stand-alone mode, you will be prompted to
specify the file attributes for the scanned image after the Scan or Batch
button is pressed, such as entering the file name, specifying a folder name of
your own, etc. When you have completed the settings, press the Done/Save
button, and the scanner will automatically scan and save your image based on
your settings.
22 ScanMaker i800 Plus Supplement
Check the “Multiple Auto-crop for
EZ-Lock Film Holder” option
ScanMaker i800 Plus Supplement 23
Using the Microtek Scanner ICC Profiler (MSP)
The Microtek Scanner ICC Profiler (MSP) is a scanner calibration and profiling utility
program designed exclusively for Microtek scanners. Used together with the color
calibration target, the ICC Profiler determines the color attributes of your scanner
accurately, then generates an ICC profile tailored exclusively for the scanner that you
are using under ScanWizard Pro.
MSP and IT8 Calibration Data Installation
Before installing MSP, ScanW izard Pro needs to be installed on your system. This will
ensure that the MSP utility will install and function properly .
T o install MSP , take note of the following:
• For PC: MSP installation will automatically launch following the ScanW izard Pro
installation. Follow the on-screen instructions to install and you will be prompted
to insert the IT8 Calibration Data CD included in your software kit. Insert the IT8
Calibration Data CD to ensure that the MSP utility will have the latest color profile
targets to reference. Then the MSP installation is complete.
• For Mac OS X: Double click the MSP installer icon. After installing the software,
insert the IT8 Calibration Data CD and double-click the IT8 installer icon. Follow
the on-screen instructions to install the IT8 Calibration Data to ensure that the
MSP utility will have the latest color profile targets to reference. Then the MSP
installation is complete.
Calibration Kit
If the scanner you purchased contains IT8 calibration kit, there should include two
industry-standard IT8 color targets for calibration: a Reflective target (10 x 15-cm) to
calibrate the scanner for scanning photos; and a Transparency target (6 x 7-cm) to
calibrate the scanner for scanning film.
If the scanner you purchased does not contain IT8 calibration kit, you may purchase
industry-standard IT8 color targets from supplying stores near you if necessary.
The calibration targets are very delicate and must be handled carefully . Take note of
the following:
• Gently remove targets from their respective protective sleeves and avoid touching
the target image surface.
• When not in use, keep targets in their sleeves and keep away from light and heat.
Note: To keep the colors in your scanner consistent, you should perform color
calibration on a regular basis. Professional photographers, graphic designers or
others who require extremely precise color may wish to calibrate the scanner every
time it is used.
24 ScanMaker i800 Plus Supplement
Positioning the Target
Proper positioning of the target on the scanner is important for successful calibration.
Incorrect positioning of the target will result in an unsuccessful calibration.
A. Positioning the Reflective Target
1. Flip and place the reflective target on the scanner glass surface, making sure that
the top end of the target is positioned toward the back of the scanner , with its
edge firmly aligned against the ruler.
2. Using the scanner's top ruler as a point of reference, adjust the target so that it is
positioned at the center of the scanner glass bed.
Important: Make sure that the
reflective target is facing down and
the side of the target (with the
barcode) is at the left side of the
scanner.
B. Positioning the Transparent Target
1 . Flip and place the transparent target inside the EZ-Lock 6 x 22 cm (120) Film
Holder; orientation of the target is critical. Refer to the section “C. Using the EZLock 6 x 22 cm (120) Film Holder” on page 10 of this manual to load the film.
2 . Place the EZ-Lock 6 x 22 cm (120) Film Holder towards the back of the scanner,
with the loaded target on the scanner glass surface.
Important: Make sure that the
transparent target is facing down
and the side of the target (with the
barcode) is at the left side of the
scanner.
ScanMaker i800 Plus Supplement 25
Calibration Setup
With the target properly positioned on the scanner, turn on your scanner and
let it warm up for about five minutes. Launch the MSP program; the MSP main
window appears.
A
B
D
C
A. Choose the scanner model that you are calibrating.
B . Choose the correct target media. If you are calibrating the reflective target, select
Reflective. Otherwise, select Positive.
C. Select the date code and target type
(or reference number) from the dropdown list that matches your target.
Y ou can verify this information by
Date code and target type information
looking at the left and right corners
of the target’ s bottom mar gin.
If the desired data file is not present in the drop-down menu, install the IT8
Calibration Data to update the target profiles in your system.
D. When all the settings are done, click the Start (or Start Profiling) button. The
calibration window will appear, and an initial preview of the tar get is performed.
26 ScanMaker i800 Plus Supplement
Calibration and Profiling
After the Preview, you are now ready to complete calibration and create a profile for
your scanner.
1. Scan the target. To do this, select the entire target by dragging a frame over it, and
then click the Next>> button.
2 . Align the registration marks of the target with your cursor (see inset at bottom
of page).
3 . Click the Create Profile button (PC) or Finish button (Mac) to create the scanner
ICC profile. At the end of the profiling process, a dialog box appears, prompting
you to enter a profile name and description.
Aligning the Registration Marks
A. Upper-left registration mark
Move the cursor to the target image
area; the pointer will change to a
horizontally flipped L mark (“ ”).
Align the cursor with the small upperleft registration mark.
B. Upper-right registration mark C. Bottom-right registration mark
After the upper left mark is aligned,
the upper right part of the target image
is displayed, and an instruction dialog
box prompts you to align the upper
right registration mark.
Move the cursor to the target image
area; the pointer will change to a
normal L mark (“ ”). Align the cursor
with the small upper-right registration
mark.
After the upper right mark is aligned,
the lower right part of the target
image is displayed, and an instruction
dialog box prompts you to align the
bottom-right registration mark.
Move the cursor to the target image
area; the pointer will change to a
vertically flipped L mark (“ ”). Align
the cursor with the small bottomright registration mark.
ScanMaker i800 Plus Supplement 27
Loading a Profile
Once the profile has been produced, follow the steps below to load the profile you
just created.
1 . Launch ScanWizard Pro.
2 . In the Preview window, click the Scan Material icon. Select the “Reflective”
option for reflective materials; select the “Positive” or “Positive Film” option for
transparencies and slides.
3 . From the Settings window, click the Scanner Profile/Input Pr ofile list box, and
select the profile you have just created.
28 ScanMaker i800 Plus Supplement
Specifications
Model Type MRS-9600TFU2L
Image Sensor CCD (Charge-Coupled Device)
Light Source LED (Light Emitting Diode)
Scanning Modes Color, grayscale, and black-and-white in a single scanning pass
True 48-bit color (approx. 281 x 1012 colors)
16-bit grayscale (approx. 65,536 shades of gray)
Scanning Area Reflective: 8.5" x 14" (216 mm x 356 mm)
Transparent: 8" x 12" (203 mm x 305 mm)
Resolution Optical: 4800 dpi x 9600 dpi
Interpolated: 65,535 dpi (PC); 32,767 dpi (Mac)
Dynamic Range 4.0 Dmax
Interface Hi-Speed USB (USB 2.0)
Dimensions (L x W x H) 22.6" x 11.7" x 4.6" (576 mm x 297 mm x 118 mm)
Net Weight 14.1 lbs (6.4 kg)
Voltage AC 100V to 240V, 50/60 Hz (Input)
DC 15V, 2.5A (Output)
Power Consumption 38 W (Max)
Environment Operating Temperature: 50° F to 104° F (10° C to 40° C)
Relative Humidity: 20% to 85%
Power supply
(AC/DC adapter) 100V to 240V WUXI HARD HDAD38W101
Voltage Manufacturer Model No.
System Requirements
General Requirements
• CD/DVD-ROM drive (for installing software)
• Color display with 24-bit color output capability
• 512 MB RAM or more
PC and compatibles
• Pentium IV PC or higher with Hi-Speed USB (USB 2.0) port
• Microsoft W indows XP, Vista or Windows 7
Macintosh
• iMac or Mac G3/G4/G5 with built-in USB port
• Mac OS X 10.4 or later
Important
Specifications, software bundles, and accessories are subject to change without
notice. Not responsible for typographic errors.
ScanMaker i800 Plus Supplement 29
FCC Compliance Statement
This equipment (Model: MRS-9600TFU2L) has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: A shielded Hi-Speed USB interface cable with ferrite core installed on the
scanner connector and must be used with this equipment.
Caution: Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
30 ScanMaker i800 Plus Supplement
Loading...
