Welcome to the world of Mercedes-AMG
Before you first drive off, read this Operator's Manual carefully and familiarize yourself with your vehicle. For your own safety and a longer operating lifespan, follow the instructions and warning notices in this Operator's Manual. Disre garding them may lead to damage to the vehicle or personal injury.
Vehicle damage resulting from the disregard of the instructions is not covered by the MercedesBenz Limited Warranty.
The equipment or model designation of your vehicle may vary according to:
RModel
ROrder
RNational version
RAvailability
Mercedes-AMG reserves the right to introduce changes in the following areas:
RDesign
REquipment
The equipment in your vehicle may therefore dif fer from that shown in the descriptions and illus trations.
The following are integral parts of the vehicle:
RDigital Operator's Manual
RPrinted Operator's Manual
RMaintenance Booklet
REquipment-dependent supplements
Keep these documents in the vehicle at all times. If you sell the vehicle, always pass all of the documents on to the new owner.
Mercedes-Benz USA, LLC Mercedes-Benz Canada, Inc. A Daimler Company
2055841821
R Technical features |
2055841821 |
|
2Contents
Symbols ........................................................ |
3 |
At a glance .................................................... |
4 |
Cockpit ........................................................... |
4 |
General notes ............................................... |
7 |
Operator's Manual .......................................... |
7 |
Operating safety ............................................. |
7 |
Qualified specialist workshop ......................... |
8 |
Correct use of the vehicle ............................... |
9 |
Limited Warranty ............................................ |
9 |
Seat belts .................................................... |
10 |
Reduced protection ...................................... |
10 |
Seats ............................................................ |
11 |
Adjusting the AMG Performance seat ........... |
11 |
Driving and parking .................................... |
12 |
Driving .......................................................... |
12 |
DYNAMIC SELECT switch .............................. |
14 |
Automatic transmission ................................ |
16 |
Driving and driving safety systems ................ |
18 |
Function of the AMG DRIVE UNIT ................. |
24 |
Instrument Display and on-board |
|
computer .................................................... |
25 |
Notes on the Instrument Display and on- |
|
board computer ............................................ |
25 |
Calling up displays on the Performance |
|
menu ............................................................ |
25 |
Displaying and starting RACETIMER in |
|
the Performance menu ................................. |
27 |
Function of the Head-up Display ................... |
28 |
Multimedia system .................................... |
30 |
AMG TRACK PACE ........................................ |
30 |
Breakdown assistance .............................. |
35 |
Flat tire ......................................................... |
35 |
Wheels and tires ........................................ |
36 |
Overview of the tire-change tool kit .............. |
36 |
Changing a wheel ......................................... |
36 |
Cover of jack support points ........................ |
37 |
Technical data ............................................ |
38 |
Operating fluids ............................................ |
38 |
Vehicle data .................................................. |
39 |
Display messages and warning/indi |
|
cator lamps ................................................ |
42 |
Display messages ......................................... |
42 |
Warning and indicator lamps ........................ |
43 |
Index ........................................................... |
44 |
Symbols 3
In this Operator's Manual, you will find the fol lowing symbols:
&DANGER Danger due to not observing the warning notices
Warning notices draw your attention to haz ards that may endanger your health or life, or the health or life of others.
# Observe the warning notices.
+ENVIRONMENTAL NOTE Environmental damage due to failure to observe envi ronmental notes
Environmental notes include information on environmentally responsible behavior or envi ronmentally responsible disposal.
# Observe environmental notes.
*NOTE Damage to property due to failure to observe notes on material damage
Notes on material damage inform you of risks which may lead to your vehicle being damaged.
#Observe notes on material damage.
%Useful instructions or further information that could be helpful to you.
XInstruction
(Q page) Further information on a topic
Display Information on the multifunction dis play/media display
+Highest menu level, which is to be selected in the multimedia system
*Corresponding submenus, which are to be selected in the multimedia sys tem
* |
Marks a cause |
4At a glance – Cockpit
Left-hand-drive vehicles
At a glance – Cockpit |
5 |
1 Steering wheel paddle shifters |
→ |
16 |
|
|
|
2 Combination switch |
|
|
|
|
|
3 DIRECT SELECT lever |
|
|
|
|
|
4 Multimedia system display |
|
|
|
|
|
5 Glove box |
|
|
|
|
|
6 Start/stop button |
→ |
12 |
|
|
|
7 Climate control systems |
|
|
|
|
|
8 Control elements for the multimedia system |
|
|
|
|
|
9 Hazard warning lamps |
|
|
|
|
|
A PASSENGER AIR BAG indicator lamp |
|
|
|
|
|
B Stowage compartment |
|
|
|
|
|
C Control knob for volume and switching sound |
|
|
on/off |
|
|
|
|
|
Switches the multimedia system on/off |
|
|
|
|
|
D AMG Performance exhaust system |
→ |
14 |
|
|
|
E ECO start/stop function |
→ |
13 |
|
|
|
F Active Parking Assist |
|
|
|
|
|
G Opens and closes the soft top
H Activates and deactivates AIRCAP
I Stowage compartment
J Opening and closing the side windows
K Activates/deactivates ESP® |
→ |
18 |
L AMG adaptive sport suspension system |
→ |
23 |
|
|
|
M Manual gearshifting (permanent setting) |
→ |
16 |
|
|
|
N DYNAMIC SELECT switch |
→ |
15 |
|
|
|
O Control panel for the multimedia system |
|
|
|
|
|
P Control panel for the multimedia system |
|
|
(steering wheel) |
|
|
|
|
|
Q AMG DRIVE UNIT actuator |
→ |
24 |
|
|
|
R AMG DRIVE UNIT buttons |
→ |
24 |
|
|
|
S Adjusts the steering wheel |
|
|
|
|
|
T Control panel for the on-board computer |
|
|
Operates cruise control
Operates Active Distance Assist DISTRONIC
6At a glance – Cockpit
U Diagnostics connection
V Opens the hood
W Electric parking brake
X Light switch
Y Control panel for:
Active Steering Assist
Active Lane Keeping Assist
Parking Assist PARKTRONIC
Head-up Display
Extends/retracts the seat belt extender
General notes |
7 |
Operator's Manual
This Supplement provides information on all the important functions of your AMG vehicle that are either not described or differ from the descrip tions in the vehicle Operator's Manual. This information supplements or replaces the corre sponding sections in the vehicle Operator's Man ual. Under no circumstances does the Supple ment replace the Operator's Manual.
This Supplement describes all models, and standard and optional equipment for your vehi cle, as available at the time of going to press. Country-specific differences are possible. Bear in mind that your vehicle may not feature all functions described here. This is also the case for systems and functions relevant to safety. Therefore, the equipment on your vehicle may differ from that in the descriptions and illustra tions.
The original purchase contract documentation for your vehicle contains a list of all of the sys tems in your vehicle.
Should you have any questions concerning equipment and operation, please consult an authorized Mercedes-Benz Center.
The Operator's Manual, the Supplement and the Maintenance Booklet are important documents and should be kept in the vehicle.
Operating safety
&WARNING Risk of accident due to mal functions or system failures
If you do not have the prescribed service/ maintenance work or any required repairs carried out, this could result in malfunctions or system failures.
#Always have the prescribed service/ maintenance work as well any required repairs carried out at a qualified spe cialist workshop.
&WARNING Risk of accident or injury due to incorrect modifications on electronic component parts
Modification of electronic components, their software or wiring could impair their function and/or the function of other networked com ponent parts. In particular, systems relevant to safety could also be affected.
As a result, these may no longer function properly and/or jeopardize the operating safety of the vehicle.
#Never tamper with the wiring and elec tronic component parts or their soft ware.
#You should have all work on electrical and electronic components carried out at a qualified specialist workshop.
Observe the "On-board electronics" section in "Technical data" in the vehicle Operator's Man ual.
8General notes
&WARNING Risk of fire due to flammable materials on hot parts of the exhaust system
Flammable material such as leaves, grass or twigs may ignite if they come into contact with hot parts of the exhaust system.
#When driving on unpaved roads or offroad, regularly check the vehicle under side.
#Remove trapped plants or other flam mable material.
#If there is damage, consult a qualified specialist workshop immediately.
* NOTE Damage to the vehicle
In the following situations, in particular, there is a risk of damage to the vehicle:
RThe vehicle becomes grounded, e.g. on a high curb or an unpaved road
RThe vehicle is driven too fast over an obstacle, e.g. a curb, speed bump or pot hole
RA heavy object strikes the underbody or chassis components
In situations such as this, the body, the underbody, chassis components, wheels or tires could be damaged without the damage being visible. Components damaged in this way can unexpectedly fail or, in the case of an accident, may not absorb the loads that arise as intended.
If the underbody paneling is damaged, flam mable materials such as leaves, grass or twigs can collect between the underbody and the underbody paneling. These materials may ignite if they come into contact with hot parts on the exhaust system.
#Have the vehicle checked and repaired immediately at a qualified specialist workshop.
or
#If driving safety is impaired while con tinuing your journey, pull over and stop the vehicle immediately in accordance with the traffic conditions, and contact a qualified specialist workshop.
Qualified specialist workshop
An authorized Mercedes-Benz Center is a quali fied specialist workshop. It has the necessary special skills, tools and qualifications to cor rectly carry out the work required on your vehi cle. This particularly applies to safety-relevant works.
For the following, always have your vehicle checked at an authorized Mercedes-Benz Cen ter:
Rsafety-relevant works
Rservice and maintenance work
Rrepair work
Rmodifications as well as installations and conversions
Rwork on electronic components
General notes |
9 |
Mercedes AMG recommends a Mercedes Benz service center.
Correct use of the vehicle
If you remove any warning stickers, you or others could fail to recognize certain dangers. Leave warning stickers in position.
Observe the following information in particular when driving your vehicle:
Rthe safety notes in this manual
Rtechnical data for the vehicle
Rtraffic rules and regulations
Rlaws and safety standards pertaining to motor vehicles
Limited Warranty
*NOTE Damage to the vehicle arising from violation of these operating instruc tions.
Damage to the vehicle can arise from viola tion of these operating instructions.
This damage is not covered either by the Mercedes-Benz implied warranty or by the New or Used-Vehicle Warranty.
#Follow the instructions in these operat ing instructions on proper operation of your vehicle as well as on possible vehi cle damage.
10 Seat belts
Reduced protection
The AMG sport seat and the AMG Performance seat are designed for the standard three-point seat belt. If you install a different multipoint seat belt, e.g. sport or racing seat belt, the restraint system cannot provide the intended level of pro tection.
Depending on the type of seat, there may be openings in the seat backrest. These openings have no function.
&WARNING Risk of injury or fatal injury due to modified seat belt systems
If you feed seat belts through the opening in the seat backrest, the seat backrest may be damaged or may even break in the event of an accident.
#Only use the standard three-point seat belt.
#Never modify the seat belt system.
Seats 11
Adjusting the AMG Performance seat

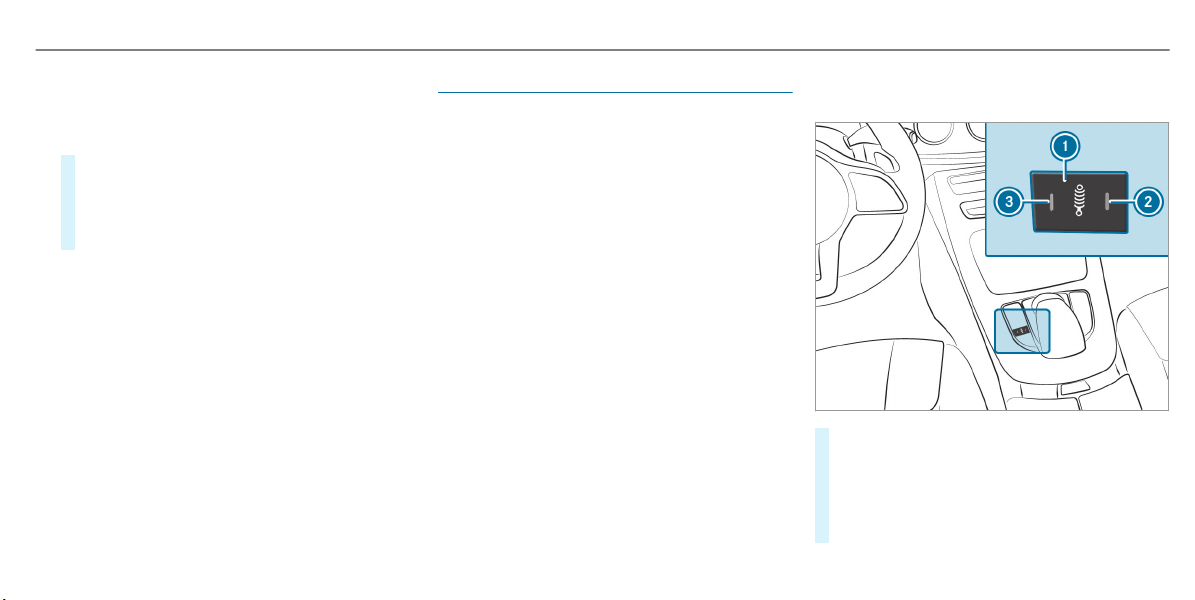

To adjust the contour of the seat and for improved lateral support, you can adjust the front seats individually.
On the front passenger seat, you can adjust only the seat side bolsters of the seat backrest.
#To adjust the seat side bolsters of the seat cushion: press button 1 (narrower) or 2 (wider).
#To adjust the seat side bolsters of the seat backrest: press button 3 (narrower) or 4 (wider).
12 Driving and parking
Driving
Breaking-in notes
To preserve the engine during the first 1,000 miles (1,500 km):
RDrive at varying road speeds and engine speeds.
RDo not drive faster than 85 mph (140 km/h).
ROnly briefly allow the engine to reach a maxi mum engine speed of 4,500 rpm
(4,500 rpm).
RDrive the vehicle in drive program A.
RChange gear before the tachometer needle is Ô of the way to the red area of the tachome ter.
RDo not shift down a gear manually in order to brake.
RAvoid overstraining the vehicle, e.g. driving at full throttle.
RDo not depress the accelerator pedal past the pressure point (kickdown).
ROnly increase the engine speed gradually and accelerate the vehicle to full speed after 1,000 miles (1,500 km).
This also applies when the engine or parts of the drivetrain have been replaced.
Please also observe the following breaking-in notes:
RIn certain driving and driving safety systems, the sensors adjust automatically while a cer tain distance is being driven after the vehicle has been delivered or after repairs. Full sys tem effectiveness is not reached until the end of this teach-in process.
RBrakepads, brake discs and tires that are either new or have been replaced only ach ieve optimum braking effect and grip after several hundred kilometers of driving. Com pensate for the reduced braking effect by applying greater force to the brake pedal.
Function of Emotion Start
The Emotion Start function is only available for the Mercedes AMG C 63 and C 63 S mod els.
#Start the vehicle with the start/stop button and simultaneously pull one of steering wheel paddle shifters 1 or 2.
RThe idle speed is increased briefly when starting the engine.
RThe exhaust gas flaps are opened (sporty characteristic) (/ page 13).
Observe the notes on starting the vehicle in the vehicle Operator's Manual.
Driving and parking 13
Notes on the locking differential
After a breaking-in period of 2000 miles (3000 km) the oil on the locking differential
should be changed in a qualified specialist work shop. This oil change prolongs the service life of the locking differential.
Operation of the ECO start/stop function
The engine is automatically switched off if the following conditions are met:
Ryou have selected drive program A.
Ryou brake the vehicle to a standstill in trans mission position h or i.
Rif all vehicle conditions for an automatic engine stop are met.
The engine is restarted automatically if:
Ryou release the brake pedal in transmission position h when the HOLD function is not active.
Ryou shift from transmission position j.
Ryou engage transmission position h or k.
Ryou depress the accelerator pedal.
Ryou permanently activate manual gearshift ing.
Ryou pull the left-hand steering wheel paddle shifter.
Ryou open or close the soft top.
Ran automatic engine start is necessary.
If the engine was switched off by the ECO start/ stop function and you leave the vehicle, a warn
ing tone sounds and the engine is not restarted. The Vehicle Operational Switch the Ignition Off Before Exiting display message also appears in
the multifunction display. If you do not switch off the ignition, the ignition is automatically switched off after one minute.
AMG Performance exhaust system
Function of the AMG Performance exhaust system
Changing the position of the exhaust gas flaps allows you to select the sound characteristics of the AMG Performance exhaust system:
RClosed exhaust gas flaps: comfort character istic (balanced)
ROpen exhaust gas flaps: sporty characteristic (powerful)
Loading...
