Medion MD 80126 user Manual

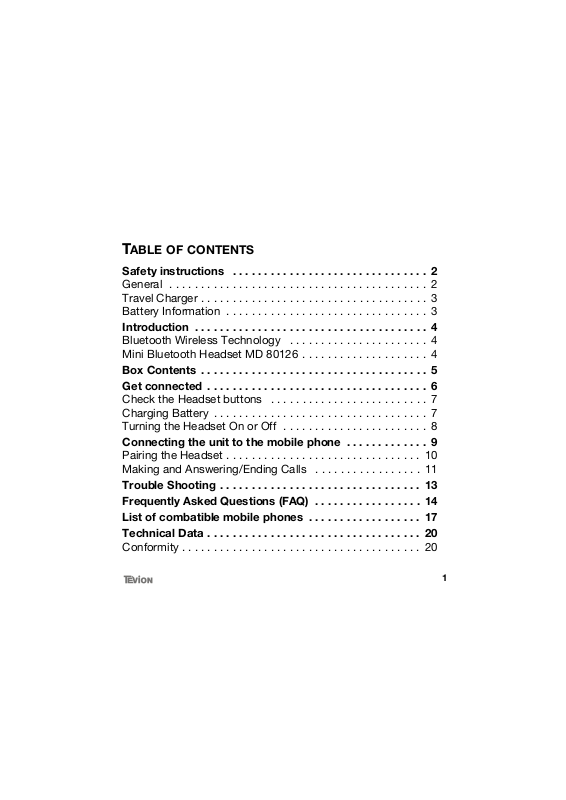

TABLE OF CONTENTS
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Travel Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Bluetooth Wireless Technology . . . . . . . . . . . . . . . . . . . . . . 4
Mini Bluetooth Headset MD 80126 . . . . . . . . . . . . . . . . . . . . 4
Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Get connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Check the Headset buttons . . . . . . . . . . . . . . . . . . . . . . . . . 7
Charging Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Turning the Headset On or Off . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting the unit to the mobile phone . . . . . . . . . . . . . 9
Pairing the Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Making and Answering/Ending Calls . . . . . . . . . . . . . . . . . 11
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Frequently Asked Questions (FAQ) . . . . . . . . . . . . . . . . . 14
List of combatible mobile phones . . . . . . . . . . . . . . . . . . 17
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1
SAFETY INSTRUCTIONS
Please read this manual carefully and familiarise your-self with your new BlueTooth Headset before using it for the first time. Please retain this manual for future reference.
General
• Use of unauthorized accessories may result in performance
deterioration, injury, product damage, electric shock, and
early warranty termination.
• Attempting to disassemble your Headset may damage it
and that the warranty will immediately become void.
• Do not leave the Headset in a dusty environment.
• Use only a clean soft cloth to clean your Headset.
• Do not allow children to play with the Headset, as they may
injure themselves and damage the Headset.
• Small children playing with the Headset may cause choking
if any part is swallowed.
• Do not leave the Headset in a hot or cold environment for
long periods of time.
• When the Headset is not in use, always keep it in its case.
2 BLUETOOTH HEADSET MD 80126
Travel Charger
The charger is designed for indoor use ONLY. Do not use it
outdoors.
The charger must be connected to the designated power
source as marked.
When removing the charger from an outlet, never pull the
charger cord, as it may damage the charger.
Battery Information
Note: For first time use, plug the adapter into the Headset
and charge it at least 4 hours until the red indicator turns
off.
Safety instructions
Battery
care
Only qualified Service Centres are authorised to remove or replace the Headset battery.
The rechargeable battery has a long service life if treated with
care.
The battery can only be charged within the temperature range
of -10 °C to 45 °C.
Use the Headset at room temperature for maximum battery
life.
The battery life may be reduced if operating in a cold environment.
When the Headset has not been used for a period of two
months or more the battery will need fully recharging for 4
hours.
3
INTRODUCTION
Bluetooth Wireless Technology
Bluetooth is a short- range wireless communication technology. It allows wireless connections between Bluetooth devices
such as mobile phones, personal digital assistants (PDAs),
desktop and notebooks computers, input-output devices
(mouse, keyboards, printers) and other home appliances.
Bluetooth refers to a worldwide standard designed to operate
in the internationally recognised ISM (Industrial Scientific and
Medical) frequency band. Within the ISM band (2.4Ghz -
2.48Ghz) Bluetooth transmissions hop between 79 separate
frequencies 1,600 times every second at a communication
range of about 10 meters (class II).
Mini Bluetooth Headset MD 80126
The Mini Bluetooth Headset is a Bluetooth device developed
using the latest bluetooth technology, which can connect to
other bluetooth devices such as mobile phones, desktop or
notebook computers, PDAs (with audio gateway profile supported) wirelessly within a range of 10 meters.
4 BLUETOOTH HEADSET MD 80126
BOX CONTENTS
1. Mini Bluetooth headset
2. Travel charger 100/240V
3. Adaptor cable
4. Carry bag
5. Necklace and Hook
6. Car Kit Adaptor
7. Earhook
8. Earplug sponges
1
4
7
8
2
56
3
5
GET CONNECTED
6 BLUETOOTH HEADSET MD 80126
