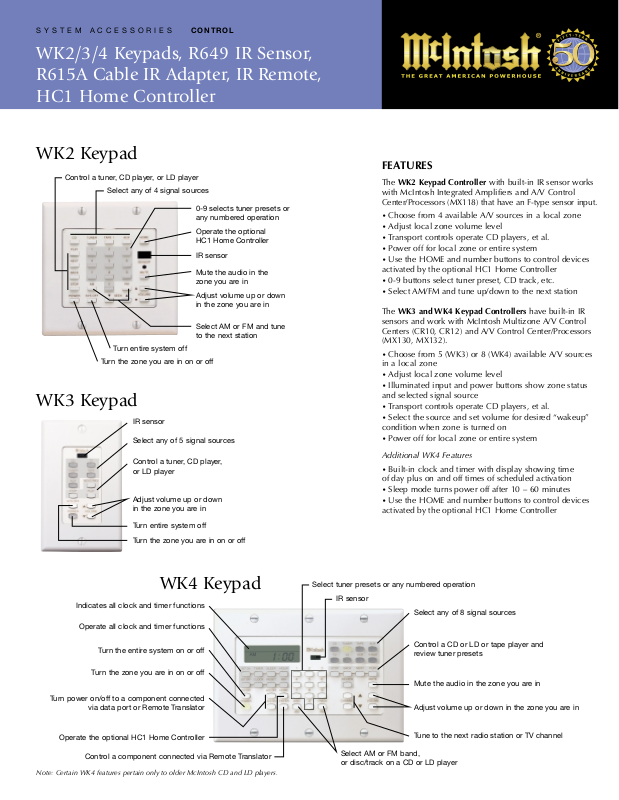

McIntosh WK-2 Brochure
SYSTEM ACCESSORIES CONTROL
WK2/3/4 Keypads, R649 IR Sensor,
R615A Cable IR Adapter, IR Remote,
HC1 Home Controller
WK2 Keypad
Control a tuner, CD player, or LD player
Select any of 4 signal sources
Turn entire system off
Turn the zone you are in on or off
WK3 Keypad
IR sensor
Select any of 5 signal sources
Control a tuner, CD player,
or LD player
Adjust volume up or down
in the zone you are in
Turn entire system off
Turn the zone you are in on or off
0-9 selects tuner presets or
any numbered operation
Operate the optional
HC1 Home Controller
IR sensor
Mute the audio in the
zone you are in
Adjust volume up or down
in the zone you are in
Select AM or FM and tune
to the next station
FEATURES
The WK2 Keypad Controller with built-in IR sensor works
with McIntosh Integrated Amplifiers and A/V Control
Center/Processors (MX118) that have an F-type sensor input.
• Choose from 4 available A/V sources in a local zone
• Adjust local zone volume level
• Transport controls operate CD players, et al.
• Power off for local zone or entire system
• Use the HOME and number buttons to control devices
activated by the optional HC1 Home Controller
• 0-9 buttons select tuner preset, CD track, etc.
• Select AM/FM and tune up/down to the next station
The WK3 and WK4 Keypad Controllers have built-in IR
sensors and work with McIntosh Multizone A/V Control
Centers (CR10, CR12) and A/V Control Center/Processors
(MX130, MX132).
• Choose from 5 (WK3) or 8 (WK4) available A/V sources
in a local zone
• Adjust local zone volume level
• Illuminated input and power buttons show zone status
and selected signal source
• Transport controls operate CD players, et al.
• Select the source and set volume for desired “wakeup”
condition when zone is turned on
• Power off for local zone or entire system
Additional WK4 Features
• Built-in clock and timer with display showing time
of day plus on and off times of scheduled activation
Sleep mode turns power off after 10 – 60 minutes
•
• Use the HOME and number buttons to control devices
activated by the optional HC1 Home Controller
WK4 Keypad
Indicates all clock and timer functions
Operate all clock and timer functions
Turn the entire system on or off
Turn the zone you are in on or off
Turn power on/off to a component connected
via data port or Remote Translator
Operate the optional HC1 Home Controller
Control a component connected via Remote Translator
Note: Certain WK4 features pertain only to older McIntosh CD and LD players.
Select tuner presets or any numbered operation
IR sensor
Select any of 8 signal sources
Control a CD or LD or tape player and
review tuner presets
Mute the audio in the zone you are in
Adjust volume up or down in the zone you are in
Tune to the next radio station or TV channel
Select AM or FM band,
or disc/track on a CD or LD player
SYSTEM ACCESSORIES CONTROL
IR Remote
R649 IR Sensor R615A Cable IR Adapter
(illustration)
IR sensor
FEATURES
The R649 IR Sensor works with McIntosh Control
Centers and Integrated Amplifiers that have an F-type
sensor input. It allows IR remote operation from
another location.
The R615A Cable IR Adapter is a coupling device
that allows IR remote signals to be transmitted through
common RG-6 or RG-59 coaxial cable (along with
TV, cable, and FM signals). Two R615As (one at each
end of the cable) as well as one R649 IR Sensor are
required.
The IR Remote Control operates all Control Centers as
well as the MAC3 and MSD4 Surround Decoders.
The HC1 Home Controller connects to McIntosh
Control Centers and Integrated Amplifiers that include
a HOME data port. It can be operated via the numeric
keys on a handheld remote or a keypad controller.
The HC1 allows the activation of devices such as
lights and movie screens to be integrated into a
McIntosh system, and is typically set up by a professional installer.
6 programmable relays for PUSH ON, PUSH OFF,
•
or MOMENTARY (push and hold) operation
• 3 fixed relays for PUSH ON, PUSH OFF only
• 4 sequenced relays with 0.25-second delay intervals
• Built-in 12VDC/1.5A power supply
• Connections for external 24VDC/1.5A power supply
DIP switches for
programmable relays
4 sequential
relay connections
3 fixed relay connections
6 programmable
relay connections
Pin connections for external
24VDC power supply
Keypad connection (WK3/WK4)
Data connection to Control
Center or Integrated Amp
F-type keypad /sensor connections (WK2/R649)
HC1 Home Controller
Control
(shown with top panel removed)
RCT3 Remote Translator
Related Products
MA6500 Integrated Amp CR12 Multizone A/V Control Center MX132 A/V Control Center + Processor
McIntosh Laboratory, Inc., 2 Chambers Street, Binghamton, NY 13903
tel (607) 723–3512 • toll-free (888) 979–3737 • fax (607) 772–3308 • www.mcintoshlabs.com
1099.A-WKIRHC1.15k.essecomm
