Video Projector
MDLP2
Owner’s Manual
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com
The lightning ash with arrowhead,
within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufcient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING - TO REDUCE RISK OF
FIRE OR ELECTRICAL SHOCK, DO
NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
IMPORTANT SAFETY
INSTRUCTIONS!
PLEASE READ THEM BEFORE
OPERATING THIS EQUIPMENT.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.
To prevent the risk of electric shock, do not remove cover or
back. No user-serviceable parts inside.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specied by the manufacturer,
or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. Do not expose this equipment to dripping or
splashing and ensure that no objects lled with liquids, such as vases, are placed on the equipment.
16. To completely disconnect this equipment from the
a.c. mains, disconnect the power supply cord plug
from the a.c. receptacle.
17. The mains plug of the power supply cord shall
remain readily operable.
18. Do not expose batteries to excessive heat such as
sunshine, re or the like.
2
ADDITIONAL SAFETY INSTRUCTIONS!
2
2
CAUTION:
The MDLP2 Video Projector weight is 40 pounds
(18.14 kilograms). When mounting the projector to a
building structure it is important to follow all of the
local building/construction codes. Not evaluated for
Wall or Ceiling Mounting.
WARNINGS:
A. Do not remove the cover from the equipment.
B. Do not insert anything into the equipment through
the ventilation holes.
C. Do not handle the mains lead with wet hands.
D. No naked flame sources, such as lighted candles,
should be placed on the equipment.
E. When disposing of used batteries and the projector
lamp, please comply with governmental regula-
tions or environmental public instructions rules
that apply in your country or area.
F. Do not look into the lens when the projector is
turned on. It could damage your eyesight.
LAMP HANDLING PRECAUTIONS:
DANGER
This projector uses a high voltage glass mercury vapor
lamp. The lamp can break or fail to light when improperly handled, operating at abnormal temperatures
or after extended use.
Lamp life also varies, and operating the lamp beyond its intended service life may cause it to break or
fail to light properly, with risk of resulting damage to
the projector or surrounding property or persons. Do
not exceed the stated lamp life, nor attempt to override
Safety Instructions
the projector’s lamp life timing system. The mercury
vapor gas inside the lamp bulb may be emitted from
the projector’s vent.
Before use, carefully read the projector Owner’s
Manual and the lamp replacement instructions. Remember to handle the lamp with care. In the event of
serious trouble, call a McIntosh Authorized Dealer.
1a. Do not directly expose skin to the light of the lamp
as it can cause inflammation.
2b. Do not drop, impact, subject to excessive force or
otherwise damage the lamp.
3c. Replacing the lamp runs the risk of burns, cuts
and electric shock, unplug the AC power cord
from the AC power outlet and wait at least 60
minutes for the lamp to cool down before attempting to replace it.
4d. If the lamp breaks and the projector is hung from a
ceiling or installed in a high place, unplug the AC
power cord from the AC power outlet and call a
McIntosh Authorized Dealer for assistance.
5e. It is recommended to replace the lamp when near
the end of its designed life. Do not use the lamp
beyond the maximum lighting time.
6f. Replace the defective lamp with a genuine Mc-
Intosh Lamp, matching the information in this
Owner’s Manual.
7g. Before replacing the lamp, carefully read the
Lamp Replacement Instructions in this Owner’s
Manual and the instructions supplied with the
replacement lamp.
8h. If the lamp breaks, leave the area immediately
and stay away for at least 30 minutes. Ventilate the
room, so as not to inhale the mercury vapor. If you
inhale the mercury vapor, see a physician immediately.
3
Thank You
Table of Contents
Your decision to own this McIntosh MDLP2 Video Projector ranks you at the very top among discriminating video
viewers. You now have “The Best.” The McIntosh dedication to “Quality,” is assurance that you will receive many
years of viewing enjoyment from this unit.
Please take a short time to read the information in this
manual. We want you to be as familiar as possible with all
the features and functions of your new McIntosh.
Please Take A Moment
The serial number, purchase date and McIntosh Dealer
name are important to you for possible insurance claim or
future service. The spaces below have been provided for
you to record that information:
Serial Number: __________________________________
Purchase Date: __________________________________
Dealer Name: ___________________________________
Technical Assistance
If at any time you have questions about your McIntosh
product, contact your McIntosh Dealer who is familiar
with your McIntosh equipment and any other brands that
may be part of your system. If you or your Dealer wish
additional help concerning a suspected problem, you can
receive technical assistance for all McIntosh products at:
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-1545
Fax: 607-724-0549
Safety Instructions ............................................................2
Thank You and Please Take a Moment ............................. 4
Technical Assistance and Customer Service ....................4
Table of Contents .............................................................. 4
General Information .........................................................5
Connector and Cable Information ....................................6
Introduction ....................................................................... 7
Performance Features .......................................................7
Dimensions .......................................................................8
Installation:
Overview ........................................................................... 9
Ventilation ......................................................................... 9
Projector and 16:9 Screen Mounting Location ................10
Projector and 4:3 Screen Mounting Location ................. 12
Initial Setup ......................................................................14
Connections:
Rear Panel Connections .................................................. 16
How to Connect the MDLP2 .......................................... 17
Connection Diagrams (Separate Sheet) ........ Mc2A,Mc2B
Remote Control:
Remote Control Push-buttons ......................................... 18
How to Operate by Remote Control ...............................19
Operation:
Front Panel Push-buttons, Indicators and Control ..........20
Default Settings................................................................21
How to Operate the MDLP2 ........................................... 22
Additional Information:
Specifications .................................................................. 30
Packing Instruction .........................................................31
Customer Service
If it is determined that your McIntosh product is in need of
repair, you can return it to your Dealer. You can also return
it to the McIntosh Laboratory Service Department. For
assistance on factory repair return procedure, contact the
McIntosh Service Department at:
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-3515
Fax: 607-723-1917
Copyright 2008 © by McIntosh Laboratory, Inc.
4
General Information
General Information
CAUTION: To prevent possible damage to the Projec-
tor Lens Assembly, DO NOT at any time
attempt to LIFT, CARRY or RE-ORIENT the Projector using the Lens.
1. The Main AC Power going to the MDLP2 and any other
McIntosh Component(s) should not be applied until all
the system components are connected together. Failure
to do so could result in malfunctioning of some or all of
the system’s normal operations. When the MDLP2 and
other McIntosh Components are in their Standby Power
Off Mode, the Microprocessor’s Circuitry inside each
component is active and communication is occurring
between them.
2. For additional connection information, refer to the
owner’s manual(s) for any component(s) connected to
the MDLP2 Video Projector.
3. To protect the Projector Lens from possible damage,
it is advisable to keep the Lens Cover on the Projector
during the following:
a. Transporting of the projector.
b. Installation and connection of the projector.
c. During the installation of other items and/or
remodeling of the room where the projector is
located.
4. The Projector Lens is a precision optical device with
special coatings just like you would find on Professional Cameras. In the event the Lens requires cleaning
to remove airborne particles such as dust and dirt from
the Lens, use a safe cleaning product such as a clean
and dry 3MTM Scotch-Brite® Microfiber Lens Cleaning
Cloth. At no time should ordinary household cleaning
products be used to clean the Lens, as damage will occur.
5. A McIntosh Power Controller may be added to the
MDLP2 to provide AC Power Switching to components
without Power Control Connections, such as a motorized projection screen. See your McIntosh Dealer for
additional information.
6. The IR Input, with 1/8 inch mini phone jack, is configured for non-McIntosh IR sensors such as a Xantech
Model 291-80 or equivalent. To avoid possible interaction, the MDLP2 Sensors may be disabled by activating the On-Screen Menu, then select from the menu
Config→Remote Control→Wired. Then deactivate the
On-Screen Menu. Refer to the “How to Operate the
MDLP2” starting on page 23.
7. The On-Screen Menu System for adjustment of settings is interactive and Video Input type based, make
sure to select the desired Video Input and Picture
Mode before attempting to change the settings.
8. The MDLP2 has two Component Video Inputs for
analog video signals and two HDMI Inputs for Digital
video signals. The On-Screen Menu System has selections for Composite Video, S-Video and RGB Inputs.
Those inputs have no functionality when selected on
the MDLP2.
9. When discarding the unit, comply with local
rules or regulations. Batteries should never be
thrown away or incinerated but disposed of in
accordance with the local regulations concerning battery disposal.
10. For additional information on the MDLP2 and
other McIntosh Products please visit the McIntosh Web Site at www.mcintoshlabs.com.
3MTM is a trademark of the 3M Company and Scotch-Brite® is a registered trademark of the 3M Company.
5
Connector and Cable Information
Power
Control
Ground
N/C
Data
Signal
N/C
Data
Ground
IR Data
Control
Ground
N/C
Power Control Connectors
The MDLP2 Power Control Output Jacks send and Power
Control Input Jacks receive Power On/Off Signals when
connected to McIntosh and other nonMcIntosh Components. A 1/8 inch
stereo mini phone plug is used for connection to the Power Control Input and
Outputs on the MDLP2.
Note: The Data and Power Control Connecting Cable is avail-
able from the McIntosh Parts Department:
Data and Power Control Cable Part No. 170-202
Six foot, shielded 2 conductor, with 1/8 inch stereo mini
phone plugs on each end.
Data Port Connectors
The MDLP2 Data In Port receives
Remote Control Signals from other
McIntosh Components. A 1/8 inch
stereo mini phone plug is used for
connection. The IR Ports also use a
1/8 inch stereo mini phone plug and
allow the connection of other brand
IR Receivers to the MDLP2.
RS232 DB9 Connector Pin Layout
1. N/C 6. N/C
2. Data Out (TXD) 7. N/C
3. Data In (RXD) 8. N/C
4. N/C 9. N/C
5. Gnd.
6
Connectors and Cable Information, Introduction and Performance Features
Introduction
The McIntosh MDLP2 Video Projector is one of the finest
projectors ever created. It utilizes the latest Digital Micromirror DeviceTM containing over 2 million individual pixels
(1080p) and produces images of such high quality, it’s just
like being there.
algorithms to produce an excellent image regardless of
the video source, from 480i to 1080p. This includes the
1080/24p frame rate available from some video sources.
Also there is a special direct pixel pass through mode when
used with external Video Processors.
Performance Features
•DLP Chip
The McIntosh MDLP2 Video Projector incorporates the
latest and largest available Digital Light Processing (DLP)
Dark Chip for use in a Home Theater Projector. The large
chip size is 0.95 inch and produces a High Definition Image of 1920 x 1080 pixels.
• Advanced Optical System
The light source for the projector is the industry’s only 200
Watt DC Super High Pressure lamp assembly. This assures an image with even illumination, focused from edge
to edge and accurate fully saturated colors. The light is
filtered by a large 98mm 7-segment color wheel incorporating a Neutral Density Filter Segment for enhanced black
levels during dark scenes. After the light is reflected by the
DLP Chip, it is then precisely focused by a Konica-Minolta
custom designed zoom lens. This lens is fully sealed and
consists of 13 all-glass elements. The optics allow for
screen sizes with 16:9 wide aspect ratio ranging from 70
to 250 inches for the Medium Throw Lens or 80 to 300
inches for the Long Throw Lens.
• Dual Iris
The MDLP2 incoporates an adjustable Dual Iris Optical
Light Path. This provides images with bright vivid color
and high contrast ratios.
• Advanced Filter Wheel Design
The color filter wheel spins at 10,800 RPM, making color
breakup (rainbow effect) a thing of the past, along with
three user speeds settings. The quiet filter wheel motor
uses a Fluid Dynamic Bearing for silent and reliable operation.
• Video Adjustments
The MDLP2 allows for adjustment of important image
quality effecting parameters, such as Color Temperature,
Gamma and Black Level. There are also user adjustments
with the ability to store the settings for future recall, along
with three preset modes.
• HDMITM 1.3 Connectivity with improved Color
There are two HDMI (High-Definition Multimedia Inter-
face) inputs accepting 1080p signals. The MDLP2 supports
Deep ColorTM ( 8bit, 10bit or 12bit signals) for reproduction
of over one billion possible colors and x.v. ColorTM (Color
Space) can display any color viewable by the human eye.
• On-Screen Information Displays
The On-Screen Display indicates the Source Selection and
Information about the source signal. The Menu Selections
and Adjustments are also displayed on screen.
• Die Cast Internal Chassis
The MDLP2 die cast aluminum internal chassis assures
the precise mechanical alignment of the entire hermetically
sealed optical light path, which is necessary for a sharp,
highly detailed and accurate color image. The die cast
chassis also assures low operating noise and also helps to
dissipate heat away from the sensitive internal components.
• Machined Top and Bottom Panels
The MDLP2 Top and Bottom Panels are machined from
thick aluminum with a smooth black anodized finish.
• Special Power Supply
Fully regulated Power Supplies ensure stable noise free
operation even though the power line varies.
• Placement Compensation
The MDLP2 Projector incorporates numerous adjustments,
compensating for less then ideal projector/screen positioning.
• Enhanced Video Processing
The Video Circuitry uses the very latest in processing
Digital Micromirror Device, Digital Light Processing, DLP, DLP logo, and DLP
Medallion logo are registered trademarks of Texas Instruments.
• Fiber Optic Solid State Top Panel Illumination
The even illumination of the Top Panel is accomplished
by the combination of a custom designed Fiber Optic
Light Diffuser and an extra long life Light Emitting Diode
(LED). The glass Top Panel ensures the pristine beauty of
the MDLP2 will be retained for many years.
HDMI, the HDMI logo, High-Definition Multimedia Interface, Deep Color and
x.v. Color are trademarks or registered trademarks of HDMI Licensing LLC.
7
Dimensions
20-1/4"
51.44cm
6-3/4"
17.15cm
Front View of the MDLP2
Rear View of the MDLP2
Side View of the MDLP2
6-1/4"
15.88cm
9-1/2"
24.13cm
Adjustable Height
Front Feet
2
20-1/4"
51.44cm
6-3/4"
17.15cm
13"
33.02cm
17-11/16"
44.93cm
13-3/4"
34.93cm
1-1/8"
3.18cm
(See Note 1)
3-1/4"
8.26cm
14-1/8"
35.88cm
Note 1: The Long Throw Lens
dimension is
1- 3/8 (3.49cm)
The following dimensions can assist in determining the
best location for your MDLP2. There is additional information on the next page pertaining to installing the
MDLP2 into cabinets.
Dimensions
8
Installation Overview
2
MDLP2 Bottom View
MDLP2 Rear View
Primary
Cool Air
Input No. 2
Primary
Cool Air
Input No. 1
Secondary Cool Air
Input No. 3
Secondary Cool Air
Input No. 1
Primary
Warm Air
Exit
Secondary Cool Air
Input No. 2
For the best possible image reproduction by the McIntosh
MDLP2 Video Projector, it is important to observe the following:
CAUTION: The MDLP2 Video Projector weight
is 40 pounds (18.14 kilograms). When
mounting the projector to a building
structure it is important to follow all of
the local building/constuction codes.
1. Decide on a viewing area with either subdued and/
or controlled ambient lighting.
2. Choose a projector screen designed specifically to
work with images from a DLP Projector.
3. Locate the position of the MDLP2 Projector relative to the projector screen to maximize image
quality and minimize optical distortions.
4. Provide adequate ventilation.
The information below and on the following pages will assist in the location of the Projector. It is recommended that
the Professionals at your McIntosh Dealer, who are skilled
in all aspects of installation and operation, install the
MDLP2 Video Projector and any associated audio/video
equipment.
Installation
Ventilation
Always provide adequate ventilation for your MDLP2.
Cool operation ensures the longest possible operating life
for any electronic instrument. Do not install the MDLP2
directly above a heat generating component. Refer to figures 1 and 2.
The MDLP2 is designed to be placed upright on a solid
flat surface, resting on its three feet with unrestricted air
flow around it. Allow at least 1 foot (30.48 cm) of space
between the Primary Warm Air Exit ventilation holes and
the nearest wall or obstruction. There should be at least
3 inches (7.62 cm) between the Primary Cool Air Input
ventilation holes and the nearest wall or obstruction. The
ambient air temperature should not exceed 95°F (35°C).
The projector uses two primary and three secondary
cool air input vents together with one primary warm air
exit vent. Refer to the illustration on this page. The air flow
in or out of these vents needs to be unrestricted at all times
during operation.
In the event the MDLP2 is to be placed into an enclosure restricting air flow around the projector, some type of
ducted forced air venting system would need to be implemented for the primary input 1 and 2 vents along with the
primary exit vent.
Figure 1
Figure 2
9
Bottom of Screen
Ceiling
Vertical
Screen
Height
Acceptable
Projector
Mounting
Height
Top of Screen
Vertical Center of Screen
Distance (Minimum-Maximum) between
the Screen and the Projector Lens
Floor
Top of Screen
Vertical
Screen
Height
Vertical Center of Screen
Distance (Minimum-Maximum) between
the Screen and the Projector Lens
Bottom of Screen
Acceptable
Projector
Mounting
Height
Projector and 16:9 Screen Mounting Location
The illustrations below together with the charts on the adjacent page, will help to assure the correct mounting locations
for both the projector and the screen.
Projector mounted from the ceiling
CAUTION:
The MDLP2 Video Projector
weight is 40 pounds (18.14 ki-
lograms). When mounting the
projector to a building structure it is important to follow
all of the local building/constuction codes. Not evaluated
for Wall or Ceiling Mounting.
Projector placed above the floor
10
Installation, con’t
MDLP2M (with Medium Throw Lens) - 16:9 Screen Size (1.77:1 Aspect Ratio)
Screen Diagonal Screen Width Screen Height Minimum Distance Maximum Distance
Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters
70 177. 8 61 155.0 34 -5/16 87. 2 88- 6/16 224.3 129-1/16 327.6
72 182.9 62-12/16 159.4 35-5/16 89.7 90 -15/16 230.8 132-13/16 337.1
80 203.2 69-12/16 177.1 39 -4/16 99.0 101-5/16 2 57.1 147-13/16 375.1
82 208.3 71-8/16 181.5 40-3/16 10 2.1 10 3 -14/16 263.6 151-9/16 384.6
84 213.4 73-3/16 186.0 41-3/16 104.6 10 6-7/16 270.2 155-5/16 394.1
90 228.6 78-7/16 19 9.2 44 -2/16 112.1 114-3/16 289.9 166- 8/16 422.6
92 233.7 8 0 -3/16 203.7 45-2 /16 114.6 116-13/16 296.4 170 -4/16 432.1
100 254.0 87-3/16 221.4 49 124.5 127-2/16 322.7 185 -4/16 470.1
106 269.2 92-6/16 234.7 51-15-16 132.0 134-14 /16 342.3 196-7/16 498.6
110 279.4 95-14 /16 243.5 53-15/16 137. 0 140 -1/16 355.5 20 3 -15/16 517.6
120 304.8 104-9/16 265.7 58-13/16 149.4 153 388.3 222-11/16 565.1
123 312 .42 10 7-3/16 272.3 6 0-5/16 153.2 156 -14/16 398.1 228 - 4/16 579.4
133 337.8 115-15/16 294.4 65 -3/16 165.6 169-12/16 430.9 247 626.9
135 342.9 117-11 /16 298.9 6 6 -3/16 16 8.1 172- 6/16 437.5 250-12/16 636.4
150 381.0 130-12/16 332.1 73 -9/16 186.8 191-12/16 486.7 278-13/16 70 7.6
170 431. 8 148 -3/16 376.3 83- 6/16 211.7 217- 9/16 552.3 316 -4 /16 802.6
200 508.0 174 -5/16 442.8 98 -1/16 249.1 256 -6 /16 650.7 372 -6/16 945.1
250 635.0 217-14/16 553.5 122-9/16 311.3 321 814.7 465 -15/16 1,182.6
MDLP2L (with Long Throw Lens) - 16:9 Screen Size (1.77:1 Aspect Ratio)
Screen Diagonal Screen Width Screen Height Minimum Distance Maximum Distance
Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters
80 203.2 69-12/16 177.1 39 -4 /16 99.6 147-3/16 373.5 222-3/16 564.0
82 208.3 71-8/16 181.5 40-3/16 10 2.1 150-15/16 383.0 227-13/16 578.2
84 213.4 73-3/16 186.0 41-3/16 104.6 154-10/16 392.5 233-7/16 592.5
90 228.6 78-7/16 19 9.2 4 4-2/16 112.1 165-14/16 421.0 2 50 -5/16 635.3
92 233.7 8 0 -3/16 203.7 45-2 /16 114.6 169 -10/16 430.5 255-15/16 649.5
100 254.0 87-3/16 221.4 49 124.5 184 -10/16 468.5 278 -6/16 706.6
106 269.2 92-6/16 234.7 51-15/16 132.0 195-13/16 497.0 29 5 -4/16 749.3
110 279.4 95-14 /16 243.5 53-15/16 137. 0 203 -5/16 516.0 306- 8/16 777.9
120 304.8 104-9/16 265.7 58-13/16 149.4 222 563.5 334 -9/16 849.2
123 312 .42 10 7-3/16 272.3 6 0-5/16 153.2 2 27-10/16 577.8 343 870.6
133 337.8 115-15/16 294.4 65 -3/16 165.6 246 -6/16 625.3 371-1/16 941.9
135 342.9 117-11 /16 298.9 6 6 -3/16 16 8.1 25 0 -2/16 634.8 376 -11/16 956.1
150 381.0 130-12/16 332.1 73 -9/16 186.8 278 -3/16 706.0 418 -14 /16 1,063.1
170 431. 8 148 -3/16 376.3 83- 6/16 211.7 315 -10/16 801.0 475 1,205.7
200 508.0 174 -5/16 442.8 98 -1/16 249.1 371-12/16 943.5 559 -5/16 1,419.6
250 635.0 217-14/16 553.5 122-9/16 311.3 465-5/16 1,181.0 699-12/16 1,776.1
300 762.0 261-8/16 66 4.1 147-1/16 373.6 558 -14/16 1,418.5 840- 4/16 2,132.6
11
Bottom of Screen
Ceiling
Vertical
Screen
Height
Acceptable
Projector
Mounting
Height
Top of Screen
Vertical Center of Screen
Distance (Minimum-Maximum) between
the Screen and the Projector Lens
Floor
Top of Screen
Vertical
Screen
Height
Vertical Center of Screen
Distance (Minimum-Maximum) between
the Screen and the Projector Lens
Bottom of Screen
Acceptable
Projector
Mounting
Height
Projector and 4:3 Screen Mounting Location
The illustrations below together with the charts on the adjacent page, will help to assure the correct mounting locations
for both the projector and the screen.
Projector mounted from the ceiling
CAUTION:
The MDLP2 Video Projector
weight is 40 pounds (18.14 ki-
lograms). When mounting the
projector to a building structure it is important to follow
all of the local building/constuction codes. Not evaluated
for Wall or Ceiling Mounting.
Projector placed above the floor
12
Installation, con’t
MDLP2M (with Medium Throw Lens) - 4:3 Screen Size (1.33:1 Aspect Ratio)
Screen Diagonal Screen Width Screen Height Minimum Distance Maximum Distance
Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters
70 177. 8 56 142.2 42 10 6.7 10 8-8/16 275.4 158-5/16 4 01.8
72 182.9 57-10 /16 146.3 43-3/16 109.7 111-10/16 283.4 162-14/16 413.4
80 203.2 64 162.6 48 121.9 124 -5/16 315.5 181-3/16 459.9
82 208.3 65-10/16 166.6 49-3-16 125.0 127-7/16 323.5 185-13/16 471. 5
84 213.4 67-3/16 170.7 50 -6/16 128.0 130-10/16 331. 5 190- 6/16 483.2
90 228.6 72 182 .9 54 137.2 140 -1/16 355.6 204 -2/16 518 .0
92 233.7 73-10/16 186.9 55-3/16 14 0.2 143- 4/16 363.6 208 -11/16 529.6
100 254.0 80 203.2 60 152.4 155 -14/16 395.7 227 576.1
106 269.2 84 -13/16 215.4 63-10 /16 161. 5 165- 6/16 419.7 240-12/16 611.0
110 279.4 88 223.5 66 167. 6 171-11/16 435.8 249-14/16 634.2
120 304.8 96 243.8 72 182 .9 187- 8/16 475.9 272-12/16 692.3
123 312 .42 98 - 6-16 2 49.9 73-13/16 187.5 192-4/16 48 7.9 279 -10/16 70 9.8
133 337.8 106- 6/16 270.3 79 -13-16 202 .7 208 528.0 302-9/16 767.9
135 342.9 108 274.3 81 2 05.7 211-3/ 16 536.0 307-2 /16 779.5
150 381.0 120 304.8 90 228.6 234-14 /16 596.2 341-7/16 866.6
170 431. 8 136 345.4 102 259.1 266 -8/16 676.4 387- 4/16 982.8
200 508.0 160 406.4 120 304.8 313-14/16 796.7 455-14/16 1,157.1
250 635.0 200 508.0 150 381.0 392-14/16 997.2 570 -6/16 1, 447.6
MDLP2L (with Long Throw Lens) - 4:3 Screen Size (1.33:1 Aspect Ratio)
Screen Diagonal Screen Width Screen Height Minimum Distance Maximum Distance
Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters Inches Centimeters
60 152.4 48 121.9 36 91.4 203 -13/16 517.4 2 03-13/16 517.4
70 177. 8 56 142.2 42 106.7 157-11 /16 400.2 238 -4 /16 604.7
72 182.9 57-10/16 146.3 43-3/16 109.7 162 - 4/16 411. 8 245-2/16 622.1
80 203.2 64 162 .6 48 121.9 180-9/16 458.3 272-10/16 692.0
82 208.3 65 -10/16 166.6 49 -3/16 125.0 185-3/16 469.9 279- 8/16 709.4
84 213.4 67-3/16 170.7 50 -6 /16 128.0 189-12/16 481.6 286 -6 /16 726.9
90 228.6 72 182.9 54 137. 2 203 - 8/16 516 .4 307 779. 3
92 233.7 73-10 /16 186 .9 55 -3/16 140.2 208-1/16 528.0 313 -15/16 796.7
100 254.0 80 203.2 60 152.4 226 -6/16 574.5 341-7/16 866.6
106 269.2 8 4-13/16 215.4 63-10 /16 161. 5 240-2/16 609.4 362-1/16 918.9
110 279.4 88 223.5 66 167. 6 2 49- 4/16 632.6 375-13/16 953.9
120 304.8 96 243.8 72 18 2 .9 272-2/16 690.7 410 -3/16 1,041. 2
123 312 .42 98 -6/16 249.9 73-13/16 187. 5 279 708.2 420 -9/16 1,067.4
133 337. 8 106 - 6/16 270.3 79 -13/16 202.7 301-14/16 766.3 454 -15/16 1,154.7
135 342.9 108 274.3 81 205.7 30 6- 8/16 777.9 461-13/16 1,172.1
150 381.0 120 304.8 90 228.6 34 0-13/16 865.0 513- 6/16 1,303.1
170 431.8 136 345.4 102 259.1 386-10 /16 981.2 582-3/16 1, 477.7
200 508.0 160 406.4 120 304.8 455- 4/16 1,155.5 685-6/16 1,739.6
250 635.0 200 508.0 150 381.0 569-12/16 1,446.0 857-6/16 2 ,176.1
300 762.0 240 609.6 180 457. 2 684-3/16 1,736.5 1,029 -6/16 2,612.6
13

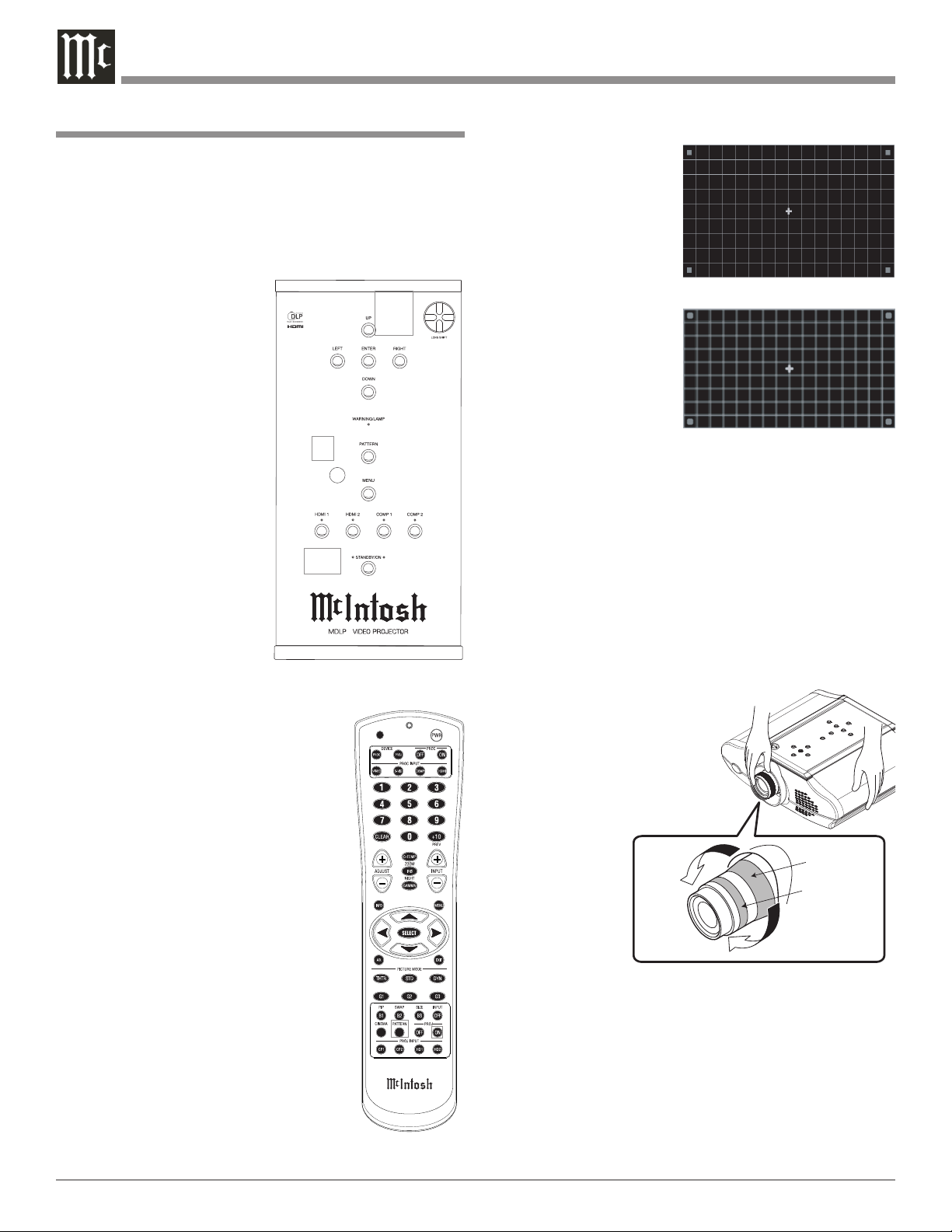

Initial Setup
LARGER
SMALLER
IMAGE SIZE
IMAGE FOCUS
2
The Initial Setup Section is to assist with minimizing
the possible geometric distortions in the projected image
caused by the physical orientation of the MDLP2 Video
Projector relative to the screen. While there are electronic
adjustments to correct for some of these geometric distortions, the best images will be achieved when minimal electronic adjustments are used.
After the projector and
screen locations have been
established (refer to the four
previous pages), the next step
is to perform the basic optical and mechanical orientation adjustments as follows:
Note: Some installations
might require location
positional adjustments
in addition to and/or in
place of the projector’s
built-in adjustments.
1. Connect the projector to
a live AC Outlet.
2. Remove the protective
cover from the projector
lens.
3. The Red LED to the
left of the STANDBY/
Figure 3
ON Push-button lights
to indicate the MDLP2 is in Standby
mode. To Switch ON the MDLP2,
press the STANDBY/ON Push-button
on the Projector Control Panel or the
PROJector ON Push-button using the
Remote Control. The Green LED to
the right of the STANDBY/ON Pushbutton lights to indicate the MDLP2
is ON. Refer to figures 3 and 4.
Note: It is normal for the projector
lamp warm up period to last
about a minute before an image
appears on the screen.
4. Press the PATTERN Push-button on
the Control Panel or the Remote Control. Refer to figures 3 and 4.
The Crosshatch Test Pattern (Horizon-
tal and Vertical White Lines on a Black
Background) will appear on the screen
and will be used during the following
steps. Refer to figures 5 and 6.
Figure 4
5. Rotate clockwise or
counterclockwise the
Knurled Ring surface
on the front section of
the projector lens to
perform an initial focus adjustment. Refer
to figures 5 and 6.
Note: Figure 6 is an
example of an
out of focus
image. Do not
be concerned at
this time if the
image doesn’t fill
the screen, is not
centered and/or has geometric distortion.
Figure 5
Figure 6
The next several adjustments will be performed to achieve
the following:
A. Fill the screen with the image.
B. Center the image both horizontally and verti-
cally on the screen.
C. Minimize any horizontal keystone distortion
of the image.
D. Orient the image to be parallel with the top,
bottom and sides of the screen.
6. Rotate clockwise or counterclockwise the Knurled
Ring surface on
the rear section
of the projector
lens to fill the
screen with the
Crosshatch Test
Pattern. Refer to
figures 5 and 7.
7. Move the entire
projector slightly
to the left or
right to center
the image horizontally on the
screen.
Figure 7
8. Using the LENS
SHIFT Control, located on the Top Control Panel, center the image vertically on the screen. Refer to figures
3, 8 and 9.
Note: If the Crosshatch Test Pattern lines change in color
from white to green, the current vertical height of
the projector relative to the screen will not produce
an acceptable image. Reposition either the projector or the screen vertically so when the image is
14
Screen
Figure 8
Screen
3CREEN
3CREEN
Figure 9
centered vertically on the screen the Crosshatch
Test Pattern lines are again white in color.
9. Using the Knurled Ring surfaces on the projector lens,
adjust the size and focus of the image. Refer to figure
7.
10. Rotate one or both of the projector feet to line up the
top and bottom horizontal lines of the Crosshatch Test
Pattern to be parallel with the top and bottom edges of
the screen. Refer to figures 5 and 10.
Figure 10
Note: If more than several turns are needed there is a
release lever located next to the foot for rapid and
large changes in height. Refer to figure 11.
Initial Setup
11. Using the Knurled Ring surfaces on the projector lens,
adjust the size and focus of the image. Refer to figure 7.
12. Rotate the projector clockwise or counterclockwise
about the center horizontal axis to minimize any
horizontal keystone distortion. The top and bottom
horizontal lines of the Crosshatch Test Pattern should
be parallel with the top and bottom edges of the screen.
Refer to figures 5, 12 and 13.
13. Using the knurled
ring surfaces on
the projector lens
adjust the size and
focus of the image.
Refer to figure 7.
14. Repeat steps 6 thru
13 until no further
improvements can
be made.
Note: Correction
for any vertical keystone
distortion
of the image will be
performed
later during
the electronic setup
adjustments
on page 23.
15. Press the STANDBY/ON Pushbutton on the
Projector Control
Panel or the PROJ
ON Push-button
using the Remote
Control.
16. Temporarily place
the previously removed protective cover onto the projector lens.
17. Remove the AC Power Cord from the projector.
18. Proceed to the “How to connect the MDLP2”
on page 17.
Figure 12
Figure 13
Figure 11
15
2
Rear Panel Connections and Switch
DATA IN Port receives
signals from McIntosh
A/V Control Center for
Remote Control Operation
COMPONENT INPUTS receive Com-
ponent Video (Y, PR and PB) Signals
from Component Video Sources
TRIGGER 1 Output
sends a Turn-On signal
to other components
when the MDLP2 is
switched On
POWER CONTROL IN
receives turn-on signals
from a McIntosh component and POWER CONTROL OUT sends turn-on
signals on to another
McIntosh Component
TRIGGER 2 Output
sends Turn-On
signals to other components and may be
assigned to activate
when a specific aspect ratio is selected.
16
Switches Off
the illumination to the Top
Control Panel
McIntosh Logo
RS232 connector for
connection to a computer or other control
device
IR INput for
connecting an
IR Receiver
Connect the MDLP2
power cord to a live AC
outlet. Refer to information on the back panel
to determine the correct
voltage
HDMI Inputs receive
digital video signals
from a McIntosh A/V
Control Center and/or
other source components
How to Connect the MDLP2
The MDLP2 has the ability to automatically switch power
On/Off to McIntosh Components via the Power Control
and Trigger Connections. The Data Port Connections allow
for the remote operation of the MDLP2 from other McIntosh Components. With an external sensor connected to
the MDLP2, remote control operation is possible when the
MDLP2 is located in an enclosure.
The connection instructions below, together with the
AP1000/MDLP2/VP1000 Input and Control Connection
Diagrams located on the separate folded sheet “Mc2A and
Mc2B”, are an example of a typical audio/video system.
Your system may vary from this; however, the actual components would be connected in a similar manner.
For additional information refer to “Connector and
Cable Information” on page 6.
Note: With the addition of a McIntosh Power Controller
connected to the MDLP2, AC Power Switching can
be provided to components such as a motorized
projection screen. Contact your McIntosh Dealer for
additional information.
Power Control Connections:
1. Connect a Control Cable from the MDLP2 POWER
CONTROL IN Jack to the Power Control Out A Jack
on the McIntosh VP1000 Video Processor.
If the MDLP2 is connected to a McIntosh Audio/Video
Control Center MX136, MX135, MX120, MX119, MX134
or MX132 (MX Series) add the following connection:
2. Connect a Control Cable from the MDLP2 POWER
CONTROL IN A Jack to the McIntosh MX Series
Power Control Zone A Out Jack.
Data Control Connections:
When the MDLP2 is connected to the McIntosh VP1000
Video Processor, no Data Port connection is necessary.
If the MDLP2 is connected to a McIntosh Audio/Video
Control Center MX136, MX135, MX120, MX119, MX134
or MX132 (MX Series) add the following connection:
3. Connect a Control Cable from the MDLP2 DATA IN
Jack to the McIntosh MX Series SUM A Data Port
Jack.
Video Connections:
When the MDLP2 is connected to the McIntosh VP1000
Video Processor, add the following connections. If there is
no VP1000, proceed to step 6.
4. Connect a Video Cable from the MDLP2 Y1, PB1 and
PR1 COMPONENT VIDEO Input Jacks to the McIntosh VP1000 Component Video MON A Jacks.
5. Connect a Video Cable from the MDLP2 HDMI 1
Input Jack to the McIntosh VP1000 HDMI MON A
Output Jack.
How to Connect the MDLP2
If the MDLP2 is connected to a McIntosh Audio/Video
Control Center MX136, MX135, MX120, MX119, or
MX134 (MX Series) add the following connection:
6. Connect a Video Cable from the MDLP2 Y1, PB1 and
PR1 COMPONENT VIDEO Input Jacks to the McIntosh MX Series Component Video MON A Jacks.
7. Connect a Video Cable from the MDLP2 HDMI 1
Input Jack to the McIntosh MX Series HDMI MON A
Output Jack.
Note: Only the MX136 and MX120 Audio/Video Con-
trol Centers will have a HDMI MON A Jack.
AC Power Cord Connections:
8. Connect the MDLP2 AC Power Cord to a live AC
outlet.
9. Connect the remaining components’ AC Power Cords.
17
Selects which component, either the
VP1000 Processor or the MDLP2
Projector, the remote control commands are sent to
Remote Control Push-Buttons
LED illuminates during the time
a remote command is sent to the
MDLP2
Used to change the Color
Temperature settings
Press to adjust the
selected function
Used to change the
Gamma settings
Press to recall various
On-Screen Information,
press a second time to
deactivate the Menus
Press to change the Aspect
Ratio of the video image
Press to select one of three
predefined picture settings
or select one of nine user
defined picture settings
Changes the film frame processing from Auto to Off
Activates the OnScreen
Crosshatch Test Pattern
Used to change the Lens Iris
opening size
Press to activate the various OnScreen Menus, press a second time
to deactivate the Menus
Used to navigate up, down, to
the left and to the right through
the various menus. Also used
to select the desired function or
option
Press to select the desired Screen
Blanking Setting from Memory
Locations 1-3 or switch Off the
Blanking Function
Press to Power ON or
OFF the MDLP2
Press to select the desired video
source, Component 1, Component 2, HDMI 1 or HDMI 2
18
Note: Push-buttons whose function is not identified above
are for use with other McIntosh Components
How to use the Remote Control
How to use the Remote Control
The supplied Remote Control is capable of directly controlling the functions of the McIntosh MDLP2 Video Projector
and VP1000 Video Processor. For additional information
on the various video adjustments and their purpose, please
refer to the “How to Operate the MDLP2” section of this
manual starting on page 22.
Note: At times it might appear the selected function is not re-
sponding when using the Remote Control. This can be
due to the Input selected, the presence of a video signal
for that input and the Picture Mode selected. Please
refer to page 22 for additional information.
Device Selection
This Remote Control is used to operate the McIntosh
MDLP2 Video Projector and the VP1000 Video Processor.
When using the Remote Control with the MDLP2, first
press the DEVICE PROJector push-button and then press
the push-button for the desired function. It is only required
to press the DEVICE PROJector push-button once, unless the Remote Control is also being used to control the
VP1000 Video Processor.
When the Remote Control is being used to control both
McIntosh Components, either the DEVICE PROCessor
or the DEVICE PROJector push-button would need to
be pressed first, before sending
commands to the desired component.
Note: When any of the Push-but-
tons in the adjacent illustration are pressed, the Remote Control automatically
switches to sending VP1000 Video Processor IR Codes.
Power On
Press PROJector ON to switch the power On to the
MDLP2.
Power Off
Press PROJector OFF to switch the power Off to the
MDLP2.
Color Temperature
Allows for changing on the fly1 the color neutrality of the
image from warm thru cool (six different settings).
Iris
Allows for changing on the fly1 the overall Image Brightness by varying the opening size of the Lens Iris (two
different settings).
Gamma
Allows for changing on the fly1 selected narrow segments
of the gray scale, where the selected segment range of
brightness/contrast is expanded (eight different segments).
Note: The term “Gray Scale” refers to the image intensity
range from Black to White with shades of gray in-between.
Aspect Ratio
Allows for presenting the image with different height to
width sizes. The choices available vary according to the
original source material type, projector settings and input
used.
Picture Modes
There are three preset modes THTR (Theater), STD (Standard) and DYN (Dynamic) along with three user group set
selections, G1, G2 or G3. With every press of the G1 pushbutton a different User Setting will be selected (U1, U2 or
U3). The G2 push-button will select (U4, U5 or U6) and the
G3 push-button selects (U7, U8 or U9). Refer to “How to
Operate the MDLP2” for additional information on using
the User defined image settings.
Note: Changing the Picture Mode using the Remote Control
Picture Mode Push-buttons will not occur if the OnScreen Menu is active. If the Menu is active, the Picture
Mode may be changed using the Picture Mode Menu
functions.
Adjust Functions
After menu functions displaying a horizontal adjustment bar on the screen have been selected, such as Image
Brightness, the ADJUST+ or ADJUST- push-buttons may
be used to vary the brightness of the image.
1
When some Picture Modes are selected, “the changing on the
fly” feature is not available.
19
2
Front Panel Push-buttons, Indicators and Control
Used to navigate up,
down, to the left and
to the right through
the various menus.
Also used to select the
desired function or
option
Indicates when
the projector
lamp has failed
or if one of the
safety functions
has been acivated
IR Sensor
receives
commands
from a
Remote
Control
Selects one
of four Video
Sources available
and indicates the
selected video
input
Standby Power
On Indicator
Allows the Projector Lens assembly to
be raised or lowered
vertically for centering the image on the
screen
Activates the OnScreen CrossHatch Video Test
Pattern
Activates the
On-Screen
Menus for
changing the
settings
Power ON
Indicator
20
STANDBY/
ON Push-button
switches the
MDLP2 ON or
OFF (Standby)
Default Settings
The Default Settings Charts indicate the On-Screen Menu
Name, Function, Default Settings and the page number for
additional information.
Default Settings
MENU FUNCTION SETTING PAG E
Picture Mode Theater Default 24
Standard (Default) Default 24
Dynamic Default 24
User 1 24
Picture Adjust Gamma Standard 24
Contrast 0 24
Brightness 0 24
Color 0 24
Tint 0 24
Sharpness 0 24
Color Temp. 3 24
Lamp Mode Normal 25
Iris 3 25
Fine Menu 1 Noise Reduction 0 26
R Gain 0 26
G Gain 0 26
B Gain 0 26
R Bias 0 26
G Bias 0 26
B Bias 0 26
Luminance Gain 0 26
Chroma Delay 0 26
Fine Menu 2 Aspect Full 26
Cinema Auto 26
VCR Mode Off 26
Black Level Normal 26
FRC Auto 1 26
CEC Off 26
Picture Shift V 0 26
Overscan Enable 26
Input Signal Component 1 Auto 27
Component 2 Auto 27
S-Vid eo Auto 27
Video Auto 27
RGB Auto 27
HDMI 1 Auto 27
HDMI 2 Auto 27
MENU FUNCTION SETTING PAG E
RGB/HD Adjust Mode Auto 26
Readjust ---- 26
Resolution H 0 26
Resolution V 0 26
Position H 0 26
Position V 0 26
Phase 0 26
Clamp Position 0 26
Clamp Width 0 26
HDMI CSC HDMI 1 Auto 27
CSC HDMI 2 Auto 27
Deep Color HDMI 1 Auto 27
Deep Color HDMI 2 Auto 27
Display Keystone 0 27
Scale 0 27
Width 0 27
Position H 0 27
Position V 0 27
Color Wheel x5 27
Installation Front 27
OSD/Blanking Menu Position Top -L 27
Language English 27
Status Info Enable 28
Power-Off Confirm Disable 28
Blanking Memory Off 28
Blanking Top 0 28
Blanking Bottom 0 28
Blanking Left 0 28
Blanking Right 0 28
Conf ig. Auto Power Off Disable 28
Trigger 2 Full On 28
Trigger 2 Normal On 28
Trigger 2 Zoom On 28
Trigger 2 V-stretch On 28
Trigger 2 Through On 28
Remote Control Wireless 28
Reset Lamp Life No 29
Reset All No 29
21
How to Operate the MDLP2
2
Power
The Red LED to the left of the STANDBY/ON Push-button
lights to indicate the MDLP2 is in Standby mode. To
Switch ON the MDLP2, press the STANDBY/ON Pushbutton on the Projector Control Panel or the Projector ON
Push-button using the Remote Control. The Green LED to
the right of the STANDBY/ON Push-button lights to indicate the MDLP2 is ON. Refer to figures 14 and 15.
Notes: 1. It is normal for the projector lamp warm up period
to last about a minute before an image appears on
the screen.
2. If the Initial Setup for the MDLP2 has not yet been
performed refer to page 14 at this time.
Figure 14
Source Selection
The default Source Select for the MDLP2 Projector is the
COMPonent 1 Input. There is an additional Component
Video Input (COMP 2) along with two HDMI Inputs.
Select the desired source using the push-buttons located on
the Projector Control Panel or on the PROJ INPUT Pushbuttons located on the Remote Control. Refer to figures 14
and 15.
Note: Whenever possible use HDMI connections between
the source device output to the MDLP2 Input. This
will yield better image quality, as the video signal
will go through one less analog to digital conversion process and possibly one less digital to analog
conversion process as well.
Image Adjustments and Setting changes
All of the electronic based image adjustments and processing settings are performed by using the extensive
On-Screen Menu System. The
On-Screen Menu System is interactive and the ability to change
a given setting is dependent on
the Input selected, the presence
of a video signal for that input,
the Picture Mode selected and are
automatically saved for the currently selected video input. When
a menu item is “grayed out” it
can not be changed until either
another Input is selected, a signal
is present or a different Picture
mode is selected.
The selection of a menu item
and the available choices/adjustments are performed by using the
Navigation (◄LEFT, ►RIGHT,
▲UP or ▼DOWN) Push-buttons
along with the ENTER/SELECT
Push-buttons located on the Projector Control Panel and/or using
the Remote Control Push-buttons.
The following examples will
illustrate how to use the OnScreen Menu System by performing the Display Installation Orientation, Display Vertical Keystone
Adjustment and Remote Control
Configuration. All of the remaining menu options are performed
in a similar manner.
Figure 15
22
Display Installation Orientation:
Keystone 0
Standard 1
Keystone
Scale
Width
Position H
Position V
Installation
0
0
0
0
0
Front
Color Wheel
x5
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
Standard 1
Keystone
Scale
Width
Position H
Position V
Installation
0
0
0
0
0
Front
Color Wheel
x5
Front
Rear
F+Ceiling
R+Ceiling
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
1. Press the MENU Push-button on either the Projector Control Panel or on the Remote Control. Refer to
figures 14 and 15.
2. Using the Navigation ▲UP or ▼DOWN Push-button,
select DISPLAY from the Main Menu choices. Refer to
figure 16.
Figure 16
How to Operate the MDLP2
Figure 18
5. Press the ◄LEFT or ►RIGHT Navigation Push-button
to adjust the image so the left and right vertical sides of
the image are parallel to the sides of the screen. Refer
to figures 19 and 20.
Note: The ADJUST + and - Push-buttons on the Remote
Control may also used.
3. Using the Navigation ►RIGHT Push-button plus the
▲UP or ▼DOWN Push-button, select INSTALLA-
TION from the Display Menu choices.
4. Press the Navigation ►RIGHT Push-button plus the
▲UP or ▼DOWN Push-button select the correct
orientation of the projector relative to the screen. Refer
to figure 17.
Vertical Keystone Adjustment:
1. Press the MENU Push-button on either the Projector Control Panel or on the Remote Control. Refer to
figures 14 and 15.
2. Using the Navigation ▲UP or ▼DOWN Push-button,
select DISPLAY from the Main Menu choices. Refer to
figure 17.
3. Using the Navigation ►RIGHT Push-button plus the
▲UP or ▼DOWN Push-button, select KEYSTONE
from the Display Menu choices.
4. Press the Navigation ►RIGHT Push-button and the
On-Screen Display changes to show the video image
selected plus a horizontal adjustment bar located near
the bottom of the screen. Refer to figure 18.
Figure 17
Figure 19
Figure 20
In order to see the sides of the projected image, it might be
necessary to temporarily reduce the size of the image by
using the Lens Mechanical Size Adjustment. Refer to page
14. After the Vertical Keystone correction has been performed, the projected image might not fill up the screen.
If necessary, use the Lens Mechanical Size Adjustment to
correct.
Remote Control Configuration:
The MDLP2 has two built-in sensors, one on the front of
the projector and the other sensor located on the Control
Panel. In certain installations it might be desirable to use
an external sensor connected to the IR Jack. If an external
sensor is used, it is advisable to switch Off the built-in sensors to prevent possible interference. To switch Off these
sensors perform the following steps on the next page:
23
1. Press the MENU Push-button on either the Projec-
Wireless ?
9E S .O
Standard 1
Auto Power Off
Trigger 2 Full
Trigger 2 Normal
Trigger 2 Zoom
Enable
On
On
On
Trigger 2 V-stretch On
Trigger 2 Through On
Reset Lamp Life
Reset All
Remote Control
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
Theater
Standard
Dynamic
User
Default
1
Default
1
Standard 1
2
3
1
Default
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
User 1
Gamma
Contrast
Brightness
Color
Tint
0
0
0
0
A
C
D
E
B
A
Theater
Standard
Dynamic
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
3
Lamp Mode
Color Temp.
Normal
Iris
3
Sharpness
0
tor Control Panel or on the Remote Control. Refer to
figures 14 and 15.
2. Using the Navigation ▲UP or ▼DOWN Push-button,
select CONFIG. from the Main Menu choices. Refer to
figure 21.
Figure 21
3. Using the Navigation ►RIGHT Push-button plus the
▲UP or ▼DOWN Push-button, select REMOTE
CONTROL from the Config. Menu choices.
4. Press the Navigation ►RIGHT Push-button and the
On-Screen Display changes to show a window. Refer
to figure 22.
5. Press the ◄LEFT or
►RIGHT Navigation
Push-button to select
YES to disable the
Figure 22
enternal sensors or NO
to activate the internal sensors.
6. In order to activate the sensor choice, it is necessary to
press the ENTER Push-button on the Control Panel.
Note: The SELECT Push-button on the Remote Control
will not activate the choice.
Picture Mode Selection
The MDLP2 has three predefined Picture Modes; Theater,
Standard, Dynamic. There are also nine User definable
Picture Modes. Refer to figure 23. A Picture Mode is a
Memory Location that remembers the current image settings which are adjustable for the currently selected input.
There are two ways to select the Picture mode: selecting
a mode from the On-Screen MENU or pressing the Picture
Mode push-buttons (THTR, STD, DYN) on the Remote
Control. To have the MDLP2 memorize the current setting
perform the following:
1. Select a memory location (U1 thru U9) and then press
2. Make the changes to the image using the menu sys-
24
the SELECT/ENTER Push-button.
tem.
Figure 23
3. Reselect the memory location from step one and then
press the SELECT/ENTER Push-button.
Picture Adjust Menu
There are various image adjustments available as follows:
Refer to figure 24.
Figure 24
Gamma - There are eight different settings changing a
narrow range of the gray scale.
Color Temp. - The Color Temperature affects to what de-
gree of neutrality the gray scale is.
Setting - Color Temperature (° Kelvin)
1 5250° K (overall reddish tint)
2 5800° K (slightly overall reddish tint)
3 6500° K (most neutral, default setting)
4 7500° K (slightly overall bluish tint)
5 9300° K (overall bluish tint)
HB High Bright (Display brightest image)
Lamp Mode - The Normal setting provides a brightly il-
luminated image with reasonable projector
lamp life. The Economy setting has slightly
reduced illumination with an increase in
lamp life.
Iris - The settings effect the overall image brightness and
contast. The “1” setting will increase the contrast
and decrease the brightness of the image. The “3”
setting will decrease the contrast and increase the
brightness of the image.
How to Operate the MDLP2, con’t
Standard 1
Noise Reduction
R Gain
G Gain
B Gain
0
0
R Bias
G Bias
B Bias
0
0
0
0
0
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
0
0
Luminance Gain
Chroma Delay
Standard 1
Cinema Auto
0
Picture Shift V
Overscan
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
Enable
FRC Auto 1
CEC Off
VCR Mode
Black Level
On
0 IRE
Aspect Full
Fine Menu 1 Adjust
In the Fine Menu 1 there are two user type adjustments,
image sharpness and noise reduction. The remaining
adjustments are best performed by a professional with the
necessary video signal generators and optical measurement
equipment. Refer to figure 25.
Figure 25
Noise Reduction - Reduces the amount of electronic noise
present in the video signal.
R Gain - This menu allows setting the gain for red.
G Gain - This menu allows setting the gain for green.
B Gain - This menu allows setting the gain for blue.
R Bias - This menu allows setting the bias for red.
G Bias - This menu allows setting the bias for green.
B Bias - This menu allows setting the bias for blue.
Note : The settings made in Fine Menu 1 are saved in the cur-
rently selected Picture Mode (Default excluded).
Luminance Gain - This menu allows the users to set the
luminance gain.
Chroma Delay - This menu allows the users to set the
chrominance delay.
Fine Menu 2 Adjust
The following adjustment are intended to be use by a professional installer to compensate for differences in video
signals from various sources. Refer to figure 26.
Figure 26
Aspect - Allows for changing the projected image size
height to width ratio to compensate for the different image sizes from various sources materials
such as film and TV video. Refer to figure 27 on
the next page.
Cinema - Auto: Automatically selects the cinema mode
when a video signal is input. NTSC: 3-2
pull down, PAL: 2-2 pull down.
Off: Pull-down processing is not performed.
VCR Mode - On: A projector is forced into the intra-field
only deinterlacing mode.
Off: A projector is used with external field
memories and operates in the full set of
deinterlacing modes, i.e., motion adaptive
video deinterlacing and full frame film
source deinterlacing using 3:2 pulldown detection (2:2 pulldown for 625/50
sources).
Black level - Select the black level by a video source.
FRC - Auto: Frame Rate Conversion function is basically
off. However FRC turns on automatically depending on vertical frequency of input signal.
On: Frame Rate Conversion function is On (60Hz
fixed).
CEC - On: Chroma Error Correction reduces CUE (Chro-
ma Up-sampling Error) of 1080i signals.
Off : Normally, use this mode.
Picture Shift V - When Aspect on the Picture Adjust menu
is set to Zoom, this setting allows the
user to move the projected image vertically in order to see parts on the image
not appearing on the screen.
Overscan - Selects whether to show or hide picture borders
with SD (Standard Definition) video signals.
Input Signal Resolution Selection
There are several SD (Standard Definition) and HD (High
Definition) types of video signals the MDLP2 is capable of
displaying. The default setting for the Component Video
and HDMI Inputs of the MDLP2 is AUTO. In the AUTO
Mode, the MDLP2 will automatically switch to the highest
resolution possible for each of the video signals it receives.
Refer to figure 28 on the next page.
Note: The S-Video, Video and RGB Inputs are not used on
the MDLP2.
Item Resolution Selection
Component Auto, 480i/576i, 480p, 540p, 576p, 720p
1 and 2 1035i, 1080i, 1080p
HDMI Auto, 480i/576i, 480p, 576p, 720p, 1035i,
1 and 2 1080i, 1080p
25
Standard 1
Component 1
Component 2
S-Video
Video
Auto
Auto
Auto
Auto
RGB Auto
HDMI 2
HDMI 1 Auto
Auto
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
ASPECT RATIO OPTIONS
16:9 VIDEO SOURCE 4:3 VIDEO SOURCE
MODE IMAGE DECRIPTION IMAGE DECRIPTION
INPUT
SIGNAL
(HDMI, 1080p signal)
FULL
NORMAL
ZOOM
V-STR ETCH
The I m a ge Sou rc e Aspect
Ratio is 1.78:1
The 16:9 image is displayed
with the correct aspect
The picture in normal ratio
16:9 is displayed
B o th t h e ve rt ic al an d
horizont al components are
enlarged
The vertical component of the
aspect ratio is elongated
The I m a ge So u rc e Aspect
Ratio is 1.33:1
The 4:3 im age is enla r ged
horizontally
The picture in normal ratio
4:3 is displayed
B o th t h e ve rt ic al a nd
horizont a l components are
enlarged
The vertical component of the
aspect ratio is elongated
TH ROUGH
26
Figure 28
Images are actual pixel size Images are actual pixel size
Figure 27
RGB/HD Adjust
The RGB/HD allow for fine adjustments to be made to HD
(High Resolution) Video Signals. Refer to figure 29.
Mode - Auto: Automatically adjusts each of the RGB/HD
Menu items.
Memory: Allows for manual adjustments of the
1-3 RGB/HD Menu items and the adjustments
can be stored in one of three memory
locations.
Resolution H, V - Adjusts the horizontal and vertical reso-
lution of the RGB/HD input signals.
Position H, V - Adjusts the position of the input signal. H
adjusts the horizontal position of the input
signal. V adjusts the vertical position of the
input signal. The remaining adjustments
Standard 1
Mode
Readjust
Resolution H
Resolution V
Position H
Position V
Memory 1
0
0
0
0
Phase
Clamp Position
Clamp Width
0
0
0
1 2 3
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
Standard 1
Keystone
Scale
Width
Position H
Position V
Installation
0
0
0
0
0
Front
Color Wheel
x5
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
Standard 1
Menu Position
Language
Status Info.
Power-OFF Confirm.
Blanking Memory
Blanking Top
Top-L
English
Enable
Enable
Memory 1
0
0
0
0
Blanking Bottom
Blanking Left
Blanking Right
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
Standard 1
CSC HDMI 1
CSC HDMI 2
Deep Color HDMI 1
Deep Color HDMI 2
Auto
Auto
Auto
Auto
Picture Adjust
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
are for RGB signals and are thus “grayed
out”.
Figure 29
HDMI Menu Adjust
The HDMI Menu provides adjustments for matching the
Color Space and Deep Color settings of the MDLP2 to the
source component. Refer to figure 30.
CSC HDMI 1/2 - The Default setting is AUTO, however
there are several manual settings in the
event the source component is unable to
communicate the desired setting.
Deep Color HDMI 1/2 - The Default setting is AUTO,
however there are several manual
settings in the event the source
component is unable to communicate the desired setting.
How to Operate the MDLP2, con’t
Figure 31
Scale - Reduces the image size without changing the aspect
ratio. The image can be reduced to about 70% of
the original size.
Width - Reduces the image width without changing the
image height. The width can be reduced to about
75% of the original size.
Position H, V - Adjust the position of the input signal. H
adjusts the horizontal position of the input
signal. V adjusts the vertical position of the
input signal.
Enable: Default mode.
Disable: Reduces the size of the image so the
edges of the video signal can be seen.
Color Wheel - Sets the rotation speed of the lamp source
color optical filter. x5 is the default setting.
Note: The on-screen image will momentarily
disappear during the speed change.
Installation - Refer to “Display Installation Orientation” on
page 23.
Figure 30
Display Menu Adjust
The Display Menu allows for electronic adjustments to
be made to the image to compensate for orientation of the
projector relative to the screen. Refer to figure 31.
Note: Before using the electronic adjustments, make sure all
Keystone - Refer to “Vertical Keystone Adjustment” on
of the Initial Setup Mechanical Adjustments have been
made first. Refer to pages 14 and 15.
page 23.
OSD/Blanking
The OSD (On-Screen Display) and Blanking Adjustments
default settings may be changed for personal preferences.
Refer to figure 32.
Figure 32
Menu Position - There are nine different positions On-
Screen to display the menus.
27
Status Info. - Displays On-Screen information about the
Standard 1
Auto Power Off
Trigger 2 Full
Trigger 2 Normal
Trigger 2 Zoom
Enable
On
On
On
Trigger 2 V-stretch On
Trigger 2 Through On
Reset Lamp Life
Reset All
Remote Control
Fine Menu 1
Fine Menu 2
Input Signal
RGB/HD Adjust
Display
OSD/Blanking
Config.
HDMI
Picture Adjust
It will be standby mode soon.
Auto Power Off
status of the video input signal and when
other operational modes are selected. This
occurs when the INFO Push-button or other
push-buttons are pressed on the Remote
Control.
Enable: Displays the current status for a set
amount of time in the upper righthand corner of the screen.
Disable: The information is not displayed.
Power-OFF Confirm - Displays an On-Screen message
requesting confirmation after pressing either the PROJ OFF Pushbutton on the Remote Control or
the STANDBY/ON Push-button on
the Projector Control Panel (as the
push-button may have been pressed
by mistake).
Disable: Switches Off power to
the projector without the
option provided by the
confirmation message.
Enable: The confirmation message
will appear after pressing either push-button to
switch power Off to the
projector.
Blanking Memory - There are three memory locations
capable of storing how much projected
image (top/bottom/sides) will be cut
off by black bands (masking) to pre-
vent viewing the undesirable parts of
the image.
Memory 1-3: Each of the three mem-
ory locations will store
and retrieve the desired
masking settings.
Off: Switches Off the blank-
ing mode. No masking
occurs.
Config. Settings
The items in the configuration menu determine how the
MDLP2 Projector interfaces with other equipment, such as
motorized projection screens. There are also settings dealing with the MDLP2 Projection Lamp. Refer to figure 33
and your McIntosh Dealer for additional information and/
or assistance.
Auto Power Off - This feature allows for the MDLP2 to be
28
switched Off automatically ten minutes
Figure 33
after there is a loss of a video signal on
the currently selected input, thus conserving the projectors lamp life.
Enable: This setting will activate the
feature. Approximately nine
minutes after there is a loss of
the video signal, an On-Screen
message will appear. If the
MDLP2 doesn’t receive a video
signal on the currently selected
input or a new command is not
issued via the Control Panel or
Remote Control, the MDLP2
will switch Off about one minute later. Refer to figure 34.
Figure 34
Disable: The Auto Power Off Feature is
switched Off.
Trigger 2 - Is activated by changing the Aspect Ratio (Full,
Normal, Zoom, V-stretch and Through). This
allows for changing the size of the reflective
area of the projection screen (via motorized
masking) and/or the addition of an external lens
in the light path. With a given Trigger 2 (Full,
Normal, Zoom, V-stretch and Through) set to
ON, a 12VDC output will appear at the Trigger
2 Output Jack; when set to OFF, 0V appears at
Trigger 2 Output Jack.
Remote Control - Selection includes the two built in sen-
sors along with any external sensor(s)
connected via the external IR Input Jack
or just external sensor(s). Refer to page
5, General Information Note 6.
How to Operate the MDLP2, con’t
Reset All ?
Ye s No
Ye s No
Reset Lamp Life ?
Lamp Life 5 Hours
Warning
Lamp Life 0 Hours
Warning
Warning
Lamp Life 100 Hours
Information
Video Input HDMI 1 - 1080p
Picture Mode User 1
Gamma A
Aspect Normal
Lamp Mode Economy
Iris 3
Lamp Life 921 Hours
Total Time 3653 Hours
Wireless: Selects external sensor(s) only.
Wired: Selects the two internal sensors
and any external sensor(s) connected to
the MDLP2.
Note: When making a change to the cur-
rent menu setting, the ENTER Pushbutton on the MDLP2 Control Panel
must be used to effect the desired
change.
Reset Lamp Life - The projection lamp used in the MDLP2
has a maximun life expectancy of 2,000
hours.
If at any time you would like to know
how many hours of use are left for the
lamp, press the INFO Push-button on
the Remote Control and the On-Screen
Display will appear indicating the number of hours remaining. Refer to figure
35.
Finally, the last warning message will
appear On-Screen, the MDLP2 Projector will shut Off and the Control Panel
WARNING/LAMP LED will illuminate red. Refer to figure 38.
Figure 38
After your McIntosh Dealer has replaced the Projector Lamp, check to
make sure the Lamp Life has been reset
by pressing the INFO Push-button on
the Remote Control. The On-Screen
Display should indicate 2,000 hours. If
it was not reset, please do so it at this
time by selecting the Reset Lamp Life
from the On-Screen Menu. Then select
YES and press the ENTER Push-button. Refer to figure 39.
Figure 35
When there is aproximately 100 hours
of lamp life remaining, an On-Screen
Warning Message will appear briefly.
Refer to figure 36.
If you have chosen not to replace the
lamp at this time, a second warning
message will appear with approximately
5 hours remaining. Refer to figure 37.
Figure 39
Reset All - If it becomes necessary to reset all the menu
settings back to factory defaults (except for the
Lamp Life Setting), select the Reset All from
the On-Screen Menu and then select YES and
press the ENTER Push-button.
Refer to figure 40.
Figure 40
Figure 36
Reset of Microprocessors
In the unlikely event the controls of the MDLP2 stop
functioning, the microprocessors can be reset by disconnecting the AC Power Cord from the MDLP2, waiting for
5 minutes and then reconnecting the AC Power Cord.
Figure 37
29
Optical Specifications
Specifications
Digital Micromirror Device
0.95 inch (16:9)
1920 x 1080 pixels
Lamp
Super High Pressure 200W DC
Lens
f: 30.7 – 44.5mm (medium throw lens)
f: 44.5 – 66.75mm (long throw lens)
F: F3.0/F6.0
Projected Image Size
70 to 250 inches (medium throw lens, 1.77:1 aspect ratio)
80 to 300 inches (long throw lens, 1.77:1 aspect ratio)
70 to 250 inches (medium throw lens, 1.33:1 aspect ratio)
60 to 300 inches (long throw lens, 1.33:1 aspect ratio)
Electrical Specifications
Video Inputs
2 - Component Analog Video (Y, Pb, Pr)
2 - HDMI Digital Video (1.3 Compliant)
McIntosh Data Control Input
1- 1/8 inch Stereo Mini Jack
Power Control In
1 - 1/8” Stereo Mini Jack
Input voltage range 5V – 12V
Power Control Out
1- 1/8” Stereo Mini Jack
Output voltage 5V
Trigger Outputs
2- 1/8” Stereo Mini Jacks
Output Voltage 0V or 12VDC
Power Requirements
100 Volts, 50/60Hz at 350 watts
110 Volts, 50/60Hz at 350 watts
120 Volts, 50/60Hz at 350 watts
220 Volts, 50/60Hz at 350 watts
230 Volts, 50/60Hz at 350 watts
240 Volts, 50/60Hz at 350 watts
Note: Refer to the rear panel of the MDLP2 for the correct
voltage.
General Specifications
Operating Temperature
41 to 95oF
5 to 35oC
Operating Humidity
30 to 85%
Overall Dimensions
Width is 20-1/4 inches (51.44cm)
Height is 6- 3/4 inches (17.15cm) feet retracted
Height is 9- 1/2 inches (24.13cm) feet extended
Depth is 18- 13/16 inches (47.78cm) medium throw lens
Depth is 19- 1/16 inches (48.41cm) long throw lens
Weight
40 pounds (18.14 kg) net, 54 pounds (24.5 kg) in shipping
carton
Shipping Carton Dimensions
Width is 32 inches (81.28cm)
Depth is 28 inches (71.12cm)
Height is 13 inches (33.02cm)
Data Communications
Standard RS-232C
9pin D-Subminature female receptacle
30
Packing Instructions
Protective
Lens Cover
Shipping
Carton
To p
Shipping
Carton
Bottom
Foam
Pad
To p
Foam
Pad
Bottom
Packing Instructions
In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as shown
on this page, with the protective cover installed on the
projector lens. Failure to do this will result in shipping
damage.
Use the original shipping carton and interior parts only
if they are all in good serviceable condition. If a shipping
carton or any of the interior part(s) are needed, please call
or write the Customer Service Department of McIntosh
Laboratory. Refer to page 4. Please see the Part List for the
correct part numbers.
CAUTION: To prevent possible damage to the Projec-
tor Lens Assembly, DO NOT at any time
attempt to LIFT, CARRY or RE-ORIENT the Projector using the Lens.
Quantity Part Number Description
1 034374 Shipping carton complete
31
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, NY 13903
www.mcintoshlabs.com
The continuous improvement of its products is the
policy of McIntosh Laboratory Incorporated who
reserve the right to improve design without notice.
Printed in the U.S.A.
McIntosh Part No. 04106200
Loading...
