AUTOMATIC WASHER

USE & CARE GUIDE

LAVEUSE AUTOMATIQUE

GUIDE D’UTILISATION ET D’ENTRETIEN

FOR QUESTIONS ABOUT FEATURES, OPERATION/PERFORMANCE,

AU CANADA, POUR ASSISTANCE, INSTALLATION OU SERVICE,

PARTS, ACCESSORIES OR SERVICE CALL: 1.800.688.9900

COMPOSER LE : 1.800.807.6777

IN CANADA, CALL: 1.800.807.6777



VISIT OUR WEBSITE AT WWW.MAYTAG.COM

OU VISITER NOTRE SITE INTERNET À

IN CANADA, WWW.MAYTAG.CA

WWW.MAYTAG.CA

W10150597A

Downloaded from www.Manualslib.com manuals search engine

TABLE OF CONTENTS



WASHER SAFETY ....................................................................................................................

3

INSTALLATION REQUIREMENTS...........................................................................................

5

Tools and Parts.....................................................................................................................

5

Location Requirements.........................................................................................................

5

Drain System........................................................................................................................

6

Electrical Requirements........................................................................................................

7

INSTALLATION INSTRUCTIONS ...........................................................................................

8

Before You Start ..................................................................................................................

8

Remove Shipping Materials..................................................................................................

8

Connect Drain Hose ............................................................................................................

9

Connect the Inlet Hoses .....................................................................................................

10

Secure the Drain Hose .......................................................................................................

11

Level the Washer................................................................................................................

11

Complete Installation .........................................................................................................

12

WASHER USE........................................................................................................................

13

Starting Your Washer .........................................................................................................

13

WASHER CARE......................................................................................................................

15

Cleaning Your Washer .......................................................................................................

15

Water Inlet Hoses...............................................................................................................

15

Moving and Storage ...........................................................................................................

15

TROUBLESHOOTING...........................................................................................................

16

Washer and Components...................................................................................................

16

Washer Operation..............................................................................................................

17

Washer Results...................................................................................................................

17

ASSISTANCE OR SERVICE.....................................................................................................

19

In the U.S.A........................................................................................................................

19

In Canada...........................................................................................................................

19

Accessories ........................................................................................................................

19

WARRANTY ..........................................................................................................................

20

TABLE DES MATIÈRES



SÉCURITÉ DE LA LAVEUSE ...................................................................................................

21

EXIGENCES D’INSTALLATION .............................................................................................

23

Outillage et pièces .............................................................................................................

23

Exigences d’emplacement..................................................................................................

23

Système de vidange............................................................................................................

24

Spécifications électriques ...................................................................................................

25

INSTRUCTIONS D’INSTALLATION .....................................................................................

26

Avant de commencer .........................................................................................................

26

Retrait du matériel d'expédition .........................................................................................

26

Raccordement du tuyau de vidange...................................................................................

27

Raccordement des tuyaux d’arrivée d’eau..........................................................................

28

Immobilisation du tuyau de vidange ..................................................................................

29

Réglage de l’aplomb de la laveuse .....................................................................................

30

Achever l’installation..........................................................................................................

31

UTILISATION DE LA LAVEUSE.............................................................................................

32

Mise en marche de la laveuse ............................................................................................

32

ENTRETIEN DE LA LAVEUSE.................................................................................................

34

Nettoyage de votre laveuse ................................................................................................

34

Robinets d'arrivée d'eau.....................................................................................................

34

Préparation avant un entreposage ou un déménagement...................................................

34

DÉPANNAGE ........................................................................................................................

35

La laveuse et ses composants .............................................................................................

35

Fonctionnement de la laveuse............................................................................................

36

Résultats de lavage .............................................................................................................

36

ASSISTANCE OU SERVICE....................................................................................................

38

Aux États-Unis....................................................................................................................

38

Au Canada .........................................................................................................................

38

Accessoires.........................................................................................................................

38

GARANTIE.............................................................................................................................

39

Para obtener acceso al manual de uso y cuidado en español, o para obtener información adicional acerca de su producto, visite: www.maytag.com.

Tenga listo su número de modelo completo. Podrá encontrar el número de modelo y de serie en la etiqueta ubicada debajo de la tapa de la lavadora.

2

Downloaded from www.Manualslib.com manuals search engine

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

3

Downloaded from www.Manualslib.com manuals search engine

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:

Read all instructions before using the washer.

Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.

Do not add gasoline, dry-cleaning solvents, or other flammable, or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washing machine, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children.

Before the washer is removed from service or discarded, remove the door or lid.

Do not reach into the washer if the drum, tub or agitator is moving.

Do not install or store the washer where it will be exposed to the weather.

Do not tamper with controls.

Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.

See “Electrical Requirements” for grounding instructions.

4

Downloaded from www.Manualslib.com manuals search engine

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. The parts supplied are in the washer basket.

Tools needed for connecting the drain hose and water inlet hoses:

Pliers that open to 1⁄"

Flashlight (optional)

(3.95 cm)



Parts supplied:

A B C

A.Drain hose form

B.Inlet hose (2)

C.Flat washer (4)

Tools needed for securing the drain hose and leveling the washer:

Adjustable or open end

Wood block



wrench ⁄" (14 mm)

Ruler or measuring tape



Level





Parts supplied:

A B

A.Beaded tie strap

B.Front leveling feet with nuts (2)

Alternate Parts

Your installation may require additional parts. For information on ordering, please refer to the toll-free phone numbers on the front page of the Use and Care Guide.

If You Have:

You Will Need to Buy:





Laundry tub or standpipe

Sump pump system (if not already available)

taller than 96" (2.4 m)







1" (2.5 cm) diameter

1¹⁄" (3.2 cm) diameter to 1" (2.5 cm) diameter standpipe

standpipe

adapter, Part Number 280130





Overhead sewer

Standard 20 gal. (76 L) 39" (99 cm) tall drain tub or utility



sink, sump pump and connectors (available from local



plumbing suppliers)





Floor drain

Siphon break kit, Part Number 280129; additional drain



hose, Part Number 3357090





Water faucets beyond reach

2 longer water fill hoses:

of fill hoses

6 ft (1.8 m) Part Number 76314,



10 ft (3.0 m) Part Number 350008





Drain hose too short

Kit Part Number 280131





Lint clogged drain

Drain protector, Part Number 367031

Location Requirements

Selecting the proper location for your washer improves performance and minimizes noise and possible washer “walk.”

Your washer can be installed in a basement, laundry room, closet, or recessed area. See “Drain System.”

IMPORTANT: Do not install or store the washer where it will be exposed to the weather. Proper installation is your responsibility.

You will need:

A water heater set to deliver 120°F (49°C) water to the washer.

A grounded electrical outlet located within 4 ft (1.2 m) of where the power cord is attached to the back of the washer. See “Electrical Requirements.”

Hot and cold water faucets located within 3 ft (90 cm) of the hot and cold water fill valves, and water pressure of 5-100 psi (34.5-690 kPa). Washers with triple dispensers require 20-100 psi (138-690 kPa) for best performance.

A level floor with a maximum slope of 1" (2.5 cm) under entire washer. Installing the washer on carpeting is not recommended.

A sturdy floor to support the washer weight (washer, water and load) of 315 lbs (143 kgs).

Do not store or operate your washer in temperatures at or below 32°F (0°C). Some water can remain in the washer and can cause damage in low temperatures. See “Washer Care.”

5

Downloaded from www.Manualslib.com manuals search engine

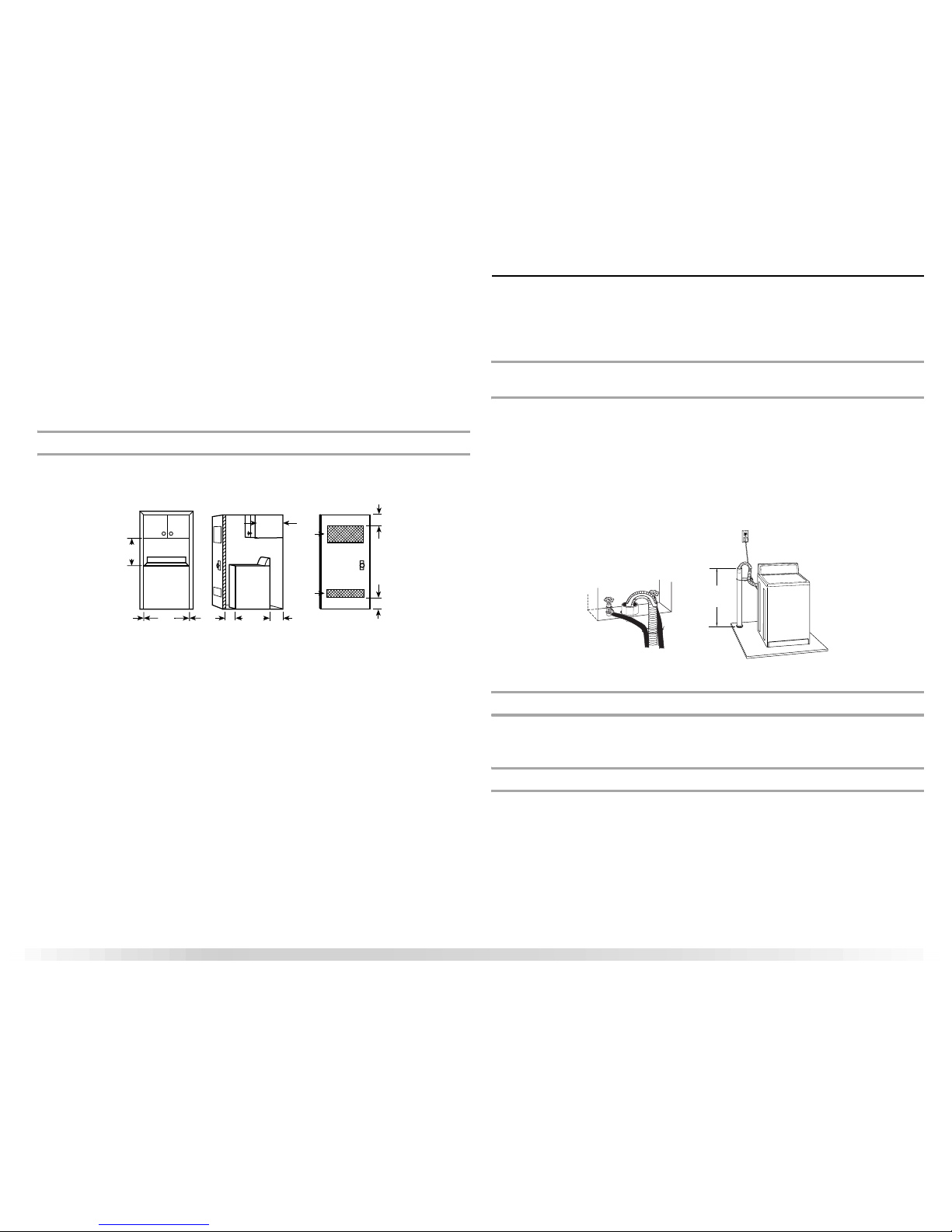

Recessed area or closet installation

The dimensions shown are for the recommended spacing allowed (A and B), except the closet door ventilation openings. The dimensions shown for the closet door ventilation openings (C) are the minimum required.















3"









14" max.

48 in.2



(7.6 cm)













19"







(35.6 cm)

(310 cm2 )

















(48.3 cm)

























2















24 in.



3"











(155 cm2

)















(7.6 cm)

0"

27"

0"

1"

25¹⁄"

4"





(0 cm)

(68.6 cm)

(0 cm)

(2.5 cm)

(64.8 cm)

(10.2 cm)





A





B





C

A.Front view

B.Side view

C.Closet door with vents

Additional spacing should be considered for ease of installation and servicing.

Additional clearances may be required for wall, door and floor moldings.

Additional spacing of 1" (2.5 cm) on all sides of the washer is recommended to reduce noise transfer.

If a closet door is installed, the minimum air openings in the top and bottom of the door are required (C). Louvered doors with air openings in the top and bottom are acceptable.

Companion appliance spacing should also be considered.

Drain System

The washer can be installed using the standpipe drain system (floor or wall), the laundry tub drain system, or the floor drain system. Select the drain hose installation method you need. See “Tools and Parts.”

Standpipe drain system—wall or floor (views A & B)

The standpipe drain requires a minimum diameter standpipe of 2" (5 cm). The minimum carry-away capacity can be no less than 17 gal. (64 L) per minute. A 1¹⁄" (3.2 cm) diameter to 1" (2.5 cm) diameter standpipe adapter kit is available. See “Tools and Parts.”

The top of the standpipe must be at least 39" (99 cm) high and no higher than 96" (244 cm) from the bottom of the washer.

6

To avoid siphoning, no more than 8" (20.3 cm) of drain hose should be inside the standpipe. Secure drain hose with beaded tie strap.

39" (99 cm)

A B

Laundry tub drain system (view C)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be at least 39" (99 cm) above the floor and no higher than 96" (244 cm) from the bottom of the washer.

Floor drain system (view D)

The floor drain system requires a siphon break that may be purchased separately. See “Tools and Parts.”

The siphon break must be a minimum of 28" (71 cm) from the bottom of the washer. Additional hoses might be needed.

To avoid siphoning, no more than 8" (20.3 cm) of drain hose should be below the top of the wash tub. Secure drain hose with beaded tie strap.

39"

28"

(71 cm)

(99 cm)

C D

Downloaded from www.Manualslib.com manuals search engine

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

A 120 volt, 60 Hz., AC only, 15or 20-amp, fused electrical supply is required. A timedelay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided.

This washer is equipped with a power supply cord having a 3 prong grounding plug.

To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electric current. This washer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the washer is properly grounded.

Do not have a fuse in the neutral or ground circuit.

7

Downloaded from www.Manualslib.com manuals search engine

INSTALLATION INSTRUCTIONS

Before You Start

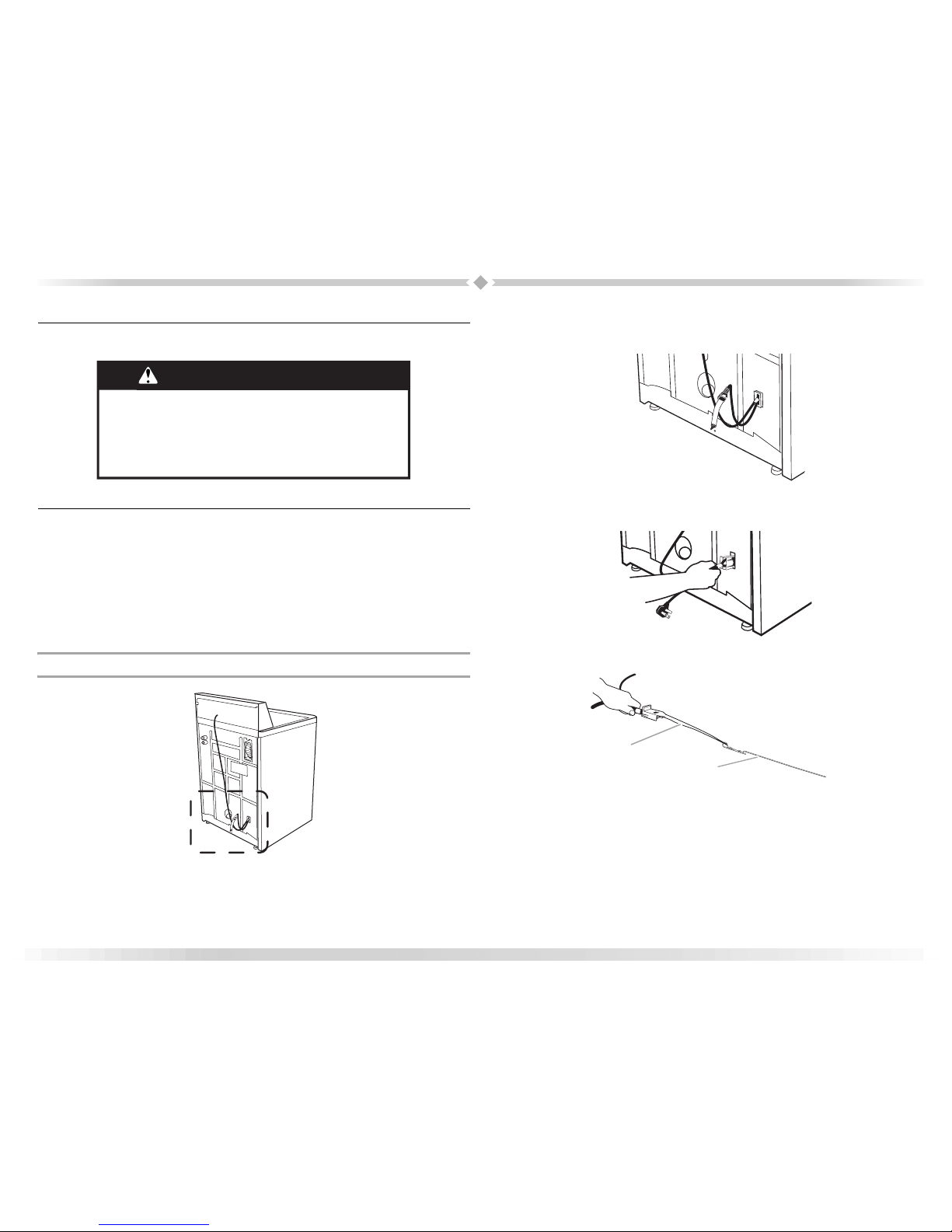

1.Remove power plug and yellow strap from machine base to release the rear leveling system.

WARNING

Excessive Weight Hazard

Use two or more people to move and install washer.

Failure to do so can result in back or other injury.

NOTE: To avoid floor damage, set the washer onto cardboard before moving across floor.

Remove Shipping Materials

Removing the shipping material is necessary for proper operation. If the shipping material is not removed, the washer will make excessive noise.

1.Move the washer to within approximately 3 ft (90 cm) of its final location.

2.The washer must be in the upright position and not tilted before removing the shipping material.

3.Locate the yellow shipping materials on the rear of the machine, near the bottom. Follow the steps for your particular model, either the one with the straight power cord and cord restraint or the looped power cord version.

Straight power cord

2.Firmly grasp the power cord and pull to completely remove the power cord, cord restraint, and pin from the rear panel.

3. Confirm that the power cord restraint (A), and pin (B) are removed.

A

B

A. Power cord restraint

B. Pin

4. To remove the power cord from the cord restraint, push the power cord in, press TAB, and then pull the power cord out.

Straight power cord

8

Downloaded from www.Manualslib.com manuals search engine

MAYTAG MTW5700TQ, MTW5800TW, MTW5600TQ User Manual

Looped power cord

Connect Drain Hose



Proper connection of the drain hose protects your floors from damage due to water leakage.



Read and follow these instructions.



The drain hose is connected to your washer and is stored inside the washer cabinet.



Remove drain hose from washer cabinet



Gently pull the corrugated drain hose out of the washer from the top of the hose. Continue to



pull the hose until the end emerges. Do not force excess drain hose back into the rear of the



washer.

Looped power cord

1. Firmly grasp the yellow shipping strap and pull until both ends are completely removed from washer.

Laundry tub drain or standpipe drain

Connecting the drain hose form to the corrugated drain hose

2. Check that two (2) shipping pins were removed with the shipping strap.

A

A.Drain hose reliefs

1.Feed end of drain hose into one end of form. Place end of drain hose form into the drain hose relief.

2.Bend the hose over the top of the form and feed into the other end of the form.

To keep drain water from going back into the washer:

Do not force excess drain hose into standpipe. Hose should be secure but loose enough to provide a gap for air.

Do not lay excess hose on the bottom of the laundry tub.

9

Downloaded from www.Manualslib.com manuals search engine

Floor drain

Do not install the drain hose form on to the corrugated drain hose. You may need additional parts. See Floor drain under “Tools and Parts.”

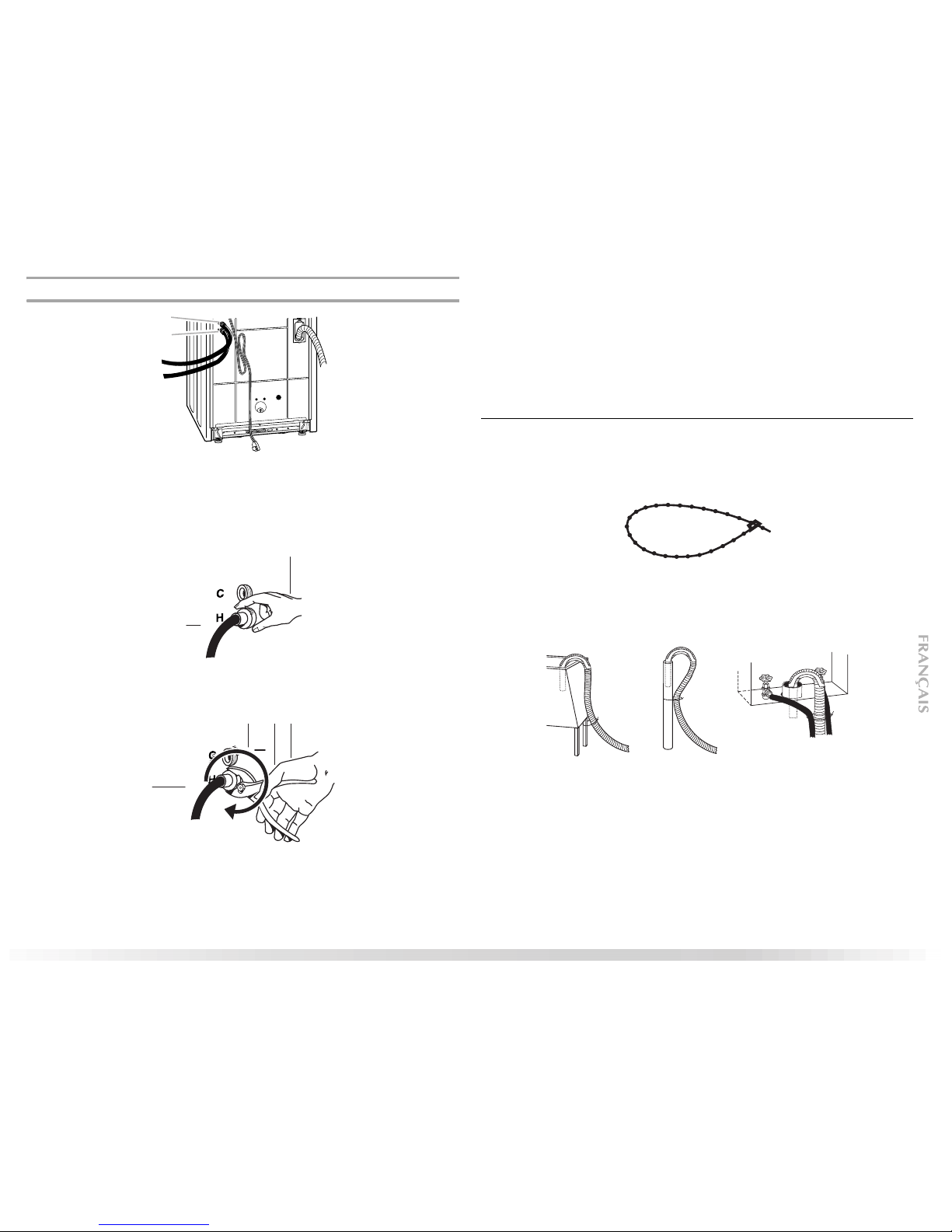

Connect the Inlet Hoses

The washer must be connected to the water faucets using the new inlet hoses. Do not use old hoses.

Insert new flat washers (supplied) into each end of the inlet hoses. Firmly seat the washers in the couplings.

Check the temperature of the water to make sure that the hot water hose is connected to the hot water faucet and that the cold water hose is connected to the cold water faucet.

AB

A.Coupling

B.Washer

Connect the inlet hoses to the water faucets

Make sure the washer basket is empty.

1.Attach the hose labeled hot to the hot water faucet. Screw on coupling by hand until it is seated on the washer.

2.Attach the hose labeled cold to the cold water faucet. Screw on coupling by hand until it is seated on the washer.

3.Using pliers, tighten the couplings with an additional two-thirds turn.

NOTE: Do not overtighten or use tape or sealants on the valve. Damage to the valves can result.

Clear the water lines

Run water through both faucets and inlet hoses, into a laundry tub, drainpipe or bucket, to get rid of particles in the water lines that might clog the inlet valve screens.

10

Connect the inlet hoses to the washer

A

B

A.Cold water inlet valve

B.Hot water inlet valve

1.Attach the hot water hose to the bottom inlet valve.

2.Attaching the hot water coupling first makes it easier to tighten connection with pliers.

3.Screw on coupling by hand until it is seated on the washer.

Downloaded from www.Manualslib.com manuals search engine

4.Using pliers, tighten the couplings with an additional two-thirds turn.

NOTE: Do not overtighten or use tape or sealants on the valve. Damage to the valves can result.

3.Wrap the drain hose to the laundry tub leg, drain standpipe or inlet hoses, with the beaded tie strap. Push fastener into the nearest hole in the beaded tie strap. See view A or B.

5.Attach the cold water hose to the top inlet valve.

6.Screw on coupling by hand until it is seated on the washer.

7.Using pliers, tighten the couplings with an additional two-thirds turn.

NOTE: Do not overtighten or use tape or sealants on the valve. Damage to the valves can result.

Check for leaks

Turn on the water faucets and check for leaks. A small amount of water might enter the washer. You will drain this later.

NOTE: Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates for future reference.

If you connect only one water hose, you must cap off the remaining water inlet port.

Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

Secure the Drain Hose

1.Remove the shipping material from the power cord. Drape the power cord over the console.

2.Remove any cardboard used to move washer.

Beaded tie strap

A B C

If the washer faucets and the drain standpipe are recessed, put the formed end of the drain hose into the standpipe. Tightly wrap the tie strap around the water inlet hoses and the drain hose. See view C.

Level the Washer

Properly leveling your washer avoids excessive noise and vibration.

Install the Front Leveling Feet

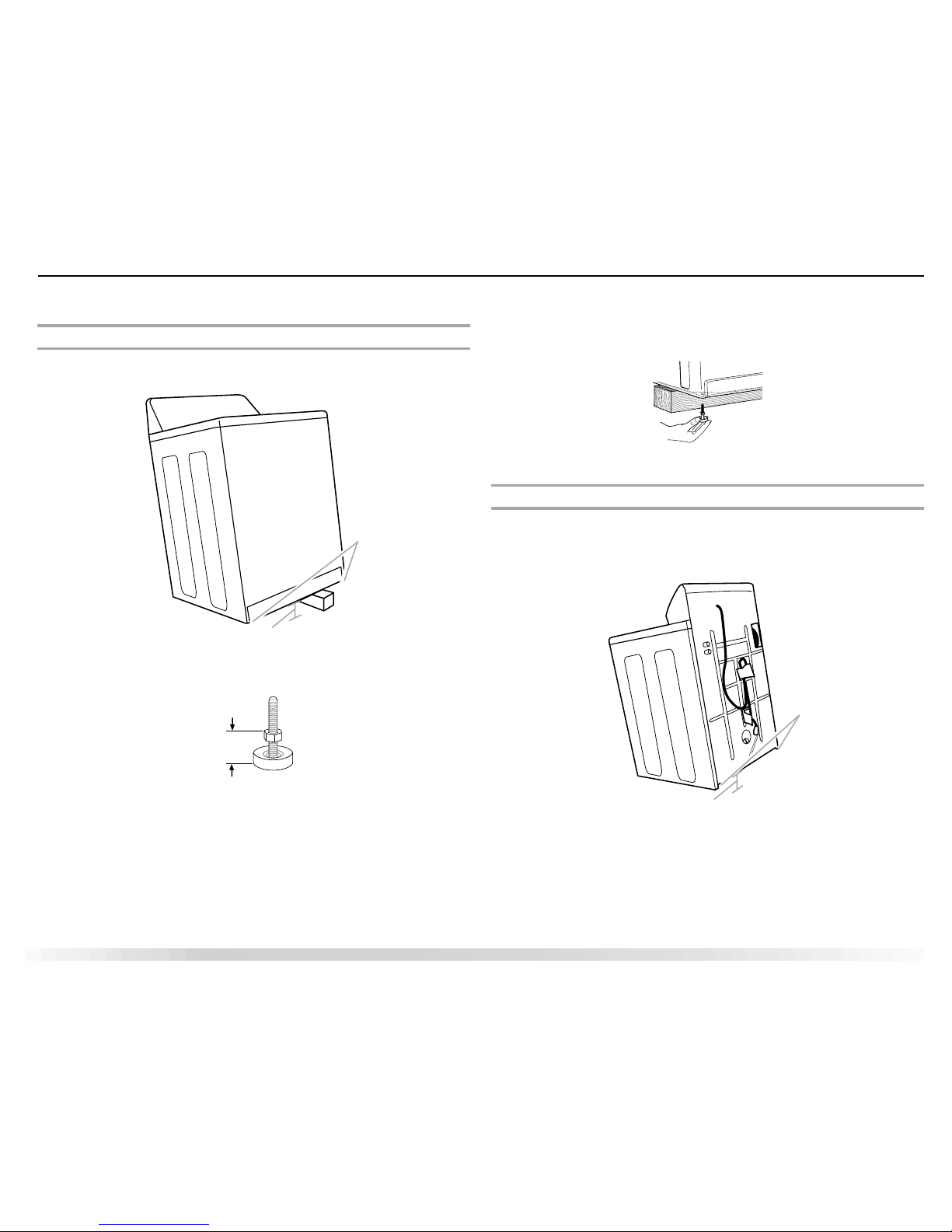

1.Prop up the front of the washer about 4" (10.2 cm) with a wood block or similar object. The block needs to support the weight of the washer.

A

4" (10.2 cm)

A. Threaded holes for feet

11

Downloaded from www.Manualslib.com manuals search engine

2. Screw the locknut onto each foot to within 1" (2.5 cm) of the foot base.

3.Check the levelness of the washer by placing a level on the top edges of the washer, first side to side, then front to back.

1" (2.5 cm)

3.Screw the feet into the threaded holes at the front corner of the washer until the nuts touch the washer. Twist the feet to install.

NOTE: Do not tighten the nuts until the washer is level.

4. Tilt the washer back and remove the wood block. Gently lower the washer to the floor.

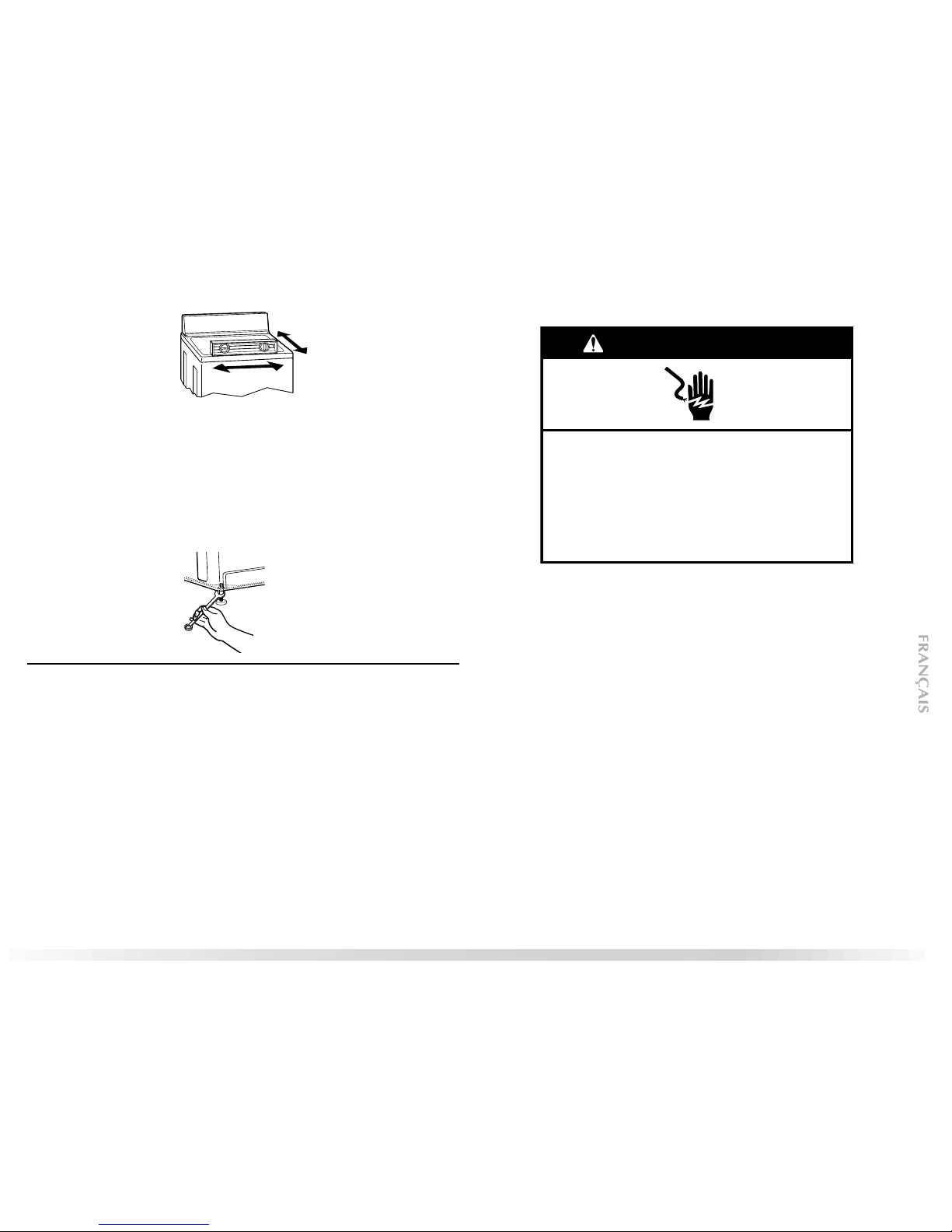

Steps in Final Location

1.Slide the washer to its final location.

2.Tilt the washer forward until the rear of the washer is at least 4" (10.2 cm) off the floor. You may hear the self-adjusting rear feet click into place. Lower the washer to the floor.

4.If the washer is not level, move the washer out slightly, tip back, prop up the front of the washer with the wood block and adjust the feet up or down as necessary by twisting the feet. Turn the feet clockwise to raise the washer or counterclockwise to lower the washer. Repeat steps 1 through 4 until washer is level.

5.After the washer is in its final location and level, use a ⁄" or 14 mm open-end wrench to turn the nuts counterclockwise on the feet tightly against the washer cabinet.

IMPORTANT: If the nuts are not tight against the washer cabinet, the washer may vibrate.

A

4" (10.2 cm)

A. Self-adjusting feet

Complete Installation

1.Check the electrical requirements. Be sure that you have the correct electrical supply and the recommended grounding method. See “Electrical Requirements.”

2.Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.

3.Check that you have all of your tools.

4.Check that the yellow shipping materials were completely removed from the lower back of the washer.

5.Dispose of/recycle all packaging materials.

6.Check that the water faucets are on.

7.Check for leaks around faucets and inlet hoses.

12

Downloaded from www.Manualslib.com manuals search engine

Loading...
+ 28 hidden pages
