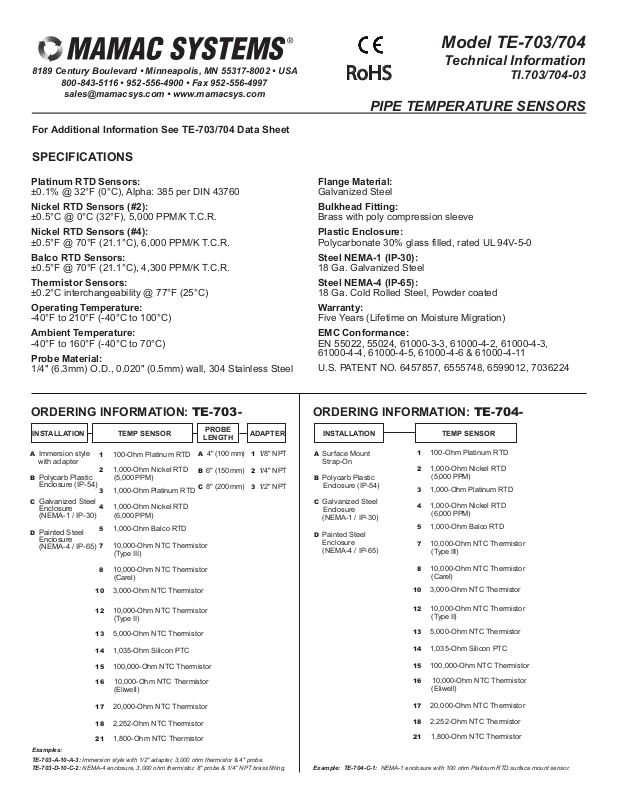

MAMAC Systems TE-704 User Manual

8189 Century Boulevard • Minneapolis, MN 55317-8002 • USA

800-843-5116 • 952-556-4900 • Fax [phone]

[e-mail] • www.mamacsys.com

For Additional Information See TE-703/704 Data Sheet

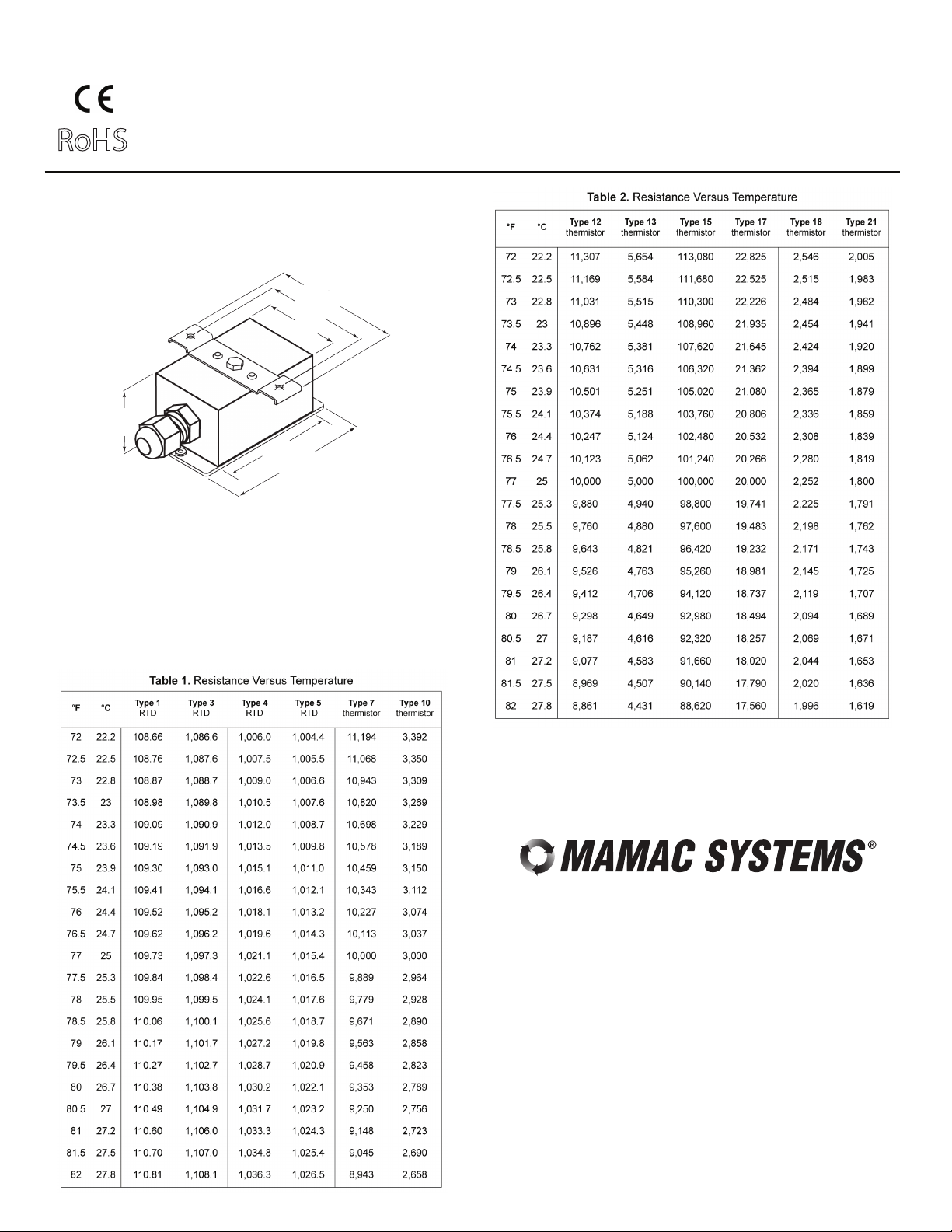

SPECIFICATIONS

Model TE-703/704

Technical Information

RoHS

PIPE TEMPERATURE SENSORS

TI.703/704-03

Platinum RTD Sensors:

±0.1% @ 32°F (0°C), Alpha: 385 per DIN 43760

Nickel RTD Sensors (#2):

±0.5°C @ 0°C (32°F), 5,000 PPM/K T.C.R.

Nickel RTD Sensors (#4):

±0.5°F @ 70°F (21.1°C), 6,000 PPM/K T.C.R.

Balco RTD Sensors:

±0.5°F @ 70°F (21.1°C), 4,300 PPM/K T.C.R.

Thermistor Sensors:

±0.2°C interchangeability @ 77°F (25°C)

Operating Temperature:

-40°F to 210°F (-40°C to 100°C)

Ambient Temperature:

-40°F to 160°F (-40°C to 70°C)

Probe Material:

1/4" (6.3mm) O.D., 0.020" (0.5mm) wall, 304 Stainless Steel

ORDERING INFORMATION: TE-703-

INSTALLATION TEMP SENSOR

A Immersion style

with adapter

B Polycarb Plastic

Enclosure (IP-54)

C Galvanized Steel

Enclosure
(NEMA-1 / IP-30)

D Painted Steel

Enclosure
(NEMA-4 / IP-65)

1 100-Ohm Platinum RTD

2 1,000-Ohm Nickel RTD

(5,000 PPM)

3 1,000-Ohm Platinum RTD

4 1,000-Ohm Nickel RTD

(6,000 PPM)

5 1,000-Ohm Balco RTD

7 10,000-Ohm NTC Thermistor

(Type III)

8 10,000-Ohm NTC Thermistor

(Carel)

10 3,000-Ohm NTC Thermistor

PROBE

LENGTH

A 4" (100 mm)

B 6" (150 mm)

C 8" (200 mm)

ADAPTER

1 1/8" NPT

2 1/4" NPT

3 1/2" NPT

Flange Material:

Galvanized Steel

Bulkhead Fitting:

Brass with poly compression sleeve

Plastic Enclosure:
Polycarbonate 30% glass filled, rated UL 94V-5-0

Steel NEMA-1 (IP-30):

18 Ga. Galvanized Steel

Steel NEMA-4 (IP-65):

18 Ga. Cold Rolled Steel, Powder coated

Warranty:

Five Years (Lifetime on Moisture Migration)

EMC Conformance:

EN 55022, 55024, 61000-3-3, 61000-4-2, 61000-4-3,
61000-4-4, 61000-4-5, 61000-4-6 & 61000-4-11

U.S. PATENT NO. 6457857, 6555748, 6599012, 7036224

ORDERING INFORMATION: TE-704-

INSTALLATION TEMP SENSOR

A Surface Mount

Strap-On

B Polycarb Plastic

Enclosure (IP-54)

C Galvanized Steel

Enclosure
(NEMA-1 / IP-30)

D Painted Steel

Enclosure
(NEMA-4 / IP-65)

1 100-Ohm Platinum RTD

2 1,000-Ohm Nickel RTD

(5,000 PPM)

3 1,000-Ohm Platinum RTD

4 1,000-Ohm Nickel RTD

(6,000 PPM)

5 1,000-Ohm Balco RTD

7 10,000-Ohm NTC Thermistor

(Type III)

8 10,000-Ohm NTC Thermistor

(Carel)

10 3,000-Ohm NTC Thermistor

12 10,000-Ohm NTC Thermistor

(Type II)

13 5,000-Ohm NTC Thermistor

14 1,035-Ohm Silicon PTC

15 100,000-Ohm NTC Thermistor

16 10,000-Ohm NTC Thermistor

.........(Eliwell)

17 20,000-Ohm NTC Thermistor

18 2,252-Ohm NTC Thermistor

21 1,800-Ohm NTC Thermistor

Examples:

TE-703-A-10-A-3: Immersion style with 1/2" adapter, 3,000 ohm thermistor & 4" probe.
TE-703-D-10-C-2: NEMA-4 enclosure, 3,000 ohm thermistor, 8" probe & 1/4" NPT brass fitting.

12 10,000-Ohm NTC Thermistor

(Type II)

13 5,000-Ohm NTC Thermistor

14 1,035-Ohm Silicon PTC

15 100,000-Ohm NTC Thermistor

16 10,000-Ohm NTC Thermistor

.........(Eliwell)

17 20,000-Ohm NTC Thermistor

18 2,252-Ohm NTC Thermistor

21 1,800-Ohm NTC Thermistor

Example: TE-704-C-1: NEMA-1 enclosure with 100 ohm Platinum RTD surface mount sensor.

Page 2 of 4

RoHS

INSTALLATION

Inspection

Requirements

Warning:

Caution:

Inspect the package for damage. If damaged, notify the
appropriate carrier immediately. If undamaged, open the
package and inspect the device for obvious damage.
Return damaged products.

• Tools (not provided)

• Appropriate accessories

• Two #8 self-tapping mounting screws (not provided)

• Training: Installer must be a qualified, experienced technician.

• Do not use on oxygen service, in an explosive/hazardous

environment, or with flammable/combustible media.

• Disconnect power supply before installation to prevent electrical

shock and equipment damage.

• Make all connections in accordance with the job wiring diagram

and in accordance with national and local electrical codes. Use
copper conductors only.

• Use electrostatic discharge precautions (e.g., use of wrist

straps) during installation and wiring to prevent equipment
damage.

• Avoid locations where severe shock or vibration, excessive

moisture or corrosive fumes are present. NEMA-4 housings are
intended for outdoor use primarily to provide a degree of
protection against wind-blown dust, rain, and hose-directed
water.

• Do not exceed ratings of the device.

- Digital Volt-ohm Meter (DVM)

- Appropriate screwdriver for mounting screws

- Appropriate drill and drill bit for mounting screws

Model TE-703/704

Technical Information

TI.703/704-03

PIPE TEMPERATURE SENSORS

Compression
fitting

Thermowell

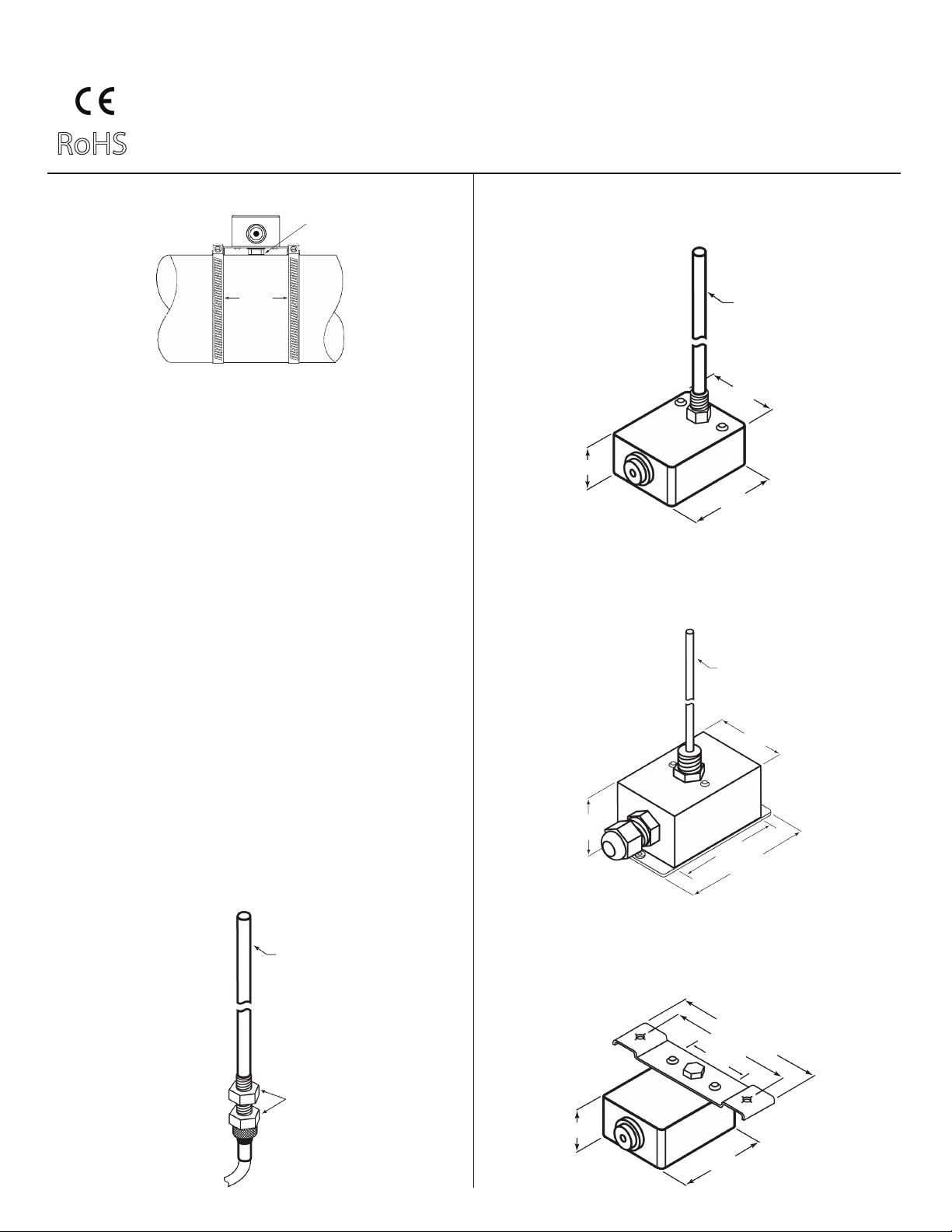

Figure 1 - Installing the Immersion Sensor

TE-704-A:

1. Scrape any rust or scale off the pipe surface.

2. Apply a thin layer of A-505 thermal compound to the sensor.

3. Position the sensor flat against the pipe and fasten with a hose
clamp or nylon ties (not provided). Refer to Figure 2.

4. Make the wiring connections. Insulate around the sensor if
necessary.

Set screw Thermowell

Pipe

Sensor

Thermowell

Mounting

Mount the Immersion Sensor: Refer to Figures 4, 5 & 6 for mounting

dimensions.

1. TE-703-A:

a. Loosen the compression fitting and remove the probe. Refer to Figure 1.

b. Screw the adapter into the thermowell.

c. Apply A-505 thermal compound to the probe tip and insert the probe until it

is seated against the thermowell.

d. Tighten the nut.

TE-703-B, C, or D:

a. Loosen the set screw. Refer to Figure 1.

b. Remove the adapter and thread it into the thermowell. Tighten.

c. Apply A-505 thermal compound to the probe tip and insert the probe until it
is seated against the thermowell. Ensure that the set screw is accessible.

d. Lock the adapter into place and tighten the set screw.

e. Loosen the cover screws and rotate the cover out of the way.

2. Make the wiring connections.

3. Rotate and screw the cover back into place.

Pipe

Nylon

tie

Figure 2 - Installing the TE-704-A Sensor

TE-704-B, C, or D: Refer to Figures 7 & 8 for mounting dimensions.

1. Scrape any rust or scale off the pipe surface.

2. Apply a thin layer of A-505 thermal compound to the sensing

element. Refer to Figure 3.

3. Position the sensor’s sensing element so that it makes contact

with the pipe and fasten with two pipe clamps (not provided).

4. Loosen the cover screws and rotate the cover out of the way.

5. Make the wiring connections. Rotate and screw the cover back

into place.
