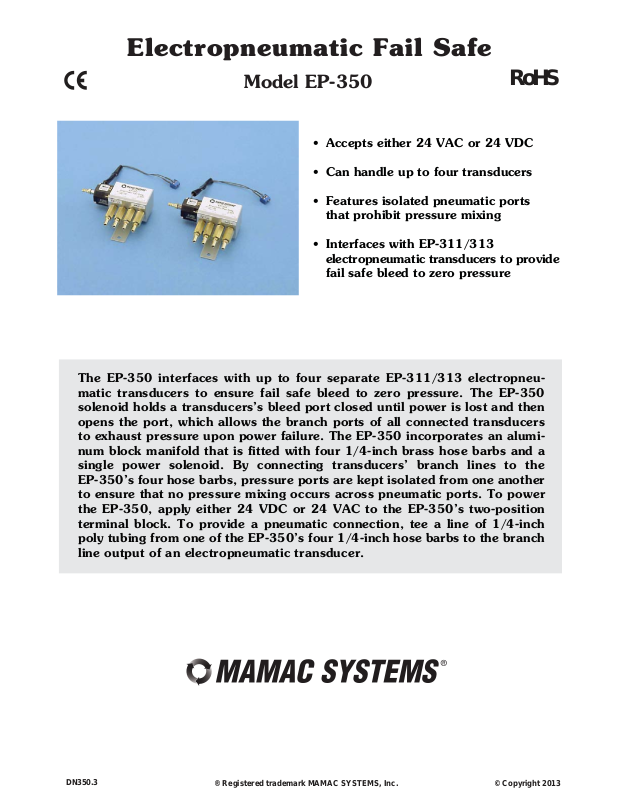

Electropneumatic Fail Safe
Model EP-350
sAccepts either 24 VAC or 24 VDC
sCan handle up to four transducers
sFeatures isolated pneumatic ports
that prohibit pressure mixing
sInterfaces with EP-311/313
electropneumatic transducers to provide
fail safe bleed to zero pressure
RoHS

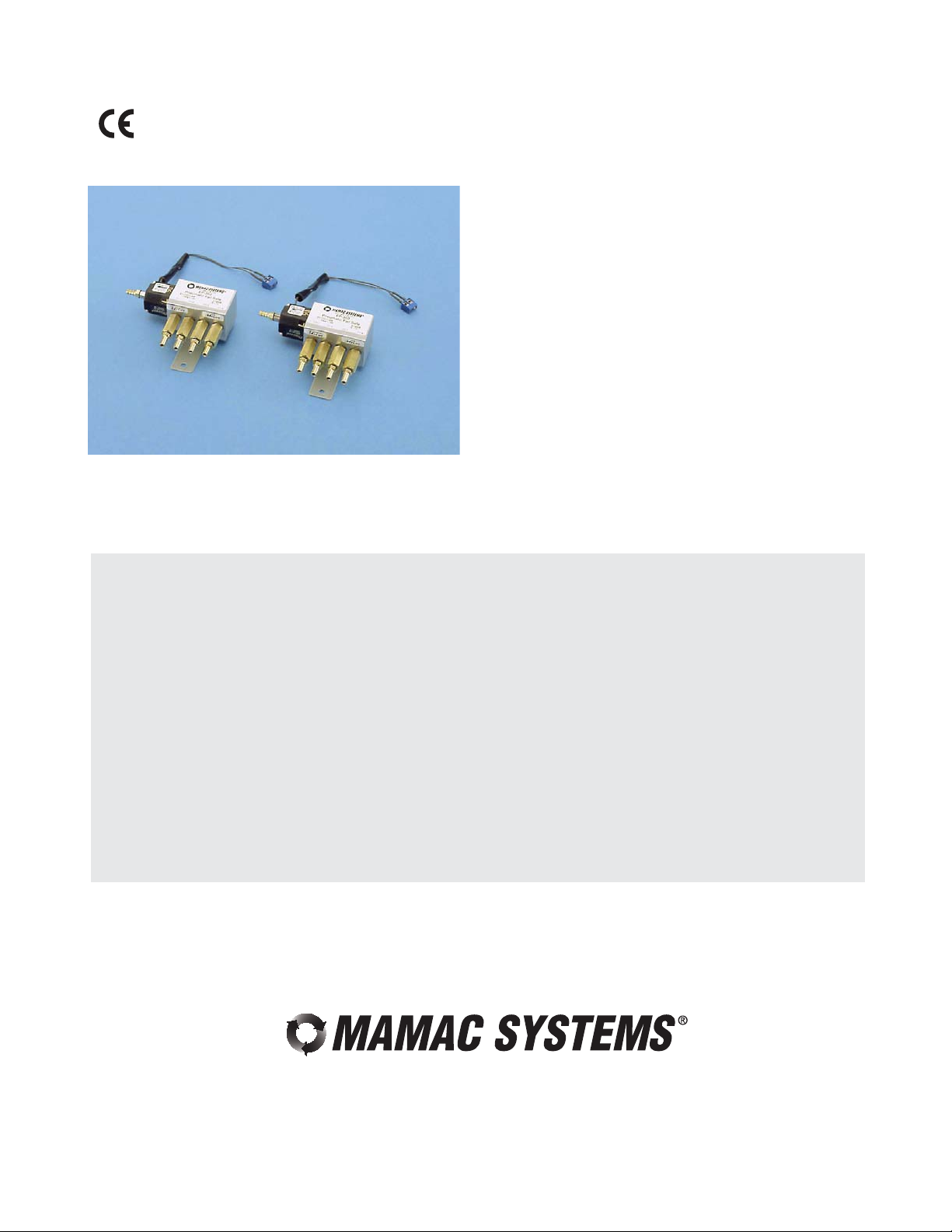

The EP-350 interfaces with up to four separate EP-311/313 electropneumatic transducers to ensure fail safe bleed to zero pressure. The EP-350
solenoid holds a transducers’s bleed port closed until power is lost and then
opens the port, which allows the branch ports of all connected transducers
to exhaust pressure upon power failure. The EP-350 incorporates an aluminum block manifold that is fitted with four 1/4-inch brass hose barbs and a
single power solenoid. By connecting transducers’ branch lines to the
EP-350’s four hose barbs, pressure ports are kept isolated from one another
to ensure that no pressure mixing occurs across pneumatic ports. To power
the EP-350, apply either 24 VDC or 24 VAC to the EP-350’s two-position
terminal block. To provide a pneumatic connection, tee a line of 1/4-inch
poly tubing from one of the EP-350’s four 1/4-inch hose barbs to the branch
line output of an electropneumatic transducer.
DN350.3
® Registered trademark MAMAC SYSTEMS, Inc.
© Copyright 2013
Page 2
SPECIFICATIONS:
EP-350
Supply Voltage: 18 to 28 VAC/VDC
Operating Temperature: 32°F to 160°F
(0° to 70°C)
Storage Temperature: -40°F to 212°F
(-40° to 100°C)
Manifold Material: Aluminum
Solenoid Type: Floating poppet
Bracket Material: 16 Ga. Steel
Bracket Finish: Enamel painted PMS#2GR88B
Tubing connection: Brass hose barb
Weight: ½ lb. (¼ kg)
CONFORMANCE & TESTING:
RoHS Compliant
EMC Testing:
BS EN 55022:1998, BS EN 55024:1998,
EN 61000-3-3, EN 61000-4-2,
EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6,
EN 61000-4-11
ORDERING INFORMATION: EP-350
CAUTION: Do not use in explosive/hazardous environment or with flammable/combustible media.
2
DN350.3
® Registered trademark MAMAC SYSTEMS, Inc.
© Copyright 2013
Page 3

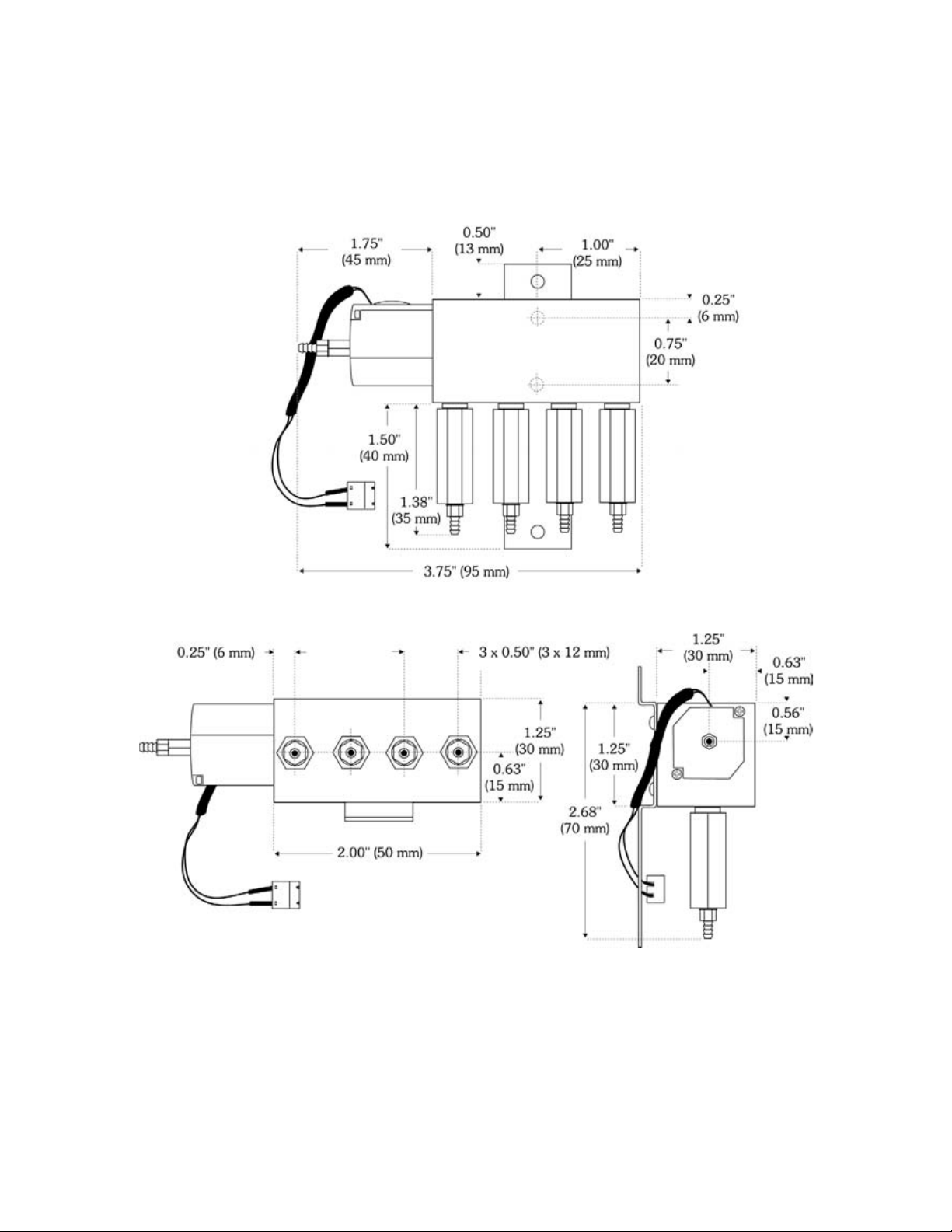

EP-350
DN350.3
3
® Registered trademark MAMAC SYSTEMS, Inc.
© Copyright 2013
Page 4
EP-350
