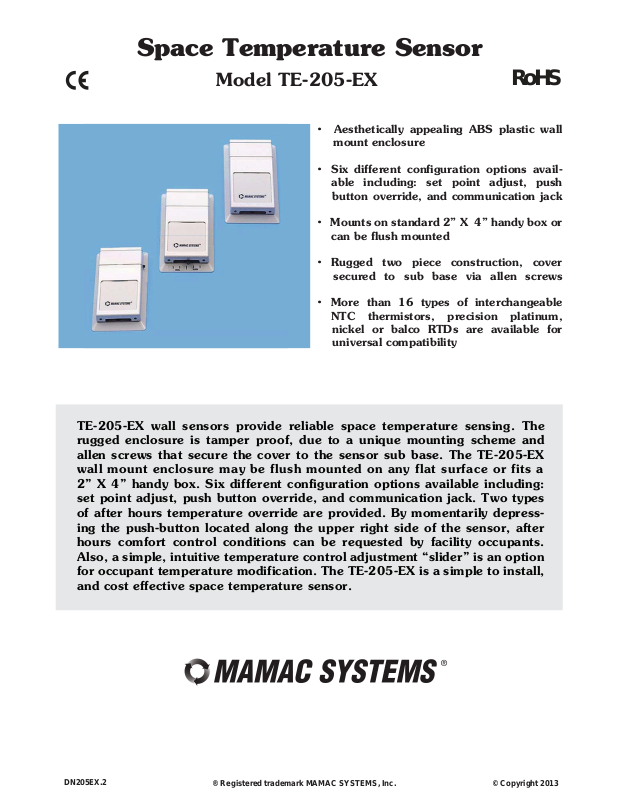

Page 1
Space Temperature Sensor
Model TE-205-EX
• Aesthetically appealing ABS plastic wall
mount enclosure
• Six different configuration options avail-
able including: set point adjust, push
button override, and communication jack
• Mounts on standard 2” X 4” handy box or
can be flush mounted
• Rugged two piece construction, cover
secured to sub base via allen screws
• More than 16 types of interchangeable
NTC thermistors, precision platinum,
nickel or balco RTDs are available for
universal compatibility
RoHS

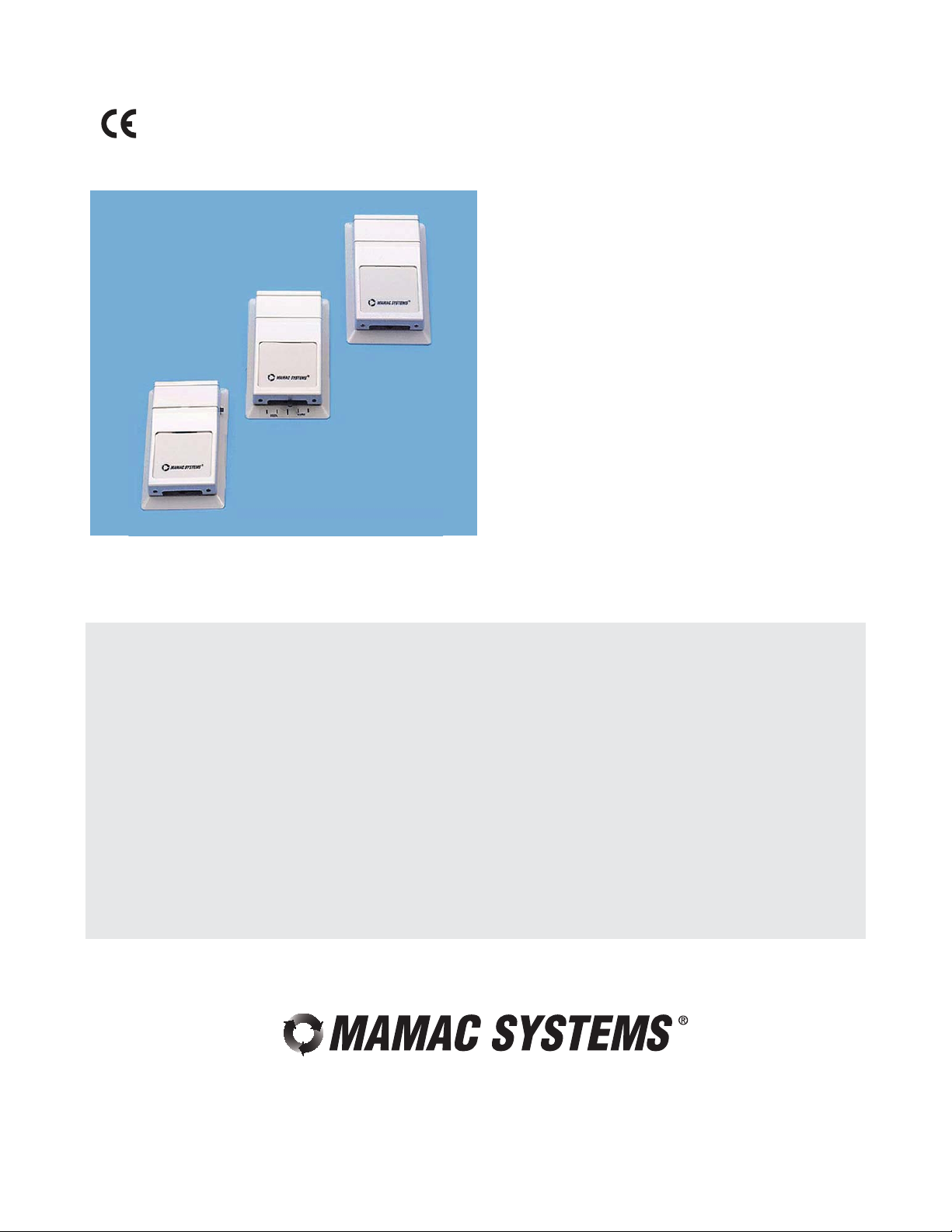

TE-205-EX wall sensors provide reliable space temperature sensing. The
rugged enclosure is tamper proof, due to a unique mounting scheme and
allen screws that secure the cover to the sensor sub base. The TE-205-EX
wall mount enclosure may be flush mounted on any flat surface or fits a
2” X 4” handy box. Six different configuration options available including:
set point adjust, push button override, and communication jack. Two types
of after hours temperature override are provided. By momentarily depressing the push-button located along the upper right side of the sensor, after
hours comfort control conditions can be requested by facility occupants.
Also, a simple, intuitive temperature control adjustment “slider” is an option
for occupant temperature modification. The TE-205-EX is a simple to install,
and cost effective space temperature sensor.
DN205EX.2
® Registered trademark MAMAC SYSTEMS, Inc.
© Copyright 2013
Page 2
TE-205-EX
SPECIFICATIONS:
Platinum RTD sensors: +/- 0.1% @ 0 C, Alpha : 385 per DIN 43760
Nickel RTD sensors: (#2) +/- 0.5 C @ 0 C, 5000 PPM/K T.C.R.
Nickel RTD sensors: (#4) +/- 0.5 F @ 70 F / 21.1 C, 6000 PPM/K T.C.R.
Balco RTD sensors: +/- 0.5 F @ 70 F /21.1 C, 4300 PPM/K T.C.R.
Thermistor sensors: +/- 0.2 C interchangeability @ 77 F/ 25 C
Plastic Enclosure: Off-white ABS plastic
Operating Temp: -40F/-40C to 210F/100C
Ambient Temp: -40F/-40C to 160F/70C
Weight: 5.0 oz (142 g)
CONFORMANCE & TESTING:
RoHS Compliant
EMC Testing:
BS EN 55022:1998, BS EN 55024:1998,
EN 61000-3-3, EN 61000-4-2,
EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6,
EN 61000-4-11
ORDERING INFORMATION: TE-205-EX-
Temperature Sensor
1 100 ohm Platinum RTD 0 Sensor Only
2 1,000 ohm Nickel RTD (5000 PPM) 1 Sensor, Push-button override
3 1,000 ohm Platinum RTD 2 Sensor, Push-button, Set-point adjust
4 1,000 ohm Nickel RTD (6000 PPM)
5 1,000 ohm Balco RTD
7 10,000 ohm NTC thermistor (Type III)
8 10,000 ohm NTC thermistor (Carel)
3
Sensor, Push-button, Set-point adjust, and
Communication jack
Sensor, Set-point adjust
4
5
Push-button, Communication jack
10 3,000 ohm NTC thermistor
12 10,000 ohm NTC thermistor (Type II)
13 5,000 ohm NTC thermistor
14 1,035 ohm Silicon PTC
15 100,000 ohm NTC thermistor
16 10,000 ohm NTC thermistor (Eliwell)
17 20,000 ohm NTC thermistor
18 2,252 ohm NTC thermistor
21 1,800 ohm NTC thermistor
* For sensor compatibility, please refer to TI.700-10.
** For complete Resistance vs. Temperature tables, please refer to TI.700-11.
Example: TE-205-EX-2-5:
Executive Enclosure
with 1,000 ohm Nickel RTD Sensor, Push button
override and Communication jack
Option
CAUTION: Do not use in explosive/hazardous environment or with flammable/combustible media.
2
DN205EX.2
® Registered trademark MAMAC SYSTEMS, Inc.
© Copyright 2013
