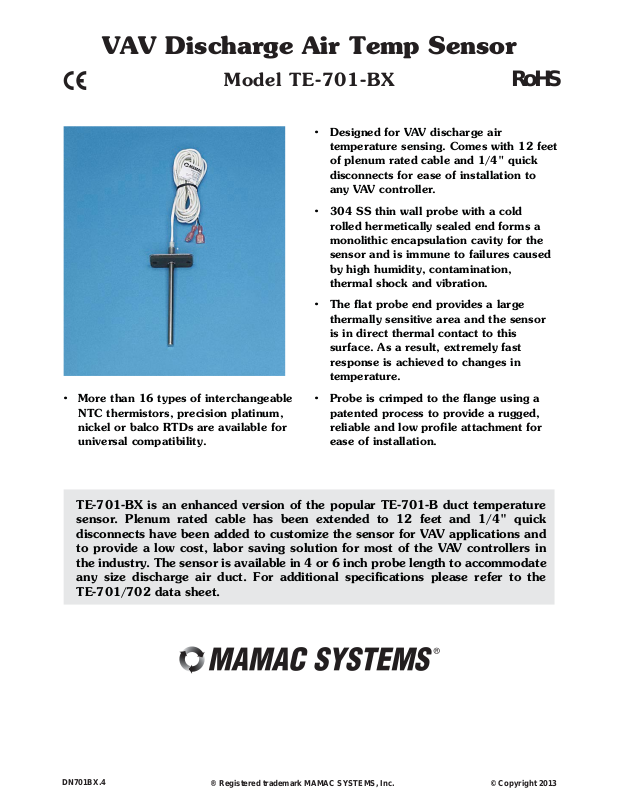

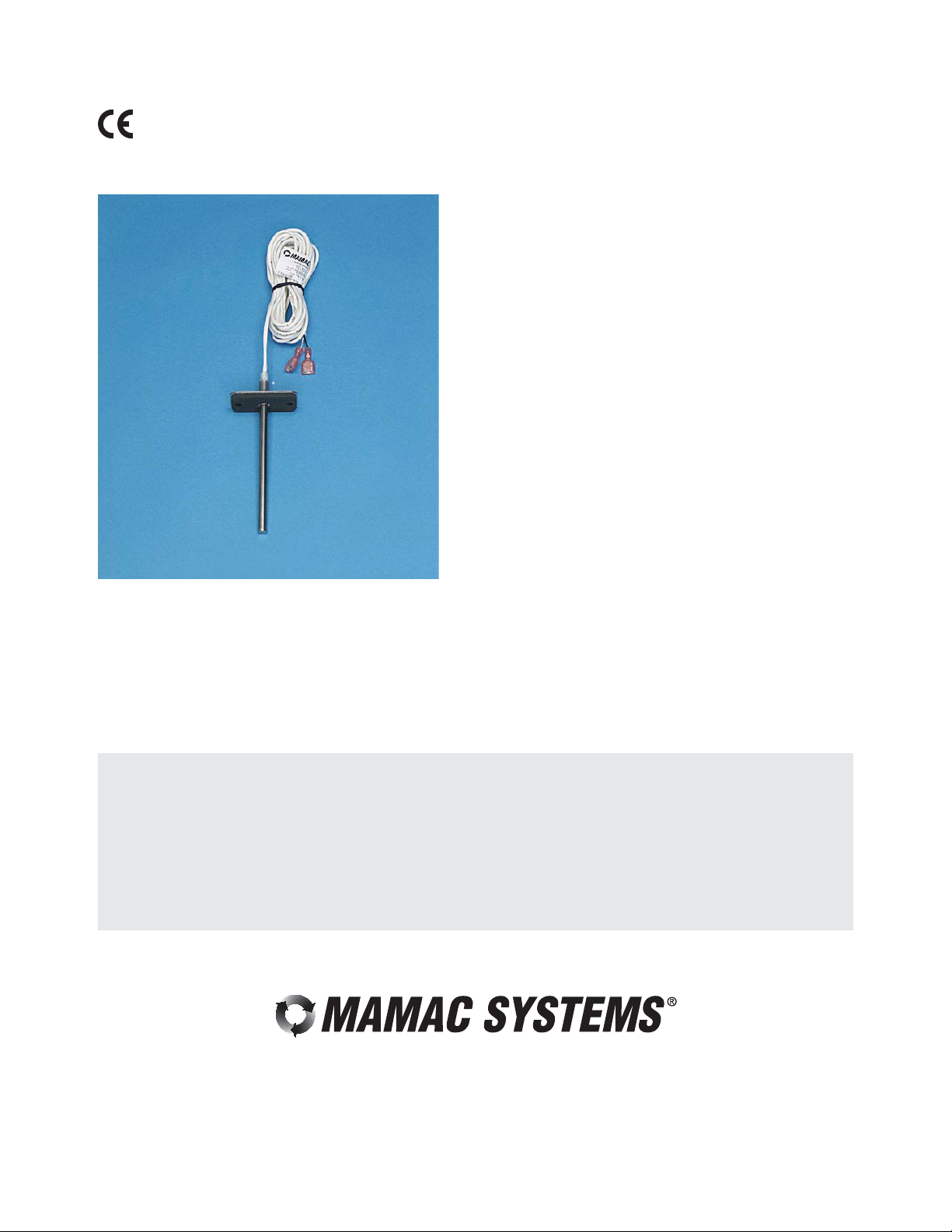

VAV Discharge Air Temp Sensor
Model TE-701-BX
• Designed for VAV discharge air
temperature sensing. Comes with 12 feet
of plenum rated cable and 1/4" quick
disconnects for ease of installation to
any VAV controller.
• 304 SS thin wall probe with a cold
rolled hermetically sealed end forms a
monolithic encapsulation cavity for the
sensor and is immune to failures caused
by high humidity, contamination,
thermal shock and vibration.
The flat probe end provides a large
•
thermally sensitive area and the sensor
is in direct thermal contact to this
surface. As a result, extremely fast
response is achieved to changes in
temperature.
RoHS
• More than 16 types of interchangeable
NTC thermistors, precision platinum,
nickel or balco RTDs are available for
universal compatibility.
• Probe is crimped to the flange using a
patented process to provide a rugged,
reliable and low profile attachment for
ease of installation.
TE-701-BX is an enhanced version of the popular TE-701-B duct temperature
sensor. Plenum rated cable has been extended to 12 feet and 1/4" quick
disconnects have been added to customize the sensor for VAV applications and
to provide a low cost, labor saving solution for most of the VAV controllers in
the industry. The sensor is available in 4 or 6 inch probe length to accommodate
any size discharge air duct. For additional specifications please refer to the
TE-701/702 data sheet.
DN701BX.4
® Registered trademark MAMAC SYSTEMS, Inc.
© Copyright 2013
Page 2
TE-701-BX
SPECIFICATIONS:
Platinum RTD sensors: +/- 0.1% @ 0 C, Alpha : 385 per DIN 43760
Nickel RTD sensors: (#2) +/- 0.5 C @ 0 C, 5000 PPM/K T.C.R.
Nickel RTD sensors: (#4) +/- 0.5 F @ 70 F / 21.1 C, 6000 PPM/K T.C.R.
Balco RTD sensors: +/- 0.5 F @ 70 F / 21.1 C, 4300 PPM/K T.C.R.
Thermistor sensors: +/- 0.2 C interchangeabiltiy @ 77 F / 25 C
Probe Material: 1/4” / 6.3 mm O.D, 0.020” / 0.5 mm wall 304 Stainless Steel
Flange Material: Galvanized Steel
Operating Temp: -40F/-40C to 210F/100C
Ambient Temp: -40F/-40C to 160F/70C
Warranty: Five Years (Lifetime on Moisture Migration)
EMC Conformance:
RoHS Compliant
Covered under: U.S. PATENT NO. 6457857, 7036224
EN 55022, 55024, 61000-3-3, 61000-4-2, 3, 4, 5, 6 & 11
ORDERING INFORMATION: TE-701-BX
Temperature Sensor
1 100 ohm Platinum RTD
2 1,000 ohm Nickel RTD (5000 PPM)
3 1,000 ohm Platinum RTD
4 1,000 ohm Nickel RTD (6000 PPM)
5 1,000 ohm Balco RTD
7 10,000 ohm NTC thermistor (Type III)
8 10,000 ohm NTC thermistor (Carel)
10 3,000 ohm NTC thermistor
12 10,000 ohm NTC thermistor (Type II)
13 5,000 ohm NTC thermistor
14 1,035 ohm Silicon PTC
15 100,000 ohm NTC thermistor
16 10,000 ohm NTC thermistor (Eliwell)
17 20,000 ohm NTC thermistor
18 2,252 ohm NTC thermistor
21 1,800 ohm NTC thermistor
Example: TE-701-BX-12-A: VAV Discharge Air Temp Sensor with 10,000 ohm NTC thermistor (Type II)
and 4 inch probe length.
Probe Length
A 4 inches/100mm
B 6 inches/150mm
* For sensor compatibility, please refer to TI.700-10.
** For a complete Resistance vs. Temperature tables, please refer to TI.700-11.
*** For additional information including dimensional drawings, please refer to DN701/2.4.
CAUTION: Do not use in explosive/hazardous environment or with flammable/combustible media.
DN701BX.4
® Registered trademark MAMAC SYSTEMS, Inc.
© Copyright 2013
Page 3
TE-701-BX
MAMAC Systems is the leading global manufacturer of sensors, transducers, control peripherals
and web browser based IP appliances. MAMAC products are used for HVAC and environmental
controls, remote monitoring, alarming, energy metering and industrial automation.
All MAMAC products are manufactured in the USA.
WARRANTY: MAMAC Systems, Inc. and its subsidiaries (hereinafter referred to as MAMAC Systems) warrants its
products to be free of defects in material and workmanship for a period of five (5) years from date of shipment. If a
unit is malfunctioning, it must be returned to the factory for evaluation. A return authorization number (RMA) will be
issued by the customer service department and this number must be written or prominently displayed on the shipping
boxes and all related documents. The defective part should be shipped freight pre-paid to the factory. Upon examination by MAMAC Systems, if the unit is found to be defective, it will be repaired or replaced at no charge to the
customer. However, this warranty is void if the unit shows evidence of being tampered with, damaged during installation, misapplied, misused, or used in any other operating condition outside of the unit’s published specifications.
MAMAC Systems makes no other warranties or representations of any kind whatsoever, expressed or
implied, except that of title. All implied warranties including any warranty of merchantability and
fitness for a particular purpose are hereby disclaimed. User is responsible to determine suitability for
intended use.
LIMITATIONS OF LIABILITY: The remedies of buyer set forth herein are exclusive and the total liability of
MAMAC Systems with respect to this order, whether based on contract, warranty, negligence, indemnification, strict
liability or otherwise, shall not exceed the purchase price of the product upon which liability is based. In no event
shall MAMAC Systems be liable for consequential, incidental or special damages. MAMAC Systems
reserves the right to change any specifications without notice to improve performance, reliability, or function of our
products.
Every precaution for accuracy has been taken in the preparation of this manual, however, MAMAC Systems neither
assumes responsibility for any omissions or errors that may appear nor assumes liability for any damages that result
from the use of the product in accordance with the information contained in the manual.
