MAMAC Systems TE-703, TE-704 Specifications

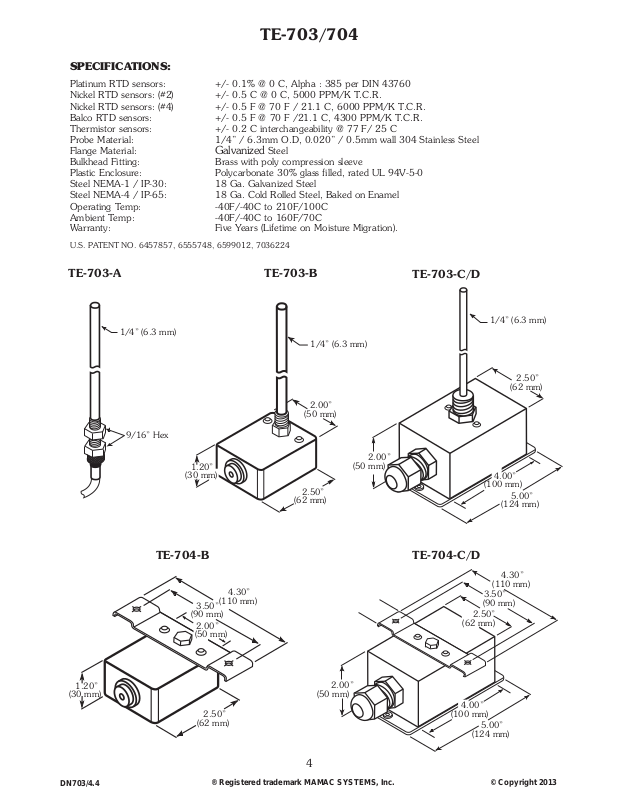

TE-703/704
SPECIFICATIONS:
Platinum RTD sensors: +/- 0.1% @ 0 C, Alpha : 385 per DIN 43760
Nickel RTD sensors: (#2) +/- 0.5 C @ 0 C, 5000 PPM/K T.C.R.
Nickel RTD sensors: (#4) +/- 0.5 F @ 70 F / 21.1 C, 6000 PPM/K T.C.R.
Balco RTD sensors: +/- 0.5 F @ 70 F /21.1 C, 4300 PPM/K T.C.R.
Thermistor sensors: +/- 0.2 C interchangeability @ 77 F/ 25 C
Probe Material: 1/4” / 6.3mm O.D, 0.020” / 0.5mm wall 304 Stainless Steel
Flange Material:
Bulkhead Fitting: Brass with poly compression sleeve
Plastic Enclosure: Polycarbonate 30% glass filled, rated UL 94V-5-0
Steel NEMA-1 / IP-30: 18 Ga. Galvanized Steel
Steel NEMA-4 / IP-65: 18 Ga. Cold Rolled Steel, Baked on Enamel
Operating Temp: -40F/-40C to 210F/100C
Ambient Temp: -40F/-40C to 160F/70C
Warranty: Five Years (Lifetime on Moisture Migration).
U.S. PATENT NO. 6457857, 6555748, 6599012, 7036224
Galvanized Steel
TE-703-A
1/4” (6.3 mm)
9/16” Hex
TE-704-B
1.20”
(30 mm)
TE-703-B
(50 mm)
2.50”
(62 mm)
1/4” (6.3 mm)
2.00”
(50 mm)
2.00”
TE-703-C/D
TE-704-C/D
1/4” (6.3 mm)
2.50”
(62 mm)
4.00”
(100 mm)
5.00”
(124 mm)
1.20”
(30 mm)
DN703/4.4
4.30”
(110 mm)
3.50”
(90 mm)
2.00”
(50 mm)
2.00”
(50 mm)
2.50”
(62 mm)
4
® Registered trademark MAMAC SYSTEMS, Inc.
4.30”
(110 mm)
3.50”
(90 mm)
2.50”
(62 mm)
4.00”
(100 mm)
5.00”
(124 mm)
© Copyright 2013
