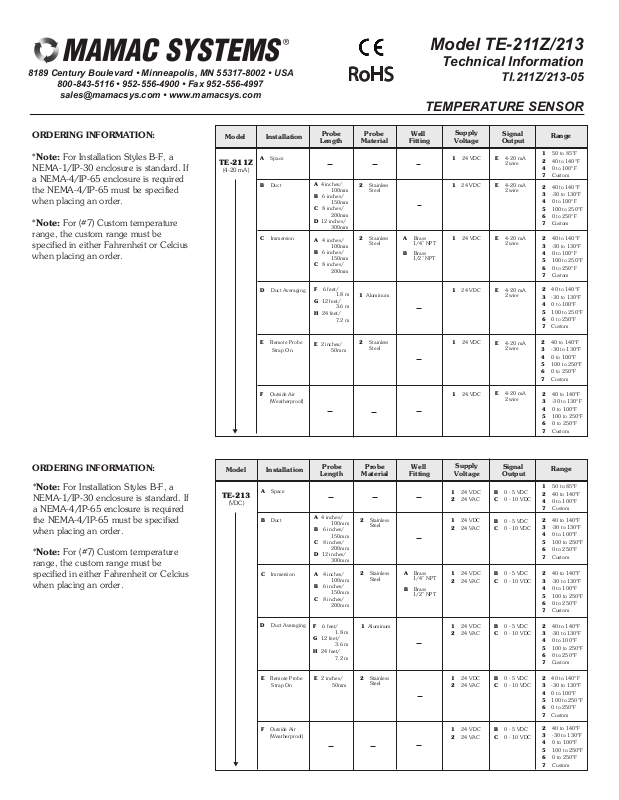

Model TE-211Z/213
Technical Information
TI.211Z/213-05
TEMPERATURE SENSOR
ORDERING INFORMATION:
*Note: For Installation Styles B-F, a
NEMA-1/IP-30 enclosure is standard. If
a NEMA-4/IP-65 enclosure is required
the NEMA-4/IP-65 must be specified
when placing an order.
*Note: For (#7) Custom temperature
range, the custom range must be
specified in either Fahrenheit or Celcius
when placing an order.
Model
TE-211Z
(4-20 mA)
Installation
A Space
B Duct
C Immersion
D Duct Averaging
E Remote Probe
Strap On
F Outside Air
(Weatherproof)
Probe
Length
A 4 inches/
100mm
B 6 inches/
150mm
C 8 inches/
200mm
D 12 inches/
300mm
A 4 inches/
100mm
B 6 inches/
150mm
C 8 inches/
200mm
F 6 feet/
1.8 m
G 12 feet/
3.6 m
H 24 feet/
7.2 m
E 2 inches/
50mm
Probe
Material
2 Stainless
Steel
2 Stainless
Steel
1 Aluminum
2 Stainless
Steel
Well
Fitting
A Brass
1/4” NPT
B Brass
1/2” NPT
Supply
Voltage
1 24 VDC
1 24 VDC
1 24 VDC
1 24 VDC
1 24 VDC
1 24 VDC
Signal
Output
E 4-20 mA
2 wire
E 4-20 mA
2 wire
E 4-20 mA
2 wire
E 4-20 mA
2 wire
E 4-20 mA
2 wire
E 4-20 mA
2 wire
Range
1 50 to 85°F
2 40 to 140°F
4 0 to 100°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
ORDERING INFORMATION:
*Note: For Installation Styles B-F, a
NEMA-1/IP-30 enclosure is standard. If
a NEMA-4/IP-65 enclosure is required
the NEMA-4/IP-65 must be specified
when placing an order.
*Note: For (#7) Custom temperature
range, the custom range must be
specified in either Fahrenheit or Celcius
when placing an order.
Model
TE-213
(VDC)
Installation
A Space
B Duct
C Immersion
D Duct Averaging
E Remote Probe
Strap On
F Outside Air
(Weatherproof)
Probe
Length
A 4 inches/
100mm
B 6 inches/
150mm
C 8 inches/
200mm
D 12 inches/
300mm
A 4 inches/
100mm
B 6 inches/
150mm
C 8 inches/
200mm
F 6 feet/
1.8 m
G 12 feet/
3.6 m
H 24 feet/
7.2 m
E 2 inches/
50mm
Probe
Material
2 Stainless
Steel
2 Stainless
Steel
1 Aluminum
2 Stainless
Steel
Well
Fitting
A Brass
1/4” NPT
B Brass
1/2” NPT
Supply
Voltage
1 24 VDC
2 24 VAC
1 24 VDC
2 24 VAC
1 24 VDC
2 24 VAC
1 24 VDC
2 24 VAC
1 24 VDC
2 24 VAC
1 24 VDC
2 24 VAC
Signal
Output
B 0 - 5 VDC
C 0 - 10 VDC
B 0 - 5 VDC
C 0 - 10 VDC
B 0 - 5 VDC
C 0 - 10 VDC
B 0 - 5 VDC
C 0 - 10 VDC
B 0 - 5 VDC
C 0 - 10 VDC
B 0 - 5 VDC
C 0 - 10 VDC
Range
1 50 to 85°F
2 40 to 140°F
4 0 to 100°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
2 40 to 140°F
3 -30 to 130°F
4 0 to 100°F
5 100 to 250°F
6 0 to 250°F
7 Custom
SPECIFICATIONS:
Accuracy*: ±0.50°F FS
Linearity: ±0.05°F
Repeatability: ±0.01°F
Transmitter Error: Better than ±0.01% span
Supply Voltage: 12-40 VDC
12-35 VAC (VDC output units only)
Ambient Temperature: -30°F to 150°F
(-35ºC to 60ºC)
Environmental: 10 - 95% RH Non-condensing
Maximum Temperature Span: 250°F (138ºC)
Minimum Temperature Span: 35°F (19ºC)
CONFORMANCE & TESTING:
RoHS Compliant
EMC Testing:
BS EN 55022:1998, BS EN 55024:1998,
EN 61000-3-3, EN 61000-4-2,
EN 61000-4-3, EN 61000-4-4,
Accuracy of Duct Averaging Transducer is ±3°F
EN 61000-4-5, EN 61000-4-6,
EN 61000-4-11
ZERO AND SPAN TRIMMER POSITIONS
WARNING!
DO NOT CHANGE THESE
ADJUSTMENT TRIMMERS!
Z S
Z
S
MAMAC
TE-211 Board, Wall Mount
Figure 1
TE-211 Board, All Other Versions
MAMAC
TE-213 Board, All Versions
Figure 2
Please Note: “Z” designates the zero trimmer potentiometer, “S” designates the span trimmer potentiometer. These devices are calibrated in our
factory using NIST certified temperature calibration equipment. There should be no requirement for field calibration.
Please Note: Shown with terminal blocks removed!
Z S
MAMAC
Figure 3
TYPICAL APPLICATIONS (wiring diagrams)
Figure 1 and Figure 2 illustrate typical wiring diagrams for the mA
output temperature transducer.
Figure 1 - Wiring for mA Temperature Transducers with an External
DC Power Supply
mA Output Transducer Only 12-40 VDC Power Supply
+
Figure 2 - Wiring for mA Output Transducers where the Controller
or Meter has an Internal DC Power Supply
mA Output Transducer Only
+
+
Controller / Meter / Recorder
Input Signal
+
Common
Shield/Ground
Controller / Meter / Recorder
Input Signal
+
Common
Shield/Ground
Figure 3 and Figure 4 illustrate typical wiring diagrams for the VDC
output temperature transducer.
Figure 3 - Wiring for VDC Temperature Transducers When Applied
with External AC Supply
VDC Output Transducer Only 12-35 VAC Transformer
Supply
Common
Signal
+
O
Controller / Meter / Recorder
Hot
+
Neutral
Input Signal
+
Common
Shield/Ground
Figure 4 - Wiring for VDC Temperature Transducers When Applied
with External DC Supply
VDC Output Transducer Only 12-40 VDC Power Supply
Supply
Common
Signal
+
O
+
Controller / Meter / Recorder
Input Signal
+
Common
Shield/Ground
