ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.

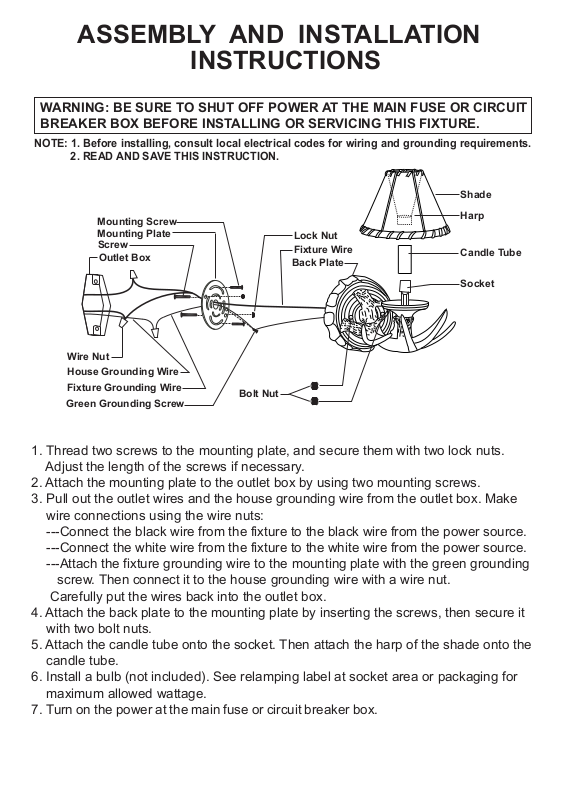

Shade
Mounting Screw
Mounting Plate
Screw
Outlet Box
Wire Nut
House Grounding Wire
Fixture Grounding Wire
Green Grounding Screw
Lock Nut
Fixture Wire
Back Plate
Bolt Nut
Harp
Candle Tube
Socket
1. Thread two screws to the mounting plate, and secure them with two lock nuts.
Adjust the length of the screws if necessary.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Pull out the outlet wires and the house grounding wire from the outlet box. Make
wire connections using the wire nuts:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting plate with the green grounding
screw. Then connect it to the house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting plate by inserting the screws, then secure it
with two bolt nuts.
5. Attach the candle tube onto the socket. Then attach the harp of the shade onto the
candle tube.
6. Install a bulb (not included). See relamping label at socket area or packaging for
maximum allowed wattage.
7. Turn on the power at the main fuse or circuit breaker box.
