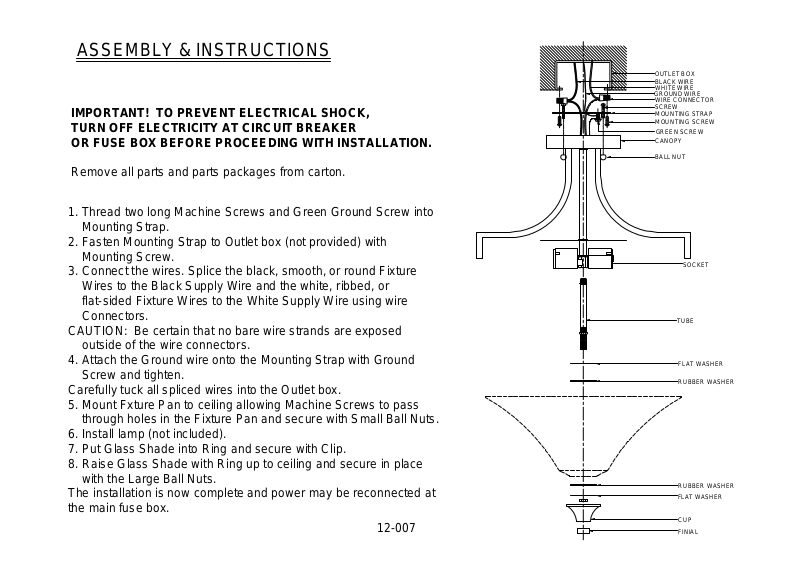

ASSEMBLY & INSTRUCTIONS
IMPORTANT! TO PREVENT ELECTRICAL SHOCK,
TURN OFF ELECTRICITY AT CIRCUIT BREAKER
OR FUSE BOX BEFORE PROCEEDING WITH INSTALLATION.
Remove all parts and parts packages from carton.
1. Thread two long Machine Screws and Green Ground Screw into
Mounting Strap.
2. Fasten Mounting Strap to Outlet box (not provided) with
Mounting Screw.
3. Connect the wires. Splice the black, smooth, or round Fixture
Wires to the Black Supply Wire and the white, ribbed, or
flat-sided Fixture Wires to the White Supply Wire using wire
Connectors.
CAUTION: Be certain that no bare wire strands are exposed
outside of the wire connectors.
4. Attach the Ground wire onto the Mounting Strap with Ground
Screw and tighten.
Carefully tuck all spliced wires into the Outlet box.
5. Mount Fxture Pan to ceiling allowing Machine Screws to pass
through holes in the Fixture Pan and secure with Small Ball Nuts.
6. Install lamp (not included).
7. Put Glass Shade into Ring and secure with Clip.
8. Raise Glass Shade with Ring up to ceiling and secure in place
with the Large Ball Nuts.
The installation is now complete and power may be reconnected at
the main fuse box.
12-007

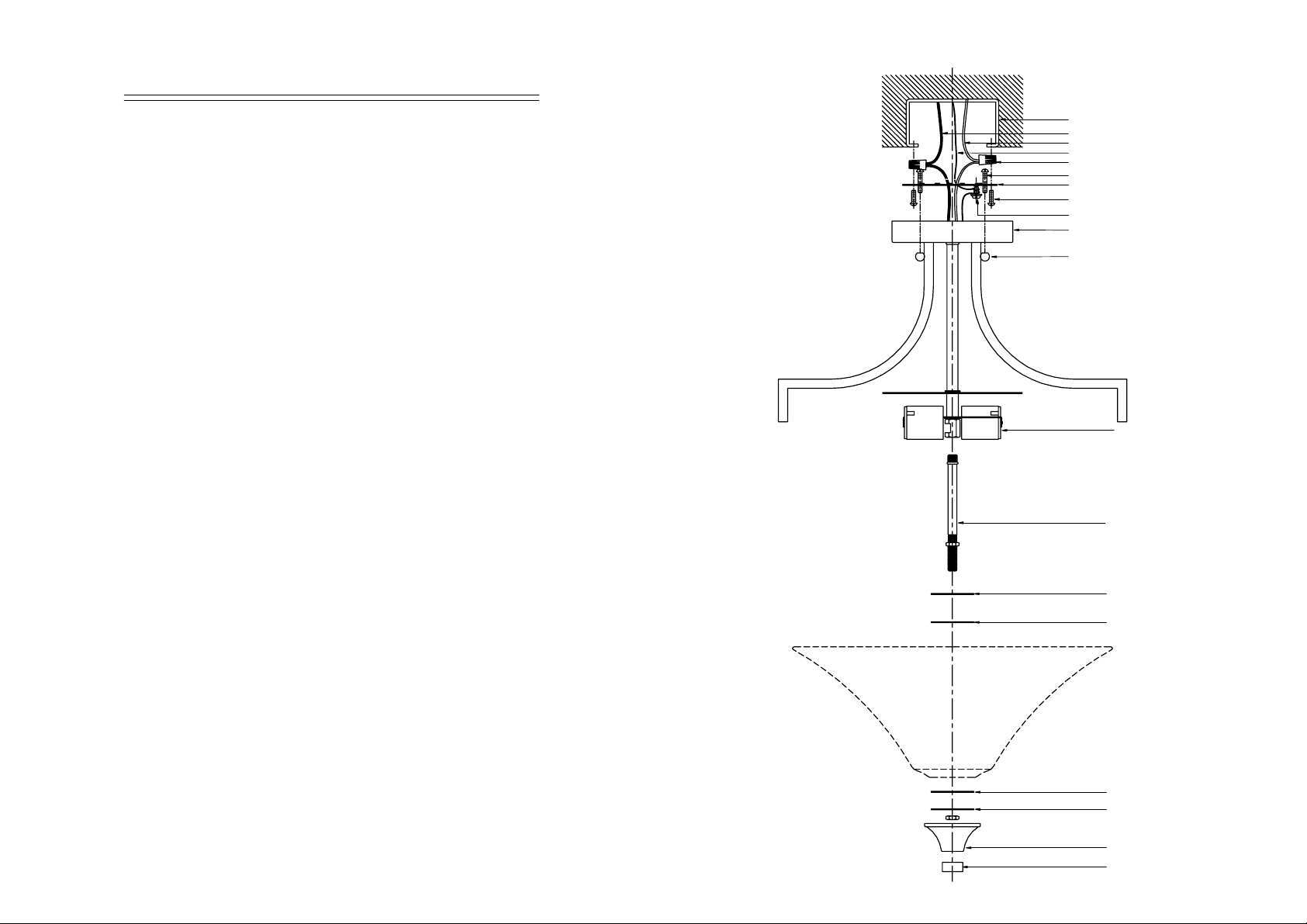

OUTLET BOX
BLACK WIRE
WHITE WIRE
GROUND WIRE
WIRE CONNECTOR
SCREW
MOUNTING STRAP
MOUNTING SCREW
GREEN SCREW
CANOPY
BALL NUT
SOCKET
TUBE
FLAT WASHER
RUBBER WASHER
RUBBER WASHER
FLAT WASHER
CUP
FINIAL
