ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.

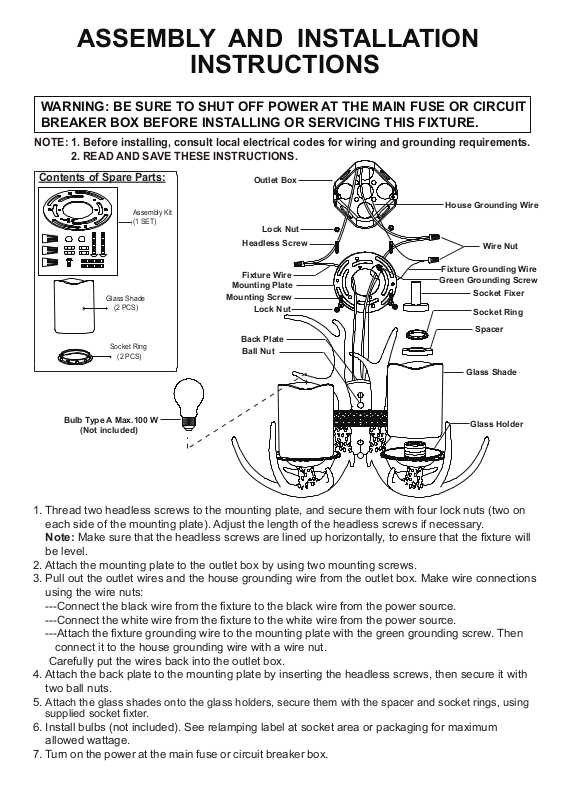

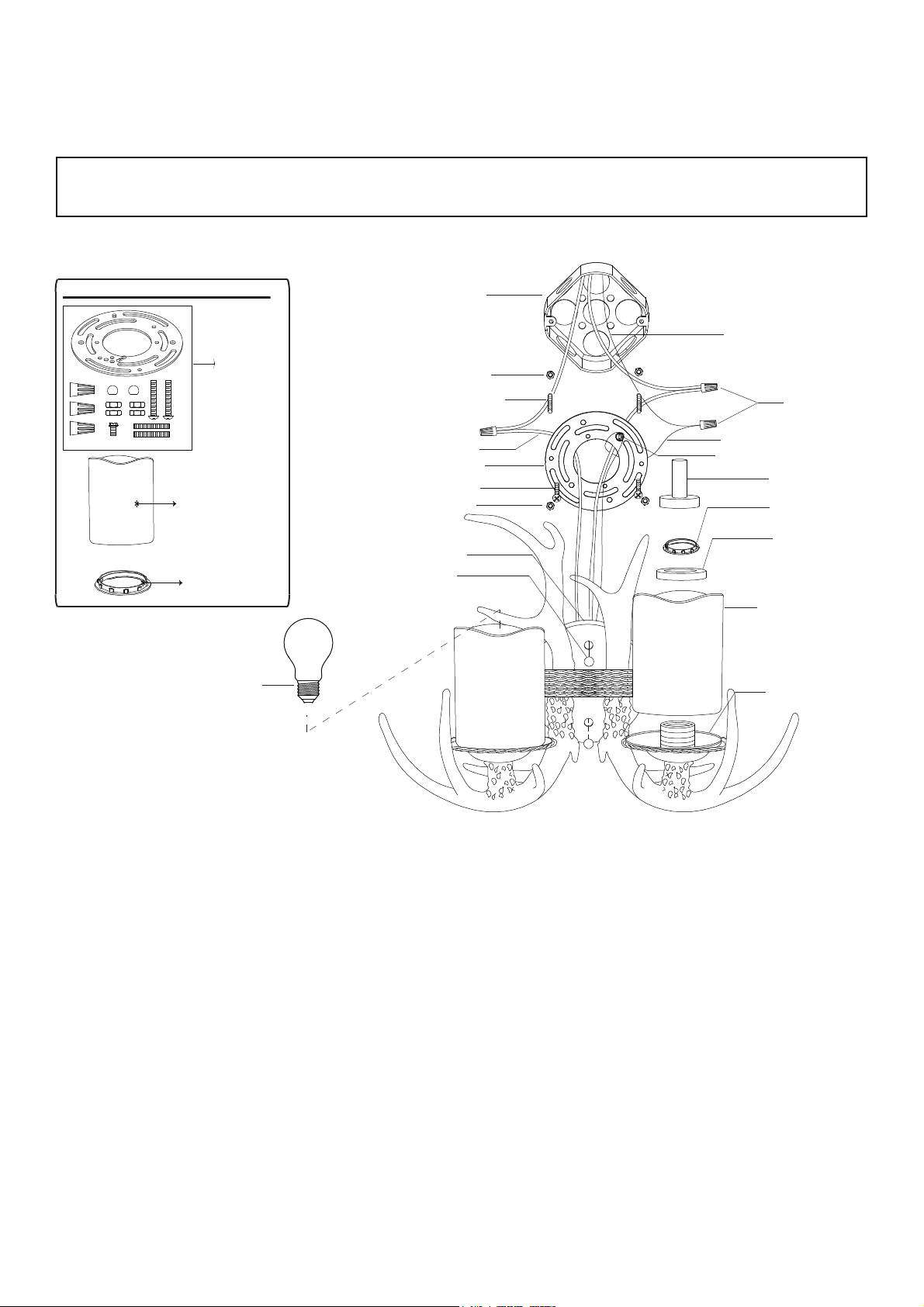

Contents of Spare Parts:
Assembly Kit
(1 SET)
Glass Shade
(2 PCS)
Socket Ring
(2 PCS)
Bulb Type A Max.100 W
(Not included)
Outlet Box
Lock Nut
Headless Screw
Fixture Wire
Mounting Plate
Mounting Screw
Lock Nut
Back Plate
Ball Nut
House Grounding Wire
Wire Nut
Fixture Grounding Wire
Green Grounding Screw
Socket Fixer
Socket Ring
Spacer
Glass Shade
Glass Holder
1. Thread two headless screws to the mounting plate, and secure them with four lock nuts (two on
each side of the mounting plate). Adjust the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up horizontally, to ensure that the fixture will
be level.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections
using the wire nuts:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting plate with the green grounding screw. Then
connect it to the house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting plate by inserting the headless screws, then secure it with
two ball nuts.
5. Attach the glass shades onto the glass holders, secure them with the spacer and socket rings, using
supplied socket fixter.
6. Install bulbs (not included). See relamping label at socket area or packaging for maximum
allowed wattage.
7. Turn on the power at the main fuse or circuit breaker box.
