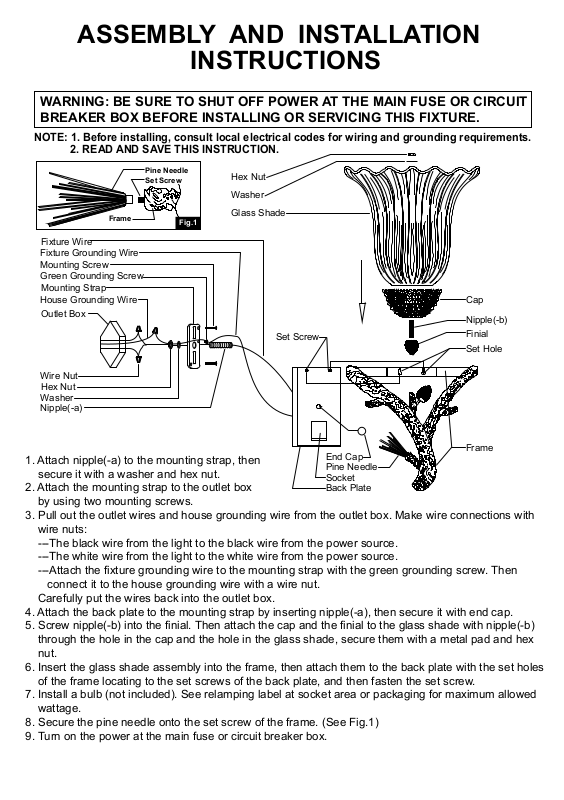

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.

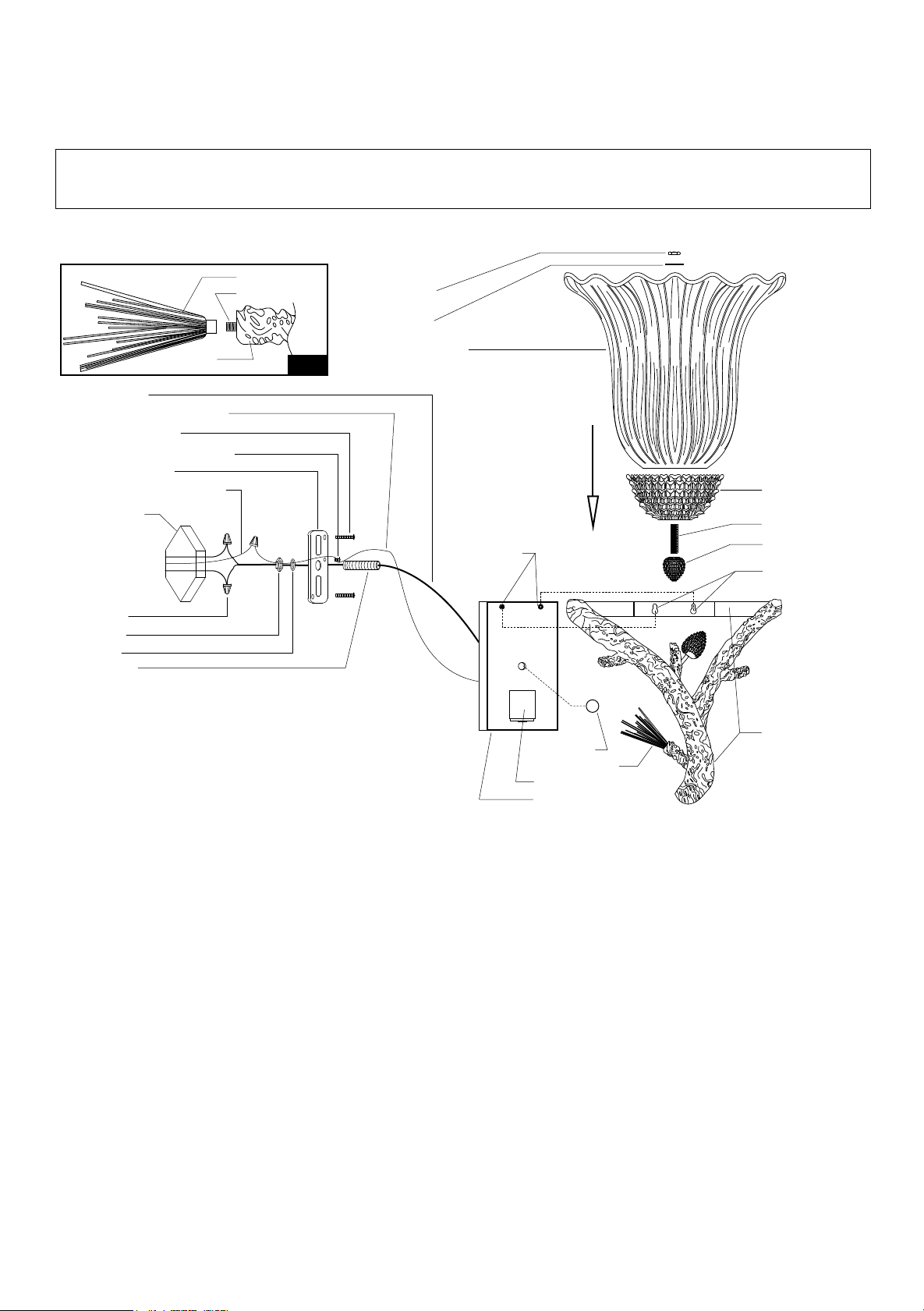

Frame
Fixture Wire
Fixture Grounding Wire
Mounting Screw
Green Grounding Screw
Mounting Strap
House Grounding Wire
Outlet Box
Wire Nut
Hex Nut
Washer
Nipple(-a)
Pine Needle
Set Screw
Fig.1
Hex Nut
Washer
Glass Shade
Set Screw
Cap
Nipple(-b)
Finial
Set Hole
Frame
1. Attach nipple(-a) to the mounting strap, then
secure it with a washer and hex nut.
2. Attach the mounting strap to the outlet box
End Cap
Pine Needle
Socket
Back Plate
by using two mounting screws.
3. Pull out the outlet wires and house grounding wire from the outlet box. Make wire connections with
wire nuts:
---The black wire from the light to the black wire from the power source.
---The white wire from the light to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green grounding screw. Then
connect it to the house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting strap by inserting nipple(-a), then secure it with end cap.
5. Screw nipple(-b) into the finial. Then attach the cap and the finial to the glass shade with nipple(-b)
through the hole in the cap and the hole in the glass shade, secure them with a metal pad and hex
nut.
6. Insert the glass shade assembly into the frame, then attach them to the back plate with the set holes
of the frame locating to the set screws of the back plate, and then fasten the set screw.
7. Install a bulb (not included). See relamping label at socket area or packaging for maximum allowed
wattage.
8. Secure the pine needle onto the set screw of the frame. (See Fig.1)
9. Turn on the power at the main fuse or circuit breaker box.
