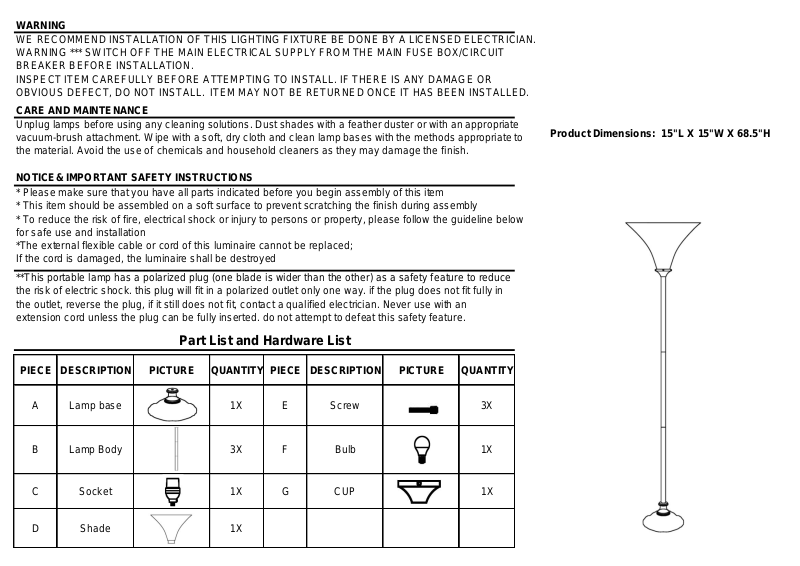

Page 1
PIECE DESCRIPTION PICTURE
QUANTITY
PIECE DESCRIPTION PICTURE QUANTITY
A Lamp base 1X E Screw 3X
B Lamp Body 3X F Bulb 1X
C Socket 1X G CUP 1X
D Shade 1X
* Please make sure that you have all parts indicated before you begin assembly of this item
* This item should be assembled on a soft surface to prevent scratching the finish during assembly
* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below
for safe use and installation
*The external flexible cable or cord of this luminaire cannot be replaced;
If the cord is damaged, the luminaire shall be destroyed
**This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce
the risk of electric shock. this plug will fit in a polarized outlet only one way. if the plug does not fit fully in
the outlet, reverse the plug, if it still does not fit, contact a qualified electrician. Never use with an
extension cord unless the plug can be fully inserted. do not attempt to defeat this safety feature.
Part List and Hardware List
WARNING
WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN.
WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT
BREAKER BEFORE INSTALLATION.
INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR
OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.
CARE AND MAINTENANCE
Unplug lamps before using any cleaning solutions. Dust shades with a feather duster or with an appropriate
vacuum-brush attachment. Wipe with a soft, dry cloth and clean lamp bases with the methods appropriate to
the material. Avoid the use of chemicals and household cleaners as they may damage the finish.
NOTICE& IMPORTANT SAFETY INSTRUCTIONS
Product Dimensions: 15"L X 15"W X 68.5"H
Page 2

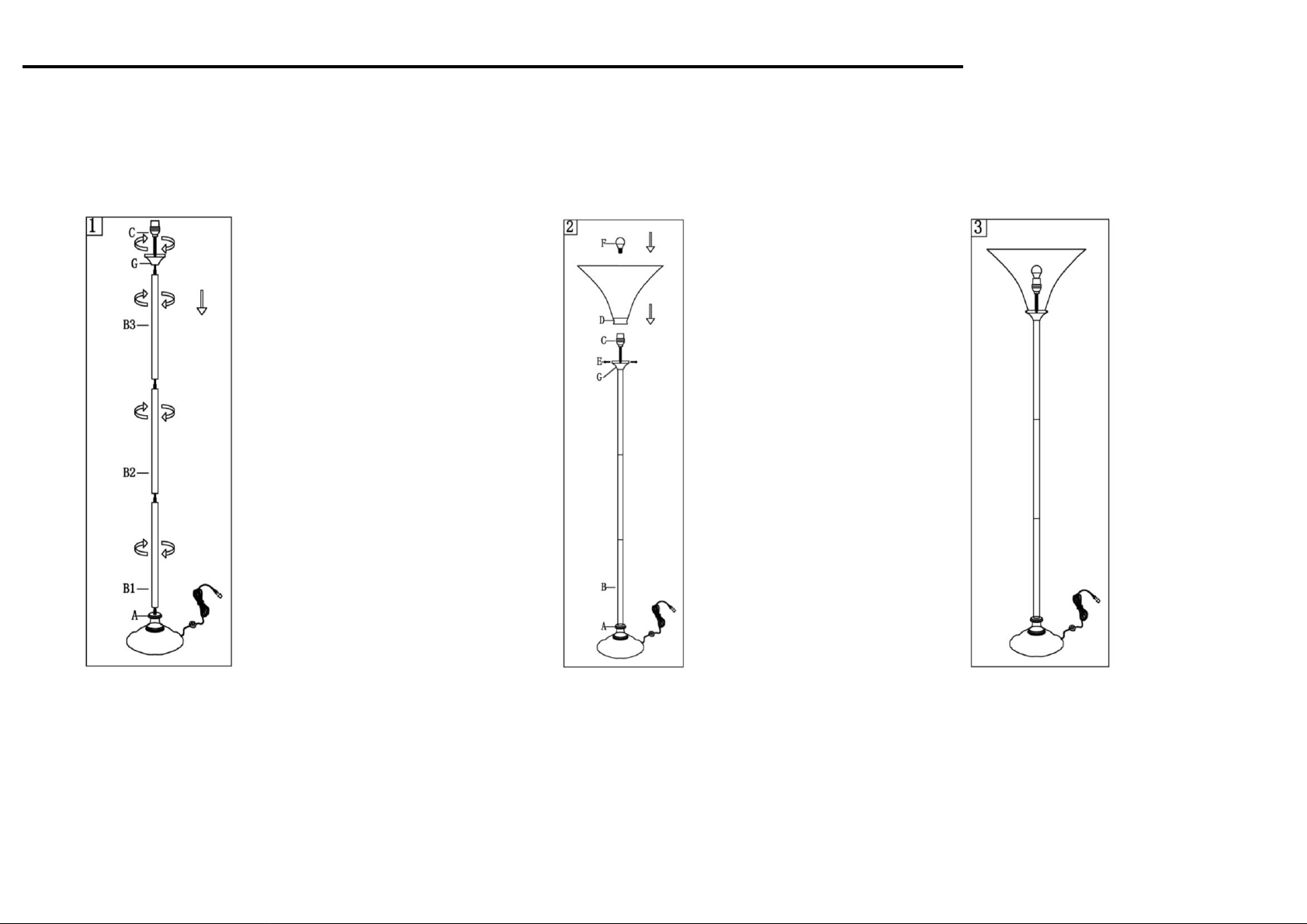

Step 1 Step2 Step3
Make sure all parts could be aligned before assemble Put the light on a level surface to check
Do not rotate lamp body too hard avoid base screw broken Put the shade(D) into the CUP(G), then if everything is stable.
Screw the Cup(G) onto the Lampbody(3) tighten three screws (E) into the CUP (G)
Screw the Lamp body (B3) onto the Lamp body(B2) Insert the bulb(F) into the socket(C).
Screw the Lamp body (B2) onto the Lamp body(B1)
Screw the Lamp body (B1) onto the Lamp base(A)
Be careful not to twist the power cord and tighten securely
PLEASE USE ON/OFF TYPE"A" BULB MAX 100-WATT OR CFL BULB MAX 23-WATT OR LED BULB MAX 12-WATT
THERE IS LED 9-WATT BULB IN THE BOX
ENJOY YOUR LAMP
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware
contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 6 minutes.
