Setup Guide
You’re moments from experiencing a natural way to search, find
and enjoy whatever you watch on your Google TV™ system.
Logitech® Keyboard Controller
You’re moments from experiencing a natural way to search, find
and enjoy whatever you watch on your Google TV™ system.
Setup Guide
Unpack the box
From HD video calling on your couch
to house-of-the-future touch screen remotes.
Logitech accessories for Google TV make
communication more personal, information
more accessible and entertainment more fun.
www.logitech.com/SmartTV/accessories
Logitech® Keyboard Controller (K700/TV700)
Unifying receiver
USB cable extender
3
Logitech® Keyboard Controller Logitech® Keyboard Controller
Keyboard Controller at a glance
1 3 7 8
4
20 19 18 17 16
52 96
10
12
13
15
OFF ON
11
14
1. Mouse Functions as a left mouse click
2. TV Switches to live TV
3. Guide Presents the program guide on your Set-top box (STB)
4. DVR Presents a list of recordings on your STB
5. Menu Displays STB on-screen menu/guide when used with the FN key
6. Zoom Out Zooms out when used with the FN key
7. Zoom In Zooms in when used with the FN key
8. On Turns devices on and off when pressed
Input Switches TV input when used with the FN key
9. Touchpad Navigates the cursor
10. Click Button Functions as a left mouse click
11. Back Returns to previous screen
12. Home Returns to Google TV home screen
13. Directional Keys Navigates Up, Down, Left, and Right
OK Selects options
14. Picture-in-picture Activates and toggles picture-in-picture modes
15. Favorite Saves favorite locations
Record Records, when used with the FN key. (This feature may not be
available for all devices.)
16. Playback Controls video playback—Rewind, Play, Fast Forward
17. Ch/Pg Up Scrolls up through channels or up through web pages when used
with the FN key
Ch/Pg Down Scrolls down through channels or down through web pages
when used with the FN key
18. Menu Displays Google TV menu options
19. FN Enables yellow-highlighted key commands
20. Search Launches the Google TV search and navigation bar
4
5
Logitech® Keyboard Controller Logitech® Keyboard Controller
Connect the Keyboard Controller
1
Plug the Unifying receiver into a USB port in your Google TV–based Smart
TV system.
If, while using the Mini Controller you notice performance issues (e.g., sluggish
pointer movement or commands not being quickly recognized, etc.), try using
the USB cable externder to place the Unifying receiver farther away from your TV,
which may be producing electromagnetic interference.
6
Setup with a Google TV-based Smart TV system
Setup with a Logitech Revue Companion Box
1. Turn ON the Companion Box (sold separately) and Keyboard Controller.
2. Press and release the pairing button on the back of the Companion Box.
This button is located under the Unifying logo.
3. Turn OFF the Keyboard Controller, and then turn the Keyboard Controller
back ON.
The Keyboard Controller is now paired with the Companion Box.
OFF ON
Keyboard ControllerLogitech Revue™ Companion Box
7
Logitech® Keyboard Controller Logitech® Keyboard Controller

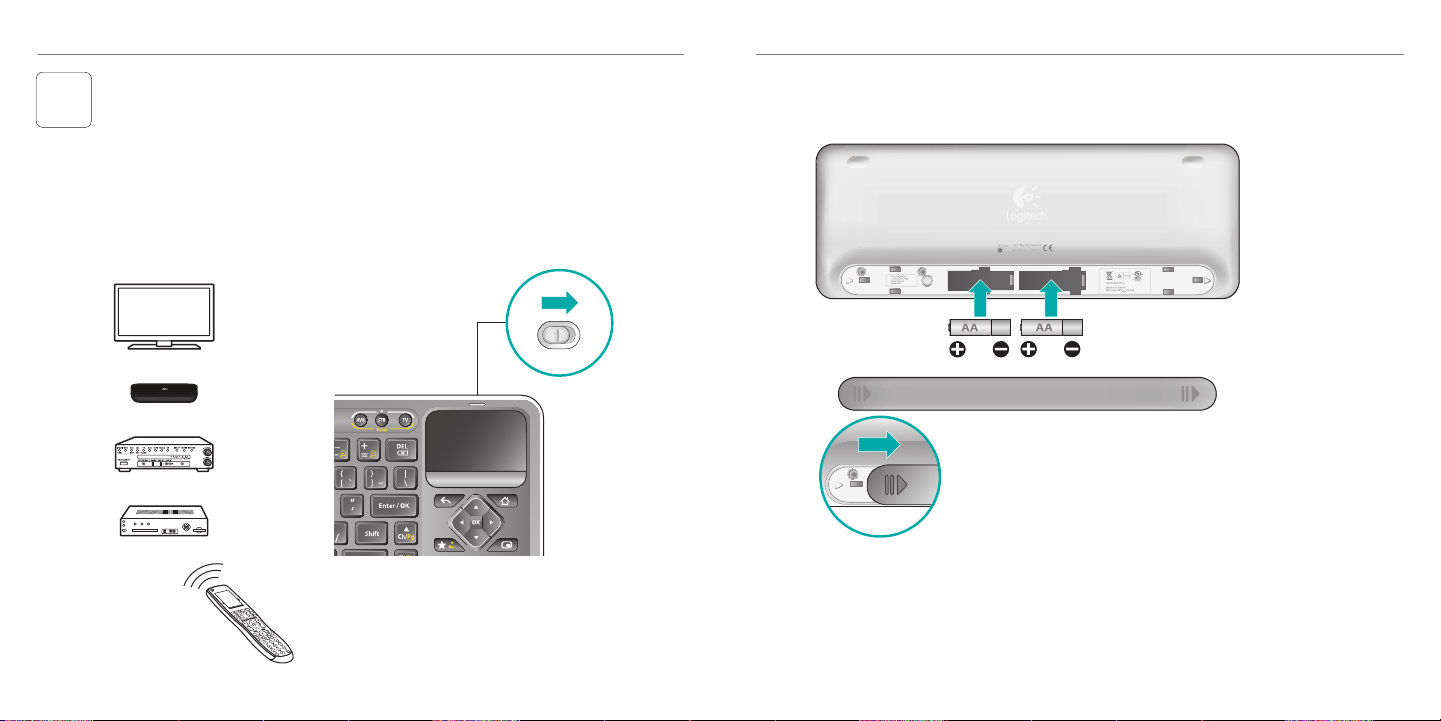

Power everything on
2
Your new Keyboard Controller cannot control your devices until you complete
the on-screen setup.
1. To begin, turn on all devices using your current method of control.
2. Slide the power switch on the Keyboard Controller to ON.
3. Follow the instructions on the TV screen to complete setup.
TV
Companion Box
AVR
CHANNELINFO MSGS A/B REMOTE
MENU
AUDIO INRLVID IN
POWER
STB
Off
*
Replace the batteries
OFF ON
1. Turn off the Keyboard Controller.
2. Open the battery compartment door by pressing down
on the arrow and sliding the door right.
3. Insert two new AA batteries, as shown in the drawing.
Note the orientation of the replacement batteries.
4. Turn on the Keyboard Controller. The power LED above
the Touchpad should light green.
8
9
Logitech® Keyboard Controller Logitech® Keyboard Controller
Help with setup
Problem: My Keyboard Controller does not work or will not connect.
Solution: Check the following:
• Is the Keyboard Controller on? The ON/OFF power switch must be set to ON. If it is, turn the
power switch OFF and then ON. The power LED above the Touchpad should light green, or red
if the batteries are low in power.
• Are the batteries installed properly? Remove the battery cover and check battery installation.
Refer to page 9 for more information.
• Is your Keyboard Controller paired with the Logitech Revue™ Companion Box (sold separately)?
To pair the Companion Box with the Keyboard Controller, turn on the Keyboard Controller. Press
and release the button located on the back of the Logitech Revue Companion Box under the
Unifying logo. Now, turn the keyboard power switch OFF and then ON. Refer to page 7 for
more information.
• Is your Keyboard Controller paired with a Google TV – based smart TV system? Make sure
the Unifying receiver is plugged into a USB port on your Google TV. Try using the USB cable
extender to place the Unifying receiver farther away from your TV, which may be producing
electromagnetic interference. Refer to page 6 for more information. You may need to reestablish the connection between the Keyboard Controller and its Unifying receiver:
1. Insert the Unifying receiver in a USB port on a PC that is connected to the Internet.
2. Download the Unifying software from www.logitech.com/unifying.
3. Follow the on-screen instructions to reconnect the Keyboard Controller with the
Unifying receiver.
4. When finished, insert the Unifying receiver back into a USB port on the TV. The connection
between the Keyboard Controller and Unifying receiver should now be re-established.
10
Problem: In a Logitech Revue™ setup, my TV, STB (set-top box), or AVR (audio-video receiver) is not
responding to the Keyboard Controller.
Solution: Check the following:
• Is the device IR controlled? Some home theater devices are controlled by line-of-sight, infrared
communication (IR), and others are controlled by high-frequency radio waves (RF). If you are
using the Logitech Revue Companion Box, this device only controls IR-enabled TVs, STBs, and
AVRs, and will not communicate with RF-controlled components.
• Is the IR signal blocked? Use the mini blaster (which comes with your Logitech Revue
Companion Box) to extend the range of the Companion Box IR signal.
• Is the mini blaster close enough to have a direct line of sight with your device? Try moving the
mini blaster closer to the device.
• Is the device still not responding? You may need to teach additional IR commands to your
Logitech Revue Companion Box. Launch the “Logitech Help and More” application from
Logitech Revue to find the video, “Teaching Infrared commands to your Revue.”
Problem: How do I enable or disable the tap-to-select feature on the Touchpad?
Solution: If you prefer to tap on the Touchpad instead of clicking, you can enable this gesture by
pressing the Left Ctrl + FN + Ch/Pg Up keys simultaneously. To disable this feature, press the Left
Ctrl + FN + Ch/Pg Down keys simultaneously.
What do you think?
Please take a minute to tell us.
Thank you for purchasing our product.
www.logitech.com/ithink
11
Now make yourself comfy. Settle in on the sofa.
And get ready to hang out. There’s one tricky thing left to do. . .
choosing what to watch first.
www.logitech.com
For assistance, call toll free: 1-866-954-5644
Go to www.logitech.com/revue/support for current support hours
