Logitech 960-000793 User Manual

Setup Guide

¡P-

With the Logitech TV Cam, your connected TV

is a TV that connects. And in just a few minutes

you’ll be making video calls right from your couch.

Logitech’ TV Cam

Logitech

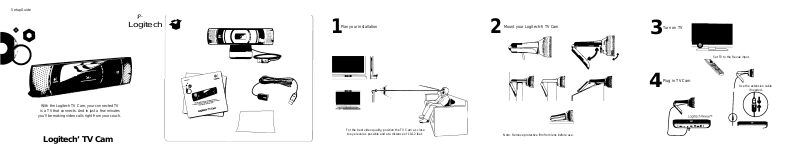

Plan your installation

For the best video quality, position the TV Cam as close

to eye level as possible and at a distance of 10-12 feet.

Mount your Logitech® TV Cam

Note: Remove protective film from lens before use.

Turn on TV

Set TV to the Revue input.

Plug in TV Cam

Use the extension cable

if needed.

Welcome

Set up your Vid HD account

Logitech® Keyboard Controller features for TV Cam

Help with set up

Now make yourself comfy. Settle in on the sofa.

And get ready to hang out. There’s one tricky thing left to do.

deciding who to call first.

www.logitech.com

For assistance, call toll free: 1-866-954-5644 Go to www.logitech.com/revue/support for current support hours

© 2010 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

620-003042.005

Welcome to Logitech Vid™HD

As soon as your TV Cam is plugged in, Logitech Revue automatically begins

initializing your camera. After initialization, you are ready to set up your

Vid HD account.

Set up your Vid™ HD account

virt account you to make valeo calls and connect with ti (ends

Create a new account

Follow the on-screen prompts to set up a new account or to log in to your account and begin making video calls.

1. Menu Displays TV selection guide when

used with the FN key

2. Zoom OUT Zooms TV Cam out when

used with the FN key during a video call

3. Zoom IN Zooms TV Cam in when used

with the FN key during a video call

4. Back Asks if you want to end call

5. Directional Keys Navigates Up, Down,

Left and Right

OK Selects highlighted options

1 2 3

6. Ch/Pg Up Zooms image in during a

video call

Ch/Pg Down Zooms image out during a

video call

7. Menu Displays video calling options

within Vid HD

8. FN Enables yellow-highlighted key

commands

Important: Before plugging In your Logitech TV Cam, you must complete the set up

for your Revue.

Problem: I plugged In my TV Cam but Revue did not detect It.

Solution: Try the following:

1. Go to the Applications menu and select Vid HD. Does this begin set up?

2. If not, unplug your TV Cam and then plug It Into a different USB port. Does this begin set up?

3. If not, unplug your TV Cam. Unplug your Revue from the power source. Walt 30 seconds and then plug the power supply back Into your Revue. Once Revue Is powered on, plug your TV Cam Into an open USB port.

Problem: My TV Cam Image Is fuzzy or distorted.

Solution: Check the following:

1. Make sure that the protective film has been removed from the TV Cam lens.

2. Check the room lighting. Low light and high contrast light can cause problems

for even the most advanced cameras.

For any other Issues, Including account creation or making a call, please visit:

www.logltech.com/revue/support
