Line 6 Echo Park User Manual

Pilot’s Handbook for Echo Park

Pilotenhandbuch für Echo Park

Manuel de pilotage pour Echo Park

Manual del Piloto para el

Echo Park

Pilotenhandboek voor Echo Park

Patent Pending

40-00-0182 Electrophonic Limited Edition available @ www.line6.com Rev D

Line 6, ToneCore, Constrictor, Crunchtone, Echo Park, Space Chorus,

Tap Tremolo and Über Metal are trademarks of Line 6, Inc.

CAUTION

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part
15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

The exclamation point within a triangle
means, “Caution!” Please read the
information next to all caution signs.

Echo Park Pilot’s Handbook © 2004, Line 6, Inc.

The lightning symbol within a triangle
means, “Electrical caution!” It indicates the
presence of information about operating
voltage and potential risks of electrical shock.

You should read these Important Safety Instructions.

Keep these instructions in a safe place.

Before using your ToneCore, carefully read the applicable items of these operating instructions and the safety suggestions.

1. Obey all warnings on the pedal and in the ToneCore Pilot's Handbook.

2. Connect optional power supply only to AC power outlets rated 100-120V or 200-240V 47-63Hz (see indications on optional power supply).

3. Do not perform service operations beyond those described in the ToneCore Pilot's Handbook. Service is required when the apparatus has been
damaged in any way, such as:

• power-supply cord or plug is damaged

• liquid has been spilled or objects have fallen into the apparatus

• the unit has been exposed to rain or moisture

• the unit does not operate normally or changes in performance in a significant way

• the unit is dropped or the enclosure is damaged.

4. Do not place near heat sources, such as radiators, heat registers, or appliances which produce heat. .

5. Guard against objects or liquids entering the enclosure. Do not use or place unit near water.

6. Unplug the power supply when not in use for extended periods of time. Unplug the power supply during lightning storms.

7. Clean only with a damp cloth.

8. Only use attachments/accessories specified by the manufacturer.

9. Prolonged listening at high volume levels may cause irreparable hearing loss and/or damage. Always be sure to practice “safe listening.”

Echo Park Pilot’s Handbook

Output your effects mono to

a standard amplifier, or to a

stereo setup.

MOD

•

TAPE

DIGITAL • ANALOG OFF

Be sure to connect

your guitar to the

mono input jack on

TIMEREPEATMIX

SWEEP

SWELL

DUCKING

SLAP

MULTI 1
MULTI 2

TAP

PING PONG

TAP

REVERSE

NORMAL (TAP )

TAP TEMPO:

TRAILS

TAP LIGHTLY

•

ON

your ToneCore.

MOD

•

TAPE

DIGITAL • ANALOG OFF

Or, you can

TRAILS

feed the

stereo input

of your

ToneCore

TIMEREPEATMIX

SWEEP

SWELL

DUCKING

SLAP

MULTI 1

MULTI 2

TAP
TAP

PING PONG

REVERSE

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

•

ON

with a mono

or stereo
effect pedal
instead of a

guitar.

Greetings and salutations! Thank you for inviting the
Line 6 Echo Park delay pedal into your life.

Effect On-Off / Power Indicator Light

The Power Indicator Light on your ToneCore uses three
colors to indicate the pedal’s state:

•GREEN (flashing)– Effect is engaged (on). Light
is flashing to show delay time

•AMBER (flashing)– Effect is in bypass (off). Light
is flashing to show delay time

•RED (flashing) – Batteries need replacing

This low power indication will override all other states.

Power Jack

Connect an optional ToneCore-compatible Line 6
power supply like the DC-1, and you'll never need a
9-volt battery again!

Connections and Power Indicator Light

In Jacks

Use a standard guitar cable to connect your guitar, or
the output of another effect to use in combination with
your ToneCore. If you’re feeding a mono signal to your
Echo Park, use the MONO/L jack. Like most pedals,

inserting a plug into this jack will turn on the power
to your ToneCore. Disconnect both input plugs from
jacks when the ToneCore is not being used.

Out Jacks

Use a standard guitar cable to connect to the inputs of
a guitar amp, or the inputs of another effect that will
feed your amp. For mono, use the MONO/L jack.

Foot Switch

Stomp on this to turn the effect sound processing on
and off. See Tap Tempo sectionto learn how to set the

time with your feet.

Echo Park Pilot’s Handbook

MOD

NORMAL (TAP )

TAP TEMPO:

•

TAPE

DIGITAL • ANALOG OFF

TAP LIGHTLY

SWEEP

SWELL

SLAP
TAP
TAP

DUCKING

TIMEREPEATMIX

MULTI 1

MULTI 2

PING PONG

REVERSE

•

ON

Model Switch

Give this a flick to reconfigure the virtual circuitry
inside your Echo Park, and enjoy three distinctly
different sound “flavors”.

Tape gives you classic tape echo warmth. The high end
will deteriorate with each repeat, in vintage tape echo
style. And you never have to change tapes!

Digital gives you straight up echoes, with crystal clear
digital fidelity.

Analog is designed to give a vintage analog bucket
brigade delay sound, with its darker distorted tone.

TRAILS

Trails Switch

Set this on to keep Echo Park’s processing engaged
while in bypass, so your echoes smoothly trail away
when you kick the effect off.

Tap Tempo

Put your foot to work and get your echoes in the groove!
Using the innovative ToneCore double-action
footswitch, you can tap a couple times and have your
echoes match your tempo. Here’s what you need to
know:

• Whether the effect is active or bypassed, you can tap
the footswitch lightly to set delay time. Your first two
taps establish the tempo. Any additional taps within
3 seconds will be averaged in.

• Taps will be ignored if the footswitch is pressed all
the way down to turn the effect processing on/off.

• Any time the Tap Tempo switch is used to alter the
delay, the tapped value overrides the current setting of
the Time knob. Whenever the Time knob is turned,
it overrides the last value entered with the Tap Tempo
switch.

• Echo Park’s indicator light flashes the tempo in green
when the effect is on and amber when the effect is off.
The light will always flash at quarter note speed.

Controls

Detail on Tap Tempo time:
In most configurations, the delay time ranges from
53 ms min to 2500 ms max.

The exceptions are:
8th note triplet = 13 ms min to 833 ms max
8th note dotted = 30 ms min to 1875 ms max
Slap = 10 ms min to 625 ms max

Echo Park Pilot’s Handbook

MOD

NORMAL (TAP )

TAP TEMPO:

•

TAPE

DIGITAL • ANALOG OFF

TAP LIGHTLY

SWEEP

SWELL

SLAP
TAP
TAP

DUCKING

TIMEREPEATMIX

MULTI 1

MULTI 2

PING PONG

REVERSE

•

ON

Mix

Turn the knob up (clockwise) for louder echoes, or
down for quieter ones.

Repeat

You get 1 repeat at the minimum setting, and infinite
repeats when the knob is all the way up.

Time

This knob gives you a range of spacings for your echoes
from 53 milliseconds (close together) through 2.235
seconds (way far apart) per side. Turn this knob and
listen how the delay time smoothly changes when audio
is present. You can use Tap Tempo (see previous page)
to reach Echo Park’s maximum time of 2.5 seconds.

TRAILS

Mod

Turn this knob up to get some delicious stereo
modulation on your echoes. Each model has its own
type of stereo modulation:

• Analog has Vibrato

• Digital has Chorus

• Tape has Wow & Flutter

Function Control Knob

Choices, choices! When you’re talkin’ Echo Park,
you’re talkin’ plenty of options:

• Normal: your taps are treated as quarter notes, so
you hear your echoes coming back at the same speed
you tapped the footswitch.

• Tap eighth note triplet: This setting lets you tap
quarter notes, while the echoes come back doing 8th
note triplets. Sweet!

• Tap dotted eighth note: You tap quarter notes,
your echoes come back as dotted 8th notes.

• Slap: This is the place for a speedy slap back echo.
The Time knob’s range is automagically changed to

Controls

be 10 to 150 thousandths of a second. You can Tap

Tempo all 1/4 notes, and get 1/16 note echoes.

• Swell: This adds an auto volume swell along with
your echoes. Dreamy.

• Sweep: Add this sweeping filter to the feedback loop
of your echoes and you’ll be glad you did!

• Ducking: The volume of your echoes is “ducked”
(reduced) while you’re playing, and increases when
you stop. This is handy to avoid mud-tone.

• Multi 1*: Uses multiple delay “taps,” to give you a
rhythmic pattern of echoes

• Multi 2*: Another multi-tap rhythmic variation

• Ping pong*: Alternating left and right taps

• Reverse*: Just like those backwards parts on our
favorite albums, this flips your input signal around
and sends it back to you in reverse. Use it live, and
folks are sure to be impressed.

The functions marked by the * combine your left and right
inputs for processing, so the effected part of the signal will
be summed to mono, while your dry signal remains stereo.

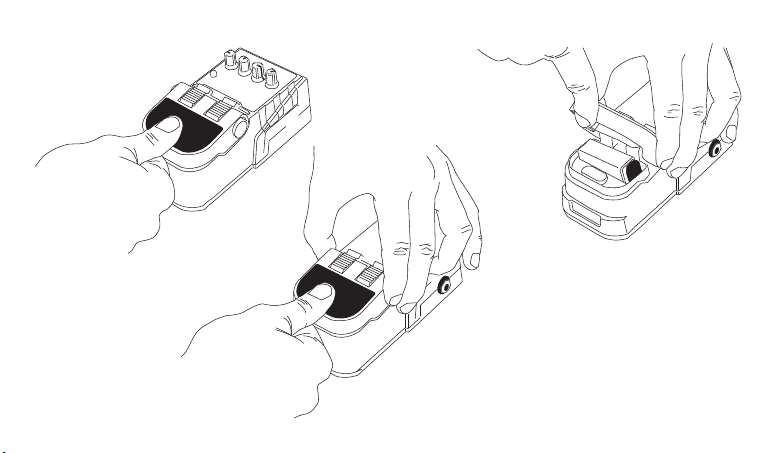

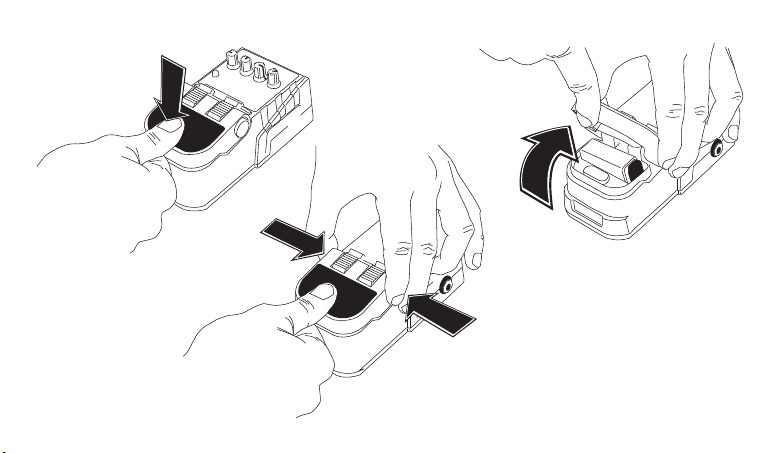

Battery Access Instructions

1) Depress pedal fully.

While holding pedal,

2)
squeeze both sides of
hinge as shown.

Squeezing hinge,

3)
raise pedal to
reveal battery.

Power Supply

Connect an optional Line 6 DC-1 power supply and
you'll never need a 9-volt battery again! It is also
compatible with most popular 9 Volt DC stomp boxes.
Using the power supply will disconnect the battery.

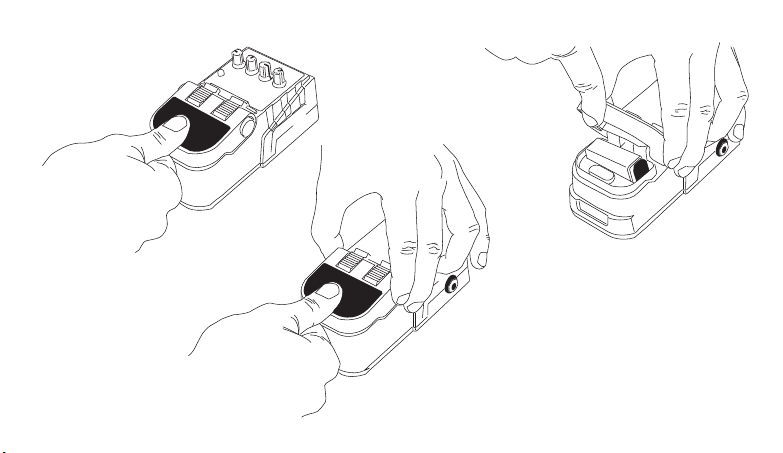

Battery Access Instructions

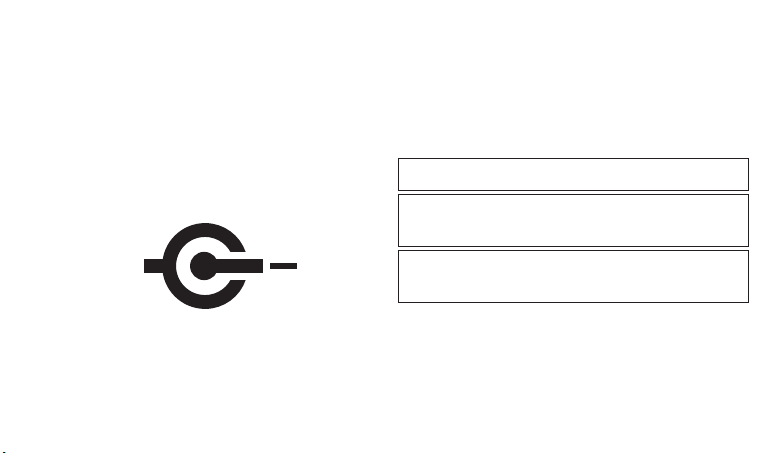

POWER REQUIREMENTS

Min Nominal Max

Supply Voltage 6 VDC 9.6 VDC 16 VDC

Supply Current
@ 9.6 VDC 40mADC 60mADC 100mADC

+

Power
@ 9.6VDC 0.4 Watt 0.6 Watt 1 Watt

Echo Park Pilot’s Handbook

MOD

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

•

TAPE

DIGITAL • ANALOG OFF

TIMEREPEATMIX

SWEEP

SWELL

DUCKING

SLAP

MULTI 1

REVERSE

MULTI 2

PING PONG

TAP
TAP

TRAILS

•

ON

MOD

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

•

TAPE

DIGITAL • ANALOG OFF

TIMEREPEATMIX

SWEEP

SWELL

DUCKING

SLAP

MULTI 1

REVERSE

MULTI 2

PING PONG

TAP
TAP

TRAILS

•

ON

Mark the knob and switch settings for your favorite tones above.Mark the knob and switch settings for your favorite tones above.

MOD

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

•

TAPE

DIGITAL • ANALOG OFF

TIMEREPEATMIX

SWEEP

SWELL

DUCKING

SLAP

MULTI 1

REVERSE

MULTI 2

PING PONG

TAP
TAP

TRAILS

•

ON

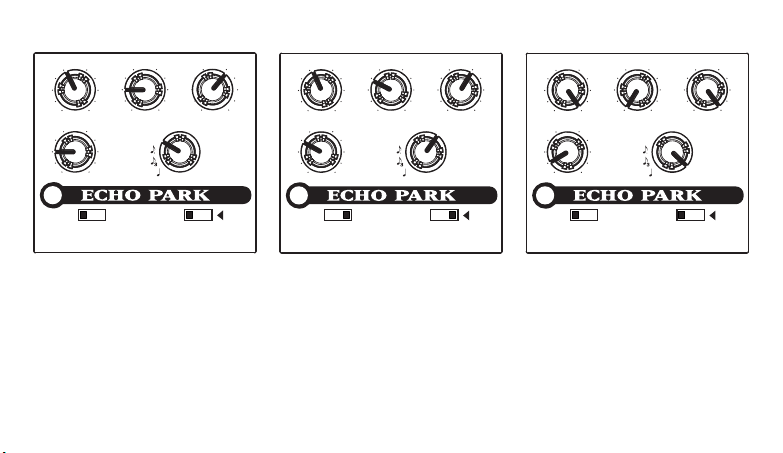

Example Tones

TIMEREPEATMIX

TAP
TAP

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

SWEEP

SWELL

DUCKING

SLAP

MULTI 1

MULTI 2

PING PONG

REVERSE

TRAILS

•

ON

MOD

•

TAPE

DIGITAL • ANALOG OFF

Slappy-Verb

Slick back your hair, cuff your jeans,
roll a pack of Camel unfiltereds up
in your sleeve, and dial in this
setting when it’s time for super cool
rockabilly slap back echoes.

TIMEREPEATMIX

MOD

•

TAPE

DIGITAL • ANALOG OFF

SLAP
TAP
TAP

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

SWEEP

SWELL

DUCKING

MULTI 1

MULTI 2

PING PONG

REVERSE

TRAILS

•

ON

Dynamic Delay (ducking)

Here’s the magic fix to save your
tone from getting overwhelmed by
your echoes. It drops the volume of
your echoes as you play, then brings
them back up when you stop.

TIMEREPEATMIX

TAP
TAP

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

SWEEP

SWELL

DUCKING

SLAP

MULTI 1

MULTI 2

PING PONG

REVERSE

TRAILS

•

ON

MOD

•

TAPE

DIGITAL • ANALOG OFF

60’s Reverse

This setting records your playing
into a hydrogen-powered time
machine, transmits it back to a
groovy studio in 1966, records it to
tape, flips that tape backwards,
transports it back to the future, and
spits it out of your Echo Park. Relax
and float downstream...

Echo Park Pilot’s Handbook

Please register your purchase now at www.line6.com/register. Or fill out and send in the included
registration card. Once you’re registered, we can handle problems faster and inform you of advance information,
upgrades and other news. Thanks in advance for registering, and good luck in your music!

Line 6, Inc. (hereinafter “Line 6”) warrants that your new Line 6 product, when purchased at an authorized Line
6 dealer in the United States of America (“USA”) or Canada, shall be free of defects in materials and workmanship
for a period of one (1) year from the original date of purchase. Please contact your dealer for information on
warranty and service outside of the USA and Canada.

During the warranty period, Line 6 shall, at its sole option, either repair or replace any product that proves to
be defective upon inspection by Line 6.

Line 6 reserves the right to update any unit returned for repair and to change or improve the design of the
product at any time without notice. Line 6 reserves the right to use reconditioned parts and assemblies as
warranty replacements for authorized repairs.

This warranty is extended to the original retail purchaser. This warranty can be transferred to anyone who may
subsequently purchase this product provided that such transfer is made within the applicable warranty period
and Line 6 is provided with all of the following items: (i) all warranty registration information (as set forth on
the registration card) for the new owner, (ii) proof of the transfer within thirty (30) days of the transfer purchase,
and (iii) a photocopy of the original sales receipt. Warranty coverage shall be determined by Line 6 in its sole
discretion.

This is your sole warranty. Line 6 does not authorize any third party, including any dealer or sales representative,
to assume any liability on behalf of Line 6 or to make any warranty for Line 6.

Warranty Information

Line 6 may, at its option, require proof of original purchase date in the form of a dated copy of original authorized
dealer’s invoice or sales receipt.

Service and repairs of Line 6 products are to be performed only at the Line 6 factory or a Line 6 authorized
service center. Line 6 may require advanced authorization of repairs to authorized service centers. Unauthorized
service, repair or modification will void this warranty.

THE FOREGOING WARRANTY IS THE ONLY WARRANTY GIVEN BY LINE 6 AND IS IN LIEU OF ALL OTHER
WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR ANY PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF THIS WARRANTY ARE HEREBY
DISCLAIMED AND EXCLUDED FROM THIS WARRANTY. UPON EXPIRATION OF THE APPLICABLE EXPRESS
WARRANTY PERIOD (1 YEAR), LINE 6 SHALL HAVE NO FURTHER WARRANTY OBLIGATION OF ANY KIND,
EXPRESS OR IMPLIED. LINE 6 SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES SUFFERED BY THE PURCHASER OR ANY THIRD PARTY, INCLUDING WITHOUT
LIMITATION, DAMAGES FOR LOSS OF PROFITS OR BUSINESS, OR DAMAGES RESULTING FROM USE OR
PERFORMANCE OF THE PRODUCT, WHETHER IN CONTRACT OR IN TORT. LINE 6 SHALL NOT BE LIABLE FOR
ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING. Some states
do not allow the exclusion or limitation of implied warranties so some of the above limitations and exclusions may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary, from state
to state. This warranty only applies to products sold and used in the USA and Canada. Line 6 shall not be liable for
damages or loss resulting from the negligent or intentional acts of the shipper or its contracted affiliates. You should
contact the shipper for proper claims procedures in the event of damage or loss resulting from shipment.

DISCLAIMER AND LIMITATION OF WARRANTY

Customer Service

Before contacting the Line 6 Customer Service team, please take the time to look through this publication to see
if it can answer your questions. Additional helpful information is on the Support page of the Line 6 web site at
www.line6.com/support , including the searchable Knowlegebase/FAQTRAQ system which is often the fastest
and easiest way to get the answers you need.

Need to talk to an actual human on the Line 6 Customer Service team by phone? Have your serial number handy
and take some notes for yourself before you call, so you remember everything you want to ask about. In the USA
or Canada, you can contact Line 6 at [phone], 8AM to 5PM Monday through Friday (Pacific Time). Outside
the USA and Canada, please contact your distributor directly to arrange service. The list of Line 6 distributors
is available on the Internet at www.line6.com.

To obtain factory service
You must obtain a return authorization (RA) number before sending any unit to Line 6 for service. Products
returned without an RA number will be returned to your at your sole expense. If you live in the United

States, log an incident in our online support system at www.line6.com/support or call [phone] or and we
will help you find the best way to get your unit repaired, whether it be returning the unit to Line 6 or finding an
Authorized Service Center. If you live in Europe, email [e-mail] or call Line 6 UK at [phone]

1600. If you live outside of these areas, please contact your local distributor. If you do not know whom your distributor
is, either call us at [phone] or use the distributor locator at www.line6.com/support .

Line 6, ToneCore, Constrictor, Crunchtone, Echo Park, Space Chorus,

Tap Tremolo und Über Metal sind Warenzeichen der Line 6, Inc.

VORSICHT

Dieses Gerät entspricht den Grenzwerten von “Part 15” der FCC-Bestimmungen für Digital-Geräte der Klasse
B. Die Bedienung unterliegt folgenden beiden Bedingungen: (1) Das Gerät darf keine schädlichen Interferenzen
verursachen; (2) das Gerät muss alle empfangenen Interferenzen akzeptieren, darunter auch Interferenzen, die
Funktionsstörungen verursachen könnten.

WARNUNG

Um Brand- und Stromschlaggefahr zu vermeiden, dieses Gerät niemals Regen oder Feuchtigkeit aussetzen.

Das Ausrufezeichen in einem Dreieck
bedeutet “Vorsicht!” Lies dir alle
Informationen neben solchen Symbolen
sorgfältig durch.

Echo Park – Pilotenhandbuch ©2004, Line 6, Inc.

Der Blitz in einem Dreieck stellt eine
“elektrische Warnung” bezüglich der
benötigten Stromspannung bzw. einer
denkbaren Stromschlaggefahr dar.

Bitte die folgenden wichtigen Sicherheitshinweise

durchlesen. Bewahre diese Anleitung an einem

sicheren Ort auf.

Vor dem Einsatz des ToneCore musst du dir alle zutreffenden Punkte und Sicherheitshinweise durchlesen.

1. Beachte alle auf dem ToneCore selbst und im Pilotenhandbuch aufgeführten Warnungen.

2. Verbinde das optionale Netzteil nur mit einer 100~120V- bzw. 200~240V/47~63Hz-Steckdose (je nachdem, welche Spannung dein Modell benötigt;
siehe das Typenschild des Netzteils).

3. Führe nur die im ToneCore-Pilotenhandbuch erwähnten Bedienvorgänge aus. In folgenden Fällen muss das Produkt zur Reparatur eingereicht werdens:

• wenn das Netzkabel oder der Stecker beschädigt ist

• wenn Flüssigkeiten oder Fremdkörper in das Geräteinnere gelangt sind

• wenn das Produkt Regen oder Feuchtigkeit ausgesetzt war

• wenn sich das Gerät abnormal oder nicht mehr in vollem Umfang erwartungsgemäß verhält

• wenn das Produkt hingefallen ist und das Gehäuse Schäden aufweist.

4. Stelle das Produkt niemals in die Nähe von Wärmequellen, z.B. Heizkörpern, Öfen oder anderen Geräten, die starke Hitze erzeugen.

5. Sorge dafür, dass weder Fremdkörper noch Flüssigkeiten in das Geräteinnere gelangen. Verwende dieses Produkt niemals in der Nähe von Wasser.

6. Löse den Netzanschluss, wenn du das Gerät längere Zeit nicht verwenden möchtest. Im Falle eines Gewitters muss sofort der Netzanschluss gelöst
werden.

7. Reinige diese Produkt nur mit einem feuchten Tuch.

8. Verwende nur Halterungen/Zubehörteile, die vom Hersteller ausdrücklich empfohlen werden.

9. Setze dich niemals über längere Zeiträume hohen Schallpegeln aus, weil das zu Gehörverlust führen kann. Achte immer auf einen auch aus medizinischer
Warte “vernünftigen” Pegel.

Echo Park-Pilotenhandbuch

Dieses Pedal kann entweder in Mono an
einen Verstärker oder in Stereo an eine
andere Anlage angeschlossen werden.

MOD

•

TAPE

DIGITAL • ANALOG OFF

Deine Gitarre musst du an

den Mono-Eingang dieses

ToneCore anschließen

TIMEREPEATMIX

SWEEP

SWELL

DUCKING

SLAP

MULTI 1
MULTI 2

TAP

PING PONG

TAP

REVERSE

NORMAL (TAP )

TAP TEMPO:

TRAILS

TAP LIGHTLY

•

ON

.

Allerdings weist

das ToneCore-

TIMEREPEATMIX

SWEEP

MOD

SWELL

DUCKING

MULTI 1

MULTI 2
PING PONG

REVERSE

TRAILS

•

ON

Pedal Stereo-

Eingänge auf, an

die man auch

•

TAPE

DIGITAL • ANALOG OFF

SLAP
TAP
TAP

NORMAL (TAP )

TAP TEMPO:

TAP LIGHTLY

Stereo-Signale

anlegen kann.

Sei gegrüßt und geküsst! Erstmal vielen Dank, dass du
dich zur Adoption eines “Echo Park” Delay-Pedals von
Line 6 durchgerungen hast.

Effekt-/Stromdiode

Die Stromdiode zeigt den Status des ToneCore-Pedals
anhand dreier Farben an:

•GRÜN (blinkt)– Der Effekt ist aktiv (an). Die
Diode blinkt im Tempo der Wiederholungszeit.

•GELB (blinkt)– Der Effekt wird umgangen (aus).
Die Diode blinkt im Tempo der Wiederholungszeit.

•ROT (blinkt)– Die Batterie muss ausgewechselt
werden. Diese Warnung hat Vorrang vor allen anderen

Angaben.

Netzanschluss

Wenn du hier ein (optionales) ToneCore-kompatibles
Netzteil wie das DC-1 von Line 6 anschließt, brauchst
du nie mehr eine 9V-Batterie!

Anschlüsse und Stromanzeige

Eingänge

Schließe hier das Kabel deiner Gitarre bzw. den Aus­gang eines anderen Effekts an, den du mit diesem
ToneCore kombinieren möchtest. Mono-Signale
müssen an die MONO/L-Buchse des Echo Park ange­legt werden. Wie die meisten Tretminen wird das

ToneCore eingeschaltet, sobald man hier einen Klin­kenstecker anschließt. Löse beide Verbindungen,
wann immer du das ToneCore-Pedal nicht verwenden
möchtest.

Ausgänge

Diese Buchsen musst du über herkömmliche Gitarren­kabel mit dem Verstärker bzw. den Eingängen eines
anderen Effektpedals verbinden. Bei Mono-Verwen­dung nur MONO/L anschließen.

Fußschalter

Hiermit schaltest du den Effekt abwechselnd ein und
aus. Das Tempo kann auch per Fuß eingestellt werden

(“Tap Tempo”).

Echo Park-Pilotenhandbuch

MOD

NORMAL (TAP )

TAP TEMPO:

•

TAPE

DIGITAL • ANALOG OFF

TAP LIGHTLY

SWEEP

SWELL

SLAP
TAP
TAP

DUCKING

TIMEREPEATMIX

MULTI 1

MULTI 2

PING PONG

REVERSE

•

ON

TRAILS

Modellwahlschalter

Hiermit kannst du die virtuellen Schaltkreise des Echo
Park “umpolen” und eine von drei Bearbeitungen
wählen.
“Tape” liefert den warmen Sound eines Bandechos.
Die Signale werden bei jeder Wiederholung dumpfer
– und das Ganze klingt mächtig nach “Vintage”. Das
Band braucht aber nie ausgewechselt zu werden!

“Digital” liefert ganz normale Echos in perfekter
Digital-Qualität.

“Analog” zaubert den Delay-Sound der guten alten
Analog-Pedale mit ihren Eimerketten und leicht
zerrenden Wiederholungen.

Trails-Schalter

Aktiviere diesen Schalter, wenn Echo Park die letzten
Wiederholungen noch zu Ende bringen soll, sobald du
den Effekt ausschaltest.

Tap Tempo

Sorge mit deinem starken rechten Fuß dafür, dass sich
die Echos in den Song-Groove einklinken! Der
Fußtaster des ToneCore hat eine Doppelfunktion und
erlaubt u.a das “Tappen” des gewünschten Tempos. Das
geht so:

• Auch wenn der Effekt umgangen wird, kann man
die Verzögerungszeit durch leichtes Betätigen des Pedals
einstellen. Mit den ersten beiden “Taps” bestimmst du
das Tempo. Alle weiteren “Taps”, die innerhalb von 3
Sekunden erfolgen, werden ebenfalls berücksichtigt.

• Wenn du den Schalter etwas kräftiger drückst, wird
jedoch nur der Effekt ein-/ausgeschaltet – das gilt also
nicht als “Tap”.

• Bei Verwendung der Tap Tempo-Funktion wird die
Einstellung des Time-Reglers ignoriert. Drehst du
danach am Time-Regler, so wird umgekehrt das
getappte Tempo ignoriert.

Bedienelemente

• Die Diode von Echo Park blinkt jeweils im
eingestellten Tempo: Grün, wenn der Effekt aktiv ist
und orange, wenn er umgangen wird. Dabei zeigt die
Diode die Viertelnotenschläge an.

Hinweis zum Tap Tempo-Wert:
In der Regel kann die Verzögerungszeit im Bereich
53ms~2500ms eingestellt werden.

Einzige Ausnahmen:
Achteltriole= 13ms~833ms
Punktierte Achtel= 30ms~1875ms
Slap= 10ms~625ms

Echo Park-Pilotenhandbuch

MOD

NORMAL (TAP )

TAP TEMPO:

•

TAPE

DIGITAL • ANALOG OFF

TAP LIGHTLY

SWEEP

SWELL

SLAP
TAP
TAP

DUCKING

TIMEREPEATMIX

MULTI 1

MULTI 2

PING PONG

REVERSE

•

ON

TRAILS

Mix

Drehe den Regler nach rechts, um die Echos lauter zu
stellen und nach links, wenn die Echos zu laut sind.

Repeat

Hiermit kann die Anzahl der Wiederholungen
eingestellt werden: 1 bis unendlich (Regler ganz rechts).

Time

Hiermit kann der Abstand der Echos im Bereich 53ms
(nahe beieinander) bis 2,235s (weit auseinander) für
beide Kanäle separat eingestellt werden. Wenn du die
Einstellung während einer Wiederholung änderst, wird
es plötzlich sehr interessant. Die maximale Verzöge­rungszeit von Echo Park (2,5s) kann nur mit der Tap
Tempo-Funktion (siehe vorige Seite) eingestellt
werden.
