The Linea PB, designed by and named in recognition of Piero Bambi, refashions the technical and stylistic workings of the Linea Classic, La Marzocco’s industry icon introduced to the marketplace over 20 years ago. In addition to distinctive La Marzocco features, the Linea PB is equipped with exclusive, user-friendly interface software that gives the barista control over boiler temperature, brewing volume, hot water tap dose and other options, ensuring a new level of performance and reliability. The machine’s lower profile and increased work area make it practical, without abandoning world renown Italian design.
linea pb
Operating Manual V2.1 - 11/2014
Chapters
1.General Warnings and Safety Specifications
2.Definition of Available Models
3.Installation
4.Machine Operation and Coffee Preparation
5.Dispensing Steam and Hot Water
6.Maintenance and Periodic Cleaning Operations
7.De-commissioning and Demolition
8.Mandatory Maintenance and Check-up Operations

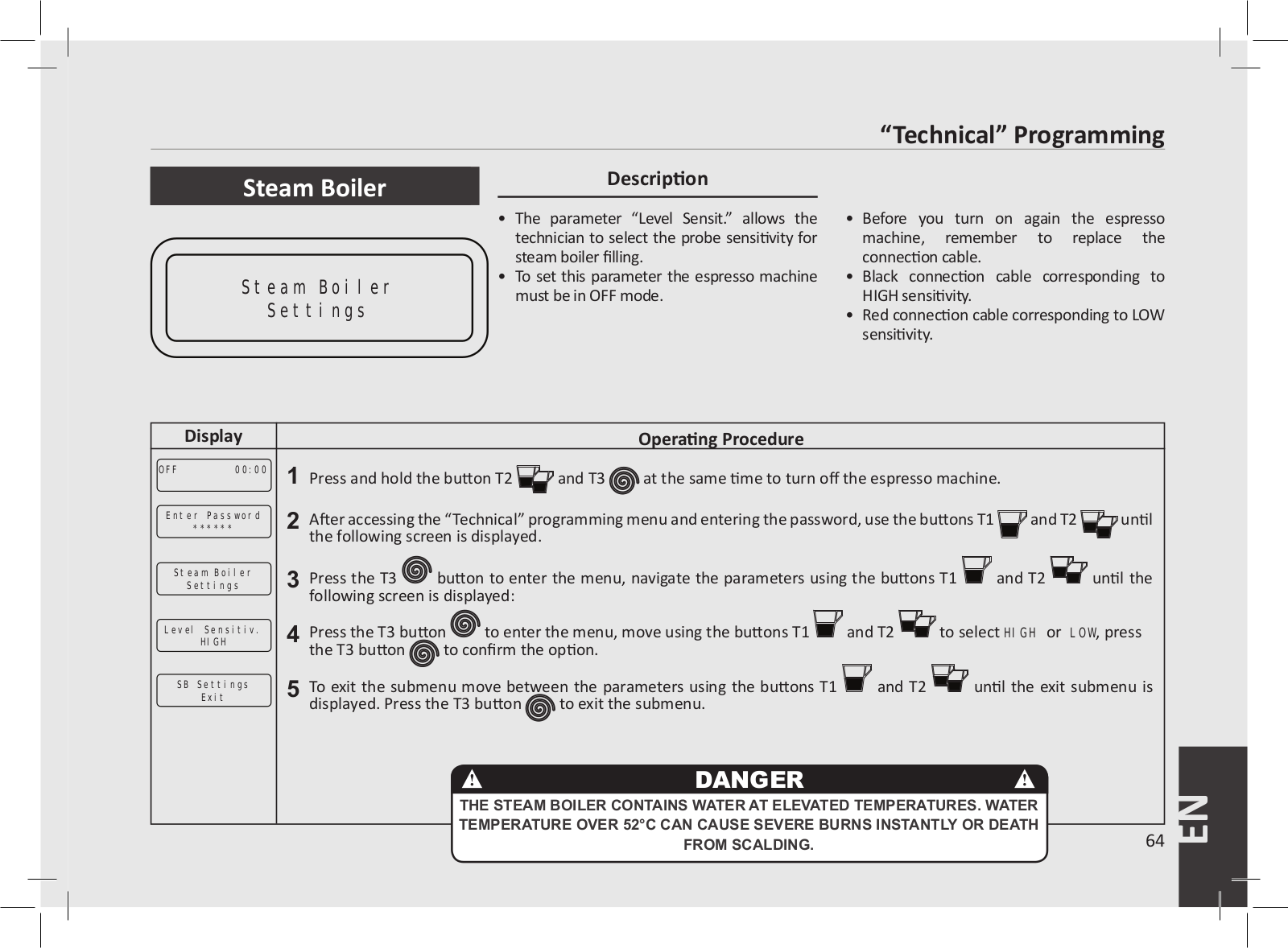

9.Software Programming Guide
certifications available:
page 2 page 4 page 7 page 11 page 14 page 15 page 17 page 18 page 19
La Marzocco S.r.l.
Via La Torre 14/H
Località La Torre
50038 Scarperia e San Piero (Firenze) - ITALIA
www.lamarzocco.com
info@lamarzocco.com
T: +39 055 849 191
F: +39 055 849 1990
EN
1. General Warnings and Safety Specifications
WARNING
THIS MACHINE IS FOR PROFESSIONAL USE ONLY AND SHOULD BE INSTALLED IN LOCATIONS WHERE ITS USE AND MAINTENANCE IS RESTRICED
TO TRAINED PERSONNEL.
CHILDREN ARE FORBIDDEN TO OPERATE OR
PLAY WITH THE MACHINE.
1)Thisoperatingmanualisanintegraland essential part of the product and must be supplied to users. Users are asked to readtheenclosedwarnings and cautions carefully, as they provide valuable information concerning safety during installation, operation and maintenance. This manual must be kept in a safe place and be available for consultation to new and experienced users alike.
2)Ensure product’s integrity by inspecting the packaging, making sure it presentsnosignsofdamagewhichmight have affected the enclosed machine.
3)Check the machine’s integrity after having carefully removed the packaging.
Note: In case of doubt, do not go on any further and contact your dealer or retailer immediately. They will send out specialized personnel authorized to perform service on the espresso machine.
4)Packaging (boxes, plastic bags, foam parts and whatever else) must not be left around within easy reach of children, due to the potential danger it represents, nor bediscardedintheenvironment.
5)Checktoseethatdataontheratingplate correspondstothoseofthemainelectrical supply which the machine will be hooked upto.
6)The equipment must be installed to comply with the applicable federal, state or local electrical and plumbing codes. The installation also must comply to the manufacturer’s instructions, and must be performed by qualified and authorized personnel.
7)Incorrect installation may cause for injury/damages to people, animals or objects, for which the manufacturer shall notbeheldresponsible.
8)Safe electrical operation of this device willbeachievedonlywhentheconnection to the power outlet has been completed correctly and in observance of all local, national, and international electrical codes and safety regulations, and particularly by grounding the unit. Make sure grounding has been done properly as it represents a fundamental safety requirement. Ensure qualifiedpersonnelchecksuchconnection.
9)Furthermore, you must ensure that the capacity of the available electrical system is suitable for the maximum power consumption indicated on the espresso machine.
10)Wedonotrecommendusingadapters,
multiple plugs and/or extension cords. If you cannot avoid using them, make sure that they are exclusively of the kind which conforms to local, national, and international electrical codes and safety regulations, being careful not to exceed thepowerandcurrentratingsindicatedon suchadaptersandextensioncords.
11) Thisdevicemustbeusedexclusivelyfor thefunctionsithasbeendesignedandbuilt for. Any other application is inappropriate anddangerous.
The manufacturer shall not be held responsible for any damages caused by improperand/orirrationaluse.
This machine should not be installed in kitchens.
12) Usinganyelectricaldevicerequiresthat certain fundamental rules be observed. In particular:
• do not touch the device with wet or humidhandsandfeet;
• do not use the device while having no |
|
shoesonyourfeet; |
EN |
|
2 |
• do not use extension cords in bath or showerrooms;
• do not unplug the device from the power outlet by pulling on the power supplycable;
• do not expose the device to atmosphericagents(rain,sun,etc.);
• do not allow children or untrained peopletousethisdevice;
•donotcleanthecontrolpanelwithawet clothsinceitisnotwatertight.
WARNING
THE COFfEE MACHINE MUST BE PLACED IN A HORIZONTAL POSITION ON A COUNTER HIGHER THAN 80 CM FROM THE GROUND.
|
|
|
|
|
|
13) Before carrying out any maintenance |
|
|
|
|
|
|
and/or cleaning operations, turn the main |
|
|
|
|
|
|
switch,whichis located onthefront left of |
|
|
|
|
|
|
the machine, to the “0” or “OFF” position, |
|
|
|
|
|
|
and disconnect the machine from the |
|
|
|
|
|
|
electrical network by unplugging the cord |
|
|
|
|
|
|
or by switching off the relative circuit |
|
|
|
|
|
|
breaker. For any cleaning operation, follow |
|
|
|
|
|
|
exclusively the instructions contained in |
|
|
|
|
|
|
thismanual. |
|
|
|
|
|
|
14) In case the machine is operating |
|
|
|
|
|
|
in a faulty manner or breaks down, |
|
|
|
|
EN |
disconnect it from the electrical network |
|
|
|
|
|
(as described in the preceding point) |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
and close the water supply valve. Do not attempt to repair it. Contact a qualified and authorized professional to perform anyrepair. Anyrepairsmustbeperformed exclusively by the manufacturer or by an authorizedcentreusingonlyoriginalparts. Non compliance with the above could compromise the safe operation of the machine.
15)You should plan to make use of an omnipolar connector during installation, as required by local, national, and international electrical codes and regulations.
16)Inordertoavoiddangerousoverheating problems, it is recommended that the powersupplycablebefullyunfurled.
17)Do not obstruct air intake and exhaust grilles and, in particular, do not cover the cupwarmertraywithclothsorotheritems.
18)The machine’s power supply cable mustnotbereplacedbyusers. In case the power supply cable becomes damaged, shut off the machine and disconnect the machine from the electctrical network by switching off the relative circuit breaker and close off the water supply; to replace the power supply cord, contact qualified professionalsexclusively.
caution
AS ALREADY MENTIONED IN THE PRECEDING NOTES, THE MANUFACTURER SHALL NOT BE HELD RESPONSIBLE FOR DAMAGE TO OBJECTS, ANIMALS AND/OR PEOPLE WHENEVER THE MACHINE HAS NOT
BEEN INSTALLED ACCORDING TO THE INSTRUCTIONS CONTAINED IN THIS MANUAL, AND IS NOT USED TO DO WHAT IT WAS DESIGNED FOR (I.E. PREPARING COFFEE AND HOT DRINKS).
WARNING
THIS MACHINE IS NOT SUITABLE FOR OUTDOOR USE. JETS OF WATER SHOULD NOT BE USED TO CLEAN THE MACHINE, NOR SHOULD IT BE PLACED WHERE WATER JETS ARE USED.
1)Common Dimensions, Weights, and Features
A B
C |
LINEA PB |
2 gr. |
3 gr. |
4 gr. |
|
|
|
|
A [mm] |
710 |
950 |
1190 |
|
|
|
|
|
|
|
|
B [mm] |
588 |
588 |
588 |
|
|
|
|
|
|
|
|
C [mm] |
533 |
533 |
533 |
|
|
|
|
|
|
|
|
WEIGHT [kg] |
81 |
93 |
117 |
|
|
|
|
2. Definition of Available Models
This operating manual refers exclusively to the following models, of our own manufacture:
LINEA PB, Model AV and MP into 2, 3 and 4 groups
11
4 |
5 |
3 |
6 |
8 |
1 |
|
10 |
7 |
1Main Switch
2Pressure Gauge (Steam & Brew water)
3Brew Groups
4Control Panel
5Group #1 Keypad
6Digital Display
7Steam Wand
8Steam Knob
9Hot Water dispense nozzle
10Removable Drain Tray
11Paddle Knob
12Water Inspection Window
|
12 |
For additional information on electronics, |
|
|
keypads, and software programming, |
|
|
please see the section entitled Software |
2 |
9 |
Programming your Espresso Machine. |
|
Fig. 1 - Model AV and MP with 2, 3, or 4 groups |
EN |
|
|
|
4 |
EN
1) General description
The machine is built in 2, 3, and 4 coffee group versions and is essentially composedofthefollowingparts:
•Steam Boiler (produces steam and hot water);
•Coffee(“saturated”)boiler;
•Brewinggroups;
•ExteriorCover;
•Waterpump.
2) Description of the various parts
• Steam Boiler
The Steam Boiler consists of a cylindrical tank, of varying length according to the number of coffee groups, which is made of AISI 300 series stainless steel. Each unit is subjected to a hydraulic test, at a pressure of 6 bar, and has an operating pressure of 1.3-1.5 bar. The following is a list of effective volumes and power ratingsaccordingtothenumberofgroups installed:
2groups |
7liters |
3groups |
11liters |
4groups |
15liters |
Covers are welded at either end of the cylindrical tank and on one of them there is a housing for the water heating element, which allows the steam boiler to reach operating pressure within approximately 25 minutes. Operating
5
pressure is maintained by an electronic temperature probe with a PID controller. The steam boiler has various fittings used forsafetydevices,forsupplyinghotwater andsteam,andfortheheatingelement.
• Coffee boiler
The Coffee Boiler consists of a cylindrical tank, of varying length according to the number of coffee groups, which is made of AISI 300 series stainless steel. Each unit is subjected to a hydraulic test, at a pressure of 18 bar, and has an operating pressure of 9 bar. The following, table is a list of effective volumes and power ratingsaccordingtothenumberofgroups installed:
2groups |
3.4liters |
3groups |
5liters |
4groups |
6.8liters |
Covers are welded at either end of the cylindrical tank and on one of them there is a housing for the water heating elements. The temperature of the coffee boiler is maintained by an electronic temperaturecontroller(PIDcapable)with anaccuracyof0.2°C. Thebrewinggroups areinstalledontheboiler.
• Brewing groups
They consist of a precision casting made of stainless steel. The brewing group accepts the portafilter used to hold the
groundcoffee;theespressoflowsthrough thebrewinggroup,throughtheportafilter basket, through the portafilter spout, and into the cup(s) after the brewing button hasbeenpressed.
• Exterior cover
The exterior consists of painted and stainless sheet steel panels. To provide good aesthetics, to optimize ergonometrics for the operator and to reduce the chance of damage to a minimum.
• Water pump
The rotary vane pump, is installed on the water supply tubing and is set up to operate anytime the coffee groups are activated, and through an autofill system whenever the water boiler needs to be replenished.
• Sound pressure
The weighted sound pressure level of the machineislowerthan70dBA.
• Water inspection window
The position of this device enables to verify only water presence inside the steam boiler. The water level in the window provides a reference about the water level in the steam boiler, but doesn’t represent it in a directly proportional way, 1/3 of the windows is equal to approximately 1/2 of the boiler.
• Machine CE plate |
• Machine ETL plate |
LINEA PB |
4AV |
PB0000 |
08/12 |
400/3N |
8700 |
Ifmax 20 |
50/60 |
|
0.9 |
6.8 |
14.5 |
|
|
|
|
ln/21 4av |
PB0000 |
08/12 |
32-37 |
LINEA PB |
4AV |
PB0000 |
08/12 |
220-240 AC |
8700 |
38 |
50/60 |
|
|
|
0.9 |
|
6.8 |
|
14.5 |
6EN
3. Installation
WARNING
THE COFFEE BOILER AND STEAM BOILER CONTAIN WATER AT ELEVATED TEMPERATURE. WATER TEMPERATURE OVER 125°F / 52°C CAN CAUSE SEVERE BURNS INSTANTLY OR DEATH FROM SCALDING (COFFEE BOILER 207°F/97°C-STEAM BOILER 256°F /124°C)
WARNING
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR WITH LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
|
|
|
|
RATED |
RATED |
COFFEE |
STEAM |
TOTAL |
POWER CORD |
|
MODEL/SERIES |
GROUP |
V/Hz |
POWER |
INPUT |
BOILER |
BOILER |
SIZE (mm²) |
|||
|
||||||||||
|
|
|
|
(W) |
(A) |
WATTAGE |
WATTAGE |
WATTAGE |
|
|
|
|
|
AC220-240V/60Hz |
4600 |
20-22 |
1400 |
3000 |
4400 |
|
|
|
|
2GR |
AC208-240/60Hz |
4600 |
23 |
1400 |
3000 |
4400 |
|
|
|
|
|
AC400/50Hz |
5040 |
12 |
1540 |
3300 |
4840 |
SEE ELECTRICAL |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
AC220-240V/60Hz |
6100 |
25-29 |
1900 |
4000 |
5900 |
CONNECTIONS |
|
LINEA PB |
3GR |
AC208-240/60Hz |
6100 |
30,5 |
1900 |
4000 |
5900 |
|||
|
|
|
AC400/50Hz |
6690 |
15 |
2090 |
4400 |
6490 |
FOR DETAILS |
|
|
|
|
|
8000 |
33-39 |
2800 |
5000 |
7800 |
||
|
|
|
AC220-240V/60Hz |
|
||||||
|
|
4GR |
AC208-240/60Hz |
8000 |
40 |
2800 |
5000 |
7800 |
|
|
|
|
|
AC400/50Hz |
8780 |
20 |
3080 |
5500 |
8580 |
|
|
|
|
|
POWER CORD: |
|
|
|
|
|
||
3 X WIRES 1 X BLUE (NEUTRAL) |
5 X WIRES 1 X BROWN (PHASE) 1 X BLUE (NEUTRAL) |
|
WARNING |
|||||||
220V |
1 X BROWN (PHASE) |
380V |
1 X GRAY (PHASE) 1 X YELLOW & GREEN (GROUND) |
|||||||
|
|
|
|
|||||||
|
1 X YELLOW & GREEN (GROUND) |
1 X BLACK (PHASE) |
|
|
THE DETAILS ON THE LEFT DESCRIBE |
|||||
|
|
|
|
|
|
|
|
HOW TO CONNECT EACH WIRE TO THE PLUG. |
||
|
|
|
|
|
|
|
|
RESPECT ALSO THE LOCAL SAFETY |
||
|
|
|
|
|
|
|
|
REGULATIONS. |
EN
7
Drain Hose Connection
Expansion Valve
Drain Grate
Drain Tray
Water Hose
Underneath Base
of the Frame
Fig. 2 - Installation Guide |
Fig. 3 - Installation Nomenclature |
WARNING
THE MACHINE IS INTENDED TO BE PERMANENTLY CONNECTED TO FIXED WIRING.
THE SYSTEM MUST ENSURE THE OMNI-POLE DISCONNECTION OF THE POWER SUPPLY.
IT IS ADVISABLE THAT A
RESIDUAL CURRENT DEVICE (RCD) WITH A RATED RESIDUAL OPERATING CURRENT NOT EXCEEDING 30 mA IS INSTALLED.
1) Installation on the counter |
2)Accessories |
Theimagebelowshowstherecommendedmethodtodrilltheholeonthecounter. |
WARNING |
|
|
|
|
|
|
|
AT EACH INSTALLATION, THE MACHINE |
|
||||||||
|
|
|
|
|
|
|
SHOULD BE EQUIPPED WITH A NEW SET OF |
|||||||||
|
|
|
|
|
|
|
TUBES FOR PLUMBING AND RELATED |
|
||||||||
|
|
|
HERE THE POSITION OF THE POWER CORD AND |
|
|
|
|
GASKETS. |
|
|
|
|
||||
|
|
165 mm |
|
WATER INLET HOSES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FROM 100 TO 120 mm HERE THE POSITION WHERE |
Check the package to make sure that the |
||||||||||||
|
|
6,5 in. |
|
|||||||||||||
|
|
|
|
WE SUGGEST TO MAKE THE |
followingaccessoriesareincluded: |
|
|
|||||||||
|
|
92 mm |
|
FROM 4 in. TO 4,7 in. |
|
|
||||||||||
|
|
3,5 in. |
|
|
HOLE ON THE TABLE |
• a number |
of |
1-dose |
|
and |
2-dose |
|||||
|
|
|
|
|
|
|
portafiltersorrespondingtothenumber |
|||||||||
|
|
100 mm |
|
|
|
|
ofgroups; |
|
|
|
|
|
|
|
|
|
|
|
4 in. |
|
|
|
• replacement 1-dose and 2-dose filters |
||||||||||
|
230 mm |
|
|
|
|
|
(oneofeach); |
|
|
|
|
|
|
|||
|
9 in. |
87 mm |
|
|
|
• |
1tamper; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
435 mm |
|
3,5 in. |
|
|
|
• |
1blindfilter; |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|||||
17 in. |
|
|
|
|
|
• cleaningdetergent,forthegroups; |
|
|||||||||
|
|
|
|
|
|
• 3 stainless steel braided hoses for water |
||||||||||
|
|
|
|
|
|
|
connections; |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
• 1,5 mt of reinforced plastic tubing for |
||||||||||
|
|
|
|
|
|
|
drainage; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• |
1 hose clamp. |
|
|
|
|
|
|
|||
|
|
|
|
|
|
In order to proceed with installation, it is |
||||||||||
|
|
|
|
|
|
necessarythatthefollowingareavailable: |
||||||||||
|
|
|
|
|
|
• Pipes |
carrying |
drinking |
water |
with a |
||||||
|
|
|
|
|
|
|
3/8”G (BSP) end connection; (3/8” |
|||||||||
|
|
164 mm |
|
HERE THE POSITION |
|
|
CompressionforUSAandCanada) |
|
||||||||
|
|
6,5 in. |
|
|
• Electrical |
Supply |
according |
to |
the |
|||||||
|
|
|
OF THE DRAIN TUBE |
|
||||||||||||
|
|
|
|
|
|
|
specification of the espresso machine |
|||||||||
|
|
|
|
|
WARNING |
|
purchased: |
|
|
|
|
|
|
|
||
|
|
|
|
IN ORDER TO PREVENT CRACKS OR |
• |
Single/Three phase 220VAC - 50/60 |
||||||||||
|
|
|
|
LEAKAGE: DO NOT STORE OR INSTALL |
|
Hz electrical connection with ground, |
||||||||||
|
|
|
|
THE COFFEE MACHINE IN PLACES WHERE |
|
protected |
|
socket |
and |
approved |
||||||
|
|
|
|
TEMPERATURE MAY CAUSE WATER IN |
|
|
||||||||||
|
Fig. 4 - Hole on the Counter |
BOILER OR HYDRAULICSYSTEM TO FREEZE. |
|
interlockswitch |
|
|
|
|
|
EN |
||||||
|
|
|
• |
Single |
phase |
200VAC |
- |
50/60 |
Hz |
|||||||
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
EN
electrical connection with ground, protected socket and approved interlockswitch
•Three-phase, 380VAC - 50 Hz electrical connectionwithneutral+ground,near the bench on which the machine is installed and terminating in a suitable protected fivepole socket equipped withanapprovedinterlockswitch
•Wastewaterdrainsystem.
Note:
•The drinking water mains valve and the circuit breakers for the electrical system need to be located in the most convenientpositionfortheoperatorto accessthemeasilyandquickly.
•Themachineshouldbeplacedonaflat counter and must be placed in settings withthefollowingtemperatures:
Minimumroomtemperature:5°C/41°F Maximum room temperature: 32°C/89°F
•If the machine has been temporarily housed in settings with a room temperature of less than 0°C/32°F, please contact a service technician priortouse.
•Water pressure supply must be between2and6bar.
3)Water test kit
Inordertoenableyoutocheckifyourwater supply is within the suggested ranges, La Marzocco machines will be equipped with two units of a quick water test kit (see image below) including 6 test-strips and
9
instructioncards.
The parameters that you can measure are Total Hardness, Total Iron, Free Chlorine, Total Chlorine, pH & Total Alkalinity, Chlorides.
Ideally, you should perform a test on the water BEFORE the water treatment system and again AFTER the water system in order to verify if this is actually matching our suggestedranges.
Once the test has been performed, learn which treatment system is most appropriateforyourparticularwatersupply by filling out the online water calculator on our website: LA MARZOCCO WATER CALCULATOR (http://www.lamarzocco. com/water_calculator/).
4)Watersupplyconnection
In order to connect the machine up to the water mains proceed according to the indications given in the chapter about Installation and in compliance with any local/national safety standards of the location in which the machine is being installed.
Toguaranteeacorrectandsafefunctioning of the machine and to maintain an adequate performance level and a high quality of the beverages being brewed it is important that the incoming water be of a hardnessgreaterthan9°f(90ppm,5°d)and less than 15°f (150ppm, 8.4°d), pH should bebetween6.5and8.5andthequantityof chloridesbelessthan50mg/l. Respecting thesevaluesallowsthemachinetooperate atmaximumefficiency.Iftheseparameters are not present, a specific filtration device should be installed, while always adhering to the local national standards in place regardingpotablewater.
Then connect the inlet of the water filter/ softener (if present) to the drinking water supply using one of the supplied stainless steel braided hoses. Before connecting the filter to the water pump, flush the water supply line and the filtration system in order to eliminate any residual particles which could otherwise get stuck in taps or valves thus preventing them from working properly. Connect the water supply connection of the espresso machine to the water pump outlet using one of the supplied stainless steel braided hoses.
Then connect the water pump inlet to the waterfilter/softeneroutlet(ifpresent).
WARNING
HAZARDOUS VOLTAGE DISCONNECT FROM POWER SUPPLY BEFORE SERVICING.
Note: The water pump is a differential pressure volumetric pump and has been designed to be used exclusively with cold water. Make sure that water is always present while the pump is operating, otherwise air can be introduced into the brew boiler causing an undesireable conditionandthepumpcanbedamaged.
5)Electricalconnections
CAUTION
BEFORE MAKING ANY ELECTRICAL
CONNECTIONS MAKE SURE THAT THE TWO STRAIN RELIEF CONNECTORS ARE FIRMLY SECURED TO THE BODY OF THE MACHINE IN ORDER TO PREVENT INADVERTENT STRESS ON THE POWER CABLES.
a)Powersupplycord
•This is the main power supply cable that provides power to the entire espresso machine. Therearedifferenttypesofcable based upon the electrical requirements of theespressomachinepurchased:
•200/220VAC 1 Phase 3-core cable with 4/6/10mm2 cross section or AWG 12/10/8 for 2,3 4 group versions, secured to espresso machine via a strain relief connector
•220VAC3Phase4-corecablewith4mm2 crosssectionfor 2,3and4groupversions,
secured to espresso machine via a strain reliefconnector
• 380 VAC 3 Phase 5-core cable with 2.5mm2 cross section for 2, 3 and 4 group versions, secured to espresso machine via astrainreliefconnector.
WARNING
THE MOTOR PUMP MUST BE SITUATED CLOSE TO THE MACHINE IN AN ACCESSIBLE PLACE FOR MAINTENANCE BUT NOT FOR ACCIDENTAL INTERFERENCE AND WHERE THERE IS AN OPTIMAL AIR CIRCULATION.
b)Waterpumpmotorpowercord
This is the power supply for the water pump motor. The internal electronics will switchthepumpmotoronwhenneeded.
• 3-core cable with 1.5 mm2 cross section or 3-core AWG 16 (for UL version) secured to espresso machine via a strain relief connector.
6)Wastewaterdrainconnection
WARNING
REPLACE FUSES WITH THE SAME SIZE,
TYPE AND RATING F1 = 2A, 250V
The espresso machine drain is to be connected by means of the included reinforced plastic tubing. Connect one end ofthereinforcedplastictubingtothedrain hose connection on the left side of the espresso machine, secure with included hose clamp. Connect the other end to a suitablewastewatercollectionsystem.
WARNING
THE MANUFACTURER DECLINES ANY RESPONSIBILITY FOR ANY EVENT LEADING TO LIABILITY SUITS WHENEVER GROUNDING HAS NOT BEEN COMPLETED ACCORDING TO CURRENT LOCAL, NATIONAL, AND INTERNATIONAL REGULATIONS AND ELECTRICAL CODES,
OR OTHER ELECTRICAL PARTS HAVE BEEN
CONNECTED IMPROPERLY.
WARNING
- U.S.A. AND CANADA ONLY -
DO NOT CONNECT TO A CIRCUIT
OPERATING AT MORE THAN 150V TO
GROUND ON EACH LEG.
In case such a system is not available, drained liquids may be collected in a suitable bucket and any necessary drain pipe extensions shall be made using steellinedPVCtubingandsuitablehoseclamps.
10EN
EN
4. Machine Operation and Coffee Preparation
1) Starting the espresso machine
a) Filling the boilers with water
Once the installation procedures have beencompleted,itisnecessarytofillthe boiler tanks with water. Complete the following procedure to properly fill the boiler tanks:
• Coffee boiler
The water flows inside the coffee boiler directly, as soon as the water system and water filter/softener taps (if present) are opened. Since the inflow of water will compress the air in the boiler it will be necessary to remove or “bleed” the air from the coffee boiler. All air must be removed in order to completely “saturate” the coffee boiler/ group assemblies. To remove the air from the boiler, “bleed the groups”, it will be necessary to remove the group cover from the top of the machine. First removethegrouptrayfromthetopofthe machine exposing the cup tray. Remove the screws securing the group cover and then remove it. Once removed the top of the groups will be exposed.
Loosen the bleed screws one at a time (see fig.4) to allow air to escape until water flows from below the screw head.
11
Fig.4
Tighten the screw to stop the water from flowing. Over tightening can cause damage to the sealing washer and the group cover. Repeat this procedure for all groups. Once all air is removed from thecoffeeboiler,reinstallthegroupcover by following the removal instructions in reverse.
• Steam boiler
Turn the main switch (item 1 in Fig. 1) to position “1” or ON, the automatic steam boiler level gauge will be switched on, activatingtheauto-fillsolenoidvalveand the motor pump. This will fill the steam boiler to a predetermined level and will shut off when full.
Note: It may happen that the air inside the steam boiler builds up pressure (which may be detected through the pressure gauge - item 2, fig. 1) when the
water is allowed to flow in; this “false” pressure must be eliminated by opening the steam valves (item 8, Fig. 1).
b) Turning the espresso machine on
Once you have completed these procedures, check the display. Press enter to confirm that the preceding procedures are complete.
The installation is now complete and the espresso machine should be heating to theoperatingtemperatures.
2) Waiting for the espresso machine to heat to operating temperature
During this time, it may happen that the pointerofthecoffeeboilerpressuregauge reaches as high as 14-15 bar. This may happenanytimethattheheatingelement is in the on condition. In this case it is necessary to adjust the expansion valve (Fig. 3) in such a way that the pressure may never exceed 11-12 bar. In normal operating conditions, the coffee boiler pressure gauge can read anywhere from 0-12bar.
Whenbrewing,thepressureshouldbeset to9bar.
When the steam boiler reaches operating temperature,thelightontheTeadispense buttonwilllight.
When the espresso machine is ready to operatealllightsonthekeypadswilllight.
3)Brewing after first installation
Once the first installation procedures are finished,beforeproceedingwithbrewing coffee, hot water and steam, please follow these steps:
-Engage the portafilters by inserting them into each group, brew water through each group for at least two minutes.
-Being careful to avoid burns, turn on eachsteamwandforatleastoneminute.
-Turn on the hot water valve for the time necessary to allow the following quantities of water to be brewed:
At least 1 liter for a 1/2 group machine At least 2 liters for a 3 group machine At least 3 liters for a 4 group machine
4) Installing the portafilters
Install the portafilter(s) by inserting them intothegroupandrotatethehandlefrom left to right. When the portafilters are inserted properly, you can press any of brew buttons to start the flow of water through the portafilter. You should allow hot water to pass through the empty portafilter(s) for a few secondseach time, inordertopre-heattheportafilter.
Note: It is important to leave the portafilters installed in the espresso machine when not in use. The portafilter must remain heated for the brew process tofunctioncorrectly.
5) Water pump
Whenever you are brewing coffee, and you can adjust the pump pressure by turningtheby-passscrew(belowtheplug located on the side to which the pump power supply is connected) clockwise to increaseandcounter-clockwisetoreduce pressure. Adjust pressure only when at least one group is brewing coffee.
Note: When the heating element in the coffee boiler is energized, the water will expand increasing the start-up pressure. Once the maximum pressure is reached, the expansion (safety) valve should start working by discharging a few drops of water, in order to prevent such pressure from exceeding 11-12 bar.
In case the pressure exceeds 12 bar, you must adjust the expansion valve by unscrewing the cap slightly. If this is not sufficient, remove the valve and clear awayanycalciumdeposits.Thisremedyis valid also in case the valve remains open in the drain position (i.e. the pressure cannot increase to 8 bar approx.).
Filter Basket
Porta Filter
O-ring Gasket
Double Spout
6) Brewing coffee
It is now possible to remove one of the portafilters to make an espresso beverage. Place some ground coffee in the filter itself: 1 dose (approximately 6-7 g) for the small filter, 2 doses (2 approximately 12-15 g) for the larger filter. Press down on the ground coffee with the supplied tamper and install the filter holder up again to the bottom of the group and then press a button (AV model) to begin the brewing process, or move the paddle lever (MP model).
Note: Some baristas believe it is important to press the brewing button prior to installing the portafilter to allow the water to flush any remaining coffeeEN
12
oils and particles from the group. Some also flush just after brewing coffee for the same reason. Please experiment to find the best possible procedure for you.
7)Controlling the brew process using volumetric programming (AV model only)
This espresso machine allows the volumetric programming of each of the first two buttons on each group (numbered left to right). Please consult the Software Programming Manual for further instructions.
8)General notes for coffee preparation
The portafilters must remain heated since they are at the lowest position of the group itself, and they are partially isolated due to the rubber gasket betweenthem.Thiscanbeaccomplished
by leaving the portafilters installed in the machine when not in use. The portafilters may also be actively heated. This procedure may be carried out by brewing some hot water through the
portafilter then turning off the water flow, before making coffee.
It is important to remember that coffee left over in the filters must be removed only when you need to prepare another cup, and only at that time should you place a new dose of ground coffee in the filter.
The size of the coffee granules is extremely important in preparing a good cup of coffee, other than the type of coffee mix used, quite obviously. The ideal grinding can be determined by makingvariouscoffeesusingtheamount ofgroundcoffeethatyouwouldnormally useforeachcup(werecommendatleast 6-7g). The best grinding is that which allows coffee to flow out from the filter holderspoutsneithertooslowly(dropby drop) nor too quickly (quick light brown flow). Ageneralruleisthatadoubledose should dispense approximately 25cc or 2 fluid oz. of espresso in approximately 25 seconds.
CAUTION
NEVER REMOVE THE FILTER HOLDER WHEN
WATER IS BEING DELIVERED.
THIS OPERATION
CAN BE EXTREMELY DANGEROUS SINCE THE HIGH PRESSURE BUILT-UP INSIDE THE BLIND FILTER WOULD SPRAY OUT HOT AND SLIGHTLY CAUSTIC WATER, WHICH MAY CAUSE SEVERE BURNS.
THE COFFEE BOILER CONTAINS WATER AT ELEVATED TEMPERATURE. WATER TEMPERATURE OVER 125°F / 52°C CAN CAUSE SEVERE BURNS INSTANTLY OR DEATH FROM SCALDING.
IMPORTANT
To improve the flavor of the espresso, the temperature of the water in the coffee boiler and therefore of the groups may eventually be raised or lowered via the digital display (please consult the Software Programming Manual for detailed instructions).
EN
13
5. Dispensing Steam and Hot Water
1) Steaming milk or other liquids
In order to allow for any condensed waterinthewandtobereleasedALWAYS allow some steam to be discharged by turning on the valve before inserting the steam wand into the pitcher of liquid to
be heated.
Dip one of the 2 steam wands (part 7, fig. 1) which are connected to the steam valve, into the liquid to be heated, turn the steam knob (part 8, fig. 1) gradually until steam comes out at the end of the wand.
The steam will transfer heat to the liquid raising its temperature up to boiling point.
Be careful not to allow liquid to overflow in order to avoid severe burns.
In order to prevent the heated liquid from being sucked back into the steam boiler it is recommended before using thewandthatyoupurgethesteamvalve andsteamwandbyopeningthevalvefor a few seconds to allow steam to escape to the atmosphere from the end of the steam wand. Failure to do so can cause the heated liquid to transfer from the heated liquid container to the steam boiler (via vacuum created from cooling
parts). Thisconditionisundesireableand can cause contamination in the steam boiler. After use remember to purge the wand by opening the steam valve for a few seconds, and then clean the outside of the wand itself with an appropriate cloth.
In order to prepare milk for making cappuccino with the right amount of foam, go through the following steps:
•Afterpurgingthesteamwandplacethe container half-full of milk underneath, carefully open the steam valve and raise thecontainersoastobringthewandend to a point just below the surface of the milk; at this point, move the container up and down just enough to dip the nozzle end in and out of the milk until you get the right amount of foam, bring the temperature of the milk almost up to 149/158°F or 65/70°C. You can then pourthismilkintoacupcontainingwarm espressoandyouwillendupwithafresh cup of cappuccino.
2) Preparing tea and other hot drinks
TEA
You may dispense hot water by using the fixed nozzle (item 9 fig 1). To dispense hot water, press the tea water button on the right most group.
This button commands the hot water delivery.
The volume of water delivered may be adjusted via the display (see the Software Programming Manual for further instructions). The temperature of the water dispensed may be adjusted by adjusting the mixing valve under the rightsidecoveroftheespressomachine.
14EN
EN
6. Maintenance and Periodic Cleaning Operations
WARNING
THE MACHINE MUST BE INSTALLED SO THAT QUALIFIED TECHNICAL PERSONNEL CAN EASILY ACCESS IT FOR EVENTUAL MAINTENANCE.
caution
THE MACHINE MUST NOT BE DIPPED IN, NOR SPLASHED WITH, WATER IN ORDER TO CLEAN IT. FOR CLEANING OPERATIONS, PLEASE FOLLOW THE INSTRUCTIONS LISTED BELOW VERY CAREFULLY.
1) Cleaning groups and drain wells
- Put a tablespoon of detergent powder for coffee machines into the blind filter, supplied with the machine, and tighten it onto the group you want to clean by using a normal filter holder.
caution
DO NOT REMOVE THE FILTER HOLDER WHILE RELATIVE GROUP IS BREWING HOT LIQUIDS. THE COFFEE BOILER CONTAINS WATER AT ELEVATED TEMPERATURE. WATER TEMPERATURE OVER 125°F / 52°C CAN CAUSE SEVERE BURNS INSTANTLY OR DEATH FROM SCALDING.
- For AV models: activate the automating rinsing (backflushing) routine (see the Software Programming Manual for more detailed instructions). For MP models:
15
brew water for 3 sec and repeat ten times for each group.
- Rinse the group using a normal filter, by running hot water through it several times
2) Cleaning filters
-Put 2 or 3 teaspoons of detergent powder for coffee machines in about 1/2 a litre of water inside a heat-resistant container and boil.
-Dip filters in the boiled solution and leave them fully submerged for about 30 minutes.
-Rinse thoroughly with clean water and run hot water through one group several times with the filters in place.
-Make one cup of coffee and discard in order to remove any unpleasant flavor.
3)Cleaning filter holders (portafilters)
Using the proper cleaning tool (brush) wash the filter holders under hot water, aneutraldetergentmayalsobeused.For extraordinarycleaningseethePortafilter Manual.
4)Cleaning the drain collector
Remove the drain tray grill at least twice a week and clean, pull out the water drain collector and clean it thoroughly. Inspect and clean also the drain box and remove any leftover grounds.
5) Cleaning the body
Wipe the stainless steel surfaces with a soft, non abrasive cloth in the direction of the glazing marks, if any. Do not use any alcohol or solvents whatsoever on painted or imprinted parts in order not to damage them.
6)Cleaning the hot water and steam nozzles
Steam nozzles must be cleaned immediately after use with a damp cloth and by producing a short burst of steam so as to prevent the formation of deposits inside the nozzles themselves, whichmayaltertheflavorofotherdrinks tobeheated. Hotwaternozzlesmustbe cleaned periodically with a damp cloth.
7)Cleaning the diffuser screen
-Duetofilterholderdischargeoperations (subsequenttocoffeebrewing),acertain amount of coffee grounds may slowly build-up on and obstruct, even partially, the diffuser screen. To clean it, you must firstremoveitbyunscrewingthediffuser screw.
-Put 2 or 3 teaspoons of cleaning detergent for coffee machines in about 1/2alitreofwaterinsideaheat-resistant container and boil.
Group
Assembly
Diffusor
Screen
Diffusor
Screw
- Placethe diffuserscreen(s) and diffuser screw(s) in the solution and leave them fully submerged for about 30 minutes. Rinsethoroughlywithcleanwater. Install and run hot water through each group several times with the screen installed.
WARNING
IN ORDER TO PREVENT CRACKS OR LEAKAGE: DO NOT STORE OR INSTALL THE COFFEE MACHINE IN PLACES WHERE TEMPERATURE MAY CAUSE WATER IN BOILER OR HYDRAULIC SYSTEM TO FREEZE.
IMPORTANT
If the machine has not been used for more than8hoursor,inanycase,afterlongperiods ofbeingidle,inordertousethemachinetoits full potential it is necessary to perform some cleaning cycles before brewing beverages as follows:
-Groups: with the portafilters engaged in the groups brew water through each for at least two minutes
-Beingcarefultoavoidburns,turnoneach steam wand for at least one minute.
-Turn on the hot water valve for the time
necessary to allow the following quantities of water to be brewed:
At least 1 liter for a 1/2 group machine At least 2 liters for a 3 group machine At least 3 liters for a 4 group machine
Ifthemachineisnotgoingtobeusedforlong periods of time, it is advisable to follow these safety indications:
-Disconnect the machine from the water mains or interrupt the water connection via a mains tap.
-Disconnect the machine from the electrical mains.
WARNING
IF THE ABOVE-MENTIONED INSTRUCTIONS ARE NOT ADHERED TO THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR DAMAGE TO PERSONS OR THINGS.
16EN
7. De-commissioning and Demolition
1) De-commissioning and demolition
Start by setting the main switch to the “0” or OFF position.
Disconnecting from the power outlet
Disconnect the espresso machine from the electrical network by switching off the associated circuit breaker or circuit protection device. Remove the power supply cord from the power connection. Remove the Pump Motor Power Cord from the water pump motor.
Disconnecting from the water system
Shut off the water supply by closing the specific tap located upstream of the waterfilter/softenerinlet.Disconnectthe water pipe at the water filter/softener inlet. Remove the hose connecting the espresso machine to the water pump.
Remove the reinforced plastic tubing on the drain connection.
At this point, the machine may be removedfromthebar,beingverycareful not to drop it or squash your fingers.
The machine is made out of various materials and therefore, if you do not intend to put it back in service, it must be taken to a special disposal company which will select the materials which can be recycled and discard the others.
Current regulations make it illegal to discard such machine by leaving it on public grounds or on any private property.
Recycling notice: Warning for the protection of the environment.
Used Electrical and electronic waste contains hazardous but also valuable and scarce materials which should be recovered and recycled properly. We kindly ask that you contribute to the protection of the environment and natural resources by delivering used equipment to the relevant recycling locationsifsuchlocationsareavailablein your country.
EN
17
8. Mandatory Maintenance and Check-up Operations
These operations are in addition to the Maintenance and Periodic Cleaning Operations as specified in Chapter 6.
The following maintenance and check-up operations sould be carried out by a qualified technician.
The time required for the periodic maintenance is determinated by the quantity of daily work and/or coffee consumption.
N.B. These periodic maintenance operations are not covered by warranty.
|
EVERY THREE/FOUR MONTHS |
|
|
▪ Replace group gaskets |
▪ Check that brew pressure is at |
If AV Model: |
If MP Model: |
▪ Replace diffuser screens |
9bar |
▪ Check shot volumes |
▪ Check the seal of the MP valve |
▪ Clean auto-fill probe |
▪ Check all switches for proper |
▪Testflowmeter’sohmvalue(ohm |
gasket |
▪Checkvacuumbreakerforproper |
operation |
valueisacceptableifgreaterthan |
|
operation |
▪ Check/note water hardness |
1.8Kohm,andlessthan2.2Kohm |
|
▪ Inspect water inlet valve |
(Water quality must be within |
|
|
▪ Inspect drain system for leaks |
therangeofparametersspecified |
|
|
or clogs |
in the chapter on Installation, |
|
|
▪ Check flow rate for each group |
otherwise warranty is voided) |
|
|
▪ Check brew temperature |
▪ Check filter basket condition |
|
|
|
|
|
|
|
EVERY SIX/EIGHT MONTHS (in addition to the above) |
|
|
▪ Rebuild steam assemblies |
|
|
|
|
|
|
|
|
EVERY YEAR (in addition to the above) |
If MP Model: |
|
▪ Replace portafilter baskets |
▪Inspectelectricalwiringcondition |
▪Accuratecontrolofthetightness |
|
▪ Inspect group valve plungers |
▪ Inspect boilers safety switches |
at 2,4Nm of each cable on the |
▪ Rebuild MP valve |
▪ Inspect vacuum breaker |
▪ Replace over-pressure valve |
terminal block. |
|
▪Inspectsteamboilerpressurestat |
(safety valve) |
|
|
▪ Inspect contactor |
|
|
|
▪ Inspect expansion valve |
|
|
|
EVERY 3 YEARS (in addition to the above)
▪Checktheconditionoftheinsideofboilersandifnecessaryrinseoutwithapropercleaningproductallowedforfoodandbeverageappliances.
18EN
EN
9. Software Programming Guide
Programming Introduction |
|
Digital Display |
page 20 |
Programming Keypad |
page 21 |
First Use Procedures |
page 22 |
Start Up Procedures |
page 23 |
Shut Down Procedures |
page 24 |
Accessing Programming Mode |
page 25 |
Cleaning Cycles |
page 26 |
“Barista” Programming |
|
Program Doses |
page 27 |
Program Doses (available from |
page 29 |
the 1.6.4 software version) |
|
Tea Dose |
page 37 |
Coffee Boiler |
page 39 |
Pre-Infusion or Pre-Brewing |
page 41 |
Cup Warmer |
page 42 |
Exit Menu |
page 43 |
“Technical” Programming |
|
Language |
page 44 |
Temperature Measurement Units |
page 45 |
Name |
page 46 |
19 |
|
Program Doses |
page 47 |
Program Doses (available from |
page 49 |
the 1.6.4 software version) |
|
Tea Dose |
page 57 |
Coffee Boiler |
page 59 |
Steam Boiler |
page 61 |
Pre-Infusion or Pre-Brewing |
page 66 |
Crono Function |
page 67 |
Clock Adjust |
page 68 |
Cup Warmer |
page 69 |
Auto ON/OFF |
page 71 |
Eco Mode |
page 73 |
Coffee Dose Counter |
page 75 |
Filter Alarm |
page 77 |
Reset |
page 79 |
Update Firmware |
page 80 |
Exit Menu |
page 81 |
Troubleshooting |
page 82 |
Programming Introduction
Description
•This espresso machine has a CPU and many configurable settings.
•Additionally, there are many feedback controls employed in this espresso machine to troubleshoot problems should they occur.
•The following is a brief introduction to the controls and display and how they interact with the operator.
Digital Display
LaMarzocco 09:30
Firenze Italia
Thedigitaldisplayisabacklitdisplaycapableofdisplaying2linesof16characters.Thedisplayenablestheoperatortointeractwith the espresso machine to visibly change parameter values. The display also provides valuable information to the operator.
There are several warnings that the can be displayed to alert the operator of an unusual condition or a fault. Additionally, simple messages are displayed alerting the operator that an action has been started or that a process needs to begin.
20EN
Programming Keypad
EN
Thekeypadhastwofunctions.Thefirstisforcontroloftheespresso.Thesecondisforprogrammingindividualsoftwareparameters.
The programming of the individual parameters is possible only using the buttons in the group 1 (group starting from the left).
Button |
Description |
This button is used to control the brewing of the single espresso. It is also used in the programming of the individual parameters such as the “back” button in the menu.
For simplicity's sake in this manual it will be represented by this symbol with the name T1.
This button is used to control the brewing of the double espresso. It is also used in the programming of the individual parameters such as the “forward” button in the menu.
For simplicity's sake in this manual it will be represented by this symbol with the name T2.
Thisbuttonisusedforacontinuouscontrolofthebrewingoftheespresso.Itisalsousedintheprogrammingof the individual parameters such as the “enter” button in the menu.
For simplicity's sake in this manual it will be represented by this symbol with the name T3.
21
First Use Procedure
ProgrammingTurning the EspressoMode
Machine On
OFF |
00:00 |
Description
The following is the procedure to be followed for the first use of the espresso machine.
•Please follow the procedures carefully to avoidanydamagetotheespressomachine.
•Proceed checking for water connection to the espresso machine.
•Proceed making sure you have filled the boilers.
Display |
|
Operating Procedure |
|
|
|
|
|
|
|
|
|
|
1 |
Turn the Main Switch to the 1 position. |
|
|
|
|
|
|
|
|
|
SB FILLED? |
2 |
To continue with the start up process, press the T3 button |
after filling the steam boiler. |
|
|
|
|
|
|
|
|
GROUPS BLED? |
3 |
To continue with the start up process, press the T3 button |
after the saturation of the coffee boiler. |
|
|
|
|
|
|
|
|
CBO 93.8°C SBO |
4 |
TherectanglesnexttoCBandSBindicatethewarmingupofthewatercontainedintheboilers.Whenthesettemperature |
|
|
|
|
|
|
|
||
LaMarzocco 00:00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
is reached, these rectangles turn off and all the lights of the buttons turn on. Now the machine is ready for use. During |
|
|
|
|
|
|
|
||
|
|
the normal operation of the machine, the flashing of the rectangles indicates the intermittent heating necessary for |
|
|
|
|
|
|
|
||
|
|
maintaining the temperature. |
|
|
|
|
|
|
|
|
|
|
|
NOTE: Ensure all air is removed from the group prior to staring the espresso machine. |
|
|
|
|
|
|
|
|
|
|
|
This only needs to be completed once during the initial setup or |
|
|
|
|
|
|
|
|
|
|
|
when water is drained from the coffee boiler. |
|
|
|
|
|
|
|
|
|
|
|
Instructions for bleeding the groups of air can be found in the Installation Guide. |
|
|
|
|
|
|
|
|
|
|
|
WARNING |
|
EN |
|
|
|
||||
|
|
HAZARDOUS VOLTAGE DISCONNECT FROM POWER |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
||
|
|
SUPPLY BEFORE SERVICING |
22 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Start Up Procedures
|
|
Description |
|
Turning the Espresso |
|
||
Programming Mode |
|
|
|
|
Machine On |
|
The following is the procedure for turning on |
|
|
|
|
|
|
|
the power to the espresso machine. |
|
|
|
• Please follow the procedures carefully to |
|
|
|
avoidanydamagetotheespressomachine. |
OFF |
00:00 |
|
• Proceed checking for water connection to |
the espresso machine.
• Proceed making sure you have filled the boilers.
EN
|
Display |
|
Operating Procedure |
|
|
1 |
Turn the Main Switch to the 1 position. |
OFF |
00:00 |
2 |
The message shown to the left will be displayed when the espresso machine is switched on. |
CBO 93.8°C SBO |
3 |
To complete the start up process, press any button. The screen shown to the left will be displayed. The rectangles next |
|
LaMarzocco 00:00 |
|
|
|
|
|
|
to CB and SB indicate the warming up of the water contained in the boilers. When the set temperature is reached, |
|
|
|
theserectanglesturnoffandallthelightsofthebuttonsturnon.Nowthemachineisreadyforuse.Duringthenormal |
|
|
|
operation of the machine, the flashing of the rectangles indicates the intermittent heating necessary for maintaining |
|
|
|
the temperature. |
|
|
|
NOTE: Ensure all air is removed from the group prior to staring the espresso machine. |
|
|
|
This only needs to be completed once during the initial setup or |
|
|
|
when water is drained from the coffee boiler. |
|
|
|
Instructions for bleeding the groups of air can be found in the Installation Guide. |
|
WARNING |
|
HAZARDOUS VOLTAGE DISCONNECT FROM POWER |
23 |
SUPPLY BEFORE SERVICING |
|
|
|
|
|
|
Shut Down Procedures |
|
|
|
|
Description |
|
Turning the Espresso |
|
|
|
||
Programming Mode |
|
|
|
|
|
|
Machine Off |
|
The following is the procedure for turning off |
• This machine has two off settings. One |
|
|
|
|
|||
|
|
|
power to the espresso machine. |
setting turns off all of the components in the |
|
|
|
|
• Please follow the procedures carefully to |
espresso machine and the other turns off |
|
|
|
|
avoid any damage to the espresso machine. |
power to the complete espresso machine. |
|
OFF |
00:00 |
|
|
|
|
|
Display |
|
|
|
Operating Procedure |
|
|
1 |
The following is the procedure for safely turning off the espresso machine. |
||
LaMarzocco 00:00 |
2 |
Press and hold the buttons T2 |
and T3 |
at the same time. |
|
CB 93.8°C SB |
|||||
|
|
|
The display changes to the following: |
|
|
OFF |
00:00 |
3 |
This is the OFF setting used in the normal operating conditions. |
||
|
|
4 |
During servicing or other conditions that warrant it, the main switch should be turned to the 0 position. |
||
|
|
|
The espresso machine is off and display should be blank. It is important to follow this procedure when turning off the |
||
|
|
|
machine. Failure to do so can damage the electronics. |
WARNING |
|
EN |
|
|
|
||
HAZARDOUS VOLTAGE DISCONNECT FROM POWER |
|
|
|
|
|||
SUPPLY BEFORE SERVICING |
24 |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EN
Accessing Programming Mode
Prograr mmingiMode |
|
Description |
|
|
|
|
|
|
|
|||
|
|
|
|
• To change the values of any parameter |
Nopasswordisrequiredforaccess. |
|
||||||
|
|
|
|
|
the operator must first enter into the |
• Technical Programming - The parameters |
||||||
|
|
|
|
|
programmingmode. |
|
contained within |
this level |
are |
ones |
||
LaMarzocco |
00:00 |
• Therearetwolevelswithintheprogramming |
the |
operator |
can |
change to |
affect |
the |
||||
|
mode that allow the programming of |
performanceoftheespressomachine.These |
||||||||||
CB 93.8°C SB |
|
|||||||||||
|
specificparameters. |
|
parameters are set in the factory and their |
|||||||||
|
|
|
|
• Thetwoprogramminglevelsareasfollows: |
adjustment requires the intervention of a |
|||||||
|
|
|
|
• |
Barista Programming - The parameters |
service technician La Marzocco reccomends |
||||||
|
|
|
|
|
contained within this level are ones the |
that no changes are made at this level. The |
||||||
|
|
|
|
|
operatorcanchangetoaffectthequalityof |
TechnicianPasswordisrequiredforaccess. |
||||||
|
|
|
|
|
theespresso. |
|
|
|
|
|
|
|
Display |
|
|
|
|
Operating Procedure |
|
|
|
|
|
|
|
|
|
|
|
|
“Barista” Programming Level |
|
|
|
|
|
||
LaMarzocco 00:00 |
1 |
While the espresso machine is on, press and hold the button T3 |
. After approximately 5 seconds the following |
|||||||||
CB 93.8°C SB |
display appears. |
|
|
|
|
|
|
|
|
|
||
Program |
2 |
This is the “Barista” programming level. To program the brewing amount for each button, to set the coffee boilers, the |
||||||||||
Dose |
||||||||||||
|
3 |
pre-infusion, and to enable/disable the resistance of the cup warmer if present. |
|
|
|
|
|
|||||
To Exit |
To exit the programming mode, scroll to the exit menu, using the buttons T1 |
or T2 |
. Press the T3 |
|
|
|||||||
Press Enter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
button to confirm the exit, or press at the same time the buttons T2 and T3. |
|
|
|
|
|
|||||
|
1 |
|
|
|
“Technical” Programming Level |
|
|
|
|
|
||
CB 93.8°C SB |
While the espresso machine is on, press and hold the button T3 |
. After approximately 10 seconds the following |
||||||||||
LaMarzocco 00:00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
display appears. |
|
|
|
|
|
|
|
|
|
|
Enter Password |
2 |
This is the “Technical” programming level. Enter the password and press the buttons T1 |
and T2 |
to move |
||||||||
|
||||||||||||
|
|
between the available parameters, press the T3 button |
to confirm. |
|
|
|
|
|
Note:Youmustscrolltotheexitmenutoexittheprogrammingmode,orpressatthesametimethebuttonsT2andT3.
25
