308-805 Color Wireless
Atomic Weather Station
Introduction
The Wireless Color Atomic Weather Station offers radio-controlled time, weather
forecast, indoor and outdoor temperature/humidity and heat index with dew point,
on one easy to read display.
Forecast Icons Time Alarm Icon
Function
Buttons
Date display alternates
with Heat Index and
Dew Point display
WWVB Reception
Low Battery Temperature/humidity (indoor or outdoor)
COLOR WEATHER STATION:
FEATURES:
• Color animated forecast from changing barometric pressure:
sunny, partly sunny, cloudy, rainy and stormy
• AUTO or MANUAL option toggles IN / OUT data
• IN / OUT temperature (°F / °C) and humidity (%RH)
• MIN / MAX temperature readings.
• ATOMIC time and date (auto sets)
• 12/24-hour time with snooze alarm and alarm icon
• Calendar display: month, day, date
• Heat index and dew point
• Light up display with press of button using battery adapter
OR continuous light using AC adapter with ON /OFF option
• Low battery icon for weather station and sensor
• Sits on desktop or tabletop
• Transmits outdoor temperature and humidity
• Over 200 FT. wireless transmission range
INITIAL SET UP:
Adapter on the main unit with batteries or a/c adapter and set the time zone &
weather icon:
The Time Zone will flash EST. Press and release the UP or DOWN button to
select the Time Zone. Press and release the SET button.
The Weather Forecast Icons will flash. Press and release the UP or DOWN
button to select the forecast Icon that represents your current local weather.
Press and release the SET button to confirm.
The Temperature area will flash as the display searches for a signal from
the outdoor transmitter.
Insert fresh alkaline batteries into the transmitter, observing the correct
polarity Press the TX button to send a signal after the display is powered up.
Keep the transmitter 5-10 feet from the weather station.
Within 3 minutes the station will beep and the outdoor temperature should be
displayed on the Weather station. If the outdoor temperature is not displayed
after 3 minutes hold the SEARCH button on the main unit to search for
outdoor sensor. Then press the TX button again on the sensor to send
signal. If that doesn’t work, remove power from both units and start again
from the beginning.
To ensure sufficient 434 MHz transmission, the outdoor transmitter should be
placed a distance of no more than 200 feet (60 meters, open air) from the
Color Weather station.
INSTALL BATTERIES OR A/C POWER ADAPTER INTO THE WEATHER
STATION:
Function Buttons
A/C Adapter
access
Battery
compartment
A/C power adapter:
Plug enclosed 6-volt a/c power adapter into a wall outlet, then into the weather
station.
Batteries:
Remove battery: Slide tab to the left and pull out to remove battery
cover.
Install three fresh AAA alkaline batt er ies according to the polarity
markings.
Do Not Mix Old and New Batteries
Do Not Mix Alkaline, Standard, or Rechargeable Batteries
If the weather station does not display indoor temperature after 60 seconds,
remove adapter and batteries, and wait for at least 60 seconds before powering up
the weather station again.
INSTALL BATTERIES IN THE TRANSMITTER:
TX
Button
C/F Selection
Channel
Button
Remove screws and the battery
cover from the back of the
transmitter with a small screwdriver.
Insert two fresh AAA alkaline
batteries into the transmitter,
Battery Battery
Com
artment Cover
observing the correct polarity (see
marking inside battery
compartment).
Keep transmitter 5-10 ft. from the
weather station.
FUNCTION BUTTONS
LIGHT/SNOOZE TEMP. SEARCH
IN/OUT HEAT/DEW MIN/MAX ALARM
Button Press and Release Functions Hold 3-5 seconds
LIGHT/SNOOZE
TEMP. SEARCH
IN/OUT
HEAT/DEW
MIN / MAX Shows MIN and MAX values Resets MIN / MAX values
LARM View Alarm Alarm set
SET Confirm setting.
RCC SEARCH
UP
C/F
DOWN
LIGHT ON/OFF
AUTO ROTATE IN / OUT
Activates backlight when using
only batteries.
Trigger snooze when time alarm
is sounding.
Switch between indoor and
outdoor temperature/humidity
readings
Shows Heat Index and Dew
Point
Search for WWVB signal
1 step forward when setting
Select temperature in C/ F
1 step backward when setting
Turn On or Off Auto-switch
between indoor/outdoor data.
Search for remote sensor
Enter program menu, set
time, date, forecast icon etc.
Fast advance when setting
Fast backward when setting
Turn On or Off continuous
backlight on a/c adapter
SET
RCC SEARCH
UP
C/F
DOWN
LIGHT ON/OFF
AUTO ROTATE
IN / OUT
WWVB RADIO CONTROLLED TIME
The NIST radio station, WWVB, is located in Ft. Collins, Colorado and transmits
the exact time signal continuously throughout the United States at 60 kHz. The
signal can be received up to 2,000 miles away through the internal antenna in the
atomic weather station. However, due to the nature o f the Earth’s Ionosphere,
reception is very limited during daylight hours. The atomic weather station will
search for a signal every night when reception is best. The WWVB radio station
derives its signal from the NIST atomic weather station in Boulder, Colorado. A
team of atomic physicists continually measures every second of every day to an
accuracy of ten billionths of a second a day. These physicists have created an
international standard, measuring a second as 9,192,631,770 vibrations of a
Cesium 133 atom in a vacuum. This atomic weather station regulates the WWVB
transmitter.
WWVB RECEPTION icon with full signal strength will appear on screen if the
reception of atomic time is successful. The atomic weather station will have a daily
synchronization at 02:03 and 03:03 everyday. Each reception cycle is minimum
2.5 minutes and maximum 10 minutes.
In normal mode, press the RCC button until the reception icon appears to enforce
searching of radio-controlled clock signal. If this icon disappears afterwards, radio
time signal is not available at the moment.
1
Recommended distance to any interfering sources like computer monitors or
TV sets is a minimum of 6 feet (2 meters).
Within ferro-concrete rooms (basements, superstructures), the received
signal is naturally weakened. In extreme cases, please place the unit close to
a window and/ or point its front or back towards the Fort Collins, Colorado,
transmitter.
During nighttime, the atmospheric disturbances are usually less severe and
reception is possible in most cases. A single daily reception is adequate to
keep the accuracy deviation below 1 second.
NOTE: In case the atomic color weather station is not able to detect the WWVBsignal (disturbances, transmitting distance, etc.), the time can be manually set
(please refer to notes TIME SET).
PROGRAM MENU:
TIME SET: The SET button moves through the program menu and the UP or
DOWN button change the values.
TIME ZONE: Hold the SET button and the Time Zone will flash. Press and
release the UP or DOWN button to select the Time Zone.
North American Time Zones are:
-4 Atlantic
EST Eastern
CST Central
MST Mountain
PST Pacific
-9 Alaska
-10 Hawaii
Press and release the SET button to continue.
DST: DST will show, and On or Off will flash. Press and release the UP or
DOWN button to select the On or Off. Press and release the SET button to
continue.
12/24-HOUR: 12Hr or 24Hr will flash. Press and release the UP or DOWN
button to select the 12-hour or 24-hour time. Press and release the SET
button to continue.
HOUR: The Hour will flash. Press and release the UP or DOWN button to
select the Hour. Press and release the SET button to continue.
MINUTES: The Minutes will flash. Press and release the UP or DOWN
button to select the Minutes. Press and release the SET button to continue.
YEAR: The Year will flash. Press and release the UP or DOWN button to
select the Year. Press and release the SET button to continue.
MONTH: The Month will flash. Press and release the UP or DOWN button to
select the Month. Press and release the SET button to continue.
DATE: The Date will flash. Press and release the UP or DOWN button to
select the Date. Press and release the SET button to continue.
WEATHER FORECAST ICON: Press and release the UP or DOWN button
to select the forecast Icon that represents your current local weather. The
forecast icon will flash. Press and release the SET button to exit.
NOTE: If possible, it is best to select the RAINY ICON when it is raining
outside. This allows for the most accurate future forecasts based on
barometric pressure changes.
WEATHER FORECAST ICONS:
The unit predicts weather condition of the next 12 – 24 hours based on the change
of atmospheric pressure. The weather forecast is based on atmospheric pressure
change and is about 70-75% correct. As weather conditions cannot be 100%
correctly forecasted, we cannot be responsible for any loss caused by an incorrect
forecast.
ALARM SET:
ALARM HOUR: Press and hold ALARM button to enter alarm time setting
mode. The Alarm Hour will flash. Use the UP or DOWN button to set the
Hour. Press and release the ALARM button.
ALARM MINUTE: The Alarm Minutes will flash. Use the UP or DOWN button
to set the Minutes. Press and release the ALARM button to exit.
ALARM ACTIVAT ION:
Press and release the ALARM button once to show Alarm Time.
Press and release the ALARM button repeatedly to activate or deactivate the
Alarm. The
SNOOZE:
When the alarm sounds, press the SNOOZE button to trigger snooze alarm
for 9 minutes. The alarm icon
active.
alarm icon appears when alarm is activated.
will flash when the snooze feature is
To stop alarm for one day, press AL button, while in snooze mode. The alarm
icon
NOTE: When the alarm sounds, it continues for 2 minutes and then shuts off
FAHRENHEIT/CELSIUS:
Display: Press and release the C/F button once to switch from Fahrenheit to
Celsius.
MIN/MAX TEMPERATURE/HUMIDTY:
VIEW MIN/MAX:
INDOOR: When Indoor Temperature/Humidity is displayed, press the
OUTDOOR: When Outdoor Temperature/Humidity is displayed, press the
RESET MIN/MAX: Hold the MIN/MAX button for 5 seconds to reset all min/max
values.
HEAT INDEX AND DEW POINT:
INDOOR: When Indoor Temperature/Humidity is displayed, press the HEAT/DEW
button and Indoor Heat Index and Indoor Dew Point will show briefly in the date
display area.
OUTDOOR: When Outdoor Temperature/Humidity is displayed, press the
HEAT/DEW button Outdoor Heat Index and Outdoor Dew Point will show briefly in
the date display area.
AUTO SWITCH INDOOR/OUTDOOR DATA:
Press the AUTO button one time to enable the auto switch feature. This feature
allows the station to alternately display indoor temperature/humidity and outdoor
temperature/humidity every 10 seconds. The word AUTO will appear in the lower
right display when this feature is active. Press and release the AUTO button to turn
the feature off again.
BACKLIGHT:
A/C adapter: The backlight can be on continuously when operation with the 6-volt
a/c adapter.
Battery power: The backlight will light for 8 seconds when operating on batteries
only.
It is recommended to replace the batteries in all units every 12 months to ensure
optimum accuracy of this unit. A low battery icon will display next to the outdoor
temperature when the transmitter batteries are low and next to the indoor
temperature then the batteries in the weather station are low.
MAINTENANCE
Do not expose the display to extreme temperatures, vibration or shock. Keep
Clean it with a soft damp cloth. Do not use solvents or scouring agents.
The product is not a toy. Keep it out of reach of children.
The product is not to be used for medical purpose or for public information,
The specifications of this product may change without prior notice.
Improper use or unauthorized opening of housing will void the warranty.
If the unit does not work properly, change the batteries.
will remain solid.
completely.
MAX/MIN button to view MAX, MIN and Current Indoor temperature/humidity.
MAX/MIN button
to view MAX, MIN and Current Outdoor temperature/humidity.
OFF: Hold the LIGHT ON/OFF button for 5 seconds to turn off the
backlight, to sleep.
ON: Hold the LIGHT ON/OFF button again to turn the backlight on.
LOW BATTERY:
dry.
but is determined for home use only.
2
POSITIONING THE OUTDOOR TEMPERATURE SENSOR
The remote temperature sensor should be mounted vertically to avoid damage.
To achieve a true temperature reading, avoid mounting where direct sunlight can
reach the outdoor temperature sensor. It is recommended to mount the outdoor
temperature sensor on a North-facing wall or in any well shaded area. The
maximum transmitting range in open air is 200-feet (60 meters) obstacles such as
walls, concrete, and large metal objects can reduce the range.
Place both units in their desired location, and wait approximately 10 minutes before
permanently mounting the sensor to ensure that there is proper reception . The
outdoor temperature sensor is not waterproof and should not be placed any where
it will become submerged in water or subject to standing water or snow.
SPECIFICATIONS:
Indoor:
Temperature Range: 32° F to 122° F (0° C to + 50° C)
Humidity Range: 20%-99% (RH)
Interval: Every 10 seconds
Outdoor:
Temperature Range: -20°F to 140°F (-29°C to 60°C)
Humidity Range: 20%-99% (RH)
Distance: 200 ft (60 meters) RF 434MHz (open air)
Interval: Every 35 seconds
Adapter:
Receiver: 6-volt a/c power adapter (included)
Transmitter: 2-AAA, IEC, LR3 alkaline batteries (not included).
Dimensions:
Receiver: 6.29 ” L x 2.6” W x 4.17 ” H (160 x 66 x 106mm)
Transmitter: 2.55” L x 1.18” W x 3.5” H (65 x 30 x 90mm)
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited warranty on this product
against manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on
products purchased and used in North America and only to the original purchaser
of this product. To receive warranty service, the purchaser must contact La
Crosse Technology, Ltd for problem determination and service procedures.
Warranty service can only be performed by a La Crosse Technology, Ltd
authorized service center. The original dated bill of sale must be presented upon
request as proof of purchase to La Crosse Technology, Ltd or La Crosse
Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our option and at
no charge as stipulated herein, with new or reconditioned parts or products if found
to be defective during the limited warranty period specified above. All replaced
parts and products become the property of La Crosse Technology, Ltd and must
be returned to La Crosse Technology, Ltd. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer.
La Crosse Technology, Ltd will pay all expenses for labor and materials for all
repairs covered by this warranty. If necessary repairs are not covered by this
warranty, or if a product is examined which is not in need or repair, you will be
charged for the repairs or examination. The owner must pay any shipping charges
incurred in getting the La Crosse Technology, Ltd product to a La Crosse
Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay
ground return shipping charges to the owner of the product to a USA address only.
The La Crosse Technology, Ltd warranty covers all defects in material and
workmanship with the following specified exceptions: (1) damage caused by
accident, unreasonable use or neglect (including the lack of reasonable and
necessary maintenance); (2) damage occurring during shipment (claims must be
presented to the carrier); (3) damage to, or deterioration of, any accessory or
decorative surface; (4) damage resulting from failure to foll ow instructions
contained in the owner’s manual; (5) damage resulting from the performance of
repairs or alterations by someone other than an authorized La Crosse Technology,
Ltd authorized service center; (6) units used for other than home use (7)
applications and uses that this product was not intended or (8) the products
inability to receive a signal due to any source of interference.. This warranty

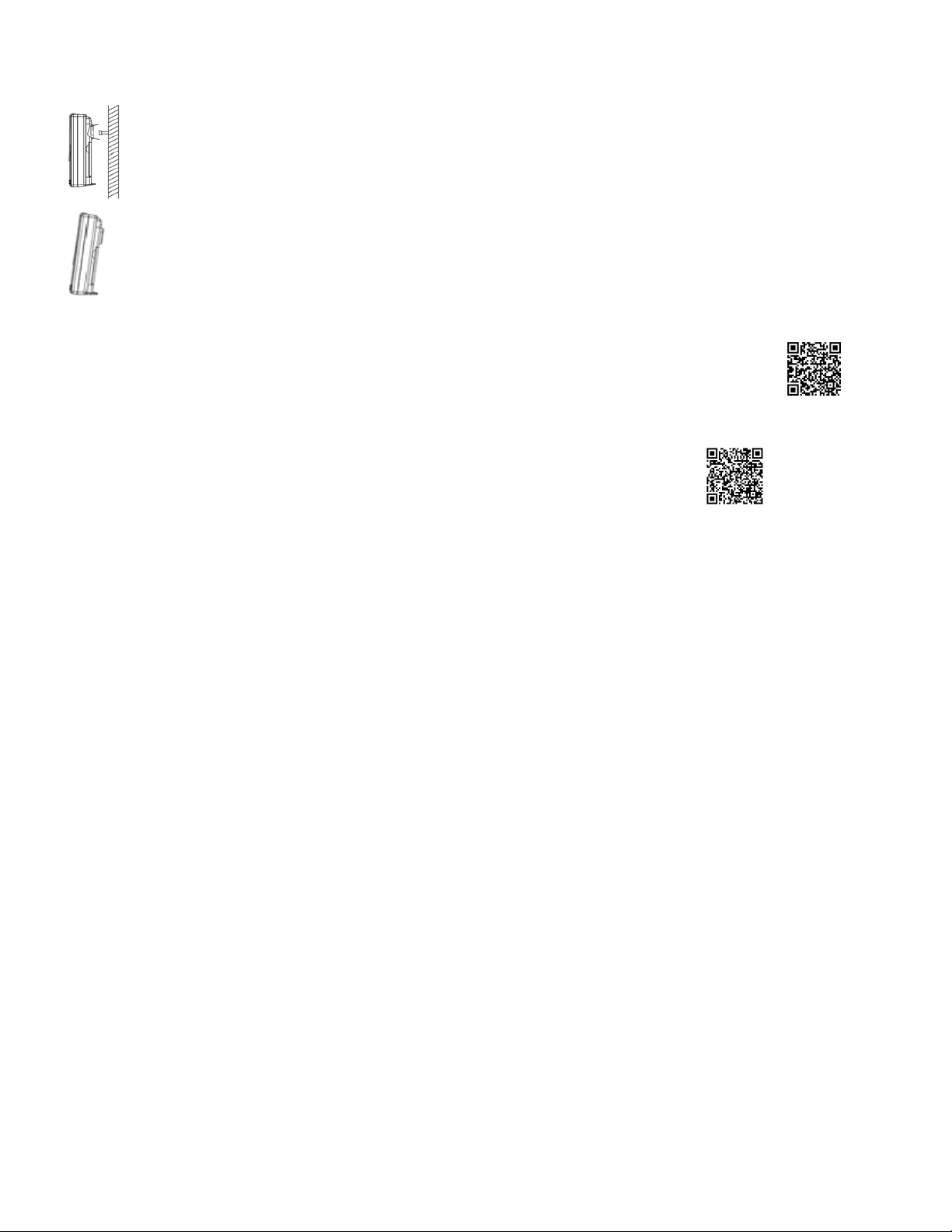

WALL MOUNT
Install one mounting screw (not included) into a wall within
transmission
range of the weather station, leaving approximately 3/16 of
an inch (5mm) extended from the wall.
Place the transmitter onto the screw, using the hanging
hole on the backside.
Gently pull the transmitter down to lock the screw into
place.
NOTE: Always ensure that the transmitter locks onto the screw
before releasi ng.
TABLE STAND
Set the transmitter upright on a table or desk.
NOTE: This is not recommended as the transmitter may blow over
and be damaged.
Optional 3-AAA, IEC, LR3 alkaline batteries (not included).
covers only actual defects within the product itself, and does not cover the cost of
installation or removal from a fixed installation, normal set-up or adjustments,
claims based on misrepresentation by the seller or performance variations
resulting from installation-related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR
INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES
ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR
PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF
CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights
specific to the State. Some States do not allow the exclusion of consequential or
incidental damages therefore the above exclusion of limitation may not apply to
you.
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
2817 Losey Blvd. S.
La Crosse, WI 54601
The complete instruction manual is available at:
www.lacrossetechnology.com/308-805
Le manuel d'instruction complet est disponible sur:
www.lacrossetechnology.com/308-805
El manual de instrucciones completo está disponible en:
www.lacrossetechnology.com/308-805
Contact Support: 1-608-782-1610
Product Registration:
www.lacrossetechnology.com/support/register
This Device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) the device must accept any interference received, including interference that
may cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY
TO OPERATE THE EQUIPMENT
All rights reserved. This handbook must not be reproduced in any form, even in
excerpts, or duplicated or processed using electronic, mechanical or chemical
procedures without written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this
handbook is regularly checked and corrections made in the next issue. We accept
no liability for technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
Printed in China
3
Loading...
