PRINTER OPTION
DU-30
PARTS CATALOGUE
PRINTER OPTION - Parts Catalogue KYOCERA DU-30 Page 1
DU-30 Parts Catalogue
Table of Contents
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
3DU-30 Duplex Unit (Fig.30)
PRINTER OPTION - Parts Catalogue KYOCERA DU-30 Page 2
30-046
PRINTER OPTION - Parts Catalogue KYOCERA DU-30 Page 3
30-045
30-048
30-044

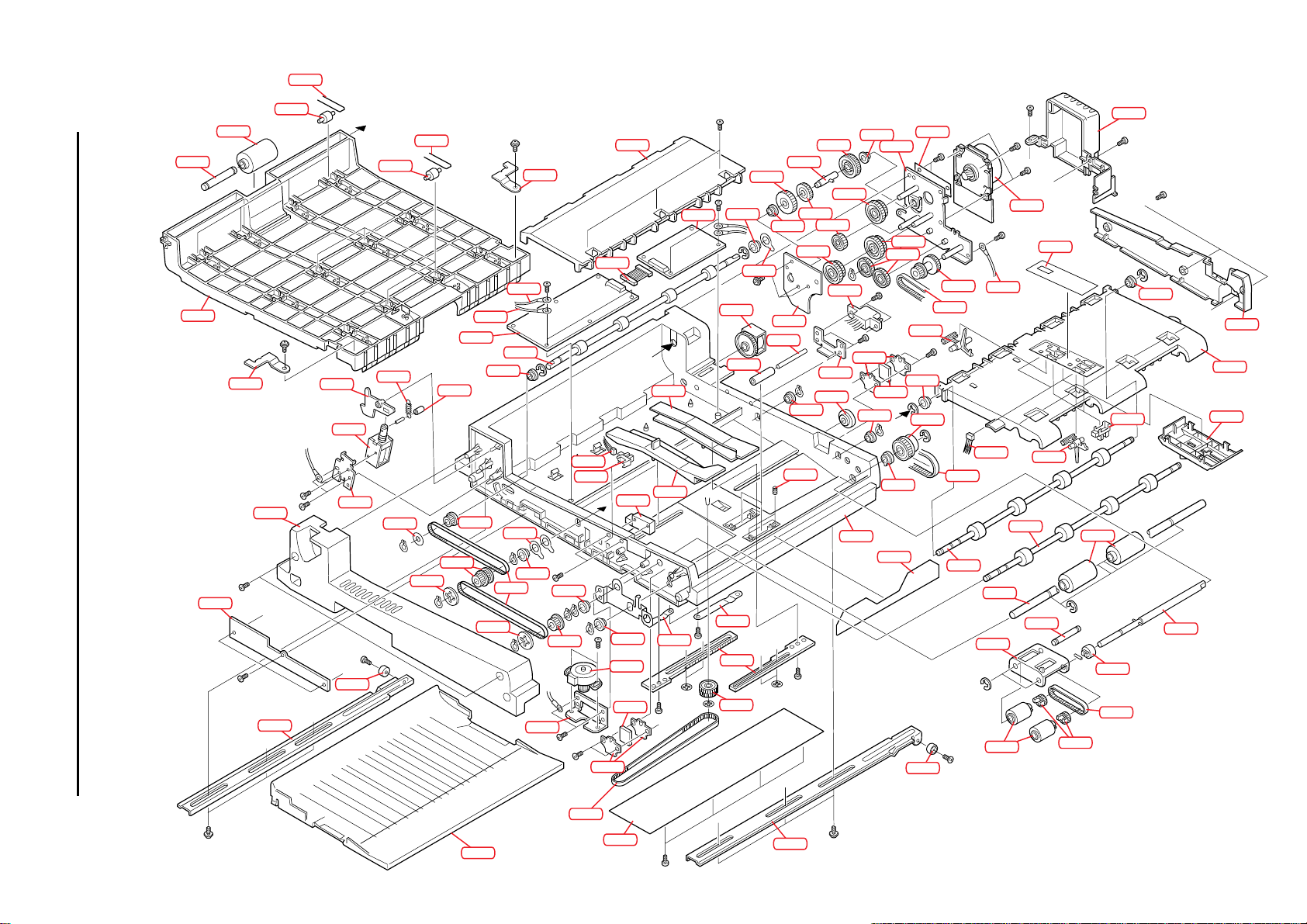

Fig.30 - DU-30 Duplex Unit
30-087
30-012
30-093
30-076
30-047
30-083
30-080
30-082
30-077
30-047
30-081
30-105
30-046
30-009
30-103
30-008
30-005
30-004
30-094
30-009
30-028
30-010
30-095
30-002
30-096
30-088
30-029
30-085
30-030
30-008
30-101
30-032
30-102
30-104
30-034
30-089
30-003
30-084
30-100
30-017
30-016
30-011
30-044
30-028
30-023
30-013
30-108
30-018
30-019
30-097
30-095
30-065
30-057
30-014
30-068
30-029
30-015
30-098
30-060
30-069
30-061
30-075
30-086
30-058
30-074
30-001
30-064
30-104
30-030
30-056
30-100
30-026
30-107
30-059
30-062
30-067
30-039
30-037
30-006
30-079
30-063
30-027
30-027
30-036
30-094
30-041
30-025
30-049
30-054
30-066
30-007
30-040
30-051
30-043
30-055
30-024
30-053
30-052
30-092
30-038
30-037
30-091
30-035
30-042
30-050
30-021
30-020
30-090
30-078
QuantityDescriptionPart CodeRef No. QuantityDescriptionPart CodeRef No.
1Duplex UnitDU-3030-000
1Frame Main DU5MVB886SB00830-001
1Shaft L5MMT866SN02630-002
1Bush Drum5MMM121CX00130-003
1Pulley P185MVG1216DN01230-004
1PWB Assy5AAPRCZR2005AH30-005
1Clutch Assy5AAVCLTCH00930-006
1Shaft M5MMT876SN05330-007
1Pulley P245MVG337DN00430-008
1Cover Pulley5MVF182DN00130-009
1Belt S2M3285MVM190RB02030-010
1Plate Earth A5MMS852LD00130-011
1Cover Front DU5MVB865SB04030-012
1Roller Idle5MVM460DB00130-013
1Shaft B5MMT555SN00130-014
1Spring Bottom5MMW155LD00130-015
1Guide Paper R5MVB843SB00230-016
1Guide Paper L5MVB843SB00330-017
1Rack DU5MVB822DW00130-018
1Gear Z25-P365MVG147DN01030-019
1Belt S2M4265MVM190RB02430-020
1Frame Bottom DU5MVB883SB01430-021
1Spring Clutch5EYYAFAAM01**0230-023
1Roller Guide5MVM687DB00130-024
1Shaft S5MMT866SN02430-025
1Metal Bush KD5MMM176CJ00330-026
1Belt S2M 6305MVM190RB02130-027
1Bush Drum5MMM121CX00130-028
1Bush Drum5MMM121CX00130-029
1Bush Drum5MMM121CX00130-030
1Photo Sencor5ENXGP1A73A**0130-032
1Plate Paper5MVB873SB04830-034
1Plate Bottom5MVB873CC00130-035
1Shaft M5MMT876SN05330-036
1Bush Drum5MMM121CX00130-037
1PT. Sencor5ENXGP1A73A**0130-038
1Actuator H5MVX433DB00430-039
1Actuator S5MVX433DB00330-040
1Conn. Cord Assy S020995AACCNQF1GEA30-041
1Cover PB5MVB753SB02030-042
1Sheet BU5MVS522KC00330-043
1Plate Top5MVB882CC00130-044
1Roller Guide5MVM687DB00130-045
1Spring PA5MMW521LX00130-046
1Pulley PA5MVM374DN00130-047
PRINTER OPTION - Parts Catalogue KYOCERA DU-30 Page 4
QuantityDescriptionPart CodeRef No.
1Shaft P5MMT666SN00230-048
1Guide Turn5MVB662DW00130-049
1Shaft PI5MMT866SN02530-050
1Shaft PU5MMT666SN00130-051
1Belt S2M 1245MVM190RB01930-052
1Torque Limiter5AAROLL*03430-053
1Roller DU Assy5AAVROLL*03630-054
1Roller Return Assy5AAYDU30**0930-055
1Plate Drive A5MMX776SD00330-056
1Plate Drive B5MMS766SD00530-057
1Gear H50-Z365MVG158DN02430-058
1Gear Z36-Z295MVG148DN02430-059
1Gear Z36-Z245MVG148DN02530-060
1Gear Z245MVG137DN02030-061
1Gear Z305MVG138DN03430-062
1Gear Z30-P305MVG137DN02130-063
1Bush Drum5MMM121CX00130-064
1Bushing SBK5MMM176CJ00530-065
1Main Motor Assy5AAXMT031GEA30-066
1Sheet MO5MVS622SC00130-067
1Sheet D5MMT466SN00130-068
1Gear Z365MVG147DN01130-069
1Gear Clutch Z365MVG148DN02630-070
1Oneway Clutch5AAVCLTCH01030-071
1Gear Clutch Z245MVG137DN01930-072
1Oneway Clutch5AAVCLTCH01030-073
1Conn Cord Assy S20945AACCNQE6GEA30-074
1BKT Connector5MMS527SD00230-075
1Rail Case L5MMU932SD00130-076
1Roller DU5MMM165SN00230-077
1Rail Case R5MMU932SD00230-078
1Roller DU5MMM165SN00230-079
1Solenoid5EZSA240102030830-080
1Spring Sol5MMW261LD02830-081
1BKT Solenoid5MMS447SD00130-082
1Arm DU5MVX443SG00130-083
1Stepping Motor Assy5AAXMT027GEA30-084
1BKT Step5MML373SD00630-085
1Pulley Belt PU5MVM176DB01430-086
1Plate Catch L5MML211SN00230-087
1Plate Catch R5MML211SN00130-088
1Cover PT5MVX622SB01230-089
1Cover Bottom5MVB861SB00730-090
1Cover Rear DU A5MVB864SB01330-091
1Cover Rear DU B5MVB766SB00330-092
PRINTER OPTION - Parts Catalogue KYOCERA DU-30 Page 5
QuantityDescriptionPart CodeRef No.
1Sheet DU5MVS735CC00430-093
1Conn Cord Assy5AACCNQJ8GEA30-094
1Conn Cord Assy5AACCNQJ9GEA30-095
1Conn Cord Assy5AACCNQK0GEA30-096
1Gear Clutch Z36 ASSY5AAVGEAR*02930-097
1Gear Clutch Z24 ASSY5AAVGEAR*03030-098
1Magnet5MMK224FJ00130-100
1Conn Cord Assy S021005AACCNQF2GEA30-101
1Conn Cord Assy S021005AACCNQE3GEA30-102
1Rubber Pin5MVM150RB00830-103
1Plate Magnet5MMS426SN00330-104
1Sheet PU5MVS766KN00130-105
1Plate Earth Manual5MML232LD00230-106
1Sheet Turn5MVS854CB00130-107
1Plate Earth DU5MMS612LD00330-108
1Ser. No. Plate30-109
1Label Front DU30-110
1 Mo PWB Assy5AAXAP026GEA30-111
