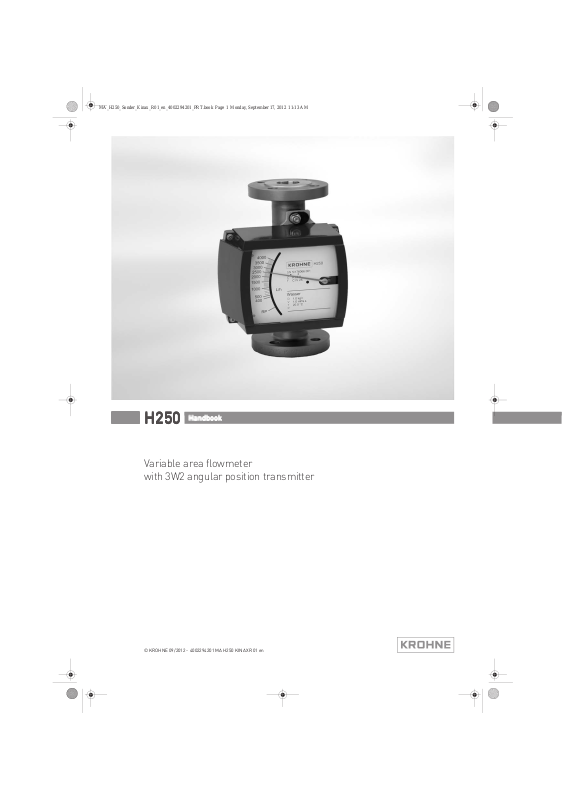

Variable area flowmeter
with 3W2 angular position transmitter
HandbookHandbook
© KROHNE 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 2
: IMPRINT :::::::::::::::::::::::::::::::::::::::
All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without
the prior written authorisation of KROHNE Messtechnik GmbH.
Subject to change without notice.
Copyright 2012 by
KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany)
2
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 3
H250
CONTENTS
1 Safety instructions 5
1.1 Intended use ..................................................................................................................... 5
1.2 Certifications .................................................................................................................... 5
1.3 Safety instructions from the manufacturer ..................................................................... 6
1.3.1 Copyright and data protection ................................................................................................ 6
1.3.2 Disclaimer ............................................................................................................................... 6
1.3.3 Product liability and warranty ................................................................................................ 7
1.3.4 Information concerning the documentation........................................................................... 7
1.3.5 Warnings and symbols used................................................................................................... 8
1.4 Safety instructions for the operator................................................................................. 8
2 Device description 9
2.1 Scope of delivery............................................................................................................... 9
2.2 H250 M9 Kinax – special version device ........................................................................ 10
2.2.1 Float damping ....................................................................................................................... 10
2.3 Nameplate ...................................................................................................................... 11
2.4 Description code............................................................................................................. 12
3 Installation 13
3.1 Notes on installation ......................................................................................................13
3.2 Storage ........................................................................................................................... 13
3.3 Tightening torques .........................................................................................................13
3.4 Installation conditions ....................................................................................................14
3.4.1 Magnetic filters ..................................................................................................................... 14
3.4.2 Heat insulation ...................................................................................................................... 15
4 Electrical connections 16
4.1 Safety instructions.......................................................................................................... 16
4.2 Connection of current output 3W2 ................................................................................. 17
4.3 Ground wire .................................................................................................................... 19
4.4 Ingress protection .......................................................................................................... 19
5 Start-up 20
5.1 Standard device .............................................................................................................. 20
6 Service 21
6.1 Maintenance ................................................................................................................... 21
6.2 Replacement and retrofitting......................................................................................... 21
6.2.1 Replacing floats .................................................................................................................... 21
6.2.2 Retrofitting float damping..................................................................................................... 22
6.3 Spare parts availability...................................................................................................22
6.3.1 List of spare parts................................................................................................................. 23
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
3
Page 4
CONTENTS
H250
6.4 Availability of services .................................................................................................... 25
6.5 Returning the device to the manufacturer..................................................................... 25
6.5.1 General information.............................................................................................................. 25
6.5.2 Form (for copying) to accompany a returned device............................................................ 26
6.6 Disposal .......................................................................................................................... 26
7 Technical data 27
7.1 Functional principle........................................................................................................ 27
7.2 Technical data................................................................................................................. 28
7.3 Dimensions and weights ................................................................................................ 30
7.4 Measuring ranges...........................................................................................................33
8 Notes 35
4
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 5
H250
1.1 Intended use
The variable area flowmeters are suitable for measuring gases, vapours and liquids.
The devices are particularly suitable for the measurement of:
• Water
• Hydrocarbons
• Corrosion protection agents and lubricants
• Chemicals and additives
• Solvents
• Superheated steam
• Food, beverages and tobacco
• Air
• Industrial gases
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
SAFETY INSTRUCTIONS 1
WARNING!
The operator himself bears the sole responsibility for the intended use of the device regarding
the suitability and the corrosion resistance of the used materials against the measured fluid. The
manufacturer is not liable for any damage resulting from improper use or use for other than the
intended purpose. Do not use any abrasive media containing solid particles or highly viscous
media.
1.2 Certifications
CE marking
The device fulfils all applicable statutory requirements of the following EC directives:
• Pressure equipment directive 97/23/EC
• For devices with electrical installations: EMC Directive 2004/108/EC
• Devices for use in hazardous areas: ATEX Directive 94/9/EC
as well as
• NAMUR recommendations NE 21 and NE 43
The manufacturer certifies successful testing of the product by applying the CE mark.
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
5
Page 6
1 SAFETY INSTRUCTIONS
1.3 Safety instructions from the manufacturer
1.3.1 Copyright and data protection
The contents of this document have been created with great care. Nevertheless, we provide no
guarantee that the contents are correct, complete or up-to-date.
The contents and works in this document are subject to copyright. Contributions from third
parties are identified as such. Reproduction, processing, dissemination and any type of use
beyond what is permitted under copyright requires written authorisation from the respective
author and/or the manufacturer.
The manufacturer tries always to observe the copyrights of others, and to draw on works created
in-house or works in the public domain.
The collection of personal data (such as names, street addresses or e-mail addresses) in the
manufacturer's documents is always on a voluntary basis whenever possible. Whenever
feasible, it is always possible to make use of the offerings and services without providing any
personal data.
H250
We draw your attention to the fact that data transmission over the Internet (e.g. when
communicating by e-mail) may involve gaps in security. It is not possible to protect such data
completely against access by third parties.
We hereby expressly prohibit the use of the contact data published as part of our duty to publish
an imprint for the purpose of sending us any advertising or informational materials that we have
not expressly requested.
1.3.2 Disclaimer
The manufacturer will not be liable for any damage of any kind by using its product, including,
but not limited to direct, indirect or incidental and consequential damages.
This disclaimer does not apply in case the manufacturer has acted on purpose or with gross
negligence. In the event any applicable law does not allow such limitations on implied warranties
or the exclusion of limitation of certain damages, you may, if such law applies to you, not be
subject to some or all of the above disclaimer, exclusions or limitations.
Any product purchased from the manufacturer is warranted in accordance with the relevant
product documentation and our Terms and Conditions of Sale.
The manufacturer reserves the right to alter the content of its documents, including this
disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable
in any way for possible consequences of such changes.
6
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 7
H250
1.3.3 Product liability and warranty
The operator shall bear responsibility for the suitability of the device for the specific purpose.
The manufacturer accepts no liability for the consequences of misuse by the operator. Improper
installation and operation of the devices (systems) will cause the warranty to be void. The
respective "Standard Terms and Conditions" which form the basis for the sales contract shall
also apply.
1.3.4 Information concerning the documentation
To prevent any injury to the user or damage to the device it is essential that you read the
information in this document and observe applicable national standards, safety requirements
and accident prevention regulations.
If this document is not in your native language and if you have any problems understanding the
text, we advise you to contact your local office for assistance. The manufacturer can not accept
responsibility for any damage or injury caused by misunderstanding of the information in this
document.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device. Special considerations and precautions are also described in the
document, which appear in the form of underneath icons.
SAFETY INSTRUCTIONS 1
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
7
Page 8
1 SAFETY INSTRUCTIONS
1.3.5 Warnings and symbols used
Safety warnings are indicated by the following symbols.
DANGER!
This information refers to the immediate danger when working with electricity.
DANGER!
This warning refers to the immediate danger of burns caused by heat or hot surfaces.
DANGER!
This warning refers to the immediate danger when using this device in a hazardous atmosphere.
DANGER!
These warnings must be observed without fail. Even partial disregard of this warning can lead to
serious health problems and even death. There is also the risk of seriously damaging the device
or parts of the operator's plant.
H250
WARNING!
Disregarding this safety warning, even if only in part, poses the risk of serious health problems.
There is also the risk of damaging the device or parts of the operator's plant.
CAUTION!
Disregarding these instructions can result in damage to the device or to parts of the operator's
plant.
INFORMATION!
These instructions contain important information for the handling of the device.
LEGAL NOTICE!
This note contains information on statutory directives and standards.
• HANDLING
HANDLING
HANDLINGHANDLING
This symbol designates all instructions for actions to be carried out by the operator in the
specified sequence.
i RESULT
RESULT
RESULTRESULT
This symbol refers to all important consequences of the previous actions.
1.4 Safety instructions for the operator
WARNING!
In general, devices from the manufacturer may only be installed, commissioned, operated and
maintained by properly trained and authorized personnel.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device.
8
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 9
H250
2.1 Scope of delivery
INFORMATION!
Inspect the cartons carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
DEVICE DESCRIPTION 2
Figure 2-1: Scope of delivery
1 Measuring device in ordered version
2 Documentation
3 Certificates, calibration report (supplied to order only)
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
9
Page 10
2 DEVICE DESCRIPTION
2.2 H250 M9 Kinax – special version device
1. H250/RR/M9
• Local indicator without auxiliary power
• 2-wire current output 4…20 mA - type KINAX 3W2
H250
2.2.1 Float damping
Float damping is characterised by high standstill times and self-centering. The damping sleeve
is made of high performance ceramic or PEEK, depending on the medium and the application.
Float damping can also be retrofitted for the user (see Service).
Use of damping
• Generally when CIV and DIV floats are used for gas measurement.
• For TIV floats (H250/RR and H250/HC only) with an operating primary pressure:
EN 1092-1 ASME B16.5 [bar] [psig]
DN 50 ½" ≤0.3 ≤4.4
DN25 1" ≤0.3 ≤4.4
DN50 2" ≤0.2 ≤2.9
DN80 3" ≤0.2 ≤2.9
DN 100 4" ≤0.2 ≤2.9
Nominal size acc. to Operating primary pressure
10
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 11
H250
2.3 Nameplate
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
DEVICE DESCRIPTION 2
Figure 2-2: Nameplate on the indicator
1 Device type
2 Manufacturer
3 Notified PED body
4 Sizing data: temperature & pressure rating
5 PED data
6 Electrical connection data
7 Internet site
Additional markings on the indicator
• SN - serial number
• SO - sales order / item
• PA - order
• Vx - product configurator code
• AC - article code
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
11
Page 12
2 DEVICE DESCRIPTION
2.4 Description code
The description code* consists of the following elements:
1 Device type
H250 - standard version
H250H - horizontal flow direction
H250U - flow direction from top to bottom
2 Materials / versions
RR - Stainless Steel
C - PTFE or PTFE/ceramics
HC - Hastelloy
Ti - Titanium
F - aseptic version (food)
3 Heating jacket version
B - with heating jacket
H250
4 Series of indicators
M9 - Indicator M9 standard indicator
M9S - Indicator with increased impact and corrosion protection
M9R - Indicator in stainless steel housing
5 High temperature version
HT - Version with HT extension
6 Electrical signal output
ES - Current output type KINAX 3W2
* positions which are not needed are omitted (no blank positions)
Other special versions (e.g. special measuring units) on request.
12
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 13
H250
3.1 Notes on installation
INFORMATION!
Inspect the cartons carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.
INFORMATION!
Do a check of the packing list to make sure that you have all the elements given in the order.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
3.2 Storage
• Store the device in a dry and dust-free location.
• Avoid lasting direct exposure to the sun.
• Store the device in its original packing.
• The permissible storage temperature for standard devices is -40...+80°C / -40...+176°F.
INSTALLATION 3
3.3 Tightening torques
For measuring devices with PTFE liner or ceramic liner and PTFE raised face, tighten the flange
threads with the following torques:
Nominal size according to Stud bolts Max. torque
EN 1092-1 ASME B 16.5 EN
DN PN inch lb 150 lb 300 lb Nm ft*lbf Nm ft*lbf
15 40 ½“ 150/300 4 x M 12 4 x ½" 4 x ½" 9.8 7.1 5.2 3.8
25 40 1“ 150/300 4 x M 12 4 x ½" 4 x 5/8“ 21 15 10 7.2
50 40 2“ 150/300 4 x M 16 4 x 5/8“ 8 x 5/8“ 57 41 41 30
80 16 3“ 150/300 8 x M 16 4 x 5/8“ 8 x ¾" 47 34 70 51
100 16 4“ 150/300 8 x M 16 8 x 5/8“ 8 x ¾" 67 48 50 36
ASME EN 1092-1 ASME 150 lb
1092-1
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
13
Page 14
3 INSTALLATION
3.4 Installation conditions
CAUTION!
When installing the device in the piping, the following points must be observed:
•
The variable area flowmeter must be installed vertically (measuring principle). Flow direction
from bottom to top. For installation recommendations please refer also to directive VDI/VDE
3513, sheet 3.
•
A straight unimpeded inlet run of ≥ 5x DN upstream of the device and a straight outlet run of
≥ 3x DN downstream of the device are recommended.
•
Screws, bolts and gaskets are to be provided by the customer and must be selected in
accordance with the pressure rating of the connection or the operating pressure.
•
The inside diameter of the flange deviates from the standard dimensions. Flange seal
standard DIN 2690 can be applied without any limitation.
•
Align the gaskets. Tighten the nuts with the tightening torques of the appropriate pressure
rating.
For devices with PTFE liner or ceramic liner and PTFE raised faces, refer to chapter
"Tightening torques".
•
Control devices are to be positioned downstream of the measuring device.
•
Shutoff devices are preferably to be positioned upstream of the measuring device.
•
Before connecting, blow or flush out the pipes leading to the device.
•
Pipes for gas flow need to be dried before the device is installed.
•
Use connectors suitable for the particular device version.
•
Align the pipes centrically with the connection bores on the measuring device so they are free
of stresses.
•
If necessary, the piping has to be supported to reduce the vibrations transmitted to the
measuring device.
•
Do not lay signal cables directly next to cables for the power supply.
H250
3.4.1 Magnetic filters
The use of magnetic filters is recommended when the medium contains particles which can be
influenced magnetically. The magnetic filter is to be installed in the flow direction upstream of
the flowmeter. Bar magnets are positioned helically in the filter to provide optimal efficiency at
low pressure loss. All of the magnets are coated individually with PTFE to protect against
corrosion. Material: 1.4571

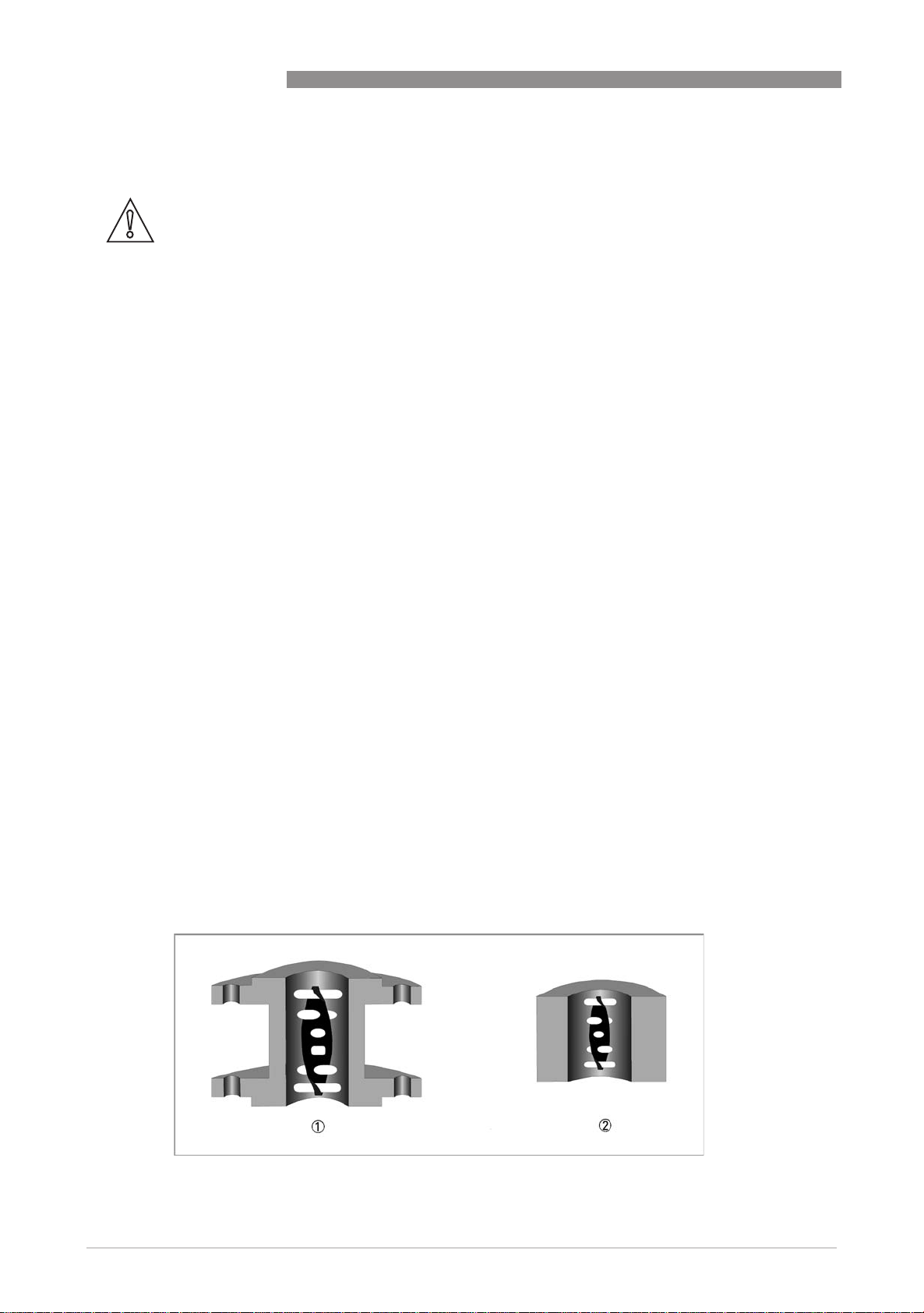

Magnetic filters
1 Type F - fitting part with flange - overall length 100 mm
2 Type FS - fitting part without flange - overall length 50 mm
14
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 15
H250
3.4.2 Heat insulation
CAUTION!
The indicator housing may not be heat-insulated.
The heat insulation 3 may only reach as far as the housing fastening 4.

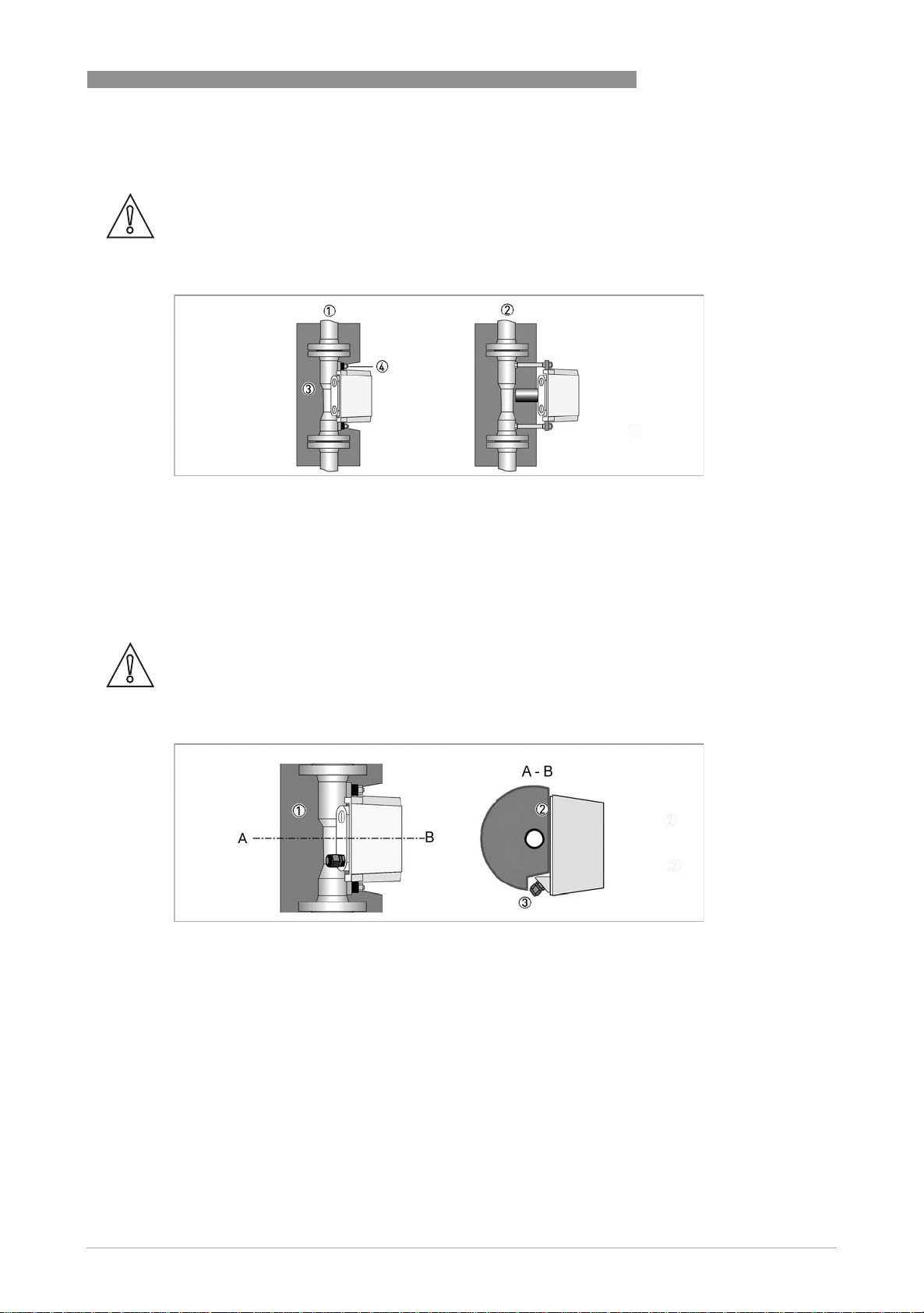

Figure 3-1: H250 heat insulation
1 Standard indicator M9
2 Indicator with HT extension
INSTALLATION 3
This applies in the same manner to indicators M8 and M10.
CAUTION!
The heat insulation 1 may only reach to the rear of the housing 2. The area of the cable entries
3 must be freely accessible.
Figure 3-2: Insulation - cross section
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
15
Page 16
4 ELECTRICAL CONNECTIONS
4.1 Safety instructions
DANGER!
All work on the electrical connections may only be carried out with the power disconnected. Take
note of the voltage data on the nameplate!
DANGER!
Observe the national regulations for electrical installations!
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
WARNING!
Observe without fail the local occupational health and safety regulations. Any work done on the
electrical components of the measuring device may only be carried out by properly trained
specialists.
H250
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
16
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 17
H250
4.2 Connection of current output 3W2

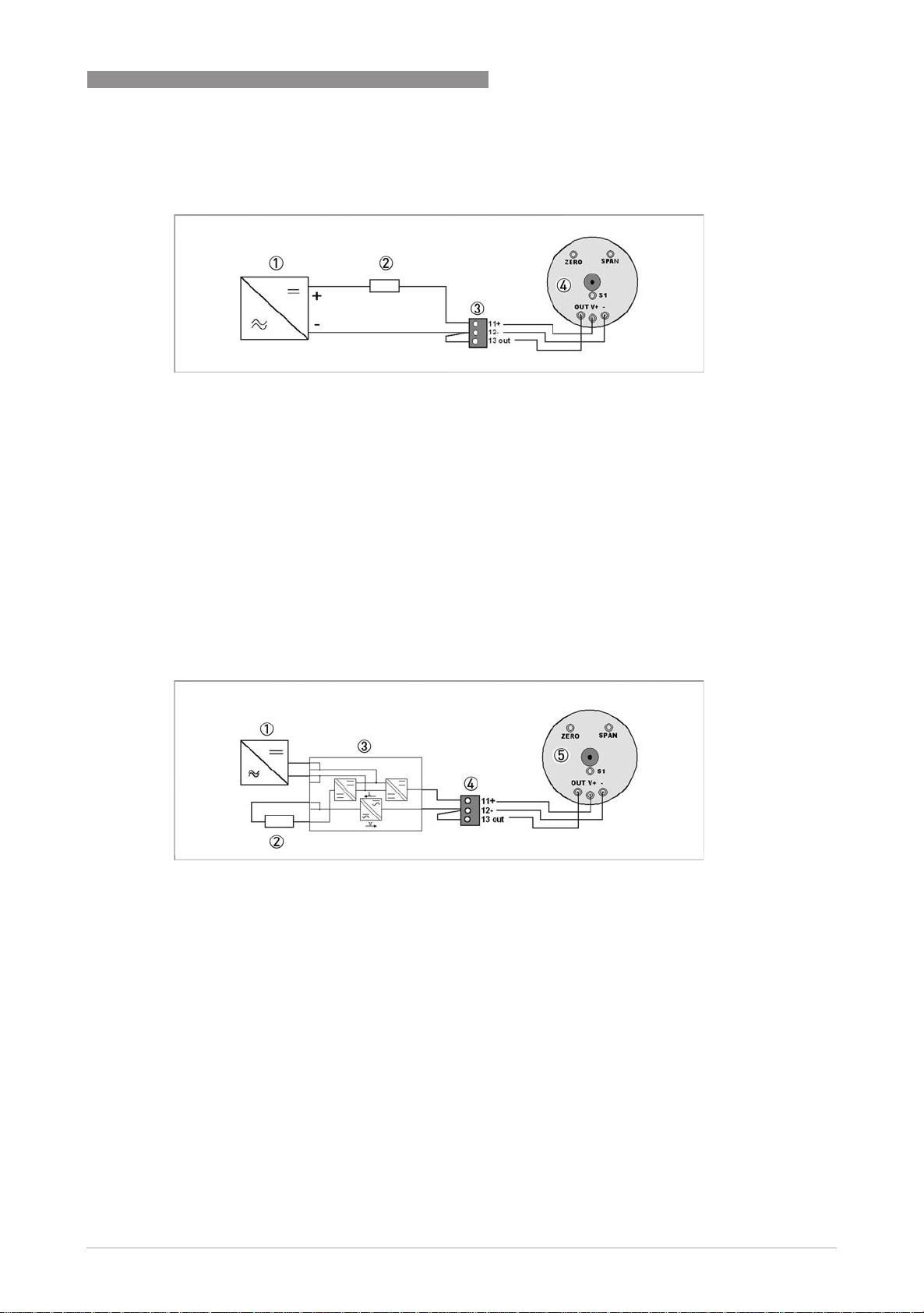

Current output terminal connection
1 Power supply 12...30 VDC
2 External load
3 Terminal connection
4 3W2 angular position transmitter
Power supply 3W2 with galvanic isolation
ELECTRICAL CONNECTIONS 4
Wiring must be planned with great care when it comes to connecting other devices such as
evaluation units or process control. Internal connections in these devices (e.g. GND with PE,
mass loops) may lead to non-permitted voltage potentials which could negatively affect the
function of the converter itself or that of a device connected to it. In such cases a protected extralow voltage (PELV) is recommended.
Current output terminal connection with galvanic isolation
1 Power supply (refer to supply isolator information)
2 External load
3 Converter supply isolator with galvanic isolation
4 Terminal connection
5 3W2 angular position transmitter
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
17
Page 18
4 ELECTRICAL CONNECTIONS
Power supply
INFORMATION!
The supply voltage has to be between 12 VDC and 30 VDC. This is based on the total resistance of
the measuring loop. To calculate this, the resistance of each component in the measuring loop
(not including the device) must be added together).
The required supply voltage can be calculated using the formula below:
.
= R
U
ext.
where
U
ext.
R
= the total measuring loop resistance.
L
INFORMATION!
The power supply has to be able to supply a minimum of 22 mA.
22 mA + 12 V
L
= the minimum supply voltage and
H250
Current output adjustment
A fine adjustment of the current output can be performed using the ZERO and SPAN
adjustment screws of the KINAX 3W2 angular position transmitter.
For adjustment of 4.00 mA, the pointer must be set to RP on the scale. 4.00 mA can be set
using ZERO.
For adjustment of 20.00 mA, the pointer must be set to 100% flow rate value of the scale. 20.00
mA can be set using SPAN.
Instead of manual adjustment of the pointer, the flow rate values ??0 and 100% can be set for
the adjustment.
18
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 19
H250
4.3 Ground wire
DANGER!
The grounding wire may not transfer any interference voltage.
Do not use this grounding cable to ground any other electrical devices.
4.4 Ingress protection
ELECTRICAL CONNECTIONS 4
The measuring device meets all requirements of protection category IP66/67.
DANGER!
After all servicing and maintenance work on the measuring device, the specified protection class
must be ensured again.
Therefore it is essential to observe the following points:
• Use only original gaskets. They must be clean and free of any damage. Defective gaskets must
be replaced.
• The electrical cables used must be undamaged and must comply with regulations.
• The cables must be laid with a loop 3333 upstream of the measuring device to prevent water
from getting into the housing.
• The cable feedthroughs 2222 must be tightened.
• Close the unused cable feedthroughs using blind plugs 1111.
Figure 4-1: Cable feedthrough
1 Use blanking plugs if no cable is routed through
2 Tighten cable feedthrough firmly
3 Lay the cable in a loop
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
19
Page 20
5 START-UP
5.1 Standard device
CAUTION!
When starting up the device, the following points must be observed:
•
Compare the actual operating pressure and the product temperature of the system with the
specifications on the nameplate (PS and TS). These specifications may not be exceeded.
•
Make sure materials are compatible.
•
Slowly open the shut-off valve.
•
When measuring liquids, vent the pipes carefully.
•
When measuring gases, increase pressure slowly.
•
Avoid float impact (e.g. caused by solenoid valves), as this is likely to damage the measuring
unit or float.
A minimum operating pressure (primary pressure) is necessary to operate the device:
Medium Pressure loss : operating pressure
H250
Liquids 1 : 2
Gases without float damping 1 : 5
Gases with float damping 1 : 2
20
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 21
H250
6.1 Maintenance
Within the scope of routine maintenance of the system and pipelines, the flowmeter should also
be inspected for signs of fouling, corrosion, mechanical wear and leaks, as well as damage to
the measuring tube and indicator.
We advise that inspections be carried out at least once per year.
The device must be removed from the piping before cleaning.
CAUTION!
Pressurized pipes must be depressurized before removing the device.
Empty pipes as completely as possible.
In the case of devices used for measuring aggressive or hazardous media, appropriate safety
precautions must be taken with regard to residual liquids in the measuring unit.
Always use new gaskets when reinstalling the device in the pipeline.
Avoid electrostatic charges when cleaning the surfaces (e.g. sight window)!
6.2 Replacement and retrofitting
SERVICE 6
Some components of the variable area flowmeter can be exchanged or retrofitted:
• Float
• Float damping

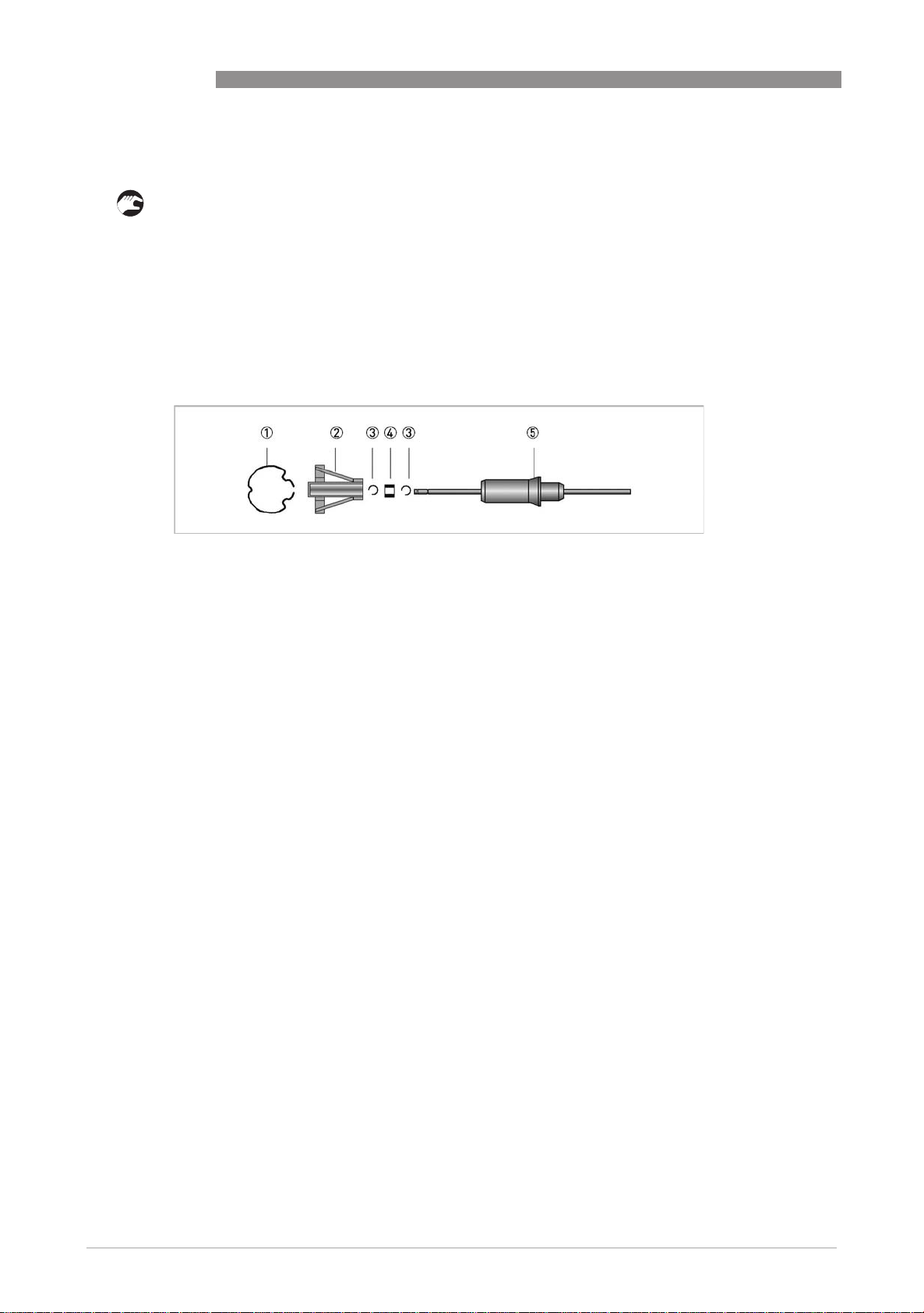

6.2.1 Replacing floats
• Remove the device from the piping.
• Take the upper snap ring out of the measuring unit.
• Take the upper float stop and float out of the measuring unit.
• Insert the new float into the centre hole of the lower float stop and push into the measuring
unit along with the upper float catcher. While doing this, the float's upper guide rod must be
guided through the middle hole of the float stop.
• Insert the snap ring into the measuring unit.
• Fit the device back into the piping.
CAUTION!
An additional measuring error is to be expected if recalibration is not conducted.
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
21
Page 22
6 SERVICE
6.2.2 Retrofitting float damping
• Take the upper snap ring 1 out of the measuring unit.
• Take the upper float stop 2 and float 5 out of the measuring unit.
• Fasten the snap ring 3 into the lower slot of the float's guide rod.
• Slide ceramic sleeve 4 on to the float's guide rod and attach it to the top slot using the span
ring 3.
• Insert float into the lower float guide in the measuring unit.
• Retrofit the supplied damping cylinder with the integrated float stop 2 into the measuring
unit.
• Insert upper snap ring 1.
H250
1 Snap ring
2 Float catcher
3 Spring washer
4 Ceramic sleeve
5 Float
6.3 Spare parts availability
The manufacturer adheres to the basic principle that functionally adequate spare parts for each
device or each important accessory part will be kept available for a period of 3 years after
delivery of the last production run for the device.
This regulation only applies to spare parts which are subject to wear and tear under normal
operating conditions.
22
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 23
H250
6.3.1 List of spare parts
Spare part Order no.
DN 15
DN 15
DN 15DN 15
Float CIV 15, 1.4404 X251041000
Float DIV 15, 1.4404 X251042000
Float TIV 15, 1.4404 X251043000
Float DIVT 15, 1.4404 X251044000
Float TIV 15, Aluminium X251043100
Float TIV 15, Titanium X251043200
Set float stop; standard (1 float stop, 1 span ring) X251050100
Set float stop; gas damping (ZrO2) X251050200
Set float stop; gas damping (PEEK) X251050300
Damping bush (7x8) ZrO2 incl. 2 span rings X251053100
Damping bush (7x8) PEEK incl. 2 span rings X251053200
DN 25
DN 25
DN 25DN 25
Float CIV 15, 1.4404 X252041000
Float DIV 25, 1.4404 X252042000
Float TIV 25, 1.4404 X252043000
Float DIVT 25, 1.4404 X252044000
Set float stop; standard (1 float stop, 1 span ring) X252050100
Set float stop; gas damping (ZrO2) X252050200
Set float stop; gas damping (PEEK) X252050300
Damping bush (12x8) ZrO2 incl. 2 span rings X252053100
Damping bush (12x8) PEEK incl. 2 span rings X252053200
DN 50
DN 50
DN 50DN 50
Float CIV 55, 1.4404 X253041000
Float DIV 55, 1.4404 X253042000
Float TIV55, 1.4404 X253043000
Float DIVT 55, 1.4404 X253044000
Set float stop; standard (1 float stop, 1 span ring) X253050100
Set float stop; gas damping (ZrO2) X253050200
Set float stop; gas damping (PEEK) X253050300
Damping bush (14x10) ZrO2 incl. 2 span rings X253053100
Damping bush (14x10) PEEK incl. 2 span rings X253053200
SERVICE 6
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
23
Page 24
6 SERVICE
Spare part Order no.
DN 80
DN 80
DN 80DN 80
Float CIV 85, 1.4404 X254041000
Float DIV 85, 1.4404 X254042000
Float TIV 85, 1.4404 X254043000
Float DIVT 85, 1.4404 X254044000
Set float stop; standard (1 float stop, 1 span ring) X254050100
Set float stop; gas damping (ZrO2) X254050200
Set float stop; gas damping (PEEK) X254050300
Damping bush (18x14) ZrO2 incl. 2 span rings X254053100
Damping bush (18x14) PEEK incl. 2 span rings X254053200
DN 100
DN 100
DN 100DN 100
Float CIV 105, 1.4404 X255041000
Float DIV 105, 1.4404 X255042000
Float DIVT 105, 1.4404 X255044000
Set float stop; stand. (1 float stop, 1 span ring) only for bottom ! X255050100
Set float stop; gas damping (ZrO2) X255050200
Set float stop; gas damping (PEEK) X255050300
Damping bush (18x14) ZrO2 incl. 2 span rings X254053100
Damping bush (18x14) PEEK incl. 2 span rings X254053200
Indicator M9
Indicator M9
Indicator M9Indicator M9
Indicator housing complete no scale X251010000
Indicator complete stainless steel unpainted, no scale X251011000
Cover M9 complete, standard (blue; RAL 5015) X251010100
Cover M9 complete, salt water resistant (grey; RAL 7001) X251010200
Cover M9 complete, no silicone (blue; RAL, 5015) X251010300
Cover M9 complete, stainless steel unpainted X251010400
Inspection glass shatterproof glass X251011100
Inspection glass plastic (Makrolon) X251011200
Cover seal (silicone) X251012100
M9 baseplate standard X251020100
M9 baseplate salt water resistant X251020200
Retrofit kit HT extension X251021000
Module carrier (profile track) X251021100
Set housing attachment parts (pair) X251021300
Pointer system, complete X251022100
Eddy current brake X251022200
Printed scale (serial number required) on request
Blank scale X251023200
Printed scale with counter cutout (serial number required) on request
Blank scale with counter cutout X251023400
H250
24
Other spare parts on request
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 25
H250
6.4 Availability of services
The manufacturer offers a range of services to support the customer after expiration of the
warranty. These include repair, maintenance, technical support and training.
INFORMATION!
For more precise information, please contact your local sales office.
6.5 Returning the device to the manufacturer
6.5.1 General information
This device has been carefully manufactured and tested. If installed and operated in accordance
with these operating instructions, it will rarely present any problems.
CAUTION!
Should you nevertheless need to return a device for inspection or repair, please pay strict
attention to the following points:
•
Due to statutory regulations on environmental protection and safeguarding the health and
safety of our personnel, manufacturer may only handle, test and repair returned devices that
have been in contact with products without risk to personnel and environment.
•
This means that the manufacturer can only service this device if it is accompanied by the
following certificate (see next section) confirming that the device is safe to handle.
SERVICE 6
CAUTION!
If the device has been operated with toxic, caustic, flammable or water-endangering products,
you are kindly requested:
•
to check and ensure, if necessary by rinsing or neutralising, that all cavities are free from
such dangerous substances,
•
to enclose a certificate with the device confirming that is safe to handle and stating the
product used.
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
25
Page 26
6 SERVICE
6.5.2 Form (for copying) to accompany a returned device
Company: Address:
Department: Name:
Tel. no.: Fax no.:
Manufacturer's order no. or serial no.:
The device has been operated with the following medium:
H250
This medium is: water-hazardous
toxic
caustic
flammable
We checked that all cavities in the device are free from such
substances.
We have flushed out and neutralized all cavities in the
device.
We hereby confirm that there is no risk to persons or the environment through any residual media
contained in the device when it is returned.
Date: Signature:
Stamp:
6.6 Disposal
CAUTION!
Disposal must be carried out in accordance with legislation applicable in your country.
26
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 27
H250

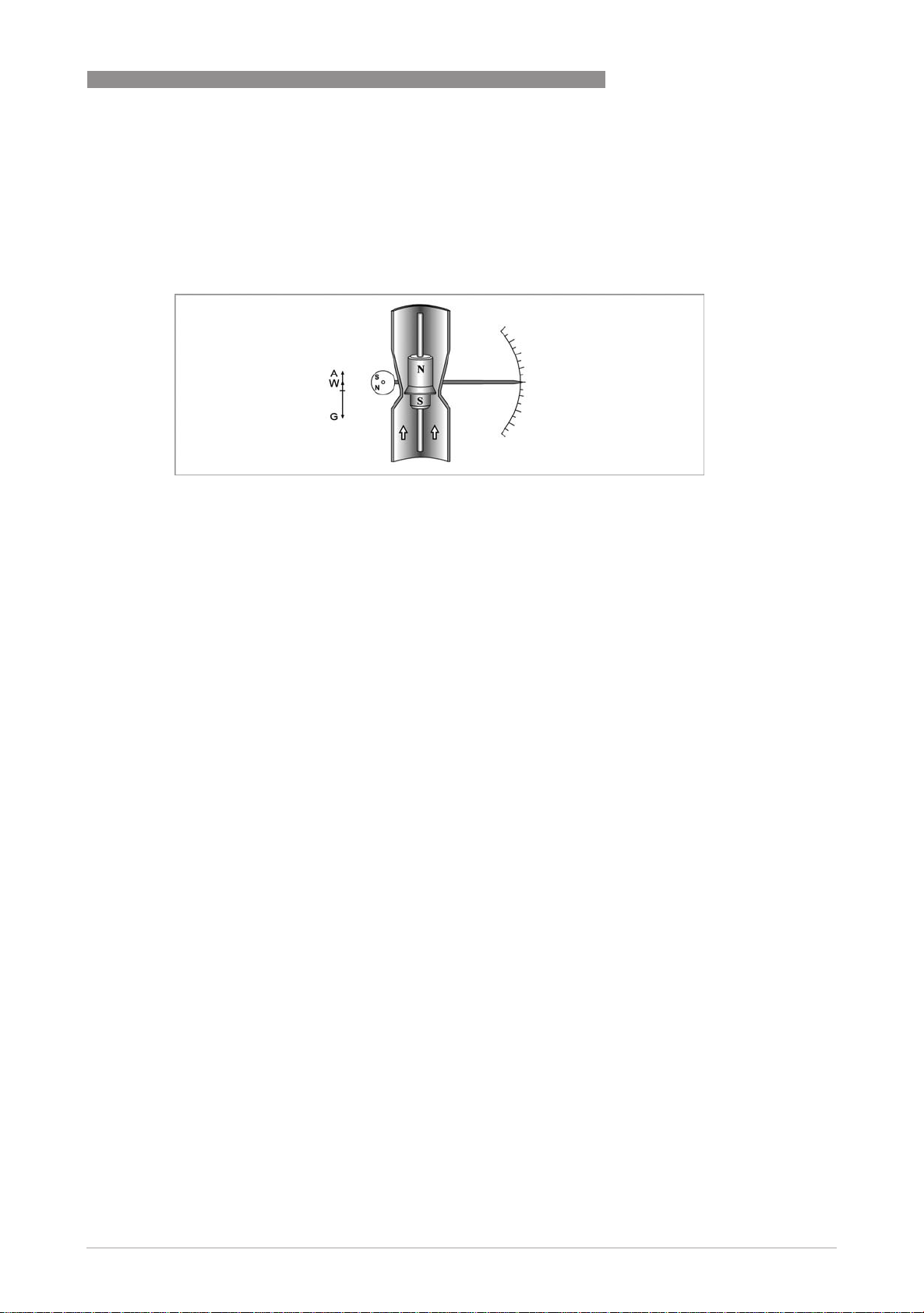

7.1 Functional principle
The H250 flowmeter operates on the float measuring principle. The measuring unit consists of a
metal cone in which a float can move freely up and down. The flow goes from bottom to top. The
float changes position so that the lifting force acting on it A is in equilibrium with the form drag W
and its weight G: G = A + W.
TECHNICAL DATA 7
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
27
Page 28
7 TECHNICAL DATA
7.2 Technical data
INFORMATION!
•
The following data is provided for general applications. If you require data that is more
relevant to your specific application, please contact us or your local sales office.
•
Additional information (certificates, special tools, software,...) and complete product
documentation can be downloaded free of charge from the website (Download Center).
Measuring system
Application range Flow measurement of liquids, gases and vapors
Operating method / measuring principle Variable area measuring principle
Measured value
Primary measured value Float position
Secondary measured value Operating and standard volumetric flow
Measuring accuracy
Directive VDI / VDE 3513, sheet 2 (qG = 50%)
H250 /RR /HC /F 1.6%
H250/C (Ceramic, PTFE)
H250H, H250U, H250 (100 : 1)
H250
2.5%
Operating conditions
Temperature
Temperature
TemperatureTemperature
Max. operating temperature TS -196..+300°C / -321...+572°F
Pressure
Pressure
PressurePressure
Max. operating pressure PS Depending on the version up to 400 bar / 5802 psig
Max. test pressure PT Pressure equipment directive 97/23/EC or AD 2000-HP30
Min. required operating pressure 2 times greater than pressure loss (see measuring ranges)
Float damping during gas measurement recommended:
Float damping during gas measurement recommended:
Float damping during gas measurement recommended:Float damping during gas measurement recommended:
DN15...25 / ½"...1" Operating pressure <0.3 bar / 4.4 psig
DN50...100 / 2"...4" Operating pressure <0.2 bar / 2.9 psig
Installation conditions
Inlet run ≥ 5 x DN
Outlet run ≥ 3 x DN
28
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 29
H250
TECHNICAL DATA 7
Materials
Item Flange / raised face Measurin
g tube
H250/RR
stainless steel
H250/HC
Hastelloy
H250/C
Ceramics/PTFE
2
H250/F - Food CrNi-Stahl 1.4435 -
1 CrNi steel 1.4571 on request, for clamp connection CrNi steel 1.4435
2 DN100/4" only PTFE
3 TFM/PTFE liner (electrically non-conductive)
®
CrNi steel 1.4404
massive 1
CrNi steel 1.4571 with
plated Hastelloy
(2.4610) 1
CrNi-Stahl 1.4571
with TFM/PTFE liner 3
®
C4
Float Float stop /
guide
CrNi steel 1.4404 1 -
Hastelloy® C-22 (2.4602)
PTFE or Al2O3 with
FFKM gasket
Al2O
3
and PTFE
INFORMATION!
H250/C - DN100 / 4" only PTFE
H250/F: wetted surfaces Ra ≤0.8 μm, optional ≤0.6 μm
Other options:
• Special materials on request: e.g. SMO 254, titanium, 1.4435
• Float damping: ceramic or PEEK
• Gasket for devices with female thread as insert: O-ring FPM / FKM
Ring orifice
-
Al2O
3
Temperatures
Temperatures
TemperaturesTemperatures
DANGER!
For devices to be used in hazardous areas, special temperature ranges apply. These can be
found in the separate instructions
Temperatures H250/M9 - mechanical indicator without power supply
Float Liner Product temperature Ambient temperature
[°C] [°F] [°C] [°F]
H250/RR Stainless Steel -196...+300 -321...+572 -40...+120 -40…+248
H250/RR screw fitting -20…+120 -4…+248
H250/HC
H250/C PTFE PTFE -196...+70 -321...+158 -40...+70 -40…+158
H250/C Ceramic PTFE -196...+150 -321...+302 -40...+70 -40…+158
H250/C Ceramic TFM / Ceramic -196...+250 -321...+482 -40...+120 -40…+248
H250 H/U Stainless Steel -40...+100 -40…+212 -20…+90 -4…+194
Hastelloy® C4
-196...+300 -321...+572 -40...+120 -40…+248
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
29
Page 30
7 TECHNICAL DATA
Cable gland Material Cable diameter
M 16x1.5 Standard 1 PA 3...7 mm 0.118...0.276"
M20 x 1.5 2 PA 8...13 mm 0.315...0.512"
M 16x1.5 1 Nickel-plated brass 5...9 mm 0.197...0.355"
M20 x 1.5 2 Nickel-plated brass 10...14 mm 0.394...0.552"
1 M9
2 M9 and M40
Technical data – 3W2 angular position transmitter
Type 708 - 211D 1/C
Power supply 12...30 VDC
Rotation angle 10°
Signal output 4...20 mA
7.3 Dimensions and weights
H250

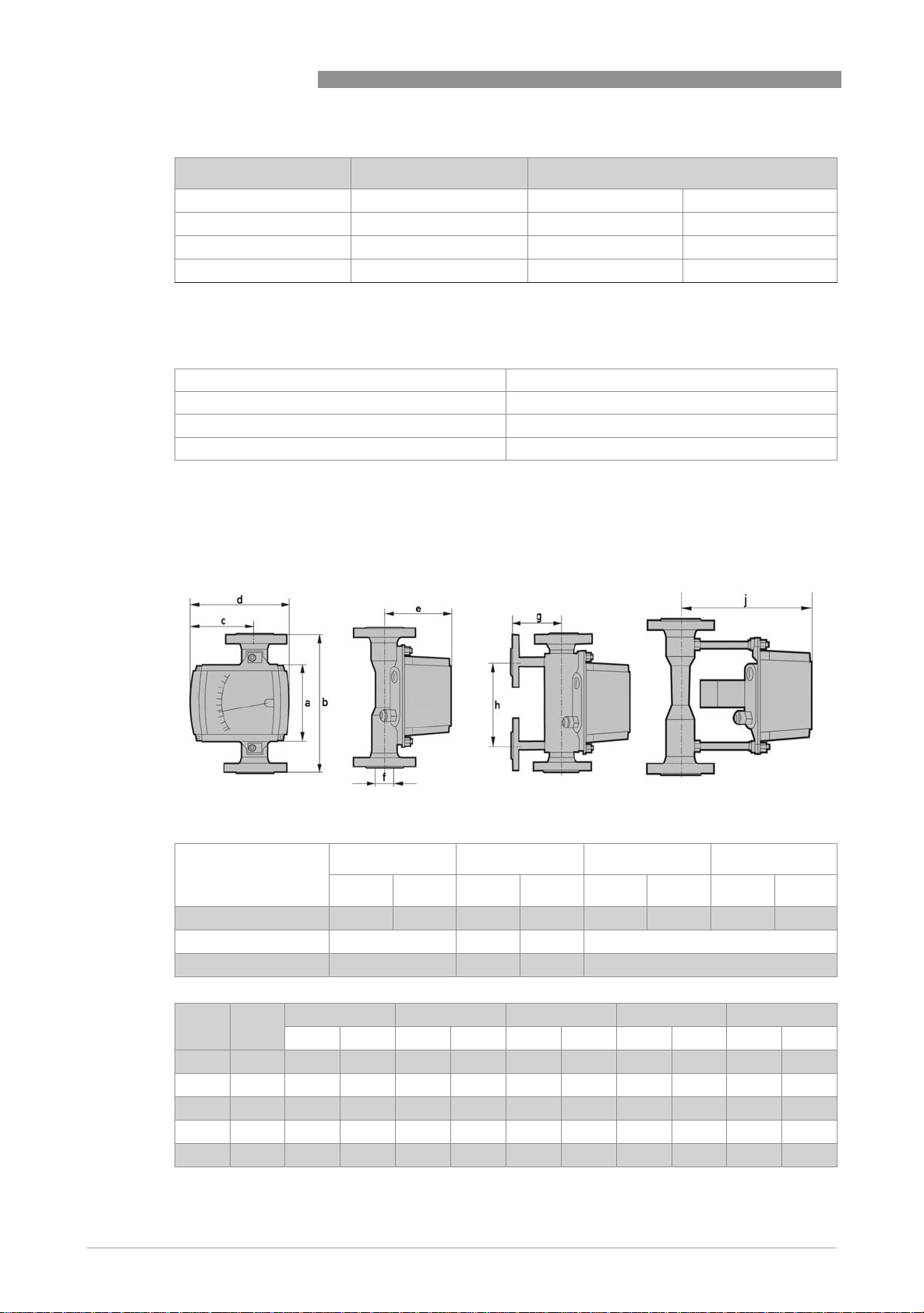

Dimensions H250/M9
Front view Side view with heating High temperature
a b d h
[mm] ["] [mm] ["] [mm] ["] [mm] ["]
All nominal sizes 138 5.44 250 9.85 181 7.13 150 5.91
ISO 228 300 11.82
H250/C - 3"/300 lb 300 11.82
30
EN ASME c e Ø f g j
[mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["]
DN15 ½" 110.5 4.35 107 4.22 20 0.79 100 3.94 187 7.37
DN25 1" 110.5 4.35 119 4.69 32 1.26 106 4.18 199 7.84
DN50 2" 123.5 4,86 132 5.20 65 2.56 120 4.73 212 8.35
DN80 3" 123.5 4,86 148 5.83 89 3.51 145 5.71 228 8.98
DN100 4" 123.5 4,86 158 6.22 114 4.49 150 5.91 232 9.14
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 31
H250
TECHNICAL DATA 7
Weights
Weights
WeightsWeights
H250 with heating
Nominal meter size EN 1092-1 Flange connection Ermeto connection
EN ASME [kg] [lb] [kg] [lb] [kg] [lb]
DN15 ½“ 3.5 7.7 5.6 12.6 3.9 8.6
DN25 1“ 5 11 7.5 16.5 5.8 12.8
DN50 2“ 8.2 18.1 11.2 24.7 9.5 21
DN80 3“ 12.2 26.9 14.8 32.6 13.1 28.9
DN100 4“ 14 30.9 17.4 38.4 15.7 34.6
Process connections
Process connections
Process connectionsProcess connections
Standard Conn. dim. Pressure rating
Flanges (H250/RR /HC /C) EN 1092-1 DN15...150 PN16...250
ASME B16.5 ½...6" 150...2500 lb
JIS B 2220 15…100 10...20K
Clamp connections (H250/RR /F) DlN 32676 DN15...100 10...16 bar
ISO 2852 Size 25...139.7 10...16 bar
Screw connections (H250/RR /HC /F) DIN 11851 DN15...100 25...40 bar
SMS 1146 1...4" 6 bar / 88.2 psig
Female thread welded (H250/RR /HC) ISO 228 G½...G2" ≥ 50 bar / 735
ASME B1.20.1 ½…2" NPT
Female thread (H250/RR /HC)
with insert, FPM gasket and union nut
Thread connection aseptic (H250/F) DIN 11864 - 1 DN15…50 PN40
Flange aseptic (H250/F) DIN 11864 - 2 DN15…50 PN40
Meters (H250/RR /HC) with heating:
Meters (H250/RR /HC) with heating:
Meters (H250/RR /HC) with heating:Meters (H250/RR /HC) with heating:
Heating with flange connection EN 1092-1 DN15 PN40
Heating pipe connection for Ermeto - E12 PN40
ISO 228 G½…2" ≤ 50 bar
ASME B1.20.1 ½…2" NPT
DN80…100 PN 16
DN80…DN100 PN 16
ASME B16.5 ½" 150 lb / RF
psig
≤ 735 psig
Higher pressure ratings and other connections on request
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
31
Page 32
7 TECHNICAL DATA
Bolts and tightening torques
For measuring devices with PTFE liner or ceramic liner and PTFE raised face, tighten the flange
threads with the following torques:
Nominal sizes EN
Nominal size acc. to EN 1092-1 Quantity x size [Nm] [lb-ft]
DN15 PN40 1 4x M12 9.8 7.1
DN25 PN40 1 4x M12 21 15
DN50 PN40 1 4x M16 57 41
DN80 PN16 1 8x M16 47 34
DN100 PN16 1 8x M16 67 48
1 standard connections; other connections on request
H250
Stud bolts Tightening torques
Nominal size ASME
Stud bolts Tightening torques
Nominal sizes acc. to ASME B
16.5
½" 150 lb / 300 lb 1 4x ½" 4x ½" 5.2 3.8
1" 150 lb / 300 lb 1 4x ½" 4x 5/8" 10 7.2
2" 150 lb / 300 lb 1 4x 5/8" 8x 5/8" 41 30
3" 150 lb / 300 lb 1 4x 5/8" 8x ¾" 70 51
4" 150 lb / 300 lb 1 8x 5/8" 8x ¾" 50 36
1 standard connections; other connections on request
Quantity x size [Nm] [lb-ft]
150 lb 300 lb
32
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 33
H250
7.4 Measuring ranges
TECHNICAL DATA 7
H250/RR - Stainless Steel, H250/HC - Hastelloy
®
Measuring span 10 : 1; flow values 100%
Water Air Max. pressure loss
Float TIV CIV DIV TIV
Nominal
Cone [l/h]
TIV DIV TIV
Alu
[Nm3/h]
TIV CIV DIV
Alu
[mbar]
meter size
DN15, ½" K 15.1 18 25 - 0.42 0.65 - 12 21 26 -
K 15.2 30 40 - 0.7 1 - 12 21 26 -
K 15.3 55 63 - 1 1.5 - 12 21 26 -
K 15.4 80 100 - 1.7 2.2 - 12 21 26 -
K 15.5 120 160 - 2.5 3.6 - 12 21 26 -
K 15.6 200 250 - 4.2 5.5 - 12 21 26 -
K 15.7 350 400 700 6.7 10 18 1 12 21 28 38
K 15.8 500 630 1000 10 14 28 2 13 22 32 50
K 15.8 - - 1600 3 - - 50 3 - - - 85
DN25, 1" K 25.1 480 630 1000 9.5 14 - 11 24 32 72
K 25.2 820 1000 1600 15 23 - 11 24 33 74
K 25.3 1200 1600 2500 22 35 - 11 25 34 75
K 25.4 1700 2500 4000 37 50 110 2 12 26 38 78
K 25.5 3200 4000 6300 62 95 180 2 13 30 45 103 4
DN50, 2" K 55.1 2700 6300 8400 58 80 230 2 8 13 74 60
K 55.2 3600 10000 14000 77 110 350 2 8 13 77 69
K 55.3 5100 16000 25000 110 150 700 2 9 13 84 104
DN80, 3" K 85.1 12000 25000 37000 245 350 1000 2 8 16 68 95
K 85.2 16000 40000 64000 280 400 1800 2 9 16 89 125
DN100, 4" K105.1 19000 63000 100 000 - 550 2800 2 - - 120 220
1 P >0.5 bar
2 P >0,5 bar
3 with TR float
4 300 mbar with damping (gas measurement)
Reference condition:
Water 20°C
Air 20°C - 1.013 bar abs.
Remarks:
• Air measurement - TIV float: heating not possible.
• The indicated pressure losses are valid for water and air at maximum flow rate.
• Other flow ranges on request.
• Conversion of other media or operating data is performed using the calculation method in
accordance with VDI /VDE Directive 3513.
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
33
Page 34
7 TECHNICAL DATA
H250
H250/RR - Stainless Steel, H250/HC - Hastelloy
®
Measuring span 10 : 1; flow values 100%
Water Air Max. pressure loss
Float TIV CIV DIV TIV
Nominal
Cone [GPH] [SCFM] [psig]
Alu
TIV DIV TIV
Alu
TIV CIV DIV
meter size
DN15, ½" K 15.1 4.76 6.60 - 0.26 0.40 - 0.18 0.31 0.38 -
K 15.2 7.93 10.6 - 0.43 0.62 - 0.18 0.31 0.38 -
K 15.3 14.5 16.6 - 0.62 0.93 - 0.18 0.31 0.38 -
K 15.4 21.1 26.4 - 1.05 1.36 - 0.18 0.31 0.38 -
K 15.5 31.7 42.3 - 1.55 2.23 - 0.18 0.31 0.38 -
K 15.6 52.8 66.0 - 2.60 3.41 - 0.18 0.31 0.38 -
K 15.7 92.5 106 185 4.15 6.20 11.2 1 0.18 0.31 0.41 0.56
K 15.8 132 166 264 6.20 8.68 17,4 2 0.19 0.32 0.47 0.74
K 15.8 - - 423 3 - - 31.0 3 - - - 1.25
DN25, 1" K 25.1 127 166 264 5.89 8.68 - 0.16 0.35 0.47 1.06
K 25.2 217 264 423 9.30 14.3 - 0.16 0.35 0.49 1.09
K 25.3 317 423 660 13.6 21.7 - 0.16 0.37 0.50 1.10
K 25.4 449 660 1057 22.9 31.0 68,2 2 0.18 0.38 0.56 1.15
K 25.5 845 1057 1664 38.4 58.9 111 1 0.19 0.44 0.66 1.51 4
DN50 2" K 55.1 713 1664 2219 36.0 49.6 143 2 0.12 0.19 1.09 0.88
K 55.2 951 2642 3698 47.7 68.2 217 2 0.12 0.19 1.13 1.01
K 55.3 1347 4227 6604 68.2 93.0 434 2 0.13 0.19 1.23 1.53
DN80 3" K 85.1 3170 6604 9774 152 217 620 2 0.12 0.24 1.00 1.40
K 85.2 4227 10567 16907 174 248 1116 2 0.13 0.24 1.31 1.84
DN100 4" K105.1 5019 16643 26418 - 341 1736 2 - 1.76 3.23
1 P >7.4 psig
2 P >7,4 psig
3 with TR float
4 4.4 psig with damping (gas measurement)
34
Reference condition:
Water 68°F
Air 68°F - 14.7 psi
Remarks:
• Air measurement - TIV float: heating not possible.
• The indicated pressure losses are valid for water and air at maximum flow rate.
• Other flow ranges on request.
• Conversion of other media or operating data is performed using the calculation method in
accordance with VDI /VDE Directive 3513.
www.krohne.com 09/2012 - 4002294201 MA H250 KINAX R01 en
Page 35
H250
NOTES 8
www.krohne.com09/2012 - 4002294201 MA H250 KINAX R01 en
35
Page 36
KROHNE product overview
• Electromagnetic flowmeters
• Variable area flowmeters
• Ultrasonic flowmeters
• Mass flowmeters
• Vortex flowmeters
• Flow controllers
• Level meters
• Temperature meters
• Pressure meters
• Analysis products
• Products and systems for the oil & gas industry
• Measuring systems for the marine industry
Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
47058 Duisburg (Germany)
Tel.:+49 (0)203 301 0
Fax:+49 (0)203 301 10389
info@krohne.de
© KROHNE 09/2012 - 4002294201 MA H250 KINAX R01 en - Subject to change without notice.
The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
Loading...
