Kodak Astro Zoom AZ651 User Manual

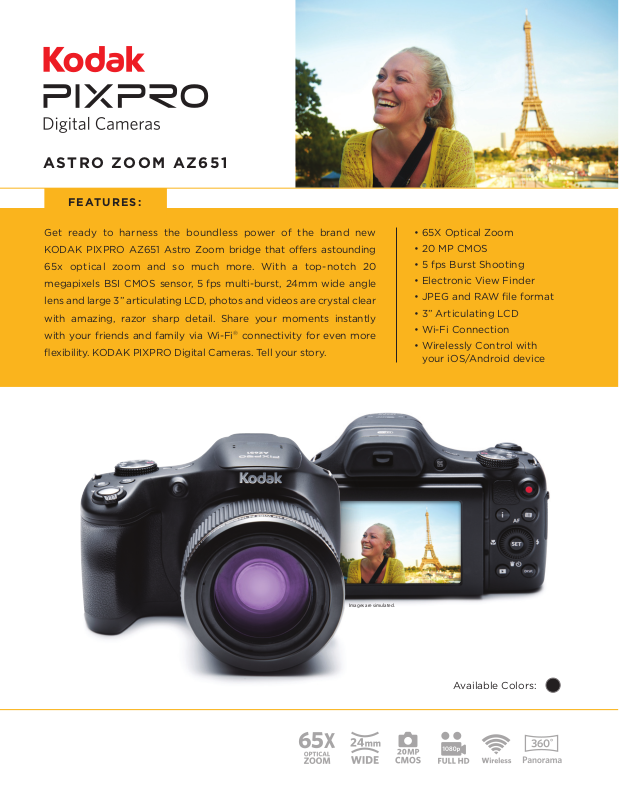

ASTRO ZOOM AZ651

FEATURES:

Get ready to harness the boundless power of the brand new

KODAK PIXPRO AZ651 Astro Zoom bridge that offers astounding

65x optical zoom and so much more. With a top-notch 20

megapixels BSI CMOS sensor, 5 fps multi-burst, 24mm wide angle

lens and large 3” articulating LCD, photos and videos are crystal clear

with amazing, razor sharp detail. Share your moments instantly

with your friends and family via Wi-Fi® connectivity for even more

flexibility. KODAK PIXPRO Digital Cameras. Tell your story.

• 65X Optical Zoom

• 20 MP CMOS

• 5 fps Burst Shooting

• Electronic View Finder

• JPEG and RAW file format

• 3” Articulating LCD

• Wi-Fi Connection

• Wirelessly Control with
your iOS/Android device

Images are simulated.

Available Colors:

AZ651

SPECIFICATIONS AZ651

Effective Image Sensor Pixels 20.68 Megapixels
Total Image Sensor Pixels 21.14 Megapixels [1/2.3” BSI CMOS]
Lens

Focal Length 4.3 mm (Wide) — 279.5 mm (Tele)
[ 35mm film equivalent ] [24 mm (Wide) — 1560 mm (Tele)]
F number F2.9 (Wide) — F6.7 (Tele)

Lens Construction 1 4 groups 18 elements
Compatible Filter Diameter Ø52mm
Optical Zoom 65x
Focusing Range Normal: (Wide) 50 cm — ∞, (Tele) 250 cm — ∞

Macro: 1 cm — ∞ (Wide Only)
Electronic Viewfinder Yes
Anti-Handshake Optical Image Stabilization
Digital Zoom 4x Digital Zoom (Combined Zoom: 260x)
Number of Recording Pixels

Still Image (4:3) 20MP: 5184x3888, 10MP: 3648x2736, 5MP: 2592x1944, 3MP: 2048x1536, 0.3MP: 640x480, (3:2) 18MP: 5184x3456,
(16:9) 15MP: 5120x2880, 2MP: 1920x1080

Movie
Image Compression Best, Fine, Normal
DCF, DPOF (Ver1.1) Support Yes
File Format

Still Image JPEG (Fine, Standard), RAW, RAW + JPEG (Fine)
Movie MOV [Image: H.264, Audio: Linear PCM (Stereo)]
Shooting Modes Auto, P, S, A, M, Face Beautifier, WiFi, Movie, CS, SCN [ASCN, Panorama, Children, Portrait, Night Portrait, Handheld Night, Landscape,

Sport, Sunset, Fireworks, Multi Exposure, Snow, Party, Pet]
Photo Touch-up Red-Eye Removal, Skin Soften, Eye Brightening, Eye Enlargement
Detection Features Face, Smile, Blink, Cat, Dog
HDR Yes
Panorama Up to 360°
LCD Display 3.0 inch (460K Pixels), Articulating Screen (max. 180° upward / 90° downward)
ISO Sensitivity Auto, ISO 100/200/400/800/1600/3200
AF Method Single AF, Continuous AF, Object Tracking, Manual Focus
Focusing Area Selection Single Area, 25-area, Face Detection, Manual
Exposure Metering Method Artificial Intelligence AE (AiAE), Center-Weighted Average, Spot (Fixed to Center of Frame), Face AE
Exposure Control Method Program AE (AE-Lock Available), Aperture Priority AE, Shutter Priority AE
Exposure Compensation +/- 3EV in 1/3 Step Increments
Shutter Speed 1/2000 – 30 Seconds
Continuous Shooting Approx. 5 fps (Full Resolution)
Playback Modes Single Photo, Index (9/16 Thumbnails) Slide Show, Date, Burst Shooting, Zoom (Approx. x2 – x8)
White Balance Control Auto (AWB), Daylight, Cloudy, Flourescent, Flourescent CWF, Incandescent, Manual,

Color Temperature Setting (1900K ~ 10000K)
Flash
Flash Method Pop-up (Auto)

Flash Modes Auto, Red-Eye Reduction, Fill Flash, Force Off, Slow Synchro, Red-Eye Reduction + Slow Synchro
Shooting Range (Wide) Approx. 0.5 m – 8.5 m (ISO800); (Tele) Approx. 1.2 m – 3.8 m (ISO800)

Recording Media Internal Memory: Approx. 8MB
SD/SDHC Card (Up to 32GB Support) [MMC Card not supported]

Other Features Wi-Fi (802.11 b/g/n), Remote Control (via iOS/Android Device), Eye-Fi, PictBridge, ExifPrint Support,
Multi-Language Support (27 Languages)

Jacks AV-OUT/USB 2.0 (Micro 5 pin USB), HDMI (Type D)
Power Rechargeable Li-ion Battery LB-070, 7.4V 1000mAh, In-Camera Charging
Shooting Capability Approx.400 Shots (Based on CIPA Standards)

(Battery Performance)
Operation Environment Temperature: 32° – 104°F / 0° – 40°C, Humidity: 0 – 90%
Dimensions (WxHxD) Approx. 4.91 x 3.50 x 4.49 in. / 124.7 x 89.0 x 113.8 mm (Based on CIPA Standards)
Weight Approx. 21.3 oz. / 604 g (Body Only)
Supplied Accessories Rechargeable Li-ion Battery, AC Adapter, USB Cable, Neck Strap, Lens Cap, CD-ROM, Service Card, Quick Start Guide, Warranty

1920x1080: 30fps, 1280x720: 60fps / 30fps, 640x480: 30fps; High-Speed Movie 640x360: 120fps

To learn more about KODAK PIXPRO Digital Cameras:

JK Imaging, Ltd.
17239 South Main Street
Gardena, CA 90248

© 2015 JK Imaging, Ltd. The Kodak trademark and trade dress are used under license from Kodak.
All information contained in this document is subject to change without notice.
Document Number/Sequence: U.DIS.0019.0724.en.02

visit: www.kodakpixpro.com
