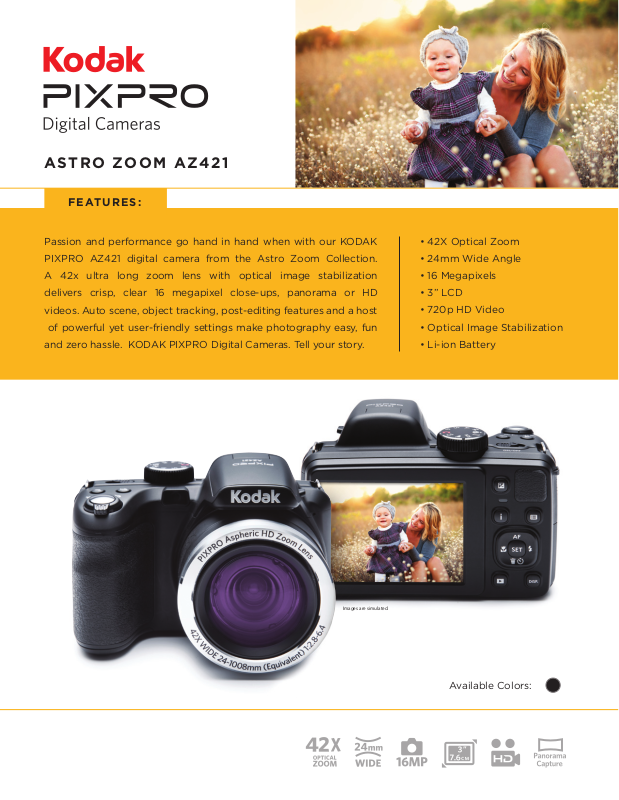

ASTRO ZOOM AZ421

FEATURES:

Passion and performance go hand in hand when with our KODAK

PIXPRO AZ421 digital camera from the Astro Zoom Collection.

A 42x ultra long zoom lens with optical image stabilization

delivers crisp, clear 16 megapixel close-ups, panorama or HD

videos. Auto scene, object tracking, post-editing features and a host

of powerful yet user-friendly settings make photography easy, fun

and zero hassle. KODAK PIXPRO Digital Cameras. Tell your story.

• 42X Optical Zoom

• 24mm Wide Angle

• 16 Megapixels

• 3” LCD

• 720p HD Video

• Optical Image Stabilization

• Li-ion Battery

Images are simulated.

Available Colors:

AZ421

SPECIFICATIONS AZ421

Effective Image Sensor Pixels 16.15 Megapixels
Total Image Sensor Pixels 16.44 Megapixels [1/2.3”(CCD)]
Lens

Focal Length 4.3 mm (Wide) — 180.6 mm (Tele)
[ 35mm film equivalent ] [24 mm (Wide) — 1008 mm (Tele)]
F number F2.6 (Wide) — F6.0 (Tele)
Lens Construction 11 groups 15 elements
Optical Zoom 42x
Focusing Range Normal: (Wide) 60 cm — ∞, (Tele) 300 cm — ∞

Macro: 1.6 cm — ∞ (Wide Only)
Autofocus System TTL Autofocus
Anti-Handshake Optical Image Stabilization
Digital Zoom 4x Digital Zoom (Combined Zoom: 168x)
Number of Recording Pixels

Still Image (4:3) 16MP: 4608x3456, 10MP: 3648x2736, 5MP: 2592x1944, 3MP: 2048x1536, 0.3MP: 640x480, (3:2) 14MP: 4608x3072,
(16:9) 12MP: 4608x2592, 2MP: 1920x1080

Movie 1280x720: 30fps / 15fps, 640x480: 30fps, 320x240: 30fps
Image Compression Best, Fine, Normal
DCF, DPOF (Ver1.1) Support Yes
File Format

Still Image Exif 2.3 (JPEG)
Movie MOV [Image: H.264; Audio: G.711 (Monaural)]
Shooting Modes Auto, P, S, A, M, Face Beautifier, Panorama, Movie, CS, SCN [ASCN, Landscape, Sport, Beach, Sunset, Fireworks, Night

Detection Features Face, Smile, Blink, Cat, Dog
Photo Touch-up Red-Eye Removal, Skin Soften, Eye Brightening, Eye Enlargement
HDR Yes
Panorama Uo to 180° (Horizontal)
LCD Display 3.0 inch (230K Pixels)
ISO Sensitivity Auto, ISO 80/100/200/400/800/1600/3200 (4M)
AF Method Single AF, Multi-AF (TTL 9-point), Object Tracking, Face Detection
Exposure Metering Method Artificial Intelligence AE (AiAE), Center-Weighted Average, Spot (Fixed to Center of Frame), Face AE
Exposure Compensation +/- 2EV in 1/3 Step Increments
Shutter Speed 1/2000 ~ 30 Seconds
Continuous Shooting Yes
Playback Modes Single Photo, Index (9/16 Thumbnails), Slide Show, Date, Zoom (Approx. x2 ~ x8)
White Balance Control Auto (AWB), Daylight, Cloudy, Flourescent, Flourescent CWF, Incandescent, Manual, Color Temperature

Setting (1900K – 10000K)
Flash
Flash Method Pop-up (Manual)

Flash Modes Auto, Red-Eye Reduction, Fill Flash, Slow Synchro, Red-Eye Reduction + Slow Synchro
Shooting Range (Wide) Approx. 0.5 m – 7.5 m (ISO800); (Tele) Approx. 1.2 m – 4.4 m (ISO800)

Recording Media Internal Memory: Approx. 8MB
SD/SDHC Card (Up to 32GB Support) [MMC Card Not Supported]

Other Features Eye-Fi® Compatible, PictBridge, ExifPrint Support, Multi-Language Support (27 Languages)
Jacks AV-OUT/USB 2.0 (Micro 5 pin USB), HDMI (Type D)
Power Rechargeable Li-ion Battery LB-060, 3.7V 1100mAh, In-Camera Charging
Shooting Capability Approx. 200 Shots (Based on CIPA Standards)

(Battery Performance)
Operation Environment Temperature: 32° – 104°F / 0° – 40°C, Humidity: 0 – 90%
Dimensions (WxHxD) Approx. 4.44 x 3.21 x 3.32 in. / 112.7 x 81.6 x 84.4 mm (Based on CIPA Standards)
Weight Approx. Approx. 16 oz. / 45 4g (Body Only)
Supplied Accessories Rechargeable Li-ion Battery, AC Adapter, USB Cable, Neck Strap, Lens Cover, CD-ROM, Service Card, Quick Start Guide, Warranty

Landscape, Sketch, Snow, Children, ID, Glass, Photo Frame, Panning Shot, Text, Portrait, Fish Eye, Party, Indoor, Leaf, Museum, Night
Portrait, Pet (Cat), Pet (Dog)]

To learn more about KODAK PIXPRO Digital Cameras:

JK Imaging, Ltd.

visit: www.kodakcamera.jkiltd.com

1411 W. 190th Street, Suite 550
Gardena, CA 90248

© 2013 JK Imaging, Ltd. The Kodak trademark and trade dress are used under license from Kodak.
All information contained in this document is subject to change without notice.
Document Number/Sequence: U.DIS.0018.1220.en.01
