AUDIO/VIDEO CONTROL RECEIVER

RX-8000VBK

AUDIOTV

CATV/DBS

CDR/VCR 2

ANALOG/DIGITAL

123

TEST REAR-L

456

EFFECT REAR-R

SEA MODE

RETURN

SET

CHANNEL VOLUMETV VOL

TAPE/MD

VCR 1

CONTROL

/REW

PLAY

TUNING

REC

STOP PAUSE

RM-SRX8000J REMOTE CONTROL

VCR 1

SLEEP

CENTER

MENUMENU

ENTERENTER

SUBWOOFER

+10

100+FM MODE

AUDIO/

TV/VCR

CATV/DBS

TEXT DISPLAY

MUTING

FF/

RX-8000V AUDIO/VIDEO CONTROL RECEIVER

STANDBY

POWER

PHONES

COMPULINK

Remote

SPEAKERS

SURROUND ON/OFF

DSP MODE

BALANCE/SURROUND

ADJUST

SEA MODE

ANALOG/DIGITAL

SEA ADJUST SETTING

THEATER LIVE CLUB DANCE CLUB HALL PAVILION

INPUT

FM/AM TUNING TUNER PRESET

TUNER/SEA MEMORY FM MODE

SOUND SELECT

BASS BOOST ONE TOUCH O PE RA TI ON

SOURCE NAME

INPUT ATT.

MULTI JOG

DIGITAL

DVD

TV SOUND/DBS PHONO

CDR/VCR 2

SOURCE SELECTOR

MASTER VOLUME

TAPE/MDVCR 1

AMVIDEO

–

S-VIDEO VIDEO AUDIOLR

VIDEO

DVD DVD MUILTI CD TAPE/MD

TV/DBS VIDEO PHONO FM/AM

VCR 1

SURROUND CNTR TONE

ON/OFF

SURROUND

MODE

CD-DISC

SOUND

EXIT

TV/VIDEO

DOWN UP

DIGITAL

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT0427-001A

[J]

Warnings, Cautions and Others

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution –– POWER switch!

Disconnect the mains plug to shut the power off completely. The POWER switch in any position does not disconnect the mains line. The power can be remote controlled.

Caution –– SPEAKER LOAD SELECTOR switch!

Match the position of SPEAKER LOAD SELECTOR switch on the back panel to the impedance of the speaker connected, to protect from overheating.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Caution: Proper Ventilation

To avoide risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Wall or obstructions

Spacing 15 cm or more

Front

RX-8000VBK

Stand height 15 cm or more

Floor

G-1

Table of Contents

Parts Identification ...................................... 2

Getting Started ........................................... 3

Before Installation ...................................................................... 3

Checking the Supplied Accessories ........................................... 3

Connecting the FM and AM Antennas....................................... 3

Connecting the Speakers ............................................................ 4

Connecting Audio/Video Components....................................... 5

Connecting the Power Cord ....................................................... 9

Putting Batteries in the Remote Control .................................... 9

Basic Operations ....................................... 10

Turning the Power On and Off (Standby) ................................ 10

Selecting the Source to Play..................................................... 10

Adjusting the Volume ............................................................... 11

Selecting the Front Speakers .................................................... 11

Muting the Sound ..................................................................... 12

Reinforcing the Bass ................................................................ 12

Attenuating the Input Signal .................................................... 12

Adjusting the Subwoofer Output Level.................................... 12

Basic Settings ........................................... 13

Recording a Source .................................................................. 13

Adjusting the Front Speaker Output Balance........................... 13

Changing the Source Name...................................................... 13

Setting the Subwoofer Information .......................................... 14

Setting the Speakers for the DSP Modes ................................. 14

Digital Input (DIGITAL IN) Terminal Setting ......................... 16

Selecting the Analog or Digital Input Mode ............................ 16

Showing the Text Information on the Display ......................... 17

Storing the Basic Settings and Adjustments — One Touch

Operation ........................................................................... 18

Using the Sleep Timer.............................................................. 18

Receiving Radio Broadcasts ........................ 19

Using the DSP Modes ................................ 22

Available DSP Modes According to the Speak er Arrangement.. 24

Adjusting the 3D-PHONIC Modes .......................................... 25

Adjusting the DAP Modes ....................................................... 25

Adjusting the Surround Modes ................................................ 26

Activating the DSP Modes....................................................... 29

Using the DVD MULTI Playback Mode .......... 31

Activating the DVD MULTI Playback Mode .......................... 31

Using the On-Screen Menus ........................ 33

Selecting the Source to Play..................................................... 33

Selecting Different Sources for Picture and Sound.................. 33

Activating the DSP Modes....................................................... 33

Selecting the Analog or Digital Input Mode .............................. 33

Adjusting the Front Speaker Output Balance........................... 34

Reinforcing the Bass ................................................................ 34

Attenuating the Input Signal .................................................... 34

Adjusting the Subwoofer Output Level.................................... 34

Adjusting the DSP Modes ........................................................ 34

Adjusting the DVD MULTI Playback Mode ........................... 35

Selecting Your Favorite SEA Mode ......................................... 35

Creating Your Own SEA Mode ................................................ 35

Setting the Basic Setting Items ................................................ 36

Operating the Tuner.................................................................. 36

Storing the Preset Stations ....................................................... 37

Assigning Names to Preset Stations......................................... 37

COMPU LINK Remote Control System ......... 38

TEXT COMPU LINK Remote Control System .. 39

7 Showing the Disc Information on the TV Screen................. 40

7 Searching for a Disc (Only for the CD player) .................... 41

7 Entering the Disc Information .............................................. 42

Tuning in Stations Manually .................................................... 19

Using Preset T uning ................................................................. 19

Selecting the FM Reception Mode........................................... 20

Assigning Names to Preset Stations......................................... 20

Using the SEA Modes ................................ 21

Selecting Your Favorite SEA Mode ........................................... 21

Creating Your Own SEA Mode................................................ 21

AV COMPU LINK Remote Control System .... 44

Operating JVC’s Audio/Video Components ... 46

Operating Audio Components .................................................. 46

Operating Video Components .................................................. 48

Operating Other Manufacturers’ Video

Equipment ............................................ 49

Troubleshooting ......................................... 52

Specifications ............................................ 53

Parts Identification

Become familiar with the buttons and controls on the receiver before use. Refer to the pages in parentheses for details.

1 2

4 5

6 7

STANDBY

POWER

PHONES

COMPULINK

Remote

DVD DVD MUILTI CD TAPE/MD

TV/DBS VIDEO PHONO FM/AM

VCR 1

CDR/VCR 2

SURROUND CNTR TONE

ON/OFF

123

TEST REAR-L

SURROUND

MODE

456

CD-DISC

EFFECT REAR-R

SOUND

SEA MODE

RETURN FM MODE

EXIT

CHANNEL VOLUMETV VOL

TV/VIDEO

VCR 1

/REW

DOWN UP

REC

RM-SRX8000J REMOTE CONTROL

RX-8000V AUDIO/VIDEO CONTROL RECEIVER

SPEAKERS

AUDIOTV

TV/CATV/DBS

VCR 1

CATV/DBS

VCR 1

ANALOG/DIGITAL

SLEEP

CENTER

MENUMENU

ENTERENTER

SUBWOOFER

+10

100+

AUDIO/

TV/VCR

CATV/DBS

SET

TEXT

DISPLAY

345 67 8 9 p

SURROUND ON/OFF

DSP MODE

BALANCE/SURROUND

ADJUST

q w

TAPE/MD

CONTROL

PLAY

TUNING

STOP PAUSE

MUTING

FF/

;

INPUT

ANALOG/DIGITAL

SEA MODE

SEA ADJUST SETTING

THEATER LIVE CLUB DANCE CLUB HALL PAVILION

FM/AM TUNING TUNER PRESET

TUNER/SEA MEMORY

SOUND SELECT

INPUT ATT.

FM MODE

BASS BOOST ONE TOUCH OPERATION

SOURCE NAME

MULTI JOG

Remote Control

1 TV POWER button (48, 49) 2 CATV/DBS POWER button (50) 3 Source selecting buttons (10)

DVD, DVD MULTI, CD, TAPE/MD, TV/DBS, VIDEO, PHONO, FM/AM, VCR 1, CDR/VCR 2

4 SURROUND ON/OFF button (26, 29) 5 SURROUND MODE button (25) 6 CD-DISC button (47) 7 SOUND button (21, 25, 32) 8 On-screen operation buttons (33, 40)

MENU, SET, EXIT, %, ﬁ, @, #

9 TV VOL +/– buttons (48, 49) p Operating buttons for audio/video components

(46 – 48, 51)

q AUDIO POWER buttons (10) w VCR 1 POWER button (48, 51) e SLEEP button (18) r ANALOG/DIGITAL button (17) t • 10 keys for selecting preset channels (20)

• 10 keys for adjusting sound (21, 25 – 28, 32)

• 10 keys for operating audio/video components (46 – 51)

y Remote control mode selector (10, 46, 49) u TEXT DISPLAY button (40) i CHANNEL +/– button (48 – 51) o VOLUME +/– button (11) ; MUTING button (12)

DIGITAL

DVD

TV SOUND/DBS PHONO

TAPE/MDVCR 1

CDR/VCR 2

SOURCE SELECTOR

AMVIDEO

MASTER VOLUME

–

VIDEO

S-VIDEO VIDEO AUDIOLR

fdsa;oiuytrewq

Front Panel

1 POWER button and STANDBY lamp (10) 2 Remote sensor (9) 3 SURROUND ON/OFF button and lamp (27, 29) 4 SEA MODE button (21) 5 INPUT ANALOG/DIGITAL button (17) 6 FM/AM TUNING button (19) * 7 FM MODE button (20) 8 Display (10) 9 Source lamps (10) p MASTER VOLUME control (11) q PHONES jack (12) w SPEAKERS 1/2 buttons and lamps (11) e DSP MODE button (25) r BALANCE/SURROUND ADJUST button

(12, 13, 25) *

t SEA ADJUST button (21) * y SETTING button (14 – 17) * u TUNER/SEA MEMORY button (19 – 21) i SOUND SELECT/INPUT ATT. button

(11, 12)

o BASS BOOST/SOURCE NAME button

(12, 13)

; ONE TOUCH OPERATION button and lamp

(18)

a TUNER PRESET button (20) * s MULTI JOG control

What this control actually does depends on which function you are trying to adjust. Before using this control, select the function by pressing one of the buttons marked with *.

d SOURCE SELECTOR control (10) f VIDEO input jacks (7)

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Before Installation

General

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture.

• The temperature around the receiver must be between –5˚ C and 35˚ C (23˚ F and 95˚ F).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Connecting the FM and AM Antennas

FM Antenna Connections

LOOP

ANTENNA

FM 75

AM EXT

FM Antenna

ANTENNA

LOOP

Extend the supplied FM antenna horizontally.

FM 75 COAXIAL

Outdoor FM Antenna Cable

EXT

A. Using the Supplied FM Antenna

The FM antenna provided can be connected to the FM 75Ω COAXIAL terminal as temporary measure.

B. Using the Standard Type Connector (Not Supplied)

A standard type connector should be connected to the FM 75Ω COAXIAL terminal.

Note:

If reception is poor, connect the outdoor antenna. Before attaching a 75 to an outdoor antenna), disconnect the supplied FM antenna.

Ω

coaxial cable (the kind with a round wire going

LOOP

ANTENNA

FM 75

AM EXT

4 ~ 6 8 ~ 16

–+–

RIGHT LEFT

SPEAKER

LOAD

SELECTOR

LOW

HIGH

FRONT SPEAKERS

AM Antenna Connections

ANTENNA

FM 75 COAXIAL

Snap the tabs on the loop into the slots of the base to assemble the AM loop.

Basic connecting procedure

LOOP

EXT

AM Loop Antenna

Outdoor single vinyl-covered wire

Turn the loop until you have the best reception.

Notes:

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

• If reception is poor, connect an outdoor single vinyl-covered wire to the AM EXT terminal. (Keep the AM loop antenna connected.)

1 Cut, twist and remove the insulation at the end of

each speaker signal cable (not supplied).

2 Turn the knob counterclockwise.

3 Insert the speaker signal cable.

4 Turn the knob clockwise.

Connecting the front speakers

You can connect two pairs of front speakers (one pair to the FRONT SPEAKERS 1 terminals, and another pair to the FRONT SPEAKERS 2 terminals).

Right speaker

FRONT SPEAKERS 1

Left speaker

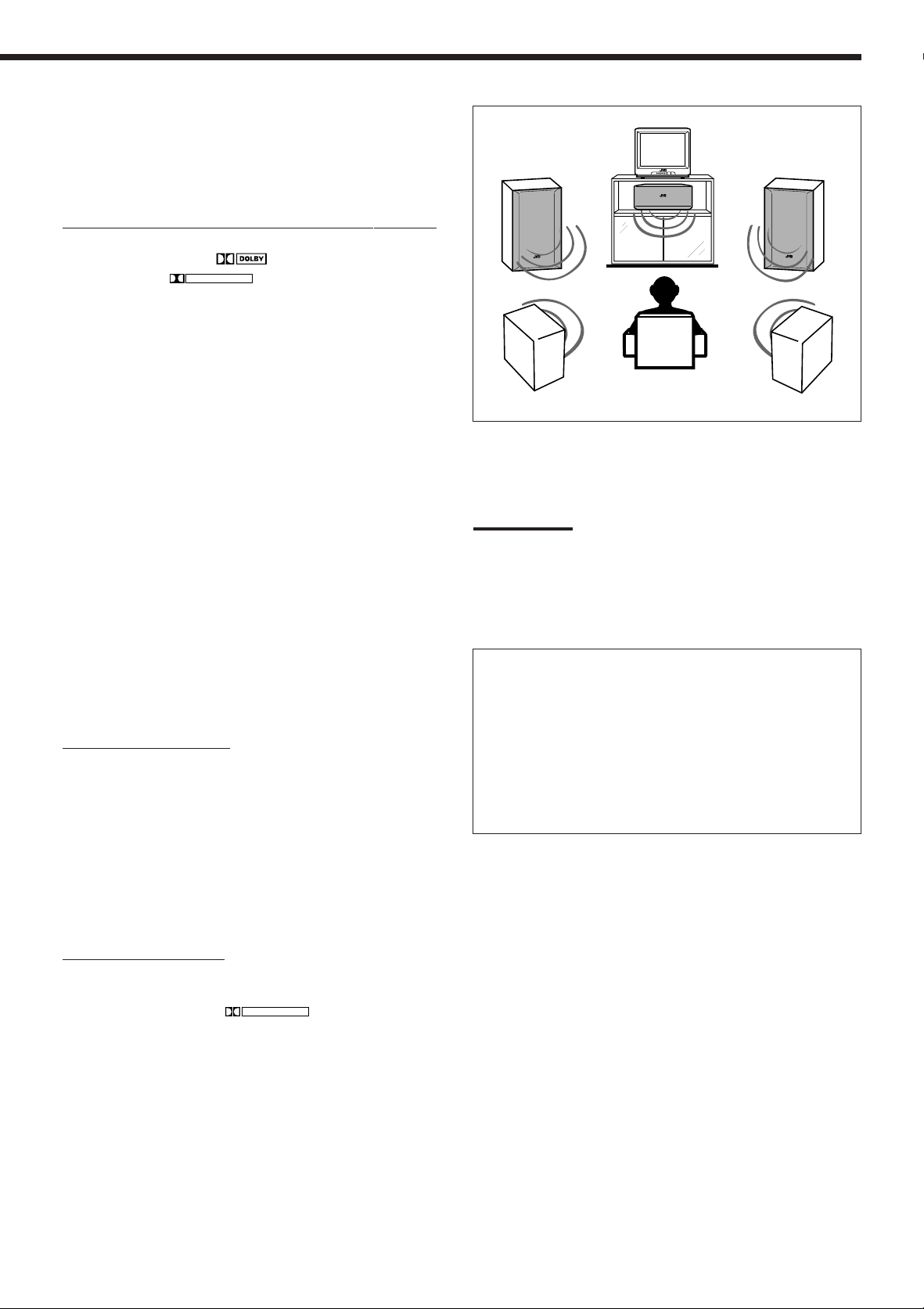

Connecting the Speakers

You can connect the following speakers:

• Two pairs of front speakers to produce normal stereo sound.

• One pair of rear speakers to enjoy the surround effect.

• One center speaker to produce more effective surround effect (to

emphasize human voices).

• One subwoofer to enhance the bass.

IMPORTANT:

After connecting the speakers listed above, set the speaker setting information properly to obtain the best possible DSP effect. For details, see page 14.

For each speaker (except for a subwoofer), connect the (–) and (+) terminals on the rear panel to the (–) and (+) terminals marked on the speakers. For connecting a subwoofer, see page 5.

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals.

Right speaker

FRONT SPEAKERS 2

Left speaker

IMPORTANT:

To obtain the best possible output power from the receiver, and to prevent the receiver from being overheated, the receiver has the SPEAKER LOAD SELECTOR which has to be set as follows:

• Set it to the HIGH position when the impedance of the front speakers connected is within the range of 8 ohms to 16 ohms.

• Set it to the LOW position when the impedance of the front speakers connected is within the range of 4 ohms to 6 ohms.

Connecting the rear and center speakers

Connect rear speakers to the REAR SPEAKERS terminals and a center speaker to the CENTER SPEAKER terminals.

Analog connections

Audio component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, and the red plug to the audio right jack.

Center speaker

Left rear

speaker

Right rear

speaker

CENTER

SPEAKER

–

RIGHT

REAR

SPEAKERS

LEFT

–

Connecting the subwoofer speaker

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cable with RCA pin plugs (not supplied).

SUBWOOFER

OUT

Powered subwoofer

Connecting Audio/Video Components

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

Turntable

If an earth cable is provided for your turntable, connect the cable to the screw marked (H) on the rear panel.

Turntable

RIGHT LEFT

To audio output

AUDIO

PHONO

OUT

(REC)

TAPE

/MD

(PLAY)

Note:

Any turntables incorporating a small-output cartridge such as an MC (moving-coil) type must be connected to this receiver through a commercial head amplifier or step-up transformer. Direct connection may result in insufficient volume.

You can connect the following audio/video components to this receiver. Refer also to the manuals supplied with your components.

Audio Components Video Components

• Turntable • DVD player*

• CD player* • TV*

• Cassette deck • DBS tuner* or MD recorder* • VCR(s)

• CD recorder* • Video camera

* You can connect these components using the methods described in

“Analog connections” (to the right) or in “Digital connections” (see page 8).

CD player

To audio output

RIGHT LEFT

AUDIO

PHONO

OUT

(REC) TAPE

/MD

(PLAY)

Cassette deck or MD recorder

Cassette deck

To audio input

MD recorder

To audio input

RIGHT LEFT

To audio output

AUDIO

PHONO

OUT

(REC)

TAPE

/MD

(PLAY)

To audio output

IMPORTANT:

This receiver is equipped with both the composite video and S-video input/output terminals for connecting video components. You do not have to connect both the composite video and S-video terminals. However, remember that the video signals from the composite

video input terminals are output only through the composite video output terminals, while the ones from the S-video input terminals are output only through the S-video output terminals.

Therefore, if a recording video component and a playing video component are connected to the receiver through the different video terminals, you cannot record the picture from the playing component on the recording component. In addition, if the TV and a playing video component are connected to the receiver through the different video terminals, you cannot view the playback picture from the playing component on the TV.

To view and record the playback picture from the video component connected to the CDR/VCR 2 jacks, you must connect the TV and the recording video component through the composite video terminals.

Note:

You can connect either a cassette deck or an MD recorder to the TAPE/MD jacks. When connecting an MD recorder to the TAPE/MD jacks, change the source name, which will be shown on the display when selected as the source, to “MD.” See page 13 for details.

CD recorder

To audio input

AUDIO

DVD

TV SOUND

/DBS

OUT

(REC)

VCR 1

(PLAY)

OUT

(REC)

CDR /VCR 2

(PLAY)

MONITOR

OUT

To audio output

VIDEO

VIDEO S-VIDEORIGHT LEFT

VCR

AUDIO

S-VHS (or VHS) VCR

TV SOUND

(PLAY)

MONITOR

DVD

/DBS

OUT

(REC)

VCR 1

OUT

(REC)

CDR /VCR 2

(PLAY)

OUT

VIDEO

VIDEO S-VIDEORIGHT LEFT

If your audio components have a COMPU LINK or TEXT COMPU LINK jack

• See also page 38 for detailed information about the connection and the COMPU LINK remote control system.

• See also page 39 for detailed information about the connection and the TEXT COMPU LINK remote control system.

Video component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack. If your video components have S-video (Y/C-separation) terminals, connect them using S-video cables (not supplied). Connecting these video components through the S-video input/output terminals will give you better picture playback (or recording) quality.

VHS VCR

Å To left/right channel audio output ı To left/right channel audio input Ç To S-video output Î To composite video output ‰ To composite video input Ï To S-video input

DVD

VIDEO

VIDEO S-VIDEORIGHT LEFT

AUDIO

DVD

Video camera

The VIDEO input jacks on the front panel are convenient when connecting and disconnecting the equipment frequently.

VIDEO

S-VIDEO VIDEO AUDIOLR

To audio output

To S-video output To composite

video output

DVD player

• When you connect the DVD player with stereo output jacks:

DVD player

TV and/or DBS tuner

When connecting the TV, DO NOT connect the TV’s video output to these video input terminals.

To audio output

Connect the TV to the MONITOR OUT jack to view the playback picture from the other connected video components.

To composite video input

To S-video input

RIGHT

AUDIO

DVD

TV SOUND

/DBS

OUT

(REC)

VCR 1

(PLAY)

OUT

(REC)

CDR /VCR 2

(PLAY)

MONITOR

OUT

Å To front left/right channel audio output (or to audio mixed

output if necessary)

ı To S-video output Ç To composite video output

VIDEO

VIDEO S-VIDEORIGHT LEFT

• When you connect the DVD player with its analog discrete output (5.1 CH reproduction) jacks:

DVD player

DVD

TV SOUND

/DBS

OUT

(REC)

VCR 1

(PLAY)

OUT

(REC)

CDR /VCR 2

(PLAY)

MONITOR

OUT

VIDEO

VIDEO S-VIDEORIGHT LEFT

SUB

WOOFER

AUDIO

CENTER

DVD

RIGHT

AUDIO

DVD

VIDEO

VIDEO S-VIDEORIGHT LEFT

To audio output

TV SOUND

/DBS

OUT

(REC)

DBS tuner

DBS

To composite video output

Note:

When connecting the DBS tuner to the TV SOUND/DBS jacks, change the source name, which will be shown on the display when selected as the source, to “DBS.” See page 13 for details.

To S-video output

(PLAY)

OUT

(REC)

VCR 2

Å To center channel audio output ı To subwoofer audio output Ç To S-video output Î To front left/right channel audio output ‰ To rear left/right channel audio output Ï To composite video output

Digital connections

This receiver is equipped with four DIGITAL IN terminals — one digital coaxial terminal and three digital optical terminals, and one DIGITAL OUT terminal. You can connect any digital equipment such as —

• DBS tuner,

• Digital TV broadcast tuner,

• DVD player,

• CD player,

• CD recorder, and

• MD recorder.

IMPORTANT:

• When connecting the DVD player, digital TV broadcast tuner or DBS tuner using the digital terminals, you also need to connect it to the video jack (either composite video terminal or S-video terminal) on the rear. Without connecting it to the video jack, you can view no playback picture.

• After connecting the components using the DIGIT AL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly. For

details, see “Digital Input (DIGITAL IN) Terminal Setting” on page

16.

– Select the digital input mode correctly. For details, see “Selecting

the Analog or Digital Input Mode” on page 16.

Digital input terminals

Notes:

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components. – DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For CD player – DIGITAL 3 (optical): For digital TV broadcast tuner – DIGITAL 4 (optical): For CD recorder

• When you want to operate the CD player, CD recorder, or MD recorder using the COMPU LINK remote control system, connect the target component also as described in “Analog connections” (see pages 5 and 6).

• When you want to operate the DVD player using the AV COMPU LINK remote control system, connect the DVD player also as described in “Analog connections” (see page 7).

Digital output terminal

CD recorder

MD recorder

Digital optical cable (not supplied) between digital optical terminals

DBS tuner

DBS

CD player

CD recorder

Digital coaxial cable (not supplied) between digital coaxial terminals

Digital optical cable (not supplied) between digital optical terminals

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using the digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD), DIGITAL 3 (TV) or DIGITAL 4 (CDR) terminal, using the digital optical cable (not supplied).

Before connecting a digital optical cable, unplug the protective plug.

DVD player

DVD

MD recorder

PCM / DOLBY DIGITAL

DIGITAL 1 (DVD)

DIGITAL 2 (CD)

DIGITAL 3 (TV)

DIGITAL 4 (CDR)

DIGITAL IN

/ DTS

When the digital recording equipment such as an MD recorder has a digital optical input terminal, connecting it to the DIGITAL OUT terminal enables you to perform digital-to-digital recording.

DIGITAL OUT

PCM/DOLBY DIGITAL/DTS

Connecting the Power Cord

Putting Batteries in the Remote Control

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference. We recommend that you use a coaxial cable to connect the antenna, since it is well-shielded against interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

Before using the remote control, put two supplied batteries first. When using the remote control, aim the remote control directly at the remote sensor on the receiver.

R6P(SUM-3)/AA(15F)

1. On the back of the remote control, remove the battery cover.

2. Insert batteries. Make sure to match the polarity: (+) to (+).

3. Replace the cover.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+) to (+).

• Use the correct type of batteries. Batteries that look similar may differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Basic Operations

The following operations are commonly used when you play any sound source.

IMPORTANT:

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR.”

AUDIO/ TV/VCR

CATV/DBS

Turning the Power On and Off (Standby)

On the front panel:

To turn on the power, press POWER. The STANDBY lamp goes off. The name of the current source (or station frequency) appears on the display.

Current source name appears

Current volume level is shown here

To turn off the power (into standby mode),

press POWER again. The STANDBY lamp lights up. A small amount of power is consumed in standby mode. To turn the power off completely, unplug the AC power cord.

From the remote control:

To turn on the power, press AUDIO POWER. The STANDBY lamp goes off. The name of the current source (or station frequency) appears on the display.

CATV/BDS

POWER

STANDBY

POWER

STANDBY

AUDIOTV

VCR 1

From the remote control:

Press one of the source selecting buttons.

DVD DVD MUILTI CD TAPE/MD

TV/DBS VIDEO PHONO FM/AM

VCR 1 CDR/VCR 2

Selected source name appears

DVD Select the DVD player. DVD MULTI Select the DVD player for viewing the digital video

disc using the analog discrete output mode (5.1CH reproduction) on the DVD player.

To enjoy the DVD MULTI playback, see page 31.

CD * Select the CD player. TAPE/MD * Select the cassette deck (or the MD recorder). TV/DBS Select TV sounds (or the DBS tuner). VIDEO Select video component connected to the VIDEO

jacks.

PHONO * Select the turntable. FM/AM * Select an FM or AM broadcast.

• Each time you press the button, the band alternates between FM and AM.

VCR 1 Select the video component connected to the VCR 1

jacks.

CDR/VCR 2 *Select the CD recorder or video component

connected to the CDR/VCR 2 jacks.

To turn off the power (into standby mode), press AUDIO POWER again. The STANDBY lamp lights up.

Selecting the Source to Play

On the front panel:

Turn SOURCE SELECTOR until the source name you want appears on the display.

• As you turn the selector, the source changes as follows:

CD O PHONO O TAPE (or MD) O FM O AM O DVD O DVD MULTI O TV SOUND (or DBS) O VCR 1 O CDR/VCR 2 O VIDEO O (back to the beginning)

The selected source lamp also lights up.

• The DVD lamp lights up both for “DVD” and “DVD MULTI.”

SOURCE SELECTOR

DVD

TV SOUND/DBS PHONO

CDR/VCR 2

VIDEO

TAPE/MDVCR 1

Notes:

• When connecting an MD recorder (to the TAPE/MD jacks), and a DBS tuner (to the TV SOUND/DBS jacks), change the source name shown on the display. For details, see page 13.

• When you press one of the source selecting buttons on the remote control marked above with an asterisk (*), the receiver automatically turns on.

Signal and speaker indicators on the display

• The signal indicators light up to indicate the incoming channel signals. – Only the indicators for the incoming signals light up.

• The frame of the signal indicator (except for “LFE” and “S”) lights up if the corresponding speaker is set to “LARGE” or “SMALL” (for subwoofer, “YES”). – The frames of “L” and “R” indicators always light up.

LFESUBWFR

Adjusting the Volume

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

• When you turn MASTER VOLUME rapidly, the volume level also changes rapidly.

• When you turn MASTER VOLUME slowly, the volume level also chang es slowly.

MASTER VOLUME

–

L:•When digital input is selected: Lights up when the left

channel signal comes in.

• When analog input is selected: Always lights up.

R:•When digital input is selected: Lights up when the right

channel signal comes in.

• When analog input is selected: Always lights up.

C: Lights up when the center channel signal comes in. LS: Lights up when the left rear channel signal comes in. RS: Lights up when the right rear channel signal comes in. S: Lights up when the monaural rear channel signal comes in. LFE: Lights up when the LFE channel signal comes in.

Notes:

• When “SUBWOOFER” is set to “YES,”

• When you select “DVD MULTI,” all the signal indicators except “S” light up.

SUBWFR

lights up.

Selecting different sources for picture and sound

You can watch picture from a video component while listening to sound from another component.

On the front panel:

1. Press SOUND SELECT (INPUT

ATT.) briefly while viewing the

SOUND SELECT

INPUT ATT.

picture from a video component such as the VCR or DVD player, etc.

“SOUND SELECT” appears on the display.

2. Turn SOURCE SELECTOR to

SOURCE SELECTOR

select the sound (except the TV sound), while the indication of the above step is still on the display.

From the remote control:

To increase the volume, press VOLUME +.

VOLUME

To decrease the volume, press VOLUME –.

CAUTION:

Always set the volume to the minimum before starting any source. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

Note:

The volume level can be adjusted within the range of “0” (minimum) to “90” (maximum).

Selecting the Front Speakers

On the front panel ONLY:

When you have connected two pairs of the front speakers, you can select which to use.

Press SPEAKERS 1 or SPEAKERS 2 to select the speaker to use.

• Each time you press the button, the lamp on the respective button turns on and off. When the lamp on either button lights up, the respective speakers are activated.

IMPORTANT:

You can activate two pairs of the front speakers at the same time only when the SPEAKER LOAD SELECTOR on the rear panel is set to “HIGH” and when no signals are sent to the center and rear speakers. Otherwise, activating one pair of the speakers deactivates the other.

Note:

If you use any of the DSP modes other than the 3D-PHONIC modes with both front speakers activated, the speakers connected to the FRONT SPEAKERS 2 terminals are deactivated.

SPEAKERS

From the remote control:

Press one of the audio source selecting buttons (CD, TAPE/MD, PHONO, FM/AM, TV/DBS*), while viewing the picture from a video component such as the VCR or DVD player, etc.

Notes:

• Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

* The TV/DBS button only works for selecting “DBS” as the source

but not for selecting “TV SOUND.” When you use the DBS tuner, change the source name correctly (see page 13).

Listening only with headphones

You can listen with the headphones without deactivating both pairs of speakers; however, if you want to use the HEADPHONE mode (see below), you must turn off both pairs of speakers.

1. Connect a pair of headphones to the PHONES jack on the front

panel.

2. Press SPEAKERS 1 and/or 2 so that no lamps on the buttons are

turned on. This cancels the surround mode or DSP mode currently selected, and activates the HEADPHONE mode (see below).

• The HEAD PHONE indicator lights up on the display.

HEADPHONE mode:

This mode can reproduce the LFE channel signals, mixing them with the front channel signals. So you will not miss the subwoofer sounds even if you listen to a source using the headphones.

Notes:

• While in the headphones mode, you cannot use any other DSP

modes (see page 22.)

• Activating the speaker cancels the headphones mode and turns on

the DSP mode previously selected.

CAUTION:

Be sure to turn down the volume before connecting or putting on headphones, as high volume can damage both the headphones and your hearing.

Attenuating the Input Signal

When the input level of the playing source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

On the front panel ONLY:

Press and hold INPUT ATT. (SOUND

SOUND SELECT

SELECT) so that the ATT indicator lights up on the display.

INPUT ATT.

• Each time you press and hold the button, the Input Attenuator mode turns on (“INPUT ATT ON”) or off (“INPUT NORMAL”).

Notes:

• This function is available only for the sources connected using the

analog terminals.

• This function takes effect when the DSP mode is in use.

• When selecting “DVD MULTI” as the source, this effect does not

work.

Adjusting the Subwoofer Output Level

You can adjust the subwoofer output level if you have selected “YES” for the “SUBWOOFER” (see page 14). Once it has been adjusted, the receiver memorizes the adjustment.

Muting the Sound

From the remote control ONLY:

Press MUTING to mute the sound through all

MUTING

speakers and headphones connected.

“MUTING” appears on the display and the volume turns off (the volume level indicator goes off).

To restore the sound, press MUTING again so that “OFF” appears on the display.

• Turning MASTER VOLUME on the front panel or pressing VOLUME +/– on the remote control also restores the sound.

Reinforcing the Bass

You can boost the bass level.

On the front panel ONLY:

Press BASS BOOST (SOURCE NAME) briefly to select the bass boost function.

• Each time you press the button, the bass boost function turns on (“BASSBOOST ON”) and off (“BASSBOOST OFF”). – Select “BASSBOOST ON” to activate the bass boost function.

The BASS BOOST indicator lights up on the display.

– Select “BASSBOOST OFF” to cancel it.

The indicator goes off.

BASS BOOST

SOURCE NAME

Before you start, remember....

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

• When the front speakers are all deactivated, the subwoofer level cannot be adjusted.

On the front panel:

1. Press BALANCE/SURROUND

BALANCE/SURROUND

ADJUST

ADJUST repeatedly until “SUBWFR LEVEL” appears on the display.

The display changes to show the current setting.

2. Turn MULTI JOG to adjust the

MULTI JOG

subwoofer output level (–10 dB to +10 dB).

From the remote control:

1. Press SOUND.

SOUND

The 10 keys are activated for sound adjustments.

2. Press SUBWOOFER –/+ to adjust

the subwoofer output level (–10 dB to +10 dB).

SUBWOOFER

+10

100+FM MODE

Note:

This function affects the front speaker sounds only.

Basic Settings

Some of the following settings are required after connecting and positioning your speakers in your listening room, while others will make operations easier.

IMPORTANT:

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR.”

AUDIO/ TV/VCR

CATV/DBS

Recording a Source

For analog-to-analog recording

You can record any analog source through the receiver to —

• the cassette deck (or MD recorder) connected to the TAPE/MD jacks,

• the VCR connected to the VCR 1 jacks, and

• the CD recorder (or VCR) connected to the CDR/VCR2 jacks

— at the same time.

For digital-to-digital recording

You can record the currently selected digital input through the receiver to a digital recording device connected to the DIGITAL OUT terminal.

Notes:

• Analog-to-digital and digital-to-analog recordings are not possible.

• The output volume level, bass boost (see page 12), SEA modes

(see page 21), and DSP modes (see page 22) cannot affect the recording.

• The test tone signal (see page 26, 28) does not come out through

the DIGITAL OUT terminal.

Adjusting the Front Speaker Output Balance

If the sounds you hear from the front right and left speakers are unequal, you can adjust the speaker output balance.

Before you start, remember....

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Changing the Source Name

When you have connected an MD recorder to the TAPE/MD jacks or the DBS tuner to the TV SOUND/DBS jacks on the rear panel, change the source name which will be shown on the display when you select the MD recorder or DBS tuner as the source.

On the front panel ONLY:

SOURCE SELECTOR

1. When changing the source name from “TAPE” to “MD”:

• Turn SOURCE SELECTOR

until “TAPE” appears.

When changing the source name from “TV SOUND” to “DBS”:

• Turn SOURCE SELECTOR until “TV

SOUND” appears.

BASS BOOST

2. Press and hold SOURCE NAME (BASS BOOST) until “ASSGN.

SOURCE NAME

MD” or “ASSGN. DBS” appears on the display.

To change the source name to “TAPE” or “TV SOUND,” repeat

the same procedure above — in step 1, select “MD” or “DBS” then press and hold SOURCE NAME (BASS BOOST).

Notes:

• You can only assign the correct source name to “TAPE/MD” and

“TV SOUND/DBS,” but not to “CDR/VCR 2.”

• Without changing the source name, you can still use the connected

components. However, there may be some inconvenience. – “TAPE” or “TV SOUND” will appear on the display when you

select the MD recorder or DBS tuner.

– You cannot use the digital input (see page 16) for the MD

recorder.

– You cannot use the COMPU LINK remote control system (see

page 38) to operate the MD recorder.

On the front panel ONLY:

1. Press BALANCE/SURROUND ADJUST repeatedly until “L/R BALANCE” appears on the display.

The display changes to show the current setting.

2. Turn MULTI JOG to adjust the balance.

• Turning it clockwise decreases the left

channel output.

• Turning it counterclockwise decreases the

right channel output.

BALANCE/SURROUND

ADJUST

MULTI JOG

Setting the Subwoofer Information

Before you start, remember....

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel:

SETTING

1. Press SETTING repeatedly until

“SUBWOOFER” appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to register

whether you have connected a subwoofer or not.

• As you turn it, the subwoofer setting alternates between “YES” and “NO.”

YES: Select this when a subwoofer is used.

up on the display (see page 11).

NO: Select this when no subwoofer is used.

SUBWFR

lights

Setting the Speakers for the DSP Modes

To obtain the best possible surround sound of the DSP modes, you have to register the information about the speakers arrangement after all connections are completed.

Before you start, remember....

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Front, Center, and Rear Speaker Setting

• When you change your speakers, you need to register the information about the speakers again.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“FRONT SPK” (Front Speaker), “CENTER SPK” (Center Speaker) or “REAR SPK” (Rear Speaker) appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the

appropriate item about the speaker selected in the above step.

• As you turn it, the display changes to show the following:

LARGE SMALL NONE

LARGE: Select this when the speaker size is relatively large. SMALL: Select this when the speaker size is relatively small. NONE: Select this when you have not connected a speaker.

(Not selectable for the front speakers)

3. Repeat steps 1 and 2 to select the appropriate items for the other speakers.

Notes:

• Keep the following comment in mind as reference when adjusting.

– If the size of the cone speaker unit built in your speaker is greater

than 4 3/4 inches (12 cm ), select “LARGE,” and if it is smaller than 4 3/4 inches (12 cm ), select “SMALL.”

• If you have selected “NO” for the subwoofer setting, you can only

select “LARGE” for the front speaker setting.

• If you have selected “SMALL” for the front speaker setting, you

cannot select “LARGE” for the center and rear speaker settings.

Center Delay Time Setting

Register the delay time of the sound from the center speaker, comparing to that of the sound from the front speakers. If the distance from your listening point to the center speaker is equal to that to the front speakers, select 0 msec. As the distance to the center speaker becomes shorter, increase the delay time.

• 1 msec increase (or decrease) in delay time corresponds to 11

inches (30 cm) decrease (or increase) in distance.

• When shipped from the factory, delay time is set to 0 msec.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

/16

“CENTER DELAY” appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the delay time of the center speaker output.

• Turn it clockwise to increase the delay time from 0 msec (“C.

DELAY: 0ms”) to 5 msec (“C. DELAY: 5ms”).

• Turn it counterclockwise to decrease the delay time from 5

msec (“C. DELAY: 5ms”) to 0 msec (“C. DELAY: 0ms”).

Notes:

• Center delay time setting is not valid for the DVD MULTI playback

mode.

• You cannot adjust the center delay time when you have set

“CENTER SPK” to “NONE.”

Rear Delay Time Setting

Register the delay time of the sound from the rear speakers, comparing to that of the sound from the front speakers. If the distance from your listening point to the rear speakers is equal to that to the front speakers, select 0 msec. As the distance to the rear speakers becomes shorter, increase the delay time.

• 1 msec increase (or decrease) in delay time corresponds to 11

inches (30 cm) decrease (or increase) in distance.

• Rear delay time for Dolby Digital and DTS Digital Surround is to

be set to 5 msec.

• When shipped from the factory, delay time is set to 5 msec.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“REAR DELAY” appears on the display.

The display changes to show the current setting.

/16

MULTI JOG

2. Turn MULTI JOG to select the delay time of the rear speaker output.

• Turn it clockwise to increase the delay time from 0 msec (“R.

DELAY: 0ms”) to 15 msec (“R. DELAY: 15ms”).

• Turn it counterclockwise to decrease the delay time from 15

msec (“R. DELAY: 15ms”) to 0 msec (“R. DELAY: 0ms”).

Notes:

• Rear delay time setting is not valid for the DVD MULTI playback

mode.

• You cannot adjust the rear delay time when you have set “REAR

SPK” to “NONE.”

Crossover Frequency Setting

Small speakers cannot reproduce the bass sound very well. So, if you have used a small speaker for any of the front, center, and rear channels, this receiver automatically reallocate the bass elements, originally assigned to the channel for which you have connected the small speaker, to another channel (for which you have connected the large speaker). To use this function properly, you need to set the crossover frequency level according to the size of the small speaker connected.

• If you have selected “LARGE” for all speakers (see page 14), this

function is set to “OFF” and cannot be adjusted.

On the front panel ONLY:

SETTING

1. Press SETTING repeatedly until “CROSSOVER FRQ” (Crossover Frequency) appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the crossover frequency level according to the size of the small speaker connected.

• As you turn it, the display changes to show the following:

80Hz 100Hz 120Hz

• Use the following comments as reference when adjusting.

80Hz: Select this when the cone speaker unit built in the

speaker is about 4

100Hz: Select this when the cone speaker unit built in the

speaker is about 3

120Hz: Select this when the cone speaker unit built in the

speaker is about 3 3/16 inches (8 cm).

Note:

Crossover frequency setting is not valid for the DVD MULTI playback mode, 3D-PHONIC mode, and HEADPHONE mode.

/4 inches (12 cm).

/16 inches (10 cm).

Low Frequency Effect Attenuator Setting

If the bass sound is distorted while playing back a source using Dolby Digital or DTS Digital Surround, follow the procedure below.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“LFE ATT” (Low Frequency Effect Attenuator) appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the low frequency effect attenuator level.

• As you turn it, the display changes to show the following:

0dB 10dB

0dB: Normally select this. 10dB: Select this when the bass sound is distorted.

Note:

Low frequency effect attenuator setting is not valid for the DVD MULTI playback mode.

Dynamic Range Compression Setting

You can compress the dynamic range (difference between maximum sound and minimum sound) of the reproduced sound. This is useful when enjoying surround sound at night.

• This function takes effect only when playing back a source using

Dolby Digital.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“D. RANGE COMP.” (Dynamic Range Compression) appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the appropriate item about the compression level.

• As you turn it, the display changes to show the following:

OFF MID MAX

OFF: Select this when you want to enjoy surround with its

full dynamic range. (No effect applied.)

MID: Select this when you want to reduce the dynamic

range a little. (Factory setting).

MAX: Select this when you want to apply the compression

effect fully. (Useful at night).

Note:

Dynamic Range Compression setting is not valid for the DTS Digital Surround and DVD MULTI playback mode.

Digital Input (DIGITAL IN) Terminal Setting

When you use the digital input terminals, you have to register what components are connected to which terminals (DIGITAL IN 1/2/3/

4).

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

SETTING

On the front panel ONLY:

To set the DIGITAL 1 terminal

1. Press SETTING repeatedly until

“COAX. DIG. IN” appears on the

MULTI JOG

display.

The display changes to show the current setting.

2. Turn MULTI JOG to select the

appropriate digital terminal setting.

• As you turn it, the display changes to show the following:

1 DVD “ 1 MD “ 1 CDR “ 1 TV (or 1 DBS*) “ 1 CD “ (back to the beginning)

If you have changed the source name from “TV SOUND” to “DBS,” “DBS” appears.

When the DIGITAL 1 is set to “CDR”

2 CD 3 TV (or 4 DBS*) 4 MD “ 2 CD 3 MD 4 DVD “ 2 MD 3 TV (or 4 DBS*) 4 DVD “ 2 CD 3 TV (or 4 DBS*) 4 DVD “ (back to the beginning)

When the DIGITAL 1 is set to “TV” or “DBS”

2 CD 3 DVD 4 CDR “ 2 CD 3 DVD 4 MD “ 2 CD 3 MD 4 CDR “ 2 MD 3 DVD 4 CDR “ (back to the beginning)

When the DIGITAL 1 is set to “CD”

2 MD 3 TV (or 3 DBS*) 4 CDR “ 2 DVD 3 TV (or 3 DBS*) 4 CDR “ 2 DVD 3 TV (or 3 DBS*) 4 MD “ 2 DVD 3 MD 4 CDR “ (back to the beginning)

If you have changed the source name from “TV SOUND” to “DBS,” “DBS” appears.

Note:

When shipped from the factory, the DIGITAL IN terminals can be used as the digital input for the following components.

• DIGITAL 1 (coaxial): For DVD player

• DIGITAL 2 (optical): For CD player

• DIGITAL 3 (optical): For digital TV broadcast tuner

• DIGITAL 4 (optical): For CD recorder

To set the DIGITAL 2/3/4 terminal

1. Press SETTING repeatedly until

“OPT. DIG. IN” appears on the display.

The display changes to show the current setting.

DIGITAL 3 terminal setting

DIGITAL 2 terminal setting

DIGITAL 4 terminal setting

2. Turn MULTI JOG to select the

appropriate digital terminal settings.

• As you turn it, the display changes to show the following:

When the DIGITAL 1 is set to “DVD”

2 CD 3 MD 4 CDR “ 2 MD 3 TV (or 2 DBS*) 4 CDR “ 2 CD 3 TV (or 2 DBS*) 4 CDR “ 2 CD 3 TV (or 2 DBS*) 4 MD “ (back to the beginning)

When the DIGITAL 1 is set to “MD”

2 DVD 3 TV (or 2 DBS*) 4 CDR “ 2 CD 3 TV (or 2 DBS*) 4 CDR “ 2 CD 3 TV (or 2 DBS*) 4 DVD “ 2 CD 3 DVD 4 CDR “ (back to the beginning)

SETTING

MULTI JOG

Selecting the Analog or Digital Input Mode

When you have connected digital source components using the digital terminals (see page 8), you need to change the input mode for these components to the appropriate digital input mode correctly — AUTO/PCM, DOLBY DIGITAL, or DTS.

Before you start, remember...

• The digital input (DIGITAL IN) terminal setting should be correctly done for the sources you want to select the digital input mode for. Without setting this digital input terminal

correctly, you cannot change the input mode from analog input to digital input even if you follow the procedure below.

On the front panel:

1. Turn SOURCE SELECTOR until

SOURCE SELECTOR

the source (CD, MD, TV SOUND, DBS, DVD, or CDR/VCR2)* for which you want to change the input mode appears on the display.

Note:

Among the sources listed above, you can select the digital input only for the sources which you have selected the digital input terminals for. (See “Digital Input (DIGITAL IN) Terminal Setting.”)

+ 41 hidden pages
