JVC RX-7030VBK User Manual

For Customer Use:
Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
Model No.
Serial No.
AUDIO/VIDEO CONTROL RECEIVER
231
564
89
7/P
0
+10
MENU
ENTER
CONTROL
A/V CONTROL RECEIVER
10/0
RX-8030VBK RX-7030VBK/RX-7032VSL
(For RX-8030VBK)
(For RX-8030VBK)

INSTRUCTIONS

Warnings, Cautions and Others/
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
For U.S.A
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the manufacturer for compliance could void the user s authority to opratethe equipment.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND
Mises en garde, précautions et indications diverses
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Afin d’éviter tout risque d’électrocution, d’incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.
2. Ne pas exposer l’appareil à la pluie ni à l’humidité.
Caution –– STANDBY/ON button!
Disconnect the mains plug to shut the power off completely. The
STANDBY/ON button in any position does not disconnect
the mains line. The power can be remote controlled.
Attention –– Commutateur STANDBY/ON!
Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.
G-1
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
For Canada/pour Le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPA­RATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

Table of Contents

RX-8030V
ONLY
RX-7030V RX-7032V
ONLY
Remote
NOT
Introduction ................................................ 2
Features ...................................................................................... 2
Precautions ................................................................................. 2
Parts Identification ...................................... 3
Remote Control .......................................................................... 3
Front Panel ................................................................................. 4
Rear Panel .................................................................................. 6
Getting Started ........................................... 8
Before Installation ...................................................................... 8
Checking the Supplied Accessories ........................................... 8
Putting Batteries in the Remote Control .................................... 8
Connecting the FM and AM Antennas ....................................... 8
Connecting the Speakers ............................................................ 9
Connecting Audio/Video Components ..................................... 11
7 Analog Connections ............................................................. 11
7 Digital Connections .............................................................. 16
Connecting the Power Cord ..................................................... 16
Basic Operations ....................................... 17
Daily Operational Procedure .................................................... 17
Turning On the Power .............................................................. 17
Selecting the Source to Play ..................................................... 17
Adjusting the Volume ............................................................... 18
Selecting the Front Speakers .................................................... 19
Activating and Adjusting the Subwoofer Sound ...................... 19
Selecting the Analog or Digital Input Mode ............................ 19
Setting the Dynamic Range ...................................................... 20
Attenuating the Input Signal .................................................... 20
Turning Analog Direct On and Off .......................................... 21
Making Sounds Natural............................................................ 21
Changing the Source Name ...................................................... 21
Reinforcing the Bass ................................................................ 22
Muting the Sound ..................................................................... 22
Changing the Display Brightness ............................................. 22
Using the Sleep Timer .............................................................. 22
Basic Settings ........................................... 25
Setting the Speakers Configuration .......................................... 25
Basic Setting Items ................................................................... 26
Basic Procedure ........................................................................ 27
Setting the Speakers ........................................................... 27
Setting the Speaker Distance ............................................. 28
Setting the Bass Sounds ..................................................... 28
Selecting main or sub channel—DUAL MONO ............... 29
Setting the Digital Input Terminals .................................... 29
Setting the Component Video Input ................................... 30
Memorizing the Volume Level for Each Source ................ 30
Adjusting Sound ........................................ 31
Basic Setting Items ................................................................... 31
Basic Procedure ........................................................................ 31
Adjusting the Equalization Patterns ................................... 32
Adjusting the Speaker Output Levels ................................ 32
Adjusting the Sound Parameters for the
Surround and DSP modes ............................................ 33
Using the Surround Modes ..........................
Reproducing Theater Ambience ................................................ 34
Introducing the Surround Modes ............................................. 34
Surround Modes Applicable to the Various Software .............. 36
Activating the Surround Modes ............................................... 37
7 Activating the EX/ES setting ................................................ 37
7 Activating the Surroung modes ............................................ 37
34
Using the DSP Modes ................................ 38
Reproducing the Sound Field ................................................... 38
Introducing the DSP Modes ..................................................... 38
Activating the DSP Modes ....................................................... 39
Using the DVD MULTI Playback Mode .......... 40
Activating the DVD MULTI Playback Mode .......................... 40
COMPU LINK Remote Control System ......... 41
Receiving Radio Broadcasts ........................ 23
Tuning in to Stations Manually ................................................ 23
Using Preset Tuning ................................................................. 23
Selecting the FM Reception Mode ........................................... 24
This mark indicates that ONLY the remote control CAN be used for the operation explained.
This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons on the front panel.
AV COMPU LINK Remote Control System .... 42
Operating JVC’s Audio/Video Components ... 44
Operating Audio Components .................................................. 44
Operating Video Components .................................................. 46
Operating Other Manufacturers’ Video
Equipment ............................................ 47
Troubleshooting ......................................... 50
Specifications............................................ 51
Features with this mark are provided only for RX-8030VBK.
Features with this mark are provided only for RX-7030VBK/RX-7032VSL.
1

Introduction

We would like to thank you for purchasing one of our JVC products.
Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance
from your unit, and retain this manual for future reference.
Features
CC (Compensative Compression) converter —ONLY for RX-8030VBK
CC Converter eliminates jitter and ripples, achieving a drastic reduction in digital distortion by processing the digital music data in 24 bit–quantization and by expanding the sampling frequency to 128 kHz (for fs 32 kHz signals)/176.4 kHz (for fs 44.1 kHz signals)/192 kHz (for fs 48 kHz signals). By using the CC Converter, you can obtain a natural sound field from any source. (See page 21 for details.)
K2 technology—ONLY for RX-8030VBK
K2 technology has been designed to enable natural audio reproduction, achieving a drastic reduction in digital distortion and creating original sound ambience with high precision.
Compatible with various audio formats including DTS 96/24
RX-8030VBK and RX-7030VBK/RX-7032VSL allow you to enjoy a newly introduced audio format such as Dolby Digital EX, Dolby Pro Logic II, DTS-ES, DTS Neo:6, and DTS 96/24.
• This unit is also compatible with Dual Mono signals recorded in Dolby Digital and DTS discs.
DAP (Digital Acoustic Processor)
Sound field simulation technology allows precise ambience recreation of existing theaters and halls. Thanks to the high­performance DSP (Digital Signal Processor) and high-capacity memory, you can enjoy multi-channel surround sound by playing 2-channel or multi-channel software according to the speaker setting.
Precautions
Power sources
• When unplugging the receiver from the wall outlet, always pull the plug, not the AC power cord.
• Do not handle the AC power cord with wet hands.
• If you are not going to operate the receiver for an extended period of time, unplug the AC power cord from the wall outlet.
Ventilation
High power amplifiers built in this receiver will generate heat inside the cabinet. For safety, observe the following carefully.
• Make sure there is good ventilation around the receiver. Poor ventilation could overheat and damage the receiver.
• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
Others
• Should any metallic object or liquid fall onto the unit, unplug the unit and consult your dealer before operating any further.
• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases shall be placed on the apparatus.
• Do not disassemble the unit since there are no user serviceable parts inside.
If anything goes wrong, unplug the AC power cord and consult your JVC dealer.
Multi-channel headphone virtual surround sound—3D HEADPHONE Mode
The built-in headphone virtual surround system is compatible with Multi-channel software like Dolby Digital, DTS Surround, etc. Thanks to the new signal processing algorithms used by the high­performance DSP, you can enjoy a natural surround sound through the headphones.
COMPU LINK/AV COMPU LINK remote control systems
These COMPU LINK remote control systems allow you to operate other JVC’s audio/video components from this receiver.
2

Parts Identification

+−+−+
231
564
89
7/P
0
+10
MENU
ENTER
BASS BOOST
TEST
CENTER∗SUB WOOFER
DIGITAL EQ
SURR BACK
CH/
LEVEL
TV VOL
/REW
DOWN TUNING UP
FF/
MUTING
DIMMER
VOLUME
CATV/DBS CONTROL
TV/VIDEO
REC PAUSE
SLEEP
RETURN FM MODE 100
+
CONTROL
CATV/DBS VCR 1 TV AUDIO
DSP
OFF
DVD MULTI
CD
CDR
TAPE/MD
TV/DBS VIDEO PHONO
FM/AM
VCR 1 VCR 2
SURROUND
EX/ES
CC CONVERTER
SURR/DSP
ANALOG/DIGITAL
A/V CONTROL RECEIVER
INPUT
MIDNIGHT
MODE
DIRECT
ANALOG
DVD
u
i
1
3
4
9
p
q
w
t
;
a
10/0
y
2
SOUND
8
6
5
7
o
r
e
A
+−+−+
231
564
89
7/P
0
+10
MENU
ENTER
TESTCD DISC
CENTER∗SUB WOOFER
DIGITAL EQ
SURR BACK
CH/
LEVEL
TV VOL
/REW
DOWN TUNING UP
FF/
MUTING
DIMMER
VOLUME
CATV/DBS CONTROL
VCR
CONTROL
TAPE/CDR CONTROL
TV/VIDEO
REC PAUSE
SLEEP
RETURN FM MODE 100
+
CATV/DBS VCR TV AUDIO
DSP
OFF
DVD MULTI
CD
TAPE/CDR
ANALOG/DIGITAL
FM/AM
TV/DBS VCR
SURROUND
EX/ES
SURR/DSP
A/V CONTROL RECEIVER
INPUT
MIDNIGHT
MODE
DIRECT
ANALOG
DVD
u
i
3
4
9
p
q
w
t
;
a
10/0
y
2
SOUND
8
6
5
7
o
r
e
s
BASS BOOST
Remote Control
RX-8030VBK RX-7030VBK/RX-7032VSL
1 Only for RX-8030VBK: Display window
• When the remote operation mode changes, it is shown on this display.
• Signal transmission indicator (A) lights up when transmitting signals.
buttons (17, 46 – 48)
2
For RX-8030VBK: CATV/DBS
For RX-7030VBK/RX-7032VSL: CATV/DBS , VCR , TV , AUDIO
3 Source selection buttons (17, 18, 19, 23, 24, 37, 40)
For RX-8030VBK: DVD MULTI, DVD, CD*, FM/AM*, VCR 1, VCR 2, CDR*, TAPE/MD*, TV/DBS, VIDEO, PHONO*
For RX-7030VBK/RX-7032VSL: DVD MULTI, DVD, CD*, FM/AM*, TV/DBS, VCR, TAPE/CDR*
* When you press one on these source selection buttons on the
remote control, the receiver automatically turns on.
4 • SURROUND button (37)
• DSP button (39)
• SURR (surround)/DSP OFF button (37, 39)
• EX/ES button (37)
5 For RX-8030VBK: CC CONVERTER button (21)
For RX-7030VBK/RX-7032VSL: CD DISC button (45)
6 MIDNIGHT MODE button (20)
, VCR 1 , TV , AUDIO
7 SOUND button (22, 32, 33) 8 CATV/DBS CONTROL button (47) 9 TV/VIDEO button (46, 47) p For RX-8030VBK: CONTROL button (44 – 46)
For RX-7030VBK/RX-7032VSL: VCR CONTROL button (46)
q REC PAUSE button (45, 46, 48) w SLEEP button (22) e ANALOG/DIGITAL INPUT button (20) r ANALOG DIRECT button (21) t • 10 keys for operating the tuner (24)
• 10 keys for adjusting sound (32, 33)
• 10 keys for operating audio/video components (44 – 48)
y • CH (channel) +/– buttons (46 – 48)
• *LEVEL +/– buttons (32, 33, 44)
The LEVEL +/– buttons function only after pressing SOUND then 10 keys which are marked with an asterisk (*) on the remote control.
u VOLUME +/– buttons (18) i TV VOL (volume) +/– buttons (46, 47) o MUTING button (22) ; • TUNING UP/DOWN buttons (23)
• Operating buttons for audio/video components (44 – 46, 48) 3, 8, 7, 4/REW, FF/¢
a DIMMER button (22) å Only for RX-7030VBK/RX-7032VSL:
TAPE/CDR CONTROL button (45)
3
Front Panel
SUBWOOFER OUT ON/OFF
SPEAKERS ON/OFF
PHONES
1
STANDBY
ANALOG DIRECT
2
STANDBY/ON
SETTING ADJUST
QUICK SPEAKER
SETUP
EXIT
SURROUND
DSP
SURROUND/ DSP
OFF
PUSH SET
MULTI JOG
MASTER VOLUME
1
2
;
s
i
a
4 5 7
u o
p
9
3
CC CONVERTER
BASS BOOST
8
RX-8030VBK
RX-7030VBK RX-7032VSL
Inside the front door
MIDNIGHT
MODEEX / ES
INPUT ATT
INPUT
ANALOG
INPUT
DIGITAL
r
eq
w
y
6
TV SOUND
/DBS
VIDEOVCR 2VCR 1
DVDDVD MULTI AMFMTAPE/MDCDRCDPHONO
TV SOUND/DBSVCR
DVDDVD MULTI AMFMTAPE/CDRCD
RX-8030VBK
RX-7030VBK/RX-7032VSL
TV SOUND/DBS
VCR
DVDDVD MULTI AMFMTAPE/CDRCD
FM/AM TUNING FM/AM PRESET FM MODE MEMORY
TUNER CONTROL
t
PUSH – OPEN
Display Window
How to open the front door
4
Press down on PUSH OPEN.
Front Panel
DIGITAL EQ
INPUT ATT
SLEEP
VOLUME
ONE TOUCH OPERATION
3D - PHONIC
NEO:6
VIRTUAL SB
MIDNIGHT MODE
AUTO MUTING
TUNED STEREO
LINEAR PCM
DIGITAL
L
SUBWFR
LS RS
CR
S
LFE
DUAL DIGITAL
AUTO
ANALOG 96/24 MULTI
PRO LOGIC
DSP
HEADPHONE SPEAKERS 1 2
BASS BOOST
SB
# $ %
_
1 2
3
4
5
6
7 8 0
9
-
= ~
+
^ & *
@
!
(
)
1 STANDBY/ON button and STANDBY lamp (17) 2 • SPEAKERS ON/OFF 1 button (19)
• SPEAKERS ON/OFF 2 button (19)
3 • SURROUND button (37)
• DSP button (39)
• SURROUND/DSP OFF button (37, 39)
4 Remote sensor 5 Display window (17) 6 For RX-8030VBK: Source selection buttons and lamps
(17, 18, 19, 21, 23, 24, 37, 40) DVD MULTI, DVD, VCR 1, VCR 2, VIDEO, TV SOUND/DBS, PHONO, CD, CDR, TAPE/MD, FM, AM (The lamp above the button for selected source lights up.)
For RX-7030VBK/RX-7032VSL: Source selection buttons (17, 18, 19, 21, 23, 24, 37, 40) DVD MULTI, DVD, VCR , TV SOUND/DBS, CD, TAPE/CDR, FM, AM
7 MASTER VOLUME control (18) 8 For RX-8030VBK: CC CONVERTER button and lamp (21)
For RX-7030VBK/RX-7032VSL: BASS BOOST button
and lamp (22)
9 SUBWOOFER OUT ON/OFF button (19) p PHONES jack (19)
q EX/ES button (37) w • INPUT ANALOG button (20)
• INPUT ATT button (20)
e MIDNIGHT MODE button (20) r INPUT DIGITAL button (20) t TUNER CONTROL buttons
• FM/AM TUNING 5 / buttons (23)
• FM/AM PRESET 5 / buttons (23, 24)
• FM MODE button (24)
• MEMORY button (23)
y Only for RX-8030VBK: VIDEO input jacks (13)
DIGITAL optical terminal, S-VIDEO jack, VIDEO jack, AUDIO—L/R jacks
u SETTING button (27) i QUICK SPEAKER SETUP button (25) o • MULTI JOG control (25, 27, 31)
• PUSH SET button (25, 27, 31)
; EXIT button (27, 31) a ADJUST button (31) s ANALOG DIRECT button and lamp (21)
Display Window
Display Window
1 DUAL indicator (35) 2 ANALOG indicator (20) 3 DIGITAL AUTO indicator (20) 4 96/24 indicator (35) 5 MULTI indicator (40) 6
7 TUNED indicator (23) 8 STEREO indicator (23, 24) 9 NEO:6 indicator (35) 0 AUTO MUTING indicator (24)
PRO LOGIC indicator (34) PRO LOGIC II indicator (35)
- VIRTUAL SB (Surround Back) indicator (34, 35) = ONE TOUCH OPERATION indicator (30) ~ SLEEP indicator (22) ! MIDNIGHT MODE indicator (20) @ DIGITAL EQ (equalization) indicator (32) # Speaker and signal indicators (18) $ Digital signal format indicators (20) % Main Display (17) ^ DSP indicator (19, 38) & 3D-PHONIC indicator (38) * HEADPHONE indicator (19, 38) ( SPEAKERS 1/2 indicators (19) ) INPUT ATT (attenuator) indicator (20) _ VOLUME level indicator (17, 22) + BASS BOOST indicator (22)
5
RX-8030VBK
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL / DTS
DIGITAL OUT
FM 75
COAXIAL
AM EXT
AM
LOOP
RIGHT
LEFT
+
+
12
CENTER
SPEAKER
SURROUND SPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
MONITOR
OUT
SUBWOOFER CENTER
DVD
IN
SURR (REAR)
TAPE
CDR
FRONT
TV SOUND
DBS
IN
VCR
IN
(PLAY)
IN
(PLAY)
OUT (REC)
OUT
(REC)
CD IN
RIGHT LEFT
DVD
IN
ANTENNA
COMPONENT VIDEO
MONITOR
OUT
DBS
IN
DVD
IN
Y
P
B
P
R
COMPU LINK-4
(SYNCHRO)
AV
COMPULINK-
SURROUND BACK SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction Manual For Connection
1
OR
2 :
8
16
1
AND
2 :
16
32
SUBWOOFER
OUT
+ +
123456789
reqp w
FRONT SPEAKERS
t
VIDEO
RIGHT LEFT
L
R
L
R
S-VIDEO
VIDEO
SURR BACK
SURR CENTER
FRONT
AUDIO
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL / DTS
DIGITAL OUT
FM 75
COAXIAL
AM
EXT
AM
LOOP
RIGHT
LEFT
+
+
12
CENTER
SPEAKER
SURROUND SPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
MONITOR
OUT
SUBWOOFER CENTER
DVD
IN
OUT
(REC)
TAPE
MD
IN
(PLAY)
OUT
(REC)
CDR
IN
(PLAY)
PHONO
IN
FRONT
TV SOUND
DBS
IN
VCR 2
VCR 1
IN
(PLAY)
IN
(PLAY)
OUT
(REC)
OUT
(REC)
CD IN
RIGHT LEFT
DVD
IN
ANTENNA
SUBWOOFER
COMPONENT VIDEO
MONITOR
OUT
DBS
IN
DVD
IN
Y
P
B
P
R
COMPU LINK-4
(SYNCHRO)
AV
COMPULINK-
SURROUND BACK SPEAKERS
FRONT SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction Manual For Connection
1
OR
2 :
8
16
1
AND
2 :
16
32
PREOUT
SURR
(REAR)
12
3456789
trewq
p
y
Rear Panel
RX-7030VBK/RX-7032VSL
6
Rear Panel
RX-8030VBK
1 DIGITAL IN terminals (16)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD), DIGITAL 3 (TV),
DIGITAL 4 (CDR)
2 AUDIO input/output jacks (11 – 15)
• Input: DVD IN—FRONT, CENTER, SUBWOOFER,
SURR (REAR), TV SOUND/DBS IN, VCR 1 IN (PLAY), VCR 2 IN (PLAY), CD IN, TAPE/MD IN (PLAY), CDR IN (PLAY), PHONO IN
• Output: VCR 1 OUT (REC), VCR 2 OUT (REC),
TAPE/MD OUT (REC), CDR OUT (REC)
3 S-VIDEO and composite VIDEO input/output jacks (14, 15)
• Input: DVD IN, TV SOUND/DBS IN, VCR1 IN (PLAY),
VCR 2 IN (PLAY)
• Output: VCR 1 OUT (REC), VCR 2 OUT (REC),
MONITOR OUT
4 FM/AM ANTENNA terminals (8) 5 PREOUT jacks (10, 11)
• FRONT, CENTER, SUBWOOFER, SURR, SURR BACK
6 COMPONENT VIDEO input/output jacks (14, 15)
• Input: DVD IN, DBS IN
• Output: MONITOR OUT
7 COMPU LINK-4 (SYNCHRO) terminals (41) 8 AV COMPULINK-III terminals (42) 9 AC power cord (16) p DIGITAL OUT terminal (16) q SURROUND BACK SPEAKERS terminals (10) w SURROUND SPEAKERS terminals (10) e CENTER SPEAKER terminals (10) r FRONT SPEAKERS 1 terminals (10) t FRONT SPEAKERS 2 terminals (10) Ô Earth (ground) terminal (11)
RX-7030VBK/RX-7032VSL
1 DIGITAL IN terminals (16)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD), DIGITAL 3 (TV), DIGITAL 4 (CDR)
2 AUDIO input/output jacks (12 – 15)
• Input: DVD IN—FRONT, CENTER, SUBWOOFER, SURR (REAR), TV SOUND/DBS IN, VCR IN (PLAY), TAPE/CDR IN (PLAY), CD IN
• Output: VCR OUT (REC), TAPE/CDR OUT (REC)
3 S-VIDEO and composite VIDEO input/output jacks (14, 15)
• Input: DVD IN, TV SOUND/DBS IN, VCR IN (PLAY)
• Output: VCR OUT (REC), MONITOR OUT
4 FM/AM ANTENNA terminals (8) 5 SUBWOOFER OUT jack (10) 6 COMPONENT VIDEO input/output jacks (14, 15)
• Input: DVD IN, DBS IN
• Output: MONITOR OUT
7 COMPU LINK-4 (SYNCHRO) terminals (41) 8 AV COMPULINK-III terminals (42) 9 AC power cord (16) p DIGITAL OUT terminal (16) q SURROUND BACK SPEAKERS terminals (10) w SURROUND SPEAKERS terminals (10) e CENTER SPEAKER terminals (10) r FRONT SPEAKERS 1 terminals (10) t FRONT SPEAKERS 2 terminals (10)
Differences between RX-8030VBK and RX-7030VBK/RX-7032VSL
CC Converter
RX-8030VBK
RX-7030VBK
RX-7032VSL
Remote Control
RM-SRX8030J
RM-SRX7030J
RM-SRX7032U
Video jacks (input/output)
Composite video (4/3) S-video (4/3) Component video (2/1)
Composite video (3/2) S-video (3/2) Component video (2/1)
Display Window
PREOUT jacks
Color
Black
Black
Silver
: Supplied : Not supplied
Selectable source
DVD MULTI, DVD, VCR 1, VCR 2, VIDEO, TV SOUND/DBS, PHONO, CD, CDR, TAPE/MD, FM, AM
DVD MULTI, DVD, VCR, TV SOUND/DBS, CD, TAPE/CDR, FM, AM
7
FM 75
COAXIAL
AM EXT
AM
LOOP
ANTENNA
FM 75
COAXIAL
ANTENNA
FM 75
COAXIAL
ANTENNA

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.
Before Installation
General Precautions
Be sure your hands are dry.
Turn the power off to all components.
Read the manuals supplied with the components you are going to
connect.
Locations
Install the receiver in a location that is level and protected from moisture.
The temperature around the receiver must be between –5˚C and 35˚C (23˚F and 95˚F ).
Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.
Handling the receiver
Do not insert any metal object into the receiver.
Do not disassemble the receiver or remove screws, covers, or
cabinet.
Do not expose the receiver to rain or moisture.
Checking the Supplied Accessories
If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.
Notes:
• Supplied batteries are for the initial setup. Replace for continued use.
• After replacing the batteries, set the manufacturers’ codes again (see pages from 47 to 49).
CAUTION:
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity: (+) to (+) and (–) to (–).
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose batteries to heat or flame.
Connecting the FM and AM Antennas
FM Antenna Connections
Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates quantity of the pieces supplied.
• Remote Control (1)
• Batteries (2)
• AM Loop Antenna (1)
• FM Antenna (1)
If anything is missing, contact your dealer immediately.
Putting Batteries in the Remote Control
Before using the remote control, insert the two supplied batteries first.
1
2
3
R6P(SUM-3)/ AA(15F)
1. Press and slide the battery cover on the back of the remote control.
2. Insert the batteries.
Make sure to match the polarity: (+) to (+) and () to (–).
3. Replace the cover.
A
B
FM Antenna (supplied)
Extend the supplied FM antenna horizontally.
Outdoor FM Antenna Cable (not supplied)
A. Using the Supplied FM Antenna
The FM antenna provided can be connected to the FM 75 COAXIAL terminal as temporary measure.
B. Using the Standard Type Connector (Not Supplied)
A standard type connector should be connected to the FM 75 COAXIAL terminal.
Note:
If reception is poor, connect the outdoor FM antenna (not supplied). Before attaching a 75 Ω coaxial cable with a connector (the kind with a round wire going to an outdoor antenna), disconnect the supplied FM antenna.
8
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
+
RIGHT
LEFT
AM Antenna Connections
+
RIGHT
LEFT
FM 75
COAXIAL
AM
EXT
AM
LOOP
ANTENNA
2
3
1
+
RIGHT
LEFT
Turn the loop until you have the best reception.
AM Loop Antenna (supplied)
Basic connecting procedure
1 Twist and remove the insulation at
the end of each speaker signal cable (not supplied).
2 Open the speaker terminal.
Snap the tabs on the loop into the slots of the base to assemble the AM loop.
Outdoor single vinyl-covered wire (not supplied)
Notes:
If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated.
Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.
If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.)
Connecting the Speakers
RX-7030VBK/RX-7032VSL
(For FRONT SPEAKERS 2 terminals)
3 Insert the speaker signal cable.
4 Close the speaker terminal.
For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.
Speaker layout
Ideal speaker layout varies depending on the conditions of your listening room. The diagram below is a recommended typical example.
You can connect the following speakers:
Two pairs of front speakers to produce normal stereo sound.
One pair of surround speakers to enjoy the surround effect.
One surround back speaker or one pair of surround back speakers
to enjoy to produce more effective surround effect.
One center speaker to emphasize human voices.
One subwoofer to enhance the bass.
CAUTION:
Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals.
When connecting to both of the FRONT SPEAKERS 1 and 2
When connecting to either the FRONT SPEAKERS 1 or 2
terminals, use speakers with an impedance of 16 to 32 Ω.
terminals, use speakers with an impedance of 8 to 16 Ω.
Left front speaker(s)
(L)
Left surround speaker (LS)
Surround back speakers (LSB/RSB)
Center speaker
(C)
Subwoofer
Right front speaker(s)
(R)
Right surround
speaker (RS)
9
L
R
L
R
SURR BACK
SURR CENTER
FRONT
SUBWOOFER
PREOUT
SUBWOOFER
OUT
RX-7030VBK RX-7032VSL
RX-8030VBK
RIGHT
LEFT
+
SU
8
CAUTION : SPEAKER IMPEDANCE
SURROUND BACK SPEAKERS
SINGLE USE
See Instruction Manual For Connection
C
LR
LS RS
LSB
RSB
SB*
Rear terminals of RX-8030VBK are used for explanation.
RIGHT
LEFT
+
+
CENTER
SPEAKER
SURROUNDSPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
SURROUND BACK SPEAKERS
FRONT SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction Manual For Connection
1
OR 2 : 8
16
1 AND 2 : 16
32
1
2
Surround back speakers*
Center speaker
Right / Left
Front speakers 1
Right / Left
Front speakers 2
Right / Left
*
When using only one surround back speaker, connect the ª cord to the RIGHT ª terminal and the
·
cord to the LEFT
terminal.
Placing speakers
Front speakers and center speaker
Place these speakers (position of the mid-range speaker units) at the same
height from the floor.
Point these speakers aiming at the listeners ears.
Surround and surround back speakers
Place these speakers at a position which is 1 meter higher than the listeners
ears.
Point these speakers down aiming at the listeners ears.
Subwoofer
You can place it wherever you like since bass sound is non-directional.
Normally place it in front of you.
Note:
Ideal speaker layout requires that all speakers be placed at the same distance from the listener. However, since in some places it may be difficult to fulfil this requirement, this unit can adjust the delay time so that the sounds through all the speakers reach the listener with the same timing. (See page 28.)
10
·
IMPORTANT:
After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for
Surround speakers
Right / Left
easy speaker installation information setting (see page 25).
To obtain the best possible Surround/DSP effect, see “Setting the Speakers on page 27.
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).
Subwoofer
* When one surround back speaker is
connected.
PHONO
IN
RIGHT LEFT
R
L
RX-8030VBK
RX-8030VBK
L
R
L
R
SURR BACK
SURR CENTER
FRONT
SUBWOOFER
PREOUT
R
L
R
L
Enhancing your audio system
RX-8030V
ONLY
RX-8030V
ONLY
—Only for RX-8030VBK
You can use this receiver as the pre-amplifier (control amplifier) when you connect power amplifiers to the PREOUT jacks on the rear using cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the audio right jack.
Left front speaker Right front speaker
Connecting Audio/Video Components
When connecting individual components, refer also to the manuals supplied with them.
Analog Connections
If your audio components have digital audio output terminal, connecting them using the digital cords explained in Digital Connections (see page 16) will give you better sound quality.
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the audio right jack.
If your audio components have a COMPU LINK jack
See also page 41 for detailed information about the connection and the COMPU LINK remote control system.
Power amplifier
Power amplifier
Center speaker
Power amplifier
Left surround
speaker
Power amplifier
Right surround
speaker
Surround back speakers
Left / Right
Note:
If you connect one surround back speaker, connect the surround back speaker to the left surround back PREOUT jack (SURR BACK L).
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.
Turntable
To listen to the sound after connection, press PHONO.
Turntable
If a ground cable is provided for your turntable, connect the cable to the screw marked (H) on the
To audio output
rear.
Note:
This connection is for the turntable with an MM (moving-magnet) type cartridge. Any turntables incorporating a small-output cartridge such as an MC (moving-coil) type must be connected to this receiver through a commercial head amplifier or step-up transformer. Direct connection may result in insufficient volume.
11
CD player
OUT
(REC)
TAPE
MD
IN
(PLAY)
RX-8030VBK
R
L
R
L
CD IN
R
L
RX-8030VBK
RX-7030VBK/RX-7032VSL
RX-7030VBK/RX-7032VSL
TAPE
CDR
IN
(PLAY)
OUT
(REC)
R
L
R
L
TAPE
CDR
IN
(PLAY)
OUT
(REC)
RX-7030VBK/RX-7032VSL
R
L
R
L
RX-8030VBK
OUT
(REC)
CDR
IN
(PLAY)
R
L
R
L
To listen to the sound after connection, press CD.
CD player
To audio output
Cassette deck
To listen to the sound after connection, press TAPE/MD (for RX­8030VBK) or TAPE/CDR (for RX-7030VBK/RX-7032VSL).
For RX-8030VBK
You can connect either a cassette deck or an MD recorder to the TAPE/MD jacks. When connecting an MD recorder, see page 13.
CD recorder
To listen to the sound after connection, press CDR (for RX-8030VBK) or TAPE/CDR (for RX-7030VBK/RX-7032VSL).
For RX-8030VBK
CD recorder
To audio input
To audio output
For RX-7030VBK/RX-7032VSL
You can connect either a CD recorder or a cassette deck to the TAPE/CDR jacks. When connecting a cassette deck to the TAPE/ CDR jacks, see the left column.
Cassette deck
To audio input
To audio output
For RX-7030VBK/RX-7032VSL
You can connect either a cassette deck or a CD recorder to the TAPE/CDR jacks. When connecting an CD recorder to the TAPE/ CDR jacks, see the right column.
Cassette deck
To audio input
To audio output
CD recorder
To audio input
To audio output
Note:
For RX-7030VBK/RX-7032VSL: When connecting a CD recorder to
the TAPE/CDR jacks, change the source name to “CDR,” which will be shown on the display when it is selected as the source. See page 21 for details.
12
MD recorder
OUT
(REC)
TAPE
MD
IN
(PLAY)
RX-8030VBK
R
L
R
L
S-VIDEODIGITAL
VIDEO LAUDIOR
VIDEO
R
L
RX-8030V
ONLY
To listen to the sound after connection, press TAPE/MD (for RX­8030VBK) or TAPE/CDR (for RX-7030VBK/RX-7032VSL).
For RX-8030VBK
You can connect either an MD recorder or a cassette deck to the TAPE/MD jacks. When connecting a cassette deck, see page 12.
Video component connections
Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.
If your video components have S-video (Y/C-separation) and/or component video (Y, P
B, PR) terminals, connect them using an S-
video cable (not supplied) and/or component video cable (not supplied). By using these jacks, you can get better picture quality in the orderComponent video > S-video > Composite video.
If your video components have an AV COMPULINK jack
See also page 42 for detailed information about the connection and the AV COMPU LINK remote control system.
MD recorder
To audio input
To audio output
Note:
When connecting an MD recorder to the TAPE/MD jacks, change the source name to “MD,” which will be shown on the display when it is selected as the source. See page 21 for details.
For RX-7030VBK/RX-7032VSL
You can connect an MD recorder to the TAPE/CDR jacks if they are not used for connecting another component such as a cassette deck or CD recorder. When connecting an MD recorder to the TAPE/ CDR jacks, see page 12.
Though your MD recorder is one of JVC products with the COMPU LINK remote control system, you cannot use the COMPU LINK remote control system to operate the connected MD recorder.
IMPORTANT:
This receiver is equipped with the following video jacks—composite video, S-video and component video jacks. You can use any of the three to connect a video component. However, the video signals from one type of these input jacks are
transmitted only through the video output jacks of the same type.
Therefore, if a recording video component and a playing video component are connected to the receiver through the video jacks of different type, you cannot record the picture. In addition, if the TV and a playing video component are connected to the receiver through the video jacks of different type, you cannot view the playback picture on the TV.
Video camera
To listen to the sound after connection, press VIDEO.
The VIDEO input jacks on the front panel (inside the front door) are convenient when connecting and disconnecting the component frequently.
To audio output
To composite video output
To S-video output
To optical digital output
Video camera
When using the digital input terminal
Select the digital input mode correctly. For details, see Selecting the Analog or Digital Input Mode” on page 19.
13
VCR(s)
RX-8030VBK
VCR 2
VCR 1
IN
(PLAY)
IN
(PLAY)
OUT
(REC)
OUT
(REC)
A B
DC E F
R
L
R
L
RX-7030VBK/RX-7032VSL
VCR
IN
(PLAY)
OUT
(REC)
A B
DC E F
R
L
R
L
MONITOR
OUT
TV SOUND
DBS
IN
MONITOR
OUT
Y
P
B
P
R
A
B
C
D
R
L
RX-8030VBK
RX-7030VBK/RX-7032VSL
TV SOUND
DBS
IN
DBS
IN
A
B
C
D
R
L
DBS
RX-8030VBK
RX-7030VBK/RX-7032VSL
To listen to the sound after connection, press VCR 1 or VCR 2 (for RX-8030VBK) or VCR (for RX-7030VBK/RX-7032VSL).
For RX-8030VBK
You can connect two VCRsone to the VCR 1 jacks and the other to the VCR 2 jacks.
If your VCR has an AV COMPU LINK jack, connect it to the VCR 1 jack so that you can use the AV COMPU LINK remote control system.
Å To audio input ı To audio output Ç To S-video output Î To composite video outputTo S-video input Ï To composite video input
VCR
TV and/or DBS tuner
To listen to the sound after connection, press TV SOUND/DBS (or TV/DBS on the remote control).
TV
When connecting
TV
Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.
the TV to the AUDIO jacks (TV SOUND/DBS IN), DO NOT connect the TVs video output to these video input jacks.
For RX-7030VBK/RX-7032VSL
14
Å To audio output ı To component video input Ç To S-video input Î To composite video input
Å To audio input ı To audio output Ç To S-video output Î To composite video outputTo S-video input Ï To composite video input
DBS tuner
VCR
Å To audio output ı To component video output Ç To S-video output Î To composite video output
Notes:
When connecting a DBS tuner to the TV SOUND/DBS IN jacks, change the source name to “DBS,” which will be shown on the display when selected as the source. Otherwise you cannot view any picture from DBS tuner. See page 21 for details.
When connecting a DBS tuner to either one of the component input jacks, make the component video input setting correctly for AV COMPU LINK. See page 30 for details.
DVD player
DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
COMPONENT VIDEO
DVD
IN
SURR
(REAR)
R
L
A
B
C
D
RX-8030VBK
RX-7030VBK/RX-7032VSL
DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
COMPONENT VIDEO
DVD
IN
SURR
(REAR)
R
L
R
L
A
B
C
D
E F G
RX-8030VBK
RX-7030VBK/RX-7032VSL
• When you connect a DVD player with stereo output jacks:
To listen to the sound after connection, press DVD.
DVD player
• When you connect a DVD player with its analog discrete
output (5.1-channel reproduction) jacks:
To listen to the sound after connection, press DVD MULTI.
Å To component video output ı To S-video output Ç To composite video output Î To left/right front channel audio output (or to audio-
mixed output if necessary)
Note:
When connecting a DVD player to the component video input jacks, make the component video input setting correctly for AV COMPU LINK. See page 30 for details.
DVD player
Å To component video output ı To subwoofer output Ç To center channel audio output Î To S-video outputTo composite video output Ï To left/right front channel audio output Ì To left/right surround channel audio output
Note:
When connecting a DVD player to the component video input jacks, make the component video input setting correctly for AV COMPU LINK. See page 30 for details.
15
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL / DTS
DIGITAL OUT
Digital Connections
This receiver is equipped with four DIGITAL IN terminals—one digital coaxial terminal and three digital optical terminals—and one DIGITAL OUT (optical) terminal on the rear.
For RX-8030VBK: Another digital optical input terminal is located on the front panel (see page 13).
IMPORTANT:
When connecting a DVD player, digital TV broadcast tuner or DBS tuner using the digital terminals, you also need to connect it to the video jacks on the rear. Without connecting it to the video jacks, you can view no playback picture.
After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly. For
details, see Setting the Digital Input Terminals” on page 29.
– Select the digital input mode correctly. For details, see “Selecting
the Analog or Digital Input Mode on page 19.
Digital input terminals
You can connect any digital components having coaxial or optical digital output terminal.
Digital coaxial cable (not supplied) between digital coaxial terminals
Digital output terminal
You can connect any digital components which have an optical digital input terminal.
Digital optical cable (not supplied) between digital optical terminals
When the digital recording equipment such as an MD recorder and CD recorder has a digital optical input terminal, connecting it to the DIGITAL OUT terminal enables you to perform digital-to­digital recording.
Note:
The digital signal format transmitted through the DIGITAL OUT terminal is the same as that of the input signal. This means that when the DTS Digital Surround signals are input, the DTS Digital Surround signals are transmitted.
Digital optical cable (not supplied) between digital optical terminals
When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).
When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD), DIGITAL 3 (TV) or DIGITAL 4 (CDR) terminal, using a digital optical cable (not supplied).
Before connecting a digital optical cable, unplug the protective plug.
Notes:
When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components:
DIGITAL 1 (coaxial): For DVD playerDIGITAL 2 (optical): For CD playerDIGITAL 3 (optical): For digital TV broadcast tunerDIGITAL 4 (optical): For CD recorder
When you want to operate the CD player or CD recorder, (or MD
recorder: only for RX-8030VBK) using the COMPU LINK remote control system, connect the target component also as described in
Analog Connections (see pages 12 and 13).
When you want to operate a DVD player using the AV COMPU
LINK remote control system (see page 42), connect the DVD player also as described in Analog Connections” (see page 15).
16
Connecting the Power Cord
Before plugging the receiver into an AC outlet, make sure that all connections have been made.
Plug the power cord into an AC outlet.
Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.
Note:
The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:
When you unplug the power cord.When a power failure occurs.
CAUTIONS:
Do not touch the power cord with wet hands.
Do not pull on the power cord to unplug the cord. When unplugging
the cord, always grasp the plug so as not to damage the cord.

Basic Operations

DVD MULTI
CD
CDR
TAPE/MD
TV/DBS VIDEO PHONO
FM/AM
VCR1 VCR2
DVD
DVD MULTI
CD
TAPE/CDR
FM/AM
TV/DBS VCR
DVD
TV SOUND/DBSVCR
DVDDVD MULTI AMFMTAPE/CDRCD
1
3
2
4
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
DIGITAL EQ
INPUT ATT
SLEEP
VOLUME
ONE TOUCH OPERATION
3D - PHONIC
NEO:6
VIRTUAL SB
MIDNIGHT MODE
AUTO MUTING
TUNED STEREO
LINEAR PCM
DIGITAL
L
SUBWFR
LS RSCRS
LFE
DUAL DIGITAL
AUTO
ANALOG 96/24 MULTI
PRO LOGIC
DSP
HEADPHONE SPEAKERS 1 2
BASS BOOST
SB
TV SOUND
/DBS
VIDEOVCR 2VCR 1
DVDDVD MULTI AMFMTAPE/MDCDRCDPHONO
The following operations are commonly used when you play any sound sources.
Operations hereafter will be explained using the buttons on the front panel. You can also use the buttons on the remote control for the same functions if they have the same and similar names/marks.
Daily Operational Procedure
1 Turn on the power.
See Turning On the Power below.
2 Select the source.
See Selecting the Source to Play to the right.
3 Adjust the volume.
See Adjusting the Volume” on page 18.
4 Select the surround or DSP modes.
See Activating the Surround Modes” (page 37) andActivating the DSP Modes” (page 39).
Selecting the Source to Play
Press one of the source selection buttons.
The selected source name and the previously selected Surround/ DSP mode also appear on the display.
Selected source name and current
Surround/DSP mode appear.
For RX-8030VBK
Turning On the Power
Press STANDBY/ON (or AUDIO on the remote control).
The STANDBY lamp goes off. The name of the current source and Surround/DSP mode appear on the display.
Current source name and Surround/DSP mode appear
To turn off the power (into standby mode),
press STANDBY/ON (or AUDIO on the remote control) again. The STANDBY lamp lights up.
Note:
A small amount of power is consumed in standby mode. To turn off the power completely, unplug the AC power cord.
On the unit
The lamp on the selected source lights up (ex. when DVD is selected as the source).
On the remote
For RX-7030VBK/RX-7032VSL
On the unit
Current volume level appears.
On the remote
Notes:
For RX-8030VBK: When connecting an MD recorder (to the TAPE/
MD jack) and a DBS tuner (to the TV SOUND/DBS jacks), change the source names shown on the display. For details, see page 21.
For RX-7030VBK/RX-7032VSL: When connecting an CD recorder
(to the TAPE/CDR jacks) and a DBS tuner (to the TV SOUND/DBS jacks), change the source names shown on the display. For details, see page 21.
17
Speaker and signal indicators on the display
SUBWFR
CD
CDR
TAPE/MD
PHONO
FM/AM
AMFMTAPE/CDRCD
CD
TAPE/CDR
FM/AM
AMFMTAPE/MDCDRCDPHONO
SUBWFR
LCR
LS RS
LFE
LCR
SLS
SB
RS
SB
LFE
SUBWFR
LCR
LS RS
SB
By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.
Speaker indicators
Signal indicators
Selecting different sources for picture and sound
While watching pictures from a video source, you can listen to sound of an audio source.
Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.
Press one of the audio source selection buttons while viewing the picture from a video component such as the VCR or DVD player, etc.
For RX-8030VBK
What speaker indicators light depends on the speaker setting (for details, see “Setting the Speakers” on page 27).
The frames of L, C,R, LS,RS, and SB light up, when the corresponding speakers are set to “LARGE” or SMALL and when the speaker is required for the Surround/DSP mode currently selected.
When SUB WOOFER is set to YES,
lights up (see
page 27).
All three frames on the row of SB are not used at the same time. When “SBACK OUT is set to “2SPK,” the left and the right ones are used. When it is set to “1SPK,” the middle one is used (see page 27).
The signal indicators light up to show the incoming signals.
L: When digital input is selected: Lights up when the left
channel signal comes in.
When analog input is selected: Always lights up.
R: When digital input is selected: Lights up when the right
channel signal comes in.
When analog input is selected: Always lights up.
C: Lights up when the center channel signal comes in. LFE: Lights up when the LFE channel signal comes in. LS: Lights up when the left surround channel signal comes in. RS: Lights up when the right surround channel signal comes in. S: Lights up when the monaural surround channel signal
comes in.
SB: Lights up when the surround back channel signal comes in.
On the unit
On the remote
For RX-7030VBK/RX-7032VSL
On the unit
On the remote
Note:
When you see the picture through the COMPONENT VIDEO jacks, you cannot use this function.
Adjusting the Volume
On the front panel:
To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.
Note:
When DVD MULTI” is selected as the source, “L,” “C,” “R,” “LFE,“LS,” and RS light up.
How to understand the speaker and signal indicator illumination
18
Ex. No sound comes out of the
center speaker and surround back speakers though center channel and surround back channel signals are coming into this receiver.
From the remote control:
To increase the volume, press VOLUME +. To decrease the volume, press VOLUME –.
CAUTION:
Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.
Notes:
The volume level can be adjusted within the range of “0 (minimum) to 70 (maximum).
If you set One Touch Operation to “ON (see page 30), you do not have to adjust the volume level each time you change the source. It is automatically set to the stored level.
Selecting the Front Speakers
Remote
NOT
Remote
NOT
When you have connected two pairs of the front speakers, you can select which to use.
To use the speakers connected to the FRONT SPEAKERS 1 terminals, press SPEAKERS ON/OFF 1 so that the SPEAKERS 1
indicator lights up on the display. Make sure that the SPEAKERS 2 indicator is not lit on the display.
To use the speakers connected to the FRONT SPEAKERS 2 terminals, press SPEAKERS ON/OFF 2 so that SPEAKERS 2
indicator lights up on the display. Make sure that the SPEAKERS 1 indicator is not lit on the display.
To use both sets of the speakers, press SPEAKERS ON/OFF 1 and SPEAKERS ON/OFF 2 so that the SPEAKERS 1/2 indicators light up on the display.
To use neither sets of the speakers, press SPEAKERS ON/OFF 1 and SPEAKERS ON/OFF 2 so that the SPEAKERS 1/2 indicators
go off from the display. The HEADPHONE indicator lights up and “HEADPHONE” appears on the display.
Activating the speakers turns on the Surround and DSP modes previously selected.
Listening with headphones only:
Deactivate both sets of the front speakers, and connect headphones to the PHONES jack.
You can enjoy the sound effects through the headphones when Surround or DSP mode is activated—3D HEADPHONE (3D H PHONE) mode.
•“3D H PHONE appears on the display and the DSP and HEADPHONE indicator lights up on the display. (For details, see page 36.)
Activating and Adjusting the Subwoofer Sound
You can cancel the subwoofer sound even though you have connected a subwoofer and have set SUB WOOFER to “YES” (see page 27). This is useful when enjoying surround sound at night.
Press SUBWOOFER OUT ON/OFF to cancel the subwoofer sound output.
Each time you press the button, subwoofer sound output is deactivated (SUBWFR OFF) and activated (SUBWFR ON”) alternately.
When subwoofer sound output is activated, subwoofer output level can be adjusted using the remote control. 1 Press SOUND. 2 Press SUBWOOFER. 3 Press LEVEL + or – to adjust the output level
(–10 dB to +10 dB).
Note:
You cannot deactivate the subwoofer sound output when you set SMALL” for the front speakers on the Speaker size setting (see page
27) or Quick Speaker Setup (see page 25).
Selecting the Analog or Digital Input Mode
When you have connected digital source components using the digital terminals (see page 16), change the input mode for these components to the digital input mode.
Note:
When you select DVD MULTI as the source or any one of the Surround/DSP mode which activates the center and/or surround speaker(s), you can use only one set of the speakers.
CAUTION:
Be sure to turn down the volume:
Before connecting or putting on headphones, as its high volume can damage both the headphones and your hearing.
Before turning on speakers again, as its high volume may come out of the speakers.
Before you start, remember... The digital input terminal setting should be correctly done for the sources you want to select the digital input mode (see Setting the Digital Input Terminals on pages 29 and 30).
1. Press one of the source selection buttons for which you want to change the input mode.
For RX-8030VBK: DVD, VIDEO, TV (SOUND)/DBS,
CD, CDR, or TAPE/MD*
For RX-7030VBK/RX-7032VSL:
DVD, TV (SOUND)/DBS, CD, or TAPE/CDR*
*
If TAPE is selected as the source, digital input mode is not available. To change the source name, see Changing the Source Name on page 21.
Continued on the next page
19
2. Press INPUT DIGITAL (or ANALOG/DIGITAL
LINEAR PCM
DIGITAL
VOLUME
DIGITAL
L
SUBWFR
LS RS
CR
LFE
DIGITAL
AUTO
SPEAKERS 1
DGTL AUTO DGTL D.D
DGTL DTS
(Dolby Digital)
(Digital)
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
DIGITAL
L
SUBWFR
LS RS
CR
LFE
DIGITAL
AUTO
SPEAKERS 1
Remote
NOT
Remote
NOT
INPUT on the remote control) to select DGTL AUTO.
The DIGITAL AUTO indicator lights up on the display.
When selecting DGTL AUTO,” the following indicators indicate the digital signal format of the incoming signal.
: Lights up when Linear PCM signals come
in.
: Lights up when Dolby Digital signals
come in.
: Lights up when DTS signals come in.
No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.
When playing software encoded with the Dolby Digital or DTS, the following symptoms may occur:
Sound does not come out at the beginning of playback.
Noise comes out while searching for or skipping chapters or
tracks.
In this case, press INPUT DIGITAL repeatedly to select DGTL D.D or DGTL DTS while DGTL AUTO still remains on the display.
As you press INPUT DIGITAL, the input mode changes as follows:
Setting the Dynamic Range
You can enjoy a powerful sound at night using the Midnight Mode.
Press MIDNIGHT MODE so that MID NIGHT 1 or “MID NIGHT 2 appears on the display.
The MIDNIGHT MODE indicator also lights up.
MID NIGHT 1: Select when you want to reduce the dynamic
range a little.
MID NIGHT 2: Select when you want to apply the compress
effect fully (useful at midnight).
MID NIGHT OFF: Select when you want to enjoy surround with
its full dynamic range (no effect applied).
Notes:
If Analog Direct is in use, Midnight Mode is temporarily canceled.
Midnight Mode is not valid for DVD MULTI playback mode.
Attenuating the Input Signal
When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.
Once you have made adjustment, it is memorized for each analog source.
When DGTL D.D or DGTL DTS is selected, the AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display.
If the incoming signal does not match the selected digital signal
Note:
When you turn off the power or select another source, DGTL D.D and DGTL DTS settings are canceled and the digital input mode is automatically reset to DGTL AUTO.
To select the analog input mode again
Press INPUT ANALOG (or press ANALOG/DIGITAL INPUT on the remote control repeatedly until “ANALOG appears on the display). The ANALOG indicator lights up.
20
format, the frame of the selected indicator will flash.
Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display.
Each time you press and hold the button, the input attenuator mode turns on (“ATT ON) or off (“NORMAL”).
Note:
This function is not valid when “DVD MULTI is selected or when Analog Direct is activated.
Turning Analog Direct On and Off
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
RX-8030V
ONLY
Remote
NOT
Changing the Source Name
You can enjoy the sound closer to the original source by overriding the sound adjustments such as speaker output level adjustments (see page 32), Digital Equalization (see page 32), Surround and DSP modes (see pages 34 to 39), Bass Boost (see page 22) and Midnight Mode (see page 20). You can only adjust the volume level while Analog Direct is in use.
Once you have made adjustment, it is memorized for each analog source.
Press ANALOG DIRECT so that “A DIRECT” appears on the display.
The lamp on the button also lights up.
Each time you press the button, Analog Direct turns on and off.
Notes:
When digital input mode is in use, Analog Direct is not available.
Turning on Surround or DSP mode cancels Analog Direct and
previously selected sound adjustments are recalled.
If Analog Direct is in use, Midnight Mode is temporarily canceled.
Turning on Analog Direct cancels Input Attenuator (page 20) (and
CC Converter for RX-8030VBK: below).
When you have connected an MD recorder to the TAPE/MD jacks or a DBS tuner to the TV SOUND/DBS jacks on the rear panel, change the source name which will be shown on the display.
When changing the source name from “TV” to “DBS”:
1. Press TV SOUND/DBS.
Make sure TV appears on the display.
2. Press and hold TV SOUND/DBS until ASSGN DBS appears on the display.
Note:
When connecting a DBS tuner to the TV SOUND/DBS IN jacks, change the source name to “DBS,” which will be shown on the display when selected as the source. Otherwise you cannot view any picture from DBS tuner.
Making Sounds Natural
JVCs CC (Compensative Compression) Converter eliminates jitter and ripples, achieving a drastic reduction in digital distortion by processing the digital music data in 24 bit–quantization and by expanding the sampling frequency to 128 kHz (for fs 32 kHz signals)/176.4 kHz (for fs 44.1 kHz signals)/192 kHz (for fs 48 kHz signals). By using CC Converter, you can obtain a natural sound field from both digital and analog sources.
Press CC CONVERTER so that the lamp on the button lights up.
Each time you press the button, CC Converter turns on and off (the lamp goes off) alternately.
Note:
You cannot use this function while Analog Direct is in use. If you turn on Analog Direct while this function is in use, this function will be canceled.
For RX-8030VBK:
When changing the source name from “TAPE” to “MD”:
1. Press TAPE/MD.
Make sure TAPE appears on the display.
2. Press and hold TAPE/MD until “ASSGN MD” appears on the display.
For RX-7030VBK/RX-7032VSL:
When changing the source name from “TAPE” to “CDR”:
1. Press TAPE/CDR.
Make sure TAPE appears on the display.
2. Press and hold TAPE/CDR until ASSGN CDR appears on the display.
To change the source name to TV and TAPE, repeat the
same procedure above.
Note:
Without changing the source name, you can still use the connectedcomponents. However, there may be some inconvenience.
For RX-8030VBK:
–“TAPE” or “TV” will appear on the display when you select the MD
recorder or DBS tuner.
– You cannot use the digital input (see pages 19 and 20) for the
MD recorder.
– You cannot use the COMPU LINK remote control system (see
pages 41) to operate the MD recorder.
For RX-7030VBK/RX-7032VSL:
–“TAPE” or “TV” will appear on the display when you select the CD
recorder or DBS tuner.
– You cannot use the digital input (see pages 19 and 20) for the
CD recorder.
21

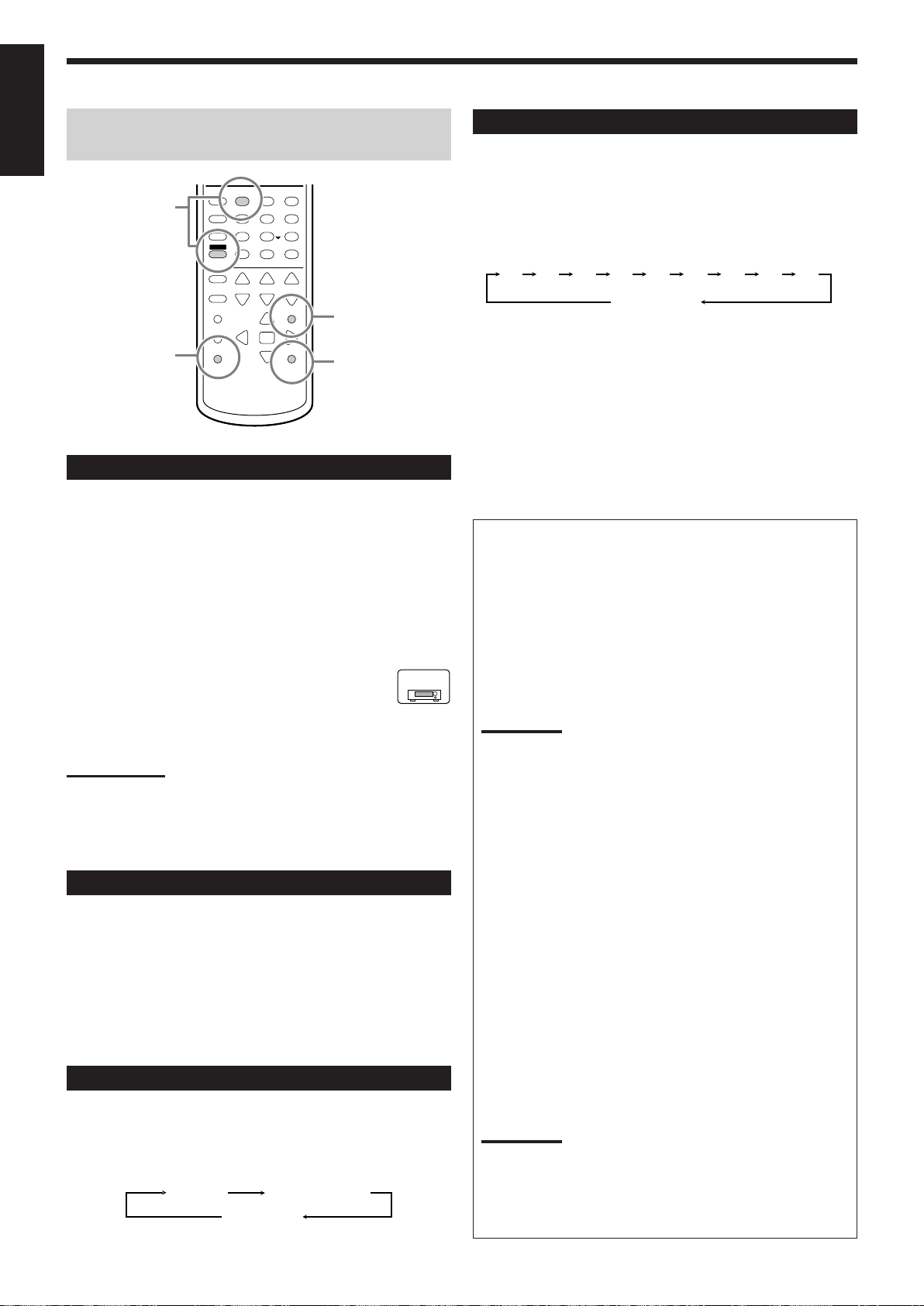

The following basic operations are possible only using the
SOUND
2010 30 40 50 60 70 80 90
(Canceled)
0
Dimmer Much dimmer
Canceled
(Normal display)
RX-7030V
RX-7032V
ONLY
remote control.
BASS
BOOST
7/P
10/0
231
564
89
+10
0
Reinforcing the Bass
Using the Sleep Timer
Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically.
Press SLEEP repeatedly.
The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals:
MUTING
Muting the Sound
Using the Sleep Timer
SLEEP
DIMMER
Changing the Display Brightness
Reinforcing the Bass
You can boost the bass level.
Once you have made adjustment, it is memorized for each source.
1. Press SOUND.
The 10 keys are activated for sound adjustments.
2. Press BASS BOOST to turn on Bass Boost.
The BASS BOOST indicator lights up.
Each time you press the button, Bass Boost turns on (BOOST ON) and off (BOOST OFF) alternately.
For RX-7030VBK/RX-7032VSL:
You can use the BASS BOOST button on the front panel. When the Bass Boost is activated, the lamp on the button lights up.
Each time you press the button, Bass Boost turns on and off.
Notes:
This function affects only the sounds from the front speakers, center speaker, and subwoofer.
When Analog Direct is in use (see page 21), the Bass Boost is canceled temporarily.
Muting the Sound
Press MUTING to mute the sound through all speakers and headphones connected.
MUTING appears on the display and the volume turns off (the VOLUME level indicator goes off).
To restore the sound, press MUTING again.
Turning MASTER VOLUME on the front panel or pressing
VOLUME +/– on the remote control also restores the sound.
Changing the Display Brightness
You can dim the display.
Press DIMMER.
Each time you press the button, the brightness
level of the display change as follows:
To check or change the time remaining until the shut-off time:
Press SLEEP once. The remaining time until the shut-off time appears in minutes.
To change the shut-off time, press SLEEP repeatedly.
To cancel the Sleep Timer:
Press SLEEP repeatedly until SLEEP 0min” appears on the display. (The SLEEP indicator goes off.)
Turning off the power also cancels the Sleep Timer.
Recording a source
For analog-to-analog recording
You can record any analog playback source onto the recording components connected to the audio output jacks on the rear of this unit at the same time.
For digital-to-digital recording
You can record the currently selected digital input source through the receiver to a digital recording device connected to the DIGITAL OUT terminal.
Notes:
Analog-to-digital and digital-to-analog recordings are not possible.
The output volume level, Midnight Mode (see page 20), Bass Boost (see the left column), Digital Equalization (see page 32), Surround modes and DSP modes (see pages 34 to 39) cannot affect the recording.
Basic adjustment auto memory
This receiver memorizes sound settings for each source
when you turn off the power,
when you change the source, and
when you assign the source name (see page 21).
When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:
Analog/digital input mode (see pages 19 and 20)
Input attenuator mode (see page 20)
Analog Direct (see page 21)
Digital Equalization (see page 32)
Speaker channel output levels (see page 32)
Surround and DSP mode selection (see pages 37 and 39)
Bass Boost setting (see the left column)
Notes:
If the source is FM or AM, you can assign a different setting for each band.
If you want to memorize the volume level with the above settings, set One Touch Operation to “ON” (see page 30).
22

Receiving Radio Broadcasts

VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
You can browse through all the stations or use the preset function to go immediately to a particular station.
Tuning in to Stations Manually
1. Press FM or AM to select the band.
The last received station of the selected band is tuned in.
2. Press FM/AM TUNING 5 or repeatedly until
you find the frequency you want.
Pressing FM/AM TUNING 5 increases the frequency.
Pressing FM/AM TUNING decreases the frequency.
Using Preset Tuning
Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset up to 30 FM and 15 AM stations.
To store the preset stations
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.
On the front panel ONLY:
1. Tune in the station you want to preset (see Tuning in to Stations Manually on the left).
If you want to store the FM reception mode for this station,
select the FM reception mode you want. See Selecting the FM Reception Mode on page 24.
Notes:
When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.
When an FM stereo program is received, the STEREO indicator also lights up.
When you hold and then release the button in step 2, the frequency keeps changing until a station is tuned in.
From the remote control:
1. Press FM/AM.
Each time you press the button, the band alternates between FM and AM.
2. Press TUNING UP or TUNING DOWN repeatedly until you find the frequency you want.
Pressing TUNING UP increases the frequency.
Pressing TUNING DOWN decreases the frequency.
2. Press MEMORY.
The channel number position starts flashing on the display for about 10 seconds.
3. Press FM/AM PRESET 5 or to select a
channel number while the channel number position is flashing.
4. Press MEMORY again while the selected channel number is flashing on the display.
The selected channel number stops flashing. The station is assigned to the selected channel number.
5. Repeat steps 1 to 4 until you store all the stations you want.
To erase a stored preset station
Storing a new station on a used number erases the previously stored one
23
To tune in a preset station
231
564
89
7/P
0
+10
10/0
VOLUME
AUTO MUTING
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
On the front panel:
1. Press FM or AM to select the band.
The last received station of the selected band is tuned in.
Selecting the FM Reception Mode
When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.
You can store the FM reception mode for each preset station (see
page 23).
2. Press FM/AM PRESET 5 or until you find the
channel you want.
Pressing FM/AM PRESET 5 increases the number.
Pressing FM/AM PRESET decreases the number.
From the remote control:
1. Press FM/AM to select the band.
The last received station of the selected band is tuned in.
Each time you press the button, the band alternates between FM and AM.
2. Press the 10 keys to select a preset channel number.
For channel number 5, press 5.
For channel number 15, press +10 then 5.
For channel number 20, press +10 then 10.
For channel number 30, press +10, +10, then 10.
Note:
When you use the 10 keys on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page 44.)
While listening to an FM station, press FM MODE.
Each time you press the button, the FM reception mode alternates between “AUTOMUTING and MODE MONO.
AUTOMUTING: Normally select this.
When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting)
MODE MONO: Select this to improve the reception (but
stereo effect will be lost). In this mode, you will hear noise while tuning into the stations. The AUTO MUTING indicator goes off from the display. (The STEREO indicator also goes off.)
24
Note:
When you use the FM MODE on the remote control, be sure that it is activated for the tuner, not for the CD and others. (See page 44.)

Basic Settings

Remote
NOT
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
L R
ANALOG
SPEAKERS 1
2.0CH 2.1CH 3.0CH 3.1CH 4.0CH
4.1CH 5.0CH 5.1CH 6.0CH* 6.1CH
7.0CH 7.1CH (Back to the beginning)
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
SMALL MID LARGE* (Back to the beginning)
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
Some of the following settings are required after connecting and positioning your speakers while others will make operations easier. You can use QUICK SPEAKER SETUP to easily set up your speaker configuration.
Setting the Speakers Configuration
Quick Speaker Setup helps you to easily and quickly register the speaker size and speaker distance according to your listening room to create the best possible surround effect.
You can also register each speaker’s information manually. For details, see page 27.
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.
On the front panel:
1. Press QUICK SPEAKER SETUP.
SETUP and SPEAKERS? appear on the display, then the initial setting for the total number of the connected speakers (channels) appears.
3. Press in MULTI JOG (PUSH SET).
ROOM SIZE? appear on the display, then the initial room size setting appears.
4. Turn MULTI JOG to select an appropriate room size to match to your listening room.
The room size changes as follows.
To select your appropriate room size, see Room size and the
speaker distance on page 26.
2. Turn MULTI JOG to select an appropriate number of the connected speakers (speaker channel number).
The speaker channel number changes as follows.
For the details of speaker channel number, see Speakers
(channels) number and the size on page 26.
* 6.0CH is the initial setting.
* LARGE is the initial setting.
5. Press in MULTI JOG (PUSH SET).
COMPLETE appears on the display, then goes back to the source indication.
Speaker configuration settings now become active.
Note:
This procedure will not be completed if you stop in the middle of the setting process.
25
Speakers (channels) number and the size
You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel (CH) number) you select. In the following tables, “L” stands for “left front speaker,” “R” for right front speaker,C for center speaker,LS for left surround speaker,” “RS” for “right surround speaker,” “SB” for
surround back speaker,” and SUBWFR for subwoofer.”
Subwoofer is counted as 0.1 channel.
The size of connected speakers
CH
2.0
2.1
3.0
3.1
4.0
4.1
5.0
5.1
6.0
6.1
7.0
7.1
L R C LS RS SB SUBWFR
LARGE LARGE NONE NONE NONE NONE NO
SMALL SMALL NONE NONE NONE NONE YES
LARGE LARGE SMALL NONE NONE NONE NO
SMALL SMALL SMALL NONE NONE NONE YES
LARGE LARGE NONE SMALL SMALL NONE NO
SMALL SMALL NONE SMALL SMALL NONE YES
LARGE LARGE SMALL SMALL SMALL NONE NO
SMALL SMALL SMALL SMALL SMALL NONE YES
LARGE LARGE SMALL SMALL SMALL SMALL NO
SMALL SMALL SMALL SMALL SMALL SMALL YES
LARGE LARGE SMALL SMALL SMALL SMALL* NO
SMALL SMALL SMALL SMALL SMALL SMALL* YES
* This setting is applied to the both speakers.
Room size and the speaker distance
According to the selected room size, speaker distance for each activated speaker is set as follows:
LARGE Speaker Distance
L 3.0 m (10 ft)
R 3.0 m (10 ft)
C 3.0 m (10 ft)
LS 3.0 m (10 ft)
RS 3.0 m (10 ft)
SB 3.0 m (10 ft)
MID Speaker Distance
L 2.7 m (9 ft)
R 2.7 m (9 ft)
C 2.4 m (8 ft)
LS 2.1 m (7 ft)
RS 2.1 m (7 ft)
SB 1.8 m (6 ft)
SMALL Speaker Distance
L 2.4 m (8 ft)
R 2.4 m (8 ft)
C 2.1 m (7 ft)
LS 1.5 m (5 ft)
RS 1.5 m (5 ft)
SB 1.2 m (4 ft)
Basic Setting Items
On the following pages, you can adjust the following items:
Items To do See page
SUB WOOFER*
FRONT SPEAKER*1Register your front speaker size. 27
CNTR SPEAKER*1Register your center speaker size. 27
SURR SPEAKER*1Register your surround speaker size. 27
SBACK SPEAKER*1Register your surround back
SBACK OUT*
DIST UNIT
FRONT DISTANCE*1Register the distance from you front
CNTR DISTANCE*1Register the distance from you center
SURR DISTANCE*1Register the distance from you
SBACK DISTANCE*1Register the distance from you
S WFR OUTPUT
CROSS OVER
LFE ATTENUATE
DUAL MONO
DGTL IN COAX
DGTL IN OPTICAL*2Select the components connected to
VIDEO IN DVD
VIDEO IN DBS
ONE TOUCH OPE
Notes:
1
*
These items can be set using Quick Speaker Setup.
2
*
This setting is only for RX-8030VBK. For RX-7030VBK/RX-7032VSL, it is automatically set according to your DGTL IN COAX” setting.
1
Register your subwoofer. 27
speaker size. 27
1
Register the number of the connected surround back speakers. 27
Select the measuring unit for the speaker distance. 28
speakers to your listening point. 28
speaker to your listening point. 28
surround speakers to your listening point. 28
surround back speaker(s) to your listening point. 28
Select sounds emitted from the subwoofer. 28
Select the cutoff frequency to the subwoofer. 28
Attenuate the bass (LFE) sounds. 29
Select the Dual Mono sound channel. 29
Select the component connected to digital coaxial terminal 29
digital optical terminals 29
Select the type of video terminal used for the DVD player. 30
Select the type of video terminal used for the DBS tuner. 30
Store the volume level for each source. 30
26
Basic Procedure
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
ONE TOUCH OPERATION
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.
Ex. When setting One Touch Operation to “ON.
1. Press SETTING.
The last selected item appears on the display.
2. Turn MULTI JOG until an item you want appears on the display.
In this example, select ONE TOUCH OPE. For available
items, see the list Basic Setting Items on page 26.
3. Push in MULTI JOG (PUSH SET).
The current setting for the selected item appears on the display.
4. Turn MULTI JOG until a setting you want appears on the display.
5. Press EXIT.
6. Repeat steps 2 to 5 to set other items if necessary.
7. Press EXIT.
The source indication resumes on the display.
: shows the initial setting in the following
tables.
Setting the Speakers
To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker arrangement after all connections are completed.
If you have used Quick Speaker Setup on page 25, this setting is not required.
Subwoofer setting—SUB WOOFER
7
Select whether you have connected a subwoofer or not.
YES: Select when a subwoofer is connected.
NO: Select when no subwoofer is used.
Note:
If you have selected “NO” for the subwoofer, you cannot use the SUBWOOFER OUT ON/OFF button on the front panel.
7
Speaker size—FRONT SPEAKER, CNTR SPEAKER, SURR SPEAKER, SBACK SPEAKER
Select the size for each connected speaker.
LARGE*1: Select when the speaker size is relatively large.
SMALL*2: Select when the speaker size is relatively small.
NONE: Select this when you have not connected a
speaker. (Not selectable for the front speakers)
1
*
Initial setting for front speakers.
2
Initial setting for center, surround, and surround back
*
speakers.
Notes:
Keep the following comments in mind as reference when adjusting. – If the size of the cone speaker unit built in your speaker is
larger than 12 cm (4 3/4 inches), select “LARGE,” and if it is smaller than 12 cm (4 3/4 inches), select “SMALL.
If you have selected NO for the subwoofer setting, you can only select “LARGE” for the front speakers.
If you have selected SMALL” for the front speakers, you cannot select LARGE for the center, surround, and surround back speakers.
If you have selected SMALL” for the surround speakers, you cannot select “LARGE” for the surround back speakers.
If you have selected NONE for the surround speakers, the surround back speakers are fixed to “NONE.”
7
Surround back speakers quantity—SBACK OUT
Select the number of the surround back speakers connected.
1SPK: Select this to use 1 surround back speaker.
2SPK: Select this to use 2 surround back speakers.
Note:
If you have selected “NONE” for the surround back speakers (see above), this setting is not available.
27
Setting the Speaker Distance
2.1 m (7 ft)
2.4 m (8 ft)
2.7 m (9 ft)
3.0 m (10 ft)
3.3 m (11 ft)
C
LR
LS RS
LSB
RSB
The distance from your listening point to the speakers is another important element to obtain the best possible sound of the Surround and DSP modes. Set the distance from your listening point to the speakers. By referring to the speaker distance setting, this unit automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you at the same time.
If you have used Quick Speaker Setup on page 25, this setting is not required.
Measuring unit—DIST UNIT
7
Select which measuring unit you use.
meter: Select to set the distance in meters.
feet: Select to set the distance in feet.
7
Speaker distance—FRONT DISTANCE, CNTR DISTANCE, SURR DISTANCE, SBACK DISTANCE
Set the distance from the listening point within the range of
0.3 m (1 ft) to 9.0 m (30 ft), in 0.3 m (1 ft) intervals.
When shipped from the factory, distance for each speaker is set to 3.0 m (10 ft).
Notes:
You cannot set the speaker distance for the speakers you have selected NONE (see page 27).
This setting is not valid for the DVD MULTI playback mode.
Setting the Bass Sounds
You can adjust subwoofer and bass sounds precisely according to your preference.
Subwoofer output—S WFR OUTPUT
7
You can select the type of the signal which can be transmitted through the subwoofer. In other words, you can determine whether or not the bass elements of the front speaker channels are transmitted through the subwoofer regardless of the front speaker size setting (either “SMALL” or “LARGE”).
Select one of the following:
LFE: Select to transmit only the LFE signals (while
playing Dolby Digital and DTS software) and the bass elements of small speakers through the subwoofer.
LFE+MAIN: Select to always add the bass elements of the
front speaker channels (MAIN) to the above (LFE) setting, and to transmit them through the subwoofer.
Note:
If you have selected “NO” for the subwoofer, this function is not available.
7
Crossover frequency—CROSS OVER
When you use a subwoofer, you can select the cutoff frequency for the small speakers used.
Select one of the crossover frequency levels according to the size of the small speaker connected.
Ex. In the above case, set the speaker distance as follows:
Front speakers: 3.0 m (10 ft) Center speakers: 3.0 m (10 ft) Surround speakers: 2.7 m (9 ft) Surround back speakers: 2.4 m (8 ft)
80Hz: Select when the cone speaker unit built in the speaker is
3
about 12 cm (4
/4 inches).
100Hz: Select when the cone speaker unit built in the speaker is
about 10 cm (3 15/16 inches).
120Hz: Select when the cone speaker unit built in the speaker is
about 8 cm (3 3/16 inches).
150Hz: Select when the cone speaker unit built in the speaker is
about 6 cm (2 3/8 inches).
Notes:
.If you have selected “LARGE” for all activated speakers (see
page 27), this function is fixed to “OFF.
Crossover frequency is not valid for the DVD MULTI playback, All Channel Stereo, HEADPHONE, and 3D HEADPHONE mode.
28
7
Low frequency effect attenuator—LFE ATTENUATE
If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.
Select one of the following:
0dB: Normally select this.
−−
10dB: Select when the bass sound is distorted.
−−
Selecting main or sub channelDUAL MONO
Select the playback sounds (channel).
Setting the Digital Input Terminals
When you use the digital input terminals, register which components you have connected to the digital input terminals.
Digital coaxial terminal—DGTL IN COAX
7
Set the component connected to the digital coaxial terminal (DIGITAL IN 1).
For RX-8030VBK: DVD (initial setting), MD*, CDR, TV (or DBS**) or CD.
For RX-7030VBK/RX-7032VSL:
DVD (initial setting), CD, TV (or DBS**) or CDR.
MAIN: Select to play back the main channel (Ch1).*
1
Signal indicator L lights up while playing back this channel.
SUB: Select to play back the sub-channel (Ch2).*
1
Signal indicator “R” lights up while playing back this channel.
ALL: Select to play back both the main and sub-channels
(Ch1/Ch2).*
1
Signal indicators L and R light up while playing back these channels.
Notes:
The Dual Mono format is not identical with bilingual broadcasting or the MTS (Multichannel Television Sound) format used for TV programs. So this setting does not take effect while watching bilingual or MTS programs.
1
*
Dual Mono signals can be heard from the following speakers L (left front speaker), R (right front speaker), and C (center speaker)with respect to the current Surround setting.
With Surround Activated
Dual Mono
Setting SMALL/LARGE NONE
MAIN Ch 1 Ch 1 Ch 1 Ch 1 Ch1
SUB Ch 2 Ch 2 Ch 2 Ch 2 Ch 2
ALL Ch 1 Ch 2 — Ch 1+Ch 2 — Ch 1+Ch 2 Ch 1+Ch 2
Without Surround
LRLCRL R
Center speaker setting
7
Digital optical terminals—DGTL IN OPTICAL
For RX-8030VBK:
Set the components connected to the digital optical terminals (DIGITAL IN 2 – 4).
As you rotate MULTI JOG, the digital optical input terminals are set to used for following digital components:
When “DIGITAL IN 1 (DGTL IN COAX) is set to “DVD”
2: CD 3: TV (or DBS** ) 4: CDR 2: CD 3: TV (or DBS**) 4: MD* 2: CD 3: MD* 4: CDR 2: MD* 3: TV (or DBS** ) 4: CDR (back to the beginning)
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CD”
2: DVD 3: TV (or DBS**) 4: CDR 2: DVD 3: TV (or DBS**) 4: MD* 2: DVD 3: MD* 4: CDR 2: MD* 3: TV (or DBS**) 4: CDR (back to the beginning)
When DIGITAL IN 1 (DGTL IN COAX) is set to TV orDBS**
2: CD 3: DVD 4: CDR 2: CD 3: DVD 4: MD* 2: CD 3: MD* 4: CDR 2: MD* 3: DVD 4: CDR (back to the beginning)
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CDR”
2: CD 3: TV (or DBS**) 4: DVD 2: CD 3: TV (or DBS**) 4: MD* 2: CD 3: MD* 4: DVD 2: MD* 3: TV (or DBS**) 4: DVD (back to the beginning)
When DIGITAL IN 1 (DGTL IN COAX) is set to MD*
2: CD 3: TV (or DBS**) 4: CDR 2: CD 3: TV (or DBS**) 4: DVD 2: CD 3: DVD 4: CDR 2: DVD 3: TV (or DBS**) 4: CDR (back to the beginning)
*
When connecting an MD recorder to the digital input terminal, change the source name to MD from “TAPE” (see page 21).
**
If you have changed the source name from TV to DBS,”DBS appears (see page 21).
29
For RX-7030VBK/RX-7032VSL:
As you set the components connected to the digital coaxial terminal (DIGITAL IN 1), the optical terminals (DIGITAL IN 2 – 4) will be automatically fixed to connect the components listed below.
When “DIGITAL IN 1 (DGTL IN COAX) is set to “DVD”
2: CD 3: TV (or DBS*) 4: CDR
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CD”
2: DVD 3: TV (or DBS*) 4: CDR
When DIGITAL IN 1 (DGTL IN COAX)” is set to TV orDBS*
2: DVD 3: CD 4: CDR
Memorizing the Volume Level for Each Source
This unit memorizes some settings separately for each source. In addition, you can store the volume level for each source with the other memorized settingsOne Touch Operation.
One Touch Operation—ONE TOUCH OPE
7
Select one of the following:
ON: Select to store the volume level separately for each
source. (The ONE TOUCH OPERATION indicator lights up on the display.)
This receiver memorizes the volume level
when you change the source, or
when you change the source name.
OFF: Select this not to store the volume level.
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CDR”
2: DVD 3: CD 4: TV (or DBS*)
*
If you have changed the source name from TV to DBS,”DBS appears (see page 21).
Setting the Component Video Input
When you use the component video inputs for connecting the DVD player and/or DBS tuner, register the type of input jacks. If you have not selected appropriate video input jacks, the AV COMPU LINK remote control system cannot operate properly. (See page 42.)
For the DVD player—VIDEO IN DVD
7
Select one of the following:
COMPNT: Select when connecting the DVD player to the
component video input jacks.
S/C: Select when connecting the DVD player to the
composite video or S-video input jacks.
For the DBS tuner—VIDEO IN DBS
7
Select one of the following:
To recall the volume level
With the ONE TOUCH OPERATION indicator lit, the volume level for the currently selected source is recalled when the source is selected.
To cancel the One Touch Operation
Set One Touch Operation to “OFF” so that the ONE TOUCH OPERATION indicator goes off.
COMPNT: Select when connecting the DBS tuner to the
component video input jacks.
S/C: Select when connecting the DBS tuner to the
composite video or S-video input jacks.
30

Adjusting Sound

VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
You can make sound adjustment to your preference after completing basic setting.
Basic Setting Items
On the following pages, you can adjust the items listed below:
You can adjust only the items applicable to the current sound mode.
If Analog Direct is in use, you cannot make any sound adjustments.
Items To do See page
DIGITAL EQ Adjust equalizer pattern. 32
SUBWFR LVL Adjust the subwoofer output level. 32
FRONT L LVL Adjust the left front speaker output
level. 32
FRONT R LVL Adjust the right front speaker output
level. 32
CENTER LVL Adjust the center speaker output
level. 32
SURR L LVL Adjust the left surround speaker
output level. 32
SURR R LVL Adjust the right surround speaker
output level. 32
SBACK LVL Adjust the surround back speaker
output level. 32
EFFECT*
ROOMSIZE*1Select the room size for your virtual
LIVENESS*
CTR TONE Make the center tone soft or sharp. 33
PANORAMA*2Add wraparound sound effect with
CNTR WIDTH*2Adjust the center channel localization
DIMENSION*2Adjust sound localization position. 33
CNTR GAIN*3Adjust sound localization of the
1
Adjust the DAP effect level. 33
listening room. 33
1
Select the liveness level for your virtual listening room. 33
side-wall image. 33
between the center speaker and the left/right front speakers. 33
center channel. 33
Basic Procedure
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.
Ex. When adjusting the subwoofer level to “–3”.
1. Press ADJUST.
The last selected item appears on the display.
2. Turn MULTI JOG until an item you want appears on the display.
In this example, select SUBWFR LVL.” For available items,
see the list to the left.
3. Press in MULTI JOG (PUSH SET).
The current setting (or level) for the selected item appears on the display.
4. Turn MULTI JOG to select a setting you want or to make an adjustment as you like.
Notes:
1
*
Adjustable when the DAP mode is in use.
2
*
Adjustable when Pro Logic II Music is in use.
3
*
Adjustable when Neo:6 Music is in use.
5. Press EXIT.
6. Repeat steps 2 to 5 to set other items if necessary.
7. Press EXIT.
The source indication resumes on the display.
31
Adjusting the Equalization Patterns
231
564
89
7/P
0
+10
10/0
You can adjust the equalization patterns to your preference.
Once you have made adjustment, it is memorized for each source.
Equalization adjustmentDIGITAL EQ
7
You can adjust five frequency (63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) within the range of –8 dB to +8 dB (0 dB is the initial setting) in 2 dB steps.
When adjustment is made, the DIGITAL EQ indicator lights up on the display.
To flat the equalization pattern, set all the frequency to 0 dB in step 4 of Basic Procedure (on page 31). The DIGITAL EQ indicator goes off from the display.
Notes:
When Analog Direct is in use, Digital Equalization patterns are not available.
The Digital Equalization affects the front speaker sounds only.
You can also use the remote control for equalization adjustment.
Adjusting the Speaker Output Levels
You can adjust the speaker output levels. The test tone comes out of each speaker except subwoofer to check the output level balance when using the Surround mode.
Once you have made an adjustment, it is memorized for each source.
Adjustable speakers
7
You can adjust the following speakers’ output levels within the range of –10 dB to +10 dB (0 dB is the initial setting):
SUBWFR LVL: Select to adjust the subwoofer output level.
FRONT L LVL: Select to adjust the left front speaker
output level.
FRONT R LVL: Select to adjust the right front speaker
output level.
CENTER LVL: Select to adjust the center speaker output
level.
SURR L LVL: Select to adjust the left surround speaker
output level.
SURR R LVL: Select to adjust the right surround speaker
output level.
SBACK LVL: Select to adjust the surround back speaker
output level.
1. Press SOUND.
The 10 keys are activated for sound adjustments.
2. Press DIGITAL EQ (Equalization) repeatedly to select the center frequency you want to adjust.
Each time you press the button, the center frequency with
its current level appear on the display
3. Press LEVEL + or – repeatedly to adjust the level of the center frequency.
The DIGITAL EQ indicator lights up on the display.
The frequency level changes from –8 dB to +8 dB in 2 dB
steps.
4. Repeat steps 2 and 3 to adjust the other center frequency.
Notes:
If you have selected NO or “NONE for a speaker (see page
27), the output level for the corresponding speaker is not adjustable.
The center speaker, and left/right surround speakers output levels are adjustable for DVD MULTI playback mode, even though NONE is selected for the speaker settings.
Speaker output levels (except the subwoofer output level) are not adjustable when Analog Direct is in use. To adjust subwoofer output level, see page 19.
32
You can also use the remote control for adjusting the speaker output level. When using the remote control, you can make an adjustment while listening to test tone.
231
564
7/P
89
10/0
+10
0
1. Press SOUND.
The 10 keys are activated for sound adjustments.
2. Press TEST to check if you can hear the sounds through all the speakers at equal level.
Test tone comes out of the speakers in the following order.
No test tone comes out of the deactivated speakers and the
subwoofer.
FRNT L (Left front speaker) = CENTER (Center speaker) FRNT R (Right front speaker) SURR R (Right surround speaker) S BACK (surround back speaker) SURR L (Left surround speaker) = (Back to the beginning)
=
=
=
3. Select a speaker you want to adjust.
To select the left front speaker, press FRONT•L.
To select the center speaker, press CENTER.
To select the right front speaker, press FRONT•R.
To select the right surround speaker, press SURR•R.
To select the surround back speaker, press SURR BACK.
To select the left surround speaker, press SURR•L.
4. Press LEVEL + or LEVEL – to adjust the speaker output level (–10 dB to +10 dB).
=
Adjusting the Sound Parameters for the Surround and DSP Modes
You can adjust the Surround and DSP sound parameters to your preference.
When center speaker is set to NONE, CTR TONE, CNTR WIDTH, and CNTR GAIN are not available.
7
Adjustable parameters
You can adjust the following parameters:
For Surround, DAP, and All Channel Stereo modes (when the center speaker is connected)
This setting is common to all surround modes, and is memorized separately for DSP modes.
CTR TONE: Adjust the center tone. As the number
increases, the dialogue becomes clearer so that the human voices change from soft to sharp. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
For DAP modes
Once you have made an adjustment, it is memorized for each DAP mode.
EFFECT: Adjust the DAP effect level. As the number
increases, the DAP effect becomes stronger. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
ROOMSIZE: Adjust the virtual room size. As the number
increases, the interval between reflections increases so that you will feel as if you were in a larger room. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
LIVENESS: Adjust the liveness effect. As the number
increases, the attenuation level of reflections over time decreases so that acoustics change from “Dead” to “Live. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
5. Repeat steps 3 and 4 to adjust the other speakers output levels.
6. Press TEST again to stop the test tone.
For Pro Logic II Music only
PANORAMA: Select ON to add wraparound sound
effect with side-wall image. (Initial setting: OFF)
CNTR WIDTH: Adjust the center channel localization
between the center speaker and the left/right speakers. As the number increases, the center channel sound moves toward the left and right speakers. (Normally select “3 (initial setting). Adjustable range: OFF and 1 to 7)
DIMENSION: Adjust sound localization position. As the
number increases, the sound localization moves towards forward from backward. (Normally select “4 (initial setting).” Adjustable range: 1 to 7)
For Neo:6 Music only
CNTR GAIN: Adjust the sound localization of the center
channel. As the number increases, center channel will be localized clearly. (Normally select “0.2 (initial setting).” Adjustable range: 0 to 0.5)
33

Using the Surround Modes

DIGITAL
This unit activates a variety of Surround modes automatically. The basic settings and adjustments stored (see pages 25 to 33) are applied.
Reproducing Theater Ambience
In a movie theater, many speakers are located on the walls to reproduce impressive multi-surround sounds, reaching you from all directions. With these many speakers, sound localization and sound movement can be expressed.
Surround modes built in this receiver can create almost the same surround sounds as you can feel in a real movie theaterwith only five to seven speakers (plus subwoofer).
Introducing the Surround Modes
Dolby Digital*
Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding (1ch up to 5.1ch).
When Dolby Digital signal is detected through the digital input, the
Dolby Digital 5.1CH
Dolby Digital 5.1CH (DOLBY D) encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being-there” feeling are enhanced much more than Dolby Pro Logic.
Dolby Digital EX
Dolby Digital EX (DOLBY D EX) is a digital surround encoding format that adds the third surround channels, called “surround back. Compared to the conventional Dolby Digital 5.1CH, these newly added surround back channels can reproduce more detailed movements behind you while viewing the video software. In addition, surround sound localization will become more stable.
You can use Virtual 6.1-channel surround when playing back Dolby Digital EX software without connecting the surround back speakers. This surround reallocates the surround back channel to the surround speakers so that you can still feel the great surround effect from behind. The VIRTUAL SB (Surround Back) indicator lights up on the display.
1
indicator lights up on the display.
Left front speaker
(L)
Left surround
speaker (LS)
Surround back speakers (LSB/RSB)
Center speaker
(C)
Subwoofer
Right front speaker
(R)
Right surround
speaker (RS)
Dolby Pro Logic
Dolby Surround encoding format records the left front channel, right front channel, center channel, and surround channel (monaural) signals into 2 channels. The Dolby Pro Logic (PRO LOGIC) decoder built in this receiver decodes these 2 channel signals into 4 original channel signals (plus subwoofer)matrix-based multi-channel reproduction.
When Dolby Pro Logic is activated, the lights up on the display.
indicator
34
Dolby Pro Logic II
Dolby Pro Logic II is a multi-channel playback format to convert 2­channel software into 5-channel (plus subwoofer). The matrix-based conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.
This receiver provides two types of Dolby Pro Logic II modes Pro Logic II Movie (PLII MOVIE) and Pro Logic II Music (PLII MUSIC). When Dolby Pro Logic II is activated, the indicator lights up on the display.
DTS 96/24
In recent years, there has been increasing interest in higher sampling rates both for recording and for reproducing at home. Higher sampling rates allow wider frequency range and greater bit depths provide extended dynamic range. DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24 bits) introduced by Digital Theater Systems, Inc. to deliver “better- than-CD sound quality into the home.
When DTS 96/24 signal is detected, the 96/24 indicator lights up. You can enjoy its 5.1-channel sound with full-quality.
PLII MOVIE: Suitable for playing any Dolby Surround
encoded software. You can enjoy a sound field very close to the one created with discrete 5.1­channel sounds.
PLII MUSIC: Suitable for playing any 2-channel stereo
software. You can enjoy wide and deep sounds.
2
DTS*
DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).
When DTS signal is detected through the digital input, the indicator lights up on the display.
DTS Digital Surround
DTS Digital Surround (DTS) is another discrete 5.1 channel digital audio format available on CD, LD, and DVD software. Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.
When EX/ES setting is set to ON, DTS Neo:6 (DTS NEO:6) is
applied while playing back multi-channel DTS software. It creates the same surround ambience as 6.1-channel software does.
DTS Extended Surround (DTS-ES)
DTS-ES is another multi-channel digital encoding format. It greatly improves the 360-degree surround impression and space expression by adding the third surround channelsurround back channel. DTS-ES includes two signal formats with different surround signal recording methodsDTS-ES Discrete 6.1ch (ES DSCRETE) and
DTS-ES Matrix 6.1ch (ES MATRIX). DTS-ES Discrete 6.1ch has been designed to encode (and decode)
a 6.1-channel signal discretely to avoid interference with each channel. DTS-ES Matrix 6.1ch has been designed to add an extra surround channel to DTS Digital Surround 5.1-channel. By using a matrix encoding/decoding method, an additional surround back channel signal is encoded (and decoded) in both the left and right surround channel signals.
You can use Virtual 6.1-channel surround when playing back
DTS-ES software without connecting the surround back speakers. This surround reallocates the surround back channel to the surround speakers so that you can still feel the great surround effect from behind. The VIRTUAL SB (Surround Back) indicator lights up on the display.
DTS Neo:6
DTS Neo:6 is another conversion method to create 6-channel (plus subwoofer) from analog/digital 2-channel software by using the high precision digital matrix decoder used for DTS-ES Matrix 6.1ch. When one of Neo:6 modes is activated, the NEO:6 indicator lights up on the display.
This receiver provides the following DTS NEO:6 modesNeo:6 Cinema (NEO:6CINMA) and Neo:6 Music (NEO:6MUSIC).
NEO:6CINMA: Suitable for playing movies. You can get the
same atmosphere with 2-channel software as with 6.1-channel software. It is also effective for playing software encoded with conventional surround formats.
NEO:6MUSIC: Suitable for playing music software. The front
channel signals bypass the decoder (resulting in no loss of sound quality) and the surround signals transmitted through the other speakers expand the sound field naturally.
What is Dual Mono?
Dual Mono can be easily understood when you think of the bilingual broadcast or the MTS (Multichannel Television Sound) used for TV programs (however, the Dual Mono format is not identical with those analog formats). This format is now adopted in Dolby Digital, DTS, and so on. It allows two independent channels (called main channel and sub­channel) to be recorded separately.
When Dual Mono signal is detected, the DUAL indicator lights up. You can select either channel you want to listen to (see page
29).
When using the Surround mode, the sounds come out of the avtivated speakers which the Surround mode requires.
If the surround speakers and center speaker are set to
NONE in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.
1
*
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
2
*
DTS, DTS-ES Extended Surround and “Neo:6 are trademarks of Digital Theater Systems, Inc.
35
Surround Modes Applicable to the Various Software
Available Surround modes vary depending on the speaker settings and the incoming signals. The table below shows the relation of the Surround modes and the incoming signals (with the surround back speakers and EX/ES setting).
The numbers inside the parentheses following the incoming signal type indicate the number of the front channels and that of the surround channels. For example, (3/2) indicates that the signals are encoded with three front signals (left/right/center) and two (stereo) surround signals.
Incoming Signal Type Surround Back Channel Setting EX/ES Setting Available Surround Mode
Dolby Digital EX 2SPK/1SPK AUTO/ON DOLBY D EX
OFF DOLBY D
NONE AUTO/ON DOLBY D (VIRTUAL SB)*
OFF DOLBY D
Dolby Digital (3/2, 2/2) 2SPK/1SPK AUTO DOLBY D
ON DOLBY D EX
OFF DOLBY D
NONE Not available DOLBY D
Dolby Digital (3/1, 2/1) 2SPK/1SPK AUTO/ON/OFF DOLBY D
NONE Not available DOLBY D
Dolby Digital (1/0, 3/0) 2SPK/1SPK/NONE Not available DOLBY D
Dolby Digital (Dual Mono) 2SPK/1SPK/NONE Not available DUAL MONO
DTS-ES Discrete 6.1ch 2SPK/1SPK AUTO/ON ES DSCRETE
OFF DTS
NONE AUTO/ON DTS (VIRTUAL SB)*
DTS-ES Matrix 6.1ch 2SPK/1SPK AUTO/ON ES MATRIX*
DTS-ES 96/24 Matrix OFF DTS
NONE AUTO/ON DTS (VIRTUAL SB)*1 *
OFF DTS
DTS, DTS 96/24 (3/2, 2/2) 2SPK/1SPK AUTO DTS
2
*
DTS 96/24 processing is not applied. If you want to apply the processing, set the EX/ ES setting to “OFF.
NONE Not available DTS
ON DTS NEO:6*
OFF DTS
DTS (3/1, 2/1) 2SPK/1SPK AUTO/ON/OFF DTS
NONE Not available DTS
DTS (1/0, 3/0) 2SPK/1SPK/NONE Not available DTS
DTS (Dual Mono) 2SPK/1SPK/NONE Not available DUAL MONO
1
1
2
2
2
Incoming Signal Type Available Surround Mode
Analog/PCM/Dolby Digital (2/0)/DTS (2/0) PL II MOVIE / PL II MUSIC / PRO LOGIC / NEO:6 CINMA / NEO:6 MUSIC
DVD MULTI None
3D HEADPHONE Mode3D H PHONE
You can also enjoy the Surround modes through the headphones. If you press SURROUND when the front speakers 1 and 2 are both deactivated, 3D HEADPHONE mode (3D H PHONE) is activated without respect to the type of software played back. 3D H PHONE appears on the display and the DSP and HEADPHONE indicators also light up.
*1Virtual 6.1-channel surround
If you have connected (and activated) the surround speakers, you can use Virtual 6.1-channel surround when playing back Dolby Digital EX or DTS-ES software without connecting the surround back speakers. This surround reallocates the surround back channel to the surround speakers so that you can still feel the great surround effect from behind. The VIRTUAL SB (Surround Back) indicator lights up on the display.
36
Activating the Surround Modes
VOLUME
LINEAR PCM
DIGITAL
L
SUBWFR
LS RS
CR
LFE
DIGITAL
AUTO
SPEAKERS 1
VOLUME
LINEAR PCM
DIGITAL
L
SUBWFR
DUAL DIGITAL
AUTO
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
PRO LOGIC
SPEAKERS 1
NEO:6CINMANEO:6MUSIC
PL II MOVIE PL II MUSIC PRO LOGIC
Available Surround modes vary depending on the speaker settings and the incoming signals. (See page 36.)
Activating one of the Surround modes for a source automatically recalls the memorized settings and adjustments (see pages 25 to
33.)
You can also use the buttons on the remote control for the same functions.
Activating the EX/ES setting
For multi-channel digital software, you can activate the EX/ES (7.1­channel) reproduction mode.
Once you have set EX/ES (7.1-channel) reproduction mode, it is stored in memory and will be called up whenever you activate the Surround mode which the memorized EX/ES (7.1-channel) reproduction mode can be applied to.
Activating the Surround Modes
1. Select and play any source other than “DVD MULTI.
Make sure you have selected the analog or digital input mode.
Surround modes are not valid for DVD MULTI playback
mode.
2. Press SURROUND to activate the Surround mode.
For multi-channel digital software (except 2-channel and
Dual Mono software), incoming signals are automatically
detected and the appropriate surround mode is activated (see page 36 for details).
Press EX/ES to select an appropriate setting for your enjoyment.
The currently selected EX/ES (7.1-channel) reproduction mode appears on the display.
Each time you press the button, it changes as follows:
EX/ES AUTO*: According to the incoming signal, an
appropriate Surround mode is applied.
For Dolby Digital EX and DTS-ES, EX/ES (7.1-channel) reproduction is applied.
For 5.1-channel (or less) encoded software, 5.1-channel reproduction is applied.
EX/ES ON*: Select to apply EX/ES (7.1-channel)
reproduction to both 5.1-channel and 6.1­channel encoded software.
EX/ES OFF: Select to cancel the EX/ES (7.1-channel)
reproduction.
*
If the surround back speakers are not connected or deactivated, Virtual 6.1-channel surround is applied.
Notes:
When Surround mode is deactivated, pressing EX/ES will activate an appropriate Surround mode for the current source.
When an analog or digital 2-channel source is playing, you can adjust the EX/ES (7.1-channel) reproduction mode and store the setting, but it will not affect the current source.
When the source is one to which the EX/ES (7.1-channel) reproduction cannot be applied, you can adjust the setting and store in memory, but reproduction channels will remain unchanged.
Ex. When DOLBY D is activated.
– If the EX/ES (7.1-channel) reproduction mode has been set
to “AUTO or ON, one of the EX/ES (7.1-channel) reproduction modes will be activated (see the left column).
For analog sources and digital 2-channel software, you can select one of the following Surround modes. Each time you press SURROUND, Surround modes change as follows:
For Dual Mono software, you can select the channel you listen to. (See page 29.)
To adjust the speaker output level, see pages 32 and 33.
To cancel the Surround mode
Press SURROUND/DSP OFF (or SURR/DSP OFF on the remote control). “SURR OFF” appears on the display.
37

Using the DSP Modes

This unit activates a variety of DSP modes automatically. The basic settings and adjustments stored (see pages 25 to
33) are applied automatically.
Reproducing the Sound Field
The sound heard in a concert hall, club, etc. consists of direct sound and indirect soundearly reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. The DSP modes can create these important elements, and give you a real being there feeling.
Reflections from
Early reflections
Direct sounds
behind
Introducing the DSP Modes
The DSP modes include the following modes
DAP (Digital Acoustic Processor) modes (HALL 1, HALL 2,
LIVE CLUB, DANCE CLUB, PAVILION, THEATER 1, THEATER 2)
ALL CH STEREO
MONO FILM
3D HEADPHONE Mode
You can also enjoy the DSP effect (except All Channel Stereo mode) through the headphones.
If you press DSP when the front speakers 1 and 2 are both deactivated, 3D HEADPHONE mode is activated without respect to the type of software played back. 3D H PHONE appears on the display and the DSP and HEADPHONE indicators also light up.
To use the DSP modes, press DSP so that the DSP modes change as follows. The DSP indicator also lights up on the display.
=
HALL 1 = HALL 2 = LIVE CLUB
=
DANCE CLUB = PAVILION = ALL STEREO
= THEATER 1 =
=
(Back to the beginning)
THEATER 2 = MONO FILM
: Suitable for audio sources
: Suitable for video sources
DAP modes
You can use the following DAP modes in order to reproduce a more acoustic sound field in your listening room.
HALL 1: Reproduces the spatial feeling of a large
shoebox-shaped hall designed primarily for classical concerts. (Its seating capacity is about
2000.)
HALL 2: Reproduces the spatial feeling of a large
vineyard-shaped hall designed primarily for classical concerts. (Its seating capacity is about
2000.)
LIVE CLUB: Reproduces the spatial feeling of a live music
club with a low ceiling.
DANCE CLUB: Reproduces the spatial feeling of a rocking
dance club.
PAVILION: Reproduces the spatial feeling of an exhibition
hall with a high ceiling.
THEATER 1*: Reproduces the spatial feeling of a large theater
where the seating capacity is about 600.
THEATER 2*: Reproduces the spatial feeling of a small theater
where the seating capacity is about 300.
*
The built-in Dolby Pro Logic II decoder is activated when playing back 2-channel analog or digital source. The indicator lights up.
When using the DAP mode, the sounds come out of all the connected and activated speakers.
If surround speakers are set to “NONE in the speaker setting,
JVCs original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.
38
VOLUME
LINEAR PCM
DIGITAL
L
SUBWFR
LS RS
CR
DIGITAL
AUTO
DSP
SPEAKERS 1
ALL Channel Stereo mode
This mode can reproduce a larger stereo sound field using all the connected (and activated) speakers. This mode cannot be used
without activating the surround speakers.
If the front speakers are deactivated, “All Channel Stereo cannot be selected.
Sound reproduced from normal stereo
Activating the DSP Modes
Activating one of the DSP modes for a source automatically recalls the memorized settings and adjustments (see pages 25 to
33.)
You can also use the buttons on the remote control for the same functions.
1. Select and play any sound source.
2. Press DSP repeatedly until the DSP mode you want appears on the display.
Each time you press the button, the DSP modes change as
follows:
Sound reproduced from All Channel Stereo mode
Monaural Film
In order to reproduce a more acoustic sound field in your listening room while viewing monaural sound video software (analog and 2­channel digital signals), you can use this mode. The surround effect will be added, and the sound localization of actors words will be improved. This mode cannot be used for
multi-channel digital signals.
When MONO FILM is used, sounds come out of all the connected (and activated) speakers.
If incoming signals change from 2-channel digital signal to another digital signal type, MONO FILM is canceled and an appropriate Surround mode is activated.
=
HALL 1 = HALL 2 = LIVE CLUB
=
DANCE CLUB = PAVILION = ALL STEREO*
= THEATER 1 =
=
(Back to the beginning)
*
When surround speakers are set to “NONE,” you cannot select ALL STEREO.
**
When multi-channel signals come in, you cannot select MONO FILM.
THEATER 2 = MONO FILM**
Note:
When the surround speakers are deactivated, the 3D-PHONIC processing is applied to the DSP modes (the 3D-PHONIC indicator also lights up).
To cancel the DSP modes
Press SURROUND/DSP OFF (or SURR/DSP OFF on the remote control). “SURR OFF” appears on the display.
When the front speakers are deactivated, HEADPHONE will appear.
39

Using the DVD MULTI Playback Mode

DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
COMPONENT VIDEO
DVD
IN
SURR
(REAR)
R
L
R
L
A
B
C
D
E F G
RX-8030VBK
RX-7030VBK/RX-7032VSL
VOLUME
LINEAR PCM
L
SUBWFR
LS RS
CR
ANALOG MULTI
SPEAKERS 1
This receiver provides the DVD MULTI playback mode for reproducing the analog discrete output mode of the DVD player.
Connection diagram
DVD player
Activating the DVD MULTI Playback Mode
1. Press DVD MULTI so that “DVD MULTI
appears on the display.
The MULTI indicator also lights up.
Note:
When you select DVD MULTI as the source to play, the Surround and DSP modes are canceled, and the SURROUND and DSP buttons do not work.
2. Select the analog discrete output mode on the
DVD player, and start playing a DVD.
Refer also to the manual supplied with the DVD player.
Å To component video output ı To subwoofer output Ç To center channel audio output Î To S-video outputTo composite video output Ï To left/right front channel audio output Ì To left/right surround channel audio output
Note:
When connecting a DVD player to the component video input jacks, make the component video input setting correctly. See page 30 for details.
You can adjust Digital Equalization patterns and speaker output levels. See Adjusting the Equalization Patterns” on page 32 for details.
Notes:
Midnight Mode is not available for DVD MULTI playback mode (see
page 20).
When using a headphones, you can listen to the front channels (left
and right) only.
40

COMPU LINK Remote Control System

COMPU LINK-4
(SYNCHRO)
CD player
CD recorder
Cassette deck
or
MD recorder
Cassette deck
or
CD recorder
CD player
RX-7030VBK RX-7032VSL
RX-8030VBK
The COMPU LINK remote control system allows you to operate JVCs audio components through the remote sensor on the receiver.
To use this remote control system, you need to connect JVCs audio components through the COMPU LINK (SYNCHRO) jacks (see below) in addition to the connections using cables with RCA pin plugs (see pages 12 and 13).
Make sure that the AC power cords of these components are unplugged before connection. Plug the AC power cords only after all connections are complete.
Automatic Source Selection
When you press the play ( on its own remote control, the receiver automatically turns on and changes the source to the component. On the other hand, if you select a new source on the receiver or on the remote control, the selected component begins playing immediately. In both cases, the previously selected source continues playing without sound for a few seconds.
For RX-7030VBK/RX-7032VSL: You cannot use the COMPU LINK
remote control system to operate the MD recorder.
33
3) button on a connected component or
33
Automatic Power On/Off (Standby)—only possible with the COMPU LINK-3 and COMPU LINK-4
The connected components turn on and off (standby) along with the receiver. When you turn on the receiver, one of the connected components will turn on automatically, depending on which component has been previously selected. When you turn off the receiver, the connected components will turn off (standby).
Synchronized Recording
Synchronized recording means the cassette deck (or MD recorder) starts recording as soon as a CD begins playing.
To use synchronized recording, follow these steps:
Notes:
There are four versions of COMPU LINK remote control system.
This receiver is equipped with the fourth versionCOMPU LINK-4. This version is added systematic operations with the CD recorder to the previous versionCOMPU LINK-3.
If your audio component has two COMPU LINK jacks, you can use
either one. If it has only one COMPU LINK jack, connect it so that it is the last item in the series of components.
To operate the target component using the COMPU LINK remote
control system, set the source name correctly if required. (See page 21.)
Refer also to the manuals supplied with your audio components.
This remote control system allows you to use four functions listed below.
Remote Control through the Remote Sensor on the Receiver
You can control the connected audio components through the remote sensor on the receiver using this remote control. Aim the remote control directly at the remote sensor on the receiver. For details, see pages 44 and 45.
1. Put a tape in the cassette deck (or an MD in the MD recorder), and a disc in the CD player.
2. Press the record (¶) button and the pause (8) button on the cassette deck (or MD recorder) at the same time.
This puts the cassette deck (or MD recorder) into recording pause. If you do not press the record () button and pause (8) button at the same time, the synchronized recording feature will not operate.
3. Press the play (3) button on the CD player.
The source changes on the receiver, and as soon as play starts, the cassette deck (or MD recorder) starts recording. When the play ends, the cassette deck (or MD recorder) enters recording pause, and stops about 4 seconds later.
Notes:
During synchronized recording, the selected source cannot be
changed.
If the power of any component is shut off during synchronized
recording, the COMPU LINK remote control system may not operate properly. In this case, you must start again from the beginning.
41

AV COMPU LINK Remote Control System

AV
COMPULINK-
AV
COMPU LINK
VHS
AV
COMPU LINK
AV
COMPU LINK EX
DVD
AV
COMPU LINK-
ΙΙΙ
The AV COMPU LINK remote control system allows you to operate JVC’s video components (TV, VCR, and DVD player) through the receiver.
This receiver is equipped with the AV COMPU LINK-III, which adds a function to the previous version in order to operate JVC’s video components through the video components terminals. To use this remote control system, connect the video components you want to operate, following the diagrams below and the procedure on the next page.
CONNECTIONS 1: AV COMPU LINK Connection
VCR DVD player TV
CAUTION:
You can only connect to the TV with the AV COMPU LINK EX or AV COMPU LINK-III jack. DO NOT connect to the TV with AV COMPU LINK RECEIVER/ AMP jack.
IMPORTANT:
The AV COMPU LINK remote control system cannot control the DBS tuner.
For RX-8030VBK: Connect the VCR to the VCR 1 jacks. Video components connected to the VIDEO and VCR 2 jacks on the receiver cannot be controlled with the AV COMPU LINK remote control system.
Notes:
When connecting the receiver and a TV with the AV COMPU LINK EX terminal by using a component video cable, you cannot use automatic selection of TV’s input mode (see page 43).
When connecting only the VCR or DVD player to this receiver, connect it directly to the receiver using cables with the monaural mini-plugs.
CONNECTIONS 2: Video Cable Connection
This receiver is equipped with three types of the video terminals—S-video, composite video, and component video, and the signals coming into this receiver through one type of video jacks can output only through the jack of the same type. So you need to connect the VCR and/or DVD player to the TV using one of the following three ways:
When using the AV COMPU LINK remote control system, set the component video input for the DVD player and the DBS tuner
correctly (see Setting the Component Video Input on page 30); otherwise, the correct input for this receiver will not be selected on the
TV.
CASE 1 When connecting the source equipment to the receiver through the S-video jacks, connect this receiver
to the TVs Video Input 1 jack using S-video cables.
Source
equipment
S-video cord
CASE 2 When connecting the source equipment to the receiver through the composite video jacks, connect
this receiver to the TVs Video Input 2 jack (composite video input) using composite video cables.
Source
equipment
Composite
video cord
RX-8030VBK RX-7030VBK RX-7032VSL
RX-8030VBK RX-7030VBK
RX-7032VSL
S-video cord
Composite
video cord
TV
To video Input 1
TV
To video Input 2
CASE 3 When connecting the source equipment to the receiver through the component video jacks, connect
this receiver to the TVs Video Input 2 jack (component video input) using component video cables.
RX-8030VBK RX-7030VBK
RX-7032VSL
Component
video cord
TV
To video Input 2
42
Source
equipment
Component
video cord
1. If you have already plugged your VCR , DVD
player, TV and this receiver into the AC outlets, unplug their AC power cords first.
2. Connect your VCR, DVD player, TV and this
receiver, using the cables with the monaural mini­plugs (not supplied).
See CONNECTIONS 1 on the previous page.
3. Connect the audio input/output jacks on VCR,
DVD player, TV and this receiver using the cables with RCA pin plugs.
See pages 14 and 15.
4. Connect the video input/output jacks on VCR,
DVD player, TV and this receiver, using the cables with RCA pin plugs, S-video plug or component video plugs.
See CONNECTIONS 2 on the previous page.
One-Touch DVD Play
Simply by starting playback on the DVD player, you can enjoy the DVD playback without setting other switches manually.
When the DVD player is connected through the analog input jacks on this receiver (and analog input is selected), the receiver automatically turns on and changes the source to DVD or
DVD MULTI.”
When the DVD player is connected through the digital input
terminal on this receiver (and digital input is selected), the receiver automatically turns on and changes the source to “DVD.”
The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.
Automatic Selection of TVs Input Mode
When you select TV as the source to play on the receiver, the
TV automatically changes the input mode to the TV tuner so that you can watch TV.
When you select any other video source other than TV as the
source to play on the receiver, the TV automatically changes the input mode to the appropriate position (either Video Input 1 or Video Input 2) so that you can view the playback picture.
5. Plug the AC power cords of the components and the receiver into the AC outlets.
6. When turning on the TV for the first time after the AV COMPU LINK connection, turn the TV volume to the minimum using the TV volume control on the TV.
7. Turn on the connected components first, then turn on this receiver.
When turning on the VCR, use the remote control supplied
with this receiver.
The AV COMPU LINK remote control system allows you to use the five basic functions listed below.
Remote Control of the TV, DVD player, and VCR Using This Remote Control
See page 46 for details.
Aim the remote control directly at the remote sensor on each
target component.
One-Touch Video Play
Simply by inserting a video cassette without its safety tab into the VCR, you can enjoy the video playback without setting other switches manually. The receiver automatically turns on and changes the source to VCR 1 (for RX-8030VBK) or “VCR” (for RX­7030VBK/RX-7032VSL). The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture. When you insert a video cassette with its safety tab, press the play
33
(
3) button on the VCR or on the remote control. So, you can get the
33
same result.
Notes:
When you select TV as the source on the receiver, you cannot see the menu on the TV screen since the AV COMPU LINK remote control system automatically changes the TV’s input mode to the TV tuner.
This function does not work when you connect this receiver and the TV with the AV COMPU LINK EX terminal using a component video cable. In this case, reconnect the TV referring to case 1 or case 2 on page 42.
Automatic Power On/Off
The TV, VCR, and DVD player turn on and off along with the receiver.
When you turn on the receiver;
If the previously selected source is VCR 1 (for RX-8030VBK)
or VCR (for RX-7030VBK/RX-7032VSL), the TV and VCR will turn on automatically.
If the previously selected source is DVD or DVD MULTI,” the
TV and DVD player will turn on automatically.
If the previously selected source is any video source other than the
above, only the TV will turn on automatically.
When you turn off the receiver, the TV, VCR and the DVD player will turn off.
Note:
If you turn off the receiver while recording on the VCR, the VCR will not turn off, but continue recording.
43

Operating JVCs Audio/Video Components

RX-8030V
ONLY
VCR 1
TAPE
CDR
CDDSC
You can operate JVCs audio and video components with this receivers remote control, since control signals for JVC’s components are preset in the remote control.
Operating Audio Components
IMPORTANT:
To operate JVCs audio components using the supplied remote control:
You need to connect JVCs audio components through the COMPU LINK (SYNCHRO) jacks (see page 41) in addition to the connections using cables with RCA pin plugs (see pages 11 to
13).
Aim the remote control directly at the remote sensor on the receiver.
If you use the buttons on the front panel to choose a source, the remote control will not operate that source. To operate a source with the remote control, the source must be selected using source selection buttons on the remote control.
To operate the target component using the COMPU LINK remote control system, set the source name correctly if required. (See page 21.)
Refer also to the manuals supplied with your components.
For RX-8030VBK:
When you press one of the source selection
buttons, the remote operation mode appears on the display window for about two hours.
Buttons Indications
FM/AM TUNER
CD CD
CDR CDR
PHONO PHONO
TAPE/MD TAPE
CONTROL (repeatedly)*
SOUND SOUND
*
By pressing CONTROL repeatedly, you can select VCR 1,” “TAPE,”CDR or CDDSC as the source.
When you press one of the following buttons, the remote
operation mode appears on the display window for about two hours.
Buttons Indications
FRONTL FRL FRONTR FRR
CENTER CTR
SURRL SURRL SURRR SURRR
SURR BACK SBK
SUBWOOFER S-WFR
DIGITAL EQ EQ
Tuner
You can always perform the following operations:
FM/AM: Alternate between FM and AM.
After pressing FM/AM, you can perform the following operations on a tuner:
1 10/0, +10: Select a preset channel number directly.
For channel number 5, press 5. For channel number 15, press +10, then 5. For channel number 20, press +10, then 10/0.
TUNING UP/DOWN:
Tune into stations.
FM MODE: Change the FM reception mode.
Sound control section (Amplifier)
You can always perform the following operations:
SURROUND: Turn on and select Surround modes DSP: Turn on and select DSP modes. SURR/DSP OFF: Turn off Surround and DSP modes.
After pressing SOUND, you can perform the following operations:
FRONTL then LEVEL +/–: Adjust the left front speaker output
level.
FRONTR then LEVEL +/–: Adjust the right front speaker output
level.
CENTER then LEVEL +/–: Adjust the center speaker output level. SURRL then LEVEL +/–: Adjust the left surround speaker
output level.
SURRR then LEVEL +/–: Adjust the right surround speaker
output level.
SURR BACK: Adjust the surround back speaker
output level.
SUBWOOFER then LEVEL +/–:
Adjust the subwoofer output level.
DIGITAL EQ then LEVEL+/–: Select the sound frequency bands
and adjust its level.
TEST: Turn on or off test tone output. BASS BOOST: Turn on or off Bass Boost.
Note:
After adjusting sounds, press the corresponding source selection button to operate your target source by using the 10 keys; otherwise, the 10 keys cannot be used for operating your target source.
CD player
After pressing CD, you can perform the following operations on a CD player:
3: Start playing. 4: Return to the beginning of the current (or previous)
track.
¢: Skip to the beginning of the next track. 7: Stop playing. 8: Pause playing. To resume, press 3.
1 – 10/0, +10:
Select a track number directly. For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10/0. For track number 30, press +10, +10, then 10/0.
44
CD changer
RX-8030V
ONLY
RX-8030V
ONLY
For RX-8030VBK:
After selecting “CDDSC” by pressing CONTROL repeatedly, you can perform the following operations on a CD changer:
For RX-7030VBK/RX-7032VSL:
After pressing CD DISC, you can perform the following operations on a CD changer:
3: Start playing. 4: Return to the beginning of the current (or previous)
track.
¢: Skip to the beginning of the next track. 7: Stop playing or recording. 8: Pause playing. To resume, press 3.
1 6, 7/P: Select the number of a disc installed in a CD
changer. After pressing CD, you can perform the following operations on a CD changer:
1 10/0, +10: Select a track number directly.
For track number 5, press 5.
For track number 15, press +10, then 5.
For track number 20, press +10, then 10/0.
For track number 30, press +10, +10, then 10/0.
Example:
Selecting disc number 4, track number 12, and starting playback.
For RX-8030VBK:
1. Press CONTROL repeatedly until “CDDSC” appears on the display window, then press 4.
2. Press CD, then press +10, 2.
For RX-7030VBK/RX-7032VSL:
1. Press CD DISC, then press 4.
2. Press CD, then press +10, 2.
If your CD changer is of 200-disc loading capability (except for XL-MC100 and XL-MC301),
you can do the following operations using the 10 keys after pressing CD.
1. Select a disc number.
2. Then select a track number (always enter two digits).
3. Start playback.
Examples:
Selecting disc number 3, track number 2, and starting playback.
Press 3, then, 0, 2, then 3.
Selecting disc number 10, track number 5, and starting playback.
Press 1, 0, then, 0, 5, then 3.
Selecting disc number 105, track number 12, and starting
playback. Press 1, 0, 5, then 1, 2, then 3.
Turntable
After pressing PHONO, you can perform the following operations on a turntable:
3: Start playing. 7: Stop playing.
CD recorder
For RX-8030VBK: After pressing CDR (or selecting CDR by pressing CONTROL repeatedly), you can perform the following operations on a CD recorder:
For RX-7030VBK/RX-7032VSL: After pressing TAPE/CDR (or TAPE/CDR CONTROL), you can perform the following operations on a CD recorder:
3: Start playing. 4: Return to the beginning of the current (or previous)
track.
¢: Skip to the beginning of the next track. 7: Stop playing or recording. 8: Pause playing. To resume, press 3.
1 10/0, +10: Select a track number directly.
For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10/0. For track number 30, press +10, +10, then 10/0.
REC PAUSE: Enter recording pause by pressing this button.
To start recording again, press this button then 3.
Cassette deck
For RX-8030VBK: After pressing TAPE/MD (or selecting “TAPE by pressing CONTROL repeatedly), you can perform the following operations on a cassette deck:
For RX-7030VBK/RX-7032VSL: After pressing TAPE/CDR (or TAPE/CDR CONTROL), you can perform the following operations on a cassette deck:
3: Start playing. REW: Fast wind the tape from right to left. FF: Fast wind the tape from left to right.
7: Stop playing or recording. 8: Pause playing. To resume, press 3.
REC PAUSE: Enter recording pause by pressing this button.
To start recording again, press this button then 3.
MD recorder
After pressing TAPE/MD (or selecting “TAPE*” by pressing CONTROL repeatedly), you can perform the following operations on a MD recorder:
3: Start playing. 4: Return to the beginning of the current (or previous)
track.
¢: Skip to the beginning of the next track. 7: Stop playing or recording. 8: Pause playing. To resume, press 3.
REC PAUSE: Enter recording pause by pressing this button.
To start recording again, press this button then 3.
*
Selecting TAPE will allow you to control the MD recorder.
Note:
You can use either source selection buttons or the control button (CONTROL for RX-8030VBK or TAPE/CDR CONTROL for RX-7030VBK/ RX-7032VSL) to activate the buttons for the target source. If you press one of the source selection buttons, the playing source also changes. On the other hand, pressing the control button does not change the playing source.
45
Operating Video Components
23
456
8
MENU
ENTER
VCR 1
TAPE
CDR
CDDSC
RX-8030V
ONLY
IMPORTANT:
To operate JVCs video components using the supplied remote control:
You need to connect JVCs video components through the AV COMPU LINK jacks (see page 42) in addition to the connections using cables with RCA pin plugs (see pages 14 and 15).
Some JVCs VCRs can accept two types of the control signals remote code “A and B.” Before using this remote control, make sure that the remote control code of the target VCR is set to code
A.”For RX-8030VBK: When another JVCs VCR is connected to
the VCR 2 or VIDEO terminals, set its remote control code to code B.” (This remote control cannot emit the control signals of code B.)
When using the remote control, aim the remote control directly at the remote sensor on each component, not on the receiver.
VCR
You can always perform the following operations:
VCR 1
(for RX-8030VBK) or VCR (for RX-7030VBK/RX-
7032VSL): Turn on or off a VCR.
For RX-8030VBK: After pressing VCR 1 (or selecting VCR 1 by pressing CONTROL repeatedly), you can perform the following operations on a VCR:
For RX-7030VBK/RX-7032VSL: After pressing VCR (or VCR CONTROL), you can perform the following operations on a VCR:
1 9, 0: Select the TV channels on a VCR.
3: Start playing. REW: Rewind a tape. FF: Fast wind a tape.
7: Stop playing or recording. 8: Pause playing. To resume, press 3.
REC PAUSE: Enter recording pause by pressing this button.
To start recording again, press this button then 3.
CH +/–: Change the TV channels on the VCR.
For RX-8030VBK:
When you press one of the source selection
buttons, the operation mode appears on the display window.
Buttons Indications
VCR 1 VCR 1
DVD or DVD MULTI DVD
TV/DBS TV
CONTROL (repeatedly)*
*
By pressing CONTROL repeatedly, you can select VCR 1,TAPE,CDR or “CDDSC as the source.
When you press one of the buttons listed above, the remote operation mode appears on the operation mode display for about two hours.
Note:
You can use either VCR 1 (for RX-8030VBK) or VCR (for RX­7030VBK/RX-7032VSL) or the control button (CONTROL for RX­8030VBK or VCR CONTROL for RX-7030VBK/RX-7032VSL) to activate the buttons listed above. If you press one of the source selection buttons, the playing source also changes. On the other hand, pressing the control button does not change the playing source.
DVD player
After pressing DVD or DVD MULTI, you can perform the following operations on a DVD player:
3: Start playing. 4: Return to the beginning of the current (or previous) chapter. ¢: Skip to the beginning of the next chapter. 7: Stop playing. 8: Pause playing. To resume, press 3.
After pressing DVD or DVD MULTI, these buttons can be used for the DVD menu operations.
Note:
For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.
46
TV
You can always perform the following operations:
TV
: Turn on or off the TV.
TV VOL +/–: Adjust the volume. TV/VIDEO: Set the input mode (either TV or VIDEO).
After pressing TV/DBS, you can perform the following operations on a TV:
CH +/–: Change the channels. 1 – 9, 0, 100+: Select the channels. RETURN: Alternate between the previously selected channel
and the current channel.

Operating Other Manufacturers Video Equipment

This remote control supplied with the receiver can transmit control signals for other manufacturers’ TVs, CATV converters, DBS tuners, VCRs and DVD players.
When operating the other manufacturers’ components, refer also to the manuals supplied with them.
After replacing batteries for the remote control, you need to set the manufactures’ codes again.
To change the transmittable signals for operating another manufacturers TV
1. Press and hold TV .
2. Press TV/DBS.
For RX-8030VBK: CALL appears on the display window of
the remote control.
3. Enter a manufacturer’s code using buttons 1 – 9,
and 0.
See the list on page 49 to find the code.
4. Release TV .
The following buttons can be used for operating a TV:
TV
: Turn on and off a TV. TV VOL +/–: Adjust the volume. TV/VIDEO: Set the input mode (either TV or VIDEO).
After pressing TV/DBS, you can perform the following operations on a TV:
CH +/–: Change the channels. 1 – 10/0, 0, 100+ (+10):
Select the channels. The 10/0 button will function as the ENTER button if your TV requires pressing ENTER after selecting a channel number.
To change the transmittable signals for operating a CATV converter or DBS tuner
1. Press and hold CATV/DBS .
2. Press CATV/DBS CONTROL.
For RX-8030VBK: CALL appears on the display window of
the remote control.
3 Enter a manufacturer’s code using buttons 1 – 9,
and 0.
See the list on page 49 to find the code.
4. Release CATV/DBS .
The following buttons can be used for operating a CATV converter and DBS tuner:
CATV/DBS
After pressing CATV/DBS CONTROL, you can perform the following operations on a CATV converter or DBS tuner:
CH +/–: Change the channels.
1 – 10/0, 0, 100+ (+10):
: Turn on and off a CATV converter or DBS
tuner.
Select the channels. The 10/0 button will function as the ENTER button if your equipment requires pressing ENTER after selecting a channel number.
5. Try to operate your CATV converter or DBS
tuner by pressing CATV/DBS
When your CATV converter or DBS tuner turns on or off, you have entered the correct code.
.
Notes:
All the functions listed above may not be assigned to the
buttons for some TVs.
If you cannot change the channels of some TVs by pressing
10 keys, press CH +/– for changing the channels.
5. Try to operate your TV by pressing TV .
When your TV turns on or off, you have entered the correct code.
If there are more than one code listed for your brand of TV,
try each one until the correct one is entered.
If there are more than one code listed for your brand of CATV converter or DBS tuner, try each one until the correct
one is entered.
Note:
You cannot preset the signals for both the CATV converter and DBS tuner at the same time.
47
23
456
8
MENU
ENTER
To change the transmittable signals for operating another manufacturers VCR
1. Press and hold VCR 1 (for RX-8030VBK) or VCR
(for RX-7030VBK/RX-7032VSL).
2. Press VCR 1 (for RX-8030VBK) or VCR (for RX­7030VBK/RX-7032VSL).
For RX-8030VBK: CALL appears on the display window of
the remote control.
3. Enter manufacturer’s code using buttons 1 – 9, and 0.
See the list on page 49 to find the code.
4. Release VCR 1 or VCR .
The following buttons can be used for operating a VCR:
VCR 1 VCR : For RX-7030VBK/RX-7032VSLTurn on
After pressing VCR 1 or VCR, you can perform the following operations on a VCR:
CH +/–: Change the TV channels on a VCR. 1 – 10/0, 0, 100+ (+10):
3: Start playback. REW: Rewind a tape. FF: Fast wind a tape.
7: Stop playing or recording. 8: Pause playing. To resume, press 3.
REC PAUSE: Enter recording pause by pressing this button.
: For RX-8030VBKTurn on and off a VCR.
and off a VCR.
Select the TV channels. The 10/0 button will function as the ENTER button if your VCR requires pressing ENTER after selecting a channel number.
To start recording again, press this button then 3.
5. Try to operate your VCR by pressing VCR 1 or VCR .
When your VCR turns on or off, you have entered the correct code.
To change the transmittable signals for operating another manufacturers DVD player
1. Press and hold AUDIO .
2 Press DVD.
For RX-8030VBK: CALL appears on the display window of
the remote control.
3. Enter a manufacturer’s code using buttons 1 – 9, and 0.
See the list on page 49 to find the code.
4. Release AUDIO .
After pressing DVD or DVD MULTI, you can perform the following operations on a DVD player:
3: Start playing. 4: Return to the beginning of the current (or previous)
chapter.
¢: Skip to the beginning of the next chapter. 7: Stop playing. 8: Pause playing. To resume, press 3.
After pressing DVD or DVD MULTI, these buttons can be used for the DVD menu operations.
Note:
For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.
5. Try to operate your DVD player by pressing one of the above buttons.
DO NOT forget to turn on a DVD player before pressing one
of the above buttons.
If there are more than one code listed for your brand of DVD, try each one until the correct one is entered.
If there are more than one code listed for your brand of VCR, try each one until the correct one is entered.
48
For TV For VCR
Manufacturer Codes
JVC 00*, 02, 13,
14, 47, 74 Akai 01, 02 Blaupunkt 03, 04 Fisher 01, 05 Grundig 03, 06, 07 Hitachi 08, 09, 10, 49 Irradio 02 ITT/NOKIA 11, 12 Loewe 06, 15, 16 Magnavox 08, 17, 49 Mets 50, 51, 52, 53 Mitsubishi 08, 18, 19, 20 Mivar 21 Nordmende 22, 23 Okano 15 Panasonic 24, 25, 26, 27
76 Philips 15, 17, 28, 75
Manufacturer Codes
JVC 56*, 57, 67
Amstrad 43, 44, 45, 46, 47, 48, 49
Blaupunkt 30
Echostar 50, 51, 67
Goldstar 31 Grundig 32, 33
Hirshmann 48, 52, 53, 54, 55
Instrument 68
ITT/NOKIA 34
Kathrein 52, 58, 59, 60, 61, 62, 63
NEC 35, 36
Orbitech 48
Philips 37, 38
RCA 65
Samsung 39, 40
Schwaiger 61, 64
Siemens 41, 42
Sony 66
Technisat 48
For CATV converter
Manufacturer Codes
General Instrument 06, 07, 08, 09, 10, 11,
Hamlin/Regal 01, 02, 03, 04, 05 Jerrold 06, 07, 08, 09, 10, 11,
Oak 15, 16, 17 Panasonic 18, 19, 20 Pioneer 21, 22 Scientific Atlanta 23, 24, 25 Tocom 26 Zenith 27, 28
Manufacturer Codes
Quelle 52, 53, 54, 55,
RCA/ 08, 24, 29, 30, Proscan 31, 48 SABA 32, 33, 68, 69,
Samsung 06, 08, 16, 34,
Sanyo 01, 05 Schneider 02, 15, 36 Sharp 37, 38, 77 Sony 39 Telefunken 40, 41, 42, 69 Thomson 71, 72 Toshiba 37, 43, 44 Zenith 45, 46
For DBS tuner
12, 13, 14, 29
12, 13, 14
56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67
70
35, 49
Manufacturer Codes
JVC 00*, 26, 27, 28, 29, 58 Aiwa 01, 02 Bell & Howell 03 Blaupunkt 04, 05 CGM 06, 07 Emerson 08, 10, 11, 12, 64, 65 Fisher 03, 14, 15, 16, 17 Funai 01 GE 18, 19, 20 Goldstar 07 Goodmans 13, 21 Grundig 06, 22 Hitachi 18, 23, 24, 25, 66 Loewe 07, 21 Magnavox 04, 19, 24 Mitsubishi 30, 31, 32, 33, 34, 35 NEC 26, 27 Nokia 03, 36 Nordmende 38 Orion 09 Panasonic 19, 24, 39, 40 Philips 04, 19, 21, 24, 41, 42 Phonola 21 RCA/Proscan 04, 18, 19, 23, 24, 43, 44, 45 SABA 38, 46 Samsung 45, 47, 59, 61, 62, 63 Sanyo 03, 48, 49 Sharp 37, 50 Siemens 03, 51 Sony 52, 53, 54 Telefunken 55, 60 Toshiba 43, 44 Zenith 56, 57
For DVD player
Manufacturer Codes
JVC 00*, 02 Denon 01 Panasonic 03 Philips 13 Pioneer 04, 05, 06 RCA 07 Samsung 08 Sony 09 Toshiba 10 Yamaha 11, 12
*Initial setting
Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.
49

Troubleshooting

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVCs service center.
PROBLEM
The display does not light up.
No sound from speakers.
Sound from one speaker only.
Continuous hiss or buzzing during FM reception.
Noise is heard during FM/AM reception.
Howling during record playing.
No sound effect such as Surround mode, DSP mode and Digital Equalization.
EX/ES (7.1-channel) reproduction cannot be done for Dolby Digital EX or DTS ES software.
OVERLOAD starts flashing on the display.
The STANDBY lamp lights up after turning on the power, and soon the receiver turns off again (into standby mode).
Remote control does not work.
Remote control does not work as you intend.
POSSIBLE CAUSE
The power cord is not plugged in.
Speaker signal cables are not connected.
The SPEAKERS ON/OFF 1 and SPEAKERS ON/OFF 2 buttons are not set correctly.
An incorrect source is selected.
Muting is activated.
An incorrect input mode (analog or digital) is selected.
Speaker signal cables are not connected properly.
Incoming signal is too weak.
The station is too far away.
An incorrect antenna is used.
Antennas are not connected properly.
Ignition noise from automobiles.
A ground cable from the turntable is not connected to the screw marked (H) on the rear.
Your turntable is too close to the speakers.
Analog Direct is turned on.
DVD MULTI is selected as the source.
Software or setting is not for Dolby Digital EX or DTS ES software.
Speakers are overloaded because of high volume.
Speakers are overloaded because of short circuit of speaker terminals.
The receiver is overloaded because of a high voltage.
There is an obstruction between the remote sensor on the receiver and the remote control.
Batteries are weak.
An incorrect remote control operation mode is selected.
SOLUTION
Plug the power cord into an AC outlet.
Check speaker wiring and reconnect if necessary. (See pages 9 to 11.)
Press SPEAKERS ON/OFF 1 and SPEAKERS ON/ OFF 2 correctly. (See page 19.)
Select the correct source.
Press MUTING to cancel the mute. (See page 22.)
Select the correct input mode (analog or digital). (See page 19.)
Check speaker wiring and reconnect if necessary. (See pages 9 to 11.)
Connect an outdoor FM antenna or contact your dealer. (See page 8.)
Select a new station.
Check with your dealer to be sure you have the correct antenna.
Check connections. (See page 8.)
Move the antenna farther from automobile traffic.
Connect the cable to the screw marked (H) on the rear.
Move the speakers away from the turntable.
Turn off Analog Direct. (See page 21.)
Select the source other than DVD MULTI. (See page
40.)
Play back software bearing the mark
.
Set EX/ES setting to ON. (See page 37.)
1. Press turn off the receiver.
2. Stop the playback source.
3. Turn on the receiver again, and adjust the volume.
Press the receiver, then check the speaker wiring. If OVERLOAD does not disappear, unplug the AC power cord, then plug it back again. If speaker wiring is not short-circuited, contact your dealer.
Press the receiver. After unplugging the AC power cord, consult your dealer.
Remove the obstruction.
Replace batteries. (See page 8.)
Select the correct remote control operation mode. (See pages 44 to 49.)
STANDBY/ON on the front panel to
STANDBY/ON on the front panel to turn off
STANDBY/ON on the front panel to turn off
or
50

Specifications

RX-8030VBK
Amplifier
Output Power At Stereo operation
Front ch: 130 W per channel, min. RMS, driven into 8 Ω,
20 Hz to 20 kHz, with no more than 0.08% total harmonic distortion.
At Surround operation:
Front ch: 130 W per channel, min. RMS, driven into 8 at
1 kHz, with no more than 0.8% total harmonic distortion.
Center ch: 130 W, min. RMS, driven into 8 at 1 kHz, with
no more than 0.8% total harmonic distortion.
Surround ch: 130 W per channel, min. RMS, driven into 8 at
1 kHz, with no more than 0.8% total harmonic distortion.
Surround Back ch:
130 W, min. RMS, driven into 8 at 1 kHz, with no more than 0.8% total harmonic distortion.
Audio
Audio Input Sensitivity/Impedance (1 kHz)
PHONO IN (MM): 2.5 mV/47 k DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO IN:
200 mV/47 k
CD IN, CDR IN, TAPE/MD IN: 200 mV/47 k
Audio Input (DIGITAL IN)*
Coaxial: DIGITAL 1 (DVD): 0.5 V(p-p)/75 Optical:
* Corresponding to Linear PCM, Dolby Digital, and DTS Digital
Audio Output Level: PRE OUT: 1 V Recording Output Level: VCR 1 OUT, VCR 2 OUT, CDR OUT,
Digital output: Optical: DIGITAL OUTPUT
Signal-to-Noise Ratio (66 IHF/78 IHF)
PHONO IN: 70 dB/78 dB (at REC OUT) DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO:
CD IN, CDR IN, TAPE/MD IN: 87 dB/80 dB
Frequency Response (8 Ω)
PHONO IN: 20 Hz to 20 kHz (±1 dB) DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO:
CD IN, CDR IN, TAPE/MD IN: 20 Hz to 100 kHz (+1 dB, –3 dB) RIAA Phono Equalization: ±1.0 dB (20 Hz to 20 kHz) Equalization (5 bands):
Bass boost: +6 dB ±1.0 dB at 100 Hz
DIGITAL 2 (CD), DIGITAL 3 (TV), DIGITAL 4 (CDR):
–21 dBm to –15 dBm (660 nm ±30 nm)
Surround (with sampling frequency 32 kHz, 44.1 kHz, 48 kHz).
TAPE/MD OUT: 200 mV
Signal wave length: 660 nm Output level: –21 dBm to –15 dBm
87 dB/80 dB
20 Hz to 100 kHz (+1 dB, –3 dB)
63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz (±8 dB)
Video
Video Input Sensitivity/Impedance
Composite video:
DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO:
1 V(p-p)/75
S-video:
DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO:
(Y: luminance): 1 V(p-p)/75 (C: chrominance, burst): 0.286 V(p-p)/75
Component video: DVD IN, DBS IN:
(Y: luminance): 1 V(p-p)/75
B/PR): 0.7 V(p-p)/75
(P
Video Output Level
Composite video:
VCR 1 OUT, VCR 2 OUT, MONITOR OUT 1 V(p-p)/75
S-video: VCR 1 OUT, VCR 2 OUT, MONITOR OUT
(Y: luminance): 1 V(p-p)/75 (C: chrominance, burst): 0.286 V(p-p)/75
Component video: MONITOR OUT:
(Y: luminance): 1 V(p-p)/75
B/PR): 0.7 V(p-p)/75
(P Synchronization: Negative Signal-to-Noise Ratio: 45 dB
FM tuner (IHF)
Tuning Range: 87.5 MHz to 108.0 MHz Usable Sensitivity: Monaural: 12.8 dBf (1.2 µV/75 Ω) 50 dB Quieting Sensitivity: Monaural: 16.0 dBf (1.7 µV/75 Ω)
Stereo: 37.5 dBf (20.5 µV/75 Ω)
Stereo Separation at REC OUT: 35 dB at 1 kHz
AM tuner
Tuning Range: 530 kHz to 1 710 kHz
General
Power Requirements: AC 120V , 60 Hz Power Consumption: 320 W/440 VA (at operation)
2 W (in standby mode)
Dimensions (W x H x D): 435 mm x 157 mm x 425 mm
Mass: 12.2 kg (27.0 lbs)
Designs & specifications are subject to change without notice
3
/16 in. x 6 3/16 in. x 16 3/4 in.)
(17
51
RX-7030VBK/RX-7032VSL
.
Amplifier
Output Power At Stereo operation
Front ch: 110 W per channel, min. RMS, driven into 8 Ω,
20 Hz to 20 kHz, with no more than 0.08% total harmonic distortion.
At Surround operation:
Front ch: 110 W per channel, min. RMS, driven into 8 at
1 kHz, with no more than 0.8% total harmonic distortion.
Center ch: 110 W, min. RMS, driven into 8 at 1 kHz, with
no more than 0.8% total harmonic distortion.
Surround ch: 110 W per channel, min. RMS, driven into 8 at
1 kHz, with no more than 0.8% total harmonic distortion.
Surround Back ch:
110 W, min. RMS, driven into 8 at 1 kHz, with no more than 0.8% total harmonic distortion.
Audio
Audio Input Sensitivity/Impedance (1 kHz)
DVD IN, VCR IN, TV SOUND/DBS IN: 200 mV/47 k CD IN, TAPE/CDR IN: 200 mV/47 k
Audio Input (DIGITAL IN)*
Coaxial:DIGITAL 1 (DVD): 0.5 V(p-p)/75
DIGITAL 2 (CD), DIGITAL 3 (TV), DIGITAL 4 (CDR):
Optical:
–21 dBm to –15 dBm (660 nm ±30 nm)
* Corresponding to Linear PCM, Dolby Digital, and DTS Digital
Surround (with sampling frequency 32 kHz, 44.1 kHz, 48 kHz).
Audio Output Level: SUBWOOFER OUT: 1 V Recording Output Level: VCR OUT, TAPE/CDR OUT: 200 mV Digital output: Optical: DIGITAL OUT
Signal wave length: 660 nm Output level: –21 dBm to –15 dBm
Signal-to-Noise Ratio (66 IHF/78 IHF)
DVD IN, VCR IN, TV SOUND/DBS IN: 87 dB/80 dB CD IN, TAPE/CDR IN: 87 dB/80 dB
Frequency Response (8 Ω)
DVD IN, VCR IN, TV SOUND/DBS IN:
20 Hz to 100 kHz (+1 dB, –3 dB)
CD IN, TAPE/CDR IN: 20 Hz to 100 kHz (+1 dB, –3 dB)
Equalization (5 bands):
63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz (±8 dB)
Bass boost: +6 dB ±1.0 dB at 100 Hz
Video
Video Input Sensitivity/Impedance
Composite video: DVD IN, VCR IN, TV SOUND/DBS IN:
1 V(p-p)/75
S-video: DVD IN, VCR IN, TV SOUND/DBS IN:
(Y: luminance): 1 V(p-p)/75
(C: chrominance, burst): 0.286 V(p-p)/75
Component video: DVD IN, DBS IN:
(Y: luminance): 1 V(p-p)/75
B/PR): 0.7 V(p-p)/75
(P Video Output Level
Composite video: VCR OUT, MONITOR OUT 1 V(p-p)/75 S-video: VCR OUT, MONITOR OUT
(Y: luminance): 1 V(p-p)/75
(C: chrominance, burst): 0.286 V(p-p)/75
Component video: MONITOR OUT
(Y: luminance): 1 V(p-p)/75
B/PR): 0.7 V(p-p)/75
(P Synchronization: Negative Signal-to-Noise Ratio: 45 dB
FM tuner (IHF)
Tuning Range: 87.5 MHz to 108.0 MHz Usable Sensitivity: Monaural: 12.8 dBf (1.2 µV/75 Ω) 50 dB Quieting Sensitivity: Monaural: 16.0 dBf (1.7 µV/75 Ω)
Stereo: 37.5 dBf (20.5 µV/75 Ω)
Stereo Separation at REC OUT: 35 dB at 1 kHz
AM tuner
Tuning Range: 530 kHz to 1 710 kHz
General
Power Requirements: AC 120V , 60 Hz Power Consumption: 320 W/440 VA (at operation)
2 W (in standby mode)
Dimensions (W x H x D): 435 mm x 157 mm x 425 mm
3
/16 in. x 6 3/16 in. x 16 3/4 in.)
(17
Mass: 12.1 kg (26.7 lbs)
52
Designs & specifications are subject to change without notice

LIMITED WARRANTY

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")
PARTS LABOR
AUDIO-2
2 YRS 2 YRS
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN COMMONWEALTH OF PUERTO RICO.
WHAT WE WILL DO:
If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.
WHAT YOU MUST DO FOR WARRANTY SERVICE:
Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 537-5722.
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model number or serial number has been altered, tampered with, defaced or removed;
2. Initial installation and installation and removal for repair;
3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);
There are no express warranties except as listed above.
THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.
JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANT­ABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
JVC COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.
For customer use:
Enter below the Model No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
Model No. : Serial No. :
Purchase data : Name of dealer :
1700 Valley Road Wayne, NJ 07470

Authorized Service Centers

®
QUALITY
SERVICE
HOW TO LOCATE YOUR JVC SERVICE CENTER
TOLL FREE: 1 (800) 537-5722
http://www.jvc.com
Dear Customer, In order to receive the most satisfaction from your purchase,please read the instruction booklet before operating the unit.In the event that repairs are necessary, please call 1 (800)537-5722 for your nearest authorized servicer or visit our website at www.JVC.com Remember to retain your Bill of Sale for Warranty Service.
Do not service the television yourself
Caution
To prevent electrical shock,do not open the cabinet.There are no user serviceable parts inside.Please refer to qualified service personnel for repairs.
Accessories
To purchase accessories for your JVC product,please call toll free:1 (800)882-2345 or on the web at www.JVC.com
BT-51002-5 (0301)
VICTOR COMPANY OF JAPAN, LIMITED
RX-7030VBK/RX-7032VSL
RX-8030VBK
AUDIO/VIDEO CONTROL RECEIVER
EN
© 2003 VICTOR COMPANY OF JAPAN, LIMITED
0203NHMMDWJEIN
For Customer Use:
Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
Model No.
Serial No.
231
564
89
7/P
0
+10
MENU
ENTER
CONTROL
A/V CONTROL RECEIVER
10/0
English
AUDIO/VIDEO CONTROL RECEIVER
AMPLI/TUNER DE COMMANDE AUDIO/VIDEO
RX-8030VBK RX-7030VBK
(For RX-8030VBK)
Français
(For RX-8030VBK)

INSTRUCTIONS

MANUEL D’INSTRUCTIONS
LVT1007-002A[C]
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Warnings, Cautions and Others/
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION
Mises en garde, précautions et indications diverses
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Afin d’éviter tout risque d’électrocution, d’incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.
2. Ne pas exposer l’appareil à la pluie ni à l’humidité.
Caution –– STANDBY/ON button!
Disconnect the mains plug to shut the power off completely. The
STANDBY/ON button in any position does not disconnect
the mains line. The power can be remote controlled.
Attention –– Commutateur STANDBY/ON!
Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le
G-1
courant peut être télécommandé.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
For Canada/pour Le Canada
For Canada/pour le Canada
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND
For U.S.A
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the manufacturer for compliance could void the user s authority to opratethe equipment.
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
G-2
Caution: Proper Ventilation
To avoid risk of electric shock and fire and to protect from dam­age. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illus­trated.
Spacing 15 cm or more Dégagement de 15 cm ou plus
Wall or obstructions Mur, ou obstruction
Attention: Ventilation Correcte
Pour éviter les chocs électriques, lincendie et tout autre dégât. Disposer lappareil en tenant compte des impératifs suivants Avant: Rien ne doit gêner le dégagement Flancs: Laisser 10 cm de dégagement latéral Dessus: Laisser 10 cm de dégagement supérieur Arrière: Laisser 15 cm de dégagement arrière Dessous: Rien ne doit obstruer par dessous; poser l’appareil
sur une surface plate. Veiller également à ce que l’air circule le mieux possible comme illustré.
RX-8030VBK/RX-7030VBK
Front Avant
Stand height 15 cm or more Hauteur du socle: 15 cm ou plus
Floor Plancher
G-3

Table of Contents

RX-8030V
ONLY
RX-7030V
ONLY
Remote
NOT
Introduction ................................................ 2
Features ...................................................................................... 2
Precautions ................................................................................. 2
Parts Identification ...................................... 3
Remote Control .......................................................................... 3
Front Panel ................................................................................. 4
Rear Panel .................................................................................. 6
Getting Started ........................................... 8
Before Installation ...................................................................... 8
Checking the Supplied Accessories ........................................... 8
Putting Batteries in the Remote Control .................................... 8
Connecting the FM and AM Antennas ....................................... 8
Connecting the Speakers ............................................................ 9
Connecting Audio/Video Components ..................................... 11
7 Analog Connections ............................................................. 11
7 Digital Connections .............................................................. 16
Connecting the Power Cord ..................................................... 16
Basic Operations ....................................... 17
Daily Operational Procedure .................................................... 17
Turning On the Power .............................................................. 17
Selecting the Source to Play ..................................................... 17
Adjusting the Volume ............................................................... 18
Selecting the Front Speakers .................................................... 19
Activating and Adjusting the Subwoofer Sound ...................... 19
Selecting the Analog or Digital Input Mode ............................ 19
Setting the Dynamic Range ...................................................... 20
Attenuating the Input Signal .................................................... 20
Turning Analog Direct On and Off .......................................... 21
Making Sounds Natural............................................................ 21
Changing the Source Name ...................................................... 21
Reinforcing the Bass ................................................................ 22
Muting the Sound ..................................................................... 22
Changing the Display Brightness ............................................. 22
Using the Sleep Timer .............................................................. 22
Basic Settings ........................................... 25
Setting the Speakers Configuration .......................................... 25
Basic Setting Items ................................................................... 26
Basic Procedure ........................................................................ 27
Setting the Speakers ........................................................... 27
Setting the Speaker Distance ............................................. 28
Setting the Bass Sounds ..................................................... 28
Selecting main or sub channel—DUAL MONO ............... 29
Setting the Digital Input Terminals .................................... 29
Setting the Component Video Input ................................... 30
Memorizing the Volume Level for Each Source ................ 30
Adjusting Sound ........................................ 31
Basic Setting Items ................................................................... 31
Basic Procedure ........................................................................ 31
Adjusting the Equalization Patterns ................................... 32
Adjusting the Speaker Output Levels ................................ 32
Adjusting the Sound Parameters for the
Surround and DSP modes ............................................ 33
Using the Surround Modes ..........................
Reproducing Theater Ambience ................................................ 34
Introducing the Surround Modes ............................................. 34
Surround Modes Applicable to the Various Software .............. 36
Activating the Surround Modes ............................................... 37
7 Activating the EX/ES setting ................................................ 37
7 Activating the Surroung modes ............................................ 37
34
Using the DSP Modes ................................ 38
Reproducing the Sound Field ................................................... 38
Introducing the DSP Modes ..................................................... 38
Activating the DSP Modes ....................................................... 39
Using the DVD MULTI Playback Mode .......... 40
Activating the DVD MULTI Playback Mode .......................... 40
COMPU LINK Remote Control System ......... 41
English
Receiving Radio Broadcasts ........................ 23
Tuning in to Stations Manually ................................................ 23
Using Preset Tuning ................................................................. 23
Selecting the FM Reception Mode ........................................... 24
This mark indicates that ONLY the remote control CAN be used for the operation explained.
This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons on the front panel.
AV COMPU LINK Remote Control System .... 42
Operating JVC’s Audio/Video Components ... 44
Operating Audio Components .................................................. 44
Operating Video Components .................................................. 46
Operating Other Manufacturers’ Video
Equipment ............................................ 47
Troubleshooting ......................................... 50
Specifications............................................ 51
Features with this mark are provided only for RX-8030VBK.
Features with this mark are provided only for RX-7030VBK.
1
English

Introduction

We would like to thank you for purchasing one of our JVC products.
Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance
from your unit, and retain this manual for future reference.
Features
CC (Compensative Compression) converter —ONLY for RX-8030VBK
CC Converter eliminates jitter and ripples, achieving a drastic reduction in digital distortion by processing the digital music data in 24 bit–quantization and by expanding the sampling frequency to 128 kHz (for fs 32 kHz signals)/176.4 kHz (for fs 44.1 kHz signals)/192 kHz (for fs 48 kHz signals). By using the CC Converter, you can obtain a natural sound field from any source. (See page 21 for details.)
K2 technology—ONLY for RX-8030VBK
K2 technology has been designed to enable natural audio reproduction, achieving a drastic reduction in digital distortion and creating original sound ambience with high precision.
Compatible with various audio formats including DTS 96/24
RX-8030VBK and RX-7030VBK allow you to enjoy a newly introduced audio format such as Dolby Digital EX, Dolby Pro Logic II, DTS-ES, DTS Neo:6, and DTS 96/24.
• This unit is also compatible with Dual Mono signals recorded in Dolby Digital and DTS discs.
DAP (Digital Acoustic Processor)
Sound field simulation technology allows precise ambience recreation of existing theaters and halls. Thanks to the high­performance DSP (Digital Signal Processor) and high-capacity memory, you can enjoy multi-channel surround sound by playing 2-channel or multi-channel software according to the speaker setting.
Precautions
Power sources
• When unplugging the receiver from the wall outlet, always pull the plug, not the AC power cord.
• Do not handle the AC power cord with wet hands.
• If you are not going to operate the receiver for an extended period of time, unplug the AC power cord from the wall outlet.
Ventilation
High power amplifiers built in this receiver will generate heat inside the cabinet. For safety, observe the following carefully.
• Make sure there is good ventilation around the receiver. Poor ventilation could overheat and damage the receiver.
• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
Others
• Should any metallic object or liquid fall onto the unit, unplug the unit and consult your dealer before operating any further.
• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases shall be placed on the apparatus.
• Do not disassemble the unit since there are no user serviceable parts inside.
If anything goes wrong, unplug the AC power cord and consult your JVC dealer.
Multi-channel headphone virtual surround sound—3D HEADPHONE Mode
The built-in headphone virtual surround system is compatible with Multi-channel software like Dolby Digital, DTS Surround, etc. Thanks to the new signal processing algorithms used by the high­performance DSP, you can enjoy a natural surround sound through the headphones.
COMPU LINK/AV COMPU LINK remote control systems
These COMPU LINK remote control systems allow you to operate other JVC’s audio/video components from this receiver.
2

Parts Identification

+−+−+
231
564
89
7/P
0
+10
MENU
ENTER
BASS BOOST
TEST
CENTER∗SUB WOOFER
DIGITAL EQ
SURR BACK
CH/
LEVEL
TV VOL
/REW
DOWN TUNING UP
FF/
MUTING
DIMMER
VOLUME
CATV/DBS CONTROL
TV/VIDEO
REC PAUSE
SLEEP
RETURN FM MODE 100
+
CONTROL
REMOTE CONTROL
RM-SRX8030J
CATV/DBS VCR 1 TV AUDIO
DSP
OFF
DVD MULTI
CD
CDR
TAPE/MD
TV/DBS VIDEO PHONO
FM/AM
VCR 1 VCR 2
SURROUND
EX/ES
CC CONVERTER
SURR/DSP
ANALOG/DIGITAL
A/V CONTROL RECEIVER
INPUT
MIDNIGHT
MODE
DIRECT
ANALOG
DVD
u
i
1
3
4
9
p
q
w
t
;
a
10/0
y
2
SOUND
8
6
5
7
o
r
e
A
+−+−+
231
564
89
7/P
0
+10
MENU
ENTER
TESTCD DISC
CENTER∗SUB WOOFER
DIGITAL EQ
SURR BACK
CH/
LEVEL
TV VOL
/REW
DOWN TUNING UP
FF/
MUTING
DIMMER
VOLUME
CATV/DBS CONTROL
VCR
CONTROL
TAPE/CDR
CONTROL
TV/VIDEO
REC PAUSE
SLEEP
RETURN FM MODE 100
+
REMOTE CONTROL
RM-SRX7030J
CATV/DBS VCR TV AUDIO
DSP
OFF
DVD MULTI
CD
TAPE/CDR
ANALOG/DIGITAL
FM/AM
TV/DBS VCR
SURROUND
EX/ES
SURR/DSP
A/V CONTROL RECEIVER
INPUT
MIDNIGHT
MODE
DIRECT
ANALOG
DVD
u
i
3
4
9
p
q
w
t
;
a
10/0
y
2
SOUND
8
6
5
7
o
r
e
s
BASS BOOST
Remote Control
RX-8030VBK RX-7030VBK
English
1 Only for RX-8030VBK: Display window
• When the remote operation mode changes, it is shown on this display.
• Signal transmission indicator (A) lights up when transmitting signals.
buttons (17, 46 – 48)
2
For RX-8030VBK: CATV/DBS , VCR 1 , TV , AUDIO
For RX-7030VBK: CATV/DBS , VCR , TV , AUDIO
3 Source selection buttons (17, 18, 19, 23, 24, 37, 40)
For RX-8030VBK: DVD MULTI, DVD, CD*, FM/AM*, VCR 1, VCR 2, CDR*, TAPE/MD*, TV/DBS, VIDEO, PHONO*
For RX-7030VBK: DVD MULTI, DVD, CD*, FM/AM*, TV/DBS, VCR, TAPE/CDR*
* When you press one on these source selection buttons on the
remote control, the receiver automatically turns on.
4 • SURROUND button (37)
• DSP button (39)
• SURR (surround)/DSP OFF button (37, 39)
• EX/ES button (37)
5 For RX-8030VBK: CC CONVERTER button (21)
For RX-7030VBK: CD DISC button (45)
6 MIDNIGHT MODE button (20) 7 SOUND button (22, 32, 33)
8 CATV/DBS CONTROL button (47) 9 TV/VIDEO button (46, 47) p For RX-8030VBK: CONTROL button (44 – 46)
For RX-7030VBK: VCR CONTROL button (46)
q REC PAUSE button (45, 46, 48) w SLEEP button (22) e ANALOG/DIGITAL INPUT button (20) r ANALOG DIRECT button (21) t • 10 keys for operating the tuner (24)
• 10 keys for adjusting sound (32, 33)
• 10 keys for operating audio/video components (44 – 48)
y • CH (channel) +/– buttons (46 – 48)
• *LEVEL +/– buttons (32, 33, 44)
The LEVEL +/– buttons function only after pressing SOUND then 10 keys which are marked with an asterisk (*) on the remote control.
u VOLUME +/– buttons (18) i TV VOL (volume) +/– buttons (46, 47) o MUTING button (22) ; • TUNING UP/DOWN buttons (23)
• Operating buttons for audio/video components (44 – 46, 48)
3, 8, 7, 4/REW, FF/¢
a DIMMER button (22) å Only for RX-7030VBK: TAPE/CDR CONTROL button (45)
3
English
SUBWOOFER OUT ON/OFF
SPEAKERS ON/OFF
PHONES
1
STANDBY
ANALOG DIRECT
2
STANDBY/ON
TUNER CONTROL
SETTING ADJUST
QUICK SPEAKER
SETUP
EXIT
MIDNIGHT
MODEEX / ES
INPUT ATT
INPUT
ANALOG
INPUT
DIGITAL
FM/AM TUNING FM/AM PRESETFM MODE MEMORY
SURROUND
DSP
SURROUND/ DSP
OFF
VIDEO
LAUDIORDIGITAL S-VIDEO VIDEO
PUSH SET
MULTI JOG
MASTER VOLUME
1
2
;
s
i
a
4 5 7
u o
p
9
3
PUSH OPEN
CC CONVERTER
BASS BOOST
8
RX-8030VBK
RX-7030VBK
Only for RX-8030VBK
Inside the front door
TUNER CONTROL
MIDNIGHT
MODEEX / ES
INPUT ATT
INPUT
ANALOG
INPUT
DIGITAL
FM/AM TUNING FM/AM PRESET FM MODE MEMORY
VIDEO
LAUDIORDIGITAL S-VIDEO VIDEO
r
eq
w
y
t
6
TV SOUND
/DBS
VIDEOVCR 2VCR 1
DVDDVD MULTI AMFMTAPE/MDCDRCDPHONO
TV SOUND/DBSVCR
DVDDVD MULTI AMFMTAPE/CDRCD
RX-8030VBK
RX-7030VBK
Front Panel
Display Window
How to open the front door
4
Press down on PUSH OPEN.
Front Panel
DIGITAL EQ
INPUT ATT
SLEEP
VOLUME
ONE TOUCH OPERATION
3D - PHONIC
NEO:6
VIRTUAL SB
MIDNIGHT MODE
AUTO MUTING
TUNED STEREO
LINEAR PCM
DIGITAL
L
SUBWFR
LS RS
CR
S
LFE
DUAL DIGITAL
AUTO
ANALOG 96/24 MULTI
PRO LOGIC
DSP
HEADPHONE SPEAKERS 1 2
BASS BOOST
SB
# $ %
_
1 2
3
4
5
6
7 8 0
9
-
= ~
+
^ & *
@
!
(
)
1 STANDBY/ON button and STANDBY lamp (17) 2 • SPEAKERS ON/OFF 1 button (19)
• SPEAKERS ON/OFF 2 button (19)
3 • SURROUND button (37)
• DSP button (39)
• SURROUND/DSP OFF button (37, 39)
4 Remote sensor 5 Display window (17) 6 For RX-8030VBK: Source selection buttons and lamps
(17, 18, 19, 21, 23, 24, 37, 40) DVD MULTI, DVD, VCR 1, VCR 2, VIDEO, TV SOUND/DBS, PHONO, CD, CDR, TAPE/MD, FM, AM (The lamp above the button for selected source lights up.)
For RX-7030VBK: Source selection buttons
(17, 18, 19, 21, 23, 24, 37, 40) DVD MULTI, DVD, VCR , TV SOUND/DBS, CD, TAPE/CDR, FM, AM
7 MASTER VOLUME control (18) 8 For RX-8030VBK: CC CONVERTER button and lamp (21)
For RX-7030VBK: BASS BOOST button and lamp (22)
9 SUBWOOFER OUT ON/OFF button (19) p PHONES jack (19) q EX/ES button (37)
w • INPUT ANALOG button (20)
• INPUT ATT button (20)
e MIDNIGHT MODE button (20) r INPUT DIGITAL button (20) t TUNER CONTROL buttons
• FM/AM TUNING 5 / buttons (23)
• FM/AM PRESET 5 / buttons (23, 24)
• FM MODE button (24)
• MEMORY button (23)
y Only for RX-8030VBK: VIDEO input jacks (13)
DIGITAL optical terminal, S-VIDEO jack, VIDEO jack, AUDIO—L/R jacks
u SETTING button (27) i QUICK SPEAKER SETUP button (25) o • MULTI JOG control (25, 27, 31)
• PUSH SET button (25, 27, 31)
; EXIT button (27, 31) a ADJUST button (31) s ANALOG DIRECT button and lamp (21)
English
Display Window
Display Window
1 DUAL indicator (35) 2 ANALOG indicator (20) 3 DIGITAL AUTO indicator (20) 4 96/24 indicator (35) 5 MULTI indicator (40) 6
7 TUNED indicator (23) 8 STEREO indicator (23, 24) 9 NEO:6 indicator (35) 0 AUTO MUTING indicator (24)
- VIRTUAL SB (Surround Back) indicator (34, 35) = ONE TOUCH OPERATION indicator (30)
PRO LOGIC indicator (34)
PRO LOGIC II indicator (35)
~ SLEEP indicator (22) ! MIDNIGHT MODE indicator (20) @ DIGITAL EQ (equalization) indicator (32) # Speaker and signal indicators (18) $ Digital signal format indicators (20) % Main Display (17) ^ DSP indicator (19, 38) & 3D-PHONIC indicator (38) * HEADPHONE indicator (19, 38) ( SPEAKERS 1/2 indicators (19) ) INPUT ATT (attenuator) indicator (20) _ VOLUME level indicator (17, 22) + BASS BOOST indicator (22)
5
English
VIDEO
RIGHT LEFT
L
R
L
R
S-VIDEO
VIDEO
SURR BACK
SURR CENTER
FRONT
AUDIO
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL / DTS
DIGITAL OUT
FM 75
COAXIAL
AM EXT
AM
LOOP
RIGHT
LEFT
+
+
12
CENTER
SPEAKER
SURROUND SPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
MONITOR
OUT
SUBWOOFER CENTER
DVD
IN
OUT
(REC)
TAPE
MD
IN
(PLAY)
OUT
(REC)
CDR
IN
(PLAY)
PHONO
IN
FRONT
TV SOUND
DBS
IN
VCR 2
VCR 1
IN
(PLAY)
IN
(PLAY)
OUT
(REC)
OUT
(REC)
CD IN
RIGHT LEFT
DVD
IN
ANTENNA
SUBWOOFER
COMPONENT VIDEO
MONITOR
OUT
DBS
IN
DVD
IN
Y
P
B
P
R
COMPU LINK-4
(SYNCHRO)
AV
COMPULINK-
SURROUND BACK SPEAKERS
FRONT SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction Manual For Connection
1
OR
2 :
8
16
1
AND
2 :
16
32
PREOUT
SURR
(REAR)
12
3456789
trewq
p
y
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL / DTS
DIGITAL OUT
FM 75
COAXIAL
AM EXT
AM
LOOP
RIGHT
LEFT
+
+
12
CENTER
SPEAKER
SURROUND SPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
MONITOR
OUT
SUBWOOFER CENTER
DVD
IN
SURR (REAR)
TAPE
CDR
FRONT
TV SOUND
DBS
IN
VCR
IN
(PLAY)
IN
(PLAY)
OUT (REC)
OUT
(REC)
CD IN
RIGHT LEFT
DVD
IN
ANTENNA
COMPONENT VIDEO
MONITOR
OUT
DBS
IN
DVD
IN
Y
P
B
P
R
COMPU LINK-4
(SYNCHRO)
AV
COMPULINK-
SURROUND BACK SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction Manual For Connection
1
OR
2 :
8
16
1
AND
2 :
16
32
SUBWOOFER
OUT
+ +
123456789
reqp w
FRONT SPEAKERS
t
Rear Panel
RX-8030VBK
RX-7030VBK
6
Rear Panel
RX-8030VBK
1 DIGITAL IN terminals (16)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD), DIGITAL 3 (TV),
DIGITAL 4 (CDR)
2 AUDIO input/output jacks (11 – 15)
• Input: DVD IN—FRONT, CENTER, SUBWOOFER,
SURR (REAR), TV SOUND/DBS IN, VCR 1 IN (PLAY), VCR 2 IN (PLAY), CD IN, TAPE/MD IN (PLAY), CDR IN (PLAY), PHONO IN
• Output: VCR 1 OUT (REC), VCR 2 OUT (REC),
TAPE/MD OUT (REC), CDR OUT (REC)
3 S-VIDEO and composite VIDEO input/output jacks (14, 15)
• Input: DVD IN, TV SOUND/DBS IN, VCR1 IN (PLAY),
VCR 2 IN (PLAY)
• Output: VCR 1 OUT (REC), VCR 2 OUT (REC),
MONITOR OUT
4 FM/AM ANTENNA terminals (8) 5 PREOUT jacks (10, 11)
• FRONT, CENTER, SUBWOOFER, SURR, SURR BACK
6 COMPONENT VIDEO input/output jacks (14, 15)
• Input: DVD IN, DBS IN
• Output: MONITOR OUT
7 COMPU LINK-4 (SYNCHRO) terminals (41) 8 AV COMPULINK-III terminals (42) 9 AC power cord (16) p DIGITAL OUT terminal (16) q SURROUND BACK SPEAKERS terminal (10) w SURROUND SPEAKERS terminal (10) e CENTER SPEAKER terminal (10) r FRONT SPEAKERS 1 terminals (10) t FRONT SPEAKERS 2 terminals (10) Ô Earth (ground) terminal (11)
RX-7030VBK
1 DIGITAL IN terminals (16)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD), DIGITAL 3 (TV), DIGITAL 4 (CDR)
2 AUDIO input/output jacks (12 – 15)
• Input: DVD IN—FRONT, CENTER, SUBWOOFER, SURR (REAR), TV SOUND/DBS IN, VCR IN (PLAY), TAPE/CDR IN (PLAY), CD IN
• Output: VCR OUT (REC), TAPE/CDR OUT (REC)
3 S-VIDEO and composite VIDEO input/output jacks (14, 15)
• Input: DVD IN, TV SOUND/DBS IN, VCR IN (PLAY)
• Output: VCR OUT (REC), MONITOR OUT
4 FM/AM ANTENNA terminals (8) 5 SUBWOOFER OUT jack (10) 6 COMPONENT VIDEO input/output jacks (14, 15)
• Input: DVD IN, DBS IN
• Output: MONITOR OUT
7 COMPU LINK-4 (SYNCHRO) terminals (41) 8 AV COMPULINK-III terminals (42) 9 AC power cord (16) p DIGITAL OUT terminal (16) q SURROUND BACK SPEAKERS terminal (10) w SURROUND SPEAKERS terminal (10) e CENTER SPEAKER terminal (10) r FRONT SPEAKERS 1 terminals (10) t FRONT SPEAKERS 2 terminals (10)
English
Differences between RX-8030VBK and RX-7030VBK
PREOUT jacks
Color
Black
Black
RX-8030VBK
RX-7030VBK
Remote Control
RM-SRX8030J
RM-SRX7030J
Video jacks (input/output)
Composite video (4/3) S-video (4/3) Component video (2/1)
Composite video (3/2) S-video (3/2) Component video (2/1)
Display Window
CC Converter
: Supplied : Not supplied
Selectable source
DVD MULTI, DVD, VCR 1, VCR 2, VIDEO, TV SOUND/DBS, PHONO, CD, CDR, TAPE/MD, FM, AM
DVD MULTI, DVD, VCR, TV SOUND/DBS, CD, TAPE/CDR, FM, AM
7
FM 75
COAXIAL
AM EXT
AM
LOOP
ANTENNA
FM 75
COAXIAL
ANTENNA
FM 75
COAXIAL
ANTENNA

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.
English
Before Installation
General Precautions
Be sure your hands are dry.
Turn the power off to all components.
Read the manuals supplied with the components you are going to
connect.
Locations
Install the receiver in a location that is level and protected from moisture.
The temperature around the receiver must be between –5˚C and 35˚C (23˚F and 95˚F ).
Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.
Handling the receiver
Do not insert any metal object into the receiver.
Do not disassemble the receiver or remove screws, covers, or
cabinet.
Do not expose the receiver to rain or moisture.
If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.
Notes:
• Supplied batteries are for the initial setup. Replace for continued use.
• After replacing the batteries, set the manufacturers’ codes again (see pages from 47 to 49).
CAUTION:
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity: (+) to (+) and (–) to (–).
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose batteries to heat or flame.
Connecting the FM and AM Antennas
FM Antenna Connections
Checking the Supplied Accessories
Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates quantity of the pieces supplied.
• Remote Control (1)
• Batteries (2)
• AM Loop Antenna (1)
• FM Antenna (1)
If anything is missing, contact your dealer immediately.
Putting Batteries in the Remote Control
Before using the remote control, insert the two supplied batteries first.
1
2
3
R6P(SUM-3)/ AA(15F)
1. Press and slide the battery cover on the back of the remote control.
2. Insert the batteries.
Make sure to match the polarity: (+) to (+) and () to (–).
3. Replace the cover.
A
B
FM Antenna (supplied)
Extend the supplied FM antenna horizontally.
Outdoor FM Antenna Cable (not supplied)
A. Using the Supplied FM Antenna
The FM antenna provided can be connected to the FM 75 COAXIAL terminal as temporary measure.
B. Using the Standard Type Connector (Not Supplied)
A standard type connector should be connected to the FM 75 COAXIAL terminal.
Note:
If reception is poor, connect the outdoor FM antenna (not supplied). Before attaching a 75 Ω coaxial cable with a connector (the kind with a round wire going to an outdoor antenna), disconnect the supplied FM antenna.
8
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
+
RIGHT
LEFT
AM Antenna Connections
+
RIGHT
LEFT
FM 75
COAXIAL
AM
EXT
AM
LOOP
ANTENNA
2
3
1
+
RIGHT
LEFT
Turn the loop until you have the best reception.
AM Loop Antenna (supplied)
Basic connecting procedure
1 Twist and remove the insulation at
the end of each speaker signal cable (not supplied).
2 Open the speaker terminal.
English
Snap the tabs on the loop into the slots of the base to assemble the AM loop.
Outdoor single vinyl-covered wire (not supplied)
Notes:
If the AM loop antenna wire is covered with vinyl, remove
the vinyl by twisting it as illustrated.
Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord. This could cause poor reception.
If reception is poor, connect an outdoor single vinyl-covered wire
(not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.)
Connecting the Speakers
RX-7030VBK
(For FRONT SPEAKERS 2 terminals)
3 Insert the speaker signal cable.
4 Close the speaker terminal.
For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.
Speaker layout
Ideal speaker layout varies depending on the conditions of your listening room. The diagram below is a recommended typical example.
You can connect the following speakers:
Two pairs of front speakers to produce normal stereo sound.
One pair of surround speakers to enjoy the surround effect.
One surround back speaker or one pair of surround back speakers
to enjoy to produce more effective surround effect.
One center speaker to emphasize human voices.
One subwoofer to enhance the bass.
CAUTION:
Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals.
When connecting to both of the FRONT SPEAKERS 1 and 2
When connecting to either the FRONT SPEAKERS 1 or 2
terminals, use speakers with an impedance of 16 to 32 Ω.
terminals, use speakers with an impedance of 8 to 16 Ω.
Left front speaker(s)
(L)
Left surround speaker (LS)
Surround back speakers (LSB/RSB)
Center speaker
(C)
Subwoofer
Right front speaker(s)
(R)
Right surround
speaker (RS)
9
RIGHT
LEFT
+
+
CENTER
SPEAKER
SURROUNDSPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
SURROUND BACK SPEAKERS
FRONT SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction Manual For Connection
1
OR
2 :
8
16
1
AND
2 :
16
32
1
2
L
R
L
R
SURR BACK
SURR CENTER
FRONT
SUBWOOFER
PREOUT
SUBWOOFER
OUT
RX-7030VBK
RX-8030VBK
RIGHT
LEFT
+
SU
8
CAUTION : SPEAKER IMPEDANCE
SURROUND BACK SPEAKERS
SINGLE USE
See Instruction Manual For Connection
C
LR
LS RS
LSB
RSB
SB*
Rear terminals of RX-8030VBK are used for explanation.
English
Surround back speakers*
Right / Left
*
When using only one surround back speaker, connect the ª cord to the RIGHT ª terminal and the
·
cord to the LEFT
terminal.
·
Center speaker
Surround speakers
Right / Left
Front speakers 1
Right / Left
Front speakers 2
Right / Left
IMPORTANT:
After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for easy speaker installation information setting (see page 25).
To obtain the best possible Surround/DSP effect, seeSetting the Speakers on page 27.
Placing speakers
Front speakers and center speaker
Place these speakers (position of the mid-range speaker units) at the same height from the floor.
Point these speakers aiming at the listeners ears.
Surround and surround back speakers
Place these speakers at a position which is 1 meter higher than the listeners ears.
Point these speakers down aiming at the listeners ears.
Subwoofer
You can place it wherever you like since bass sound is non-directional. Normally place it in front of you.
Note:
Ideal speaker layout requires that all speakers be placed at the same distance from the listener. However, since in some places it may be difficult to fulfil this requirement, this unit can adjust the delay time so that the sounds through all the speakers reach the listener with the same timing. (See page 28.)
10
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).
Subwoofer
* When one surround back speaker is
connected.
PHONO
IN
RIGHT LEFT
R
L
RX-8030VBK
RX-8030VBK
L
R
L
R
SURR BACK
SURR CENTER
FRONT
SUBWOOFER
PREOUT
R
L
R
L
Enhancing your audio system
RX-8030V
ONLY
RX-8030V
ONLY
—Only for RX-8030VBK
You can use this receiver as the pre-amplifier (control amplifier) when you connect power amplifiers to the PREOUT jacks on the rear using cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the audio right jack.
Left front speaker
Right front speaker
Connecting Audio/Video Components
English
When connecting individual components, refer also to the manuals supplied with them.
Analog Connections
If your audio components have digital audio output terminal, connecting them using the digital cords explained in Digital Connections (see page 16) will give you better sound quality.
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the audio right jack.
If your audio components have a COMPU LINK jack
See also page 41 for detailed information about the connection and the COMPU LINK remote control system.
Power amplifier
Power amplifier
Center speaker
Power amplifier
Left surround
speaker
Power amplifier
Right surround
speaker
Surround back speakers
Left / Right
Note:
If you connect one surround back speaker, connect the surround back speaker to the left surround back PREOUT jack (SURR BACK L).
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.
Turntable
To listen to the sound after connection, press PHONO.
Turntable
If a ground cable is provided for your turntable, connect the cable to the screw marked (H) on the
To audio output
rear.
Note:
This connection is for the turntable with an MM (moving-magnet) type cartridge. Any turntables incorporating a small-output cartridge such as an MC (moving-coil) type must be connected to this receiver through a commercial head amplifier or step-up transformer. Direct connection may result in insufficient volume.
11
CD player
CD
IN
R
L
RX-8030VBK/RX-7030VBK
OUT
(REC)
TAPE
MD
IN
(PLAY)
RX-8030VBK
R
L
R
L
RX-7030VBK
TAPE
CDR
IN
(PLAY)
OUT
(REC)
R
L
R
L
RX-8030VBK
OUT
(REC)
CDR
IN
(PLAY)
R
L
R
L
TAPE
CDR
IN
(PLAY)
OUT
(REC)
RX-7030VBK
R
L
R
L
English
To listen to the sound after connection, press CD.
CD player
To audio output
Cassette deck
To listen to the sound after connection, press TAPE/MD (for RX­8030VBK) or TAPE/CDR (for RX-7030VBK).
For RX-8030VBK
You can connect either a cassette deck or an MD recorder to the TAPE/MD jacks. When connecting an MD recorder, see page 13.
CD recorder
To listen to the sound after connection, press CDR (for RX-8030VBK) or TAPE/CDR (for RX-7030VBK).
For RX-8030VBK
CD recorder
To audio input
To audio output
For RX-7030VBK
You can connect either a CD recorder or a cassette deck to the TAPE/CDR jacks. When connecting a cassette deck to the TAPE/ CDR jacks, see the left column.
Cassette deck
To audio input
To audio output
For RX-7030VBK
You can connect either a cassette deck or a CD recorder to the TAPE/CDR jacks. When connecting an CD recorder to the TAPE/ CDR jacks, see the right column.
Cassette deck
To audio input
To audio output
CD recorder
To audio input
To audio output
Note:
For RX-7030VBK: When connecting a CD recorder to the TAPE/CDR
jacks, change the source name to “CDR,” which will be shown on the display when it is selected as the source. See page 21 for details.
12
MD recorder
OUT
(REC)
TAPE
MD
IN
(PLAY)
RX-8030VBK
R
L
R
L
S-VIDEODIGITAL
VIDEO LAUDIOR
VIDEO
R
L
RX-8030V
ONLY
To listen to the sound after connection, press TAPE/MD (for RX­8030VBK) or TAPE/CDR (for RX-7030VBK).
For RX-8030VBK
You can connect either an MD recorder or a cassette deck to the TAPE/MD jacks. When connecting a cassette deck, see page 12.
Video component connections
Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.
If your video components have S-video (Y/C-separation) and/or component video (Y, P
B, PR) terminals, connect them using an S-
video cable (not supplied) and/or component video cable (not supplied). By using these jacks, you can get better picture quality in the orderComponent video > S-video > Composite video.
If your video components have an AV COMPULINK jack
See also page 42 for detailed information about the connection and the AV COMPU LINK remote control system.
English
MD recorder
To audio input
To audio output
Note:
When connecting an MD recorder to the TAPE/MD jacks, change the source name to “MD,” which will be shown on the display when it is selected as the source. See page 21 for details.
For RX-7030VBK
You can connect an MD recorder to the TAPE/CDR jacks if they are not used for connecting another component such as a cassette deck or CD recorder. When connecting an MD recorder to the TAPE/ CDR jacks, see page 12.
Though your MD recorder is one of JVC products with the COMPU LINK remote control system, you cannot use the COMPU LINK remote control system to operate the connected MD recorder.
IMPORTANT:
This receiver is equipped with the following video jacks—composite video, S-video and component video jacks. You can use any of the three to connect a video component. However, the video signals from one type of these input jacks are
transmitted only through the video output jacks of the same type.
Therefore, if a recording video component and a playing video component are connected to the receiver through the video jacks of different type, you cannot record the picture. In addition, if the TV and a playing video component are connected to the receiver through the video jacks of different type, you cannot view the playback picture on the TV.
Video camera
To listen to the sound after connection, press VIDEO.
The VIDEO input jacks on the front panel (inside the front door) are convenient when connecting and disconnecting the component frequently.
To audio output
To composite video output
To S-video output
To optical digital output
Video camera
When using the digital input terminal
Select the digital input mode correctly. For details, see Selecting the Analog or Digital Input Mode” on page 19.
13
VCR(s)
RX-8030VBK
VCR 2
VCR 1
IN
(PLAY)
IN
(PLAY)
OUT
(REC)
OUT
(REC)
A B
DC E F
R
L
R
L
RX-7030VBK
VCR
IN
(PLAY)
OUT
(REC)
A B
DC E F
R
L
R
L
MONITOR
OUT
TV SOUND
DBS
IN
MONITOR
OUT
Y
P
B
P
R
A
B
C
D
R
L
RX-8030VBK/RX-7030VBK
TV SOUND
DBS
IN
DBS
IN
A
B
C
D
R
L
DBS
RX-8030VBK/RX-7030VBK
English
To listen to the sound after connection, press VCR 1 or VCR 2 (for RX-8030VBK) or VCR (for RX-7030VBK).
For RX-8030VBK
You can connect two VCRsone to the VCR 1 jacks and the other to the VCR 2 jacks.
If your VCR has an AV COMPU LINK jack, connect it to the
VCR 1 jack so that you can use the AV COMPU LINK remote control system.
Å To audio input ı To audio output Ç To S-video output Î To composite video outputTo S-video input Ï To composite video input
VCR
TV and/or DBS tuner
To listen to the sound after connection, press TV SOUND/DBS (or TV/DBS on the remote control).
TV
When connecting
TV
Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.
the TV to the AUDIO jacks (TV SOUND/DBS IN), DO NOT connect the TVs video output to these video input jacks.
For RX-7030VBK
14
Å To audio output ı To component video input Ç To S-video input Î To composite video input
Å To audio input ı To audio output Ç To S-video output Î To composite video outputTo S-video input Ï To composite video input
DBS tuner
VCR
Å To audio output ı To component video output Ç To S-video output Î To composite video output
Notes:
When connecting a DBS tuner to the TV SOUND/DBS IN jacks, change the source name to “DBS,” which will be shown on the display when selected as the source. Otherwise you cannot view any picture from DBS tuner. See page 21 for details.
When connecting a DBS tuner to either one of the component input jacks, make the component video input setting correctly for AV CONPU LINK. See page 30 for details.
DVD player
DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
COMPONENT VIDEO
DVD
IN
SURR
(REAR)
R
L
A
B
C
D
RX-8030VBK/RX-7030VBK
DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
COMPONENT VIDEO
DVD
IN
SURR
(REAR)
R
L
R
L
A
B
C
D
E F G
RX-8030VBK/RX-7030VBK
• When you connect a DVD player with stereo output jacks:
To listen to the sound after connection, press DVD.
DVD player
• When you connect a DVD player with its analog discrete
English
output (5.1-channel reproduction) jacks:
To listen to the sound after connection, press DVD MULTI.
Å To component video output ı To S-video output Ç To composite video output Î To left/right front channel audio output (or to audio-
mixed output if necessary)
Note:
When connecting a DVD player to the component video input jacks, make the component video input setting correctly for AV COMPU LINK. See page 30 for details.
DVD player
Å To component video output ı To subwoofer output Ç To center channel audio output Î To S-video outputTo composite video output Ï To left/right front channel audio output Ì To left/right surround channel audio output
Note:
When connecting a DVD player to the component video input jacks, make the component video input setting correctly for AV COMPU LINK. See page 30 for details.
15
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL / DTS
DIGITAL OUT
Digital Connections
English
This receiver is equipped with four DIGITAL IN terminals—one digital coaxial terminal and three digital optical terminals—and one DIGITAL OUT (optical) terminal on the rear.
For RX-8030VBK: Another digital optical input terminal is located on the front panel (see page 13).
IMPORTANT:
When connecting a DVD player, digital TV broadcast tuner or DBS tuner using the digital terminals, you also need to connect it to the video jacks on the rear. Without connecting it to the video jacks, you can view no playback picture.
After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly. For
details, see Setting the Digital Input Terminals” on page 29.
– Select the digital input mode correctly. For details, see “Selecting
the Analog or Digital Input Mode on page 19.
Digital input terminals
You can connect any digital components having coaxial or optical digital output terminal.
Digital coaxial cable (not supplied) between digital coaxial terminals
Digital output terminal
You can connect any digital components which have an optical digital input terminal.
Digital optical cable (not supplied) between digital optical terminals
When the digital recording equipment such as an MD recorder and CD recorder has a digital optical input terminal, connecting it to the DIGITAL OUT terminal enables you to perform digital-to­digital recording.
Note:
The digital signal format transmitted through the DIGITAL OUT terminal is the same as that of the input signal. This means that when the DTS Digital Surround signals are input, the DTS Digital Surround signals are transmitted.
Digital optical cable (not supplied) between digital optical terminals
When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).
When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD), DIGITAL 3 (TV) or DIGITAL 4 (CDR) terminal, using a digital optical cable (not supplied).
Before connecting a digital optical cable, unplug the protective plug.
Notes:
When shipped from the factory, the DIGITAL IN terminals have
been set for use with the following components:
DIGITAL 1 (coaxial): For DVD playerDIGITAL 2 (optical): For CD playerDIGITAL 3 (optical): For digital TV broadcast tunerDIGITAL 4 (optical): For CD recorder
When you want to operate the CD player or CD recorder, (or MD
recorder: only for RX-8030VBK) using the COMPU LINK remote control system, connect the target component also as described in
Analog Connections (see pages 12 and 13).
When you want to operate a DVD player using the AV COMPU
LINK remote control system (see page 42), connect the DVD player also as described in Analog Connections” (see page 15).
16
Connecting the Power Cord
Before plugging the receiver into an AC outlet, make sure that all connections have been made.
Plug the power cord into an AC outlet.
Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.
Note:
The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:
When you unplug the power cord.When a power failure occurs.
CAUTIONS:
Do not touch the power cord with wet hands.
Do not pull on the power cord to unplug the cord. When unplugging
the cord, always grasp the plug so as not to damage the cord.

Basic Operations

DVD MULTI
CD
CDR
TAPE/MD
TV/DBS VIDEO PHONO
FM/AM
VCR1 VCR2
DVD
DVD MULTI
CD
TAPE/CDR
FM/AM
TV/DBS VCR
DVD
TV SOUND/DBSVCR
DVDDVD MULTI AMFMTAPE/CDRCD
1
3
2
4
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
DIGITAL EQ
INPUT ATT
SLEEP
VOLUME
ONE TOUCH OPERATION
3D - PHONIC
NEO:6
VIRTUAL SB
MIDNIGHT MODE
AUTO MUTING
TUNED STEREO
LINEAR PCM
DIGITAL
L
SUBWFR
LS RSCRS
LFE
DUAL DIGITAL
AUTO
ANALOG 96/24 MULTI
PRO LOGIC
DSP
HEADPHONE SPEAKERS 1 2
BASS BOOST
SB
TV SOUND
/DBS
VIDEOVCR 2VCR 1
DVDDVD MULTI AMFMTAPE/MDCDRCDPHONO
The following operations are commonly used when you play any sound sources.
Operations hereafter will be explained using the buttons on the front panel. You can also use the buttons on the remote control for the same functions if they have the same and similar names/marks.
Daily Operational Procedure
Selecting the Source to Play
Press one of the source selection buttons.
1 Turn on the power.
See Turning On the Power below.
2 Select the source.
See Selecting the Source to Play to the right.
The selected source name and the previously selected Surround/
DSP mode also appear on the display.
Selected source name and current
Surround/DSP mode appear.
3 Adjust the volume.
See Adjusting the Volume” on page 18.
4 Select the surround or DSP modes.
See Activating the Surround Modes” (page 37) andActivating the DSP Modes” (page 39).
For RX-8030VBK
English
Turning On the Power
Press STANDBY/ON (or AUDIO on the remote control).
The STANDBY lamp goes off. The name of the current source and Surround/DSP mode appear on the display.
Current source name and Surround/DSP mode appear
To turn off the power (into standby mode),
press again. The STANDBY lamp lights up.
Note:
A small amount of power is consumed in standby mode. To turn off the power completely, unplug the AC power cord.
Current volume level appears.
STANDBY/ON (or AUDIO on the remote control)
On the unit
The lamp on the selected source lights up (ex. when DVD is selected as the source).
On the remote
For RX-7030VBK
On the unit
On the remote
Notes:
For RX-8030VBK: When connecting an MD recorder (to the TAPE/
MD jack) and a DBS tuner (to the TV SOUND/DBS jacks), change the source names shown on the display. For details, see page 21.
For RX-7030VBK: When connecting an CD recorder (to the TAPE/
CDR jacks) and a DBS tuner (to the TV SOUND/DBS jacks), change the source names shown on the display. For details, see page 21.
17
Speaker and signal indicators on the display
SUBWFR
CD
CDR
TAPE/MD
PHONO
FM/AM
AMFMTAPE/CDRCD
CD
TAPE/CDR
FM/AM
AMFMTAPE/MDCDRCDPHONO
SUBWFR
LCR
LS RS
LFE
LCR
SLS
SB
RS
SB
LFE
SUBWFR
LCR
LS RS
SB
English
By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.
Speaker indicators
Signal indicators
Selecting different sources for picture and sound
While watching pictures from a video source, you can listen to sound of an audio source.
Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.
Press one of the audio source selection buttons while viewing the picture from a video component such as the VCR or DVD player, etc.
For RX-8030VBK
What speaker indicators light depends on the speaker setting (for details, see “Setting the Speakers” on page 27).
The frames of L, C,R, LS,RS, and SB light up, when the corresponding speakers are set to “LARGE” or SMALL and when the speaker is required for the Surround/DSP mode currently selected.
When SUB WOOFER is set to YES,
lights up (see
page 27).
All three frames on the row of SB are not used at the same time. When “SBACK OUT is set to “2SPK,” the left and the right ones are used. When it is set to “1SPK,” the middle one is used (see page 27).
The signal indicators light up to show the incoming signals.
L: When digital input is selected: Lights up when the left
channel signal comes in.
When analog input is selected: Always lights up.
R: When digital input is selected: Lights up when the right
channel signal comes in.
When analog input is selected: Always lights up.
C: Lights up when the center channel signal comes in. LFE: Lights up when the LFE channel signal comes in. LS: Lights up when the left surround channel signal comes in. RS: Lights up when the right surround channel signal comes in. S: Lights up when the monaural surround channel signal
comes in.
SB: Lights up when the surround back channel signal comes in.
On the unit
On the remote
For RX-7030VBK
On the unit
On the remote
Note:
When you see the picture through the COMPONENT VIDEO jacks, you cannot use this function.
Adjusting the Volume
On the front panel:
To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.
Note:
When DVD MULTI” is selected as the source, “L,” “C,” “R,” “LFE,“LS,” and RS light up.
How to understand the speaker and signal indicator illumination
18
Ex. No sound comes out of the
center speaker and surround back speakers though center channel and surround back channel signals are coming into this receiver.
From the remote control:
To increase the volume, press VOLUME +. To decrease the volume, press VOLUME –.
CAUTION:
Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.
Notes:
The volume level can be adjusted within the range of “0 (minimum) to 70 (maximum).
If you set One Touch Operation to “ON (see page 30), you do not have to adjust the volume level each time you change the source. It is automatically set to the stored level.
Selecting the Front Speakers
Remote
NOT
Remote
NOT
When you have connected two pairs of the front speakers, you can select which to use.
To use the speakers connected to the FRONT SPEAKERS 1 terminals, press SPEAKERS ON/OFF 1 so that the SPEAKERS 1
indicator lights up on the display. Make sure that the SPEAKERS 2 indicator is not lit on the display.
To use the speakers connected to the FRONT SPEAKERS 2 terminals, press SPEAKERS ON/OFF 2 so that SPEAKERS 2
indicator lights up on the display. Make sure that the SPEAKERS 1 indicator is not lit on the display.
To use both sets of the speakers, press SPEAKERS ON/OFF 1 and SPEAKERS ON/OFF 2 so that the SPEAKERS 1/2 indicators light up on the display.
To use neither sets of the speakers, press SPEAKERS ON/OFF 1 and SPEAKERS ON/OFF 2 so that the SPEAKERS 1/2 indicators
go off from the display. The HEADPHONE indicator lights up and “HEADPHONE” appears on the display.
Activating the speakers turns on the Surround and DSP modes previously selected.
Activating and Adjusting the Subwoofer Sound
You can cancel the subwoofer sound even though you have connected a subwoofer and have set SUB WOOFER to “YES” (see page 27). This is useful when enjoying surround sound at night.
Press SUBWOOFER OUT ON/OFF to cancel the subwoofer sound output.
Each time you press the button, subwoofer sound output is deactivated (SUBWFR OFF) and activated (SUBWFR ON”) alternately.
When subwoofer sound output is activated, subwoofer output level can be adjusted using the remote control. 1 Press SOUND. 2 Press SUBWOOFER. 3 Press LEVEL + or – to adjust the output level
(–10 dB to +10 dB).
Note:
You cannot deactivate the subwoofer sound output when you set SMALL” for the front speakers on the Speaker size setting (see page
27) or Quick Speaker Setup (see page 25).
English
Listening with headphones only:
Deactivate both sets of the front speakers, and connect headphones to the PHONES jack.
You can enjoy the sound effects through the headphones when Surround or DSP mode is activated—3D HEADPHONE (3D H PHONE) mode.
•“3D H PHONE appears on the display and the DSP and HEADPHONE indicator lights up on the display. (For details, see page 36.)
Note:
When you select DVD MULTI as the source or any one of the Surround/DSP mode which activates the center and/or surround speaker(s), you can use only one set of the speakers.
CAUTION:
Be sure to turn down the volume:
Before connecting or putting on headphones, as its high volume can
damage both the headphones and your hearing.
Before turning on speakers again, as its high volume may come out
of the speakers.
Selecting the Analog or Digital Input Mode
When you have connected digital source components using the digital terminals (see page 16), change the input mode for these components to the digital input mode.
Before you start, remember... The digital input terminal setting should be correctly done for the sources you want to select the digital input mode (see Setting the Digital Input Terminals on pages 29 and 30).
1. Press one of the source selection buttons for which you want to change the input mode.
For RX-8030VBK: DVD, VIDEO, TV (SOUND)/DBS,
CD, CDR, or TAPE/MD*
For RX-7030VBK: DVD, TV (SOUND)/DBS, CD, or
TAPE/CDR*
*
If “TAPE is selected as the source, digital input mode is not available. To change the source name, see Changing the Source Name on page 21.
Continued on the next page
19
LINEAR PCM
DIGITAL
2. Press INPUT DIGITAL (or ANALOG/DIGITAL
VOLUME
DIGITAL
L
SUBWFR
LS RS
CR
LFE
DIGITAL
AUTO
SPEAKERS 1
DGTL AUTO DGTL D.D
DGTL DTS
(Dolby Digital)
(Digital)
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
DIGITAL
L
SUBWFR
LS RS
CR
LFE
DIGITAL
AUTO
SPEAKERS 1
Remote
NOT
Remote
NOT
English
INPUT on the remote control) to select DGTL AUTO.
The DIGITAL AUTO indicator lights up on the display.
When selecting DGTL AUTO,” the following indicators indicate the digital signal format of the incoming signal.
: Lights up when Linear PCM signals come
in.
: Lights up when Dolby Digital signals
come in.
: Lights up when DTS signals come in.
No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.
When playing software encoded with the Dolby Digital or DTS, the following symptoms may occur:
Sound does not come out at the beginning of playback.
Noise comes out while searching for or skipping chapters or
tracks.
In this case, press INPUT DIGITAL repeatedly to select DGTL D.D or DGTL DTS while DGTL AUTO still remains on the display.
As you press INPUT DIGITAL, the input mode changes as follows:
Setting the Dynamic Range
You can enjoy a powerful sound at night using the Midnight Mode.
Press MIDNIGHT MODE so that MID NIGHT 1 or “MID NIGHT 2 appears on the display.
The MIDNIGHT MODE indicator also lights up.
MID NIGHT 1: Select when you want to reduce the dynamic
range a little.
MID NIGHT 2: Select when you want to apply the compress
effect fully (useful at midnight).
MID NIGHT OFF: Select when you want to enjoy surround with
its full dynamic range (no effect applied).
Notes:
If Analog Direct is in use, Midnight Mode is temporarily canceled.
Midnight Mode is not valid for DVD MULTI playback mode.
Attenuating the Input Signal
When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.
Once you have made adjustment, it is memorized for each analog source.
When DGTL D.D or DGTL DTS is selected, the AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display.
If the incoming signal does not match the selected digital signal
Note:
When you turn off the power or select another source, DGTL D.D and DGTL DTS settings are canceled and the digital input mode is automatically reset to DGTL AUTO.
To select the analog input mode again
Press INPUT ANALOG (or press ANALOG/DIGITAL INPUT on the remote control repeatedly until “ANALOG appears on the display). The ANALOG indicator lights up.
20
format, the frame of the selected indicator will flash.
Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display.
Each time you press and hold the button, the input attenuator mode turns on (“ATT ON) or off (“NORMAL”).
Note:
This function is not valid when DVD MULTI is selected or when Analog Direct is activated.
Turning Analog Direct On and Off
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
RX-8030V
ONLY
Remote
NOT
You can enjoy the sound closer to the original source by overriding the sound adjustments such as speaker output level adjustments (see page 32), Digital Equalization (see page 32), Surround and DSP modes (see pages 34 to 39), Bass Boost (see page 22) and Midnight Mode (see page 20). You can only adjust the volume level while Analog Direct is in use.
Once you have made adjustment, it is memorized for each analog source.
Changing the Source Name
English
When you have connected an MD recorder to the TAPE/MD jacks or a DBS tuner to the TV SOUND/DBS jacks on the rear panel, change the source name which will be shown on the display.
When changing the source name from “TV” to “DBS”:
1. Press TV SOUND/DBS.
Make sure TV appears on the display.
Press ANALOG DIRECT so that “A DIRECT” appears on the display.
The lamp on the button also lights up.
Each time you press the button, Analog Direct turns on and off.
Notes:
When digital input mode is in use, Analog Direct is not available.
Turning on Surround or DSP mode cancels Analog Direct and
previously selected sound adjustments are recalled.
If Analog Direct is in use, Midnight Mode is temporarily canceled.
Turning on Analog Direct cancels Input Attenuator (page 20) (and
CC Converter for RX-8030VBK: below).
Making Sounds Natural
JVCs CC (Compensative Compression) Converter eliminates jitter and ripples, achieving a drastic reduction in digital distortion by processing the digital music data in 24 bit–quantization and by expanding the sampling frequency to 128 kHz (for fs 32 kHz signals)/176.4 kHz (for fs 44.1 kHz signals)/192 kHz (for fs 48 kHz signals). By using CC Converter, you can obtain a natural sound field from both digital and analog sources.
2. Press and hold TV SOUND/DBS until ASSGN DBS appears on the display.
Note:
When connecting a DBS tuner to the TV SOUND/DBS IN jacks, change the source name to “DBS,” which will be shown on the display when selected as the source. Otherwise you cannot view any picture from DBS tuner.
For RX-8030VBK:
When changing the source name from “TAPE” to “MD”:
1. Press TAPE/MD.
Make sure TAPE appears on the display.
2. Press and hold TAPE/MD until “ASSGN MD” appears on the display.
For RX-7030VBK:
When changing the source name from “TAPE” to “CDR”:
1. Press TAPE/CDR.
Make sure TAPE appears on the display.
2. Press and hold TAPE/CDR until ASSGN CDR appears on the display.
Press CC CONVERTER so that the lamp on the button lights up.
Each time you press the button, CC Converter turns on and off (the lamp goes off) alternately.
Note:
You cannot use this function while Analog Direct is in use. If you turn on Analog Direct while this function is in use, this function will be canceled.
To change the source name to TV and TAPE,” repeat the same procedure above.
Note:
Without changing the source name, you can still use the connectedcomponents. However, there may be some inconvenience.
For RX-8030VBK: –“TAPE” or “TV” will appear on the display when you select the MD
recorder or DBS tuner.
– You cannot use the digital input (see pages 19 and 20) for the
MD recorder.
– You cannot use the COMPU LINK remote control system (see
pages 41) to operate the MD recorder.
For RX-7030VBK: –“TAPE” or “TV” will appear on the display when you select the CD
recorder or DBS tuner.
– You cannot use the digital input (see pages 19 and 20) for the
CD recorder.
21
English
SOUND
2010 30 40 50 60 70 80 90
(Canceled)
0
RX-7030V
ONLY
Dimmer Much dimmer
Canceled
(Normal display)
The following basic operations are possible only using the remote control.
Reinforcing the Bass
BASS
BOOST
7/P
10/0
231
564
89
+10
0
Using the Sleep Timer
Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically.
Press SLEEP repeatedly.
The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals:
MUTING
Muting the Sound
Using the Sleep Timer
SLEEP
DIMMER
Changing the Display Brightness
Reinforcing the Bass
You can boost the bass level.
Once you have made adjustment, it is memorized for each source.
1. Press SOUND.
The 10 keys are activated for sound adjustments.
2. Press BASS BOOST to turn on Bass Boost.
The BASS BOOST indicator lights up.
Each time you press the button, Bass Boost turns on (BOOST ON) and off (BOOST OFF) alternately.
For RX-7030VBK:
You can use the BASS BOOST button on the front panel. When the Bass Boost is activated, the lamp on the button lights up.
Each time you press the button, Bass Boost turns on and off.
Notes:
This function affects only the sounds from the front speakers, center speaker, and subwoofer.
When Analog Direct is in use (see page 21), the Bass Boost is canceled temporarily.
Muting the Sound
Press MUTING to mute the sound through all speakers and headphones connected.
MUTING appears on the display and the volume turns off (the VOLUME level indicator goes off).
To restore the sound, press MUTING again.
Turning MASTER VOLUME on the front panel or pressing
VOLUME +/– on the remote control also restores the sound.
Changing the Display Brightness
You can dim the display.
Press DIMMER.
Each time you press the button, the brightness
level of the display change as follows:
To check or change the time remaining until the shut-off time:
Press SLEEP once. The remaining time until the shut-off time appears in minutes.
To change the shut-off time, press SLEEP repeatedly.
To cancel the Sleep Timer:
Press SLEEP repeatedly until SLEEP 0min” appears on the display. (The SLEEP indicator goes off.)
Turning off the power also cancels the Sleep Timer.
Recording a source
For analog-to-analog recording
You can record any analog playback source onto the recording components connected to the audio output jacks on the rear of this unit at the same time.
For digital-to-digital recording
You can record the currently selected digital input source through the receiver to a digital recording device connected to the DIGITAL OUT terminal.
Notes:
Analog-to-digital and digital-to-analog recordings are not possible.
The output volume level, Midnight Mode (see page 20), Bass Boost (see the left column), Digital Equalization (see page 32), Surround modes and DSP modes (see pages 34 to 39) cannot affect the recording.
Basic adjustment auto memory
This receiver memorizes sound settings for each source
when you turn off the power,
when you change the source, and
when you assign the source name (see page 21).
When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:
Analog/digital input mode (see pages 19 and 20)
Input attenuator mode (see page 20)
Analog Direct (see page 21)
Digital Equalization (see page 32)
Speaker channel output levels (see page 32)
Surround and DSP mode selection (see pages 37 and 39)
Bass Boost setting (see the left column)
Notes:
If the source is FM or AM, you can assign a different setting for each band.
If you want to memorize the volume level with the above settings, set One Touch Operation to “ON” (see page 30).
22

Receiving Radio Broadcasts

VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
You can browse through all the stations or use the preset function to go immediately to a particular station.
Tuning in to Stations Manually
1. Press FM or AM to select the band.
The last received station of the selected band is tuned in.
2. Press FM/AM TUNING 5 or repeatedly until
you find the frequency you want.
Pressing FM/AM TUNING 5 increases the frequency.
Pressing FM/AM TUNING decreases the frequency.
Using Preset Tuning
Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset up to 30 FM and 15 AM stations.
To store the preset stations
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.
On the front panel ONLY:
1. Tune in the station you want to preset (see Tuning in to Stations Manually on the left).
If you want to store the FM reception mode for this station,
select the FM reception mode you want. See Selecting the FM Reception Mode on page 24.
English
Notes:
When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.
When an FM stereo program is received, the STEREO indicator also lights up.
When you hold and then release the button in step 2, the frequency keeps changing until a station is tuned in.
From the remote control:
1. Press FM/AM.
Each time you press the button, the band alternates between FM and AM.
2. Press TUNING UP or TUNING DOWN repeatedly until you find the frequency you want.
Pressing TUNING UP increases the frequency.
Pressing TUNING DOWN decreases the frequency.
2. Press MEMORY.
The channel number position starts flashing on the display for about 10 seconds.
3. Press FM/AM PRESET 5 or to select a
channel number while the channel number position is flashing.
4. Press MEMORY again while the selected channel number is flashing on the display.
The selected channel number stops flashing. The station is assigned to the selected channel number.
5. Repeat steps 1 to 4 until you store all the stations you want.
To erase a stored preset station
Storing a new station on a used number erases the previously stored one
23
To tune in a preset station
231
564
89
7/P
0
+10
10/0
VOLUME
AUTO MUTING
TUNED STEREO
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
TUNED
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
English
On the front panel:
1. Press FM or AM to select the band.
The last received station of the selected band is tuned in.
Selecting the FM Reception Mode
When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.
You can store the FM reception mode for each preset station (see page 23).
2. Press FM/AM PRESET 5 or until you find the
channel you want.
Pressing FM/AM PRESET 5 increases the number.
Pressing FM/AM PRESET decreases the number.
From the remote control:
1. Press FM/AM to select the band.
The last received station of the selected band is tuned in.
Each time you press the button, the band alternates between FM and AM.
2. Press the 10 keys to select a preset channel number.
For channel number 5, press 5.
For channel number 15, press +10 then 5.
For channel number 20, press +10 then 10.
For channel number 30, press +10, +10, then 10.
Note:
When you use the 10 keys on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page 44.)
While listening to an FM station, press FM MODE.
Each time you press the button, the FM reception mode alternates between “AUTOMUTING and MODE MONO.
AUTOMUTING: Normally select this.
When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting)
MODE MONO: Select this to improve the reception (but
stereo effect will be lost). In this mode, you will hear noise while tuning into the stations. The AUTO MUTING indicator goes off from the display. (The STEREO indicator also goes off.)
24
Note:
When you use the FM MODE on the remote control, be sure that it is activated for the tuner, not for the CD and others. (See page 44.)

Basic Settings

Remote
NOT
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
L R
ANALOG
SPEAKERS 1
2.0CH 2.1CH 3.0CH 3.1CH 4.0CH
4.1CH 5.0CH 5.1CH 6.0CH* 6.1CH
7.0CH 7.1CH (Back to the beginning)
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
SMALL MID LARGE* (Back to the beginning)
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
Some of the following settings are required after connecting and positioning your speakers while others will make operations easier. You can use QUICK SPEAKER SETUP to easily set up your speaker configuration.
Setting the Speakers Configuration
Quick Speaker Setup helps you to easily and quickly register the speaker size and speaker distance according to your listening room to create the best possible surround effect.
You can also register each speaker’s information manually. For details, see page 27.
3. Press in MULTI JOG (PUSH SET).
ROOM SIZE? appear on the display, then the initial room size setting appears.
English
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.
On the front panel:
1. Press QUICK SPEAKER SETUP.
SETUP and SPEAKERS? appear on the display, then the initial setting for the total number of the connected speakers (channels) appears.
2. Turn MULTI JOG to select an appropriate
number of the connected speakers (speaker channel number).
The speaker channel number changes as follows.
For the details of speaker channel number, see Speakers (channels) number and the size on page 26.
4. Turn MULTI JOG to select an appropriate room size to match to your listening room.
The room size changes as follows.
To select your appropriate room size, see Room size and the
speaker distance on page 26.
* LARGE is the initial setting.
5. Press in MULTI JOG (PUSH SET).
COMPLETE appears on the display, then goes back to the source indication.
Speaker configuration settings now become active.
Note:
This procedure will not be completed if you stop in the middle of the setting process.
* 6.0CH is the initial setting.
25
Speakers (channels) number and the size
You can find how each of the speaker size is defined according to
English
the number of connected speakers (speaker channel (CH) number) you select. In the following tables, “L” stands for “left front speaker,” “R” for right front speaker,C for center speaker,LS for left surround speaker,” “RS” for “right surround speaker,” “SB” for
surround back speaker,” and SUBWFR for subwoofer.”
Subwoofer is counted as 0.1 channel.
The size of connected speakers
CH
2.0
2.1
3.0
3.1
4.0
4.1
5.0
5.1
6.0
6.1
7.0
7.1
L R C LS RS SB SUBWFR
LARGE LARGE NONE NONE NONE NONE NO
SMALL SMALL NONE NONE NONE NONE YES
LARGE LARGE SMALL NONE NONE NONE NO
SMALL SMALL SMALL NONE NONE NONE YES
LARGE LARGE NONE SMALL SMALL NONE NO
SMALL SMALL NONE SMALL SMALL NONE YES
LARGE LARGE SMALL SMALL SMALL NONE NO
SMALL SMALL SMALL SMALL SMALL NONE YES
LARGE LARGE SMALL SMALL SMALL SMALL NO
SMALL SMALL SMALL SMALL SMALL SMALL YES
LARGE LARGE SMALL SMALL SMALL SMALL* NO
SMALL SMALL SMALL SMALL SMALL SMALL* YES
* This setting is applied to the both speakers.
Room size and the speaker distance
According to the selected room size, speaker distance for each activated speaker is set as follows:
LARGE Speaker Distance
L 3.0 m (10 ft)
R 3.0 m (10 ft)
C 3.0 m (10 ft)
LS 3.0 m (10 ft)
RS 3.0 m (10 ft)
SB 3.0 m (10 ft)
MID Speaker Distance
L 2.7 m (9 ft)
R 2.7 m (9 ft)
C 2.4 m (8 ft)
LS 2.1 m (7 ft)
RS 2.1 m (7 ft)
SB 1.8 m (6 ft)
SMALL Speaker Distance
L 2.4 m (8 ft)
R 2.4 m (8 ft)
C 2.1 m (7 ft)
LS 1.5 m (5 ft)
RS 1.5 m (5 ft)
SB 1.2 m (4 ft)
Basic Setting Items
On the following pages, you can adjust the following items:
Items To do See page
SUB WOOFER*
FRONT SPEAKER*1Register your front speaker size. 27
CNTR SPEAKER*1Register your center speaker size. 27
SURR SPEAKER*1Register your surround speaker size. 27
SBACK SPEAKER*1Register your surround back
SBACK OUT*
DIST UNIT
FRONT DISTANCE*1Register the distance from you front
CNTR DISTANCE*1Register the distance from you center
SURR DISTANCE*1Register the distance from you
SBACK DISTANCE*1Register the distance from you
S WFR OUTPUT
CROSS OVER
LFE ATTENUATE
DUAL MONO
DGTL IN COAX
DGTL IN OPTICAL*2Select the components connected to
VIDEO IN DVD
VIDEO IN DBS
ONE TOUCH OPE
Notes:
1
*
These items can be set using Quick Speaker Setup.
2
*
This setting is only for RX-8030VBK. For RX-7030VBK, it is automatically set according to your “DGTL IN COAX setting.
1
Register your subwoofer. 27
speaker size. 27
1
Register the number of the connected surround back speakers. 27
Select the measuring unit for the speaker distance. 28
speakers to your listening point. 28
speaker to your listening point. 28
surround speakers to your listening point. 28
surround back speaker(s) to your listening point. 28
Select sounds emitted from the subwoofer. 28
Select the cutoff frequency to the subwoofer. 28
Attenuate the bass (LFE) sounds. 29
Select the Dual Mono sound channel. 29
Select the component connected to digital coaxial terminal 29
digital optical terminals 29
Select the type of video terminal used for the DVD player. 30
Select the type of video terminal used for the DBS tuner. 30
Store the volume level for each source. 30
26
Basic Procedure
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
VOLUME
ONE TOUCH OPERATION
LINEAR PCM
L
R
ANALOG
SPEAKERS 1
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.
Ex. When setting One Touch Operation to “ON.
1. Press SETTING.
The last selected item appears on the display.
2. Turn MULTI JOG until an item you want appears on the display.
In this example, select ONE TOUCH OPE. For available
items, see the list Basic Setting Items on page 26.
3. Push in MULTI JOG (PUSH SET).
The current setting for the selected item appears on the display.
4. Turn MULTI JOG until a setting you want appears on the display.
5. Press EXIT.
6. Repeat steps 2 to 5 to set other items if necessary.
7. Press EXIT.
The source indication resumes on the display.
: shows the initial setting in the following
tables.
Setting the Speakers
To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker arrangement after all connections are completed.
If you have used Quick Speaker Setup on page 25, this setting is not required.
Subwoofer setting—SUB WOOFER
7
Select whether you have connected a subwoofer or not.
YES: Select when a subwoofer is connected.
NO: Select when no subwoofer is used.
Note:
If you have selected “NO” for the subwoofer, you cannot use the SUBWOOFER OUT ON/OFF button on the front panel.
7
Speaker size—FRONT SPEAKER, CNTR SPEAKER, SURR SPEAKER, SBACK SPEAKER
Select the size for each connected speaker.
LARGE*1: Select when the speaker size is relatively large.
SMALL*2: Select when the speaker size is relatively small.
NONE: Select this when you have not connected a
speaker. (Not selectable for the front speakers)
1
*
Initial setting for front speakers.
2
Initial setting for center, surround, and surround back
*
speakers.
Notes:
Keep the following comments in mind as reference when adjusting. – If the size of the cone speaker unit built in your speaker is
larger than 12 cm (4 3/4 inches), select “LARGE,” and if it is smaller than 12 cm (4 3/4 inches), select “SMALL.
If you have selected NO for the subwoofer setting, you can only select “LARGE” for the front speakers.
If you have selected SMALL” for the front speakers, you cannot select LARGE for the center, surround, and surround back speakers.
If you have selected SMALL” for the surround speakers, you cannot select “LARGE” for the surround back speakers.
If you have selected NONE for the surround speakers, the surround back speakers are fixed to “NONE.”
7
Surround back speakers quantity—SBACK OUT
Select the number of the surround back speakers connected.
1SPK: Select this to use 1 surround back speaker.
2SPK: Select this to use 2 surround back speakers.
Note:
If you have selected “NONE” for the surround back speakers (see above), this setting is not available.
English
27
Setting the Speaker Distance
2.1 m (7 ft)
2.4 m (8 ft)
2.7 m (9 ft)
3.0 m (10 ft)
3.3 m (11 ft)
C
LR
LS RS
LSB
RSB
English
The distance from your listening point to the speakers is another important element to obtain the best possible sound of the Surround and DSP modes. Set the distance from your listening point to the speakers. By referring to the speaker distance setting, this unit automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you at the same time.
If you have used Quick Speaker Setup on page 25, this setting is not required.
Measuring unit—DIST UNIT
7
Select which measuring unit you use.
meter: Select to set the distance in meters.
feet: Select to set the distance in feet.
7
Speaker distance—FRONT DISTANCE, CNTR DISTANCE, SURR DISTANCE, SBACK DISTANCE
Set the distance from the listening point within the range of
0.3 m (1 ft) to 9.0 m (30 ft), in 0.3 m (1 ft) intervals.
When shipped from the factory, distance for each speaker is set to 3.0 m (10 ft).
Notes:
You cannot set the speaker distance for the speakers you have selected NONE (see page 27).
This setting is not valid for the DVD MULTI playback mode.
Setting the Bass Sounds
You can adjust subwoofer and bass sounds precisely according to your preference.
Subwoofer output—S WFR OUTPUT
7
You can select the type of the signal which can be transmitted through the subwoofer. In other words, you can determine whether or not the bass elements of the front speaker channels are transmitted through the subwoofer regardless of the front speaker size setting (either “SMALL” or “LARGE”).
Select one of the following:
LFE: Select to transmit only the LFE signals (while
playing Dolby Digital and DTS software) and the bass elements of small speakers through the subwoofer.
LFE+MAIN: Select to always add the bass elements of the
front speaker channels (MAIN) to the above (LFE) setting, and to transmit them through the subwoofer.
Note:
If you have selected “NO” for the subwoofer, this function is not available.
7
Crossover frequency—CROSS OVER
When you use a subwoofer, you can select the cutoff frequency for the small speakers used.
Select one of the crossover frequency levels according to the size of the small speaker connected.
Ex. In the above case, set the speaker distance as follows:
Front speakers: 3.0 m (10 ft) Center speakers: 3.0 m (10 ft) Surround speakers: 2.7 m (9 ft) Surround back speakers: 2.4 m (8 ft)
80Hz: Select when the cone speaker unit built in the speaker is
3
about 12 cm (4
/4 inches).
100Hz: Select when the cone speaker unit built in the speaker is
about 10 cm (3 15/16 inches).
120Hz: Select when the cone speaker unit built in the speaker is
about 8 cm (3 3/16 inches).
150Hz: Select when the cone speaker unit built in the speaker is
about 6 cm (2 3/8 inches).
Notes:
.If you have selected “LARGE” for all activated speakers (see
page 27), this function is fixed to “OFF.
Crossover frequency is not valid for the DVD MULTI playback, All Channel Stereo, HEADPHONE, and 3D HEADPHONE mode.
28
7
Low frequency effect attenuator—LFE ATTENUATE
If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.
Select one of the following:
0dB: Normally select this.
−−
10dB: Select when the bass sound is distorted.
−−
Selecting main or sub channelDUAL MONO
Select the playback sounds (channel).
MAIN: Select to play back the main channel (Ch1).*
Signal indicator L lights up while playing back this channel.
SUB: Select to play back the sub-channel (Ch2).*
Signal indicator “R” lights up while playing back this channel.
ALL: Select to play back both the main and sub-channels
(Ch1/Ch2).*
1
Signal indicators L and R light up while playing back these channels.
Notes:
The Dual Mono format is not identical with bilingual broadcasting or the MTS (Multichannel Television Sound) format used for TV programs. So this setting does not take effect while watching bilingual or MTS programs.
1
*
Dual Mono signals can be heard from the following speakers L (left front speaker), R (right front speaker), and C (center speaker)with respect to the current Surround setting.
With Surround Activated
Dual Mono
Setting SMALL/LARGE NONE
MAIN Ch 1 Ch 1 Ch 1 Ch 1 Ch1
SUB Ch 2 Ch 2 Ch 2 Ch 2 Ch 2
ALL Ch 1 Ch 2 — Ch 1+Ch 2 — Ch 1+Ch 2 Ch 1+Ch 2
Without Surround
LRLCRL R
Center speaker setting
1
1
Setting the Digital Input Terminals
When you use the digital input terminals, register which components you have connected to the digital input terminals.
Digital coaxial terminal—DGTL IN COAX
7
Set the component connected to the digital coaxial terminal (DIGITAL IN 1).
For RX-8030VBK: DVD (initial setting), MD*, CDR, TV (or DBS**) or CD.
For RX-7030VBK: DVD (initial setting), CD, TV (or DBS**) or CDR.
7
Digital optical terminals—DGTL IN OPTICAL
For RX-8030VBK:
Set the components connected to the digital optical terminals (DIGITAL IN 2 – 4).
As you rotate MULTI JOG, the digital optical input terminals are set to used for following digital components:
When “DIGITAL IN 1 (DGTL IN COAX) is set to “DVD”
2: CD 3: TV (or DBS** ) 4: CDR 2: CD 3: TV (or DBS**) 4: MD* 2: CD 3: MD* 4: CDR 2: MD* 3: TV (or DBS** ) 4: CDR (back to the beginning)
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CD”
2: DVD 3: TV (or DBS**) 4: CDR 2: DVD 3: TV (or DBS**) 4: MD* 2: DVD 3: MD* 4: CDR 2: MD* 3: TV (or DBS**) 4: CDR (back to the beginning)
When DIGITAL IN 1 (DGTL IN COAX) is set to TV orDBS**
2: CD 3: DVD 4: CDR 2: CD 3: DVD 4: MD* 2: CD 3: MD* 4: CDR 2: MD* 3: DVD 4: CDR (back to the beginning)
English
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CDR”
2: CD 3: TV (or DBS**) 4: DVD 2: CD 3: TV (or DBS**) 4: MD* 2: CD 3: MD* 4: DVD 2: MD* 3: TV (or DBS**) 4: DVD (back to the beginning)
When DIGITAL IN 1 (DGTL IN COAX) is set to MD*
2: CD 3: TV (or DBS**) 4: CDR 2: CD 3: TV (or DBS**) 4: DVD 2: CD 3: DVD 4: CDR 2: DVD 3: TV (or DBS**) 4: CDR (back to the beginning)
*
When connecting an MD recorder to the digital input terminal, change the source name to MD from “TAPE” (see page 21).
**
If you have changed the source name from TV to DBS,”DBS appears (see page 21).
29
English
For RX-7030VBK:
As you set the components connected to the digital coaxial terminal (DIGITAL IN 1), the optical terminals (DIGITAL IN 2 – 4) will be automatically fixed to connect the components listed below.
When “DIGITAL IN 1 (DGTL IN COAX) is set to “DVD”
2: CD 3: TV (or DBS*) 4: CDR
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CD”
2: DVD 3: TV (or DBS*) 4: CDR
When DIGITAL IN 1 (DGTL IN COAX)” is set to TV orDBS*
2: DVD 3: CD 4: CDR
Memorizing the Volume Level for Each Source
This unit memorizes some settings separately for each source. In addition, you can store the volume level for each source with the other memorized settingsOne Touch Operation.
One Touch Operation—ONE TOUCH OPE
7
Select one of the following:
ON: Select to store the volume level separately for each
source. (The ONE TOUCH OPERATION indicator lights up on the display.)
This receiver memorizes the volume level
when you change the source, or
when you change the source name.
OFF: Select this not to store the volume level.
When “DIGITAL IN 1 (DGTL IN COAX) is set to “CDR”
2: DVD 3: CD 4: TV (or DBS*)
*
If you have changed the source name from TV to DBS,”DBS appears (see page 21).
Setting the Component Video Input
When you use the component video inputs for connecting the DVD player and/or DBS tuner, register the type of input jacks. If you have not selected appropriate video input jacks, the AV COMPU LINK remote control system cannot operate properly. (See page 42.)
For the DVD player—VIDEO IN DVD
7
Select one of the following:
COMPNT: Select when connecting the DVD player to the
component video input jacks.
S/C: Select when connecting the DVD player to the
composite video or S-video input jacks.
For the DBS tuner—VIDEO IN DBS
7
Select one of the following:
To recall the volume level
With the ONE TOUCH OPERATION indicator lit, the volume level for the currently selected source is recalled when the source is selected.
To cancel the One Touch Operation
Set One Touch Operation to “OFF” so that the ONE TOUCH OPERATION indicator goes off.
COMPNT: Select when connecting the DBS tuner to the
component video input jacks.
S/C: Select when connecting the DBS tuner to the
composite video or S-video input jacks.
30

Adjusting Sound

VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
SPEAKERS 1
You can make sound adjustment to your preference after completing basic setting.
Basic Setting Items
On the following pages, you can adjust the items listed below:
You can adjust only the items applicable to the current sound mode.
If Analog Direct is in use, you cannot make any sound adjustments.
Items To do See page
DIGITAL EQ Adjust equalizer pattern. 32
SUBWFR LVL Adjust the subwoofer output level. 32
FRONT L LVL Adjust the left front speaker output
level. 32
FRONT R LVL Adjust the right front speaker output
level. 32
CENTER LVL Adjust the center speaker output
level. 32
SURR L LVL Adjust the left surround speaker
output level. 32
SURR R LVL Adjust the right surround speaker
output level. 32
SBACK LVL Adjust the surround back speaker
output level. 32
EFFECT*
ROOMSIZE*1Select the room size for your virtual
LIVENESS*
CTR TONE Make the center tone soft or sharp. 33
PANORAMA*2Add wraparound sound effect with
CNTR WIDTH*2Adjust the center channel localization
DIMENSION*2Adjust sound localization position. 33
CNTR GAIN*3Adjust sound localization of the
1
Adjust the DAP effect level. 33
listening room. 33
1
Select the liveness level for your virtual listening room. 33
side-wall image. 33
between the center speaker and the left/right front speakers. 33
center channel. 33
Basic Procedure
Before you start, remember...
There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.
Ex. When adjusting the subwoofer level to “– 3”.
1. Press ADJUST.
The last selected item appears on the display.
2. Turn MULTI JOG until an item you want appears on the display.
In this example, select SUBWFR LVL.” For available items,
see the list to the left.
3. Press in MULTI JOG (PUSH SET).
The current setting (or level) for the selected item appears on the display.
4. Turn MULTI JOG to select a setting you want or to make an adjustment as you like.
English
Notes:
1
*
Adjustable when the DAP mode is in use.
2
*
Adjustable when Pro Logic II Music is in use.
3
*
Adjustable when Neo:6 Music is in use.
5. Press EXIT.
6. Repeat steps 2 to 5 to set other items if necessary.
7. Press EXIT.
The source indication resumes on the display.
31
Adjusting the Equalization Patterns
231
564
89
7/P
0
+10
10/0
English
You can adjust the equalization patterns to your preference.
Once you have made adjustment, it is memorized for each source.
Equalization adjustmentDIGITAL EQ
7
You can adjust five frequency (63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) within the range of –8 dB to +8 dB (0 dB is the initial setting) in 2 dB steps.
When adjustment is made, the DIGITAL EQ indicator lights up on the display.
To flat the equalization pattern, set all the frequency to 0 dB in step 4 of Basic Procedure (on page 31). The DIGITAL EQ indicator goes off from the display.
Notes:
When Analog Direct is in use, Digital Equalization patterns are not available.
The Digital Equalization affects the front speaker sounds only.
You can also use the remote control for equalization adjustment.
Adjusting the Speaker Output Levels
You can adjust the speaker output levels. The test tone comes out of each speaker except subwoofer to check the output level balance when using the Surround mode.
Once you have made an adjustment, it is memorized for each source.
Adjustable speakers
7
You can adjust the following speakers’ output levels within the range of –10 dB to +10 dB (0 dB is the initial setting):
SUBWFR LVL : Select to adjust the subwoofer output level.
FRONT L LVL: Select to adjust the left front speaker
output level.
FRONT R LVL: Select to adjust the right front speaker
output level.
CENTER LVL: Select to adjust the center speaker output
level.
SURR L LVL: Select to adjust the left surround speaker
output level.
SURR R LVL: Select to adjust the right surround speaker
output level.
SBACK LVL: Select to adjust the surround back speaker
output level.
1. Press SOUND.
The 10 keys are activated for sound adjustments.
2. Press DIGITAL EQ (Equalization) repeatedly to select the center frequency you want to adjust.
Each time you press the button, the center frequency with
its current level appear on the display
3. Press LEVEL + or – repeatedly to adjust the level of the center frequency.
The DIGITAL EQ indicator lights up on the display.
The frequency level changes from –8 dB to +8 dB in 2 dB
steps.
4. Repeat steps 2 and 3 to adjust the other center frequency.
Notes:
If you have selected NO or “NONE for a speaker (see page
27), the output level for the corresponding speaker is not adjustable.
The center speaker, and left/right surround speakers output levels are adjustable for DVD MULTI playback mode, even though NONE is selected for the speaker settings.
Speaker output levels (except the subwoofer output level) are not adjustable when Analog Direct is in use. To adjust subwoofer output level, see page 19.
32
You can also use the remote control for adjusting the speaker output level. When using the remote control, you can make an adjustment while listening to test tone.
231
564
7/P
89
10/0
+10
0
1. Press SOUND.
The 10 keys are activated for sound adjustments.
2. Press TEST to check if you can hear the sounds through all the speakers at equal level.
Test tone comes out of the speakers in the following order.
No test tone comes out of the deactivated speakers and the
subwoofer.
FRNT L (Left front speaker) = CENTER (Center speaker) FRNT R (Right front speaker) SURR R (Right surround speaker) S BACK (surround back speaker) SURR L (Left surround speaker) = (Back to the beginning)
=
=
=
3. Select a speaker you want to adjust.
To select the left front speaker, press FRONT•L.
To select the center speaker, press CENTER.
To select the right front speaker, press FRONT•R.
To select the right surround speaker, press SURR•R.
To select the surround back speaker, press SURR BACK.
To select the left surround speaker, press SURR•L.
4. Press LEVEL + or LEVEL – to adjust the speaker output level (–10 dB to +10 dB).
5. Repeat steps 3 and 4 to adjust the other speakers output levels.
6. Press TEST again to stop the test tone.
=
Adjusting the Sound Parameters for the Surround and DSP Modes
You can adjust the Surround and DSP sound parameters to your preference.
When center speaker is set to NONE, CTR TONE, CNTR WIDTH, and CNTR GAIN are not available.
7
Adjustable parameters
You can adjust the following parameters:
For Surround, DAP, and All Channel Stereo modes (when the center speaker is connected)
This setting is common to all surround modes, and is memorized separately for DSP modes.
CTR TONE: Adjust the center tone. As the number increases,
the dialogue becomes clearer so that the human voices change from soft to sharp. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
For DAP modes
Once you have made an adjustment, it is memorized for each DAP mode.
EFFECT: Adjust the DAP effect level. As the number
increases, the DAP effect becomes stronger. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
ROOMSIZE: Adjust the virtual room size. As the number
increases, the interval between reflections increases so that you will feel as if you were in a larger room. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
LIVENESS: Adjust the liveness effect. As the number
increases, the attenuation level of reflections over time decreases so that acoustics change from “Dead” to “Live. (Normally select “3 (initial setting).” Adjustable range: 1 to 5)
For Pro Logic II Music only
PANORAMA: Select ON to add wraparound sound
effect with side-wall image. (Initial setting: OFF)
CNTR WIDTH: Adjust the center channel localization between
the center speaker and the left/right speakers. As the number increases, the center channel sound moves toward the left and right speakers. (Normally select “3 (initial setting). Adjustable range: OFF and 1 to 7)
DIMENSION: Adjust sound localization position. As the
number increases, the sound localization moves towards forward from backward. (Normally select “4 (initial setting). Adjustable range: 1 to 7)
English
For Neo:6 Music only
CNTR GAIN: Adjust the sound localization of the center
channel. As the number increases, center channel will be localized clearly. (Normally select “0.2 (initial setting).” Adjustable range: 0 to 0.5)
33

Using the Surround Modes

DIGITAL
This unit activates a variety of Surround modes automatically. The basic settings and adjustments stored (see pages 25 to 33) are applied.
English
Reproducing Theater Ambience
In a movie theater, many speakers are located on the walls to reproduce impressive multi-surround sounds, reaching you from all directions. With these many speakers, sound localization and sound movement can be expressed.
Surround modes built in this receiver can create almost the same surround sounds as you can feel in a real movie theaterwith only five to seven speakers (plus subwoofer).
Introducing the Surround Modes
Dolby Digital*
Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding (1ch up to 5.1ch).
When Dolby Digital signal is detected through the digital input, the
Dolby Digital 5.1CH
Dolby Digital 5.1CH (DOLBY D) encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being-there” feeling are enhanced much more than Dolby Pro Logic.
Dolby Digital EX
Dolby Digital EX (DOLBY D EX) is a digital surround encoding format that adds the third surround channels, called “surround back. Compared to the conventional Dolby Digital 5.1CH, these newly added surround back channels can reproduce more detailed movements behind you while viewing the video software. In addition, surround sound localization will become more stable.
You can use Virtual 6.1-channel surround when playing back Dolby Digital EX software without connecting the surround back speakers. This surround reallocates the surround back channel to the surround speakers so that you can still feel the great surround effect from behind. The VIRTUAL SB (Surround Back) indicator lights up on the display.
1
indicator lights up on the display.
Left front speaker
(L)
Left surround
speaker (LS)
Surround back speakers (LSB/RSB)
Center speaker
(C)
Subwoofer
Right front speaker
(R)
Right surround
speaker (RS)
Dolby Pro Logic
Dolby Surround encoding format records the left front channel, right front channel, center channel, and surround channel (monaural) signals into 2 channels. The Dolby Pro Logic (PRO LOGIC) decoder built in this receiver decodes these 2 channel signals into 4 original channel signals (plus subwoofer)matrix-based multi-channel reproduction.
When Dolby Pro Logic is activated, the lights up on the display.
indicator
34
Dolby Pro Logic II
Dolby Pro Logic II is a multi-channel playback format to convert 2­channel software into 5-channel (plus subwoofer). The matrix-based conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.
This receiver provides two types of Dolby Pro Logic II modes Pro Logic II Movie (PLII MOVIE) and Pro Logic II Music (PLII MUSIC). When Dolby Pro Logic II is activated, the indicator lights up on the display.
DTS 96/24
In recent years, there has been increasing interest in higher sampling rates both for recording and for reproducing at home. Higher sampling rates allow wider frequency range and greater bit depths provide extended dynamic range. DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24 bits) introduced by Digital Theater Systems, Inc. to deliver “better- than-CD sound quality into the home.
When DTS 96/24 signal is detected, the 96/24 indicator lights up. You can enjoy its 5.1-channel sound with full-quality.
English
PLII MOVIE: Suitable for playing any Dolby Surround
encoded software. You can enjoy a sound field very close to the one created with discrete 5.1­channel sounds.
PLII MUSIC: Suitable for playing any 2-channel stereo
software. You can enjoy wide and deep sounds.
2
DTS*
DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).
When DTS signal is detected through the digital input, the indicator lights up on the display.
DTS Digital Surround
DTS Digital Surround (DTS) is another discrete 5.1 channel digital audio format available on CD, LD, and DVD software. Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.
When EX/ES setting is set to ON, DTS Neo:6 (DTS NEO:6) is
applied while playing back multi-channel DTS software. It creates the same surround ambience as 6.1-channel software does.
DTS Extended Surround (DTS-ES)
DTS-ES is another multi-channel digital encoding format. It greatly improves the 360-degree surround impression and space expression by adding the third surround channelsurround back channel. DTS-ES includes two signal formats with different surround signal recording methodsDTS-ES Discrete 6.1ch (ES DSCRETE) and
DTS-ES Matrix 6.1ch (ES MATRIX). DTS-ES Discrete 6.1ch has been designed to encode (and decode)
a 6.1-channel signal discretely to avoid interference with each channel. DTS-ES Matrix 6.1ch has been designed to add an extra surround channel to DTS Digital Surround 5.1-channel. By using a matrix encoding/decoding method, an additional surround back channel signal is encoded (and decoded) in both the left and right surround channel signals.
You can use Virtual 6.1-channel surround when playing back
DTS-ES software without connecting the surround back speakers. This surround reallocates the surround back channel to the surround speakers so that you can still feel the great surround effect from behind. The VIRTUAL SB (Surround Back) indicator lights up on the display.
DTS Neo:6
DTS Neo:6 is another conversion method to create 6-channel (plus subwoofer) from analog/digital 2-channel software by using the high precision digital matrix decoder used for DTS-ES Matrix 6.1ch. When one of Neo:6 modes is activated, the NEO:6 indicator lights up on the display.
This receiver provides the following DTS NEO:6 modesNeo:6 Cinema (NEO:6CINMA) and Neo:6 Music (NEO:6MUSIC).
NEO:6CINMA: Suitable for playing movies. You can get the
same atmosphere with 2-channel software as with 6.1-channel software. It is also effective for playing software encoded with conventional surround formats.
NEO:6MUSIC: Suitable for playing music software. The front
channel signals bypass the decoder (resulting in no loss of sound quality) and the surround signals transmitted through the other speakers expand the sound field naturally.
What is Dual Mono?
Dual Mono can be easily understood when you think of the bilingual broadcast or the MTS (Multichannel Television Sound) used for TV programs (however, the Dual Mono format is not identical with those analog formats). This format is now adopted in Dolby Digital, DTS, and so on. It allows two independent channels (called main channel and sub­channel) to be recorded separately.
When Dual Mono signal is detected, the DUAL indicator lights up. You can select either channel you want to listen to (see page
29).
When using the Surround mode, the sounds come out of the avtivated speakers which the Surround mode requires.
If the surround speakers and center speaker are set to
NONE in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.
1
*
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
2
*
DTS, DTS-ES Extended Surround and “Neo:6 are trademarks of Digital Theater Systems, Inc.
35
Surround Modes Applicable to the Various Software
English
Available Surround modes vary depending on the speaker settings and the incoming signals. The table below shows the relation of the Surround modes and the incoming signals (with the surround back speakers and EX/ES setting).
The numbers inside the parentheses following the incoming signal type indicate the number of the front channels and that of the surround channels. For example, (3/2) indicates that the signals are encoded with three front signals (left/right/center) and two (stereo) surround signals.
Incoming Signal Type Surround Back Channel Setting EX/ES Setting Available Surround Mode
Dolby Digital EX 2SPK/1SPK AUTO/ON DOLBY D EX
OFF DOLBY D
NONE AUTO/ON DOLBY D (VIRTUAL SB)*
OFF DOLBY D
Dolby Digital (3/2, 2/2) 2SPK/1SPK AUTO DOLBY D
ON DOLBY D EX
OFF DOLBY D
NONE Not available DOLBY D
Dolby Digital (3/1, 2/1) 2SPK/1SPK AUTO/ON/OFF DOLBY D
NONE Not available DOLBY D
Dolby Digital (1/0, 3/0) 2SPK/1SPK/NONE Not available DOLBY D
Dolby Digital (Dual Mono) 2SPK/1SPK/NONE Not available DUAL MONO
DTS-ES Discrete 6.1ch 2SPK/1SPK AUTO/ON ES DSCRETE
OFF DTS
NONE AUTO/ON DTS (VIRTUAL SB)*
DTS-ES Matrix 6.1ch 2SPK/1SPK AUTO/ON ES MATRIX*
DTS-ES 96/24 Matrix OFF DTS
NONE AUTO/ON DTS (VIRTUAL SB)*1 *
OFF DTS
DTS, DTS 96/24 (3/2, 2/2) 2SPK/1SPK AUTO DTS
2
*
DTS 96/24 processing is not applied. If you want to apply the processing, set the EX/ES setting to “OFF.
NONE Not available DTS
DTS (3/1, 2/1) 2SPK/1SPK AUTO/ON/OFF DTS
NONE Not available DTS
DTS (1/0, 3/0) 2SPK/1SPK/NONE Not available DTS
DTS (Dual Mono) 2SPK/1SPK/NONE Not available DUAL MONO
ON DTS NEO:6*
OFF DTS
1
1
2
2
2
Incoming Signal Type Available Surround Mode
Analog/PCM/Dolby Digital (2/0)/DTS (2/0) PL II MOVIE / PL II MUSIC / PRO LOGIC / NEO:6 CINMA / NEO:6 MUSIC
DVD MULTI None
3D HEADPHONE Mode3D H PHONE
You can also enjoy the Surround modes through the headphones. If you press SURROUND when the front speakers 1 and 2 are both deactivated, 3D HEADPHONE mode (3D H PHONE) is activated without respect to the type of software played back. 3D H PHONE appears on the display and the DSP and HEADPHONE indicators also light up.
*1Virtual 6.1-channel surround
If you have connected (and activated) the surround speakers, you can use Virtual 6.1-channel surround when playing back Dolby Digital EX or DTS-ES software without connecting the surround back speakers. This surround reallocates the surround back channel to the surround speakers so that you can still feel the great surround effect from behind. The VIRTUAL SB (Surround Back) indicator lights up on the display.
36
Activating the Surround Modes
VOLUME
LINEAR PCM
DIGITAL
L
SUBWFR
LS RS
CR
LFE
DIGITAL
AUTO
SPEAKERS 1
VOLUME
LINEAR PCM
DIGITAL
L
SUBWFR
DUAL DIGITAL
AUTO
SPEAKERS 1
VOLUME
LINEAR PCM
L
SUBWFR
R
ANALOG
PRO LOGIC
SPEAKERS 1
NEO:6CINMANEO:6MUSIC
PL II MOVIE PL II MUSIC PRO LOGIC
Activating the Surround Modes
Available Surround modes vary depending on the speaker settings and the incoming signals. (See page 36.)
Activating one of the Surround modes for a source automatically recalls the memorized settings and adjustments (see pages 25 to
33.)
You can also use the buttons on the remote control for the same functions.
Activating the EX/ES setting
For multi-channel digital software, you can activate the EX/ES (7.1­channel) reproduction mode.
Once you have set EX/ES (7.1-channel) reproduction mode, it is
stored in memory and will be called up whenever you activate the Surround mode which the memorized EX/ES (7.1-channel) reproduction mode can be applied to.
Press EX/ES to select an appropriate setting for your enjoyment.
The currently selected EX/ES (7.1-channel) reproduction mode appears on the display.
Each time you press the button, it changes as follows:
English
1. Select and play any source other than “DVD MULTI.
Make sure you have selected the analog or digital input mode.
Surround modes are not valid for DVD MULTI playback
mode.
2. Press SURROUND to activate the Surround mode.
For multi-channel digital software (except 2-channel and
Dual Mono software), incoming signals are automatically
detected and the appropriate surround mode is activated (see page 36 for details).
Ex. When DOLBY D is activated.
– If the EX/ES (7.1-channel) reproduction mode has been set
to “AUTO or ON, one of the EX/ES (7.1-channel) reproduction modes will be activated (see the left column).
EX/ES AUTO*: According to the incoming signal, an
appropriate Surround mode is applied.
For Dolby Digital EX and DTS-ES, EX/ES (7.1-channel) reproduction is applied.
For 5.1-channel (or less) encoded software, 5.1-channel reproduction is applied.
EX/ES ON*: Select to apply EX/ES (7.1-channel)
reproduction to both 5.1-channel and 6.1­channel encoded software.
EX/ES OFF: Select to cancel the EX/ES (7.1-channel)
reproduction.
*
If the surround back speakers are not connected or deactivated, Virtual 6.1-channel surround is applied.
Notes:
When Surround mode is deactivated, pressing EX/ES will activate an appropriate Surround mode for the current source.
When an analog or digital 2-channel source is playing, you can adjust the EX/ES (7.1-channel) reproduction mode and store the setting, but it will not affect the current source.
When the source is one to which the EX/ES (7.1-channel) reproduction cannot be applied, you can adjust the setting and store in memory, but reproduction channels will remain unchanged.
For analog sources and digital 2-channel software, you can select one of the following Surround modes. Each time you press SURROUND, Surround modes change as follows:
For Dual Mono software, you can select the channel you listen to. (See page 29.)
To adjust the speaker output level, see pages 32 and 33.
To cancel the Surround mode
Press SURROUND/DSP OFF (or SURR/DSP OFF on the remote control). “SURR OFF” appears on the display.
37

Using the DSP Modes

This unit activates a variety of DSP modes automatically. The basic settings and adjustments stored (see pages 25 to
33) are applied automatically.
English
Reproducing the Sound Field
The sound heard in a concert hall, club, etc. consists of direct sound and indirect soundearly reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. The DSP modes can create these important elements, and give you a real being there feeling.
Reflections from
Early reflections
Direct sounds
behind
Introducing the DSP Modes
The DSP modes include the following modes
DAP (Digital Acoustic Processor) modes (HALL 1, HALL 2,
LIVE CLUB, DANCE CLUB, PAVILION, THEATER 1, THEATER 2)
ALL CH STEREO
MONO FILM
3D HEADPHONE Mode
You can also enjoy the DSP effect (except All Channel Stereo mode) through the headphones.
If you press DSP when the front speakers 1 and 2 are both deactivated, 3D HEADPHONE mode is activated without respect to the type of software played back. 3D H PHONE appears on the display and the DSP and HEADPHONE indicators also light up.
To use the DSP modes, press DSP so that the DSP modes change as follows. The DSP indicator also lights up on the display.
=
HALL 1 = HALL 2 = LIVE CLUB
=
DANCE CLUB = PAVILION = ALL STEREO
= THEATER 1 =
=
(Back to the beginning)
DAP modes
You can use the following DAP modes in order to reproduce a more acoustic sound field in your listening room.
HALL 1: Reproduces the spatial feeling of a large
HALL 2: Reproduces the spatial feeling of a large
LIVE CLUB: Reproduces the spatial feeling of a live music
DANCE CLUB: Reproduces the spatial feeling of a rocking
PAVILION: Reproduces the spatial feeling of an exhibition
THEATER 1*: Reproduces the spatial feeling of a large theater
THEATER 2*: Reproduces the spatial feeling of a small theater
*
The built-in Dolby Pro Logic II decoder is activated when playing back 2-channel analog or digital source. The indicator lights up.
When using the DAP mode, the sounds come out of all the connected and activated speakers.
If surround speakers are set to “NONE in the speaker setting,
JVCs original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.
THEATER 2 = MONO FILM
: Suitable for audio sources
: Suitable for video sources
shoebox-shaped hall designed primarily for classical concerts. (Its seating capacity is about
2000.)
vineyard-shaped hall designed primarily for classical concerts. (Its seating capacity is about
2000.)
club with a low ceiling.
dance club.
hall with a high ceiling.
where the seating capacity is about 600.
where the seating capacity is about 300.
38
VOLUME
LINEAR PCM
DIGITAL
L
SUBWFR
LS RS
CR
DIGITAL
AUTO
DSP
SPEAKERS 1
ALL Channel Stereo mode
This mode can reproduce a larger stereo sound field using all the connected (and activated) speakers. This mode cannot be used
without activating the surround speakers.
If the front speakers are deactivated, “All Channel Stereo cannot be selected.
Sound reproduced from normal stereo
Activating the DSP Modes
Activating one of the DSP modes for a source automatically recalls the memorized settings and adjustments (see pages 25 to
33.)
You can also use the buttons on the remote control for the same functions.
1. Select and play any sound source.
2. Press DSP repeatedly until the DSP mode you want appears on the display.
Each time you press the button, the DSP modes change as
follows:
English
Sound reproduced from All Channel Stereo mode
Monaural Film
In order to reproduce a more acoustic sound field in your listening room while viewing monaural sound video software (analog and 2­channel digital signals), you can use this mode. The surround effect will be added, and the sound localization of actors words will be improved. This mode cannot be used for
multi-channel digital signals.
When MONO FILM is used, sounds come out of all the connected (and activated) speakers.
If incoming signals change from 2-channel digital signal to another digital signal type, MONO FILM is canceled and an appropriate Surround mode is activated.
=
HALL 1 = HALL 2 = LIVE CLUB
=
DANCE CLUB = PAVILION = ALL STEREO*
= THEATER 1 =
=
(Back to the beginning)
*
When surround speakers are set to “NONE,” you cannot select ALL STEREO.
**
When multi-channel signals come in, you cannot select MONO FILM.
THEATER 2 = MONO FILM**
Note:
When the surround speakers are deactivated, the 3D-PHONIC processing is applied to the DSP modes (the 3D-PHONIC indicator also lights up).
To cancel the DSP modes
Press SURROUND/DSP OFF (or SURR/DSP OFF on the remote control). “SURR OFF” appears on the display.
When the front speakers are deactivated, HEADPHONE will appear.
39
Loading...
