JVC KD-G125, KD-G126 User Manual

KD-G126/KD-G125
KD-G126
KD-G126
KD-G125
KD-G125
ENGLISH
For canceling the display demonstration, see page 5.
5

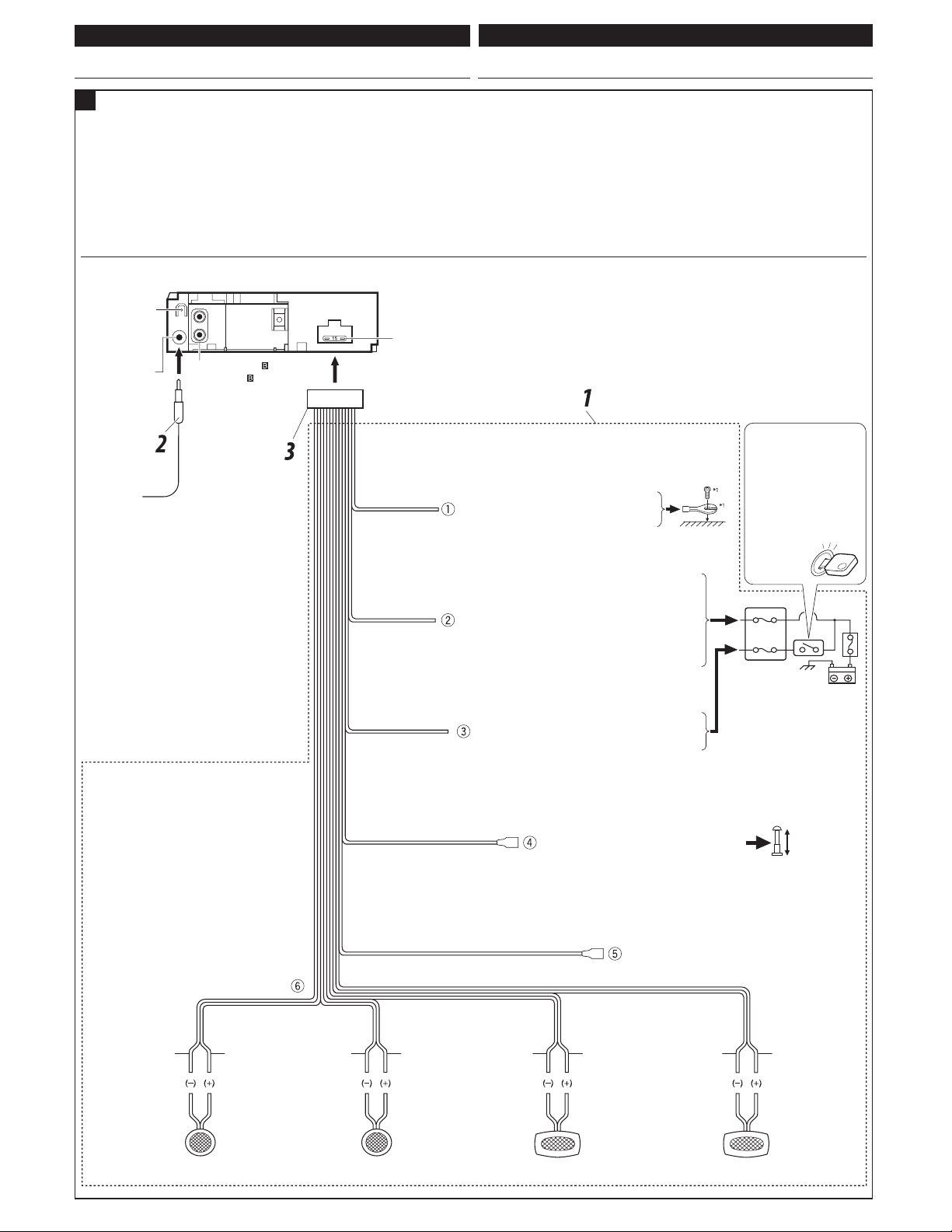

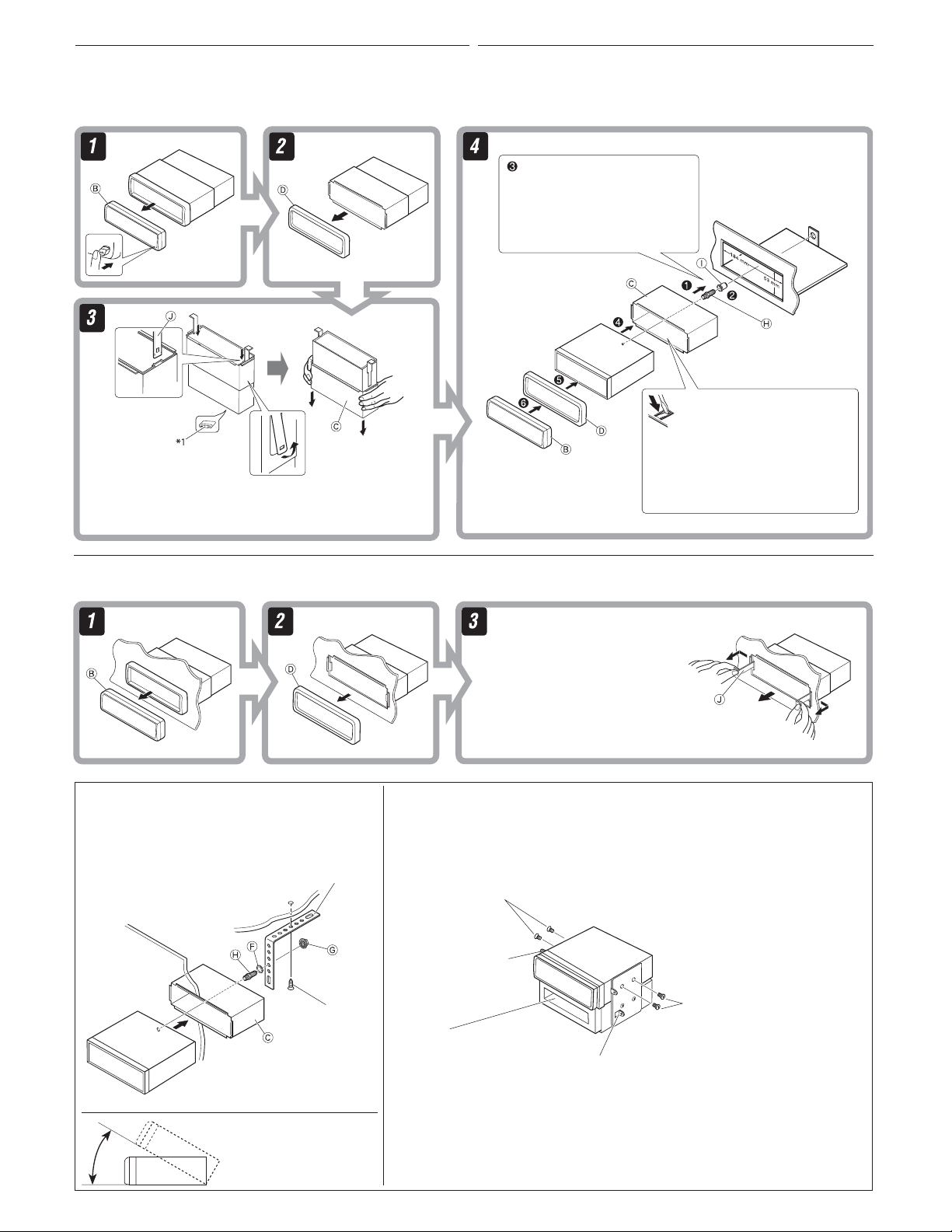

For installation and connections, refer to the separate manual.
INSTRUCTIONS
GET0331-001A
[U/UH]
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
ENGLISH
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
Warning:
If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.
How to reset your unit
• Your preset adjustments will also be erased.
• If a disc is loaded, it will eject. Be careful not to drop the disc.
How to forcibly eject a disc
Caution on volume setting:
Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.
How to use the M MODE button
If you press M MODE, the unit goes into functions mode, then the number buttons work as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
• If this does not work, reset your unit.
• Be careful not to drop the disc when it ejects.
2
Time countdown indicator
To use these buttons for their original functions again after pressing M MODE, wait
for 5 seconds without pressing any of these buttons until the functions mode is cleared or press M MODE again.
How to read this manual
• Button operations are mainly explained with the illustrations in the table below.
• Some related tips and notes are explained in
is used to indicate an indicator is
displayed for the corresponding operation.
“More about this unit” (see pages 11 and 12).
CONTENTS
Control panel — KD-G126 and KD-G125 ........ 4
Getting started ................................. 5
Basic operations .................................................... 5
Radio operations .............................. 6
ENGLISH
Press briefly.
Press repeatedly.
Press either one.
Press and hold until your desired response begins.
Press and hold both buttons at the same time.
How to detach/attach the control
panel
Disc operations ................................. 7
Playing a disc in the unit ....................................... 7
Sound adjustments ........................... 8
General settings — PSM ................... 9
Maintenance .................................... 10
More about this unit ......................... 11
Troubleshooting ............................... 12
Specifications ................................... 13
Detaching...
Attaching...
For safety...
• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
3
Control panel — KD-G126 and KD-G125
Parts identification
ENGLISH
Display window
1 (standby/on/attenuator) button 2 SOURCE button 3 BAND button 4 Loading slot 5 Display window 6 0 (eject) button 7 EQ (equalizer) button 8 9 Control dial p SEL (select) button q DISP (display) button w MO (monaural) button e SSM (Strong-station Sequential Memory)
r Number buttons t RPT (repeat) button y RND (random) button u M MODE button i
¢/4 buttons
button
(control panel release) button
Display window
o DISC indicator ; RND a RPT (repeat) indicator s S. BASS (super bass) indicator d EQ (equalizer) indicator f Sound mode (C-EQ: custom equalizer)
indicators—JAZZ, CLASSIC, HIP HOP, POPS, ROCK, USER
g Source display Volume level indicator Time countdown indicator
h Main display j Tuner reception indicators— ST (stereo),
MO (monaural)
(disc random) indicator
4
Getting started
Basic operations
Basic settings
• See also “General settings — PSM” on page 9.
~ Turn on the power.
Ÿ
* You cannot select “DISC” as the
playback source if there is no disc in the loading slot.
! For FM/AM tuner
Adjust the volume.
1
ENGLISH
2
1 Canceling the display
demonstrations
Select “DEMO,” then “DEMO OFF.”
2 Setting the clock
Select “CLOCK H” (hour), then adjust the hour. Select “CLOCK M” (minute), then adjust the minute.
3 Finish the procedure.
.
Volume level indicator
@ Adjust the sound as you want. (See
page 8.)
To drop the volume in a moment (ATT)
To restore the sound, press it again.
To turn off the power
Volume level appears.
To check the current clock time while the power is turned off
To check the other information while listening to the radio/a disc
Frequency/Elapsed playing time Ô Clock
5
Radio operations
~
ENGLISH
Ÿ
When an FM stereo broadcast is hard to receive
Lights up when monaural mode is activated.
Lights up when receiving an FM stereo broadcast with sufficient signal strength.
Selected band appears.
! Start searching for a station.
When a station is received, searching stops. To stop searching, press the same button again.
To tune in to a station manually
In step ! above... 1
Reception improves, but stereo effect will be lost. To restore the stereo effect, repeat the same procedure “MONO OFF” appears and the MO indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential Memory)
1 Select the FM band (FM1 – FM3) you
want to store into.
2 Select the desired station frequencies.
6
2
3
“SSM” flashes, then disappears when automatic presetting is over.
Local FM stations with the strongest signals are searched and stored automatically in the FM band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
Disc operations
Playing a disc in the unit
ENGLISH
All tracks will be played repeatedly until you change the source or eject the disc.
To stop play and eject the
3
Preset number flashes for a while.
Listening to a preset station
1
2 Select the preset station (1 – 6) you
want.
disc
To fast-forward or reverse the track
To go to the next or previous tracks
To locate a particular track directly
To select a number from 01 – 06:
To select a number from 07 – 12:
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same procedure.
7
Selecting the playback modes
Adjusting the sound
You can use only one of the following playback modes at a time.
1
ENGLISH
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current track. RPT OFF : Cancels.
7 Random play
Mode Plays at random
DISC RND : All tracks of the current disc.
You can adjust the sound characteristics to your preference.
1
*
Displayed only when “L/O MODE” is set to
“WOOFER” (see page 9).
Indication, [Range]
BAS*2 (bass), [–06 to +06]
Adjust the bass.
2
(treble), [–06 to +06]
TRE*
Adjust the treble.
3
FAD*
Adjust the front and rear speaker balance.
(fader), [R06 to F06]
RND OFF : Cancels.
Sound adjustments
You can select a preset sound mode suitable to the music genre (C-EQ: custom equalizer).
Preset values
Indication (For)
USER (Flat sound)
ROCK
(Rock or disco music)
CLASSIC
(Classical music)
POPS (Light music)
HIP HOP
(Funk or rap music)
JAZZ (Jazz music)
BAS TRE S.BS
(bass) (treble)
00 00 OFF
+03 +01 ON
+01 –02 OFF
+04 +01 OFF
+02 00 ON
+02 +03 OFF
(super
bass)
4
BAL*
Adjust the left and right speaker balance.
S.BS*2 (super bass), [S.BS ON or S.BS OFF],
Maintain the richness and fullness of the bass sound regardless of how low you set the volume.
SUB. W
Adjust the subwoofer output level when a subwoofer is connected.
VOL (volume), [00 to 30 or 50* Adjust the volume.
*
*
*
*
*
(balance), [L06 to R06]
[01 to 05]
(subwoofer), [00 to 08]
2
When you adjust the bass, treble, or
super bass the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”
3
If you are using a two-speaker system, set the
fader level to “00.”
4
This adjustment cannot affect the subwoofer
output.
5
Range adjustment for super bass is adjustable
only when it is set to “S.BS ON.”
6
Depending on the amplifier gain control
setting. (See page 9 for details.)
5
*
6
]
8

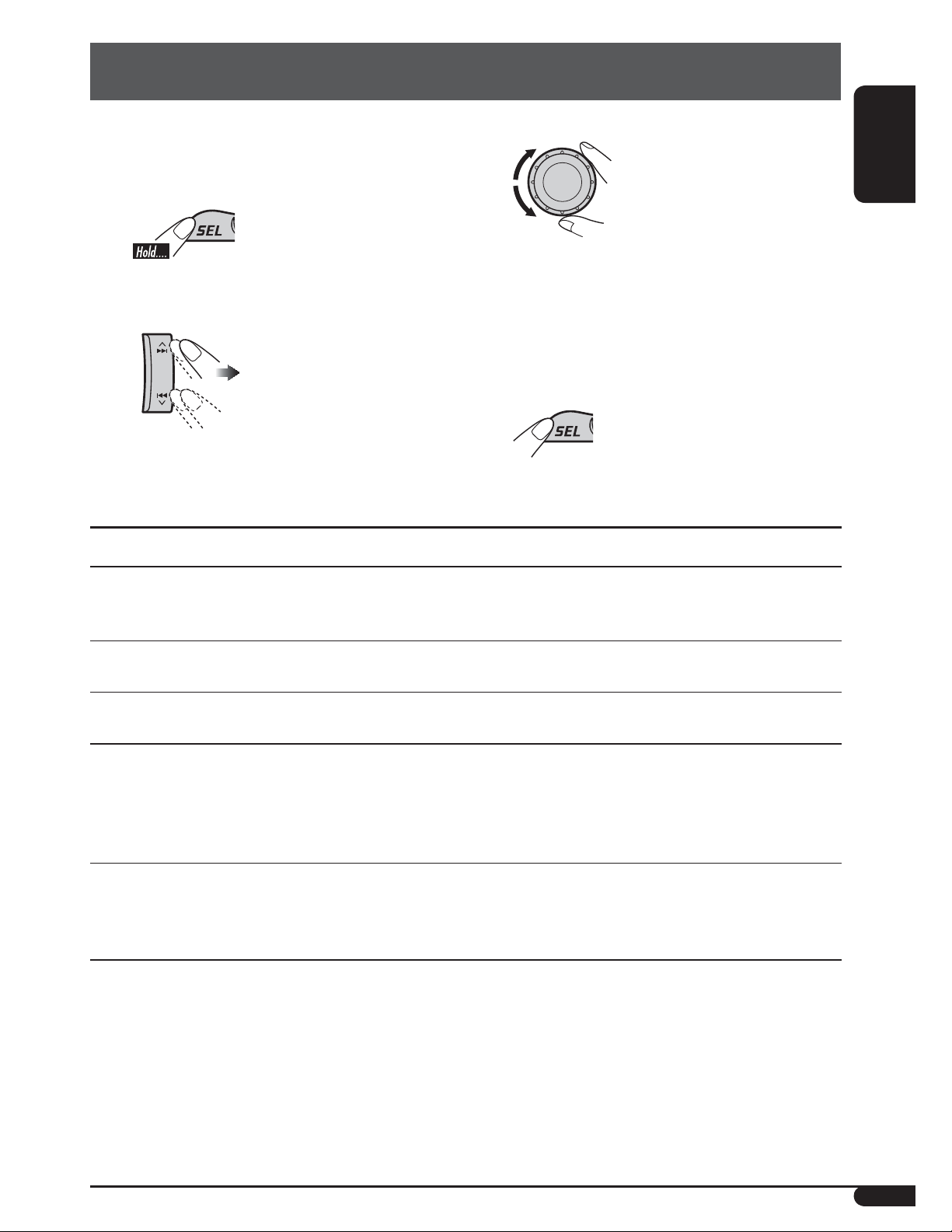

General settings — PSM
You can change PSM (Preferred Setting Mode) items listed in the table that follows.
3 Adjust the PSM item selected.
1
4 Repeat steps 2 and 3 to adjust other
2 Select a PSM item.
PSM items if necessary.
5 Finish the procedure.
Indications Selectable settings, [reference page]
ENGLISH
DEMO
Display
demonstration
CLOCK H
Hour adjustment
CLOCK M
Minute adjustment
L/O MODE
Line output mode
AMP GAIN
Amplifier gain
control
DEMO ON : [Initial]; Display demonstration will be activated automatically
if no operation is done for about 20 seconds, [5].
DEMO OFF : Cancels.
1 – 12, [5]
[Initial: 1 (1:00)]
00 – 59, [5]
[Initial: 00 (1:00)]
When connecting an amplifier or a subwoofer, set this correctly. REAR : [Initial]; Select if the REAR LINE OUT terminals are used for
connecting the speakers through an external amplifier.
WOOFER : Select if the REAR LINE OUT terminals are used for
connecting a subwoofer.
You can change the maximum volume level of this unit. LOW PWR : VOL 00 – VOL 30 (Select this if the maximum power of the
speaker is less than 50 W to avoid damaging the speaker.)
HIGH PWR : [Initial]; VOL 00 – VOL 50
9
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the connectors.To minimize this possibility,
ENGLISH
periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.
Connector
Moisture condensation
Moisture may condense on the lens inside the CD player in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car. Should this occur, the CD player may malfunction.In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.
To play new discs
New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.
To keep discs clean
A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.
Do not use the following discs:
Warped disc
How to handle discs
When removing a disc from its case, press down the center
holder of the case and lift the disc out, holding it by the edges.
• Always hold the disc by the edges. Do not touch its recording surface.
When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).
• Make sure to store discs into the cases after use.
Center holder
Sticker
Disc
Sticker residue
Stick-on label
10
More about this unit
Basic operations
Turning on the power
• By pressing SOURCE on the unit, you can also turn on the power. If the source is ready, playback also starts.
Turning off the power
• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.
Selecting the sources
• When no disc is loaded in the unit, “DISC” cannot be selected.
Tuner operations
Storing stations in memory
• During SSM search...
– All previously stored stations are erased and
stations are stored newly.
Received stations are preset in No. 1 (lowest frequency) to No. 6 (highest frequency).
– When SSM is over, the station stored in
No. 1 will be automatically tuned in.
• When storing a station manually, a previously preset station is erased when a new station is stored in the same preset number.
Disc operations
Caution for DualDisc playback
• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non­DVD side of a DualDisc on this product may not be recommended.
General
• This unit has been designed to reproduce CDs, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA) format.
• When a disc has been loaded, selecting “DISC” for the playback source starts disc play.
Inserting a disc
• When a disc is inserted upside down, the disc automatically ejects.
• Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc.) into the loading slot.
Playing a CD-R or CD-RW
• Use only “finalized” CD-Rs or CD-RWs.
• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, and for the following causes:
– Discs are dirty or scratched. – Moisture condensation occurs on the lens
inside the unit. – The pickup lens inside the unit is dirty. – CD-R/CD-RW on which the files are
written with “Packet Write” method. – There are improper recording conditions
(missing data, etc.) or media conditions
(stain, scratch, warp, etc.).
• CD-RWs may require a longer readout time
since the reflectance of CD-RWs is lower than that of regular CDs.
• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal
stuck to the surface. – Discs on which labels can be directly
printed by an ink jet printer. Using these discs under high temperatures
or high humidity may cause malfunctions or damages to the unit.
Changing the source
• If you change the source, playback also stops
(without ejecting the disc).
Next time you select “DISC” for the playback
source, disc play starts from where it has been stopped previously.
To be continued...
ENGLISH
11
Ejecting a disc
General settings—PSM
• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc will not play this time.)
ENGLISH
• If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the unit automatically changes the volume level to “VOL 30.”
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center.
Symptoms Remedies/Causes
• Sound cannot be heard from the speakers.
General
• This unit does not work at all. Reset the unit (see page 2).
• SSM automatic presetting does not work.
• Adjust the volume to the optimum level.
• Check the cords and connections.
Store stations manually.
• Static noise while listening to the
FM/AM
radio.
• Disc automatically ejects. Insert the disc correctly.
• CD-R/CD-RW cannot be played back.
• Tracks on the CD-R/CD-RW cannot be skipped.
• Disc can be neither played back nor ejected.
Disc playback
• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.
• “NO DISC” appears on the display. Insert a playable disc into the loading slot.
Connect the antenna firmly.
• Insert a finalized CD-R/CD-RW.
Finalize the CD-R/CD-RW with the component which you used for recording.
• Unlock the disc (see page 7).
• Eject the disc forcibly (see page 2).
• Change the disc.
• Check the cords and connections.
12
Specifications
AUDIO AMPLIFIER SECTION
Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8% total harmonic distortion.
Rear: 19 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8%
total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal to Noise Ratio: 70 dB Line-Out Level/Impedance:
2.0 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Subwoofer-Out Level/Impedance:
2.0 V/20 kΩ load (full scale)
TUNER SECTION
CD PLAYER SECTION
Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit
GENERAL
Power Requirement: Operating Voltage:
Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D): Installation Size (approx.): 182 mm × 52 mm × 150 mm Panel Size (approx.): 188 mm × 58 mm × 11 mm Mass (approx.):
1.2 kg (excluding accessories)
DC 14.4 V (11 V to 16 V allowance)
ENGLISH
Frequency Range: FM: 87.5 MHz to 108.0 MHz AM: 531 kHz to 1 602 kHz
[FM Tuner]
Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω) 50 dB Quieting Sensitivity:
16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB Capture Ratio: 1.5 dB
[AM Tuner]
Sensitivity: 20 μV Selectivity: 35 dB
Design and specifications are subject to change without notice.
13
Having TROUBLE with operation?
Please reset your unit
Refer to page of How to reset your unit
EN, TH
© 2005 Victor Company of Japan, Limited
1005DTSMDTJEIN
KD-G126/KD-G125
Installation/Connection Manual
°“√μ‘¥μ—Èß/§ŸË¡◊Õ°“√μ‘¥μ—Èß
GET0331-006A
[U/UH]
ENGLISH
This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC car audio dealers.
WARNINGS
To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit.
Be sure to ground this unit to the car’s chassis again after installation.
Notes:
• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio dealer.
• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of “AMP GAIN” setting to prevent the speakers from being damaged (see page 9 of the INSTRUCTIONS).
• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.
• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.
·ºËπ√–∫“¬§«“¡√ÈÕπ
PRECAUTIONS on power supply and speaker connections:
DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit
will be seriously damaged.
• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in
your car.
4 Ω to 8 Ω). If the maximum power is less than 50 W, change
Heat sink
1005DTSMDTJEIN
© 2005 Victor Company of Japan, Limited
EN, TH
‰∑¬
™ÿ¥ª√–°Õ∫π’ȉ¥È√—∫°“√ÕÕ°·∫∫¡“‡æ◊ËÕ„™Èß“π°—∫√–∫∫ °√–·‰øøÈ““¬¥‘π¢—È«≈∫°√–·μ√ß 12 ‚«≈∑Ï À“°√∂¬πμÏ¢Õß§ÿ≥‰¡Ë‰ ¥È„™È√–∫∫π’È μÈÕß„™È‡§√◊ËÕß·ª≈ß°√–·‰ø™Ë«¬ ´÷Ëß“¡“√∂À“´◊ÈÕ‰¥È®“°√È“π¢“¬‡§√◊ËÕ߇’¬ß√∂¬πμÏ
JVC
§”‡μ◊Õπ
‡æ◊ËÕªÈÕß°—π°“√‡°‘¥‰øøÈ“≈—¥«ß®√ ¢Õ·π–π”„ÀȪ≈¥¢—È«·∫μ‡μÕ√’Ë≈∫ÕÕ° ·≈È«®÷ßμËÕ“¬‰ø°ËÕπμ‘¥μ—È߇§√◊ËÕß
μ√«®Õ∫„ÀÈ·πË„®«Ë“‰¥È‡¥‘π“¬¥‘πμËÕ√–À«Ë“߇§√◊ËÕß°—∫μ—«∂—ß √∂¬πμÏ„À¡Ë·≈È«À≈—ß®“°μ‘¥μ—Èß
À¡“¬‡Àμÿ:
„™Èæ‘°—¥®”‡æ“–·∑πø‘« À“°ø‘«Ï¢“¥∫ËÕ¬ „ÀȪ√÷°…“√È“ π¢“¬‡§√◊ËÕ߇’¬ß√∂¬πμÏ
¢Õ·π–π”„ÀÈμËÕ≈”‚æß ∑’Ë¡’°”≈—ߢ—∫ßÿ¥‡°‘π°«Ë“ 50 W (∑—ÈߥȓπÀπÈ“·≈–¥È“πÀ≈—ß ¡’§Ë“§«“¡μÈ“π∑“π 4 Ω ∂÷ß 8 Ω)
∂È“°”≈—ߢ—∫μË”°«Ë“ 50 W „Àȇª≈’ˬπ§Ë“ “AMP GAIN” ‡æ◊ËÕªÈÕß°—π‰¡Ë„ÀÈ≈”‚æß™”√ÿ¥ (¥ŸÀπÈ“ 9 §”·π–π”)
°“√ªÈÕß°—π°“√≈—¥«ß®√ ®–μÈÕßæ—π¢—È«“¬μ–°—Ë« ∑’ˉ¡Ë„™È·≈È«¥È«¬‡∑ ªæ—π“¬‰ø
·ºËπ√–∫“¬§«“¡√ÈÕπ®–√ÈÕπ¡“°À≈—ß®“°„™È √–¡—¥√–«—ßլ˓‰ª —¡º—‡¡◊ËÕ∂Õ¥™ÿ¥ª√–°Õ∫π’È
¢ÈÕ§«√√–«—ß”À√—∫°“√μËÕ·À≈Ë߮˓¬°”≈—ß·≈–≈”‚æß:
լ˓μËÕ“¬μ–°—Ë«‡§‡∫‘≈°”≈—ߢÕß≈”‚æß‡¢È“°—∫·∫μ‡μÕ√’Ë√∂¬πμÏ ¡‘©–π—Èπ ™ÿ¥ª√–°Õ∫®–‰¥È√—∫§«“¡‡’¬À“¬¡“°
°ËÕπ∑’Ë®–μËÕ“¬μ–°—Ë«‡§‡∫‘≈°”≈—ߢÕß≈”‚æß‡¢È“°—∫≈”‚æß „ÀÈμ√«®Õ∫°“√‡¥‘π“¬‰ø≈”‚æß„π√∂¢Õß§ÿ≥„Àȇ√’¬∫√ÈÕ¬‡’¬°ËÕπ
JVC
Parts list for installation and connection
The following parts are provided for this unit. After checking them, please set them correctly.
A / B Hard case/Control panel
≈—ß∫√√®ÿ/ÀπÈ“ª—¥
E
Power cord
“¬‡§‡∫‘≈°”≈—ß
H
Mounting bolt (M5 × 20 mm)
≈—°μ‘¥ (M5 × 20 ¡¡.)
C
Sleeve
ª≈Õ°ÀÿÈ¡
F
Washer (ø5)
ª√–‡°Áπ«ß·À«π
I
Rubber cushion
¬“ß°—π°√–·∑°
√“¬°“√Ë«πª√–°Õ∫”À√—∫μ‘¥μ—Èß·≈–‡™◊ËÕ¡μËÕ°—π
«πª√–°Õ∫μËÕ‰ªπ’È„ÀÈ¡“°—∫™ÿ¥ª√–°Õ∫π’È À≈—ß®“°μ√«®Õ∫·≈È« ª√—∫μ—È߇§√◊ËÕß„ÀÈ∂Ÿ°μÈÕß
D
Trim plate
·ºËπ‚≈À–¢Õ∫·μËß
G
Lock nut (M5)
(ø5)
1
πÕμ≈ÁÕ§ (M5)
J
Handles
§—π∫—ß§—∫
INSTALLATION (IN-DASH MOUNTING)
The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.
• If you are not sure how to install this unit correctly, have it installed by a qualified technician.
°“√μ‘¥μ—Èß (°“√ª√–°Õ∫·ºßÀπÈ“ª—∑¡Ï‡¢È“)
¿“æμ—«Õ¬Ë“ßμËÕ‰ªπ’È·¥ß∂÷ß°“√μ‘¥μ—Èß·∫∫∑—Ë«‰ª À“°§ÿ≥¡’ª—≠À“À√◊ÕμÈÕß°“√¢ÈÕ¡Ÿ≈‡°’ˬ«°—∫™ÿ¥μ‘¥μ—Èß °√ÿ≥“ª√÷°…“°—∫ºŸÈ¢“¬‡§√◊ËÕ߇’ ¬ß√∂¬πμÏ
JVC ¢Õß∑Ë“πÀ√◊Õ∫√‘…—
™ÿ¥ª√–°Õ∫ ∂È“§ÿ≥‰¡Ë·πË„®«Ë“μ‘¥μ—Èß™ÿ¥ª√–°Õ∫π’È∂Ÿ°μÈÕßÀ√◊Õ‰¡Ë „ÀÈÀ“™Ë“ߺŸÈ‡™’ˬ«™“≠‡ªÁπºŸÈμ‘¥μ—Èß
Do the required electrical connections.
μËÕ“¬‰øμ“¡∑’˰”À𥉫È∑—ÈßÀ¡¥
Bend the appropriate tabs to hold the sleeve firmly in place.
ßÕ·ºËπ‡æ◊ËÕ¬÷¥ª≈Õ°„ÀÈμËÕ°—π‡¢È“∑’Ë
1
*
When you stand the unit, be careful not to damage the fuse on the rear.
1
*
‡¡◊ËÕ§ÿ≥μ—Èß™ÿ¥ª√–°Õ∫¢÷Èπ √–«—ßլ˓∑”„ÀÈø‘«Ï∫√‘‡«≥Ë«π∑È“¬‡’¬À“¬
Removing the unit
Before removing the unit, release the rear section.
When using the optional stay / ‡¡◊ËÕ„™Èμ—«¬÷¥·∫∫‡≈◊Õ°‰¥È
Stay (option)
μ—«¬÷¥ (‡≈◊Õ°‰¥È)
Fire wall
ºπ—ß°—π‰ø
°“√∂Õ¥™ÿ¥ª√–°Õ∫
°ËÕπ®–∂Õ¥™ÿ¥ª√–°Õ∫ „ÀȪ≈¥ÀπÈ“μ—¥Ë«π∑È“¬°ËÕπ
Insert the two handles, then pull them as illustrated so that the unit can be removed.
˧—π∫—ß§—∫ 2 Õ —π≈ß„π√ËÕß”À√—∫„™Èæ—π≈«¥ ¥—ß¿“æ ®“°π—Èπ „Àȇ≈◊ËÕπ™ÿ¥ª√–°Õ∫ÕÕ° „π¢≥–∑’˧ËÕ¬ Ê ¥÷ß§—π∫—ß§—∫∑—Èß Õ—πÕÕ°®“°°—π
Õß
When installing the unit without using the sleeve / ‡¡◊ËÕμ‘¥μ—Èß™ÿ¥ª√–°Õ∫‚¥¬‰¡Ë„™Èª≈Õ°ÀÿÈ¡
In a Toyota car for example, first remove the car radio and install the unit in its place.
μ—«Õ¬Ë“ß‡™Ëπ „π√∂¬πμÏ‚μ‚¬μÈ“ „ÀÈ∂Õ¥«‘∑¬ÿμ‘¥√∂¬πμÏÕÕ°°ËÕπ ·≈È«®÷ßμ‘¥μ—È߇§√◊ËÕßπ’ȇ¢È“·∑π∑’Ë
Flat type screws (M5 × 8 mm)*
°√ŸÀ—«‡√’¬∫ (M5 × 8 ¡¡.)*
* Not supplied for this unit.
‰¡Ë‰¥È„ÀÈ¡“°—∫™ÿ¥ª√–°Õ∫π’È
*
Dashboard
·ºßÀπÈ“ª—∑¡á
Screw (option)
°√Ÿ (‡≈◊Õ°‰¥È)
Install the unit at an angle of less than 30˚.
μ‘¥μ—Èß™ÿ¥ª√–°Õ∫∑’Ë¡ÿ¡μË”°«Ë“ 30˚ Õß»“
Bracket*
·∑Ëπ√Õß√—∫*
Flat type screws (M5 × 8 mm)*
°√ŸÀ—«‡√’¬∫ (M5 × 8 ¡¡.)*
Pocket
°–‡ª“–
Bracket*
·∑Ëπ√Õß√—∫*
Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If longer screws are
À¡“¬‡Àμ : ‡¡◊ËÕμ‘¥μ—Èß™ÿ¥ª√–°Õ∫≈ß„π·∑Ëπ√Õß√—∫‰«È „ÀÈ„™È°√Ÿ¬“«¢π“¥ 8
used, they could damage the unit.
¡¡.
∂È“„™È°√Ÿ¬“«°«Ë“π’ÈÕ“®∑”„ÀÈ™ÿ¥ª√–°Õ∫‡’¬À“¬‰¥ô
2
ENGLISH ‰∑¬
ELECTRICAL CONNECTIONS
A
Typical connections / °“√‡™◊ËÕ¡μËÕ·∫∫ª°μ
Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious
damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.
1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the antenna cord.
3 Finally connect the wiring harness to the unit.
Rear ground
terminal
®ÿ¥‡™◊ËÕ¡μËÕ
“¬¥‘π¥È“πÀ≈—ß
Antenna terminal
¢—È«“¬Õ“°“»
Line out (see diagram
“¬ÕÕ° (¥Ÿ·ºπ¿Ÿ¡ )
)
15 A fuse
ø‘«Ï¢π“¥ 15 A
Black
’¥”
°“√‡™◊ËÕ¡‚¥¬„™È‰øøÈ“
°ËÕ•∑”°“•‡™•ËÕ¡μËÕ: μ•«®†Õ•°“•‡¥‘•†“¬‰ø„•••¬•μÏլ˓ߕ–¡—¥•–«—լ˓„ÀȺ‘¥æ•“¥„•°“•‡™•ËÕ¡μËÕ™ÿ¥ª•–°Õ•™ÿ¥•’
°“•‡™•ËÕ¡μËÕº‘¥æ•“¥Õ“®∑”„Àȇ°‘¥§«“¡‡†’¬À“¬•È“¬·•ß°—•™ÿ¥ª•– °Õ••’ȉ¥È“•μ–°—Ë«¢Õ߆“¬‰ø ·•–¢ÕßÕÿª°••ÏμËÕ‡™•ËÕ¡®“°μ—«• ß••Õ“®¡’’ ∑’ˉ¡Ë‡À¡•Õ•°—
1 μËÕ“¬‰ø’μ“¡≈”¥—∫∑’Ë√–∫ÿ„π√Ÿª¥È“π≈Ë“ß 2 ‡™◊ËÕ¡μËÕ°—∫“¬Õ“°“» 3 ÿ¥∑È“¬ μËÕË«π§«∫§ÿ¡°“√‡¥‘π“¬‰ø‡¢È“°—∫™ÿ¥ª√–°Õ∫™ÿ¥π’È
1
*
To metallic body or chassis of the car
μËÕ°—∫‚§√ß‚≈À–À√◊Õ‡™´‘¢Õß√∂¬πμá
Not supplied for this unit.
1
*
‰¡Ë‰¥È„ÀÈ¡“°—∫™ÿ¥ª√–°Õ∫π’È
Ignition switch
«‘∑™Ï®ÿ¥√–‡∫‘¥
2
*
Before checking the operation of this unit prior to installation, this lead must be connected, otherwise power cannot be turned on.
2
*
°ËÕπ°“√μ√«®Õ∫°“√∑”ß“π¢Õß™ÿ¥ª√–°Õ∫π’ȰËÕπ∑’Ë®–μ‘¥μ—Èß
μÈÕßμËÕ“¬μ–°—Ë«π’ȰËÕπ ¡‘©–π—Èπ®–‰¡“¡“√∂‡ª‘¥‡§√◊ËÕ߉¥
2
Yellow *
2
’‡À≈◊Õß *
Red
’·¥ß
Blue
»’øÈ“
Blue with white stripe
’πÈ”‡ß‘π≈“¬¢“«
To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)
μËÕ°—∫¢—È«∑’Ë¡’°√–·‰øøÈ“„π·ºßø‘«Ï ´÷ËßμËÕ°—∫·∫μ‡μÕ√’Ë√∂¬πμ (‚¥¬‰¡ËμÈÕß„™È«‘∑™Ï®ÿ¥√–‡∫‘¥) (
To an accessory terminal in the fuse block
μËÕ°—∫¢—È«Ë«πª√–°Õ∫„π·ºßø‘«
12 ‚«≈∑ϧß∑’Ë)
To the automatic antenna if any (250 mA max.)
‡“Õ“°“»‰øøÈ“Õ—μ‚π¡—μ‘ À“°¡’ (¢π“¥Ÿß¸¥ 250 mA)
To the remote lead of other equipment (200 mA max.)
μËÕ‡¢È“°—∫Õª°√≥ÏÕË◊π (¢π“¥Ÿß¸¥ 200 mA
Fuse block
·ºßø‘«
)
White with black stripe
’¢“«·∂∫¥”
White
’¢“«
Left speaker (front)
≈”‚æß´È“¬ (ÀπÈ“)
Gray with black stripe
’‡∑“·∂∫¥”
Green with black stripe
Gray
’‡¢’¬«·∂∫¥”
’‡∑“
Right speaker (front)
≈”‚æß¢«“ (ÀπÈ“)
Green
’‡¢’¬«
Left speaker (rear)
≈”‚æß´È“¬ (À≈—ß)
Purple with black stripe
’¡Ë«ß·∂∫¥”
Purple
’¡Ë«ß
Right speaker (rear)
≈”‚æß¢«“ (À≈—ß)
3
B
Connecting the external amplifier or subwoofer / μËÕ·Õ¡ª≈‘ø“¬‡ÕÕ√ÏÀ√◊Õ´—∫«Ÿø‡øÕ√ϥȓππÕ°
You can connect an amplifier to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it
can be controlled through this unit.
Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker
leads of this unit unused.
§ÿ≥“¡“√∂μËÕ°—∫·Õ¡æ≈‘ø“¬‡ÕÕ√Ï ‡æ◊ËÕ‡æ‘Ë¡§ÿ≥ ¿“æ‡’¬ß„ÀȰ—∫√–∫∫‡μÕ√‘‚Õ¢Õß√∂¬πμÏ
μËÕ“¬μ–°—Ë«√–¬–‰°≈ (’πÈ”‡ß‘π≈“¬¢“«) ‡¢È“°—∫“¬μ–°—Ë«√–¬–‰°≈¢ÕßÕÿª°√≥ÏÕ◊Ëπ Ê ‡æ◊ËÕ®–“¡“√∂§«∫§ÿ¡‚¥¬™ÿ¥ª√– °Õ∫π’ȉ¥È
∂Õ¥≈”‚æßÕÕ°®“°™ÿ¥ª√–°Õ∫π’È ·≈È«μËÕ‡¢È“°—∫‡§√◊ËÕߢ¬“¬ ∑‘Èß“¬μ–°—Ë«≈”‚æß¢Õß™ÿ¥ª√–°Õ∫π’ȉ«È
Set “L/O MODE” to “REAR” (See page 9 of the INSTRUCTIONS.)
μ—Èß§Ë“ “L/O MODE” ‡ªÁπ “REAR” (¥ŸÀπÈ“ 9 §”·π–π”)
You can connect a power amplifier for rear speakers.
∑Ë“π“¡“√∂μËÕ‡§√◊ËÕߢ¬“¬‡’¬ß‡ªÁπ≈”‚æßÀ≈—߉¥È
JVC Amplifier
‡§√◊ËÕߢ¬“¬‡’¬ß JVC
Rear speakers
≈”‚æßÀ≈—ß
Set “L/O MODE” to “WOOFER” (See page 9 of the INSTRUCTIONS.)
μ—Èß§Ë“ “L/O MODE” ‡ªÁπ “WOOFER” (¥ŸÀπÈ“ 9 §”·π–π”)
You can also connect a subwoofer to the REAR LINE OUT terminals.
∑Ë“π¬—ß“¡“√∂μËÕ´—∫«Ÿø‡øÕ√χ¢È“°—∫™ËÕßμËÕ—≠≠“≥ REAR LINE OUT ‰¥È
Remote lead
“¬μ–°—Ë«•–¬–‰°•
Remote lead (Blue with white stripe)
“¬μ–°—Ë«•–¬–‰°• (’πÈ”‡ß‘π≈“¬¢“«)
Y-connector (not supplied for this unit)
¢ÈÕμËÕ√Ÿªμ—« Y (‰¡Ë‰¥È„ÀÈ¡“°—∫™ÿ¥ª√–°Õ∫π’È)
To the remote lead of other equipment or automatic antenna if any
μËÕ“¬°—∫Õÿª°√≥ÏÕ◊ËπÀ√◊Õ‡“Õ“°“»Õ—μ‚π¡—μ‘∂È“¡’
KD-G126 KD-G125
Front speakers
≈”‚æßÀπÈ“
JVC Amplifier
‡§√◊ËÕߢ¬“¬‡’¬ß JVC
Subwoofer
´—∫«Ÿø‡øÕ√Ï
3
*
Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with paint
(if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.
4
*
Signal cord (not supplied for this unit)
TROUBLESHOOTING
The fuse blows. * Are the red and black leads connected correctly?
Power cannot be turn ed on. * Is the yellow lead connected?
No sound from the s peakers. * Is the speaker output lead short-circuited?
Sound is distor ted.
* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?
Noise interf ere with sounds. * Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?
This unit becomes hot.
* Is the speaker output lead grounded * Are the “–” terminals of L and R speakers grounded in common?
This unit does not work at all . * Have you reset your unit?
?
3
*
μËÕ≈«¥“¬¥‘π„ÀÈ·πËπ‡¢È“°—∫μ—«∂—߇À≈Á° À√◊Õμ—«∂—ß√∂—μ√ßË«π ∑’ˉ¡Ë¡’’‡§≈◊Õ∫ (À“°¡’’‡§≈◊Õ∫Õ¬ŸË „ÀÈ¢Ÿ¥’ÕÕ°°ËÕπ °ËÕπμËÕ≈«¥
4
*
“¬¥‘π) À“°‰¡ËªØ‘∫—μ‘μ“¡§”·π–π”π’È ‡§√◊ËÕßÕ“®™”√ÿ¥À√◊Õ‡’¬À“¬‰¥
“¬‡§‡∫‘≈—≠≠“≥ (‰¡Ë‰¥È„ÀÈ¡“°—∫™ÿ¥ª√–°Õ∫π’È)
°“√μ√«®Õ∫ª—≠À“¢—¥¢ÈÕß
ø‘«Ï¢“¥
* ¡’°“√‡™◊ËÕ¡ “¬μ–°—Ë«’¥”·≈–’·¥ßլ˓ß∂Ÿ°μÈÕßÀ√◊Õ‰¡Ë
‰¡Ë“¡“√∂‡ª‘¥‡§√◊ËÕ߉¥È
* ¡’°“√‡™◊ËÕ¡“¬μ–°—Ë«’‡À≈◊ÕßÀ√◊Õ‰¡Ë
‰¡Ë¡’‡’¬ßÕÕ°®“°≈”‚æß
* “¬μ–°—Ë«Ë«π∑’ËÕÕ°∑“ß≈”‚æß‡°‘¥‰øøÈ“≈—¥«ß®√À√◊Õ‰¡Ë
‡’¬ß‡æ’Ȭπ
* “¬μ–°—Ë«Ë«π∑’ËÕÕ°∑“ß≈”‚æßμËÕ≈ߥ‘πÀ√◊Õ‰¡Ë * “¬¢—È«≈∫ “–” ¢Õß≈”‚æß¥È“π´È“¬·≈–¢«“μËÕ≈ߥ‘πμ“¡ª°μ‘À√◊Õ‰¡Ë
‡’¬ß√∫°«π
* ¡’°“√„™È“¬—ÈπÊ À√◊ÕÀπ“Ê μËÕ®“°‡§√◊ËÕß«π∑’Ëμ‘¥μ—Èß ‰«È∫πæ◊Èπ¥È“πÀ≈—ß°—∫μ—«∂—ß√∂¬πμÏÀ√◊Õ‰¡Ë
™ÿ¥ª√–°Õ∫√ÈÕπ¢÷Èπ
* “¬μ–°—Ë«Ë«π∑’ËÕÕ°∑“ß≈”‚æßμËÕ≈ߥ‘πÀ√◊Õ‰¡Ë * “¬¢—È«≈∫ “–” ¢Õß≈”‚æß¥È“π´È“¬·≈–¢«“μËÕ≈ߥ‘πμ“¡ª°μ‘À√◊Õ‰¡Ë
‡§√◊ËÕß√—∫π’È∑”ß“π‰¡
* ∑Ë“π‰¥Èμ—È߇§√◊ËÕß„À¡Ë·≈È«À√◊Õ¬—ß
4
Loading...
