Jvc KD-DV7206-UT, KD-DV7206-UN, KD-DV7206-U, KD-DV7206-A, KD-DV7205-UT Service Manual

SERVICE MANUAL

DVD/CD RECEIVER

MA25020063

KD-ADV6270J,KD-DV6200J,KD-DV6201E,

KD-DV6201EU,KD-DV6202E,KD-DV6202EU,

KD-DV7205U,KD-DV7205UN,KD-DV7205UT,

KD-DV7205A,KD-DV7206U,KD-DV7206UN,

KD-DV7206UT,KD-DV7206A,KD-DV6207EE

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

TABLE OF CONTENTS

1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31

No.MA250

2006/3

SPECIFICATION

KD-ADV6270/KD-DV6200

Power Output 20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω) Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz

Level ±10 dB

Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm

Line-Out Level/Impedance KD-ADV6270 : 5.0 V/20 kΩ load (full scale)

Output Impedance 1 kΩ

Subwoofer-out Level/Impedance KD-ADV6270 : 2.5 V/20 kΩ load (full scale)

Color system NTSC Video Output (composite) 1 Vp-p/75 Ω Other Terminals LINE IN, CD changer, 2nd AUDIO OUT

Frequency Range FM 87.5 MHz to 107.9 MHz (with channel interval set to 100 kHz or 200 kHz)

AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 35 dB

AM Tuner Sensitivity/Selectivity 20 µV/35 dB

Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz

DVD, fs=96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit DivX Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 384 kbps

Sampling Frequency 32 kHz, 44.1 kHz, 48 kHz MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

Format FAT 12/16/32 Storage Less than 4 GB (1 partition type) Playable Audio Format MP3/WMA Max. Current Less than 500 mA MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz

WMA Bit Rate 5 kbps - 320 kbps

Sampling Frequency 8 kHz - 48 kHz

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm (7-3/16" × 2-1/16" × 6-1/4")

Panel Size (approx.) 188 mm × 58 mm × 11 mm (7-7/16" × 2-5/16" × 7/16") Mass (approx.) 1.7 kg (3.3 lbs) (excluding accessories)

AUDIO AMPLIFIER SECTION

Output level : -21 dBm to -15 dBm

KD-DV6200 : 2.5 V/20 kΩ load (full scale)

KD-DV6200 : 2.0 V/20 kΩ load (full scale)

TUNER SECTION

87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)

531 kHz to 1 602 kHz (with channel interval set to 9 kHz)

DVD/CD PLAYER SECTION

720 × 576 pixels (25 fps)

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

720 × 576 pixels (25 fps)

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

USB MEMORY

MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz

GENERAL

1-2 (No.MA250)

KD-DV6201/KD-DV6202

Maximum Power Output Front/Rear 50 W per channel Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz

Level ±10 dB Signal to Noise Ratio 70 dB Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)

Output Impedance 1 kΩ Subwoofer-out Level/Impedance 2.0 V/20 kΩ load (full scale) Color system PAL Video Output (composite) 1 Vp-p/75 Ω Other Terminals LINE IN, CD changer, 2nd AUDIO OUT

Frequency Range FM 87.5 MHz to 108.0 MHz

AM (MW) 522 kHz to 1 620 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB MW Tuner Sensitivity/Selectivity 20 µV/35 dB LW Tuner Sensitivity 50 µV

Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz

DVD, fs=96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit DivX Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 384 kbps

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

Format FAT 12/16/32 Storage Less than 4 GB (1 partition type) Playable Audio Format MP3/WMA Max. Current Less than 500 mA MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz

WMA Bit Rate 5 kbps - 320 kbps

Sampling Frequency 8 kHz - 48 kHz

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 188 mm × 58 mm × 11 mm Mass (approx.) 1.7 kg (excluding accessories)

AUDIO AMPLIFIER SECTION

Output level : -21 dBm to -15 dBm

TUNER SECTION

(LW) 144 kHz to 279 kHz

DVD/CD PLAYER SECTION

720 × 576 pixels (25 fps)

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

720 × 576 pixels (25 fps)

Sampling Frequency : 32 kHz, 44.1 kHz, 48 kHz

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

USB MEMORY

MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz

GENERAL

(No.MA250)1-3

KD-DV7205/KD-DV7206

Maximum Power Output Front/Rear 50 W per channel Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz

Level ±10 dB Signal to Noise Ratio 70 dB Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)

Output Impedance 1 kΩ Subwoofer-out Level/Impedance 2.0 V/20 kΩ load (full scale) Color system PAL/NTSC Video Output (composite) 1 Vp-p/75 Ω Other Terminals LINE IN, CD changer, 2nd AUDIO OUT

Frequency Range FM 87.5 MHz to 108.0 MHz

AM 531 kHz to 1 602 kHz FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB AM Tuner Sensitivity/Selectivity 20 µV/35 dB

Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz

DVD, fs=96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit DivX Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 384 kbps

MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

Format FAT 12/16/32 Storage Less than 4 GB (1 partition type) Playable Audio Format MP3/WMA Max. Current Less than 500 mA MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz

WMA Bit Rate 5 kbps - 320 kbps

Sampling Frequency 8 kHz - 48 kHz

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 188 mm × 58 mm × 11 mm Mass (approx.) 1.7 kg (excluding accessories)

AUDIO AMPLIFIER SECTION

Output level : -21 dBm to -15 dBm

TUNER SECTION

DVD/CD PLAYER SECTION

720 × 576 pixels (25 fps)

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

720 × 576 pixels (25 fps)

Sampling Frequency : 32 kHz, 44.1 kHz, 48 kHz

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

USB MEMORY

MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz

GENERAL

1-4 (No.MA250)

KD-DV6207

Maximum Power Output Front/Rear 50 W per channel Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz

Level ±10 dB Signal to Noise Ratio 70 dB Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm

Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)

Output Impedance 1 kΩ Subwoofer-out Level/Impedance 2.0 V/20 kΩ load (full scale) Color system PAL Video Output (composite) 1 Vp-p/75 Ω Other Terminals LINE IN, CD changer, 2nd AUDIO OUT

Frequency Range FM1 /FM2 87.5 MHz to 108.0 MHz

FM3 65.00 MHz to 74.00 MHz

AM (MW) 522 kHz to 1 620 kHz

FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 30 dB MW Tuner Sensitivity/Selectivity 20 µV/35 dB LW Tuner Sensitivity 50 µV

Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz

DVD, fs=96 kHz 16 Hz to 22 000 Hz

CD, fs=44.1 kHz 16 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit DivX Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)

Audio Bit Rate : 32 kbps - 384 kbps

Sampling Frequency 32 kHz, 44.1 kHz, 48 kHz MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz

WMA Bit Rate 32 kbps - 320 kbps

Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz WAV Quantization Bit Rate 16 bit

Sampling Frequency 44.1 kHz

Format FAT 12/16/32 Storage Less than 4 GB (1 partition type) Playable Audio Format MP3/WMA Max. Current Less than 500 mA MP3 Bit Rate 32 kbps - 320 kbps

Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz

WMA Bit Rate 5 kbps - 320 kbps

Sampling Frequency 8 kHz - 48 kHz

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm

Panel Size (approx.) 188 mm × 58 mm × 11 mm Mass (approx.) 1.7 kg (excluding accessories)

AUDIO AMPLIFIER SECTION

Output level : -21 dBm to -15 dBm

TUNER SECTION

(LW) 144 kHz to 279 kHz

DVD/CD PLAYER SECTION

720 × 576 pixels (25 fps)

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

720 × 576 pixels (25 fps)

MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz

USB MEMORY

MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz

GENERAL

Design and specifications are subject to change without notice.

(No.MA250)1-5

1.1 Safety Precautions

SECTION 1

PRECAUTIONS

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.

1-6 (No.MA250)

1.2 Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

1.2.1 Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products. Be careful to use proper grounding in the area where repairs are being performed.

(1) Ground the workbench

Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the traverse unit (optical pickup) on it.

(2) Ground yourself

Use an anti-static wrist strap to release any static electricity built up in your body.

(caption) Anti-static wrist strap

1M

Conductive material (conductive sheet) or iron plate

(3) Handling the optical pickup

• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition. (Refer to the text.)

• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily destroy the laser diode.

1.3 Handling the traverse unit (optical pickup)

(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit. (2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the

replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a

time when attaching it to the connector. (3) Handle the flexible cable carefully as it may break when subjected to strong force. (4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

1.4 Attention when traverse unit is decomposed

*Please refer to "Disassembly method" in the text for the pickup unit.

• Apply solder to the short land before the flexible wire is disconnected from the connector on the pickup unit. (If the flexible wire is disconnected without applying solder, the pickup may be destroyed by static electricity.)

• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.

Flexible wire

CN101

Short-circuit points

Mechanism control board

(No.MA250)1-7

1.5 Important for laser products

!

1.CLASS 1 LASER PRODUCT

2.DANGER : Invisible laser radiation when open and inter

lock failed or defeated. Avoid direct exposure to beam.

3.CAUTION : There are no serviceable parts inside the

Laser Unit. Do not disassemble the Laser Unit. Replace

the complete Laser Unit if it malfunctions.

4.CAUTION : The CD,MD and DVD player uses invisible

laser radiation and is equipped with safety switches which

prevent emission of radiation when the drawer is open and

the safety interlocks have failed or are defeated. It is

dangerous to defeat the safety switches.

5.CAUTION : If safety switches malfunction, the laser is able

to function.

6.CAUTION : Use of controls, adjustments or performance of

procedures other than those specified here in may result in

hazardous radiation exposure.

Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.

REPRODUCTION AND POSITION OF LABELS

WARNING LABEL

CAUTION : Visible and Invisible

CLASS 1 LASER PRODUCT

laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL : Synlig og usynlig laserstråling når maskinen er åben eller interlocken fejeler. Undgå direkte eksponering til stråling. (d)

VARNING : Synlig och osynling laserstrålning när den öppnas och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettuna tai viallisena olet alttiina näkyvälle ja näkymättömälle lasersäteilylle. Vältä säteen kohdistumista suoraan itseesi. (f)

1-8 (No.MA250)

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

(No.MA250)1-9

SECTION 3

DISASSEMBLY

3.1 Main body section

3.1.1 Removing the front panel assembly (See Fig.1)

(1) Push the control panel release button in the lower left part

of the front panel assembly and remove the front panel assembly.

(2) Take out the front panel assembly.

3.1.2 Removing the bottom cover (See Fig.2)

(1) Turn the main body up side down. (2) Insert a screwdriver under the joints to release the joints a

on the left side, joints b on the right side and joint c on the back side of the main body, then remove the bottom cover from the main body.

Caution:

When releasing the joints using a screwdriver, do not damage the main board. When remove the bottom cover, do not missing the cooling rubber.

Front panel assembly

Control panel release button

Fig.1

Bottom cover

b

a

b

a

c

Fig.2

1-10 (No.MA250)

3.1.3 Removing the front chassis assembly

(See Figs.3 and 4)

• Remove the front panel assembly and bottom cover.

(1) Remove the two screws A on the front side of the main

body. (See Fig.3)

(2) Remove the two screws B on the both sides of the main

body. (See Fig.4)

(3) Release the joints d and joints e on the both sides of the

main body, and then remove the front chassis assembly toward the front. (See Fig.4)

Front chassis assembly

A

Fig.3

3.1.4 Removing the side panel

(See Fig.5)

Reference:

Remove the front panel assembly as required. (1) Remove the two screws C and two screws D attaching the

side panel on the left side of the main body.

(2) Take out the side panel from the main body.

B

d

Front chassis assembly

Fig.4

C CD D

B

e

Side panel

Fig.5

(No.MA250)1-11

3.1.5 Removing the rear bracket (See Fig.6) [except KD-DV6201]

• Remove the bottom cover.

(1) Remove the five screws E, one screw F, two screws G and

two screws G attaching the rear bracket on the back side of the main body.

(2) Take out the rear bracket.

3.1.6 Removing the rear bracket (See Fig.6) [For KD-DV6201]

• Remove the bottom cover.

(1) Remove the six screws E, one screw F, two screws G and

two screws G attaching the rear bracket on the back side of the main body.

(2) Take out the rear bracket.

for except KD-DV6201

Rear bracket

HG

for KD-DV6201

Composite cable

Rear bracket

Composite cable

HP cable

Fig.6

FE

Anntena cord

HG

FE

Anntena cord

1-12 (No.MA250)

3.1.7 Removing the main board

(See Figs.6 to 8)

• Remove the front panel assembly, bottom cover, front chassis

assembly and side panel. (1) Remove the five screws E except KD-DV6201 or six

screws E for KD-DV6201 attaching the rear bracket on the back side of the main body. (See Fig.6.)

(2) Remove the three screws J attaching the main board. (See

Fig.7)

(3) Disconnect the connector CN961

board. (See Fig.7)

(4) Remove the one screw K attaching the USB board. (See

Fig.8)

Reference:

Remove the rear bracket as required.

and take out the main

JJ

Main board

J

Fig.7

DVD mechanism assembly

3.1.8 Removing the DVD mechanism assembly

(See Fig.9)

• Remove the front panel assembly, bottom cover, front chassis

assembly, side panel, main board and CD mechanism control board. (1) Remove the three screws L attaching the top chassis. (2) Take out the DVD mechanism assembly.

Main board

DVD mechanism assembly

K

Fig.8

L

Top chassis

L

Fig.9

(No.MA250)1-13

3.1.9 Removing the switch board (See Figs.10 to 13)

• Remove the front panel assembly.

(1) Release the main volume knob from the front panel assem-

bly. (See Fig.10)

(2) Remove the five screws M and one screw N attaching the

front panel assembly. (See Fig.11)

(3) Release the nine joints f and take out the rear cover. (See

Fig.12)

(4) Lift the switch board from the front panel assembly little by

little and take out the switch board. (See Fig.13)

Front panel assembly

Volume knob

Fig.10

M

N

Rear cover

Fig.11

f

Rear cover

f

Fig.12

Switch board

1-14 (No.MA250)

Fig.13

3.2 DVD mechanism assembly

3.2.1 Removing the mechanism control board

(See Fig.1)

Caution:

Before disconnecting the flexible wire extending from the DVD pickup, solder the short-circuit point on the flexible wire using a grounding soldering iron. If you do not follow this instruction, the DVD pickup may be damaged. (1) Turn over the body, and solder the short-circuit points on

the flexible wire extending from the DVD pickup.

(2) Disconnect the flexible wire from connector CN101

mechanism control board.

(3) Disconnect the card wire from connector CN201

mechanism control board.

(4) Disconnect the flexible wire from connector CN202

mechanism control board.

(5) Unsolder two soldered points a on the mechanism control

board and remove the wire extending from the feed motor. (6) Remove the screw A attaching the lug wire. (7) Remove the two screws B and screw C attaching the

mechanism control board.

Caution:

• As the flexible wire to be connected to CN101

attach it to the mechanism control board using a double tape.

• After reassembling, unsolder the short-circuit points.

on the

, make sure to

Flexible wire

Double tape

CN101

B

Short-circuit points

A

Lug wire

B

CN201

Feed motor

a

C

CN202

Mechanism control board

Fig.1

(No.MA250)1-15

3.2.2 Removing the top cover (See Fig.2)

(1) Remove the two screws D attaching the top cover on the

back of the body.

(2) Remove the top cover upward.

Reference:

When reassembling, set part b of the top cover under the bending part c of the chassis frame.

3.2.3 Removing the mechanism section (See Fig.2 to 4)

• Remove the top cover.

(1) From the bottom of the body, remove the screw E attaching

the lug wire. (See Fig.2.)

(2) Remove the two screws F attaching the right and left stop-

pers on the front side. (See Fig.2.)

(3) Remove the two floating springs on the bottom of the body.

(See Fig.3.)

(4) Move the mechanism section upward and remove from the

chassis frame. The three damper springs come off from the dampers. (See Fig.4.)

Caution:

• When reassembling, reattach the damper spring to the damper respectively and insert the three shafts on the bottom of the mechanism to the dampers.

• Before inserting the shaft to the dampers, apply IPA to the hole of damper.

Floating spring

Fig.3

Mechanism section

Stopper

F

Top cover

Stopper

F

D

b

c

E

Lug wire

Damper SP.(F)

(Silver)

Damper (F) (Black)

Damper SP.(F)

(Silver)

Damper (F) (Black)

Fig.4

Damper SP.(R)

(Red)

Damper (R) (Purple)

Chassis frame

1-16 (No.MA250)

Fig.2

3.2.4 Removing the clamper unit (See Fig.5 to 7)

• Remove the top cover and the mechanism section.

(1) Remove the clamper2 spring on the bottom of the mecha-

nism section. (See Figs.5.and 6.)

(2) Release the part d of the clamper spring from the bending

part of the chassis base assembly. (See Fig.7.)

(3) Move the clamper unit in the direction of the arrow and turn.

Release the two joints e and f, then remove the clamper unit upward. (See Fig.6.)

3.2.5 Reattaching the clamper unit (See Fig.5 to 9)

(1) Attach the clamper spring to the clamper unit. (See Fig.8.) (2) Move the clamper unit to set the side joints e and f to each

boss of the chassis base assembly. Make sure that part g is inserted to the notch of the chassis base assembly. (See Figs.5 and 9.)

(3) Move the part d of the clamper spring to the outside of the

bending part of the chassis base assembly. (See Fig.7.)

(4) Attach the clamper2 spring to the chassis base assembly.

(See Figs.5 and 6.)

Caution:

When reattaching, temporarily hook the end of the clamper spring as shown in the figure to make the work easy. (See Fig.8.)

Clamper unit

Clamper2 spring

Chassis base assembly

Fig.6

Clamper spring

f

Clamper2 spring

Chassis base assembly

g

d

Chassis base assembly

Fig.7

e

Fig.5

(No.MA250)1-17

Clamper unit

Clamper spring

Fig.8

1-18 (No.MA250)

Fig.9

g

Notch

3.2.6 Removing the front unit (See Fig.10 to 12)

• Remove the top cover and the mechanism section.

(1) Disconnect the flexible wire from connector CN202

mechanism control board at the bottom of the body. (See Fig.10.)

(2) Remove the screw G attaching the front unit on the top of

the body. (See Fig.11.)

(3) Move the front unit toward the front to release joint h, and

release two joints i and j on the right side of the chassis base assembly. Then remove the front unit upward. (See Figs.11 and 12.)

(4) Remove the two screws H attaching the switch board. (See

Fig.12.)

Reference:

You can remove the switch board only without removing the front unit.

Caution:

When reassembling, attach the flexible wire extending from the switch board using the double tape. (See Figs.10 and 12.)

Mechanism control board

on the

G

Front unit

h

Fig.11

CN202

Double tape

Fig.10

Flexible wire

Double tape

j

i

H

Switch board

Front unit

G

Fig.12

h

(No.MA250)1-19

3.2.7 Removing the loading arm assembly (See Fig.13 , 14)

• Remove the top cover, the mechanism section and the front

unit. (1) From the top of the body, move the loading arm assembly

from the front side upward, and release the bosses from the right and left joints k and m of the chassis base assembly.

(2) Release the boss from notch n of the connect arm on the

right side of the body, and release the boss from notch p of the slide cam assembly on the left side.

m

Loading arm assembly

Side cam assembly

p

m

k

Fig.13

Loading arm assembly

k

n

Connect arm

1-20 (No.MA250)

Fig.14

3.2.8 Removing the rod (L)(R)/roller assembly

(See Fig.15 and 16)

• Remove the top cover, the mechanism section, the front unit

and the loading arm assembly. (1) Release the rod (L) and (R) from the joints q at the bottom

of the loading arm assembly (See Fig.15.)

(2) Remove the roller assembly from the loading arm assem-

bly. (See Fig.16.)

(3) Remove the two collars and washer from the roller assem-

bly. (See Fig.16.)

Caution:

After attaching the loading arm assembly to the roller assembly, attach the rod (L) and (R). Attach the rods to the right and left collars of the roller. (See Fig.15.) When reattaching the rod (L) and (R) to the loading arm assembly, engage each joint as shown in Fig.15. As joints q of the rod (L), let the rod through q before reattaching it.

Collar

Rod(R) Rod(L)

q

Collar

Rod(L)

Rod(R)

q

Loading arm assembly

Fig.15

Roller assembly

Loading arm assembly

q

Rod(L)

q

Collar

Washer

Rod(R)

Fig.16

(No.MA250)1-21

3.2.9 Removing the DVD pickup assembly (See Fig.17 to 19)

• Remove the mechanism control board.

(1) From the bottom of the body, turn the feed gear in the di-

rection of the arrow to move the DVD pickup outwards. (See Fig.17.)

(2) Remove the screw J attaching the thrust spring. (See

Fig.17.)

(3) Remove the DVD pickup assembly upward on the L.S.gear

side and release from sub shaft at joint r. Move the lead screw of the DVD pickup assembly in the direction of the arrow to release from joint s. (See Fig.18.)

Caution:

• When releasing the lead screw at joint s, the L.S.collar comes off at the end of the lead screw. When reassembling, reattach the L.S.collar to the lead screw and engage joint s. (See Fig.18.)

• When reattaching the L.S.collar, reattach it to the point s of the lead screw, and to the rod (M). Make sure that the L.S.collar is set on the rod (M) spring. (See Fig.18.)

(4) Remove the screw K attaching the rack spring/ rack plate

on the DVD pickup. (See Fig.19.)

(5) Pull out the lead screw. (See Fig.19.)

Caution:

Perform adjustment after replacing the pickup.

DVD Pickup assembly

Feed gear

J

Thrust spring

Fig.17

s

L.S.collar

Rod(M)

Lead screw

Sub shaft

L.S.collar

r

L.S.gear

Fig.18

K

Rack spring

Lead screw

Rack plate

DVD Pickup

Fig.19

1-22 (No.MA250)

3.2.10 Removing the spindle motor

r

(See Fig.20)

• Remove the mechanism control board. Remove the two screws L attaching the spindle motor on the bottom of the body.

Caution:

Perform adjustment when reattaching the spindle motor.

3.2.11 Removing the feed motor assembly

(See Fig.21 and 22)

• Remove the mechanism control board. (1) Remove the feed TRI. spring on the bottom of the body.

(See Fig.21.)

(2) Remove the two screws M attaching the feed motor as-

sembly. (See Fig.21.)

(3) Remove the slit washer from the motor H. assembly and

pull out the worm wheel. (See Fig.22.) Remove the two screws N attaching the feed motor. (See Fig.22.)

Spindle motor

Feed TRI. spring

L

Fig.20

M

Feed motor assembly

Fig.21

Slit washer

Worm wheel

Feed moto

N

Motor H. assembly

Fig.22

(No.MA250)1-23

SECTION 4

ADJUSTMENT

4.1 Test instruments required for adjustment

(1) Digital oscilloscope (199MHz) (2) Jitter meter (3) Digital tester (4) Electric voltmeter (5) Tracking offset meter (6) Test Disc : VT501 or VT502 (7) Extension studs : STDV001-3P (8) Extension cable : EXTDV002-30P

4.3 Connection method

Connection procedure

(1) Attach the front chassis assembly to the main board. (2) Connect the front panel assembly to the main board. (3) Attach the heat sink and rear bracket to the main board. (4) Attach the extension studs to the DVD mechanism assembly. (5) Connect the DVD mechanism assembly and the main board with a extension cable.

4.2 Standard measuring conditions

Power supply voltage DC14.4V(11 to 16V)

Load impedance 4Ω(2 Speakers connection) Line Output 20KΩ

Caution:

Be sure to attach the heat sink and rear bracket onto the power amplifier IC and regulator IC respectively, before supply the power. If voltage is applied without attaching these parts, the power amplifier IC and regulator IC will be destroyed by heat.

Extension cable

EXTDV002-30P

Heat sink

Extension stud STDV001-3P

Extension studs STDV001-3P

1-24 (No.MA250)

4.4 Adjustment method for jitter

After replacing the pickup, set the unit in the service mode to display a jitter value on the LCD. Confirm that the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD. If it is within 12%, then adjustment is not necessary. If the measured jitter value is outside the 12% tolerance range, perform the following adjustments.

4.4.1 Adjustment procedure

(1) Set the unit to the service mode and display a jitter value (hex data) on the LCD. (2) Turn each of the screws a, b and c, by a half-turn per step, in the direction that reduces the jitter value in order to minimize it .

(Do not turn a screw more than a half turn at a time, but adjust the screws in the cycle of the same level is turned in the pair of

b+c and the same level is turned in the pair of a+b.)

(3) After completing the adjustment, secure the screws with screw lock paint.

c

b

a

Jitter value adjustment procedure (Pickup horizontal level adjustment relative to the DVD recording surface) (For the adjustment tool use a 3 mm wrench and not a screwdriver, this procedure will make the adjustment easier.)

3 mm wrench

(1) Set the unit to the service mode and display a jitter value (hex data) on the LCD. (2) Turn each of the screws a, b and c, by a half-turn per step, in the direction that reduces the jitter value in order to minimize it.

(Do not turn a screw more than a half turn at a time, but adjust the screw in the cycle of same level turn by pair of b+c→ pair of

a+b.)

(3) After completing the adjustment, secure the screws with screw lock paint.

(No.MA250)1-25

4.5 Jitter value conversion table

Load the test DVD and set the unit to the service mode. A jitter value converted to the hex value is displayed on the LCD. Refer to the corresponding decimal notation value shown in the following Jitter Conversion Table. The adjustment is OK if the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD. If the measured jitter value is outside the 12% tolerance range, adjust it to minimize the difference between the measured value and the displayed value.

Indicated

on the LCD

EF56

EF22

EEEE

EEBA

EE86

EE52

EE1E

EDEA

EDB6

ED82

ED4E

ED1A

ECE6

ECB2

EC7E

EC4A

EC16

EBE2

EBAE

EB7A

EB46

EB12

EADE

EAAA

EA76

EA42

EA0E

E9DA

E9A6

E972

E93E

E90A

E8D6

E8A2

E86E

E83A

E806

E7D2

Jitter value

(%)

4.7

4.8

4.9

5.0

5.1

5.2

5.3

5.4

5.5

5.6

5.7

5.8

5.9

6.0

6.1

6.2

6.3

6.4

6.5

6.6

6.7

6.8

6.9

7.0

7.1

7.2

7.3

7.4

7.5

7.6

7.7

7.8

7.9

8.0

8.1

8.2

8.3

8.4

Indicated

on the LCD

E79E E76A E736 E702 E6CE E69A E666 E632 E5FE E5CA E596 E562 E52E E4FA E4C6 E492 E45E E42A E3F6 E3C2 E38E E35A E326 E2F2 E2BE E28A E256 E222 E1EE E1BA E186 E152 E11E E0EA E0B6 E082 E04E E01A

Jitter value

(%)

8.5

8.6

8.7

8.8

8.9

9.0

9.1

9.2

9.3

9.4

9.5

9.6

9.7

9.8

9.9

10.0

10.1

10.2

10.3

10.4

10.5

10.6

10.7

10.8

10.9

11. 0

11. 1

11. 2

11. 3

11. 4

11. 5

11. 6

11. 7

11. 8

11. 9

12.0

12.1

12.2

Indicated

on the LCD

DFE6 DFB2 DF7E DF4A DF16 DEE2 DEAE DE7A DE46 DE12 DDDE DDAA DD76 DD42 DD0E DCDA DCA6 DC72 DC3E DC0A DBD6 DBA2 DB6E DB3A DB06 DAD2 DA9E DA6A DA36 DA02 D9CE D99A D966 D932 D8FE D8CA D896 D862

Jitter value

(%)

12.3

12.4

12.5

12.6

12.7

12.8

12.9

13.0

13.1

13.2

13.3

13.4

13.5

13.6

13.7

13.8

13.9

14.0

14.1

14.2

14.3

14.4

14.5

14.6

14.7

14.8

14.9

15.0

15.1

15.2

15.3

15.4

15.5

15.6

15.7

15.8

15.9

16.0

1-26 (No.MA250)

Calculation

Indicated on the LCD Jitter (%)

E9A6 7.5

4.6 Service mode

4.6.1 Standard input/output conditions

Power supply voltage DC14.4V(11 to 16V)

Load impedance 4Ω(2 Speakers connection) Line Output 20KΩ

4.6.2 Service mode setting procedure

(The DVD does not need to be loaded before starting the following procedure.)

[SOURCE] button

[DISC UP] button

[STANDBY/ON ATTENUATOR] button

(1) Press a [STANDBY/ON ATTENUATOR] button on a main unit and switch it on. (2) Keep this state more than 2 seconds while continuing pressing the [SEL] button, [STANDBY/ON ATTENUATOR] button and

[SOURCE] button sequentially.

(3) This unit is set by a service mode.

*Exchanging it operate a menu of a service mode with the [DISC UP] button and [DISC DOWN] button.

Operate choice of a menu with a [SEL] button.

[SEL] button

[DISC DOWN] button

4.6.3 Operation procedures

Keep this state more than 2 seconds while continuing pressing the [SEL] button, [STANDBY/ON ATTENUATOR] button and [SOURCE] button sequentially.

The unit enters the service mode.

"INIT ALL" is Press the [SEL] key Initialize all data to the factory setting indicated on the LCD.

"VERSION" is Press the [SEL] key Microcomputer version display indicated on the LCD.

"AREA/RGN" is Press the [SEL] key Destination area/region display indicated on the LCD.

:The system control EEPROM is initialized entirely.

S-XXX-YY System control CPU

version/ROM correction version

DVD-XXXX DVD version USB-XXXXφ USB version

*Exchanging it operate each indication with the [DISC UP] button and [DISC DOWN] button.

STS-X XX System control destination DVD-X XX DVD unit destination DVDRGN X DVD unit region *Exchanging it operate each indication with the [DISC UP] button and [DISC DOWN] button.

BA

(No.MA250)1-27

BA

"CLR ERR" is Press the [SEL] key Clear loading/ejection error history indicated on the LCD.

:The error history stored in the EEPROM is cleared.

"CD ERROR" is indicated on the LCD.

Error code (1 byte)

First byte [01] Eject error

Detailed error code (2 bytes)

First byte Higher 4 bits Route NO. (Process of error occurrence)

Second byte bit7

(Example) When a switch status error occurs during loading route 3 and

Route No.(EJECT route No.)

Press the [SEL] key Read loading and ejection error history

:The error history saved in the system control is read and displayed.

TOT-xxxx : Total error count.

Total error count (A figure between 0 and 9999 is

displayed. 10000 or more is also displayed as 9999.)

Enyyzzzz: Latest three error code.

Detailed error code Error code

Counter

0nyyzzzz: First five error code

Detailed error code Error code

Counter

*Exchanging it operate each indication with the

[DISC UP] button and [DISC DOWN] button.

[02] Loading error

*Displayed with loading/ejection error only.

. . . .

Refer to charts 1.1 and 1.2.

Lower 4 bits Error type

. . . .

[1] Time out [2] Switch status error [3] Swinging error

. . . .

Disc type (0: 12 cm. 1: 8 cm) bit6,5 bit4 bit3 bit2 bit1 SW 1 status bit0 RESET SW status

. . . .

Fixed at 0 SW 1 status SW 2 status SW 3 status

the switch status is L/L/H/H/H (00111B = 07H), the error code and detailed error code become: [09 3207].

SW1/2/3/4 [Rest SW] Loading Eject Reload

-

1(2)

2(2)

3(1)

1,1,1,1 [0] No Disc No Disc

0,1,1,1 [0] Disc insert Disc push in

0,0,1,1 [0] Eject

0,0,0,1 [0] Reload start

0,0,1,1 [0]

0,1,1,1 [0]

1,1,1,1 [0]

1,1,1,0 [0]

1,1,1,0

[1]

detection

completion

Load completion Eject start Load completion

Chart 1.1 12cm Disc switch status transition

1-28 (No.MA250)

DC

Route No.(EJECT route No.)

-

1(2)

2(2)

3(1)

SW1/2/3/4 [Rest SW] Loading

1,1,1,1 [0] No Disc No Disc Disc push in

0,1,1,1 [0] Disc insert Eject

0,0,1,1 [0] Reload start

0,1,1,1 [0]

1,1,1,1 [0]

1,1,1,0 [0]

1,1,1,0 [1] Load completion Eject start Load completion

*Transition in the center loading (Similar to 12cm in the side loading)

Chart 1.2 8cm Disc switch status transition

*

detection completion

Eject Reload

"DVD-TEMP" is Thermistor's temperature data readout

Press the [SEL] key

indicated on the LCD. : Data in the temperature sensor in the DVD unit

is read every 5 seconds and displayed in hex numbers.

"SYS-TEMP" is

Press the [SEL] key

Thermistor's temperature data readout

indicated on the LCD. : Data in the temperature sensor in the system control

is read every 5 seconds and displayed in hex numbers.

"CHK MODE" is DVD unit check mode

Press the [SEL] key

indicated on the LCD. (See section " DVD unit check mode" for details.)

"RUNNING" is Running mode: For use in running tests.

Press the [SEL] key

indicated on the LCD.

"MEMCHECK" is Memory check

Press the [SEL] key

indicated on the LCD. : The remaining data capacity of the disc is displayed on

the LCD.

"INIT" is Initialize user set data

Press the [SEL] key

indicated on the LCD. : The system control EEPROM is initialized except for the

loading/ejection error history.

(No.MA250)1-29

4.6.4 DVD unit check mode

Change LCD indication with a [FF ] button and a [REW ] button.

Check item list

No. A/D key DVD unit operation Indication contents

1 [1] Start at normal speed NORMPLAY

2 [2] Tracking off on the outermost position of CD EF-BAL

3 [3] Tracking off on the innermost position of CD EF-BAL

4 [4] CD_LD lights and laser current is displayed CDLD ON

5 [5] DVD_LD lights and laser current is displayed DVDLD ON

6 [6] DVD x1 jitter measuring mode DVDx1JIT

7 [DISP] Indication of EEPROM contents ROM DATA

8 [SOURCE] Initialization of EEPROM contents ROMCLEAR

9 [SEL] Indication of temperature TEMP

10 [MODE] Search & jitter measurement to an appointed DVD JIT

11 [BAND] Setting of MONITOR terminal MONITOR

12 [DISC UP

13 [DISC DW

Example of LCD indication

(After start, it is measured JITTER on the CUR Laser current value internal position) JIT Jitter value

(for use in mechanism measurement) CUR Laser current value

position of DVD PLC (Position measured with

]

DVDx1 double speed start PLAY (After start, it is measured JITTER on the CUR Laser current value

internal position) JIT Jitter value

]

Disc stopped & LD-OFF STOP

* * * *

OUTTROFF For EF phase error

INNTROFF For EF phase error

CUR Laser current value

* * * *

JIT Jitter value

* * * *

CUR Laser current value

* * * *

JIT Jitter value

* * * *

JIT Jitter value

* * * *

ADDR EEPROM address

* * * *

DATA EEPROM contents

* * * *

TEMP Temperature

* * * *

JIT VT-501 jitter value)

* * * *

M1

* * * *

M2

* * * *

* * * * * * * *

Note :

• In the case of the jitter measurement: Begin a service mode after insert a disc.

• Press key [1] of No.1 before an item in which the No.2 or 3 key is pressed.

• Press key [1] of No.1 or key [12] of No.12 before an item in which the No.10 key is pressed and confirm the indication of jitter value on the LCD.

• No.6 starts only a DVD1 layer disc. Even other discs start DVD1 layer.

• When No.1 and No.12 are pushed after jitter indication, a focus jump is executed. (only DVD2 layer)

• Stop a disc before OPEN, CLOSE by all means.(OPEN and CLOSE are not executed in a disc turn.)

• The check mode can be exited either by pressing the [POWER] key or by resetting the unit.

1-30 (No.MA250)

SECTION 5

TROUBLESHOOTING

This service manual does not describe TROUBLESHOOTING.

(No.MA250)1-31

Victor Company of Japan, Limited Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,Gumma-ken, 371-8543,Japan

(No.MA250)

Printed in Japan

VPT

SCHEMATIC DIAGRAMS

DVD/CD RECEIVER

KD-ADV6270J,KD-DV6200J,KD-DV6201E

KD-DV6201EU,KD-DV6202E,KD-DV6202EU

KD-DV7205U,KD-DV7205UN,KD-DV7205UT

KD-DV7205A,KD-DV7206U,KD-DV7206UN

KD-DV7206UT,KD-DV7206A,KD-DV6207EE

CD-ROM No.SML200603

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

Contents

Block diagram Standard schematic diagrams Printed circuit boards

2-1 2-3 2-17 to 20

No.MA250SCH

2006/3

Safety precaution

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.

< MEMO >

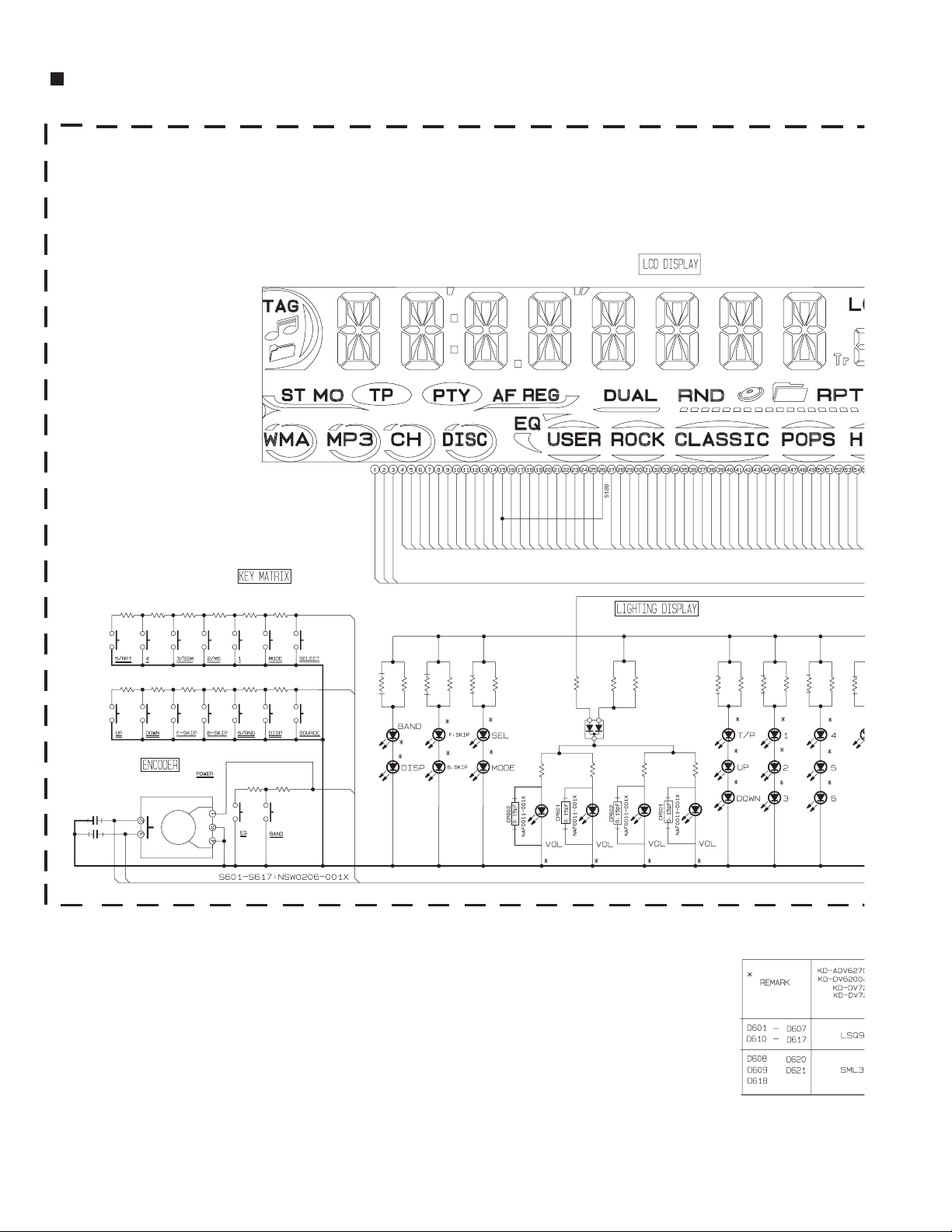

Block diagram

e

0

M

R

M

L

H

L

H

o

T

FOCUS

&

TRACKING

COIL

PICK UP

LOAD&FEED MOTOR

SPINDLE MOTOR

SW1 to SW3

DVD section

CN403

CN962

FAN MOTOR

W21 ANT

M

CN101

CD VR, DVD VR

CD/DVD

FLM+

M

FLM-

H1+,H1H2+,H2H3+,H3-

CN201

SM1 to Sm3 VH

Q105 to Q107

A,B,C,D,E,F,RF+,RF-,LPC1,LPC2,HANGUP

DVD LD

Q101

LPCO1 DVDLDCUR

Q102

CD_LD

Q103

LPCO2 CDLDCUR

Q104

F+,FT+,T-

/DRVMUTE, VHALF TRDRV, FODRV TRSDRV, DRVCONT

IC201

DRIVER

LDIN

IC251

SP MOTOR

Q231

SPDRV /SPMUTE FG

LM

DRIVER

MA0 to MA11 MDQ0 to MDQ31 DQM0 to DQM3 BA0,BA1,MCK NWE,NCSM

IC399

NCAS,NRAS

IC301 DV3.2

AOUT3 BCK LRCLK PCMCLK DACPDN DACOCS DCLK DD ATA

LRMUTE UCS,SCS SCLK U2SDT,S2UDT DAC4OUT TX

EPDIO EPSK EPCS

CPURST

IC401

D/A

AOUTL+ AOUTLAOUTR+ AOUTR-

IC411

AMP

IC481

EPROM

L-CH R-CH

SDRAM

IC304

RESET

D1.2V

IC302

2V to 1.2V REG.

D2V

SW1,SW4

CN202

SW2,SW3

SW1

TRVSW

IC398

FLASH ROM

SW4

SW4,SW5

EXADT0 to EXADT15 EXADR16 to EXADR20 EXDAT0 to EXDAT15 NEXOE,NEXCE NEXWE,/FL_RST

Q301

Q302

Main amplifi

USED FOR KD-DV6201 KD-DV6202 KD-DV6207

IC961,IC962

LEVEL

CONVERTOR

CN821

TU21

FM/A

TUNE

S701

PAN E

OPEN

SWITC

S702

PAN E DETAC SWITC

IC722

EPRO

IC723 RESET

Q821 t

CON

CN963

FA

2-1

LCD & Key control section

REMOCON

COM1 to COM3

LCD1

LCD

S1 to S52

DRIVER

IC602

REMOCON

LCDCL LCDDA LCDCE

IC601

LCD

S601 to S617 KEY MATRIX

DIMOUT

Q640,Q641

D601 to D618

D620,D621 D645,D646

LIGHTING

DISPLAY

KEY0 to 2

ENC1 ENC2

EN601

ENCODER

D600

LED

CN600

CN601

CN702

10V

CN7

f

ier section

0 0 0

M

ER

R

1 2

1

7

1

EL

N

CH

2

EL

CH

2

M

3

T

to Q823

AN

TROL

TU.L, TU.R

TU_SDA,TU_SCL,SSTOP Q_OUT,AFS,FSU,SW_FLUG

MPXIN

IC71

RDS

DETECTOR

RDSDA RDSSCK

DVDL,DVDR

CN961

LRMUTE,CPURST SCS,UCS,SCLK U2SDT,S2UDT,SW1,SW4

COMPOSITE,TX

P_OPEN

PDETACH

EPCLK EPDAI EPDAO

RESET

FAN

KEY0 to 2 LCDCL LCDDA LCDCE REMOCON ENC1,ENC2 DIMOUT

IC721

CPU

HPDATA HPCK HPSTB

Q781, Q782

MUTE

CONTROL

VOLDA,VOLCK VOLMUTE SACLK,SAOUT

IC431

HEADPHONE

E.VOLUME

MUTE

ANT,PON

TELMUTE TELCONT

Q891,Q892

TEL MUTE

PBRK

DIMMER

USB/CH

I/O,BUSINT BUSSO,BUSSCK

SI/SO

Q885 Q881

DVDL DVDR

IC161

E.VOLUME

TEL

PAR K

ILL

Q161,Q162

IC801

JVC BUS

USB/CH SWITCH

IC421

HEADPHONE

AMP.

LOUT,ROUT

LINE-L, LINE-R

Q421, Q422,Q431, Q432

HEADPHONE MUTING

ONLY USED FOR KD-ADV6270

IC371

5V L-CH LINE AMP.

Q324, Q334,Q344, Q354

LINE OUT MUTING

W-MUTE

Q191, Q192

SUBWOOFER MUTING

MUTE

AMPKILL

Q303

STBY

Q304

OUTLF,OUTRF OUTLR,OUTRR

D2V,D3.3V,P3.3V,A5V,ACC5V D5V,M5V,USB5V,S5V,SW5V A9V,M9V,10V

EACH BLOCK

IC901

REGULATOR

USED FOR

CHL CHR

KD-DV7205 KD-DV7206

VMUTE

COMPOSITE

DOUTMUTE

USB/CH-L USB/CH-R

IC162

SCK

USBL USBR

IC301

POWER

AMP.

AUTO ANT

D851

POWER

ANTENNA

IC411

VIDEO

AMP.

IC401

DIGITAL

TX

MUTE

HNDLEREM

FRONT L+/FRONT R+/REAR L+/REAR R+/-

USED FOR

701

USB_TX,USB_RX USB_RST,USB_MUTE

CN471

KD-DV6201 KD-DV6202

OUTLF OUTRF

OUTLR OUTRR

OUTSW

VOUT

CN421

2nd AUDIO OUT

CN141

LINE INPUT

J331

FRONT LINE OUT

REAR LINE OUT

SUB WOOFER LINE OUT

CN901

SPK BATTERY

J801

CD CHANGER CONTROL

CN411

VIDEO OUT

IC402

DIGITAL OUT

CN831 OE REMOTE

CN532

USB section

IC441

FLASH ROM

XA0 to XA19 XD0 to XD15 OE, WE, RESET NOR_CS, MODE0

IC401

USB

DECODER

IC442

SDRAM

XD0 to XD15 XA0 to XA10 XA13, XA15 XA16, XA20 XA21, WE, SD_CS SD_CLK, SD_CKE

IC451

24Bit DAC

MCLK, BCLK DDATA, DAO LRCK, DCLK DACPDN DACOCS

ADUTL+/ADUTR+/-

MUTE CONTROL

IC452

AMP.

Q401

UART_TX1 UART_RX1 TRST1

L-CH R-CH

USB_MUTE

USB_TX(UART_RX) USB_RX(UART_TX) USB_RST(TRST2)

IC481,IC482

LEVEL

CONVERTOR

USB HD+/-

CN531

USB

2-2

Standard schematic diagrams

C

R

C

0

0/

6

Main section (except KD-DV6201, KD-DV6202 and KD-DV6207)

UDZW6.2B-X

QGA2006C1-04

C155

0.47

C482

0.1

!

R859

10K

0

5.6k

4.7k

0

2.2k

0

R710

2SA1530A/R/-X

R708

R155

C83

4.7/25 R81

22k

R91

22k

C93

4.7/25

R14

0

R15

2k

47k

R17

0

Q2

R18

0.22/50

RT1N141C-X

C9

Q476

2SA1365/F/-X

R483

Q477

RT1N141C-X

2.2k

R722

R723

47K

R724

R763

SW1

1k

R709

5.6k 47k

Q701

R750

US

SK

UT

SUDT

CRST

LRM

DL

DR

S4

S1

DA4

CN962

QGF0534F3-45X

TU21

!

QAU0443-002

L2

L1

0.22u

4.7u

R4

CN471

QGB1004J2-16X

CN961

QGB2027M3-30S

COMPOSITE

R962

100

C907

0.01

0.001 C932

47/10

C933

0

R922

C479

R475

R474

R471

LRMUTE

CPURST

S2UDT

SCLK

U2SDT

DVDL

DVDR

VGND

D701

D702

D703

UDZW6.2B-X

100/10

TX

UCS

SCS

SW1

SW4

L902

UDZW6.2B-X

D1

1SS355W-X

100

C473

220/10

USB_MUTE

NQL56CK-220X

C926

QEXF1AM-476Z

RB051L-40-X

D922

KEY0

KEY1

D2

C480

USB_RST

C970

0.047

220/10

C964 220/10

C915

NI

0.047 C971

C969

C965

470/25

KEY2

220/10

1SS355W-X

220/10

100/16

C921

100/10

C925

C927

R929

R926 C930

0.1 C931

100P

2P

C12

47K

R19

CRS03-W

CRS03-W0CRS03-W

D925

D924

D923

220/10

0.001

C968

0.047 C961

C474

C475

220/10

0.001

C963

C911

0

NQL79GM-100X

R967

R961

L921

220/10

C922

D921

1A3G-T1

NQL56CK-220X

L924

39K

L925

R923

NQL71EM-330X

C928

0.1

NI

300K

0.1

150K

4700P

10K

R925

C929

R924

0

R927

47k

R928

0.1

C914

ENC2

ENC1

LCDCL

LCDDA

LCDCE

REMOCON

10K

270

10K

R706

R704

R705

R707

W21 QAM0105-003

0.1/16

C966

IC961

SN74LVC32APW-X

R973

22k

US

US1 LRM

LRM1

SN74HCT32APW-X

IC962

C967

0.1/16

QGB2027L9-30X

CN963

SUDT

LRM1

CRST

US1

R975

SK1

22k

R974

UT1

DL

UT

DR

UT1

S1

SK

S4

SK1

DA4

C934

47/10

0.082

R2

1k

0.082

R1

10k

C2

C3

0.1

C1

FSU

SW_FLAG

R9

USB_RX

USB_TX

2SA1530A/R/-X

R479

Q474

R476

220

R477

D471

220/10

UDZW5.1B-X

Q475

RT1N141C-X

C476

2SA1530A/R/-X

R914

220

R910

220/10

UDZW5.1B-X

Q904

RT1N141C-X

C962

D906

!

0

IC921

R921

R969

R968

BA33BC0FP-X

B922

0

L927

NI

IC922

BD9781HFP-W

UDZW6.2B-X

D704

UDZW6.2B-X

D705

UDZW6.2B-X

D706

D707

UDZW6.2B-X

D709

UDZW6.2B-X

D710

UDZW6.2B-X

C701

0.01

C702

0.1

D711

UDZW6.2B-X

CN701 QNZ0605-001

C11

C10

0.082

47K

R480

R478

2.2K

Q903

R909

2.2K

!

560

R860

R5

SSTOP

R10

R11

4.7k

0

47K

R485

47K

WJK0224-001A-E

CN702

33

TU_SDA

4.7k

10k

R7

R6

33

C4

0.1

TU_SCL

C5

IC71

47/16

C74

LC72725NM-X

R725 47K

C721

0.047 C722

220/10

C723 470P

LRMUTE

SCS

CPURST

USB_RST

R3

1K

3.3k

C6

C7

0.1

0.1 C81

C91

220/10

C8

R8

Q_OUT

R12

4.7

R13

6.8

R71

100

RDSSCK

RDSDA

2K

330P

10/16

C71

R72

C73

0.01 C72

560p

0.01

10k

C76

1A3G-T1

0

33P

C77

X71

QAX0263-001Z

R481

10K

D472

0

R861

HPMUTE

DOUTMUTE

VMUTE

DIMMER

PBRK

ANT

PON

DIMOUT

TELMUTE

TELCONT

FAN

C78

BA05CC0WT-V5

C477

MUTE

RA722

R738

R758

R759

33P

IC471

C478

0.1

100/10

IC721

UPD784218AGC329

VOLMUTE

AMPKILL

R727

R728

R729

R731

R733

R734

NRZ0065-222X

R769

R739

D719

SLR-56VC3F

R73

2.2k

R726

R735

10K 47K

VPP

4.7K

220k

560

47/6.3

C75

0.01

C999

C997

Parts are safety assurance parts. When replacing those parts make sure to use the specified one.

C428

4.7/25

DVDR

DVDL

C438

D141

D142

LINE-R

LINE-G

LINE-L

TU.L

TU.R

RDSDA

2.2K

R845

R745

R746

QAX0617-001Z

27P

C728

4.7/25

R452

22k

C451

22k22k1047/6.3

R451R441

47/6.3

C441

R442

22k

R461

C166

10/16

DVDL

QTE1H55-225Z

C172

DVDR

C182

QTE1H55-225Z

TU.L

2.2/50

C171

TU.R

2.2/50

C181

LINE-L

C175

LINE-G

470P

C185

LINE-R

470P

NI

47k

R842

R843

R844

AFS

SSTOP

0

10k

R720

R719

10k

R718

2.2k

10M

2.2k

R740

R753

UCS

REMOCON

R755

RESET

47K

10k

RESET

VDD

GND

33k

X722C729

QAX0401-001

R751

22P

BUSINT

HNDLEREM

22/16

C461

HPSTB

HPDATA

HPCK

0

100/10

C161

C162

0.047

C164 1

R841

SW_FLAG

2.2K

R754

22k

R752

C163 1

R152 0

R142 0

TU_SCL

QSW1049-001Z

R161

C165

1

C174

2.2/50

C168

C184

2.2/50

TU_SDA

330

R715

R717

R848

270

R716

TD

RD

SCK

R779

R799

R778

R777

R776

R775

R774

R773

R772

R771

R770

R766

R768

R767

NRZ0065-103X

IC723

MAINRESET

S723

UDZW6.2B-X

R756

D732

CN141

D151

D152

470

47K47K

R141R151

C141C151

470P

C94

C84

R92

R82

AFS

47K

R482

1K

R484

10K

USB_3.3V

HPCK

9VSW

HPSTB

SACLK

VOLDA

VOLCK

W-MUTE

HPDATA

2.2k

R721

R730

10k

ENC1

ENC2

R749

2.2K

NRZ0065-222X

R850

RA721

3.9K

3.9K 100p

10k

820

R765

L721

R846

R847

R744

C734

SW4

LCDDA

LCDCL

NQL38DK-330X

NI

R747

R748

X721

220/10

470P

8P

C725

C727

C726

C724

4.7/25

IC431

LC75344M-X

C427

4.7/25

0.1

10

R462

C463

47K

R162

R163

47K

BR24L16F-W-X

C733

470P

R713

R711 R780

2.2k

10K

1k

4.7k

220

3.9k

47K

RA723

S-80833CNNB-G-W

C730

2.2k 47/6.3

C437

47/16

C462

220

10k

0

R439

IC722

0

R812

R785

NAD0028-103X

4.7K

R760

6.8K R437

100K100K

R438

1

4.7K

IC421

NJM4580V-X

C426 C436

220P 220P

R428

4.7K

C425

100P

R429

6.8K

R427

W-MUTE

R165

47K

R164

1

C267

1

R166

22

IC161

TDA7416

100k

R714

100k

R712

SCLK

S2UDT

U2SDT

USB_TX

USB_RX

LCDCE

FSU

Q_OUT

47K

10K

TH721

KEY2

KEY1

KEY0

4.7K

R761

R762

RDSSCK

D731

47k

0.01

1SS355W-X

C731

R757

2-3

R436

HPCK

18K

6.8K R437

100K100K

R439

C437

R438

4.7K

4.7/25

IC431

LC75344M-X

22/16

10

C461

R462

IC421

NJM4580V-X

C426 C436

C427

220P 220P

4.7/25 R428

4.7K

C425

100P

47/16

0.1

R429

R427

C462

C463

C435

C434

150P

100P

C424

150P 220/10

C465

R426

18K

10

6.8K R463

C433

220/10

C423

C464

47/16

0.1

R434

39 22

1k

R435

1k

R425

D431

R424

1SS355W-X

R432

2.2K

R422

2.2K

D421

1SS355W-X

R431

470P470P

KTD1304-X

Q431

C431

C421

Q421

R421

KTD1304-X

2239

CN421

Q432

QGA2006C1-04

L431

NQR0007-002X

R433

2.2K KTD1304-X

L430

NQR0007-002X

R423

L421

2.2K

NQR0007-002X

Q422

KTD1304-X

0.022

C430

1SS355W-X

D192

RT1P441C-X

Q192

C191

47/6.3

R191

4.7k

470

R197

Q191

KTD1304-X

R192 820

Q334

Q324

C311

CRS03-W

R981

CRS03-W

470

R824

SN74AHCT1G08V-X

R401

470

L411

0

4.7/16

D308

C307

C360

0.1

D307

Q822

RT1P141C-X

Q821

RT1N141C-X

220/10

C411

C308

C851

C316

C340

0.1

C309

IC401

R405

0

0.047

C412

R356

100

R336

100

R326 100

R346

0.01

D309

C310

R982

2.2K2.2k

0.1

2SC4485/ST/-T

D821

R832 270

6.8k

R412

D310

R851

IC411

C413

R417

100

4.7K

Q823

UDZW12B-X

MM1510XN-X

1.5

180

100P

C335

100P

C325

Q301

RT1N441C-X

C821

10/16

K831

NQR0007-002X

D831

22p

0.01

C401

C402

0.01 C302

C902

2.2/50

GND

C822 10/16

UDZW6.2B-X

NQR0007-002X

0.01

C403

100P

C355

100P

C345

Q302

RT1P441C-X

C801

NI

CRS03-W

R402

10

K401 NQR0007-002X

D401 CRS03-W

L401

NQR0007-002X

330/6.3

R410

C415 100P

TEL

PARK

R403

470

K402

C414

D301

ILL

C889

CHR

0

UDZW11B-X

R901

NI

C823

0.01

C416

0.01

C301

47/16

1k

R889

R883

QEZ0722-338

R404

2.2

C404

R414 1K

R194

0.022

C331

R894

0

100k

QQR1378-002

C901

CHL

QNZ0095-001

D801

QGA2001C1-02

QGA2006C1-02

C831 100P

IC402

TOTX177L

100/6.3

75

B921

K922

NQR0201-004X

R193 100

0.047

C156

L901

D901

1N5401-F64

!

J801

SI/SO

22p

C405

C406

VOUT

R415

R416

0

NQR0201-004X

0

100

J331

CN901

QNZ0607-001

!

SCK

CN821

CN831

R831 0

0.01

CN411

QGA2501F1-02

K411

24K

R386

R375

4.7/25

C380

0.0015

C783

IC371

NJM2792V-X

220/10

CD4066BPW-X

47/16

QSW0451-001

S702

D783

D903

IC162

R172

2.2k

D782

Q783

UDZW11B-X

PDETACH

Q976

R388

R387

R385

MC2836-X

RT1P141C-X

1SS355W-X

RT1N441C-X

36K

RT1P141C-X

UDZW6.2B-X

D717

47/6.3

C384

C391

C392

36K

24K

R782

R781

Q782

HPMUTE

2SA1530A/R/-X

B106

B103

36K

R377

C373

220/10

C379

4.7/25 36K

R378

0.0015

24K

B104

B105

47/6.3

R376

C374

C377

R171

2.2k

R173

0

MC2836-X

R976

Q371

D781

56k

C390

100/10

2SA1530A/R/-X

R379

2.2K

Q372

RT1N141C-X

2.2/50 C187

C170

RT1P141C-X

C781

47/6.3

220/10

0.01

C918

C919

R390

0

R380

47K

CHR

CHL

0.01

C169

10/16

9V

R891 47K

Q781

Q891

Q892

RT1N141C-X

TELMUTE

TELCONT

MUTE

0.1

10/16

100/10

C903

C904

C905

C906

ANT

R977

18k

0.1

C389

470

C782

47/6.3

Q977

W-MUTE

HPSTB

R165

47K

0

R161

C165

1

47K

R162

C174

2.2/50

R163

47K

2.2/50

C168

C184

2.2/50

TU_SDA

330

BR24L16F-W-X

R715

R717

270

R716

C733

470P

SCK

TD

RD

R713

R711 R780

R779

R799

R778

R777

R776

R775

R774

R773

R772

R771

R770

R766

R768

R767

RA723

NRZ0065-103X

IC723

S-80833CNNB-G-W

MAINRESET

C730

UDZW6.2B-X

R756

2.2k 47/6.3

D732

47K

R164

C267

10/16

R166

220

VOLMUTE

IC161

TDA7416

IC722

100k

R714

10k

100k

R712

SCLK

2.2k

S2UDT

2.2k

U2SDT

2.2k

10K

1k

4.7k

USB_TX

220

USB_RX

220

3.9k

47K

LCDCE

0

FSU

0

Q_OUT

0

R812

47K

R785

10K

TH721

NAD0028-103X

KEY2

KEY1

KEY0

4.7K

R760

R761

R762

RDSSCK

D731

47k

0.01

1SS355W-X

C731

R757

SAOUT

SACLK

VOLCK

VOLDA

USBL USBR

SAOUT

C732

USB_MUTE

R373

100K

R384

R371

R382

C378

R381

100K 100K

R374 R383

R372

9VSW

C176

2.2/50

C177

2.2/50

C186

Q161

2.2/50 RT1N141C-X

Q162

RT1N141C-X

USB/CH

D785

1SS355W-X

Q784

RT1P141C-X

D784

UDZW11B-X

C784

47/16

P_OPEN

I/O

BUSSCK

BUSSO SI/SO

220/10

R857

0

QSW0451-001

S701

L722

NQL114K-470X

UDZW6.2B-X

D716

D302

1SS355W-X

AMPKILL

R892 1K

D891 MC2836-X

R893

3.3k

0.001

C910

4.7/25

C356

C336

47k47k

4.7/25

R353R343

C326

4.7/25

C346

4.7/25

R337

0

R357

0

47K

47K47K

R358

R338R348

47K

R347

R328

0

R327

0

R304

47k

R308

2.2k

10

R307

C315

22/16

R306

Q304

RT1N141C-X

ILL

TEL

R882

10K

R881

R885

47k

RT1N141C-X

Q881

C891

C892

0.1

C881

0.1 22/16

PBRK

DIMMER

2SC3928A/R/-X

!

IC901

R2S25401DS-E

220/10

100/16

C908

C909

PON

I/O

SI/SO

BUSSO

R811

R805

R804

100k

R803

22K

R802

R801

100

47K

C802

22P

IC801

SN74AHC126NS-X

R333

47k

R323 47k

C338 1/16

C358

1/16

C348

1/16

C328 1/16

27k

RT1N141C-X

0

10k

TB2904HQ

Q303

D885

1SS355W-X

R886

4.7k

Q885 RT1N141C-X

0.047

C913

R355

1K

R354

R335

1K

2.2k Q354

1SS355W-X

D354

D334

1SS355W-X

D324

1SS355W-X

D344

1SS355W-X

1K

R325

1K

R345

IC301

R340

R339

1k

R360

R359

1k

100P

C359

C339

100P

R350

R349

C349

C329

1k

R330

R329

1k

C330

0.1

R302 0

R305

10k

C314

2.2/50

C303

D303

CRS03-W

PARK

R888 0

R887 10k

9.1K

R902

C885

10/16

SW5V

22/16

C912

10V

R903

4.7K

SCK

BUSINT

BUSSCK

R806

100K

R807

330

R808 22k

R809

100

C804

R810

C803

22P

47K

0.047

KTD1304-X

R334

2.2k

KTD1304-X

R324

2.2k

R344

KTD1304-X

2.2k

Q344

KTD1304-X

0.01

C313

C312

47/16

C350

0.1

D305

CRS03-W

C304

C305

C306

D304

D306

D981

C981

D982

0.1

D851

CRS03-W

D852

R821

10

470

R822

22k

R825

FAN

HNDLEREM

DOUTMUTE

TX

VMUTE

R413

10

NQL114K-470X

COMPOSITE

R411

VGND

2-4

Main section (for KD-DV6201 and KD-DV6202)

7

IC421

K

U

S

E

X

C

TU21

!

QAU0443-002

L1

L2

US

SK

UT

SUDT

CRST

LRM

DL

DR

S4

S1

DA4

CN962

US

US1 LRM

LRM1

QGF0534F3-45X

C966

SN74LVC32APW-X

SN74HCT32APW-X

C967

0.22u

4.7u

NI

C479

R475

R474

R471

QGB2027M3-30S

R962

100

LRMUTE

CPURST

S2UDT

U2SDT

VGND

COMPOSITE

C907

0.01

0.001 C932

47/10

C933

0

R922

D701

D702

D703

UDZW6.2B-X

100/10

TX

UCS

SCS

SCLK

DVDL

DVDR

SW1

SW4

L902

UDZW6.2B-X

D1

1SS355W-X

100

C473

220/10

USB_MUTE

NQL56CK-220X

C926

QEXF1AM-476Z

RB051L-40-X

D922

KEY0

KEY1

UDZW6.2B-X

C480

C970

0.047

220/10

C964 220/10

D2

220/10

USB_RST

0.047 C971

C969

C965

C921

C925

220/10

C927

470/25

C931

100P

C915

KEY2

R4

1SS355W-X

100/16

220/10

C922

100/10

R929

R926

C930

0.1

R1

2P

C12

47K

R19

CRS03-W

CRS03-W0CRS03-W

D925

D924

D923

220/10

0.001

C968

0.047 C961

220/10

C474

C475

0.001

220/10

C963R927

C911

!

0

NQL79GM-100X

R961

L921

R967

D921

1A3G-T1

NQL56CK-220X

L924

39K

L925

R923

NQL71EM-330X

C928

0.1

NI

300K

150K

4700P

10K

R925

C929

R924

0

47k

R928

0.1

C914

ENC1

ENC2

LCDCL

LCDDA

LCDCE

REMOCON

10K

270

10K

R707

R706

R704

R705

W21 QAM0105-003

CN471

QGB1004J2-16X

0.1/16

IC961

SUDT

CRST

R973

R975

22k

R974

UT

UT1

SK

SK1

IC962

0.1/16

CN961

QGB2027L9-30X

CN963

LRM1

US1

SK1

UT1

DL

DR

S1

S4

DA4

C934

47/10

R2

10k

0.1

C1

SW_FLAG

220/10

C476

220/10

C962

BA33BC0FP-X

B922

L927

NI

CN701

QNZ0605-001

1k

0.082

C2

FSU

USB_RX

2SA1530A/R/-X

Q474

R476

220

D471

UDZW5.1B-X

RT1N141C-X

R914

220

UDZW5.1B-X

RT1N141C-X

D906

IC921

R921

0

D704

D705

D706

D707

D709

D710

C701

C702

D711

0.082

C3

Q475

Q904

0

R968

IC922

UDZW6.2B-X

0.01

0.1

UDZW6.2B-X

C11

0.082

R9

47K

USB_TX

R479

2.2K

R477

Q903

2SA1530A/R/-X

2.2K

R910

0

R969

BD9781HFP-W

560

C10

SSTOP

R10

4.7k

R480

R478

47K

R485

47K

R909

!

R860

WJK0224-001A-E

CN702

R5

33

TU_SDA

R11

4.7k

0

47K

C428

4.7/25

DVDR

DVDL

C438

D141

D142

TU.L

TU.R

8.2k

AFS

RDSDA

2.2K

R845

R720

R745

R746

QAX0617-001Z

27P

C728

4.7/25

R452

22k

C451

22k22k1047/6.3

R451R441

HPDATA

C174

C168

C184

HPCK

22/16

C461

HPSTB

330

R717

UDZW6.2B-X

D732

2.2/50

TU_SDA

TD

MAINRESET

LC75344M-X

R462

0

R161

1

C165

R162

R715

270

R716

SCK

RD

R779

R799

R778

R777

R776

R775

R774

R773

R772

R771

R770

R766

R768

R767

NRZ0065-103X

IC723

R756

47/6.3

C441

R442

22k

R461

100/10

C161

C162

0.047

C163

1

C164 1

C166

10/16

QTE1H55-225Z

DVDL

C182

C172

DVDR

QTE1H55-225Z

2.2/50

TU.L

C171

2.2/50

TU.R

C181

R152

LINE-L

0

C175

470P

LINE-G

R142

C185

0

470P

LINE-R

NI

47k

NI

R844

R842

R843

R841

SSTOP

0

10k

R719

10M

2.2k

R740

UCS

RESET

47K

RESET

X722C729

QAX0401-001

BUSINT

22P

TU_SCL

SW_FLAG

330

R848

10k

R718

2.2k

2.2K

R754

R753

REMOCON

R755

10k

VDD

S723

GND

33k

QSW1049-001Z

22k

R751

R752

HNDLEREM

UDZW6.2B-X

R3

C74

560p

LC72725NM-X

0.01

C997

R725

47K

C721

0.047 C722

C723 470P

SCS

USB_RST

1K

3.3k

C6

C7

0.1

0.1 C81

C91

220/10

C8

R8

Q_OUT

R12

4.7

R13

6.8

R71

100

RDSDA

RDSSCK

2K

330P

10/16

C71

R72

C73

0.01 C72

47/6.3

0.01 10k

R73

33P

X71

C75

C76

C77

C78

QAX0263-001Z

IC471

BA05CC0WT-V5

R481

10K

1A3G-T1

D472

C478

C482

0.1

C477

100/10

0

R861

C999

HPMUTE

R723

IC721

UPD784218AGC328

!

VOLMUTE

R859

2.2k

DOUTMUTE

VMUTE

10K

MUTE

R726

R735

DIMMER

0

PBRK

ANT

AMPKILL

R727

5.6k

4.7k

R728

PON

R729

0

DIMOUT

2.2k

TELMUTE

R731

TELCONT

10K

R733 R734

47K

RA722

NRZ0065-222X

R769

0

FAN

VPP

4.7K

R738

4.7K

R739

R758

220k

R759

220k

R710

2SA1530A/R/-X

R708

560

D719

SLR-56VC3F

10k

R7

R6

33

C5

C4

0.1 47/16

TU_SCL

IC71

220/10

LRMUTE

CPURST

CN141

QGA2006C1-04

D151

C155

D152

0.47

470

R155

C83

4.7/25 R81

22k

R91

22k

C93

4.7/25

0

R14

2k

R15

47k

R17

Q2

R18

0.22/50

RT1N141C-X

C9

Q476

2SA1365/F/-X

R483

Q477

RT1N141C-X

47K

R724

1k

R709

5.6k

Q701

47K47K

R141R151

C141

C151

LINE-R

470P

LINE-G

LINE-L

8.2k

R92

C94

C84

R82

0

AFS

47K

R482

1K

R484

10K

USB_3.3V

HPCK

HPSTB

SACLK

VOLDA

VOLCK

2.2k

R722

R721

10k

R763

SW1

ENC1

NI

47k

R749

R750

9VSW

HPDATA

W-MUTE

2.2k

R730

ENC2

2.2K

NRZ0065-222X

R850

RA721

3.9K

10k

100p

820

R765

L721

R846

R847

R744

C734

SW4

LCDDA

NQL38DK-330X

LCDCL

NI

47k

R748

R747

X721

220/10

470P

8P

C724

C725

C727

C726

C437

4.7/25

IC431

C427

4.7/25

47/16

0.1

10

C462

C463

47K

R163

47K

BR24L32F-W-X

C733

470P

10k

R713

10k

R711

R780

2.2k

10K

1k

4.7k

220

3.9k 47K

0

R785

RA723

S-80833CNNB-G-W

C730

2.2k 47/6.3

R439

IC722

R812

NAD0028-103X

4.7K

R760

6.8

R43

100K

R438

4.7K

220P

C426 C436

220P

R428

4.7K

100K

R429

R164

R16

IC161

TDA7416

100k

R

100k

R

SC

S2

U2

USB_T

USB_R

LCD

F

Q_O

47K

10K

TH721

K

4.7K

R761

R762

RDSS

47k

0.01

C731

R757

Parts are safety assurance parts. When replacing those parts make sure to use the specified one.

2-5

1

R436

R848

S723

0

330

47/6

3

18K

6.8K R437

R439

100K

C437

R438

4.7K

4.7/25

220P

HPCK

22/16

C461

HPSTB

2.2/50

330

R717

MAINRESET

UDZW6.2B-X

D732

IC431

LC75344M-X

10

R462

0

R161

47K

C165

1

R162

R163

2.2/50

TU_SDA

R715

270

R716

C733

TD

RD

SCK

R713

R711 R780

R779

R799

R778

R777

R776

R775

R774

R773

R772

R771

R770

R766

R768

R767

RA723

NRZ0065-103X

S-80833CNNB-G-W

IC723

R756

2.2k

.

HPDATA

/10

63

C174

C168

C184

C427

4.7/25

47/16

0.1

C462

C463

47K

BR24L32F-W-X

470P

10k

2.2k

10K

1k

4.7k

220

3.9k 47K

0

C730

47/6.3

IC722

0

R812

R785

NAD0028-103X

4.7K

R760

IC421

NJM4580V-X

C426 C436

220P

R428

4.7K C425

100P

100K

R429

R427

47K

R164

R166

IC161

TDA7416

100k

R714

100k

R712

SCLK

S2UDT

U2SDT

USB_TX

USB_RX

LCDCE

FSU

Q_OUT

47K

10K

TH721

KEY2

KEY1

KEY0

4.7K

R761

R762

RDSSCK

D731

47k

0.01

C731

R757

6.8K

R165

47K

1SS355W-X

W-MUTE

C267

220

C435

100P

C424

150P

R426

18K

10/16

SAOUT

VOLMUTE

SACLK

VOLCK

VOLDA

USBL USBR

SAOUT

C732

USB_MUTE

C434

150P

R463

BUSSCK BUSSO

SI/SO

220/10

C464

C465

0.1

10

9VSW

I/O

C433

R434

39 22

220/10

1k

R435

1k

R425

C423

R424

220/10

47/16

R373

0

R371

R381

R372

C176

2.2/50

C186

2.2/50 RT1N141C-X

RT1N141C-X

D785

1SS355W-X

Q784

RT1P141C-X

D784

UDZW11B-X

QSW0451-001

S701

L722

R857

NQL114K-470X

0

R431

R432

2.2K

470P470P

C431

Q431

KTD1304-X

R422

2.2K

D431

1SS355W-X

100K

R384

0

R382

0

100K 100K

R374 R383

0

C177

2.2/50

Q161

Q162

USB/CH

C784

47/16

P_OPEN

D421

1SS355W-X

C380

C378

0.0015

C783

UDZW6.2B-X

D716

IC371

NJM2792V-X

220/10

CD4066BPW-X

47/16

QSW0451-001

S702

C421

KTD1304-X

Q421

R421

2239

24K

R386

4.7/25

36K

R388

C384

36K

R387

24K

R385

IC162

R172

2.2k

D782

MC2836-X

RT1P141C-X

Q783

RT1P141C-X

D783

UDZW11B-X

PDETACH

UDZW6.2B-X

D717

D903

1SS355W-X

2SA1530A/R/-X

Q976

RT1N441C-X

CN421

Q432

QGA2006C1-04

L431

NQR0007-002X

R433

R423

47/6.3

C391

C392

R782

R781

Q782

47/6.3

HPMUTE

L430

2.2K KTD1304-X

NQR0007-002X

L421

2.2K

NQR0007-002X

0.022

Q422

KTD1304-X

C430

0

R375

24K

4.7/25 B106

B103

36K

R377

C373

220/10

C379

4.7/25 36K

0

R378

24K

B105

0.0015

R376

R171

2.2k

R173

0

MC2836-X

R976

C377

Q371

R379

Q372

D781

56k

C390

100/10

2SA1530A/R/-X

2.2K

RT1N141C-X

2.2/50

C170

RT1P141C-X

47/6.3

0.01

C919

B104

R390

0

47K

R380

CHR

C187

CHL

C169

0.01

10/16

9V

R891 47K

Q781

Q891

RT1N141C-X

C781

MUTE

TELMUTE

0.1

220/10

10/16

100/10

C905

C918

C904

C903

R977

18k

47/6.3

C374

0.1

C389

470

C782

Q977

C356

4.7/25

C336

47k47k

4.7/25

R333

47k

R353R343

R323 47k

C326

4.7/25

C346

4.7/25

IC301

TB2904HQ

C338

R339

R337

1/16

1k

0

R359

R357

C358

1k

0

1/16

47K

R358

R338

47K

C348

R349

1/16

R347

R328

1k

R348

0

R327

R329

C328

0

1k

R307

R881

47k

Q881

DIMMER

2SC3928A/R/-X

I/O

BUSSO

10

22/16

C315

ILL

R882

10K

C881 22/16

!

IC901

R2S25401DS-E

IC801

SN74AHC126NS-X

R306

R811

R805

R885

47k

PBRK

1/16

27k

RT1N141C-X

0

10k

Q303

D885

1SS355W-X

R886

4.7k

Q885 RT1N141C-X

0.047

C913

R305

22/16

C912

R304

D302

1SS355W-X

47k

R308

2.2k

Q304

RT1N141C-X

AMPKILL

R892 1K

TEL

D891 MC2836-X

R893

3.3k RT1N141C-X

Q892

C891

C892

0.1

TELCONT

0.1

0.001

220/10

100/16

C908

C909

C906

C910

PON

ANT

SI/SO

R804

100k

R803

22K

R801

R802

100

47K

C802

22P

C191

Q192

RT1P441C-X

47/6.3

D192

1SS355W-X

R355

1K

R335

1K

1SS355W-X

D354

D334

1SS355W-X

D324

1SS355W-X

D344

1SS355W-X

1K

R325

1K

R345

R340

1k

R360

1k

100P

C359

C339

100P

R350

C349

C329

1k

R330

1k

C330

0.1 R302 0

10k

C314

2.2/50

C303

C304

D303

D981

CRS03-W

PARK

R888 0

R887 10k

R902

9.1K

C885

10/16

SW5V

10V

4.7K

R903

SCK

BUSINT

BUSSCK

100K

R806

R807

330

R808 22k

R809

100

C804

R810

C803

22P

47K

0.047

R191

4.7k

R197

470

R354

2.2k Q354 KTD1304-X

R334

2.2k

Q334

KTD1304-X

R324

2.2k

R344

C313

D304

D982

VMUTE

2.2k

0.01

C305

CRS03-W

C306

D851

C312

47/16

C350

0.1

D305

D306

C981

0.1

R821

10

R825

FAN

HNDLEREM

DOUTMUTE

KTD1304-X

Q344 KTD1304-X

CRS03-W

R822

22k

TX

R413 10

COMPOSITE

VGND

CRS03-W

D852

CRS03-W

470

R824

R401

NQL114K-470X

R411

0

Q324

C311

4.7/16

C360

D308

C307

D307

R981

470

Q822

RT1P141C-X

Q821

RT1N141C-X

SN74AHCT1G08V-X

470

L411

R192

Q191

820

KTD1304-X

R356

100

R336

100

100P

C335

C355

100P

R326

C345

C325

100

R346

100

Q301

RT1N441C-X

0.01

C316

0.01

C340

0.1

C308

C412

C309

D309

R982

2.2K2.2k

0.1

2SC4485/ST/-T

R832

270

IC401

R405

0

0.047

R412

C310

6.8k

D821

D310

R851

IC411

C413

R417

4.7K

Q823

UDZW12B-X

MM1510XN-X

1.5

180

C821

C822

10/16

K831

NQR0007-002X

D831

0.01

22p

C402

C401

C302

C902

2.2/50

GND

UDZW6.2B-X

NQR0007-002X

0.01

C403

0.1

C851

220/10

C411

Q302

RT1P441C-X

TEL

PARK ILL

CHR

C801

NI

CRS03-W

R403

R402

10

470 K401 NQR0007-002X

D401

CRS03-W

L401

K402

NQR0007-002X

C414

330/6.3

R410

C415 100P

D301

C889

0

C301

UDZW11B-X

R901

1k

R889

R883

NI

C823

0.01

R404

2.2

R414 1K

C416

0.01

0.022

C331

47/16

R894

100k

C901

QEZ0722-338

CHL

D801

QGA2001C1-02

QGA2006C1-02

C831 100P

TOTX177L

C404

100/6.3

B921

K922

NQR0201-004X

R193 100

R194

C156

0

QQR1378-002

D901

1N5401-F64

!

J801

QNZ0095-001

IC402

C405

VOUT

75

R416

0

NQR0201-004X

0

100

J331

QNN0747-001

0.047

CN901

QNZ0607-001

L901

!

SI/SO

SCK

CN821

CN831

R831

0

22p

C406

0.01

R415

CN411

K411

QGA2501F1-02

2-6

Main section (for KD-DV6207)

6

7

3

7

IC421

K

6

U

C

U

S

E

X

C

TU21

!

QAU0443-002

L1

4.7u

W21 QAM0105-003

D1

1SS355W-X

CN471

QGB1004J2-16X

100/10

C479

R475

100

R474

100

R471

100

C473

220/10

0.1/16

US

SK

UT

SUDT

CRST

LRM

DL

DR

S4

S1

DA4

CN962

US

US1 LRM

LRM1

QGF0534F3-45X

C966

SN74LVC32APW-X

SN74HCT32APW-X

C967

IC961

R973

22k

IC962

0.1/16

QGB2027L9-30X

CN963

SUDT

LRM1

CRST

US1

R975

SK1

22k

R974

UT1

DL

DR

UT

UT1

S1

S4

SK

SK1

DA4

C934

47/10

QGB2027M3-30S

CN961

R962

100

LRMUTE

CPURST

COMPOSITE

C907

0.01

0.001 C932

47/10

C933

0

R922

TX

UCS

SCS

S2UDT

SCLK

U2SDT

DVDL

DVDR

SW1

SW4

VGND

L902

D701

D702

D703

UDZW6.2B-X

USB_MUTE

C970

NQL56CK-220X

C926

QEXF1AM-476Z

RB051L-40-X

D922

KEY0

KEY1

C480

0.047

220/10

C964 220/10

L2

0.22u

NI

D2

220/10

USB_RST

0.047 C971

C969

C965

C921

C925

220/10

C927

470/25

C931

100P

C915

KEY2

R4

1SS355W-X

100/16

220/10

C922

100/10

R929

R926

C930

0.1

C428

4.7/25

DVDR

DVDL

C438

D141

D142

LINE-R

LINE-G

LINE-L

TU.L

TU.R

8.2k

RDSDA

2.2K

R845

R745

R746

QAX0617-001Z

27P

C728

4.7/25

R452

22k

C451

22k22k1047/6.3

R451R441

47/6.3

C441

R442

22k

R461

HPDATA

100/10

C161

C162

0.047

C163

1

C164 1

C166

10/16

QTE1H55-225Z

DVDL

C182

C172

DVDR

QTE1H55-225Z

2.2/50

TU.L

C171

2.2/50

TU.R

C181

R152

0

LINE-L

C175

470P

LINE-G

R142

C185

0

470P

LINE-R

47k

NI

47k

NI

AFS

R841

R842

R843

R844

SSTOP

0

10k

R720

R719

R718

10M

2.2k

R740

UCS

RESET

47K

RESET

33k

X722C729

QAX0401-001

R751

22P

BUSINT

10k

2.2k

R753

REMOCON

R755

10k

VDD

GND

HNDLEREM

R754

22k

R752

SW_FLAG

2.2K

TU_SCL

330

R848

S723

QSW1049-001Z

LC75344M-X

22/16

R462

C461

HPSTB

HPCK

0

R161

C165

1

R162

2.2/50

C174

2.2/50

C168

2.2/50

C184

TU_SDA

330

R715

R717

270

R716

TD

RD

SCK

R779

R799

R778

R777

R776

R775

R774

R773

R772

R771

R770

R766

R768

R767

NRZ0065-103X

IC723

MAINRESET

UDZW6.2B-X

R756

D732

CN141

UDZW6.2B-X

QGA2006C1-04

D151

D152

C155

0.47

470

R155

C83

4.7/25

R14

C482

R723

R724

!

R859

10K

0

5.6k

4.7k

0

1k

R710

2SA1530A/R/-X

R81

22k

R91

22k

C93

4.7/25

0

2k

R15

47k

R17

Q2

R18

0.22/50

RT1N141C-X

C9

Q476

2SA1365/F/-X

R483

Q477

RT1N141C-X

47K

R709

5.6k

Q701

R3

SCS

C74

R725 47K

C721

0.047 C722

C723 470P

USB_RST

1K

3.3k

C6

C7

0.1

0.1 C81

C91

220/10

C8

R8

Q_OUT

R12

4.7

R13

6.8

R71

100

RDSDA

RDSSCK

2K

330P

10/16

C71

R72

C73

0.01 C72

560p

47/6.3

0.01 10k

R73

33P

X71

C75

C76

C77

C78

QAX0263-001Z

IC471

BA05CC0WT-V5

R481

10K

1A3G-T1

D472

C478

0.1

C477

100/10

0

0.01

R861

C997

C999

HPMUTE

IC721

UPD784218AGC328

VOLMUTE

2.2k

DOUTMUTE

VMUTE

MUTE

R726

DIMMER

R735

PBRK

ANT

AMPKILL

R727

R728

PON

R729

DIMOUT

2.2k

TELMUTE

R731

TELCONT

10K

R733

47K

R734

RA722

NRZ0065-222X

0

R769

FAN

VPP

4.7K

R738

4.7K

R739

220k

R758

220k

R759

R708

560

D719

SLR-56VC3F

Parts are safety assurance parts.

C10

SSTOP

R10

4.7k

R480

R478

47K

R485

47K

R909

!

560

R860

WJK0224-001A-E

CN702

10k

R7

R5

R6

33

C5

C4

0.1 47/16

TU_SDA

TU_SCL

R11

4.7k

IC71

LC72725NM-X

0

47K

220/10

LRMUTE

CPURST

C11

R2

1k

0.082

R1

10k

2P

C12

SW_FLAG

47K

R19

CRS03-W

CRS03-W0CRS03-W

D925

D924

D923

220/10

0.001

C968

0.047 C961

220/10

C474

C475

220/10

0.001

C963R927

C911

!

0

NQL79GM-100X

R961

L921

R967

D921

1A3G-T1

NQL56CK-220X

L924

39K

L925

R923

NQL71EM-330X

C928

0.1

NI

300K

150K

4700P

10K

C929

R925

R924

0

47k

R928

0.1

C914

ENC2

ENC1

LCDCL

LCDDA

LCDCE

REMOCON

270

10K

270

10K

R706

R704

R705

R707

0.1

C1

220/10

C476

220/10

C962

NI

CN701

QNZ0605-001

C2

FSU

2SA1530A/R/-X

R476

220

D471

RT1N141C-X

R914

220

UDZW5.1B-X

RT1N141C-X

D906

IC921

BA33BC0FP-X

B922

0

L927

D704

D705

D706

D707

D709

D710

C701

C702

D711

C3

USB_RX

Q474

UDZW5.1B-X

Q475

Q904

0

R968

R921

UDZW6.2B-X

0.01

0.1

UDZW6.2B-X

0.082

R9

47K

USB_TX

R479

2.2K

R477

Q903

2SA1530A/R/-X

2.2K

R910

0

R969

IC922

BD9781HFP-W

47K47K

R141R151

C141

C151

470P

8.2k

C94

C84

R92

R82

0

AFS

R482

47K

1K

R484

10K

USB_3.3V

HPCK

9VSW

HPSTB

SACLK

VOLDA

VOLCK

HPDATA

W-MUTE

2.2k

R721

R722

R730

10k

R763

SW1

ENC1

ENC2

NI

47k

R749

R750

2.2K

NRZ0065-222X

R850

RA721

3.9K

10k

100p

820

R765

L721

R744

C734

R846

R847

SW4

LCDCL

NQL38DK-330X

LCDDA

NI

47k

R748

R747

X721

220/10

470P

8P

C724

C725

C727

C726

C437

4.7/25

IC431

C427

4.7/25

47/16

0.1

10

C462

C463

47K

R163

47K

BR24L32F-W-X

C733

470P

10k

R713

10k

R711

R780

2.2k

10K

1k

4.7k

220

3.9k 47K

0

RA723

S-80833CNNB-G-W

C730

2.2k 47/6.3

R439

IC722

0

R785

4.7K

R760

100K

R438

4.7K

C426 C436

R428

4.7K

100K

R429

TDA741

100k

R812

47K

TH721

NAD0028-103X

4.7K

R761

6.8 R4

220P

R164

R1

IC161

R

S

S2

U2

USB_T

USB_R

LCD

F

Q_O

10K

K

4.7K

R762

RDSS

47k

0.01

C731

R757

When replacing those parts make sure to use the specified one.

2-7

1

R436

1

18K

6.8K R437

R439

100K

C437

R438

4.7K

4.7/25

220P

IC431

LC75344M-X

22/16

10

C461

R462

IC421

NJM4580V-X

C426 C436

C427

220P

4.7/25 R428

4.7K C425

100P

100K

47/16

0.1

R429

R427

C462

C463

C433

C434

C435

100P

C424

150P

R426

18K

6.8K

150P

R463

C464

C465

0.1

10

R434

39 22

220/10

1k

R435

1k

R425

C423

R424

220/10

47/16

D431

1SS355W-X

R432

2.2K

R422

2.2K

D421

1SS355W-X

R431

470P470P

C431

Q431

KTD1304-X

C421

KTD1304-X

Q421

R421

2239

CN421

Q432

QGA2006C1-04

L431

NQR0007-002X

R433

R423

L430

2.2K KTD1304-X

NQR0007-002X

L421

2.2K

NQR0007-002X

0.022

Q422

KTD1304-X

C430

1SS355W-X

C191

RT1P441C-X

Q192

47/6.3

D192

R191

4.7k

R197

470

Q191

KTD1304-X

R192 820

Q334

Q324

C311

4.7/16

D308

CRS03-W

C307

R981

CRS03-W

470

R824

SN74AHCT1G08V-X

R401

470

L411

0

C360

0.1

D307

Q822

RT1P141C-X

Q821

RT1N141C-X

220/10

C411

C308

C851

C316

C340

0.1

C309

0.1

2SC4485/ST/-T

R832 270

IC401

R405

0

0.047

C412

R412

R356

100

R336

100

100P

C335

C355

100P

R326

C345

C325

100

R346

Q301

RT1N441C-X

0.01

0.01 C302

C902

2.2/50

GND

C310

D309

D310

R982

2.2K2.2k

R851

4.7K

Q823

C821

D821

C822

10/16

UDZW12B-X

K831

NQR0007-002X

UDZW6.2B-X

D831

NQR0007-002X

0.01

22p

C402

C403

C401

IC411

MM1510XN-X

C413

1.5

6.8k R417

180

Q302

RT1P441C-X

TEL

PARK ILL

C801

NI

CRS03-W

10

R402

R403

470

K401

NQR0007-002X

D401

CRS03-W

L401

K402

NQR0007-002X

C414

330/6.3

R410

C415 100P

D301

C889

CHR

0

C301

UDZW11B-X

R901

1k

R889

R883

NI

C823

0.01

R404

C416

0.01

0.022

C331

47/16

R894

100k

C901

QEZ0722-338

CHL

D801

QGA2006C1-02

C831 100P

2.2

C404

100/6.3

R414 1K

B921

NQR0201-004X

R193 100

R194

C156

0

QQR1378-002

D901

1N5401-F64

!

J801

QNZ0095-001

QGA2001C1-02

IC402

TOTX177L

22p

C405

VOUT

75

R415

R416

0

NQR0201-004X

0

K922

100

J331

QNN0747-001

0.047

CN901

QNZ0607-001

L901

SI/SO

C406

!

SCK

CN821

CN831

R831

0

0.01

CN411

K411

QGA2501F1-02

4.7/25 47/6.3

C384

C391

C392

36K

24K

R782

R781

Q782

RT1P141C-X

HPMUTE

UDZW6.2B-X

D717

2SA1530A/R/-X

0

R375

24K

4.7/25 B103

B106

36K

R377

C373

220/10

C379

4.7/25 36K

0

R378

24K

B104

B105

0.0015

47/6.3

R376

C374

C377

R171

2.2k

Q371

R173

0

D781

MC2836-X

R976

56k

C390

100/10

2SA1530A/R/-X

R379

2.2K

Q372

RT1N141C-X

2.2/50 C187

C170

RT1P141C-X

C781

47/6.3

220/10

0.01

C918

C919

R390

0

R380

47K

CHR

CHL

0.01

C169

10/16

9V

R891 47K

Q781

Q891

RT1N141C-X

MUTE

TELMUTE

0.1

10/16

100/10

C904

C903

C905

C906

R977

18k

0.1

C389

470

C782

47/6.3

Q977

24K

W-MUTE

HPSTB

R165

47K

0

R161

47K

C165

1

R162

2.2/50

74

R163

2.2/50

330

R717

UDZW6.2B-X

D732

2.2/50

TU_SDA

TD

MAINRESET

47K

BR24L32F-W-X

R715

270

R716

C733

470P

RD

SCK

R713

R711

R780

R779

R799

R778

R777

R776

R775

R774

R773

R772

R771

R770

R766

R768

R767

RA723

NRZ0065-103X

S-80833CNNB-G-W

IC723

C730

R756

2.2k 47/6.3

68

84

47K

R164

C267

10/16

R166

220

SAOUT

VOLMUTE

IC161

TDA7416

USBL USBR

SAOUT

IC722

10k

100k

R714

10k

100k

R712

2.2k

SCLK

2.2k

S2UDT

2.2k

U2SDT

10K

1k

4.7k

USB_TX

220

USB_RX

220

3.9k LCDCE

47K

0

FSU

0

Q_OUT

0

R812

47K

10K

R785

TH721

NAD0028-103X

KEY2

KEY1

KEY0

4.7K

R760

R761

R762

RDSSCK

D731

47k

0.01

1SS355W-X

C731

R757

SACLK

VOLCK

VOLDA

C732

220/10

USB_MUTE

BUSSCK BUSSO

SI/SO

R373

100K

R384

0

R371

R382

R381

0

R374 R383

R372

0

9VSW

C176

2.2/50

C177

2.2/50

C186

Q161

2.2/50 RT1N141C-X

Q162

RT1N141C-X

D785

1SS355W-X

Q784

RT1P141C-X

D784

UDZW11B-X

C784

P_OPEN

I/O

QSW0451-001

S701

L722

R857

NQL114K-470X

0

R386

36K

R388

IC371

100K

C380

NJM2792V-X

220/10

0

R387

C378

0.0015

R385

100K 100K

IC162

CD4066BPW-X

R172

2.2k

USB/CH

D782

MC2836-X

Q783

RT1P141C-X

C783

D783

47/16

UDZW11B-X

PDETACH

UDZW6.2B-X

QSW0451-001

D716

S702

D903

1SS355W-X

Q976

RT1N441C-X

Q892

TELCONT

C356

4.7/25

C336

47k47k

4.7/25

R333

47k

R353R343

R323 47k

C326

4.7/25

C346

4.7/25

TB2904HQ

C338

R339

R337

1/16

0

1k

R359

R357

C358

1k

0

1/16

47K

R358

R338

47K

C348

R349

1/16

R347

R328

1k

R348

0

R329

R327

C328

0

1/16

R304

D302

1SS355W-X

47k

R308

2.2k

R307

10

Q304

RT1N141C-X

AMPKILL

R892 1K

TEL

D891 MC2836-X

R881

R893

47k

3.3k RT1N141C-X

Q881

C891

C892

0.1

DIMMER

2SC3928A/R/-X

IC901

R2S25401DS-E

0.001

220/10

100/16

C908

C909

C910

PON

ANT

I/O

BUSSO

SI/SO

R804

100k

R803

22K

R801

R802

100

47K

C802

22P

SN74AHC126NS-X

1k

22/16

C315

R306

27k

Q303

RT1N141C-X

ILL

D885

1SS355W-X

R882

10K

R886

4.7k

R885

47k

Q885

C881

RT1N141C-X

PBRK

22/16

!

0.047 22/16

C912

C913

0

R811

10k

R805

IC801

1K

R355

R354

R335

2.2k

1K

1SS355W-X

D354

D334

1SS355W-X

D324

1SS355W-X

D344

1SS355W-X

1K

R325

1K

R345

IC301

R340

1k

R360

1k

100P

C339

C359

100P

R350

C349

C329

1k

R330

1k

C330

0.1 R302 0

R305

10k

C314

2.2/50

C303

D303

D981

CRS03-W

PARK

R888 0

R887 10k

9.1K

R902

C885

10/16

SW5V

10V

R903

4.7K

SCK

BUSINT

BUSSCK

100K

R806

R807

330

R808 22k

R809

100

C804

R810

C803

22P

47K

0.047

Q354 KTD1304-X

R334

2.2k

KTD1304-X

R324

2.2k

R344

2.2k

KTD1304-X

Q344 KTD1304-X

C312

0.01

C313

47/16

C350

0.1

D305

CRS03-W

C304

C305

C306

D304

D306

D982

C981

0.1

D851

CRS03-W

D852

R821

10

470

R822

22k

R825

FAN

HNDLEREM

DOUTMUTE

TX

VMUTE

R413

10

NQL114K-470X

COMPOSITE

R411

VGND

0

2-8

NI

LCD & Key control section (except KD-DV6201 & KD-DV6202)

S13

LCD1

QLD0384-001

S1S2S3S4S5S6S7S8S9

COM1

COM2

COM3

S12A

S10

S11

S14

S15

S16

S17

S18

S19

S20

S21

S22

S47

S48

S49

S24

S25

S26

S27

S28

S29

S30

S31

S32

S33

S34

S35

S36

S37

S38

S39

S40

S41

S42

S44

S23

S43

S50

S46

S45

0.022

C681

0.022

C682

3.9K

R606

S607S614

R612

ENC1

R605

2.7K

S606

S613

QSW1163-001

ENC2

EN601

S605

S612

S604

S611

R601

R602R603R604

820

8201.2K1.8K

S602

S603

R607R608R611 R610 R609

8208202.7K 1.8K 1.2K

S610

S609

R614

R613

820

S617

S616

S601

S608

KEY2

KEY1

KEY0

R649

R648

D601

D602

D608

68

100

R641

MC2838-X

D640

68

220

R650

68

R680

D620 D621

R681

R643

68

R640

D609

300

R636

R637

R638

R639

D612

D603

D610

68

D611

D613

D614

300

R634

R635

R633

D615

D616

D617

430

R647

R646

D604

D605

R645

R644

D606

D607

430

R642

2-9

IC602

S46

RPM7338-V4

0.012

10K

D643

R691

S47

S48

S49

S50

S51

S52

S48

S46

S51

S52

S50

R654

R655 R656

S49

10k

10k 10k

IC601

PT6523LQ-L

470

820

NI

300

R634

R632

R633

D618

D615

D616

D617

390

R661

D646

NSPW310BS/BRST/

R660

D645

R672

R671

Q640

390

2SA1365/F/-X

Q641

RT1N141C-X

NSPW310BS/BRST/

R651

R652

2.2k

470

1k

R674

R673

47k

DIM_CON

C603

R658 180k

R653

10k

10/6.3

D641

UDZW5.1B-X

D642

1SS355W-X

C601

0.022

C602

680p

COM1

COM2

COM3

LCDCE

LCDCL

LCDDA

R657

51k

S47

S2

S1

UDZW6.2B-X

S42

S45

S43

S44

S3S4S5S6S7

C611

S41

S39

S40

S8

S9

C612

S38

S10

470

R692

4.7/6.3

CN601

NNZ0085-001

ACC5V

10V

DIM_CON

R670

S35

S37

S36

S33

S34

S32

S31

S30 S29

S28

S27 S26

S25

S24 S23

S22 S21 S20

S19 S18

S17

S12

S13

S14

S15

S16

S11

0

DIMOUT

REMOCON

ENC1

ENC2

LCDCE LCDDA

LCDCL

KEY2 KEY1 KEY0

GND

2-10

LCD & Key control section (for KD-DV6201 & KD-DV6202)

R632

S13

LCD1

QLD0384-001

S1S2S3S4S5S6S7S8S9

COM1

COM2

COM3

S12A

S10

S11

S14

S15

S16

S17

S18

S19

S47

S48

S49

S50

S20

S21

S22

S24

S25

S26

S27

S28

S29

S30

S31

S32

S33

S34

S35

S36

S37

S38

S39

S40

S41

S42

S45

S44

S23

S43

S51

S46

0.022

C681

0.022

C682

3.9K

R606

S607S614

R612

ENC1

R605

2.7K

QSW1163-001

ENC2

S606

S613

EN601

S605

S612

S604

S611

R602R603R604

R601

820

8201.2K1.8K

S602

S603

R607R608R611 R610 R609

8208202.7K 1.8K 1.2K

S610

S609

R614

R613

820

S617

S616

S601

S608

KEY2

KEY1

KEY0

R649

R648

D601

D602

D608

68

100

R641

MC2838-X

D640

68

220

R650

68

R680

D620 D621

R681

R643

68

R640

D609

430

R646

R645

D605

D604

R644

D606

D607

R642

R647

300

R636

R637

R638

R639

D603

D610

68

D611

R635

D612

D613

D614

R634

D615

D616

D617

NI

300

R633

2-11

IC602

RPM7338-V4

S46

R634

D615

D616

D617

0.012

10K

D643

R691

S47

S48

S49

S50

S51

S52

S51

S50

S52

C602 680p

S49

10k

10k 10k

R657

51k

IC601

PT6523LQ-L

470

R672

R671

470

820

NI

300

R632

R633

D618

390

R661

D646

NSPW310BS/BRST/

R660

390

D645

NSPW310BS/BRST/

Q640

2SA1365/F/-X

Q641

RT1N141C-X

R674

R673

47k

1k

DIM_CON

C603

R658 180k

R653

10k

10/6.3

R652

2.2k

D641

UDZW5.1B-X

R651

2.2k

D642

1SS355W-X

C601

0.022

LCDCE

LCDCL

LCDDA

R654

COM1

COM2

COM3

R655 R656

S47

S48

S2

UDZW6.2B-X

S42

S43

S44

S45

S46

S3S4S5S6S7S8S9

C611

S39

S40

S41

C612

S38

S10

S37

S11S1S12

4.7/6.3

S36

470

R692

CN601

NNZ0085-001

ACC5V 10V

R670

0

DIMOUT

REMOCON ENC1 ENC2

LCDCE

LCDDA LCDCL

KEY2 KEY1 KEY0

GND

DIM_CON

S33

S34

S35

S32 S31

S30

S29 S28

S27

S26

S25

S24

S23

S22

S21

S20

S19

S18

S17

S13

S14

S15

S16

2-12

DVD control section (common)

P3.3V

K399

EXADR16

R399

0

NQR0502-001X

EXDAT15

EXDAT7

EXDAT14

EXDAT6

EXDAT13

EXDAT5

EXDAT12

EXDAT4

EXDAT11

EXDAT3

EXDAT10

EXDAT2

EXDAT9

EXDAT1

EXDAT8

EXDAT0

NEXOE

R397

NI

NEXCE

DGND

NI

R121

R124

R122

R123

0

R119

0

91

R102

R128R127

10k

2SK3019-X2SK3019-X

F-

F+T-T+

NI

1

C208

C207

C201

C202

100/16

C211

C212

100/16

C209

NI

R232

15k

390k

Q231

DTC114EE-X

MGND

0.047

C254

10/10

0.1/16

C253

C256

C266

SBRK

SPDRV

0

R257

C255

C267

0.1/16

100/16

SPDRV

/SPMUTE

TP201

TP202

CN201

QGF1038F2-11X

CN101

QGF0501F8-30X

CN202

C101

0.1/16

C103

0.1/16

TP2

TP1

B211

B212

TP32

TP31

TP41

QGF0523F2-05W

SW4SW5

NSW0184-001XNSW0183-001X

TP40

0.1/16

TP3

SW1

C104

NI

TP33

TP39

SWGND

EXADT15

EXADT14

EXADT13

EXADT12

EXADT11

EXADT10

EXADT9

EXADT8

EXADR19

EXADR20

NEXWE

/FL_RST

NI

R398

R396

47k

EXADR18

EXADR17

EXADT7

EXADT6

EXADT5

EXADT4

EXADT3

EXADT2

EXADT1 EXADT0

TP22

TP21

TP15

TP20

TP16

TP17

TP18

TP19

C102

0.1/16

K101

NQR0007-002X

K102

NQR0007-002X

R126

T+

F-

T-

F+

TP8

TP9

TP7

TP6

TP5

TP4

SW2

TP11

TP12

TP10

TP51

TP52

TP36

TP35

TP34

SM3

SM2

SM1

H3-

H3+

VH

H1+

H1-

H2+

H2-

TP37

TP38

SW3

B201

SW1

NI

B202

NI

SW2

B203

SW3

NI

B204

SW4

NI

B205

NI

TRVSW

DGND

REST

L-END

TP13

TP14

0

IC398

SG32M90TFIR3

VREFH

HAGUP

RF+

RF-

E

F

D

C

B

A

CD/DVD

10k

Q105 Q106Q107

2SC4617/R/-X

D5V

R233

47

R260

NI

C269

C396

0.1/16

LPC2

LPC1

100k

R129

M5V

R201

M8V

R231

2.7k R235 R234

6.8k

0

SBRK

M8V

C252

MGND

C397

22/6.3

NI

C109

C110

0

R120

0

91

R101

R103

0.1/16

IC201

BA5835FM-X

0.1/16

MGND

C265

0.1/16

IC251

BD6671FM-X

R259

10K

R252

10k

0.01

/SPMUTE

C391

MDQ0

0.1/16 C381

MDQ1

0.1/16

MDQ2

MDQ3

MDQ4

C382

MDQ5

0.1/16

MDQ6

MDQ7

C392

DQM0

0.1/16

NWE

NCAS

NRAS

NCSM

MA11

BA0

BA1

MA10

MA0

MA1

MA2

DQM2

C393

0.1/16

MDQ16

MDQ17

MDQ18

C383

MDQ19

0.1/16

MDQ20

MDQ21

MDQ22

C384

MDQ23

0.1/16 C394

0.1/16

DVDLDCUR

NI

C106

47/10

12

R105

R104

2.2

R106

R108

2.4k 2.4k

R107

1k 1k

Q101

2SB1424/R/-W 2SB1424/R/-W

Q102

2SC4617/R/-X

4.3k

C111

0.1/16 330

R109

C203

270p

C204

R203

150p

R202

30k

47k

R219

R220

C213

TRSDRV

R221

R222

10k

C221

0.022

H3-

H3+

H2-

H2+

H1-

H1+

0

0.001

R253

C257

C258

C259

R254

10k

0.47

R255

R251

C251

0.1/16

IC399

EDS1232AATA-75

MDQ15

MDQ14

MDQ13

C388

MDQ12

0.1/16

MDQ11

MDQ10

MDQ9

C387

MDQ8

0.1/16

DQM1

MCK

MA9

MA8

MA7

MA6

MA5

MA4

MA3

DQM3

MDQ31

C386

MDQ30

0.1/16

MDQ29

MDQ28

MDQ27

C385

MDQ26

0.1/16

MDQ25

MDQ24

0

/DRVMUTE

VHALF

TRSDRV

DRVCONT

S5V

S-5V

1

R125

C105

47/10

TRDRV

FODRV

P3.3V

1k1k

R384R385

1/16

C371

LM

FG

LPCO1

CDLDCUR

0

R110

12

R113

470

R112

2SC4617/R/-X

4.3k

C112

R111

0.1/16

TDRV

R205

FDRV

27k R204

27k

VHALF2

15k

18k

0.1/16

R223

0

VH

R256

47

SM1

SM2

SM3

NI

C261

C260

C262

C264

NI

20k

C263

0.01

LPCO2

C108

R118

47/10

2.2

470

R116

R114

R115

Q103

Q104

330

R117

DGND

R207

0

R206

0

R210

NI

R211

0

EXADT0

NEXCE

NEXOE

EXDAT0

EXDAT8

EXDAT1

EXDAT9

EXDAT2

EXDAT10

EXDAT3

EXDAT11

EXDAT4

EXDAT12

EXDAT5

EXDAT13

EXDAT6

EXDAT14

EXDAT7

EXDAT15

EXADR16

EXADT15

EXADT14

EXADT13

EXADT12

EXADT11

EXADT10

EXADT9

EXADT8

EXADR19

NEXWE

EXADR18

EXADR17

EXADT7

EXADT6

EXADT5

EXADT4

EXADT3

EXADT2

EXADT1

EXADR20

/FL_RST

NEXWE

P3.3V

MDQ18

MDQ28

MDQ19

MDQ27

MDQ20

MDQ26

MDQ21

MDQ25

MDQ22

MDQ24

MDQ23

R321

R389

C1

0.1/16

C2

0.1/16

C3

0.1/16

C4

0.1/16

C5

0.1/16

NI

10k

C6

R322

0.1/16

C7

NI

R388

0.1/16

R304

10k

DGND

1k

0.1/16

C380

R310

IC304

S-80827CNNB-G-W

100k

R309

R323

0

C481

0.1/16

IC481

BR24L16F-W-X

MDQ16

MDQ30

MDQ17

MDQ29

MDQ31

DQM2

MA3

MA4

MA2

MA5

MA1

MA6

MA0

MA7

MA10

PCMCLK

DCLK

NI

DRVCONT

47k

R404

LM

/DRVMUTE

C403

MA8

BA1

C17

C16

0.1/16

C309

0.1/16

22K

R308

1k

R380

HAGUP

FG

/SPMUTE

TRVSW

CPURST

330p

IC401

AK4385ET-X

DQM3

C18

0.1/16100

0

R386

NI

R324

C310

0.01

EPSK

EPDIO

NI

10k

R482

R481

EPSK

EPDIO

100

C8

0.1/16 R353

R354

TUBUYAKI

TP319

22k

R319

R370

EPCS

EPSK

EPDIO

EPCS

R369

10k

SCS

S2UDT

SCLK

SACK

UCS

U2SDT

BCK

AOUT3

LRCLK

PCMCLK

BCK

AOUT3

LRCLK

DACPDN

DACOCS

DCLK

DDATA

2-13

S

R302

0

1/16

DQM3

EPCS

NI

TP321

D2V

D3.3V

VGND

B601

NQR0022-005X

R602

NI

D3.3V

NI

R355

R356

C303

D2V

C365

C364

47/6.3

0.1/16

R21

NI

R22

NI

FG1

TP322

TP323

TP324

TP325

R25

NI

R26

NI

DGND

R23

NI

R24

NI

FG2

TP318

TP316

CN402

QGF0522F3-06W

R390

10k

K461

NI

K462

K420

NI

K421

NI

K422

NI

K423

NI

K424

NI

K434

K426

NI

K427

NI

K428

K429

NI

K430

NI

K431

NI

K432

NI

K433

NI

C453

C454

0.1/16

DGND

K401

NQR0022-005X

K402

NQR0022-005X

K403

NI

K404

NQR0022-005X

K405

NQR0022-005X

K406

NQR0022-005X

K407

NQR0022-005X

K441

NQR0022-005X

K442

NQR0022-005X

K443

NQR0022-005X

K444

NQR0022-005X

R441

0

K445

NQR0022-005X

R442

0

K451

NQR0022-005X

K452

NQR0022-005X

L451

NQL044K-100X

S3.3V

C451

0.1/16

S5V

0

DGND

C452

0.1/16

D5V

M5V

M8V

MGND

CN403 QGF0534F3-45X

TP417

TP416

0.1/16

TP420

TP422

TP425

TP426

TP427

TP428

TP429

TP430

TP431

TP432

TP433

TP434

TP435

TP436

TP437

TP439

TP440

TP441

TP442

TP444

TP446

TP448

TP452

TP453

TP455

TP457

R300

IC303

D1.2V

SW1

SW2

NQL093K-1R8X

NI

0

C325

X351 NAX0730-001X

C326

L303

FODRV

TRDRV

C206 560p

A

B

D

C

F

E

0

R301

NI

0

NINI

C361

IC302

BA00HC5WF-X

UCS

SCS

SACK

SCLK

U2SDT

S2UDT

CPURST

LRMUTE

A5V

A9V

L-CH

AGND

R-CH

SW4

SW1

C360

K435

NQR0022-005X

K601

R601

C362

NI

9102k

R365R366

C368

47/6.3

NI

1/16

R332

PCMCLK

DAC4

LRCLK

DTC144EE-X

SW4

AOUT3

BCK

NI

R604

R603

S3.3V

C301

220/6.3

DGND

1k

C367

C366

C369

Q302

SW3

10p

P3.3V

MCK

MDQ9

NCAS

27

R303

C15

0.1/16

IC301

MN2DS0009AA

0.1/16 TP309

TP313

TP312

TP302

TP303

NI

NININI

NI

R329

R328

R327

R326

R631

R632

DATA1

WPCDCLK

DGND

DATA0

CN404

NI

R535

10

4.7K

R531 R534

4.7K 200

R401

C402

47/10

4.7

R431

R402

4.7K 200

NI

R435

C404

0.047

4.7K 4.7K

NWE

DQM0

DQM1

C14

C335

TP308

TP307

TP306

C331

0

NI

R314

R378

R379

R391

R392

R393

R394

R381

R382

R383

R305

NI

R395

S-3.3V

DATA3

CMD

DATA2

C531 3300P

R532

22k22k

4.7K

R533

IC411

NJM4580V-X

R432

R433

4.7K

R434

C431 3300P

BA0

BA1

NCSM

NRAS

DQM2

MA3

MA4

MA2

MA5

MA1

MA6

MA0

MA7

MA10

C18

0.1/16100

100

.

R353

R354

TUBUYAKI

TP319

22k

R319

10k

R370

SCS

S2UDT

SACK

SCLK

U2SDT

S

LRCLK

K

IO

PCMCLK

BCK

AOUT3

LRCLK

DACPDN

DACOCS

DCLK

DDATA

C17

0.1/16

C309

0.1/16

NI

R369

22K

R308

1k

R380

DRVCONT

/DRVMUTE

UCS

BCK

AOUT3

DDATA

PCMCLK

DCLK

CPURST

C403

330p

47k

AK4385ET-X

R404

MA11

MA8

MA9

C16

0.1/16

10k

C308

R258

R224C222

0.01

C268

0.015

SPDRV

FG

/SPMUTE

TRSDRV

CD/DVD

HAGUP

TRVSW

C401

0.1/16

IC401

0

R405

R403

DGND

MDQ5

MDQ7

MDQ8

MDQ6

MDQ10

MDQ4

MDQ11

MDQ3

MDQ12

MDQ2

MDQ15

MDQ0

MDQ14

MDQ1

MDQ13

C13

0.1/16

C330

0.1/16

0.033 C333

C332

C337

0.018

0.1/16

C338

0.0056

NI

0

NI

R313

NI

K631

470P

C532

C432

470P

R437

R438

C12

0.1/16

TP314

TP315

0.1/16

C320

C321

C322

C323

0.1/16

C348

C350

5p

C359

C358

150

R363

R364

RF+

RF-

DGND

22k

R538

4.7K

R537

R536

C533

200

470P

C433

R436

470P

C412

47/10

200

C411

22k

C11

0.1/16

C349

0.1/16

C319

C347

0

R312

LPC2LMLPCO1

LPC1

LPCO2

1k

C522

47/10

1.2k

C521

R522 R521

0.1/16

C421

R422

0.1/16

C422

1k 1.2k

47/10

R421

0.1/16

R317

22k

1K

C313

C339

R325

R360

R359

R350

R374

TP317

R373

R372

0.1/16

R320

NQL093K-1R8X

0.1/16

1/16

0

47k

R306

R307

R349

LRMUTE

DACPDN

DACOCS

330

DDATA

330

DCLK

100

R621

L306

L307

L305

160

C342

30k

180

K313

180

20k

22k

R333

CDLDCUR

C336

R334

R335

R336

R337

R338

R339

NI

C352

R492 0

C492

NI

C343

C344

C345

C346

R367

NI

C315

0.1/16

C311

C9

C316

R340

C341

R208

R209

C317

0.1/16

R371

0

VHALF

1/16

C340

C324

L301

NI

VREFH

VHALF

A5V

L-CH

AGND

R411

A9V

10

R-CH

47k

R348

R362

R315

R316

NI

C318

R342

R344

C312

1/16

1.6k

NI

C351

C305

47k

47kNINI

R347

R346

DTC144EE-X

0.1/16

NI

DAC2

DAC3

R318

3.3k C205 680p

0.1/16

TH491

NAD0025-103X

R493

NI

C491

0.1/16

TP491

NI

K301

NQR0502-001X

C302

0.1/16 47/6.3

NI

R331

R330

Q301

K425

R618

R619

R620

R361

R358

R357

R345

R351

1k

1M

R352

0

NI

0

K312

K311

NQR0129-002X

NI

VGND

R341 NI

NQL044K-100X

L304

NI

S-5V

DVDLDCUR

150

0

R491

4.7k

2-14

USB module section (common)

4

1

O

DAGND

C401

B401

0

100P

DGND

NAX0832-001X

X402

NQL38DK-330X

C408

C440

C406

C407

C409 C410 C411

27P

C412

L401

DCLK DACPDN DACOCS

DDATA

0.1

0.1 330p

0.15

C414

0.1

C413

C403

0.1

WE

DAO

MCLK

RESET

MODE0

0

R410

R406

R408

R407

1M

R411

R412

1.5K

10

R413

0.1

R419 100K

R420 100K

0 0

0

R414 R415 R416 R417 R418

R426

NRZ0065-472X

RA401

QGF0523F1-05W

4.7K

R421

4.7K

R405

R403

C404

0.1

0

4.7K

R404

4.7K

CN401

R402

0

LRCK

0

TDI

BCLK

R401

TMS

R399 0

TCK

OE

1k

R398

SD_CKE

0

R409

R433

0

1k

R422

R441

C415 C417

R443

6.8k

R444

0

TRST

TDO

100k

R435

0.1

NOR_CS

IC401

TCC760

100k

R432

4.7K

0.1

C416

47k

100K

R440

4.7K

R436

4.7K

R437 R439

SD_CLK

P.DET

0.1

XA18

XA19

XA20

XA21

SD_CS

XA17

XA16

XA15

XD0

XA14

XD1

XD2

XA13

XD3

C402

0.1

1.8V

MCLK BCLK DAO LRCK

DACPDN

DACOCS DCLK

XA12 XA11 XA10

XD15 XD14 XD13 XD12 XD11 XD10

DDATA

XA9 XA8 XA7

XA6

C420

0.1

XA5 XA4 XA3 XA2 XA1 XA0

C419

0.1

XD9

C418

0.1

XD8 XD7 XD6 XD5 XD4

XA16

XA15 XA14 XA13 XA12 XA11 XA10 XA9 XA8 XA19

WE RESET

NI

MODE0

XA18 XA17 XA7 XA6 XA5 XA4 XA3 XA2 XA1

R445

R446

4.7K

IC441

SA04D70TFI021A

10K

R482

SN74AHCT1G08V-X

UART_TX1

47k

R451

C4

22/6.

R44

R

47

N

0.1/ C44

IC482

2-15

C482

0.1/16

L531

NQR0536-001X

15K

UDZW5.1B-X

NAD0031-004X

D532

R533

F531

QNZ0855-001

15K

UDZW5.1B-X

R532

D533

CN531

0

R531

K531

NQR0201-004X

0.47

C531

CN532

QGB1004K1-16

STATICGND

CN600 QGA1501C6-02

4.7/16 BH18LB1WG-W

C521

R476

R478

R467

0.1/16

C447

22k

R477

4.7K

470P

200

C473

C475

47/10

C474

0.1/16

C464

C465

C456

47/10

0.1/16

AGND

C463 470P

47/10

200

C457

4.7K 22k

XD15 XD14

XD13 XD12

C446

XD11 XD10

XD9 XD8

0.1

XA20

XA9 XA8 XA7 XA6 XA5 XA4

L-CH

1K

R479

1.2K R470

AGND

1.2K R460

1K

R469

R455

A9V

10

R-CH

R425

Q401

RT1N141C-X

C454

47/10

R453

0.047

4.7

C453

R472

4.7K

R471

4.7K

22k

R473

NJM4565V-X

22k

R463

R461

4.7K

R462

4.7K

K4S161622H-UC60

C471 3300P

IC452

C461 3300P

R475

200

4.7K

200

R474

R464

C472

C462

R465

IC442

470P

R468

SD_CLK SD_CKE

R466

10

22/6.3

0.1/16

R452

C443

C444

R454

C455

0.1/16

0

NI

C452

C449

0.1/16 C445

IC451

AK4385ET-X

47k

330p

C451

R451

K441

0

NOR_CS

NQR0502-001X

C442

XD0 XD1

XD2

XD15

XD3

XD7

XD14

XD4

XD6

XD5

XD13

XD5

XD6

XD12

XD7

XD4

XA21

XD11

WE

XD3

XA15

XD10

XA16

XD2

SD_CS

XD9

XA13

XD1

XA10

XD8

XA0

XD0

XA1

OE

XA2

XA0

XA3

C448

1A

22/6.3

R447

R448

47K

0.1/16 C441

IC521

C522

0.1/16

10K

0

B402

D600

SML-310LT/MN/-X

IC482

4AHCT1G08V-X

0.1/16

C482

UART_TX

R484

10K

TRST2

C481

IC481

SN74LVC2G07V-X

UART_RX

0.1/16

UART_RX1

TRST1

R483

10K

2-16

Printed circuit boards

Main board

(Main board)

S702

C702

C912

C701

R704

R705

R707

R706

C927

CN701

D719

R725

R749

R750

R726

R739

R765

R759

R738

R758

R747

R748

R763

L721

C734 R746 R745

C725

R755 R751

R752

R753 IC723 C731

X721

X722

R811

C803

R804 R801 R803 R802 C802

IC801

S723

C480

CN702

C965

C926

L925

R482 R483

RA722

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

forward side

C961

R769

C918

C730

R733

R921

L927

R929

S701

D921

R731

Q477

R922

R961

C925

B922

R967

L924

IC922

C928

D922

R926

C930

R925

R924 R923

C921

R727

C722

R728

R729

C724

C723

R757

R760

D731

R756

Q476

R484

C479

CN471

R761

C929

R927

C732

C964

R735

R762

C931

R928

C922

L722

L921

C176

C475

IC721

R712

IC411

CN411

R859

R714

R968

R848

L902

R844

R722 R721 R730 R850 RA721 R715 R716 R718

R842

C413

R841

R719

C474

R843

R720

C412

L411

C782

IC722

R845

C733

C411

C414

C186

C962

C476

C783

C784

C963

C428

C909

IC431

X71

C71

R413

C781

C438

R462

CN961

R73

IC901

C463

R171 R172

R782 Q782

C267

C462

IC162

D785

R382

C384

R72

TH721

RA723

R386

R785

C392

R781 D782

C9

R384

R388

Q783Q784

C303

C304

Q301

R977

Q976

C177

C373

R372

R374

C374

C391

C170

C169

C73 C74

Q302

Q781

R767

C305

R976

R173

C970

C171

D305

R768

C349 C329

R901

C464

C181

IC71

C465

R766

C306

R349

R350

C461

R772

R329

Q162

R330

C75

C182

Q161

C427

C441

R773

C902

Q977

R774

C903

C423

C7

C187

C172

R307 R308

R775

R380

C315

C905

R379

R776

R824

Q304

Q372

Q822 Q821

C83

R777

Q303

Q371

IC161

C314

C437

R778

D141

D151

R390

C163

C164

C378

R711

R822 R821

R305

D302

CN141

C93

R713

R717

D142

D152

C165

CN421

C451

TU21

Q823

C822

C380

R304 R302

C301

C821

R383

C908

Q432

R433

R328 R348

R429

R385

C433

C5

C348

R347

C166

R387

R427

D301

C162

IC371

C328

R327

C326

R428

R441 C426 IC421

C346

Q431

R381

Q422

D431 R432

C389

R461

R442

R371

C312

R452

C436

R378

R376

R451

R377

R373

C377

R323

C161

CN831

R375

R423

D421 R422

R338 R358

Q421

R439

C390

R343

C356

C338

C191

R438

C184

C379

R353

C358

R337

C885

C168

R437

R197

R357

W21

C336

IC301

C311

C310

C308

C309

D308

C307

R340

C359 C339

R359 R360

R339

C901

R825

CN821

C174

R404 L401 D401 K401

R402

C403

C402

C401

R401

IC401

R405

D334

R334

R333

PP2

D324 R324

Q192

R191

Q191

R192

D354 R354

R403

Q324

C302

Q334

Q354

C881

D344

R344

D901

PP3

C404

L1

CN901

L901

PP1

C477

R4 L2

D1

C12

D2

Q344

D472

J331

J801

IC402

R481

IC471

(Main sub board)

C967

IC962

CN962

IC961

C934

C966

CN963

Switch board

D601

S616

D608

CP601

S608

D618

2-17

CP604

R633

R632

R681

R648 R649

CP602

D621

EN601

D609

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

forward side

D602

LCD1

S609

R643

R640

R641

D620

R650

CP603

D645

D646

D606

S601

D607

S602

R601

R605

R606

R602

R603

R604

R634

R644

R645

R635

R636

R637

D612

S603

D613

S604

S605

D614

D615

D616

S606

S607

R614

R608

R607

R609

D617

S610 S611

R610

R611

R612

D605

D604

S612

D640

R680

IC602

S617

D603

S614

D610

S613

D611

(Main sub board)

R975 R974 R973

(Main board)

R883

D852

D851

L901

C821

D821

IC471

D472

C478

C482

R882

C822

Q881 R881

J801

CN821

C823

K402

J331

C477

C801

Q823

C156

C155 R155

CN141

C331

PP1

C891

CN901

D891 Q891 R891

R981 R982

C406 C405

reverse side

C316

C340

Q892

D801

C892

R893

R894

R892

C901

D982

PP3

C981

C851

D981

R851

D901

C404

R151

IC402

C881

R141

C175

C997

R193

R194

TU21

C185

C999

C885

C184

C141

R142

C168

C174

C151

R152

C379

C390

C356

C336

PP2

C325

C191

W21

C345

R326

R421 R431

C355

C360

B106

R325

R346

B105

D192

C335

R356

R345

R336

C313

R889 C889 D885 R888 R887 Q885 R885 R886

R355

C350

C373

C374

R335

C421

C431

IC301

C919

IC901

D923 C969

D924

C909

C904

C906

D925

CN961

R914

C963

R909

Q903

K922

C784

D781

C78

C72

R8

Q2

R18

R17

C8

R14

R15

R910

C783

R415

C9

R416

C962

Q904

B921

C416

C415

R414

K411

K412

CN411

D783

D784

C781

C782

C71

C186

C476

R476

D471

C998

R478

Q475

R477

R410

R485

C411

R479

R480

Q474

C414

C474

C911

D906

C176

C907

C413

R857

B999

C964

R780

C479

C922

R779

C721

R812

R411

C933

R412 R417

TD

C932

C961

C918

R969

C965

R847 R846

C921

C912

D711

C927

D710

D709

D707

D706

C926

D705

D704

D703

D702

D701

R708 Q701 R710 R709

D719

X721

X722

R805

R806

C730

R809 C804 R810

C480

S701

CN702

C925

D921

IC921

C722

VPP

R740

R799

R771

RESET

R754

RD

VDD

C732

D716

R474

R471

R475

C725

C728 C729

D717

R744

S702

CN701

C726C727

R861

R807

R808

D732

S723

R860

C315

C380

R163

R306

C314

C908

R162

C267

C438

C462

C437

C451

C433

R435

R424

R425

R92

C84

C94

R82

R91

C5

C93

C4

R7

C81

C91

C330

C312

C301

R832

C831

K831

D831

CN831 R831

R161

C166

C161

R164

R166

R165

C392

C384

B103

C391

B104

C326

R434

C346

L421 L430 L431

CN421

C2

C3

C11

C10

C913

C910

R903

R902

C971

C968

R901

C914

C915

R962

C902

C905

C970

C903

D903

C177

C187

C172

C182

C170

C428

C461

C181

C427

C171

R463

C441

C464

C435

C425

R436

R426 C424

C434

X71

C423

C77

R12 R13

C75

C76

R71

R81

C7

C83

C6

R1

R2

R19

R3

R6

R11

R5

C1

R9

R10

R639 R638

R647 R646

C601

D641

C603

D642

R652 R651

R658

R653

C602

R657

R654

reverse side

IC601

R655

R656

CN601

R626

R625

R624

R622

R623

R621

R672

R660

R670

R661

R673

R671

D645

R674

D646

Q640

IC602

Q641

R691

D643

C611

R692

C612

C682

EN601

R613

R642

C681

2-18

DVD module board

C366

K301

C305

C361

IC303

R302

C264

R251

R255

C263

IC304

R386

R233

C360

C213

R300

C260C261

C262

R235

R301

R310

C380

C254

R231

R232

R253

C253

R234

Q231

C252

C211

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

forward side

IC411

L306

R324 R309

C310

C338

R534

R356 R355

L305

C332

R532

C333

R361

K429

C331

R357

R373

R380

R323

SW4

K431

R358

R353

K430

R354

K433

R345

R388

IC401

R389

R370 R308

R322

R321

SW5

R438

C433

R437

C431

C432

R436

R435

R432

R434

R25

R26

R433

R431

K452

C301

C452

R344

R362

R341

L304

R331

K445

L451

C451

Q302

R342

C533

R442

R604

R618 R619 R620

C318

K444

R320

C532

R441

R536

R537

R538

C453

K313

K312

R603

K401 K402

K407

K425

R325

R360

DAC2

DAC3

C319

C351

C352

C492

R492 R493

C491

TH491

R491

R533

R535

C531

R621

R359 R350

C347

R531

R372

C337

C454 K403

K406 K405 K404

L307

C201

USB module board

forward side

CN532

R455

C457

C413

C414

C454

R414

C451

R454

R451

R416

C453

R469 R460 C465

R420

R479 R470 C475

R419

R453

R418 R417

R117

R118

Q104

R22

R201

C108

R113

Q103

R116

R114

R115

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

C412

R452

R415

R404

C447

C411

C452

R405

C446

C410

IC442

K441

C522

C442

IC521

R444

C521

C444

C443

R443

C445

C449

R435

R441

C415 C416

R409

L531

R422

R421

C417

L401

C409

R412

R411

C408

RA401

C407

IC401

C406

X402

C403

R403 C404

C402

CN600

R532

R533

CN531

2-19

C8

R23

EPSK

C396

R399

TP319

R319

R397

C391 C381

R24

R369

IC398

C383

C384

C394

C382

C393

C330C335

R313R314

C392

K399

TP427 TP426

TP5

CN101

TP429 TP428

C103

R126

B212

TP51 TP52

R396 R398 EPDIO

TP6

C104

B211

C397

IC481

K102

TP8

B205

REST

IC399

C386

R304

R481

TP9

TP7

reverse side

TP202 TP201

C1C2C3

C387 C388

C4

C385

C5

C6

NEXWE

C7

R482

TUBUYAKI

EPCS

C481

TP10

TP11

TP12

TP13

TP16

K101

C101

C102

TP18 TP19 TP21

TP20

R102

R122

R123

R124

R101 R127

TP22

C18

IC301

R382

TP14

C110

R381

TP15

C109

R108

R391

TP17

R129

C17

R392

R383

CN404

R119

R121

C309

R305

R120

C15

C16

R107

R128

Q107 Q106 Q105

SWGND

DCLK DDATA

C308

Q101

B204

L-END

LRCLK

AOUT3

C522

PCMCLK

BCK

CN401

TP416

TP417 TP420

TP325

R390 R303

C14

L301

R631

R395

R394

Q102

R109

R104

C401

C402

TP425

K420

K461

TP324

C13

TP314

R632

R106

R103 R111R112

C521 R522

K421

C358 C343

R378

K631

R393

R110

R421 R521

K422

R379

C346 C345

C344

R364

R105

C111 C112

R422

R401

K423

TP315

C350

C359

R334

R363

C421

K424

K462

TP323

C320

R335

C106

C422

K442

K434

TP322

C11C12

C349 R312

R338

R339

R336

R337

C105

TP313

TP312

TP303

TP302

TP444 TP446

C412

K426

TP321

R367

TP491

K427

C322

C324 C340

R328

R329

TP309 TP308

C411

R411

K428

C313

C316C317

R318

R327

TP4

K443

R317

R306 R307

C315

C311

C9

C339

VHALF

R207

R205

TDRV

R326

R125

TP3

TP306TP307

TP441 TP442

TP433

K432

TP317

C312

C348

R206

TP2

TP434

K435

R352

R371 R374

C321

R202

R204

TP1

C403 R404 C404

TP437

TP435

TP436

TP432

K441

K601

R349

R346

R347 R348

R333

C336

C323

C204

B601

R601 R602

R209

C205

C206

R385

R21

Q301

C341

R210

R402 R405 R403

B201 B202 B203

CN403

TP431 TP430

TP422

R330

R208

R211

R384

C371

FDRV

C207

C325

X351

C342

SBRK

C208

SW2 SW1

TP440

TP448

C326

K311

L303

C258

TP35

C265

VHALF2

R219

R203

C203

C202

TRSDRV

TP439

TP455

TP452

TP37

TP34

C266

C256

R220

C255

R259

K451

C367

TP453

TP41

TP40

TP38

C259

C257

R252

SPDRV

SW3

C365

C302

R260

CN201

IC251

IC201

R257

TP457

C269

C369

R221

CN202

TP39

R315 R316

R340

R258

C268

R256

C221

R223 R222

IC302

C368 R365

R332

R351

R224

C222

R254

C209

C364

TP316 TP318

TP36

C267

TP31

C212

R366

C303

C362

CN402

FG

C251

TP33

TP32

/SPMUTE

R468 R467

R466

C463

IC451

C456

IC452

C455

CN532

Q401

C448

C474 R473 R474

C472

C473

R472

C471

R475

R478 R477 R476

R471

reverse side

R447

R445

R484 R483 R425

R446

C481

C441

IC441

IC481

C482

R436 R432

R433

R399

R398

IC482

R482

C418

R448

R401 R402 R408

R439 R440

R426

C419

R437

C440

R407

R406

R410

C420

C461

R465

R462

R461

C464

D601 D600

K531 R531

R463 R464

F531

C462

CN600

CN531

C531

D532

D533

2-20

Victor Company of Japan, Limited

Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,Gumma-ken,371-8543,Japan

(No.MA250SCH)

Printed in Japan

VPT

PARTS LIST

KD-ADV6270J,KD-DV6200J

KD-DV6201E,KD-DV6201EU,KD-DV6202E,KD-DV6202EU

KD-DV7205U,KD-DV7205UN,KD-DV7205UT

KD-DV7205A,KD-DV7206U,KD-DV7206UN

KD-DV7206UT,KD-DV7206A,KD-DV6207EE

* All printed circuit boards and its assemblies are not available as service parts.

MA250

- Contents -

Exploded view of general assembly and parts list (Block No.M1) DVD mechanism assembly and parts list (Block No.MJ) Electrical parts list (Block No.01~10) Packing materials and accessories parts list (Block No.M3)

3- 2 3- 7 3-10 3-30

3-1

Exploded view of general assembly and parts list

6

6 6 7 7 6

Block No.

5

16

5

9

3

C

M

1

M

DV7205UT DV7206UT

98

1

B

18

DV DV DV DV DV

2

32

11

38

48

26

10

27

53

31

39

28

D

36

29

37

30

44

E

46

43

54

52

56

D

42

40

33

45

11 34

49

47

62

64

55

41

57

65

60

35

63

90

51

72

A

50

59

Switch board

58

12

85

e

6

19

59

20

3-2

61

71

Main sub board

13

18

DV6201E,EU DV6202E,EU DV7205U,UN,UT,A DV7206U,UN,UT,A DV6207EE

2

C

84

87

7

88

78

88

81

7

h

b

77

g

D

B

22

79

D

j

80

g

h

83

82

k

a

G

14

b

97

DV6201E,EU DV6202E,EU

14

75

86

76

85

j

89

f

a

d

G

8

USB board

6

E

6

68

92

A

17

19

Main board

94

6

95

f

k

d

74

91

93

15

9

67

66

e

0

rd

13

25

13

12

73

21

4

70

4

24

23

4

96

23

DV6201E,EU DV6202E,EU DV7205U,UN,UT,A DV7206U,UN,UT,A DV6207EE

69

3-3

General Assembly



Symbol No. Part No. Part Name Description Local

Block No. [M][1][M][M]

1 GE10154-002A TOP CHASSIS

2 GE40135-001A EARTH PLATE

3 GE32126-002A SIDE PANEL 4 QYSDST2605ZA TAP SCREW M2.6 x 5mm(x3) 5 GE40235-001A SCREW (x2) 6 GE40235-004A SCREW (x3) 7 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2) 8 QYSDST2606ZA TAP SCREW M2.6 x 6mm 9 QYSDST2610ZA TAP SCREW M2.6 x 10mm 10 QYSDSF2006ZA TAP SCREW M2 x 6mm(x2) 11 QYSDST2004ZA TAP SCREW M2 x 4mm(x2) 12 QYSDST2003ZA TAP SCREW M2 x 3mm(x2) 13 QYSDST2606ZA TAP SCREW M2.6 x 6mm(x2)

14 QYSDST2604ZA TAP SCREW M2.6 x 4mm

14 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2) DV6201E,DV6201EU,DV6202E,DV6202EU 15 QYSDST2604ZA TAP SCREW M2.6 x 4mm 16 QYSDST2610ZA TAP SCREW M2.6 x 10mm 17 FSYH4036-100 SHEET 18 LV40848-044A SPACER(P) 19 LV34460-001A INSULATOR 20 GE40311-001A SUP BRACKET 21 GE20192-001A DUST COVER 22 GE40332-001A INSULATOR 23 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2) 24 GE40218-034A SHEET 25 GE40278-001A SHEET 26 GE32144-002A F.CHASSIS ASSY

27 GE32173-004A FRONT COVER ASS

27 GE32173-002A FRONT COVER ASS DV6200J

27 GE32173-003A FRONT COVER ASS

28 GE32136-004A EJECT BUTTON

28 GE32136-002A EJECT BUTTON DV6200J

28 GE32136-003A EJECT BUTTON

29 GE40202-015A COMP.SPRING 30 GE32116-001A LOCK LEVER GUID 31 GE32117-002A LOCK LEVER(L) 32 GE32118-002A DETACH LEVER 33 GE32119-002A LOCK LEVER (TOP 34 GE32120-001A LOCK LEVER(R) 35 GE32121-001A OPEN LEVER 36 GE40154-001A GEAR 37 QZW0108-002 OIL DAMPER 38 GE40202-014A COMPRESSION SPRING 39 GE40301-002A SPRING 40 GE40303-003A T.SPRING 41 GE40304-001A T.SPRING 42 GE40305-001A T.SPRING 43 GE40156-001A BLIND 44 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2) 45 VKZ4777-010 MINI SCREW (x2) 46 GE10150-029A FRONT PANEL ADV6270J 46 GE10150-030A FRONT PANEL DV6200J 46 GE10150-035A FRONT PANEL DV6201E,DV6201EU 46 GE10150-036A FRONT PANEL DV6202E,DV6202EU 46 GE10150-031A FRONT PANEL DV7205U,DV7205UN,DV7205UT,DV7205A 46 GE10150-032A FRONT PANEL DV7206U,DV7206UN,DV7206UT,DV7206A 46 GE10150-037A FRONT PANEL DV6207EE 47 GE32143-015A FINDER ASSY ADV6270J 47 GE32143-014A FINDER ASSY DV6200J

47 GE32143-020A FINDER ASSY

48 GE40314-001A VOLUME KNOB ASS 49 GE32135-001A BAND DISP BTN

DV6201E,DV6201EU,DV6202E,DV6202EU ,DV7205U,DV7205UN,DV7205UT, DV7205A,DV7206U,DV7206UN,DV7206UT ,DV7206A,DV6207EE

ADV6270J,DV6200J,DV7205U,DV7205UN, DV7205UT,DV7205A,DV7206U,DV7206UN ,DV7206UT,DV7206A,DV6207EE

ADV6270J,DV6202E,DV6202EU,DV7206U ,DV7206UN,DV7206UT,DV7206A, DV6207EE

DV6201E,DV6201EU,DV7205U, DV7205UN,DV7205UT,DV7205A

ADV6270J,DV6202E,DV6202EU,DV7206U ,DV7206UN,DV7206UT,DV7206A, DV6207EE

DV6201E,DV6201EU,DV7205U, DV7205UN,DV7205UT,DV7205A

DV6201E,DV6201EU,DV6202E,DV6202EU ,DV7205U,DV7205UN,DV7205UT, DV7205A,DV7206U,DV7206UN,DV7206UT ,DV7206A,DV6207EE

3-4



Symbol No. Part No. Part Name Description Local

50 GE20193-003A PRESET BUTTON

50 GE20193-005A PRESET BUTTON

51 GE32137-002A UP/DOWN BTN

51 GE32137-001A UP/DOWN BTN

52 GE32134-001A SRC BUTTON 53 GE32133-001A RIM COVER

54 GE32138-004A DETACH BTN TOP

54 GE32138-002A DETACH BTN TOP DV6200J

54 GE32138-003A DETACH BTN TOP

55 GE32139-001A DETACH BTN BASE 56 GE40202-016A COMP.SPRING 57 VKZ4777-010 MINI SCREW 58 GE10151-001A REAR COVER 59 VKZ4777-010 MINI SCREW (x5) 60 VKZ4777-011 MINI SCREW 61 GE32140-001A LCD CASE 62 GE32142-001A LENS 63 GE32141-001A LENS CASE 64 GE40313-001A LIGHTING SHEET 65 GE40321-001A SHEET 66 GE32128-002A BOTTOM COVER 67 GE32147-002A INSULATOR 68 GE40320-003A COOLING RUBBER 69 GE32076-001A NAME PLATE ADV6270J 69 GE32079-001A NAME PLATE DV6200J 69 GE32099-001A NAME PLATE DV6201E,DV6201EU 69 GE32102-001A NAME PLATE DV6202E,DV6202EU 69 GE32082-001A NAME PLATE DV7205U,DV7205UN,DV7205UT,DV7205A 69 GE32086-001A NAME PLATE DV7206U,DV7206UN,DV7206UT,DV7206A 69 GE32105-001A NAME PLATE DV6207EE 70 GE31683-017A LABEL (DVD) ADV6270J,DV6200J 70 GE31683-018A LABEL (DVD) DV6201E,DV6201EU,DV6202E,DV6202EU

70 GE31683-019A LABEL (DVD)

70 GE31683-020A LABEL (DVD) DV7205A,DV7206A 70 GE31683-024A LABEL (DVD) DV6207EE 71 QLD0384-001 LCD MODULE 72 QNZ0867-001 RUBBER CONN 73 QUQP05-4510BB-E FFC WIRE 45pin 10cm 74 QAM0548-001 L-IN CABLE ADV6270J

74 QAM0685-001 LINE IN CABLE

75 QAM0683-001 COMPOSITE CABLE 76 VYTA500-001 PIN CAP (x4)



77 QMFZ039-150-T FUSE 15A 78 QAR0353-001 FAN 79 GE32124-001A REAR BARCKET 80 QYSDST2606ZA TAP SCREW M2.6 x 6mm 81 QYSDST2606ZA TAP SCREW M2.6 x 6mm 82 QYSDSF2606ZA TAP SCREW M2.6 x 6mm 83 QYSDSF2606ZA TAP SCREW M2.6 x 6mm 84 GE40307-002A IC BRACKET 85 GE40308-001A REG BRACKET 86 GE40310-001A REG BRACKET 87 GE40324-001A FAN BRACKET 88 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2) 89 GE40270-001A SHIELD COVER 90 GE30854-001A LED HOLDER 91 QAM0813-001 AUDIO CABLE 92 GE32129-002A PWB USB BRACKET 93 QYSDST2606ZA TAP SCREW M2.6 x 6mm 94 GE40218-047A SHEET 95 GE40218-048A SHEET

96 LV41843-002A LASER CAUTION

97 QAM0686-001 STEERING REMOTE DV6201E,DV6201EU,DV6202E,DV6202EU 98 GE31574-034A UT LABEL DV7205UT

ADV6270J,DV6202E,DV6202EU,DV7206U ,DV7206UN,DV7206UT,DV7206A, DV6207EE

DV6200J,DV6201E,DV6201EU,DV7205U, DV7205UN,DV7205UT,DV7205A

ADV6270J,DV6200J,DV7205U,DV7205UN, DV7205UT,DV7205A,DV7206U,DV7206UN ,DV7206UT,DV7206A DV6201E,DV6201EU,DV6202E,DV6202EU ,DV6207EE

ADV6270J,DV6202E,DV6202EU,DV7206U ,DV7206UN,DV7206UT,DV7206A, DV6207EE

DV6201E,DV6201EU,DV7205U, DV7205UN,DV7205UT,DV7205A

DV7205U,DV7205UN,DV7205UT, DV7206U,DV7206UN,DV7206UT

DV6200J,DV6201E,DV6201EU,DV6202E, DV6202EU,DV7205U,DV7205UN, DV7205UT,DV7205A,DV7206U,DV7206UN ,DV7206UT,DV7206A,DV6207EE

DV6201E,DV6201EU,DV6202E,DV6202EU ,DV7205U,DV7205UN,DV7205UT, DV7205A,DV7206U,DV7206UN,DV7206UT ,DV7206A,DV6207EE

3-5



Symbol No. Part No. Part Name Description Local

98 GE31574-035A UT LABEL DV7206UT

3-6

DVD mechanism assembly and parts list

Grease

34

30

=

JVS-1003

=

MOBIL-1

=

JVG-31N

=

JC-803B

=

1401C

= FG-87HS

29

93

FMU-JD6-11D

97

94

95

92

96

15

91

90

18

14

87

Block No.

18

A

J

M M

M

62

17

13

32

16

53

10

56

36

55

57

21

88

INSIDE

OUTSIDE

24

59

58

37

22

38

B

19

43

c

65

J

71

26

E

73

72

83

G

H

D

K

F

3

7420

70

28

27

B

29

31

34

35

33

C

23

3

48

47

F

44

50

54

H

G

49

60

61

7

75

AFTER SET PICK UP SA. APPLY GREASE

52

K

51

63

45

46

BACK SIDE

6

89

c

64

40

43

39

41

42

25

76

79

80

86

67

10

11

9

INSIDE

68

86

66

a

85

E

81

84

86

J

1

a

82

1

77

5

A

78

69

b

4

2

16

12

10

5

D

8

12

8

17

The parts without symbol number are not service.

3-7

DVD mechanism



Symbol No. Part No. Part Name Description Local

1 VKZ4539-056 MINI SCREW (x2) 2 QYSPSFT2040ZA TAP SCREW M2 x 4mm 3 LV43481-001A COOLING RUBBER (x2) 4 LV10674-001A CHASSIS FRAME 5 LV30225-0J6A SPACER (x2) 6 VKZ4539-056 MINI SCREW 7 VYSA1R4-056 SPACER 8 LV35272-001A DAMPER(F) (x2) 9 LV35273-001A DAMPER(R) 10 QYSDST2005ZA SCREW M2 x 5mm(x3) 11 LV43039-001A DAMPER SP.(R) 12 LV43849-001A DAMPER SP(F2) (x2) 13 LV43041-001A FLOATING SPRING (x2) 14 LV10675-001A TOP COVER 15 LV30225-0J5A SPACER 16 VKZ4539-056 MINI SCREW (x2) 17 LV33669-001A STOPPER (x2) 18 VKZ4539-056 MINI SCREW (x2) 19 LV21297-004A CHAS. BASE ASSY 20 LV33608-002A GEAR HOLDER 21 VKZ4539-056 MINI SCREW 22 LV43561-002A ABSORBER 23 LV30225-0J5A SPACER 24 LV36831-001A SLIDE CAM ASSY2 25 LV33610-002A FLOATING ARM 26 LV33611-001A CONNECT ARM 27 LV33678-003A LOADING A. ASSY 28 LV43049-001A LOADING SHAFT 29 LV43052-003A ROLLER (x2) 30 LV33612-001A LOADING GEAR 31 QYWFM124013 WASHER 4mm/1.2mm x 0.13mm 32 LV43053-002A ROD(L) 33 LV43054-003A ROD(R) 34 LV43001-001A COLLAR (x2) 35 LV21285-003A PROTECTOR 36 LV43055-001A PROTECTOR SP. 37 QAR0373-001 MOTOR 38 LV43002-002A WORM GEAR 39 QYSPSPT2025MA SCREW M2 x 2.5mm(x2) 40 LV33679-001A MOTOR H. ASSY 41 LV33614-003A WORM WHEEL 42 QYWDL1230250 SLIT WASHER 3mm/1.2mm x 0.25mm 43 VKZ4539-056 MINI SCREW (x2) 44 LV33615-001A GEAR 2 45 LV43057-004A IDLER ARM ASSY 46 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm 47 LV21286-001A CONTROL CAM 48 QYWDL1230196 SLIT WASHER 3mm/1.2mm x 0.19mm 49 LV33616-002A LOAD.LOCK LEVER 50 LV43060-001A CAM SPRING 51 LV43005-001A GEAR 4 52 LV43006-002A GEAR 5 53 LV33617-002A GEAR 6 54 LV33618-002A LOADING G. ARM 55 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm 56 LV43007-002A GEAR 7 57 LV33619-002A GEAR 8 58 LV42132-001A E RING 59 QYWFM215013 WASHER 5mm/2.1mm x 0.13mm 60 LV33620-001A GEAR 9 61 LV43008-001A GEAR10 62 LV43061-001A LOAD SPRING 63 LV33621-001A FEED GEAR 64 LV33622-002A TRIGGER ARM 65 LV43062-001A FEED TRI.SPRING 66 QAR0240-002 SPINDLE MOTOR 67 LV21287-002A SPINDLE BASE 68 LV44169-001A SPECIAL SCREW (x2) 69 VKZ4539-056 MINI SCREW (x2) 70 QAL0742-001 DVD PICK UP 71 LV34583-002A CD RACK PLATE 72 LV34579-001A CD RACK SPRING 73 LV43903-002A MINI TAP SCREW 74 LV43037-001A LEAD SCREW

Block No. [M][J][M][M]

3-8



Symbol No. Part No. Part Name Description Local

75 LV43010-001A L.S.GEAR 76 LV43063-001A L.S.COLLAR 77 LV43011-001A THRUST SPRING 78 QYSPSFT2040ZA TAP SCREW M2 x 4mm 79 LV33624-001A HOLDER(M) 80 VKZ4539-056 MINI SCREW (x2) 81 LV22130-001A HOLDER(S) 2 82 VKZ4539-056 MINI SCREW (x2) 83 LV43064-001A ROD(M) 84 LV43065-001A ROD(S) 85 LV43066-001A SUB SHAFT 86 VKZ4730-002 SPECIAL SCREW (x3) 87 LV21298-007A CLAMPER UNIT 88 LV43070-001A CLAMPER SPRING 89 LV43355-001A CLAMPER2 SPRING 90 LV30225-0J6A SPACER 91 LV22185-001A FRONT UNIT (C) 92 VKZ4539-056 MINI SCREW 93 LVB30012-002A SW FPC 94 NSW0187-001 SWITCH 95 NSW0187-001 SWITCH 96 NSW0187-001 SWITCH 97 VKZ4539-055 MINI SCREW (x2)

3-9

Electrical parts list

Main board



Symbol No.

Part No. Part Name Description Local

(KD-ADV6170J,DV6200J,DV7205U, DV7205UN,DV7205UT,DV7205A, DV7206U,DV7206UN,DV7206UT, DV7206A)

Block No. [0][1]



Symbol No.

IC161 TDA7416 IC IC162 CD4066BPW-X IC IC301 TB2904HQ IC IC371 NJM2792V-X IC ADV6270J IC401 SN74AHCT1G08V-X IC IC402 TOTX177L OPTICAL JACK IC411 MM1510XN-X IC IC421 NJM4580V-X IC IC431 LC75344M-X IC IC471 BA05CC0WT-V5 IC REGULATOR



IC721 UPD784218AGC329 IC IC722 BR24L16F-W-X IC(DIGITAL) IC723 S-80833CNNB-G-W IC IC801 SN74AHC126NS-X IC



IC901 R2S25401DS-E IC



IC921 BA33BC0FP-X IC



IC922 BD9781HFP-W IC IC961 SN74LVC32APW-X IC IC962 SN74HCT32APW-X IC

Q2 RT1N141C-X DIGI TRANSISTOR Q161 RT1N141C-X DIGI TRANSISTOR Q162 RT1N141C-X DIGI TRANSISTOR Q191 KTD1304-X TRANSISTOR Q192 RT1P441C-X DIGI TRANSISTOR Q301 RT1N441C-X TRANSISTOR Q302 RT1P441C-X DIGI TRANSISTOR Q303 RT1N141C-X DIGI TRANSISTOR Q304 RT1N141C-X DIGI TRANSISTOR Q324 KTD1304-X TRANSISTOR Q334 KTD1304-X TRANSISTOR Q344 KTD1304-X TRANSISTOR Q354 KTD1304-X TRANSISTOR Q421 KTD1304-X TRANSISTOR Q422 KTD1304-X TRANSISTOR Q431 KTD1304-X TRANSISTOR Q432 KTD1304-X TRANSISTOR Q476 2SA1365/F/-X TRANSISTOR Q477 RT1N141C-X DIGI TRANSISTOR Q701 2SA1530A/R/-X TRANSISTOR Q781 RT1P141C-X DIGI TRANSISTOR Q782 RT1P141C-X DIGI TRANSISTOR Q783 RT1P141C-X DIGI TRANSISTOR Q784 RT1P141C-X DIGI TRANSISTOR Q821 RT1N141C-X DIGI TRANSISTOR Q822 RT1P141C-X DIGI TRANSISTOR Q823 2SC4485/ST/-T TRANSISTOR Q881 2SC3928A/R/-X TRANSISTOR Q885 RT1N141C-X DIGI TRANSISTOR

Q891 RT1N141C-X DIGI TRANSISTOR

Q903 2SA1530A/R/-X TRANSISTOR Q904 RT1N141C-X DIGI TRANSISTOR Q976 RT1N441C-X TRANSISTOR Q977 2SA1530A/R/-X TRANSISTOR

D1 1SS355W-X DIODE C.M D2 1SS355W-X DIODE C.M

Part No. Part Name Description Local

ADV6270J, DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

D192 1SS355W-X DIODE C.M D301 UDZW11B-X Z DIODE D302 1SS355W-X DIODE C.M D305 CRS03-W SB DIODE D308 CRS03-W SB DIODE D324 1SS355W-X DIODE C.M D334 1SS355W-X DIODE C.M D344 1SS355W-X DIODE C.M D354 1SS355W-X DIODE C.M D401 CRS03-W SB DIODE D421 1SS355W-X DIODE C.M D431 1SS355W-X DIODE C.M D472 1A3G-T1 SI DIODE D701 UDZW6.2B-X DIODE D702 UDZW6.2B-X DIODE D703 UDZW6.2B-X DIODE D704 UDZW6.2B-X DIODE D705 UDZW6.2B-X DIODE D706 UDZW6.2B-X DIODE D707 UDZW6.2B-X DIODE D709 UDZW6.2B-X DIODE D710 UDZW6.2B-X DIODE D711 UDZW6.2B-X DIODE D716 UDZW6.2B-X DIODE D717 UDZW6.2B-X DIODE D719 SLR-56VC3F DIODE C.M D731 1SS355W-X DIODE C.M D732 UDZW6.2B-X DIODE D781 MC2836-X DIODE D782 MC2836-X DIODE D783 UDZW11B-X Z DIODE D784 UDZW11B-X Z DIODE D785 1SS355W-X DIODE C.M D801 CRS03-W SB DIODE D821 UDZW12B-X Z DIODE

D851 CRS03-W SB DIODE

D852 CRS03-W SB DIODE

D885 1SS355W-X DIODE C.M

D891 MC2836-X DIODE



D901 1N5401-F64 SI DIODE D903 1SS355W-X DIODE C.M D906 UDZW5.1B-X SI DIODE D921 1A3G-T1 SI DIODE D922 RB051L-40-X SB DIODE D923 CRS03-W SB DIODE D924 CRS03-W SB DIODE D925 CRS03-W SB DIODE D981 CRS03-W SB DIODE D982 CRS03-W SB DIODE

C1 NCB31HK-104X C CAPACITOR 0.1uF 50V K C4 NCB31EK-104X C CAPACITOR 0.1uF 25V K C5 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C8 NCB31HK-104X C CAPACITOR 0.1uF 50V K C9 QEKJ1HM-224Z E CAPACITOR 0.22uF 50V M

DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

ADV6270J, DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

3-10



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C12 NDC31HJ-2R0X C CAPACITOR 2pF 50V J C14 NDC31HJ-5R0X C CAPACITOR 5pF 50V J C83 QTE1E57-475Z E CAPACITOR 4.7uF 25V C93 QTE1E57-475Z E CAPACITOR 4.7uF 25V C141 NCB31HK-471X C CAPACITOR 470pF 50V K C151 NCB31HK-471X C CAPACITOR 470pF 50V K C155 NCB31AK-474X C CAPACITOR 0.47uF 10V K C161 QTE1A57-107Z E CAPACITOR 100uF 10V C162 NCB31CK-473X C CAPACITOR 0.047uF 16V K C163 NFV81CM-105X MF CAPACITOR 1uF 16V M C164 NFV81CM-105X MF CAPACITOR 1uF 16V M C165 NFV81CM-105X MF CAPACITOR 1uF 16V M C166 QTE1C57-106Z E CAPACITOR 10uF 16V C168 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C169 NCB31HK-103X C CAPACITOR 0.01uF 50V K C170 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C171 QTE1H57-225Z E CAPACITOR 2.2uF 50V C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V C174 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C176 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C177 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C181 QTE1H57-225Z E CAPACITOR 2.2uF 50V C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V C184 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C186 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C187 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C191 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C267 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C302 NCB31HK-103X C CAPACITOR 0.01uF 50V K C311 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M C312 QTE1C57-476Z E CAPACITOR 47uF 16V C313 NCB31HK-103X C CAPACITOR 0.01uF 50V K C314 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C315 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C316 NCB31HK-103X C CAPACITOR 0.01uF 50V K C326 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C328 NFV81CM-105X MF CAPACITOR 1uF 16V M C329 NCS31HJ-101X C CAPACITOR 100pF 50V J C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K C336 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C338 NFV81CM-105X MF CAPACITOR 1uF 16V M C339 NCS31HJ-101X C CAPACITOR 100pF 50V J C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C348 NFV81CM-105X MF CAPACITOR 1uF 16V M C349 NCS31HJ-101X C CAPACITOR 100pF 50V J C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C358 NFV81CM-105X MF CAPACITOR 1uF 16V M C359 NCS31HJ-101X C CAPACITOR 100pF 50V J C373 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M ADV6270J C374 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M ADV6270J C377 NCB31HK-152X C CAPACITOR 1500pF 50V K ADV6270J C378 NCB31HK-152X C CAPACITOR 1500pF 50V K ADV6270J C379 QEKJ1AM-227Z E CAPACITOR 220uF 10V M ADV6270J C380 QEKJ1AM-227Z E CAPACITOR 220uF 10V M ADV6270J C384 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M ADV6270J C389 NCB31HK-104X C CAPACITOR 0.1uF 50V K ADV6270J C390 QEKJ1AM-107Z E CAPACITOR 100uF 10V M ADV6270J C391 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M ADV6270J C392 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M ADV6270J C401 NCS31HJ-220X C CAPACITOR 22pF 50V J C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M C405 NCS31HJ-220X C CAPACITOR 22pF 50V J C406 NCB31HK-103X C CAPACITOR 0.01uF 50V K C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C412 NCB31EK-473X C CAPACITOR 0.047uF 25V K C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M C415 NCS31HJ-101X C CAPACITOR 100pF 50V J C416 NCB31HK-103X C CAPACITOR 0.01uF 50V K C423 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C424 NCS31HJ-151X C CAPACITOR 150pF 50V J C425 NCS31HJ-101X C CAPACITOR 100pF 50V J C426 NCS31HJ-221X C CAPACITOR 220pF 50V J C427 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C428 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M

C433 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C434 NCS31HJ-151X C CAPACITOR 150pF 50V J C435 NCS31HJ-101X C CAPACITOR 100pF 50V J C436 NCS31HJ-221X C CAPACITOR 220pF 50V J C437 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C438 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C441 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C451 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C461 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C462 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C463 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C464 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C465 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C474 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C475 NCB31HK-102X C CAPACITOR 1000pF 50V K C476 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C477 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C478 NCB31CK-104X C CAPACITOR 0.1uF 16V K C479 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C480 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C701 NCB31HK-103X C CAPACITOR 0.01uF 50V K C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K C721 NCB31EK-473X C CAPACITOR 0.047uF 25V K C722 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C723 NCS31HJ-471X C CAPACITOR 470pF 50V J C724 NCS31HJ-471X C CAPACITOR 470pF 50V J C725 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C726 NDC31HJ-8R0X C CAPACITOR 8pF 50V J C727 NDC31HJ-270X C CAPACITOR 27pF 50V J C728 NDC31HJ-270X C CAPACITOR 27pF 50V J C729 NDC31HJ-220X C CAPACITOR 22pF 50V J C730 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C731 NCB31CK-103X C CAPACITOR 0.01uF 16V K C732 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C733 NCS31HJ-471X C CAPACITOR 470pF 50V J C781 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C782 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C783 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C784 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C802 NCS31HJ-220X C CAPACITOR 22pF 50V J C803 NCB31CK-473X C CAPACITOR 0.047uF 16V K C804 NCS31HJ-220X C CAPACITOR 22pF 50V J C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C823 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C851 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C881 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M

C892 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C901 QEZ0722-338 E CAPACITOR 3300uF C902 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C903 QEKJ1CM-106Z E CAPACITOR 10uF 16V M

C904 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C905 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C906 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K C908 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C909 QEKJ1CM-107Z E CAPACITOR 100uF 16V M C910 NCB31HK-102X C CAPACITOR 1000pF 50V K

DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

ADV6270J, DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

3-11



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C911 NCB31HK-102X C CAPACITOR 1000pF 50V K C912 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C913 NCB31EK-473X C CAPACITOR 0.047uF 25V K C918 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C919 NCB31HK-103X C CAPACITOR 0.01uF 50V K C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C925 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C926 QEXF1AM-476Z E CAPACITOR 47uF 10V M C927 QEZ0595-477Z E CAPACITOR 470uF C928 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C929 NCB31HK-472X C CAPACITOR 4700pF 50V K C930 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C961 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C962 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C963 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C964 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C965 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C966 NCB31CK-104X C CAPACITOR 0.1uF 16V K C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K C968 NCB31EK-473X C CAPACITOR 0.047uF 25V K C969 NCB31EK-473X C CAPACITOR 0.047uF 25V K C970 QEKJ1CM-107Z E CAPACITOR 100uF 16V M C971 NCB31EK-473X C CAPACITOR 0.047uF 25V K C981 NCB31CK-104X C CAPACITOR 0.1uF 16V K C999 NRSA63J-0R0X MG RESISTOR 0

R2 NRSA63J-102X MG RESISTOR 1k R3 NRSA63J-102X MG RESISTOR 1k R5 NRSA63J-330X MG RESISTOR 33 R6 NRSA63J-330X MG RESISTOR 33 R7 NRSA63J-103X MG RESISTOR 10k R8 NRSA63J-332X MG RESISTOR 3.3k R9 NRSA63J-473X MG RESISTOR 47k R10 NRSA63J-472X MG RESISTOR 4.7k R11 NRSA63J-472X MG RESISTOR 4.7k R12 NRS181J-4R7X MG RESISTOR 4.7 R13 NRS181J-6R8X MG RESISTOR 6.8 R81 NRSA63J-223X MG RESISTOR 22k

R82 NRSA63J-512X MG RESISTOR 5.1k

R82 NRSA63J-822X MG RESISTOR 8.2k

R91 NRSA63J-223X MG RESISTOR 22k

R92 NRSA63J-512X MG RESISTOR 5.1k

R92 NRSA63J-822X MG RESISTOR 8.2k

R141 NRSA63J-473X MG RESISTOR 47k R142 NRSA63J-0R0X MG RESISTOR 0 R151 NRSA63J-473X MG RESISTOR 47k R152 NRSA63J-0R0X MG RESISTOR 0 R155 NRSA63J-471X MG RESISTOR 470 R161 NRSA63J-0R0X MG RESISTOR 0 R162 NRSA63J-473X MG RESISTOR 47k R163 NRSA63J-473X MG RESISTOR 47k R164 NRSA63J-473X MG RESISTOR 47k R165 NRSA63J-473X MG RESISTOR 47k R166 NRSA63J-221X MG RESISTOR 220 R171 NRSA63J-222X MG RESISTOR 2.2k R172 NRSA63J-222X MG RESISTOR 2.2k R173 NRSA63J-0R0X MG RESISTOR 0 R191 NRSA63J-472X MG RESISTOR 4.7k R192 NRSA63J-821X MG RESISTOR 820 R193 NRSA63J-101X MG RESISTOR 100 R194 NRSA63J-101X MG RESISTOR 100 R197 NRSA63J-471X MG RESISTOR 470 R302 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

ADV6270J, DV6200J DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

ADV6270J, DV6200J

DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

R304 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R305 NRSA63J-103X MG RESISTOR 10k R306 NRSA63J-273X MG RESISTOR 27k R307 NRSA63J-100X MG RESISTOR 10 R308 NRSA63J-222X MG RESISTOR 2.2k R323 NRSA63J-473X MG RESISTOR 47k R324 NRSA63J-222X MG RESISTOR 2.2k R325 NRSA63J-102X MG RESISTOR 1k R326 NRSA63J-101X MG RESISTOR 100 R327 NRSA63J-0R0X MG RESISTOR 0 R329 NRSA63J-102X MG RESISTOR 1k R330 NRSA63J-102X MG RESISTOR 1k R333 NRSA63J-473X MG RESISTOR 47k R334 NRSA63J-222X MG RESISTOR 2.2k R335 NRSA63J-102X MG RESISTOR 1k R336 NRSA63J-101X MG RESISTOR 100 R337 NRSA63J-0R0X MG RESISTOR 0 R339 NRSA63J-102X MG RESISTOR 1k R340 NRSA63J-102X MG RESISTOR 1k R343 NRSA63J-473X MG RESISTOR 47k R344 NRSA63J-222X MG RESISTOR 2.2k R345 NRSA63J-102X MG RESISTOR 1k R346 NRSA63J-101X MG RESISTOR 100 R347 NRSA63J-0R0X MG RESISTOR 0 R349 NRSA63J-102X MG RESISTOR 1k R350 NRSA63J-102X MG RESISTOR 1k R353 NRSA63J-473X MG RESISTOR 47k R354 NRSA63J-222X MG RESISTOR 2.2k R355 NRSA63J-102X MG RESISTOR 1k R356 NRSA63J-101X MG RESISTOR 100 R357 NRSA63J-0R0X MG RESISTOR 0 R359 NRSA63J-102X MG RESISTOR 1k R360 NRSA63J-102X MG RESISTOR 1k R371 NRSA63J-102X MG RESISTOR 1k

R371 NRSA63J-0R0X MG RESISTOR 0

R372 NRSA63J-102X MG RESISTOR 1k

R372 NRSA63J-0R0X MG RESISTOR 0

R373 NRSA63J-104X MG RESISTOR 100k R374 NRSA63J-104X MG RESISTOR 100k R375 NRSA63J-243X MG RESISTOR 24k R376 NRSA63J-243X MG RESISTOR 24k R377 NRSA63J-363X MG RESISTOR 36k R378 NRSA63J-363X MG RESISTOR 36k R381 NRSA63J-102X MG RESISTOR 1k

R381 NRSA63J-0R0X MG RESISTOR 0

R382 NRSA63J-102X MG RESISTOR 1k

R382 NRSA63J-0R0X MG RESISTOR 0

R383 NRSA63J-104X MG RESISTOR 100k R384 NRSA63J-104X MG RESISTOR 100k R385 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J ADV6270J

Ω

1/16W J

Ω

1/16W J ADV6270J

Ω

1/16W J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J

Ω

1/16W J ADV6270J

Ω

1/16W J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

DV6200J,D V7205U,D V7205UN, DV7205UT, DV7205A, DV7206U, DV7206UN ,DV7206U T,DV7206A

3-12



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R386 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J ADV6270J R387 NRSA63J-363X MG RESISTOR 36k R388 NRSA63J-363X MG RESISTOR 36k R390 NRSA63J-0R0X MG RESISTOR 0 R401 NRSA63J-471X MG RESISTOR 470 R402 NRSA63J-100X MG RESISTOR 10 R403 NRSA63J-471X MG RESISTOR 470 R404 NRSA63J-2R2X MG RESISTOR 2.2 R410 NRS181J-0R0X MG RESISTOR 0 R411 NRSA63J-0R0X MG RESISTOR 0 R412 NRSA63D-682X MG RESISTOR 6.8k R413 NRSA63J-100X MG RESISTOR 10 R414 NRSA63J-102X MG RESISTOR 1k R415 NRSA63J-750X MG RESISTOR 75 R416 NRSA63J-0R0X MG RESISTOR 0 R417 NRSA63D-181X MG RESISTOR 180 R421 NRSA63J-220X MG RESISTOR 22 R422 NRSA63J-222X MG RESISTOR 2.2k R423 NRSA63J-222X MG RESISTOR 2.2k R424 NRSA63J-390X MG RESISTOR 39 R425 NRSA63J-102X MG RESISTOR 1k R426 NRSA63J-183X MG RESISTOR 18k R427 NRSA63J-682X MG RESISTOR 6.8k R428 NRSA63J-472X MG RESISTOR 4.7k R429 NRSA63J-104X MG RESISTOR 100k R431 NRSA63J-220X MG RESISTOR 22 R432 NRSA63J-222X MG RESISTOR 2.2k R433 NRSA63J-222X MG RESISTOR 2.2k R434 NRSA63J-390X MG RESISTOR 39 R435 NRSA63J-102X MG RESISTOR 1k R436 NRSA63J-183X MG RESISTOR 18k R437 NRSA63J-682X MG RESISTOR 6.8k R438 NRSA63J-472X MG RESISTOR 4.7k R439 NRSA63J-104X MG RESISTOR 100k R441 NRSA63J-223X MG RESISTOR 22k R442 NRSA63J-223X MG RESISTOR 22k R451 NRSA63J-223X MG RESISTOR 22k R452 NRSA63J-223X MG RESISTOR 22k R461 NRSA63J-100X MG RESISTOR 10 R462 NRSA63J-100X MG RESISTOR 10 R463 NRSA63J-100X MG RESISTOR 10 R471 NRSA63J-101X MG RESISTOR 100 R474 NRSA63J-101X MG RESISTOR 100 R475 NRSA63J-101X MG RESISTOR 100 R479 NRSA63J-0R0X MG RESISTOR 0 R480 NRSA63J-0R0X MG RESISTOR 0 R481 NRSA63J-103X MG RESISTOR 10k R482 NRSA63J-473X MG RESISTOR 47k R483 NRSA63J-102X MG RESISTOR 1k R484 NRSA63J-103X MG RESISTOR 10k R704 NRSA63J-271X MG RESISTOR 270 R705 NRSA63J-271X MG RESISTOR 270 R706 NRSA63J-103X MG RESISTOR 10k R707 NRSA63J-103X MG RESISTOR 10k R708 NRS181J-561X MG RESISTOR 560 R709 NRSA63J-562X MG RESISTOR 5.6k R710 NRSA63J-102X MG RESISTOR 1k R711 NRSA63J-103X MG RESISTOR 10k R712 NRSA63J-104X MG RESISTOR 100k R713 NRSA63J-103X MG RESISTOR 10k R714 NRSA63J-104X MG RESISTOR 100k R715 NRSA63J-271X MG RESISTOR 270 R716 NRSA63J-271X MG RESISTOR 270 R717 NRSA63J-331X MG RESISTOR 330 R718 NRSA63J-103X MG RESISTOR 10k R719 NRSA63J-103X MG RESISTOR 10k R720 NRSA63J-0R0X MG RESISTOR 0 R721 NRSA63J-222X MG RESISTOR 2.2k R722 NRSA63J-222X MG RESISTOR 2.2k R725 NRSA63J-473X MG RESISTOR 47k R726 NRSA63J-103X MG RESISTOR 10k R727 NRSA63J-562X MG RESISTOR 5.6k R728 NRSA63J-472X MG RESISTOR 4.7k R729 NRSA63J-0R0X MG RESISTOR 0 R730 NRSA63J-222X MG RESISTOR 2.2k R733 NRSA63J-103X MG RESISTOR 10k R735 NRSA63J-0R0X MG RESISTOR 0 R738 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J ADV6270J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R739 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R740 NRSA63J-222X MG RESISTOR 2.2k R744 NRSA63J-821X MG RESISTOR 820 R745 NRSA63J-106X MG RESISTOR 10M R746 NRSA63J-473X MG RESISTOR 47k

R747 NRSA63J-473X MG RESISTOR 47k

R749 NRSA63J-473X MG RESISTOR 47k

R750 NRSA63J-473X MG RESISTOR 47k R751 NRSA63J-333X MG RESISTOR 33k R755 NRSA63J-103X MG RESISTOR 10k R756 NRSA63J-222X MG RESISTOR 2.2k R757 NRSA63J-473X MG RESISTOR 47k R758 NRSA63J-224X MG RESISTOR 220k R759 NRSA63J-224X MG RESISTOR 220k R760 NRSA63J-472X MG RESISTOR 4.7k R761 NRSA63J-472X MG RESISTOR 4.7k R762 NRSA63J-472X MG RESISTOR 4.7k R763 NRSA63J-103X MG RESISTOR 10k R765 NRSA63J-103X MG RESISTOR 10k R766 NRSA63J-0R0X MG RESISTOR 0 R767 NRSA63J-0R0X MG RESISTOR 0 R768 NRSA63J-0R0X MG RESISTOR 0 R769 NRSA63J-0R0X MG RESISTOR 0 R771 NRSA63J-392X MG RESISTOR 3.9k R772 NRSA63J-221X MG RESISTOR 220 R773 NRSA63J-221X MG RESISTOR 220 R774 NRSA63J-472X MG RESISTOR 4.7k R775 NRSA63J-472X MG RESISTOR 4.7k R776 NRSA63J-472X MG RESISTOR 4.7k R777 NRSA63J-102X MG RESISTOR 1k R778 NRSA63J-103X MG RESISTOR 10k R779 NRSA63J-222X MG RESISTOR 2.2k R780 NRSA63J-222X MG RESISTOR 2.2k R781 NRSA63J-471X MG RESISTOR 470 R782 NRSA63J-471X MG RESISTOR 470 R799 NRSA63J-222X MG RESISTOR 2.2k R801 NRSA63J-101X MG RESISTOR 100 R802 NRSA63J-473X MG RESISTOR 47k R803 NRSA63J-223X MG RESISTOR 22k R804 NRSA63J-104X MG RESISTOR 100k R805 NRSA63J-103X MG RESISTOR 10k R806 NRSA63J-104X MG RESISTOR 100k R807 NRSA63J-331X MG RESISTOR 330 R808 NRSA63J-223X MG RESISTOR 22k R809 NRSA63J-101X MG RESISTOR 100 R810 NRSA63J-473X MG RESISTOR 47k R811 NRSA63J-0R0X MG RESISTOR 0 R821 NRSA63J-100X MG RESISTOR 10 R822 NRSA63J-471X MG RESISTOR 470 R825 NRSA63J-223X MG RESISTOR 22k

R841 NRSA63J-473X MG RESISTOR 47k

R843 NRSA63J-473X MG RESISTOR 47k

R844 NRSA63J-473X MG RESISTOR 47k R846 NRSA63J-392X MG RESISTOR 3.9k R847 NRSA63J-392X MG RESISTOR 3.9k R848 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

Ω Ω Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω

Ω

1/16W J

1/16W J 1/16W J 1/16W J 1/16W J

1/16W J

1/16W J 1/16W J 1/16W J

1/16W J 1/16W J

1/16W J

1/16W J 1/16W J

DV6200J,D V7205A,D V7206A ADV6270J, DV7205U, DV7205UN ,DV7205U T,DV7206U ,DV7206U N,DV7206 UT

DV6200J,D V7205U,D V7205UN, DV7205UT, DV7206U, DV7206UN ,DV7206U T ADV6270J, DV7205A, DV7206A

3-13



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R851 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J

R857 NRS181J-0R0X MG RESISTOR 0 R859 NRSA63J-222X MG RESISTOR 2.2k R860 NRS181J-561X MG RESISTOR 560 R881 NRSA63J-473X MG RESISTOR 47k R882 NRSA63J-103X MG RESISTOR 10k R883 NRSA63J-104X MG RESISTOR 100k R885 NRSA63J-473X MG RESISTOR 47k R886 NRSA63J-472X MG RESISTOR 4.7k R887 NRSA63J-103X MG RESISTOR 10k R888 NRSA63J-0R0X MG RESISTOR 0 R889 NRSA63J-0R0X MG RESISTOR 0

R891 NRSA63J-473X MG RESISTOR 47k

R892 NRSA63J-102X MG RESISTOR 1k

R894 NRSA63J-0R0X MG RESISTOR 0

R901 QRE142J-102X C RESISTOR 1k R902 NRSA63J-912X MG RESISTOR 9.1k R903 NRSA63J-472X MG RESISTOR 4.7k R909 NRSA63J-473X MG RESISTOR 47k R910 NRSA63J-222X MG RESISTOR 2.2k R914 NRS181J-221X MG RESISTOR 220 R921 NRS181J-0R0X MG RESISTOR 0 R923 NRSA63J-393X MG RESISTOR 39k R924 NRSA63J-103X MG RESISTOR 10k R925 NRSA63J-154X MG RESISTOR 150k

R926 NRSA63D-304X MG RESISTOR

R927 NRSA63J-0R0X MG RESISTOR 0 R928 NRSA63J-473X MG RESISTOR 47k R961 NRS181J-0R0X MG RESISTOR 0 R962 NRSA63J-101X MG RESISTOR 100 R967 NRS181J-0R0X MG RESISTOR 0 R968 NRS181J-0R0X MG RESISTOR 0 R969 NRS181J-0R0X MG RESISTOR 0 R973 NRSA63J-223X MG RESISTOR 22k R974 NRSA63J-223X MG RESISTOR 22k R975 NRSA63J-223X MG RESISTOR 22k R976 NRSA63J-563X MG RESISTOR 56k R977 NRSA63J-183X MG RESISTOR 18k R981 NRS181J-222X MG RESISTOR 2.2k R982 NRS181J-222X MG RESISTOR 2.2k RA721 NRZ0065-222X NET RESISTOR 2.2k RA722 NRZ0065-222X NET RESISTOR 2.2k RA723 NRZ0065-103X NET RESISTOR 10kΩ 1/16W J

L1 NQL334J-4R7X INDUCTOR CM 4.7uH J L2 NQL093K-R22X COIL 0.22uH K L401 NQR0007-002X FERRITE BEADS L411 NQL114K-470X COIL 47uH K L421 NQR0007-002X FERRITE BEADS L430 NQR0007-002X FERRITE BEADS

Ω

1/8W J

Ω Ω Ω

Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω Ω

Ω

1/8W J

Ω Ω

300k D

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/8W J

Ω

1/8W J

Ω Ω Ω Ω Ω

Ω

1/16W J

1/8W J 1/16W J 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

1/8W J

1/16W J 1/16W J

Ω

1/16W J

Ω

1/16W

1/16W J

1/16W J 1/16W J 1/16W J 1/16W J 1/16W J

Ω

1/8W J

Ω

1/8W J

Ω Ω

DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

ADV6270J, DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A ADV6270J, DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A ADV6270J, DV7205U, DV7205UN ,DV7205U T,DV7205A ,DV7206U, DV7206UN ,DV7206U T,DV7206A

L431 NQR0007-002X FERRITE BEADS L721 NQL38DK-330X COIL 33uH K L722 NQL114K-470X COIL 47uH K L901 QQR1378-002 COIL L902 NQL56CK-220X COIL 22uH K L924 NQL56CK-220X COIL 22uH K L925 NQL71EM-330X COIL 33uH M

CN141 QGA2006C1-04 CONNECTOR W-B (1-4) CN411 QGA2501F1-02 CONNECTOR W-B (1-2) CN421 QGA2006C1-04 CONNECTOR W-B (1-4) CN471 QGB1004J2-16X CONNECTOR B-B (1-16) CN701 QNZ0605-001 CAR CONNECTOR CN702 WJK0224-001A-E 2PIN CABLE CN821 QGA2001C1-02 CONNECTOR W-B (1-2) CN901 QNZ0607-001 CAR CONNECTOR CN961 QGB2027M3-30S CONNECTOR B-B (1-30)

CN962 QGF0534F3-45X CONNECTOR

CN963 QGB2027L9-30X CONNECTOR B-B (1-30) J331 QNN0748-001 PIN JACK ADV6270J

J331 QNN0747-001 MODULAR JACK

J801 QNZ0095-001 CONNECTOR K401 NQR0007-002X FERRITE BEADS K402 NQR0007-002X FERRITE BEADS K411 NQR0201-004X FERRITE BEADS PP1 QZW0010-001 STYLE PIN PP2 QZW0010-001 STYLE PIN S701 QSW0451-001 DETECT SW S702 QSW0451-001 DETECT SW S723 QSW1049-001Z TACT SW TH721 NAD0028-103X N THERMISTOR 10k



TU21 QAU0443-002 TUNER PACK W21 QAM0105-003 CAR CABLE X721 QAX0617-001Z CRYSTAL 12.500MHz X722 QAX0401-001 CRYSTAL 32.768KHz

FFC/FPC (1-

45)

Ω

DV6200J,D V7205U,D V7205UN, DV7205UT, DV7205A, DV7206U, DV7206UN ,DV7206U T,DV7206A

Switch board (KD-ADV6170J,DV6200J,DV7205U, DV7205UN,DV7205UT,DV7205A, DV7206U,DV7206UN,DV7206UT, DV7206A)

Block No. [0][2]



Symbol No.

IC601 PT6523LQ-L LCD DRIVER IC602 RPM7338-V4 RM.RECEIVER

Q640 2SA1365/F/-X TRANSISTOR Q641 RT1N141C-X DIGI TRANSISTOR

D601 LSQ971/KL/-X LED D602 LSQ971/KL/-X LED D603 LSQ971/KL/-X LED D604 LSQ971/KL/-X LED D605 LSQ971/KL/-X LED D606 LSQ971/KL/-X LED D607 LSQ971/KL/-X LED D608 SML310BA1T/HJ-X LED D609 SML310BA1T/HJ-X LED D610 LSQ971/KL/-X LED D611 LSQ971/KL/-X LED

Part No. Part Name Description Local

3-14



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

D612 LSQ971/KL/-X LED D613 LSQ971/KL/-X LED D614 LSQ971/KL/-X LED D615 LSQ971/KL/-X LED D616 LSQ971/KL/-X LED D617 LSQ971/KL/-X LED D618 SML310BA1T/HJ-X LED D620 SML310BA1T/HJ-X LED D621 SML310BA1T/HJ-X LED D640 MC2838-X DIODE D641 UDZW5.1B-X SI DIODE D642 1SS355W-X DIODE C.M D643 UDZW6.2B-X DIODE D645 NSPW310BS/BRST/ LED D646 NSPW310BS/BRST/ LED

C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K C602 NCS31HJ-681X C CAPACITOR 680pF 50V J C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M

R601 NRSA63J-821X MG RESISTOR 820 R602 NRSA63J-821X MG RESISTOR 820 R603 NRSA63J-122X MG RESISTOR 1.2k R604 NRSA63J-182X MG RESISTOR 1.8k R605 NRSA63J-272X MG RESISTOR 2.7k R606 NRSA63J-392X MG RESISTOR 3.9k R607 NRSA63J-821X MG RESISTOR 820 R608 NRSA63J-821X MG RESISTOR 820 R609 NRSA63J-122X MG RESISTOR 1.2k R610 NRSA63J-182X MG RESISTOR 1.8k R611 NRSA63J-272X MG RESISTOR 2.7k R612 NRSA63J-392X MG RESISTOR 3.9k R613 NRSA63J-821X MG RESISTOR 820 R614 NRSA63J-821X MG RESISTOR 820 R632 NRSA02J-821X MG RESISTOR 820 R634 NRSA63J-301X MG RESISTOR 300 R636 NRSA63J-301X MG RESISTOR 300 R638 NRSA63J-301X MG RESISTOR 300 R640 NRSA63J-680X MG RESISTOR 68 R641 NRS181J-101X MG RESISTOR 100 R642 NRSA63J-680X MG RESISTOR 68 R643 NRSA63J-680X MG RESISTOR 68 R644 NRSA63J-431X MG RESISTOR 430 R646 NRSA63J-431X MG RESISTOR 430 R648 NRSA63J-431X MG RESISTOR 430 R650 NRS181J-221X MG RESISTOR 220 R651 NRSA63J-222X MG RESISTOR 2.2k R652 NRSA63J-222X MG RESISTOR 2.2k R653 NRSA63J-103X MG RESISTOR 10k R654 NRSA63J-103X MG RESISTOR 10k R655 NRSA63J-103X MG RESISTOR 10k R656 NRSA63J-103X MG RESISTOR 10k R657 NRSA63J-513X MG RESISTOR 51k R658 NRSA63J-184X MG RESISTOR 180k R660 NRSA02J-391X MG RESISTOR 390 R661 NRSA02J-391X MG RESISTOR 390 R670 NRSA63J-0R0X MG RESISTOR 0 R672 NRSA02J-471X MG RESISTOR 470 R673 NRSA02J-473X MG RESISTOR 47k R674 NRSA02J-102X MG RESISTOR 1k R680 NRSA63J-680X MG RESISTOR 68 R681 NRSA63J-680X MG RESISTOR 68 R691 NRSA63J-103X MG RESISTOR 10k R692 NRSA63J-471X MG RESISTOR 470

CN601 NNZ0085-001 CAR CONNECTOR EN601 QSW1163-001 ROTARY ENCODER S601 NSW0206-001X TACT SWITCH S602 NSW0206-001X TACT SWITCH S603 NSW0206-001X TACT SWITCH S604 NSW0206-001X TACT SWITCH S605 NSW0206-001X TACT SWITCH S606 NSW0206-001X TACT SWITCH S607 NSW0206-001X TACT SWITCH S608 NSW0206-001X TACT SWITCH S609 NSW0206-001X TACT SWITCH

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

S610 NSW0206-001X TACT SWITCH S611 NSW0206-001X TACT SWITCH S612 NSW0206-001X TACT SWITCH S613 NSW0206-001X TACT SWITCH S614 NSW0206-001X TACT SWITCH S616 NSW0206-001X TACT SWITCH S617 NSW0206-001X TACT SWITCH

USB board (KD-ADV6170J,DV6200J,DV7205U, DV7205UN,DV7205UT,DV7205A, DV7206U,DV7206UN,DV7206UT, DV7206A)

Block No. [0][3]



Symbol No.

IC401 TCC760 IC IC441 SA04D70TFI021A IC(PROGRAMED) IC442 K4S161622H-UC60 IC IC451 AK4385ET-X IC IC452 NJM4565V-X IC IC481 SN74LVC2G07V-X LOGIC IC IC482 SN74AHCT1G08V-X IC IC521 BH18LB1WG-W 1.8V REG

Q401 RT1N141C-X DIGI TRANSISTOR

D532 UDZW5.1B-X SI DIODE D533 UDZW5.1B-X SI DIODE D600 SML-310LT/MN/-X LED

C402 NCB31CK-104X C CAPACITOR 0.1uF 16V K C403 NCB31CK-104X C CAPACITOR 0.1uF 16V K C404 NCB31CK-104X C CAPACITOR 0.1uF 16V K C406 NCB31CK-104X C CAPACITOR 0.1uF 16V K C407 NDC31HJ-270X C CAPACITOR 27pF 50V J C408 NDC31HJ-270X C CAPACITOR 27pF 50V J C409 NCB31CK-104X C CAPACITOR 0.1uF 16V K C410 NCB31CK-104X C CAPACITOR 0.1uF 16V K C411 NDC31HJ-331X C CAPACITOR 330pF 50V J C412 NCB31CK-104X C CAPACITOR 0.1uF 16V K C413 NCB31CK-104X C CAPACITOR 0.1uF 16V K C414 NCB31CK-104X C CAPACITOR 0.1uF 16V K C415 NCB31CK-104X C CAPACITOR 0.1uF 16V K C416 NCB31CK-104X C CAPACITOR 0.1uF 16V K C417 NCB31CK-104X C CAPACITOR 0.1uF 16V K C418 NCB31CK-104X C CAPACITOR 0.1uF 16V K C419 NCB31CK-104X C CAPACITOR 0.1uF 16V K C420 NCB31CK-104X C CAPACITOR 0.1uF 16V K C440 NCB31AK-154X C CAPACITOR 0.15uF 10V K C441 NCB31CK-104X C CAPACITOR 0.1uF 16V K C442 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C443 NCB31CK-104X C CAPACITOR 0.1uF 16V K C444 NCB31CK-104X C CAPACITOR 0.1uF 16V K C445 NCB31CK-104X C CAPACITOR 0.1uF 16V K C446 NCB31CK-104X C CAPACITOR 0.1uF 16V K C447 NCB31CK-104X C CAPACITOR 0.1uF 16V K C448 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C449 NCB31CK-104X C CAPACITOR 0.1uF 16V K C451 NCB31HK-331X C CAPACITOR 330pF 50V K C453 NCB31CK-473X C CAPACITOR 0.047uF 16V K C454 NBE41AM-476X TA E CAPACITOR 47uF 10V M C455 NCB31CK-104X C CAPACITOR 0.1uF 16V K C456 NCB31CK-104X C CAPACITOR 0.1uF 16V K C457 NBE41AM-476X TA E CAPACITOR 47uF 10V M C461 NCB31HK-332X C CAPACITOR 3300pF 50V K C462 NCS31HJ-471X C CAPACITOR 470pF 50V J C463 NCS31HJ-471X C CAPACITOR 470pF 50V J C464 NCB31CK-104X C CAPACITOR 0.1uF 16V K

Part No. Part Name Description Local

3-15



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C465 NBE41AM-476X TA E CAPACITOR 47uF 10V M C471 NCB31HK-332X C CAPACITOR 3300pF 50V K C472 NCS31HJ-471X C CAPACITOR 470pF 50V J C473 NCS31HJ-471X C CAPACITOR 470pF 50V J C474 NCB31CK-104X C CAPACITOR 0.1uF 16V K C475 NBE41AM-476X TA E CAPACITOR 47uF 10V M C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K C482 NCB31CK-104X C CAPACITOR 0.1uF 16V K C521 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M C522 NCB31CK-104X C CAPACITOR 0.1uF 16V K C531 NCB31AK-474X C CAPACITOR 0.47uF 10V K

R398 NRSA63J-0R0X MG RESISTOR 0 R399 NRSA63J-0R0X MG RESISTOR 0 R401 NRSA63J-0R0X MG RESISTOR 0 R402 NRSA63J-0R0X MG RESISTOR 0 R403 NRSA63J-0R0X MG RESISTOR 0 R404 NRSA63J-472X MG RESISTOR 4.7k R405 NRSA63J-472X MG RESISTOR 4.7k R406 NRSA63J-472X MG RESISTOR 4.7k R407 NRSA63J-0R0X MG RESISTOR 0 R408 NRSA63J-0R0X MG RESISTOR 0 R409 NRSA63J-102X MG RESISTOR 1k R410 NRSA63J-0R0X MG RESISTOR 0 R411 NRSA63J-152X MG RESISTOR 1.5k R412 NRSA63J-105X MG RESISTOR 1M R414 NRSA63J-0R0X MG RESISTOR 0 R415 NRSA63J-0R0X MG RESISTOR 0 R416 NRSA63J-0R0X MG RESISTOR 0 R417 NRSA63J-0R0X MG RESISTOR 0 R418 NRSA63J-0R0X MG RESISTOR 0 R420 NRSA63J-104X MG RESISTOR 100k R421 NRSA63J-472X MG RESISTOR 4.7k R425 NRSA63J-103X MG RESISTOR 10k R426 NRSA63J-0R0X MG RESISTOR 0 R435 NRSA63J-472X MG RESISTOR 4.7k R436 NRSA63J-472X MG RESISTOR 4.7k R437 NRSA63J-472X MG RESISTOR 4.7k R441 NRSA63J-102X MG RESISTOR 1k R444 NRSA63J-0R0X MG RESISTOR 0 R446 NRSA63J-472X MG RESISTOR 4.7k R447 NRSA63J-0R0X MG RESISTOR 0 R448 NRSA63J-473X MG RESISTOR 47k R451 NRSA63J-473X MG RESISTOR 47k R452 NRSA63J-0R0X MG RESISTOR 0 R453 NRSA63J-4R7X MG RESISTOR 4.7 R454 NRSA63J-100X MG RESISTOR 10 R455 NRSA63J-100X MG RESISTOR 10 R460 NRSA63J-122X MG RESISTOR 1.2k R461 NRSA63J-472X MG RESISTOR 4.7k R462 NRSA63J-472X MG RESISTOR 4.7k R463 NRSA63J-223X MG RESISTOR 22k R464 NRSA63J-472X MG RESISTOR 4.7k R465 NRSA63J-201X MG RESISTOR 200 R466 NRSA63J-223X MG RESISTOR 22k R467 NRSA63J-472X MG RESISTOR 4.7k R468 NRSA63J-201X MG RESISTOR 200 R469 NRSA63J-102X MG RESISTOR 1k R470 NRSA63J-122X MG RESISTOR 1.2k R471 NRSA63J-472X MG RESISTOR 4.7k R472 NRSA63J-472X MG RESISTOR 4.7k R473 NRSA63J-223X MG RESISTOR 22k R474 NRSA63J-472X MG RESISTOR 4.7k R475 NRSA63J-201X MG RESISTOR 200 R476 NRSA63J-223X MG RESISTOR 22k R477 NRSA63J-472X MG RESISTOR 4.7k R478 NRSA63J-201X MG RESISTOR 200 R479 NRSA63J-102X MG RESISTOR 1k R482 NRSA63J-103X MG RESISTOR 10k R483 NRSA63J-103X MG RESISTOR 10k R484 NRSA63J-103X MG RESISTOR 10k R532 NRSA63J-153X MG RESISTOR 15k R533 NRSA63J-153X MG RESISTOR 15k RA401 NRZ0065-472X MG RESISTOR 4.7k

L401 NQL38DK-330X COIL 33uH K L531 NQR0536-001X CHOKE COIL

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

CN531 QNZ0855-001 USB CONNECTOR CN532 QGB1004K1-16 CONNECTOR B-B (1-16) CN600 QGA1501C6-02 CONNECTOR W-B (1-2) F531 NAD0031-004X N THERMISTOR K441 NQR0502-001X FERRITE BEADS X402 NAX0832-001X CRYSTAL

Ω

Main board (KD-DV6201E,DV6201EU, DV6202E,6202EU)

Block No. [0][4]



Symbol No.

IC71 LC72725NM-X IC IC161 TDA7416 IC IC162 CD4066BPW-X IC IC301 TB2904HQ IC IC401 SN74AHCT1G08V-X IC IC402 TOTX177L OPTICAL JACK IC411 MM1510XN-X IC IC421 NJM4580V-X IC IC431 LC75344M-X IC IC471 BA05CC0WT-V5 IC REGULATOR



IC721 UPD784218AGC328 IC IC722 BR24L32F-W-X IC(DIGITAL) IC723 S-80833CNNB-G-W IC IC801 SN74AHC126NS-X IC



IC901 R2S25401DS-E IC



IC921 BA33BC0FP-X IC



IC922 BD9781HFP-W IC IC961 SN74LVC32APW-X IC IC962 SN74HCT32APW-X IC

Q2 RT1N141C-X DIGI TRANSISTOR Q161 RT1N141C-X DIGI TRANSISTOR Q162 RT1N141C-X DIGI TRANSISTOR Q191 KTD1304-X TRANSISTOR Q192 RT1P441C-X DIGI TRANSISTOR Q301 RT1N441C-X TRANSISTOR Q302 RT1P441C-X DIGI TRANSISTOR Q303 RT1N141C-X DIGI TRANSISTOR Q304 RT1N141C-X DIGI TRANSISTOR Q324 KTD1304-X TRANSISTOR Q334 KTD1304-X TRANSISTOR Q344 KTD1304-X TRANSISTOR Q354 KTD1304-X TRANSISTOR Q421 KTD1304-X TRANSISTOR Q422 KTD1304-X TRANSISTOR Q431 KTD1304-X TRANSISTOR Q432 KTD1304-X TRANSISTOR Q476 2SA1365/F/-X TRANSISTOR Q477 RT1N141C-X DIGI TRANSISTOR Q701 2SA1530A/R/-X TRANSISTOR Q781 RT1P141C-X DIGI TRANSISTOR Q782 RT1P141C-X DIGI TRANSISTOR Q783 RT1P141C-X DIGI TRANSISTOR Q784 RT1P141C-X DIGI TRANSISTOR Q821 RT1N141C-X DIGI TRANSISTOR Q822 RT1P141C-X DIGI TRANSISTOR Q823 2SC4485/ST/-T TRANSISTOR Q881 2SC3928A/R/-X TRANSISTOR Q885 RT1N141C-X DIGI TRANSISTOR Q891 RT1N141C-X DIGI TRANSISTOR Q903 2SA1530A/R/-X TRANSISTOR Q904 RT1N141C-X DIGI TRANSISTOR Q976 RT1N441C-X TRANSISTOR Q977 2SA1530A/R/-X TRANSISTOR

D1 1SS355W-X DIODE C.M D2 1SS355W-X DIODE C.M D192 1SS355W-X DIODE C.M

Part No. Part Name Description Local

3-16



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

D301 UDZW11B-X Z DIODE D302 1SS355W-X DIODE C.M D305 CRS03-W SB DIODE D308 CRS03-W SB DIODE D324 1SS355W-X DIODE C.M D334 1SS355W-X DIODE C.M D344 1SS355W-X DIODE C.M D354 1SS355W-X DIODE C.M D401 CRS03-W SB DIODE D421 1SS355W-X DIODE C.M D431 1SS355W-X DIODE C.M D472 1A3G-T1 SI DIODE D701 UDZW6.2B-X DIODE D702 UDZW6.2B-X DIODE D703 UDZW6.2B-X DIODE D704 UDZW6.2B-X DIODE D705 UDZW6.2B-X DIODE D706 UDZW6.2B-X DIODE D707 UDZW6.2B-X DIODE D709 UDZW6.2B-X DIODE D710 UDZW6.2B-X DIODE D711 UDZW6.2B-X DIODE D716 UDZW6.2B-X DIODE D717 UDZW6.2B-X DIODE D719 SLR-56VC3F DIODE C.M D731 1SS355W-X DIODE C.M D732 UDZW6.2B-X DIODE D781 MC2836-X DIODE D782 MC2836-X DIODE D783 UDZW11B-X Z DIODE D784 UDZW11B-X Z DIODE D785 1SS355W-X DIODE C.M D801 CRS03-W SB DIODE D821 UDZW12B-X Z DIODE D831 UDZW6.2B-X DIODE D885 1SS355W-X DIODE C.M D891 MC2836-X DIODE



D901 1N5401-F64 SI DIODE D903 1SS355W-X DIODE C.M D906 UDZW5.1B-X SI DIODE D921 1A3G-T1 SI DIODE D922 RB051L-40-X SB DIODE D923 CRS03-W SB DIODE D924 CRS03-W SB DIODE D925 CRS03-W SB DIODE D981 CRS03-W SB DIODE D982 CRS03-W SB DIODE

C1 NCB31HK-104X C CAPACITOR 0.1uF 50V K C4 NCB31EK-104X C CAPACITOR 0.1uF 25V K C5 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C8 NCB31HK-104X C CAPACITOR 0.1uF 50V K C9 QEKJ1HM-224Z E CAPACITOR 0.22uF 50V M C12 NDC31HJ-2R0X C CAPACITOR 2pF 50V J C14 NDC31HJ-5R0X C CAPACITOR 5pF 50V J C71 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C72 NCB31HK-331X C CAPACITOR 330pF 50V K C73 NCB31HK-103X C CAPACITOR 0.01uF 50V K C74 NCS31HJ-561X C CAPACITOR 560pF 50V J C75 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C76 NCB31HK-103X C CAPACITOR 0.01uF 50V K C77 NDC31HJ-330X C CAPACITOR 33pF 50V J C78 NDC31HJ-330X C CAPACITOR 33pF 50V J C83 QTE1E57-475Z E CAPACITOR 4.7uF 25V C93 QTE1E57-475Z E CAPACITOR 4.7uF 25V C141 NCB31HK-471X C CAPACITOR 470pF 50V K C151 NCB31HK-471X C CAPACITOR 470pF 50V K C155 NCB31AK-474X C CAPACITOR 0.47uF 10V K C161 QTE1A57-107Z E CAPACITOR 100uF 10V C162 NCB31CK-473X C CAPACITOR 0.047uF 16V K C163 NFV81CM-105X MF CAPACITOR 1uF 16V M C164 NFV81CM-105X MF CAPACITOR 1uF 16V M C165 NFV81CM-105X MF CAPACITOR 1uF 16V M C166 QTE1C57-106Z E CAPACITOR 10uF 16V C168 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C169 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C170 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C171 QTE1H57-225Z E CAPACITOR 2.2uF 50V C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V C174 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C176 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C177 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C181 QTE1H57-225Z E CAPACITOR 2.2uF 50V C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V C184 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C186 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C187 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C191 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C267 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C302 NCB31HK-103X C CAPACITOR 0.01uF 50V K C311 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M C312 QTE1C57-476Z E CAPACITOR 47uF 16V C313 NCB31HK-103X C CAPACITOR 0.01uF 50V K C314 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C315 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C316 NCB31HK-103X C CAPACITOR 0.01uF 50V K C326 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C328 NFV81CM-105X MF CAPACITOR 1uF 16V M C329 NCS31HJ-101X C CAPACITOR 100pF 50V J C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K C336 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C338 NFV81CM-105X MF CAPACITOR 1uF 16V M C339 NCS31HJ-101X C CAPACITOR 100pF 50V J C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C348 NFV81CM-105X MF CAPACITOR 1uF 16V M C349 NCS31HJ-101X C CAPACITOR 100pF 50V J C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C358 NFV81CM-105X MF CAPACITOR 1uF 16V M C359 NCS31HJ-101X C CAPACITOR 100pF 50V J C401 NCS31HJ-220X C CAPACITOR 22pF 50V J C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M C405 NCS31HJ-220X C CAPACITOR 22pF 50V J C406 NCB31HK-103X C CAPACITOR 0.01uF 50V K C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C412 NCB31EK-473X C CAPACITOR 0.047uF 25V K C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M C415 NCS31HJ-101X C CAPACITOR 100pF 50V J C416 NCB31HK-103X C CAPACITOR 0.01uF 50V K C423 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C424 NCS31HJ-151X C CAPACITOR 150pF 50V J C425 NCS31HJ-101X C CAPACITOR 100pF 50V J C426 NCS31HJ-221X C CAPACITOR 220pF 50V J C427 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C428 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C433 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C434 NCS31HJ-151X C CAPACITOR 150pF 50V J C435 NCS31HJ-101X C CAPACITOR 100pF 50V J C436 NCS31HJ-221X C CAPACITOR 220pF 50V J C437 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C438 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C441 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C451 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C461 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C462 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C463 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C464 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C465 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C474 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C475 NCB31HK-102X C CAPACITOR 1000pF 50V K C476 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C477 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C478 NCB31CK-104X C CAPACITOR 0.1uF 16V K C479 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C480 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C701 NCB31HK-103X C CAPACITOR 0.01uF 50V K C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K C721 NCB31EK-473X C CAPACITOR 0.047uF 25V K C722 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C723 NCS31HJ-471X C CAPACITOR 470pF 50V J C724 NCS31HJ-471X C CAPACITOR 470pF 50V J

3-17



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C725 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C726 NDC31HJ-8R0X C CAPACITOR 8pF 50V J C727 NDC31HJ-270X C CAPACITOR 27pF 50V J C728 NDC31HJ-270X C CAPACITOR 27pF 50V J C729 NDC31HJ-220X C CAPACITOR 22pF 50V J C730 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C731 NCB31CK-103X C CAPACITOR 0.01uF 16V K C732 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C733 NCS31HJ-471X C CAPACITOR 470pF 50V J C781 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C782 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C783 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C784 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C802 NCS31HJ-220X C CAPACITOR 22pF 50V J C803 NCB31CK-473X C CAPACITOR 0.047uF 16V K C804 NCS31HJ-220X C CAPACITOR 22pF 50V J C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C823 NCB31HK-103X C CAPACITOR 0.01uF 50V K C831 NCS31HJ-101X C CAPACITOR 100pF 50V J C881 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C892 NCB31CK-104X C CAPACITOR 0.1uF 16V K C901 QEZ0722-338 E CAPACITOR 3300uF C902 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C903 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C905 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C906 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K C908 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C909 QEKJ1CM-107Z E CAPACITOR 100uF 16V M C910 NCB31HK-102X C CAPACITOR 1000pF 50V K C911 NCB31HK-102X C CAPACITOR 1000pF 50V K C912 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C913 NCB31EK-473X C CAPACITOR 0.047uF 25V K C918 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C919 NCB31HK-103X C CAPACITOR 0.01uF 50V K C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C925 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C926 QEXF1AM-476Z E CAPACITOR 47uF 10V M C927 QEZ0595-477Z E CAPACITOR 470uF C928 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C929 NCB31HK-472X C CAPACITOR 4700pF 50V K C930 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C961 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C962 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C963 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C964 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C965 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C966 NCB31CK-104X C CAPACITOR 0.1uF 16V K C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K C968 NCB31EK-473X C CAPACITOR 0.047uF 25V K C969 NCB31EK-473X C CAPACITOR 0.047uF 25V K C970 QEKJ1CM-107Z E CAPACITOR 100uF 16V M C971 NCB31EK-473X C CAPACITOR 0.047uF 25V K C981 NCB31CK-104X C CAPACITOR 0.1uF 16V K C999 NRSA63J-0R0X MG RESISTOR 0

R2 NRSA63J-102X MG RESISTOR 1k R3 NRSA63J-102X MG RESISTOR 1k R5 NRSA63J-330X MG RESISTOR 33 R6 NRSA63J-330X MG RESISTOR 33 R7 NRSA63J-103X MG RESISTOR 10k R8 NRSA63J-332X MG RESISTOR 3.3k R9 NRSA63J-473X MG RESISTOR 47k R10 NRSA63J-472X MG RESISTOR 4.7k R11 NRSA63J-472X MG RESISTOR 4.7k R12 NRS181J-4R7X MG RESISTOR 4.7 R13 NRS181J-6R8X MG RESISTOR 6.8 R14 NRSA63J-0R0X MG RESISTOR 0 R71 NRSA63J-101X MG RESISTOR 100 R72 NRSA63J-202X MG RESISTOR 2k R73 NRSA63J-103X MG RESISTOR 10k R81 NRSA63J-223X MG RESISTOR 22k R82 NRSA63J-822X MG RESISTOR 8.2k R91 NRSA63J-223X MG RESISTOR 22k R92 NRSA63J-822X MG RESISTOR 8.2k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R141 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R142 NRSA63J-0R0X MG RESISTOR 0 R151 NRSA63J-473X MG RESISTOR 47k R152 NRSA63J-0R0X MG RESISTOR 0 R155 NRSA63J-471X MG RESISTOR 470 R161 NRSA63J-0R0X MG RESISTOR 0 R162 NRSA63J-473X MG RESISTOR 47k R163 NRSA63J-473X MG RESISTOR 47k R164 NRSA63J-473X MG RESISTOR 47k R165 NRSA63J-473X MG RESISTOR 47k R166 NRSA63J-221X MG RESISTOR 220 R171 NRSA63J-222X MG RESISTOR 2.2k R172 NRSA63J-222X MG RESISTOR 2.2k R173 NRSA63J-0R0X MG RESISTOR 0 R191 NRSA63J-472X MG RESISTOR 4.7k R192 NRSA63J-821X MG RESISTOR 820 R193 NRSA63J-101X MG RESISTOR 100 R194 NRSA63J-101X MG RESISTOR 100 R197 NRSA63J-471X MG RESISTOR 470 R302 NRSA63J-0R0X MG RESISTOR 0 R304 NRSA63J-473X MG RESISTOR 47k R305 NRSA63J-103X MG RESISTOR 10k R306 NRSA63J-273X MG RESISTOR 27k R307 NRSA63J-100X MG RESISTOR 10 R308 NRSA63J-222X MG RESISTOR 2.2k R323 NRSA63J-473X MG RESISTOR 47k R324 NRSA63J-222X MG RESISTOR 2.2k R325 NRSA63J-102X MG RESISTOR 1k R326 NRSA63J-101X MG RESISTOR 100 R327 NRSA63J-0R0X MG RESISTOR 0 R329 NRSA63J-102X MG RESISTOR 1k R330 NRSA63J-102X MG RESISTOR 1k R333 NRSA63J-473X MG RESISTOR 47k R334 NRSA63J-222X MG RESISTOR 2.2k R335 NRSA63J-102X MG RESISTOR 1k R336 NRSA63J-101X MG RESISTOR 100 R337 NRSA63J-0R0X MG RESISTOR 0 R339 NRSA63J-102X MG RESISTOR 1k R340 NRSA63J-102X MG RESISTOR 1k R343 NRSA63J-473X MG RESISTOR 47k R344 NRSA63J-222X MG RESISTOR 2.2k R345 NRSA63J-102X MG RESISTOR 1k R346 NRSA63J-101X MG RESISTOR 100 R347 NRSA63J-0R0X MG RESISTOR 0 R349 NRSA63J-102X MG RESISTOR 1k R350 NRSA63J-102X MG RESISTOR 1k R353 NRSA63J-473X MG RESISTOR 47k R354 NRSA63J-222X MG RESISTOR 2.2k R355 NRSA63J-102X MG RESISTOR 1k R356 NRSA63J-101X MG RESISTOR 100 R357 NRSA63J-0R0X MG RESISTOR 0 R359 NRSA63J-102X MG RESISTOR 1k R360 NRSA63J-102X MG RESISTOR 1k R371 NRSA63J-0R0X MG RESISTOR 0 R372 NRSA63J-0R0X MG RESISTOR 0 R381 NRSA63J-0R0X MG RESISTOR 0 R382 NRSA63J-0R0X MG RESISTOR 0 R401 NRSA63J-471X MG RESISTOR 470 R402 NRSA63J-100X MG RESISTOR 10 R403 NRSA63J-471X MG RESISTOR 470 R404 NRSA63J-2R2X MG RESISTOR 2.2 R410 NRS181J-0R0X MG RESISTOR 0 R411 NRSA63J-0R0X MG RESISTOR 0 R412 NRSA63D-682X MG RESISTOR 6.8k R413 NRSA63J-100X MG RESISTOR 10 R414 NRSA63J-102X MG RESISTOR 1k R415 NRSA63J-750X MG RESISTOR 75 R416 NRSA63J-0R0X MG RESISTOR 0 R417 NRSA63D-181X MG RESISTOR 180 R421 NRSA63J-220X MG RESISTOR 22 R422 NRSA63J-222X MG RESISTOR 2.2k R423 NRSA63J-222X MG RESISTOR 2.2k R424 NRSA63J-390X MG RESISTOR 39 R425 NRSA63J-102X MG RESISTOR 1k R426 NRSA63J-183X MG RESISTOR 18k R427 NRSA63J-682X MG RESISTOR 6.8k R428 NRSA63J-472X MG RESISTOR 4.7k R429 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-18



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R431 NRSA63J-220X MG RESISTOR 22Ω 1/16W J R432 NRSA63J-222X MG RESISTOR 2.2k R433 NRSA63J-222X MG RESISTOR 2.2k R434 NRSA63J-390X MG RESISTOR 39 R435 NRSA63J-102X MG RESISTOR 1k R436 NRSA63J-183X MG RESISTOR 18k R437 NRSA63J-682X MG RESISTOR 6.8k R438 NRSA63J-472X MG RESISTOR 4.7k R439 NRSA63J-104X MG RESISTOR 100k R441 NRSA63J-223X MG RESISTOR 22k R442 NRSA63J-223X MG RESISTOR 22k R451 NRSA63J-223X MG RESISTOR 22k R452 NRSA63J-223X MG RESISTOR 22k R461 NRSA63J-100X MG RESISTOR 10 R462 NRSA63J-100X MG RESISTOR 10 R463 NRSA63J-100X MG RESISTOR 10 R471 NRSA63J-101X MG RESISTOR 100 R474 NRSA63J-101X MG RESISTOR 100 R475 NRSA63J-101X MG RESISTOR 100 R479 NRSA63J-0R0X MG RESISTOR 0 R480 NRSA63J-0R0X MG RESISTOR 0 R481 NRSA63J-103X MG RESISTOR 10k R482 NRSA63J-473X MG RESISTOR 47k R483 NRSA63J-102X MG RESISTOR 1k R484 NRSA63J-103X MG RESISTOR 10k R704 NRSA63J-271X MG RESISTOR 270 R705 NRSA63J-271X MG RESISTOR 270 R706 NRSA63J-103X MG RESISTOR 10k R707 NRSA63J-103X MG RESISTOR 10k R708 NRS181J-561X MG RESISTOR 560 R709 NRSA63J-562X MG RESISTOR 5.6k R710 NRSA63J-102X MG RESISTOR 1k R711 NRSA63J-103X MG RESISTOR 10k R712 NRSA63J-104X MG RESISTOR 100k R713 NRSA63J-103X MG RESISTOR 10k R714 NRSA63J-104X MG RESISTOR 100k R715 NRSA63J-271X MG RESISTOR 270 R716 NRSA63J-271X MG RESISTOR 270 R717 NRSA63J-331X MG RESISTOR 330 R718 NRSA63J-103X MG RESISTOR 10k R719 NRSA63J-103X MG RESISTOR 10k R720 NRSA63J-0R0X MG RESISTOR 0 R721 NRSA63J-222X MG RESISTOR 2.2k R722 NRSA63J-222X MG RESISTOR 2.2k R725 NRSA63J-473X MG RESISTOR 47k R726 NRSA63J-103X MG RESISTOR 10k R727 NRSA63J-562X MG RESISTOR 5.6k R728 NRSA63J-472X MG RESISTOR 4.7k R729 NRSA63J-0R0X MG RESISTOR 0 R730 NRSA63J-222X MG RESISTOR 2.2k R733 NRSA63J-103X MG RESISTOR 10k R735 NRSA63J-0R0X MG RESISTOR 0 R738 NRSA63J-472X MG RESISTOR 4.7k R739 NRSA63J-472X MG RESISTOR 4.7k R740 NRSA63J-222X MG RESISTOR 2.2k R744 NRSA63J-821X MG RESISTOR 820 R745 NRSA63J-106X MG RESISTOR 10M R746 NRSA63J-473X MG RESISTOR 47k R747 NRSA63J-473X MG RESISTOR 47k R750 NRSA63J-473X MG RESISTOR 47k R751 NRSA63J-333X MG RESISTOR 33k R752 NRSA63J-223X MG RESISTOR 22k R753 NRSA63J-222X MG RESISTOR 2.2k R754 NRSA63J-222X MG RESISTOR 2.2k R755 NRSA63J-103X MG RESISTOR 10k R756 NRSA63J-222X MG RESISTOR 2.2k R757 NRSA63J-473X MG RESISTOR 47k R758 NRSA63J-224X MG RESISTOR 220k R759 NRSA63J-224X MG RESISTOR 220k R760 NRSA63J-472X MG RESISTOR 4.7k R761 NRSA63J-472X MG RESISTOR 4.7k R762 NRSA63J-472X MG RESISTOR 4.7k R763 NRSA63J-103X MG RESISTOR 10k R765 NRSA63J-103X MG RESISTOR 10k R766 NRSA63J-0R0X MG RESISTOR 0 R767 NRSA63J-0R0X MG RESISTOR 0 R768 NRSA63J-0R0X MG RESISTOR 0 R769 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

1/16W J 1/16W J

R771 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R772 NRSA63J-221X MG RESISTOR 220 R773 NRSA63J-221X MG RESISTOR 220 R774 NRSA63J-472X MG RESISTOR 4.7k R775 NRSA63J-472X MG RESISTOR 4.7k R776 NRSA63J-472X MG RESISTOR 4.7k R777 NRSA63J-102X MG RESISTOR 1k R778 NRSA63J-103X MG RESISTOR 10k R779 NRSA63J-222X MG RESISTOR 2.2k R780 NRSA63J-222X MG RESISTOR 2.2k R781 NRSA63J-471X MG RESISTOR 470 R782 NRSA63J-471X MG RESISTOR 470 R799 NRSA63J-222X MG RESISTOR 2.2k R801 NRSA63J-101X MG RESISTOR 100 R802 NRSA63J-473X MG RESISTOR 47k R803 NRSA63J-223X MG RESISTOR 22k R804 NRSA63J-104X MG RESISTOR 100k R805 NRSA63J-103X MG RESISTOR 10k R806 NRSA63J-104X MG RESISTOR 100k R807 NRSA63J-331X MG RESISTOR 330 R808 NRSA63J-223X MG RESISTOR 22k R809 NRSA63J-101X MG RESISTOR 100 R810 NRSA63J-473X MG RESISTOR 47k R811 NRSA63J-0R0X MG RESISTOR 0 R821 NRSA63J-100X MG RESISTOR 10 R822 NRSA63J-471X MG RESISTOR 470 R825 NRSA63J-223X MG RESISTOR 22k R831 NRSA63J-0R0X MG RESISTOR 0 R832 NRSA63J-271X MG RESISTOR 270 R841 NRSA63J-473X MG RESISTOR 47k R844 NRSA63J-473X MG RESISTOR 47k R845 NRSA63J-222X MG RESISTOR 2.2k R846 NRSA63J-392X MG RESISTOR 3.9k R847 NRSA63J-392X MG RESISTOR 3.9k R848 NRSA63J-331X MG RESISTOR 330 R857 NRS181J-0R0X MG RESISTOR 0 R859 NRSA63J-222X MG RESISTOR 2.2k R860 NRS181J-561X MG RESISTOR 560 R881 NRSA63J-473X MG RESISTOR 47k R882 NRSA63J-103X MG RESISTOR 10k R883 NRSA63J-104X MG RESISTOR 100k R885 NRSA63J-473X MG RESISTOR 47k R886 NRSA63J-472X MG RESISTOR 4.7k R887 NRSA63J-103X MG RESISTOR 10k R888 NRSA63J-0R0X MG RESISTOR 0 R889 NRSA63J-0R0X MG RESISTOR 0 R891 NRSA63J-473X MG RESISTOR 47k R892 NRSA63J-102X MG RESISTOR 1k R894 NRSA63J-0R0X MG RESISTOR 0 R901 QRE142J-102X C RESISTOR 1k R902 NRSA63J-912X MG RESISTOR 9.1k R903 NRSA63J-472X MG RESISTOR 4.7k R909 NRSA63J-473X MG RESISTOR 47k R910 NRSA63J-222X MG RESISTOR 2.2k R914 NRS181J-221X MG RESISTOR 220 R921 NRS181J-0R0X MG RESISTOR 0 R923 NRSA63J-393X MG RESISTOR 39k R924 NRSA63J-103X MG RESISTOR 10k R925 NRSA63J-154X MG RESISTOR 150k

R926 NRSA63D-304X MG RESISTOR

R927 NRSA63J-0R0X MG RESISTOR 0 R928 NRSA63J-473X MG RESISTOR 47k R961 NRS181J-0R0X MG RESISTOR 0 R962 NRSA63J-101X MG RESISTOR 100 R967 NRS181J-0R0X MG RESISTOR 0 R968 NRS181J-0R0X MG RESISTOR 0 R969 NRS181J-0R0X MG RESISTOR 0 R973 NRSA63J-223X MG RESISTOR 22k R974 NRSA63J-223X MG RESISTOR 22k R975 NRSA63J-223X MG RESISTOR 22k R976 NRSA63J-563X MG RESISTOR 56k R977 NRSA63J-183X MG RESISTOR 18k R981 NRS181J-222X MG RESISTOR 2.2k R982 NRS181J-222X MG RESISTOR 2.2k RA721 NRZ0065-222X NET RESISTOR 2.2k RA722 NRZ0065-222X NET RESISTOR 2.2k RA723 NRZ0065-103X NET RESISTOR 10kΩ 1/16W J

Ω Ω

Ω

Ω Ω

Ω Ω Ω

Ω

Ω Ω

Ω

1/16W J

Ω

Ω Ω

Ω

1/16W J

Ω Ω Ω

Ω

1/8W J

Ω Ω Ω

Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω Ω

300k D

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/8W J

Ω

1/8W J

Ω Ω Ω Ω Ω

1/16W J 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J 1/16W J 1/16W J

Ω

1/16W J 1/16W J

Ω

1/16W J

Ω

1/16W J

1/16W J 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J 1/16W J

Ω

1/16W J 1/8W J

1/16W J 1/16W J

Ω

1/16W J

Ω

1/16W J

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J 1/8W J

1/16W J 1/16W J

Ω

1/16W J

Ω

1/16W

1/16W J

1/16W J 1/16W J 1/16W J 1/16W J 1/16W J

Ω

1/8W J

Ω

1/8W J

Ω Ω

3-19



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

L1 NQL334J-4R7X INDUCTOR CM 4.7uH J L2 NQL093K-R22X COIL 0.22uH K L401 NQR0007-002X FERRITE BEADS L411 NQL114K-470X COIL 47uH K L421 NQR0007-002X FERRITE BEADS L430 NQR0007-002X FERRITE BEADS L431 NQR0007-002X FERRITE BEADS L721 NQL38DK-330X COIL 33uH K L722 NQL114K-470X COIL 47uH K L901 QQR1378-002 COIL L902 NQL56CK-220X COIL 22uH K L924 NQL56CK-220X COIL 22uH K L925 NQL71EM-330X COIL 33uH M

CN141 QGA2006C1-04 CONNECTOR W-B (1-4) CN411 QGA2501F1-02 CONNECTOR W-B (1-2) CN421 QGA2006C1-04 CONNECTOR W-B (1-4) CN471 QGB1004J2-16X CONNECTOR B-B (1-16) CN701 QNZ0605-001 CAR CONNECTOR CN702 WJK0224-001A-E 2PIN CABLE CN821 QGA2001C1-02 CONNECTOR W-B (1-2) CN831 QGA2006C1-02 CONNECTOR W-B (1-2) CN901 QNZ0607-001 CAR CONNECTOR CN961 QGB2027M3-30S CONNECTOR B-B (1-30)

CN962 QGF0534F3-45X CONNECTOR

CN963 QGB2027L9-30X CONNECTOR B-B (1-30) J331 QNN0747-001 MODULAR JACK J801 QNZ0095-001 CONNECTOR K401 NQR0007-002X FERRITE BEADS K402 NQR0007-002X FERRITE BEADS K411 NQR0201-004X FERRITE BEADS K831 NQR0007-002X FERRITE BEADS PP1 QZW0010-001 STYLE PIN PP2 QZW0010-001 STYLE PIN PP3 QZW0010-001 STYLE PIN S701 QSW0451-001 DETECT SW S702 QSW0451-001 DETECT SW S723 QSW1049-001Z TACT SW TH721 NAD0028-103X N THERMISTOR 10k



TU21 QAU0443-002 TUNER PACK W21 QAM0105-003 CAR CABLE X71 QAX0263-001Z CRYSTAL 4.332MHz X721 QAX0617-001Z CRYSTAL 12.500MHz X722 QAX0401-001 CRYSTAL 32.768KHz

FFC/FPC (1-

45)

Switch board (KD-DV6201E,DV6201EU, DV6202E,6202EU)

Block No. [0][5]

Symbol



No.

IC601 PT6523LQ-L LCD DRIVER IC602 RPM7338-V4 RM.RECEIVER

Q640 2SA1365/F/-X TRANSISTOR Q641 RT1N141C-X DIGI TRANSISTOR

D601 LSQ971/KL/-X LED D602 LSQ971/KL/-X LED D603 LSQ971/KL/-X LED D604 LSQ971/KL/-X LED D605 LSQ971/KL/-X LED D606 LSQ971/KL/-X LED D607 LSQ971/KL/-X LED D608 SML310BA1T/HJ-X LED D609 SML310BA1T/HJ-X LED D610 LSQ971/KL/-X LED D611 LSQ971/KL/-X LED

Part No. Part Name Description Local

D612 LSQ971/KL/-X LED D613 LSQ971/KL/-X LED D614 LSQ971/KL/-X LED D615 LSQ971/KL/-X LED D616 LSQ971/KL/-X LED D617 LSQ971/KL/-X LED D618 SML310BA1T/HJ-X LED D620 SML310BA1T/HJ-X LED D621 SML310BA1T/HJ-X LED D640 MC2838-X DIODE D641 UDZW5.1B-X SI DIODE D642 1SS355W-X DIODE C.M D643 UDZW6.2B-X DIODE D645 NSPW310BS/BRST/ LED D646 NSPW310BS/BRST/ LED

C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K C602 NCS31HJ-681X C CAPACITOR 680pF 50V J C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M

R601 NRSA63J-821X MG RESISTOR 820 R602 NRSA63J-821X MG RESISTOR 820 R603 NRSA63J-122X MG RESISTOR 1.2k R604 NRSA63J-182X MG RESISTOR 1.8k R605 NRSA63J-272X MG RESISTOR 2.7k R606 NRSA63J-392X MG RESISTOR 3.9k R607 NRSA63J-821X MG RESISTOR 820 R608 NRSA63J-821X MG RESISTOR 820 R609 NRSA63J-122X MG RESISTOR 1.2k R610 NRSA63J-182X MG RESISTOR 1.8k R611 NRSA63J-272X MG RESISTOR 2.7k R612 NRSA63J-392X MG RESISTOR 3.9k R613 NRSA63J-821X MG RESISTOR 820 R614 NRSA63J-821X MG RESISTOR 820 R632 NRSA02J-821X MG RESISTOR 820 R634 NRSA63J-301X MG RESISTOR 300 R636 NRSA63J-301X MG RESISTOR 300

Ω

R638 NRSA63J-301X MG RESISTOR 300 R640 NRSA63J-680X MG RESISTOR 68 R641 NRS181J-101X MG RESISTOR 100 R642 NRSA63J-680X MG RESISTOR 68 R643 NRSA63J-680X MG RESISTOR 68 R644 NRSA63J-431X MG RESISTOR 430 R646 NRSA63J-431X MG RESISTOR 430 R648 NRSA63J-431X MG RESISTOR 430 R650 NRS181J-221X MG RESISTOR 220 R651 NRSA63J-222X MG RESISTOR 2.2k R652 NRSA63J-222X MG RESISTOR 2.2k R653 NRSA63J-103X MG RESISTOR 10k R654 NRSA63J-103X MG RESISTOR 10k R655 NRSA63J-103X MG RESISTOR 10k R656 NRSA63J-103X MG RESISTOR 10k R657 NRSA63J-513X MG RESISTOR 51k R658 NRSA63J-184X MG RESISTOR 180k R660 NRSA02J-391X MG RESISTOR 390 R661 NRSA02J-391X MG RESISTOR 390 R670 NRSA63J-0R0X MG RESISTOR 0 R672 NRSA02J-471X MG RESISTOR 470 R673 NRSA02J-473X MG RESISTOR 47k R674 NRSA02J-102X MG RESISTOR 1k R680 NRSA63J-680X MG RESISTOR 68 R681 NRSA63J-680X MG RESISTOR 68 R691 NRSA63J-103X MG RESISTOR 10k R692 NRSA63J-471X MG RESISTOR 470

CN601 NNZ0085-001 CAR CONNECTOR EN601 QSW1163-001 ROTARY ENCODER S601 NSW0206-001X TACT SWITCH S602 NSW0206-001X TACT SWITCH S603 NSW0206-001X TACT SWITCH S604 NSW0206-001X TACT SWITCH S605 NSW0206-001X TACT SWITCH S606 NSW0206-001X TACT SWITCH S607 NSW0206-001X TACT SWITCH S608 NSW0206-001X TACT SWITCH

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-20



Symbol No.

Part No. Part Name Description Local

Symbol



No.

Part No. Part Name Description Local

S609 NSW0206-001X TACT SWITCH S610 NSW0206-001X TACT SWITCH S611 NSW0206-001X TACT SWITCH S612 NSW0206-001X TACT SWITCH S613 NSW0206-001X TACT SWITCH S614 NSW0206-001X TACT SWITCH S616 NSW0206-001X TACT SWITCH S617 NSW0206-001X TACT SWITCH

USB board (KD-DV6201E,DV6201EU, DV6202E,6202EU)

Block No. [0][6]

Symbol



No.

IC401 TCC760 IC IC441 SA04D70TFI021A IC(PROGRAMED) IC442 K4S161622H-UC60 IC IC451 AK4385ET-X IC IC452 NJM4565V-X IC IC481 SN74LVC2G07V-X LOGIC IC IC482 SN74AHCT1G08V-X IC IC521 BH18LB1WG-W 1.8V REG

Q401 RT1N141C-X DIGI TRANSISTOR

D532 UDZW5.1B-X SI DIODE D533 UDZW5.1B-X SI DIODE D600 SML-310LT/MN/-X LED

C402 NCB31CK-104X C CAPACITOR 0.1uF 16V K C403 NCB31CK-104X C CAPACITOR 0.1uF 16V K C404 NCB31CK-104X C CAPACITOR 0.1uF 16V K C406 NCB31CK-104X C CAPACITOR 0.1uF 16V K C407 NDC31HJ-270X C CAPACITOR 27pF 50V J C408 NDC31HJ-270X C CAPACITOR 27pF 50V J C409 NCB31CK-104X C CAPACITOR 0.1uF 16V K C410 NCB31CK-104X C CAPACITOR 0.1uF 16V K C411 NDC31HJ-331X C CAPACITOR 330pF 50V J C412 NCB31CK-104X C CAPACITOR 0.1uF 16V K C413 NCB31CK-104X C CAPACITOR 0.1uF 16V K C414 NCB31CK-104X C CAPACITOR 0.1uF 16V K C415 NCB31CK-104X C CAPACITOR 0.1uF 16V K C416 NCB31CK-104X C CAPACITOR 0.1uF 16V K C417 NCB31CK-104X C CAPACITOR 0.1uF 16V K C418 NCB31CK-104X C CAPACITOR 0.1uF 16V K C419 NCB31CK-104X C CAPACITOR 0.1uF 16V K C420 NCB31CK-104X C CAPACITOR 0.1uF 16V K C440 NCB31AK-154X C CAPACITOR 0.15uF 10V K C441 NCB31CK-104X C CAPACITOR 0.1uF 16V K C442 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C443 NCB31CK-104X C CAPACITOR 0.1uF 16V K C444 NCB31CK-104X C CAPACITOR 0.1uF 16V K C445 NCB31CK-104X C CAPACITOR 0.1uF 16V K C446 NCB31CK-104X C CAPACITOR 0.1uF 16V K C447 NCB31CK-104X C CAPACITOR 0.1uF 16V K C448 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C449 NCB31CK-104X C CAPACITOR 0.1uF 16V K C451 NCB31HK-331X C CAPACITOR 330pF 50V K C453 NCB31CK-473X C CAPACITOR 0.047uF 16V K C454 NBE41AM-476X TA E CAPACITOR 47uF 10V M C455 NCB31CK-104X C CAPACITOR 0.1uF 16V K C456 NCB31CK-104X C CAPACITOR 0.1uF 16V K C457 NBE41AM-476X TA E CAPACITOR 47uF 10V M C461 NCB31HK-332X C CAPACITOR 3300pF 50V K C462 NCS31HJ-471X C CAPACITOR 470pF 50V J C463 NCS31HJ-471X C CAPACITOR 470pF 50V J C464 NCB31CK-104X C CAPACITOR 0.1uF 16V K C465 NBE41AM-476X TA E CAPACITOR 47uF 10V M

Part No. Part Name Description Local

C471 NCB31HK-332X C CAPACITOR 3300pF 50V K C472 NCS31HJ-471X C CAPACITOR 470pF 50V J C473 NCS31HJ-471X C CAPACITOR 470pF 50V J C474 NCB31CK-104X C CAPACITOR 0.1uF 16V K C475 NBE41AM-476X TA E CAPACITOR 47uF 10V M C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K C482 NCB31CK-104X C CAPACITOR 0.1uF 16V K C521 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M C522 NCB31CK-104X C CAPACITOR 0.1uF 16V K C531 NCB31AK-474X C CAPACITOR 0.47uF 10V K

R398 NRSA63J-0R0X MG RESISTOR 0 R399 NRSA63J-0R0X MG RESISTOR 0 R401 NRSA63J-0R0X MG RESISTOR 0 R402 NRSA63J-0R0X MG RESISTOR 0 R403 NRSA63J-0R0X MG RESISTOR 0 R404 NRSA63J-472X MG RESISTOR 4.7k R405 NRSA63J-472X MG RESISTOR 4.7k R406 NRSA63J-472X MG RESISTOR 4.7k R407 NRSA63J-0R0X MG RESISTOR 0 R408 NRSA63J-0R0X MG RESISTOR 0 R409 NRSA63J-102X MG RESISTOR 1k R410 NRSA63J-0R0X MG RESISTOR 0 R411 NRSA63J-152X MG RESISTOR 1.5k R412 NRSA63J-105X MG RESISTOR 1M R414 NRSA63J-0R0X MG RESISTOR 0 R415 NRSA63J-0R0X MG RESISTOR 0 R416 NRSA63J-0R0X MG RESISTOR 0 R417 NRSA63J-0R0X MG RESISTOR 0 R418 NRSA63J-0R0X MG RESISTOR 0 R420 NRSA63J-104X MG RESISTOR 100k R421 NRSA63J-472X MG RESISTOR 4.7k R425 NRSA63J-103X MG RESISTOR 10k R426 NRSA63J-0R0X MG RESISTOR 0 R435 NRSA63J-472X MG RESISTOR 4.7k R436 NRSA63J-472X MG RESISTOR 4.7k R437 NRSA63J-472X MG RESISTOR 4.7k R441 NRSA63J-102X MG RESISTOR 1k R444 NRSA63J-0R0X MG RESISTOR 0 R446 NRSA63J-472X MG RESISTOR 4.7k R447 NRSA63J-0R0X MG RESISTOR 0 R448 NRSA63J-473X MG RESISTOR 47k R451 NRSA63J-473X MG RESISTOR 47k R452 NRSA63J-0R0X MG RESISTOR 0 R453 NRSA63J-4R7X MG RESISTOR 4.7 R454 NRSA63J-100X MG RESISTOR 10 R455 NRSA63J-100X MG RESISTOR 10 R460 NRSA63J-122X MG RESISTOR 1.2k R461 NRSA63J-472X MG RESISTOR 4.7k R462 NRSA63J-472X MG RESISTOR 4.7k R463 NRSA63J-223X MG RESISTOR 22k R464 NRSA63J-472X MG RESISTOR 4.7k R465 NRSA63J-201X MG RESISTOR 200 R466 NRSA63J-223X MG RESISTOR 22k R467 NRSA63J-472X MG RESISTOR 4.7k R468 NRSA63J-201X MG RESISTOR 200 R469 NRSA63J-102X MG RESISTOR 1k R470 NRSA63J-122X MG RESISTOR 1.2k R471 NRSA63J-472X MG RESISTOR 4.7k R472 NRSA63J-472X MG RESISTOR 4.7k R473 NRSA63J-223X MG RESISTOR 22k R474 NRSA63J-472X MG RESISTOR 4.7k R475 NRSA63J-201X MG RESISTOR 200 R476 NRSA63J-223X MG RESISTOR 22k R477 NRSA63J-472X MG RESISTOR 4.7k R478 NRSA63J-201X MG RESISTOR 200 R479 NRSA63J-102X MG RESISTOR 1k R482 NRSA63J-103X MG RESISTOR 10k R483 NRSA63J-103X MG RESISTOR 10k R484 NRSA63J-103X MG RESISTOR 10k R532 NRSA63J-153X MG RESISTOR 15k R533 NRSA63J-153X MG RESISTOR 15k RA401 NRZ0065-472X MG RESISTOR 4.7k

L401 NQL38DK-330X COIL 33uH K L531 NQR0536-001X CHOKE COIL

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-21



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

CN531 QNZ0855-001 USB CONNECTOR CN532 QGB1004K1-16 CONNECTOR B-B (1-16) CN600 QGA1501C6-02 CONNECTOR W-B (1-2) F531 NAD0031-004X N THERMISTOR W K441 NQR0502-001X FERRITE BEADS X402 NAX0832-001X CRYSTAL

Main board (KD-DV6207EE)

Block No. [0][7]

Symbol



No.

IC71 LC72725NM-X IC IC161 TDA7416 IC IC162 CD4066BPW-X IC IC301 TB2904HQ IC IC401 SN74AHCT1G08V-X IC IC402 TOTX177L OPTICAL JACK IC411 MM1510XN-X IC IC421 NJM4580V-X IC IC431 LC75344M-X IC IC471 BA05CC0WT-V5 IC REGULATOR



IC721 UPD784218AGC328 IC IC722 BR24L32F-W-X IC(DIGITAL) IC723 S-80833CNNB-G-W IC IC801 SN74AHC126NS-X IC



IC901 R2S25401DS-E IC



IC921 BA33BC0FP-X IC



IC922 BD9781HFP-W IC IC961 SN74LVC32APW-X IC IC962 SN74HCT32APW-X IC

Q2 RT1N141C-X DIGI TRANSISTOR Q161 RT1N141C-X DIGI TRANSISTOR Q162 RT1N141C-X DIGI TRANSISTOR Q191 KTD1304-X TRANSISTOR Q192 RT1P441C-X DIGI TRANSISTOR Q301 RT1N441C-X TRANSISTOR Q302 RT1P441C-X DIGI TRANSISTOR Q303 RT1N141C-X DIGI TRANSISTOR Q304 RT1N141C-X DIGI TRANSISTOR Q324 KTD1304-X TRANSISTOR Q334 KTD1304-X TRANSISTOR Q344 KTD1304-X TRANSISTOR Q354 KTD1304-X TRANSISTOR Q421 KTD1304-X TRANSISTOR Q422 KTD1304-X TRANSISTOR Q431 KTD1304-X TRANSISTOR Q432 KTD1304-X TRANSISTOR Q476 2SA1365/F/-X TRANSISTOR Q477 RT1N141C-X DIGI TRANSISTOR Q701 2SA1530A/R/-X TRANSISTOR Q781 RT1P141C-X DIGI TRANSISTOR Q782 RT1P141C-X DIGI TRANSISTOR Q783 RT1P141C-X DIGI TRANSISTOR Q784 RT1P141C-X DIGI TRANSISTOR Q821 RT1N141C-X DIGI TRANSISTOR Q822 RT1P141C-X DIGI TRANSISTOR Q823 2SC4485/ST/-T TRANSISTOR Q881 2SC3928A/R/-X TRANSISTOR Q885 RT1N141C-X DIGI TRANSISTOR Q891 RT1N141C-X DIGI TRANSISTOR Q903 2SA1530A/R/-X TRANSISTOR Q904 RT1N141C-X DIGI TRANSISTOR Q976 RT1N441C-X TRANSISTOR Q977 2SA1530A/R/-X TRANSISTOR

D1 1SS355W-X DIODE C.M D2 1SS355W-X DIODE C.M D192 1SS355W-X DIODE C.M

Part No. Part Name Description Local

D301 UDZW11B-X Z DIODE D302 1SS355W-X DIODE C.M D305 CRS03-W SB DIODE D308 CRS03-W SB DIODE D324 1SS355W-X DIODE C.M D334 1SS355W-X DIODE C.M D344 1SS355W-X DIODE C.M D354 1SS355W-X DIODE C.M D401 CRS03-W SB DIODE D421 1SS355W-X DIODE C.M D431 1SS355W-X DIODE C.M D472 1A3G-T1 SI DIODE D701 UDZW6.2B-X DIODE D702 UDZW6.2B-X DIODE D703 UDZW6.2B-X DIODE D704 UDZW6.2B-X DIODE D705 UDZW6.2B-X DIODE D706 UDZW6.2B-X DIODE D707 UDZW6.2B-X DIODE D709 UDZW6.2B-X DIODE D710 UDZW6.2B-X DIODE D711 UDZW6.2B-X DIODE D716 UDZW6.2B-X DIODE D717 UDZW6.2B-X DIODE D719 SLR-56VC3F DIODE C.M D731 1SS355W-X DIODE C.M D732 UDZW6.2B-X DIODE D781 MC2836-X DIODE D782 MC2836-X DIODE D783 UDZW11B-X Z DIODE D784 UDZW11B-X Z DIODE D785 1SS355W-X DIODE C.M D801 CRS03-W SB DIODE D821 UDZW12B-X Z DIODE D885 1SS355W-X DIODE C.M D891 MC2836-X DIODE



D901 1N5401-F64 SI DIODE D903 1SS355W-X DIODE C.M D906 UDZW5.1B-X SI DIODE D921 1A3G-T1 SI DIODE D922 RB051L-40-X SB DIODE D923 CRS03-W SB DIODE D924 CRS03-W SB DIODE D925 CRS03-W SB DIODE D981 CRS03-W SB DIODE D982 CRS03-W SB DIODE

C1 NCB31HK-104X C CAPACITOR 0.1uF 50V K C4 NCB31EK-104X C CAPACITOR 0.1uF 25V K C5 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C8 NCB31HK-104X C CAPACITOR 0.1uF 50V K C9 QEKJ1HM-224Z E CAPACITOR 0.22uF 50V M C12 NDC31HJ-2R0X C CAPACITOR 2pF 50V J C14 NDC31HJ-100X C CAPACITOR 10pF 50V J C71 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C72 NCB31HK-331X C CAPACITOR 330pF 50V K C73 NCB31HK-103X C CAPACITOR 0.01uF 50V K C74 NCS31HJ-561X C CAPACITOR 560pF 50V J C75 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C76 NCB31HK-103X C CAPACITOR 0.01uF 50V K C77 NDC31HJ-330X C CAPACITOR 33pF 50V J C78 NDC31HJ-330X C CAPACITOR 33pF 50V J C83 QTE1E57-475Z E CAPACITOR 4.7uF 25V C93 QTE1E57-475Z E CAPACITOR 4.7uF 25V C141 NCB31HK-471X C CAPACITOR 470pF 50V K C151 NCB31HK-471X C CAPACITOR 470pF 50V K C155 NCB31AK-474X C CAPACITOR 0.47uF 10V K C161 QTE1A57-107Z E CAPACITOR 100uF 10V C162 NCB31CK-473X C CAPACITOR 0.047uF 16V K C163 NFV81CM-105X MF CAPACITOR 1uF 16V M C164 NFV81CM-105X MF CAPACITOR 1uF 16V M C165 NFV81CM-105X MF CAPACITOR 1uF 16V M C166 QTE1C57-106Z E CAPACITOR 10uF 16V C168 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C169 NCB31HK-103X C CAPACITOR 0.01uF 50V K

3-22



Symbol No.

Part No. Part Name Description Local

Symbol



No.

Part No. Part Name Description Local

C170 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C171 QTE1H57-225Z E CAPACITOR 2.2uF 50V C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V C174 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C176 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C177 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C181 QTE1H57-225Z E CAPACITOR 2.2uF 50V C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V C184 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C186 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C187 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C191 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C267 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C302 NCB31HK-103X C CAPACITOR 0.01uF 50V K C311 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M C312 QTE1C57-476Z E CAPACITOR 47uF 16V C313 NCB31HK-103X C CAPACITOR 0.01uF 50V K C314 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C315 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C316 NCB31HK-103X C CAPACITOR 0.01uF 50V K C326 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C328 NFV81CM-105X MF CAPACITOR 1uF 16V M C329 NCS31HJ-101X C CAPACITOR 100pF 50V J C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K C336 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C338 NFV81CM-105X MF CAPACITOR 1uF 16V M C339 NCS31HJ-101X C CAPACITOR 100pF 50V J C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C348 NFV81CM-105X MF CAPACITOR 1uF 16V M C349 NCS31HJ-101X C CAPACITOR 100pF 50V J C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C358 NFV81CM-105X MF CAPACITOR 1uF 16V M C359 NCS31HJ-101X C CAPACITOR 100pF 50V J C401 NCS31HJ-220X C CAPACITOR 22pF 50V J C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M C405 NCS31HJ-220X C CAPACITOR 22pF 50V J C406 NCB31HK-103X C CAPACITOR 0.01uF 50V K C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C412 NCB31EK-473X C CAPACITOR 0.047uF 25V K C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M C415 NCS31HJ-101X C CAPACITOR 100pF 50V J C416 NCB31HK-103X C CAPACITOR 0.01uF 50V K C423 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C424 NCS31HJ-151X C CAPACITOR 150pF 50V J C425 NCS31HJ-101X C CAPACITOR 100pF 50V J C426 NCS31HJ-221X C CAPACITOR 220pF 50V J C427 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C428 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C433 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C434 NCS31HJ-151X C CAPACITOR 150pF 50V J C435 NCS31HJ-101X C CAPACITOR 100pF 50V J C436 NCS31HJ-221X C CAPACITOR 220pF 50V J C437 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C438 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M C441 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C451 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C461 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C462 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C463 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C464 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C465 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C474 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C475 NCB31HK-102X C CAPACITOR 1000pF 50V K C476 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C477 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C478 NCB31CK-104X C CAPACITOR 0.1uF 16V K C479 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C480 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C701 NCB31HK-103X C CAPACITOR 0.01uF 50V K C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K C721 NCB31EK-473X C CAPACITOR 0.047uF 25V K C722 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C723 NCS31HJ-471X C CAPACITOR 470pF 50V J

C724 NCS31HJ-471X C CAPACITOR 470pF 50V J C725 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C726 NDC31HJ-8R0X C CAPACITOR 8pF 50V J C727 NDC31HJ-270X C CAPACITOR 27pF 50V J C728 NDC31HJ-270X C CAPACITOR 27pF 50V J C729 NDC31HJ-220X C CAPACITOR 22pF 50V J C730 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C731 NCB31CK-103X C CAPACITOR 0.01uF 16V K C732 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C733 NCS31HJ-471X C CAPACITOR 470pF 50V J C781 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C782 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M C783 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C784 QEKJ1CM-476Z E CAPACITOR 47uF 16V M C802 NCS31HJ-220X C CAPACITOR 22pF 50V J C803 NCB31CK-473X C CAPACITOR 0.047uF 16V K C804 NCS31HJ-220X C CAPACITOR 22pF 50V J C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C823 NCB31HK-103X C CAPACITOR 0.01uF 50V K C881 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C892 NCB31CK-104X C CAPACITOR 0.1uF 16V K C901 QEZ0722-338 E CAPACITOR 3300uF C902 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M C903 QEKJ1CM-106Z E CAPACITOR 10uF 16V M C905 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C906 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K C908 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C909 QEKJ1CM-107Z E CAPACITOR 100uF 16V M C910 NCB31HK-102X C CAPACITOR 1000pF 50V K C911 NCB31HK-102X C CAPACITOR 1000pF 50V K C912 QEKJ1CM-226Z E CAPACITOR 22uF 16V M C913 NCB31EK-473X C CAPACITOR 0.047uF 25V K C918 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C919 NCB31HK-103X C CAPACITOR 0.01uF 50V K C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M C925 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C926 QEXF1AM-476Z E CAPACITOR 47uF 10V M C927 QEZ0595-477Z E CAPACITOR 470uF C928 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C929 NCB31HK-472X C CAPACITOR 4700pF 50V K C930 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C961 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C962 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C963 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C964 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C965 QEKJ1AM-227Z E CAPACITOR 220uF 10V M C966 NCB31CK-104X C CAPACITOR 0.1uF 16V K C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K C968 NCB31EK-473X C CAPACITOR 0.047uF 25V K C969 NCB31EK-473X C CAPACITOR 0.047uF 25V K C970 QEKJ1CM-107Z E CAPACITOR 100uF 16V M C971 NCB31EK-473X C CAPACITOR 0.047uF 25V K C981 NCB31CK-104X C CAPACITOR 0.1uF 16V K C999 NRSA63J-0R0X MG RESISTOR 0

R2 NRSA63J-102X MG RESISTOR 1k R3 NRSA63J-102X MG RESISTOR 1k R5 NRSA63J-330X MG RESISTOR 33 R6 NRSA63J-330X MG RESISTOR 33 R7 NRSA63J-103X MG RESISTOR 10k R8 NRSA63J-332X MG RESISTOR 3.3k R9 NRSA63J-473X MG RESISTOR 47k R10 NRSA63J-472X MG RESISTOR 4.7k R11 NRSA63J-472X MG RESISTOR 4.7k R12 NRS181J-4R7X MG RESISTOR 4.7 R13 NRS181J-6R8X MG RESISTOR 6.8 R14 NRSA63J-0R0X MG RESISTOR 0 R71 NRSA63J-101X MG RESISTOR 100 R72 NRSA63J-202X MG RESISTOR 2k R73 NRSA63J-103X MG RESISTOR 10k R81 NRSA63J-223X MG RESISTOR 22k R82 NRSA63J-822X MG RESISTOR 8.2k R91 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω

Ω

1/8W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-23



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R92 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R141 NRSA63J-473X MG RESISTOR 47k R142 NRSA63J-0R0X MG RESISTOR 0 R151 NRSA63J-473X MG RESISTOR 47k R152 NRSA63J-0R0X MG RESISTOR 0 R155 NRSA63J-471X MG RESISTOR 470 R161 NRSA63J-0R0X MG RESISTOR 0 R162 NRSA63J-473X MG RESISTOR 47k R163 NRSA63J-473X MG RESISTOR 47k R164 NRSA63J-473X MG RESISTOR 47k R165 NRSA63J-473X MG RESISTOR 47k R166 NRSA63J-221X MG RESISTOR 220 R171 NRSA63J-222X MG RESISTOR 2.2k R172 NRSA63J-222X MG RESISTOR 2.2k R173 NRSA63J-0R0X MG RESISTOR 0 R191 NRSA63J-472X MG RESISTOR 4.7k R192 NRSA63J-821X MG RESISTOR 820 R193 NRSA63J-101X MG RESISTOR 100 R194 NRSA63J-101X MG RESISTOR 100 R197 NRSA63J-471X MG RESISTOR 470 R302 NRSA63J-0R0X MG RESISTOR 0 R304 NRSA63J-473X MG RESISTOR 47k R305 NRSA63J-103X MG RESISTOR 10k R306 NRSA63J-273X MG RESISTOR 27k R307 NRSA63J-100X MG RESISTOR 10 R308 NRSA63J-222X MG RESISTOR 2.2k R323 NRSA63J-473X MG RESISTOR 47k R324 NRSA63J-222X MG RESISTOR 2.2k R325 NRSA63J-102X MG RESISTOR 1k R326 NRSA63J-101X MG RESISTOR 100 R327 NRSA63J-0R0X MG RESISTOR 0 R329 NRSA63J-102X MG RESISTOR 1k R330 NRSA63J-102X MG RESISTOR 1k R333 NRSA63J-473X MG RESISTOR 47k R334 NRSA63J-222X MG RESISTOR 2.2k R335 NRSA63J-102X MG RESISTOR 1k R336 NRSA63J-101X MG RESISTOR 100 R337 NRSA63J-0R0X MG RESISTOR 0 R339 NRSA63J-102X MG RESISTOR 1k R340 NRSA63J-102X MG RESISTOR 1k R343 NRSA63J-473X MG RESISTOR 47k R344 NRSA63J-222X MG RESISTOR 2.2k R345 NRSA63J-102X MG RESISTOR 1k R346 NRSA63J-101X MG RESISTOR 100 R347 NRSA63J-0R0X MG RESISTOR 0 R349 NRSA63J-102X MG RESISTOR 1k R350 NRSA63J-102X MG RESISTOR 1k R353 NRSA63J-473X MG RESISTOR 47k R354 NRSA63J-222X MG RESISTOR 2.2k R355 NRSA63J-102X MG RESISTOR 1k R356 NRSA63J-101X MG RESISTOR 100 R357 NRSA63J-0R0X MG RESISTOR 0 R359 NRSA63J-102X MG RESISTOR 1k R360 NRSA63J-102X MG RESISTOR 1k R371 NRSA63J-0R0X MG RESISTOR 0 R372 NRSA63J-0R0X MG RESISTOR 0 R381 NRSA63J-0R0X MG RESISTOR 0 R382 NRSA63J-0R0X MG RESISTOR 0 R401 NRSA63J-471X MG RESISTOR 470 R402 NRSA63J-100X MG RESISTOR 10 R403 NRSA63J-471X MG RESISTOR 470 R404 NRSA63J-2R2X MG RESISTOR 2.2 R410 NRS181J-0R0X MG RESISTOR 0 R411 NRSA63J-0R0X MG RESISTOR 0 R412 NRSA63D-682X MG RESISTOR 6.8k R413 NRSA63J-100X MG RESISTOR 10 R414 NRSA63J-102X MG RESISTOR 1k R415 NRSA63J-750X MG RESISTOR 75 R416 NRSA63J-0R0X MG RESISTOR 0 R417 NRSA63D-181X MG RESISTOR 180 R421 NRSA63J-220X MG RESISTOR 22 R422 NRSA63J-222X MG RESISTOR 2.2k R423 NRSA63J-222X MG RESISTOR 2.2k R424 NRSA63J-390X MG RESISTOR 39 R425 NRSA63J-102X MG RESISTOR 1k R426 NRSA63J-183X MG RESISTOR 18k R427 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R428 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R429 NRSA63J-104X MG RESISTOR 100k R431 NRSA63J-220X MG RESISTOR 22 R432 NRSA63J-222X MG RESISTOR 2.2k R433 NRSA63J-222X MG RESISTOR 2.2k R434 NRSA63J-390X MG RESISTOR 39 R435 NRSA63J-102X MG RESISTOR 1k R436 NRSA63J-183X MG RESISTOR 18k R437 NRSA63J-682X MG RESISTOR 6.8k R438 NRSA63J-472X MG RESISTOR 4.7k R439 NRSA63J-104X MG RESISTOR 100k R441 NRSA63J-223X MG RESISTOR 22k R442 NRSA63J-223X MG RESISTOR 22k R451 NRSA63J-223X MG RESISTOR 22k R452 NRSA63J-223X MG RESISTOR 22k R461 NRSA63J-100X MG RESISTOR 10 R462 NRSA63J-100X MG RESISTOR 10 R463 NRSA63J-100X MG RESISTOR 10 R471 NRSA63J-101X MG RESISTOR 100 R474 NRSA63J-101X MG RESISTOR 100 R475 NRSA63J-101X MG RESISTOR 100 R479 NRSA63J-0R0X MG RESISTOR 0 R480 NRSA63J-0R0X MG RESISTOR 0 R481 NRSA63J-103X MG RESISTOR 10k R482 NRSA63J-473X MG RESISTOR 47k R483 NRSA63J-102X MG RESISTOR 1k R484 NRSA63J-103X MG RESISTOR 10k R704 NRSA63J-271X MG RESISTOR 270 R705 NRSA63J-271X MG RESISTOR 270 R706 NRSA63J-103X MG RESISTOR 10k R707 NRSA63J-103X MG RESISTOR 10k R708 NRS181J-561X MG RESISTOR 560 R709 NRSA63J-562X MG RESISTOR 5.6k R710 NRSA63J-102X MG RESISTOR 1k R711 NRSA63J-103X MG RESISTOR 10k R712 NRSA63J-104X MG RESISTOR 100k R713 NRSA63J-103X MG RESISTOR 10k R714 NRSA63J-104X MG RESISTOR 100k R715 NRSA63J-271X MG RESISTOR 270 R716 NRSA63J-271X MG RESISTOR 270 R717 NRSA63J-331X MG RESISTOR 330 R718 NRSA63J-103X MG RESISTOR 10k R719 NRSA63J-103X MG RESISTOR 10k R720 NRSA63J-0R0X MG RESISTOR 0 R721 NRSA63J-222X MG RESISTOR 2.2k R722 NRSA63J-222X MG RESISTOR 2.2k R725 NRSA63J-473X MG RESISTOR 47k R726 NRSA63J-103X MG RESISTOR 10k R727 NRSA63J-562X MG RESISTOR 5.6k R728 NRSA63J-472X MG RESISTOR 4.7k R729 NRSA63J-0R0X MG RESISTOR 0 R730 NRSA63J-222X MG RESISTOR 2.2k R733 NRSA63J-103X MG RESISTOR 10k R735 NRSA63J-0R0X MG RESISTOR 0 R738 NRSA63J-472X MG RESISTOR 4.7k R739 NRSA63J-472X MG RESISTOR 4.7k R740 NRSA63J-222X MG RESISTOR 2.2k R744 NRSA63J-821X MG RESISTOR 820 R745 NRSA63J-106X MG RESISTOR 10M R746 NRSA63J-473X MG RESISTOR 47k R748 NRSA63J-473X MG RESISTOR 47k R749 NRSA63J-473X MG RESISTOR 47k R751 NRSA63J-333X MG RESISTOR 33k R754 NRSA63J-222X MG RESISTOR 2.2k R755 NRSA63J-103X MG RESISTOR 10k R756 NRSA63J-222X MG RESISTOR 2.2k R757 NRSA63J-473X MG RESISTOR 47k R758 NRSA63J-224X MG RESISTOR 220k R759 NRSA63J-224X MG RESISTOR 220k R760 NRSA63J-472X MG RESISTOR 4.7k R761 NRSA63J-472X MG RESISTOR 4.7k R762 NRSA63J-472X MG RESISTOR 4.7k R763 NRSA63J-103X MG RESISTOR 10k R765 NRSA63J-103X MG RESISTOR 10k R766 NRSA63J-0R0X MG RESISTOR 0 R767 NRSA63J-0R0X MG RESISTOR 0 R768 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

1/16W J 1/16W J

3-24

Symbol



No.

R769 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R771 NRSA63J-392X MG RESISTOR 3.9k R772 NRSA63J-221X MG RESISTOR 220 R773 NRSA63J-221X MG RESISTOR 220 R774 NRSA63J-472X MG RESISTOR 4.7k R775 NRSA63J-472X MG RESISTOR 4.7k R776 NRSA63J-472X MG RESISTOR 4.7k R777 NRSA63J-102X MG RESISTOR 1k R778 NRSA63J-103X MG RESISTOR 10k R779 NRSA63J-222X MG RESISTOR 2.2k R780 NRSA63J-222X MG RESISTOR 2.2k R781 NRSA63J-471X MG RESISTOR 470 R782 NRSA63J-471X MG RESISTOR 470 R799 NRSA63J-222X MG RESISTOR 2.2k R801 NRSA63J-101X MG RESISTOR 100 R802 NRSA63J-473X MG RESISTOR 47k R803 NRSA63J-223X MG RESISTOR 22k R804 NRSA63J-104X MG RESISTOR 100k R805 NRSA63J-103X MG RESISTOR 10k R806 NRSA63J-104X MG RESISTOR 100k R807 NRSA63J-331X MG RESISTOR 330 R808 NRSA63J-223X MG RESISTOR 22k R809 NRSA63J-101X MG RESISTOR 100 R810 NRSA63J-473X MG RESISTOR 47k R811 NRSA63J-0R0X MG RESISTOR 0 R821 NRSA63J-100X MG RESISTOR 10 R822 NRSA63J-471X MG RESISTOR 470 R825 NRSA63J-223X MG RESISTOR 22k R841 NRSA63J-473X MG RESISTOR 47k R844 NRSA63J-473X MG RESISTOR 47k R845 NRSA63J-222X MG RESISTOR 2.2k R846 NRSA63J-392X MG RESISTOR 3.9k R847 NRSA63J-392X MG RESISTOR 3.9k R848 NRSA63J-331X MG RESISTOR 330 R857 NRS181J-0R0X MG RESISTOR 0 R859 NRSA63J-222X MG RESISTOR 2.2k R860 NRS181J-561X MG RESISTOR 560 R881 NRSA63J-473X MG RESISTOR 47k R882 NRSA63J-103X MG RESISTOR 10k R883 NRSA63J-104X MG RESISTOR 100k R885 NRSA63J-473X MG RESISTOR 47k R886 NRSA63J-472X MG RESISTOR 4.7k R887 NRSA63J-103X MG RESISTOR 10k R888 NRSA63J-0R0X MG RESISTOR 0 R889 NRSA63J-0R0X MG RESISTOR 0 R891 NRSA63J-473X MG RESISTOR 47k R892 NRSA63J-102X MG RESISTOR 1k R894 NRSA63J-0R0X MG RESISTOR 0 R901 QRE142J-102X C RESISTOR 1k R902 NRSA63J-912X MG RESISTOR 9.1k R903 NRSA63J-472X MG RESISTOR 4.7k R909 NRSA63J-473X MG RESISTOR 47k R910 NRSA63J-222X MG RESISTOR 2.2k R914 NRS181J-221X MG RESISTOR 220 R921 NRS181J-0R0X MG RESISTOR 0 R923 NRSA63J-393X MG RESISTOR 39k R924 NRSA63J-103X MG RESISTOR 10k R925 NRSA63J-154X MG RESISTOR 150k

R926 NRSA63D-304X MG RESISTOR

R927 NRSA63J-0R0X MG RESISTOR 0 R928 NRSA63J-473X MG RESISTOR 47k R961 NRS181J-0R0X MG RESISTOR 0 R962 NRSA63J-101X MG RESISTOR 100 R967 NRS181J-0R0X MG RESISTOR 0 R968 NRS181J-0R0X MG RESISTOR 0 R969 NRS181J-0R0X MG RESISTOR 0 R973 NRSA63J-223X MG RESISTOR 22k R974 NRSA63J-223X MG RESISTOR 22k R975 NRSA63J-223X MG RESISTOR 22k R976 NRSA63J-563X MG RESISTOR 56k R977 NRSA63J-183X MG RESISTOR 18k R981 NRS181J-222X MG RESISTOR 2.2k R982 NRS181J-222X MG RESISTOR 2.2k RA721 NRZ0065-222X NET RESISTOR 2.2k RA722 NRZ0065-222X NET RESISTOR 2.2k RA723 NRZ0065-103X NET RESISTOR 10kΩ 1/16W J

Part No. Part Name Description Local

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω Ω

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

300k

Ω

D

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω Ω Ω Ω

1/16W J

1/16W J 1/16W J 1/16W J

1/16W J 1/16W J

1/16W J

1/16W J 1/16W J 1/16W J

1/16W J

1/16W J 1/16W J

1/16W J

1/16W J 1/16W

1/8W J 1/8W J

Symbol



No.

L1 NQL334J-4R7X INDUCTOR CM 4.7uH J L2 NQL093K-R22X COIL 0.22uH K L401 NQR0007-002X FERRITE BEADS L411 NQL114K-470X COIL 47uH K L421 NQR0007-002X FERRITE BEADS L430 NQR0007-002X FERRITE BEADS L431 NQR0007-002X FERRITE BEADS L721 NQL38DK-330X COIL 33uH K L722 NQL114K-470X COIL 47uH K L901 QQR1378-002 COIL L902 NQL56CK-220X COIL 22uH K L924 NQL56CK-220X COIL 22uH K L925 NQL71EM-330X COIL 33uH M

CN141 QGA2006C1-04 CONNECTOR W-B (1-4) CN411 QGA2501F1-02 CONNECTOR W-B (1-2) CN421 QGA2006C1-04 CONNECTOR W-B (1-4) CN471 QGB1004J2-16X CONNECTOR B-B (1-16) CN701 QNZ0605-001 CAR CONNECTOR CN702 WJK0224-001A-E 2PIN CABLE CN821 QGA2001C1-02 CONNECTOR W-B (1-2) CN901 QNZ0607-001 CAR CONNECTOR CN961 QGB2027M3-30S CONNECTOR B-B (1-30)

CN962 QGF0534F3-45X CONNECTOR

CN963 QGB2027L9-30X CONNECTOR B-B (1-30) J331 QNN0747-001 MODULAR JACK J801 QNZ0095-001 CONNECTOR K401 NQR0007-002X FERRITE BEADS K402 NQR0007-002X FERRITE BEADS K411 NQR0201-004X FERRITE BEADS PP1 QZW0010-001 STYLE PIN PP2 QZW0010-001 STYLE PIN S701 QSW0451-001 DETECT SW S702 QSW0451-001 DETECT SW S723 QSW1049-001Z TACT SW TH721 NAD0028-103X N THERMISTOR 10k



TU21 QAU0453-001 TUNER PACK W21 QAM0105-003 CAR CABLE X71 QAX0263-001Z CRYSTAL 4.332MHz X721 QAX0617-001Z CRYSTAL 12.500MHz X722 QAX0401-001 CRYSTAL 32.768KHz

Part No. Part Name Description Local

FFC/FPC (1-

45)

Switch board (KD-DV6207EE)

Block No. [0][8]

Symbol



No.

IC601 PT6523LQ-L LCD DRIVER IC602 RPM7338-V4 RM.RECEIVER

Q640 2SA1365/F/-X TRANSISTOR Q641 RT1N141C-X DIGI TRANSISTOR

D601 LSQ971/KL/-X LED D602 LSQ971/KL/-X LED D603 LSQ971/KL/-X LED D604 LSQ971/KL/-X LED D605 LSQ971/KL/-X LED D606 LSQ971/KL/-X LED D607 LSQ971/KL/-X LED D608 SML310BA1T/HJ-X LED D609 SML310BA1T/HJ-X LED D610 LSQ971/KL/-X LED D611 LSQ971/KL/-X LED D612 LSQ971/KL/-X LED D613 LSQ971/KL/-X LED D614 LSQ971/KL/-X LED D615 LSQ971/KL/-X LED D616 LSQ971/KL/-X LED

Part No. Part Name Description Local

Ω

3-25



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

D617 LSQ971/KL/-X LED D618 SML310BA1T/HJ-X LED D620 SML310BA1T/HJ-X LED D621 SML310BA1T/HJ-X LED D640 MC2838-X DIODE D641 UDZW5.1B-X SI DIODE D642 1SS355W-X DIODE C.M D643 UDZW6.2B-X DIODE D645 NSPW310BS/BRST/ LED D646 NSPW310BS/BRST/ LED

C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K C602 NCS31HJ-681X C CAPACITOR 680pF 50V J C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M

R601 NRSA63J-821X MG RESISTOR 820 R602 NRSA63J-821X MG RESISTOR 820 R603 NRSA63J-122X MG RESISTOR 1.2k R604 NRSA63J-182X MG RESISTOR 1.8k R605 NRSA63J-272X MG RESISTOR 2.7k R606 NRSA63J-392X MG RESISTOR 3.9k R607 NRSA63J-821X MG RESISTOR 820 R608 NRSA63J-821X MG RESISTOR 820 R609 NRSA63J-122X MG RESISTOR 1.2k R610 NRSA63J-182X MG RESISTOR 1.8k R611 NRSA63J-272X MG RESISTOR 2.7k R612 NRSA63J-392X MG RESISTOR 3.9k R613 NRSA63J-821X MG RESISTOR 820 R614 NRSA63J-821X MG RESISTOR 820 R632 NRSA02J-821X MG RESISTOR 820 R634 NRSA63J-301X MG RESISTOR 300 R636 NRSA63J-301X MG RESISTOR 300 R638 NRSA63J-301X MG RESISTOR 300 R640 NRSA63J-680X MG RESISTOR 68 R641 NRS181J-101X MG RESISTOR 100 R642 NRSA63J-680X MG RESISTOR 68 R643 NRSA63J-680X MG RESISTOR 68 R644 NRSA63J-431X MG RESISTOR 430 R646 NRSA63J-431X MG RESISTOR 430 R648 NRSA63J-431X MG RESISTOR 430 R650 NRS181J-221X MG RESISTOR 220 R651 NRSA63J-222X MG RESISTOR 2.2k R652 NRSA63J-222X MG RESISTOR 2.2k R653 NRSA63J-103X MG RESISTOR 10k R654 NRSA63J-103X MG RESISTOR 10k R655 NRSA63J-103X MG RESISTOR 10k R656 NRSA63J-103X MG RESISTOR 10k R657 NRSA63J-513X MG RESISTOR 51k R658 NRSA63J-184X MG RESISTOR 180k R660 NRSA02J-391X MG RESISTOR 390 R661 NRSA02J-391X MG RESISTOR 390 R670 NRSA63J-0R0X MG RESISTOR 0 R672 NRSA02J-471X MG RESISTOR 470 R673 NRSA02J-473X MG RESISTOR 47k R674 NRSA02J-102X MG RESISTOR 1k R680 NRSA63J-680X MG RESISTOR 68 R681 NRSA63J-680X MG RESISTOR 68 R691 NRSA63J-103X MG RESISTOR 10k R692 NRSA63J-471X MG RESISTOR 470

CN601 NNZ0085-001 CAR CONNECTOR EN601 QSW1163-001 ROTARY ENCODER S601 NSW0206-001X TACT SWITCH S602 NSW0206-001X TACT SWITCH S603 NSW0206-001X TACT SWITCH S604 NSW0206-001X TACT SWITCH S605 NSW0206-001X TACT SWITCH S606 NSW0206-001X TACT SWITCH S607 NSW0206-001X TACT SWITCH S608 NSW0206-001X TACT SWITCH S609 NSW0206-001X TACT SWITCH S610 NSW0206-001X TACT SWITCH S611 NSW0206-001X TACT SWITCH S612 NSW0206-001X TACT SWITCH S613 NSW0206-001X TACT SWITCH

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

S614 NSW0206-001X TACT SWITCH S616 NSW0206-001X TACT SWITCH S617 NSW0206-001X TACT SWITCH

USB board (KD-DV6207EE)

Block No. [0][9]

Symbol



No.

IC401 TCC760 IC IC441 SA04D70TFI021A IC(PROGRAMED) IC442 K4S161622H-UC60 IC IC451 AK4385ET-X IC IC452 NJM4565V-X IC IC481 SN74LVC2G07V-X LOGIC IC IC482 SN74AHCT1G08V-X IC IC521 BH18LB1WG-W 1.8V REG

Q401 RT1N141C-X DIGI TRANSISTOR

D532 UDZW5.1B-X SI DIODE D533 UDZW5.1B-X SI DIODE D600 SML-310LT/MN/-X LED

C402 NCB31CK-104X C CAPACITOR 0.1uF 16V K C403 NCB31CK-104X C CAPACITOR 0.1uF 16V K C404 NCB31CK-104X C CAPACITOR 0.1uF 16V K C406 NCB31CK-104X C CAPACITOR 0.1uF 16V K C407 NDC31HJ-270X C CAPACITOR 27pF 50V J C408 NDC31HJ-270X C CAPACITOR 27pF 50V J C409 NCB31CK-104X C CAPACITOR 0.1uF 16V K C410 NCB31CK-104X C CAPACITOR 0.1uF 16V K C411 NDC31HJ-331X C CAPACITOR 330pF 50V J C412 NCB31CK-104X C CAPACITOR 0.1uF 16V K C413 NCB31CK-104X C CAPACITOR 0.1uF 16V K C414 NCB31CK-104X C CAPACITOR 0.1uF 16V K C415 NCB31CK-104X C CAPACITOR 0.1uF 16V K C416 NCB31CK-104X C CAPACITOR 0.1uF 16V K C417 NCB31CK-104X C CAPACITOR 0.1uF 16V K C418 NCB31CK-104X C CAPACITOR 0.1uF 16V K C419 NCB31CK-104X C CAPACITOR 0.1uF 16V K C420 NCB31CK-104X C CAPACITOR 0.1uF 16V K C440 NCB31AK-154X C CAPACITOR 0.15uF 10V K C441 NCB31CK-104X C CAPACITOR 0.1uF 16V K C442 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C443 NCB31CK-104X C CAPACITOR 0.1uF 16V K C444 NCB31CK-104X C CAPACITOR 0.1uF 16V K C445 NCB31CK-104X C CAPACITOR 0.1uF 16V K C446 NCB31CK-104X C CAPACITOR 0.1uF 16V K C447 NCB31CK-104X C CAPACITOR 0.1uF 16V K C448 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C449 NCB31CK-104X C CAPACITOR 0.1uF 16V K C451 NCB31HK-331X C CAPACITOR 330pF 50V K C453 NCB31CK-473X C CAPACITOR 0.047uF 16V K C454 NBE41AM-476X TA E CAPACITOR 47uF 10V M C455 NCB31CK-104X C CAPACITOR 0.1uF 16V K C456 NCB31CK-104X C CAPACITOR 0.1uF 16V K C457 NBE41AM-476X TA E CAPACITOR 47uF 10V M C461 NCB31HK-332X C CAPACITOR 3300pF 50V K C462 NCS31HJ-471X C CAPACITOR 470pF 50V J C463 NCS31HJ-471X C CAPACITOR 470pF 50V J C464 NCB31CK-104X C CAPACITOR 0.1uF 16V K C465 NBE41AM-476X TA E CAPACITOR 47uF 10V M C471 NCB31HK-332X C CAPACITOR 3300pF 50V K C472 NCS31HJ-471X C CAPACITOR 470pF 50V J C473 NCS31HJ-471X C CAPACITOR 470pF 50V J C474 NCB31CK-104X C CAPACITOR 0.1uF 16V K C475 NBE41AM-476X TA E CAPACITOR 47uF 10V M C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K C482 NCB31CK-104X C CAPACITOR 0.1uF 16V K

Part No. Part Name Description Local

3-26

Symbol



No.

C521 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M C522 NCB31CK-104X C CAPACITOR 0.1uF 16V K C531 NCB31AK-474X C CAPACITOR 0.47uF 10V K

Part No. Part Name Description Local

Front end board

Symbol



No.

Part No. Part Name Description Local

Block No. [1][0]

R398 NRSA63J-0R0X MG RESISTOR 0 R399 NRSA63J-0R0X MG RESISTOR 0 R401 NRSA63J-0R0X MG RESISTOR 0 R402 NRSA63J-0R0X MG RESISTOR 0 R403 NRSA63J-0R0X MG RESISTOR 0 R404 NRSA63J-472X MG RESISTOR 4.7k R405 NRSA63J-472X MG RESISTOR 4.7k R406 NRSA63J-472X MG RESISTOR 4.7k R407 NRSA63J-0R0X MG RESISTOR 0 R408 NRSA63J-0R0X MG RESISTOR 0 R409 NRSA63J-102X MG RESISTOR 1k R410 NRSA63J-0R0X MG RESISTOR 0 R411 NRSA63J-152X MG RESISTOR 1.5k R412 NRSA63J-105X MG RESISTOR 1M R414 NRSA63J-0R0X MG RESISTOR 0 R415 NRSA63J-0R0X MG RESISTOR 0 R416 NRSA63J-0R0X MG RESISTOR 0 R417 NRSA63J-0R0X MG RESISTOR 0 R418 NRSA63J-0R0X MG RESISTOR 0 R420 NRSA63J-104X MG RESISTOR 100k R421 NRSA63J-472X MG RESISTOR 4.7k R425 NRSA63J-103X MG RESISTOR 10k R426 NRSA63J-0R0X MG RESISTOR 0 R435 NRSA63J-472X MG RESISTOR 4.7k R436 NRSA63J-472X MG RESISTOR 4.7k R437 NRSA63J-472X MG RESISTOR 4.7k R441 NRSA63J-102X MG RESISTOR 1k R444 NRSA63J-0R0X MG RESISTOR 0 R446 NRSA63J-472X MG RESISTOR 4.7k R447 NRSA63J-0R0X MG RESISTOR 0 R448 NRSA63J-473X MG RESISTOR 47k R451 NRSA63J-473X MG RESISTOR 47k R452 NRSA63J-0R0X MG RESISTOR 0 R453 NRSA63J-4R7X MG RESISTOR 4.7 R454 NRSA63J-100X MG RESISTOR 10 R455 NRSA63J-100X MG RESISTOR 10 R460 NRSA63J-122X MG RESISTOR 1.2k R461 NRSA63J-472X MG RESISTOR 4.7k R462 NRSA63J-472X MG RESISTOR 4.7k R463 NRSA63J-223X MG RESISTOR 22k R464 NRSA63J-472X MG RESISTOR 4.7k R465 NRSA63J-201X MG RESISTOR 200 R466 NRSA63J-223X MG RESISTOR 22k R467 NRSA63J-472X MG RESISTOR 4.7k R468 NRSA63J-201X MG RESISTOR 200 R469 NRSA63J-102X MG RESISTOR 1k R470 NRSA63J-122X MG RESISTOR 1.2k R471 NRSA63J-472X MG RESISTOR 4.7k R472 NRSA63J-472X MG RESISTOR 4.7k R473 NRSA63J-223X MG RESISTOR 22k R474 NRSA63J-472X MG RESISTOR 4.7k R475 NRSA63J-201X MG RESISTOR 200 R476 NRSA63J-223X MG RESISTOR 22k R477 NRSA63J-472X MG RESISTOR 4.7k R478 NRSA63J-201X MG RESISTOR 200 R479 NRSA63J-102X MG RESISTOR 1k R482 NRSA63J-103X MG RESISTOR 10k R483 NRSA63J-103X MG RESISTOR 10k R484 NRSA63J-103X MG RESISTOR 10k R532 NRSA63J-153X MG RESISTOR 15k R533 NRSA63J-153X MG RESISTOR 15k RA401 NRZ0065-472X MG RESISTOR 4.7k

L401 NQL38DK-330X COIL 33uH K L531 NQR0536-001X CHOKE COIL

CN531 QNZ0855-001 USB CONNECTOR CN532 QGB1004K1-16 CONNECTOR B-B (1-16) CN600 QGA1501C6-02 CONNECTOR W-B (1-2) F531 NAD0031-004X N THERMISTOR W K441 NQR0502-001X FERRITE BEADS X402 NAX0832-001X CRYSTAL

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

IC201 BA5835FM-X IC IC251 BD6671FM-X IC IC301 MN2DS0009AA IC IC302 BA00HC5WF-X IC IC304 S-80827CNNB-G-W IC IC398 SG32M90TFIR34F IC(PROGRAMED) IC399 EDS1232AATA-75 IC(DIGITAL) IC401 AK4385ET-X IC IC411 NJM4580V-X IC IC481 BR24L16F-W-X IC

Q101 2SB1424/R/-W TRANSISTOR Q102 2SC4617/R/-X TRANSISTOR Q103 2SB1424/R/-W TRANSISTOR Q104 2SC4617/R/-X TRANSISTOR Q105 2SC4617/R/-X TRANSISTOR Q106 2SK3019-X MOS FET Q107 2SK3019-X MOS FET Q231 DTC114EE-X DIGI TRANSISTOR Q301 DTC144EE-X DIGI TRANSISTOR Q302 DTC144EE-X DIGI TRANSISTOR

C1 NCB31CK-104X C CAPACITOR 0.1uF 16V K C2 NCB31CK-104X C CAPACITOR 0.1uF 16V K C3 NCB31CK-104X C CAPACITOR 0.1uF 16V K C4 NCB31CK-104X C CAPACITOR 0.1uF 16V K C5 NCB31CK-104X C CAPACITOR 0.1uF 16V K C6 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7 NCB31CK-104X C CAPACITOR 0.1uF 16V K C8 NCB31CK-104X C CAPACITOR 0.1uF 16V K C9 NCB31CK-104X C CAPACITOR 0.1uF 16V K C11 NCB31CK-104X C CAPACITOR 0.1uF 16V K C12 NCB31CK-104X C CAPACITOR 0.1uF 16V K C13 NCB31CK-104X C CAPACITOR 0.1uF 16V K C14 NCB31CK-104X C CAPACITOR 0.1uF 16V K C15 NCB31CK-104X C CAPACITOR 0.1uF 16V K C16 NCB31CK-104X C CAPACITOR 0.1uF 16V K C17 NCB31CK-104X C CAPACITOR 0.1uF 16V K C18 NCB31CK-104X C CAPACITOR 0.1uF 16V K C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K C105 NBE41AM-476X TA E CAPACITOR 47uF 10V M C106 NBE41AM-476X TA E CAPACITOR 47uF 10V M C108 NBE41AM-476X TA E CAPACITOR 47uF 10V M C111 NCB31CK-104X C CAPACITOR 0.1uF 16V K C112 NCB31CK-104X C CAPACITOR 0.1uF 16V K C201 NEAF1CM-107X E CAPACITOR 100uF 16V M C202 NCB31CK-104X C CAPACITOR 0.1uF 16V K C203 NCS31HJ-271X C CAPACITOR 270pF 50V J C204 NDC31HJ-151X C CAPACITOR 150pF 50V J C205 NCB31HK-681X C CAPACITOR 680pF 50V K C206 NCB31HK-561X C CAPACITOR 560pF 50V K C211 NEAF1CM-107X E CAPACITOR 100uF 16V M C212 NCB31CK-104X C CAPACITOR 0.1uF 16V K C213 NCB31CK-104X C CAPACITOR 0.1uF 16V K C221 NCB31HK-223X C CAPACITOR 0.022uF 50V K C222 NCB31HK-103X C CAPACITOR 0.01uF 50V K C251 NCB31CK-104X C CAPACITOR 0.1uF 16V K C252 NEAF1CM-107X E CAPACITOR 100uF 16V M C253 NCB31CK-104X C CAPACITOR 0.1uF 16V K C254 NBE21AM-106X TA E CAPACITOR 10uF 10V M C255 NCB31CK-104X C CAPACITOR 0.1uF 16V K C256 NCB31CK-473X C CAPACITOR 0.047uF 16V K C257 NCB31HK-102X C CAPACITOR 1000pF 50V K C258 NCB31HK-102X C CAPACITOR 1000pF 50V K C259 NCB31HK-102X C CAPACITOR 1000pF 50V K C264 NCB31HK-103X C CAPACITOR 0.01uF 50V K C265 NCB31CK-104X C CAPACITOR 0.1uF 16V K C266 NCB31CK-104X C CAPACITOR 0.1uF 16V K C267 NCB31HK-103X C CAPACITOR 0.01uF 50V K C268 NCB31HK-153X C CAPACITOR 0.015uF 50V K

3-27



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C301 NEAF0JM-227X E CAPACITOR 220uF 6.3V M C302 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K C308 NCB31CK-104X C CAPACITOR 0.1uF 16V K C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K C310 NCB31HK-103X C CAPACITOR 0.01uF 50V K C311 NCB31CK-104X C CAPACITOR 0.1uF 16V K C312 NCB21CK-105X C CAPACITOR 1uF 16V K C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K C316 NCB31CK-105X C CAPACITOR 1uF 16V K C317 NCB31CK-104X C CAPACITOR 0.1uF 16V K C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K C324 NCB21CK-105X C CAPACITOR 1uF 16V K C325 NDC31HJ-100X C CAPACITOR 10pF 50V J C326 NDC31HJ-100X C CAPACITOR 10pF 50V J C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K C336 NCB31CK-104X C CAPACITOR 0.1uF 16V K C337 NCB31HK-183X C CAPACITOR 0.018uF 50V K C338 NCB31HK-562X C CAPACITOR 5600pF 50V K C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K C340 NCB21CK-105X C CAPACITOR 1uF 16V K C341 NCB21CK-105X C CAPACITOR 1uF 16V K C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K C358 NDC31HJ-5R0X C CAPACITOR 5pF 50V J C359 NDC31HJ-5R0X C CAPACITOR 5pF 50V J C364 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M C365 NCB31CK-104X C CAPACITOR 0.1uF 16V K C366 NCB21CK-105X C CAPACITOR 1uF 16V K C369 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M C371 NCB21CK-105X C CAPACITOR 1uF 16V K C380 NCB31CK-104X C CAPACITOR 0.1uF 16V K C381 NCB31CK-104X C CAPACITOR 0.1uF 16V K C382 NCB31CK-104X C CAPACITOR 0.1uF 16V K C383 NCB31CK-104X C CAPACITOR 0.1uF 16V K C384 NCB31CK-104X C CAPACITOR 0.1uF 16V K C385 NCB31CK-104X C CAPACITOR 0.1uF 16V K C386 NCB31CK-104X C CAPACITOR 0.1uF 16V K C387 NCB31CK-104X C CAPACITOR 0.1uF 16V K C388 NCB31CK-104X C CAPACITOR 0.1uF 16V K C391 NCB31CK-104X C CAPACITOR 0.1uF 16V K C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K C393 NCB31CK-104X C CAPACITOR 0.1uF 16V K C394 NCB31CK-104X C CAPACITOR 0.1uF 16V K C396 NCB31CK-104X C CAPACITOR 0.1uF 16V K C397 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C401 NCB31CK-104X C CAPACITOR 0.1uF 16V K C402 NBE41AM-476X TA E CAPACITOR 47uF 10V M C403 NCB31HK-331X C CAPACITOR 330pF 50V K C404 NCB31CK-473X C CAPACITOR 0.047uF 16V K C411 NCB31CK-104X C CAPACITOR 0.1uF 16V K C412 NBE41AM-476X TA E CAPACITOR 47uF 10V M C421 NCB31CK-104X C CAPACITOR 0.1uF 16V K C422 NBE41AM-476X TA E CAPACITOR 47uF 10V M C431 NCB31HK-332X C CAPACITOR 3300pF 50V K C432 NCS31HJ-471X C CAPACITOR 470pF 50V J C433 NCS31HJ-471X C CAPACITOR 470pF 50V J C451 NCB31CK-104X C CAPACITOR 0.1uF 16V K C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K C453 NCB31CK-104X C CAPACITOR 0.1uF 16V K C454 NCB31CK-104X C CAPACITOR 0.1uF 16V K C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K C491 NCB31CK-104X C CAPACITOR 0.1uF 16V K C521 NCB31CK-104X C CAPACITOR 0.1uF 16V K C522 NBE41AM-476X TA E CAPACITOR 47uF 10V M

C531 NCB31HK-332X C CAPACITOR 3300pF 50V K C532 NCS31HJ-471X C CAPACITOR 470pF 50V J C533 NCS31HJ-471X C CAPACITOR 470pF 50V J

R101 NRSA63J-910X MG RESISTOR 91 R102 NRSA63J-910X MG RESISTOR 91 R103 NRSA63D-432X MG RESISTOR 4.3k R104 NRSA63D-242X MG RESISTOR 2.4k R105 NRS125J-120X MG RESISTOR 12 R106 NRSA63J-2R2X MG RESISTOR 2.2 R107 NRSA63J-102X MG RESISTOR 1k R108 NRSA63J-471X MG RESISTOR 470 R109 NRSA63J-331X MG RESISTOR 330 R110 NRSA63J-0R0X MG RESISTOR 0 R111 NRSA63D-432X MG RESISTOR 4.3k R112 NRSA63D-242X MG RESISTOR 2.4k R113 NRS125J-120X MG RESISTOR 12 R114 NRSA63J-2R2X MG RESISTOR 2.2 R115 NRSA63J-102X MG RESISTOR 1k R116 NRSA63J-471X MG RESISTOR 470 R117 NRSA63J-331X MG RESISTOR 330 R118 NRSA63J-0R0X MG RESISTOR 0 R119 NRSA63J-0R0X MG RESISTOR 0 R120 NRSA63J-0R0X MG RESISTOR 0 R122 NRSA63J-0R0X MG RESISTOR 0 R123 NRSA63J-0R0X MG RESISTOR 0 R125 NRS125J-1R0X MG RESISTOR 1 R126 NRSA02J-0R0X MG RESISTOR 0 R127 NRSA63J-103X MG RESISTOR 10k R128 NRSA63J-103X MG RESISTOR 10k R129 NRSA63J-104X MG RESISTOR 100k R201 NRS125J-1R0X MG RESISTOR 1 R202 NRSA63J-473X MG RESISTOR 47k R203 NRSA63J-303X MG RESISTOR 30k R204 NRSA63J-273X MG RESISTOR 27k R205 NRSA63J-273X MG RESISTOR 27k R206 NRSA63J-0R0X MG RESISTOR 0 R207 NRSA63J-0R0X MG RESISTOR 0 R208 NRSA63J-203X MG RESISTOR 20k R209 NRSA63J-223X MG RESISTOR 22k R211 NRSA63J-0R0X MG RESISTOR 0 R219 NRSA63J-153X MG RESISTOR 15k R220 NRSA63J-183X MG RESISTOR 18k R221 NRSA63J-103X MG RESISTOR 10k R222 NRSA63J-103X MG RESISTOR 10k R223 NRSA63J-0R0X MG RESISTOR 0 R224 NRSA63J-103X MG RESISTOR 10k R231 NRSA63J-272X MG RESISTOR 2.7k R232 NRSA63J-153X MG RESISTOR 15k R233 NRSA63J-0R0X MG RESISTOR 0 R234 NRSA63J-394X MG RESISTOR 390k R235 NRSA63J-682X MG RESISTOR 6.8k R251 NRS125J-R47X MG RESISTOR 0.47 R252 NRSA63J-103X MG RESISTOR 10k R253 NRSA63J-0R0X MG RESISTOR 0 R254 NRSA63J-103X MG RESISTOR 10k R255 NRSA63J-203X MG RESISTOR 20k R256 NRSA63J-470X MG RESISTOR 47 R257 NRSA63J-0R0X MG RESISTOR 0 R258 NRSA63J-103X MG RESISTOR 10k R259 NRSA63J-103X MG RESISTOR 10k R260 NRSA63J-470X MG RESISTOR 47 R300 NRSA63J-0R0X MG RESISTOR 0 R301 NRSA63J-0R0X MG RESISTOR 0 R303 NRSA63J-270X MG RESISTOR 27 R304 NRSA63J-103X MG RESISTOR 10k R306 NRSA63J-102X MG RESISTOR 1k R307 NRSA63J-102X MG RESISTOR 1k R308 NRSA63J-223X MG RESISTOR 22k R309 NRSA63J-104X MG RESISTOR 100k R310 NRSA63J-102X MG RESISTOR 1k R312 NRSA63J-0R0X MG RESISTOR 0 R313 NRSA63J-0R0X MG RESISTOR 0 R314 NRSA63J-0R0X MG RESISTOR 0 R315 NRSA63J-0R0X MG RESISTOR 0 R316 NRSA63J-0R0X MG RESISTOR 0 R317 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W D

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W D

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-28



Symbol No.

Part No. Part Name Description Local

Symbol



No.

Part No. Part Name Description Local

R318 NRSA63D-332X MG RESISTOR 3.3kΩ 1/16W D R319 NRSA63J-223X MG RESISTOR 22k R320 NRSA63J-101X MG RESISTOR 100 R322 NRSA63J-103X MG RESISTOR 10k R323 NRSA63J-0R0X MG RESISTOR 0 R325 NRSA63J-161X MG RESISTOR 160 R332 NRSA63J-102X MG RESISTOR 1k R333 NRSA63D-162X MG RESISTOR 1.6k R334 NRSA63J-151X MG RESISTOR 150 R335 NRSA63J-151X MG RESISTOR 150 R336 NRSA63J-151X MG RESISTOR 150 R337 NRSA63J-151X MG RESISTOR 150 R338 NRSA63J-0R0X MG RESISTOR 0 R339 NRSA63J-0R0X MG RESISTOR 0 R340 NRSA63D-303X MG RESISTOR 30k R345 NRSA63J-0R0X MG RESISTOR 0 R346 NRSA63J-473X MG RESISTOR 47k R347 NRSA63J-473X MG RESISTOR 47k R348 NRSA63J-473X MG RESISTOR 47k R349 NRSA63J-473X MG RESISTOR 47k R350 NRSA63J-181X MG RESISTOR 180 R351 NRSA63J-102X MG RESISTOR 1k R352 NRSA63J-105X MG RESISTOR 1M R353 NRSA63J-101X MG RESISTOR 100 R354 NRSA63J-101X MG RESISTOR 100 R357 NRSA63J-0R0X MG RESISTOR 0 R358 NRSA63J-0R0X MG RESISTOR 0 R359 NRSA63J-181X MG RESISTOR 180 R360 NRSA63J-181X MG RESISTOR 180 R361 NRSA63J-0R0X MG RESISTOR 0 R362 NRSA63J-0R0X MG RESISTOR 0 R363 NRSA63J-151X MG RESISTOR 150 R364 NRSA63J-151X MG RESISTOR 150 R365 NRSA63D-911X MG RESISTOR 910 R366 NRSA63D-202X MG RESISTOR 2k R370 NRSA63J-103X MG RESISTOR 10k R371 NRSA63J-0R0X MG RESISTOR 0 R372 NRSA63J-331X MG RESISTOR 330 R373 NRSA63J-331X MG RESISTOR 330 R374 NRSA63J-0R0X MG RESISTOR 0 R380 NRSA63J-102X MG RESISTOR 1k R384 NRSA63J-102X MG RESISTOR 1k R385 NRSA63J-102X MG RESISTOR 1k R386 NRSA63J-0R0X MG RESISTOR 0 R390 NRSA63J-103X MG RESISTOR 10k R396 NRSA63J-473X MG RESISTOR 47k R399 NRSA63J-0R0X MG RESISTOR 0 R401 NRSA63J-100X MG RESISTOR 10 R402 NRSA63J-4R7X MG RESISTOR 4.7 R403 NRSA63J-0R0X MG RESISTOR 0 R404 NRSA63J-473X MG RESISTOR 47k R411 NRSA63J-100X MG RESISTOR 10 R421 NRSA63J-102X MG RESISTOR 1k R422 NRSA63J-122X MG RESISTOR 1.2k R431 NRSA63J-472X MG RESISTOR 4.7k R432 NRSA63J-472X MG RESISTOR 4.7k R433 NRSA63J-223X MG RESISTOR 22k R434 NRSA63J-201X MG RESISTOR 200 R435 NRSA63J-472X MG RESISTOR 4.7k R436 NRSA63J-201X MG RESISTOR 200 R437 NRSA63J-472X MG RESISTOR 4.7k R438 NRSA63J-223X MG RESISTOR 22k R441 NRSA63J-0R0X MG RESISTOR 0 R442 NRSA63J-0R0X MG RESISTOR 0 R481 NRSA63J-103X MG RESISTOR 10k R491 NRSA63D-472X MG RESISTOR 4.7k R492 NRSA63J-0R0X MG RESISTOR 0 R521 NRSA63J-102X MG RESISTOR 1k R522 NRSA63J-122X MG RESISTOR 1.2k R531 NRSA63J-472X MG RESISTOR 4.7k R532 NRSA63J-472X MG RESISTOR 4.7k R533 NRSA63J-223X MG RESISTOR 22k R534 NRSA63J-201X MG RESISTOR 200 R535 NRSA63J-472X MG RESISTOR 4.7k R536 NRSA63J-201X MG RESISTOR 200 R537 NRSA63J-472X MG RESISTOR 4.7k R538 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R621 NQL093K-1R8X COIL 1.8uH K

L303 NQL044K-100X COIL 0.26 L305 NQL093K-1R8X COIL 1.8uH K L306 NQL093K-1R8X COIL 1.8uH K L307 NQL093K-1R8X COIL 1.8uH K L451 NQL044K-100X COIL 0.26

CN101 QGF0501F8-30X CONNECTOR

CN201 QGF1038F2-11X CONNECTOR

CN202 QGF0523F2-05W CONNECTOR FFC/FPC (1-5) CN402 QGF0522F3-06W CONNECTOR FFC/FPC (1-6)

CN403 QGF0534F3-45X CONNECTOR

K101 NQR0007-002X FERRITE BEADS K102 NQR0007-002X FERRITE BEADS K301 NQR0502-001X FERRITE BEADS K311 NQR0129-002X FERRITE BEADS K399 NQR0502-001X FERRITE BEADS K401 NQR0022-005X FERRITE BEADS K402 NQR0022-005X FERRITE BEADS K404 NQR0022-005X FERRITE BEADS K405 NQR0022-005X FERRITE BEADS K406 NQR0022-005X FERRITE BEADS K407 NQR0022-005X FERRITE BEADS K425 NQL093K-1R8X COIL 1.8uH K K435 NQR0022-005X FERRITE BEADS K441 NQR0022-005X FERRITE BEADS K442 NQR0022-005X FERRITE BEADS K443 NQR0022-005X FERRITE BEADS K444 NQR0022-005X FERRITE BEADS K445 NQR0022-005X FERRITE BEADS K451 NQR0022-005X FERRITE BEADS K452 NQR0022-005X FERRITE BEADS K601 NQR0022-005X FERRITE BEADS SW4 NSW0184-001X DETECT SW SW5 NSW0183-001X DETECT SW TH491 NAD0025-103X N THERMISTOR 10k X351 NAX0730-001X CRYSTAL

Ω

10uH K

Ω

10uH K

FFC/FPC (1-

30) FFC/FPC (1-

11)

FFC/FPC (1-

45)

Ω

3-29

Packing materials and accessories parts list

No additional / supplemental order of WARRANTY CARDs are available.

A19

P1

P2

KD-ADV6270J KD-DV6200J

A1 A2 A3

A4 A5

A1 A2

A3 (only E)

A20 (only E)

A22(only E)

KD-DV6201E,EU KD-DV6202E,EU

A17

A21

P2

KD-DV6207EE

P8

A1 A2

A22

P4

2/2

P7

A3

3

Block No.

P2

KD-DV7205U,UN,UT,A KD-DV7206U,UN,UT,A

M

A1 A2 A19

M

P4

1/2

A16

P2

A18

KD-DV6201E,EU KD-DV6202E,EU KD-DV7205U KD-DV7206U

P3

KIT:

P6

A15

A14 A6 A7A8 A9 A10 A11

A13

P5

A12

3-30

Packing and Accessories

Block No. [M][3][M][M]



Symbol No. Part No. Part Name Description Local

A 1 GET0374-001A INSTR. BOOK ENG FRE SPA ADV6270J,DV6200J A 1 GET0378-002A INST BOOK SPA ITA SWE DV6201E,DV6202E A 1 GET0378-003A INST BOOK ENG FRE DV6201EU,DV6202EU A 1 GET0375-001A INST BOOK ENG CHI(TAIWAN) DV7205U,DV7206U A 1 GET0375-003A INST BOOK ENG INA DV7205UN,DV7206UN A 1 GET0375-004A INST BOOK ENG CHI(TAIWAN) DV7205UT,DV7206UT A 1 GET0375-005A INST BOOK ENG DV7205A,DV7206A A 1 GET0379-001A INST BOOK ENG RUS DV6207EE A 2 GET0374-002A INSTALL MANUAL ADV6270J,DV6200J A 2 GET0378-005A INSTALL MANUAL DV6201E,DV6202E A 2 GET0378-007A INSTALL MANUAL DV6201EU,DV6202EU A 2 GET0375-006A INSTALL MANUAL DV7205U,DV7205UT,DV7206U,DV7206UT A 2 GET0375-008A INSTALL MANUAL DV7205UN,DV7206UN A 2 GET0375-009A INSTALL MANUAL DV7205A,DV7206A A 2 GET0379-002A INSTALL MANUAL DV6207EE A 3 ------------ WARRANTY CARD BT-52006-2 ADV6270J,DV6200J A 3 ------------ WARRANTY CARD BT-54028-1 DV6201E,DV6202E,DV6207EE A 4 ------------ WARRANTY CARD BT-51029-2 ADV6270J A 4 ------------ WARRANTY CARD BT-51018-4 DV6200J A 5 BT-51034-2 REGISTRATION CARD ADV6270J,DV6200J A 6 VKZ4027-202 PLUG NUT A 7 VKH4871-003 MOUNT BOLT A 8 VKZ4328-003 LOCK NUT A 9 QYWWS53A008ZA WASHER 0mm/5.3mm x A 10 GE40130-002A HOOK (x2) A 11 LV41478-002A CORD CONNECTOR A 12 GE32149-001A HARD CASE ASSY A 13 RM-RK230 REMOCON UNIT A 14 ------------ BATTERY



A 15 QAM0687-001 POWER CORD ADV6270J



A 15 QAM0453-002 CAR CABLE DV6200J



A 15 QAM0450-002 POWER CORD



A 15 QAM0455-002 CAR CABLE

A 16 GE20137-003A MOUNTING SLEEVE

A 17 GE20149-015A TRIM PLATE

A 17 GE20149-013A TRIM PLATE DV6200J

A 17 GE20149-007A TRIM PLATE

A 18 GET0378-001A INST BOOK ENG GER FRE DUT DV6201E,DV6202E A 18 GET0378-004A INST BOOK SPA TUR PER DV6201EU,DV6202EU A 18 GET0375-002A INST BOOK THA ARA PER KOR DV7205U,DV7206U A 19 GET0378-006A INSTALL MANUAL DV6201E,DV6202E A 19 GET0378-008A INSTALL MANUAL DV6201EU,DV6202EU A 19 GET0375-007A INSTALL MANUAL DV7205U,DV7206U A 20 VND3050-002 IDENTITY CARD DV6201E,DV6202E A 21 LVT1435-001A INST SHEET DV6201E,DV6201EU,DV6202E,DV6202EU A 22 VND3046-001 SERIAL TICKET DV6201E,DV6202E,DV6207EE KIT SRW-ADV6160J SCREW PARTS KIT A6 A7 A8 A9 A10 A11 P 1 GE32077-002A CARTON ADV6270J P 1 GE32080-002A CARTON DV6200J P 1 GE32100-001A CARTON DV6201E,DV6201EU P 1 GE32103-001A CARTON DV6202E,DV6202EU P 1 GE32083-001A CARTON DV7205U,DV7205UN,DV7205UT P 1 GE32085-001A CARTON DV7205A P 1 GE32087-001A CARTON DV7206U,DV7206UN,DV7206UT P 1 GE32089-001A CARTON DV7206A P 1 GE32106-002A CARTON DV6207EE

P 2 FSPG4002-001 POLY BAG

P 2 FSPG4002-001 POLY BAG (x2)

P 3 QPA00801205 POLY BAG 8cm x 12cm P 4 GE10162-001A CUSHION P 5 QPC01002515 POLY BAG 10cm x 25cm P 6 QPA01003003 POLY BAG 10cm x 30cm P 7 QPC03004315P POLY BAG 30cm x 43cm P 8 QPC01002515 POLY BAG 10cm x 25cm

DV6201E,DV6201EU,DV6202E,DV6202EU ,DV6207EE DV7205U,DV7205UN,DV7205UT,DV7205A ,DV7206U,DV7206UN,DV7206UT, DV7206A

ADV6270J,DV6202E,DV6202EU,DV7206U ,DV7206UN,DV7206UT,DV7206A, DV6207EE

DV6201E,DV6201EU,DV7205U,DV7205U N,DV7205UT,DV7205A

ADV6270J,DV6200J,DV7205UN,DV7205U T,DV7205A,DV7206UN,DV7206UT,DV7206 A,DV6207EE DV6201E,DV6201EU,DV6202E,DV6202EU ,DV7205U,DV7206U

3-31

Jvc KD-DV7206-UT, KD-DV7206-UN, KD-DV7206-U, KD-DV7206-A, KD-DV7205-UT Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Safety Precautions

1.2 Preventing static electricity

1.3 Handling the traverse unit (optical pickup)

1.4 Attention when traverse unit is decomposed

1.5 Important for laser products

3.1 Main body section

3.2 DVD mechanism assembly

4.1 Test instruments required for adjustment

4.3 Connection method

4.2 Standard measuring conditions

4.4 Adjustment method for jitter

4.5 Jitter value conversion table

4.6 Service mode

SCHEMATIC DIAGRAMS

Safety precaution

Block diagram

Standard schematic diagrams

Main section (except KD-DV6201, KD-DV6202 and KD-DV6207)

Main section (for KD-DV6201 and KD-DV6202)

Main section (for KD-DV6207)

LCD & Key control section (except KD-DV6201 & KD-DV6202)

LCD & Key control section (for KD-DV6201 & KD-DV6202)

DVD control section (common)

USB module section (common)

Printed circuit boards

Main board

Switch board

DVD module board

USB module board

Exploded view of general assembly and parts list

General Assembly

DVD mechanism assembly and parts list

DVD mechanism

Electrical parts list

Packing materials and accessories parts list

Packing and Accessories
