Jonsered CS 2240 User Manual

Workshop manual
510 16 77-26
Workshop manual
Jonsered CS 2240 and CS 2240S
Contents
Index ....................................................................... 4
Introduction and safety instructions ................... 6
Technical data ...................................................... 10
Service tools ........................................................ 12
Service data .........................................................14
Safety equipment ................................................. 16
Repair instructions .............................................. 24
Carburettor ........................................................... 33
Troubleshooting................................................... 53
Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.
English – 3
Index
Index
B
Bar bolt 52
Replacing the bar bolt 52
C
Carburettor 33
Assemble on the saw 40 Assembly 38 Carburettor adjustment 41 Cleaning and inspection 37 Design 33 Dismantling 35 Function 34 Pressure testing the carburettor 39
Centrifugal clutch 30
Centrifugal clutch - retting 31 Centrifugal clutch - removal 30 Inspection and cleaning 30
Chain brake 17
Chaine brake - reassembly 18 Cleaning and inspection 17 Dismantling the chaine brake 17
Chain catcher 20
Chain catcher - replacement 20
Crankcase and crankshaft 50
Crankshaft bearings - replacement 50 Crankshaft complete - dismantling 50 Crankshaft complete - reassembly 51
F
Fuel system 44
Replacing the fuel lter 44 Replacing the fuel hose/return hose 44 Replacing the air-purge 44 Venting the fuel tank 42
I
Ignition module and flywheel 28
Cleaning and inspection 28 Ignition module - testing 27 Ignition module and ywheel - retting 29 Ignition module and ywheel - removal 28
Intake system 32
Air intake system removal 32 Assembling the intake system 32, 48 Cleaning and inspection 32
Introduction and safety instructions 7
Changes 7 General 7 General Instructions 8 Numbering 7 Safety 7 Special Instructions 8
Symbols in the Workshop Manual 9 Symbols on the saw 9 Structure 7 Target group 7 Tools 7
O
Oil pump and screen 31
Assembling the oil pump and screen 32 Cleaning and inspection 31 Dismantling the oil pump and screen 31
P
Piston and cylinder 45
Cleaning and inspection 45 Cylinder - pressure testing 49 Faults and causes 47 Piston and cylinder - retting 47 Piston and cylinder - removal 45
S
Service data 14 Special tools 12 Silencer 19
Cleaning and inspection 19 Silencer - retting 19 Silencer - removal 19
Starter 25, 26
Changing a broken or worn starter cord 26 Cleaning and inspection 25, 26 Replacing a worn recoil spring 27 Starter assembly - retting 27 Starter assembly - removal 25 Tensioning the recoil spring 26
Start/Stop switch 20
Assembling the start/stop control 21 Cleaning and inspection 20 Dismantling the start/stop control 20
Stopping function 21
Stop switch - resistance measurement 21
T
Tank unit 42
Assembly 43 Dismantling 42
Technical Data 10 Threads 51
Repairing damaged threads 51
Throttle lock, throttle trigger and return spring 22
Cleaning and inspection 23 Throttle lock, throttle trigger and return spring - retting 23 Throttle lock, throttle trigger and return spring - removal 22
4 – English
Trouble shooting 54
Trouble-shooting methods 55
V
Vibration damping system 43
Assembly 43 Cleaning and inspection 43 Dismantling 43
Index
English – 5
Introduction and safety instructions

2 Introduction and safety instructions

Contents
2.1 General ...........................................................................................................................7
2.2 Safety .............................................................................................................................7
2.3 Target group ...................................................................................................................7
2.4 Changes ..........................................................................................................................7
2.5 Tools ...............................................................................................................................7
2.6 Structure .........................................................................................................................7
2.7 Numbering ......................................................................................................................7
2.8 General instructions ........................................................................................................8
2.9 Special instructions .........................................................................................................8
2.10 Symbols on the saw .......................................................................................................9
2.11 Symbols in the Workshop Manual ..................................................................................9
6 – English
Introduction and safety instructions
2 Introduction and safety instructions
2.1 General
This Workshop Manual describes in detail how the chain saw is to be fault traced, repaired and tested. A description of different safety measures that should be taken during repair work is also given.
2.2 Safety
Note! The section dealing with safety must be read and understood by all those carrying out repair work or service on the chain saw.
Warning symbols can be found in this Workshop Manual and on the chain saw. See “Symbols on the saw” and “Symbols in the Workshop Manual”. A new decal must be applied as soon as possible if a warning symbol on the chain saw has been da­maged or is missing so that the greatest possible safety can be obtained when using the chain saw.
2.3 Target group
This Workshop Manual is written for personnel with general knowledge about the repair and service of chain saws.
2.6 Structure
This Workshop Manual can be used in two diffe­rent ways:
For the repair of a particular system on the chain saw.
Dismantling and assembly of the entire chain saw.
Repair of a specific system
When a particular system on the chain saw is to be repaired, proceed as follows:
1. Look up the page for the system in question.
2. Carry out the sections: Dismantling
Cleaning and inspection
Assembling
Dismantling and assembling the entire chain saw
Proceed as follows when the entire chain saw is to be dismantled and assembled:
The Workshop Manual must be read and under­stood by personnel who will carry out repair work and service on the chain saw. The Manual is also suitable for use when training new employees.
2.4 Changes
Modications will be successively introduced on the chain saw during production. When these modications affect the service and/or spare parts, separate service information will be sent out on each occasion. This means that in time this Work­shop Manual will become out of date. In order to prevent this, the Manual should be read together with all service information concerning the chain saw in question.
2.5 Tools
Special tools are required for some stages. All service tools are listed in the Workshop Manual. Usage is evident from respective sections.
Always use Husqvarna’s original:
• Spare parts
• Service tools
• Accessories
1. Look up the chapter “Repair instructions”,
which deals with the Starter and carry out the instructions set out under Dismantling.
2. Work forward in the Manual and carry out Dis- mantling in the order set out in the sections.
3. Go back to the Starter and carry out the in­structions under Cleaning and Inspection.
4. Work forward in the Manual and carry out
Cleaning and Inspection in the order set out
in the sections.
5. Order or take out all requisite spare parts from the stores.
6. Look up the chapter “Repair instructions” which
deals with the Crankcase and carry out the instructions set out under Assembling.
7. Work back in the Manual and carry out As- sembling in the order set out in the sections.
Some sections include a Description of the actual
unit in order to increase the basic understanding.
2.7 Numbering
Position references to components inside the gu­res are designated A, B, etc. The gures are numbered 1, 2 etc. The position references and gure numbers restart in each new section.
English – 7
Introduction and safety instructions
2.8 General instructions
The workshop where chain saw repairs are to be done must be equipped with safety equipment as set out in local provisions.
No one may repair the chain saw unless they have read and understood the content of this Workshop Manual.
In this workshop manual the following boxes indi­cate where caution should be taken.
WARNING! The warning text warns of the risk of personal injury if the instruc­tions are not followed.
NOTE! The warning text warns of the risk of ma-
terial damage if the instructions are not followed.
2.9 Special instructions
The fuel that is used in a chainsaw poses the fol­lowing hazards:
The fuel and its fumes are toxic.
May cause irritation to skin or eyes.
May cause breathing difculties.
Highly ammable.
When using compressed air the air jet should never be pointed at the body. Air can be forced into the bloodstream and cause fatal injury.
Wear ear protection when testing saws.
After testing a saw do not touch the silencer until it has cooled down. The silencer gets very hot and you may burn yourself. Wear protective gloves when working on the silencer.
The guide bar, chain and clutch cover (chain brake) must be tted before the saw is started. If not, the clutch may come loose and cause injury.
Poor chain lubrication can result in failure of the chain, which could cause serious or fatal injury.
Take care to ensure that the spring inside the starter assembly does not y out and cause injury. Wear eye protection. If the spring is under compression when the pulley is removed it could y out and cause injury.
Before removing the tensioning spring from the chain brake, ensure that the brake is in the on position, otherwise the spring may y out and cause injury.
After completing the repair the chain brake must be tested, see “Chain brake – reassembly \ Operating test”.
Always consider the re risk. A chainsaw can produce sparks that could start a re.
Inspect the chain catcher and replace it if it is damaged.
8 – English
Introduction and safety instructions
2.10 Symbols on the saw
The symbols below are embedded on the chain saw.
Choke Lever
Refuelling
Stop button
2.11 Symbols in the Workshop Manual
This symbol warns of personal injury when the instructions are not followed
Filling with chain oil
Air purge
Chain brake, activated (right) Chain brake, not activated (left)
English – 9
Technical data

3 Technical data

Displacement Cylinder bore Stroke Max power/speed cm3/cubic inches Ø mm/Ø inches mm/inches kW/hp/rpm
CS 2240/S: 40,9 / 2,49 41 / 1,51 31 / 1,22 1,8 / 2,4 / 9 000
Spark plug gap Ignition system Air gap Carburettor type mm/inches mm/inches
CS 2240/S: 0,5 / 0,02 Walbro MBU-16 0,3 / 0,012 Zama EL41AC1T
Effective cutting length Chain speed at Chain pitch Drive link cm/inches max power – revs mm/inches mm/inches m/s - r/min
CS 2240/S: 33-46 / 13-18 17,3 / 9 000 8,25 / 0,325 1,3 / 0,050 - 1,5 / 0,058
10 – English
GAS
OIL
Technical data
rpm
Idling speed Engagement speed Spark plug rpm rpm
CS 2240/S: 2 900 3 800 NGK BPMR 7A Champion RCJ 7Y
Fuel tank capacity Oil pump capacity at Oil tank capacity Automatic oil pump Litres/US pints 8,500 rpm, Litres/US pints ml/min
CS 2240/S: 0,37 / 0,78 9 0,25 / 0,53 Yes
Weight without Weight with bar and chain bar and chain kg / lbs kg / lbs
CS 2240/S: 4,4 / 9,7 5,7 / 12,6
English – 11
Special tools

4 Special tools

M5
1
4
5
M5 M6
2
6
3
7
8
10
9
11
12 – English
Special tools
12 13a
15
16b
16a
13b
16c
14
17
18
Item Description Used for Order no.
1 Clutch tool Centrifugal clutch 502 54 16-03
2 Piston stop Locking the crankshaft 504 91 06-05
3 Fuel lter hook Withdrawing the fuel lter 502 50 83-01
4 Allen key, 4mm For M5 bolts 502 50 87-01
5 Allen key, 4mm For M5 bolts 502 50 18-01
5 Allen key, 5mm For M6 bolts 502 50 64-01
6 Pressure tester Pressure testing cylinder 503 84 40-02
7 Feeler gauge Adjusting ignition module 502 51 34-02
8 Assembly xture Assembling chain saw 502 51 02-01
9 Pressure gauge Pressurisation during testing 531 03 06-23
10 Test spark plug Checking the ignition module 501 97 64-01
11 Rev counter Adjusting carburettor 502 71 14-01
12 Assembly pliers Fitting spark plug guard 502 50 06-01
13a Cover plate, exhaust Sealing the exhaust port 502 54 11-02
13b Cover plates, inlet Sealing the intake manifold 504 63 93-01
14 Assembly tool Assembling spring, chain brake 502 50 67-01
15 Puller Pulling bearing of crankshaft 504 90 90-01
16a Sleeve Fitting crankshaft 502 50 30-22
16b Shaft extension Flywheel side 502 50 30-22
16c Shaft extension Cluch side 502 50 30-22
17 Punch Dismantling the ywheel 502 51 94-01
18 Adjustment screwdriver Adjustment of the carburettor 530 03 55-60
English – 13
Service data

5 Service data

14 – English
Service data
English – 15
Safety equipment

6 Safety equipment

Contents
6.1 Dismantling the chain brake ...........................................................................................17
6.2 Chain brake - reassembly ...............................................................................................18
6.3 Silencer - removal ...........................................................................................................19
6.4 Silencer - retting ............................................................................................................19
6.5 Chain catcher - replacement ..........................................................................................20
6.6 Dismantling the start/stop control ...................................................................................20
6.7 Stop switch - resistance measurement ...........................................................................21
6.8 Assembling the start/stop control ....................................................................................21
6.9 Throttle lock, throttle trigger and return spring - removal ................................................22
6.10 Throttle lock, throttle trigger and return spring - retting .................................................23
16 – English
6 Safety equipment
6.1 Dismantling the chain brake
1
Release the brake by moving the front hand guard backward. Loosen the bar nut and remove the clutch cover, chain and bar (see gure 1).
2
Carefully tighten the clutch housing in a vice. Release the brake by using the saw's front hand guard (A) as a tool. Mesh with the brake and tigh­ten anti-clockwise until the brake is activated. (see gure 2)
Safety equipment
Fig 1
WARNING! Exercise care to ensure the spring does not fly out and cause perso­nal injury. Wear protective glasses.
3
Loosen the screws and carefully remove the cover over the brake spring. (see gure 3)
4
Hold one hand over the brake spring; press a nar­row screwdriver in between the rear section of the spring and the clutch cover. Carefully pry upward until the spring releases and runs onto the screw­driver shaft. (see gure 4)
Fig 2
Fig 3
Cleaning and inspection
Carefully clean and check all parts. Parts must be replaced if cracked or show signs of other defects. Always use original spare parts.
Measure the thickness of the chain brake band.
It must not be less than 0.6 mm at any point. (see gure 5)
Lubricate the knee joint with grease.
Fig 4
min 0,6 mm
Fig 5
English – 17
Safety equipment
6.2 Chain brake – reassembly
1
Bolt the elbow joint to the brake band (see gure 5) and tighten to a torque of 1–1.5 Nm. Locate the elbow joint and connected brake band in their recesses in the clutch cover. Lubricate the recess for the spring with grease (see gure 6).
Secure the circlip (A) (see gure 6).
2
Grip the clutch cover in a vice. Compress the spring with special tool 502 50 67-01 and push it down with your thumb (see gure 7).
WARNING! Make sure the spring does not fly out and cause injury. Wear eye protection.
Fig 6
3
Fit the cover over the chain brake spring, tighten­ing the screws to a torque of 1–1.5 Nm (see gure
8).
4
Tension the brake spring by using the kickback guard from the saw as a tool. Engage it with the brake mechanism and turn clockwise to release the brake (see gure 9).
5
Turn the chain tensioner anticlockwise as far as it will go.
Fig 7
Fig 8
Ret:
guide bar
chain
clutch cover
NOTE! After completing the repair the chain
brake must be tested as described below.
18 – English
Fig 9
Operating test:
The engine must not be running during the test.
Guide bar length Height
38cm/15" 50 cm/20"
Hold the chainsaw over a rm surface. The height of the guide bar above the surface is given in the table above.
Let go of the front handle and let the chainsaw fall towards the surface.
When the guide bar hits the surface the chain brake must engage (see gure 10).
6.3 Silencer – removal
WARNING! Do not touch the silencer until it has cooled down, otherwise you may burn yourself.
1
Remove the cylinder cover, silencer, gasket and cooling plate.
Safety equipment
Fig 10
2
If the saw is tted with a spark arrestor mesh (A) this must also be removed. If necessary, use the com­bination spanner to push down the plate edge and remove the spark arrestor mesh (see gure 11).
Cleaning and inspection
Clean and inspect all parts carefully. If there are any cracks or other defects replace the damaged parts with new ones. The spark arrestor mesh is best cleaned with a wire brush. If the mesh is damaged it must be replaced. If the mesh is blocked the saw will overheat and this will cause damage to cylinder and piston. Never use the saw with a silencer that is in poor condition. Always use original parts.
6.4 Silencer – refitting
1
If the saw is equipped with a spark arrestor mesh this should be tted rst. When tting the mesh, make sure that the mesh is inserted in the right position. If necessary, use the combination spanner to insert the mesh.
Fig 11
2
Ret
cooling plate
gasket
silencer, tighten bolts to a torque of 8–10 Nm.
cylinder cover
3
Run the saw for at least 1 minute, then retighten the silencer bolts to 12–14 Nm.
English – 19
Safety equipment
6.5 Chain catcher – replacement
If the chain catcher is worn it must be replaced with a new one.
1
Release the brake by pushing the kickback guard backwards. Undo the guide bar bolts and remove the clutch cover, chain and guide bar.
2
Remove the chain catcher and replace it with a new one. Check that the vibration damping spring locates correctly against the crankcase when you bolt the new chain catcher in position. (see gure
12)
6.6 Dismantling the start/stop control
1
Remove the cylinder cover and air lter.
2
Loosen the screw and dismantle the control (see gure 13).
Fig 12
3
Loosen the lter holder from the rubber mountings (B). (see gure 13)
4
Cut off the starlock washer and pull out the control from the shaft on the lter holder.(see gure 14)
Cleaning and inspection
Clean and inspect all parts carefully. If there are any cracks or other defects replace the damaged parts with new ones. Always use original parts.
Fig 13
20 – English
6.7 Stop switch – resistance
measurement
Clean the mating surfaces and check the resis­tance as follows:
Measure the resistance by connecting a multime­ter to the ignition coil. NOTE! The switch must be in the “on” (A) position to give the correct reading (see gure 14).
The resistance must not be higher than 0.5 Ohm when the switch is in the on position.
Safety equipment
The stop switch is in the on position when the button is held down (A) (see gure 14) and in the off-position the button is neutral (B) (see gure 15).
6.8 Assembling the start/stop control
1
Fit a new control and tighten the screw.
Fig 14
Fig 15
2 Fit air lter and cylinder cover.
Fig 16
English – 21
Safety equipment
6.9 Throttle lock, throttle trigger and return spring – removal
1
Loosen the throttle actuator rod on the carburettor, the fuel hose and the suction hose to the fuel pump.
2
Dismantle the tank unit from the engine unit by loosening the screws A (see gure 17)
3
Dismantle the handle insert (B) by loosening the screw C on the handle (see gure 18).
4
Press out the throttle control pin (D) with the help of a punch (see gure 19).
Fig 17
Fig 18
A
A
A
2xA
A
5
Loosen the throttle lock as illustrated with the help of a screwdriver or the like. Then dismantle from the shaft in the handle (see gure 20).
6
Dismantle the throttle control (see gure 20).
7
Now loosen the spring.
Fig 19
Fig 20
22 – English
Fig 21
Cleaning and inspection
Clean and inspect all parts carefully. If there are any cracks or other defects replace the dama­ged parts with new ones. Always use original parts.
Check that the spring is not broken and has not
lost its tension.
6.10 Throttle lock, throttle trigger and
return spring – refitting
1
Lubricate all pins and mating surfaces with a light oil.
2
Fit the throttle control (B) and spring (C) (see gure 22).
3
Hold the spring and insert the throttle lock into the cut-out in the handle (see gure 23).
Safety equipment
4
Fit the throttle control pin (E) with the help of a punch. (see gure 23)
5
Fit the throttle lock (D) by pressing it onto the shaft in the handle (see gure 24).
6
Assemble the handle insert using a screw, when the throttle control, lever, throttle cable and throttle control lock with pin are tted correctly (see gure
25).
Fig 22
Fig 23
Fig 24
English – 23
Repair instructions

7 Repair instructions

Contents
7.1 Starter assembly - removal .............................................................................................25
7.2 Changing a broken or worn starter cord .........................................................................26
7.3 Tensioning the recoil spring ............................................................................................26
7.4 Replacing a worn recoil spring .......................................................................................27
7.5 Starter assembly - retting ..............................................................................................27
7.6 Ignition module - testing .................................................................................................27
7.7 Ignition module and ywheel - removal ..........................................................................28
7.8 Ignition module and ywheel - retting ...........................................................................29
7.9 Centrifugal clutch - removal ............................................................................................30
7.10 Centrifugal clutch - retting .............................................................................................31
7.11 Dismantling the oil pump and screen ..............................................................................31
7.12 Assembling the oil pump and screen ..............................................................................32
7.13 Air intake system - removal ............................................................................................32
7.14 Assembling the intake system ........................................................................................32
7.15 Carburettor .....................................................................................................................33
7.16 Tank unit .........................................................................................................................42
7.17 Venting the fuel tank .......................................................................................................42
7.18 Vibration damping system ..............................................................................................43
7.19 Replacing the fuel lter ...................................................................................................44
7.20 Replacing the fuel hose/return hose ...............................................................................44
7.21 Replacing the air-purge ...................................................................................................44
7.22 Piston and cylinder - removal .........................................................................................45
7.23 Piston and cylinder - retting ..........................................................................................47
7.24 Cylinder - pressure testing ..............................................................................................49
7.25 Crankshaft complete - dismantling .................................................................................50
7.26 Crankshaft bearings - replacement ................................................................................50
7.27 Crankshaft complete - reassembly .................................................................................51
7.28 Repairing damaged threads ...........................................................................................51
7.29 Replacing the bar bolt .....................................................................................................52
24 – English
7 Repair instructions
7.1 Starter assembly – removal
1
Undo the four bolts that fasten the starter assembly to the crankcase and lift off the starter assembly. (see gure 1)
2
Pull out about 30 cm of the cord and fasten it in the notch in the pulley rim. Release the tension in the return spring by letting the pulley wind backwards slowly. (see gure 2)
Fig 1
Repair instructions
1
2
WARNING! If the recoil spring is still under tension when the pulley is re­moved it can fly out and cause injury. Wear eye protection.
3
Remove the bolt from the centre of the pulley and lift off the pulley. (see gure 3)
Cleaning and inspection
Clean the parts and check the following:
The starter cord.
That the pawls on the ywheel are undama­ged, i.e. that they spring back towards the centre and move freely.
Lubricate the return spring with light oil.
Fig 2
Fig 3
English – 25
Repair instructions
7.2 Changing a broken or worn starter cord
When the starter cord is worn and must be replaced, the tension on the return spring must be released.
1
Pull the cord out about 30 cm and lift it into the notch on the outside of the starter pulley. Release the tension on the return spring by allowing the starter pulley to rotate slowly backwards (see gure 2).
WARNING! If the spring tension is activated on the starter pulley, the spring can fly out and cause personal injury. Wear protective glasses.
2
Undo the bolt in the centre of the pulley and re­move the pulley (see gure 3).
3
Fit a new cord through the hole in the pulley and tie a knot to secure it. Feed the other end of the cord through the hole in the starter housing and through the starter handle, then tie a double knot in the end. Wind about 3 turns of the starter cord onto the pulley. Fit the bolt through the centre of the pulley and tighten to a torque of 2–3 Nm.
Cleaning and inspection
Clean and inspect all parts carefully. If there are any cracks or other defects replace the damaged parts with new ones. Lubricate the return spring with a little grease.
7.3 Tensioning the recoil spring
1
Fasten the starter cord in the notch in the pulley rim and wind the pulley about 3 turns clockwise. Check that the pulley is free to rotate at least an­other half turn when the starter cord is fully exten­ded (see gure 4).
2
Tension the cord with the handle. Remove the thumb and released back the cord (see gure 5).
Fig 4
26 – English
Fig 5
7.4 Replacing a worn recoil spring
WARNING! Make sure the recoil spring does not fly out and cause injury. Wear eye protection..
1
Remove the bolt from the centre of the pulley and lift off the pulley and spring cassette.
2
Replace the defective spring cassette with a new one.
3
Fit the bolt through the centre of the pulley and tighten to a torque of 2–3 Nm. Tension the recoil spring, see “Tensioning the recoil spring”.
Repair instructions
7.5 Starter assembly – refitting
1
Position the starter assembly on the crankcase and tighten the bolts to a torque of 2.5–3.5 Nm.
7.6 Ignition module – testing
If there is a fault in the ignition system the ignition module must be tested before the ignition system is removed.
Test the ignition module as follows:
Connect a test spark plug 502 71 13-01 to the ignition lead and clip the test spark plug onto the cylinder.
Turn the engine over using the starter cord.
If the test spark plug produces a spark the ignition module is OK. (see gure 7)
Fig 6
Fig 7
English – 27
Repair instructions
7.7 Ignition module and flywheel – removal
1
Remove the cylinder cover. Disconnect the HT lead, remove the spark plug and t piston stop 502 54 15-
01. in its place. Take off the starter assembly, release the leads from the cable guide and remove it (see gure 8).
2
If replacing the ignition module (B), loosen the cable lug (C) and screw (A) and unscrew it. The ignition module can be left in place if you are simply removing the ywheel (see gure 9).
Fig 8
3
Loosen the ywheel nut (E) using a suitable socket and remove it (see gure 10).
When replacing the cables, they are tted on the stop switch, as shown in gure (see gure 9).
4
Knock on the punch using a metal mallet until the ywheel releases from the shaft. Remove the punch and the ywheel (see gure 10).
Cleaning and inspection
Clean all parts, especially the tapers on the ywheel and shaft.
Fig 9
Check that the ywheel is not cracked or da­maged in any other way.
28 – English
Fig 10
7.8 Ignition module and flywheel – refitting
1
Fit the ywheel on the crankshaft journal. Turn the ywheel so that the key lines up with the keyway in the shaft.
Fit the nut on the shaft and tighten to a torque of 25-30 Nm (see gure 11).
2
To ret the ignition module proceed as follows:
Turn the ywheel so that the magnets are in line with the ignition module. Fit the ignition module with the plastic feeler gauge (502 51 34- 02) held in position at the same time, without tightening the bolts. Fit the earth cable (black) (A). Set a distance of 0.3 +/- 0.1 mm, between the ignition module and magnet. The measurement applies to the two lowest lugs on the ignition module. Tighten the screws, tightening torque 4.5–6 Nm. Fit the blue cable on the ignition module (see gure 12).
Repair instructions
Fig 11
3
Then ret:
cable guide and press the leads into position
HT lead
starter assembly, tighten to a torque of 2.5–3.5 Nm
cylinder cover
When replacing the cables, they are tted on the stop switch as shown in middle gure on the pre­vious page.
Fig 12
English – 29
Repair instructions
7.9 Centrifugal clutch – removal
1
Remove the cylinder cover. Disengage the chain brake by pushing the kickback guard backwards. Undo the bar nut and remove the clutch cover, bar and chain (see gure 13).
2
Disconnect the HT lead. Remove the spark plug and t piston stop 502 54 15-01 (A) in its place (see gure 14).
3
Unbolt the clutch using tool 502 54 16-03 (B) and a suitable socket or wrench. Turn the clutch clock­wise to remove it (see gure 15).
Fig 13
A
4
Secure the clutch in a vice as shown in gure. Care­fully release the clutch springs (C) (see gure 16).
NOTE! Handle the clutch springs carefully. If they are opened up too much they could dam­age the saw.
Inspection and cleaning
Clean and inspect all parts carefully. If there are any cracks or other defects replace the damaged parts with new ones. Always use original parts.
Check the thickness of the clutch shoes by using vernier callipers to measure the diameter of the clutch. If the diameter is less than 60
mm the clutch assembly must be replaced (see gure 16).
Fig 14
B
Fig 15
30 – English
Fig 16
7.10 Centrifugal clutch – refitting
1
Insert the clutch springs in the shoes.
2
Screw the clutch (anti-clockwise) until it stops. Now tighten using tool 502 54 16-03 and a suitable socket wrench or combination spanner. Tightening torque min. 20 Nm.
3
Remove the piston stop. Fit the spark plug, tightening it to a torque of 20 Nm, then connect the HT lead.
Then ret:
cylinder cover
guide bar
chain
clutch cover
Repair instructions
7.11 Dismantling the oil pump and screen
1
Empty and clean the oil tank.
Remove the cylinder cover. Release the brake by moving the front hand guard backward. Undo the bar nut and remove the clutch cover, bar and chain. Loosen spark plug cap and remove the spark plug, t the piston stop 502 54 15-01. Loosen the clutch (clockwise) using tool 502 54 16-03 and a suitable socket wrench or combination spanner.
2
Remove the centrifugal clutch (A). Remove the clutch drum (B), needle bearing (C) and pump drive wheel (D) (see gure 17).
3
Unscrew the chain guide plate (see gure 18).
4
Unbolt the oil pump from the crankcase and remove it together with the oil pressure hose (see gure 19).
5
The oil pump (E) is not adjustable (see gure 20).
Cleaning and inspection
Clean and inspect all parts carefully. If there are any cracks or other defects replace the dama­ged parts with new ones. Always use original parts.
Fig 17
Fig 18
E
Fig 19
E
Lubricate all moving parts with chain oil.
Fig 20
English – 31
Repair instructions
7.12 Assembling the oil pump and screen
1
Fit the chain guide plate with tightening torque 1–1.5 Nm.
Fit the drive gear, needle bearing, clutch drum and the clutch (min. 20 Nm).
Fit the chain, bar and clutch cover.
WARNING! Poor chain lubrication can result in failure of the chain, which could cause serious or fatal injury.

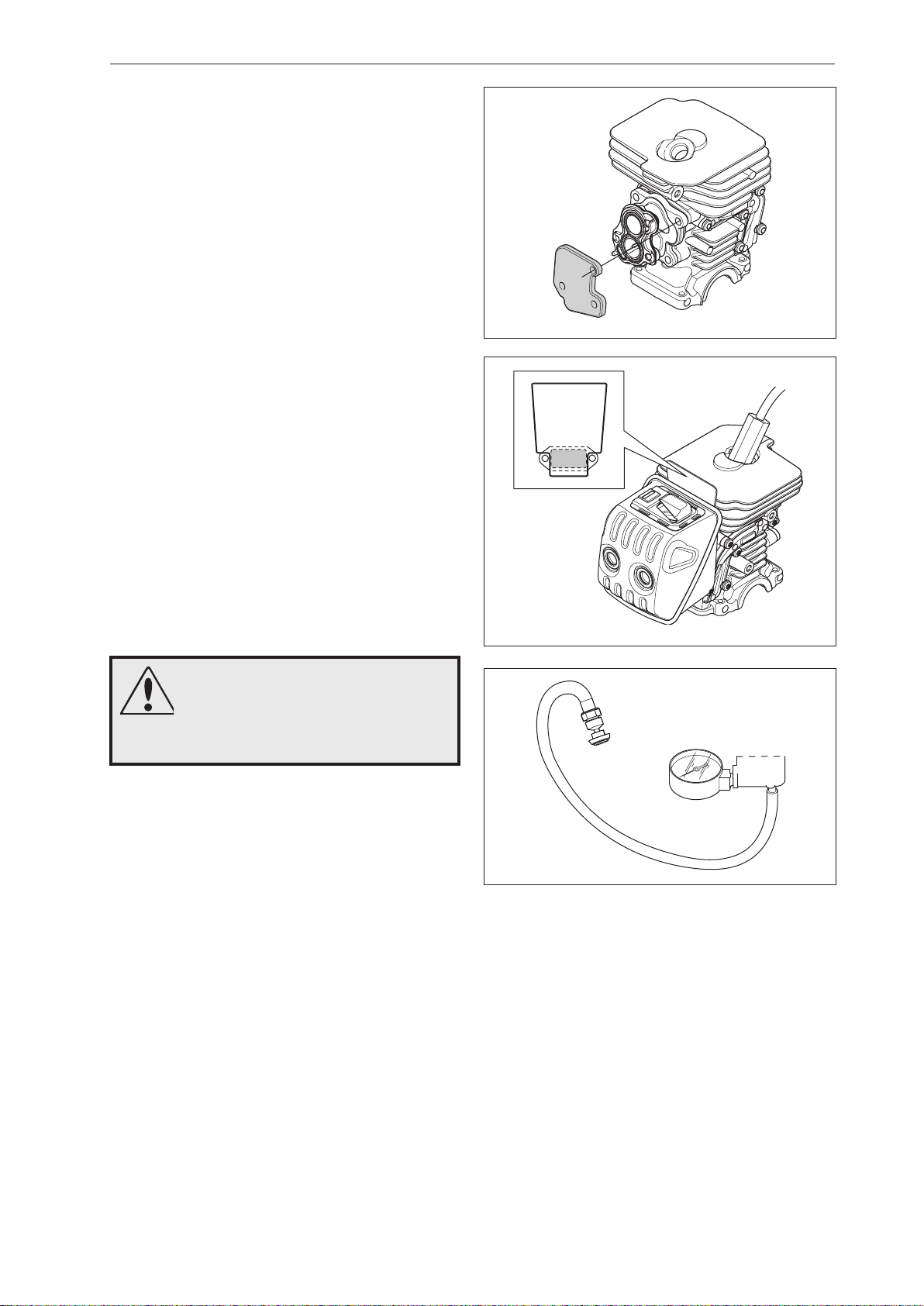

7.13 Air intake system – removal
The air intake system comprises:
intake manifold (A)
plastic partition wall (B)
rubber partition wall (C)
(see gure 21)
7.14 Assembling the intake system
1
Fit the intake manifold (A) and the partition walls (B and C) on the cylinder using tool 502 50 87-01 (see gure 21).
Cleaning and inspection
Clean and check all parts carefully. Parts must be replaced if cracked or show signs of other defects. Always use original spare parts.
1
Now loosen the screws using tool 502 50 87-01..
Fig 21
32 – English
7.15 Carburettor
WARNING! The fuel used in the chainsaw has the following hazardous properties:
1. The fluid and its fumes are poisonous.
2. Can cause skin irritation.
3. Is highly inflammable.
Description
The drawings accompanying this description do not correspond with the carburettor on the chainsaw. They only show the principle for the design and function.
Design
The carburettor is based on three sub-systems:
The metering unit, A.
The mixing venturi, B.
Repair instructions
The pump unit, C.
The jets and the fuel’s control functions are located in the metering unit (A). Here the correct quantity of fuel is adjusted for the actual speed and power output (see gure 22).
The mixing venturi (B) houses the choke, throttle valve and diffuser jets. Here air is mixed with the fuel to give a fuel/air mixture that can be ignited by the ignition spark (see gure 23).
In the pump unit (C), fuel is pumped from the fuel tank to the metering unit. One side of the pump di­aphragm is connected to the crankcase and pulses in time with the pressure changes in the crankcase. The other side of the diaphragm pumps the fuel (see gure 24).
Fig 22
Fig 23
Fig 24
English – 33
Repair instructions
Function
The carburettor operates differently in the following modes:
Cold start mode
Idling mode
Part throttle mode
Full throttle mode
In the cold start mode (see gure) the choke valve (H) is fully closed. This increases the vacuum in the carburettor so that fuel is sucked more easily from all the diffuser jets (D, E and F). The throttle valve (I) is partly open. Extra air inlet (J) is closed (see gure 25).
In the idling mode (see gure) the throttle valve (I and J) is closed and the choke valve (H) is open.
Air is sucked in through an aperture in the throttle valve and a small amount of fuel is supplied th­rough the diffuser jet (D) (see gure 26).
Fig 25
In the part throttle mode (see gure below) the th­rottle valve (I) is partially open and the choke valve (H) is open. Fuel is supplied through the diffuser jets (D and E). The throttle valve (J) starts to open (see gure 27).
In full throttle mode (se gure below) all valves are open and fuel is supplied through all diffuser jets (D, E, F and G). Extra air inlet (J) is also fully opened (see gure 28).
Fig 26
Fig 27
34 – English
Fig 28
Dismantling the carburettor
1. Dismantle the cylinder cover and the air lter.
2. Disassemble the handle holder (see gure 29).
3. Push the throttle actuator rod out of the han­dle part. Unhook it from the carburettor (see gure 30).
Repair instructions
Fig 29
4. Remove the return hose (B) and suction hose (C). Loosen the fuel pump (D). Let the fuel hose (G) remain in place (see gure 31).
NOTE! Take care when lifting out the carburettor so that the fuel hose does not become loose.
5. Loosen the screws (E) and unhook the rubber mountings (F) (see gure 32).
Fig 30
Fig 31
Fig 32
English – 35
Repair instructions
6. Disassemble the pump cover (G) over the measuring chamber cover (R) and carefully remove the control diaphragm (H) with gasket (J).
7. Unscrew the screw (K) and remove the needle valve (L) with lever (M), shaft (N) and spring (P).
8. Unscrew the screw (Q) above the pump unit and carefully remove the gasket (S) and dia­phragm (T).
9. Use a needle or similar device and carefully pull up the fuel screen (U).
10. Unscrew the high (V) and low jet screws (W) (see gure 34).
11. If necessary, dismount the throttle valve (X), choke valve (Z) and air shutter (Y) and remove the shafts with levers and springs (see gure 34).
Fig 33
36 – English
Repair instructions
Cleaning and inspection
Clean all units in clean petrol.
Use compressed air to dry the petrol on the com­ponents. Direct the air through all channels in the carburettor housing and ensure that they are not blocked. Check the following:
1. That gaskets, pump and control diaphragms are undamaged.
2. That there is no play on the throttle and choke valve shafts.
3. That the needle valve (L) and its lever (M) are not worn (see gure 33).
4. That the fuel screen (U) is whole and clean (see gure 33).
5. That the tips of the high (V) and low jet screws (W) are not damaged (see gure 34).
6. That the intake manifold (R2) is undamaged (see gure 33).
7. The carburettor has an extra air shutter con­nected in parallel with the ordinary throttle valve.
Fig 34
English – 37
Repair instructions
Assembly
Maintain a high level of cleanliness when assem­bling the carburettor. The slightest contamination can result in running problems.
1. If the throttle and choke valves, together with levers and springs were removed, they should be retted. The spring is tensioned 1-2 turns. Lubricate the shaft bearings with light oil.
2. Fit the high (V) and low (W) speed needles and springs. Note! Do not fully tighten the screws. This will damage the seats and needle tips.
3. Fit the fuel lter (U) by using the handle of a small screwdriver. (see gure 33)
4. Fit pump cover (G), gasket (S) and measuring chamber cover (R) over the pump unit (see gure 33).
5. Fit the needle valve (L) with lever (M), shaft (N) and spring (P) and tighten the screw (K). Fit the expansion washer (F) (see gure 35).
6. Check using a ruler or the like that the lever is level with the assembly plane on the cover. The lever arm can be bent if necessary (see gure 36).
Fig 35
7. Fit the control diaphragm (T) with gasket (S) and measuring chamber cover (R) over the metering unit (see gure 37).
8. Press in the screen (U). Fit the measuring chamber cover (R) and tighten the screw (Q) (see gure 37).
9. Put together the gasket (J) and control dia­phragm (H) and press up (see gure 37).
10. Assemble all the parts and tighten the four screws (see gure 37).
11.. Carry out a pressure test.
Fig 36
38 – English
Fig 37
Pressure testing the carburettor
Pressure testing should be carried out with the car­burettor fully assembled. Testing should always be carried out after the carburettor has been repaired, but it can also be carried out as trouble shooting before dismantling the carburettor.
See gure and carry out the test as follows:
1
Set the high and low jet screws two turns from the bottom.
Repair instructions
2
Connect pressure tester to the carburettor’s fuel intake.
3
Lower the carburettor into a beaker of water (see gure 37).
4
Pump the pressure up to 50 kPa.
5
No leakage is permitted. If a leakage occurs refer to the table below.
Leakage at Fault with
Diffuser jets Needle valve Leakage in impulse tube Pump diaphragm Ventilation hole on metering unit. Control diaphragm
Fig 38
English – 39
Repair instructions
Assemble on the saw
1. Press the carburettor down towards the parti­tion wall. Make sure that it gets into the correct position.
2. Fit the lter holder by hooking the choke con­trol into the choke lever (A).
3. Hook on the rubber mountings. Insert and tighten the screws.
4. Insert the return hose (B) into its position in the lter holder.
5. Press on the fuel diaphragm (D). Fit the suc­tion hose (C) and return hose (B).
Fig 39
6. Hook in the throttle actuator rod into the carbu­rettor. Thread the handle holder into the throttle actuator rod (A). Push the rod forwards so that it can be inserted into the handle part.
7. Push down the handle holder into the lter holder (see gure 42).
8. Assemble the air lter and cylinder cover.
9. Mount the handle holder.
Fig 40
Fig 41
40 – English
Fig 42
Carburettor adjustment Conditions during adjustment
The air lter should be clean and the cylinder cover tted when adjustments are made. Ad­justing the carburettor with a dirty air lter will give a too lean fuel mixture the next time the air lter is cleaned. This can result in serious damage to the engine.
Mount, for this model, approved bar and chain combination (see Technical data in the Operator's Manual).
CS 2240/S 16"
The chain should not be tensioned more than that it remains ~ 0,2 inches to the bar.
(See gure 43)
Replacement of the H-needle or complete car­burettor
1. Carefully screw the new H-needle to the bot­tom and turn it anticlockwise ”A” turns.
Repair instructions
Fig 43
CS 2240/S A = 2
2. Start the engine. If necessary, adjust the idling speed with the T-screw until the chain stops.
3. Adjust the H-needle to give a top speed of ”B” rpm. Use a tachometer.
CS 2240/S B = 12500-13 000, speed limitation
Use screwdriver 530 03 55-60.
4. Let the engine run at ”B” rpm ~ 1 minute, until warm.
Replacement of the L-needle
1. Screw the new L-needle to the bottom and
then turn it counterclockwise ”D” turns.
CS 2240/S D = 2,5
(See gure 44)
Fig 44
L
H
T
English – 41
Repair instructions
A
7.16 Tank unit
WARNING! The fuel used in the chain saw has
the following hazardous properties:
1. The fluid and its vapour are poisonous.
2. Can cause skin irritation.
3. Is highly inflammable.
Dismantling
1. Drain the fuel from the tank.
2. Dismantle the cylinder cover, bar and chain. See the Operator's Manual.
3. Unhook the throttle actuator rod (G) from the carburettor (see gure 45).
4. Dismantle the fuel hose (B) and the fuel pump return hose (D) (see gure 45).
5. Remove the screws. (A). Loosen the handle (see gure 46).
6. Dismantle the fuel tank.
Fig 45
NOTE! Exercise care so that the fuel hose and
throttle cable are not damaged.
7.17 Venting the fuel tank
The two-way valve (C) has the following properties (see gure 47):
• Controlled opening pressure in both directions,
which prevents a positive pressure or a vacuum developing in the fuel tank and impairing engine performance. This also prevents fuel leakage.
• Opening pressure outward 100–450 mbar.
• Opening pressure inward (vacuum) max.
70 mbar. (2 positions)
Test Opening pressure outward:
1. Open the ller cap and let the cap remain open
during the entire test. Drain the fuel from the tank.
2. Connect the pump, ref. no. 531 03 06-23, to
the tank valve. (C)
3. Switch the pump to vacuum mode.
4. After pumping the indicator should be between
10–45 kPa.
Opening pressure inward:
1. Open the ller cap and let the cap remain open
during the entire test. Drain the fuel from the tank.
2. Connect the pump, ref. no. 531 03 06-23, to
the tank valve. (C)
3. Switch the pump to pressure mode.
Fig 46
Fig 47
3xA
2xE
A
4. After pumping the indicator should stop at max.
7 kPa.
42 – English
Assembly
1. If the throttle lock has been removed, this must be assembled before the tank unit and engine unit are assembled.
2. Lift the engine unit above the tank unit and insert the fuel hose (in J), return hose (in H) in the bottom of the carburettor compartment (see gure 48).
3. Fit the handle with the screws (A). Tighten the screws with the torque set out in the service data (see gure 46).
4. Fit the fuel hose (B) and fuel pump return hose (D) on the carburettor (see gure 45).
5 Mount the throttle actuator rod (see gure 45).
6 Assemble the cylinder cover, bar and chain.
See the Operator's Manual.
7.18 Vibration damping system
Repair instructions
Fig 48
Dismantling
1. Dismantle the following parts:
Bar and chain. See the Operator's Manual.
Cylinder cover. See the Operator's Manual.
Tank unit and handle.
2. Dismantle the spring on the cylinder with the help of a 5 mm allen key (see gure 49).
3. Dismantle the springs on the tank unit with the help of a 5 mm allen key (tool 502 50 18-01) (see gure 50).
Cleaning and inspection
Clean and inspect all parts.
Assembly
1. Assemble the springs on the cylinder with the help of a 5 mm allen key (tool 502 50 18-01).
Note! Springs with a greater resistance are av-
ailable, but should only be used together with a longer bar. See illustrated part list for spare part number.
2. Assemble the following parts:
Fig 49
Fig 50
Tank unit and handle.
Cylinder cover. See the Operator's Manual.
Bar and chain. See the Operator's Manual.
English – 43
Repair instructions
7.19 Replacing the fuel filter
NOTE! Do not use knurled pliers to disconnect or
reconnect the fuel hose. This could dam­age the hose and lead to leakage or frac­ture.
1
First remove the old fuel lter from the tank unit using special tool 502 50 83-01.
2
Pull the fuel hose (B) out of the tank unit and pull off the lter.
3
Fit the new fuel lter (A) and feed the fuel hose back into position.
7.20 Replacing the fuel hose/ return hose
The fuel hose is moulded and can only be removed from outside of the fuel tank. Use suitable pliers with a plain cutting face and loosen the hose (B) (see gure 45) from the fuel tank. Align the cut-out against the plastic pin when assembling. Replace the return hose when required.
Fig 51
7.21 Replacing the air-purge
Dismantling
1. Dismantle the cylinder cover and the air lter.
2. Loosen the suction hose (C) and return hose
from the fuel pump (see gure 31).
3. Unsnap the fuel pump from the lter holder.
Assembling
1. Fit the return hose on the fuel pump.
2. Snap the purge into the lter holder (see gure
51).
4. Assemble the air lter and cylinder cover.
Fig 52
44 – English

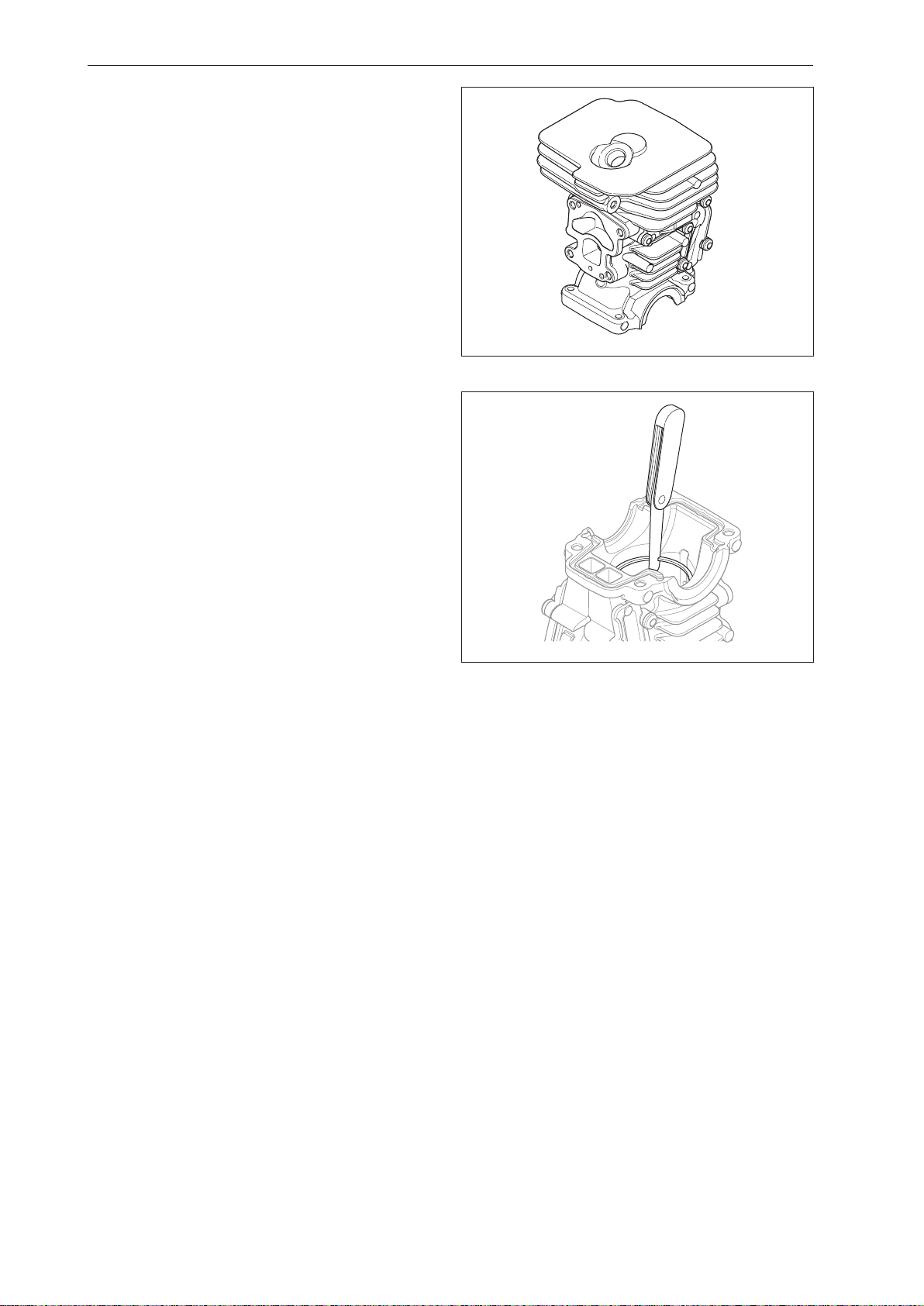

7.22 Piston and cylinder – removal
1
Remove:
cylinder cover
carburettor (see “Carburettor – removal”)
silencer
spark plug
fuel unit
2
Undo the four cylinder bolts from the underside and lift the cylinder off carefully (see gure 52).
Repair instructions
Fig 53
3
Cover the opening in the crankcase (see gure 54).
4
Remove the circlips from the ends of the gudgeon pin and press it out. Then lift off the piston (see gure 53 and 54).
5
Remove the little end bearing (see gure 54).
If replacing the cylinder:
Remove the intake manifold, see “Air intake sys­tem – removal”.
Fig 54
Fig 55
Cleaning and inspection
Clean all the components, scraping off all traces of old gasket and carbon from the following places:
Piston crown
Top of the cylinder bore
Cylinder exhaust port
Decompression valve channel
Cylinder base and/or crankcase
(see gure 56)
Fig 56
English – 45
Repair instructions
Check the following:
The surface coating of the cylinder is not worn through, especially in the upper part of the cylinder.
The cylinder is free from score marks and areas of wear.
The piston is free from score marks. Small scratches can be polished out with ne emery paper.
The piston ring is freely moving in its groove.
(see gure 57)
Measure piston ring wear. This should not
exceed 1 mm (see gure 58). Use the piston to push the piston ring for correct alignment.
The needle roller bearing is undamaged.
The intake manifold is undamaged.
• That the air hoses and impulse hose are unda-
maged.
Pressure test the decompression valve.
Fig 57
Fig 58
46 – English
A
B
Faults and causes Score marks on the piston (A)
1. Incorrect carburettor setting. Too high over­speed.
2. Too low octane fuel.
3. Too low or incorrect oil in the fuel.
Carbon build-up (B)
1. Incorrect carburettor setting. Too low over­speed.
2. Too much or incorrect oil in the fuel.
Piston ring breakage
1. Excessive engine speed.
2. Piston ring worn out.
3. Oversized piston ring groove.
(See gure 59)
7.23 Piston and cylinder – refitting
Repair instructions
Fig 59
1
Lubricate the little end bearing with two-stroke oil and insert it in the connecting rod (see gure 60).
2
Fit the piston with the arrow pointing towards the exhaust port. Push the gudgeon pin in and t the
circlips. NOTE! Use new wire fuses (see gure 60).
3
Fit the intake manifold on the cylinder, with insula­ting plate (4 screws).
4
Lubricate the piston ring and piston with two-stroke oil.
5
Fit new cylinder base gaskets. Lower the cylinder over the piston carefully.
6
Fit the cylinder bolts, tightening them in diagonal pairs to a torque of 13–15 Nm.
Fig 60
NOTE! It is very important that there are no leaks
in the inlet system, otherwise the engine may seize.
Fig 61
English – 47
Repair instructions
Inlet manifold
The intake system has two intakes.
1. The lower intake leads the fuel and air mixture from the carburettor to the cylinder.
2. The upper intake leads air to the cylinder.
Assembling the intake system 1
Mount the intake manifold (A) and the partition walls (B and C) on the cylinder using tools 502 50 87-01 (see gure 62).
Fig 62
48 – English
7.24 Cylinder – pressure testing
1
Remove:
cylinder cover
carburettor
spark plug
2
Mount cover plate 502 54 48-02 (see gure 63).
Repair instructions
3
Loosen the screws on the mufer and press the rubber sheet 502 54 11-02 between the mufer and cylinder. Tighten the top two mufer screws (see gure 64).
4
Fit the pressure testing spark plug 503 84 40-02 and connect the pressure testing tool 531 03 06-23 (see gure 64).
5
Pump the pressure up to 80 kPa (0.8 bar). Wait 30 seconds. The pressure should not be less than 60 kPa (0.6 bar). Remove the cover plates from the silencer and carburettor, tighten the bolts to the specied torque. Remove the pressure test nipple 503 84 40-02 and ret the spark plug.
WARNING! After pressure testing the cylinder, check that the inlet manifold is seated correctly, otherwise the saw may be damaged.
Fig 63
Fig 64
Fig 65
English – 49
Repair instructions
7.25 Crankshaft complete - dismantling
1
Remove the following:
• chain and bar
• clutch cover
• cylinder cover
• starter assembly*
• centrifugal clutch*
• carburettor*
• silencer*
handle system
• hand guard
• piston and cylinder*
* See special instructions.
2
Lift the crankshaft completely out of the crankcase (see gure 66).
Fig 66
7.26 Crankshaft bearings – replacement
Remove:
The crankshaft complete from the crankcase.
1
Pull the crankshaft bearing off of the crankshaft using a bearing puller (see gure 67).
2
Place a new bearing on the shaft and push into position using tool 502 50 30-22 (see gure 68).
Fig 67
50 – English
Fig 68
7.27 Crankshaft complete – reassembly
1
Fit the crankshaft complete in the crankcase.
Ret the following parts:
piston and cylinder*
handle system
• hand guard
silencer*
carburettor*
centrifugal clutch*
starter assembly*
cylinder cover
clutch cover
chain and bar
* See special instructions.
Repair instructions
7.28 Repairing damaged threads
A repair kit, 503 27 33-01, is available for repairing damaged threads.
First drill out the hole using: 6,1 mm drill bit for plastic crankcase
Then screw in the thread insert using a suitable bolt and spanner.
This type of thread insert is best suited for use in plastic and magnesium, but not for repairing threads in aluminium. In that case use a helicoil insert with metric screw (see gure 69).
Fig 69
English – 51
Repair instructions
7.29 Replacing the bar bolt
Replacing the front bar guide.
1
Drain the oil tank.
2
Knock through the old guide bar bolt so that it falls into the oil tank.
3
Remove the bolt from the oil tank.
4
Secure steel wire to the outer part of the bar bolt (A), thread the steel wire through the oil tank and out through the bolt hole in the crankcase (see gure 70).
5 Pull the steel wire so the bolt comes out of its hole (see gure 71).
Fig 70
6
Check that the bolt's square head ts in the washer (D) which is positioned in the cut-out in the crankcase.
7
Pull out the bar bolt with its nut. Place a spacer between the nut and crankcase (see gure 71).
8
Rell with chain oil.
Replacing the rear bar guide 1
Pull out the bar guide (C) with the help of slip-joint pliers (see gure 70).
2
Fit the bar guide with the help of a hammer.
Fig 71
52 – English
Troubleshooting
8 Troubleshooting
Contents
8.1 Troubleshooting ..............................................................................................................54
8.2 Troubleshooting methods ...............................................................................................55
English – 53
Troubleshooting
8.1 Troubleshooting
The various faults that can affect a chainsaw are divided into four groups. In each group the likely symptoms are given on the left and possible causes are listed on the right. The most likely faults are given rst, and so on.
Starting
Idling (low rpm) (cont.)
Difculty starting
Carburettor leaking fuel
Flooding when engine not running
Adjust L screw Air lter blocked Choke not working Worn choke pivot Worn choke valve Fuel lter blocked Fuel line blocked Piston ring seized Blocked impulse channel
Loose or faulty fuel pipe Hole in diaphragm Worn needle valve Needle valve assembly sticking Needle valve set too high Leak in metering system (air or fuel) Loose cover on carburettor pump side
Worn needle valve Needle valve set too high Needle valve assembly sticking
Idles when L screw closed
Idling uneven
Worn needle valve Leaking control diaphragm/cover plate Needle valve assembly sticking Worn needle valve lever Faulty diffuser jet
Fuel lter blocked Fuel line blocked Leaking air intake hose (rubber) Loose carburettor mounting bolts Worn throttle valve pivot Loose throttle valve screw Worn throttle valve Needle valve assembly sticking Leak in metering system (air or fuel) Metering system centre knob is worn Hole in diaphragm Leaking control diaphragm/cover plate Crankcase leaking
Idling (low rpm)
Will not idle
Idling too rich
Adjust L screw Leaking air intake hose (rubber) Loose carburettor mounting bolts Loose or faulty fuel hose Fuel lter blocked Fuel line blocked Fuel tank vent blocked Throttle valve pivot stiff Throttle pushrod sticking Defective throttle return spring Bent throttle stop Faulty diffuser jet
Adjust L screw Worn needle valve Needle valve set too high Worn needle valve lever Leaking control diaphragm/cover plate Needle valve assembly sticking
L screw requires constant adjust­ment
Too much fuel at idling
Fuel line blocked Needle valve set too high Needle valve assembly sticking Leak in metering system (air or fuel) Leaking control diaphragm/cover plate Faulty diffuser jets Crankcase leaking
Needle valve set too high Needle valve assembly sticking Metering system damaged Worn needle valve Leaking control diaphragm/cover plate Metering system incorrectly assembled
54 – English
Troubleshooting
High rpm
Will not run at full throttle
Low power
Will not “four­stroke”
Adjust H screw Blocked air lter Blocked fuel tank vent Blocked fuel lter Fuel line blocked Loose or damaged fuel hose Impulse channel leaking Impulse channel blocked Loose cover on carburettor pump side Faulty pump diaphragm Leaking air intake hose (rubber) Loose carburettor mounting bolts Needle valve set too low Metering system damaged Metering system incorrectly assembled Leaking control diaphragm/cover plate Needle valve assembly sticking Blocked silencer
Adjust H screw Blocked fuel tank vent Blocked fuel lter Impulse channel leaking Impulse channel blocked Loose cover on carburettor pump side Faulty pump diaphragm Blocked air lter Needle valve assembly sticking Leak in metering system (air or fuel) Metering system incorrectly assembled Loose diaphragm rivet Hole in diaphragm Leaking control diaphragm/cover plate
Blocked fuel tank vent Blocked fuel lter Fuel line blocked Loose or damaged fuel hose Impulse channel leaking Impulse channel blocked Loose cover on carburettor pump side Faulty pump diaphragm Leaking air intake hose (rubber) Loose carburettor mounting bolts Needle valve set too low Leak in metering system (air or fuel) Metering unit incorrectly assembled Loose diaphragm rivet Hole in diaphragm Leaking control diaphragm/cover plate
Acceleration och retardation
Does not accelerate
Engine stalls when throttle released
Over rich acceleration
Adjust L screw Adjust H screw Blocked air lter Blocked fuel tank vent Blocked fuel lter Fuel line blocked Loose or damaged fuel hose Impulse channel blocked Loose cover on carburettor pump side Faulty pump diaphragm Leaking air intake hose (rubber) Loose carburettor mounting bolts Needle valve set too low Metering system incorrectly assembled Needle valve assembly sticking Faulty diffuser jets Blocked silencer
Adjust L screw Adjust H screw Faulty pump diaphragm Needle valve set too high Needle valve assembly sticking Faulty diffuser jets
Adjust L screw Adjust H screw Blocked air lter Faulty pump diaphragm Faulty diffuser jets
8.2 Troubleshooting methods
In addition to the faults described in the above table, trouble shooting can be carried out on specic components or sub-systems of the chainsaw. The various procedures are described in the relevant chapters, see the contents page, as follows:
Checking the operation of the chain brake
Measuring the resistance of the stop plate
Pressure testing the carburettor
Pressure testing the decompression valve
Pressure testing the cylinder
English – 55
510 16 77-26
2009W39
Loading...
